LOCALIZATION WITH DYNAMIC MOTION MODELS

Determining Motion Model Parameters Dynamically in Monte Carlo Localization

Adam Milstein

Department of Computer Science, University of Waterloo, Waterloo, Ontario, Canada

Tao Wang

Department of Computing Science, University of Alberta, Edmonton, Alberta, Canada

Keywords: Mobile Robots, Localization, Machine Learning.

Abstract: Localization is the problem of determining a robot’s location in an environment. Monte Carlo Localization

(MCL) is a method of solving this problem by using a partially observable Markov decision process to find

the robot’s state based on its sensor readings, given a static map of the environment. MCL requires a model

of each sensor in order to work properly. One of the most important sensors involved is the estimation of

the robot’s motion, based on its encoders that report what motion the robot has performed. Since these

encoders are inaccurate, MCL involves using other sensors to correct the robot’s location. Usually, a

motion model is created that predicts the robot’s actual motion, given a reported motion. The parameters of

this model must be determined manually using exhaustive tests. Although an accurate motion model can be

determined in advance, a single model cannot optimally represent a robot’s motion in all cases. With a

terrestrial robot the ground surface, slope, motor wear, and possibly tire inflation level will all alter the

characteristics of the motion model. Thus, it is necessary to have a generalized model with enough error to

compensate for all possible situations. However, if the localization algorithm is working properly, the result

is a series of predicted motions, together with the corrections determined by the algorithm that alter the

motions to the correct location. In this case, we demonstrate a technique to process these motions and

corrections and dynamically determine revised motion parameters that more accurately reflect the robot’s

motion. We also link these parameters to different locations so that area dependent conditions, such as

surface changes, can be taken into account. These parameters might even be used to identify surface

changes by examining the various parameters. By using the fact that MCL is working, we have improved

the algorithm to adapt to changing conditions so as to handle even more complex situations.

1 INTRODUCTION

Localization is the problem of determining a robot’s

accurate location in an environment based on

inaccurate sensor information. For most complex

tasks, a robot must know its current location before

it can perform any useful actions. In fact, a robot

needs to know its current location in order to find a

specific subsequent location where it needs to

perform an action. Effective localization is

fundamental to most mobile robot applications. The

problem of localization arises from the fact that all

physical sensors are inaccurate. If the encoders on a

robot gave the exact distance moved without error,

then there would be no localization problem. After

any motion, the robot would be at the location given

by the encoders. Unfortunately, no physical sensors

are perfect. Robots commonly have some type of

range sensor which is used together with a map of

the environment to determine the actual motion. Of

course, range sensors are also prone to error.

Localization is the problem of compensating for all

of these errors and producing an accurate position.

One common algorithm for localization is Monte

Carlo Localization (MCL) (Thrun et al 2005). MCL

combines various sensor models and a map of the

environment, using a recursive Bayes filter to

estimate the belief state of the robot’s location.

Obviously, the quality of these models is important.

Although MCL is robust to some errors in the

120

Milstein A. and Wang T. (2006).

LOCALIZATION WITH DYNAMIC MOTION MODELS - Determining Motion Model Parameters Dynamically in Monte Carlo Localization.

In Proceedings of the Third International Conference on Informatics in Control, Automation and Robotics, pages 120-127

DOI: 10.5220/0001204501200127

 SciTePress

models and map, the combination of different errors

can cause it to fail.

Since most of the time MCL works properly,

finding the correct localization for the robot, it is

possible to correct various errors in the models to

allow MCL to converge to a correct solution even

more accurately. Although improvements are

unnecessary when the algorithm is already working,

by making corrections the errors should not build up,

and future situations may be easier to solve

correctly. Since minor errors in MCL can combine

to produce problems, reducing minor errors when

they have no impact prevents those same errors from

building up with other errors to cause localization

failures.

One situation where reducing minor errors is

critical is in the case of global localization. This is a

special case of localization where the robot’s starting

position is unknown. In this case, the entire space

must be searched and minor errors can easily cause

global localization to fail. If some of these minor

errors can be removed during ordinary execution,

then global localization in the future may be easier.

It has already been demonstrated that the static

map of the environment required by MCL can be

updated during ordinary execution to accommodate

changes in the environment (Milstein, 2005). In this

article, we demonstrate that it is also possible to

update the parameters of the motion model during

execution of MCL to provide a more accurate idea

of how the robot moves through the environment. In

general, a single, simplified, motion model is created

that reflects some idea about how a robot moves.

This model is necessarily a generalization because

the robot’s motion is effected by various changing

situations, such as the surface it moves on, and

possibly the power of the batteries or the inflation

and wear on the tires. While all of these situations

could be monitored and manually compensated for,

it would require an enormous amount of work to

create a motion model that reflected all of these

different states. It is also impossible to predict all

possible circumstances, so such a complex model

would be invalidated by any unanticipated change in

conditions. By automatically updating the motion

model according to the observations, it is possible to

optimize the model to any situation, even if that

situation has not been predicted in advance. As the

model is updated, errors in MCL due to the motion

model are reduced, leaving greater tolerance for

errors caused by other factors.

2 BACKGROUND

Monte Carlo Localization uses models of various

sensors, together with a recursive Bayes filter, to

generate the belief state of a robot. In fact, MCL is a

specific instance of a POMDP. A standard form of

MCL uses a motion model to predict the robot’s

motion together with a sensor model to evaluate the

probability of a sensor reading in a particular

location. The sensor model necessarily includes a

static map of the environment. The algorithm can be

applied to virtually any robot with any sensor

system, as long as these two models can be created.

One common implementation where MCL is very

successful is on a wheeled robot using a range

sensor such as a laser rangefinder. One benefit of

this combination is that the map and location used

by the algorithm are in a human readable format.

Although we give the general algorithm in the

following sections, which should be applicable to

other robots, where application specific details are

required, we assume the type of robot as described.

2.1 Recursive Bayes Filter

MCL is an implementation of a recursive Bayes

filter. The posterior distribution of robot poses as

conditioned by the sensor data is estimated as the

robot’s belief state. A key detail of the algorithm is

the Markovian assumption that the past and future

are conditionally independent given the present. For

a robot this means that if its current location is

known, the future locations do not depend on where

the robot has been. In virtually any environment this

is the case, so making the assumption is reasonable

in general.

To produce a recursive Bayes filter, we

represent the belief state of the robot as the

probability of the robot’s location conditioned by the

sensor data, where sensors include odometry.

(1)

represents the robot’s position at time t, z

the

robot’s sensor readings at time t and u

is the motion

data at time t. To simplify the subsequent equations

we use the notation that a

= a

, …, a

While this equation is a good representation of

the problem, it is not much use since it can not be

calculated as is. By applying a series of

probabilistic rules, together with the Markovian

assumption, equation 1 is factored into:

(2)

Obviously, p(x

t-1

| z

t-1

, u

t-1

) is Bel(x

t-1

) giving us

the recursive equation necessary for a recursive

),...,,,...,,|()(

0101

uuuzzzxpxBel

tttttt −−

∫

−

−−

),|(),|()|()(

ttttttt

uzxpuxxpxzpxBel

LOCALIZATION WITH DYNAMIC MOTION MODELS - Determining Motion Model Parameters Dynamically in

Monte Carlo Localization

121

Bayes filter. η is a normalization constant that can

be calculated by normalizing over the state space.

p(z

| x

) is the sensor model, representing the

probability of receiving a particular sensor reading

given a robot’s location. Finally, p(x

| x

t-1

, u

) is the

motion model. It is the probability that the robot

arrives at location x

given that it started at location

t-1

and performed action u

. The sensor and motion

model are representations of the physical

components of the robot and must be determined

experimentally for each robot and sensor device.

2.2 Particle Approximation

It would appear that, given the two models, equation

2 is all that is necessary to perform localization with

MCL. Unfortunately, a problem occurs with the

integral. The equation requires integrating over the

entire state space. Although we can evaluate the

models at any point in the space, there is no closed

form to the integral. Further, the simplest kind of

robot moves in a continuous, 3 dimensional state

space with an x and y location together with an

angle of rotation. Calculating the integral over this

space is impossible, especially for a real time

algorithm. In order to solve this problem, we

approximate the continuous space with a finite

number of samples. The integral over the space

becomes a sum over the finite number of particles.

Of course, approximating the space results in a

certain amount of error when low probability

locations are not represented. If the robot is really at

one of these locations it can never be localized.

However, if the number of particles is well chosen

MCL works well in most situations.

2.3 Algorithm

As the robot moves, it reports its odometry and

sensor data to the MCL algorithm. After each move

each particle is moved randomly according to the

motion model, based on the motion actually

reported. The particles are then updated with a

weight determined by the sensor model for the

particle’s location. Finally, the particles are

resampled by repeatedly choosing samples

randomly, with replacement, from the current set,

according to the weights assigned by the sensor

model.

The effect of resampling is to replace the

weight of the individual particles with the number of

particles at that location. On the robot’s next move

the particles at a high probability location will

spread out as they are moved randomly according to

the motion model, with at least one landing in the

robot’s new location. Then the resampling will

cause more particles to appear at the correct

location, while incorrect locations die out.

Assuming that the models and map are accurate,

MCL will correctly track the robot’s changing

location. Various parameters can be tuned manually

to adjust the rate of convergence and the behaviour

of the models. Once the belief over the robot’s

location is generated, a single location for the robot

can be found by looking at the mean of the particles.

2.4 Motion Model

The motion model p(x

| x

t-1

, u

) is a critical part of

MCL. Unlike the sensor model, which gives the

probability of getting a specific sensor reading at a

particular location, it is necessary to sample from the

motion model. Given a starting location and a

reported motion (x

t-1

and u

), MCL requires that we

be able to choose a final location randomly

according to the motion model. This requirement

precludes us from using any motion model that is

very complex. In fact, most motion models are a

combination of simple Gaussian distributions. For a

holonomic wheeled robot the most common

representation is with two kinds of motion leading to

three kinds of error. Each movement of the robot is

represented as a linear movement followed by a

stationary turn. Although a particular robot

probably does not follow these exact motions, if we

break the robot’s motion into small increments we

can use them as an approximation.

Each translation of the robot is approximated by a

Gaussian where the mean is the reported distance

and the variance is the reported distance multiplied

by a parameter. This representation reflects the fact

that the range error increases the further the robot

travels. Rotation is also represented by a Gaussian.

The mean is again the reported angle, but the

variance is a parameter multiplied by the angle

turned, added to another parameter times the

distance moved. The variance takes into account

both turn error, which increases as the robot turns,

and drift error. Drift error is defined as the robot

turning when it tries to go straight. Obviously, it

increases the further the robot has travelled.

Although it would seem that drift error should be

minor, if it occurs at all, this is not in fact the case.

Many holonomic wheeled robots use a system where

the difference in motion between the drive wheels is

used to turn the robot. In such robots, moving

forward is accomplished by turning both wheels the

same amount, while turning is done by moving the

wheels different amounts. It is very likely that,

while moving forward, the wheels turn at slightly

different rates, causing the robot to rotate. The three

parameters involved in the model are often given as

ICINCO 2006 - ROBOTICS AND AUTOMATION

122

for range error, k

for turn error, and k

for drift

error.

These two Normal distributions together

represent the motion model for many common

robots. However, the algorithms described in this

paper should work for any model, provided it is

possible to sample from it. In general, some

collection of Gaussians works well, since they are

often good approximations to a physical system

while at the same time being easy to sample from

and optimize.

3 DYNAMIC MOTION

The MCL algorithm depends on certain static

parameters that must be manually tuned for each

implementation. In particular, the sensor model

relies on a static map of the environment, while the

motion model requires parameters that reflect the

specific robot’s motion in the particular

environment. Since most interesting problems occur

in dynamic environments, or environments with

different conditions in different areas, these static

parameters are only a broad approximation.

Fortunately, MCL is robust to errors in the map and

motion model and will successfully localize a robot

as long as these parameters are a reasonable

representation. However, the more error there is in

the static parameters, the less tolerance the algorithm

has for errors from other sources. For example, if

the environment changes so that the map becomes

less accurate, perhaps because of furniture being

moved, then an error in the motion model might put

the robot in the wrong location. If the changes in the

map make an incorrect location look correct to

MCL, then there is far less tolerance for the motion

model to predict incorrect locations. Either of these

errors might be recoverable on their own, but both

together could cause a localization failure. If the

motion model is correct, then the robot’s next

location will be predicted correctly, and the fact that

there is a similar location somewhere else won’t

matter. Similarly, if the map is accurate, then an

incorrect prediction from the motion model will be

low probability and will die out in favour of the

correct location. As errors in any static parameter

build up over time, MCL’s tolerance towards

additional errors is reduced until it becomes

necessary to manually correct the parameters.

We already know that if MCL is successfully

localizing the robot it is possible to automatically

correct the map of the environment (Milstein, 2005).

When the robot’s location is known, any differences

between its sensor readings and the map are

probably caused by errors in the map, rather than

errors in the sensors. This is especially true if the

readings are repeated over time. It is possible to use

sensor readings taken when the robot is localized to

correct the map. With this modification the static

map becomes more accurate over time, instead of

less accurate. Of course, it requires several

observations to update the map, since a real

environment might have transitory objects which

should not be in the map, such as people. Thus,

even with a dynamic map, there are still errors that

will reduce MCL’s tolerance to other problems.

3.1 Motion Model Error

On each step of execution, MCL uses the motion

model to predict a new location for the robot, and

then uses the sensor model to correct that location.

Before the resampling step, the mean of the particles

represents the location determined by the motion

model. After resampling, the mean represents the

location of the robot according to the algorithm.

This means that a side effect of executing MCL is a

list of errors in the motion model. By recording

these values, we can dynamically generate a set of

errors that can be processed to correct the model.

Since each correction comes attached to a particular

location, we can even record in what part of the

environment the error occurred.

Given a set of errors, it would be quite easy to

determine the variance of a Gaussian distribution,

however, with the Gaussian motion model we are

using it is not quite so simple. The key realization is

that we are not trying to calculate the variance, we

are trying to find a parameter of the variance.

Remember that the motion model for a differential

drive robot depends on three parameters, range error,

turn error, and drift error, represented as (k

, k

If we let r be the distance travelled and θ be the

distance turned, while r

and θ are the estimations of

these values returned by the motion model, then the

distributions become:

(3)

which are both single valued Gaussians. From MCL

we are given a set of {r, θ, r

, θ} values and we wish

to optimise the models in the parameters {k

, k

3.2 Variance Parameters

Because we wish to determine parameters to the

variance, instead of the variance itself, no standard

technique for estimating Normal distributions will

work. In fact, the problem is no longer a single

distribution, but rather a continuous set of

distributions for each value of (r

, θ). Fortunately,

the problem can be solved if we treat it as a general

),(),,( rkkNrkrNr

•+•

•

LOCALIZATION WITH DYNAMIC MOTION MODELS - Determining Motion Model Parameters Dynamically in

Monte Carlo Localization

123

equation, instead of specifically as a probabilistic

distribution. The Gaussian equation for r becomes:

(4)

Since we want to have an

accurate model, we want the value of k

that

maximizes the probability. Given the set of data

produced by MCL, we would like to maximize the

probability obtained over that entire sample space.

(5)

Of course, (5) is a little unwieldy to calculate, but a

standard trick is to notice that if we maximize p(r)

we also maximize log(p(r)). Thus we are left with:

(6)

which is quite straightforward to maximize using

virtually any nonlinear technique. A similar process

for θ gives us a slightly more complicated equation

which is just as easy to solve.

(7)

Using an efficient nonlinear optimisation

algorithm, we can maximize these equations over

the parameters k

, k

for sets of data obtained by

MCL in real time. Although the functions are not

concave in these parameters, we have good starting

parameters available, since MCL is already using a

motion model. The current parameters make a good

starting point for the optimization. The new

parameters can be used immediately, while the data

is still collected to further refine them.

3.3 Algorithm

Now that we have a method to update the motion

model dynamically, we need to integrate it with

MCL, hopefully without significantly affecting the

runtime. One of the benefits of MCL is that it is a

fairly low cost algorithm and it is important that we

do not make changes that significantly increase the

amount of time it takes to run. Since MCL must run

in real time, whatever processing is necessary to

update the motion model must not delay

localization. With these requirements in mind, our

dynamic motion model MCL algorithm provides a

minor alteration that allows the parameters of the

motion model to be recalculated and used.

At each MCL update step a {r, θ, r

, θ} data point

is recorded. When enough new data points are

recorded to make it worthwhile to calculate new

parameters, the equation is maximized in the

background, using whatever power is available when

localization is finished. When the maximization is

complete, the new parameters are reported to the

MCL algorithm. In fact, MCL itself is unaware of

the changing parameters, since it just runs normally.

In order to reduce the complexity of the

calculation, only the most recent set of errors are

used. When a predetermined number of corrections

are recorded, each subsequent observation causes the

oldest observation to be removed. This creates an

upper bound for the maximization routine and also

allows the dynamic model to update to changing

conditions. For example, if the robot’s tires deflate,

or water is spilled on the floor, the motion of the

robot would change. In that case, after a certain

number of updates, all of the old data would be

removed and the model would be calculated entirely

based on the changed conditions.

In order to accommodate different conditions in

different areas, data points are not stored globally

but are instead recorded by region. Each region of

the map has its own collection of data. If there are

insufficient points to calculate the parameters then

the previous parameters are used. However, once

the robot traverses an area enough that it can update

the motion model, it calculates the parameters and

stores them with the area. When it subsequently

enters the same region, it can load the specific

parameters. Any reasonable algorithm for defining

regions can be used, smaller regions will be more

accurate but will take longer to receive enough data,

while larger regions will update sooner but may

represent multiple conditions.

The results of this dynamic motion model

algorithm are a map annotated with the motion

model parameters for different regions. Aside from

changing the motion model during execution, the

map can also be used to provide additional data for

planning or analysis. For example, if a region

causes a high variance, then it might be better for the

robot to avoid that region when path planning. Also,

a significant change in variance might indicate some

kind of spill that should be dealt with. A robot

might also use the different parameters to identify

different surfaces in the environment for another

machine, perhaps planning a route that avoids

certain kinds of surface.

Although creating dynamic motion models uses

successful localization to correct errors in the model,

it does not preclude using the same data to correct

other errors. In particular, it is possible to

))(2/()(

)(

rkrr

−−

∏

−− ))(2/()(

rkrr

∑

−

−−

)(2

)(

)2log(

∑

−

+−

)(2

)(

)2)log((

rkk

θθ

πθ

ICINCO 2006 - ROBOTICS AND AUTOMATION

124

dynamically update the map of the environment as

in (Milstein, 2005), while simultaneously

dynamically updating the motion model. In fact,

using both of these together causes them both to

work better than either one alone. There is no

reason why other parameters could not also be

dynamically updated at the same time.

4 RESULTS

The dynamic motion model algorithm was tested

using a 2 wheeled Pioneer 3-DX differential drive

holonomic robot equipped with a 180 degree SICK

laser rangefinder. Data gathered by the robot over a

traversal of the environment was processed by both

the normal MCL algorithm and various

implementations of the dynamic motion model MCL

algorithm. The parameters of the motion model

were calculated by maximizing the equations as

described using Matlab’s ‘fminsearch’ function.

Dynamic map MCL (Milstein, 2005) was also used

to see if the two dynamic methods could be used

simultaneously. The results show a marked

improvement using dynamic motion models.

At first, standard MCL was used with some

default parameters for this class of robot. Although

these parameters work, they are general, high

variance parameters that have not been specifically

adapted to either the robot or the environment. With

these parameters the average error was 1.7% for

range and 4.5% for angle.

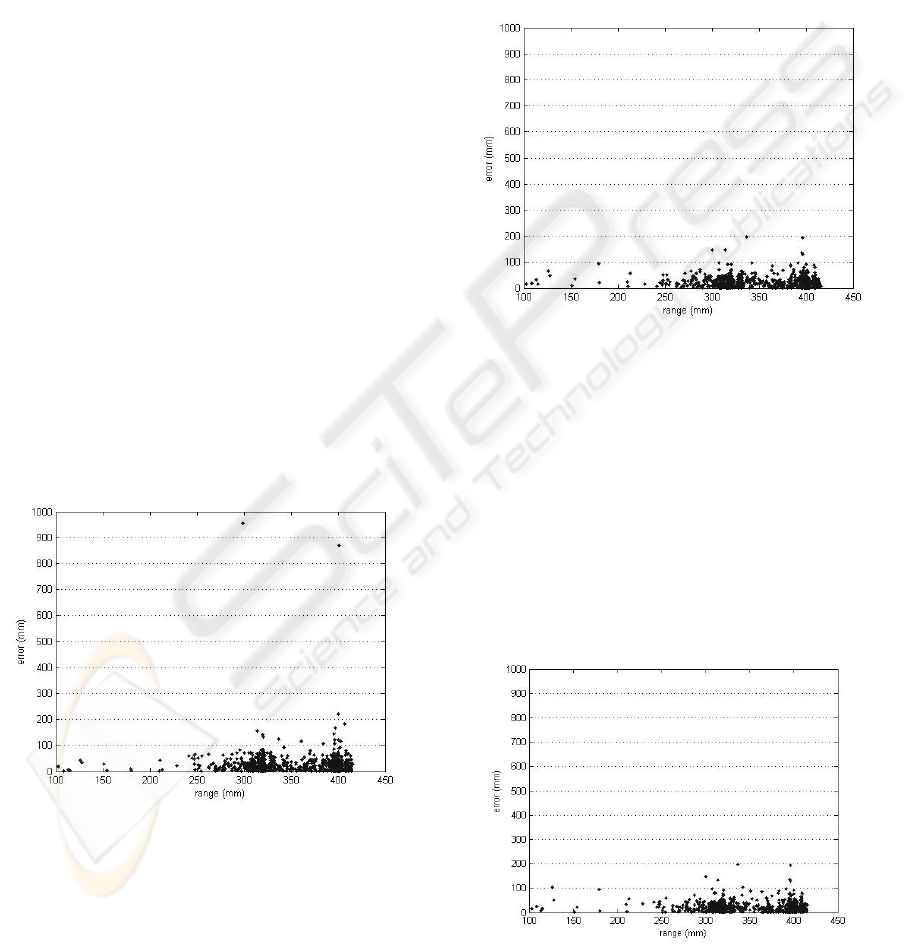

Figure 1: error vs. range for default parameters.

Figure 1 shows the error in range versus distance

moved for standard MCL. Because it is impossible

to separate the angle error caused by turning from

the angle error caused by range any graph of angle

error is not useful.

Next, the dynamic motion model algorithm was

used to calculate parameters based on the entire data

set and MCL was run with these motion model

parameters. The resulting error was 1.0% for range

and 2.9% for angle. Of course, in practice this

method is impossible, because it involves knowing

the observations that will be made before they are

actually recorded. In practice, this method can be

approximated by using a previous data set on the

same environment to calculate the parameters.

Figure 2 shows these motion parameters in action.

Figure 2: error vs. range for global optimization.

The third test involved dynamic motion models

with global data. The parameters were updated

during execution according to the preceding

localization corrections. With this method 1.2%

range error and 2.6% angle error was recorded.

Finally, the full dynamic motion model

algorithm was used. Each region of the map,

identified by the small circles, was updated with its

own data and produced its own corrections. This

technique produced an error of 1.4% for range and

2.8% for angle with characteristics as shown in

figure 3.

Figure 3: error vs. range for regional dynamic.

LOCALIZATION WITH DYNAMIC MOTION MODELS - Determining Motion Model Parameters Dynamically in

Monte Carlo Localization

125

As these results show, dynamic motion models are

better able to represent the robot’s motion, and

localization becomes more accurate. Table 1 shows

a comparison of the various methods. While all of

the dynamic methods give similar results, they are

far superior to the static motion model method that is

the base case. The particular method that is optimal

in any given situation depends on the environment,

although over the long run, the full dynamic

technique should produce the minimum error.

However, this convergence may require a large

number of traversals in order to get the necessary

number of data points for each region. Until

execution reaches this point, the other techniques

have a temporary advantage, since they require less

data.

Table 1: Results of all algorithms.

% range error % angle error

Default static 1.6592% 4.5311%

Optimal static 1.0428% 2.9509%

Global dynamic 1.2418% 2.6320%

Regional dynamic 1.3882% 2.7878%

The technique of calculating the global

optimum parameters provides very good results,

especially in an environment like this with little

change in surface. Range error especially benefits

from this technique, since it is relatively constant.

However, generating this model requires manual

collection and processing of data before execution,

which somewhat defeats the purpose of a dynamic

algorithm. The benefit is that offline processing can

handle a larger number of data points, resulting in

more accurate parameters. Of course, any changes,

such as tire pressure, will invalidate the model.

Although this technique uses part of the dynamic

algorithm, it is not truly dynamic nor is it usually a

practical method.

The choice between the two dynamic

techniques depends on the circumstances. If the

environment has different surfaces then having the

parameters change with the region provides a

benefit. If, on the other hand, the surfaces are

constant but the robot changes conditions, a globally

dynamic technique will update more quickly, since

the data points are all processed into the same

model. A situation where this is useful might be

when the robot changes its behaviour as its battery

drains. The global technique could adapt faster to

changing robot conditions, but it cannot recognize

different surfaces. Note that the regional algorithm

will eventually adapt to global conditions, but it will

require more data since each region must be

updated. The choice depends strongly on the

environment, although the regional method is more

adaptable.

These results demonstrate that adding dynamic

motion models to MCL provides a benefit to

localization. Although slightly different dynamic

techniques provide different advantages, they are all

superior to the static technique. Aside from the tests

described above, several other data sets in different

environments were examined, with similar results.

One such test involved a similar robot in a different

building where the floor was carpeted instead of

concrete. The map of the environment incorporated

a serious error that caused localization to fail for

most techniques. One corridor was actually much

shorter than it appears in the map, causing motion

along part of that corridor to have a large bias.

Because of this, the range error in the dynamic

techniques actually increases, as they increase the

variance to handle the error. Only the regionally

dynamic technique was able to successfully localize

in this environment.

Table 2: Results of all algorithms for high error data.

% range error % angle error

Default static 7.2343% 5.9671%

Optimal static 8.6733% 1.3428%

Global dynamic 9.5313% 1.4835%

Regional dynamic 10.9178% 1.7166%

Figure 4: Environment used for the tests.

5 CONCLUSION

We have derived and implemented a technique for

dynamically calculating the parameters of the Monte

Carlo Localization motion model during ordinary

execution of the algorithm. Our technique requires

very little overhead and provides a strong benefit

over the ordinary technique of using a static model

determined experimentally from a similar robot. In

fact, the most common current technique is to

estimate the model and modify it using trial and

ICINCO 2006 - ROBOTICS AND AUTOMATION

126

error until localization is successful. The problem is

that performing experiments to determine the

parameters is a difficult and laborious process.

Since the parameters of a real environment change

over time, it is usually not worthwhile to develop an

accurate model when an approximate one will still

allow MCL to function. Our dynamic motion model

technique provides a viable alternative to both these

methods, allowing an accurate model to be created

and maintained without requiring skilled user input.

Since the frequency and size of the updates can be

modified to suit the platform, there is no reason not

to use a dynamic model. Because MCL is running

properly when the dynamic algorithm is active, there

is no urgency in processing the error data into new

parameters. Thus the additional run time required

can be limited to what is available on the particular

platform. Allocating more time will result in more

frequent updates, but since the alternative is no

updates there is no reason not to use even the

slowest possible rate. In fact, very good results can

be obtained by using offline processing to determine

a new model whenever conditions change.

Although the offline method does not provide all the

benefits of our full regional dynamic algorithm, it

provides a great improvement over the default

method.

Another benefit of having dynamic motion

models is that they can be used to automatically

optimize a robot to different conditions in the

environment. This may be an important feature for a

robot that runs autonomously between different

areas. It is impractical to perform laborious

experiments to determine an optimal model for

different regions, but a general model can be

automatically refined into specific models for many

different conditions.

By reducing the error due to the motion model

in MCL, our technique provides localization with

greater resilience to errors from other causes. The

more accurate the various models are, the more

tolerance MCL has towards random events that

might otherwise cause it to fail. In some

circumstances this may be a major benefit, but even

if ordinary MCL is successful in an environment, a

more accurate model cannot harm its execution.

Since dynamic motion model MCL provides an

annotated map which includes motion model

parameters, it may be possible to use those

parameters in order to determine information about

the environment. For example, by discovering the

parameters caused by various types of surface, the

robot might be able to identify those same surfaces if

it encountered them again. Also, the motion models

might be taken into account in path planning in order

to give the robot a preference for stable surfaces.

Finally, a robot might detect a change in its

parameters and use them to identify a malfunction,

such as deflated tires. These uses for dynamic

motion models would provide additional benefits to

the algorithm, above the improvements it makes to

localization.

REFERENCES

A. Milstein. 2005. Dynamic Maps in Monte Carlo

Localization. In 18

Canadian Conference on

Artificial Intelligence.

A. Milstein, J. Sanchez, and E.Williamson. 2002. Robust

global localization using clustered particle filtering. In

AAAI-02.

D. Avots, E. Lim, R. Thibaux, and S. Thrun. A

probabilistic technique for simultaneous localization

and door state estimation with mobile robots in

dynamic environments. In IROS-2002.

Thrun, S. 2000. Probabilistic Algorithms in Robotics.

School of Computer Science, Carnegie Mellon

University. Pittsburgh, PA.

M. Montemerlo, S. Thrun, D. Koller, and B. Wegbreit.

2002. FastSLAM: A factored solution to the

simultaneous localization and mapping problem. In

AAAI-02.

Thrun, S.; Fox, D.; Burgard, W.; and Dellaert, F. 2001.

Robust Monte Carlo Localization for Mobile

Robots. Artificial Intelligence Magazine.

J.Liu and R. Chen. 1998. Sequential monte carlo

methods for dynamic systems. Journal of the

American Statistical Association 93:1032-1044.

Borenstein, J.; Everett, B.; and Feng, L. 1996. Navigating

Mobile Robots: Systems and Techniques. A.K.

Peters, Ltd. Wellesley, MA.

Thrun, S.; Fox, D.; and Burgard, W. 2000. Monte

Carlo Localization with Mixture Proposal

Distribution. In Proceedings of the AAAI National

Conference on Artificial Intelligence, Austin, TX.

Thrun, S. 2002; Particle Filters in Robotics. In

Proceedings of Uncertainty in AI 2002.

M. I. Jordan, Z. Ghahramani, T. S. Jaakkola, and L. K.

Saul. In M. I. Jordan (Ed.); An introduction to

variational methods for graphical models. Learning in

Graphical Models, Cambridge: MIT Press, 1999.

Fox, D.; Burgard, W. and Thrun, S.; Markov Localization

for Mobile Robots in Dynamic Environments. In

Journal of Artificial Intelligence Research, 1999.

Hähnel, D.; Triebel, R.; Burgard, W. and Thrun, S.; Map

building with mobile robots in dynamic environments.

In ICRA, 2003.

Thrun, S.; Burgard W.; Fox, D.; Probabilistic Robotics.

Cambridge: MIT Press, 2005.

LOCALIZATION WITH DYNAMIC MOTION MODELS - Determining Motion Model Parameters Dynamically in

Monte Carlo Localization

127
