Facial SEMG for Speech Recognition

Inter-Subject Variation

Sridhar P. Arjunan

, Dinesh K. Kumar

, Wai C. Yau

and Hans Weghorn

School of Electrical and Computer Engineering, RMIT Univesity,

GPO Box 2476V Melbourne, Victoria 3001, Australia

Information technology, BA-University of Cooperative Education,

Rotebhlplatz 41,70178 Stuttgart, Germany

Abstract. The aim of this project is to identify speech using the facial muscle

activity and without audio signals. The paper presents an effective technique that

measures the relative muscle activity of the articulatory muscles. The paper has

also tested the performance of this system for inter subject variation. Three Eng-

lish vowels were used as recognition variables. This paper reports using moving

root mean square (RMS) of surface electromyogram (SEMG) of four facial mus-

cles to segment the signal and identify the start and end of the utterance. The RMS

of the signal between the start and end markers was integrated and normalised.

This represented the relative muscle activity, and the relative muscle activities of

the four muscles were classiﬁed using back propagation neural network to iden-

tify the speech. The results show that this technique gives high recognition rate

when used for each of the subjects. The results also indicate that the system ac-

curacy drops when the network trained with one subject is tested with another

subject. This suggests that there is a large inter-subject variation in the speak-

ing style for similar sounds. The experiments also show that the system is easy

to train for a new user. It is suggested that such a system is suitable for simple

commands for human computer interface when it is trained for the user.

1 Introduction

In our evolving technical world, it is important for human to have greater ﬂexibility to

interact and control our computers and thus our environment. Research and develop-

ment of new human computer interaction (HCI) techniques that enhance the ﬂexibility

and reliability for the user are important. Research on new methods of computer control

has focused on three types of body functions: speech, bioelectrical activity and the use

of mechanical sensors.

Speech operated systems have the advantage that these provide the user with ﬂexi-

bility, and can be considered for any applications where natural language may be used.

Such systems utilise a natural ability of the user. Such systems have the potential for

making computer control effortless and natural. Further, due to the very dense informa-

tion that can be coded in speech, speech based human computer interaction (HCI) can

provide richness comparable to human to human interaction.

P. Arjunan S., K. Kumar D., C. Yau W. and Weghorn H. (2006).

Facial SEMG for Speech Recognition Inter-Subject Variation.

In Proceedings of the 2nd International Workshop on Biosignal Processing and Classiﬁcation, pages 3-12

DOI: 10.5220/0001208600030012

 SciTePress

In recent years, signiﬁcant progress has been made in advancing speech recognition

technology, making speech an effective modality in both telephony and multimodal

human-machine interaction. Speech recognition systems have been built and deployed

for numerous applications. The technology is not only improving at a steady pace, but

is also becoming increasingly usable and useful. However, speech recognition technol-

ogy has three major shortcomings; (i) it is not suitable in noisy environments such as a

vehicle or a factory (ii) it is not suitable for people with speech impairment disability,

such as people after a stroke attack, and (iii) it is not suitable for giving discrete com-

mands when there may be other people in the vicinity. This paper reports research to

overcome these shortcomings, with the intent to develop a system that would identify

the verbal command from the user without the need for the user to speak the command.

The possible user of such systems would be people with disability, workers in noisy

environments, and members of the defence forces.

When we speak in noisy environments, or with people with hearing loss, the lip and

facial movements often compensate the lack of quality audio. The identiﬁcation of the

speech with lip movement can be achieved using visual sensing, or sensing of the move-

ment and shape using mechanical sensors[4] or by relating the movement and shape to

the muscle activity[2,3]. Each of these techniques has strengths and limitations. The

video based technique is computationally expensive, requires a camera monitoring the

lips and ﬁxed to the user’s head, and is sensitive to lighting conditions. The sensor

based technique has the obvious disadvantage that it requires the user to have sensors

ﬁxed to the face, making the system not user friendly. The muscle monitoring systems

have limitations of low reliability. The other difﬁculty of each of these systems is that

these systems are user dependent and not suitable for different users. This paper reports

the use of recording muscle activity of the facial muscles to determine the unspoken

command from the user.

The paper has proposed techniques to overcome some of the limitations. The paper

has evaluated such a system for its limitations, and reports the variation between differ-

ent subjects. The paper reports the development and testing of the use of using the rel-

ative contribution of the muscles when the spoken sounds are vowel-based phonemics.

The paper reports the analysis of the muscle activity with the corresponding sounds and

has identiﬁed the possible limitations and applications of such a technique with respect

to inter subject variations.

2 Theory

The aim of this research is to classify the surface recordings of the facial muscle activity

with speech. For this purpose, the ﬁrst step is to determine the role of the facial mus-

cles in the production of speech. There are number of major speech production models

that describe the mechanisms of speech productions.For the purpose of identifying the

shape of the mouth and the muscle activity with speech, it is important to identify the

anatomical details of speech production.

2.1 Articulatory Phonetics

Articulatory phonetics considers the anatomical detail of the production speech sounds.

This requires the description of speech sounds in terms of the position of the vocal or-

gans. For this purpose, it is convenient to divide the speech sounds into vowels and con-

sonants. The consonants are relatively easy to deﬁne in terms of the shape and position

of the vocal organs, but the vowels are less well deﬁned and this may be explained be-

cause the tongue typically never touches another organ when making a vowel[8].When

considering the speech articulation, the shapes of the mouth during speaking vowels

remain constant while during consonants the shapes of the mouth changes. The vowel

is stationary, while the consonant is non-stationary.

2.2 Face Movement Related to Speech

The face can communicate a variety of information including subjective emotion, com-

munitive intent, and cognitive appraisal. The facial musculature is a three dimensional

assembly of small, pseudo- independently controlled muscular lips performing a variety

of complex orfacial functions such as speech, mastication, swallowing and mediation

of motion[7]. The parameterization used in speech is usually in terms of phonemes.

A phoneme is a particular position of the mouth during a sound emission, and corre-

sponds with speciﬁc sound properties. These phonemes in turn control the lower level

parameters for the actual deformations. The required shape of the mouth and lips for

the utterance of the phonemes is achieved by the controlled contraction of the facial

muscles that is a result of the activity from the nervous system[8].

Surface electromyogram (SEMG) is the non-invasive recording of the muscle ac-

tivity. It can be recorded from the surface using electrodes that are stuck to the skin

and located close to the muscle to be studied. SEMG is a gross indicator of the muscle

activity and is used to identify force of muscle contraction, associated movement and

posture[1] . Using an SEMG based system, Chan et al[2] demonstrated that the presence

of speech information in facial myoelectric signals. Kumar et al[3] have demonstrated

the use of SEMG to identify the unspoken sounds under controlled conditions. There

are number of challenges associated with the classiﬁcation of muscle activity with re-

spect to the associated movement and posture, such as the sensitivity of the location

of electrodes, inter user variations, sensitivity of the system to variations in intrinsic

factors such as skin conductance, and to external factors such as temperature, and elec-

trode conditions. Veldhuizen et al[5] demonstrated the variation of facial EMG during

a single day and has shown facial SEMG activity decreased during the workday and

increased again in the evening.

One difﬁculty with speech identiﬁcation using facial movement and shape is the

temporal variation when the user is speaking complex time varying sounds. With the

intra and inter subject variation in the speed of speaking, and the length of each sound,

it is difﬁcult to determine a suitable window, and when the properties of the signal are

time varying, this makes identifying suitable features for classiﬁcation less robust.The

other difﬁculties also arise from the need for segmentation and the identiﬁcation of the

start and end of movement if the movement is complex. While each of these challenges

are important, as a ﬁrst step, this paper has considered the use of vowel based verbal

commands only, where there is no change in the sound producing apparatus, the mouth

cavity and the lips, and the nasal sounds can largely be ignored. Such a system would

have limited vocabulary, and would not be very natural, but would be an important step

in the evolution. In such a system, using moving RMS threshold, the temporal location

of each activity can be identiﬁed. By having a stationary set of parameters deﬁning the

muscle activity for each spoken event, this also makes the system have very compact

set of features, making it suitable for real time classiﬁcation.

2.3 Facial Muscles for Speech

When using facial SEMG to determine the shape of the lips and the mouth, there is the

issue of the choice of the muscles and the corresponding location of the electrodes. Face

structure is more complex than the limbs, with large number of muscles with overlaps.

It is thus difﬁcult to identify the speciﬁc muscles that are responsible for speciﬁc facial

actions and shapes. There is also the difﬁculty of cross talk due to the overlap between

the different muscles. This is made more complex due to the temporal variation in the

activation and deactivation of the different muscles. The use of integral of the RMS

of SEMG is useful in overcoming the issues of cross talk and the temporal difference

between the activation of the different muscles that may be close to one set of electrodes.

Due to the unknown aspect of the muscle groups that are activated to produce a sound,

statistical distance based cluster analysis and back-propagation neural network has been

used for classifying the integral of the RMS of the SEMG recordings. It is impractical

to consider the entire facial muscles and record their electrical activity. In this study,

only four facial muscles have been selected The Zygomaticus Major arises from the

front surface of the zygomatic bone and merges with the muscles at the corner of the

mouth. The Depressor anguli oris originates from the mandible and inserts skin at an

angle of mouth and pulls corner of mouth downward.The Masseter originates from

maxilla and zygomatic arch and inserts to ramus of mandible to elevate and protrude,

assists in side-to-side movements mandible. The Mentalis originates from the mandible

and inserts into the skin of the chin to elevate and protrude lower lip, pull skin into a

pout[6].

2.4 Features of SEMG

SEMG is a complex and non-stationary signal. The strength of SEMG is a good measure

of the strength of contraction of the muscle, and can be related to the movement and

posture of the corresponding part of the body. The most commonly used feature to

identify the strength of contraction of a muscle is the root mean square (RMS). RMS

of SEMG is related to the number of active muscle ﬁbres and the rate of activation, and

is a good measure of the strength of the muscle activation, and thus the strength of the

force of muscle contraction.

The preliminary study by Chan et al. has demonstrated the presence of speech in-

formation in facial EMG[2]. The timing of the activation of different groups of muscles

is a central issue to identify the movement and shape of the mouth and lips. The issue

regarding the use of SEMG to identify speech is the large variability of SEMG activity

pattern associated with a phoneme of speech. A difference in the amount of motor unit

activity was observed in one and the same muscle when different words like p, b were

spoken in the same context[1].

The vowels correspond to stationary muscle activity, the muscle activity pre and post

the vowel is non-stationary. The other issue is the variation in the inter-subject because

of variation in the speed and style of utterance of the vowel. While it is relatively simple

to identify the start and the end of the muscle activity related to the vowel, the muscle

activity at the start and the end may often be much larger than the activity during the

section when the mouth cavity shape is being kept constant, corresponding to the vowel.

To overcome this issue, this research recommends the use of the integration of the RMS

of SEMG from the start till the end of the utterance of the vowel. The temporal location

of the start and the end of the activity is identiﬁable using moving window RMS.

Another shortcoming of the use of strength of SEMG is that it is dependent on the

absolute of the magnitude of the recording, which can have large inter experimental

variation. To overcome this shortcoming, this paper reports the use of ratios of the area

under the curve of SEMG from the different muscles. By taking the ratio rather than

the absolute value, the difﬁculty due the variation of the magnitude of SEMG between

different experiments and between different individuals is overcome.

3 Methodology

Experiments were conducted to evaluate the performance of the proposed speech recog-

nition from facial EMG by measuring the inter-subject variation on the system. The

experiments were approved by the Human Experiments Ethics Committee of the Uni-

versity. Experiments were conducted where electromyography (EMG) activity of suit-

able facial muscles was acquired from the subjects speaking 3 vowels. As the muscle

contraction is stationary during the utterance, root mean square values of each of the

signals for the duration of the utterance was computed and used for further analysis.

3.1 EMG Recording and Processing

Three male subjects participated in the experiment. The experiment used 4 channel

EMG conﬁgurations as per the recommended recording guidelines[6]. A four chan-

nel, portable, continuous recording MEGAWIN equipment (from MEGA Electronics,

Finland) was used for this purpose. Raw signal sampled at 2000 samples/ second was

recorded. Prior to the recording, the male participants were requested to shave their

facial hair. The target sites were cleaned with alcohol wet swabs. Ag/AgCl electrodes

(AMBU Blue sensors from MEDICOTEST, Denmark) were mounted on appropriate

locations close to the selected facial muscles. The muscles selected were the right side

Zygomaticus Major, Masseter & Mentalis and left side Depressor anguli oris. The inter

electrode distance was kept constant at 1cm for all the channels and the experiments.

Controlled experiments were conducted where the subject was asked to speak. Dur-

ing this utterance, facial SEMG from the muscles was recorded. SEMG from Four

channels were recorded simultaneously. The recordings were visually observed, and

the recordings with any artefacts typically due to loose electrodes or movement, were

discarded.

0 5000 10000

−500

500

Channel 1

Vowel /a/

0 5000 10000

−500

500

Channel 2

0 5000 10000

−500

500

Channel 3

0 5000 10000

−500

500

Channel 4

0 5000 10000

−500

500

Vowel /i/

0 5000 10000

−500

500

0 5000 10000

−500

500

0 5000 10000

−500

500

0 5000 10000

−500

500

Vowel /u/

0 5000 10000

−500

500

0 5000 10000

−500

500

0 5000 10000

−500

500

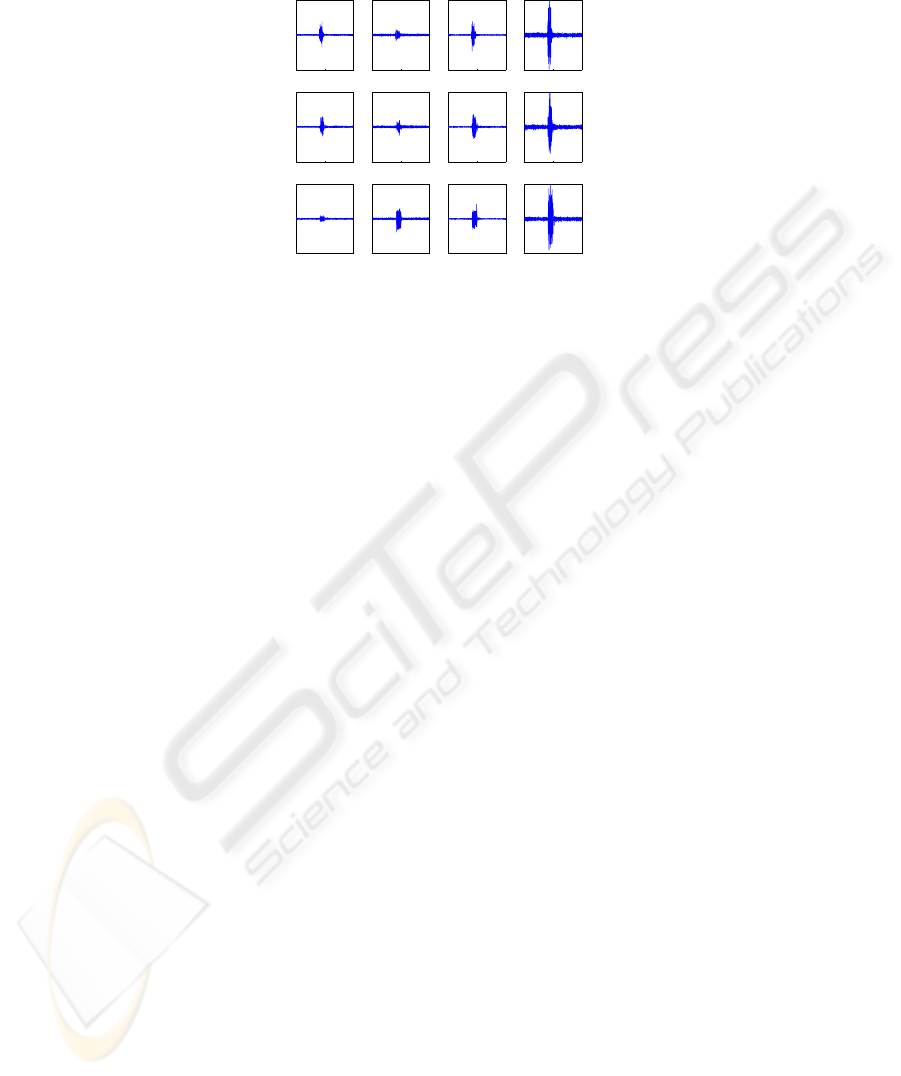

Fig.1. Raw EMG signals recorded from Four muscles.

During the recordings, the subjects spoke the 3 English vowels (/a/,/i/,/u/). Each

vowel was spoken separately such that there was a clear start and end of the utterance.

The experiment was repeated for ten times. A suitable resting time was given between

each experiment. The participants were asked to vary their speaking speed and style to

get a wide based training set. Fig.1 shows the raw EMG signal recorded from 4 channels

(muscles). Example of the raw EMG signal recordings are plotted as a function of time

(sample number) in Fig.1

3.2 Data Analysis

The ﬁrst step in the analysis of the data required identifying the temporal location of

the muscle activity. Moving root mean square (MRMS) of the recorded signal was

computed and thresholded against 1 sigma of the signal [10].The MRMS was computed

using a moving window of 20 samples over the whole signal. Fig.2(a) is an example of

the RMS plot of the recorded EMG signal. After identifying the start and the end of

the muscle activity based on 1 sigma, these were conﬁrmed visually. The RMS of the

SEMG between the start and the end of the muscle activity was integrated for each of the

channels. This resulted in one number representing the muscle activity for each channel

for each vowel utterance. These were tabulated and all the channels were normalised

with respect to channel 1 by taking a ratio of the respective integral with channel 1. This

ratio is indicative of the relative strength of contraction of the different muscles and

reduces the impact of inter-experiment variations. A demonstration of the computation

of the integral of RMS of SEMG is shown in Fig.2(b).

The paper reports the use of Durand’s rule[9] for computing the integral of RMS of

SEMG because it produces more accurate approximations and a straightforward family

of numerical integration techniques. Durand rule states that ‘Let the values of a function

f(x) be tabulated at points x

equally spaced by h = x

i+1

− x

,so f

= f(x

), f

f(x

), . . . f

= f (x

). Then Durand’s rule approximating the integral of f(x) is given

by the Newton-Cotes-like formula’

200 300

100

Channel 1

Vowel /a/

200 300

100

Channel 2

200 300

100

Channel 3

200 300

100

200

300

Channel 4

200 300

100

Vowel /i/

200 300

100

200 300

100

200 300

100

200

300

200 300

100

Vowel /u/

200 300

100

200 300

100

200 300

100

200

300

(a)

150 200 250 300 350

100

120

140

160

180

200

No. of Samples

RMS Values

(b)

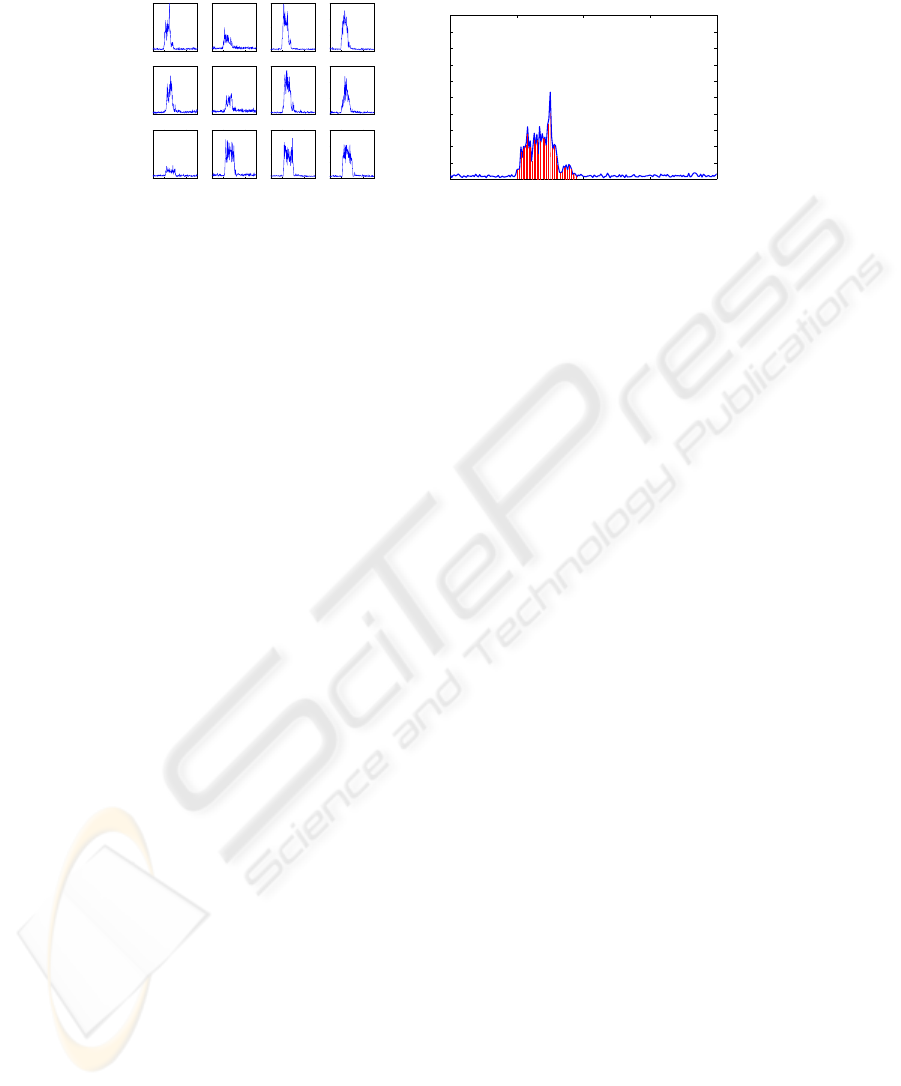

Fig.2. (a)RMS plot of the EMG signal (b)A sample to ﬁnd the integral RMS.

f(x)dx = h(2/5f

+ 11/10f

+ f

+ . . . + f

n−2

+ 11/10f

n−1

+ 2/5f

) (1)

The RMS values between the start and end of the muscle contraction was considered

as x

to x

, where h is the sample interval i.e., x

i+1

− x

3.3 Classiﬁcation of Data

For each utterance of each vowel there were four numbers generated representing the

total muscle activity by the four muscles. After normalisation with respect to the chan-

nel 1, this resulted in three set of numbers as the ﬁrst channel was always one. As a ﬁrst

step, this data for each subject and for the three vowels and ten experiments were plot-

ted on a three dimensional plot to visually identify any clusters. Data point from each

of the vowels were given a distinct symbol and colour for ease of visual observation.

This is shown in Fig.3.

The data from the ten experiments for each subject was divided into two separate

sections; the training section and the test section. Each of these sections had data from

ﬁve experiments. In the ﬁrst part of the experiment, normalised integral RMS values of

5 recordings (for each vowel) for individual subject were used to train the ANN classi-

ﬁer with back propagation learning algorithm. In the second part of the experiment, the

neural network was trained using the data from the three subjects simultaneously and

tested similarly. The architecture of the ANN consisted of two hidden layers and the

20 nodes for the two hidden layers were optimized iteratively during the training of the

ANN. Sigmoid function was the threshold function and the type of training algorithm

for the ANN was gradient descent and adaptive learning with momentum with a learn-

ing rate of 0.05 to reduce chances of local minima. In the testing section, the trained

ANNs were used to classify the integral RMS values of 5 recordings of each vowel

that were not used in the training of the ANN to test the performance of the proposed

approach. This process is repeated for different subjects. The performance of these in-

tegral RMS values was evaluated in this experiment by comparing the accuracy in the

classiﬁcation during testing.

Masseter Muscle

DAO muscle

Mentalis muscle

/a/

/i/

/u/

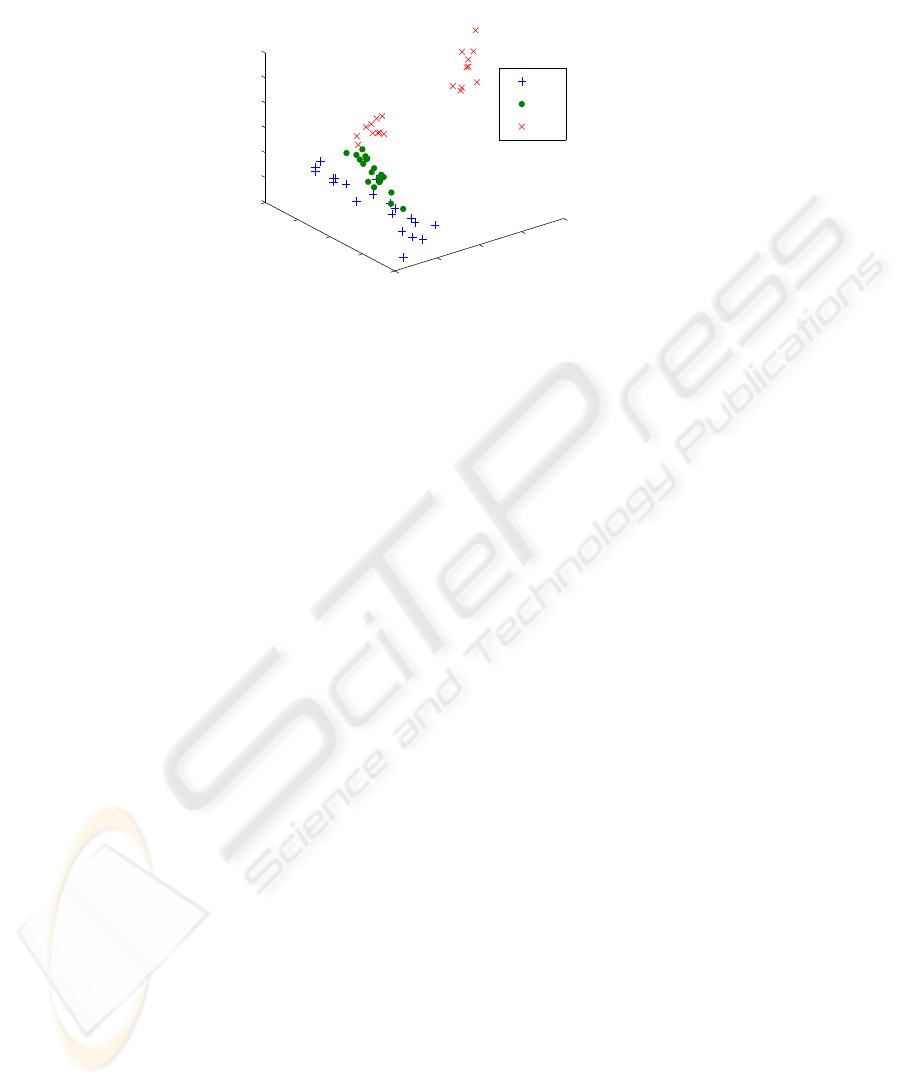

Fig.3. Three dimensional plot of the normalised values of different muscles of different vowels.

4 Results and Observations

The results of the experiment report the performance of different subjects in classify-

ing the integral RMS values of the 3 vowels. The three dimensional plot between the

normalised area of the different muscle for different vowels is shown in Fig.3. The plot

shows the different normalised values of vowels being separated from each other as

clusters. It is evident from the plot that three different class of vowels form clusters

that appear to be separate and distinct for each of the vowels. This is a clear indication

that the three vowels are easy to separate using this technique. The result of the use of

these normalised values to train the ANN using data from individual subjects demon-

strated easy convergence. The results of testing the ANN to correctly classify the test

data based on the weight matrix generated using the training data is tabulated in Table

1. The accuracy was computed based on the percentage of correct classiﬁed data points

to the total number of data points. The results indicate an overall average accuracy of

80%, where it is noted that the overall classiﬁcation of the integral RMS values of the

EMG signal yields better recognition rate of vowels for 3 different subjects when it is

trained individually.The classiﬁcation results for each subject when trained individually

were analysed to determine the inter-subject variation. It is observed that

– the classiﬁcation accuracy for vowel /a/ for subject 1(80%) is marginally high when

compared with the other subjects.

– the classiﬁcation accuracy for vowel /i/ for subjects 2&3(80%) is equal and mar-

ginally high when compared with the subject 1.

– the classiﬁcation accuracy for vowel /u/ is equal for the all subjects(100%).

The classiﬁcation results for the subjects when trained for a subject and tested for a

different is tabulated in Table 2. The results indicate that the overall accuracy is poor. On

closer observations, it is observed that while the system is able to accurately identify the

utterance of ‘/u/’ (accuracy 80%); the error for separating between ‘/a/’ and ‘/i/’ is poor.

Table 1. Classiﬁcation results for different Subjects when trained and tested individually.

Vowel Number of Utterances

used for testing

Correctly Classiﬁed Vowels

Subject 1 Subject 2 Subject 3

/a/ 5 4(80%) 3(60%) 3(60%)

/i/ 5 3(60%) 4(80%) 4(80%)

/u/ 5 5(100%) 5(100%) 5(100%)

This is also observable from the clustering in Fig.3. This suggests that while the system

is able to identify the differences between the styles of speaking of different people at

different times, the inter-subject variation is high. This suggests that the system would

be functional if trained for individual subjects.

Table 2. Classiﬁcation results for different subjects when trained with a subject and tested for

other subjects.

Vowel Number of Utterances

used for testing

Correctly Classiﬁed Vowels

Subject 1 Subject 2 Subject 3 Total

/a/ 25 4 1 1 6(24%)

/i/ 25 3 2 1 6(24%)

/u/ 25 5 9 6 20(80%)

5 Discussion

The results indicate that the proposed method provides better results for identifying the

unvoiced vowels based on the movements of facial muscles. The recognition accuracy

is high when it is trained and tested for single user. The accuracy of recognition is poor

when the system is used for testing the training network for all subjects. This shows

the large variations between subjects (inter-subject variation) because of different style

and speed of speaking. This method has only been tested for limited vowels, because

the muscle contraction during the utterance of vowels remain stationary The promising

results obtained in the experiment indicate that this approach is suitable for classify-

ing vowels based on the facial muscles movement of single user without regard to the

speaking speed and style in different times. It should be pointed that this method at

this stage is not being designed to provide the ﬂexibility of regular conversation lan-

guage, but for a limited dictionary only. The authors would also like to point out that

this method in the system is easy to train for a new user. It is suggested that such a sys-

tem is suitable for simple commands for human computer interface when it is trained

for the user. This method has to be enhanced for large set of data with many subjects in

future. The authors have also used this method for checking the inter day variations of

facial muscle activity for speech recognition.

6 Conclusion

This paper describes a voiceless speech recognition approach that is based on facial

muscle contraction. The experiments indicate that the system is easy to train for a new

user. Speech generated facial electromyography signals could assist HCI by disam-

biguating the acoustic noise from multiple speakers and background noise. This paper

focused on classifying English vowels because pronunciation of vowels results in sta-

tionary muscle contraction as compared to consonants. The normalised integral RMS

values of the facial EMG signals are used for analysis and classiﬁcation of these val-

ues is performed by ANN. The results indicate that the system is reliable when trained

for the individual user, while the inter-subject variation is large. The system has been

tested with a very small set of phones, where the system has been successful, and ap-

pears to be robust despite variations in the speed of speaking. The inter-subject variation

is high. The variation between different days and for a larger set of sounds is required

to determine the possible applications. One possible application for such a system is

for disabled user to give simple commands to a machine. Future possibilities include

applications for telephony and Defence.

References

1. Basmajian, J.V., Deluca, C.J.: Muscles Alive; Their Functions Revealed by Electromy-

ography. Fifth Edition. (1985)

2. Chan, D.C., Englehart, K., Hudgins, B., Lovely, D. F.: A multi-expert speech recognition

system using acoustic and myoelectric signals. 24th Annual Conference and the Annual Fall

Meeting of the Biomedical Engineering Society] EMBS/BMES Conference (2002).

3. Kumar, S., Kumar, D.K., Alemu, M., Burry, M.: EMG based voice recognition. Intelligent

Sensors, Sensor Networks and Information Processing Conference (2004).

4. Manabe,H., Hiraiwa, A., Sugimura, T.: Unvoiced speech recognition using SEMG - Mime

Speech Recognition. CHI (2003).

5. Veldhuizen, I.J.T., Gaillard, A.W.K., de Vries, J.: The inﬂuence of mental fatigue on facial

EMG activity during a simulated workday. Vol. 63. Journal of Biological Psychology (2003).

6. Fridlund, A.J., Cacioppo, J.T.: Guidelines for Human Electromyographic research. Vol.

23(5). Journal of Psychophysiology (1986).

7. Lapatki, G., Stegeman,D. F., Jonas, I. E.: A surface EMG electrode for the simultaneous

observation of multiple facial muscles. Vol 123. Journal of Neuroscience Methods (2003).

8. Thomas .W. Parsons: Voice and speech processing (1986).

9. Eric W. Weisstein:Durand’s Rule. From MathWorld-A Wolfram Web Resource.

http://mathworld.wolfram.com/DurandsRule.html

10. David Freedman, Robert Pisani, Roger Purves.: Statistics. Third Edition
