RANGE DETERMINATION FOR MOBILE ROBOTS USING ONE

OMNIDIRECTIONAL CAMERA

Ola Millnert, Toon Goedem

e, Tinne Tuytelaars, Luc Van Gool

Katholieke Universiteit Leuven, ESAT-PSI

Kasteelpark Aarenberg 10, B-3001, Heverlee, Belgium

Alexander H

untemann, Marnix Nuttin

Department of Mechanical Engineering, Katholieke Universiteit Leuven

Celestijnenlaan 300B, B-3001, Heverlee, Belgium

Keywords:

Robot navigation, range determination, omnidirectional cameras, obstacle detection.

Abstract:

We propose a method for computing the absolute distances to obstacles using only one omnidirectional camera.

The method is applied to mobile robots. We achieve this without restricting the application to predetermined

translations or the use of artiﬁcial markers. In contrast to prior work, our method is able to build absolute scale

3D without the need of a known baseline length, traditionally acquired by an odometer. Instead we use the

ground plane assumption together with the camera system’s height to determine the scale factor.

Using only one omnidirectional camera our method is proven to be cheaper, more informative and more com-

pact than the traditional methods for distance determination, especially when a robot is already equipped with

a camera for e.g. navigation. An additional advantage is that it provides more information since it determines

distances in a 3D space instead of one plane.

The experiments show promising results. The algorithm is indeed capable of determining the distances in

meters to features and obstacles and is able to locate all major obstacles in the scene.

1 INTRODUCTION

In autonomous robot navigation, detection of obsta-

cles is a vital part. Much of the system’s capabilities

boil down to being able to locate obstacles in an efﬁ-

cient and reliable way. Obstacle detection can be car-

ried out in a variety of ways, most commonly using

laser range scanners. Here we propose an alternative

method to locate obstacles in the scene. This novel

approach computes the absolute distances in the scene

using a single omnidirectional camera mounted on the

robot.

The method we propose introduces the following

advantages. Firstly, since cameras, and foremost om-

nidirectional cameras, have emerged as a popular sen-

sor in automatic robot localisation, navigation and

interaction, it is a natural extension to incorporate

the distance determination among the tasks that the

computer vision algorithms carry out. Secondly, our

method is capable of detecting obstacles in almost

the whole sphere surrounding the camera. Compared

with range scanners, who have a ﬁeld of view of one

half plane, our method provides much more informa-

tion. Thirdly, our approach does not restrict the ap-

plication to any predetermined movements and can

be used in natural environments. Fourthly, camera

based methods usually compute the relative distances,

while the method we propose locate the feature’s ab-

solute position in the scene. Our distance representa-

tion makes the algorithm easier to integrate with other

systems, e.g. path planning and localisation.

The algorithm has been applied to an automatic

wheelchair. The goal of the application is to im-

prove impaired peoples mobility independence. A

path following algorithm has already been devel-

oped, see (Goedem

e, 2005), which uses an omnidi-

rectional camera for localisation and map building.

The wheelchair was priorly relying on a laser range

sensor to detect obstacles. The goal of this algorithm

is to replace the laser range scanners, which reduces

costs greatly.

This paper is organised as follows; In section 2 a

short overview of the closest related work is given,

including references to work on omnidirectional cam-

eras. In section 3 a high level overview of the com-

puter vision methods used is given, as well as our

contribution. In section 4 are the experimental results

shown. The paper is concluded with a discussion in

section 5.

366

Kumar S. (2006).

VISUAL SPEECH RECOGNITION USING WAVELET TRANSFORM AND MOMENT BASED FEATURES.

In Proceedings of the Third International Conference on Informatics in Control, Automation and Robotics, pages 366-371

DOI: 10.5220/0001210203660371

 SciTePress

2 RELATED WORK

There are many methods of how to compute range

data in a scene. A classical method is to use range

scanners. Albeit straightforward, this approach has

in the past been limited to 2D-range data. Obstacles

can only be detected if they intersect the horizontal

plane in front of the sensor. Typically, this makes it

difﬁcult to impossible to detect tables. Recently there

have been research to extend the 2D-laser range scan-

ner to 3D. One approach is to rotate or nod a 2D-laser

range scanner (N

uchter, 2005) and in this way obtain

a greater vertical view. The main drawbacks of this

approach are the power consumption and robustness

in moving large objects, the 2D-laser range scanners

are heavy. Another approach proposed by Ryde et

al. in (Ryde, 2006) is to use a 2D-laser range scanner

together with a rotating mirror. This approach is not

feasible for real-time applications since the mirror has

a rotation period of 40 seconds.

There have also been extensive research in range

computation using vision. A survey of different com-

puter vision methods to compute the range informa-

tion is given in (Jarvis, 1983) and an overview of om-

nidirectional cameras and their epipolar geometry is

given in (Svoboda, 1999). In (Zhang, 2002) Zhang

et al. have developed a method to compute relative

range data with one omnidirectional camera. They

use the symmetry in panoramic images as a global

feature. They are then able to solve problems as rel-

ative 2D range estimation and object classiﬁcation.

Furthermore in (Chahl, 1997) Chahl et al. have pro-

posed a procedure to compute relative range data us-

ing image deformations, which is limited by predeter-

mined translations.

Our work is distinct from these mentioned above

in the important ways that it computes absolute 3D

distances to features in the scene and that it can be

used in a natural environment, no artiﬁcial mark-

ers are needed. Even though our approach uses the

ground plane assumption, it does not restrict the robot

to move any predeﬁned lengths. Compared to the 3D-

laser range scanner methods our approach is very easy

to use. It is also very power efﬁcient and cheap using

only one camera and mirror. It is also comparably

fast.

3 ALGORITHM

The goal of the algorithm is to compute the absolute

distances to features in the scene using only one om-

nidirectional camera.

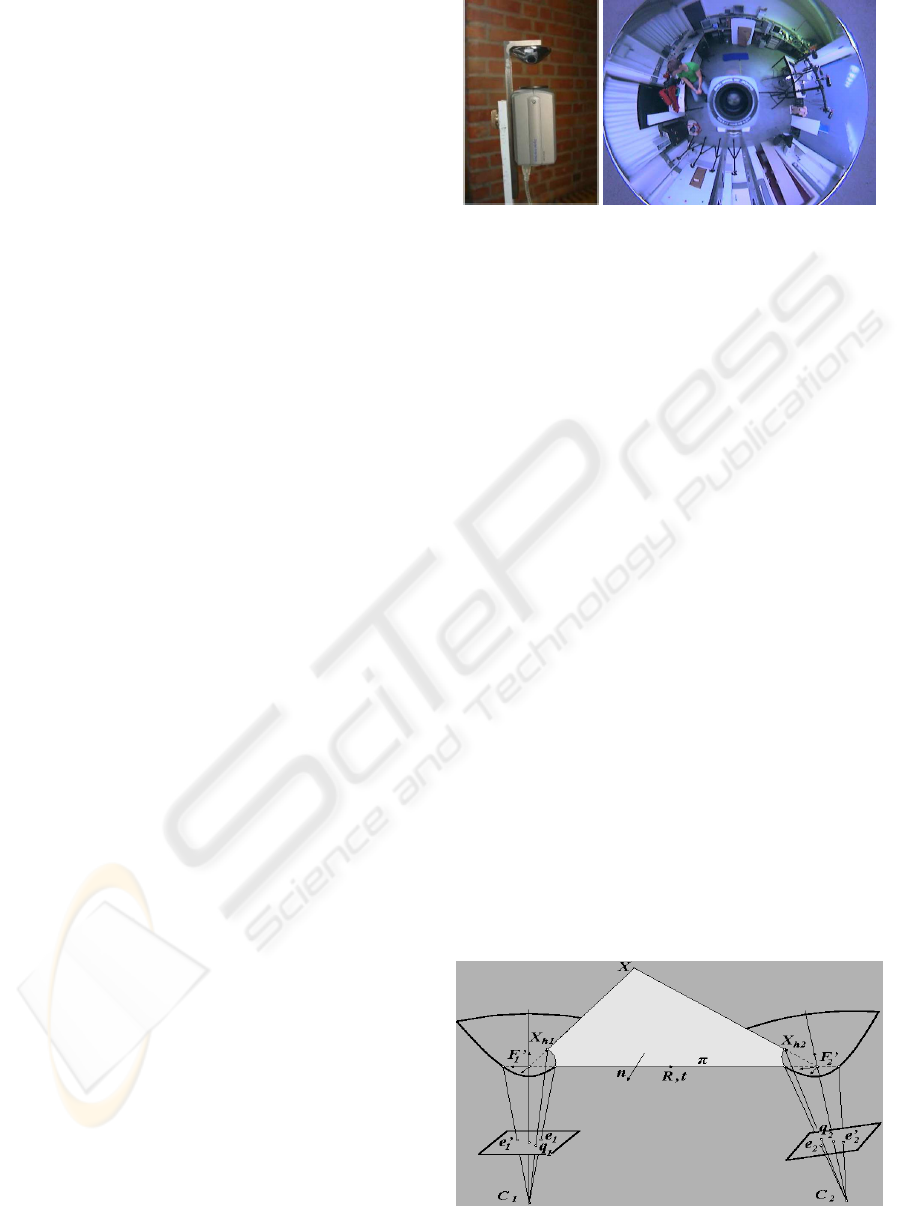

Figure 1: The camera setup and an image from the omnidi-

rectional camera.

3.1 Camera System

It is assumed that the robot system, a wheelchair, is

moving in one horizontal plane.

The omnidirectional view is obtained by mount-

ing an ordinary perspective camera under a hyperbolic

mirror. A hyperbolic mirror has two focal points and

in order to have a central projection camera system

it is crucial that the camera centre coincides with the

second focal point of the mirror, e.g. where the re-

ﬂected rays intersect. This yields a central projection

camera system with, in our case, a ﬁeld of view of

360

◦

×108

◦

. Figure 1 shows this system and a typi-

cal image acquired by it. The camera system is fully

calibrated. It was calibrated using the ”The omnidi-

rectional Calibration Toolbox Extension” by Christo-

pher Mei which is based on the ”Caltech Calibration

Toolbox” by Jean-Yves Bouget (Mei, 2006).

3.2 Feature Tracking

Correspondences between the views are established

using the popular KLT-tracker of Kanade et al. (Shi,

1994). KLT starts by identifying interest points (cor-

ners), which then are tracked in a series of images.

The basic principle of KLT is that the deﬁnition of

corners to be tracked is exactly the one that guaran-

Figure 2: Epipolar geometry for panoramic cameras.

RANGE DETERMINATION FOR MOBILE ROBOTS USING ONE OMNIDIRECTIONAL CAMERA

367

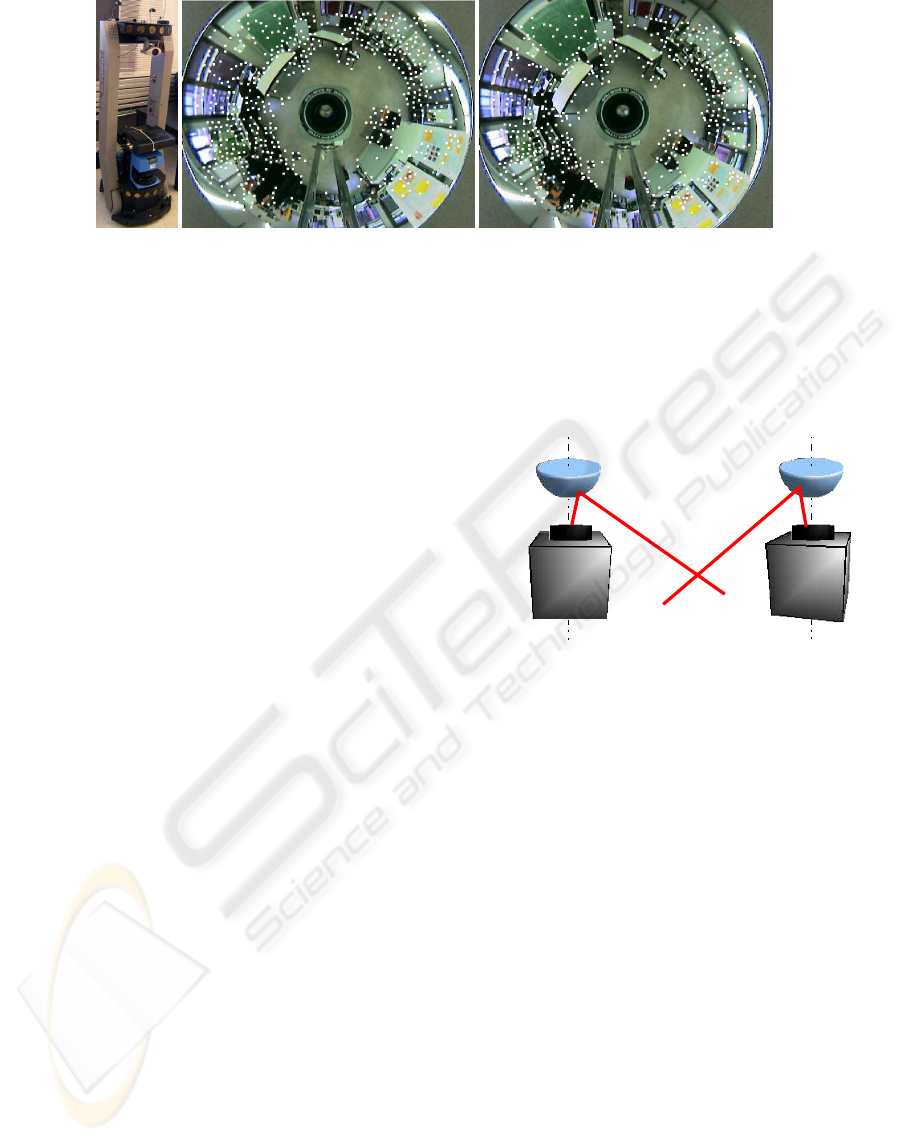

Figure 3: Left: The peoplebot robot. Right: The tracked features in two images with one second delay or ﬁfteen images apart.

tees optimal tracking. A point is selected if the matrix





, (1)

containing the partial derivatives g

and g

of the im-

age intensity function over an N × N neighbourhood,

has large eigenvalues. Tracking is then based on a

Newton-Raphson style minimisation procedure using

a purely translational model.

3.3 Epipolar Geometry Estimation

The standard epipolar geometry has been developed

for perspective cameras, (Hartley, 2000). Since we

are using panoramic cameras a few prior steps are

needed in order to use the same algorithms.

The epipolar geometry for panoramic cameras is

depicted in ﬁg. 2. The epipolar plane is deﬁned by

the points where rays reﬂect on the mirror surface

and not, as for ordinary cameras, by the image plane

coordinates. Therefore it is necessary to backproject

the image plane coordinates up onto the mirror shape.

The epipolar geometry is then established with a pro-

cess called Generate and Select, see (Svoboda, 1999).

Generate and Select resembles the popular RANSAC,

but it is not random as the process ranks the corre-

spondences before it starts computing the essential

matrices. The ranking reduces the number of com-

binations that need to be tried out.

3.4 Triangulation

When the epipolar geometry has been established the

translation vector t and rotation matrix R, see ﬁg. 2,

can be computed with standard methods, (Hartley,

1992). This yields the necessary information to de-

termine the relative positions of the 3D coordinates,

up to an unknown scale factor, done by triangulation.

The triangulation process, see ﬁg. 4 determines the

positions by ﬁnding where two rays, back projected

from each image centre going through respective mir-

ror correspondence, intersect. The triangulation for-

mula derived is based on the notion that the smallest

distance between two rays has a direction perpendic-

ular to both rays.

Figure 4: Triangulation for panoramic cameras.

3.5 Scale Determination

To determine the absolute location of the relative 3D-

coordinates, a known reference distance is needed.

This is typically achieved by measuring the baseline,

e.g. by an odometer. It was stated above that we in-

stead use the ground plane assumption together with

the easy measurable height of the camera system as an

absolute reference frame. If we can determine enough

points on the ground plane we can robustly compute

the scale factor.

This is accomplished by selecting the k lowest rela-

tive feature points. This is done by comparing the rel-

ative z-coordinates. Some of these might be outliers,

hence we need a ﬁlter. The ﬁlter works by computing

the Euclidean distances in the z-coordinate between

each feature and the average z-coordinates of the k-

features. If the distance is bigger than a threshold T

the feature is discarded. This step is then repeated

for the k-1 remaining features and iterated until all

features are within the predeﬁned threshold T or we

have a minimum set of features. This ﬁlter step pre-

ICINCO 2006 - ROBOTICS AND AUTOMATION

368

vents features due to noise, bad triangulation etc. from

affecting the scale.

When the scale for one individual image has been

determined it is evaluated in the context of the prior

images. A Kalman ﬁlter, (Kalman, 1960) is em-

ployed to keep the scale stable throughout the image

sequence.

4 RESULTS

Figure 5: The mirror projection.

Our method is evaluated by comparing it with a SICK

laser scanner. The experimental set up is composed

of a mobile robot, a peopleBot by ActiveMedia ﬁg. 3,

and an omnidirectional viewing system (consisting of

a Sony ﬁrewire colour camera and a hyperbolic mir-

ror). The camera system is fully calibrated. The mo-

bile robot has a SICK laser range scanner built in.

Images were captured at a frame rate of 15 f/s and

each image has a resolution of 640×480 pixels. The

laser scanner has a ﬁeld of view of 180

◦

and makes

scans at approximately 5Hz. The images were cap-

tured while the robot was driving through a natural

environment at a relatively high speed. This paper

presents two representative images from the experi-

ment, see ﬁg. 3. The disparity between the images are

approximately 40 cm. The visual features captured

in each image were tracked through a sequence of 15

images. In each tracking sequence 1000 features were

tracked. After the feature matching the features were

backprojected onto the mirror shapes, ﬁg. 5. After the

mirror coordinates have been established the epipo-

lar geometry and the rotation and translation between

the two views were determined. Then the relative 3D-

coordinates were computed.

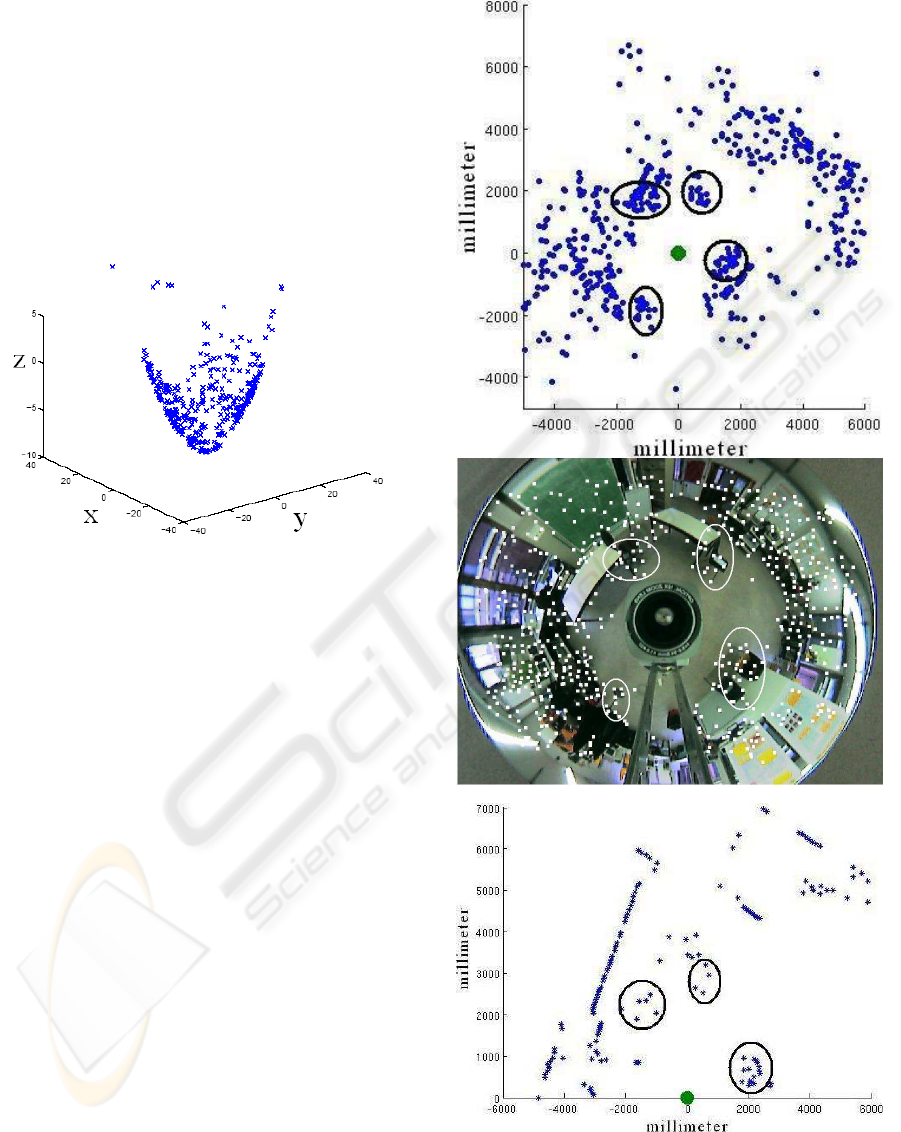

Figure 6: The cameras output, the tracked image and the

laser output.

RANGE DETERMINATION FOR MOBILE ROBOTS USING ONE OMNIDIRECTIONAL CAMERA

369

To determine the scale, the 30 lowest features were

located and evaluated with the method described in

sec. 3.5. In ﬁg. 7 the resulting features are shown, the

bigger red dots indicate the assumed ground plane.

It is seen that a few lower points are ﬁltered out. The

height of the camera system is also seen on the y-axis.

The measured height of the system is 140 cm. The

vertical ﬁeld of view is also displayed well.

In ﬁg. 6 our method’s output can be visually com-

pared to that of the laser scanner. The middle im-

age is one of the tracked images, the left image is

our method’s output and the right image is the laser

scanner’s output. The circled areas are correspond-

ing areas showing obstacles. It can be seen that our

method gives much more information about the sur-

rounding area than the laser scanner, it may though

appear noisy. This is due to that features from up to

108

◦

vertically are projected down on to the ground

plane. Looking at the top left ellipse in ﬁg. 6 it is seen

that the laser scanner only detects very few features

around the table and chair while our method is able

to detect the full shape. It can also be seen that the

feature tracker we use is somewhat limited to sharp

edges. Compared to the laser scanner it still detects

more features and obstacles in the scene. When the

laser scanner is limited to one half plane our algorithm

detects obstacles in a bigger area of the sphere, i.e.

the lower left ellipse in ﬁg. 6. It can also be seen that

while the laser scanner is more accurate, our method

detects more features on every obstacle, i.e. a more

reliable detection of obstacles.

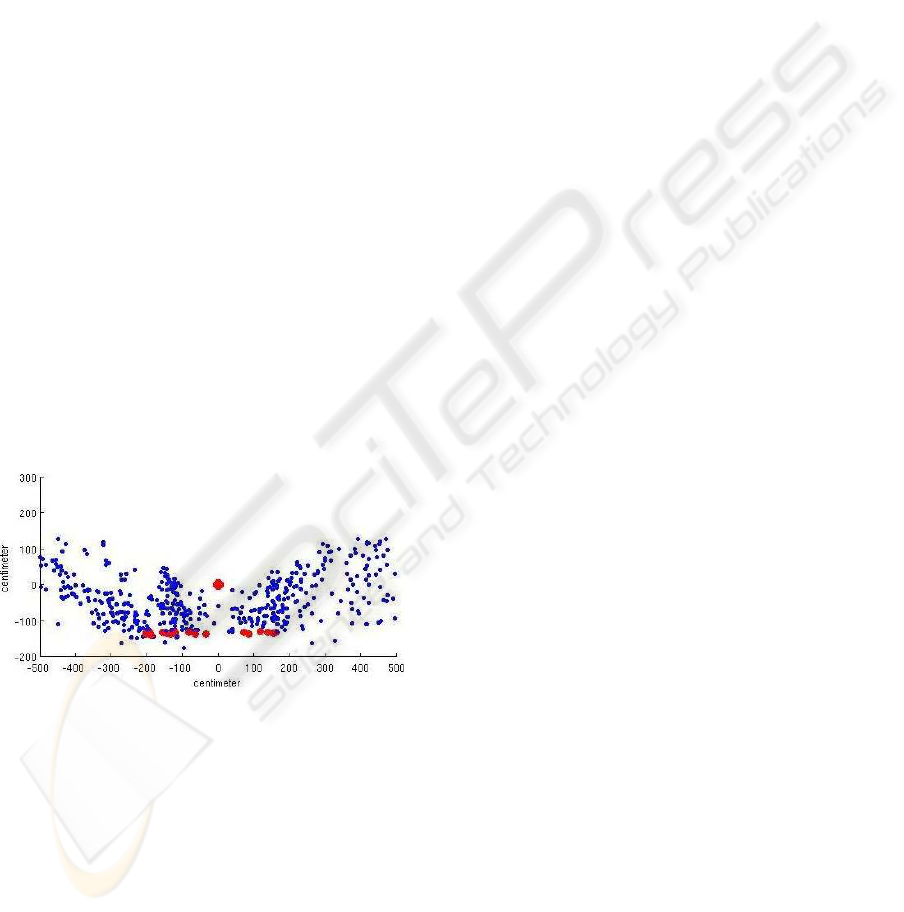

Figure 7: Side view of the 3D-positions of the features.

The bigger red dots indicate features on the assumed ground

plane.

5 CONCLUSIONS

This paper presents a successful approach of deter-

mining absolute 3D-distances in the scenes. The pro-

posed method uses a single omnidirectional camera

to compute absolute distances in the scene. The exact

scale is determined by assuming that the robot moves

in one plane and measuring the height of the cam-

era. The height is easily accessible, which makes our

method cheap and easy to implement. Our algorithm

is compared with the output from a SICK laser range

scanner. The results show that our approach gives

more information about the scene and is able to locate

more obstacles than the laser scanner. The laser scan-

ner is more accurate but limited to data in only one

half plane, while our algorithm is able to detect obsta-

cles in 360

◦

×108

◦

of the surrounding sphere. This

makes our approach more reliable in ways that it de-

tects a wider range of obstacles, e.g. table tops, over-

hanging cupboards etc. The current version might not

be accurate enough for industrial applications, but for

service applications, e.g. wheelchairs, the accuracy is

not crucial. It is though a good candidate to replace

the laser scanner with for some applications.

Advantages of a laser range scanner compared to

our method are as follows; It detects obstacles regard-

less of translation, speed or rotation. It works in any

light condition and it detect obstacles regardless of the

texture of the scene. Our method relies on detecting

corners. In order to detect corners our system needs

scene with texture.

The speed of our method is currently 1Hz. This

can be seen as the lower bound since we have not yet

performed any optimisation. The optimised algorithm

will have a speed comparable to the laser range scan-

ner’s 5Hz.

Future work includes, apart from optimisation, to

combine our algorithm with the laser scanner and in

this way make it reliable enough for industrial appli-

cations. We also need to perform additional experi-

ments to see if the wheelchair can navigate solely on

the camera.

ACKNOWLEDGEMENTS

This work has been supported by the Inter-University

Attraction Poles, Ofﬁce of the Prime Minister (IUAP-

AMS), the Institute for the Promotion of Innovation

through Science and Technology in Flanders (IWT-

Vlaanderen), the Fund for Scientiﬁc Research Flan-

ders (FWO-Vlaanderen, Belgium), and the K.U. Leu-

ven Research Fund (GOA-MARVEL). A. H

untemann

is research assistant of the research foundation Flan-

ders FWO.

REFERENCES

T. Goedem

e , M. Nuttin, T. Tuytelaars, L. Van Gool 2005

Omnidirectional Vision based Topological Navigation

15th International Symposium on Measurement and

Control in Robotics, ISMCR 2005, 2005.

A. N

uchter, K. Lingeman, J. Hertzberg and H. Surmann

2005 Heuristic-based laser scanner matching for out-

ICINCO 2006 - ROBOTICS AND AUTOMATION

370

door 6D SLAM Advances in artiﬁcial intelligence.

28th German Conf. on AI, Sept. 2005

Julian Ryde and Huosheng Hu 2006 Mutual Localization

and 3D Mapping by Cooperative Mobile Robots IAS-

9, The University of Tokyo, Tokyo, Japan, 2006

R.A Jarvis 1983 A perspective on Range Finding Tech-

niques for Computer Vision. IEEE Transaction on pat-

tern analysis and machine intelligence, VOL. PAMI-5,

No. 2, March 1983

T. Svoboda 1999 Central Panoramic Cameras Design, Ge-

ometry, Egomotion. Ph.D. disseration, Center for Ma-

chine Perception, Department of Cybernetics, Faculty

of Electrical Engineering of Czech University

R. Hartley 1992 Estimation of relative camera positions

for uncalibrated cameras. 2nd ECC, May 1992, pp.

579-587, Springer-Verlag, LNCS 588.

J.S Chahl and M.V Srinivasan (1997). Range estimation

with a panoramic visual sensor. In J. Opt. Soc. Am/A

Vol.14 No. 9 2144, Sept 1997.

J. Zhang and K. Huebner 2002 Using symmetry as a fea-

ture in panoramic images for mobile robot applica-

tions. In VDI-Berichte 1679, GMA-Robotik 2002,

Ludwigsburg 2002.

R. Hartley and A. Zisserman 2000 Multiple View Geome-

try in Computer Vision. Cambridge University Press,

2000

C. Mei 2006 http://www-sop.inria.fr/icare/..

/personnel/Christopher.Mei/index.html

cited 2006/12/10.

J. Shi and C. Tomasi Good Features to Track CVPR, Seat-

tle, pp. 593-600, 1994.

Kalman R.E. A new approach to linear ﬁltering and predic-

tion problems, Transaction of the ASME - Journal of

Basic Enginnering, pp. 35-45, March 1960.

RANGE DETERMINATION FOR MOBILE ROBOTS USING ONE OMNIDIRECTIONAL CAMERA

371
