FUZZY LOGIC BASED UAV ALLOCATION AND

COORDINATION

James F. Smith III, ThanhVu H. Nguyen

Code 5741, Naval Research Laboratory, Washington, DC, 20375-5320, USA

Keywords: Decision support systems, distributed control systems, fuzzy control, knowledge-based systems

applications, software agents for intelligent control systems

Abstract: A fuzzy logic resource allocation algorithm that enables a collection of unmanned aerial vehicles (UAVs) to

automatically cooperate will be discussed. The goal of the UAVs’ coordinated effort is to measure the

atmospheric index of refraction. Once in flight no human intervention is required. A fuzzy logic based

planning algorithm determines the optimal trajectory and points each UAV will sample, while taking into

account the UAVs’ risk, risk tolerance, reliability, and mission priority for sampling in certain regions. It

also considers fuel limitations, mission cost, and related uncertainties. The real-time fuzzy control

algorithm running on each UAV renders the UAVs autonomous allowing them to change course

immediately without consulting with any commander, requests other UAVs to help, and change the points

that will be sampled when observing interesting phenomena. Simulations show the ability of the control

algorithm to allow UAVs to effectively cooperate to increase the UAV team’s likelihood of success.

1 INTRODUCTION

Knowledge of meteorological properties is

fundamental to many decision processes. Due to

personnel limitations and risks, it is useful if related

measurement processes can be conducted in a fully

automated fashion. Recently developed fuzzy logic

based algorithms that allow a collection of

unmanned aerial vehicles (UAVs) and an

interferometer platform (IP) (Smith 2005) to

automatically collaborate will be discussed. The

UAVs measure the index of refraction in real-time to

help determine the position of an electromagnetic

source (EMS). The IP is actually an airplane with

an interferometer onboard that measures emissions

from the electromagnetic source whose position is to

be estimated. Each UAV has onboard its own fuzzy

logic based real-time control algorithm. The control

algorithm renders each UAV fully autonomous; no

human intervention is necessary. The control

algorithm aboard each UAV will allow it to

determine its own course, change course to avoid

danger, sample phenomena of interest that were not

preplanned, and cooperate with other UAVs.

Section 2 provides an overview of the

meteorological sampling problem and a high level

description of the planning and control algorithms

that render the UAV team fully autonomous.

Section 3 discusses the electromagnetic

measurement space, UAV risk, and the planning

algorithm. Section 3 also discusses the UAV path

construction algorithm that determines the minimum

number of UAVs required to complete the task, a

fuzzy logic based approach for assigning paths to

UAVs and which UAVs should be assigned to the

overall mission. Section 4 describes the control

algorithm that renders the UAVs autonomous.

Section 4 also describes the priority for helping (PH)

algorithm, a part of the control algorithm based on

fuzzy logic that determines which UAV should help

another UAV requesting help. The three subclasses

of help requests are also discussed in this section.

Section 5 discusses experimental results including

UAV path determination, UAV path assignment,

determination of which UAVs should fly the

mission and the result of a request for help during

the mission. Finally, section 6 provides a summary.

F. Smith III J. and H. Nguyen T. (2006).

FUZZY LOGIC BASED UAV ALLOCATION AND COORDINATION.

In Proceedings of the Third International Conference on Informatics in Control, Automation and Robotics, pages 9-18

DOI: 10.5220/0001211800090018

 SciTePress

2 METEOROLOGICAL

SAMPLING AND

COOPERATIVE

AUTONOMOUS PLATFORMS

For many applications it is useful to be able to make

meteorological measurements in real-time.

Examples include determining the index of

refraction of the atmosphere to facilitate geo-

location (Smith 2005); determination of the presence

and extent of such phenomena as radio holes and

ducts, which may interfere with communications;

tracking atmospheric contaminants (Spears 2005);

and sand suspended in the atmosphere that can

interfere with sensors.

The fuzzy logic based planning and control

algorithms that have been developed allow a

collection of UAVs making up the UAV team to

engage in cooperative sampling of the atmosphere in

real-time without human intervention. Each UAV

will have its own control algorithm allowing it to

determine new optimal trajectories in real-time

subject to changing conditions. Also, the control

algorithm on the UAVs will allow them to cooperate

to increase the probability of mission success. There

will be two different types of cooperation allowed

by the control algorithm and three classes of help

requests which are discussed in section 4.

3 PLANNING AND RISK

The measurement space consists of the

electromagnetic propagation environment where

UAVs and the IP make their measurements. This

environment includes sample points and the

desirable neighborhoods that surround them. The

sample points or the desirable neighborhoods are

where the UAVs will make measurements. The

method of determining the sample points and

desirable neighborhoods is described below.

The measurement space also includes taboo

points and the undesirable neighborhoods that

surround them. The taboo points are points of

turbulence and other phenomena that could threaten

the UAVs. The undesirable neighborhoods

surrounding them also represent various degrees of

risk. The method of specifying taboo points and

quantifying the degree of risk associated with their

undesirable neighborhoods employs fuzzy logic and

is discussed in this section.

The planning algorithm allows the determination

of the minimum number of UAVs needed for the

mission subject to fuel constraints, risk, UAV cost,

and importance of various points for sampling. Risk

refers to turbulent regions or regions undesirable for

other reasons, e.g., the presence of enemy observers

or physical obstructions. The planning algorithm

automatically establishes the order in which to send

the UAVs taking into account the UAV’s value;

onboard sensor payload; onboard resources such as

fuel, computer CPU and memory; etc. The priority

of sample points and their desirable neighborhoods

are taken into account. The planning algorithm also

calculates the optimal path around undesirable

regions routing the UAVs to or at least near the

points to be sampled.

In the planning phase, the location of the EMS is

unknown. Some positions are more likely than

others for the EMS’s location. When establishing

likely positions for the EMS, human experts are

consulted. The experts provide subjective

probabilities of the EMS being located at a number

of positions. These likely EMS locations are

referred as hypothesis positions. Ray-theoretic

electromagnetic propagation (Blake 1986) is

conducted from each hypothesis position to each

interferometer element on the IP. The points on the

sampling grid nearest the points of each ray’s

passage are the sample points. The priority of a

sample point is related to the subjective probability

of the hypothesis position from which the associated

ray emerges. Sample points arising from the highest

probability hypothesis positions have priority one;

sample points associated with lower probability

hypothesis positions, priority two; etc.

Each sample point is surrounded by what are

referred to as desirable neighborhoods. Depending

on local weather, topography, etc., the desirable

neighborhoods are generally concentric closed balls

with a degree of desirability assigned to each ball.

The degree of desirability characterizes the

anticipated variation in the index of refraction.

A point may be labeled taboo for a variety of

reasons. A taboo point and the undesirable

neighborhoods containing the point generally

represent a threat to the UAV. The threat may take

the form of high winds, turbulence, icing conditions,

mountains, etc. The undesirable neighborhoods

around the taboo point relate to how spatially

extensive the threat is.

When determining the optimal path for the

UAVs to follow both the planning algorithm and the

control algorithm running on each UAV take into

account taboo points and the undesirable

neighborhood around each taboo point. The path

planning algorithm and control algorithm will not

ICINCO 2006 - INTELLIGENT CONTROL SYSTEMS AND OPTIMIZATION

allow a UAV to pass through a taboo point. Both

the concepts of risk and risk tolerance are based on

human expertise and employ rules each of which

carry a degree of uncertainty. This uncertainty is

born of linguistic imprecision (Tsoukalas 1997), the

inability of human experts to specify a crisp

assignment for risk.

Risk is represented as a fuzzy decision tree

(Blackman 1999; Smith 2002a, 2002b, 2003, 2004a,

2004b). The risk subtree defined below is a subtree

of the larger risk tree that was actually used. The

risk tree is used to define taboo points and the

undesirable neighborhoods surrounding the taboo

points.

The root concepts on the risk tree use the

membership function defined in (1-3),

()

⎪

⎩

⎪

⎨

⎧

⋅>

⋅≤<⋅

⋅≤<

l3rif,0

l3rl2if,

l2rl1if,

l1r0if,

0rif,1

x,q

taboo

ΔΔ



taboo

qxr



−= ,

taboo



= position of taboo point.

(1)

(2)

(3)

where the “taboo point,”

taboo



is the point at which

the risk phenomenon has been observed. The root

concepts used on the risk subtree are given in (4),

and the subscript

is an element of the root concept

set , RC, i.e.,

∈

RC={Mountains, High Tension Wires,

Buildings, Trees, Smoke Plumes, Suspended

Sand, Birds/Insects, Other UAVs, Air

Pollution, Civilian, Own Military, Allied

Military, Neutral Military, Cold, Heat, Icing,

Rain, Fog, Sleet, Snow, Hail, Air Pocket,

Wind, Wind Shear, Hostile

Action/Observation}

(4)

The norm in equation (2) is typically taken as an

Euclidean distance. The values taken by the

quantity

will be discussed in a future

publication.

The fuzzy membership function for the

composite concept “risk” is defined as

() ()

x,q

max

x,q

taboo

taboorisk



∈

= .

(5)

The best path algorithm is actually an

optimization algorithm that attempts to minimize a

cost function to determine the optimal trajectory for

each UAV to follow, given a priori knowledge. The

cost function for the optimization algorithm takes

into account various factors associated with the

UAV’s properties, mission and measurement space.

Two significant quantities that contribute to the cost

are the effective distance between the initial and

final proposed positions of the UAV and the risk

associated with travel.

For purposes of determining the optimal path,

the UAV is assumed to follow a rectilinear path

consisting of connected lines segments, where the

beginning and ending points of each line segment

reside on the UAV’s sampling lattice. Let A and B

be two grid points on the UAV’s sampling grid with

corresponding position vectors,



and ,

respectively. Denote the Euclidean distance

between A and B as

(

)

r,rd



. Let

()

r,rv



be the

speed at which the UAV travels in going from



. If both



and are sample points then the

UAV travels at sampling velocity, otherwise it

travels at non-sampling velocity. The path cost is

given by

(

)

()

BiriskBA

r,rv

r,tr,rd

r,rtcos_path

taboo









∑

⋅+

μβ

(6)

where

taboo

n is the number of taboo points, i.e.,

columns in the taboo point matrix

[

]

taboo

n21

t,,t,tTaboo



…



≡

(7)

and

tabooi

n,,2,1i,t …



are the taboo points

determined to exists in the measurement space when

(

)

r,rtcos_path



is calculated. The quantity,

, is

an expert assigned parameter. Note that

(

)

r,rtcos_path



is an effective time. When risk is

not present, i.e.,

()

∑

⋅

taboo

Birisk

r,t



μβ

is zero, then

(

)

r,rtcos_path



is the actual travel time. When

risk is present then the travel time is increased. The

time increase will be significant if the risk is high.

If the candidate path for the mission consists of

the following points on the UAV lattice given by the

path matrix in (8),

FUZZY LOGIC BASED UAV ALLOCATION AND COORDINATION

[]

n21i

r,,r,rPath



…



= ,

(8)

then the total path cost is defined to be

∑

≡

−

1jji

)r,r(tcos_path)Path(tcos_total



(9)

Determining the optimal path for the

UAV

consists of minimizing the total path cost given by

(9) such that there is enough fuel left to complete the

path.

The planning algorithm determines the path each

UAV will pursue, which points will be sampled, the

minimum number of UAVs required for sampling

the points and makes assignments of UAVs for

measurements at particular points. UAVs are

assigned as a function of their abilities to sample

high priority points first. The planning algorithm

determines flight paths by assigning as many high

priority points to a path as possible taking into

account relative distances including sampling and

non-sampling velocity, risk from taboo points, and

UAV fuel limitations. Once flight paths are

determined, the planning algorithm assigns the best

UAV to each path using the fuzzy logic decision

rule for path assignment described in this section.

The planning algorithm must assign UAVs to the

flight paths determined by the optimization

procedure described below in this section. This is

referred to as the UAV path assignment problem

(UPAP). The planning algorithm makes this

assignment using the following fuzzy logic based

procedure. To describe the decision rule it is

necessary to develop some preliminary concepts and

notation.

Each UAV will fly from lattice point to lattice

point, i.e., grid point to grid point, let one such route

be given by the matrix of points,

[

]

1n21

P,P,,P,PPath

path



…



(10)

where the ordering of points gives the direction of

the route, i.e., starting at



and ending at



. Let

the taboo points be those given in (7). Let the

degree of undesirability of the neighborhood

associated with taboo points,

tabooi

n,,2,1i,t …



= be

denoted

(

)

jirisk

P,t



for the route points

pathj

n,,2,1j,P …



= . The definition of the mission

risk is

()

∑∑

≡

taboo

path

jirisk

P,tPathrisk_mission



(11)

Within the path specified by (10), let there be the

following sample points to be measured,

spj

n,,2,1j,S …



= . Let the function prio assign

priorities to the sample points, i.e,

(

)

Sprio



is the

priority of the

sample point. The values that

(

)

Sprio



can take are positive integers with one

representing the highest priority, two the next

highest priority, etc. The mission priority for

Path is defined to be

()

∑

≡

Sprio

Pathprio_mission



(12)

Furthermore, let the

()

(

)

Path,iUAVT be the amount

of time it will take UAV(i) to fly and make

measurements along

Path .

The fuzzy degree of reliability experts assign to

the sensors of UAV(i) is denoted as

(

)()

iUAV

This is a real number between zero and one with one

implying the sensors are very reliable and zero that

they are totally unreliable. Likewise,

(

)

(

)

iUAV

nsr

is the fuzzy degree of reliability of

other non-sensor systems onboard the UAV(i). This

fuzzy concept relates to any non-sensor system, e.g.,

propulsion, computers, hard disk, deicing systems,

etc. The value of UAV(i) in units of $1000.00 is

denoted as

(

)

(

)

iUAVV . The amount of fuel that

UAV(i) has at time

is denoted

()()

t,iUAVfuel . All

the UAVs participating in a mission are assumed to

leave base at time,

Let UAV(i)’s fuzzy grade of membership in the

fuzzy concept “risk tolerance” be denoted as

(

)

(

)

iUAV

tolrisk−

. The quantity,

(

)()

iUAV

tolrisk−

, is

a number between zero and one and will be simply

referred to as UAV(i)’s risk-tolerance. If the risk

tolerance is near zero then the UAV should not be

sent on very risky missions. If the UAV’s risk

tolerance is near one then it can be sent on very

risky missions. It seems natural to compare risk-

tolerance to value. So the comparison can be carried

out on the same footing, a fuzzy concept of value

should be defined.

The fuzzy grade of membership in the fuzzy

concept “Value” of each UAV that can be assigned

to the mission is defined as

ICINCO 2006 - INTELLIGENT CONTROL SYSTEMS AND OPTIMIZATION

()()

()

(

)

()(){}

jUAVValuemax

iUAVValue

iUAV

≡

(13)

The “

max” operation in (13) is taken over the set of

all possible UAVs that can be assigned to the

mission.

The advantage of the concept of “risk-tolerance”

is that it gives the user an extra concept to exploit.

If the UAV is not of great relative value, but it still

might be needed for a crucial mission after the

current one, it might be useful to give it a low risk

tolerance so that it is not lost on the current mission.

This may allow it to be used on the following

mission.

The final concept and related fuzzy membership

function that must be defined is “slow”. A UAV is

said to be slow if it takes a long time to travel a

particular path. The fuzzy membership function for

the concept “slow” is defined as follows:

()()

()(){}

slow

Path,jUAVTmax

Path,iUAVT

Path,iUAV ≡

(14)

A “slow” UAV experiences a higher relative

mission risk since it is in the field longer and may be

exposed to risk longer.

To construct the fuzzy membership function for

the fuzzy concept “assign UAV to Path” (AUP)

make the following definitions:

()()

()() ()()

()

fuelo

Path,iUAVTt,iUAVfuel

Path,iUAVf

−+

≡

εχ

(15)

()()

()() ()()

[]

nsrsr

iUAV,iUAVmin

Path,iUAVdenom

prio_mission

Path,iUAVf

μμ

≡

(16)

()()

()() ()()

[]

()() ()

slow

Vtolrisk

Pathrisk_missionPath,iUAV

iUAV,iUAV1min

1Path,iUAVdenom

⋅

−

≡

−

μμ

(17)

()()()()

()()

Path,iUAVf

Path,iUAVfPath,iUAVnum ≡

(18)

The Heaviside step function denoted as

in (15)

takes the value one when its argument is greater than

or equal to zero and is zero otherwise. The quantity

fuel

is added to the fuel term to make sure the UAV

selected has more than enough fuel. Given the

definition of

()

(

)

Path,iUAVnum the fuzzy

membership function that gives the grade of

membership of UAV(i) in the fuzzy concept “assign

UAV to Path” is defined as

(

)

(

)

()()

AUP

Path,jUAVnummax

Path,iUAVnum

Path,iUAV

≡

(19)

where the “

max” operation in the denominator of

(19) is taken over the set of all UAVs that can be

assigned to the path.

4 CONTROL ALGORITHM

Each UAV has a real-time algorithm onboard it that

allows recalculation of paths during flight due to

changes in environmental conditions or mission

priorities. These changes typically become apparent

after the planning algorithm has run during the pre-

flight stage. As in the case of the planning

algorithm the control algorithm uses an A-star

algorithm (Russel 2002) to do the best path

calculation, employs fuzzy logic and solves a

constrained optimization problem. Although this

can require a number of minutes of computation on

a two to three gigahertz computer, this is considered

adequate given the required UAV flight time

between points.

The control algorithms’ recalculation of flight

paths can be triggered by a number of events such as

weather broadcasts that indicate new taboo regions

or changes of priority of sample points. For those

changes that do not require UAVs supporting each

other, the control algorithm does not differ from the

planning algorithm. The control algorithm is faster

by virtue that it only need process those parts of the

measurement space where there have been changes

relative to sample or taboo points.

A UAV may requests help if it discovers a

potential elevated system like a radio hole,

malfunctions or suspected malfunctions. All of

these conditions can result in help messages being

transmitted between the UAVs. These help

FUZZY LOGIC BASED UAV ALLOCATION AND COORDINATION

messages can result in interactions between the

UAVs based on transmission of the results of

priority calculations for rendering support to the

requesting UAVs.

Currently in the control stage, when a UAV

discovers an interesting physical phenomenon, is

malfunctioning, or suspects due to internal readings

that it is malfunctioning, it sends out a request for

help. Each UAV receiving this message calculates

its priorities for providing assistance to the UAV in

need. This priority calculation gives rise to a

number between zero and one, inclusive, which is

subsequently transmitted to the original UAV

desiring support. The requesting UAV sends out an

omni-directional message with the ID of the UAV

with highest priority for contributing support. The

high priority UAV then flies into the necessary

neighborhood of the requesting UAV to provide

help.

There are three classes of help request. The first

occurs when a UAV, the requester, determines it

may have discovered an interesting physical

phenomenon. This phenomenon may be an elevated

duct, radio hole, rain system or some other type of

system with physical extent. The requester desires

to determine if the phenomenon has significant

extent. It will request that a helping UAV or UAVs

sample likely distant points within this phenomenon.

The second class of help request relates to a

UAV that according to internal diagnostics may be

experiencing a sensor malfunction. This UAV will

requests that another UAV or UAVs measure some

of the points that the requesting UAV measured.

This will help determine if the UAV is actually

malfunctioning. If the requesting UAV is

determined to be malfunctioning, then it will fly

back to base, if it is capable. The determination of

whether it is actually malfunctioning requires some

consideration. Since the second UAV will probably

be measuring a distant point at a time different than

the original requesting UAV made its

measurements, potential variation in the index of

refraction over time must be taken into account.

When a UAV sends out an omni-directional

request for help, those UAVs receiving the message

will calculate their fuzzy priority for helping,

denoted as “PH.” The UAV that will ultimately

help the requester is the one with the highest fuzzy

priority for helping. The fuzzy priority for helping

takes into account a variety of properties of the

potential helper. The set of UAVs that receive the

request for help from UAV(i) at time

t is denoted

),( tihelp . If UAV(i) request help at time

and

UAV(j) receives the message then UAV(j) will take

into account the amount of time, denoted,

(

)

(

)

jUAVtime_help , it will take it to fly from the

point where it received the request to the point

where it would provide support. It also takes into

account the amount of fuel UAV(j) has left at the

time of the request, denoted

(

)()

t,jUAVfuel ;

UAV(j)’s fuzzy concept of price denoted as

“price”,

and UAV(j)’s fuzzy concept of “

mission priority” at

time,

t . Let the set of relevant UAV properties be

denoted as

prop_UAV and be defined as

{

}

price,prio_mission,fuel,time_help

prop_UAV

(20)

The fuzzy priority for helping denoted as

takes

the form

(

)

(

)

(

)

()()

jUAVw

jUAV,iUAV

prop_UAV

⋅

∑

∈

(21)

The quantities

w and

for

prop_UAV

∈

are expert defined weights and

fuzzy membership functions, respectively. The

fuzzy membership functions are defined in (22-25)

and given below,

(

)

(

)

(

)

()()

()(){}

)t,i(helpk

time_help

kUAVtime_help

max

jUAVtime_help

jUAV,iUAV

−

∈

⎥

⎦

⎤

⎢

⎣

⎡

(22)

(

)

(

)

(

)

()()

()(){}

kUAVfuel

max

jUAVfuel

jUAV,iUAV

)t,i(helpk

fuel

∈

(23)

(

)

(

)

(

)

()()

()(){}

)t,i(helpk

prio_mission

kUAVprio_mission

max

jUAVprio_mission

jUAV,iUAV

−

∈

⎥

⎦

⎤

⎢

⎣

⎡

(24)

ICINCO 2006 - INTELLIGENT CONTROL SYSTEMS AND OPTIMIZATION

() ( )()

()()

()(){}

)t,i(helpk

price

kUAVValuemax

jUAVValue

jUAV,iUAV

−

∈

⎥

⎦

⎤

⎢

⎣

⎡

(25)

It is assumed that all evaluations are processed at

time,

, so time dependence is suppressed in (21-25)

for notational convenience. A more sophisticated

version of the control logic that takes path risk,

changes in risk, UAV reliability, UAV risk-

tolerance and missed sample points into account will

be the subject of a future publication.

5 COMPUTATIONAL

EXPERIMENTS

The planning and control algorithms described in the

previous sections have been the subject of a large

number of experiments. This section provides a

description of a small subset of these experiments.

They serve to illustrate how the algorithms were

tested. Due to space limitations only experiments

involving up to three UAVs are discussed.

UAV experiments using only one UAV

demonstrate how the planning and control algorithm

will determine the route the UAV flies so that it is

successful in making measurements at sample points

in space, while the UAV avoids taboo points, that is

points in space that could damage or destroy the

UAV. Experiments using two UAVs illustrate how

the control algorithm allows the UAVs to

automatically support each other to increase the

probability their joint mission is successful.

Figures 1-4 use the same labeling conventions.

Sample points are labeled by concentric circular

regions colored in different shades of gray. The

lighter the shade of gray used to color a point, the

lower the point’s grade of membership in the fuzzy

concept “desirable neighborhood.” The legend

provides numerical values for the fuzzy grade of

membership in the fuzzy concept “desirable

neighborhoods”. If the fuzzy degree of desirability

is high then the index of refraction is considered to

be close to the index of refraction of the sample

point at the center of the desirable neighborhood.

This allows the UAV to make significant

measurements while avoiding undesirable

neighborhoods.

Each sample point is labeled with an ordered

pair. The first member of the ordered pair provides

the index of the sample point. The second member

of the ordered pair provides the point’s priority. For

example, if there are

sample points and the

sample point is of priority p , then that point

will be labeled with the ordered pair (

q,p).

Points surrounded by star-shaped neighborhoods

varying from dark grey to white in color are taboo

points. As with the sample points, neighborhoods

with darker shades of gray have a higher grade of

membership in the fuzzy concept “undesirable

neighborhood.” The legend provides numerical

values for the fuzzy grade of membership in the

fuzzy concept “undesirable neighborhood.” UAVs

with high risk tolerance may fly through darker grey

regions than those with low risk tolerance. When

comparing planning and associated control pictures,

if a point ceases to be taboo, the neighborhood

where it resides is marked by a very dim gray star as

well as being labeled by a dialog box as being an

“old taboo point.” New taboo points and their

associated undesirable neighborhoods are labeled

with dialog boxes indicating that they are “new.”

UAVs start their mission at the UAV base which

is labeled with a diamond-shaped marker. They fly

in the direction of the arrows labeling the various

curves in Figures 1-4.

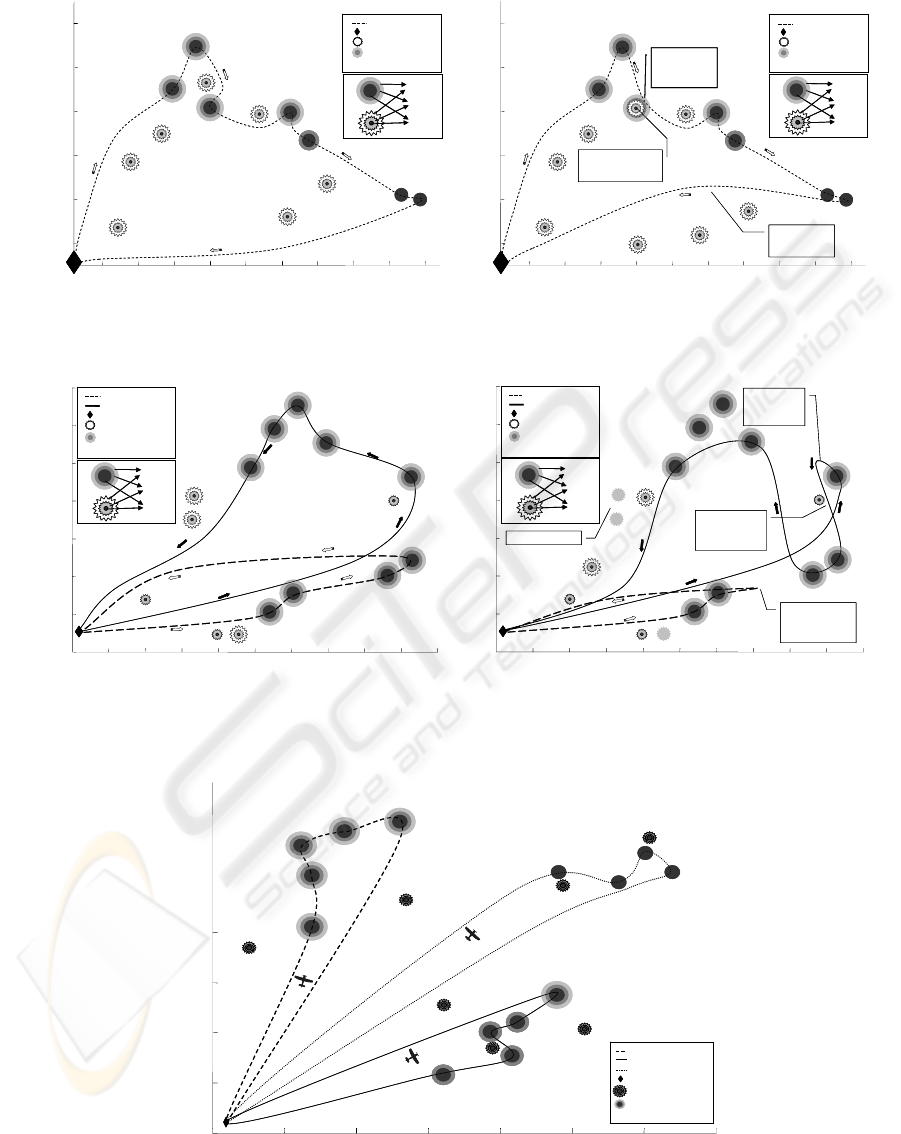

Figure 1 provides the sample points, taboo points

and sample path for one UAV as determined by the

planning algorithm. It is important to notice that the

UAV’s path passes directly through each sample

point, i.e., through the center of the concentric

circular regions representing the fuzzy degree of

desirability of neighborhoods. Fortuitously, the

taboo points and their neighborhoods are so

positioned that they do not interfere with the UAV’s

measurement process or its return to base.

Figure 2 depicts the actual path the UAV flies as

determined by the UAV’s real-time control

algorithm. The path determined by the control

algorithm differs from the one created by the

planning algorithm due to real-time changes in taboo

points. After leaving the UAV base new weather

data was acquired informing the UAVs that the

exact position of the third sample point, i.e., the one

labeled (3,1) actually resides within an undesirable

neighborhood. Due to the high priority of the

sample point and the UAV’s risk-tolerance, the

UAV flies into the taboo points’ undesirable

neighborhood as indicated in Figure 2.

In both the planning and control algorithms the

UAV measures sample points of two different

priorities, with the direction of the flight path

selected so that the higher priority points are

measured first. By measuring high priority points

FUZZY LOGIC BASED UAV ALLOCATION AND COORDINATION

first, the likelihood of an important measurement not

being made is diminished, if the UAV can not

complete its mission due to a malfunction, change in

weather, etc.

Also, due to movement of old taboo points or the

emergence of new taboo points which are marked

“New,” the path determined for the UAV using the

control algorithm is significantly different than the

one created by the planning algorithm. The path

change represents the control algorithm’s ability to

reduce UAV risk.

Figure 3 depicts the sampling path determined

by the planning algorithm for an experiment

involving two UAVs. The first, UAV(1) follows the

dashed curve; the second, UAV(2), the solid curve.

The UAVs were assigned to the different paths by

the fuzzy path assignment decision rule described in

section 3. UAV(1) is assigned to sample all the

highest priority points, i.e., the priority one points.

UAV(2) samples the lower priority points, i.e.; those

with priority two. Due to the greedy nature of the

point-path assignment algorithm, the highest priority

points are assigned for sampling first.

Figure 4 depicts the actual flight path the UAVs

take during real-time. Initially, UAV(1) is

successful in measuring sample points one and two

as assigned it by the planning algorithm. Just

beyond sample point two, UAV(1) experiences a

malfunction. UAV(1)’s real-time control algorithm

subsequently sends out a help request informing the

only other UAV in the field, UAV(2) of the

malfunction. UAV(2)’s control algorithm

determines a new path for UAV(2) to fly so that the

priority one points, labeled (3,1) and (4,1), that

UAV(1) was not able to sample are subsequently

measured. After UAV(2) measures sample point

five, its new flight path allows it to measure sample

points three and four. UAV(2)’s control algorithm

determined it was very important that these priority

one points be measured. Unfortunately, due to the

extra fuel expended in reassigning sample points

three and four to UAV(2), UAV(2) did not have

enough fuel to measure sample points seven and

eight which were of priority two. UAV(2)’s real-

time control algorithm determined the best possible

solution in the face of changing circumstances and

limited resources.

It is important to note that the control algorithms

running on UAV(1) and UAV(2) direct both UAVs

to alter their return paths to the base due to the

emergence of new taboo points making the planning

algorithm determined flight paths too dangerous.

The control algorithm uses each UAV’s fuzzy risk-

tolerance to determine how near each UAV may

approach a taboo point.

UAV 1 MISSION UAV 2 MISSION UAV 3 MISSION

Locations Fly

Mode

Fuel Time

Remain

(minutes)

Locations Fly

Mode

Fuel

Time

Remain

(minutes)

Locations Fly

Mode

Fuel

Time

Remain

(minutes)

Base 90.0 Base 85.0 Base 85.0

(1,1) NS 76.5088 (6,1) NS 67.9691 (11,3) NS 64.2839

(2,1) S 61.5088 (7,2) S 55.2412 (12,3) S 51.0412

(3,1) S 54.2662 (8,2) S 47.9986 (13,3) S 39.5559

(4,1) S 42.7809 (9,2) S 39.5133 (14,3) S 31.0706

(5,1) S 28.2956 (10,2) S 22.028 Base NS 6.2574

Base NS 6.7113 Base NS 11.7854

Table 1: Details of three UAV mission depicted in Figure 5.

ICINCO 2006 - INTELLIGENT CONTROL SYSTEMS AND OPTIMIZATION

Figure 1: One UAV trajectory as determined by the planning

algorithm.

Figure 2: One UAV trajectory as determined by the

real-time control algorithm.

Figure 3: Trajectory of two UAVs as determined by the

planning algorithm.

Figure 4: During flight, updates about environmental

changes cause the real-time control algorithms on the two

UAVs to change their trajectories.

CONTROL PHASE

new

UAV samples

neighbor

region

UAV changes

path to avoid

taboo regions

5 101520253035404550

(1,1)

(2,1)

(4,1)

(5,2)

(7,3)

(6,3)

(3,1)

RANGE (miles)

ALTITUDE (miles)

CONTROL PHASE

Taboo Region

moved directly over

sampling area

UAV path

Base

Taboo pt

Sample pt

Index, priority degree(a,b)

1.0

.50

.75

CONTROL PHASE

new

UAV samples

neighbor

region

UAV changes

path to avoid

taboo regions

5 101520253035404550

(1,1)

(2,1)

(4,1)

(5,2)

(7,3)

(6,3)

(3,1)

RANGE (miles)

ALTITUDE (miles)

CONTROL PHASE

Taboo Region

moved directly over

sampling area

UAV path

Base

Taboo pt

Sample pt

Index, priority degree(a,b)

1.0

.50

.75

5 10 15 20 25 30 35 40 45 50

RANGE (miles)

PLANNING PHASE

(1,1)

(2,1)

(4,1)

(5,2)

(7,3)

(6,3)

(3,1)

ALTITUDE (miles)

UAV path

Base

Taboo pt

Sample pt

Index, priority degree(a,b)

1.0

.50

.75

5 10 15 20 25 30 35 40 45 50

RANGE (miles)

PLANNING PHASE

(1,1)

(2,1)

(4,1)

(5,2)

(7,3)

(6,3)

(3,1)

ALTITUDE (miles)

UAV path

Base

Taboo pt

Sample pt

Index, priority degree(a,b)

1.0

.50

.75

(1,1)

(2,1)

(3,1)

(4,1)

(5,2)

(6,2)

(7,2)

(9,2)

ALTITUDE (miles)

0 5 10 15 20 25 30 35 40 45 50

RANGE (miles)

PLANNING PHASE

(8,2)

UAV 1 path

Base

Taboo pt

Sample pt

Index, priority degree(a,b)

UAV 2 path

1.0

.50

.75

(1,1)

(2,1)

(3,1)

(4,1)

(5,2)

(6,2)

(7,2)

(9,2)

ALTITUDE (miles)

0 5 10 15 20 25 30 35 40 45 50

RANGE (miles)

PLANNING PHASE

(8,2)

UAV 1 path

Base

Taboo pt

Sample pt

Index, priority degree(a,b)

UAV 2 path

1.0

.50

.75

RANGE (miles)

new

Less dangerous

taboo region

therefore able to

fly near

UAV 2

responses to

help request.

CONTROL PHASE

0 5 10 15 20 25 30 35 40 45 50

(1,1)

(2,1)

(3,1)

(4,1)

(5,2)

(6,2)

(7,2)

(8,2)

(9,2)

UAV 1

malfunctions,

requests for help.

Old taboo regions

ALTITUDE (miles)

UAV 1 path

Base

Taboo pt

Sample pt

Index, priority degree(a,b)

UAV 2 path

1.0

.50

.75

RANGE (miles)

new

Less dangerous

taboo region

therefore able to

fly near

UAV 2

responses to

help request.

CONTROL PHASE

0 5 10 15 20 25 30 35 40 45 50

(1,1)

(2,1)

(3,1)

(4,1)

(5,2)

(6,2)

(7,2)

(8,2)

(9,2)

UAV 1

malfunctions,

requests for help.

Old taboo regions

ALTITUDE (miles)

UAV 1 path

Base

Taboo pt

Sample pt

Index, priority degree(a,b)

UAV 2 path

1.0

.50

.75

0 5 10 15 20 25 30 35

6,1

5,1

4,1

3,1

2,1

1,1

8,2

7,1

10,2

9,2

11,3

13,3

12,3

14,3

Y Plane

PLAN PHASE

X Plane

UAV 1 path

Base

Sample pt

Index, priority degree

(a,b)

UAV 2 path

UAV 3 path

Taboo Region

0 5 10 15 20 25 30 35

6,1

5,1

4,1

3,1

2,1

1,1

8,2

7,1

10,2

9,2

11,3

13,3

12,3

14,3

Y Plane

PLAN PHASE

X Plane

UAV 1 path

Base

Sample pt

Index, priority degree

(a,b)

UAV 2 path

UAV 3 path

Taboo Region

Figure 5: Three UAV mission described in Table 1, an example of the AUP decision tree’s assignments.

FUZZY LOGIC BASED UAV ALLOCATION AND COORDINATION

Figure 5 provides an example of the AUP

decision tree’s assignment of three UAVs to three

paths. The highest priority locations are assigned to

UAV(1) as it has the greatest fuel capacity, i.e., 90

minutes. UAV(1) however does not have enough

fuel to handle the high priority points located at

positions six and seven and therefore UAV(2) is

assigned these points along with the second degree

high priority locations.

Table 1 provides numerical details of the tasks

depicted in Figure 5. The column labels have the

following interpretation: “Location,” the UAV

coordinates on the map; “Fly mode,” whether the

UAV sampled from its previous location to its

current position. If the UAV sampled then a “S”

was entered. “NS” was entered if sampling did not

occur. “Fuel Time” refers to how much fuel

remained by the time the UAV reached the

associated location.

6 SUMMARY

Fuzzy logic based planning and control algorithms

that allow a team of cooperating unmanned aerial

vehicles (UAVs) to make meteorological

measurements have been developed. The planning

algorithm including the fuzzy logic based

optimization algorithm for flight path determination

and the UAV path assignment algorithm are

discussed. The control algorithm also uses these

fuzzy logic algorithms, but also allows three types of

automatic cooperation between UAVs. The fuzzy

logic algorithm for automatic cooperation is

examined in detail. Methods of incorporating

environmental risk measures as well as expert

measures of UAV reliability are discussed as they

relate to both the planning and control algorithms.

Experimental results are provided. The experiments

show the algorithms’ effectiveness.

REFERENCES

Blake, L.V. 1986. Radar Range-Performance Analysis.

Boston. Artech House.

Blackman, S. and Popoli, R. 1999. Design and Analysis of

Modern Tracking Systems

, Boston, Artech House,

Chapter 11.

Russel, S.J. and Norvig, P. 2002.

Artificial Intelligence: A

Modern Approach (2nd Edition)

, Englewood Cliffs,

Prentice-Hall.

Smith, J. F., 2002a. Co-evolutionary Data Mining to

Discover Rules for Fuzzy Resource Management, In:

H. Yin, ed.,

Proceedings of the International

Conference for Intelligent Data Engineering and

Automated Learning

, August, 2002, Manchester,

Springer-Verlag, 19-24.

Smith, J. F., 2002b. Data Mining for Fuzzy Decision Tree

Structure with a Genetic Program,

In: H. Yin, ed.,

Proceedings of the International Conference for

Intelligent Data Engineering and Automated

Learning

, August 2002, Manchester, Springer-Verlag,

13-18.

Smith, J. F., 2003. Fuzzy logic resource manager: decision

tree topology, combined admissible regions and the

self-morphing property,

In: I. Kadar ed., Signal

Processing, Sensor Fusion, and Target Recognition

XII

, Vol. 5096, April 2003, Orlando, SPIE

Proceedings, 104-114.

Smith, J. F., 2004a. Fuzzy logic resource manager: real-

time adaptation and self organization, 2004,

In: I.

Kadar, ed.,

Signal Processing, Sensor Fusion, and

Target Recognition XIII

, Vol. 5429. April 2004,

Orlando, SPIE Proceedings, 77-88.

Smith, J. F., 2004b. Genetic Program Based Data Mining

for Fuzzy Decision Trees

, In: H. Yin, ed., Proceedings

of the International Conference for Intelligent Data

Engineering and Automated Learning

, August 2004,

Exeter, Springer-Verlag, 464-470.

Smith, J. F., Nguyen, T. H., 2005. Distributed autonomous

systems: resource management, planning, and control

algorithms, In: I. Kadar ed., Signal Processing, Sensor

Fusion, and Target Recognition XIV

, Vol. 5809, April,

2005, Orlando, SPIE Proceedings, 65-76.

Spears, D. and Zarzhitsky, 2005. D., Multi-Robot

Chemical Plume Tracing.

In: A. Schultz, ed. Multi-

Robot Systems: From Swarms to Intelligent

Automata,

Vol. III, May, 2005, New York, Springer,

211-221.

Tsoukalas, L., H. and Uhrig, R., E. 1997.

Fuzzy and

Neural Approaches in Engineering

, New York, John

Wiley and Sons, Chapter 5.

ICINCO 2006 - INTELLIGENT CONTROL SYSTEMS AND OPTIMIZATION
