DEPTH GRADIENT IMAGE BASED ON SILHOUETTE

A Solution for Reconstruction of Scenes in 3D Environments

Pilar Merchán

Escuela de Ingenierías Industriales,Universidad de Extremadura, Avda. Elvas,s/n, 06071Badajoz, Spain

Antonio Adán

Escuela Superior de Informatica, Universidad de Castilla La Mancha, 13071 Ciudad Real, Spain

Santiago Salamanca

Escuela de Ingenierías Industriales,Universidad de Extremadura, Avda. Elvas,s/n, 06071Badajoz, Spain

Keywords: 3D Computer Vision, Reconstruction, 3D Object Recognition,

Range Image Processing.

Abstract: Greatest difficulties arise in 3D environments when we h

ave to deal with a scene with dissimilar objects

without pose restrictions and where contacts and occlusions are allowed. This work tackles the problem of

correspondence and alignment of surfaces in such a kind of scenes. The method presented in this paper is

based on a new representation model called Depth Gradient Image Based on Silhouette (DGI-BS) which

synthesizes object surface information (through depth) and object shape information (through contour).

Recognition and pose problems are efficiently solved for all objects of the scene by using a simple matching

algorithm in the DGI-BS space. As a result of this the scene can be virtually reconstructed. This work is part

of a robot intelligent manipulation project. The method has been successfully tested in real experimentation

environments using range sensors.

1 INTRODUCTION

1.1 Statement of the Problem in a

Practical Environment

The work presented in this paper is integrated in a

robot-vision project where a robot has to carry out

an intelligent interaction in a complex scene. The 3D

vision system takes a single range image of the

scene which is processed to extract information

about the identity of the objects and their pose in the

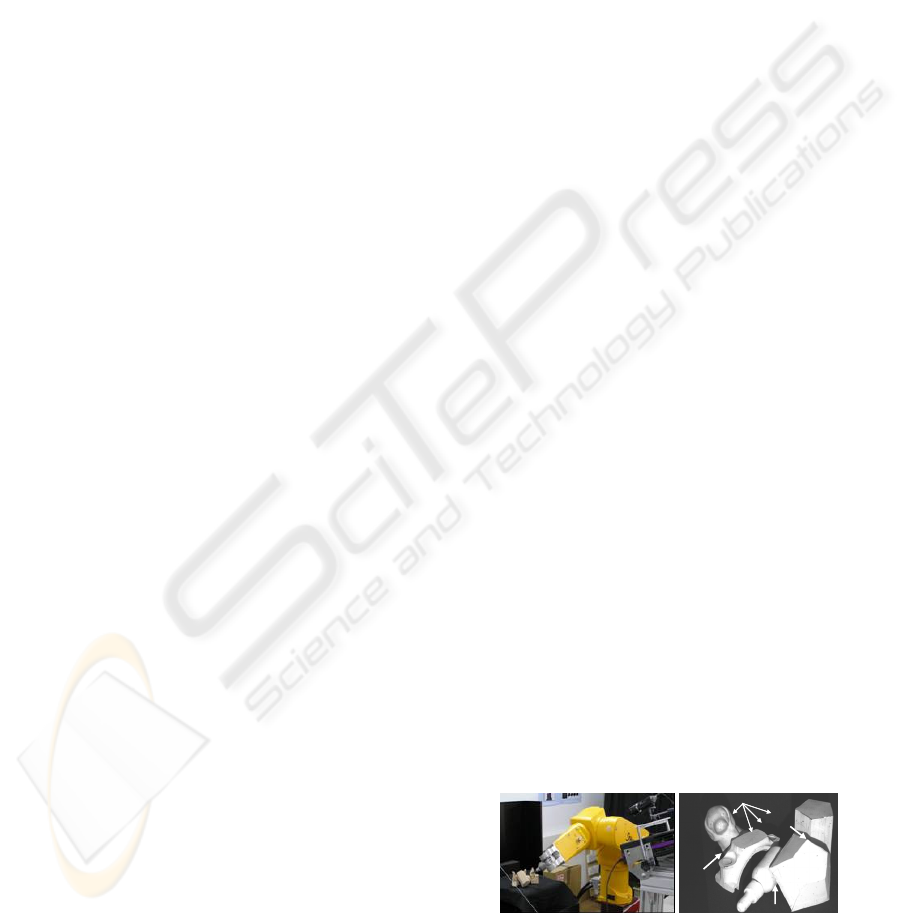

scene. Figure 1a) presents the real environment with

the components that we are using in our work: the

scene, the immobile vision sensor and the robot. In

the worst case, the complexity of this scene includes:

no shape-restrictions, shades, occlusion, cluttering

and contact between objects. Figure 1b) shows a

prototype of a scene that we have dealt with.

An intelligent interaction (grasping, pushing,

ouching, etc) of a robot in such a scene is a complex

task which involves several and different research

fields: 3D image processing, computer vision and

robotics. There are three main phases in the

interaction: segmentation of the scene into their

constituent parts, recognition and pose of the objects

and robot planning/interaction. In this paper we

specifically present an efficient recognition/pose

solution that allows us to know the layout of the

objects in the scene. This information is essential to

carry out a robot interaction in the scene. Therefore

we have integrated this work as a part of the general

project which is being currently used in real

applications.

Arbitrary positions

contact

adow

occlusion

Arbitrary positions

contact

adow

occlusion

Arbitrary positions

Figure 1: a) Robot interaction in the scene. b) Example of

com

plex scene.

112

Merchán P., Adán A. and Salamanca S. (2006).

DEPTH GRADIENT IMAGE BASED ON SILHOUETTE - A Solution for Reconstruction of Scenes in 3D Environments.

In Proceedings of the Third International Conference on Informatics in Control, Automation and Robotics, pages 112-119

DOI: 10.5220/0001214401120119

 SciTePress

1.2 Previous Work on Contour and

Surface Based Representations

Object recognition in complex scenes is one of the

current problems in the computer vision area. In a

general sense, the recognition involves identifying

an unknown object, which is arbitrarily posed,

among a set of objects in a database. In 3D

environments, recognition and positioning are two

different concepts that can be separately handled

when complete information of the scene is available.

Nevertheless, if only a part of the object is sensed in

the scene, recognition and pose appear closely

related. In others words, the object is recognized

through the computation of the best alignment

scene-model.

As we know, there is a wide variety of solutions

to recognize 3D objects. Most of them use models

based on geometrical features of the objects and the

solution depends on the feature matching procedure.

Among the variety of methods are those that

recognize 3D objects by studying sets of 2D images

of the object from different viewpoints. Some of

these methods rely on extracting the relevant points

of a subset of canonical views of the object (Roh,

2000; Rothwell, 1995). The main drawback of these

techniques is that the detection of relevant points

may be sensitive to noise, illumination changes and

transformations. There are also strategies that use

shape descriptors instead of relevant points of the

object (Trazegnies, 2003; Xu, 2005) but most of

them need the complete image of the object to solve

the recognition problem.

Matching and alignment techniques based on

contour representations are usually effective in 2D

environments. Thus, different techniques based on:

Fourier descriptors (Zahn, 1972), moment invariants

(Bamieh, 1986), spline curves (Alferez, 1999),

wavelets (Lee, 2000) and contour curvature

(Mokhararian, 1997; Zabulis, 2005) can be found in

the literature. Nevertheless, in 3D environments

these techniques have serious limitations. The main

restrictions are: limited object pose, viewpoint

restrictions (usually reduced to one freedom degree)

and occlusions not allowed. Main troubles of the

contour based techniques occur due to the fact that

the silhouette’s information may be insufficient and

ambiguous. Thus, similar silhouettes might

correspond to different objects from different

viewpoints. Consequently, a representation based on

the object contour may be ambiguous, especially

when occlusion circumstances occur. As a result, the

matching problem is usually tackled by means of

techniques that use surface information instead of

contour information.

Surface matching algorithms solve the recognition

problem using 3D sensors. In this case two different

processes arise: surface correspondence and surface

registration. Surface correspondence is the process

that establishes which portions of two surfaces

overlap. Using the surface correspondence,

registration computes the transformation that aligns

the two surfaces. Obviously the correspondence

phase is the most interesting part of the algorithm.

Recently Planitz et al. (Planitz, 2005) have published

a survey about these techniques. Next, we will

present a brief summary of the most important

works that are closely related to ours.

Chua and Jarvis code surrounding information at a

point of the surface through a feature called Point

Signature (Ching, 1997). Point signature encodes

information on a 3D contour of a point

P of the

surface. The contour is obtained by intersecting the

surface of the object with a sphere centered on

The information extracted consists of distances of

the contour to a reference plane fixed to it. So, a

parametric curve is computed for every

P and it is

called point signature. An index table, where each

bin contains the list of indexes whose minimum and

maximum point signature values are common, is

used for making correspondences. The best global

correspondence produces the best registration.

Johnson and Hebert (Johnson, 1999) have been

working with polygonal and regular meshes to

compare two objects through Spin Image concept.

Spin image representation encodes information not

for a contour but for a region around a point

P. Two

geometrical values

(α,β) are defined for the points of

a region and a 2D histogram is finally constructed.

In (Yamany, 2002) a representation, that stores

surface curvature information from certain points,

produces images called Surface Signatures at these

points. As a result of this, a standard Euclidean

distance to match objects is presented. Surface

signature representation has several points in

common with spin image. In this case, surface

curvature information is extracted to produce 2D

images called surface signature where 2D

coordinates correspond to other geometrical

parameters related to local curvature. Geometric

Histogram matching (Ashbrook, 1998) is a similar

method that builds another kind of 2D geometric

histogram.

Zhang (Zhang, 1999) also uses 2D feature

representation for regions. In this case a curvature-

based representation is carried out for arbitrary

regions creating harmonic shape images. Model and

scene representations are matched and the best local

match is chosen. Adán et al. (Adán, 2004) present a

new strategy for 3D objects recognition using a

DEPTH GRADIENT IMAGE BASED ON SILHOUETTE - A Solution for Reconstruction of Scenes in 3D Environments

113

flexible similarity measure that can be used in partial

views. Through a new curvature feature, called Cone

Curvature, a matching process yields a coarse

transformation between surfaces. Campbell and

Flynn (Campbell, 2002) suggest a new local feature

based technique that selects and classify the highly

curved regions of the surface. These surfaces are

divided up into smaller segments which define a

basic unit in the surface. The registration is

accomplished through consistent poses for triples of

segments.

Cyr and Kimia (Cyr, 2004) measure the similarity

between two views of the 3D object by a metric that

measures the distance between their corresponding

2D projected shapes. Liu, et al. (Xinguo, 2003)

propose the Directional Histogram Model for objects

that have been completely reconstructed.

Most methods described impose some kind of

restriction related to 3D sensed information or the

scene itself. The main restrictions and limitations

are: several views are necessary (Roh, 2000;

Rothwell, 1995), isolated object or few objects in the

scene, shape restrictions (Yamany, 2002; Ashbrook,

1998; Adán, 2004), points or zones of the object

must be selected in advance (Johnson, 1999;

Yamany, 2002; Zhang, 1999; Campbell, 2002) and

occlusion is not allowed (Xinguo, 2003) .

In this paper we deal with the problem of

correspondence and registration of surfaces by using

a new strategy that synthesizes both surface and

shape information in 3D scenes without restrictions.

In other words: only a view of the scene is

necessary, multi-occlusion is allowed, no initial

points or regions are chosen and no shape

restrictions are imposed. Our technique is based on a

new 3D representation called Depth Gradient Image

Based on Silhouette (DGI-BS). Through a simple

DGI-BS matching algorithm, the surface

correspondence is solved and a coarse alignment is

yielded.

The paper is structured as follows. DGI-BS model

is presented throughout section 2 including the DGI-

BS representation for occlusion cases. Section 3

presents the DGI-BS based surface correspondence

algorithm and section 4 deals with correspondence

verification and registration. Section 5 presents the

main results achieved in our lab and finally

conclusions and future work are set in section 6.

2 DGI-BS MODEL

2.1 Concept

DGI-BS model is defined on the range image of the

scene. Range image yields the 3D coordinates of the

pixels corresponding to the intensity image of the

scene. If the reference system is centred in the

camera, the coordinate corresponding to the optic

axis (usually Z axis) gives the depth information. So,

the depth image is directly available.

Let us suppose a scene with only one object. Let Z

be the depth image of the object from an arbitrary

viewpoint v and let H be the silhouette of the object

from v. Note that the silhouette H can be marked in

After recording the list of pixels along the

silhouette, we calculate (see Fig. 2 above), for every

pixel j of H, a set of depth gradients corresponding

to pixels that are in the 2D normal direction to P

towards inside of the object. Formally

(1)

ZZZ −=∇

where

tisiPPdpjHP

ijj

...1·),(,,1, ==

∈

∀

…

(2)

In expression (2), p is the number of pixels of the

silhouette H, d is the Euclidean distance (in the

depth image Z) between pixels P

and P

, and s is the

distance between two samples. Note that the first

pixel of H is selected at random.

Once has been calculated for every point

of H, we obtain a

∇

matrix which represents the

object from the viewpoint v. That is we have called

DGI-BS representation from v.

⎥

⎦

⎤

⎢

⎣

⎡

∇∇∇

=−

ZZZ

BSDGI

...

)(

(3)

Note that DGI-BS(v) is a small image where j-th

column is the set of depth gradients for pixel P

and

i-th row stores the gradients for points that are i·s

far from contour pixels in the corresponding normal

directions. Fig. 2 (below) shows an example of DGI-

BS using a colour code where black colour pixels

correspond to samples that are outside the object.

i=2

i=3

i=20

i=1

i=4

i=23

Silhouette

Sampled points

Depth image Z

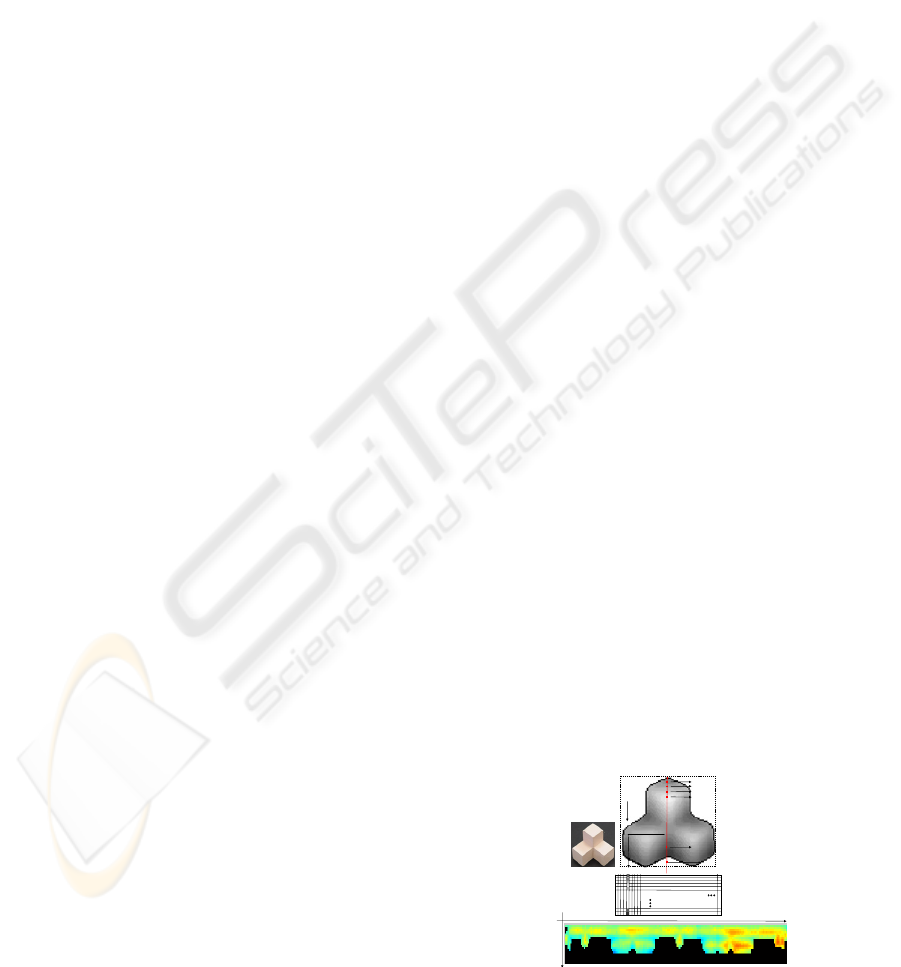

Figure 2: Depth gradient concept (above). DGI-BS

representation for a single view (below).

ICINCO 2006 - ROBOTICS AND AUTOMATION

114

synthesized model

depth image

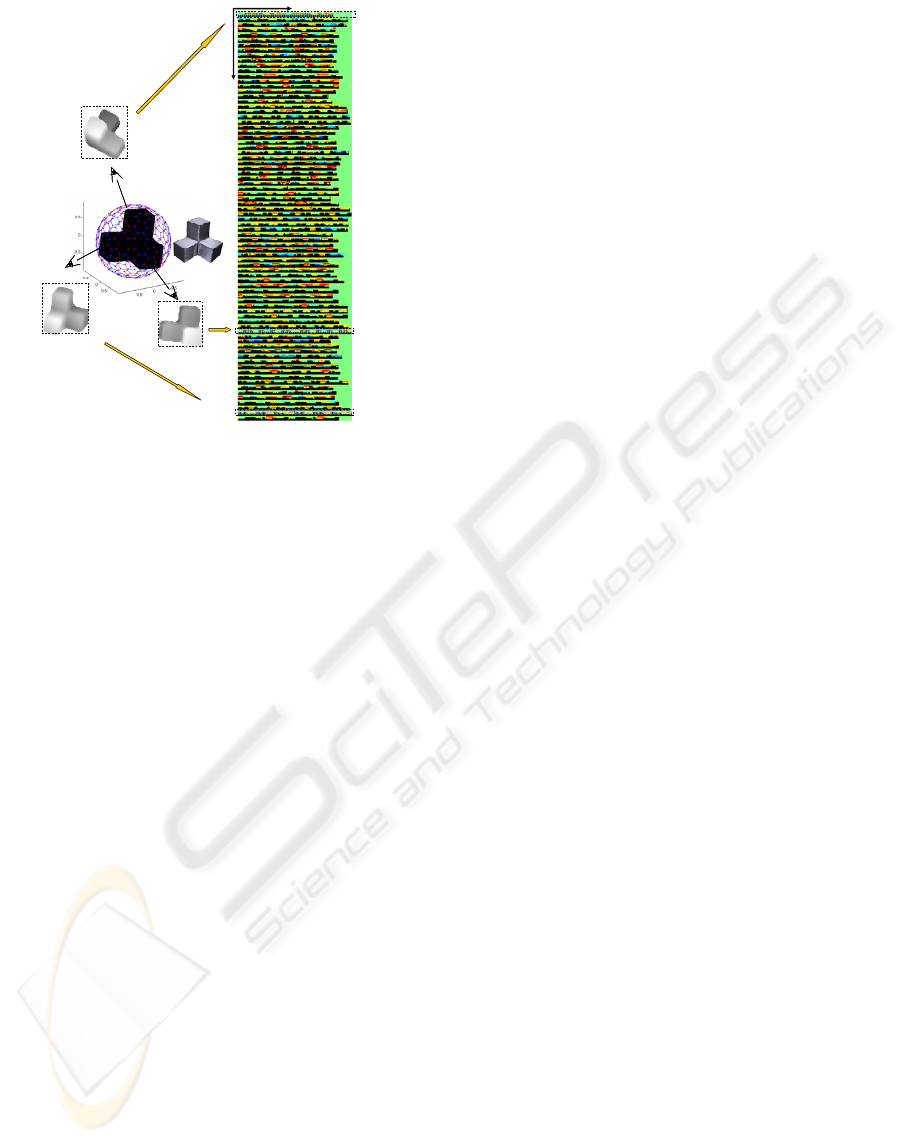

Figure 3: Viewpoints defined by the tessellated sphere and

depth images synthetically generated (left). Whole BGI-

BS model (right).

In practice a factor f

mm-pixel

turns into pixels.

∇

mm-pixel

is maintained whatever scene we work with.

This change makes the DGI-BS representation

invariant to camera-scene distance.

2.2 The Whole DGI-BS Model

The whole DGI-BS model of an object is an image

that comprises k DGI-BS representations from k

different viewpoints. In practice we use a

synthesized high-resolution geometric model of the

object to obtain the depth images. The viewpoints

are defined by the nodes of a tessellated sphere that

contains the model of the object. Each node N

defines a viewpoint ON, O being the centre of the

sphere (Fig. 3 left), from which the DGI-BS

representation is generated. Thus, a whole DGI-BS

model consists of an image of

dimension . We have duplicated

dimension p in order to carry out an efficient partial-

whole DGI-BS matching. Fig. 3 shows the whole

DGI-BS model for one object. Note that this is a

single image smaller than 1 mega pixel (1600x400

pixels in this case) that synthesizes the surface

information of the complete object.

)*2),(( ptk ∗

2.3 DGI-BS with Occlusion

Let us suppose that an object is occluded by others

in a complex scene. In this case DGI-BS can be

obtained if the silhouette corresponding to the non-

occluded part of the object is obtained in advance.

We call this “real silhouette”. Therefore, it is

necessary to carry out a preliminary range image

processing consisting of two phases: segmentation

and real silhouettes labelling. Since this paper is

focused on present the DGI-BS and due to length

limitations only a brief reference of these issues is

given. More details can be found in (Merchán, 2002)

and (Adán, 2005).

Segmentation means that the scene splits in a set

of disjointed surface portions belonging to the

several objects. Segmentation can be accomplished

by discovering depth discontinuity and separating

set of points 3D in the range image. We have used

the technique of Merchán et al. (Merchán, 2002)

which is based on establishing a set of suitable data

exploration directions to perform a distributed

segmentation. Since this issue is not the matter of

this paper, from now on we will assume that the

range and the intensity image are segmented in

advance.

Concerning the real silhouettes labelling, a

generic silhouette H, corresponding to a segmented

portion of the scene, is divided up into smaller parts

which are classified as real or false silhouettes. To

do that, we consider two steps:

I. Define H as a sequence of isolated and

connected parts. A part is isolated if all their points

are far enough from every other contour in the image

and connected if it is very close to another part

belonging to another contour. In conclusion, this

step finds the parts of the contours that are in contact

and those that are not.

II. Define H as a sequence of real (R) and false

parts (F). The goal is to find which parts occlude to

others (R) and which ones are occluded parts (F).

The set of connected parts must be classified as real

or false. Using Z (depth image) we compare the

mean depths for each pair of associated connected

parts (belonging to the contours H and H’) and we

classify it. After comparing all connected pairs of H,

the real silhouettes are finally obtained. See figure 4.

After carrying out the real silhouette labelling

process we can obtain the DGI-BS representation for

every segmented surface of the scene. In the case of

an occluded object, we build DGI-BS only for the

longest real silhouette of H. In practice, one or two

real parts (which correspond to one and two

occlusions) are expected. Of course, cases with more

occlusions are possible but in any case the largest

real part must be at least 30% of H. Otherwise very

little information of the object would be available.

Note that in occlusions circumstances DGI-BS is

'pt

sub-matrix of the non-occluded DGI-BS

DEPTH GRADIENT IMAGE BASED ON SILHOUETTE - A Solution for Reconstruction of Scenes in 3D Environments

115

version. Since a close viewpoint is available in the

whole DGI-BS model, this property can be easily

verified. Fig. 5 illustrates an example of this

property. Now dimension p’<p but dimension t is

image of the object is not complete more sampled

points fall outside the object. That is why a few

more number of black pixels appears in it.

3 SURFACE CORRESPONDENCE

THROUGH DGI-BS

The whole DGI-BS model gives complete

information of an object. Consider to

be a reference system O being the geometric

centroid of the object, v being a viewpoint of the

scene defined by the polar coordinates (ρ,θ,ϕ) and φ

being the camera swing angle. When a surface

portion Θ is segmented in a complex scene, DGI-

),,,( ZYXO

can be searched in the whole model of the

object. Thus, two coordinates (k

, p

) in the whole

DGI-BS space can be determined in this matching

process: the best view (index k) and the best fitting

point (index p).

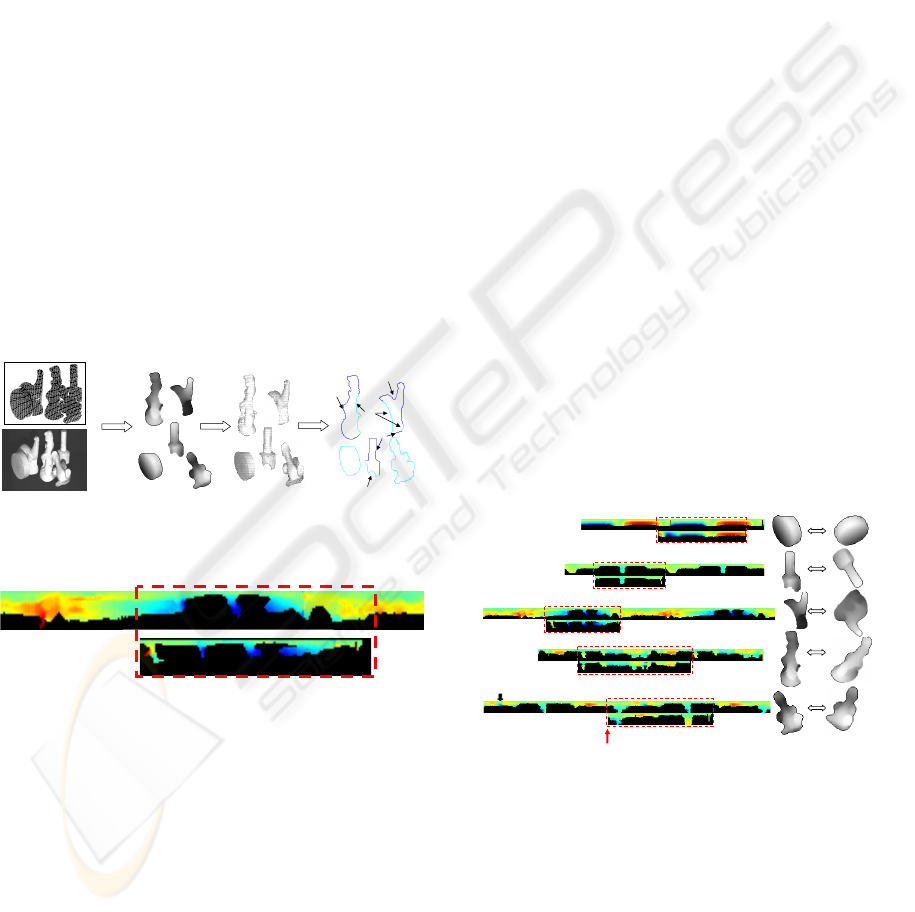

Figure 4: Scene C: range image processing: segmentation

and real silhouettes labelling (R=Real and F=false

silhouette).

Figure 5: DGI-BS representation of a non-occluded object

(above) and DGI-BS representation of the same object

under occlusion circumstances placed in the best matching

position (below).

Now we will present the sequence of steps in the

surface correspondence algorithm.

The segment is projected from camera viewpoint

and the depth image Z

and its silhouette H

are

obtained. After that, the real part of H

is extracted

according to the procedure explained in section 2.3.

If there are several real parts of the silhouette the

longest one is chosen and the corresponding DGI-

representation is generated. Then a scene-model

matching in the DGI-BS space is carried out and two

coordinates in the DGI-BS space are determined.

For a database with n objects we have n candidate

views, one for each object of the database, with their

respective n associated fitting points. For every pair

of index (k, p)

, m=1…n, a mean square

error, is defined for each candidate.

)(me

BSDGI −

Note that the surface correspondence is based on

both surface and contour information. Surface

information is supplied by DGI-BS representation

and contour information is intrinsic to the DGI-BS

definition itself. However DGI-BS representation

could be ambiguous, especially on flat surfaces and

hard occlusion cases. Consequently, to make the

surface correspondence algorithm more efficient, we

have added extrinsic information of the silhouette.

This information consists of the Function of Angles

(FA). FA contains the tangent angle for every pixel

of real part of the silhouette. This is a typical slope

representation of a contour.

Like , for every pair of index (k, p)

)(me

BSDGI −

m=1…n, FA matching error, , is calculated.

Finally, by minimizing the error the

best surface correspondence is finally selected. On

the other hand, a sorted list of candidates is stored

for further purposes. Fig. 6 shows the best DGI-BS

matching for several segments of scene C. It can be

seen the DGI-BS of the best view (index k) and the

DGI-BS of the segments at the fitting position

(index p). The scene-model surface correspondences

are shown on the right

)(me

FABSDGI

eee .

−

Scene Image

Segmentation

Scene

Segmentation

Silhouette

labelling

Scene

Model

Fitting point

(index p)

Best view in DGI-BS of the candidate model (index k)

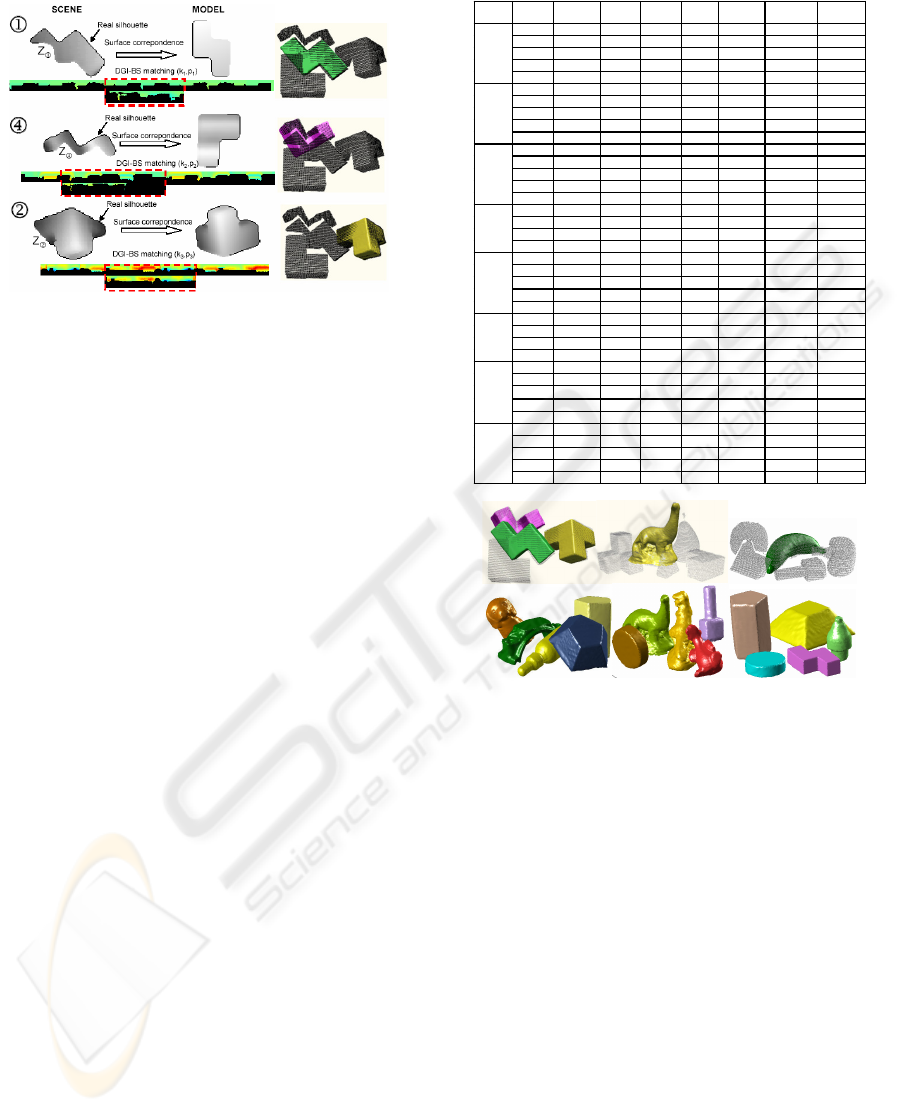

Figure 6: DGI-BS matching for several objects of the

scene C.

4 CORRESPONDENCE

VERIFICATION THROUGH

REGISTRATION

Let us assume that DGI-BS

is the best candidate

obtained in the correspondence phase. Note that

when the DGI-BS matching problem is solved a

ICINCO 2006 - ROBOTICS AND AUTOMATION

116

point to point correspondence is established in the

depth images Z

and Z

and, consequently, the same

point to point correspondence is maintained for the

corresponding 3D points C

and C

. Thus a coarse

transformation T

between C

and C

is easily

calculated. After that we compute a refined

transformation that definitively aligns the two

surfaces in a common coordinate system. Thus,

through the error yielded by a registration technique,

we can analyse the goodness of the coarse

transformation T

and evaluate the validity of the

DGI-BS matching.

We have used the well known ICP registration

technique. ICP algorithm has been widely studied

since the original version (Besl, 1992) and many

researchers have proposed a multitude of variants

throughout the 90’s (Rusinkiewicz, 2001). In this

work, we have used the k-d tree algorithm and the

point-to-point minimization (Horn, 1988).

The goodness of the registration and, indirectly,

the recognition/pose result is validated taking into

account the value of e

ICP

. In other words, we want to

establish if the candidate chosen in the

correspondence phase was right or wrong.

In order to calculate a threshold value for e

ICP

, an

off-line ICP process is performed over a set of

random viewpoints for all synthetic models of the

database. As a result of that an e

ICP

histogram is

obtained and a normal distribution is fitted to it.

Finally we define:

ICP

eZSe

ICP

−=

max

(4)

where Z is the value of the normal distribution

corresponding to the 100 percentile (Z=3,99), S

ICP

the standard deviation and

ICP

is the mean of the

distribution.

After carrying out the surface correspondence and

alignment phases for the best candidate, if

we consider that the surface

correspondence has been wrong. In this case, the

next candidate in the list is taken and a new e

max

ICP

computed and evaluated again (see figure 7)

Model M1st

Model L2nd

Model V3rd

Model Gn-th

DGI-BS point-to-point

correspondence

3D point-to-point

correspondence

Coarse transformation → T

ICP → T

ICP

max

Recognition and pose

Figure 7: Correspondence verification and registration.

5 EXPERIMENTAL RESULTS

We have tested our algorithm on a set of 20 scenes

captured with a Gray Range Finder sensor which

provides coordinates (x,y,z) of the points of the

scene. The depth map of the scene is obtained

through the camera and sensor calibrations. Scenes

are composed of several objects that are posed with

no restrictions and with the same texture (Fig. 8).

Dimension of the scene is 30x30 cm and the sensor-

scene distance is 120 cm. Our database is made up

of 27 objects.

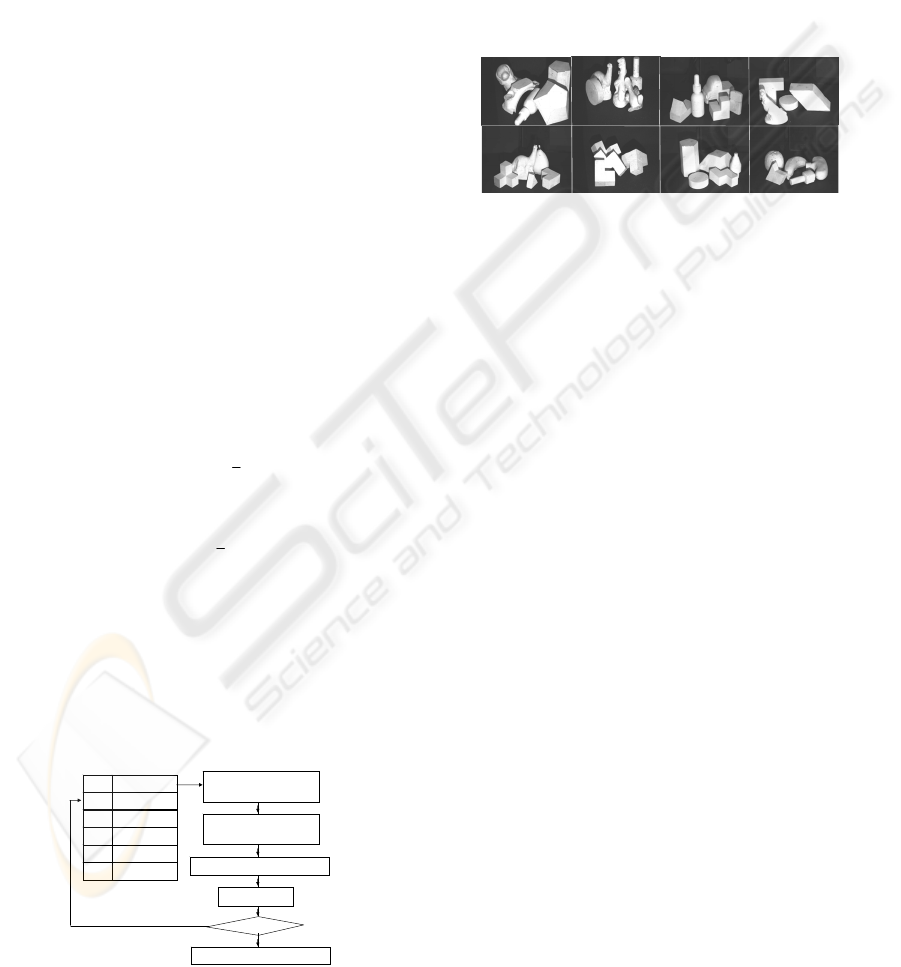

Figure 8: Some of the scenes used in our experimentation.

The values selected for the parameters to create

the whole DGI-BS representation are:

• Factor f

mm-pixel

=10 pixels/cm, so depth image

dimension is about 120x120 pixels. Likewise,

depth images of segmented objects are converted

using the same scale factor. This means that the

correspondence method is independent of the

object-camera distance.

• The whole representations have been obtained by

using a tessellated sphere of 80 nodes (

We have also used tessellated spheres with more

resolution (320 nodes) but the results do not

improve meaningfully and the computational time

increases a lot.

• Number of sampled pixels in the 2D normal

direction

and distance in pixels between

samples

s , so the penetration inside the depth

image is 100 pixels.

Figure 9 illustrates the recognition/pose process of

occluded objects in scene F. The surface portions

obtained after the segmentation phase appears on the

left. In this case there are three portions 1, 2 and 4

that are occluded. Their corresponding depth images

are shown and the real silhouettes are marked onto

them. Below we present the result of the scene-

model matching in the DGI-BS space for the best

candidate. The best view (index k) at the best fitting

position (index p) can be seen for all them. Finally,

the depth image of the associated model is shown of

the right. On the right we show the alignment and

the spatial position of the models in the scene. We

can see the 3D points of the scene and the

registration result of segments. The corresponding

DEPTH GRADIENT IMAGE BASED ON SILHOUETTE - A Solution for Reconstruction of Scenes in 3D Environments

117

rendered models are superimposed onto the scene.

Figure 9: Example of surface correspondence (left) and

alignment of occluded surfaces (right).

Table I shows a summary of the results for all

objects of the scenes A to H. 60,5% of the objects

were occluded. We have included some important

information like errors in the segmentation phase

(‘seg. error’) and noise in the range image (‘noise’).

A segmentation error would imply that two objects

were labelled as one object or that an object was

segmented in several segments. The first case

corresponds to two surfaces that are joined and

where there are not depth discontinuities between

both surfaces. This is quite uncommon case but of

course the approach would fail. The second case

occurs in self-occlusion circumstances but the

method works as in a single occlusion case except

that the surface portions will be smaller than in non-

occlusions cases. In all cases the scenes were

segmented in their constituent parts achieving 100%

of effectiveness. On the other hand, the noise in the

range is due to shades or highlighting regions.

Coordinate k, which corresponds to the best

matching view, is evaluated as right (R) or erroneous

(E) in the column ‘view’. This is a visual evaluation

that report us the total percentage of failures in the

DGI-BS matching phase. In our experimentation we

obtained 2,6 % of failures in this phase (1/38).

The column labelled ‘candidate’ means the first

candidate of the list that verifies

max

and

that finally is chosen as candidate. In 63,2 % of the

cases the first candidate was the first of the list and

the average position was 2. Finally, the last column

gives information about the ICP algorithm itself

showing the number of iterations in the ICP

algorithm. In summary we can conclude that the

approach is highly effective (97,4%).

ICP

Figure 10 shows examples of pose for multi-

occluded objects (scenes E, F and H) and the

complete reconstruction of the scenes A, B and G.

Table I.

SCENE Object Occlusion

Seg.

error

Noise View Candidate e

ICP

Iterations

ICP

Yes No No R 9º

0.1108 35

Yes No No R 1º

0.1187 41

No No Yes R 1º

0.1237 43

Yes No Yes R 1º

0.1244 18

Yes No No R 8º

0.0836 51

No No No R 1º

0.0693 35

Yes No No R 1º

0.0997 21

Yes No No R 1º

0.0924 45

Yes No Yes R 5º

0.1163 36

No No No R 1º

0.0800 35

Yes No No E 2º

0.1593 79

Yes No No R 2º

0.1339 18

Yes No No R 6º

0.1979 30

No No No R 1º

0.1393 22

No No Yes R 3º

0.1427 25

No No Yes R 1º

0.1640 29

No No No R 1º

0.1545 23

Yes No No R 1º

0.1617 38

Yes No No R 3º

0.1559 35

Yes No No R 1º

0.1235 32

No No No R 1º

0.1337 18

No No Yes R 2º

0.1421 44

Yes No No R 1º

0.1515 47

No No Yes R 1º

0.1145 34

Yes No No R 1º

0.1328 24

Yes No No R 3º

0.0090 35

No No No R 1º

0.1000 53

Yes No Yes R 1º

0.0939 45

No No No R 1º

0.1154 35

Yes No Yes R 1º

0.1359 12

Yes No No R 1º

0.1353 28

Yes No No R 1º

0.1526 11

No No Yes R 1º

0.1252 39

Yes No No R 3º

0.1227 67

Yes No No R 2º

0.1953 46

Yes No Yes R 4º

0.1676 78

No No Yes R 2º

0.1381 19

No No No R 1º

0.1335 50

Figure 10: Example of recognition and pose of multi-

occluded objects (above) and rendered representation of

the complete scene (below).

6 CONCLUSIONS

This work deals with the problem of correspondence

and registration of surfaces by using a strategy that

synthesizes both surface and shape information in

3D scenes with occlusions. The method provides at

the same time recognition and pose of segments of

the scene. This work is part of a robot intelligent

manipulation project.

DGI-BS (Depth Gradient Image Based on

Silhouette) representation is a complete and discrete

representation suitable in 3D environments.

Moreover, DGI-BS representation can be applied to

obtain a complete model as well as a partial model

of an object. This property allows us to use it in

complex scenes with multi-occlusion.

Recognitions and pose problems are solved by

using a simple matching algorithm in the DGI-BS

ICINCO 2006 - ROBOTICS AND AUTOMATION

118

space that yields a coarse transformation.

Afterwards, registration is sorted out by computing

ICP alignment of corresponded surfaces.

We are currently working on the detection and

correction of wrong correspondences. Part of these

problems may be due to noise and errors in 3D data

acquisition stages.

ACKNOWLEDGEMENTS

This work has been supported by the Spanish

projects PBI05-028 JCCLM and DPI2002-03999-

C02

REFERENCES

Antonio Adán and Miguel Adán, 2004. A flexible

similarity measure for 3D shapes recognition. In IEEE

TPMI, 26(11), 1507–1520.

A. Adán, P. Merchán, S. Salamanca, A. Vázquez , M.

Adán, C. Cerrada, 2005.Objects Layout Graph for 3D

Complex Scenes. In Proc. of ICIP’05.

A. Ashbrook, R. Fisher, N. Werghi, C. Robertson, 1998.

Aligning arbitrary surfaces using pairwise geometric

histograms. In Proc. Noblesse Workshop on No-linear

Model Based Image Analysis, 103-108.

Alferez, R., Wang,Y.F., 1999.Geometric and illumination

invariants for object recognition. In IEEE TPAMI 21,

505-535

Bamieh, B., De Figuereido, R.J.P., 1986. A general

moment-invariants/attributed graph method for three-

dimensional object recognition from single image. In

IEEE T. Rob. Aut., RA-2, 31-41

Besl, P. and McKay, N., 1992. A method for registration

of 3-D shapes. In IEEE TPAMI, 14 (2), 239-256.

R. Campbell, P. J. Flynn, 2002. Recognition of Free-Form

Objects in Dense Range Data Using Local Features. In

16th International Conference on Pattern Recognition.

C.M. Cyr and B.B. Kimia, 2004. A similarity-based

aspect-graph approach to 3D object recognition. In Int.

Journal of Computer Vision, 57(1), 5–22.

Ching S. Chua, Ray Jarvis, 1997. Point signatures: A new

representation for 3D object recognition. In

International J. of Comp. Vision, 25(1), 63–85.

Horn, B., 1988. Closed-Form Solution of absolute

orientation using orthonormal matrices. In Journal of

the Optical Society A. 5 (7).

Andrew E. Johnson and Martial Hebert. 1999. Using spin

images for efficient object recognition in cluttered 3d

scenes. In IEEE TPAMI, 21(5), 433–449.

Lee, J.D., 2000. A new scheme for planar shape

recognition using wavelets. In Comp. Mach. Appl. 39

201-216

Merchán, P., Adán, A., Salamanca, S., Cerrada, C., 2002.

3D complex scenes segmentation from a single range

image using virtual exploration. In LNAI, 2527, 923–

932.

Mokhararian, F. S., 1997. Silhouette-based occluded

object recognition through curvature scale space. In

Mach. Vis. Appl. 10, 87-97

B.M. Planitz, A.J. Maeder, J.A. Williams, 2005. The

correspondence framework for 3D surface matching

algorithms. In Comp. Vis. Image Underst. 97,347-383.

Roh, K.C., Kweon, I. S., 2000. 3-D object recognition

using a new invariant relationship by single view. In

Pattern Recognition 33, 741-754.

Rothwell, C.A., Zisserman, A., Forsyth, D.A., Mundy,

J.L., 1995. Planar object recognition using projective

shape representation. In Int. J. Com. Vision 12, 57-59

Rusinkiewicz, S., and Levoy, M., 2001. Efficient variant

of the ICP algorithm. In Proc. of 3DIM’01. 145-152.

Trazegnies,C.,Urdiales,C., Bandera,A., Sandoval,F., 2003.

3D object recognition based on curvature information

of planar views. In Pattern Rec. 36, 2571-2584.

Xinguo Liu, Robin Sun, Sing Bing Kang, and Heung-

Yeung Shum, 2003. Directional histogram for three-

dimensional shape similarity. In Proc. of the IEEE

Conference on CVPR, I, 813–820,.

Xu, D., Xu,W., 2005. Description and Recognition of

object contours using arc length and tangent

orientation. In Pattern Rec. Letters 26, 855-864

Sameh Yamany and Aly Farag, 2002.Surfacing signatures:

An orientation independent free-form surface

representation scheme for the purpose of objects

registration and matching. In IEEE TPAMI,

24(8),1105–1120.

Zabulis, X., Sporring, J., Orphanoudakis, S.C., 2005.

Perceptually relevant and piecewise linear matching of

silhouettes.In Pattern Recognition 38, 75-93

Zahn, C.T., Roskies, R.C., 1972. Fourier descriptors for

plane closed curve. In IEEE T. Comp. 21,195-281

Zhang, Z., 1994. Iterative point matching for registration

of free-form curves and surfaces. In International

Journal of Computer Vision, 13 (2), 119-152.

Zhang, 1999. Harmonic Shape Images: A 3D free form

representation and its applications in surface matching.

In PhD thesis CMU. Pennsylvania. USA.

DEPTH GRADIENT IMAGE BASED ON SILHOUETTE - A Solution for Reconstruction of Scenes in 3D Environments

119
