MANAGEMENT OF A MULTICAMERA TRACKING SYSTEM

C. Motamed and R. Lherbier

Laboratoire LASL EA 2600

Université du Littoral Côte d'Opale

Bat 2, 50 Rue F.Buisson

62228 Calais France

Keywords: Visual-surveillance, Multi-camera, Tracking, Sensor Management.

Abstract: This work is linked with the context of human activity monitoring and concerns the development of a multi-

camera tracking system. Our strategy of sensors combination integrates the contextual suitability of each

sensor with respect to the task. The suitability of a sensor, represented as a belief indicator, combines two

main criteria. Firstly it is based on the notion of spatial “isolation” of the tracked object with respect to other

object and secondly on the notion of “visibility” with respect to the sensor. A centralized filter combines the

result of the local tracking estimations (sensor level) and then performs the track management. The main

objective of the proposed architecture is to deal with the limitation of each local sensor with respect to the

problem of visual occlusion.

1 INTRODUCTION

The development of vision-based system carrying

out the monitoring of a global scene is an interesting

field of investigation. Indeed, motivations are

multiple and concern various domains as the

monitoring and surveillance of significant protected

sites, the control and estimation of flows (car parks,

airports, ports, and motorways). Because of the fast

evolution in the fields of data processing,

communications and instrumentation, such

applications become possible. Such systems are also

helpful for automatic analysing of the sport activity.

This work concerns the development of a system

for tracking of object from multiple fixed cameras.

The tracking results based on the trajectories of

objects permit to automatically estimate some

specific individual or complex group behaviour.

These tools allows a better understanding of athletes

or team in order to propose an adapted training

sequence or also to choose efficient tactical

decisions with respect to a specific player or team.

Such systems are useful for many sport activities as

football, basketball, tennis etc. Other general utilities

of these systems are the annotation for video

database and the learning of human behaviour for

the industry of simulation and digital games.

Research challenges for development of these

systems are multiples. From the detection and

tracking points of view, difficulties concern: the

detection artefact, the changing speed and direction

of players and the problem of occlusion.

For wide area monitoring, single visual sensor is

not generally sufficient. To maximize the

capabilities and performance, it is often necessary to

use a variety of sensor devices that complement each

other. The approach presented in this paper concerns

an approach of high level multi camera

management. It is defined as a process that seeks to

manage the usage of a suite of camera or

measurement devices in a dynamic and uncertain

environment, for to improve the performance of the

perception.

The basic objective of sensor management may

be the automatic tuning of internal parameter of a

single sensor or a set of sensor with respect to a

given task. A more general problems of multisensor

management are, related to decisions about what

sensors to use and for which purposes, as well as

when, where and how to use them. This last side of

high level management is linked with the concept of

active perception strategy (

Bajcsy, 1988).This

strategy is particularly adapted where real-time

571

Motamed C. and Lherbier R. (2006).

MANAGEMENT OF A MULTICAMERA TRACKING SYSTEM.

In Proceedings of the Third International Conference on Informatics in Control, Automation and Robotics, pages 571-576

DOI: 10.5220/0001221105710576

 SciTePress

performance is needed such as tracking, robot

navigation, surveillance, visual inspection.

The active perception has been widely developed

for designing the perception for mobile robotic.

These systems and their adaptation capabilities offer

a way to face those problems that were not solved

adequately with conventional techniques. In fact

real-time perception systems have theirs limitation

in the computation of massive amount of input data

with processing procedures in a reduced and fixed

amount of time. This active strategy has the capacity

to filter data and to focus the attention of the

perception to relevant information or sensors and

also can choose the best alternative by using the

contextual information. Such proposed approach are

clearly linked with the design of cognitive system

which permits to combine knowledge and reasoning

in order to develop smart and robust perception

system.

In order to perform the high level management, it

is essential to characterize each sensor with respect

to its utility for the task. Generally the main

characterization of the sensor is given by the

measurement uncertainty. Many sensors have a

variable uncertainty with respect to their functioning

condition. And generally it is difficult to model the

uncertainty globally. Another important

characterization feature concerns the field of

coverage of the sensor.

Tracking is an important task of computer vision

with many applications in surveillance, scene

monitoring, navigation, sport scene analysis and

video database management. One of the most critical

parts of a multi-object-tracking algorithm is the data

association step. It has to deal with new objects,

short or long term disappearing objects and

occlusions.

Qualitative approaches are a, alternative for

motion correspondence (Rangarajan, 2001) (Sethi,

90) (Veenman, 2001). These approaches are less

normative than conventional statistical methods used

in tracking. The main advantage is their flexibility,

because they permit an easy integration of several

forms of a priori information and contextual

information for constraining complex problem. Our

approach belongs to the last category. In this work,

vision sensors are distributed at different locations of

the scene in a redundant and complementary manner

(figure 1).

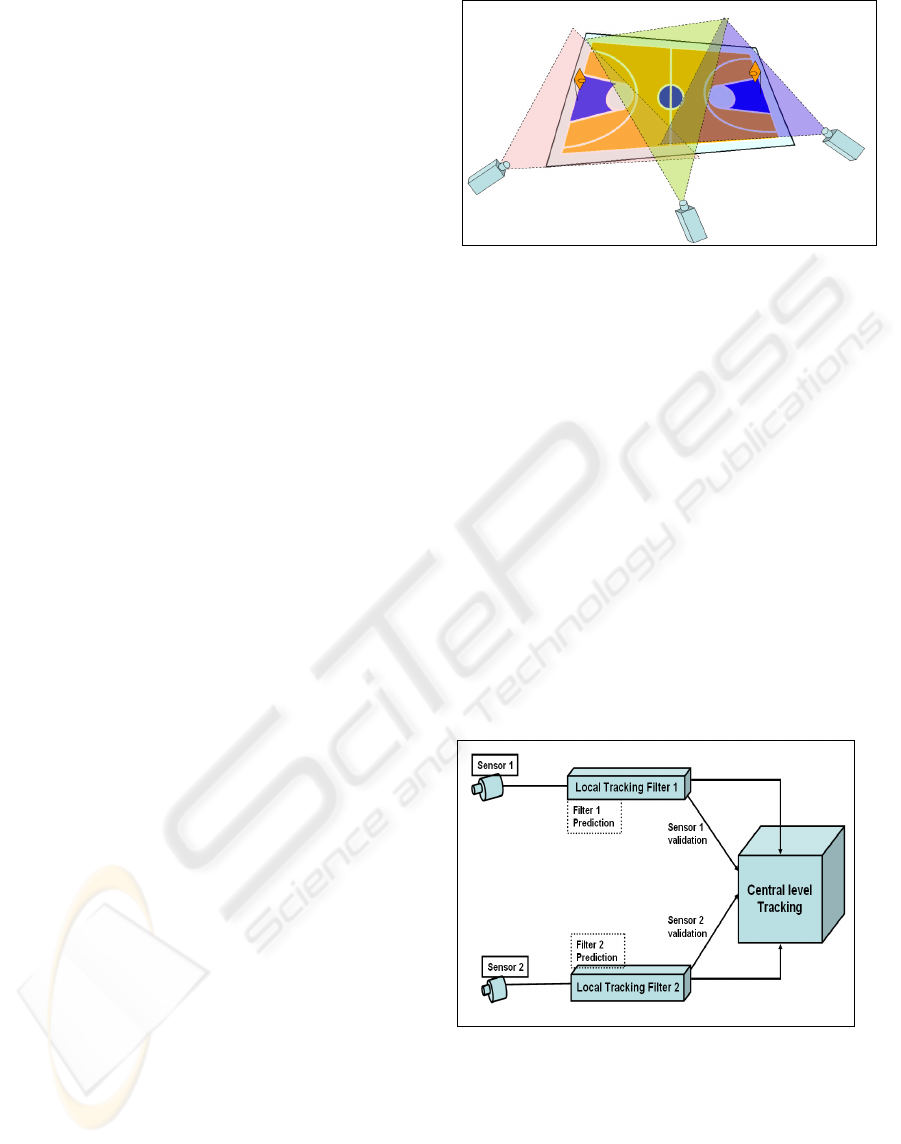

Figure 1: Distributed sensing architecture.

Our strategy of sensor combination integrates

contextual information for representing the

suitability of each sensor for the task. The suitability

of a sensor combines two main criteria. Firstly it is

based on the notion of spatial “isolation” with

respect to other object and secondly on the notion of

“visibility” with respect to the sensor.

Related works linked with the tracking of humans

and vehicles with multiple visual sensors are

numerous (Foresti,1995) (Utsumi, 1998) (Nakazawa,

1998) (Snidaro, 2004). The main contribution of this

work is the manner of how the system controls the

sensor information flow in order to improve the

quality of the global tracking. The proposed system

uses a hierarchical approach presented in the figure

2. A central level tracker uses results of local tracker

associated with each sensor.

Figure 2: The global architecture of the tracking system.

The section 2 presents the local tracking unit. The

Section 3 concerns the central level part of our

tracking system. The Section 4 shows some

experimental results by using a real multi-camera

image sequence.

ICINCO 2006 - ROBOTICS AND AUTOMATION

572

2 LOCAL VISUAL TRACKING

2.1 Detection and Tracking Strategy

The proposed local tracker basically uses a region-

based approach. The tracking algorithms use

cinematic and visual constraints for establishing

correspondence. In our problem of object tracking

for a visual-surveillance application, observations

representing the detected regions are complex and

are not corrupted by random noise only. They are

also affected by detection errors, merging and

splitting artefacts, which are difficult to model

globally or statistically. In addition, the dynamic

model of human activity may present significant

variability according to the working context. For all

these reasons, we have chosen a qualitative

approach, which focuses mainly on data association

quality rather than high precision object motion

estimation. Assumptions underlying our approach

concern several points: objects move smoothly from

a frame to another, objects do not change rapidly

their appearance colour; objects can interact with

other objects or groups of objects. The Tracking

algorithm uses globally the Nearest Neighbour (NN)

strategy. However, in the presence of merging or

splitting situations two specific procedures are

launched in order to solve the association ambiguity.

The detection of moving objects is performed by

comparing the three RGB components:

))()(max(

>−

−

PRPIif

BGRc

1)( =→ PD

(1)

0)( =→ PDelse

represents the detection decision (1: moving

object, 0: background). The parameters

ω is the

inter-frame detection threshold and the stability

elementary step. The parameter

ω is adjusted to

twice the median absolute deviation of image noise

estimated over a preliminary training sequence (

ω=

20 with 8bits/color channel). The raw motion

detection result generally presents many artefacts.

Two kinds of cleaning procedures are applied.

Firstly, we use standard morphological operations of

erosion and dilatation for reducing noise in the

foreground. Then, too small uninteresting image

regions are removed. In our algorithm this size

threshold is defined globally in an empirical manner

for the entire image sequence.

In order to perform the tracking step, a Kalman

filter is attached to each detected object (Position

state, and speed as a hidden state), and the

information obtained by the filter, is used to predict

the position of the object on the next frame. For each

detected region, three visual features are computed:

centre of gravity, bounding box, and colour

histogram. Colour histogram in particular, has many

advantages for tracking non-rigid objects as it is

robust to partial occlusion, is rotation and scale

invariant and is computed efficiently. The histogram

is reduced to 32 bins per colour channel in order to

reduce the information quantity. However, in the

context of multi-player sports based on teams, the

colour information will mainly discriminate teams

and in a lower manner individual players of the same

team. However in the context of the basketball, or

foot ball the mutual physical interactions mainly

occur between players of opposite teams.

The matching is based on the spatial proximity of

regions and their visual compatibilities. The

algorithm evaluates explicitly the quality of each

association. This information is summarized by a

specific belief indicator called “consistency”

indicators. The indicator is recursively updated and

stored during the tracking step.

The consistency indicator of tracked objects

firstly permits effective new objects to be validated

after consecutive observations. Secondly, it permits

to tolerate some temporary loss of the objects having

a reliable track. It reacts as a robust filter at the

object level. The indicator increases when no

significant variation in the object features (colour

and bounding box size and the speed vector) is

perceived. Otherwise or in extreme situations when

the target is lost, indicator is decreased. The

dissimilarity between the object colour histograms is

performed by the Bhattacharya distance.

The updating process of the consistency indicator

of each tracked object is controlled in terms of fixed

time delay. The track termination is decided for lost

objects after a defined period of consecutive zero

value consistency indicator.

The maintenance of the identity of each object is

performed only when the object is present in front of

the camera view. The track of the object is also

terminated when it goes out of the field.

MANAGEMENT OF A MULTICAMERA TRACKING SYSTEM

573

2.2 Merging and Splitting Procedure

An important difficulty of visual tracking is when

objects come to merge from the camera viewpoint.

This merging situation is immediately detected by

testing the intersection of predicted object bounding

box and the size variation of the newly detected

region. When a merging situation is detected, firstly

a notion of a temporary group of objects is defined

in order to track the global region containing

visually merged objects. Each group is considered as

a new specific entity to track with its indicators. In

addition to the temporary group tracking, the

algorithm attempts to maintain the track of each

individual object inside the global group region. The

estimation of position of individual objects during

the merging situation is based on their appearance

model. We have chosen the mean shift algorithm.

This algorithm has been adopted as an efficient

technique for appearance-based blob tracking

(Comaniciu

, 2000). The mean-shift algorithm is a

nonparametric statistical method for seeking the

nearest mode of a point sample distribution (

Cheng,

1995). The dissimilarity between the object model

and the object candidates is performed by the

Bhattacharya distance. In the normal mode, the

algorithm stores continuously the latest sub-image of

each object obtained from the motion detection

stage. It permits, at the beginning of the merging

situation, to get ready the initial object model useful

for the mean shift algorithm.

In some situation, an object may be hidden

entirely or partially by another one, so that the object

can not be located by its appearance. In order to

maintain a tracking continuity in all situations for

each merged object, the notion of the artificial

observation is introduced. It is positioned for each

object, on an estimated location P* which is

obtained by a weighted combination of the best

appearance position Pa and the global group position

Pg.

PwwPP ).1(.

−+=

(2)

The weight w is a normalised distance between

the object model and the best location candidate

obtained from the appearance approach. In this

strategy, when the object cannot be identified by the

appearance approach, the group position is favoured.

During merging, the history of each tracked

object included in a group (positions and indicators)

is continuously updated by means of its artificial

observation. This approach of compound

observation is close to the PDAF algorithm (Bar-

Shalom 1988) which combines the influence of

multiple candidates in the validation gate. During

the merging situation the consistency indicator of an

object is updated only by taking into account the

speed stability, estimated thanks to its artificial

observation. If during tracking a sole object joins a

group, the initial group with updated objects is

maintained. The global procedure during the

merging situation may be relatively time-consuming.

So the decision of group creation is robustly

validated once it has been predicted by using the

proximity of consistent tracked objects. It permits to

tolerate efficiently some fugitive false-detections.

On the other hand, this last strategy cannot initialise

a group if one of the merged objects is newly created

and has a low consistency indicator. In this last case

one object is only considered and no group is

created.

As in the merging situation, the splitting has to be

detected immediately. The Splitting situation is

detected once a new object is detected close to a

temporary group region. In order to reduce the

influence of some detection errors when a real sole

object or a group is split by the motion segmentation

errors during a short delay, the decision of splitting

is provided only when it is confirmed during a fixed

time delay (1 second in this implementation).

When the algorithm detects split regions

associated to a known group, a specific procedure

focuses its attention toward the identity of objects.

After splitting, the group updates its individual

object. When the group is reduced to a known sole

object, the group entity is destroyed.

A visual comparison between objects before

merging and after splitting permits to affect the best

object identity for each region. When a region

considered as a sole object splits, separated detected

regions are associated with new objects and inherit

the history of the initial object (previous tracks

position and consistency indicators).

3 CENTRAL LEVEL TRACKING

From a multi-sensor organization, we have chosen

the hierarchical approach. A centralized filter

combines the results of the local tracking filters

(sensor level) and then performs the track

management (Fig. 2). The sensor validation

indicator is computed at the predictive location of

ICINCO 2006 - ROBOTICS AND AUTOMATION

574

the tracked object obtained by the sensor level

estimator.

A planar homography transformation HS is

performed in order to bring each local estimation

from sensor ‘s’ into the same reference plan R0. The

position in image concerns the position of player on

the ground plane obtained by the lower segment of

the object bounding box. The sensor validation

information permits to guide the tracking process by

a context driven strategy. It controls the combination

of local trackers through the central level tracking.

The validation is represented by a confidence value

for each current tracked object and is based on

dynamic contextual information with respect to each

sensor. The main objective is to favor the best views

with respect to dynamic occlusion of each tracked

object. The sensor validation indicator represents a

notion of suitability of a sensor for the tracking of a

defined object. This validation indicator clearly

favor un-occluded tracked object with respect to the

camera views.

For each object with respect to each sensor ‘s’,

the indicator (

λs) is set to its maximum=1 if the

tracked object is known as sole object from the local

sensor. When the object goes out of the field of the

sensor the indicator takes the zeros value. In

presence of occlusion, highlighted by the notion of

group managed by the local sensor ‘s’, the indicator

takes the degree of visibility : ws estimated during

the merging procedure of local tracker (section2.1).

The central level tracker based on a Kalman filter

uses the result of local trackers (positions P*s and

indicators) as its observation. Before filtering, it

performs a combination of these observations

weighted by their validation indicators in order to

generate a fused position Pglobal.

∑

global

PHP

).(.

(3)

4 EXPERIMENTATIONS

We present in this section some experimental results

of our multi-camera tracking system. The

experimentation is based on a real competition of

basket-ball recorded from two distant wide angle

views during 20 min. The application permits in

particular to estimate the total length of the whole

trajectory covered by each team.

The figure 3 illustrates the complementarity of

the two views and shows an instantaneous result of

local tracking and also the notion of group with

respect to each view.

We have study the performance of our multi-

camera tracking system with respect to our

evaluation video sequence. The evaluation is

focused on the data association step with respect to

the notion of confusion of identity of players. The

comparison is performed between the result of local

trackers and the global tracker. In our system the

local trackers do not maintain a global identity

during the whole sequence. Each object (player) is

initialised when it enters in the field of the camera.

So, for the local tracker, we count only local errors

of association occurring during the presence of the

object in the field of the camera. The result of this

evaluation from of this experimentation is

satisfactory (Table 1). It shows in particular that the

majority of occlusion containing the same objects

does not occur simultaneously under the two

distributed views. Figure 3 illustrates a case of such

situation when the same player belongs to a group

from each view.

Figure 3: An illustration of local tracking from two views.

MANAGEMENT OF A MULTICAMERA TRACKING SYSTEM

575

Table 1: Performance evaluation with respect to the

identity confusion.

Tracking level Local

tracking

Left

camera

Local

tracking

Right

camera

Central

level

tracking

Number of object

identity confusion

32 26

Number of object

in group

132 115 --

Number of objects

simultaneously

appearing in a

group from 2 views

31 31 --

5 CONCLUSION

The development of a tracking system from multiple

fixed cameras is helpful for many applications in the

domain of surveillance or monitoring. Our strategy

of sensor combination integrates contextual

information for representing the suitability of each

sensor. The main advantage of our qualitative

motion correspondence and sensor selection is its

capacity to cope naturally with known modelled

tracking ambiguities. At the local level the tracking

takes into account the regions merging, splitting, and

target missing. At the central level the tracking

solves a good part of occlusions. The use of the

sensor validation from local tracker permits in an

active manner, to focus the central level, on

appropriate information.

ACKNOWLEDGEMENTS

This work is supported by the Nord/.Pas de Calais,

French Regional Council and FEDER (European

funding for regional development) in the context of

the RaVioLi Project.

REFERENCES

Bajcsy R. 1988, Active Perception, Proceedings of the

IEEE, 76(8):996-1005.

Bar-Shalom Y. & Forthmann T.E, 1988, Tracking and

data association. Academic Press

Cheng Y. 1995, Mean Shift, Mode Seeking, and

Clustering. IEEE Trans. Pattern Analysis and

Machine Intelligence, Vol 17(8), pp.790-799.

Comaniciu D., Ramesh V, and Meer P. 2000, Real-

TimeTracking of Non-Rigid Objects using Mean Shift.

IEEE Computer Vision and Pattern Recognition, Vol

II, , pp.142-149.

Foresti G.L., Murino V., Regazzoni C., and. Vernazza G.

1995,A multilevel fusion approach to object

identification in outdoor road scenes. International

Journal of Pattern Recognition and Artificial

Intelligence, 9(1):23–65,.

Nakazawa A., Kato H., and Inokuchi S.. 1998 Human

tracking using distributed vision systems. In

Proceedings of the 14

ICPR, pages 593–596,.

Rangarajan K. and Shah M., 1991. Establishing Motion

Correspondence. CVGIP: Image Understanding, 54

(1), pp. 56-73.

Sethi I.K. and Jain. R., 1990. Finding trajectories of

feature points in a monocular image sequence. IEEE

Transaction on Pattern Analysis and Machine

Intelligence, 9 (1), 56-73.

Snidaro L., Luca Foresti G., Niu R., Varshney P. K., 2004.

Sensor fusion for video surveillance, International

Conference on Information Fusion 2004, pp. 739-746,

Sweden.

Utsumi A., Mori H., Ohya J., and M. Yachida. 1998,

Multiple view-based tracking of multiple humans. In

Proceedings of the 14th ICPR, pages 597–601.

Veenman C.J. and Reinders M.J.T. and E.Backer 2001.

Resolving Motion Correspondence for Densely

Moving Points. IEEE Transactions on PAMI vol23,

pp54-72.

ICINCO 2006 - ROBOTICS AND AUTOMATION

576
