CWS-TRANSACTIONS: AN APPROACH FOR COMPOSING

WEB SERVICES

Juha Puustjärvi

Lappeenranta University of Technology

Keywords: Composed web services, Advanced transaction models, Semantic atomicity.

Abstract: Many transaction models have been developed for modelling composed web services. In these models

subtransactions (single web services) can commit and release their resources before the whole composed

transaction commits. If the whole transaction aborts, then the (semantic) atomicity is ensured by executing

compensating transactions which semantically undo the effects of the committed subtransactions. However,

using compensating transactions in ensuring semantic atomicity is turned out to be problematic in many

cases. In order to avoid these problems we have developed a new transaction model, called CWS-

transaction model, for composed web services. It deviates from other advanced transaction models in that it

is not based on compensating transactions, but rather it divides the traditional business transaction into two

successive transactions, called request transaction and decision transaction. The commitment of the request

transaction ensures that the decision transaction will not fail, and so the atomicity of the CWS-transaction is

ensured. In this paper we specify the components of the CWS-transaction model, their execution

dependencies, the correctness criteria of the CWS-transactions and give an example of the implementation

of the CWS-transaction model.

1 INTRODUCTION

A business transaction is an interaction in the real

world, usually between an enterprise and a person or

between enterprises, where something is exchanged.

For example, making a room reservation on a hotel

and booking a flight are business transactions.

Web services (Newcomer. 2002) provide a way

for executing business transactions in the Internet.

They are self-describing modular applications that

can be published, located and invoked across the

Web. Once a service is deployed, other applications

can invoke the deployed service. In general, a web

service can be anything from a simple request to

complicated business process.

Another nice feature of web services is that new

and more complex web services can be composed of

other web services. However, in many cases

composed web services are useful only if they can

be processed atomically. For example, assume that a

composed web service is composed of flight

reservation web service and hotel web service. Now

the success of the hotel reservation may be useless if

the flight reservation failed.

Many transaction and workflow models have

been developed for modelling the execution of

composed web services, e.g., XLANG (XLANG,

2001), XAML (XAML, 2003), BTP (Business

Transaction Protocol) (BTP, 2002), WSFL (WSFL,

2003) and BPEL4WS (MPEL, 2004). The

cornerstone of these models is the notion of

compensation. This means that each subtransactions

(the execution of a single web service) can commit

and release its resources before the whole composed

transaction (composed web service) commits. If the

whole transaction aborts (i.e., at least one

subtransaction failed) then the (semantic) atomicity

(Lynch, 1983) of the composed web service is

ensured by executing compensating transactions

which semantically undo the effects of the

committed subtransactions.

However, using compensating transactions

(Garcia-Molina, 1983) in ensuring atomicity may be

problematic. To illustrate this let us consider the

composed business transaction comprising of hotel

room reservation and flight reservation. Now assume

that the hotel reservation was successfully processed

whereas the flight booking failed. So, the hotel

reservation has to be rolled back by a compensating

Puustjärvi J. (2006).

CWS-TRANSACTIONS: AN APPROACH FOR COMPOSING WEB SERVICES.

In Proceedings of WEBIST 2006 - Second International Conference on Web Information Systems and Technologies - Internet Technology / Web

Interface and Applications, pages 69-74

DOI: 10.5220/0001239400690074

 SciTePress

transaction. Now we may encounter the following

problems:

First, rolling back a business transaction is not

always free of charge, and so the cancellation of the

hotel reservation may give rise for a special charge.

Second, there are two semantics for the hotel

reservation transaction: From composed transactions

point of view the reservation is a reservation of

resource which will be realized only if all the

subtransaction succeed (with traditional transaction

processing such a function is carried out by locks).

From hotel point of view the reservation of a

composed business transaction is like any

reservation.

In addition, compensation is not always possible.

For example, withdrawing 100 euros from account

A is the compensation of deposing 100 euros on

account A. However, the withdrawing will fail if the

balance of account A is less than 100 euros.

In order to avoid these problems we have

developed a new transaction model, called

Composed Web Service Transaction model, or CWS-

transaction model for short. It deviates from other

advanced transaction models in that it is not based

on compensating transactions, but rather it divides

the traditional business transaction into two

successive transactions, called request transaction

and decision transaction. The commitment of the

request transaction ensures that the decision

transaction will not fail, and so the atomicity of the

CWS-transaction can be ensured.

The rest of the paper is organized as follows.

First, in Section 2, we specify the syntax and

semantics of the CWS-transaction model. Then, in

Section 3, we specify the coordination requirements

for the execution of CWS-transactions. In particular,

the message interchange between web services is

illustrated. In Section 4, we illustrate how the

request transaction and the decision transaction can

be implemented in a local application. The required

transactions are presented by an SQL-like notation.

Section 5 concludes the paper by discussing the

advantages and limitations of the CWS-transaction

model.

2 THE STRUCTURE OF THE

CWS-TRANSACTIONS

In this section we specify the components of the

CWS-transaction model and their execution

dependencies.

In our terminology we refer by the term web

service transaction, or WS-transaction for short, to

the execution of a web service. So, for example,

WS-transaction is an execution of a web service

which makes a reservation on a hotel through.

Further WS-transaction comprises of one or more

web service operations, or WS-operations for short.

For example, requesting the prises of hotel rooms

and making the actual room reservation are the WS-

operations comprising a WS-transaction.

Further, we make the difference between read

operations and update operations of a WS-

transaction, e.g., requesting the prises is a read

operation whereas making the actual reservation is

an update operation.

Transactional feature (Gray and Reuter, 1993) in

the context WS-transactions means that all or none

of its update operations are executed. For example,

if the function of a flight reservation WS-transaction

is to make a reservation on flight A and B, then both

or none of the reservations are done.

Even though the WS-transaction model is useful

for executing and analyzing single web services, it is

not enough powerful for modelling composed web

services. Therefore we use WS-transaction as

components in the CWS-transaction model.

The structure of the CWS-transaction is

presented in Figure 1.

The function of the root (CWS-transaction) is to

coordinate the execution of the leaf transactions

(Participant Web Service transactions, or PWS-

transactions for short).

Further each PWS-transaction is divided into a

request transaction and a decision transaction

(Figure 2). The function of a successfully executed

request transaction is to ensure that the decision

transaction will not semantically fail. The decision

transaction will only be executed if the

corresponding request transaction is successfully

executed. Further, each decision transaction either

Composed web

services transaction

(CWS-transaction)

Participant web

service transaction

(PWS-transaction)

Participant web

service transaction

(PWS-transaction)

…

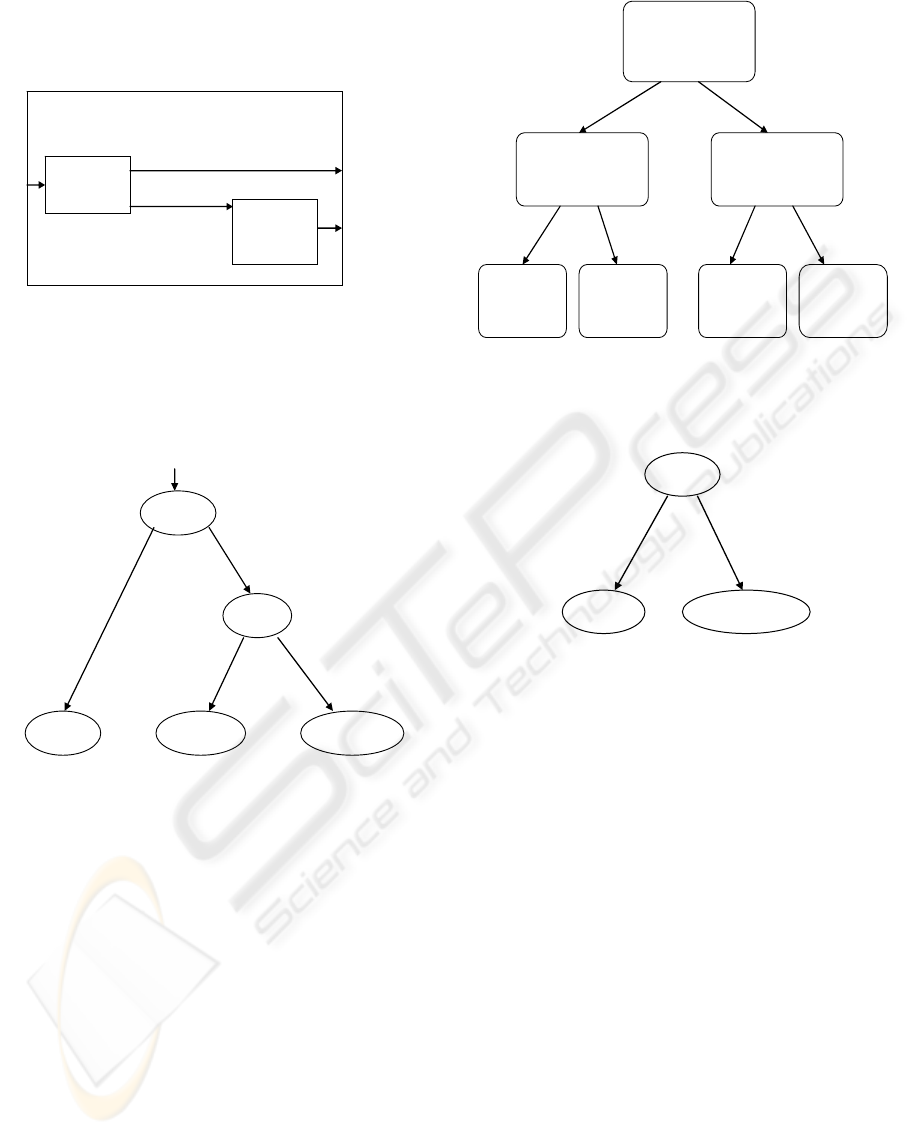

Figure 1. The structure of the CWS-transaction.

Figure 1: The structure of the CWS-transaction.

WEBIST 2006 - INTERNET TECHNOLOGY

confirms or cancels the request. Note that

technically request and decision transactions are

normal WS-transactions.

The execution dependencies of the PWS-

transaction are presented in Figure 3.

In order to illustrate the execution of the CWS-

transactions let us assume that a

business_trip_reservation is a CWS-transaction

(Figure 4). Its PWS-transactions are

hotel_reservation_transaction and flight_reservation

transaction, which in turn are divided into request

transaction and decision transaction.

After the execution the business trip transaction

it is either in aborted state or committed state (Figure

5). It is in the aborted state, if one or more request

transaction failed. This may happen for example

when the flight or the requested hotel is fully

booked.

3 SUPPORTING

CWS-TRANSACTIONS

Based on the concepts presented in Section 2 we can

now specify the correctness criteria of the CWS-

transactions. They are the followings:

C1. Each CWS-transaction either commits or aborts.

C2. If the request transaction of each PWS-

transaction is successfully executed, then their

positive decision transaction is also executed (i.e.,

the CWS-transaction is committed).

C3. If the CWS-transaction aborted, then each of its

PWS-transaction either aborted or cancelled.

Enforcing these constraints requires the coordination

between the CWS-transaction and its PWS-

transactions. In the following protocol description to

illustrate the functions of the components, we call

Start

Wait

ConfirmedCanceledAborted

Semantic success

of request transaction

Semantic failure

of request

transaction

Positive

decision

transaction

Negative

decision

transaction

Figure 3. The states of a PWS-transaction.

PWS-transaction

Request

transaction

Decision

transaction

Failure

Success

Figure 2. The execution dependencies of the PWS-transaction.

CWS-transaction:

Business

trip reservation

PWS-transaction:

Hotel

reservation

PWS-transaction:

Flight

reservation

Hotel

Request

transaction

Hotel

Decision

transaction

Flight

Request

transaction

Flight

Decision

transaction

Figure 4. The structure of a CWS-transaction.

Start

Aborted Committed

Failure of

a request

transaction

Semantic

success of

all request

transactions

Figure 5. The states of a CWS-transaction.

Figure 2: The execution dependencies of the PWS-

transaction.

Figure 3: The states of a PWS-transaction.

Figure 4: The structure of a CWS-transaction.

Figure 5: The states of a CWS-transaction.

CWS-TRANSACTIONS: AN APPROACH FOR COMPOSING WEB SERVICES

the root as coordinating web service while other web

services we call participating web service. This kind

of communication architecture can be presented as

graph where nodes are Web services (Web services,

2002) and directed edges represent SOAP-messages

(SOAP, 2002) (Figure 6).

For simplicity we first present the atomicity

protocol assuming that there are no communication

failures. In such a case the atomicity protocol of

composed web services goes as follows:

1. The CWS-transaction coordinator sends the

request message to participant web services.

2. A participant web services execute the request

transaction. If the execution failed the participant

web service sends to CWS-transaction coordinator

the failure message; otherwise it sends the success

message.

3. If the CWS-transaction coordinator has

received the success message from all participant

web services, then it sends the positive decision

message to each participant web service (i.e.,

requests to execute the positive decision

transaction). Otherwise it sends the negative

decision message.

Note that, this protocol will terminate only if all

messages are received. There are two places where a

service is waiting for a message: in the beginning of

steps 2 and 3. In the beginning of step 2, a

participant web service waits for a request from the

CWS-transaction coordinator. In step 3, the CWS-

transaction coordinator is waiting for the decision

(positive or negative) from all the participant web

services.

We say that when a service must await the repair

of failures before proceeding, the service is blocked.

Blocking is undesirable, since it can cause services

to wait for an arbitrarily long period of time. In order

that a blocked service can proceed it must

communicate with the CWS-transaction coordinator.

This kind of communication is carried out in a

termination protocol. Participant web service

activates a termination protocol when it has been

waiting a predetermined time for a message. Our

termination protocol of the atomicity protocol goes

as follows:

1. The participant web service sends decision-

request-message to the CWS-transaction

coordinator.

2. The CWS-transaction coordinator sends the

response-message to the participant web service.

The participant web service repeats the request if it

has not received the response in a predetermined

time period. The CWS-transaction coordinator is

always able to response to the request as it has no

uncertainty period. Uncertainty period is the time

period between the moment a participant web

service sent the success message to the CWS-

transaction coordinator and the moment it has

received the decision message. During the

uncertainty period the participant web service does

not know whether the CWS-transaction coordinator

will eventually commit or abort the CWS-

transaction.

4 IMPLEMENTING

PWS-TRANSACTIONS

A salient feature of the CWS-transaction model is

that if a participant web service sends the success

message to the CWS-transaction coordinator, then it

is committed to execute the decision (either positive

or negative) transaction. The problem here is how to

ensure that the decision transaction will not

semantically fail in executing the positive decision

transaction. We illustrate our used technology by a

web service of an imaginary airline (Figure 7). Web

services are described in WSDL (WSDL, 2001) but

here we omit the descriptions.

CWS-transaction

coordinator

Participant

Web service

Participant

Web service

SOAP-

messages

…

Figure 6. The communication structure of CWS-transaction.

123

Figure 6: The communication structure of CWS-

transaction.

WEBIST 2006 - INTERNET TECHNOLOGY

Assume that the Flight reservation database is

comprised of the three relations: Reservations

(Figure 8), PreliminaryReservations (Figure 9) and

ReservationStates (Figure 10).

Relation Reservations includes reservations.

Relation PreliminaryReservations includes the

reservations inserted by the transaction triggered by

the Request-message. They are called preliminary

reservations as they will be changed to reservations

by the positive decision transaction or they will be

deleted by the negative decision transaction. That is,

the positive decision transaction deletes the

preliminary reservation and makes a reservation

while the negative decision transaction only deletes

the preliminary transaction.

Relation ReservationStates captures the information

of preliminary reservations (attribute preResNum)

and reservations (attribute resNum). Attribute

maxRes indicates the number of reservations that can

be made on flights. In order to avoid overbookings

the specification of the relation ReservatioState

includes the following consistency constraint:

CONSTRAINT BookingWatch

CHECK (resNum + preResNum <= maxRes)

Note that this constraint also ensures that each

preliminary reservation can be changed to

reservation. That is, changing a preliminary

reservation into reservation cannot fail as a result of

unreserved seats.

The specifications of the transaction making the

preliminary reservation and the positive and

negative decision transactions are given below. The

Request message (Figure 7) activates the

PreReservation transaction, and the Decision

message (Figure 7) activates either the

PositiveDecision transaction or the

NegativeDecision transaction. Here we use an SQL-

like notation which deviates from SQL in that we

omit certain features, which are irrelevant from the

illustrative point of view, e.g., we omit the check of

the SQLSTATE-variable.

PreReservation (customerID, flightId,

resSeats)

Begin transaction

INSERT INTO PreliminaryReservations

VALUES (:customerID, :flightId,

:reseats);

UPDATE ReservationStates

SET preResNum = preResNum +

:reseats

WHERE flight = :flightId;

End transaction

PositiveDecision (customerID, flightId,

resSeats)

Begin Transaction

UPDATE ReservationStates

Flight reservation

application

Flight reservation

database

Web service interface

Request

message

Success

message

Failure

message

Decision

message

Figure 7. Web service of a reservation system.

customer flight preResSeats

A -123 1

C -345 2

Figure 9. Relation PreliminaryReservations.

PreliminaryReservations

Robinson

Harrison

ReservationsStates flight

A -123 1

C -345

B -234 1

Figure 10. Relation ReservationStates.

resNum preResNum maxRes

Reservations

customer

flight resSeats

Smith

A -123

Jones

C -345

Taylor

B -234 1

Cooper A -123

Figure 8. Relation Reservations.

Figure 7: Web service of a reservation system.

Figure 8: Relation Reservations.

Figure 9: Relation PreliminaryReservations.

Figure 10: Relation ReservationStates.

CWS-TRANSACTIONS: AN APPROACH FOR COMPOSING WEB SERVICES

SET preResNum = preResNum -

:reseats,

resNum = resNum + :resSeats

WHERE flight = :flightId;

INSERT INTO Reservations

VALUES (:customerID, :flightID,

:reseats):

DELETE FROM PreliminaryReservations

WHERE fligh = :flightId AND

customer =

:customerID;

End transaction

NegativeDecision (customerID, flightId,

resSeats)

Begin Transaction

UPDATE ReservationStates

SET preResNum = preResNum -

:reseats,

WHERE flight = :flightId;

DELETE FROM PreliminaryReservations

WHERE fligh = :flightId AND

customer =

:customerID;

End transactio

5 CONCLUSIONS

A goal of web services is to achieve universal

interoperability between applications by using web

standards. However, the full potential of universal

interoperability will be achieved only when web

services can be integrated in a transactional way. In

order to achieve this goal many transaction models

have been developed. In these models compensating

transactions are used to ensure the semantic

atomicity of transactions spanning over many sites.

In many cases the use of compensating

transactions has turned to be problematic. In order to

avoid these problems we have developed the CWS-

transaction model, which does not use compensating

transactions. In contrast it divides the traditional

business transaction into two successive

transactions, called request transaction and decision

transaction. The commitment of the request

transaction ensures that the decision transaction will

not fail, and so the semantic atomicity of the CWS-

transaction is ensured. In addition the termination

protocol ensures that CWS-transactions tolerate also

communication and site failures.

A restriction of our approach is that the support

of CWS-transactions requires minor modifications

on local applications. In particular, the updates of

the request transaction must be stored in a stable

storage, typically on the database. This in turn

requires creating new data structures, e.g., relations.

REFERENCES

Newcomer E., 2002. Understanding Web Services

Addison-Wesley.

XLANG, 2001. XLANG–Web Services for Business

Process Design.

http://www.gotdotnet.com/team/xml_wsspecs/xlang-

c/default.htm.

XAML, 2003. Transaction Author Markup Language

(XAML). http://xml.coverpages.org/xaml.html.

BTP, 2002. BTP- Business Transaction Protocol,

http://www.oasis-open.org/committees/business-

transactions/documents/primer/.

WSFL, 2003. WSFL- Web Services Flow Language.

http://www.ebpml.org/wsfl.htm

BPEL, 2004. BPEL4WS – Business Process Language for

Web Sevices.

http://www.w.ibm.com/developersworks/webservices/

library/ws-bpel/.

Lynch N., 1983. Multilevel atomicity – a new correctness

criterion for database concurrency control. ACM

Transactions on Database Systems, 8(4):65-76.

Garcia-Molina H., 1983. Using semantic knowledge for

transaction processing in a distributed database. ACM

Transactions on Database Systems, 8(2):186-313.

Gray, J. & Reuter A. 1993. Trasaction Processing:

Concepts and Techniques. Morgan Kaufman.

Web services, 2002. Web Services Activity.

http://www.w3.org/2002/ws/.

SOAP, 2002. SOAP – Simple Object Access Protocol.

http://www.w3.org/TR/SOAP/.

WSDL, 2001. WSDL- Web Services Description

Language. http://www.w3.org/TR/2001/NOTE-wsdl-

20010315.

WEBIST 2006 - INTERNET TECHNOLOGY
