FRAC+: A DISTRIBUTED COLLABORATIVE FILTERING MODEL

FOR CLIENT/SERVER ARCHITECTURES

Sylvain Castagnos, Anne Boyer

LORIA - Universit Nancy 2

Campus Scientiﬁque, B.P. 239

54506 Vandoeuvre-l

es-Nancy Cedex, France

Keywords:

Collaborative ﬁltering, user modeling, client/server algorithm, privacy, scalability, sparsity.

Abstract:

This paper describes a new way of implementing an intelligent web caching service, based on an analysis of

usage. Since the cache sizes in software are limited, and the search for new information is time-consuming,

it becomes interesting to automate the process of selecting the most relevant items for each user. We propose

a new model (FRAC+), based on a decentralized collaborative ﬁltering algorithm (FRAC) and a behavior

modeling process. Our solution is particularly designed to address the issues of data sparsity, privacy and

scalability. We consider the situation where the set of users is relatively stable, whereas the set of items may

vary considerably from an execution to another. We furthermore assume that the number of users is much

more important than the number of items. We argue that a user-based approach seems to be more suitable

to address the aforementioned issues. We present a performance assessment of our technique called FRAC in

terms of computation time and prediction relevancy, the two most reliable performance criteria in the industrial

context we are involved in. This work has been implemented within the ASTRA satellite website broadcasting

service.

1 INTRODUCTION

With the development of information and communi-

cation technologies, the size of information systems

all over the world has exponentially increased. The

amount of data on the Web, for example, has crossed

the threshold of the 7500 terabytes in 2004. Conse-

quently, it becomes difﬁcult for users to identify in-

teresting items in a reasonable time, even if they use

a powerful search engine. To cope with this prob-

lem, more and more companies choose to integrate a

recommender system in their products. The goal is

then to provide users with resources likely to interest

them, instead of waiting that they ask for them. These

processes of investigation may be provided by collab-

orative ﬁltering techniques. They rely on the princi-

ple that users who liked the same documents have the

same topics of interests. Thus, it is possible to predict

pieces of data likely to live up users’ expectations by

taking advantage of experience of a similar popula-

tion.

Nevertheless, collaborative ﬁltering algorithms are

still faced with numerous problems: mobility of user

proﬁles (Miller et al., 2004), security of the system,

trust, portability on different platforms, etc. In this

paper, we propose an optimization of the distributed

collaborative ﬁltering model we have made explicit

in (Castagnos et al., 2005). It has been especially de-

signed to deal with problems of privacy, sparsity (cf.

infra, 3.1 Behavior modeling) and scalability (cf. in-

fra, 3.2 Clustering algorithm).

First, we would like to familiarize readers with col-

laborative ﬁltering methods (cf. infra, section 2). Af-

terwards, we will present our model called FRAC+

which has been applied to satellite website broadcast-

ing. The fourth part is then dedicated to the evaluation

of our algorithm, both in terms of computation time

and relevancy of recommendations.

2 STATE OF THE ART

BREESE et al. (Breese et al., 1998) have identiﬁed,

among existing techniques, two major classes of al-

gorithms to solve this problem: memory-based and

model-based algorithms.

The memory-based algorithms maintain a database

containing votes of all users. A similarity score is de-

435

Castagnos S. and Boyer A. (2006).

FRAC+: A DISTRIBUTED COLLABORATIVE FILTERING MODEL FOR CLIENT/SERVER ARCHITECTURES.

In Proceedings of WEBIST 2006 - Second International Conference on Web Information Systems and Technologies - Internet Technology / Web

Interface and Applications, pages 435-440

DOI: 10.5220/0001248804350440

 SciTePress

termined between the active user and each of the other

members. Then, each prediction leads to a computa-

tion on all of this source of data. The inﬂuence of a

person is all the stronger when his/her degree of sim-

ilarity with the active user is high.

These memory-based techniques offer the advan-

tage to be very reactive, by integrating immediately

modiﬁcations of users proﬁles into the system. How-

ever , B

REESE et al. (Breese et al., 1998) are unani-

mous in thinking that their scalability is problematic:

even if these methods work well with small-sized ex-

amples, it is difﬁcult to change to situations character-

ized by a great number of documents or users. Time

and space complexities of algorithms are much too

important for large databases.

The model-based algorithms are an alternative to

the problem of combinatorial complexity. In this ap-

proach, collaborative ﬁltering can be seen as the com-

putation of the expected value of a vote, according

active user preferences. These algorithms create de-

scriptive models correlating persons, resources and

associated votes using a learning process. Then, pre-

dictions are infered from these models.

According to P

ENNOCK et al. (Pennock et al.,

2000), model-based algorithms minimize the problem

of algorithmic time complexity. Furthermore, they

view in these models an added value beyond the sole

function of prediction. They highlight some corre-

lations in data, thus proposing an intuitive reasoning

for recommendations or simply making the hypothe-

ses more explicit. However, these methods are not re-

active enough and they react badly to insertion of new

contents in database. Moreover, they require a learn-

ing phase being both detrimental for the user

and ex-

pensive in computation time for large databases.

Consequently, one of the main difﬁculties of col-

laborative ﬁltering remains the scalability of systems.

(Sarwar et al., 2001) have paved the way by proposing

an alternative. They suggest to compute recommen-

dations by identifying items that are similar to other

items that the user has liked. They assume that the re-

lationships between items are relatively static. Never-

theless, we have chosen to investigate the case where

available items change periodically and radically af-

ter a while. The item-based algorithm doesn’t seem

relevant to handle this problem. Moreover, we also

consider the situation where the number of users is

far more important than the number of items. There-

fore, we have chosen to explore ways to decentral-

ize computations. The model proposed in this arti-

cle is an hybrid approach, combining the advantages

of memory-based and model-based methods to dis-

The recommendations system won’t be able to provide

relevant documents as soon as it receives the ﬁrst queries.

tribute the computations between the server and the

clients. We study this approach, because it is always

used for satellite broadcasting or for e-commerce ap-

plications at times.

3 ARCHITECTURE (FRAC+)

The architecture of our information ﬁltering system

is shown on ﬁgure 1. This model associates a user

modeling method based on the Chan formula (Chan,

1999) (cf. infra, 3.1 User modeling, p. 3) and a

new version of the hierarchical clustering algorithm,

also called RecTree (Chee et al., 2001) (cf. infra,

3.2 Clustering algorithm, p. 3). This new version –

called FRAC in the rest of this article – has the advan-

tage to be distributed and optimized in computation

time.

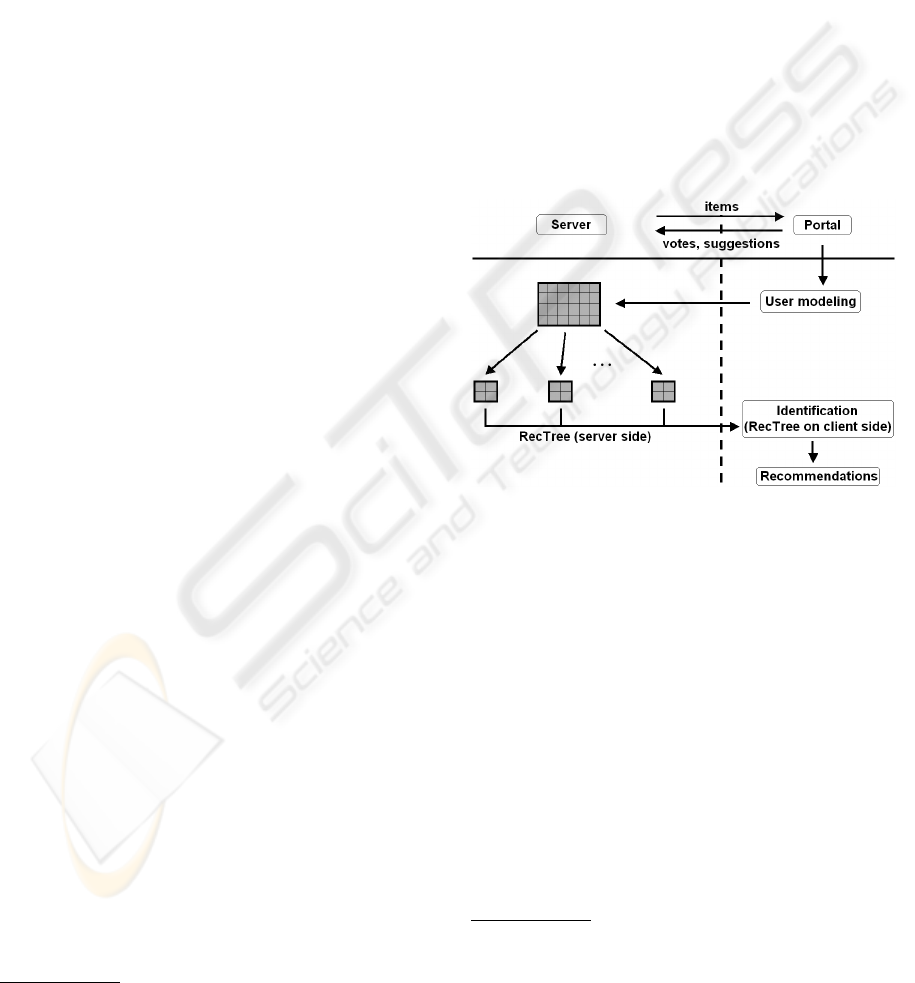

Figure 1: Architecture of the information ﬁltering module.

We implemented our work in the context of satellite

website broadcasting. Our model has been integrated

in a product of ASTRA

called Casablanca. The

satellite bouquet holds hundreds of websites which

are sent to about 120.000 persons using satellites.

Moreover, the users can send non-numerical votes (cf.

infra, 3.1 Behavior modeling, p. 3). These votes ap-

pear as a list of favorite websites.

In order to distribute the system, the server side

part is separated from the client side. The function of

user modeling determines numerical votes for items

according to user actions. Then, numerical votes are

sent to the server, like the non-numerical ones

. Thus,

the server uses the matrix of votes to build typical user

http://www.ses-astra.com/

The list of favorites are given explicitly by users, while

numerical votes are estimated in a transparent way. We con-

sequently use the non-numerical votes to determine the con-

tent of the bouquet.

WEBIST 2006 - WEB INTERFACES AND APPLICATIONS

436

Interest(item) =1+2.IsFavorite(item) + Recent(item) + 2 . Frequency(item) . Duration(item) + PercentVisitedLinks(item))

With: Recent(item)=

date(last visit) − date(log beginning)

date(present) − date(log beginning)

And: Duration(item)=max

consultations

time spent on pagesof item

size of the item

(1)

proﬁles. In this way, the server has no information

about the population, except anonymous votes. User

preferences are stored in the proﬁle on clients. Thus,

the conﬁdentiality criterion is duly fulﬁlled. At last,

the active user is identiﬁed on client to one of the typ-

ical users groups in a very short time, in order to do

predictions.

3.1 Behavior Modeling

In our context, we assume that users have the possi-

bility to deﬁne a list of favorites. However, we can’t

describe these non-numerical votes as boolean. We

can’t differentiate items in which the active user is not

interested (negative votes) from those he/she doesn’t

know or has omitted. This kind of votes is not sufﬁ-

cient to do relevant predictions with collaborative ﬁl-

tering methods.

For this reason, we have chosen to determine nu-

merical marks without any rating

from users. An-

other advantage of this method is to deal with the

problem of sparsity by increasing the number of votes

in the matrix. To do so, we chose to develop the user

modeling function shown in equation 1 (Chan, 1999).

In our case, items correspond to websites, that is to

say sets of pages. Thus, the time spent on an item

is calculated as the cumulative times spent on each

of its pages for example. We modiﬁed coefﬁcients in

the original Chan formula, in order to optimize the

results in accordance with log ﬁles of ASTRA.

This function undertakes to estimate marks that the

user is likely to give to different sites from implicit

criteria (such as time or frequency that user takes to

consult a page

). The system analyses log ﬁles of the

active user to retrieve useful data. But all pieces of in-

formation retrieved in these log ﬁles remain on client

side, in order to preserve privacy. Only numerical

votes which have been deduced from this process are

sent anonymously to the server. We call them ”user

proﬁles”. They are required for the use of FRAC clus-

tering algorithm.

Ideally, the numerical votes should be submitted to

their approval for checking.

These are pieces of information easily and legally sal-

vageable in Web browser of client.

3.2 Clustering Algorithm

Once the proﬁles of users have been sent to the server,

the system has to build virtual communities of in-

terests. In our model, this step is carried out by

an improved hierarchical clustering algorithm, called

FRAC. It attempts to split the set of users into cliques

by recursively calling the nearest neighbors method

(K-Means).

The original algorithm was purely centralized, such

as most of existing collaborative ﬁltering methods.

One of our contributions consists in distributing this

process. In this section, we explain how to build typi-

cal user proﬁles on server side and how to identify the

active user to a group. This second step takes place on

client side. We optimized the identiﬁcation phase so

that the response time is very short. Thus, the client

part provides real-time predictions. In a second time,

we improve the ofﬂine computation time by reﬁning

the initial conditions of K-Means.

The FRAC algorithm is a model-based approach,

described as a clustering method. However, it is man-

aged as a memory-based approach because all the

pieces of information are required for similarity com-

putation. It allows, within the scope of our archi-

tecture, to limit the number of persons considered in

the prediction computations. Thus, the results will be

potentially more relevant, since observations will be

based on a group closer to the active user. A way to

popularize this process amounts to considering that

the active user asks for the opinion of a group of per-

sons having similar tastes to his/hers

In order to compute these groups of interests, the

server extracts data from the proﬁles of users and ag-

gregates the numerical votes in a global matrix. This

matrix constitutes the root of the tree. The set of

users is then divided into two sub-groups using the

K-means method. In our case, the number k equals

2, since our overall strategy is to recursively divide

the population into binary sub-sets. Once this ﬁrst

subdivision has been completed, it is repeatedly ap-

plied to the new subgroups, and this until the selected

depth of the tree has been reached. This means, the

The computer process is obviously transparent for

users.

FRAC+: A DISTRIBUTED COLLABORATIVE FILTERING MODEL FOR CLIENT/SERVER ARCHITECTURES

437

more one goes down in the structure of the tree, the

more the clusters become speciﬁc to a certain group

of similar users. Consequently, people belonging to a

leaf of the tree share the same opinion concerning the

assignment of a rating for a given item.

The K-Means algorithm is very sensitive to ini-

tial starting conditions and may converge more or less

quickly to different local minima

. The usual way to

proceed consists in choosing randomly k centers in

the users/items representation space. Numerous stud-

ies have been made to improve K-Means by reﬁn-

ing the selection of these initial points (Bradley and

Fayyad, 1998). But it remains a difﬁcult problem and

some of these approaches don’t obtain better results

than the method with a random initialization. In our

case, the problem is much simpler since we only have

two centers. Thus, we propose a new way to select

the starting points, shown on ﬁgure 2.

Figure 2: Initialization of 2-Means algorithm.

We work in a N-dimensional space, since the co-

ordinates correspond to the votes of users for the N

items. However, the example on the diagram 2 is in

dimension 2 for more legibility. We start from the

principle that the two most distant users are inevitably

in different clusters. Consequently, they constitute

the ideal candidates for the initial points. To iden-

tify them, we ﬁrst search the most distant point from

the middle M of the users/items representation space.

This point is called A on ﬁgure 2. Then, we compute

the point B, which is the most distant from A. A and B

are subsequently the starting points of the 2-Means

algorithm. This initialization phase is in o(2n), where

n is the number of users. Afterwards, each user is po-

sitioned in the cluster of the nearest center.

Once groups of persons have been formed as pre-

viously mentioned, the position of the center is recal-

culated for each cluster (either by computing the iso-

barycenter, either by using the equation 2 according to

the precision we want) and this operation is repeated

We want to minimize the distances between users of a

same group and maximize them between users of different

clusters.

t+1



|w (c

,u)|



u,l

.|w (c

,u)|)

(2)

With: r

t+1

the value of c

t+1

for item l;

u,l

the vote of the user u for the item l;

w(c

,u) the distance between c

and u;

= {u|w(c

,u) =0};

from the beginning until we have obtained a stable

state (where the centers no longer move after recalcu-

lation of their position). Our initialization allows to

reach this state much more quickly.

The tree building complexity yields o(n.log

n).

The ﬁnal center of each leaf of the FRAC tree cor-

responds to a proﬁle of typical users. It means that

we consider these centers as virtual users synthesiz-

ing the preferences of each subset of users.

The proﬁles of typical users are then sent on client

side. Subsequently, the system compute distances be-

tween the active user and the typical users. We con-

sider that the active user belongs to the community

whose center is the closest to him/her. At last, we can

predict the interest of the active user for a resource r

with the equation 3.

= max(r

min

,min(r

+(r

− r

),r

max

)

(3)

With: u

the active user;

the nearest typical user;

the prediction of u

for r

;

The clusterization can be performed so that cliques

hold about the same number of persons for a given

depth of the tree. In this way, we introduce novelty in

recommendations.

4 PERFORMANCE ANALYSIS

In this section, we compare our clustering al-

gorithm with Item-item (Sarwar et al., 2001),

RecTree (Chee et al., 2001) and the Correlation-

based Collaborative Filter CorrCF (Resnick et al.,

1994). We have implemented all these methods in

Java. We evaluate these techniques in terms of com-

putation time and relevancy of predictions.

WEBIST 2006 - WEB INTERFACES AND APPLICATIONS

438

4.1 Computation Time

In order to compare the computation times of the

aforementioned algorithms, we have generated matri-

ces with different sizes. In this simulation, the votes

of each user follow a Gaussian distribution centered

on the middle of the representation space. We argue

that this situation increases the number of iterations

needed in the clustering algorithm, since the users are

close to each other. Moreover, there is only 1% of

missing data in the generated matrices. Consequently,

we almost work in worse case for the computation

time tests.

The results of these tests are shown in the table 1.

The announced times include the writing of results in

text ﬁles. The FRAC algorithm provides results in a

quite short time. It is thus possible to apply it to large

databases. For example, the system only needs about

6 or 7 minutes to compute typical behavior proﬁles

with 10.000 users and 100 items. In the same case, the

CorrCF algorithm requires several hours of compu-

tation (one of which is spent to compute the similarity

matrix). The response time of CorrCF increases be-

sides exponentially with the size of the database and

is not in accordance with industrial constraints.

We note that Item-Item gets results much more

quickly than FRAC when there is a lot of users and

only few items. Nevertheless, the tendency may be

reversed when the number of items grows, even if the

number of users is still much more important (cf. ta-

ble 1 for 10.000 users and 1000 items). Moreover, the

corpus we used is not the most appropriate for our al-

gorithm, since the number of items is almost twice as

big as the number of users.

At last, we have tried to cluster huge populations

with the FRAC algorithm. The latter was able to sup-

ply results:

• in 6 hours and 42 minutes for 100.000 users and

100 items;

• in about 11 hours for 120.000 users and 150 items.

4.2 Recommendations Relevancy

In order to compute the prediction relevancy in our

system, we used the GroupLens database

. The lat-

ter is composed of 100.000 ratings of real users. Thus,

we considered a matrix of 943 users and 1682 items.

Moreover, each user has rated at least 20 items. The

database has been divided into a training set (includ-

ing 80% of all ratings) and a test set (20% of votes).

We compare our algorithm with the three others by

using the Mean Absolute Error (MAE).

http://www.grouplens.org/

The results are shown in the ﬁgure 3. The FRAC

algorithm does predictions as good as the CorrCF

– which is memory-based – and not so far from the

Item-Item.

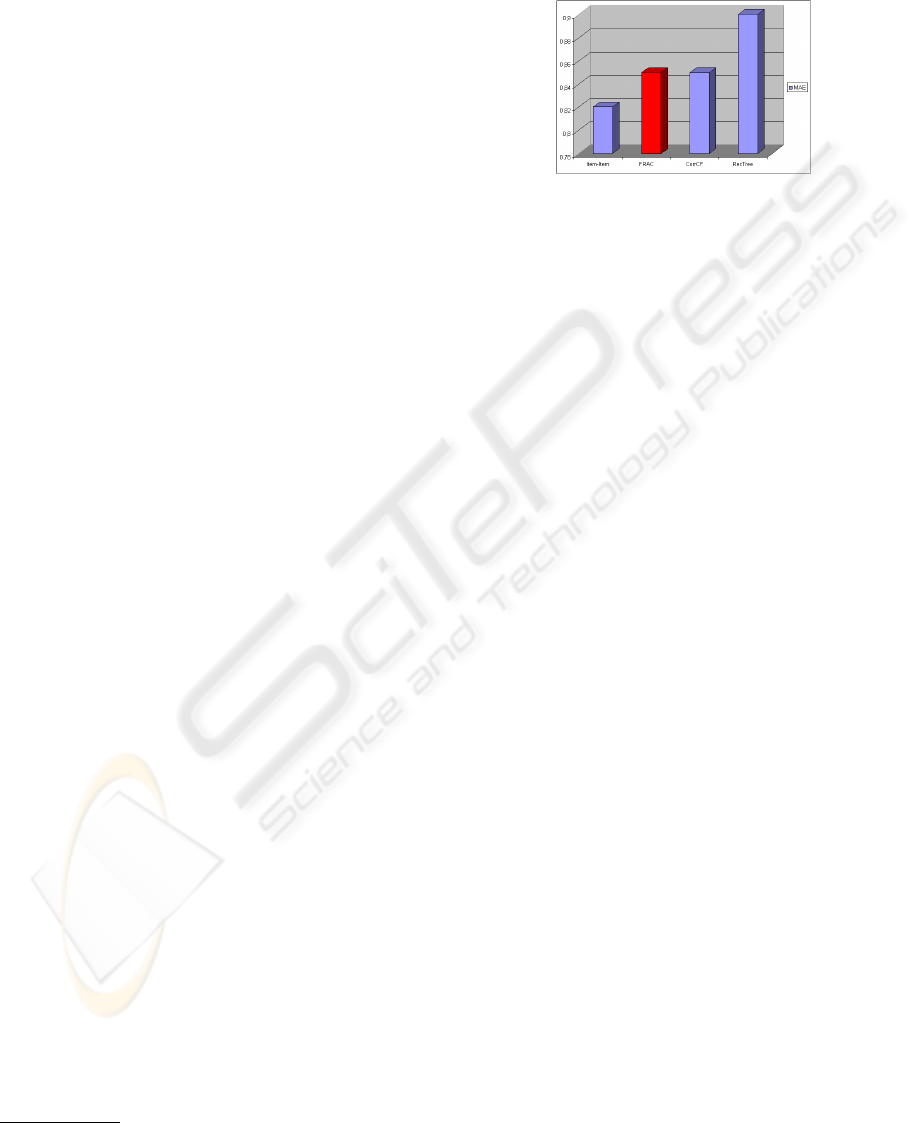

Figure 3: Comparison of prediction quality.

4.3 Discussion

This study highlights the fact that our algorithm gets

rather quickly results on server side, even when the

corpus is not very adequate. By way of comparison,

the ofﬂine part of RecTree (Chee et al., 2001) – that

is to say the clustering process – with 1.400 users and

100 items is done in about 1000 seconds. Our algo-

rithm does the same job in 11 seconds (cf. supra, ta-

ble 1) and is consequently almost hundred times faster

in this case.

Moreover, the online part of computations – that is

to say identiﬁcation of user to a group – is in o(2p),

where p corresponds to depth of the tree. This part

of computations has been optimized in our model, in

comparison with the centralized RecTree algorithm

of Chee et al. The online part of Chee’s algorithm

was in o(b), where b was the number of users in each

partition. Users had consequently to wait for a few

seconds. In our version, the complexity of client part

only depends on the depth of the tree and the response

time is much faster.

Another advantage of our algorithm is the stability

of the model. Thanks to the new initialization phase,

the results are reproducible when we launch the clus-

tering process several times. Furthermore, the conver-

gence is assured, contrary to the original RecTree.

We have also noticed that the FRAC computation

time can still be important for large databases. How-

ever, although the tests showed the Item-Item al-

gorithm is suitable when there are few items, the re-

quired time has been considerably reduced in compar-

ison with RecTree or CorrCF. Moreover, we recall

that we consider the case where the set of items can

change radically. In this case, a reasonable number of

votes must be done on new items so that Item-Item

FRAC+: A DISTRIBUTED COLLABORATIVE FILTERING MODEL FOR CLIENT/SERVER ARCHITECTURES

439

Table 1: Computation times of different collaborative ﬁltering algorithms.

Items 100 150 1000

Users FRAC CorrCF Item-Item FRAC CorrCF Item-Item FRAC CorrCF Item-Item

400 1”84 6”09 3”87 2”09 7”62 5”29 8”58 32”24 1’22”

800 7”03 19”98 7”23 7”34 25”67 10”53 30”17 1’52” 2’33”

1.400 11”21 1’00” 11”50 12”81 1’17” 18”10 49”47 6’04” 4’29”

10.000 6’50” 7h30’ 1’22” 9’12” - 2’05” 14’22” - 49’28”

can compute similarities. On the contrary, our algo-

rithm needs less votes and recomputations because

correlations are made between users.

Of course, the more the ofﬂine computations of our

algorithm take time, the more it can augur for slight

differences between the updated votes and the prefer-

ences really taken into account during the clustering

process. But these differences should be minimal be-

cause of the great number of users.

5 CONCLUSION AND

PERSPECTIVES

The novelty of our model relies on the fact that

we have mixed a distributed collaborative ﬁltering

method with a behavior modeling technique. The

main advantage of this combination is to take into ac-

count in an overall way the strong constraints due to

an industrial context such as the privacy of users and

the sparsity of the matrix of votes. Moreover, thanks

to the new version of the clustering algorithm, we use

the matrix of votes to divide all the users into com-

munities. This new version has been especially de-

signed to treat a high quantity of information (Castag-

nos et al., 2005) and allows the scalability to real com-

mercial applications by dealing with time constraints.

We have implemented our architecture in a satellite

broadcasting software with about 120.000 users in or-

der to highlight the beneﬁts of such a system.

We are now considering the possibilities to com-

bine our model with additional item-based ﬁlters in

order to sort items in increasing order of importance

for the active user on client side. In particular, we are

studying the added value of bayesian networks and

content-based ﬁltering techniques in our architecture.

ACKNOWLEDGEMENTS

We want to thank SES ASTRA and the CRPHT which

have encouraged this work.

REFERENCES

Bradley, P. S. and Fayyad, U. M. (1998). Reﬁning initial

points for k-means clustering. In Proceedings of the

15th International Conference on Machine Learning

(ICML98), pages 91–99, San Francisco, USA. Mor-

gan Kaufmann.

Breese, J. S., Heckerman, D., and Kadie, C. (1998). Em-

pirical analysis of predictive algorithms for collabo-

rative ﬁltering. In Proceedings of the fourteenth An-

nual Conference on Uncertainty in Artiﬁcial Intelli-

gence (UAI-98), pages 43–52, San Francisco, CA.

Castagnos, S., Boyer, A., and Charpillet, F. (2005). A

distributed information ﬁltering: Stakes and solution

for satellite broadcasting. In Proceedings 2005 Int.

Conf. on Information Systems and Technologies (We-

bIST05), Miami, USA.

Chan, P. (1999). A non-invasive learning approach to build-

ing web user proﬁles. In Workshop on Web usage

analysis and user proﬁling, Fifth International Con-

ference on Knowledge Discovery and Data Mining,

San Diego.

Chee, S. H. S., Han, J., and Wang, K. (2001). Rectree : An

efﬁcient collaborative ﬁltering method’. In Proceed-

ings 2001 Int. Conf. on Data Warehouse and Knowl-

edge Discovery (DaWaK’01), Munich, Germany.

Miller, B. N., Konstan, J. A., and Riedl, J. (2004). Pock-

etlens: Toward a personal recommender system.

In ACM Transactions on Information Systems, vol-

ume 22, pages 437–476.

Pennock, D. M., Horvitz, E., Lawrence, S., and Giles, C. L.

(2000). Collaborative ﬁltering by personality diag-

nosis: a hybrid memory- and model-based approach.

In Proceedings of the sixteenth Conference on Uncer-

tainty in Artiﬁcial Intelligence (UAI-2000), San Fran-

cisco, USA. Morgan Kaufmann Publishers.

Resnick, P., Iacovou, N., Suchak, M., Bergstorm, P., and

Riedl, J. (1994). Grouplens: An open architecture for

collaborative ﬁltering of netnews. In Proceedings of

ACM 1994 Conference on Computer Supported Co-

operative Work, pages 175–186, Chapel Hill, North

Carolina. ACM.

Sarwar, B. M., Karypis, G., Konstan, J. A., and Reidl, J.

(2001). Item-based collaborative ﬁltering recommen-

dation algorithms. In World Wide Web, pages 285–

295.

WEBIST 2006 - WEB INTERFACES AND APPLICATIONS

440
