USING SIMPLE PUSHLOGIC

David Greaves

University of Cambridge, Computer Laboratory

Cambridge, UK

Daniel Gordon

University of Cambridge, Computer Laboratory

Cambridge, UK

Keywords:

Compensation, Model Checking, Code Reﬂection, Ubiquitous Computing, Control Plane, Application Script-

ing.

Abstract:

Pushlogic is a scripting language for a dynamic population of devices (sensors/processors/actuators) and dy-

namic number of concurrent applications in a reliable or safety-critical system. System stability is assured by

idempotency constraints and intrinsic error recovery capabilities arise from the reversible nature of Pushlogic.

It is a constrained language amenable to automated reasoning. It deﬁnes ‘re-hydration’ for dynamic binding

of rules to new device instances and a load-time model checker that runs before a new bundle of rules may

join a domain of participation. In a typical application, complex embedded devices are partitioned into passive

components known as ‘pebbles’. API reﬂection is then used to expose the interfaces offered by the pebbles.

All proactive and interactive behaviour between pebbles or over the network must then be implemented with

Pushlogic and ‘code reﬂection’, as we call it, exposes this behaviour for automated reasoning.

1 INTRODUCTION

In this paper, we introduce a new scripting language,

called Pushlogic, that generates declarative byte code.

The code can be canned to ROM for embedded appli-

cations, or run on server platforms (e.g. a PDA) for

reliable interaction with a dynamic population of de-

vices and other application scripts.

In software terms, a ‘script’ is a collection of com-

mands to be performed in a particular order under var-

ious conditions. Imperative programming languages,

such as assembly language, Java and the unix shell

language are frequently used for scripting. These lan-

guages are used to control a collection of devices or to

otherwise automate a process. They are unrestricted

in expressibility and hence reasoning about their be-

haviour or their interaction with other such scripts is

hard. When a script phrased in a decidable language

controls and reacts to objects containing undecideable

code (or exhibting unpredicatable behaviour), the sys-

tem becomes undecidable as a whole. Nonetheless, it

is our belief that there are signiﬁcant beneﬁts from us-

ing decidable code at the highest levels - the level of

application scripting.

Network systems suffer from errors as the result

of intentional and unintentional arrival and depar-

ture of new entities (devices or interacting applica-

tions that control the devices) and from network errors

and disconnects. The BPEL4WS (Schlingloff et al.,

2005), and StAC (Chessell et al., 2002) languages

were designed to provide reliable completion of busi-

ness transactions in this environment. They both pro-

vide Compensation mechanisms that allow the pro-

grammer to structure additional code to be executed

should components of a partial transaction need to be

rolled back. Programs in these languages have been

subjected to automated formal analysis, for instance

using Petri Nets, but they are not any more restricted

than C or Java in their expressiveness, and so auto-

mated solutions encounter the usual problems (decid-

ability etc.). Pushlogic does not require the program-

mer to provide his own compensation code because

only reversible programs are allowed.

Pushlogic also provides means for a device to pub-

lish its proactive behaviour, that is, to announce what

it will do when introduced to an environment. There

are a number of technologies that enable devices to

publish their APIs and to receive commands over the

network, such as WSDL, XMLRPC and UPnP (Mi-

crosoft, 2000). We embrace them, but go further: to

enable automated reasoning about the behaviour of a

device we force the embedded code inside devices to

101

Greaves D. and Gordon D. (2006).

USING SIMPLE PUSHLOGIC.

In Proceedings of WEBIST 2006 - Second International Conference on Web Information Systems and Technologies - Internet Technology / Web

Interface and Applications, pages 101-108

DOI: 10.5220/0001250401010108

 SciTePress

Compiler

Object

Bundle

Checker

XML reflection

information

via UPnP

Device

Bindings

Object

Bundle

Object

Bundle

Compile

Time

Checker

Re-

Hydration

Re-

Hydration

Re-

Hydration

Source

Bundle

Source

Library

Expert

User Interface

(emacs)

Universal

Rule

Library

Hydrated

Bundle

Hydrated

Bundle

Hydrated

Bundle

Hydrated

Bundle

Execution

Platform

Execution

Platform

Execution

Platform

Domain

standing

rules

Script

Creation

Phase

Compilation

Phase

Binding

and

Phases

Execution

Phase

Canned

Storage

Phase

UDP Broadcast Subnet

ETC: UDP SOAP GENA

Re-

Hydration

Object

Bundle

DBG

Source

Bundle

Source

Bundle

Domain of Participation

Domain

Manager

and

Checker

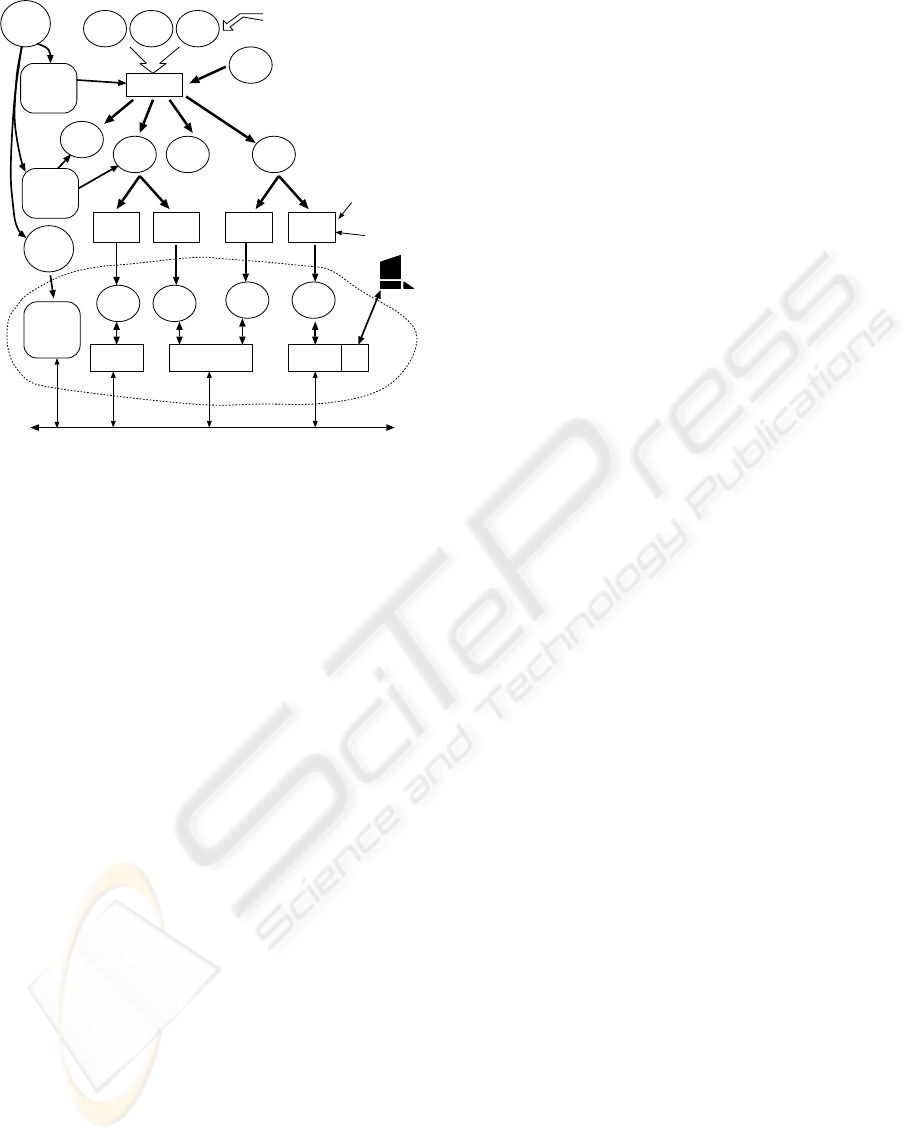

Figure 1: The write/compile/re-hydrate/execute toolchain

for Pushlogic.

be implemented via a declarative bytecode that is ex-

posed alongside the/any command APIs. For execu-

tion, this code may be interpreted or further compiled

to native code. For checking, it must be inspectable

over the network - a facility we call ‘code reﬂection’.

Pushlogic object level is a declarative byte code,

designed as an intermediate code for automated rea-

soning using model checkers. Pushlogic object is held

in bundle ﬁles containing rules. Rules are either tem-

poral logic assertions or else executable rules that de-

ﬁne a ﬁnite state machine or ‘mechanism.’ Bundles

run inside a domain of participation (DoP). Dynamic

storage allocation only occurs when new bundles of

rules are loaded into a running DoP. Bundles arrive

either when a new pebble that requires control ar-

rives, or when a new application is started, expressed

in Pushlogic. Before a bundle can join, the union of

the rules in the new bundle is formed against those

already in the domain. If any of the rules are incon-

sistent or any of the temporal logic rules (existing or

new) will not hold under the combined mechanism,

the bundle cannot be loaded.

We use the term ‘mechanism’ for our combination

of FSMs because it models not only the effect of in-

puts on outputs and internal state, but because a me-

chanical system of levers and cogs can sometimes be

operated in reverse, with pressure applied to an output

causing an ‘input’ to change.

A user-level device, such as a DVD player, is con-

sidered to consist of some number of physical or log-

ical devices, called ‘pebbles’. Pebbles only interact

with each other through an application program coded

as one or more bundles of Pushlogic. Pebbles pro-

vide input and output to various sensors, actuators and

other interfaces. Pebbles are like device drivers, ex-

cept they are ﬁrst-class entities on the network that

can register their command API and capabilities, so

that they are a resource to be used by any number of

applications.

Pushlogic has been developed for a year or so, and

its ﬁrst compiler and run time system are becoming

stable. We are now implementing the DoP manager

for our Ethernet-based implementation. The man-

ager provides real-time checking of bundles joining

the DoP and DoP merging. Pushlogic therefore pro-

vides a scripting language for for a dynamic popula-

tion of sensors, actuators and applications suitable for

safety-critical systems. We are also implementing a

Controller Area Network (CAN) (Kaiser and Mock,

1999) version, where, for current applications, device

API reﬂection will not be needed and all checking is

done before system assembly.

Figure 1 shows the Pushlogic toolchain. Source

bundles are compiled with libraries to generate dry

object bundles that do not refer to speciﬁc pebbles

by name. A subsequent re-hydration stage imple-

ments such bindings, and a given bundle may join

the DoP more than once, as illustrated, but using dif-

ferent bindings for each instance. Several bundles

may run on a single execution platform, but the be-

haviour of the system is, as far as possible, the same

as though they were distributed over the network. For

a self-contained device using ROM’d code, such as

the Heating Controller presented later, part of the re-

hydration can be performed before canning the code

to ROM, so that the code is bound to the local pebbles,

and part of it can be done later, for instance to bind to

other devices encountered in the domain at run time.

Our ﬁrst implementation holds all run-time vari-

ables as ﬁelds in the tuples of a distributed tuple

space. Fields range over constant values, local tuples

or remote tuple pointers.

Communication between pebbles and bundles is

through shared ﬁelds. The tuple space is navigated

using URIs and heirarchic names with hash symbols

as separators. Network trafﬁc uses our own temporary

protocol, called ETC (evolving tuple core protocol),

that is essentially UDP versions of SOAP RPC and

GENA eventing, found in UPnP (Microsoft, 2000).

A GTK GUI may be connected to any running DoP

to allow variables to be viewed and edited over the

network. Alternatively, it can be run standalone, on

a workstation, with a number of bundles loaded from

the command line. Figure 2 shows a bundle called

Lanterns under the GUI, The output ‘outside#lantern’

is a label and cannot be changed directly with the

GUI. It is updated when the value of this variable

changes. The input ‘mains#supply’ has a menu from

which the user can select ‘on’ or ‘off’. The inout vari-

WEBIST 2006 - INTERNET TECHNOLOGY

102

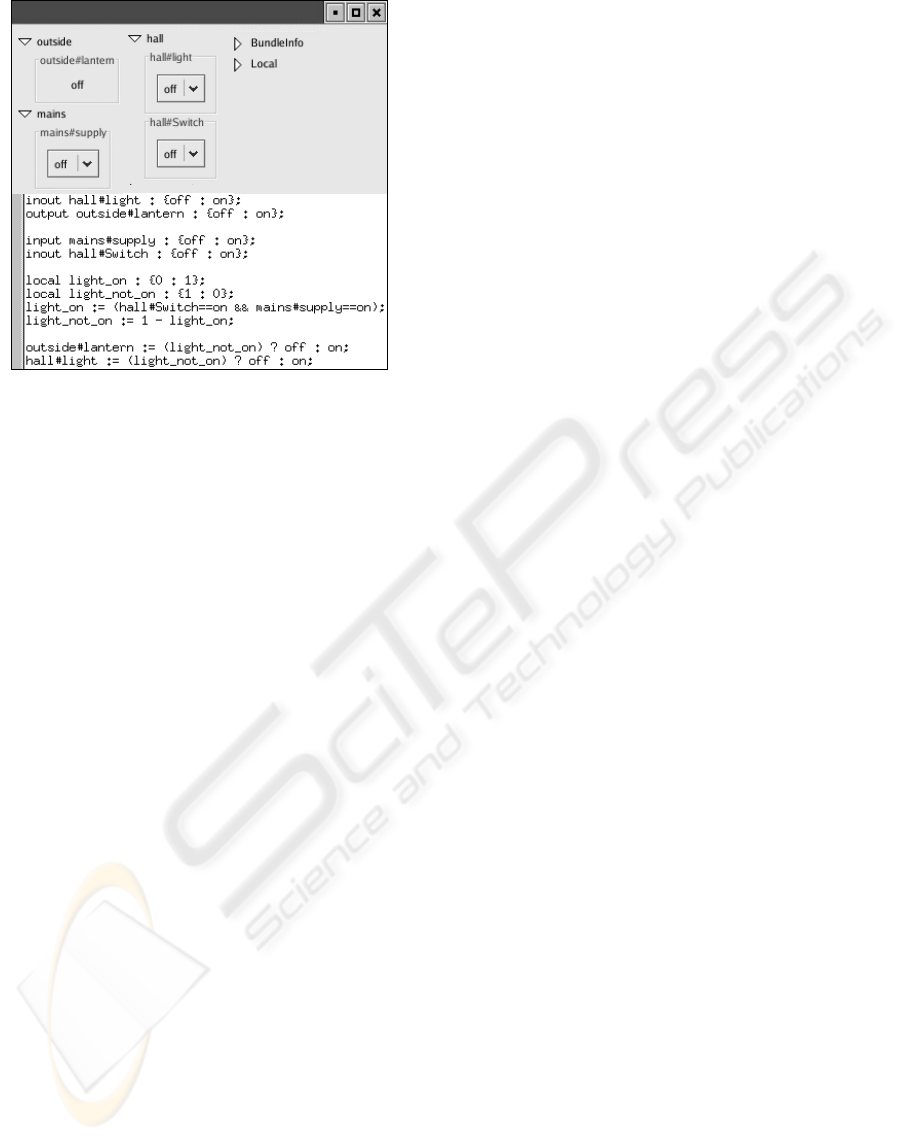

Figure 2: Lanterns - An Example of Pushlogic under GTK

GUI.

ables ‘hall#light’ and ‘hall#Switch’ can be changed

by the user as well as by a Pushlogic program. Pro-

gram counters and other local variables are stored in

tuples held under the ‘Local’ tab, in a unique sub-

tuple for each bundle instantiated on the platform.

We also have a locally-written universal UPnP con-

trol point, that can perform roughly the same function

for a subnet of UPnP devices. We will shortly merge

the functionality of these two GUIs.

In other work, formal validation of Ladder Logic

and timed transition systems has received signiﬁcant

attention (Gl

asser, 1995). Commercial products for

formal validation of reactive control systems against

safety standards are becoming available. e.g. (Reac-

tiveSystems, 2003). Cypress has just released a syn-

thesiser for embedded controller software to eliminate

hand-crafted device drivers and network stacks (Pear-

son, 2005). Formal speciﬁcation of web resources and

services using ontologies and assume/guarantee rea-

soning is advancing (Monika Solanki, 2003), as are

proof-carrying imperative code tool chains. However,

our practice of converting imperative code to declara-

tive intermediate form seems novel.

2 EXECUTION SEMANTICS

Each executable rule in Pushlogic object is an assign-

ment of the form

f := exp : pbind

where f is a variable in a global, heirarchic name

space (the tuple space paradigm) and exp is a Push-

logic object expression and pbind is information that

assists in reversing the operation of the rule. Fields

may be local to a bundle or shared between the cur-

rent bundle and other bundles and pebbles. Where

shared, they are declared as input, output or inout. In-

put ﬁelds are only changed by external bundles and

pebbles. Output ﬁelds are changed only by the cur-

rent bundle. Inout ﬁelds are changed by the current

bundle and by other bundles and pebbles and also by

timeouts in network protocols.

Each ﬁeld ranges over a set of constant values, cer-

tain of which may be declared as the safe values of

that ﬁeld. The values are integers or strings, or the re-

served constants ‘true’ and ‘false’. Where a bundle al-

ters the value of a ﬁeld held on a remote resource, the

run time system generates network remote write us-

ing the ETC protocol. Where a bundle is sensitive to

changes on remote resources, it uses a periodic soft-

state registration protocol within ETC that causes it to

receive notiﬁcation of changes for a period (e.g. one

hour). In any domain, an inout ﬁeld may be set to one

of its non-safe values by at most one bundle or pebble.

Multimedia applications use the notion of third-party

setup, where a ﬁeld in a source pebble is set to the

same circuit identiﬁer as a ﬁeld in a sink pebble.

The reference execution model for an executable

Pushlogic rule is that all sub-expressions occurring

in the expression are re-evaluated whenever there are

changes to any of their support. Likewise, changes

to the result of the top expression become scheduled

as updates to the assigned ﬁeld. Updates are gated,

by which we mean that all updates to ﬁelds held on

a common execution platform resulting from a sin-

gle event are batched and made at once (atomically).

Further changes arising from a batch of gated updates

are collected and deferred to the next batch. Our in-

terpreter for the Pebbles project is a direct implemen-

tation of the reference execution model, but it uses

too much RAM for use on low-cost microcontrollers,

where native code should be run from ROM.

A push logic expression may generate a special

value, backstop (⊥). When backstop is assigned to

a ﬁeld, the ﬁeld’s value is unchanged. When multi-

ple rules assign to the same ﬁeld, static analysis must

show that they either generate a common value or else

backstop.

The gated nature of updates to ﬁelds held on a com-

mon platform enables certain rule combinations to

operate deterministically when they would not other-

wise. Consider the following pair of rules where d,

d1, and d2 are held on the same execution platform:

d1:=d; d2:=(d&&!d1)?1 :⊥

This pair will reliably set d2 to one whenever d starts

to hold. Without the gated-update constraint, the sec-

ond rule might always be executed after the ﬁrst rule

and hence the guard would never hold.

The reference execution model implies that the

union of executable rules for a DoP may be thought

USING SIMPLE PUSHLOGIC

103

NULL ENV

Parser

Expand

and Compile

Parallel

Elaboration

Create Binary

Encodings

Create

Push Back Paths

BDD

Package

Equivalence

Checker

Consistency

Checkers

Model

Checker

Executable

Rules

Temporal

Assertions

Source

Code

Library

Code

Bundle

File

C Struct Native Code

Convert

to C

I Code

Compile

Time

Assert

Failures

Repeat

until

closure

FAIL

Subexpresion

Sharer

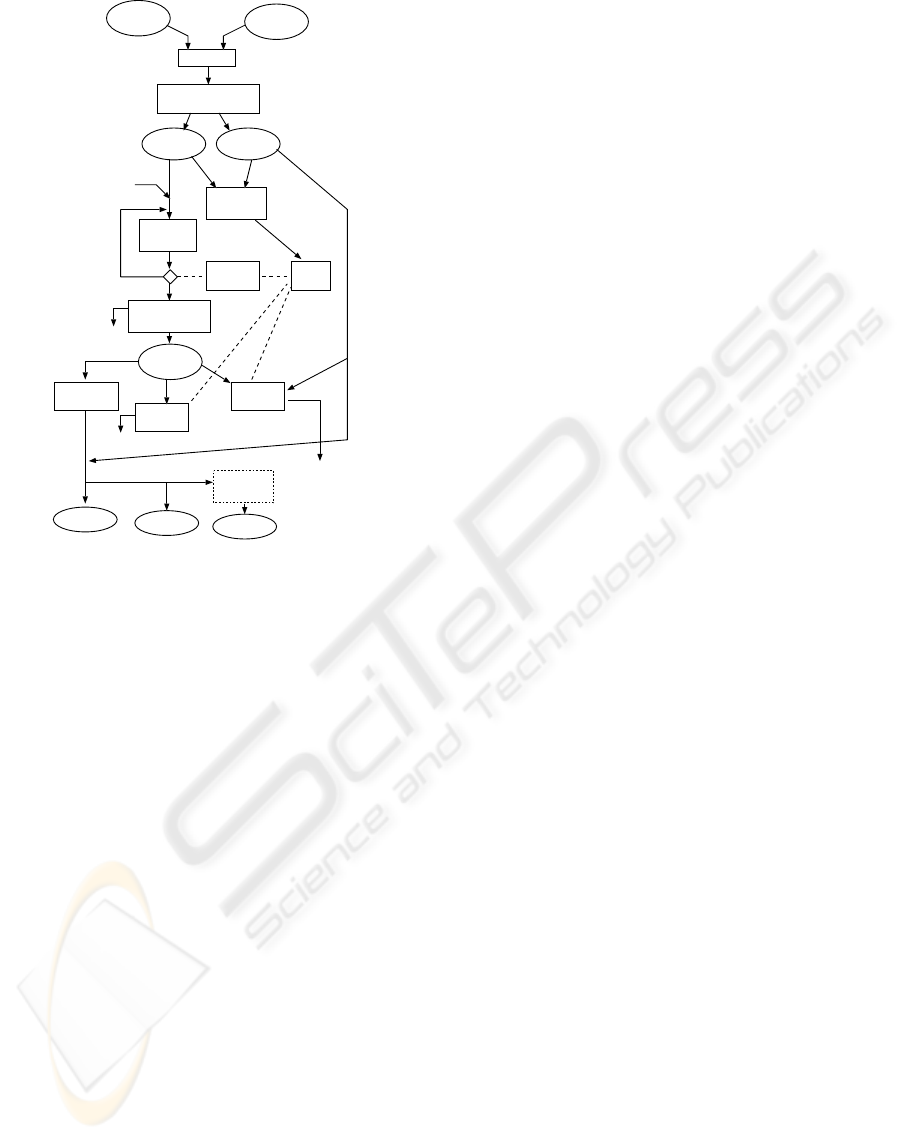

Figure 3: Structure of the Pushlogic Compiler.

of as an assertion over the system state. The asser-

tion holds at all times that the system is passive, and

when any event occurs that breaks the assertion, the

mechanism implements corrective action so that the

assertion once again holds. Inout ﬁelds are essen-

tially outputs that can unilaterally change back to one

of their safe values. The interpreter contains a sec-

ond set of rules to evaluate every operator or function

application in reverse, so that a change of an inout

can be ‘pushed back’ to another inout or local ﬁeld,

so that once again, a consistent state prevails. This is

the Pushlogic implementation of compensation. The

pbind provides information to specify the compensa-

tion behaviour where there is more than one possi-

ble way to interpret a rule in reverse. For example,

with logical

NOT, no indication is required, because

the new value is obvious at push back time. On the

other hand, for the comparison operator, when pushed

back to hold, it is sufﬁcient to specify one operand

to push back on, since it must be pushed back to the

current value of the other operand. But, when com-

parison is pushed back to false, a value and operand

must be speciﬁed, since, in general, there are many

possible values that will make a comparison not hold.

For logical

AND, when pushed back to false, which

operand to push on must be speciﬁed, since either

will do, whereas to push logical

AND to hold may re-

quire both its arguments to be changed. For the con-

ditional expression operator, the condition may have

to be changed and also the value of that side of the

operator may have to be changed.

For model checking, the next state relation must be

constructed from the executable rules. In this rela-

tion, a hidden input variable is created for every pos-

sible pushback, which is every safe value of every in-

out ﬁeld. This is called a pushback input. Additional

clauses are added to the next state relation to represent

that at most one of the pushback inputs of each inout

may hold at any one time, and that when it holds, the

variables altered by that pushback have the constant

values determined by the union of pbind ﬁelds. The

temporal logic assertions are checked at compile time

for the bundle in isolation. In future, they will also

be checked by the domain controller as it loads the

bundle into a live DoP, or when a pair of DoPs are

merged.

To ensure that all states are stable (and not os-

cillators), the system also implements an ‘Idempo-

tency Constraint’. This states that any Pushlogic pro-

gram will result in no further output changes if ‘ex-

ecuted’ more than once without change of any input

ﬁeld. (This rule is the basis for the loop unwinding

in the source compiler.) A rule such as track :=

(p)?track +1 : track would not generally be ad-

missable, because the number of increments executed

while p holds is not deﬁned, but carefully-constructed

integration is allowed. For example, anything that

is tantamount to the following differentiate/integrate

rule pair is permissible:

d1:=d; tr ack := (d&&!d1)?track +1:track

The idempotency constraint is checked in our source

compiler by symbolic evaluation (described below),

and will be checked by the domain manager. The dif-

ferentiation construction is required sufﬁciently fre-

quently that it is built into the Pushlogic Source Com-

piler, described next. The above two object rules are

then written as if (↑d) track := track+1;

with the automatic allocation of a hidden variable to

replace d1.

3 PUSHLOGIC SOURCE

COMPILER

Although rules are frequently a useful way to express

desired behaviour, many applications are most easily

coded in an imperative programming style. Rather

than expecting the user to manually convert his no-

tions of application behaviour into Pushlogic object

rules, a compiler for imperative-style expression of

applications is used. We note that imperative pro-

grams deal essentially with sequential changes of

WEBIST 2006 - INTERNET TECHNOLOGY

104

state, whereas logical predicates over application pro-

grams deal in terms of the visible, accumulated results

of these changes.

‘Pushlogic Source’ is a block-structured,

imperative-like, programming language, but with no

dynamic storage allocation. It is less fundamental

to our approach than the object form, because a

variety of source forms could be envisaged that

would generate compatible object for various niche

applications.

A Pushlogic Source program is an unordered list

of declarations, function deﬁnitions and executable

statements. The statements are all started in paral-

lel when the compiled object bundle is loaded. A

statement may be a sequential block, thereby provid-

ing an escape to the normal imperative programming

paradigm.

It is our goal to support as many features found in

common OO imperative high-level languages as pos-

sible, while still producing output that can be repre-

sented as Pushlogic object rules and checked automat-

ically at load time. The currently available forms in-

clude integer arithmetic, without arrays, function call

with compile-time unwind of all recursions, nested

static object instances and the full C/Java set of im-

perative and control-ﬂow constructs.

Executable sequences are composed in parallel.

Each sequence may be considered to be enclosed in

an inﬁnite while loop that has its own thread that

executes the rule as fast as possible, but with all such

threads performing their assignments in synchronism.

Sequential composition of behavioural statements is

introduced with the block construct, denoted with

C-like open and close braces. A further level of

parallelism is possible inside a sequential block be-

cause parallel assignment is supported: e.g. (a, b):=

(e1,e2).

The internal ﬂow of the compiler is shown in Fig-

ure 3. The input is parsed and converted to imper-

ative intermediate code using conventional compiler

techniques. Function calls are expanded in line. For

each sequence in the source code a section of I-code is

generated. I-code consists of labels, gotos, waits, as-

signments, resultis statements (used for returned val-

ues in the middle of inlined tasks and functions) and

conditional branches. For each sequence, a run-time

program counter is deﬁned. At the object code level,

these program counters act just like other local vari-

ables, and their values range over the labels in that

sequence. Threads with fewer that two wait state-

ments require a constant value in their run-time pro-

gram counter and so these program counters are elim-

inated at compile time. There is no run-time spawn-

ing or joining of threads (although the illusion of this

could be provided from a static set of threads us-

ing pre-processing techniques). Temporal logic as-

sertions in the source code are split off and held sep-

arately. Safety assertions may be guarded by nested

if statements and by the current value of the program

counter.

The I-code is embedded in a binary-decision di-

agram (BDD) package by generating binary encod-

ings of every variable (ﬁeld), constant and operator.

This then enables an equivalence checker to be used

to compare any pair of expressions or check that a

predicate is a tautology or invalid.

An entry point is deﬁned as any entry point to a se-

quence of I-code or the location immediately after any

wait instruction. Parallel symbolic evaluation is then

conducted, until closure, or failure if more than 100

iterations is needed. This consists of starting in a null

environment and evaluating from each entry point to

collect symbolically the assigns to every variable, in-

cluding program counters, up until a wait statement

or the thread loops back to its initial entry point.

While more than one assign is made to a variable,

by different threads, such as v := e1; v := e2;, the

assignments are combined in pairs using the follow-

ing rule

v := (e1=⊥)?e2:e1;

check(e1=e2 ∨ e1=

⊥∨e2=⊥);

This gives a single expression for every assigned vari-

able. If the check fails, the compilation fails because

the operations are incompatible.

After the ﬁrst elaboration from all entry points, the

process is repeated using the environment created by

the ﬁrst. Code guarded by differentiators will not

have any consequences on the second or subsequent

elaborations. After each elaboration, the equivalence

checker is used to detect any changes in any symbolic

value, and if there are, then another iteration is com-

menced. Before each new iteration, occurrences of

⊥ in the expression for a variable in the environment

are replaced with the symbolic value for that variable

calculated on the iteration before. This exactly mod-

els the gating implemented by the nominal behaviour

at runtime (which is the actual behaviour when inter-

preted and which is emulated by code structure when

compiled native).

After a closed set of symbolic assignments has

been computed, push back paths are created through

the right-hand-side expressions from any ﬁeld whose

mode is ‘inout’. For each safe value of an inout ﬁeld,

a path is traced backwards through the expression tree

that will cause generation of that value. These paths

extend back though local variables used as intermedi-

ate values in any computation. For all safe values of

all bearing inouts, the same path must work for each

local variable. This constraint can cause some novel

error messages. The paths are stored in the push back

indication section of each rule. Currently, the com-

piler chooses amongst various possible pushback op-

tions and writes its decision to a report ﬁle, but we

might change this so that user pragmas must be pro-

USING SIMPLE PUSHLOGIC

105

vided to select behaviour when more than one method

of compensation is possible.

The resulting object-level executable rules are op-

timised by spotting common subexpressions and in-

serting cross-references to allow the evaluations to be

shared at runtime on the interpreter. The output code

is stored in a bundle ﬁle, along with the assertions.

It is also written to a C struct ﬁle that contains some

initialised C arrays, for direct canning into ROM. In

the future, the declarative byte code can also be con-

verted to C to be run as native ROM code instead of

being interpreted on the execution platform (thereby

saving expensive RAM on embedded devices).

The BDD package is also used as a compile-time

model checker to test the embedded assertions. As-

sertions that fail at compile time when a bundle is

checked in isolation, or against a standard library

and testbench should normally be corrected before

attempting to load the code into a live DoP. The

BDD package used is the original C code from SMV

(McMillan, 2000) ported as a shared object to be

loaded by Moscow ML. The ﬁxed-point iterations

used in model checking are all recoded in ML. The

compiler amounts to 9K lines of ML and 15K lines of

Where a section of code does not intrinsically sup-

port a push back operation, it may be associated with

a fuse variable by enclosing it in a fuse statement.

For example, consider the following invalid code, that

uses an enumeration type with one safe value and two

unsafe values:

sort set mytype = { S: US1 US2 };

input x : mytype;

inout y : mytype;

y:=x;

The problem is that if y makes a unilateral change

from US1, say, to S, which it is free to do, since it is

an ‘inout’, then no push back is possible because x

is an ‘input’ that cannot be changed from inside the

bundle.

The solution is to enclose the rule inside a fuse.

This fuse is able to ‘blow’ should y make a push back.

input x : mytype;

inout y : mytype;

fuse F1;

{ y : = x; } fuse F1;

forever { wait F1; sleep_secs(5);

F1 := false; }

The fuse declaration deﬁnes a boolean variable

with both values safe and to be set false on bundle

load. The fuse statement is just syntactic sugar, be-

cause the line ‘{ y: =x;} fuse F1;’ is rewritten

during initial expansion as ‘if (!f1) y : = x;’. The

fuse declaration, however, does have a special effect:

during pushback path creation, the fuse is chosen at

last resort and only marked for push back update if

Display

Mode

DOWN

FAST

OVERRIDE

Furnace

Relay

Pump

Relay

Room

Thermostat

Tank

Thermostat

Furnace

Thermostat

(Home

Ethernet)

Hardware

Interlock

Display

Pebble

Keypad

Pebble

FAST

DOWN

Timer

Pebble

Pushlogic Interpreter

Canned Application Bundles

Control

Pebble

ETC

UDP

Stack

Pushbuttons

4 Digit

Display

Hot Water LED

Heating LED

Molly: H8S Embedded Processor

Ethernet/Flash/ROM/RAM/

Ethernet

MAC/PHY

Interface

Embedded OS

HVAC INTERFACE

Power

Supply

CPU

Counter/timer

HC-Control HC-UI

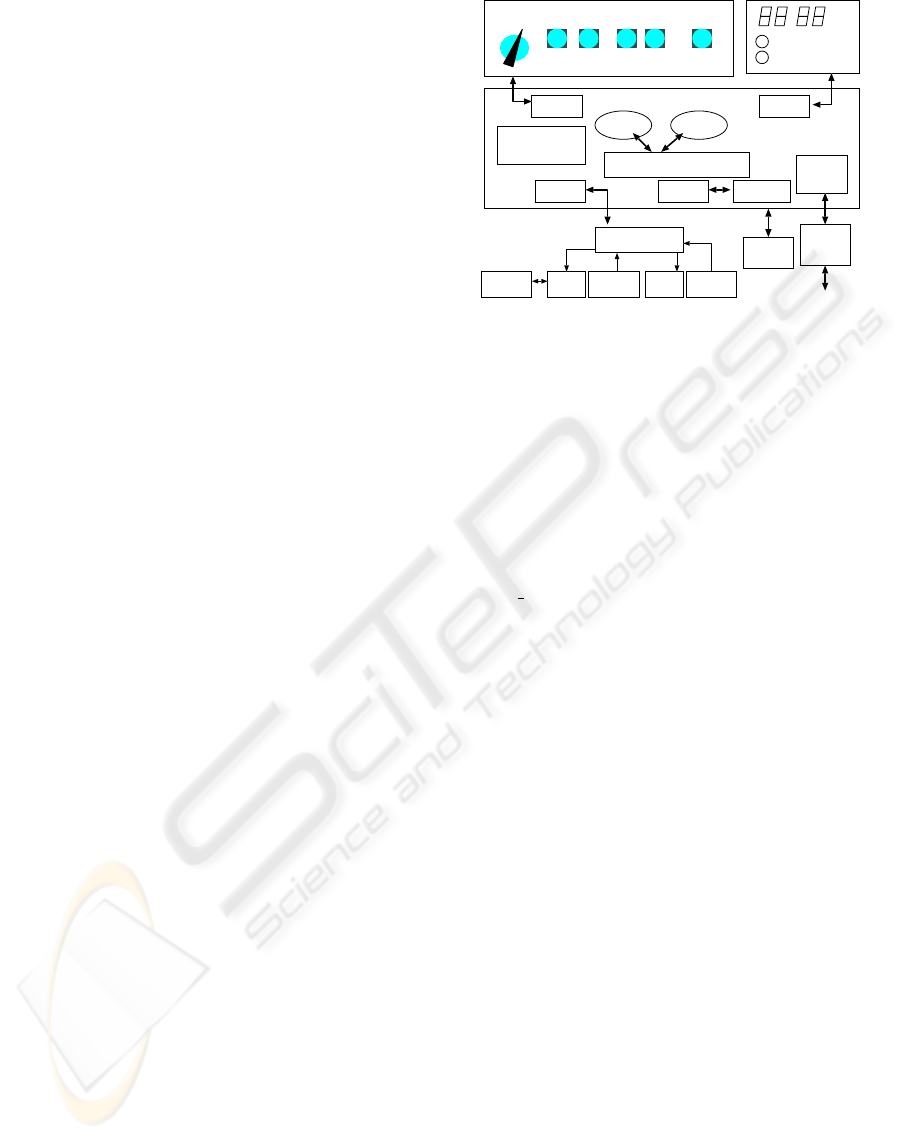

Figure 4: Heating Controller Components.

there is no other pushback path available. Only the

inner-most fuse of any nested fuse blocks acts on the

enclosed code.

The reset behaviour is enclosed inside a forever

statement, equivalent to ‘while (1)’ and not needed

since all push logic sequential sections are enclosed

inside an implied forever. It resets the fuse ﬁve sec-

onds after it has blown (see later for more detail of

sleep

secs). If y refuses to accept the current

value at this time, the fuse blows again. In general,

other code can be sensitive to this fuse, to log or sound

alarms and so on.

As mentioned, for checking, everything is currently

converted to a binary encoding and a BDD checker is

used, but in the future other forms of checkers can

be tried, based on a mix of normal forms, Presburger

Arithmetic (Presburger, 1929) or CVC (David Dill,

2004). Undecidable arithmetic and other uncheckable

constructs must currently be manually partitioned out

and placed in pebbles, so that they are not subject

to checking. In the future, we may add additional

markups to the source language to allow delineated

embedding of undecidable code. The outputs from

undecideable statements would be considered like

other non-deterministic inputs to the system, but per-

haps augmented with so called fairness constraints

that force both options to be considered in liveness

analysis.

4 EXAMPLES

We have not completed sufﬁcient work to know ﬁ-

nally whether Pushlogic meets all of its design goals,

but we have implemented a number of full example

devices, including an Alarm Clock, a DVD player,

a Heating Controller, a Juke Box and various GUIs,

physical keypads, lights and switches. These de-

WEBIST 2006 - INTERNET TECHNOLOGY

106

vices have been implemented as a collection of Peb-

bles with internal canned applications written in Push-

logic. A number of additional application scripts have

been written that cause the devices to interact (e.g.

play music from the DVD instead of sounding the

alarm clock buzzer).

As a ﬁrst example, Figure 4 shows the structure of

our Heating Controller. This has been built and is

about to be installed in a real house. It physically con-

sists of a processor with ROM, RAM, Ethernet and

Power Supply, a display and keypad, and a HVAC in-

terface block. Architecturally, it consists of control,

timer, display and keypad pebbles and a pair of Push-

logic object bundles that implement the functionality.

The HVAC interface has solid state relays to control

pump and furnace, input from tank and room ther-

mostats.

The HC-Control bundle contains code to drive the

output relays on and off at up to eight different pro-

grammed times, whereas the HC-UI bundle enables

the programmed and current clock times to be in-

spected and edited via the front panel. Remote adjust-

ment of the heating times is possible over the network,

for instance, by running a second instance of the HC-

UI on another platform, either with a second physical

display and keypad, or under the GTK GUI. A remote

process running on a server can be used to keep the

time clock accurate, if desired, using the ETC proto-

col writes over the network.

There are multiple levels of interlock that ensure

safe operation of the system. At the lowest level, the

furnace thermostat is hardwired in series with the fur-

nace gas valve, outside the controller. The controller

hardware interlock contains logic gates that disable

the furnace if both the tank and room thermostats are

open. The control pebble (device driver) mirrors the

interlock, causing a pushback on the furnace control

ﬁeld when both thermostats are open. The embedded

application software, in the form of the canned Push-

logic script, can be seen not to operate the furnace un-

til one or other of the thermostats is closed. Finally,

the script contains the following saftey statement that

is checked at compile time, that goes further than the

hardware interlock, because it also asserts about the

Pump relay.

always

(Heating#Sense#RoomThermostat==0 &&

Heating#Sense#TankThermostat==0) =>

Heating#Control#Furnace==0 &&

Heating#Control#Pump== 0;

When the two bundles of the heating controller

are checked together, a number of small BDDs are

formed and discarded during the elaboration phase

of the compiler, which takes about two seconds on

a 1GHz laptop running linux The consistency check

generates a BDD that treats each executable rule as

an assertion. This BDD has 58 primary inputs, and

uses about ﬁfty-thousand nodes. The next-state re-

lation used for model checking has over 100 inputs

because of the primed versions of each state variable,

but is about the same size. These currently each take 5

seconds to form. Once formed, a number of liveness,

safety and reachability assertions can be checked in

rapid succession. A proﬁle agent that handles both

the ML and shared libraries has been implemented,

so we have a ﬁrm grasp of where the time is being

used.

We illustrate liveness checking using the following

bundle that causes a variable called locked to be false

for 5 seconds after a variable called button holds.

def

bundle ButtonLock() {

input v#keys#button : { false:true};

output v#locks#unlocked : { false:true };

forever {

wait (button);

unlocked := true;

sleep_secs(5);

unlocked := false;

wait (!button);

}

local locked := !unlocked;

live unlocked, locked;

}

It makes a call to the following timer library func-

tion, that blocks the thread for a period, using the

timer pebble provided on all execution platforms. As

explained, there is no notion of thread in the ﬁnal

bytecode because all function calls are inlined during

compilation and all thread constructs are converted

to executable rule form. The live statement is an as-

sertion that the locked variable should never become

stuck at one value permanenty.

fun sleep_secs(t)

{

local until : { 0..59 };

with (__local_timer)

{ until := (#time_now#second + t);

wait(#time_now#second FQGT until);

}

The timer code places the unblocking time in the

local variable until and then blocks. The FQGT

operator is builtin and performs a greater-than com-

parison that behaves sensibly as the arguments over-

ﬂow in their ﬁeld provided their initial difference is

less than half the range. In the future, we would like

to use a wider ﬁeld than seconds (0 to 59) so that we

can sleep, say, for many thousand milliseconds. How-

ever, larger ﬁelds consume more BDD primary inputs

and BDD nodes, which are currently at a premium.

We shall also consider automatic switching to a lifted

form for modelling the sleep call, where it is held as a

single wait statment on a fresh variable. This is sim-

pler to model, provided there are few of these con-

structs, but complexity will eventually mount up in

USING SIMPLE PUSHLOGIC

107

meta-constraints over the fresh variables that model

the possible ﬁring orders.

Here is a bundle that is incompatible with the But-

tonLock: both cannot be loaded into the same DoP.

To explain this, ﬁrst we must mention that we have

not fully implemented the re-hydration stage yet, and

so hardcoded identiﬁers, such as the IP address of

the other bundle’s platform are currently hardcoded

in the source ﬁles. The button variable was originally

free to change at any time but becomes constrained

by the second bundle to only change while the un-

locked variable holds. The system cannot be unlocked

without the button being pressed, and hence the live

assertion in the Button listing fails. This will in fu-

ture be spotted by the DoP manager, but currently can

only be spotted by the compiler checking against pre-

compiled bundles that are to hand.

def bundle B2() {

pebble r = tup://128.232.1.45/v;

input d#q : bool;

r#keys#button := r#locks#unlocked && d#q;

}

5 CONCLUSION

This work was carried out under the CMI

Goals/Pebbles project (Umar Saif, 2003). It has

produced a strawman application scripting language

that supports code reﬂection. The current interpreter

runs on unix, bare PC motherboard, our embedded

CPU cards and linux. A native-compiler that gener-

ates PIC assembler code and operates over the CAN

bus (instead of Ethernet) is also being implemented.

This will be less RAM hungry. We have completely

implemented the top-level application code for

several simple consumer devices (e.g. the alarm

clock, DVD player, and so on). Work is ongoing

on larger programs, such as TiVo PVR and voice

mail, and in other areas, such as drinks machine,

automotive (using CAN) and elevators. Our language

has a number of novel features, including idempotent

execution and the mechanism concept, where reverse

execution is used to help handle network errors or

device self-reset. Arrays and RPC are shortly to be

tested out.

Future work is needed to analyse temporary er-

ror states during network races and to provide break-

before-make form guarantees where Pushlogic is used

to disable one server or device while enabling another.

The domain checker concept is well developed, but

practical implementation is only just starting. We

also plan to work on federation of DoPs based on

known obligations and constraints of adjacent do-

mains (Lupu E, 1997).

Our assertions currently do not contain quantiﬁers

that range over devices or possible values of ﬁelds.

As new devices and new versions of devices with ex-

tended variable domains can be inserted into a live

DoP, certain negated existential forms will have to be

restricted in order to preserve monotonicity.

Finally, we are seeking collaboration with an in-

dustrial partner where we can evaluate our ideas in

practice and combine them with conventional safety-

critical approaches, such as coverage testing.

REFERENCES

Chessell, M., Grifﬁn, C., Vines, D., Butler, M., Ferreira, C.,

and Henderson, P. (2002). Extending the concept of

transaction compensation. IBM Syst. J., 41(4):743–

758.

David Dill, S. B. (2004). CVC lite. Technical report, Stan-

ford University.

asser, U. (1995). Systems level speciﬁcation and model-

ing of reactive systems: Concepts, methods, and tools.

In EUROCAST, pages 375–385.

Kaiser, J. and Mock, M. (1999). Implementing the real-time

publisher/subscriber model on the controller area net-

work (can). In ISORC ’99: Proceedings of the 2nd

IEEE International Symposium on Object-Oriented

Real-Time Distributed Computing, page 172, Wash-

ington, DC, USA. IEEE Computer Society.

Lupu E, S. M. (1997). Conﬂict analysis for management

policies. In 5th Int Symp Integrated Network Manage-

ment IM’97. Chapman Hall.

McMillan, K. (2000). The smv language manual. Technical

report, Carnegie-Mellon University.

Microsoft (2000). Universal plug and play device architec-

ture, version 1.0. Technical report, Microsoft.

Monika Solanki, e. a. (2003). Introducing composition-

ality in webservice descriptions. In Proceedings of

3rd ANWIRE workshop on adaptable services, DAIS-

FMOODS.

Pearson, J. (2005). Embedding systems at a higher level.

Electronic System Design.

Presburger, M. (1929). Ober die vollstndigkeit eines gewis-

sen systems der arithmetik ganzer zahlen, in welchem

die addition als einzige operation hervortritt. Comptes

Rendus du I congrs de Mathmaticiens des Pays Slaves,

pages 92–101.

ReactiveSystems (2003). Model-based testing and valida-

tion of control software with reactis. Technical Report

2003-1, Reactive Systems.

Schlingloff, B.-H., Martens, A., and Schmidt, K. (2005).

Modeling and model checking web services. Elec-

tronic Notes in Theoretical Computer Science: Issue

on Logic and Communication in Multi-Agent Systems,

126:3–26.

Umar Saif, S. W. e. a. (2003). A case for goal-oriented pro-

gramming semantics. In UbiComp 03, System Support

for Ubiquitous Computing Workshop at the Fifth An-

nual Conference on Ubiquitous Computing.

WEBIST 2006 - INTERNET TECHNOLOGY

108
