RESEARCH AND IMPLEMENTATION OF MPLS VPN

PROTOCOL BASED ON NETWORK PROCESSOR

Wang YongJun, Huang QingYuan

School of Computer, National University of Defense Technology, ChangSha, HuNan, P.R.China

Keywords: Network processor, protocol development, software framework, picocode, MPLS, VPN.

Abstract: MPLS VPN is one of popular protocols in next generation internet. In general, it would be implemented in

modern routers. In this paper, the implementation technology of MPLS VPN was studied in high

performance router based on network processor. The programming view of NPs is studied and a flexible

protocol development software framework is proposed, which considers function partition of protocol into

two parts for specific NP and general-purpose processor. Making use of properties of flexible programming

and high processing capability of network processor, software architecture of MPLS VPN was proposed, the

key technology was designed and implemented, which shows the efficiency of protocol extension and

exploits the method to software upgrade of network processor.

1 MOTIVATION

With the rapid development of internet, electronic

business activities have become more and more

popular. Many enterprises allow the partners to

access their private network in order to simplify and

to speed up information exchange. However,

because of the distribution and open nature of

internet, such business activities are threatened by

security problems. Hence, virtual private network

technology is brought to tackle with such security

threat.

Traditional layer-2 VPN gets poor scalability

because of full connections between different sites.

MPLS VPN (Ivan, 2001) which is created on layer-3

can get over the problem while its deployment and

management are very easy. Thus the security and

privacy of layer-2 VPN can be assured through only

delivering VPN route information which is handed

out with BGP to VPN member routers.

MPLS VPN can overcome the limitations of

traditional VPN (Rosen,1999). It can reduce the

construction cost of enterprises’ private network

through utilizing the powerful transportation ability

of public backbone network effectively while

notably improving employment and management

flexibility of user network. At the same time,

through the isolation of routing information between

users and public network as well different users,

MPLS VPN can meet user’s requirement for

security, real time, broad bandwidth, and

convenience. It will be one of the core protocols of

next generation internet.

Network processors(Stephen, 2000)（NPs）are

an attempt by hardware vendors to fulfill the

growing need for low-priced specialized network

hardware that is more future proof than conventional

custom hardware or ASIC-based designs, and can be

applied in a wide range of situations (e.g. in

networked devices, as edge network routers and

even in the network core). NPs are multiprocessor-

based hardware units that support a number of

network ports and provide software based packet

processing facilities that can be programmed with

the aid of a toolkit. So Network Processors (NPs) are

emerging as cost effective networking elements that

can be more readily updated and evolved than

custom hardware or ASIC-based designs with high

performance.

The aim of the research discussed in this paper is

to design and implement MPLS VPN protocol based

on NP. To support it, a flexible protocol

development software framework for NPs is

proposed that accommodates complex architectures

and architectural heterogeneity while also supporting

high performance. In this framework, software

architecture of MPLS VPN is studied and proposed,

the key technology was designed and implemented.

156

YongJun W. and QingYuan H. (2006).

RESEARCH AND IMPLEMENTATION OF MPLS VPN PROTOCOL BASED ON NETWORK PROCESSOR.

In Proceedings of WEBIST 2006 - Second International Conference on Web Information Systems and Technologies - Internet Technology / Web

Interface and Applications, pages 156-163

DOI: 10.5220/0001252401560163

 SciTePress

The remainder of the paper is structured as

follows. In section II, we characterize NP

architecture as a basis for arguing, and also survey a

number of existing NP software development

support. In section III, we present our approach-

flexible development framework to programming

NPs and show how this improves on existing

approaches. Then, in section IV, we describe the

research and implementation of MPLS VPN

protocol in detail. Finally, in section V we offer our

conclusions.

2 RELATED WORK

2.1 Network Processor Architecture

The challenge in NP design is to provide fast and

flexible processing capabilities that enable a variety

of functions on the data path yet keep the simplicity

of programming similar to that of a General-Purpose

Processor (GPP). The NP system architecture plays

a significant role in this respect: such architectures

are primarily designed according to a serial model

(or pipeline) or a parallel model.

In the parallel model, each thread in an NP core

receives a different packet and executes the entire

data-path code for this packet. In the serial model,

each NP core receives each packet and executes a

different portion of the data-path code in a thread.

From a programming point of view, the serial

model requires that the code be partitioned such that

the work is evenly distributed. In the parallel model,

given that the same code can be performed by any

NP Core and packets are assigned to the next

available thread in any NP Core, the work is

inherently evenly distributed. The Intel IXP

(Matthew etc, 2002) architecture is designed

primarily on a serial model, whereas the IBM

PowerNP (James etc, 2003) is designed on a parallel

model. For realistic, changing traffic mixes, the

serial model would require a dynamic repartitioning

of the code to maintain performance, unlike the

parallel model for which no partitioning takes place.

2.2 Support of NP Software

Development

The provision of software development

environments for different NPs is almost as diverse

as NP hardware architecture.

In terms of proprietary software, we focus on

programming models and development

environments for the IXP1200 and the IBM

PowerNP. Information on the software environments

used by other NPs is unfortunately hard to obtain

without signing non-disclosure agreements.

Intel’s MicroACE (Intel, 2001) is targeted at the

IXP1200 and other Intel IXA products. In this

model, proxy-like software elements (called active

computing elements or ACEs) on the IXP1200’s

StrongARM control processor are ‘mirrored’ by

blocks of code (called microblocks) that run on

microengines. When the programmer loads a

StrongARM element, the corresponding microblock

is transparently loaded onto a microengine as a side

effect. IBM’s NPTool (James etc, 2003) includes

such related toolkits as NPScope ,NPSim, which are

loose coupled.

Turning to research-derived programming

environments, NetBind (Campbell, etc. 2002)

provides the abstraction of a set of packet processing

components that can be bound into a data path.

NetBind goes beyond MicroACE in supporting

flexible composition of microblocks, but it offers no

abstraction over the NP’s interconnects or over

different sorts of processors.

Apart from the work discussed above, additional

research has focused on creating toolsets for specific

NPs such as C compilers, simulators, debuggers and

benchmarkers; some of this work is described in

(Wagner, 2001), (Memik, 2001).

Above work can be classified into two kinds.

The first focuses on making tools more usable,

which has good performance but lack of

development efficiency without efficient integration

of those tools. The other one focus on providing

programming model that promote design portability

and transferable programming skills , which has

good software development view, but would make

performance influenced. We consider that most

emergent problem of current NPs software

development is how to provide a flexible framework

and integrated toolkit to programmers to make

complexity lower, improve the programming

efficiency and shorten time-to-market actually.

RESEARCH AND IMPLEMENTATION OF MPLS VPN PROTOCOL BASED ON NETWORK PROCESSOR

157

3 FLEXIBLE SOFTWARE

FRAMEWORK OF PROTOCOL

DEVELOPMENT

3.1 General Architecture of NP

Software

The architecture of NP-based communication device

architecture and software are very different from that

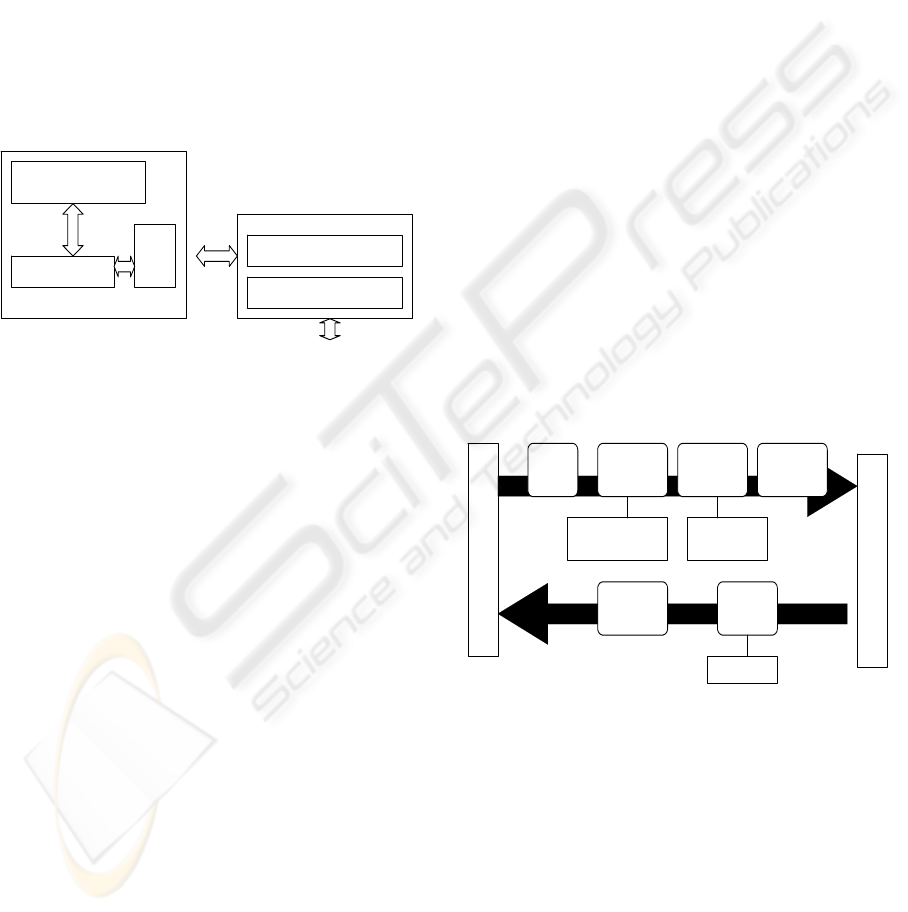

of traditional one. A general architecture of

network processor software is shown as figure 1,

which is divided into two part: network processor

picocode, control point software.

 Network processor Picocode

Embedded process chipset and co-processor of

Network Processor core are responsible for

executing Network processor picocode which is

divided into two part: forwarding picocode and

control picocode. Forwarding picocode is

responsible for data plane process including packet

classification, modification and forwarding.

Complex packet process can be redirected to control

point. Control picocode is responsible for control

plane process including initialization of network

processor, picocode downloading from control point,

management of various classification tables and

forwarding tables.

 Control Point (CP) Software

From NP’s view, Control Point Software is

composed of NPAS and network application.

z Network processor application service-

NPAS

NPAS provides seamless interactions and

application programming interfaces between control

point software and network processor picocode,

whose function involves: NP management, table

management of kinds of protocols, traffic

engineering management, redirection path of

protocol processing, and so on.

z High Level Network Application

Except NPAS, other process running on control

processor can be called high level network

application , for example, TCP/IP, routing protocols

and other signaling protocol . Network protocol

processing would be initiated by registering its

callback procedure to NPAS redirection path.

So, in general, complete processing of protocol

includes two parts: the first is data plane on NP, the

second is control plane on CP.

Figure 2 illustrates picocode view from

programmer. Packet processing is divided into two

stages: ingress and egress. Ingress refers to the data

flow from the link towards the switch interface, and

egress is the opposite. The same threads can perform

processing at ingress or egress, thereby

automatically balancing the processing power where

needed. Along with the packet, additional context

information can be transported from ingress to

egress, such as the output port identifier of the

egress NP obtained by the IP forwarding lookup

previously executed on the ingress NP.

Ingress processing of packets steps from low

layer to high layer, and the egress is opposite. Every

layer acts according to corresponding tables of

protocol, for example, multicast IP table, which is

created and filled by control plane software, such as

routing protocol.

3.2 Integrated Coordinated

Software Development Toolkit

We focus on the design of integrated coordinated

software development toolkit, which would provide

great convenience for programmer of NP software.

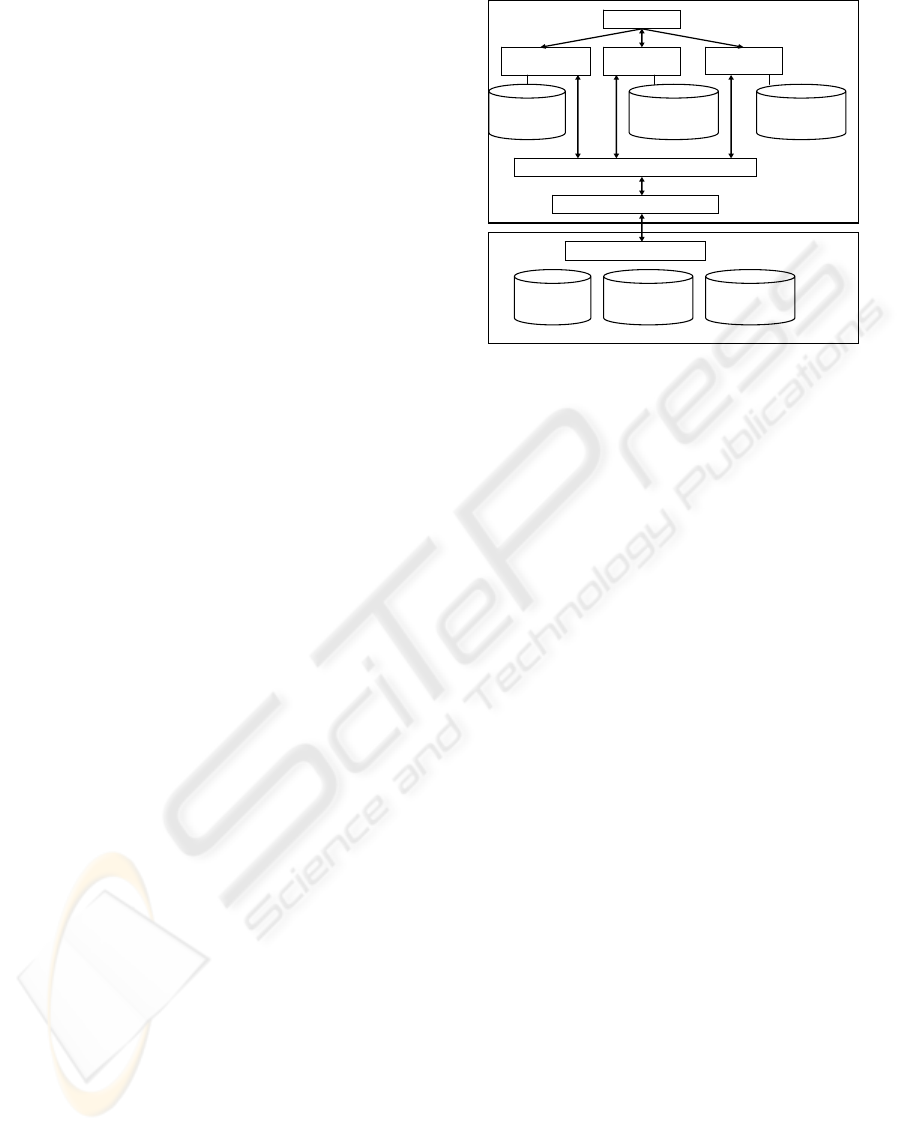

The architecture of toolkit is illustrated as Figure.3.

The top level is NP software view from

programmer, composed of information of picocode

High speed Ethernet ports

Control Picocode

Data Forwarding Picocode

High Level

Network A

lication

NPAS APIs

Network Processor

inter

face

Control Poin

Figure 1: General Architecture of NP Software.

Figure 2: NP Picocode View From Programmer.

Egress

inecard Interaface

Switch Interface

Ingress

Laye

bridging

Laye

Forwarding

Frame

Classification

Laye

Forwarding

Ingress

Flow Control

Egress

Flow Control

Multicast IP Table

Unicast IP Tabl e

IP BA Table

…

ARP Tabl e

WEBIST 2006 - INTERNET TECHNOLOGY

158

flow, related table structure and packet processing

performance.

The toolkit involves two main part integrated

development environment: CP IDE and NP IDE,

which would work coordinately.

CP IDE supports development of CP program. In

general, two program frame are given to develop

protocol processing callback, and NPAS extension.

The main task of NPAS extension program is design

of table structure, which also corresponds to table in

NP, because entries of NP’s one are written by CP.

So NP Table Generation module can help create the

right structure of NP table directly without manual

edition of programmer.

NP’s View From Programmer

IDE

Knowledge

base of NP

Protocol

Processing

Callback

NPAS

Extensio

Protocol

Table

Extension

Picocode

Generation

CP Program NP Picocode

Picocode

Function and

Performance

Simulation

Consistency

Check

NP Table

Generation

NP IDE supports development of CP program. In

general, two program frame are given to develop

protocol table extension, and picocode generation.

Specialized picocode module will be programmed

by human, but IDE will provide some useful facility

to help integration to whole NP software, for

example, check and suggestion for interface between

different picocode module, allocation of public

programming efficiency greatly.

After generation of picocode, module of

picocode function and performance simulation will

compile, debug and test the code. The test result can

be shown in the view of programmer. If

requirement can not be fulfilled, programmer will

check and debug program again, even repartition

protocol function. The simulation module will

provide possible performance bottleneck and give

some improvement suggestion intelligently.

Another useful coordinated working module is

consistency check of both CP program and NP

picocode, to keep corresponding structure and

declaration consistency.

In order to program high-performance modular

picocode, NP IDE provides a knowledge base of NP

for programmer, which can be queried and sampled.

The knowledge include structure of NP, mechanism

of all kinds of coprocessors and their programming

interface.

 Sample: Knowledge of Tree Search Engine

mechanism of IBM PowerNP

Tree search engine （ TSE ） (IBM, 2001) is a

hardware accelerated co-processor for tree search

and management of table including access control

table, forwarding table, security policy table and so

on. Various tables are stored and indexed through

Patricia tree which is a path-compressed binary tree.

Data of tables is stored in leaves of the tree.

Compressed data is stored in direct table (DT) which

effectively improves tree search speed through

hardware HASH algorithm.

Leaf

DT table

Tree search engine supports three kinds tree search

algorithm: Full Match (FM), Longest Prefix Match

(LPM), Software management Tree (SMT).

FM algorithm uses Patricia tree. Leaves are the only

matching selection of key. LPM and SMT use

extended Patricia tree. Data structure of SMT tree is

similar to FM tree. The difference between them is

that SMT may have many leave nodes which are

organized as a chain. Key search ends on the chain

until one match is found or there is no matching

totally. FM is suitable for fix length key search

while SMT is suitable for multidimensional key (as

IP five tuples) search.

PowerNP can support 192-bits key search. The

format of leave node can be defined freely in

picocode. The extension of various forwarding

tables is very easy for the flexible software

programming feature of TSE co-processor and

NPAS table management interface as the high

performance table search speed can be assured.

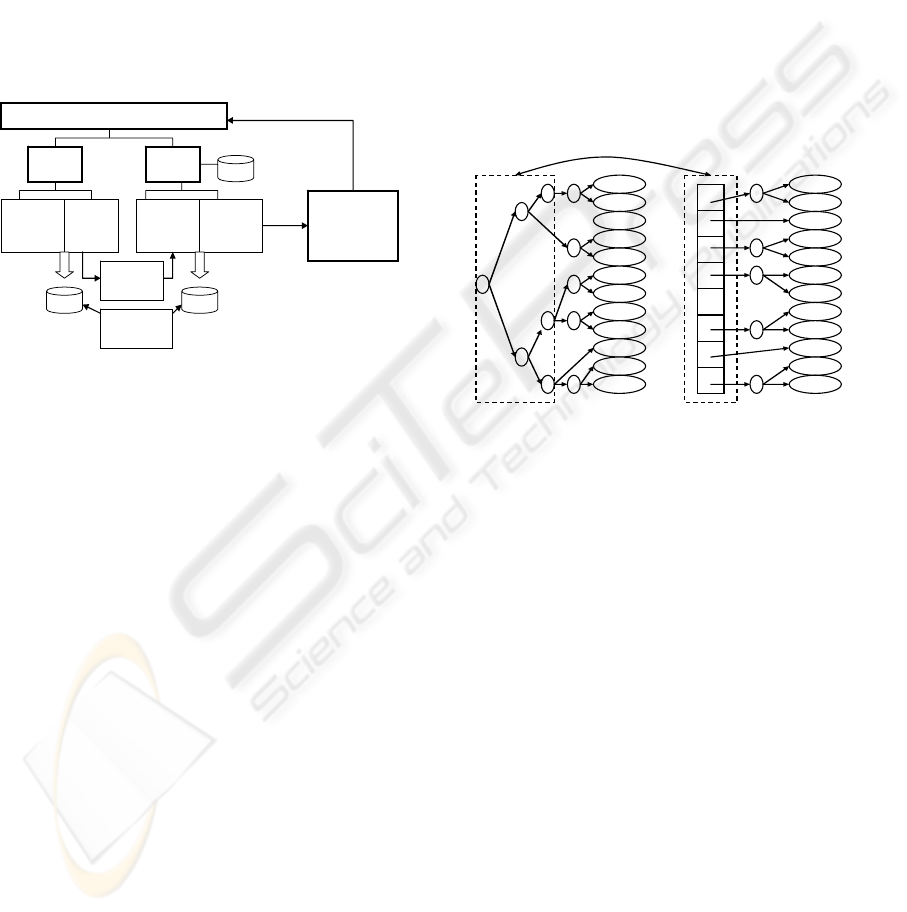

Figure 3: Architecture of Integrated Coordinated

Development Toolkit of NP Software.

Figure 4: Patricia tree structure.

RESEARCH AND IMPLEMENTATION OF MPLS VPN PROTOCOL BASED ON NETWORK PROCESSOR

159

4 IMPLEMENTATION OF MPLS

VPN PROTOCOL

4.1 Function Partition

NP-based MPLS VPN software architecture is

composed of control plane and forwarding plane

software. As is shown in figure 5. Control plane

software includes:

 User interface implements configuration

command of MPLS and VPN.

 IP routing protocols implement IP route

learning which is the basis of the

construction of label switch path.

Multiprotocols BGP protocol（MPBGP）

(Bates, 2000) implements the delivering of

VPN routing information in BGP domains.

VRF table management implements the

management of VPN routing information

tables. It is equal to extract many

independent tables from IP routing tables.

Each VPN has one corresponding VRF

table. VRF route is only managed by VRF

manager which is responsible for delivering

VRF routing information to MPGP for

broadcast at the ingress.

 MPBGP will inform VRF manager about

VPN route at the egress.

 Label distribution protocol （ LDP ）

(Andersson, 2001) ， implementing MPLS

label switch path（LSP）messages;

 NPAS，implementing the management of

network processor, including the

configuration of various MPLS VPN tables

on forwarding plane.

 Forwarding plane software is network

processor picocode software:

 NP picocode ， maintaining and searching

various forwarding tables in network

processor, including IP forwarding tables

,VRF forwarding tables, label forwarding

tables. MPLS VPN forwarding flow is also

implemented.

IP route

protocol

VRF

manager

LDP

protocol

TCP/IP

NPAS

NPpicocode

IP forward

table

VRF forward

table

label forward

table

IP forward

table

VRF forward

table

label forward

table

Control plane

Forward plane

Figure 5: MPLS VPN software architecture.

4.2 Table Design

NP-based MPLS VPN is a function extended over

standard network protocol suits, so it is better to

minimize changes over primitive architecture while

utilizing network processor’s scalability effectively.

In this section, two of the key issues will be

discussed: (1) the design of VRF forwarding table

on control point; (2) the implementation of VRF

forwarding table and code on network processor.

4.2.1 VRF Table Design on CP

Actually, VRF forwarding table can be regarded as a

subset of global table. It is organized according to

the need of VPN route. Related properties are also

stored in the table, the information of which is

delivered by UI configuring module or VRF

manager through MPBGP.

VRF should be assigned name and route

distinguisher (RD) when it is created. At present, we

only consider the scenario of one VRF with single

RD in the overall network. RD and destination IP

are the index of VPN member in VRF forwarding

table. RD is eight bytes, including type, manager and

sequence number. It supports autonomic system and

IP.

There are two schemes to design VRF table:

 Extension scheme ― multi-route table

structure and multi-route table HASH table

organization structure

To support MPLS VPN, the storage of VPN

route information must be taken into account while

keeping the primitive route table storage structure.

Since VPN route address is private, route managing

WEBIST 2006 - INTERNET TECHNOLOGY

160

unit shall create and maintain multi-route tables,

including both original public network route tables

which can be regarded as special private route tables

whose RD is zero and VPN private route tables

which are Radix Tree route tables indexed by

corresponding VRF RD. Hence, all the route tables

can be organized and stored as Radix Tree route

tables indexed by RD. Lookup of these hash tables is

very fast. The structure of hash tables is shown as

figure 6:

 Modification scheme ―single IP forwarding

table

This method is implemented through directly

modifying the data structure and management

function of backbone routers. The index of

forwarding tables is also changed as RD plus IPV4

address. New items of the tables such as bottom

label are needed to support lookup process for

datagram from VRF interfaces and general

interfaces whose RD is zero. Mapping between

interfaces and RD is needed because of pre-

acquisition for RD before table lookup.

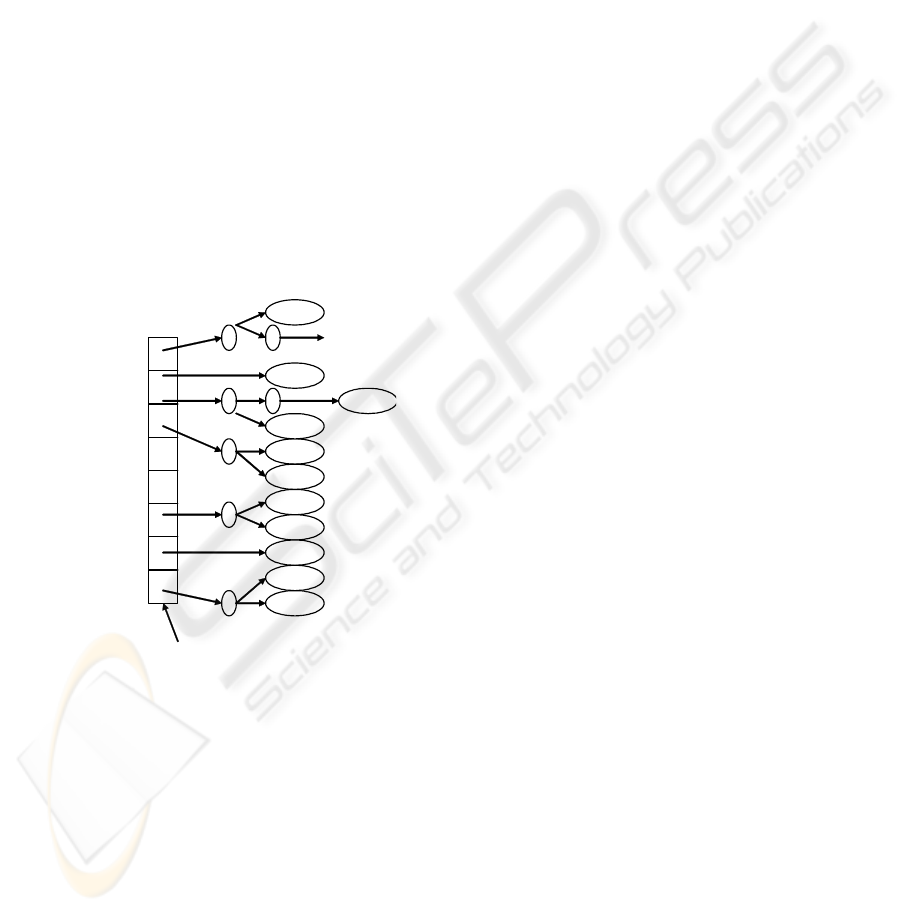

Figure 6: Multi-route table and HASH table structure.

Comparing the two schemes according to

workload and performance, we choose the first

scheme which needs minimal modification of

current BGP and IP route tables ,that is easy for

maintain system stability. The basic data structure of

VRF table item can be shown as below:

; leaf data structure

Struct

np_signature_t signature

;Signature

np_uint16 VPN_color

; needed for VPN

np_uint32 reserved_hdr

; Reserved variable

np_uint32 flags_counter

; Maint.flags&Cou

t@BVNC

BLIx xxxx Sxxx cccc

;cccc cccc cccc cccc

np_ipps_ecmpActionData_s ecmpActionData

;16 bits

np_ipps_vrf_nextHopForwardingLeaf_s

nextHop[3]

np_uint32 bgp_nexthop

; BGP next hop

np_uint8 bgp_csi1

; BGP skip counter & csi

Sxxx cccc

np_uint16 bgp_csi2

;BGP csi, cccc cccc cccc cccc

np_uint8 bot_label_part1

; goes with insert_bot_label bottom

label is 20 bits long we use bit 23 (0-

23) for insert bottom label flag

np_uint16 bot_label_part2

np_fwd_table_id_t fwding_tableid

endstruct

4.2.2 VRF Forwarding Table Design and

Picocode Flow in Network Processor

 Picocode VRF table design

VRF manager maintains a VRF route table of multi-

table structure on both control point and network

processor, as is similar to IP forwarding table.

However, different from the multi route tables

structure on control point, network processor which

supports 192-bits key search only maintains one

picocode VRF forwarding table.

There are two implementation schemes for

relation between VRF forwarding table and IP

forwarding table. The first scheme adopts

independent table. This scheme defines a new VRF

table which is indexed by RD plus IPv4. The second

scheme adopts integral table. This scheme modifies

IP forwarding table structure and extends key length

to 96-bits for VPN searching. The second scheme

affects general IP forwarding speed and needs

modify IP table management function. So we select

the first scheme.

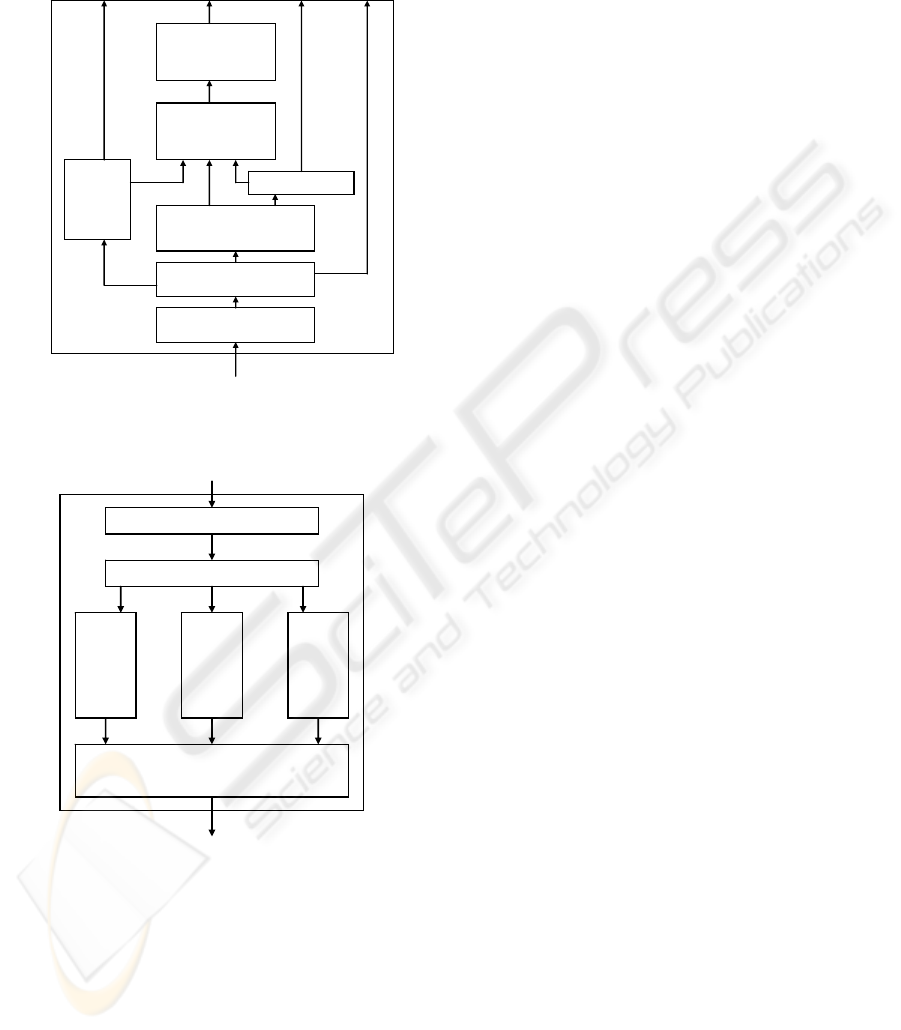

 MPLS VPN picocode flow

The standard functions of edge routers based on

network processor include: IP forwarding, MPLS

forwarding and so on. The modification of picocode

Leaf

Public net Radix Tree

VPN1 Radix Tree

VPN2 Radix Tree

VPNn Radix Tree

…

RD HASH table

RESEARCH AND IMPLEMENTATION OF MPLS VPN PROTOCOL BASED ON NETWORK PROCESSOR

161

software is needed to support MPLS VPN through

pushing two labels at ingress and pulling them out at

egress.

Switch/

Route

process

IP L4 Process

(policy control)

IP VPN or L3

process

Data frame preprocess

VRF interface check and

RD table lookup

Data frame analysis

MPLS process

Physical interface

Switch

Figure 7: Ingress picocode flow.

Cell to frame process

Data frame preprocess

Switch/

route

process

MPLS

process

Output scheduling

(flow control, traffic shaping)

Physical interface

Switch

Figure 8: Egress picocode flow.

To construct key words of VPN route, We design

RD table for mapping VRF interface to RD. Detailed

flow is shown as figure 7,8. Data structure of VRF

table item on NP which is corresponding to that is

on CP can be shown as below:

STRUCT

byte control_flags

; (BGP)(LV)(I=E_node)(x) X X X

byte counter_skip

; flag for enabling/disabling counting

on this entry

hword counter_csi

; remaining bytes of counter set index

ecmpActionData hword; ecmp thresholds

(thr1 and thr2)

word next_hop_0

; IP address

hword encoded_target_blade_0

; compacted TB/TP values

hword action_flags_0

hword egress_Context_0

; egress context

word next_hop_1

; IP address

hword encoded_target_blade_1

; compacted TB/TP values

hword action_flags_1

hword egress_Context_1

; egress context

word next_hop_2

; IP address

hword encoded_target_blade_2

; compacted TB/TP values

hword action_flags_2

hword egress_Context_2

; egress context

word BGP_next_hop

; IP address of BGP Next Hop

byte BGP_counter_skip

; flag for enabling/disabling BGP

counter on this entry

hword BGP_counter_csi

; remaining bytes of BGP counter set

index

byte insertBottomLabel

; MSb (bit 23) = insert bottom label

flag

hword bottom_Label

; bottom label itself is 20 bits long

hword next_lookup_table_id

; Table Id associated with 2nd lookup

endstruct

IP VPN process module is extended. VRF

interfaces checking module and RD table lookup

module are fresh modules. When RD table lookup

for datagram from VRF interfaces succeed, IP VPN

process is activated. OutSegment index is extracted

WEBIST 2006 - INTERNET TECHNOLOGY

162

from MPLS InSegment table. Standard MPLS

datagram are processed by standard MPLS

procedure.

We implement two-layer label pushing function

for MPLS process module in egress flow to support

VPN application.

5 CONCLUSION

In this paper we have discussed a flexible integrated

coordinated software development toolkit which has

been proposed to support rapid development of

protocol from programmer’s view, and provides

plenty of assistance functions to help NP

programming more quickly and efficiently. Through

this toolkit, MPLS VPN protocol is developed.

NPs will be adopted in more and more

communication devices, especially edge devices for

their flexibility of protocol function upgrading. One

of our future work is to develop more new network

protocols according to new requirement of network

application.

ACKNOWLEDGMENTS

This work was supported in part by Chinese NSF

grant 90104001/F0107.

REFERENCES

Stephen J. Sheafor.( 2000). Network Processor: Using in a

New Era of Performance and Flexibility. Retrieved

November 20, 2005, from http://www.sitera.com.

C. Sauer K. Keutzer C. Kulkarni, M. Gries ( October

2003). Programming Challenges in Network Processor

Deployment. In Int. Conference on Compilers,

Architecture, and Synthesis for Embedded Systems

(CASES).

Agere Systems Proprietary. The Challenge for Next

Generation Network Processors. April 2001.

IBM PowerNP NP4GS3 network processor datasheet.

Retrieved December 20, 2005, from

http://www.ibm.com/chips/techlib/techlib.nsf/products

/PowerNP NP4GS3.

Matthew Adiletta, Mark Rosenbluth, Debra Bernstein,

Gilbert Wolrich, and Hugh Wilkinson. (August 2002).

The next generation of Intel IXP processors. Intel

Technology Journal, 6(3):6-18.

James Allen, Brian Bass, Claude Basso, Rick Boivie, Jean

Calvignac, Gordon Davis, Laurent Frelechoux, Marco

Heddes, Andreas Herkersdorf, Andreas Kind, Joe

Logan, Mohammad Peyravian, Mark Rinaldi, Ravi

Sabhikhi, Michael Siegel, and Marcel Waldvogel.

(2003). PowerNP network processor: Hardware,

software and applications. IBM Journal of Research

and Development.

Intel Press. 2001. MicroACE, design document, revision

1.0. Intel Press, Intel Corporation.

Campbell A.T., Kounavis M.E., Villela D.A., Vicente

J.B., de Meer H.G.,Miki K., and Kalaichelvan K.S.

(June 2002). NetBind: A Binding Tool for

Constructing Data Paths in Network Processor-based

Routers. In 5th IEEE International Conference on

Open Architectures and Network Programming

(OPENARCH’02).

Wagner J. Leupers R.(2001). C compiler design for an

industrial network processor. Proceedings of the 2001

ACM SIGPLAN workshop on Optimization of

middleware and distributed systems.

Memik G. Mangione-Smith W H. Hu W.( 2001).

Netbench: A benchmarking suite for network

processors. ICCAD.

Network Processing Forum Working Group ( Oct 2002).

Network processing forum backgrounder. Retrieved

November 20, 2005, from http://www.npforum.org/.

Ivan Pepelnjak, Jim Guichard, 2001. MPLS and VPN

Architectures. Cisco Press.

Rosen, E., Rekhter, Y. (1999). BGP/MPLS VPNs, IETF

RFC 2547.

Bates, T., Rekhter, Y., Chandra, R., Katz, D.(2000).

Multiprotocol Extensions for BGP-4, IETF RFC 2858

Andersson, L., Doolan, P., Feldman, N. , Fredette,

A. ,Thomas., B.(2001). LDP Specification., IETF RFC

3036.

RESEARCH AND IMPLEMENTATION OF MPLS VPN PROTOCOL BASED ON NETWORK PROCESSOR

163
