A SECURE, OPEN AND INTEROPERABLE E-ORDERING

SERVICE

Despina Polemi, Spyridon Papastergiou

Department of Informatics, University of Pireaus, 80 Karaoli & Dimitriou Str., Pireaus, Greece

Keywords: e-Ordering, XML, Web Services, Security, XML, Advanced e-signatures.

Abstract: Electronic Ordering (e-Ordering) services are fundamental in the provision of electronic trade. The

contemporary e-Ordering implementations vary in terms of the underlined technologies, creating important

interoperability and security problems. In this paper we capture the security requirements of the e-Ordering

service and we present an e-ordering system based on the eXtensible Markup Language (XML), XML

Cryptography, Public Key Infrastructure (PKI) and Web Services. Our proposed e-Ordering service is an

open, secure and interoperable solution, respecting the EU legislation.

1 INTRODUCTION

One of the most important transactions amongst

commercial partners is the electronic ordering. The

ordered documents may contain business data (e.g.

VAT code, items) or private data that should not be

revealed or modified. They should be trustful

documents requiring all four dimensions of security

(confidentiality, integrity, authenticity, non

repudiation). The order service as a process should

allow the true business-to-business secure

collaboration by giving the opportunity to salesmen

and purchasers to execute trustful processes of

electronic trading opening new markets.

The advantages that e-ordering offers include:

the generation of more revenue, improvement of

sales efficiency, increase of customer retention,

accuracy and efficiency of sales, elimination of costs

(Microsoft, 2003).

The purpose of this paper is the presentation of

the security and interoperability requirements of an

e-ordering service, as well as the proposition of an

open, affordable and scalable e-ordering architecture

that satisfy these requirements complied with EU

regulations and directives. The proposed system, in

order to meet these objectives, is built using open

technologies, such as eXtensible Markup Language

The research of the present paper has been supported by the

eTen project SELIS (selis.unipi.gr) and by the GSRT(PENED)

programmes.

(XML), XML Cryptography, Public Key

Infrastructure (PKI) and Web Services.

The rest of this paper is organized as follows.

Section 2 provides the fundamental security

requirements of e-ordering. Section 3 describes in

detail the e-ordering system architecture and its

components. Finally Section 4 presents our

conclusions and areas for further research.

2 STATE-OF-THE ART AND

REQUIREMENTS

In this section we present the e-Ordering security

requirements as well as technical countermeasures

that address these requirements.

2.1 Security Requirements and

Measures

The e-Ordering systems have to satisfy certain

fundamental security requirements:

Authentication of origin. The confirmation of the

source that sends the orders is a critical issue of the

ordering exchange process. This requirement can be

addressed using XML digital signatures in

combination with tamper resistant cryptographic

modules such as smart cards.

Integrity of the content. During transmission or

storage time, the orders should be protected from

Polemi D. and Papastergiou S. (2006).

A SECURE, OPEN AND INTEROPERABLE E-ORDERING SERVICE.

In Proceedings of WEBIST 2006 - Second International Conference on Web Information Systems and Technologies - Internet Technology / Web

Interface and Applications, pages 57-62

DOI: 10.5220/0001252900570062

 SciTePress

unauthorized (intentionally or accidentally)

modification or their replacement. The use of a

cryptographic hash function, that provides message

integrity checks, can be achieved either separately or

as part of the digital signature process.

Non-repudiation of origin and receipt. The

ordering exchange can not been denied neither by

the sender nor by the recipient. Digital signatures

and time stamping (Sklavos et al, 2001) are the

measures to address this requirement.

Long lasting integrity. The electronic signatures

of the orders should remain valid over long periods.

To face this problem, ETSI produced ETSI TS 101

903 (commonly known as XML Advanced

Electronic Signatures-XADES-) to define XML

formats for advanced electronic signatures. A

XAdES electronic signature offers also non-

repudiation based on a predefined signature policy

(XAdES, 2002).

Confidentiality and privacy. The orders should

be readable by the designated recipients. This can be

achieved using XML Encryption as specified in the

W3C Recommendation (Eastlake, 2002) and the

Web Services Security recommendation for

encryption in SOAP messages (Nadalin, 2004),

(Hartman, 2003).

Integrity of the sequence of the orders. This

requirement translates in to the avoidance of missing

orders. Addressing this requirement can be done

with the imposition of a tight sequence issuance

scheme by having a reference number embedded in

each order.

Availability. The e-ordering service will be able

to be used at any time from the enterprises. Because

of this fact, serious security issues can arise and the

system have to be protected against intrusion and

hacking. Perimeter security (e.g. installation of

Intrusion detection systems, antivirus and firewalls )

can be used to meet these requirements. On the other

hand, Web Services will have to provide published

services in registries, in which any interested entity

will have the opportunity to search and invoke a

desirable service.

Secure Electronic Storage. Primary

requirements, such as authenticity, integrity and

readability should be guaranteed throughout the

storage period of the e-ordering documents. An ideal

system that can be used for this purpose is a native

XML database. The essential result from the use of

such type of system is the possibility of storage of

XML orders with the original format in which they

were received. Furthermore, the combination of

XAdES and a native XML database can guarantee

the secure long-term archiving of e-orders.

Legal Compliance. All e-ordering

implementations have to be compliant to a set of

regulations and directives that are defined from the

legal framework of EU member states e.g. Digital

Signature Law Privacy and Electronic

Communication Regulations Electronic Commerce

Directive Electronic Storage Directive.

3 A SECURE E-ORDERING

SERVICE

In this section we will present our proposed e-

Ordering service architecture, the entities that are

involved in the service, the procedures and

necessary steps that these entities have to follow in

order to complete an e-Ordering transaction.

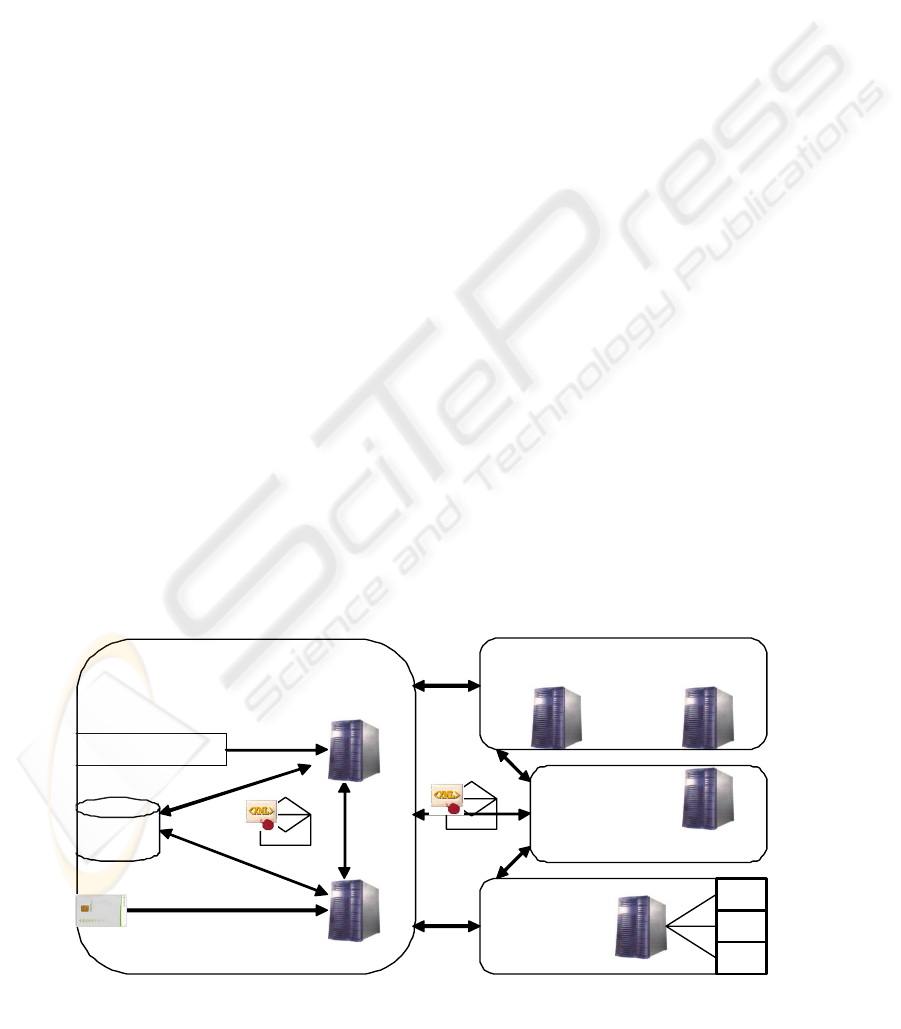

Figure 1: System Architecture.

Sender Keystore

Web Service Sender

XML

User Inter

ace

stem

Architecture

SOAP

Trusted Third

Parties

mart Card

Sender

TSA

Receiver

Web Service Sender

UDDI Locator WS UDDI Re

istr

Directory Operator

Publish Service

Retrieve Service

Sec ur it y

Credential

Ex chan ge

SOAP

WEBIST 2006 - INTERNET TECHNOLOGY

3.1 Service Architecture

Our proposed system adopts the most advanced and

widely adopted standards for secure interoperable

service provision currently available. The system is

addressing the requirements described in Section

2.1.

Technologies, such as XML and Web Services,

are used to achieve security and interoperability. The

message format integrated in the current version of

the system uses the XML Common Business Library

version 4.0 (xCBL 4.0) (xCBL.org, 2003), which is

a set of XML building blocks and a document

framework that allows the creation of robust,

reusable, XML documents to facilitate global

trading.

XML is used for formatting the e-order

document, which allows the use of XML digital

signatures and the integration of timestamping

tokens to the document. The XML schema adopted

for the e-order is a subset of xCBL. The selection of

xCBL is based on its maturity level of completeness

and clarity.

The exchange mechanism for e-orders relies on

the Simple Object Access Protocol (SOAP)

(Nadalin, 2004), (Harman, 2003) messaging with

Web Services Security extensions. Storage is

handled natively by an XML database to satisfy the

requirement for secure storage of the exchanged e-

orders in the form in which they were sent and

received. Integrity and non-repudiation for the e-

order documents is ensured by the use of XML

digital signatures so that origin and integrity

information are embedded in the e-order document

(Kaliontzoglou, 2006).

Figure 1 depicts the three major components i.e.

User Interface, Web Service Sender and XML

Database of the system architecture. These

components are described in details as follows:

a) User Interface. The User Interface gives the

possibility to the user to create, to manage and to

send orders. In order to achieve this, it

communicates with six entities:

User card, to sign the orders. CA (Certification

Authority), to request certificate status information

(Kaliontzoglou, 2006). TSA (Time Stamping

Authority) to request time stamps, in order to

produce XAdES signature (Kaliontzoglou, 2006).

XML database, to retrieve order’s information.

Web Service Sender, in which the orders are sent.

UDDI Registry, to publish the e-Ordering Service.

b) Web Service Sender. The Web Service Sender

communicates with five entities:

User Interface, that sends the orders to the Web

Service Sender. XML Database, to store orders and

receipts. Sender Keystore, to receive sender

certificate and receiver certificate. Web Service

Receiver, which receives the orders. UDDI

Registry, to retrieve the URL of the Web Service

Receiver.

c) Native XML database. The XML database

(Meier., 2002) communicates with two entities:

User Interface, which retrieves orders’

information. Web Service Sender, which stores

orders and receipts.

In Addition, Figure 1 depicts the four major

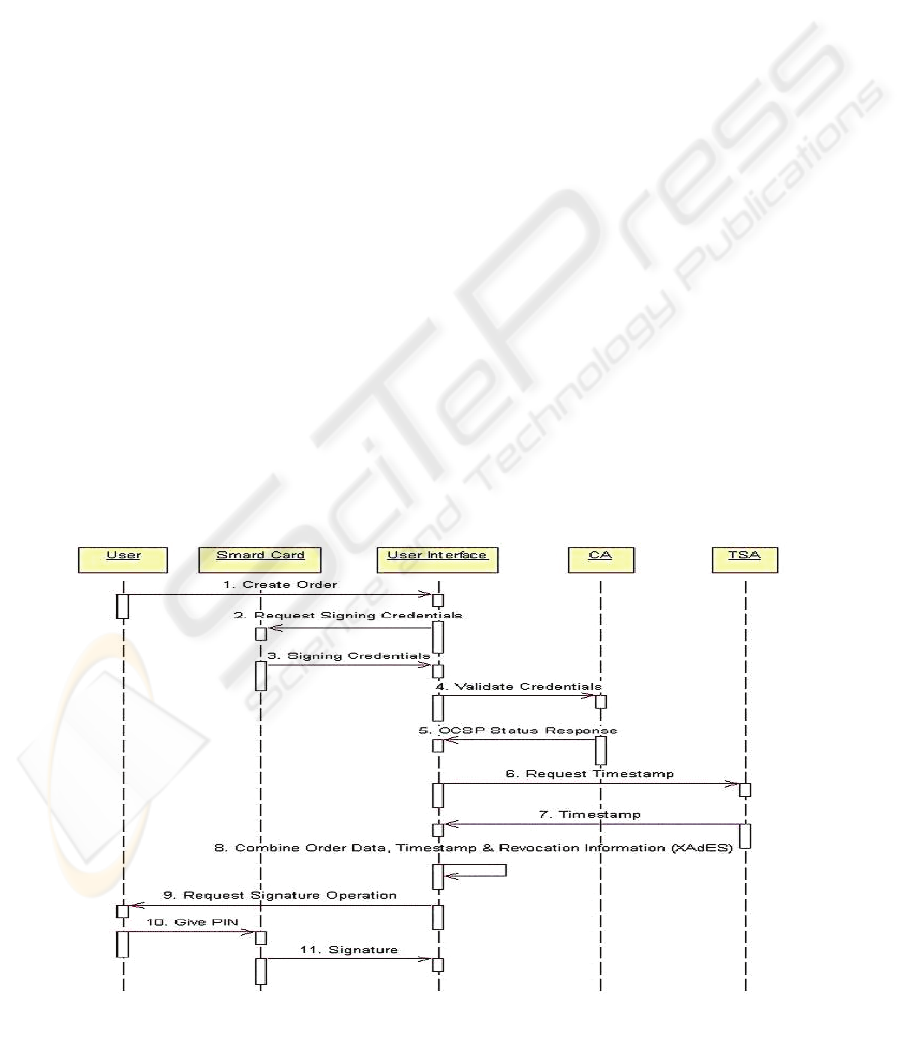

Figure 2: Sequence diagram for the e-Ordering process (Actions 1-11).

A SECURE, OPEN AND INTEROPERABLE E-ORDERING SERVICE

entities that take part in the e-Ordering process. The

two major entities that participate to the transaction

are the Sender that initiate the process and the

Receiver that receives the order. A detail description

of these entities is the following:

a) The Sender. The Sender is an organization

that hosts the system architecture as it is described

above (Figure 1). The Sender deploys the e-Ordering

service and publishes it in the UDDI Registry. It also

communicates with the Trusted Third Parties to get

the proper security credentials.

b) The Receiver. The Receiver is an organization

that hosts the above e-Ordering service architecture

or a similar one. The fundamental requirement is

that the architecture that the Receiver should adopt

must be able to understand the xCBL order schema,

and the SOAP messages with WS security

extensions. Then, the Receiver retrieves the e-

Ordering service from the UDDI and it is configured

to understand the messages. It also communicates

with the Trusted Third Parties to get the proper

security credentials.

c) The Trusted Third Parties (TTPs). The TTPs

that are required in the proposed architecture are a

Certification Authority (CA) and a Registration

Authority (RA) offering the PKI services of

registration and certification (Adams, Lloyd, 1999).,

and a Time Stamping Authority (TSA) offering

standards based time stamping services (Sklavos et

al, 2001).

d) Directory Operator. The Directory Operator

Entity is composed of the UDDI Registry, and

UDDI Locator WS.

UDDI Registry is the directory where Web

Services can be published. UDDI Locator WS, the

use of this directory makes possible the discovery of

the UDDI in which a Web Service has been

published.

3.2 e-Ordering Processes

The Sender and the Receiver of the order, before,

initiate the e-Ordering process, have to accomplish a

set of actions, which are divided in two phases. The

first phase constitutes the communication with the

UDDI Registry for the publication and retrieval of

the e-Ordering service. In the second phase the

Sender and the Receiver have to communicate with

the TTPs for acquisition of the security credentials.

Phase1: Service publication and retrieval. The

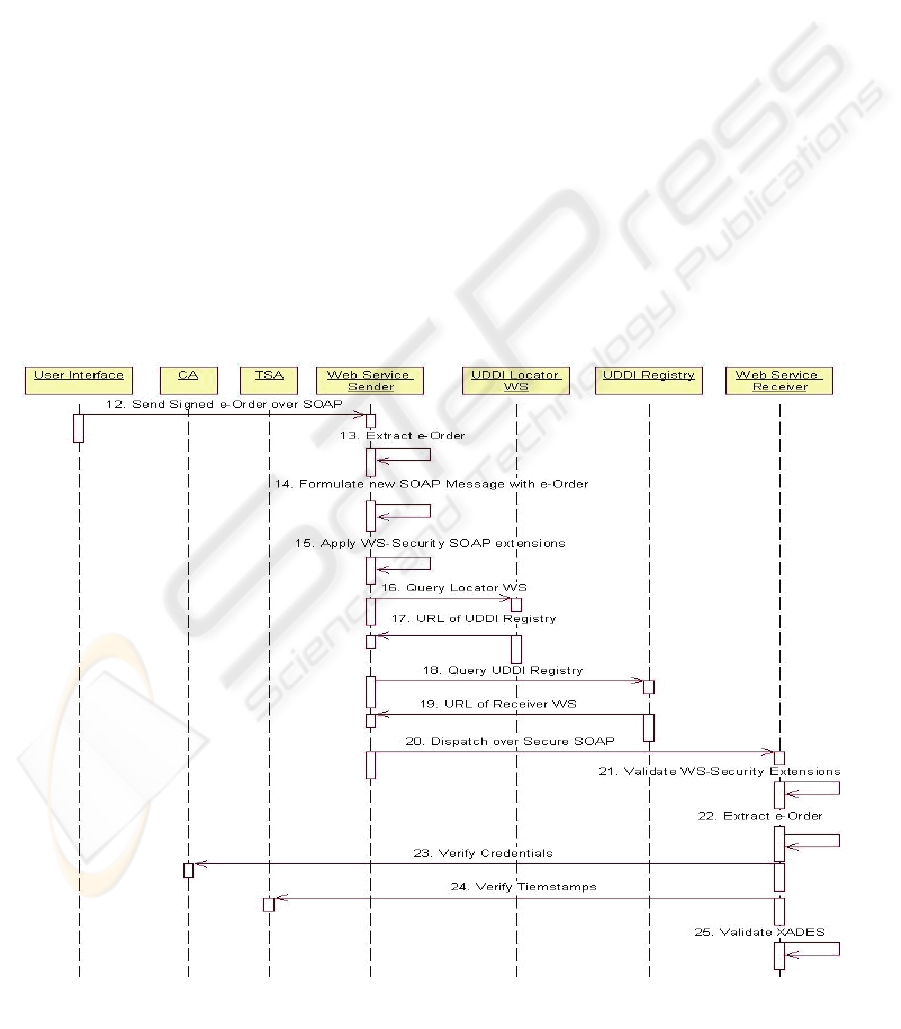

Figure 3: Sequence diagram for the e-Ordering process (Actions 12-25 ).

WEBIST 2006 - INTERNET TECHNOLOGY

Sender produces the WSDL document and publishes

the e-Ordering service to the UDDI Registry. Then

the Receiver retrieves the description from the

UDDI registry and configures its service to be able

to receive and send SOAP message according to this

description. Furthermore, the Receiver produces the

WSDL document that corresponds to its service and

publishes its service to the UDDI Registry.

Phase2: Set up security Credentials. The

Sender and the Receiver take part in the Registration

and Certification procedures as demanded by the

Certification Practice Statement of the TTP, and

setup the acquired security credentials, in order to

achieve a secure communication. Moreover, they

have to define the necessary signature policies that

will be referenced while producing and validating

XAdES signatures, as described in the XAdES

standard (Kaliontzoglou, 2006).

When the Sender and the Receiver have

accomplished the aforementioned phases, they are

now ready to initiate the ordering process. The

necessary steps to complete this process are

illustrated below:

Step1: Access User Interface and Create Order

Document (Action 1 (Figure2))

The e-Ordering process is initiated by an

employee of an organization which wants to make

an order. The user access a User Interface using a

browser. The User Interface enables user to

complete the necessary data in order to create an

order or to manage existing orders. The data input is

automatically checked for prevention of errors and is

used to create the order document.

Step2: Sign Order Document (Actions 2-11

(Figure2))

When the order document has been created, the

User Interface transparently gathers the time stamps

and revocation status information data from their

respective sources. Then, the XAdES signature is

formulated based on the cryptographic primitives in

the smart card, the user’s certificate and the order

data. At the end, the order document is signed using

the qualified certificate of the user, which is located

in the smart card.

Step3: Dispatching Signed Order Document to

Sender’s Web Service (Actions 12-19 (Figure3))

After the successful creation of the signed order

document, the order document is packaged in a

SOAP message and is dispatched to the Sender’s

Web Service. The Sender’s Web Service extracts the

order and packages it in a new SOAP message. WS

Security extensions are applied to the new SOAP

message. Then the new SOAP message is encrypted

with the Receiver’s public key, and is digitally

signed with the Sender’s server private key. The

Sender’s Web Service queries the UDDI Locator

WS in which UDDI Registry the Receiver has

published its Web Service. The query is based on the

VAT prefix of the Receiver that corresponds to the

country code. When the Sender’s Web Service

receives the UDDI Registry URL, it queries the

Registry in order to receive WSDL document. Then

the WSDL document is parsed and Sender’s WS

retrieves the URL of Receiver’s Web Service.

Step4: Receipt of Order at Receiver’s Web

Service (Actions 20-25 (Figure3))

The protected SOAP message, that has been

created, is dispatched over HTTP to the Receiver’s

Web Service. The Receiver’s Web Service receives

the order and follows a fully automated process that

requires no human intervention. The SOAP message

containing the orders are decrypted with the

Receiver server’s private key and the validity of

their WS Security extensions digital signature is

verified, so that the point of origin is validated.

Then the e-Order document itself is extracted.

Validation of the embedded cryptographic

information firstly requires communication with a

CA for verification of the credentials that were used

to sign the e-Order as well as verification of any

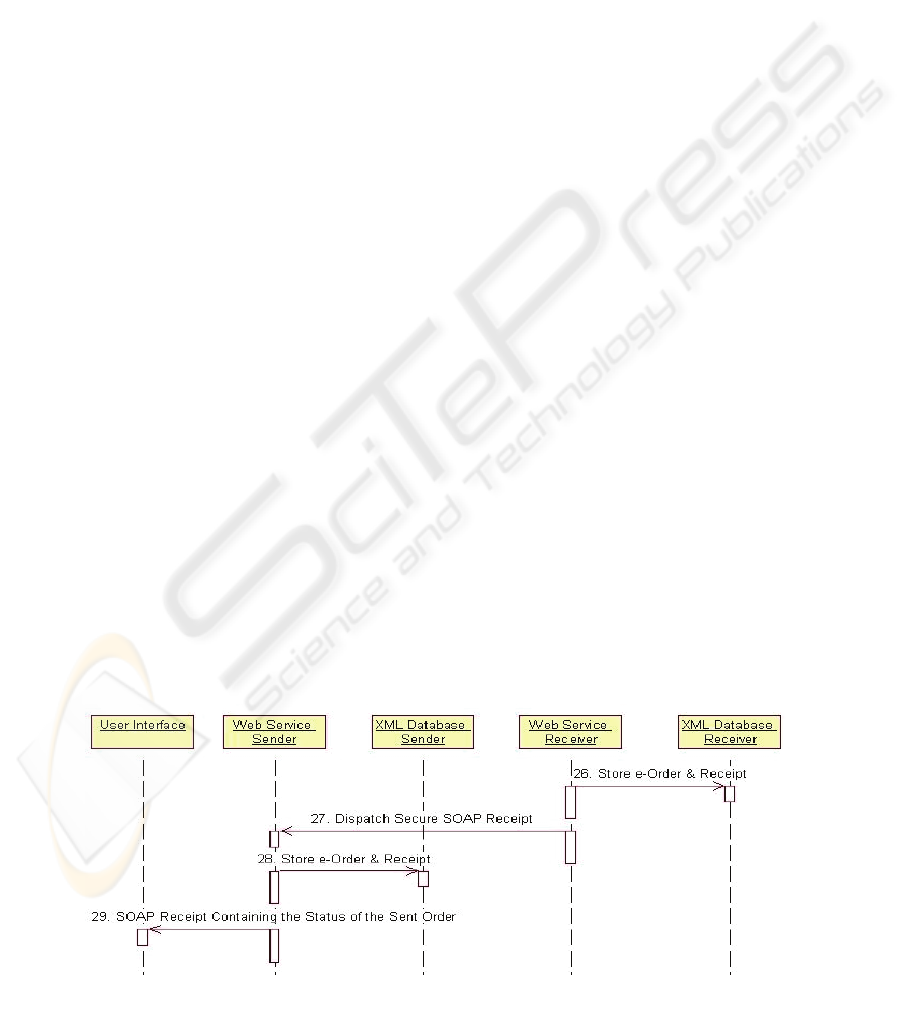

Figure 4: Sequence diagram for the e-Ordering process (Actions 26-29).

A SECURE, OPEN AND INTEROPERABLE E-ORDERING SERVICE

timestamp that was included in the document.

Finally the XAdES signature is validated.

Step5: Storage of Order at Receiver’s XML

Database and Dispatching a Receipt (Actions 26-27

(Figure4))

The Receiver’s Web Service stores the e-Order

and a receipt in the Receiver’s XML Database. From

now on, the e-order is available for parsing and

further processing by the Receiver’s users. Then, the

Receiver’s Web Service dispatches the SOAP

receipt, referencing to the received order, and

containing the status of the whole process. The

SOAP receipt is signed by the receiver’s server in

order to be valid as a receipt.

Step6: Storage of Order at Sender’s XML

Database (Actions 28-29 (Figure 4))

The Sender’s Web Service receives the signed

SOAP receipt and it stores it in its XML database

along with the sent order.

4 CONCLUSIONS AND FURTHER

RESEARCH

In this paper, we presented an architecture for a

secure e-Ordering service. The proposed system is a

secure tool for SMEs which desire to send and

receive electronic orders via the Internet in a trustful

manner. From a technological point of view, the

system is compliant and in accordance with state-of-

the-art standards that constitute an interoperable,

affordable and scalable solution that address the

security requirements, described in Section 2.1. The

architecture is based on XML, XML digital

signatures and encryption, xCBL and Web Services.

Our future research plan is to enhance the

functionality and interoperability features of the

proposed architecture addressing two more

requirements: mobility and privacy. Our interest is

focused on the implementation of the Privacy

requirements as they are specified in the W3C

working draft “Web Service Architecture (WSA)

Requirements” (Austin, 2002) in the current

electronic version of the service and in its future

mobile version.

REFERENCES

Meier., W., 2002. eXist: An Open Source Native XML

Database, In Lecture Notes In Computer Science,

Revised Papers from the NODe 2002 Web and

Database-Related Workshops on Web, Web-Services,

and Database Systems, Springer-Verlag.

Adams, C., Lloyd, S.. 1999. Understanding Public-Key

Infrastructure – Concepts, Standards and Deployment

Considerations, Macmillan Technical Publishing, 1st

Edition.

A. Kaliontzoglou, P. Boutsi, D. Polemi , 2006. “eInvoke:

Secure e-Invoicing based on Web Services”,

Electronic Commerce Research, Kluwer, 2006 (to

appear).

Sklavos et al, 2001. Time stamping in e-commerce, E-

Business E-work EBEW 2001 proceedings, IOS Press.

Austin, D., 2002. Web Services Architecture

Requirements, Internet draft, work in progress.

Microsoft, 2003. eOrder, Business Solutions-Great Plains.

XAdES, 2002. ETSI TS 101 903 V1.1.1 - XML Advanced

Electronic Signatures (XAdES).

Eastlake, D., Reagle, J., 2002. XML Encryption Syntax

and Processing, W3C Recommendation,

www.w3.org/TR/xmlenc-core.

Nadalin, A., 2004. Web Services Security: SOAP Message

Security 1.0 (WS-Security 2004), OASIS Standard,

docs.oasis-open.org/wss/2004/01/oasis-200401-wss-

soap-message-security-1.0.pdf

Hartman, B., 2003. Mastering Web Services Security,

Wiley Publishing.

Message Authentication Codes (MAC), 2002,

Cryptographic Message Syntax (CMS) Algorithms,

IETF RFC 3370.

Secure Sockets Layer (SSL)

http://wp.netscape.com/eng/ssl3/.

xCBL.org, 2003, XML Common Business Library version

4.00 (xCBL v4.00).

www.xcbl.org/xcbl40/xcbl40.html.

European Parliament, 1997. “Privacy Act in the Telecom

Sector, Directive 97/66/EC”

European Parliament, 1995. “Free movement, Directive

95/46/EC”

European Parliament, 1996. “Legal protection of

databases, Directive 96/9/EC”.

Directive 1999/93/EC of the European Parliament on

electronic signatures Official Journal L 013 ,

19/01/2000 p. 0012 – 0020,

http://europa.eu.int/ISPO/ecommerce/legal/digital.htm

European Parliament, 2000. “E-commerce, Directive

2000/31/EC”.

http://europa.eu.int/ISPO/ecommerce/legal

European Parliament, 2002. “Protection of Privacy,

Directive 2002/58/EC”.

http://europa.eu.int/ISPO/ecommerce/legal

WEBIST 2006 - INTERNET TECHNOLOGY
