WEB FEDERATES - TOWARDS A MIDDLEWARE FOR HIGHLY

SCALABLE PEER-TO-PEER SERVICES

Ingo Scholtes and Peter Sturm

University of Trier

Department of Computer Science, Systemsoftware and Distributed Systems, D-54286 Trier, Germany

Keywords:

Web Service, Peer-To-Peer, Web Federate, WSDL, SOAP, Middleware, Message Exchange Patterns, Code

Generation, Request/Response, One-Way, Solicit/Response, Notiﬁcation, Publish/Subscribe, Scalability,

Light-Weight Hosting, Service Oriented Architecture.

Abstract:

Starting from the classical Client/Server paradigm, in the last couple of years Peer-To-Peer approaches have

evolved and proven their power. Currently we see an evolution from the distributed object access paradigm

represented e.g. by middleware architectures like CORBA, DCOM or RMI towards Service Oriented Archi-

tectures (SOA), entailing a retrogression to the Client/Server paradigm. In this paper we want to present how

Peer-To-Peer Applications can to a large extend beneﬁt from intrinsic Web Service properties like loose cou-

pling, declarative interface deﬁnition and interoperability, thus incorporating advantages from SOA and the

Peer-To-Peer approach, opening new ﬁelds of application to both of them. For this purpose, WebFederate, a

prototype middleware based on Microsoft’s .NET Framework has been implemented and will be presented in

this paper.

1 INTRODUCTION

Starting from the classical Client/Server paradigm, in

the last couple of years Peer-To-Peer approaches have

evolved into a serious alternative. Prominent exam-

ples like Skype or notorious ﬁle-sharing applications

but also scientiﬁc prototypes like Freenet (Clarke

et al., 2000) or Oceanstore (Rhea et al., 2003) show

the power of this approach in regard to scalability

and availability. While these accomplishments of the

Peer-To-Peer paradigm are widely accepted, currently

one can see an evolution from classical distributed

object access technologies like CORBA, DCOM and

RMI towards Service Oriented Architectures (SOA),

entailing a retrogression to the Client/Server para-

digm. This retrogression is to a large extend based

on the idea, that Web Services are hosted by heavy-

weight Web or Application servers, which automat-

ically results in an asymmetric relationship between

caller and callee. Apart from that this deployment

model usually implies, that Web Service providers are

passive, reacting only to requests from active service

consumers. These properties are however no intrin-

sic characteristics of the underlying standards. Light-

weightiness and usability in a decentralized distrib-

uted environment are two key design goals which

have been respected in the deﬁnition of the SOAP

standard. Apart from simple Web Service usage sce-

narios adopted today - Web Services being mainly

used as interconnection between back-end servers

and presentation front-end - which primarily use the

Client/Server paradigm, the SOAP standard deﬁnes

the SOAP Intermediary role which is suitable for mul-

tihop scenarios. These are very likely to be applied

when Web Services will need to be deployed in global

scale.

Furthermore, the WSDL standard, in addition to

the commonly used One-Way and Request/Response

message exchange patterns, also deﬁnes two others:

Solicit/Response and Notiﬁcation. In most Web Ser-

vice implementations however, these additional mes-

sage exchange patterns remain unused for reasons

which will be discussed in a separate section.

Regarding declarative service description, loose

coupling, late binding and interoperability, Peer-To-

Peer applications can to a large extend beneﬁt from

these intrinsic Web Service qualities, henceforth in-

corporating advantages from Service Oriented Archi-

tectures and the Peer-To-Peer approach and opening

new ﬁelds of application to both of them. One funda-

mental step towards this goal is a light-weight way to

create, deploy and host Web Services.

The remainder of this paper is organised in the fol-

lowing way: Section 2 discusses the Solicit/Response

Scholtes I. and Sturm P. (2006).

WEB FEDERATES - TOWARDS A MIDDLEWARE FOR HIGHLY SCALABLE PEER-TO-PEER SERVICES.

In Proceedings of WEBIST 2006 - Second International Conference on Web Information Systems and Technologies - Internet Technology / Web

Interface and Applications, pages 13-20

DOI: 10.5220/0001253800130020

 SciTePress

and Notiﬁcation message exchange patterns, reasons

why these are commonly unused, some code gen-

eration technique and related multicast considera-

tions. Having examined scalability issues of the gen-

eral Web Service technology in section 3, section 4

presents work in progress on a prototype middleware,

which remedies Web Services from the aforemen-

tioned deﬁciency of asymmetric role association. Fi-

nally, after having done a presentation of related work

in section 5, a conclusion will be drawn along with an

outlook to future work. For the course of this paper

we introduce the term ”Web Federate”, which hence-

forth denotes a computing node running applications

based on this middleware, since these nodes may act

in the roles of service provider and consumer simul-

taneously and swarms of them may federate in order

to host superordinate services collaboratively.

2 SOLICIT/RESPONSE AND

NOTIFICATION MESSAGE

EXCHANGE PATTERNS

There are several reasons why most Web Service im-

plementations do not use the Solicit/Response and

Notiﬁcation message exchange patterns:

• The WSDL-To-Code mapping is more complicated

than for the Request/Response or One-Way pat-

terns

• They require service providers to become active,

a behavior not foreseen in most container deploy-

ment models

• They require some kind of Publish/Subscribe

model

• They do not scale in the number of subscribers due

to the lack of multicast communication schemes

available on the public Internet

• They exhibit concurrency difﬁculties at the service

consumer side

• The most widely used HTTP protocol binding does

not make use of Solicit/Response and Notiﬁcation

• Requirement R2303 of WS-I Basic Proﬁle 1.0 and

1.1 precludes their usage

One reason why these additional message exchange

patterns are currently not supported by the WS-I

Basic Proﬁle, is that one can describe them also at

the consumer’s side in terms of Request/Response

or One-Way. Although a Notiﬁcation operation

certainly can be seen as a reverse One-Way operation

and a Solicit/Response operation is nothing more than

a Request/Response from the callee’s point of view,

it does however make sense to use them. In Peer-To-

Peer application scenarios we are addressing, a peer

may not know what kinds of notiﬁcations are avail-

able and what it is interested in beforehand. It does

however know which notiﬁcations it can provide. So

it seems natural to describe such a service at the side

of the notiﬁcation provider in terms of a Notiﬁcation

rather than describing it at the service consumer’s

side in terms of a One-Way pattern. A similar argu-

ment is true for Solicit/Response operations. At the

time when a peer needs a service there may e.g. be no

appropriate peer providing such a service in terms of

Request/Response. The peer searching for a service

however does know what he desires thus he can

ask for it explicitly by exposing a Solicit/Response

operation, so accessory peers which are able to satisfy

this desire will learn about it. Admittedly the term

”service provider” may be misleading in this case, as

in the case of a Solicit/Response operation, the actual

service (in the sense of an attendance) is done by the

service consumer. So in many cases the usage of a

Solicit/Response service may require some form of

altruism on the consumer side in order to use it.

2.1 Code Generation Techniques

As mentioned before, the mapping from WSDL doc-

ument to proxy and stub code is more complicated

for the Solicit/Response and Notiﬁcation message ex-

change patterns than for Request/Response or One-

Way which can be mapped to (possibly void) methods

in a very natural and straight-forward way. Regarding

a WSDL document mixing Request/Response, Noti-

ﬁcation and Solicit/Response message exchange pat-

terns the primary reason for this additional complex-

ity is the fact, that the clear division in proxy and stub

code gets lost. At the service provider side, instead

of having a stub class with abstract methods to be im-

plemented by the application programmer, due to So-

licit/Response and Notiﬁcation schemes stub classes

may now contain additional method implementations

that need to be callable by the user. This naturally

precludes the container deployment model from be-

ing used. Regarding proxy classes at the service con-

sumer side, the deprivation of this division is even

more painful, as these become abstract too.

Traditional code generation techniques can however

be applied, if middleware tools are allowed to gen-

erate several classes for a single service. Instead of

the straight-forward approach described above, tools

might also generate:

WEBIST 2006 - INTERNET TECHNOLOGY

• a traditional proxy class for Notiﬁcation and So-

licit/Response operations at the service provider

side

• a traditional stub class for Request/Response and

One-Way operations at the service provider side

• a traditional stub class for Notiﬁcation and So-

licit/Response operations at the service consumer

side

• a traditional proxy class for Request/Response and

One-Way operations at the service consumer side

An example for a Web Service framework which

makes use of this code generation technique is LEIF

a C++ framework for service-oriented applications

which supports all message exchange patterns

deﬁned in WSDL, including Solicit/Response and

Notiﬁcation.

Apart from generating proxy and stub code from

WSDL documents, state-of-the art middleware also

allows automatic generation of WSDL documents

from service implementations. In case of the Re-

quest/Response and the One-Way message exchange

pattern application programmers commonly sim-

ply provide a service implementation inheriting a

service’s base class, tagging methods they want to

expose as service operations (e.g. the WebMethod

attribute in the .NET context) - the Middleware

can then generate the WSDL document along with

the code, which actually receives SOAP envelopes,

unmarshals the arguments and invokes the methods

provided by the application programmer.

Using the Solicit/Response and Notiﬁcation patterns,

the situation is again more complicated as it requires

application programmers to provide an abstract class

with some abstract methods. Code generation tools

would now need to create a class which inherits the

user’s abstract class and provides implementations

for all abstract methods. In these implementations,

marshalling of arguments and the actual sending to

the subscribers needs to be done. As the subscribers

list has to be known in order to actually send notiﬁca-

tions and soliciting requests, there need to be means

of making this list available to the middleware.

Comparing the aforementioned abstract service

class from which middleware shall generate a

WSDL document and the stub code that would have

been generated from the same WSDL document,

abstract qualiﬁers are transposed. Actually this

transposition becomes evident, if one looks at an

abstract qualiﬁer as a ”request for implemen-

tation” for this method. Starting with a WSDL

description, in the case when a stub class has been

generated from the WSDL document, the middleware

requests the application programmer to provide

service operation implementations it can not provide

http://www.roguewave.com/products/leif/

itself. In the latter case, starting with the implemen-

tation, a WSDL document being generated from it,

the application programmer requests the middleware

to provide marshalling operations he does not want

to provide himself.

2.2 Achieving Multicast

Communication

As the public Internet lacks true multicast communi-

cation schemes, the sending of Notiﬁcation and So-

licit/Response messages to a large number of sub-

scribers does not scale. One possible solution to over-

come this problem in case of the Notiﬁcation message

exchange pattern is the usage of distribution trees,

playing on the federate role of the subscribers. Instead

of shipping a Notiﬁcation message to all subscribers,

the service provider sends it to a constant number of

federates, these redistributing messages in an overlay

distribution tree. This allows the shipping of notiﬁca-

tions to all subscribers with only a constant number

of subscriptions per federate although it induces addi-

tional latency depending on the position of a federate

in the tree. A similar scheme has been implemented in

the ATLAS Event Monitoring System, which will be

used in order to distribute collision event data among

physicists’ monitoring processes in a scalable manner

at CERN’s forthcoming LHC particle accelerator ex-

periment. A more detailed discussion and evaluation

of this content distribution scheme can be found in

(Scholtes, 2005) and (Kolos and Scholtes, 2005).

In case of Solicit/Response message exchange pat-

terns the solution is however not that simple, as re-

sponse messages have to be routed back to the service

provider, thus leading to an implosion problem. Data

aggregation techniques may ﬁnd application along the

path in order to solve this problem, presumably re-

quiring domain-speciﬁc knowledge.

3 WEB SERVICE SCALABILITY

Today mostly major companies like Amazon, Google

or eBay are involved in large-scale deployment of

Web Services and a lot of time and effort is being

put into making them scale. Although vulnerability

for attacks and sabotage as well as laborious scalabil-

ity and fault tolerance are intrinsic properties of cen-

tralised Client/Server architectures, for the reasons set

forth in section 1 it is the one which is most widely

spread in the context of Web Services. In his recent

article (Birman, 2005) Ken Birman argues, that in the

future all sorts of companies and organisations will be

interested in deploying Web Services at a large scale.

Many of those will not have the means Amazon, eBay

WEB FEDERATES - TOWARDS A MIDDLEWARE FOR HIGHLY SCALABLE PEER-TO-PEER SERVICES

or Google have.

While also big players might beneﬁt from Peer-To-

Peer approaches, relieving them from cost-intensive

scalability and fault tolerance efforts, Peer-To-Peer

technology is likely to become inevitable for smaller

institutions willing to deploy Web Services at large

scale. The success of a small start-up company like

Skype

could hardly have ever been imagined if rather

than relying on Peer-To-Peer technology they had had

to set up cost-intensive network infrastructure in the

ﬁrst instance. Similar scenarios are also imaginable

for Web Service technologies. Furthermore, regard-

ing a scenario of Web Services becoming the primary

communication architecture across the Internet, even

individuals might want to offer scalable Web Ser-

vices. Today, Weblogs are one example of Web Ser-

vice technology that is already used by a still-growing

number of millions of individuals. While currently

for example RSS feeds are implemented using pull

model technology simulating a push model behavior,

technologies like Trackback also today make use of a

push model similar to WSDL’s Notiﬁcation commu-

nication scheme, requiring Weblogs of individuals to

offer and consume Web Service in a federate manner.

Taking into account the tremendous increase in band-

width, computing power and storage capacity observ-

able in home computing devices over the past cou-

ple of years, today the application of Peer-To-Peer

technology appears more promising than ever. Future

technologies like network ﬁlesystems similar to pro-

totypes like Oceanstore (Rhea et al., 2003) but also

mobile devices with limited storage and computing

power are therefore very likely to rely on Peer-To-

Peer technology and the means provided by Web Ser-

vices.

Apart from mere scalability, in the future Web Ser-

vices might ﬁnd application in critical domains which

require a high level of immunity against failures and

deliberate breakdowns. Regarding scalability and de-

centralism being intrinsic properties of Peer-To-Peer

approaches and interoperability being a key charac-

teristic of Web Services, it seems to be evident that

a marriage between these techniques is about to hap-

pen. Power-law obeying overlay networks similar to

those used in today’s Peer-To-Peer applications might

be utilised in the future to create swarms of Web

Federates providing superordinate services in a fault-

tolerant, self-organising and scalable way. For this

purpose means like those introduced in (Devlin et al.,

1999) seem to be appropriate.

http://www.skype.com

4 WEBFEDERATE

MIDDLEWARE

In order to empower developers to achieve the

goals presented above, a prototype middleware

based on Microsoft’s .NET Framework and Mi-

crosoft’s Web Services Enhancement Toolkit has

been implemented, which provides the following key

functionality:

• Lightweight and stateful in-process hosting of Web

Services

• Lightweight and stateless container model hosting

of Web Services

• Dynamic Web Service discovery, proxy-generation

and invocation at run-time

• Dynamic Composition of Web Services at run-time

• Automatic exposition of a simple discovery service

on start-up

• Automatic service discovery of Web Federates ac-

cessing a service

4.1 Overall Architecture

The middleware prototype consists of three li-

braries: WebFederate, WebFederate.Visualization

and Cassini. The purpose of these libraries will be

described in the following paragraphs.

WebFederate Visualization Library This library

may be used in order to visualise Web Federates along

with the services they expose in a graphical manner.

It is used by the example application presented in 4.2

in order to illustrate the middleware’s dynamics and

allow GUI driven interaction with Web Services and

Web Federates.

WebFederate The public application pro-

grammer’s interface of the library’s main class

WebFederate is shown in ﬁgure 1. Lightweight

Web Service hosting is achieved by using a library

which has been implemented on top of Microsoft’s

shared-source Cassini project, Web Service hosting

capabilities offered by ASP.NET and the in-process

Web Service hosting provided by Microsoft’s Web

Service Enhancements (WSE3). Web Services are

published using SOAP’s TCP and/or HTTP binding

according to the application programmer’s settings.

The Cassini project is an easy-to-use Web Server

library with a small memory footprint published as

a shared-source project by Microsoft

. Along with

ASP.NET it is used for lightweight and stateless

http://www.asp.net/Projects/Cassini/Download/Default.aspx

WEBIST 2006 - INTERNET TECHNOLOGY

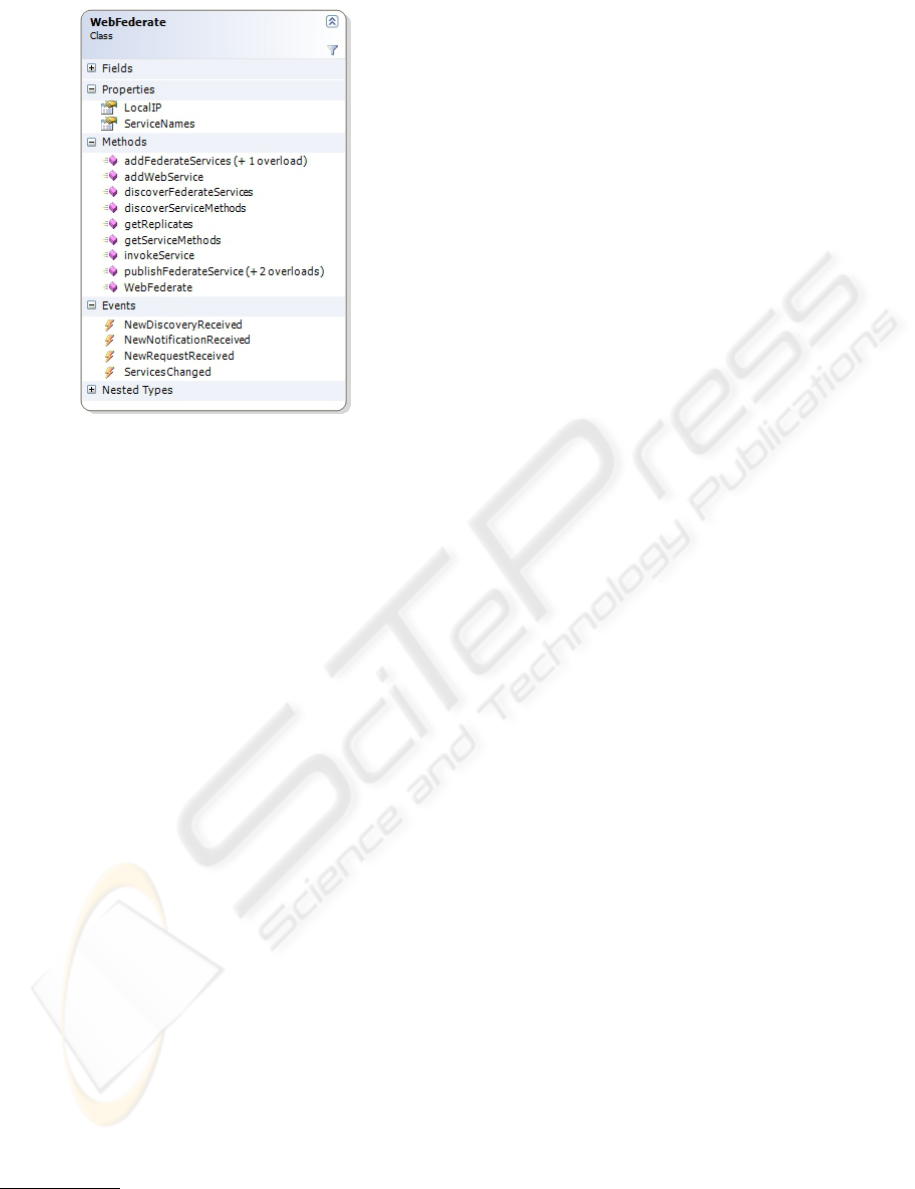

Figure 1: The WebFederate API.

Web Service hosting following the container model

and using HTTP as transport. Similar lightweight

hosting approaches can be found in the UNIX world

e.g. using combinations of lightweight Web Server

implementation like abyss

or NanoHTTP

and the

eSOAP

toolkit. As ASP.NET Web Service hosting

follows the container model using a per-request

instance creation, it is per-default stateless leaving

state management to the application programmer.

Stateful Web Service hosting is provided by using

Microsoft’s Web Service Enhancements (WSE),

which in this regard pretty much allows a glance at

Microsoft’s upcoming service-oriented Communi-

cation Foundation (codename Indigo). Rather than

creating object instances on a per-request basis as

done by ASP.NET, instantiation is done on applica-

tion start-up, the lifetime of object instances being

managed by the WebFederate middleware. Federate

Services using this hosting facility are therefore

inherently stateful. Apart from TCP and HTTP which

can be used as transport mechanisms according to the

application programmer’s preference, the usage of a

UDP transport for true asynchronous communication

schemes is at the planning stage.

The development procedure commonly used for

Web Service implementations and Web Service

consuming applications is, even though WSDL offers

declarative service descriptions, to a large extend still

inﬂuenced by distributed object access middleware

like CORBA or DCOM. Stub and skeleton classes

http://www.aprelium.com

http://www.cwc.oulu.ﬁ/nanoip/

http://esoap.ultimodule.com

are generated from a WSDL service description by

WSDL parsers (like the wsdl tool in Visual Studio,

WSDL2Java tool in AXIS or the leifgen tool in

LEIF) at - or actually even before - compile-time,

functionality then being added to these generated

stubs and skeletons by the application programmer,

just like it used to be done with traditional IDL

compilers in the distributed object access middleware

approaches mentioned above. In order to allow

dynamic invocation, creation of and binding to Web

Services at run-time, the WebFederate middleware

presented in this paper makes use of the declarative

service description and .NET’s reﬂection and run-

time compile facilities. At run-time proxy code will

be generated from the WSDL description of a Web

Service, the resulting proxy code will be dynamically

compiled and invoked in the background. A wrapper

class offers dynamic access to the Web Service meth-

ods, which are queried from the generated proxy via

the reﬂection mechanism. All of the above steps are

done transparently for the application programmer,

so all he has to specify is the WSDL document’s URI

or the IP address of the Web Federate machine along

with the name of the service, enabling him to obtain

an object instance at run-time which he may utilise in

order to use a service.

In order to discover Web Services running at a Web

Federate computing node, on installation-time a

straightforward discovery Web Service is automati-

cally created, which in the prototype simply returns

a list of all services hosted by a Web Federate. This

list can then be used by the requesting Web Federate

application in order to dynamically create a speciﬁc

Web Service proxy as described above. As this

discovery service is exposed using a preassigned

service name, it can easily be accessed by other

Web Federate applications. In emphasis of the

symmetric role of Web Federates, hooks have been

embedded into the discovery service which will

trigger an event whenever a Web Federate performs

a discovery request, so the users of the middleware

can immediately discover and make use of services

provided by the calling federate.

The prototype middleware offers a dynamic deploy-

ment mechanism of Web Services. C# Code can

be submitted to the middleware, which will try to

compile, instantiate and publish the service imme-

diately at run-time. For this purpose a class library

along with an asmx ﬁle is produced, providing the

WSDL description of the new Web Service. The

service itself is then published by instantiating the

service class and registering it with Microsoft’s WSE

runtime. In order to simplify service development, an

abstract class FederateService may be used as

base class for custom services, it’s public interface

being shown in ﬁgure 2. The high-level architecture

of the middleware can be seen in ﬁgure 3. Apart

WEB FEDERATES - TOWARDS A MIDDLEWARE FOR HIGHLY SCALABLE PEER-TO-PEER SERVICES

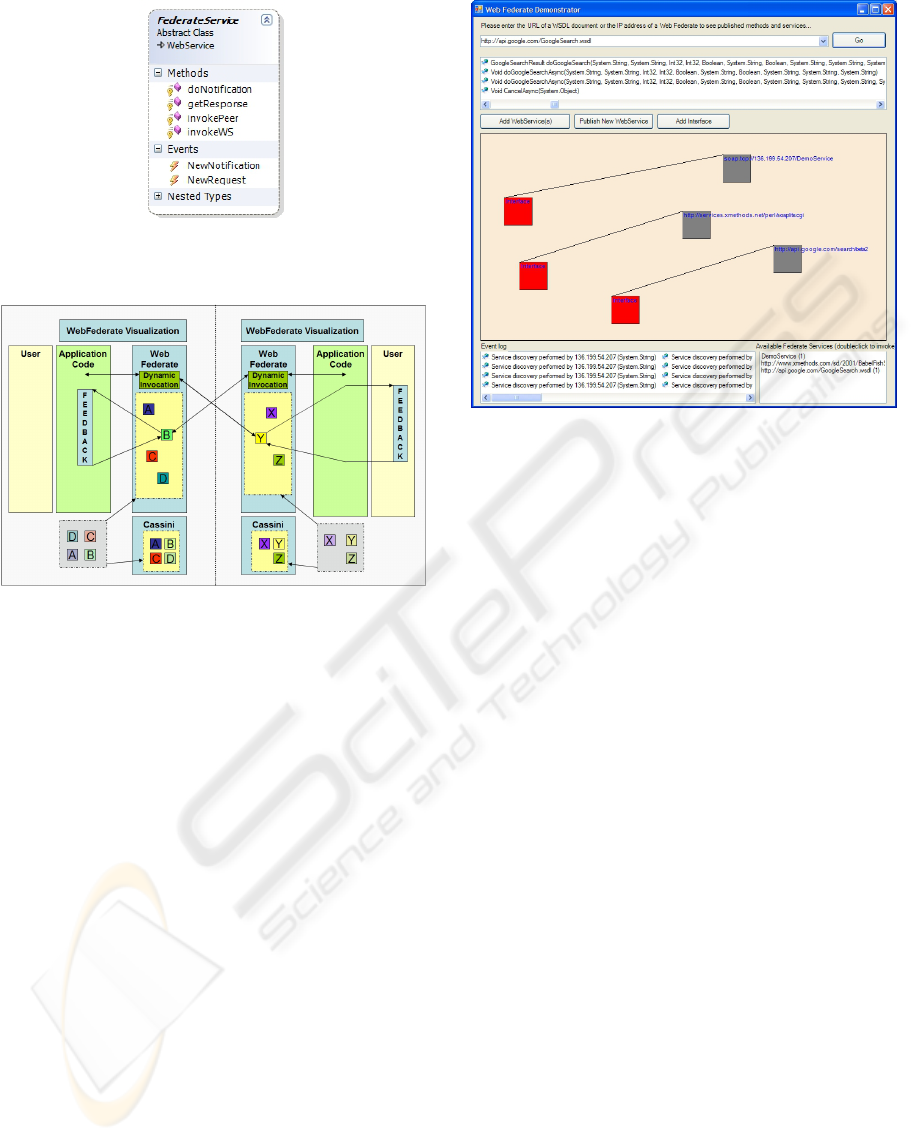

Figure 2: The FederateService interface.

Figure 3: Middleware Architecture.

from traditional service implementations, application

programmer’s may use the abstract service base class

FederateService for dynamic Web Service

implementations which call back application code

on request. The connection between Web Service

implementation and application code is achieved

making use of .NET’s delegate/event mechanism.

The implementer of applications based on the mid-

dleware may register event handlers dynamically

which will be called on reception of requests. The

application code handler can then satisfy the request

itself or even pass it on to the user.

4.2 Example Application

On top of the middleware presented in chapter 4 a

simple graphical test application, the ”Web Federate

Demonstrator” has been implemented. While this ap-

plication does not serve a special purpose justiﬁed

by practical needs, it has mainly been implemented

in order to test the middleware and demonstrate how

dynamic Web Services can be implemented and de-

ployed using it. A screen shot of this application can

be seen in ﬁgure 4.

In the address box, a user of this application

may enter the URI of a Web Federate or a con-

Figure 4: Screen shot of the Web Federate Demonstrator

Application.

ventional Web Service’s WSDL document. If a

WSDL document’s address has been entered, a graph-

ical symbol for this Web Service will appear in a

panel, if a Web Federate’s IP address has been en-

tered a service discovery will be performed, show-

ing all available services on the selected Feder-

ate. The user may then select services and add

graphical symbols for them to the panel. In or-

der to interact with Web Services added earlier,

users may add so-called interface nodes to the panel,

connecting them to Web Services dynamically and

graphically for invocation using the above-mentioned

WebFederate.Visualization library. Web

Services can simply be published by pushing a sin-

gle button and completing a service skeleton based on

the FederateService class. When an interactive

Web Service has been published by the Web Federate

node and a request to this service has been performed

which requires a user’s feedback, a window pops up,

asking for the user’s response and delivering this re-

sponse to the caller. Using the Web Federate Demon-

strator application, it is a question of only a minute to

implement e.g. a simple chat application at run-time

in a graphical manner.

4.3 Usage Scenarios

In this section some example usage scenarios for mid-

dleware approaches like WebFederate will be pre-

sented.

E-Learning Although not being the original inten-

tion, the ”Web Federate Demonstrator” application

WEBIST 2006 - INTERNET TECHNOLOGY

presented in section 4.2 can be used right-away as an

E-Learning application for introductory programming

courses. One might think of a scenario where the lec-

turer assigns a task to his students, every student using

a computer running the ”Web Federate Demonstra-

tor” application. In order to solve the task a Web Ser-

vice has to be implemented at a speciﬁc Web Feder-

ate which provides a certain given functionality. It is

the student’s job to collaboratively compose this ser-

vice possibly combining publicly available Web Ser-

vices and services they need to implement themselves

just as described in the above paragraph. Taking into

account the wide variety of Web Services which are

publicly available at no charge e.g. listed by (Fan

and Kambhampati, 2005), comprehensive and expe-

dient yet feasible tasks can be easily deﬁned. This

scenario boosts the student’s domain decomposition,

teamwork and programming skills and it early in-

troduces collaborative thinking, distributed program-

ming and the RPC paradigm without needing knowl-

edge about the technical details this usually requires.

The early introduction of Web Service programming

in CS1/CS2 classes has been earlier proposed by (Lim

et al., 2005).

Scalable Web Services As pictured in section 3, in

the future Peer-To-Peer approaches will become more

important in the context of Web Services. This re-

quires special middleware architectures which are ca-

pable of providing a self-organisational and scalable

infrastructure. The WebFederate middleware repre-

sents one step towards this goal as it provides basic

techniques for light-weight Web Service hosting and

dynamic invocation.

Ubiquitous Computing Light-weight Web Service

hosting techniques are crucial for ubiquitous comput-

ing scenarios, regarding small devices with their very

limited processing power and memory layout. Al-

though the WebFederate middleware is based on Mi-

crosoft .NET and provides Web Service hosting with

a very small memory footprint, it can not be used for

.NET enabled mobile devices right-away as it relies

on the hosting capabilities of the ASP.NET frame-

work, which are not included in the .NET Compact

framework available for these appliances. In the fu-

ture, investigation shall be done how to overcome this

deﬁciency as the availability of such a middleware for

mobile devices might enforce the emergence of ubiq-

uitous computing applications.

5 RELATED WORK

(Harrison and Taylor, 2005a) and (Harrison and Tay-

lor, 2005b) introduce WSPeer, a JAVA-based Web

Service middleware for Peer-To-Peer applications.

Just like the middleware presented in this paper, in

WSPeer deployment of Web Services does not fol-

low the container model or require a Web Server. As

it relies on the classic RPC paradigm, it does how-

ever not support advanced message exchange pat-

terns like Solicit/Response or Notiﬁcation. Regarding

ubiquitous computing application scenarios, some re-

search on light-weight means of Web Service hosting

for embedded devices has been made by (Pratistha

et al., 2003), proposing the Micro-Services frame-

work. EIRI, a JAVA based approach for a lightweight

Web Service deployment framework from the year

2002 as presented by (Gergic et al., 2002), does not

make use of standards like SOAP or WSDL and there-

fore lacks interoperability. Today however the term

Web Service is commonly associated with these stan-

dards. Besides that, asymmetry is an intrinsic fea-

ture of the framework, as it has been designed in or-

der to support information retrieval of light-weight

devices like PDAs, telephones or information termi-

nals from heavy-weight back end database systems.

Apache’s Web Service Invocation Framework (WSIF)

and the AXIS toolkit from the Java world allow dy-

namic proxy generation and invocation of Web Ser-

vices. Furthermore WSIF supports Solicit/Response

and Notiﬁcation message exchange patterns at the ser-

vice consumer side.

6 CONCLUSION AND FUTURE

WORK

In this paper we argue that Peer-To-Peer scenarios

can be of great use for Web Services. In order to

investigate means for light-weight Web Service host-

ing based on currently available techniques, a simple

and generic Peer-To-Peer middleware has been imple-

mented and - along with some use cases - presented.

In a future version of this middleware the usage of

SOAP intermediaries for the creation of highly scal-

able and self-organising Web Service Federate net-

works which act like a single superordinate service

provider will be investigated. It seems to be evident,

that forthcoming technologies like Microsoft’s Win-

dows Communication Foundation middleware (code-

name Indigo) will boost the emergence of Web Fed-

erates, as they will propagate simple-to-use and light-

weight techniques for in-process Web Service host-

ing. While it is common to look at Web Services as

the next generation distributed object access, SOAP

being a new declarative RPC protocol, we think that

this reduction to the RPC paradigm is a fatal under-

estimation of the standard’s potential. RPC-like com-

munication schemes provide only a small portion of

the Web Service standards’ capabilities and - as they

often make assumptions about the underlying imple-

mentation - even are counterproductive regarding the

WEB FEDERATES - TOWARDS A MIDDLEWARE FOR HIGHLY SCALABLE PEER-TO-PEER SERVICES

original intention of Service Oriented Architectures.

An important fact presented in this paper is, that

Web Services are not inherently associated with the

Client/Server paradigm, just because they are com-

monly hosted by Web or Application servers in a

traditional 3-tier architecture that separates program

logic, data and presentation. In order to build highly

scalable systems, Peer-To-Peer approaches to Web

Services are required and can actually be imple-

mented using state-of-the-art techniques as proven by

the WebFederate middleware prototype.

REFERENCES

Birman, K. P. (2005). Can Web Services Scale Up? IEEE

Computer, 38(10):107–110.

Clarke, I., Sandberg, O., Wiley, B., and Hong, T. W. (2000).

Freenet: A distributed anonymous information stor-

age and retrieval system. In Workshop on Design Is-

sues in Anonymity and Unobservability, pages 46–66.

Devlin, B., Gray, J., Laing, B., and Spix, G. (1999). Scal-

ability terminology: Farms, Clones, Partitions, Packs,

Racs and Raps. CoRR, cs.AR/9912010.

Fan, J. and Kambhampati, S. (2005). A snapshot of public

Web Services. SIGMOD Record, 34(1):24–32.

Gergic, J., Kleindienst, J., Despotopoulos, Y., Soldatos,

J., Patikis, G., Anagnostou, A., and Polymenakos, L.

(2002). An approach to lightweight deployment of

Web Services. In SEKE, pages 635–640.

Harrison, A. and Taylor, I. (2005a). Dynamic Web Ser-

vice Deployment Using WSPeer. In Proceedings of

13th Annual Mardi Gras Conference - Frontiers of

Grid Applications and Technologies, pages 11–16.

Louisiana State University.

Harrison, A. and Taylor, I. (2005b). WSPeer - an interface

to Web Service hosting and invocation. In HIPS Joint

Workshop on High-Performance Grid Computing and

High-Level Parallel Programming Models. To be pub-

lished.

Kolos, S. and Scholtes, I. (2005). Event Monitoring Design.

Technical report, CERN.

Lim, B. B. L., Jong, C., and Mahatanankoon, P. (2005).

On integrating web services from the ground up into

CS1/CS2. In SIGCSE, pages 241–245.

Pratistha, I. M. D. P., Nicoloudis, N., and Cuce, S. (2003).

A micro-services framework on mobile devices. In

ICWS, pages 320–325.

Rhea, S. C., Eaton, P. R., Geels, D., Weatherspoon, H.,

Zhao, B. Y., and Kubiatowicz, J. (2003). Pond: The

OceanStore prototype. In FAST.

Scholtes, I. (2005). A reimplementation of the CORBA-

based Event Monitoring System for the ATLAS LHC

Experiment at CERN. Diploma thesis, University of

Trier.

WEBIST 2006 - INTERNET TECHNOLOGY
