WEB SERVICES FOR THE MANAGEMENT OF PERSISTENT

ONLINE GAME FACTIONS

Franc¸ois Deli

ege

Aalborg University

Fredrik Bajers Vej 5, 9100 Aalborg, Denmark

Esteban Zim

anyi

Universit

e Libre de Bruxelles

avenue F.D. Roosevelt 50, 1050 Brussels, Belgium

Keywords:

On-line role playing, multi-player game, web services, communication models, community acceptance.

Abstract:

Star Wars Combine is a game involving thousands of players in a virtual world. Each player impersonates a

character that continues evolving even when the player is not connected. Players have formed groups, called

factions, that are self-organized. The more members a faction has, the more complicated to manage it becomes.

The goal of this work is to create an infrastructure to allow faction management tools to automatically update

their data with the information maintained on the game server. The web services technology is chosen for the

various advantages it offers. While this technology is already widely accepted in the business world, its use

in a game context is totally new. It seems that web services have gained their place in the game world and

will continue to be developed. Hopefully, this experiment will convince other game designers to adapt their

platforms in a similar manner.

1 INTRODUCTION

Web services are widely used by several companies to

maximize their e-commerce products. In view of all

the advantages that such services offer, we wondered

whether they could also be usefully integrated into

Massively Multi-Player On-line Role-Playing Games,

brieﬂy MMORPGs. We tried to apply them to a well-

known MMORPG called Star Wars Combine

, brieﬂy

SWC. The experience revealed soon to be fully suc-

cessful, as we will explain in this paper.

SWC is deﬁned by its main developers as follows :

“The Star Wars Combine is a free mas-

sively multi-player on-line role-playing simula-

tion game, based on the Star Wars universe, de-

veloped by amateurs during their spare time.”

Through its simulation aspects, SWC introduces

and develops the concept of factions. Factions are

groups of players who are given in-game tools to or-

ganize and manage themselves. The faction leaders

have access to various data concerning their factions:

membership statistics, reports, inventory status, maps,

http://www.swcombine.com/

etc. With time, a growing need emerged for the fac-

tions to be able to retrieve information in a usable for-

mat and to import it in their own application.

The project consisted in trying to develop a client-

server architecture using web services technology. By

invoking remote methods, factions would be able to

perform various actions without using the game inter-

face anymore, but by using their own application in-

stead. Among the system speciﬁcations, the commu-

nication system to be created would have to be easy

for both server and client programmers to implement,

while offering security features to allow users to au-

thenticate themselves and retrieve the data in relation

to their characters’ access levels.

This paper is organized as follows. Section 2

brieﬂy presents the SWC game concepts and its cur-

rent architecture. Section 3 deﬁnes our objectives and

explains why the web services technology was chosen

to set up a new communication infrastructure. Sec-

tion 4 presents the implementation design. Section 5

discusses security mechanisms such as the authentica-

tion and the authorization processes. Section 6 shows

how the web services were perceived by the commu-

nity, as illustrated by some usage statistics. Section

7 concludes with an evaluation of the work and per-

spectives for future developments.

441

Deliège F. and Zimányi E. (2006).

WEB SERVICES FOR THE MANAGEMENT OF PERSISTENT ONLINE GAME FACTIONS.

In Proceedings of WEBIST 2006 - Second International Conference on Web Information Systems and Technologies - Internet Technology / Web

Interface and Applications, pages 441-446

DOI: 10.5220/0001254204410446

 SciTePress

2 SWC OVERVIEW

As already mentioned in the introduction, SWC is a

MMORPG based on the Star Wars universe, devel-

oped by amateurs during their spare time. It offers

one of the best Star Wars universe simulation with its

own various game mechanisms related to the physics,

economics, politics or engineering in the universe.

As in any role-playing game, the character is one

of the most important game concepts. Any player

joining the game is invited to create his own charac-

ter with various speciﬁc skills that he will be able to

enhance throughout the game. In most MMORPGs

when a player disconnects, his character is saved in

the game database and his avatar disappears from the

game. When the player returns, his character reap-

pears somewhere in the game universe. SWC has

adopted a different approach: once a player has cre-

ated a character, his character remains in the game

universe until it gets killed. This is referred as char-

acters persistence.

Factions are another main concept of SWC, as

shown in Figure 1. Factions are groups of players

who are organizing and managing themselves. SWC

proposes a complete system allowing any player to

create his own faction whenever he wishes. He will,

however, have to fulﬁll a few in-game conditions such

as a determined capital, in-game cash, or in-game as-

sets as well as out-of-game conditions such as the cre-

ation of a web site. Upon foundation of a new faction,

the player may again decide in which area his faction

will work and develop, e.g., a faction may specialize

in bounty hunting, mining, trading, or any other ac-

tivities. In order to manage themselves, factions can

use tools made available to them through the game

interface. Those tools are very useful and offer vari-

ous ways to manage the faction, but the possibilities

to export the data remain limited. While exporting

data does not seem very useful for small factions, it

is a very attractive feature for most of the medium to

large scale factions, that have most of the time devel-

oped a dynamic web site as well their own application

and tools.

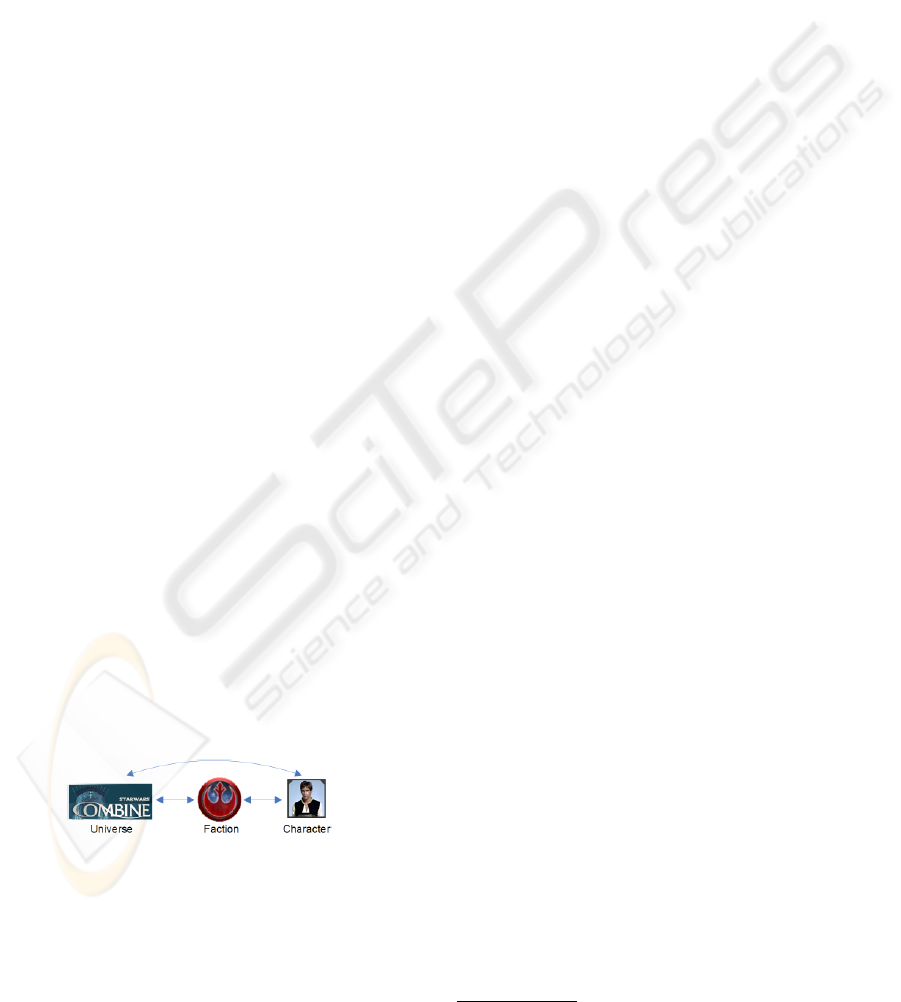

Figure 1: SWC main concepts.

Today, SWC counts more than 2000 active players,

all interacting with the game engine through a web-

based game interface. This Graphical User Interface,

brieﬂy GUI, is the only existing way to interact with

the game engine.

3 OBJECTIVES AND

MOTIVATION

The purpose of creating a web services infrastruc-

ture is to allow communications between heteroge-

neous machines and the game engine. In large fac-

tions, groups of players tend to develop their own

tools to improve their management capacities and en-

large their game experience. Web services would al-

low those tools to be automatically updated with fresh

data. The three speciﬁc objectives of this work are

therefore the following:

1. To develop a web services architecture for the game

server already in place. By invoking remote meth-

ods, factions will be able to perform various actions

without using the game interface anymore, but by

using their own application instead. Among the

system speciﬁcations, the communication system

to be created will have to be easy for both server

and client programmers to implement, while offer-

ing security features to allow users to authenticate

themselves and retrieve the data in relation to their

character access levels.

2. To integrate the web service infrastructure into the

already deployed game server with respect of both

server security and game rules.

3. To demonstrate the technology usability and mea-

sure its acceptance among the whole community.

The decision of using web services technologies to

enable remote faction management was made for the

following reasons:

• Faction communication has clearly a distributed

computing nature: parts of the solution exist in

multiple network endpoints.

• The solution has to be built and run by various orga-

nizations involving different administration teams.

• The data need to be available to more than just the

core application that generates and maintains them.

• Most of the transactions should become automated

and therefore extensive use of machine-to-machine

communication is preferable.

• The solution needs to be ﬂexible to respond to the

various changes that future developments could re-

quire from any partner.

While web services have been adopted by major

companies such as Google or Amazon, it does not

seem that any game has already truly made the step

of widely using them. Most existing games using

web services as part of their core features are very

basic ones such as Tic-Tac-Toe games. Other games

are using web services: for example, YaYa LLC

has

http://www.yaya.com/

WEBIST 2006 - WEB INTERFACES AND APPLICATIONS

442

developed a platform using web services capabilities

that allow software designers to create games captur-

ing data on a player’s preferences, e.g., for car mod-

els. This information is then delivered to a Customer

Relationship Management system, e.g., the car man-

ufacturer.

4 DESIGN CHOICES

The SWC technology is an on-line browser-based

game model. The server runs the simulation logic

and generates web pages to interface with the players.

The whole game is therefore centralized in one loca-

tion and no information is transmitted to third parties’

web sites. The primary purpose of the SWC web ser-

vices is to enable client interaction with the simula-

tion server. Two models of communication exist.

(a) Direct trust

(b) Indirect trust

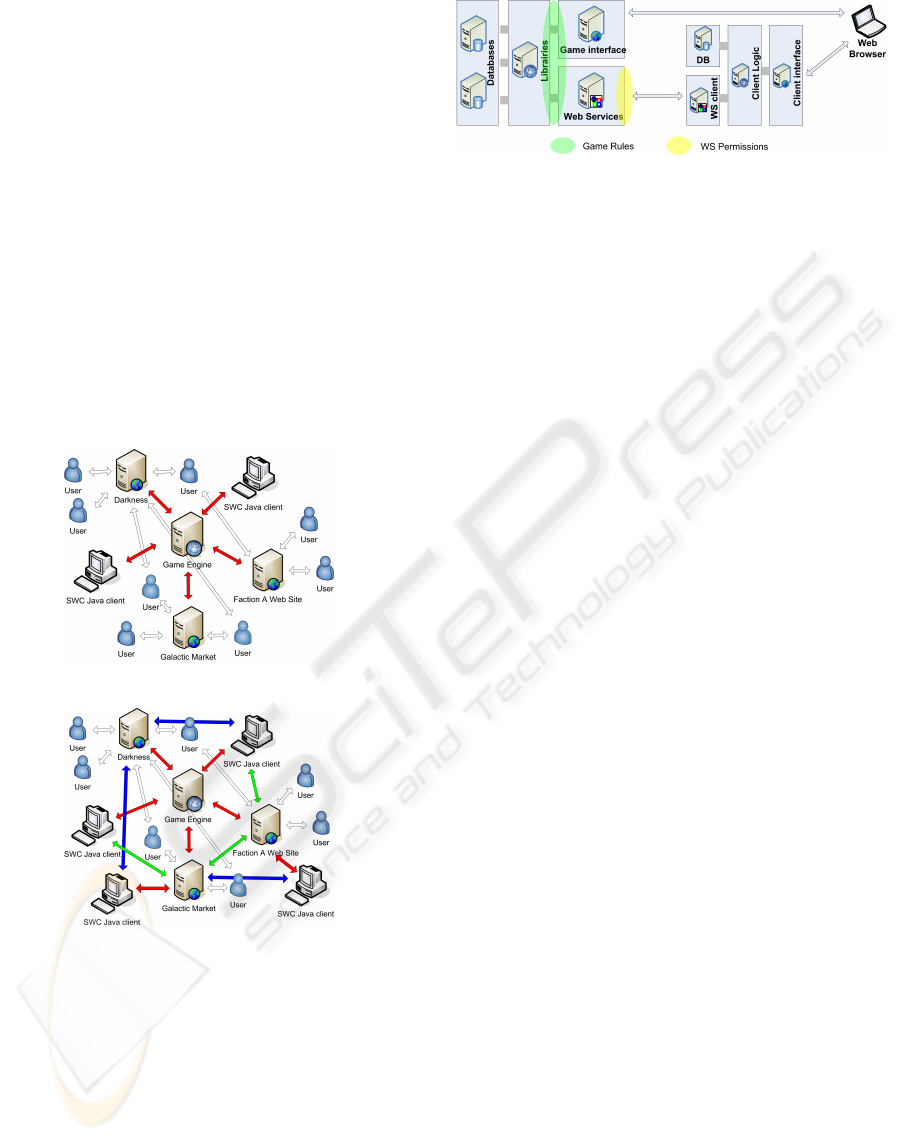

Figure 2: Trust models.

The direct trust relationship model, Figure 2(a) en-

ables third parties’ applications to directly connect

to the central application and perform actions or up-

dates. The GUI becomes one of the many applications

that connect to the server and permits user interaction.

In the indirect trust relationship model, Figure 2(b),

third parties’ clients are enable to interact with each

other directly and to develop their own client server

architecture that allows client applications to directly

interact with the game server.

Figure 3: SWC layers web services.

Figure 3 shows how the web services infrastruc-

ture components (remote objects and remote methods

interface, web services logic and management inter-

face) will be integrated into the already existing pro-

duction server. Web services represent an alternative

to the classical web interface used to interact with the

game server. They lay between the client and the li-

braries, next to the web interface. A new set of rules,

proper to web services, are created to handle web

services access. These authorization rules are com-

pletely independent from the “In-Game” rules that be-

long to the simulation.

5 SECURITY FEATURES

The authentication and authorization mechanisms are

not independent from each other. The partners which

are involved in the authorization process need to have

their identity veriﬁed by the authentication process.

The SWC security requirements are as follows:

• The administrators need to be able to control which

faction has access to a particular web service.

• The game requires a user authentication to perform

character actions.

• Factions can not be trusted and should not handle

critical user information such as user password.

• A web site can be used by multiple factions.

• A faction can be using multiple web sites.

5.1 Authentication

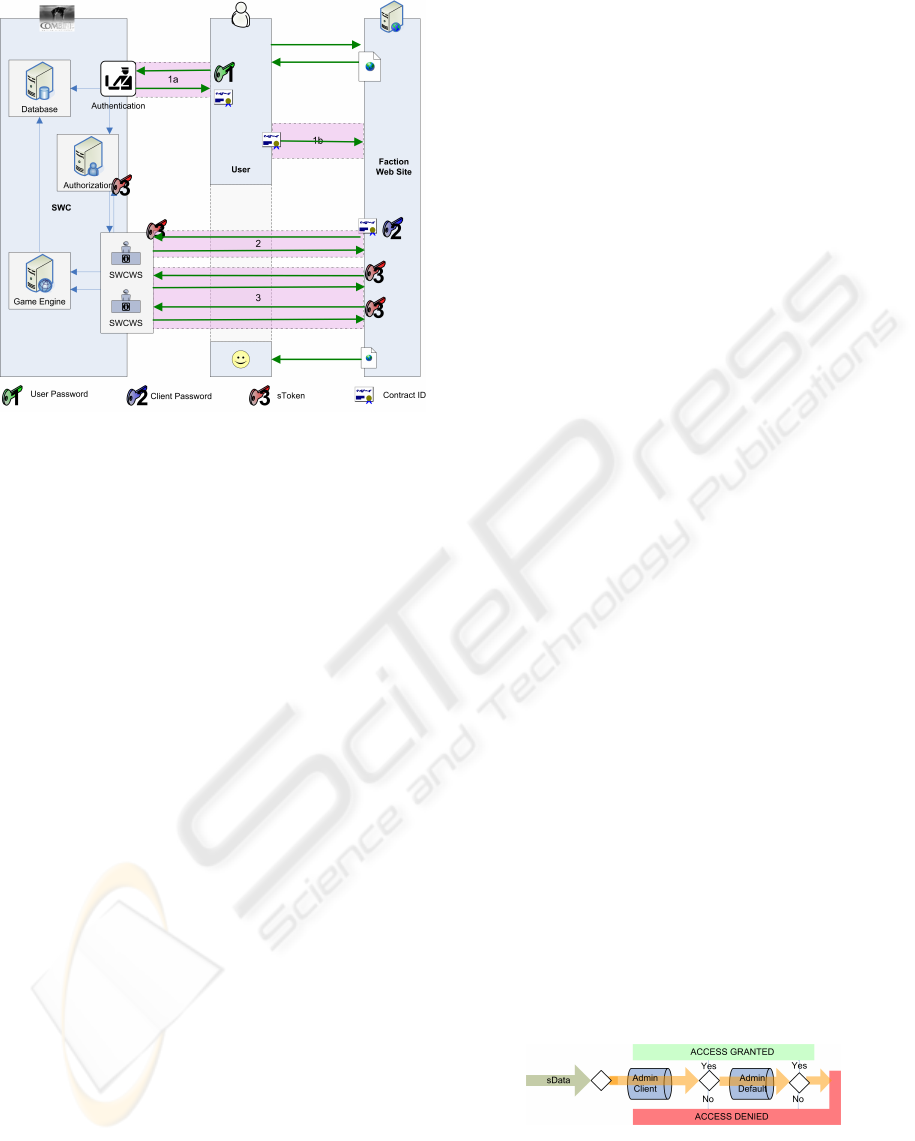

The web service authentication and authorization pro-

cesses are composed of three following steps pictured

in Figure 4:

1. User authentication and creation of a authenti-

cation contract: When a user wants to authenti-

cate to use web services features offered on a web

site, the web site redirects him to a SWC authenti-

cation page. The authentication page uses the id of

the client to warn the user that the speciﬁed client

is trying to authenticate him and displays a login

form (Step 1a). Once successfully authenticated,

WEB SERVICES FOR THE MANAGEMENT OF PERSISTENT ONLINE GAME FACTIONS

443

Figure 4: Authentication process overview.

the SWC server generates a contract. The contract

includes information such as the user identiﬁcation

number, the client identiﬁcation number and the

contract validity duration. Then, the server redi-

rects the user to the web site. It uses the user’s

browser to communicate to the client a contract

identiﬁcation string. If the client is not registered

as a web interface, the authentication page simply

displays the identiﬁcation string (Step 1b).

2. Client authentication and generation of a secu-

rity token: In order to work, SWC web services

require security tokens, brieﬂy sToken. The sTo-

ken must be provided for each web services call by

the client. A sToken is an object abstraction of a

few security information such as the contract iden-

tiﬁcation string or the query number. In order to

obtain a valid sToken, the client has to request one

from the SWC server using a web service (Step 2).

3. Accessing web services using a sToken: Using

the sToken received in Step 2, the client can try to

access web services. The client simply has to pro-

vide the sToken in every web service call it makes.

All communications are encrypted using SSL, this

prevents third parties to access the exchanged in-

formations (Step 3).

5.2 Authorization

The SWC web services are grouped in the following

three categories:

• Public web services: These web services do not

require any kind of authentication. Their purpose is

advertisement. They are really easy to implement

but do not offer many functionalities. They can be

used to obtain server time, time conversion and the

list of all visible systems in the galaxy or estimate

time of arrival for a given travel.

• Client-restricted web services: These web ser-

vices require only client authentication. They

have more functionalities than public web ser-

vices: clients can download the whole galactic

map, browse the character proﬁles or connect to the

galactic news system.

• User-restricted web services: These web services

require both client and user authentication. Players

can download their character information, list the

faction members, connect to their personal inven-

tory or retrieve their faction assets.

The authorization process has two main objec-

tives: allowing administrators to introduce restric-

tions aimed at preventing abuses (via so-called admin-

istrator rules) as well as allowing users to introduce

restrictions aimed at protecting their privacy (via so-

called user rules).

The administrators can introduce restrictions via

rules of the following types:

• User rules: Such rules have the ﬁnest granularity.

They allow the administrator to authorize or deny

web service access to a particular character using a

speciﬁed client. A user-type rule requires that user

authentication is used in order to apply.

• Factions rules: Such rules have a lower granularity

as they manage all the members of a faction at the

same time. They are only effective if no user rule

was found and if user authentication is used.

• Clients rules: Client rules have a lower priority

and granularity than the two previous ones. They

manage all connections made by anyone trying to

access particular web services with a given client.

• Default rules: Default rules have the lowest prior-

ity and granularity of of all. They allow the admin-

istrator to set up a default behavior when accessing

a web service.

Additional rules have to be set up by the user.

These rules ensure that the user has deliberately al-

lowed a client to access a web service using its ac-

count.

Figure 5: Authorization rules for WS requiring client au-

thentication.

Figure 5 represents the different steps the autho-

rization goes through before access is granted or de-

WEBIST 2006 - WEB INTERFACES AND APPLICATIONS

444

nied to a particular client. In case of user authenti-

cation, the user needs to authorize the client to use

the web services. The authorization process uses four

ﬁlters to get to a decision as illustrated in Figure 6.

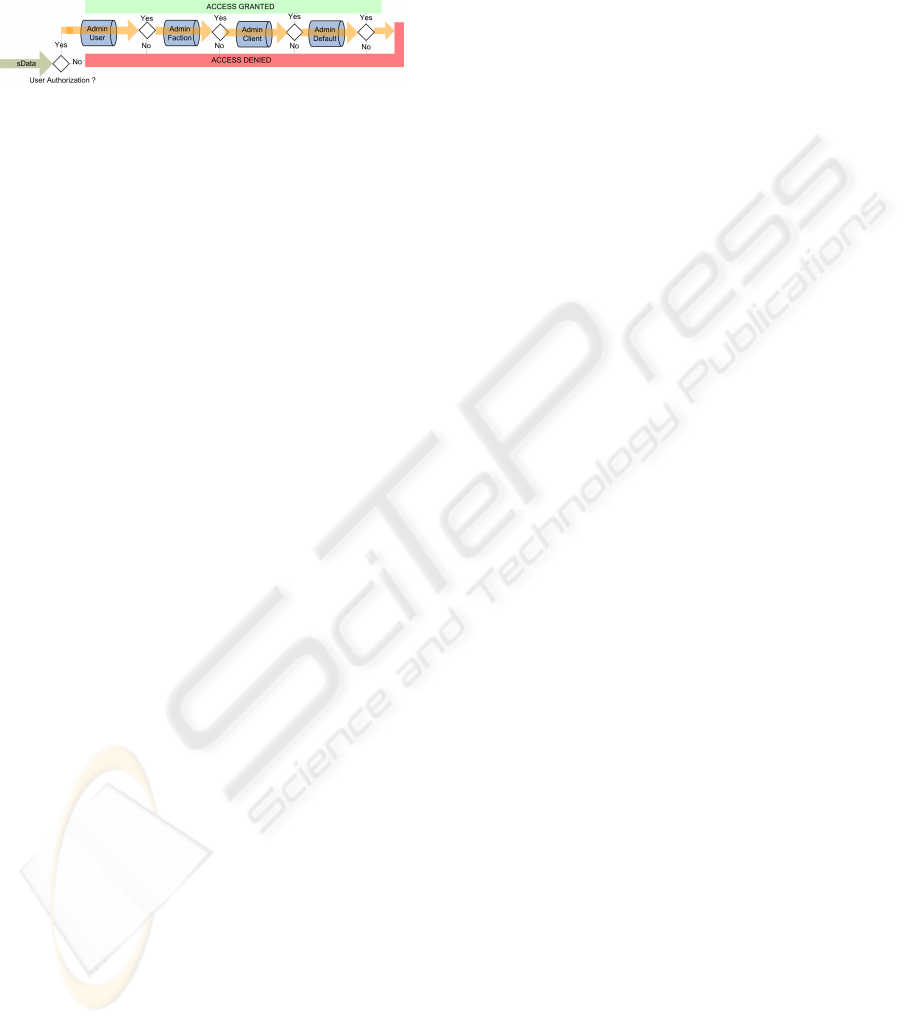

Figure 6: Authorization rules for WS requiring user authen-

tication.

Although this system allows a very ﬁne control of

what can be done or not, it got some negative feed-

back. The user authorization steps were seen as too

complicated, as many users were not aware of which

web services are involved in most transactions. As an

improvement, users proposed the creation of a pack-

age concept. Packages are sets of web services that

are working in the same semantic domain. For ex-

ample, an inventory package was created to group all

the web services related to the various assets owned

by a faction. For each package, a description is avail-

able. Furthermore, for each web service in a package,

a user friendly description is provided.

6 COMMUNITY ACCEPTANCE

One major objective of this project is to observe how

the SWC community responds to the creation of the

web services infrastructure. Measuring community

acceptance of new features, such as the web services

proposed in this paper, in a massively multi-player on-

line role-player game is a difﬁcult task. The measure-

ment includes many elements, which need to be ana-

lyzed by various specialists such as psychologists, so-

ciologists, game experts, etc. However, the following

indicators predict a good future for a wider adoption

of web services in the MMORPGs context:

• The large number of clients developed or being de-

veloped over a very short period of time.

• The numerous complaints about the imperfections

in the pilot web services architecture proposed.

• The huge number of requests coming from the de-

velopers for new web services features.

• The high number of utilizations revealed via the

statistics tool.

• The initiative taken by some developers to create a

wiki web site dedicated to document the web ser-

vices component and share their code.

• The great speed at which bugs have been identiﬁed.

So far, twenty two clients went through the regis-

tration process successfully. The Galactic Empire is

one of the largest faction in the game and provides all

its members with a single and user-friendly web page

containing all the galactic news.

The CenterPoint Space Station, another large fac-

tion, is using web services to keep its inventories up

to date. Once a player has performed authentication

through the web services mechanism, he has access to

all his character’s belongings and he can also obtain a

list of his faction’s assets, provided he has the required

privileges. Furthermore, the CenterPoint Space Sta-

tion has created a dynamic map to locate its assets in

the galaxy. Assets are marked with dots on the map.

When moving the mouse to one of these dots, the user

can obtain various information about the assets placed

there.

One of the main activities of the Galactic Corpora-

tion consists of an on-line auction web site for objects

in the galaxy. It is concerned with many security is-

sues, in particular the veriﬁcation of its user accounts.

Not surprisingly, the Galactic Corporation has mainly

been using account veriﬁcation web services.

Every time a client is successfully authenticated

and authorized to use a web service, a record con-

taining its clientID, the userID, the time and the web

services requested is stored on the database. All these

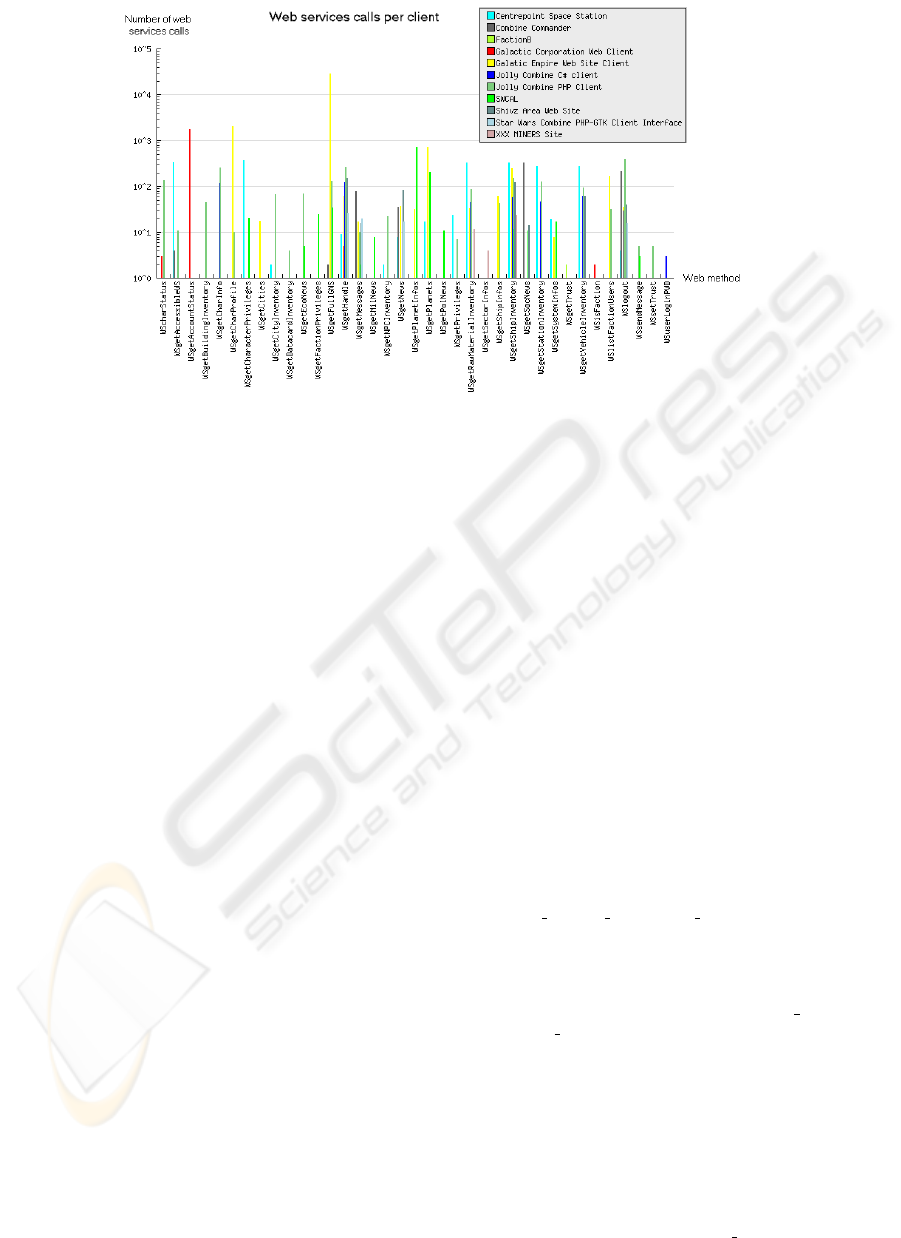

data are then used for statistics purposes. Figure 7

shows the web services use from 16 June to 8 August

2005. The huge amount of calls made by the Galac-

tic Empire in order to access the news system should

be noticed. Security measures have to be taken to

avoid massive resources consumption by a minority

of clients. An automated limitation tool will need to

be put in place so as to avoid abuses or unfortunate

incidents.

7 CONCLUSIONS

Today, SWC web services have reached the stage of

direct trust relationship deﬁned in Section 4. The

large number of clients developed in a very short time

has demonstrated the usability of the technology. The

current release of the SWC web services component

allows clients to retrieve information about invento-

ries, characters, galaxy map, galactic news and time

as structured data easily integrable in any other appli-

cations.

While building the web services server application

and proving its usability and usefulness was quite

an achievement, the community acceptance objective

was not forgotten. We think this objective was also

reached, as demonstrated by the comments received

from users.

As for the future of the web services component,

WEB SERVICES FOR THE MANAGEMENT OF PERSISTENT ONLINE GAME FACTIONS

445

Figure 7: SWC web services usage.

we strongly believe that it can easily be expanded to

include new features. As the infrastructure is now in

place, this would not take up much time. On the other

hand, it would be very useful to set up a developer

working group to insure that the new features are in

line with the game rules.

Concerning the development of the next version

that would allow to reach the indirect trust relation-

ship stage, we, however, recommend to pay great at-

tention to the following aspects:

• the important amount of time which will be needed

to set up the necessary public key infrastructure;

• the client technical limitations, as most clients will

not be allowed to install the cryptographic libraries

required; and

• the high level skills that will be requested from the

developers, in particular on the client side.

For these reasons, we do not recommend that the

current web services component be upgraded in the

short time. SWC is already a pioneer with regard to

web services: no other game is yet using such a tech-

nology. We think it would be wise to wait for more

feedback from the community before investing more

time in web services.

ACKNOWLEDGMENTS

We would like to thank Jehan Snyers d’Attenhoven

for imagining the SWC and without whom this pas-

sionating work wouldn’t have been possible, and also

all the SWC developers for their devoted work and

patience.

REFERENCES

Daconta, M. C., Obrst, L. J., and Smith, K. T. (2003). The

Semantic Web: A Guide to the Future of XML, Web

Services, and Knowledge Management. Wiley.

Endrei, M., Ang, J., Arsanjani, A., Chua, S., Comte, P.,

Krogdahl, P., Luo, M., and Newling, T. (2004). Pat-

terns: Service-Oriented Architecture and Web Ser-

vices. IBM Redbooks.

Fuller, J., Egervari, K., Fuecks, H., Waters, B., Stephens, J.,

and Solin, D. (2003). Professional PHP Web Services.

Wrox.

Graham, S., Davis, D., Simeonov, S., Daniels, G., Britten-

ham, P., Nakamura, Y., Fremantle, P., dieter Konig,

and Zentner, C. (2005). Building Web Services with

Java, Making sense of XML, SOAP WSDL, and UDDI.

Sams Publishing.

IGDA Online Games SIG (2004). Web and Download-

able Games White Paper. http://www.igda.org/online/

IGDA WebDL Whitepaper 2004.pdf.

Iverson, W. and O’Reilly, T. (2004). Web Services in Action:

Integrating with the eBay Marketplace. O’Reilly.

OASIS (2005). Security Services (SAML) TC.

http://www.oasis-open.org/committees/tc home.

php?wg abbrev=security.

Rosenberg, J. and Remy, D. (2004). Securing Web Ser-

vices with WS-Security: Demystifying WS-Security,

WS-Policy, SAML, XML Signature, and XML Encryp-

tion. Sams Publishing.

Sarang, P., Browne, C., Ayala, D., and Chopra, V. (2003).

Professional Open Source Web Services. Wrox.

Snyers d’Attenhoven, J. (2003). SW Combine Strate-

gic Overview. http://www.swcombine.com/

documentation/pdf/SWC-SO-v1 0.pdf.

WEBIST 2006 - WEB INTERFACES AND APPLICATIONS

446
