INVOKING ADAPTED WEB SERVICES USING A

MULTI-AGENTS SYSTEM

The Framework PUMAS-AWS

Céline Lopez-Velasco, Angela Carrillo-Ramos, Jérôme Gensel,

Marlène Villanova-Oliver, Hervé Martin

LSR-IMAG Laboratory, SIGMA Team, B.P.72, 38402 Saint Martin d’Hères Cedex, France.

Keywords: Adaptation, Web Services, Web-based Information System, Agents.

Abstract: Nowadays, users access Web-based Information Systems (WIS) through various devices (desktops, laptops,

Mobile Devices (MD) such as PDA). In nomadic environments, when a user queries a WIS, the result should

be adapted according to her/his context of use. In our work, this context is represented by the personal

characteristics of the user, the features of her/his access device and her/his location. In order to provide WIS

designers with mechanisms for adapting information we propose PUMAS-AWS. This is a multi-agent

framework which integrates the concept of Adapted Web Services (AWS, concept which introduces the

adaptation into the Web Services standards) into the PUMAS framework (which is able to adapt, according to

the context of use, the results of the queries of a nomadic user). This paper describes PUMAS-AWS which

provides a nomadic user with adapted information retrieved from one or several WIS based on AWS, using

two processes: the matching process from AWS architecture and the query routing process from PUMAS.

1 INTRODUCTION

Web Information Systems (WIS) are used for

collecting, structuring and managing data which can

be accessed though the Web. Nowadays, numerous

kinds of devices (such as desktops, laptops, PDA)

can be used for accessing these WIS. The challenge

of WIS designers is to provide users with relevant

information adapted to her/his context of use.

According to (Dey et al., 2000), a context is “any

information that can be used to characterize the

situation of an entity”. In our work, the context of

use (that we call context in the remainder of this

paper) is composed of: the technical features of the

access device (memory, screen size), the personal

characteristics of the user (preferences) and the

user’s location. This context is used for adapting the

content of the retrieved information. Adapting

information according to user’s characteristics is one

of the main interests of the Adaptive Hypermedia

community (Brusilovsky, 2001), but proposals made

in this area generally concern standard

configurations of the access devices (powerful and

fixed devices). Some works focus on adaptation for

Mobile Devices (MDs). For instance, CC/PP (by the

W3C) describes device’s features (e.g., screen size,

memory) through metadata.. However, few address

the issues of adaptation to the characteristics of the

user. Our work aims at providing a user with

adapted information according to her/his context.

XML and CC/PP are used in our proposal in order to

provide WIS designers with mechanisms for

formalizing, defining and extending the definition of

context.

In order to provide users with adapted

information, architectures based on the agent

technology have been proposed (Berhe et al., 2004),

(Gandon et al., 2004). An agent is an autonomous

and proactive entity which provides a user with

services specified into a unified and integrated

execution model (definition from FIPA). We have

proposed a framework based on agents, called

PUMAS (Carrillo et al., 2005) in order to adapt

information sent by one or several sources of

information (SoI), according to different criteria

(e.g., user’s profile, MD features). The PUMAS

architecture is organized as a Hybrid P2P system

(Shizuka et al., 2004) where one agent is in charge

of searching for information inside SoI.

127

Lopez-Velasco C., Carrillo-Ramos A., Gensel J., Villanova-Oliver M. and Martin H. (2006).

INVOKING ADAPTED WEB SERVICES USING A MULTI-AGENTS SYSTEM - The Framework PUMAS-AWS.

In Proceedings of WEBIST 2006 - Second International Conference on Web Information Systems and Technologies - Internet Technology / Web

Interface and Applications, pages 127-132

DOI: 10.5220/0001255101270132

 SciTePress

In this paper, we focus on WIS based on Web

Services (WS). WS are technologies based on a

standard architecture (provider, registry and

requestor) and standard languages (WSDL and

SOAP of the W3C, UDDI of the consortium OASIS)

which allow interoperability between the entities of

the WS architecture. The assumption made in this

paper is that each query executed in a WIS is a call

of a WS. Since the standards of WS do not consider

adaptation, the notion of Adapted Web Services

(AWS) has been defined in (Lopez-Velasco, 2005).

This notion consists in invoking a WS which best

satisfies the context. For this purpose, the AWS

architecture is replicated on each WIS in order to

select the best AWS. We show in this paper how

PUMAS can be used in order to centralize the AWS

architecture. Especially, the Query Routing process

(Xu et al., 1999) in PUMAS-AWS enables to find the

“best” AWS (i.e. the one which is the most adapted

to user’s needs considering the context) among the

set of AWS obtained from different SoI queried.

In this paper, first, we present the basis of this

work (PUMAS and AWS). Then, we describe the

PUMAS-AWS architecture. Finally, we present some

related works, before we conclude.

2 PUMAS AND AWS

This section describes the basis of our proposal

(PUMAS architecture and the concept of AWS), in

order to explain the integration of this work.

PUMAS is a framework which offers a solution

for retrieving adapted information (distributed

between different SoI) through MDs. The

architecture of PUMAS is composed of four Multi-

Agent Systems (MAS, see Figure 1). First, the

Connection MAS provides mechanisms for

facilitating the connection from different kinds of

devices to the system. Second, the Communication

MAS ensures a transparent communication between

the used access device and the system. It also adapts

information according to the technical constraints of

the user’s device. Third, the Information MAS

receives user queries, redirects them to the “right”

SoI (e.g., the one which is the most likely to answer

the query). This MAS adapts information according

to the user’s profile in the system (preferences) and

returns filtered results to the Communication MAS.

In charge of the adaptation, the agents of the

Adaptation MAS communicate with the agents of the

three other MAS in order to exchange information

about the user (explicitly extracted from XML files

or inferred from rules), and about the context.

PUMAS allows to adapt information from different

SoI whether they are located on servers or on MDs.

In order to make it possible, one agent is executed

on each SoI, and searches information inside it in

order to answer user’s requests. For a detailed

description of PUMAS, see (Carrillo et al., 2005).

The main advantage of the use of WS is that they

allow remote applications to easily interoperate. The

classical WS architecture relies on three standards

(WSDL, UDDI, SOAP) and on three entities

(provider, registry, requestor): the provider

describes the WS

with WSDL and publishes their

descriptions in the registry (UDDI); The requestor

researches in the registry WS which can meet to

her/his needs. The communication between the

requestor and the provider of the WS chosen is

allowed by SOAP. However, in this architecture, no

special attention is paid to the adaptation of

information according to the context. In (Lopez-

Velasco, 2005), the notion of AWS (Adapted Web

Services) has been introduced as a classical and

predetermined WS in order to be invoked in a

specific context. Traditionally, WSDL describes a

WS through its exchanged messages, proposed

methods, data, structure and, communication

protocol. An extension of WSDL, called AWSDL

(Adapted WSDL), has been proposed (Lopez-

Velasco, 2005). It allows the description of the

adaptation proposed by the AWS, as well as user

adaptation needs. An architecture, based on the

classical one, has been created for the definition and

management of AWS. This architecture extends the

classical architecture with three modules: the

Filtering Registry module, the Filtering Profile

module, and the Adaptation Matching Module. The

Filtering Registry module splits the AWS description

provided by the provider into two parts: first the

WSDL (classical description transmitted to the

registry), second the AWSDL (description of the

proposed adaptation recorded in a database). The

Filtering Profile module splits the requestor’s query

formulated in AWSDL into two parts: first the need

of service (classical query transmitted to the

registry), second the needs of adaptation (recorded

in a database). The result of the classical query (a list

of WS) is intercepted by the Filtering Profile module

which transmits it to the Filtering Registry

component. This component searches in the database

the AWSDL description of the resulting WS. In order

to perform the matching process, the Adaptation

Matching Module collects the AWSDL description

WEBIST 2006 - INTERNET TECHNOLOGY

128

of the AWS available and the query (in AWSDL). An

XML file which contains the list of the AWS able to

answer the user’s needs of information and

adaptation is sent to the requestor. The user chooses

an AWS from the returned list and the

communication between the requestor and the

provider is established by SOAP.

We are interested in retrieving information from

AWS-based WIS which use the AWS architecture.

This architecture requires each WIS to have its own

Adaptation Matching Module. in order to avoid this

replication, we propose PUMAS-AWS, which

integrates into PUMAS each entity of the AWS

architecture. Through this integration, PUMAS-AWS

manages the Matching process in a centralized way.

Systems using PUMAS-AWS are able to call AWS

available in one or several WIS (playing the role of

the provider).These WIS are also considered like SoI

(and become registry).

3 PUMAS-AWS

In this section, we describe both the integration of

each entity of the AWS architecture into PUMAS

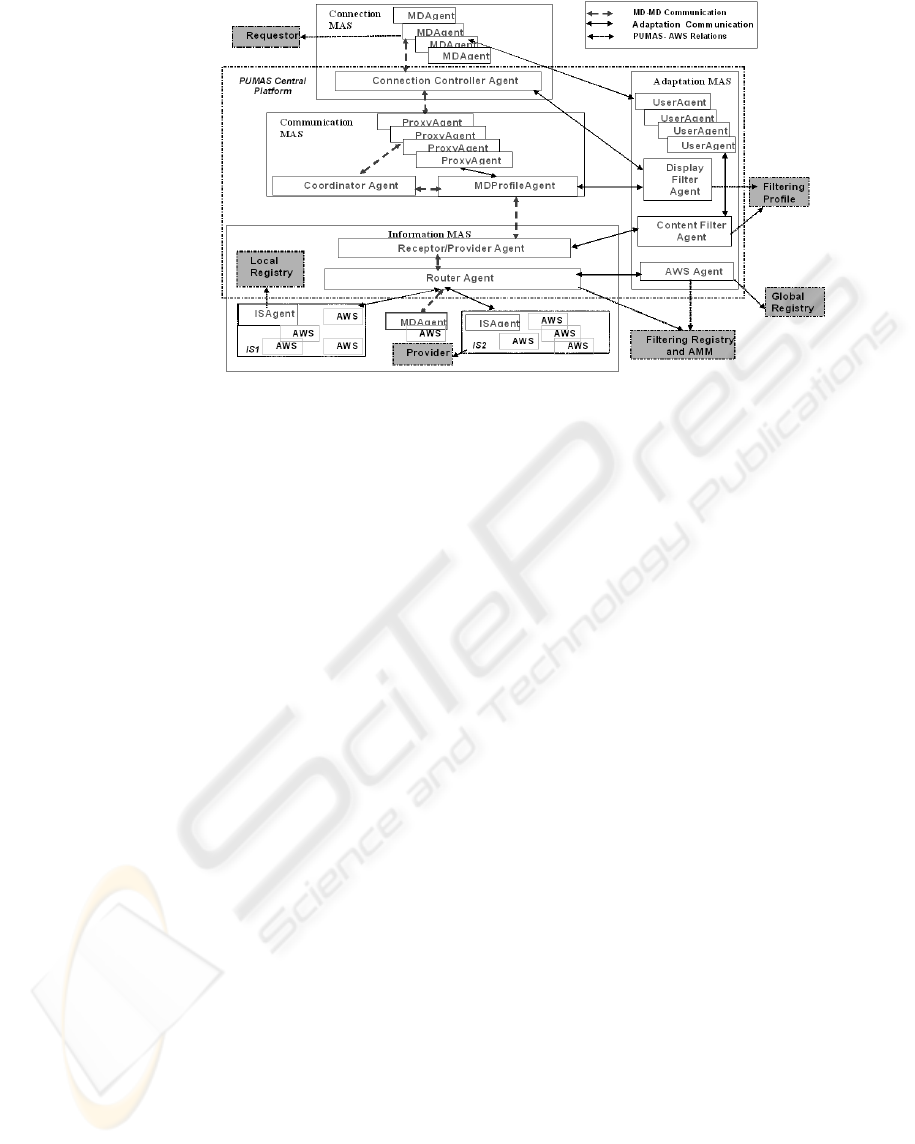

(see Figure 1) and three tasks: the Management of

AWS, the Matching Process and the Query Routing

process.

3.1 PUMAS Agents and AWS

Entities

In PUMAS-AWS, the roles of some PUMAS agents

change in order to integrate the activities of entities

of the AWS architecture (provider, registry,

requestor, Filtering Profile, Filtering Registry, and

AMM). We also include a new agent which manages

the AWS, called the AWS Agent.

The Mobile Device Agent (MDAgent) is

executed on the user’s access device. It is considered

as a requestor since this agent sent queries for an

AWS to the framework. The activities of the

Filtering Registry module are performed by the

Router Agent (RA) and the AWS Agent. These

agents search for the AWS which correspond to the

user’s needs.

The role of the Filtering Profile module is

shared by the Content Filter Agent (CFA) and the

Display Filter Agent (DFA), which manage the

context defined by three XML files: the Static

Characteristics (SC) file describing the permanent

information of a user (e.g., User ID); the Dynamic

Characteristics (DC) file which describes

information about a user which varies during a

session or between two sessions (e.g., location); and,

the Mobile Device Characteristics (MDC) file which

describes the features of the MD (e.g., screen size,

memory). A file called User’s Preferences (UP)

describes the user’s preferences, especially those

concerning the criteria of adaptation (e.g., location).

PUMAS-AWS manages these files as follows: the SC

file is sent at the first connection of the described

user to the CFA which consults it during the

following connections. The DC file is sent by the

UserAgent (which manage the user’s profile) to the

CFA at each connection in order to update

information. The DFA manages the characteristics of

a user’s MD through the MDC file. It holds a

Knowledge Base (KB) which contains information

about features of different types of MDs (e.g.,

supported file formats) and acquired knowledge

Figure 1: The PUMAS-AWS architecture.

INVOKING ADAPTED WEB SERVICES USING A MULTI-AGENTS SYSTEM - The Framework PUMAS-AWS

129

from previous connections (e.g., bandwidth for data

transmissions). The MDAgent sends the MDC file to

the DFA. The DFA updates the information about a

MD during each session.

We distinguish two registries. First, the Local

Registry is managed by the ISAgent (ISA) and

contains the list of AWS provided by the SoI which

hosts this agent. The ISA communicates with the

AWS Agent in order to inform it about changes in

the AWS. Second, the Global Registry is managed

by the AWS Agent and centralizes the set of

available AWS. The role of provider is played by the

WIS (SoI). In each WIS, the ISA is in charge of

notifying changes and updates of the AWS provided

by the WIS.

Two agents perform the role of the AMM: the

Router Agent (RA) which redirects queries to the

right SoI and applies a strategy which depends on

adaptation criteria and the AWS Agent which

manages the AWS (see following subsections).

3.2 Managing AWS

The AWS Agent (located into the Adaptation MAS)

manages all information about AWS. This agent

stores in its KB pieces of knowledge (called facts

and described using the JESS syntax –

http://herzberg.ca.sandia.gov/jess/) for each SoI.

These descriptions of SoI are recorded in a XML file,

named WIS-characteristic (WISC), sent to the RA by

the ISA. The description of a SoI is composed of the

ISA, the different AWS (WSDL and AWSDL)

provided by WIS, the device where it is stored (e.g.,

server, MD) and its location.

The WISC file is translated by the RA into JESS

facts (we use the primitive “assert” in order to

define an instance of an unordered fact in JESS and

store it into the KB of JESS). In this way, the RA

knows the information of the WIS (its ID, its ISA, the

information managed by this WIS, the location of the

WIS, and the set of AWS provided). An example of a

WIS which represents a Travel Agency is presented

in the Figure 2.

(assert (WIS

(ID “TravelAWIS”)

(ISAgent “TravelA-ISA”)

(Managed-Information “Travels” “Holyday Stays”

“Flights” “Promotions”)

(Device “server”)

(Location “http://YourTravel.imag.fr”)

(AWS-ID “AWS-T-1”)))

Figure 2: An instance of the JESS Template which defines

a WIS, playing the role of SoI.

This example defines a WIS identified by its

name “TravelAWIS”, and by its ISA “TravelA-ISA”.

This WIS manages information about Travels,

Holiday Stays, Flights and Promotions. It is located

on a server whose address is

“http://YourTravel.imag.fr”. This WIS hosts the AWS

called AWS-T-1. There is one fact for the WSDL of

an AWS. This description, which relies on the WSDL

elements, is used to define an AWS (identified by an

attribute ID): the traditional elements of WSDL

(import, types, message, portType, binding, service)

and, the AWSDL elements describing the level of

adaptation proposed by the AWS.

3.3 Matching Process

The Matching process in PUMAS-AWS consists in

retrieving the set of AWS which answer the user’s

query according to her/his context.

In order to illustrate the Matching process, let us

consider a user, named Alex who has defined in his

User’s Preference XML file information about his

preferences for his holidays. These preferences are

interpreted by the PUMAS-AWS component as

follows: Alex prefers the holiday stays at the beach,

which have as departure city New York and he wants

to travel with the BestAirlines company. In order to

perform the matching, this process is split into two

phases. First, PUMAS-AWS considers the user’s

needs in terms of the activities that he wants to

execute on this system (e.g., to search information

about holidays). According to the user’s queries, the

XML files and the WSDL description of the AWS, the

AWS Agent selects a set of AWS. Second, this set of

AWS is filtered by the AWS Agent. This Filtering

process uses the criteria of adaptation (e.g.,

location). The AWS Agent searches for the AWS able

to provide adapted information according to the four

description files (UP, SC, DC and MDC). These files

are compared with the AWSDL description of the

AWS. The refined list of AWS is sent to the RA

which launches the Query Routing process described

in the next section. In our example, the AWS Agent

selects among the AWS obtained in the previous

phase, those which are the most adapted to Alex’s

preferences. After the Filtering process, the AWS

selects the AWS which satisfy the preferences stored

in the UP file (step considered in the Query Router

process

3.4 Query Routing Process

The Router Agent (RA) processes the Query Routing

with the help of the AWS Agent which provides it

with information about SoI and their AWS. In

PUMAS-AWS, the Query Routing process has been

WEBIST 2006 - INTERNET TECHNOLOGY

130

simplified and adapted compared to the one

performed in PUMAS. This process relies on two

activities presented as follows.

The first activity of the RA is the analysis of the

query which leads to a possible split of the query.

This split is based on the one hand, on the criteria of

adaptation (e.g., location, user’s preferences), and on

the other hand, on the knowledge (managed by the

AWS Agent and the RA) about the SoIs and their

AWS (see Section 3.2). The RA analyzes the

complexity of the query with the help of the AWS

Agent. The number of AWS to be invoked increases

the work to be done by the RA in order to compile

the results of queries (this task is not considered in

this paper). After this analysis, the RA decides if it

has to divide the query in sub-queries or not. For

instance, the RA can split the Alex’s query “holiday

stays at the beach, which leave from New York

travelling through BestAirlines” into several sub-

queries if there is no SoI or an AWS able to answer

the complete query. For example, in order to satisfy

the Alex’s query, it is necessary to consider the

reservation of a flight, of a hotel and a car rental

package. This query is split in the following sub-

queries: (1) “plane tickets for holiday stays at the

beach”, (2) “hotels for holiday stays at the beach”

and, (3) “car rental packages for holiday stays at the

beach”; all of the queries consider New York as the

departure city and BestAirlines as Airline Company.

This split is done because several SoI (known by the

AWS Agent and the RA) manage information.

The second activity is the selection of AWS

answering user’s queries. In order to answer a query,

the RA

invokes AWS. The RA asks the AWS Agent

for AWS which can answer the user’s queries. The

AWS Agent performs the Matching process and

sends this information to the RA. In order to select

the AWS which match the best the adaptation need,

the RA applies the adaptation criteria of the query

(defined in the XML files).

In our example, let us suppose that three AWS

satisfy the query “plane tickets” (AWS-PT-1, AWS-

AL1-2, AWS-AL2-2), two AWS satisfy the query

“hotels” (AWS-H-2, AWS-CH-3), and two AWS

satisfy the query “car rental” (AWS-RC-1, AWS-RC-

4). The facts received by the RA from the AWS

Agent are shown in Figure 3. Let us suppose that

Alex prefers AWS which are executed on servers

located in agencies of the city where he works. The

RA selects the following AWS:

”http://LocalAirline/services/AWS-AL2-2”, and

“http://LocalHotel/services/AWS-H-2” and

“http://RentalCar2/services/AWS-RC-4”. The RA

invokes these AWS and compiles the answers

obtained from the different AWS, selecting the most

relevant ones according to given criteria of

adaptation of the user’s queries before returning the

result to the user.

; Facts representing the AWS which answer

the query “plane tickets”

(assert (AWS-for-query

(query “plane tickets”)

(AWS-location

“http://YourTravel/services/AWS-PT-1”

“http://OneAirline/services/AWS-AL1-2”

“http://LocAirline/services/AWS-AL2-2”)))

;Facts representing the AWS which answer

the query “hotels”

(assert (AWS-for-query (query “hotels”)

(AWS-location

“http://LocalHotel/services/AWS-H-2”

“http://DestHotel/services/AWS-CH-3”)))

;Facts representing the AWS which answer

the query “car rental”

(assert (AWS-for-query

(query “car rental”)

(AWS-location

“http://CarRental1/services/AWS-CR-1”

“http://CarRental3/services/AWS-CR-4”)))

Figure 3: Facts received by the RA from the AWS Agent.

4 RELATED WORK

A user would like the results of her/his queries to be

adapted to her/his context of use. In order to achieve

this, (Gandon et al., 2004) stress the need of

considering knowledge about user’s preferences and

contextual features in order to search for

information. Their approach is based on user’s

preferences, the rights granted to a user in order to

change her/his preferences in a dynamic way and the

representation of her/his contextual information.

Unlike PUMAS-AWS, this work does not search

information in AWS-based WIS. PUMAS-AWS uses a

representation of the context which considers the

user’s characteristics as well as those of her/his MD

and her/his location in order to adapt information.

This context can be easily extended with

characteristics defined in XML files and it is changed

before, during and after the executions of user

queries.

The work presented in (Berhe et al., 2004)

proposes an architectural framework which exploits

four profiles for adapting information to a user:

content or media (format, size, location where media

is stored), user (preferences), device (hardware and

software capabilities), network and service

(supported formats, network connection, bandwidth,

latency). All of these characteristics can be defined

in PUMAS-AWS in the SC, DC and MDC files.

Moreover, these characteristics can be dynamically

changed, unlike to the work of (Berhe et al., 2004).

INVOKING ADAPTED WEB SERVICES USING A MULTI-AGENTS SYSTEM - The Framework PUMAS-AWS

131

This proposal unlike PUMAS-AWS does not

consider information retrieval from different devices

(servers and MDs).

Concerning Web Service (WS) adaptation, some

works use technologies external to the classical WS

architecture in order to perform different

adaptations. For instance, (Pashtan et al., 2004)

propose to adapt the content delivered by the WS by

transforming it using XSLT style sheets. However,

their approach does not consider the user’s context,

considering only the user’s device and preferences.

(Keidl et al., 2004) propose an integration of the

context definition into SOAP in order to find a WS

able to satisfy user’s needs considering her/his

location, devices, presentation properties, and

connectivity preferences. By using SOAP in order to

discover a service, this proposal violates somehow

the principles WS standard architecture, where SOAP

is only used for communication purposes. Through

AWSDL, our proposal respects the standard WS

architecture.

5 CONCLUSION

In this paper, we have integrated the concept of

Adapted Web Services (AWS) into the Peer

Ubiquitous Multi-Agent System (PUMAS)

framework. This result is PUMAS-AWS, a

framework which focuses on the search of

information among several AWS-based WIS. These

AWS are able to answer queries in an adapted way,

according to the context of use (composed of the

personal characteristics of the user, the features of

the access device, and the user’s location). In this

paper, we also highlight the roles of the Router

Agent and the AWS Agent of PUMAS-AWS which

are in charge of the Matching and the Query Routing

process, fundamental pieces for adapting

information. The Matching process consists in

retrieving the set of AWS which answer the query

according to the context. The Query Routing process

relies on two activities: the analysis of the query and

the selection of AWS. The first activity leads to a

possible split of the query. The second one is

achieved by the Matching process.

We now aim at improving the algorithms and

mechanisms used in the Matching Process. We also

need to define a system for establishing priorities

among fixed criteria of adaptation in order to

facilitate the process of selecting AWS performed by

both the AWS Agent and the RA. In order to improve

the matching process, we investigate semantic

approaches, such as WSMO introduced by (Roman

et al., 2005). Finally, we are also interested in

defining a mechanism for capturing the context in an

automatic way.

REFERENCES

Carrillo-Ramos, A., Gensel, J., Villanova-Oliver, M.,

Martin, H., 2005. Adapted information retrieval in

Web Information Systems using PUMAS. In AOIS

2005, 7th Int. Workshop on Agent Oriented

Information Systems.

Lopez-Velasco C., 2005. AWSDL : une extension de

WSDL pour des services Web adaptés. In INFORSID

2005, 23th Conference INFORSID, 133-148.

Berhe, G., Brunie, L., Pierson, J.M., 2004: Modeling

Service-Based Multimedia Content Adaptation in

Pervasive Computing. In CF 2004, 1st Conf. on

Computing Frontiers. ACM Press, 60-69.

Brusilovsky P., 2001. Adaptive Hypermedia. In User

Modeling and User-Adapted Interaction, 11 (1-2), 87-

110.

Dey, A. K., and Abowd, G. D., 2000. Towards a better

understanding of context and context-awareness. In

CHI’2000 Workshop on the What, Who, Where, When,

and How of Context-Awareness.

Gandon, F., Sadeh, N., (2004, Oct). Semantic Web

Technologies to Reconcile Privacy and Context

Awareness. In Journal of Web Semantics, 1 (3).

Keidl M., Kemper A., 2004. Towards Context-Aware

Adaptable Web Services. In WWW 2004, 13th World

Wide Web Conference.

Pashtan A., Heusser A., Scheuermann P., 2004. Personal

Service Areas for Mobile Web Applications. In IEEE

Internet Computing, 8 (6), 34-39.

Roman D., Keller U., Lausen H., Bruijn, J., Lara R.,

Stollberg M., Polleres, A., Feier, c., Bussler, C.,

Fensel, D., 2005. Web Service Modeling Ontology. In

Applied Ontology 1. IOS Press, 77-106.

Shizuka, M., Ma, J., Lee, J., Miyoshi, Y., Takata, K.,

2004. A P2P Ubiquitous System for Testing Network

Programs. In EUC 2004, Embedded and Ubiquitous

Computing. LNCS, Vol. 3207, Springer, 1004-1013.

Xu, J., Lim, E., Ng, W.K., 1999. Cluster-Based Database

Selection Techniques for Routing Bibliographic

Queries. In DEXA 99, 10th Int. Conf. on Database and

Expert Systems Applications. LNCS, Vol. 1677.

Springer, 100-109.

WEBIST 2006 - INTERNET TECHNOLOGY

132
