USING PRE-REQUIREMENTS TRACING TO INVESTIGATE

REQUIREMENTS BASED ON TACIT KNOWLEDGE

Andrew Stone and Pete Sawyer

Computing Department

Infolab 21, Lancaster University, Lancaster, UK

Keywords:

Tacit knowledge, Requirements, Tracing, Latent Semantic Analysis, Natural language processing.

Abstract:

Pre-requirements speciﬁcation tracing concerns the identiﬁcation and maintenance of relationships between

requirements and the knowledge and information used by analysts to inform the requirements’ formulation.

However, such tracing is often not performed as it is a time-consuming process. This paper presents a tool

for retrospectively identifying pre-requirements traces by working backwards from requirements to the doc-

umented records of the elicitation process such as interview transcripts or ethnographic reports. We present

a preliminary evaluation of our tools performance using a case study. One of the key goals of our work is to

identify requirements that have weak relationships with the source material. There are many possible reasons

for this, but one is that they embody tacit knowledge. Although we do not investigate the nature of tacit knowl-

edge in RE we believe that even helping to identify the probable presence of tacit knowledge is useful. This

is particularly true for circumstances when requirements’ sources need to be understood during, for example,

the handling of change requests.

1 INTRODUCTION

Requirements speciﬁcations are incapable of repre-

senting a problem domain in its entirety in all but the

most trivial cases. One of the reasons for this is that

much of the knowledge about the problem domain is

tacit in nature.

The notion of tacit knowledge was ﬁrst exten-

sively explored by Michael Polanyi in his seminal

book “The Tacit Dimension” (Polanyi, 1983). Polanyi

brieﬂy summarises tacit knowledge as “knowing

more than you can tell”, that is, knowledge that is so

inbuilt within your own understanding of a process

that awareness of this knowledge is neither apparent,

nor explicable. Kevin Ryan (Ryan, 1993) presented

a modern corollary when expressing concerns about

the role of Natural Language Processing (NLP) in

the requirements engineering process. Ryan’s state-

ment that “neither informal speech nor natural lan-

guage text is capable of expressing unambiguously

the myriad facts and behaviours that are included in

large scale systems” reﬂects the tacit knowledge em-

bedded within the problem domain.

Requirements often embody tacit knowledge that

the analyst already has, or has uncovered from their

analysis of the problem domain. The starting point

for our research is that the identiﬁcation of knowl-

edge would help in two ways. Firstly, it would help

the validation of requirements. Secondly, it would

help in situations such as system evolution or dealing

with requirement change requests, where the prove-

nance of requirements needs to be understood. We

are investigating this problem by developing tool sup-

port for a form of pre-requirements tracing designed

to establish backwards traces from requirements into

extant textual source material such as interview tran-

scripts. We hypothesise that where provenance can-

not be established between requirements and source

material, this may indicate the inﬂuence of tacit in-

formation during synthesis of the requirements. Of

course, there are other reasons for why requirements

might lack identiﬁable provenance, but identifying a

lack of provenance is interesting in itself as it permits

requirements analysts to determine common sources

of requirements ambiguity. This paper explains our

approach to pre-requirements tracing and tacit knowl-

edge identiﬁcation and presents initial results from

applying our tool.

139

Stone A. and Sawyer P. (2006).

USING PRE-REQUIREMENTS TRACING TO INVESTIGATE REQUIREMENTS BASED ON TACIT KNOWLEDGE.

In Proceedings of the First International Conference on Software and Data Technologies, pages 139-144

DOI: 10.5220/0001311701390144

 SciTePress

2 TRACING AND TACIT

KNOWLEDGE

Gotel and Finkelstein (Gotel and Finkelstein, 1994)

identify both the need for and the difﬁculties asso-

ciated with requirements tracing. They divide trac-

ing into two classes: pre- and post- requirement

speciﬁcation tracing, which are analogous to high-

end and low-end tracing as mentioned in (Ramesh

and Jarke, 2001). Pre-requirement speciﬁcation trac-

ing is concerned with the requirement’s life before it

is included in the requirements speciﬁcation. Post-

requirements speciﬁcation tracing deals with life af-

ter inclusion. Pre-requirement speciﬁcation tracing is

underdeveloped compared to post-requirement spec-

iﬁcation tracing. One problem standing in the way

of pre-requirements speciﬁcation tracing is that re-

quirements synthesis often involves much more than

a simple transformation process in which information

elicited from stakeholders is re-written.

This is particularly well illustrated by the use of

contextual elicitation techniques such as ethnographic

analysis. Contextual techniques result in a rich de-

scription of the problem domain. On the one hand,

this makes identiﬁcation of tacit knowledge easier by

the analyst. However, even where a requirement is

derived from explicit elicited information with min-

imal application of tacit knowledge, the relationship

between the raw elicited material and the require-

ment may be hard to identify without careful read-

ing of both. Certainly, the lexical similarities between

the source material and the requirement may be very

weak.

The impact of tacit knowledge makes the identi-

ﬁcation of a requirement’s provenance much harder

still. A previous study on the use of ethnography

in systems engineering (Bentley et al., 1992) anal-

ysed the working practises of Air Trafﬁc Controllers

(ATC). Embedded within this poorly structured infor-

mation are examples of tacit knowledge. When con-

fronted with a slow aeroplane about to enter a busy

sector in which all ﬂight levels (permitted altitudes of

ﬂight) will shortly be ﬁlled, the sector chief rerouted

the slow aeroplane to another sector as shown in Fig-

ure 1.

The ethnographer explicitly identiﬁed this as an ex-

ample of tacit knowledge as at no point are any details

about the aircraft in question mentioned, not even the

originating sector, yet the chief is still able to reroute

the aircraft. When questioned later the chief replied

that he knew which aircraft was in question just by

looking at the radar. Plausibly, therefore, an analyst

experienced in the ATC domain might synthesise a

requirement about the radar display that provided the

information used by the chief. Since the nature of

this information is only implicit in the ethnographic

10.56 Wing writes a height revision on a con-

troller’s livestrip following a telephone call. (In-

bound from Scottish. Much of this co-ordination

is done on the wings.)

11.05 Controller PH to Controller IS: ‘you

can track Mac9025 to me, ....’

[Controller IS is on the telephone]: ‘pardon?’

Chief: ‘J...’ll take 9025’

Controller IS: ‘oh ... OK ...’

11.17 SA: ‘Chief theres this he wants ’

Chief: ‘all levels are blocked through there ’

Spends a moment thinking

Chief: ‘no, he’s a slow one there’s no way he’ll

be clear then so we’ll take him through Liffy’

Figure 1: An example of tacit knowledge embedded in a

typical air trafﬁc control scenario.

report, the provenance of the radar display require-

ment would be difﬁcult to trace were the requirement

and ethnographic report the only information avail-

able for seeking the trace. Dealing with this limited,

textual information is the subject of the next section.

3 IDENTIFYING TRACES IN

NATURAL LANGUAGE

Requirements are typically represented in natural lan-

guage. Determining any semantic meaning from nat-

ural language will require an understanding of the lan-

guage that comprises it. Rule based approaches to lin-

guistics are brittle in the face of linguistic variability

and do not scale well to new problem domains which

introduce unique vocabulary. Alternative approaches

rely on statistical properties of the text, this gave rise

to the notion that language is understandable by ob-

servation, rather than the classical theoretical linguis-

tic approach. Statistical analysis takes place on a body

of language, or corpus, and is composed of examples

of natural language potentially in the scale of millions

of words.

The applicability of corpus linguistics to doc-

ument processing in requirements engineering has

been shown in several problem domains and at dif-

ferent levels. Rolland and Proix provide a general

background for the applicability of natural language,

and therefore natural language processing, to require-

ments engineering (Rolland and Proix, 1992). Ger-

vasi and Nuseibeh use automated lightweight tech-

niques to provide automated validation of require-

ments in some of NASA’s requirements speciﬁcations

(Gervasi and Nuseibeh, 2002). Sawyer et al. (Sawyer

et al., 2005) provide evidence that probabilistic natu-

ral language processing is applicable to requirements

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

140

engineering processes across different domains. One

such technique is Latent Semantic Analysis (LSA).

Latent Semantic Analysis (LSA) is a vector space

technique that results in the formation of a multidi-

mensional, document-word space (Deerwester et al.,

1990). It is computationally intensive but allows intel-

ligent document query and retrieval whilst overcom-

ing the traditional problems of polysemy (multiple

meanings per word) and synonymy (multiple words

that mean the same thing) (Berry et al., 1995; Du-

mais, 1991). The number of occurrences of each word

in a document determines the document’s magnitude

in that dimension, thereby determining the position

of the document in the space. Similar documents ap-

pear to cluster together in the space. This clustering

can be heightened by reduction of the space to fewer

dimensions by singular value decomposition. Simi-

larity can therefore be determined via a variety of al-

gorithms, such as simple Euclidean distance. LSA is

commonly accepted to be a shallow technique that ac-

curately manages to approximate human expectations

of linguistic comparison.

A simple document-word space technique, al-

though not LSA, has been used by Johan Natt och

Dag et al. (Natt och Dag et al., 2005) to determine

linguistic equivalence between two different sources

of requirements : market requirements and business

requirements. The lexical technique used resulted in

more than 50% of correct links between requirements

being identiﬁed. Further, it was estimated that up to

63% of similar requirements could be identiﬁed in

this manner. However, this technique is based on lex-

ical similarity measures. It has not been determined

if this technique can be used to infer semantic simi-

larities across the wide variety of document types re-

quired for pre-requirement speciﬁcation tracing.

4 PERFORMING

PRE-REQUIREMENTS

TRACING

By searching for traces between requirements and

their respective sources it should be possible to de-

termine requirements that are not ﬁrmly derived from

source material, thereby reﬂecting an instance of

either:-

• Poorly sourced knowledge, that is knowledge

which is not clearly deﬁned and should therefore

be subject of further investigation

• A form of tacit knowledge, whose presence in the

requirements speciﬁcation demonstrates a descrip-

tion of the external behaviour of a tacit process

Note that we are not seeking to measure require-

ments completeness. Establishing the absence of re-

quirements that represent information explicit in the

source material or (even harder) implicit from tacit

knowledge, is outside the scope of this work. The

tool implements three distinct phases of analysis:

Collation All source documentation and the current

version of the requirements speciﬁcation are pre-

pared here. Several steps are performed, such

as collating all the documents into a single logi-

cal collection for easier processing, tokenisation,

stemming and the removal of syntactic elements

of speech. The source material is then split into

chunks to enable comparison. As currently imple-

mented, the size and content of chunks are deter-

mined by a heuristic boundary detection algorithm

(Manning and Sch

utze, 2000)

Comparison The semantic equivalence of chunks is

determined by use of LSA. Chunks of source ma-

terial are them compared against chunks of the re-

quirements speciﬁcation; the similarities are noted.

The application of LSA that we propose requires

that the contents of all documents are compared to

produce a document similarity matrix. The doc-

ument similarity matrix contains numbers in the

range [1,1], where -1 represents content that is se-

mantically divergent, and 1 represents content that

is semantically identical

Analysis Candidates of matching chunks are pre-

sented to the analyst who may ﬁlter the results to

increase clarity. Only candidate matches are dis-

played and it is left to the analyst to ﬁnally conﬁrm

or deny a candidate match

An overview of these operations is presented in

Figure 2.

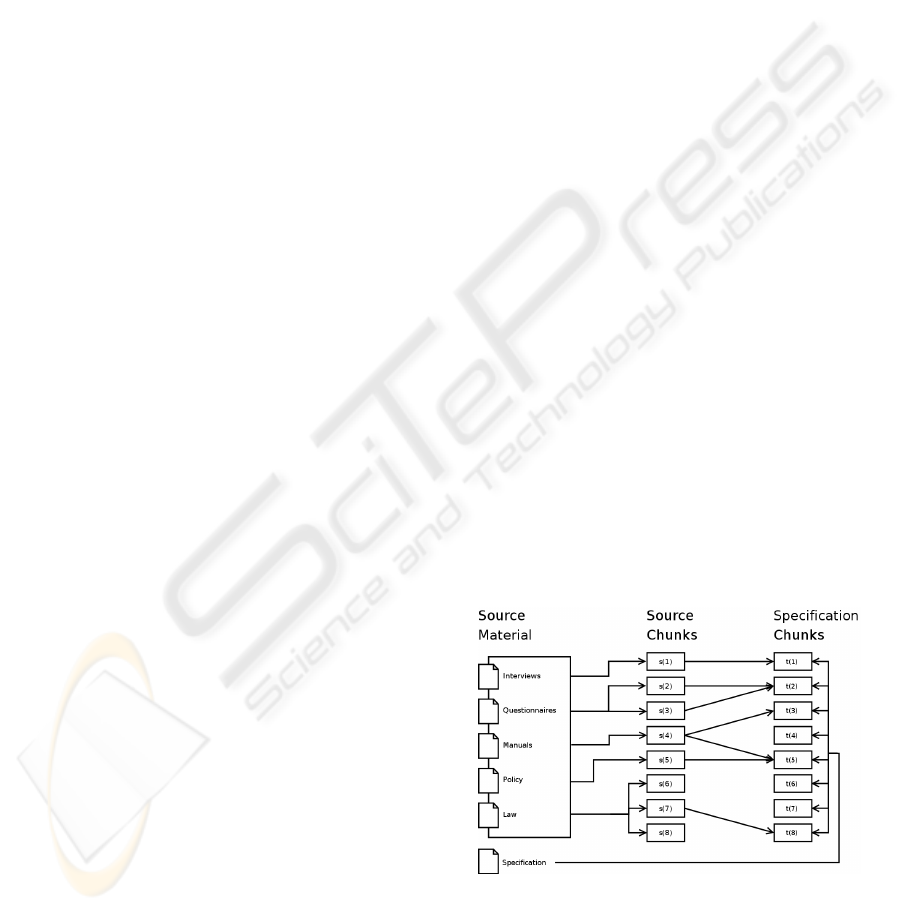

Figure 2: Identiﬁcation of sources of requirements. H ere

chunks t(6) and t(7) are likely to be identiﬁed by the system

as examples of tacit or poorly sourced knowledge as their

source is not known. Note that not all source chunks may

contribute to the requirements speciﬁcation.

USING PRE-REQUIREMENTS TRACING TO INVESTIGATE REQUIREMENTS BASED ON TACIT KNOWLEDGE

141

5 CASE STUDY

In order to test the validity of our approach LSA was

used to trace between a concept of operations for a

new system and an ethnographic report of the exist-

ing system. The ethnographic reports relate to a UK

air trafﬁc control system. The concept of operations

was developed by Bentley (Bentley, 1994) for a tool

to prototype ATC systems. The ethnographic report

was scanned from a printed document using optical

character recognition techniques. It contained scan-

ning errors that resulted in spelling and grammatical

mistakes that we left uncorrected in order to better ap-

proximate real world documents. Neither the concept

of operations nor the ethnographic data are as vocab-

ulary rich as the newspaper stories considered earlier.

Therefore they were much less computationally ex-

pensive to perform LSA on. The full process took

under a minute on a desktop machine.

We have not yet conducted a study to determine the

effects of varying the size of each document chunk,

although a trade off becomes immediately apparent.

This is that small chunk sizes (e.g. single sentences)

can lead to difﬁculty in analysts accurately interpret-

ing results as there are too many chunks and relations

to concurrently track. Larger chunk sizes abstract a

lot of the information and result in an overly granu-

lar comparison. We decided to use 5 sentences per

chunk for this experiment. This is somewhat arbitrary

and future versions will use variable size chunks, so

for example, the analyst can investigate individual re-

quirements clauses or steps in a scenario. This chunk

size was used on both the concept of operations and

the ethnographic report.

5.1 Evaluation

Two measures that can be used to demonstrate that

LSA is matching human expectation are recall and

precision. In order to calculate these measures, it is

ﬁrst necessary to manually determine the correct links

between the concept of operations and the ethno-

graphic reports. The recall and precision may then

be calculated as follows:-

1. Compute the similarities between chunks

2. Select a threshold, α in the range [-1,1]

3. Select a chunk of the concept of operations, i

4. Manually compare i to all chunks of the ethno-

graphic report to produce a set of matches, r

man

5. For chunk i determine all the chunks of the ethno-

graphic report that have a similarity value greater

than α to produce a set of matches r

lsa

6. Calculate the recall as

recall =

man

∩ r

lsa

man

(1)

7. Calculate the precision as

precision =

man

∩ r

lsa

(2)

Essentially, recall can be seen as the percentage of

correct associations in the current list with respect

to the total number of correct associations, i.e. how

many correct associations have been discovered at

this point. Precision is the percentage of correct as-

sociations with respect to the size of the associations

list, i.e. how many of the results are correct. It is

therefore expected that the recall of LSA will be high

when the threshold is low. By setting the threshold

to −1 (the lowest threshold possible) all documents

will be included in R

lsa

, ensuring total recall. In

other words, every chunk in the concept of opera-

tions will appear to be derived from every chunk in

the ethnographic report. However, this will result in

poor precision as the number of incorrect associations

in R

lsa

is high. As the threshold tends towards 1 pre-

cision should increase as the weak and noisy candi-

date matches are eliminated.

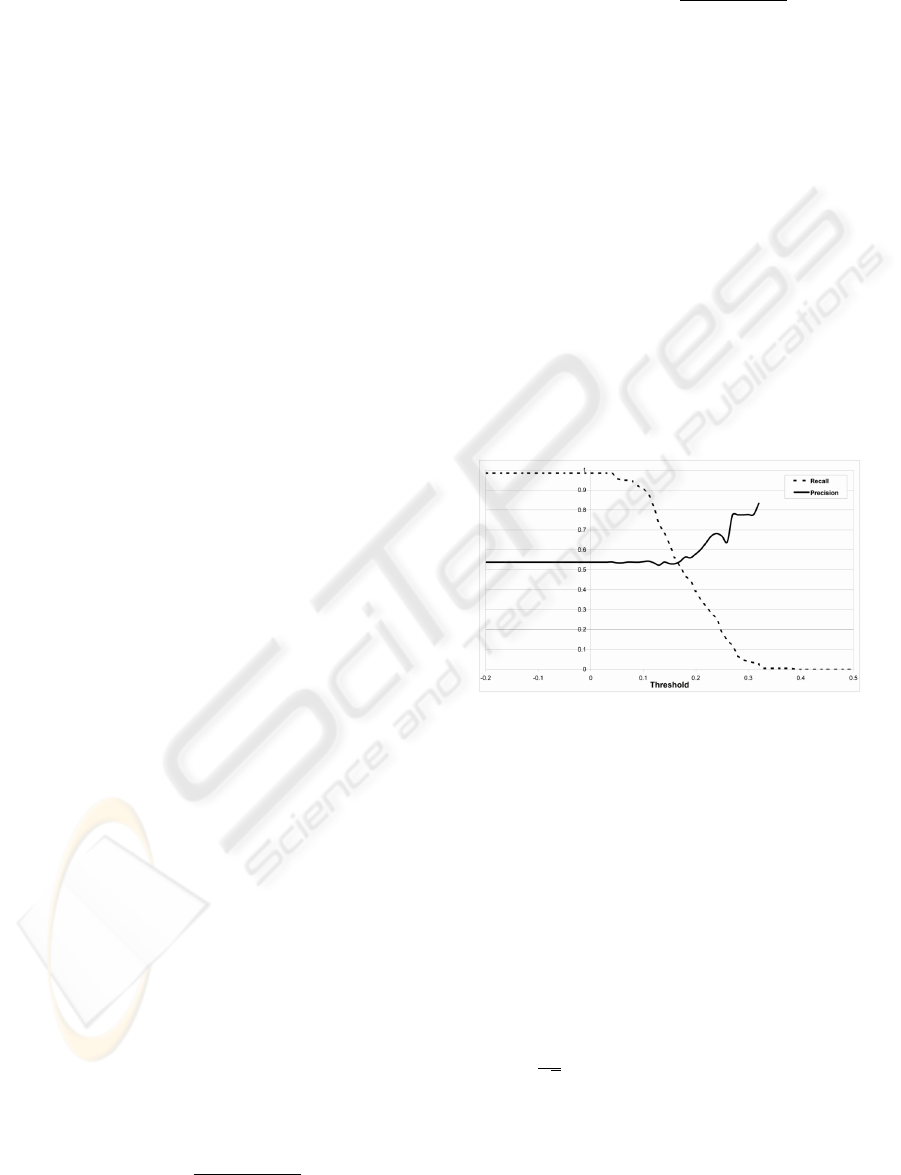

Figure 3: Recall and precision as a function of threshold.

In order to test that LSA can be used to perform se-

mantic level comparison on these sorts of documents,

the associations between 4 of the 25 chunks of the

concept of operations were recorded against the 85

chunks of the ethnographic report. These manual as-

sociations were then used to plot the recall and pre-

cision against threshold, as shown in ﬁgure 3. This

ﬁgure is made from a population sample; correspond-

ing conﬁdence interval plots are presented in ﬁgures 4

and 5. These plots show the 95% conﬁdence interval

for each sampled point, i.e. the range in which 95%

of all members of the population are contained within

assuming a normally distributed sample, calculated as

¯x ± 1.96(

√

Figure 3 clearly shows that as the minimum thresh-

old of relatedness increases the recall decreases and

the precision increases. This provides evidence that

LSA is approximating human expectations of seman-

tic equivalence for the documents being considered.

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

142

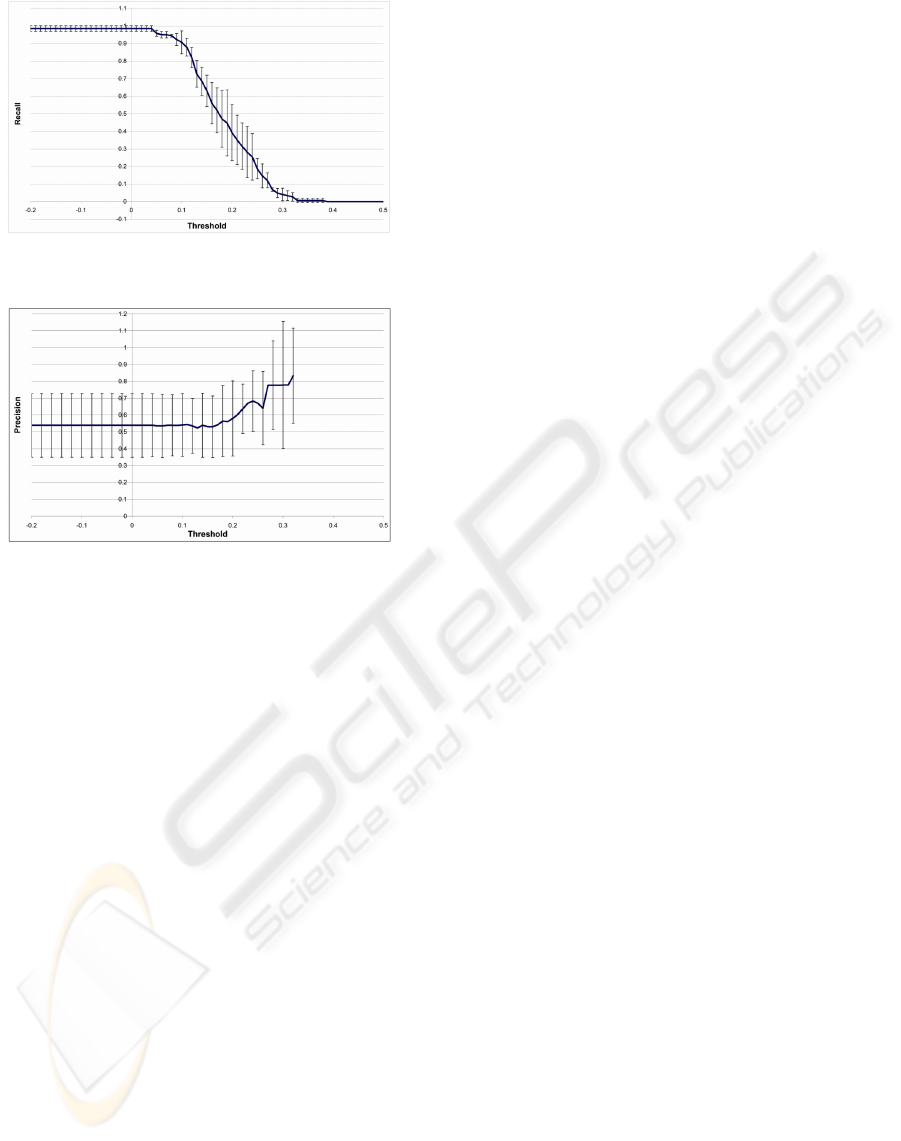

Figure 4: Recall and associated 95% conﬁdence intervals.

Figure 5: Precision and associated 95% conﬁdence inter-

vals.

If LSA was providing the opposite of human expec-

tation we would expect to see the precision drop as a

function of threshold. If LSA was producing random

results we would expect to see no trend at all in the

precision and recall curves.

5.2 Badly Sourced Material

We deﬁne any chunk as being badly sourced if it has

no relatedness to chunks belonging to other docu-

ments for α > 0.1. An examination of the chunks

of the concept of operations that were poorly sourced

fell in to two main categories:

1. A detailed description of the semantics of shared

user displays. These were requirements invented

by Bentley as part of his work on shared displays.

2. Chunks where Bentley has used knowledge from

his own ﬁeld work at the ATC centre and knowl-

edge elicited by him from the ethnographer. Nei-

ther type of information were explicitly represented

in the ethnographic report.

Other, less signiﬁcant examples of poorly sourced text

were due to us erroneously scanning too much of one

of the leading pages in the document that contained

the concept of operations, but was unrelated to the

concept of operations. LSA correctly identiﬁed this

material as not being associated with the ethnographic

report. The results also include examples of the tool

correctly identifying poorly sourced chunks of Bent-

ley’s concept of operations as potentially tacit in na-

ture. One example of this is a chunk chunk of text that

contains the lexical term ‘strip’. Strip is a common

word in both documents, but despite this the chunk

is correctly identiﬁed as poorly sourced. The chunk

deals primarily with a description of the pragmatics

of different views of the airspace, such as a written

strip view or a radar view. Similarly, despite many

instances of the word ‘radar’ in the ethnographic doc-

ument no strong link is made with this chunk, as LSA

has correctly identiﬁed that this chunk is primarily

concerned with a concept not covered in the ethnog-

raphy.

6 LIMITATIONS & FUTURE

WORK

Our approach assumes that a signiﬁcant proportion

of requirements are derived relatively directly from

elicited problem domain information. If most of

the requirements are invented rather than derived the

number of candidate matches will be too low for the

tool to offer any useful insights into requirements

provenance. In addition, there are four factors that

constrain the circumstances in which our approach is

usable:

Media are not necessarily in text form. Video, audio

and pictorial sources of information may be used to

inform a requirements speciﬁcation.

Media availability reduces the accuracy of the sys-

tem if not all source media are available. The sys-

tem is likely to identify many cases of tacit knowl-

edge if the amount of source material is relatively

small.

Inconsistent vocabulary reduces the accuracy of

techniques such as LSA. There is potential to incor-

porate tools such as WordNet (Miller et al., 1990)

to determine lexical similarity via synonym sets.

Document evolution may result in new associations

appearing and old associations being removed.

Within these constraints we believe that our prelim-

inary results demonstrate the potential of LSA to offer

insights into requirements provenance and the inﬂu-

ence of tacit knowledge. However, as noted above,

we need to provide greater ﬂexibility over chunk size.

In particular, chunks must map onto the requirements,

use cases, business events, or whatever is the natural

unit of traceability in the requirements document un-

der analysis. This will inevitably require some man-

ual pre-processing by the analyst.

USING PRE-REQUIREMENTS TRACING TO INVESTIGATE REQUIREMENTS BASED ON TACIT KNOWLEDGE

143

We also plan to evaluate LSA against other tech-

niques that may yield similar or better results. In par-

ticular, text reuse algorithms used in plagiarism de-

tection technologies may provide meaningful output,

such as n-gram overlap (Clough et al., 2002), sub-

string matching via greedy string tiling (Wise, 1996)

and sentence alignment (Piao et al., 2002).

7 CONCLUSION

We propose a method of pre-requirements tracing

that uses a corpus linguistics technique to achieve

semantic-level comparison. By splitting up require-

ments speciﬁcations and the source material from

which they were derived into chunks and compar-

ing their semantic similarities, it is possible to de-

termine likely sources for each chunk of the require-

ments speciﬁcation. Further, this permits us to iden-

tify requirements not ﬁrmly derived from the sup-

plied source material. We argue that these require-

ments represent either poorly sourced knowledge or

instances of tacit knowledge embedded in the prob-

lem domain or the analyst’s mind. We have demon-

strated that LSA, a linguistic technique designed to

overcome the problems of polysemy and synonymy,

can approximate human expectations of semantic re-

latedness between chunks of source material and their

resulting speciﬁcation. The source material contains

less rich text than found in other domains, such as

newspaper articles, but is still able to match human

expectation. We plan to show that this technique can

be used to identify instances of tacit processes and

enable pre-requirements tracing on an on-going soft-

ware development project to update the student reg-

istry system at Lancaster University.

REFERENCES

Bentley, R. (1994). Supporting Multi-User Interface De-

velopment for Cooperative Systems. PhD thesis, Lan-

caster University.

Bentley, R., Hughes, J. A., Randall, D., Rodden, T.,

Sawyer, P., Shapiro, D., and Sommerville, I. (1992).

Ethnographically-informed systems design for air

trafﬁc control. In Proceedings of ACM CSCW’92 Con-

ference on Computer-Supported Cooperative Work,

Ethnographically-Informed Design, pages 123–129.

Berry, M. W., Dumais, S. T., and O’Brien, G. W. (1995).

Using linear algebra for intelligent information re-

trieval. SIAM Review, 37(4):573–595.

Clough, P. D., Gaizauskas, R., Piao, S. L., and Wilks, Y.

(2002). Measuring text reuse. In Proceedings of

the 40th Anniversary Meeting for the Association for

Computational Linguistics.

Deerwester, S., Dumais, S., Furnas, G., Landauer, T., and

Harshman, R. (1990). Indexing by latent semantic

analysis. J. Am. Soc. for Inf. Sci., 41(6):391–407.

Dumais, S. T. (1991). Improving the retrieval of information

from external sources. Behavior Research Methods,

Instruments and Computers, 23:229–236.

Gervasi, V. and Nuseibeh, B. (2002). Lightweight valida-

tion of natural language requirements. Software Prac-

tice and Experience, 32(2):113–133.

Gotel, O. C. Z. and Finkelstein, A. C. W. (1994). An anal-

ysis of the requirements traceability problem. In First

International Conference on Requirements Engineer-

ing (ICRE), pages 94–101. IEEE Computer Society

Press.

Manning, C. D. and Sch

utze, H. (2000). Foundations of

Statistical Natural Language Processing. The MIT

Press, Cambridge, England.

Miller, G. A., R., B., Fellbaum, C., Gross, D., and Miller,

K. J. (1990). Introduction to wordnet: An on-line lexi-

cal database. Journal of Lexicography, 3(4):234–244.

Natt och Dag, J., Gervasi, V., Brinkkemper, S., and Reg-

nell, B. (2005). A linguistic-engineering approach

to large-scale requirements management. IEEE Soft-

ware, 22(1):32–39.

Piao, S. S. L., Gaizauskas, R., Clough, P. D., and Wilks,

Y. (2002). Detecting measuring text reuse based on

alignment. Natural Language Engineering (submit-

ted).

Polanyi, M. (1983). The Tacit Dimension. Paul Smith Pub-

lishing. ISBN 0-8446-5999-1.

Ramesh, B. and Jarke, M. (2001). Toward reference mod-

els of requirements traceability. IEEE Trans. Software

Eng, 27(1):58–93.

Rolland, C. and Proix, C. (1992). A Natural Language Ap-

proach For Requirements Engineering. In Loucopou-

los, P., editor, Proceedings of the Fourth Interna-

tional Conference CAiSE’92 on Advanced Informa-

tion Systems Engineering, volume 593, pages 257–

277, Manchester, United Kingdom. Springer-Verlag.

Ryan, K. (1993). The role of natural language in require-

ments engineering. In Proceedings of the IEEE Int.

Symposium on RE, pages 80–82.

Sawyer, P., Rayson, P., and Cosh, K. (2005). Shallow

knowledge as an aid to deep understanding in early

phase requirements engineering. IEEE Trans. Soft-

ware Eng, 31(11):969–981.

Wise, M. J. (1996). YAP3: Improved detection of similar-

ities in computer program and other texts. SIGCSE

Bulletin (ACM Special Interest Group on Computer

Science Education), 28.

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

144
