A HYBRID TOPOLOGY ARCHITECTURE

FOR P2P FILE SHARING SYSTEMS

J. P. Mu

noz-Gea, J. Malgosa-Sanahuja, P. Manzanares-Lopez,

J. C. Sanchez-Aarnoutse, A. M. Guirado-Puerta

Department of Information Technologies and Communications,

Polytechnic University of Cartagena,

Campus Muralla del Mar, 30202, Cartagena, Spain

Keywords:

Peer-to-peer, structured networks, unstructured networks, application layer multicast.

Abstract:

Over the Internet today, there has been much interest in emerging Peer-to-Peer (P2P) networks because they

provide a good substrate for creating data sharing, content distribution, and application layer multicast appli-

cations. There are two classes of P2P overlay networks: structured and unstructured. Structured networks can

efﬁciently locate items, but the searching process is not user friendly. Conversely, unstructured networks have

efﬁcient mechanisms to search for a content, but the lookup process does not take advantage of the distributed

system nature. In this paper, we propose a hybrid structured and unstructured topology in order to take ad-

vantages of both kind of networks. In addition, our proposal guarantees that if a content is at any place in the

network, it will be reachable with probability one. Simulation results show that the behaviour of the network

is stable and that the network distributes the contents efﬁciently to avoid network congestion.

1 INTRODUCTION

The main characteristic of an overlay network is that

all the computer terminals that shape it are organized

deﬁning a new network structure overlayed to the ex-

istent one. They are purely distributed systems, and

can be used in a lot of interesting ﬁelds: for exam-

ple, to transmit multicast trafﬁc in a unicast network

(like Internet), technique known as Application Layer

Multicast (ALM). However, the most popular overlay

networks are peer-to-peer (P2P) networks, commonly

used to efﬁciently download large amounts of infor-

mation. In this last scenario there are two types of

P2P overlay networks: structured and unstructured.

The technical meaning of structured is that the P2P

overlay network topology is tightly controlled. Such

structured P2P systems have a property that consis-

tently assigns uniform random NodeIDs to the set of

peers into a large space of identiﬁers. With this identi-

ﬁer, the overlay network places the terminal in a spe-

ciﬁc position into a graph. On the other hand, in un-

structured P2P networks the terminals are located in

the overlay network by one (or several) rendez-vous

terminals with network management functions.

Although unstructured P2P networks require the

presence of one controller (rendez-vous) at least, they

have the advantage that the information searching

process supports complex queries (it is a similar

methodology to that used to search for information

in Google and supports keyword and phrases search-

ing). That does not happen when the P2P network is

structured. In this case the advantages are that it en-

ables efﬁcient discovery of data items and it doesn’t

require any central controller. In addition, it is also

much easier to reorganize when changes occur (reg-

istering and leaving terminals) and, consequently, the

overlay network is more scalable and robust. Section

2 describes in depth the searching and location pro-

cess of structured and unstructured networks.

In this work we try to design a ﬁle-sharing system

that shares the advantages of both types of P2P net-

works. The users locate the contents in an unstruc-

tured way. If this search fails, the system will use an

application layer multicast service (given by a struc-

tured P2P network), to locate the terminal that owns

the searched information. It is necessary to remark

that, with the system proposed in this work, the loca-

tion of any existing content always success.

There are several proposals that try to support so-

phisticated search requirements, like (Garc

es-Erice

et al., 2003)(Mislove and Druschel, 2004)(Castro

et al., 2002a). These proposals organize P2P over-

lays into a hierarchy, and they have a high degree of

complexity.

319

Muñoz-Gea J., Malgosa-Sanahuja J., Manzanares-Lopez P., Sanchez-Aarnoutse J. and Guirado-Puerta A. (2006).

A HYBRID TOPOLOGY ARCHITECTURE FOR P2P FILE SHARING SYSTEMS.

In Proceedings of the First International Conference on Software and Data Technologies, pages 319-324

DOI: 10.5220/0001315303190324

 SciTePress

The remainder of the paper is organized as follows:

Section 2 describes the main characteristics of both,

unstructured and structured networks. Section 3 de-

scribes the system proposed in this paper in detail.

Section 4 summarizes the more relevant contributions

of the proposed solution. Section 5 shows the simula-

tion results and ﬁnally, Section 6 concludes the paper.

2 P2P OVERLAY NETWORKS

The topology in a P2P structured overlay network is

algorithmly ﬁxed. Both, the nodes and the contents,

have assigned an identiﬁer (NodeID and Key respec-

tively) belonging to the same scope. These P2P sys-

tems use a hash function applied to a MAC or IP ter-

minal address and to the data content respectively, to

generate these identiﬁers. The overlay network orga-

nizes its peers into a graph that maps each data Key to

a peer, so that content is placed not at random peers

but at speciﬁed locations. This structured graph en-

ables efﬁcient discovery of data items using the given

Keys: a lookup algorithm is deﬁned and it is respon-

sible for locating the content, knowing its identiﬁer

only. However, in its simple form, this class of sys-

tems does not support complex queries. They only

support exact-match lookups: one needs to know the

exact Key of a data item to locate the node(s) respon-

sible for storing that item. In practice, however, P2P

users often have only partial information for identify-

ing these items and tend to submit broad queries (e.g.,

all the articles written by ”John Smith”) (Garc

es-

Erice et al., 2004). Some examples of P2P struc-

tured networks are: CAN, Chord, Tapestry, Kademlia

and Viceroy (Stoica et al., 2003), (Zhao et al., 2004),

(Maymounkov and Mazi

eres, 2002).

Unstructured P2P networks are composed of nodes

that are linked to the network without any previous

knowledge of the topology. The terminals need to

know beforehand the location of a central controller,

also denoted rendez-vous point, responsible for in-

cluding them within the overlay network and for stor-

ing their contents list. The overlay networks orga-

nize peers in a random graph in a ﬂat or hierarchical

manner (e.g., Super-Peers layer). The search requests

are sent to the rendez-vous node, and this evaluates

the query locally on its own content, and supports

complex queries. If the content is not located in the

rendez-vous, most of the available networks use ﬂood-

ing or random walks or expanding-ring Time-To-Live

(TTL) search on the graph to query content stored by

overlay peers. This is inefﬁcient because queries for

content that are not widely replicated must be sent to

a large fraction of peers, and there is no coupling be-

tween topology and data items’location (Lua et al.,

2005). Some examples of P2P unstructured networks

are: Gnutella, FastTrack/Kazaa, BitTorrent and eDon-

key 2000 (Lua et al., 2005).

In sum, for a human being, the searching process

is easier in an unstructured network, since this is

made using patterns of very high level (like in Google,

for example). Nevertheless, there exists much inefﬁ-

ciency in the location process of the content. In struc-

tured networks, exactly the opposite happens: the lo-

cation is quasi-immediate, but the searching process

is more tedious.

3 DESCRIPTION OF THE

SYSTEM

Our proposal tries to deﬁne a hybrid system. There-

fore, the user can search contents using more or less

general parameters and later choosing among the el-

ements that satisfy the searching criterion that con-

tent which he wishes to download, like in unstruc-

tured networks. Nevertheless, the network will be or-

ganized in a structured way, which will facilitate the

location of the contents.

All the nodes are immersed in a structured overlay

network (anyone of the previously mentioned types).

In addition, the nodes divide automatically into dif-

ferent sub-groups, in a more or less uniform way, sur-

rounding a rendez-vous node. This node has the best

peformances in terms of CPU, bandwidth and relia-

bility (see Section 3.2). When searching for a content,

the user will send the search parameters to its rendez-

vous, and this will return information about who has

the contents in this sub-group.

All the rendez-vous nodes of the network are going

to be members of a multicast group deﬁned within

the same structured network. This way, if the search

fails, the rendez-vous node will send the request to the

rest of rendez-vous nodes in a multicast way. Fig. 1

describes the general architecture of the system.

GENERAL OVERLAY NETWORK

MULTICAST GROUP

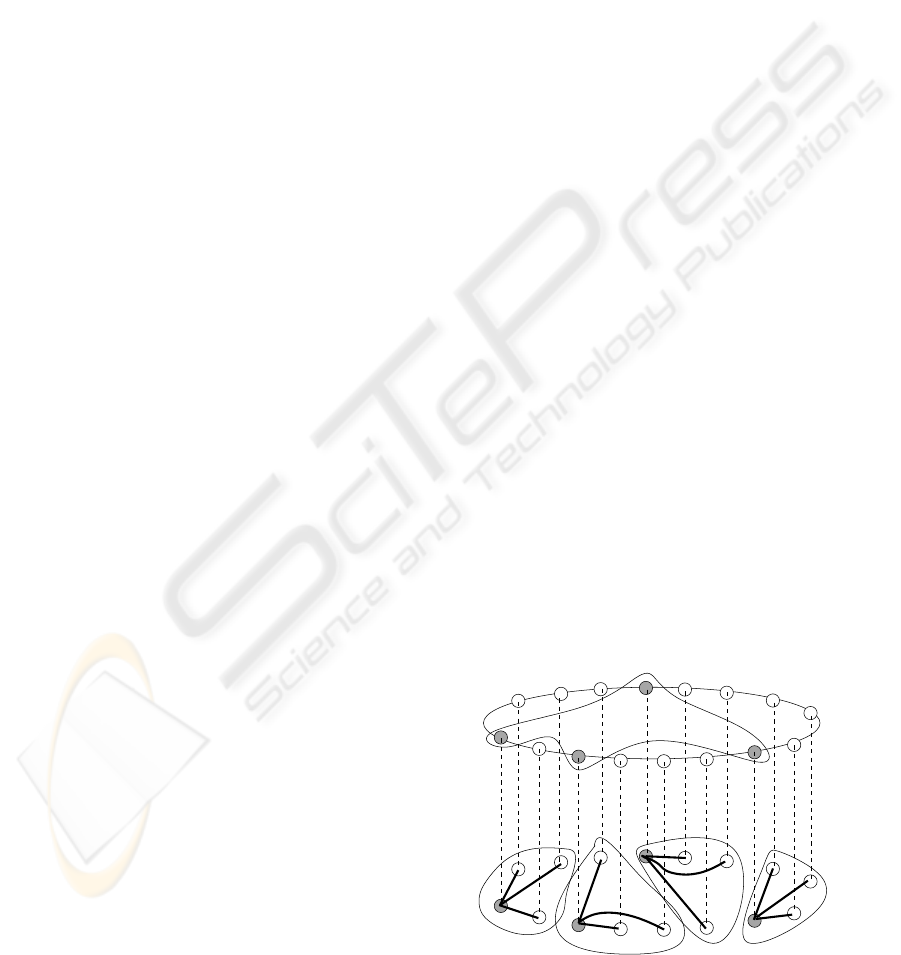

Figure 1: General architecture of the system.

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

320

3.1 Obtaining the Identiﬁers and

Joining the General Network

Every node needs to obtain a NodeID. In this work,

this identiﬁer is obtained applying a hash function

(MD5 or SHA-1) to its MAC or IP address. In the

same way each node also needs to obtain a Sub-

groupID that identiﬁes the sub-group to which the

node is going to belong. We propose to use a previ-

ously well-known server to obtain this identiﬁer. Each

sub-group will have a maximum number of nodes,

and the nodes will be assigned by order to each one

of the sub-groups until completing their maximum ca-

pacity. When the existing sub-groups are completed

new sub-groups will be created.

As is usual in any structured network a node needs

to know at least one address of another node in the

overlay network. The previous server can also pro-

vide this information. Finally, the node will have to

link to the P2P overlay network, using the mechanism

imposed by the structured network.

3.2 Joining the Sub-group

Each node of the sub-group will be able to establish a

TCP connection with its rendez-vous node, and they

will send their content list to it. Each sub-group is

identiﬁed by a SubgroupID. Initially, a node looks for

its rendez-vous. To do this, it uses the structured net-

work to locate the node which NodeID ﬁts with its

SubgroupID. This node knows the IP address of the

rendez-vous node of its sub-group. The last step con-

sists of transmitting this information to the requester

node. Note that in this way the system builds an un-

structured network by using an underground struc-

tured network. In addition, this last property allows

us to deﬁne the rendez-vous nodes dynamically and

to guarantee the stability of the network throughout

time.

3.3 Management of the Hierarchy

When the new node ﬁnds its rendez-vous, it notiﬁes

its resources of bandwidth and CPU. The rendez-vous

nodes control the nodes that are linked to their sub-

group and they form an ordered list of future rendez-

vous candidates: the longer a node remains connected

(and the better resources it has), the better candidate

it becomes. This list is transmitted to all the members

of the sub-group, and when the rendez-vous fails, the

ﬁrst node in the list becomes its successor. Later, it

must inform all sub-group members that this node is

now the new rendez-vous. Also, it must to modify

this information in the node which NodeID ﬁts with

its SubgroupID.

3.4 Management of the Rendez-Vous

Nodes

All the rendez-vous nodes are members of a multicast

group deﬁned at application level. When a node be-

comes rendez-vous, it must be linked to this multicast

group, in order to spread the unsuccessful searches

to the rest of sub-groups. Structured P2P networks

can be used to implement an application layer multi-

cast service, for example CAN-Multicast (Ratsanamy

et al., 2001), Chord-Multicast (El-Ansary et al., 2003)

and Scribe (Castro et al., 2002b). Each one uses a

different P2P overlay and it can implement the mul-

ticast service using ﬂooding (CAN-Multicast, Chord-

Multicast) or the construction of a tree (Scribe). Any-

one of the previous methods provides an efﬁcient

mechanism to identify and to send messages to all the

members of a group.

Our proposal uses Chord-Multicast. It is not nec-

essary that the multicast process reaches all the group

members before sending the searching results to the

requester node. When one node responds afﬁrma-

tively to a request it sends to the requester’s rendez-

vous the coincidences of the search in its database.

Next, this rendez-vous gives back immediately the

IP address and the corresponding metadata to the re-

quester node. Therefore, the requester node obtains

the searching results as soon as possible.

3.5 Registering the Shared Files

In a similar way to KaZaA, when a node establishes

connection with its rendez-vous it sends the meta-

data of those ﬁles that it wants to share. This allows

the rendez-vous to maintain a data base including the

identiﬁers of the ﬁles that all the nodes of the sub-

group are sharing and the corresponding IP address

of the node that contains them. The information sent

by the node includes the name of the ﬁle, its size and

its description.

3.6 Search

When a user wishes to make the search of certain con-

tent, his node sends a request on the TCP connec-

tion established with its rendez-vous. For each co-

incidence of the search in the data base, the rendez-

vous gives back the IP address and the corresponding

metadata.

If the search fails, the user has the possibility of

asking for to its rendez-vous node that tries to contact

with other rendez-vous. The identiﬁcation of those

nodes is simple, since all belong to the same applica-

tion layer multicast group.

A HYBRID TOPOLOGY ARCHITECTURE FOR P2P FILE SHARING SYSTEMS

321

4 ADVANTAGES OF THE

SYSTEM

Next we are going to describe some of the contribu-

tions of the system proposed in this work. First, it is

necessary to emphasize that all the nodes are assigned

to a sub-group and not to a server. The nodes are able

to automatically ﬁnd the rendez-vous responsible for

their sub-group.

It is also necessary to emphasize that this system is

able to manage the heterogeneity of the network too.

The most stable nodes and those with better beneﬁts

will become rendez-vous nodes, which will increase

the network performances.

On the other hand, the application layer multicast

service provides an effective way to share informa-

tion among rendez-vous nodes. In this way the main-

tenance of multicast group is practically made in an

automatic mode. In addition, this guarantees that any

content in the network can be located by any user.

Finally, the searches will be made in a simple way,

similar to those made in current unstructured ﬁle-

sharing applications.

5 SIMULATIONS

One of the advantages of this system, commented

previously, is that any content present in the net-

work could be located by any user. Nevertheless,

the searches of contents present in the same sub-

group will be faster and more efﬁcient than when the

searches need to use other rendez-vous nodes.

There are several interesting parameters that is nec-

essary to quantify. First, the probability that the re-

quested content is registered in the rendez-vous of the

node’s sub-group. Second, the evolution of the pre-

vious parameter throughout time. Since the users are

making successive searches of contents in other sub-

groups of the network, these automatically will be

registered in their own rendez-vous node, increasing

the value of this probability. Finally, it is also inter-

esting to ﬁnd out the average number of rendez-vous

nodes that will be consulted in order to locate a con-

tent.

In order to quantify the previous parameters a sim-

ulator in C language has been programmed. The con-

tents are classiﬁed in three classes based on the degree

of interest that they can motivate in the users (”very

interesting”, ”interesting” and ”of little interest”). At

the beginning, the available contents are distributed

in a random way among all the nodes of the network.

As has been mentioned before, the rendez-vous share

information using a Chord-Multicast procedure.

The simulation results show the probability that a

content is located in the same sub-group as the re-

0 500 1000 1500

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

P(content in rendez−vous)

Number of Iterations

Any Content

The Most Interesting Contents

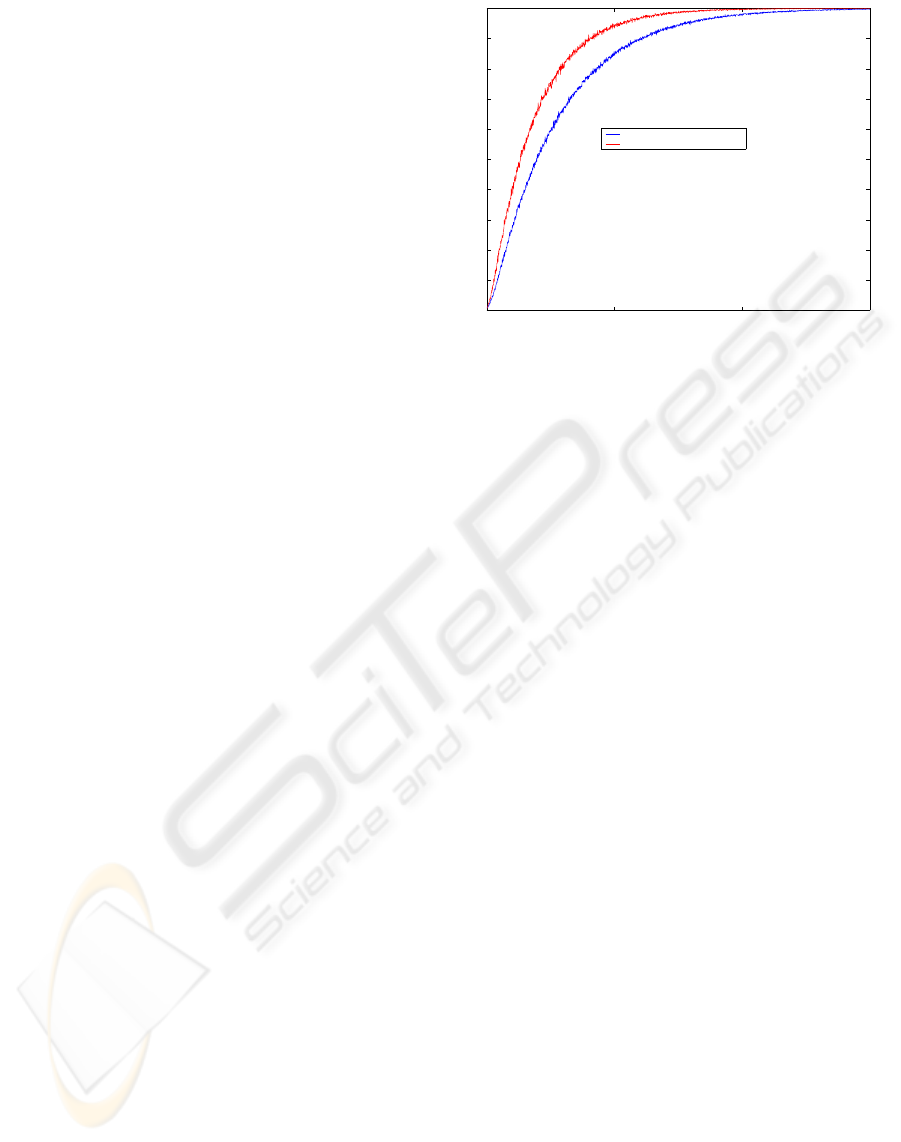

Figure 2: Probability that a content is located in the same

sub-group as the requester node.

quester node, as well as the average and maximum

number of rendez-vous consulted until content loca-

tion. All these results are obtained based on the num-

ber of simulation iterations. In each one, all the nodes

of the network ask for a content that they do not have.

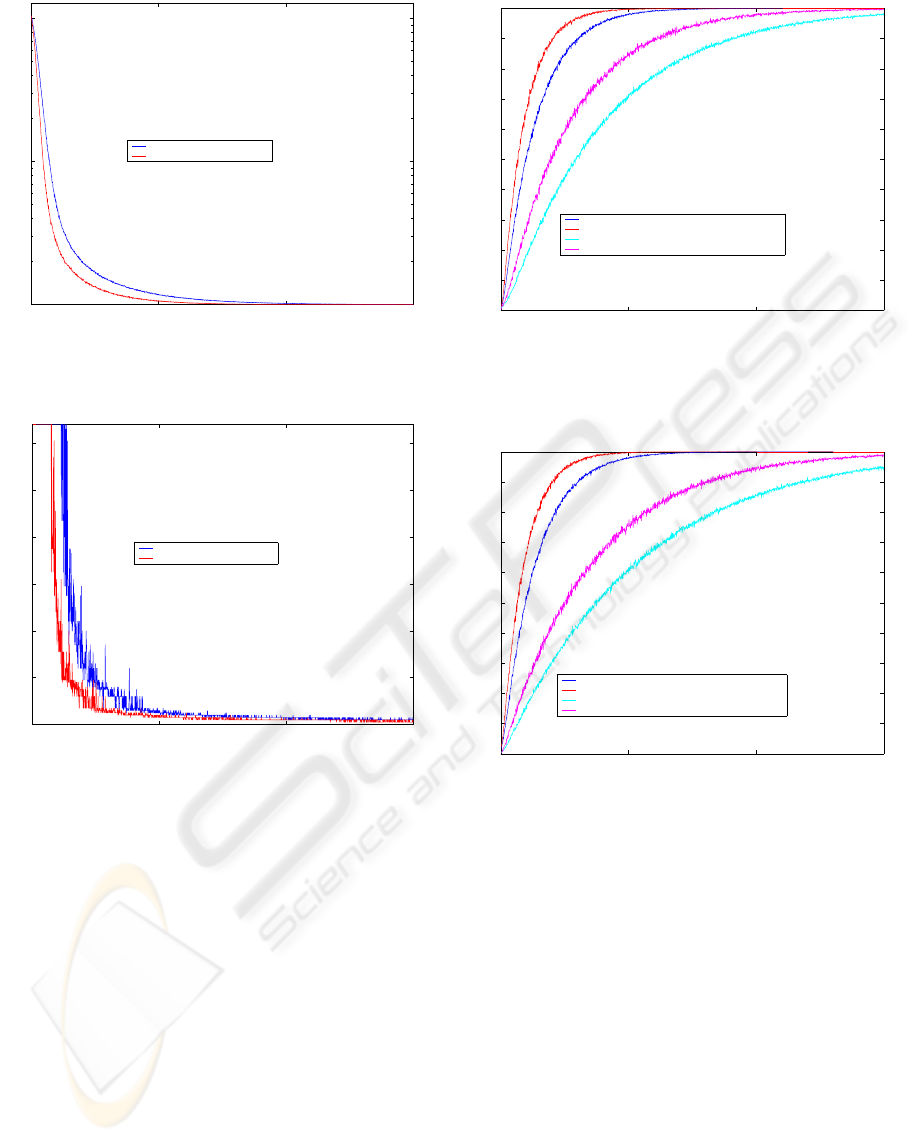

Figures 2, 3 and 4 present the simulation results

corresponding to a network with 12,800 different con-

tents and 6,400 nodes, with 128 rendez-vous nodes.

Fig. 2 shows the probability that the content is in

the same requester’s sub-group, for both the most in-

teresting contents and for any content. It is observed

that this probability grows as the number of iterations

increases, but converging to a value of one, which as-

sures that our system is stable. This also indicates

that our architecture assures that, in a few steps, the

contents will be equally distributed among all the sub-

groups. It is also possible to observe that in the transi-

tory, the probability of ﬁnding an interestig content in

the rendez-vous increases more quickly than the prob-

ability of ﬁnding any content.

Fig. 3 shows the average number of rendez-vous

consulted to ﬁnd a content. It is observed that the

number of consulted rendez-vous quickly decreases,

and when the number of iterations reaches 500 this

value converges to one, which indicates that the con-

tent is in the same sub-group as the requester node.

This shows us that the load coming from other sub-

groups is minimal. It is also observed that this param-

eter decreases more quickly in the case of the more

interesting contents than in the case of other contents.

Finally, Fig. 4 shows, in linear scale, the maximum

number of rendez-vous consulted to locate any con-

tent. This parameter oscillates a lot in the initial tran-

sitory, but when it ﬁnishes it converges to values near

the unit, agreeing practically with the average num-

ber.

Next, we are going to check the effect that both the

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

322

0 500 1000 1500

Number of rendez−vous consulted

Number of Iterations

Any Content

The Most Interesting Contents

Figure 3: Average number of rendez-vous. consulted until

content location (in semilogarithmic scale).

0 500 1000 1500

100

120

Maximum number of rendez−vous consulted

Number of Iterations

Any Content

The Most Interesting Contents

Figure 4: Maximum number of rendez-vous. consulted until

content location (in linear scale).

number of contents and the number of rendez-vous

nodes have on the probability that a content is located

in the same requester’s sub-group. Figure 5 shows the

previous probability but with 6,400 and 19,200 con-

tents. It can be observed that when the number of

contents in the network diminishes the probability of

ﬁnding it in the same requester’s sub-group increases

more quickly. On the other hand, when the number of

contents in the network increases, a greater number

of iterations is needed for the previous probability to

reach the value of one.

Besides, Figure 6 shows the previous probability in

a similiar network but with 64 and 256 rendez-vous

nodes. It can be observed that the effect of the num-

ber of rendez-vous on this probability is quite similar

to the effect of the number of contents. When the

number of rendez-vous diminishes, the probability of

ﬁnding a content in the same requester’s sub-group

0 500 1000 1500

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

P(content in rendez−vous)

Number of Iterations

Any Content, with 6,400 contents

The Most Interesting Contents, with 6,400 contents

Any Content, with 19,200 contents

The Most Interesting Contents, with 19,200 contents

Figure 5: Probability that a content is located in the same

sub-group as the requester node, with 6,400 and 19,200 con-

tents.

0 500 1000 1500

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

P(content in rendez−vous)

Number of Iterations

Any Content, with 64 rendez−vous

The Most Interesting Contents, with 64 rendez−vous

Any Content, with 256 rendez−vous

The Most Interesting Contents, with 256 rendez−vous

Figure 6: Probability that a content is located in the same

sub-group as the requester node, with 64 and 256 rendez-

vous.

increases more quickly. On the other hand, when the

number of rendez-vous increases, a greater number of

iterations is needed to obtain a probability close to

one.

Next, we are going to compare the presented ap-

proach with the existing ones. In (Garc

es-Erice et al.,

2003), peers are organized into groups, and each

group has its autonomous intra-group structured over-

lay network and lookup service. Groups are organized

in a top-level structured overlay network. To ﬁnd a

peer that it is responsible for a key, the top-level over-

lay ﬁrst determines the group responsible for the key;

the responsible group then uses its intra-group over-

lay to determine the speciﬁc peer that is responsible

for the key. However, due to the use of structured net-

works this system does not support complex queries.

A HYBRID TOPOLOGY ARCHITECTURE FOR P2P FILE SHARING SYSTEMS

323

The main advantage of this system is to reduce the ex-

pected number of hops that are required for a lookup,

but in any case this is bigger than in our system, since

in steady state only one hop is required.

In (Mislove and Druschel, 2004), they call an in-

stance of a structured overlay as a organizational ring.

A multi-ring protocol stitches together the organiza-

tional rings and implements a global ring. Each ring

has a globally unique ringID, which is known by all

the members of the ring. Every search message car-

ries, in addition to a target key, the ringID in which

the key is stored. Then, the node forwards the mes-

sage in the global ring to the group that corresponds

to the desired ringId. When a key is inserted into a

organizational ring, it is necessary that a special indi-

rection record is inserted into the global ring that as-

sociates the key with the ringID of the organizational

ring where key is stored. However, the expected num-

ber of hops that are required for a lookup is similar to

the previous work.

Finally, in (Castro et al., 2002a), it is proposed the

use of a universal ring, but it provides only bootstrap

functionality while each service runs in a separate

P2P overlay. The universal ring provides: an indexing

service that enables users to ﬁnd services of interest, a

multicast service used to distributed software updates,

a persistent store and distribution network that allows

users to obtain the code needed to participate in a ser-

vice’s overlay and a service to provide users with a

contact node to join a service overlay.

6 CONCLUSIONS

This paper presents a hybrid P2P overlay network

that makes easier for the user both the searching pro-

cess and the content location. The simulation results

show that in this type of networks the contents are dis-

tributed in a way that minimizes the overload on the

rendez-vous nodes.

We have also veriﬁed that an increase of both the

number of rendez-vous and of contents increases the

number of necessary iterations to guarantee that the

content is located in the same requester’s sub-group.

ACKNOWLEDGEMENTS

This work has been supported by the Spanish Re-

searh Council under project TEC2005-08068-C04-

01/TCM and with funds of DG Technological Innova-

tion and Information Society of Industry and Environ-

ment Council of the Regional Government of Murcia

and with funds ERDF of the European Union.

REFERENCES

Castro, M., Druschel, P., Kermarrec, A.-M., and Rowstron,

A. (2002a). One ring to rule them all: Service dis-

covery and binding in structured peer-to-peer overlay

networks. In Proceedings of the SIGOPS European

Workshop, Saint-Emilion, France.

Castro, M., Druschel, P., Kermarrec, A.-M., and Rowstron,

A. (2002b). Scribe: A large-scale and decentralized

application-level multicast infrastructure. IEEE Jour-

nal on Selected Areas in Communications (JSAC),

20(8):100–110.

El-Ansary, S., Alima, L. O., Brand, P., and Haridi, S.

(2003). Efﬁcient broadcast in structured p2p net-

works. In Proceedings of the Second International

WorkShop on Peer-to-Peer Systems (IPTPS03), pages

304–314, Berkeley, CA, USA.

Garc

es-Erice, L., Biersack, E. W., Ross, K. W., Felber,

P. A., and Urvoy-Keller, G. (2003). Hierarchical peer-

to-peeer systems. In Proceedings of ACM/IFIP Inter-

national Confeence on Parallel and Distributed Com-

puting (Euro-Par), Klagenfurt, Austria.

Garc

es-Erice, L., Felber, P. A., Biersack, E. W., Urvoy-

Keller, G., and Ross, K. W. (2004). Data indexing in

peer-to-peer dht networks. In Proceedings of the 24th

International Conference on Distributed Computing

Systems, pages 200–208, Tokyo, Japan.

Lua, K., Crowcroft, J., Pias, M., Sharma, R., and Lim,

S. (2005). A survey and comparison of peer-to-peer

overlay networks schemes. IEEE Communications

Surveys & Tutorials, 7(2):72–93.

Maymounkov, P. and Mazi

eres, D. (2002). Kademlia: A

peer-to-peer information system based on the xor met-

ric. In Proceedings of the First International Work-

shop on Peer-to-Peer Systems (IPTPS02), pages 53–

65, Cambridge, MA, USA.

Mislove, A. and Druschel, P. (2004). Providing administra-

tive control and autonomy in structured peer-to-peer

overlays. In Proceedings of the Third International

Workshop on Peer-to-Peer Systems (IPTPS04), pages

162–172, San Diego, CA, USA.

Ratsanamy, S., Handley, M., Karp, R., and Shenker, S.

(2001). Application-level multicast using content-

addressable networks. In Proceedings of the Third In-

ternational Workshop on Networked Group Commu-

nication, pages 14–29, London, UK.

Stoica, I., Morris, R., Liben-Nowell, D., Karger, D. R.,

Kaashoek, M. F., Dabek, F., and Balakirshnan, H.

(2003). Chord: a scalable peer-to-peer lookup proto-

col for internet applications. IEEE/ACM Transactions

on Networking, 11(1):17–32.

Zhao, B. Y., Huang, L., Stribling, J., Rhea, S. C., Joseph,

A. D., and Kubiatowicz, J. D. (2004). Tapestry: A

resilient global-scale overlay for service deployment.

IEEE Journal on Selected Areas in Communications

(JSAC), 22(1):41–53.

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

324
