SMART BUSINESS OBJECT

A New Approach to Model Business Objects for Web Applications

Xufeng (Danny) Liang

School of Computing and Mathematics, University of Western Sydney, Sydney, Australia

Athula Ginige

School of Computing and Mathematics, University of Western Sydney, Sydney, Australia

Keywords: Business Object, Modelling Lang

uage, Web Engineering, Rapid Development.

Abstract: At present, there is a growing need to accelerate the development of web applications and to support

continuous evolution of web applications due to evolving business needs. The object persistence capability

and web interface generation capability in contemporary MVC (Model View Controller) web application

development frameworks and model-to-code generation capability in Model-Driven Development tools has

simplified the modelling of business objects for developing web applications. However, there is still a

mismatch between the current technologies and the essential support for high-level, semantic-rich modelling

of web-ready business objects for rapid development of modern web applications. Therefore, we propose a

novel concept called Smart Business Object (SBO) to solve the above-mentioned problem. In essence,

SBOs are web-ready business objects. SBOs have high-level, web-oriented attributes such as email, URL,

video, image, document, etc. This allows SBO to be modelled at a higher-level of abstraction than

traditional modelling approaches. A lightweight, near-English modelling language called SBOML (Smart

Business Object Modelling Language) is proposed to model SBOs. We have created a toolkit to streamline

the creation (modelling) and consumption (execution) of SBOs. With these tools, we are able to build fully

functional web applications in a very short time without any coding.

1 INTRODUCTION

Web programming languages (such as PHP, Python,

Perl, ASP, Java, etc) and database technologies have

been around for a long time with major web

applications developed using them. However, with

the increased time-to-market pressure, we can no

longer afford the time to work with rows and

columns in sophisticated databases, and create

business web-based applications from scratch. Thus,

there is a growing need to rapidly develop web

applications that can evolve meeting the ever-

changing business needs. One of the challenges in

developing web applications is to minimise the gap

between the development domain and the actual

problem domain. This has led to investigate ways of

creating better modelling techniques that empowers

users to express their mental model at a higher-level

of abstraction. Further to find smarter tools that can

capture and convert, for implementation, those

models into software objects in order to create

powerful web applications (i.e. by executing those

models). Our work builds on early work done by

Reenskaug in MVC (Model-View-Controller): a

modelling approach to bridge the gap between users’

mind and computer data (Reenskaug, 1979b,

Reenskaug, 1979a). Moreover, empowering users

and allowing trained end users to maintain or even

enhance existing applications is a cost-effective way

to support web application evolution (Wulf and

Jarke, 2004).

The OO (Object-Oriented) paradigm provides us

with

techniques to build software applications by

mapping real world objects directly into software

objects. In the past, object mapping techniques have

proven to be successful in software engineering

projects (Casey, 1999). These techniques provided a

natural correlation between real world objects and

objects in the software and database domain.

Additionally, OO design techniques are applicable

(Danny) Liang X. and Ginige A. (2006).

SMART BUSINESS OBJECT - A New Approach to Model Business Objects for Web Applications.

In Proceedings of the First International Conference on Software and Data Technologies, pages 30-39

DOI: 10.5220/0001317800300039

 SciTePress

of handling the domain evolution (Barstow and

Arango, 1991). The encapsulation concept in OO

provides us with a systematic way to handle

software evolution. System behaviours are

encapsulated inside the objects as methods. This

provides a means for software evolution to be

handled gracefully by delegating responsibilities to

objects. The ability to systematically handle

software evolution makes object orientation a

suitable technique for implementing web

applications.

However, the traditional object concept has a low

level of abstraction and has been designed for use by

software developers. On the contrary, business

objects are “business-focused” software objects

modelled to represent real world business entities

(Lhotka, 2003). They operate at a higher level of

abstraction than software objects. Business objects

offer representations of organisational concepts,

such as resources and actors, which collaborate with

one another in order to achieve business goals

(Caetano et al., 2005). Maamar and Sutherland

(2002) state that business objects provide “an insight

into what aspects of a business should be delegated,

how these aspects may evolve, and what will be the

effect of specific changes”, and through business

objects, “managers and users can understand each

other by using familiar concepts and creating a

common model for interactions”. Thus, an important

attribute that distinguishes business objects from

traditional software objects is the fact that they can

be understood by both business (business managers

and users) and software (software developers and the

software itself). They are considered as the bridge

between software developers and domain experts.

While object-orientation has been long proven

suitable for building business applications, existing

web development tools and frameworks do not

accommodate the need for high-level modelling and

rapid development of web-based business

applications. What is required instead are business

objects that make provision for web interfaces and

behaviours, we call those web-ready business

objects. Web-ready business objects should have

associated conventions such as:

• Providing a file upload facilities for documents

or other binary media contents

• Displaying URL as hypertext links, emails

addresses as mailto hypertext links

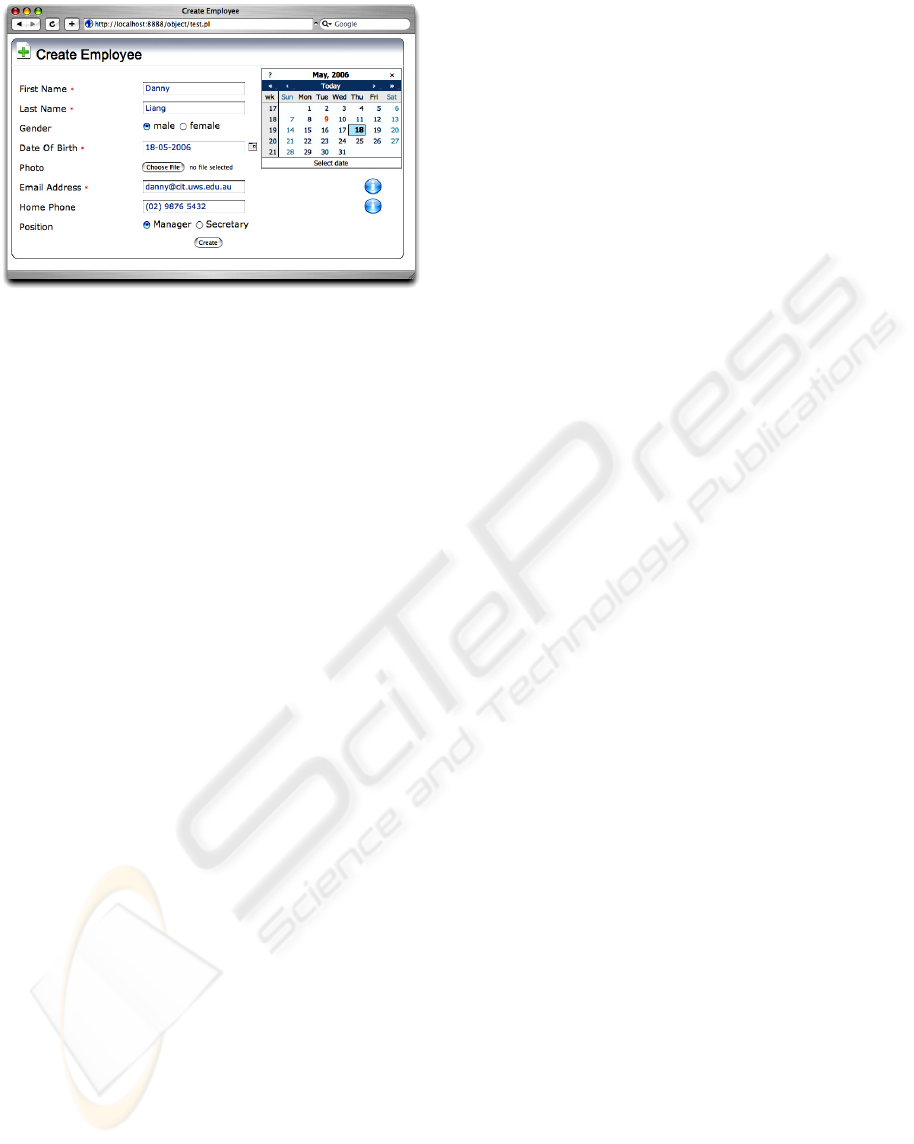

• Rendering calendars to assist user to enter date

information

• Offering the suitable media players for video

content.

In order to speed up the development of web-based

business applications, we need business objects that

incorporate those conventions. These conventions

are imperative directives that contribute to “web-

readiness” of business objects.

As a consequence, web-ready business objects

should embrace semantic-rich, web-oriented

attributes. These web-oriented attributes have high-

level, semantic-rich abstract data types (ADT) such

as: email, URL, image, video, document, and date.

These abstract data types require special validation

logic, content handling methods, and presentation

mechanisms. An image attribute for example, we

need to validate its filename appropriately, provide

an upload facility to record the image’s filename to

the database and store the actual image file to a

preconfigured location on the server (assuming that

we are not storing binary data inside the database),

and render the file content as image to the web

browser (via the

<img> tag if HTML is used). Web-

oriented attributes can affect different layers of a

web application. The benefit of being able to

program using abstract data types is well understood

in programming (see (Liskov and Zilles, 1974)).

Over decades, programmers have taken advantage of

language-provided, built-in data types, such as

“integer”, to perform normal operations, such as

arithmetic calculations, without worrying about the

underlying low-level instructions that are required to

be carried out by the machine. Similarly, in the

context of web applications, we need the direct

support for using richer and higher-level abstract

data types in order to represent web-oriented

attributes of business objects.

At present the responsibility of handling these

web-oriented richer data types is passed down to the

applications logic, based on primitive data types,

such as “string” or “text”. For example, an email

address attribute is not considered as type “email”,

but type “string” or “text”. As a consequence, web

developers need to craft the same regular expression

for validating the email address from users’ input

and customise the necessary web templates to render

the email attribute as an email hypertext link

(mailto) in every web application they build. This is

mainly due to the fact that “email” is not a built-in,

language-provided data type. The missing notion of

web-ready business objects does not only decelerate

web application developments, but also poses

impediments to business objects being modelled at a

higher level of abstraction. We cannot simply

model: “Employee has photo”, and expect a file

upload facility is provided for updating the photo

SMART BUSINESS OBJECT - A New Approach to Model Business Objects for Web Applications

attribute and a correctly displayed image of the

uploaded photo is rendered for viewing.

Thus, in this paper, we propose a Smart Business

Object (SBO) concept. SBO is designed to empower

users by addressing the issues in modelling and

building web applications. SBO uses representations

of business objects and their attributes to achieve a

higher-level of design abstraction in web

applications leading to faster development. We will

demonstrate the concept of SBO through the use of

the lightweight SBO Modelling Language (SBOML)

to model a SBO and create different views of SBO

as web applications.

2 RELATED WORK

Recent MVC web development frameworks such as

(Apple, 2001, Catalyst, 2005, Ruby on Rails, 2005)

and Model-Driven Development tools such as

(AndroMDA, 2005, openMDX, 2005, Tangible

Engineering, 2005) provided the capability of auto

generating basic web user interfaces for CRUD

(Create Retrieve Update Delete) operations for user-

defined persistent objects. The built-in capabilities

of object persistence and web presentation UI

generation in contemporary tools or frameworks

have simplified the process of developing business

objects for the web. However, the real-world

semantics and the high-level abstraction required for

rapid modelling and developing of business objects

for enterprise web applications is still missing.

Most current tools rely on low-level database

column types to determine the web presentation UI

for the corresponding business object attributes. For

example, an attribute is rendered as a textbox if its

column type in the database is ‘text’. However, the

semantics offered by database column type is

insufficient for defining business objects in web

applications. It is tedious and unproductive for

developers having to craft the same regular

expression to validate the email attribute of a

business object. For example, in Ruby on Rails, each

time we need to validate an email address attribute

of a business object, we need to code the same

regular expression:

class Employee < ActiveRecord::Base

validates_presence_of :first_name,

:last_name, :email

validates_format_of :email,:with =>

/^([^@\s]+)@((?:[-a-z0-9]+\.)+[a-

z]{2,})$/

end

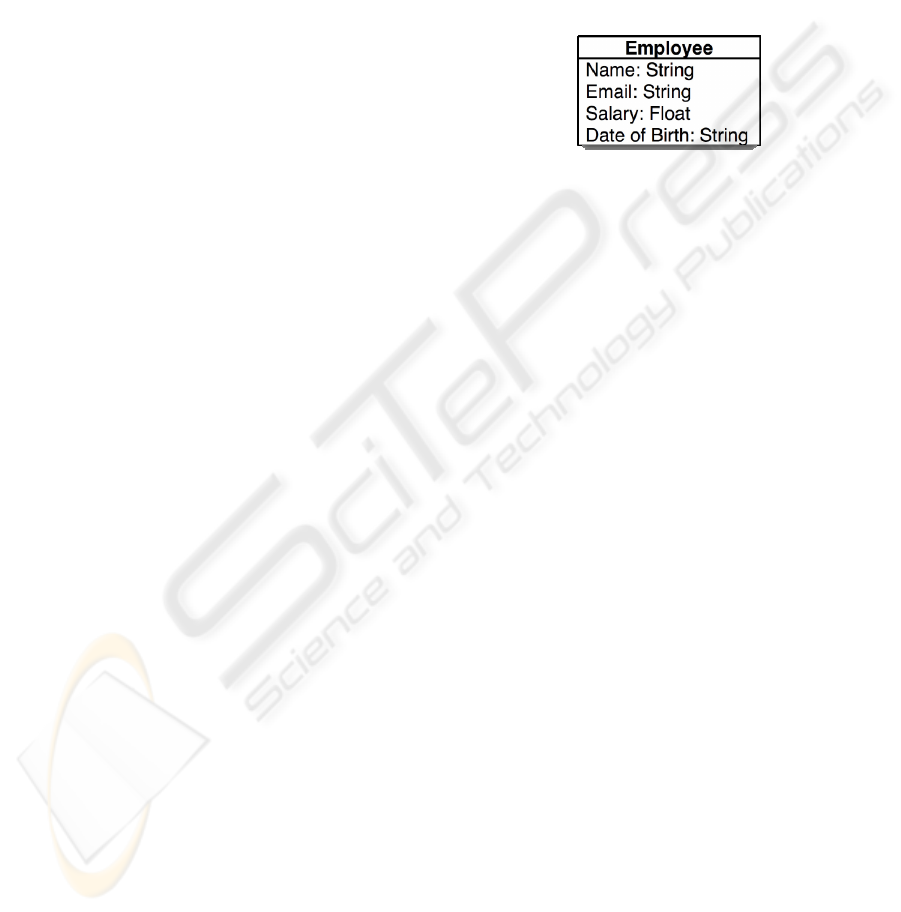

Modelling business objects in most model-driven

tools via UML class diagram variants are also low-

level and lack high-level semantics suitable for

modelling web-ready business objects. For example,

we have to model “Employee has email:string” and

then customise in different layers of an web

application (such as presentation layer and domain

layer (refers to the layers of enterprise application

defined in (Fowler, 2002))) in order to make the

email attribute to be rendered as mailto hypertext

link and to be validated properly from user inputs.

Figure 1: An UML class diagram for an employee class.

The Naked Object (Pawson and Matthews,

2002) address the problem of “behaviour

completeness” in business objects. Approaches such

as ARANEUS (Atzeni et al., 1998), WebML (Ceri et

al., 2000), and OOHDM (Rossi et al., 2000) have

focused on issues surrounding the modelling of

content, navigation, and structure in web

applications. Most of them have abstracted content

into traditional business objects. However, none has

looked at “web-readiness” of business objects and

theirs potential in raising the level of abstraction in

modelling business object in order to accelerate the

development of web applications.

3 SMART BUSINESS OBJECT

Smart Business Object (SBO) is a web-ready

business object that supports semantic-rich, web-

oriented attributes suitable for implementing web-

based business applications. As previously

mentioned, these attributes will support convention

settings such as file upload facility for documents,

displaying URLs as hypertext links, rendering a

calendar to assist user to enter date information, etc.

This enables SBOs to auto generate appropriate web

interfaces that will accelerate the development of

web-based business applications. Figure 2 is an

example of rendering a class of SBO called

“employee” as a web table with search capability. In

this example, the contents of the email address

attribute are displayed as mailto hypertext links and

the content of the photo attribute is displayed as

images.

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

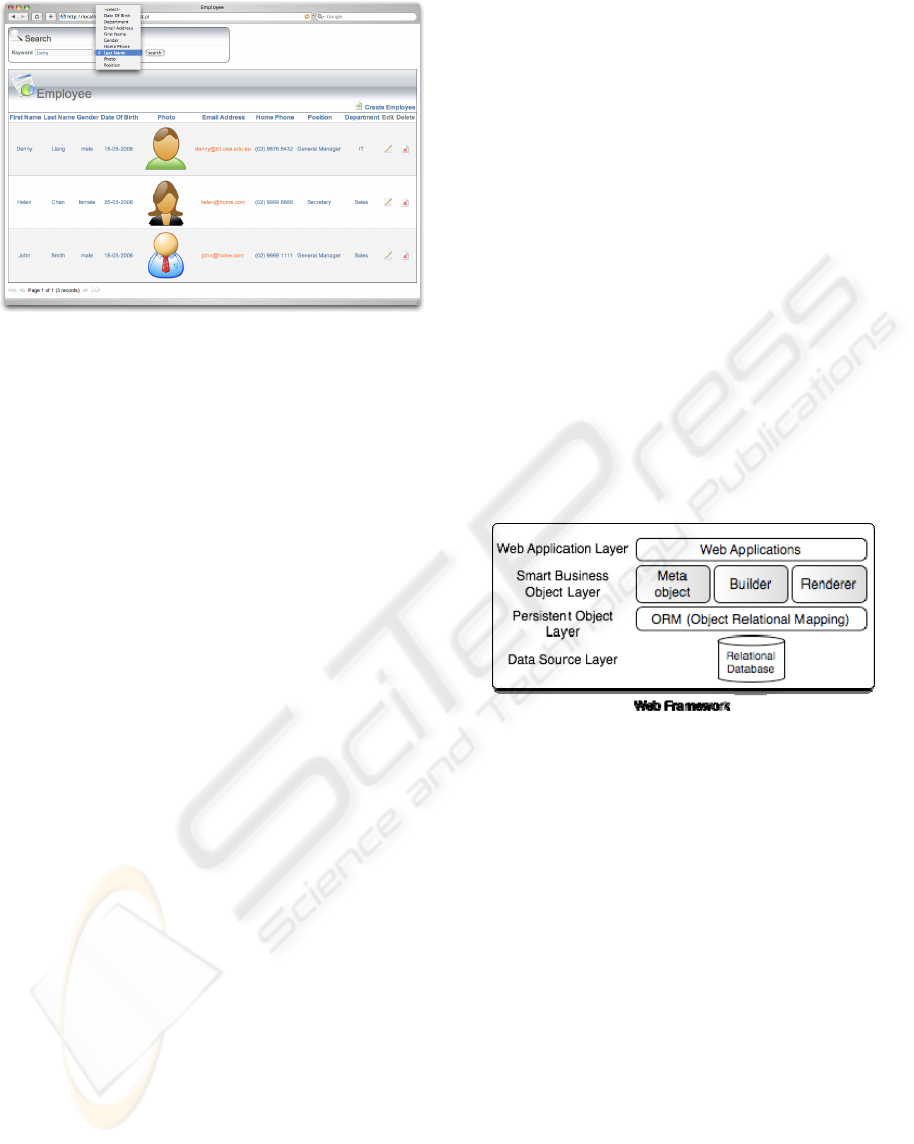

Figure 2: Rendering an SBO as a table with search

capability.

To assist the generation of useful web user

interfaces (such as in Figure 2) for rapid web

application development, each SBO have a rich set

of built-in methods (operations) for rendering

commonly used web user interfaces, such as tables,

forms, navigation menus, etc. These user interfaces

allow end users to interact with SBOs via a web

browser to perform CRUD operations or execute

various custom methods of SBOs.

The one line of code in Perl used to generate the

user interface in Figure 2 is as follow:

organisation::employee-

>render_as_search_form(create => 1,

edit => 1, view =>1, delete => 1);

In other words, render the “employee” SBO in the

“organisation” namespace as a search form, and

allow user to have create, view, edit, and delete

access to the “employee” SBO.

Users can create fully functional web applications

by modelling SBO and executing them to generate

various web user interfaces. The concept of web-

oriented attributes allows SBOs to be modelled at a

high-level of abstraction than conventional

modelling approaches.

3.1 High-Level Architecture of

Smart Business Object

SBO is a lightweight component that can be easily

integrated into existing web frameworks for building

both data intensive and process intensive web

applications. The SBO is layered on top of a

persistent object layer (Figure 3). A persistent object

layer is usually realised using ORM (Object

Relational Mapping) technologies unless an

OODBMS is used. The reference implementation of

SBO uses ORM technologies and relational database

to achieve object persistence. The Builder

component is mainly responsible for modelling

SBO. The interpreter for the SBOML lives inside the

Builder component.

SBOs are organised by their namespaces. The

relationships among SBOs are handled at the object

level (as opposed to being at the database level). The

advantage of this is that SBOs can establish

relationships with other SBOs coming from

physically diverse databases. Thus, the role of the

Metaobject component is to maintain the

relationship definition between SBOs. Moreover,

custom SBO schemas can be used to control the

behaviours of (e.g. look and feel, localisation, etc)

individual SBOs. Thus we need to preserve the

mapping information between customs schema and

SBOs. This information is also maintained by the

Metaobject component. Furthermore, the Metaobject

component also maintains the credential information

required to connect to the underlying data sources.

Figure 3: Smart Business Object high-level architecture.

As previously mentioned, SBO have a rich set of

built-in methods (operations) for rendering

commonly used web user interfaces. The Renderer

component is responsible for rendering SBOs. It has

a host of APIs (Application Programming

Interfaces) to support the generation of various web

user interfaces for SBOs. Each API provides a rich

set of options to achieve fine grain control over the

behaviours of the generated user interfaces. For

example, in Figure 2, we have enabled create, edit,

view, and delete access for the “employee” SBO.

Each API utilises one or more templates. Thus, by

specifying customised templates to the rendering

APIs, we are able to achieve different look and feel

for the generated user interfaces. If the default set of

user interfaces are insufficient for certain

application, we could extend the existing APIs (by

subclassing them) or add new APIs.

SMART BUSINESS OBJECT - A New Approach to Model Business Objects for Web Applications

3.2 The Smart Business Object

Schema

The SBO has a default schema to control the global

behaviours of all SBOs. The schema defines a set of

default templates used by each rendering API. Thus,

by specifying different templates in the default

schema or specifying custom schemas, we can

change the look and feel of various user interfaces

generated by the Renderer.

Additionally, the schema defines the behaviours

of each attribute type. By customising the attribute

type definitions in the default schema or by

specifying custom schemas, we can easily change

the behaviours of existing SBO attributes or add new

ones.

In turn, each attribute type definition defines a

number of behaviours of an attribute, such as:

validations, localisation, option values, and

formatting and conversion of values. SBO generates

the appropriate web user interfaces for its attributes

based on their nominated attribute type given when

the SBO was modelled. For SBO attributes whose

attribute type is not explicitly defined during the

time when the SBO is modelled, SBO will aggregate

the meta-information of the underlying data source,

such as the table definition of a database, and match

them against the known attribute types defined in the

specified schema to logically derive the most

suitable (conventional) web user interfaces for those

SBO attributes at run-time.

In this way, the modelling of SBO can be greatly

simplified. For example, we can simply model

“employee has email”, then the generated

“employee” SBO automatically and smartly

considers its email attribute as being of the high-

level type “email” without extra declaration. This

feature adds smartness to SBOs. Thus, we are able to

achieve a much higher level of abstraction than

traditional modelling approaches.

A partial extract from the default SBO schema

implemented in XML is given below:

<?xml version="1.0" encoding="UTF-8" ?>

…

<table_template>

table.tt

</table_template>

…

<attribute_definition>

…

<name>salary<name>

<validate>MONEY</validate>

<to_ui>

Renderer::_to_ui_money

</to_ui>

</format>

</attribute>

<name>photo<name>

<validate>FILENAME</validate>

<to_ui>

Renderer::_to_ui_file

</to_ui>

<to_db>

Renderer::_to_db_file

</to_db>

</convert>

<to_ui>

Renderer::_to_ui_image

</to_ui>

</format>

</attribute>

<name>gender<name>

<option>female</option>

</attribute>

…

</attribute_definition>

…

</sbo>

In the example schema, “<smartness>” defines

whether SBO should automatically derive the high-

level attribute types for its attributes. The

“

<table_template>” element defines that the

“

table.tt” template file will be used for the

rendering API(s) responsible for rendering SBOs as

a web table.

Different attribute types are defined within the

“

<attribute_definition>” element. For

example, in the “

gender” attribute, we have

specified two option values: “

male” and “female”.

For the “

photo” attribute, we have specified various

trigger functions to control the conversion and

formatting behaviours. Firstly, we define that

“

photo” is a “file” type, such that a file upload

input field is provided by default. Before saving the

value from users’ input (usually via web forms

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

generate by the SBO), the “

_to_db_file” function

is triggered, such that the filename of the uploaded

image file is saved in the underlying database and

the actual binary image file is saved on a

preconfigured location on the server. Similarly,

during retrieval, each value of the “

photo” attribute

is sent to the “

_to_ui_file” trigger function in

order to construct the necessary URL path needed

access the image file on the server. Then it is sent to

the “

_to_ui_image” function for formatting, such

that the values are displayed as images on users’

web browser (such as via the HTML

<img> tag).

The “employee” SBO in Figure 2 is rendered

utilising various high-level attribute types defined in

the default SBO schema, including “

photo”

attribute type that we have just discussed. We can

always define new trigger function in order to

handle special attribute types.

3.3 Smart Business Object

Modelling Language

According to Pilone and Pitman(2005), modelling is

“a means to capture ideas, relationships, decisions,

and requirements in a well-defined notation that can

be applied to many different domains”. Domain

modelling is the building of an object model of the

domain that incorporates both behaviour and data

(Fowler, 2002). To streamline the modelling and

creation of SBOs, we need a higher-level modelling

language. SBOML (Smart Business Object

Modelling Language) is a lightweight modelling

language designed for modelling SBO.

SBOML is not proposed to be another object-

oriented programming language or to extent existing

OO concepts. Its main intention is to be a

lightweight modelling language that leverage on

existing, most commonly used (conventional) OO

concepts that are suitable for building web based

business applications. It brings OO concepts closer

to users’ mental model. It is designed to allow users

to express their domain specific business objects in

near natural language syntax.

In this section, we will use the following

conventions to represent the formal construction of

the SBOML:

• Keyword elements are emphasised in both bold

and italic

• Normal style texts represent user-defined

elements

• When an element consists of a number of

alternatives, the alternatives are separated by a

vertical bar (“|”)

• Optional elements are indicated by square

brackets (“[” and “]”)

• An ellipsis (“...”) indicates the omission of a

section of a statement, typically refers to

recursive statements.

The statement for defining SBO attributes,

methods, and ‘has’ relationships between SBOs is as

follow:

in namespace, business object has

attribute A [([mandatory] [type] [which

could be option a or option b])],

[might have] [many] another business

object [(has attribute B, attribute C,

yet another business object (has

...))]... ,[ use method A (method name

type from location [option is value,… ]

[with attribute A, attribute B,… | with

attribute A as parameter name abc ,

attribute B as parameter name …]),

service B...]

The “

in” clause defines the namespace where the

subsequent business object(s) are created within. If

the namespace does not exist, a new namespace is

created. The “

has” clause defines the attributes of

the intended SBO, or ‘has’ relationships with

another intended SBO. The optional “

use” clause

defines the methods (operations) of the SBO. We

first explain the statement by referencing to a simple

example:

in organisation, employee has first

name, last name, gender, date of birth,

photo, email address, home phone,

position (has title, description)

Literally, we have just defined an “employee”

SBO and a “position” SBO where “employee” has a

“position”. When the above statement is executed,

and we can directly render the “employee” SBO to

the web, such as to generate a web form for adding

new employees (creating new “employee” SBO

instances).

SMART BUSINESS OBJECT - A New Approach to Model Business Objects for Web Applications

Figure 4: Rendering the “Employee” SBO as a web form.

As previously mentioned, by default, a SBO

predicts its attribute types by matching the attribute

name against the defined attributes types in the

default SBO schema. Thus, when rendered as a web

form (Figure 4), the “employee” SBO automatically:

• Enforce first name, last name, date of birth, and

email address attributes as mandatory fields and

enforce the appropriate validation rules to all

corresponding fields

• Provide the “male” and “female” option values

to the gender attribute according to SBO

schema

• Provide a calendar to assist users for date entry

for the “Date of Birth” attribute and present the

date according to users’ locale setting

• Provide a file upload facility for the photo

attribute to upload binary image file

• List the available positions as options items

(assuming that we have previously created some

“Position” SBO instances), due the relationship

established between the “employee” SBO and

the “position” SBO

We can always overwrite the default settings, and

explicitly declare the attribute type. For example:

in organisation, employee has first

name, last name,…, department

(mandatory name which could be IT or

Sales)

By default, all defined attributes are optional,

except for whose attribute types are defined as

mandatory in the specified SBO schema or due to

the requirement of the underlying data source (such

as a NOT NULL column of a database table). In the

example, the “

mandatory” keyword enforces that

the value of the department attribute cannot be

empty (i.e. a mandatory field on a web form). The

“name” specifies the type of attribute. Thus, could

be any attribute type defined in the default SBO

schema or in any custom SBO schema. The “

which

could be … or” clause allows users to specify the

possible value set of an attribute. In case of the

department attribute in the example, option values

are “IT” and “Sales”.

The “

many” keyword indicates a “has many”

relationship, in UML terms, the cardinality is [1..*].

In combination with the “

might have” keyword,

i.e. “

might have many”, then the cardinality

becomes [0..*]. For example:

in organisation, employee has first

name, last name,…, might have many

office (has room number, building id)

SBO can easily aggregate local functions or

remote service as its methods (operations). This

enables SBO to be seamlessly integrated with

workflow engines and SOA (Service-Oriented

Architecture) to develop more complex process

oriented business web applications. This can be

achieved using the “

use” clause. For example:

in organisation, employee has first

name, last name,…, use notify HR

(notify_HR from

http://10.10.10.2/notify.wsdl with

first name as param_first_name, last

name as param_last_name)

In the example, “

notify HR” is the name of the

method for the employee SBO, and “

notify_HR” is

the actual name of the remote method “

from” the

WSDL file located at

“

http://10.10.10.2/notify.wsdl”. In the

reference current implementation, the SBO support

Web Services and XML-RPC for remote invocation.

Thus, the “

type” keyword could be: Local (for

executing local application APIs), Web Service, or

XML-RPC. The “

with” keyword is used to indicate

the mapping of the attributes of the SBO to the

required parameters of the remote method. In the

example, when the “

notify_HR” method is

executed, the value of the first name and last name

of an “employee” SBO instance is passed to the

“

param_first_name” parameter and the

“

param_last_name” parameter respectively.

Depending on the nature of the remote method, more

arguments, such as URI, may be required to identify

and execute the remote method, thus the clause

within the squarely blanket allows user to specify

key-value pairs for any optional argument that is

needed.

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

After incorporating the changes to example

shown in Figure 4, when we retrieve an instance of

the “employee” SBO and render it as a web form

again, it would generate the screen shown in Figure

5. Now, users can assign a department, multiple

offices to the employee and click the “notify HR”

button to execute a web service.

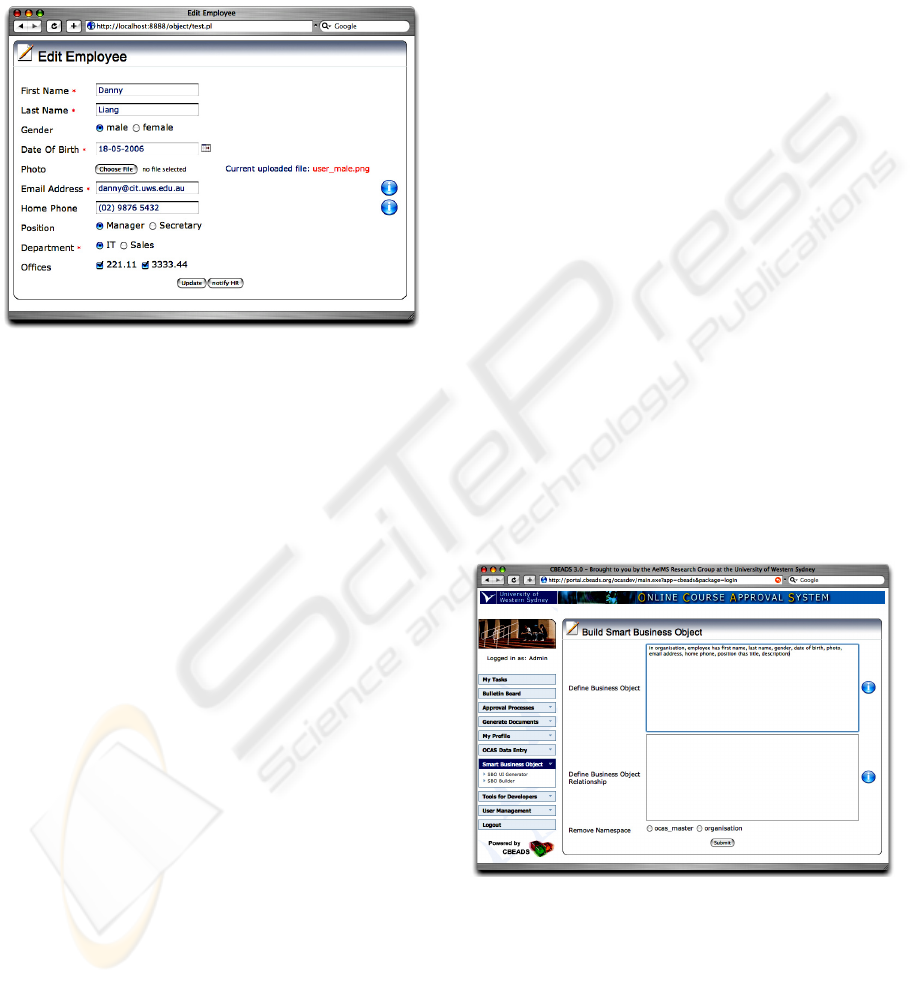

Figure 5: Rendering the “Employee” SBO as a web form

with a department, multiple offices and a new method.

We can use the following statements to explicitly

define relationships among existing SBOs. For

“has” relationships, we could use either:

in namespace, business object has|

might have another business object [as

attribute X] [via yet another business

object]

business object in namespace has| might

have another business object in another

namespace [as attribute X] [via yet

another business object in yet another

namespace]

The second construct allows SBOs to establish

relationships across namespaces. The “

as” clause is

to nominate a specific attribute as a reference to a

foreign SBO instance. For example:

in organisation, employee might have

employee as supervisor

In the above example, the “employee” SBO has a

self-referential “has” relationship, such that an

employee may have a supervisor, which is also an

employee.

The “via” clause is a shorthand for specifying

“many-to-many” relationships. For example:

in organisation, employee has car via

company car rental

Similarly, to define “is a” relationships (inheritance)

between SBOs, we can use either of the following

statements:

in namespace, child business object is

parent business object

child business object in namespace is

parent business object in another

namespace

For example:

in organisation, employee is person

3.4 Creating Web Applications

using Smart Business Object

The reference implementation of SBO is deployed

on a web framework called CBEADS

(Ginige et

al., 2005). We have created a lightweight SBO

toolkit, which consists of the SBO Builder (Figure 6)

and the SBO User Interface Generator (Figure 7) on

the CBEADS

framework. They are designed to

streamline the creation (modelling) and consumption

(execution) of SBOs.

Figure 6: The SBO Builder.

The SBO Builder allows users to model and create

SBOs and relationships among them using the

SBOML. The SBO User Interface Generator allows

users to easily create applications on the CBEADS

framework by rendering SBOs using the SBO

rendering APIs. It also allows users to customise

SMART BUSINESS OBJECT - A New Approach to Model Business Objects for Web Applications

various options supported by the SBO rendering

APIs.

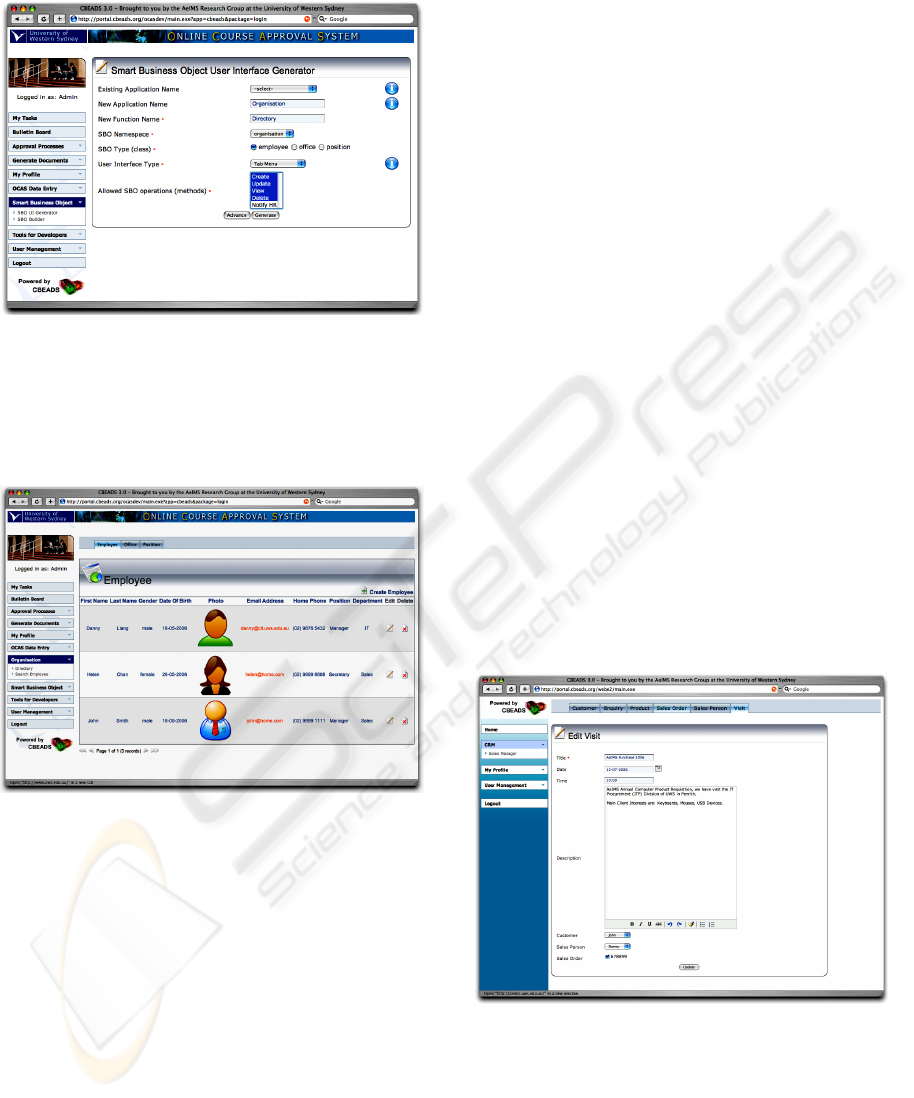

Figure 7: The SBO User Interface Generator.

The SBO toolkit allows fully functional web

applications to be created without any coding.

Figure 8 is an employee directory application

generated purely using the toolkit. It is rendering all

the SBOs in a namespace as a tab menu view.

Figure 8: View of the generated application.

3.5 Creating a Customer

Relationship Management

(CRM) Application

In this section, we will demonstrate how we can use

SBOs to generate a lightweight CRM application on

the CBEADS

framework. According to the actual

business requirements, we need to first identify the

actors and their actions, for example:

• Potential customers can make enquiries about

products, request sales people to visit them to

discuss about products, and make purchases

• Sales persons need to keep track of customers,

visits, and sales orders.

Next, we need to identify the necessary business

objects:

• A customer has first name last name, email

address, phone number, and address

• A sales person has first name, last name, and

phone number

• An enquiry has title, question, answer, and date

• A product has code, name, description, price,

and enquiries

• A sales order has number, customer, sales

person, products, and total amount

• A visit has title, date, time, description,

customer, sales person, and sales order.

Using the SBO Builder tool, we can generate those

business objects by expressing them in SBOML:

in crm, visit has title, date, time,

description, customer (has first name,

last name, email address, phone number,

address), sales person (has first name,

last name, phone number), sales order

(has number(mandatory alphanumeric),

many product (has code, name,

description, price, many enquiry (has

title, question, answer, date)), total

amount)

The above SBOML expression models all the

identified business objects at the same time.

However, we can also model them individually.

Figure 9: Sales management function assigned to sales

people.

Lastly, we generate various views (such as Figure 9)

of the SBOs using the SBO User Interface Generator

and assigned them to the system user groups defined

in CBEADS

. Similarly, we can easily extend the

CRM application by modelling additional business

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

objects, such as suppliers or competitors, to meet the

evolving business needs.

Once the business objects and the views of the

business objects based on the actions actors need to

perform are identified, we can quickly generate fully

functional web-based applications using SBO toolkit

and the CBEADS

framework. Thus, the overall

development time can be greatly reduced.

4 CONCLUSION

In this paper, we have introduced the Smart Business

Object concept. The SBOs support semantic-rich,

web-oriented attributes. We have presented a

modelling language that allows users to express their

mental model at a higher-level of abstraction. We

have created a tool that generates web-ready Smart

Business Objects from the high-level models. We

have demonstrated the significant benefits of

utilising Smart Business Object in web application

development such as ability to model the application

based on high level business domain objects and

very rapid development of the application using the

tools that we have created.

We have implemented several industry projects

using SBOs. A significant project is an enterprise

level application; the Online Course Approval

System (OCAS) (University of Western Sydney,

2006) developed for University of Western Sydney

(UWS). The use of SBOs greatly reduced the low

level modelling activities such as creating ER

diagrams and database schemas and enabled us to

rapidly develop OCAS.

REFERENCES

Andromda (2005) Cutting Edge MDSD/MDA Toolkit.

APPLE (2001) WebObjects 5 Reviewer’s Guide.

Atzeni, P., Gupta, A. & Sarawagi, S. (1998) Design and

maintenance of data-intensive web-sites. the 6th

International Conference on Extending Database

Technology: Advances in Database Technology

(EDBT'98). Springer-Verlag.

Barstow, D. & Arango, G. (1991) Designing software for

customization and evolution. Proceedings of the 6th

international workshop on Software specification and

design.

Caetano, A., Silva, A. R. & Tribolet, J. (2005) Using roles

and business objects to model and understand business

processes. Symposium on Applied Computing. Santa

Fe, New Mexico, ACM Press.

Casey, R. M. (1999) Object Mappings in a Software

Engineering Project. Software Engineering Notes -

ACM SIGSOFT, 24.

Catalyst (2005) Welcome to Catalyst Development.

Ceri, S., Fraternalli P. & Bongio, A. (2000) Web

Modeling Language (WebML): a Modeling Language

for Designing Web Sites. WWW9 Conference.

Fowler, M. (2002) Patterns of Enterprise Application

0Architecture, Addison-Wesley Professional.

Ginige, J. A., Silva, B. D. & Ginige, A. (2005) Towards

End User Development of Web Applications for

SMEs: A Component Based Approach. ICWE 2005.

Sydney, Australia.

Lhotka, R. (2003) Expert One on One Visual Basic .NET

Business Objects, Birmingham, Wrox Press Ltd.

Liskov, B. & Zilles, S. (1974) Programming with Abstract

Data Types. Symposium on Very High Level

Programming Languages.

Maamar, Z. & Sutherland, J. (2002) Toward intelligent

business objects. Communications of the ACM, 43.

OPENMDX (2005) openMDX - the leading open source

MDA platform.

Pawson, R. & Matthews, R. (2002) Naked Objects, John

Wiley and Sons Ltd.

Pilone, D. & Pitman, N. (2005) UML 2.0 in a Nutshell,

Sebastopol, O'Reilly Media, Inc.

Reenskaug, T. (1979a) MODELS - VIEWS -

CONTROLLERS.

Reenskaug, T. (1979b) THING-MODEL-VIEW-

EDITOR:an Example from a planning system.

Rossi, G., Garrido, A. & Schwabe, D. (2000) Navigating

between objects. Lessons from an object-oriented

framework. ACM Computing Surveys (CSUR), 32.

Ruby on Rails (2005) Web development that doesn't hurt.

Ruby on Rails.

Tangible Engineering (2005) Tangible Architecture.

University of Western Sydney (2006) Online Course

Approval System (OCAS). University of Western

Sydney (UWS).

Wulf, V. & Jarke, M. (2004) The Economics of End-User

Development. Communications of ACM, 47.

SMART BUSINESS OBJECT - A New Approach to Model Business Objects for Web Applications
