TOWARDS ANCHORING SOFTWARE MEASURES

ON ELEMENTS OF THE PROCESS MODEL

Bernhard Daubner and Bernhard Westfechtel

Bayreuth University, Applied Computer Science I

95440 Bayreuth, Germany

Andreas Henrich

Bamberg University, Media Informatics

96045 Bamberg, Germany

Keywords:

Automatic software measurement, anchoring software measures, process models, measurement tool, maven.

Abstract:

It is widely accepted that software measurement should be automated by proper tool support whenever possible

and reasonable. While many tools exist that support automated measurement, most of them lack the possibility

to reuse deﬁned metrics and to conduct the measurement in a standardized way. This article presents an

approach to anchor software measures on elements of the process model. This makes it possible to deﬁne

the relevant software measures independently of a concrete project. At project runtime the work breakdown

structure is used to establish a link between the measurement anchor points within the process model and the

project entities that actually have to be measured.

Utilizing the project management tool Maven, a framework has been developed that allows to automate the

measurement process.

1 INTRODUCTION

Effective management of software development pro-

jects requires permanent assessment of both the ac-

tual projects and the underlying development pro-

cesses. Managers need to control projects quantita-

tively in order to maximize estimation accuracy based

on historical project data, to minimize risks and time-

to-market, and to reliably reproduce the related pro-

cesses (Auer et al., 2003). As the continuous col-

lection and analysis of measurement data is crucial

in tracking and managing software development pro-

cesses efﬁciently, the measurement process must be

automated by proper tool support whenever it is pos-

sible and reasonable.

Today many tools are available to compute certain

measures about software artifacts like source code, to

store measurement data in a database and to create the

corresponding reports. Also general frameworks and

guidelines have been proposed to integrate software

measurement into the software engineering environ-

ment (Basili and Rombach, 1988), (Kempkens et al.,

2000), (M

unch and Heidrich, 2004). Finally there ex-

ist measurement approaches like GQM (Basili et al.,

1994) and PSM (McGarry et al., 2002) that support

the project manager to deﬁne what measures to col-

lect.

Within the above mentioned measurement frame-

works it is often stressed that models and metrics de-

ﬁned for the whole organization should be reused to

make measurement results comparable and to build

up an experience base that can be used to assess future

projects. In order to assure comparability of measure-

ment results, measurement must be integrated into the

software development process for a new project be-

fore project execution starts (Kempkens et al., 2000).

Concerning these last two aspects we think that

there exists no proper tool support that provides both

automated software measurement and reuse of al-

ready deﬁned metrics. Moreover, it should be possi-

ble to implement the measurement program on top of

an existing software development process. Hence, we

suggest to anchor the software measures on elements

of the applied process model. Thus the software mea-

sures that have to be collected can be determined ex

ante and independently of a concrete project. This al-

lows to deﬁne in advance, which software measures

have to be computed on every software development

project in order to make these projects comparable.

We will show within the next section that this ap-

proach is fairly new since the other published ap-

proaches either lack tool support for automated mea-

232

Daubner B., Westfechtel B. and Henrich A. (2006).

TOWARDS ANCHORING SOFTWARE MEASURES ON ELEMENTS OF THE PROCESS MODEL.

In Proceedings of the First International Conference on Software and Data Technologies, pages 232-237

DOI: 10.5220/0001318502320237

 SciTePress

surement or are based on a special process model that

is needed in order to provide automatic measurement.

2 RELATED WORK

The need for software measurement has been widely

accepted and there exist many commercial software

measurement tools. In (Auer et al., 2003) a sur-

vey on up-to-date measurement tools has been con-

ducted. Only two out of ﬁve products were able to

collect measurement data automatically. These tools

(MetricCenter

and ProjectConsole

) mainly focus

on software measures concerning the whole project

(number of requirements, number of defects, etc.).

These kinds of tools are certainly useful in order to

provide a management view on ongoing projects and

are also described in terms of project dashboards

(Selby, 2005). But we think that they hardly pro-

vide support for reuse of the deﬁned metrics to enable

more ﬁne granular comparisons between projects.

This aspect is addressed by the Software Project Con-

trol Centers decribed in (M

unch and Heidrich, 2004)

including a reference model of concepts and deﬁni-

tions around SPCCs. A tool support for the proposed

architecture however is not yet available.

In (Lott, 1996) a framework is presented to inte-

grate measurement and process models in a way that

supports automation of “measurement-based feed-

back”. Automated support for measurement-based

feedback means that software developers and main-

tainers are provided with on-line and detailed infor-

mation about their work. Lott has realized his ap-

proach by implementing a dedicated process-centered

software engineering environment. Hereby the sys-

tem informs the users about the tasks that they are

expected to perform and collects data that are associ-

ated with the realization of these tasks. However most

of the data is not measured automatically but must be

provided by the user by means of a form-based inter-

active tool.

Also the APEL (Abstract Process Engine Lan-

guage) (Dami et al., 1998) has been developed as

process modeling and controlling framework with in-

tegrated measurement. It allows the user to link the

measurement model with the process model in order

to control which measures should be collected at what

stages in the process. Since APEL acts as a workﬂow

engine the automatic support it provides only works

if the processes are exactly executed in the way they

are speciﬁed.

In (Kempkens et al., 2000) a framework for inte-

grated tool support within measurement programs is

http://www.distributive.com

http://www.ibm.com/developerworks/rational/products

presented, which gives guidelines for setting up mea-

surement tool support for software development pro-

cesses. Hereby the framework allows companies to

use their existing tools and processes. Within the pre-

sented case studies however much of the data collec-

tion was done manually and no evidence has been

given for the demanded ”reuse of models and met-

rics”.

Finally, a contrary approach has been presented by

Johnson within his conference paper ”You can’t even

ask them to push a button: [...]” (Johnson, 2001),

where he introduced the approach of his tool Hacky-

stat. The Hackystat software uses sensors to gather

the activities of each user within the software devel-

opment environment. Thus it analyses and logs what

kind of work (programming, testing, modeling, etc.)

the user is just performing. Hereby the system acts

unobtrusively and the user is in no way interrupted

within his work. It is however not easy to interpret the

vast amount of data collected by Hackstat in a mean-

ingful way.

3 ANCHORING SOFTWARE

MEASURES

3.1 Software Measures in the

Context of Process Models

Our aim is to describe a standardized way to inte-

grate software measurement into the software devel-

opment process in order to make software develop-

ment projects comparable with respect to the applied

software measures and the way the software measures

are collected.

The crucial point is that especially those software

measures that are relevant to the project at manage-

ment level are ﬁxed independently of the concrete

project. Software measures that generally have to be

collected are for instance determined at the introduc-

tion of a company wide measurement campaign (Mc-

Garry et al., 2002), are derived from tactical or strate-

gical company goals with frameworks like the Goal

Question Metric Paradigm (Basili et al., 1994) or are

determined by a process evaluation methodology like

the Capability Maturity Model Integration (CMMI)

(Chrissis et al., 2003).

This insight leads directly to our approach to an-

chor the software measures on elements of the process

model, because the process model is the basis that all

the projects we want to measure will build on.

The process model structures the software develop-

ment process into units typically called phases, dis-

ciplines or activities. Here we can distinguish be-

tween ﬁne granual process models like the V-Modell-

TOWARDS ANCHORING SOFTWARE MEASURES ON ELEMENTS OF THE PROCESS MODEL

233

, which serves as the standard process model in

Germany for managing government IT development

projects, and more “pragmatic” process models like

the Rational Uniﬁed Process (Kruchten, 2003) that

contain guidelines about the workﬂows to operate on.

One interesting question in this regard is how certain

work efforts are distributed over the activities. For

example one would expect that most of the program-

ming effort is spent on activities belonging to the im-

plementation phase. But is is not unlikely that pro-

gramming efforts also are carried out within the scope

of analysis related activities if requirements have to

be clariﬁed by means of prototypes. It might even

be possible, if the development is accomplished in an

agile way, that most of the programming effort is ac-

cumulated during analysis activities.

In order to monitor this we suggest to anchor the

appropriate size measures on the relevant elements of

the process model. Thus, we get software measures

• LOC within the scope of programming related ac-

tivities and

• LOC within the scope of analysis related activities

These measures use elements of the process model as

anchor points and not concrete artifacts.

3.2 The Work Breakdown Structure

This yields to the demand to identify the artifacts that

have been created or modiﬁed within the scope of a

certain activity of the process model in order to mea-

sure their sizes respectively. For this purpose we uti-

lize the work breakdown structure of the project as

link between the process model which the project is

based on and the above mentioned artifacts.

The work breakdown structure (WBS) (Project

Management Institute, 2001) represents the structure

of a project and contains the essential relationships

between the elements of a project. The project is

structured in a hierarchical manner into subtasks and

work packages. This leads to a tree structure as shown

in Figure 1, which contains all project activities that

have to be performed within the individual develop-

ment phases.

Identifying Artifacts Utilizing Wbs Codes

Since the WBS is based upon the activities of the pro-

cess model, we can assume that for each activity of

the process model a corresponding work package ex-

ists within the work breakdown structure. Thus we

can reduce the above demand to identify the artifacts

associated with a certain activity to the determination

of the artifacts that have been created within a certain

http://www.v-modell-xt.de

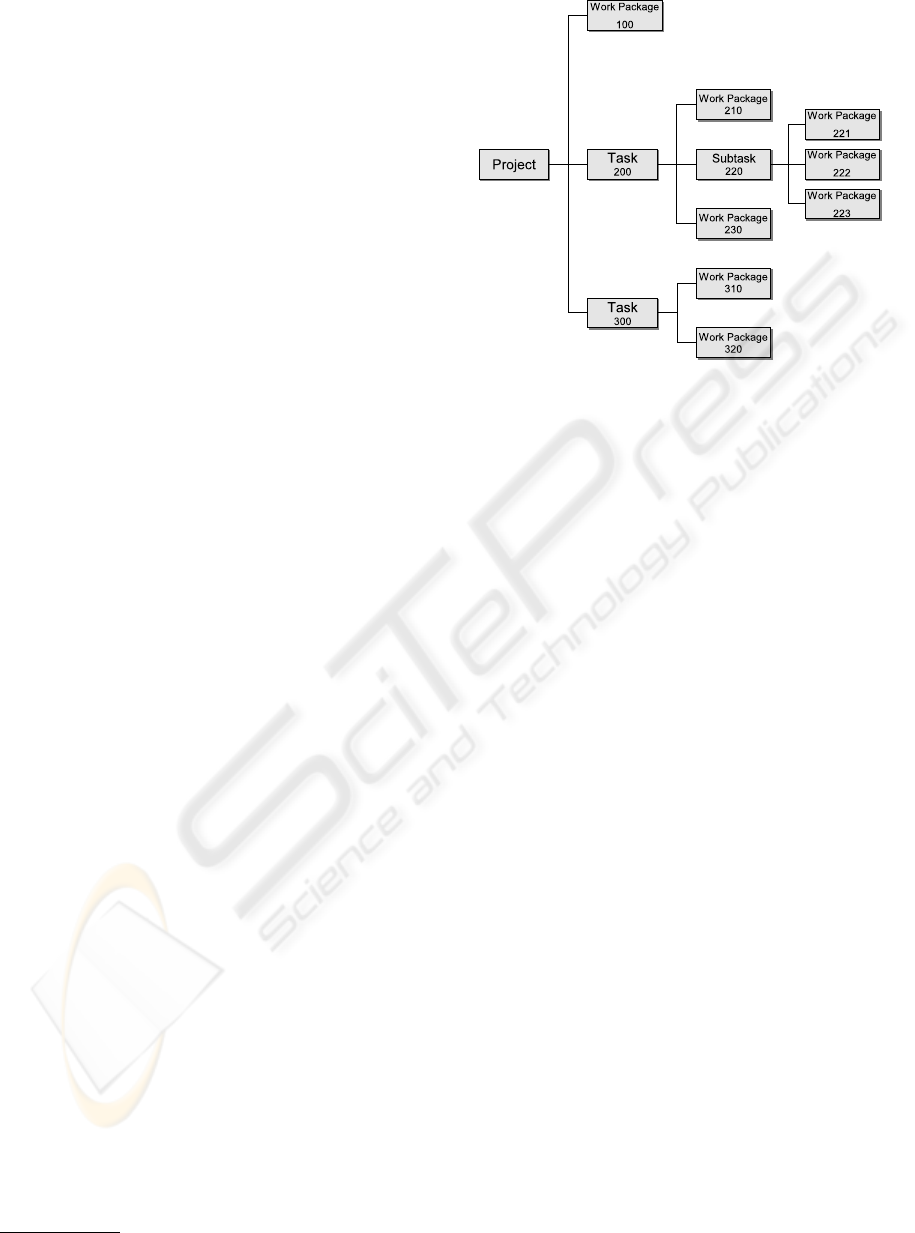

Figure 1: Work Breakdown Structure with decade code

scheme.

work package. This however is possible by means of

the identifying key (WBS Code) that usually each el-

ement of the work breakdown structure is associated

with (Project Management Institute, 2001). Using for

instance a decade code scheme (Figure 1) the num-

ber of digits unequal to 0 within the WBS code de-

termines the position of the WBS element within the

hierarchical work breakdown structure.

The WBS codes not only identify the work pack-

ages within the work breakdown structure. They also

can be used to label the artifacts that have been cre-

ated or modiﬁed within a particular work package.

For that purpose it is necessary to maintain all ar-

tifacts under version control. Whenever a commit

statement for a modiﬁed version of an artifact is exe-

cuted within the software conﬁguration management

(SCM) system, the WBS code of this work package

has to be stored together with the change-log infor-

mation.

Thus by means of the WBS code within the change-

log information of the SCM system the artifacts and

also the changes of the artifacts are associated with

the corresponding activities of the process model.

And software measures that have been anchored on

elements of the process model can be applied respec-

tively.

Cross-Project Software Measurement

Since companies usually perform several similar soft-

ware development projects, in the course of the time

a standard work breakdown structure is established

based on the company-speciﬁc process model. The

standard WBS serves as basis for the concrete work

breakdown structures used in the individual projects

(Futrell et al., 2002). For the latter this standard work

breakdown structure has to be extended or shortened

respectively.

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

234

The common elements of the WBS however keep

hold of the same WBS code. Utilizing this standard

work breakdown structure makes the application of

software measures anchored on the process model

also in a cross-project manner possible. Those soft-

ware measures that are associated with the company-

speciﬁc process model can be collected by means of

the cross-project uniform WBS codes of the corre-

sponding subtasks and work packages.

3.3 Agile Software Development

In Section 3.1 we have explained our approach con-

sidering well deﬁned process models with a clear

and elaborated structure. This immediately leads to

the question whether this approach also is applicable

on less elaborated or less process based development

methodologies. Particularly within agile development

methodologies it is not very common to establish a

work breakdown structure (Beck, 2004), (Cockburn,

2001) that our approach needs to identify the artifacts.

The apparently obvious idea to collect software

measures within the scope of the individual itera-

tions of the agile development process does not lead

to any beneﬁt in order to compare several develop-

ment projects or to assess the progress of the ongoing

project.

But also software projects using an agile develop-

ment style can be structured into at least two dimen-

sions. First of all there are several kinds of activ-

ities to distinguish that are performed during a de-

velopment project. Ambler for example mentions in

the style of the RUP the “agile disciplines” Model-

ing, Implementation, Test, Deployment, Conﬁgura-

tion Management, Project Management and Environ-

ment (Ambler, 2002). In addition to that the soft-

ware units that are created can be categorized accord-

ing to their function. Here one can think of applica-

tion logic, presentation, data management, transac-

tion management, logging etc. . This means that the

activities of an agile software project can be mapped

into a matrix with the axes discipline and function.

Therefore also the artifacts produced within an agile

project can be tagged within the SCM system with 2-

tupels that inform about the discipline they have been

created in and the function they have.

Thus, regardless of the existence of a work break-

down structure, the artifacts under version control and

the time records within the time recording system can

be tagged with codes that identify the implemented

functionality and the discipline within that scope the

effort has been performed. These codes provide a

“generic project plan” and we can use the elements

of this “generic WBS” to anchor our software mea-

sures on. In Section 4.3 we will demonstrate this agile

application of our measurement approach on a small

development project.

3.4 Preferred Usage of Our

Approach

We think that this measurement approach is prefer-

ably suitable for measures that are relevant for project

controlling. Here often the measures size, time, ef-

fort, defects and productivity are mentioned (Russac,

2002), (Putnam and Myers, 2003). For these mea-

sures our approach supports automatic measurement

and reuse.

The only thing our approach needs is that all

projects are based upon a consistent skeletal struc-

ture. This can be a standard WBS for process-based

development projects or a discipline-function-matrix

for agile projects. The skeletal structure provides the

numbering scheme in order to tag the produced ar-

tifacts within the SCM system or administrative in-

formation like time records within the time recording

system.

4 INTEGRATING AND

AUTOMATING SOFTWARE

MEASUREMENT

4.1 The Project Management Tool

Maven

In order to continuously measure the software devel-

opment process and to get the required feedback on

process improvement attempts the collection of the

software measures has to be automated and must be

integrated into the development process. Implement-

ing our approach we have restricted ourselves to Java

projects. This allows us to use the software Maven

from the Apache Project

. Maven is a tool that sup-

ports the management and the development process of

Java projects. On the one hand it supports the devel-

oper at the so called build process, i.e. Maven com-

piles the source code and considers thereby depen-

dencies like additional libraries that have to be made

available ﬁrst. With this respect Maven can be re-

garded as an alternative to Ant

In addition to that it provides means to hold im-

portant information about project members, project

ressources (e.g. documents, licences) and about the

software conﬁguration and bug tracking systems that

are used within the project. Using plugins, the func-

tionality of Maven can be extended anytime. The plu-

gins thereby can access the project information and

thus for instance access the software conﬁguration

http://maven.apache.org

http://ant.apache.org

TOWARDS ANCHORING SOFTWARE MEASURES ON ELEMENTS OF THE PROCESS MODEL

235

system in a generic manner without the need to know

the exact type of the SCM software.

4.2 Measurement Transmitters for

Software Measures

At this point we join and use Maven plugins in or-

der to implement what we call measurement trans-

mitters. In climate research measurement transmit-

ters are used for instance to measure rainfall. A soft-

ware measurement transmitter however is a Maven

plugin that is capable of computing a certain soft-

ware measure. For example a JavaLOC measure-

ment transmitter is able to determine the Lines of

Code of Java program ﬁles. And as a rainfall measure-

ment transmitter can be set up at different locations

the JavaLOC measurement transmitter can likewise

be conﬁgured in that way with the Maven XML con-

ﬁguration ﬁle that only such code lines are counted

that have been created within the scope of a certain

element of the process model.

We do this by anchoring the measurement transmit-

ter on the corresponding work package of the WBS

using the XML conﬁguration ﬁle of the plugin.

Querying the software conﬁguration management

system, which also is referenced within the Maven

conﬁguration, and utilizing the change-log informa-

tion, it is possible to identify such source code ﬁles

(including the revision numbers) that have been cre-

ated or modiﬁed within the scope of the mentioned

work packages. Now the affected versions of these

source ﬁles successively have to be checked out in or-

der to measure their changes in size in LOC.

Measurement transmitters also can be combined.

For example a JavaLOC measurement transmitter

can be combined with an Effort measurement

transmitter which leads to a simple Productivity

measurement transmitter. First the JavaLOC mea-

surement transmitter has to determine the code size.

Then the Effort measurement transmitter deter-

mines the expenditure of time by querying the time

recording database. The results refer to the same work

packages. Thus, the productivity during the treatment

of these work packages can be computed.

4.3 The Maven Measurement

Framework

We call our implementation of this measurement ap-

proach on the top of Maven the Maven Measurement

Framework (MMF). It is a framework because it con-

sists of a collection of API functions that are invoked

by Maven plugins which thereby implement the mea-

surement transmitters. The API provides the applica-

tion logic like analysing the change-logs of the SCM

system, querying the time recording database for ef-

fort information about certain work packages or ap-

plying software measures on source code ﬁles. Thus

we can provide Maven plugins for arbitrary software

measures by combining these API calls respectively.

Within the Project Object Model, the central XML

conﬁguration ﬁle of all Maven projects, the project

manager can select which Maven plugin of our frame-

work should be used and what parameters should be

passed to it, in order to deﬁne the measurement scope.

Example Use of the Maven Measurement

Framework

We have evaluated our approach on two software de-

velopment projects that have been conducted by stu-

dents within the bachelor’s study courses in computer

science at Bayreuth University. Two student teams

had to implement a client for a Mancala game

. As

the corresponding server containing the data for the

actual state of the game was alread on-hand the stu-

dents essentially had to implement the GUI and the

application logic for the client. The latter also com-

prised the implementation of a game tree in order to

ﬁnd possible moves.

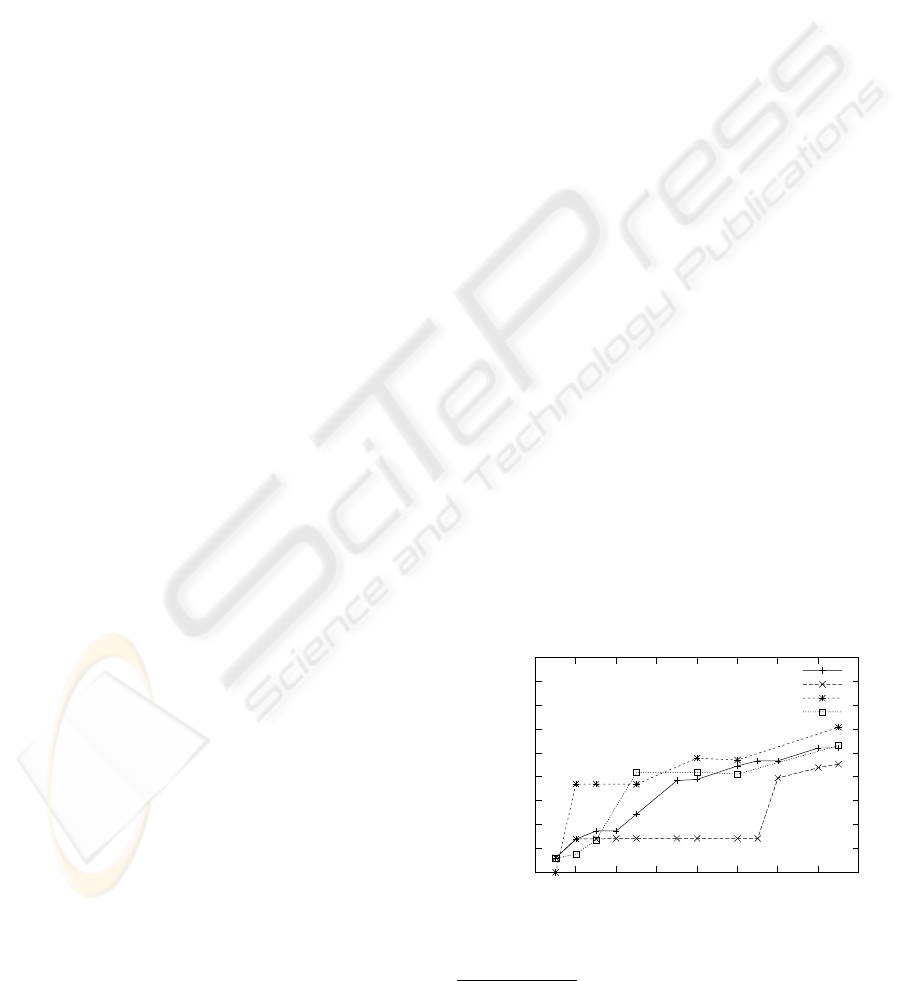

With our measurement framework we have moni-

tored the development progress of the two teams (Fig-

ure 2). The size of the Java sources is counted in Non

Commenting Source Statements

. It can be seen that

team 1 at ﬁrst has put its focus on the development

of the GUI and has implemented the application logic

not until the last four days. On the contrary, team 2

has equally developed both components in parallel

from the beginning. This measurement based anal-

ysis has been veriﬁed by the resulting programs. It

could be seen that the GUI of team 1 was more elab-

orate, whereas the program of team 2 was technically

superior.

200

400

600

800

1000

1200

1400

1600

1800

12 14 16 18 20 22 24 26 28

Code Size [JavaNCSS]

Calendar Day (March 2006)

Development Progress

GUI 1

Appl. Logic 1

GUI 2

Appl. Logic 2

Figure 2: Comparison of the Implementation Progress of

two Teams.

http://en.wikipedia.org/wiki/Mancala

http://www.kclee.de/clemens/java/javancss/

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

236

5 CONCLUSION

The automatic collection, interpretation and visual-

ization of software measures is a complex task. The

aim of this approach is to provide a lightweight

tool for project managers to assess their development

projects and the applied software process. The an-

choring of software measures on elements of the pro-

cess model enables the project manager to deﬁne soft-

ware measures in advance before a concrete project

starts. This allows for comparison of distribution ra-

tios of effort and time spent on the activities of several

projects in order to assess the progress of the current

project or the productivity of the individual projects.

Therefore we think that with our approach to an-

chor software measures on elements of the process

model and to identify by means of the work break-

down structure the entities that have to be measured

we have found a practicable tradeoff between the au-

tomatic collection of information and the additional

effort the developers have to perform.

The developers have to record their activities by

indicating the associated WBS code within the time

recording system. Furthermore these references to the

work breakdown structure must also be maintained

within the software conﬁguration management and

the bug tracking system. This is however a common

modus operandi (Selby, 2005).

With our approach we gain the possibility to collect

certain software measures in a standardized way that

allows the cross-project comparison of the measure-

ment results, because we deﬁne the entities to mea-

sure already before the start of the individual projects

on the basis of the process model. The actual compu-

tation of the software measures is realized automati-

cally at project runtime using Maven.

REFERENCES

Ambler, S. (2002). Agile Modeling: Effective Practices for

eXtreme Programming and the Uniﬁed Process. John

Wiley & Sons, New York.

Auer, M., Graser, B., and Bifﬂ, S. (2003). A survey on the

ﬁtness of commercial software metric tools for service

in heterogeneous environments: Common pitfalls. In

Proceedings of the Ninth International Software Met-

rics Symposium (METRICS 2003). IEEE Computer

Society.

Basili, V. R., Caldiera, G., and Rombach, H. D. (1994).

Goal question metric paradigm. In Marciniak, J. J.,

editor, Encyclopedia of Software Engineering, vol-

ume 1, pages 528–532. John Wiley & Sons.

Basili, V. R. and Rombach, H. D. (1988). The TAME

Project: Towards Improvement-Oriented Software

Environments. IEEE Transactions on Software En-

gineering, 14(6):758 – 773.

Beck, K. (2004). Extreme Programming explained: Em-

brace Change. Addison Wesley, Upper Saddle River,

New Jersey, second edition.

Chrissis, M. B., Konrad, M., and Shrum, S. (2003). CMMI:

Guidelines for Process Integration and Product Im-

provement. Addison-Wesley, Boston.

Cockburn, A. (2001). Agile Software Development.

Addison-Wesley, Boston, MA.

Dami, S., Estublier, J., and Amiour, M. (1998). APEL: A

graphical yet executable formalism for process mod-

eling. Automated Software Engineering: An Interna-

tional Journal, 5(1):61–96.

Futrell, R. T., Shafer, D. F., and Shafer, L. I. (2002). Quality

Software Project Management. Prentice Hall, Upper

Saddle River, NJ.

Johnson, P. (2001). You can’t even ask them to push a

button: Toward ubiquitous, developer-centric, empiri-

cal software engineering. In The NSF Workshop for

New Visions for Software Design and Productivity:

Research and Applications, Nashvile, TN.

Kempkens, R., R

osch, P., Scott, L., and Zettel, J. (2000).

Instrumenting measurement programs with tools. In

PROFES ’00: Proceedings of the Second Interna-

tional Conference on Product Focused Software Pro-

cess Improvement, pages 353–375, London. Springer.

Kruchten, P. (2003). The Rational Uniﬁed Process - An

Introduction. Addison Wesley, Boston, third edition.

Lott, C. M. (1996). Measurement-based Feedback in a

Process-centered Software Engineering Environment.

PhD thesis, University of Maryland.

McGarry, J., Card, D., Jones, C., Layman, B., Clark, E.,

Dean, J., and Hall, F. (2002). Practical Software Mea-

surement: Objective Information for Decision Mak-

ers. Addison-Wesley, Boston.

unch, J. and Heidrich, J. (2004). Software project control

centers: Concepts and approaches. Journal of Systems

and Software, 70:3–19. Issues 1–2.

Project Management Institute (2001). Practice Standard for

Work Breakdown Structures. Project Management In-

stitute.

Putnam, L. H. and Myers, W. (2003). Five Core Metrics:

The Intelligence behind successful Software Manage-

ment. Dorset House Publishing Co., New York.

Russac, J. (2002). Cheaper, better, faster: A measurement

program that works. In International Function Point

Users Group, editor, IT Measurement: Practical Ad-

vice from the Experts. Addison-Wesley, Boston, Mas-

sachusetts.

Selby, R. W. (2005). Measurement-driven dashboards en-

able leading indicators for requirements and design of

large-scale systems. In 11th IEEE International Sym-

posium on Software Metrics (METRICS 2005). IEEE

Computer Society.

TOWARDS ANCHORING SOFTWARE MEASURES ON ELEMENTS OF THE PROCESS MODEL

237
