ENGINEERING A COMPONENT LANGUAGE: COMPJAVA

Hans Albrecht Schmid, Marco Pfeifer

University of Applied Sciences Konstanz, Brauneggerstr. 55, D - 78462 Konstanz, Germany

Keywords: Components, Component language, Component composition, Component fragment, Connections.

Abstract: After first great enthusiasm about the new generation of component languages like ArchJava, ComponentJ

and ACOEL, a closer inspection and use of these languages identified together with their strong points

som

e smaller, but disturbing drawbacks. These might impede a wider acceptance of component languages,

which would be harmful since the integration of architecture description with a programming language

increases the emphasis on, and consequently the quality of application architecture. Therefore, we took an

engineering approach to the construction of a new Java-based component language without these

drawbacks. That means, we derived general component language requirements; designed a first language

version meeting the requirements and developed a compiler; used it in several projects; and re-iterated three

times through the same cycle with improved language versions. The result, called CompJava, which should

be fairly stable by now, is presented in the paper.

1 INTRODUCTION

The new generation of component languages, like

ArchJava (Aldrich, May 2002) (Aldrich, 2002),

ComponentJ (Seco, 2000), ACOEL (Sreedhar,

2002), and to a smaller degree, KOALA (van

Ommering, 2000) (van Ommering, 2002) made

enthusiastic about the new way of program

construction without reference handling. These

languages integrate architecture description with a

programming language. Thus, they push the more

abstract architecture-description-language (ADL)

based approach (see ADL classification framework

(Medvidovic, 2000), (Medvidovic, 1999)) forward

towards a direct use. Our experience confirms that

this increases the emphasis on, and consequently the

quality of application architecture.

However, a closer inspection and use of

com

ponent languages identified together with their

strong points some small, but disturbing drawbacks.

For example, ArchJava components behave like

asses with regard to some aspects. A component

class generates implicitly its type, and inheritance is

defined primarily as implementation inheritance

among components. Further, though a component is

not a class, it may inherit implementation from a

class. ArchJava re-defines constructs for concepts,

like interfaces, which it shares with Java. ACOEL

shows no symmetry with regard to the attachment of

code to provided and required interfaces. More

drawbacks and details are given in section 2.

It seems that these drawbacks might impede a

larger acceptance and broader use

of component

languages. Therefore, we designed a new

component language that does not have these

drawbacks, following a sound engineering approach.

We derived a list of component language

requirements from the identified drawbacks. We

constructed a component language that covers the

requirements (the first version being available fall

2003). Then, we used the language in projects, and

had three iterations with improved language

definitions. Now, the language will be quite stable.

Section 3 gives an overview about distinguishing

ructuring principles of CompJava, and section 4

introduces its type concept. Section 5 shows how

components are composed in a structured way from

component fragments, and section 6 shows how they

are composed from subcomponents. Section 7

presents dynamic architectures using a Web server

example.

2 LANGUAGE REQUIREMENTS

This section describes drawbacks identified in

component languages and derives specific

requirements from them. These component language

requirements complement general, but unlisted

requirements, defined by a kind of intersection of

the features of existing languages.

Albrecht Schmid H. and Pfeifer M. (2006).

ENGINEERING A COMPONENT LANGUAGE: COMPJAVA.

In Proceedings of the First International Conference on Software and Data Technologies, pages 98-106

DOI: 10.5220/0001320100980106

 SciTePress

Embedded OO-Programming Language

A component language embeds a programming

language and uses its constructs to implement

components. ArchJava which embeds Java has ports

with both provided and required interfaces. It

defines the interfaces of a port either by listing, after

the keyword provides or requires, operation

specifications, or by listing method

implementations. But you cannot define the

interfaces of a port using Java interfaces. Thus, the

identical concept “interface” is described by

different constructs in the component language and

the OO-language, which is certainly a drawback.

On the other hand, ArchJava allows to derive

components from classes, like the worker

component from the class Thread (Aldrich, May

2002). But how can a component, which is not a

class, but a first-class citizen of its own, inherit

implementation from a class?

Therefore, requirement 1 is: a component

language should not reinvent constructs for concepts

it shares with its programming language. On the

other hand, it should not intermingle differing

concepts in the component language and

programming language.

Component Inheritance

ArchJava transfers the type concept of class-based

languages directly to components. It defines a

component type implicitly as the type that is

generated by a component class, and it defines

inheritance in such a way that a derived component

inherits from a base component both the component

type and its implementation.

This has two drawbacks. A definition of a

component type that is independent from the

implementation is required to define e.g. a product

line architecture or a component framework. A

product line architecture defines product component

types which are implemented by different product

components. Similarly, a component framework

defines a set of collaborating component types

which are implemented by different components.

Second, a component should not inherit the

implementation from another component, but should

be composed with the other component in order to

reuse its functionality. Therefore, requirement 2 is

that the definition of component types and

inheritance among them should be provided, but

implementation inheritance among components

should be disallowed.

Component Encapsulation

ArchJava allows that a parent component invokes

directly internal methods of a subcomponent which

are not defined by a provided port. This breaks the

encapsulation of the subcomponent. Further, a

graceful evolution is inhibited since it is not possible

that a sibling subcomponent invokes these methods

instead of the parent component at a later point of

the evolution. On the other hand, ACOEL allows

that a parent component exposes a reference to a

subcomponent in a port. When it passes that

component reference to a sibling component, ports

of the sibling component may be connected to ports

of the subcomponent. That means a component may

be at the same time a subcomponent of two different

components. This breaks a sound architectural

structure.

Requirement 3 is that a component should be

completely encapsulated, i.e. it should collaborate

only via its ports with external code. As a

consequence, a subcomponent of a component must

not collaborate with other components outside of its

parent component. Therefore, the passing of

component or port references should be restricted or

prohibited.

Interface Symmetry

ArchJava has a complete symmetry among provided

and required interfaces with regard to their

definition and their use, since a port may comprise

both of them. ACOEL (Sreedhar, 2002) has a

symmetry with regard to their definition, but not

with regard to their use. A mix-in allows to put a

filter between a provided port and the implementing

class. But it does not allow to put a filter between

the implementing class and a required port.

Requirement 4 is that the definition and the

handling of provided and required ports should be

symmetrical.

Ports and Connectors

An ArchJava port may combine a provided and a

required interface, like:

port port1 provides m1, m2 requires m3, m4;

As usual, a port with a required interface I

may

be connected to a port with a provided interface I

when I

is a subtype of I

. But an ArchJava

connector may fork the calls from a required

interface I

to several provided interfaces like I

and

if each is a supertype of I

, and their union is a

subtype of I

, and their intersection with regard to I

is empty. For example, with port2 and port3:

port port2 provides m3, m6 requires m1, m5;

port port3 provides m4, m5, m6 requires m2, m3;

ArchJava allows to connect port1, port2, and

port3 by a connect statement. If port1 would require

additionally m6 the connection would not be correct

and rejected. This is not easy to check and

ENGINEERING A COMPONENT LANGUAGE: COMPJAVA

understand for a programmer; it might be considered

as a new kind of spaghetti problem (without dining

philosophers). Though it is easy for a compiler to

check what happens, we should disallow it.

Requirement 5 is that the definition of ports and

connectors should be made in a way that is easily

understandable to a programmer.

Collaboration of Subcomponent Ports with Code

ArchJava defines private ports in order to connect

component code with a port of a subcomponent.

However, a private port is a contradiction in itself

since the ports of a component define its interfaces

to the outside, i.e. the points of collaboration with

external code: So what is the semantics of a private

port? It is even more confusing that ArchJava allows

to connect two private ports; what does that mean?

Our conclusion is that the concept of private ports is

questionable. Requirement 6 is that an adequate

construct should connect component code with a

port of a subcomponent.

Implementation Isomorphy with OO-Based

Approach

ArchJava generates one component class which lists

the provided methods of all public and private ports

of the component. The generated code does not

group together the methods which implement the

operations of the same port. Similarly, the required

operation of all ports are always invoked from that

list of methods. There is no way to group the

methods that invoke the operations of the same port.

This is in contrast to the usual OO-based

implementation of a component where the provided

methods of each port are implemented by a different

class, and the required methods of each port are

usually invoked by methods from different classes.

Therefore, requirement 7 is that the code

generated from a component should have at least

some isomorpy with corresponding code written in

class-based OO-languages.

Implementation Efficiency

The efficiency of the code generated from a

component language may not be a primary concern

when large architectural components with powerful

operations are realized. But in many cases, the

efficiency of a frequently performed operation

invocation matters. Consider e.g. a scanner, used

e.g. as a subcomponent of a compiler, which is

certainly not a lightweight component. If it fetches

the next character from a source file over a required

interface with a getCharacter-operation (compare

section 6), the efficiency of that frequently

performed operation invocation has a strong

influence on the scanner overall performance.

Requirement 8 is that the code generated from a

component language should have about the same

efficiency for basic constructs, like e.g. operation

invocation over connected ports, as an equivalent

(but not tricky) class-based implementation. We

state that requirement due to its importance for a

wide acceptance of component languages, though

we cannot cover it in this paper for space reasons.

3 COMPJAVA OVERVIEW

Distinguishing features of CompJava are, besides

the definition of component types and component

type inheritance, its structuring facilities for

component construction. CompJava allows not only,

like the new generation of component languages, to

compose components from subcomponents in a

structured way. It allows to compose them also in

the same way from code building blocks, or from a

combination of subcomponents and filters formed

by code building blocks.

CompJava has code building blocks called

component fragments. A component fragment might

be considered as a simply structured light-weight

component without ports: it provides exactly one

interface, and it requires usually one interface. The

provided interface of a component fragment is

explicitly indicated in the form of a Java interface;

the required interfaces of a component fragment are

implicitly given by the visible ports and plugs of the

enclosing component. There are three

implementation variants of a component fragment:

anonymous class, inner class and method block;

from which a user may select the suitable one.

CompJava introduces plugs which are used

mainly for connecting component fragments with

subcomponent ports.

Ports of subcomponents are connected with the

connect-statement to other ports or plugs.

Component fragments are attached to the inside of

the component ports or to plugs with an attach-

statement. Thus, CompJava allows to compose

1. a low-level component from component

fragments, as illustrated by Figure 1 a)

2. a high-level component from subcomponents,

as illustrated by Figure 1 b)

3. a medium/high-level component from a

combination of subcomponents and component

fragments that are used as filters, as illustrated

by Figure 1 c)

in a clear, clean and structured way.

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

100

For a graphical depiction of the composition of a

component, we have enriched UML 2 component

diagrams with component fragments and plugs

(depicted by a diamond). A component fragment is

represented according to the selected

implementation as an anonymous class, an inner

class or as a method block (depicted like an

anonymous class without class head).

Comp1

(a)

«comp

fragment»

«comp

fragment»

(b)

Comp1

Comp2

Comp3

Comp4

Comp1

«comp

fragment»

«comp

fragment»

Comp2

Comp3

«comp

fragment»

(c)

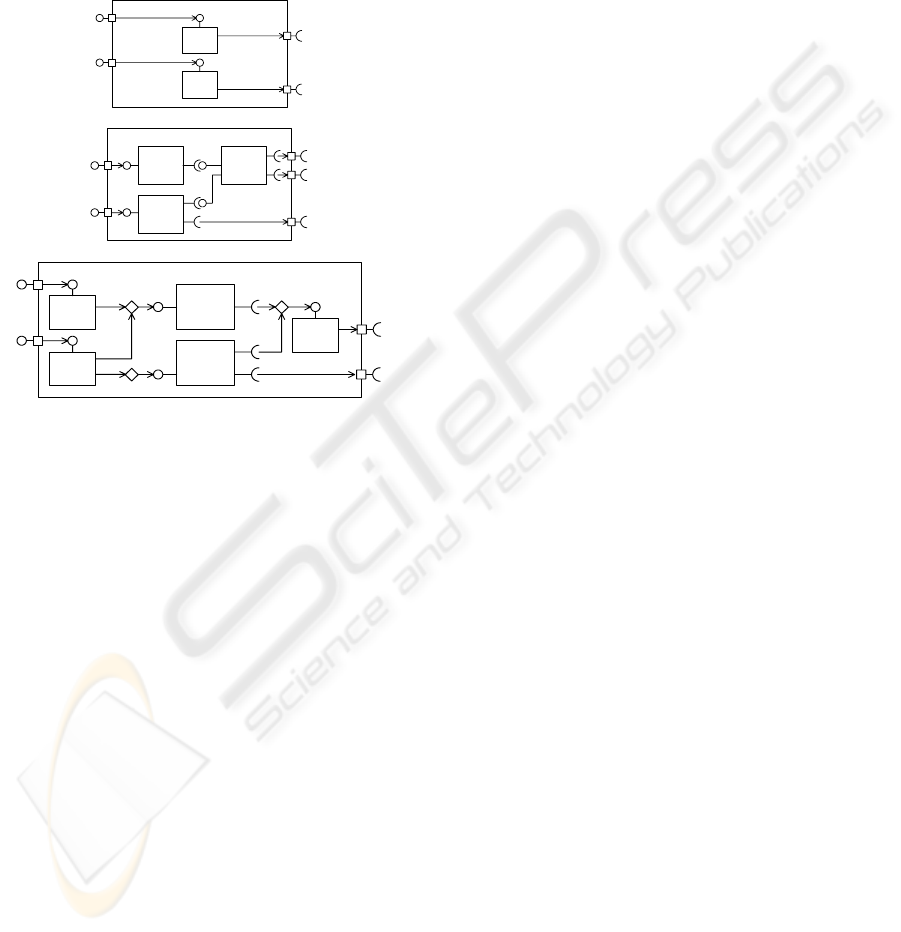

Figure 1: Composition of a component from component

fragments (a), from subcomponents (b), and from a

combination of them (c).

The first version of the CompJava compiler has

been available since winter 2003/2004, three more

versions followed. The new version to be available

in fall 2006 will be integrated in Eclipse. The

CompJava Designer is a graphical design tool that

allows to draw enriched CompJava component

diagrams and to generate component code skeletons.

It is an Eclipse-plugin and in prototype stage, to be

available spring 2007.

The following sections introduce the CompJava

language and shows that their constructs satisfy the

requirements. We use a compiler as a running

example. The compiler component is composed

from a scanner, parser and other subcomponents.

4 COMPONENT TYPES

Let us consider first the scanner component. We

define the provided interface of the scanner as a

Java interface. It includes all scanner-related

responsibilities, like setting the file name of the

source file to be processed, and fetching the next

token from it.

interface ScannerIF {

Token getNext();

void setSource( String sourceName);

}

Since the ScannerIF interface includes all source

file processing related responsibilities, the

component type ScannerType is defined with a

single provided port.

component type r1Type { Scanne

port in provides ScannerIF;

}

A component type defines all interfaces of a

component. That means components are completely

encapsulated: all methods in a component, except

for the main method, can be invoked from outside

only via provided ports, and all methods can invoke

an outside method only via required ports.

A port has either a provided, a required or an

event interface. A port declaration gives the port

name and after the corresponding keyword the

associated interface. An event port is similar to a

required port, but its operations must not have

results, and several provided ports of event listeners

may be connected to it. As we show in section 7, a

component type may also define port arrays or port

vectors.

A component type may extend another

component type, like an interface may extend

another one. It inherits all ports, and it may extend

the interface of inherited provided ports or may add

provided ports.

5 LOW-LEVEL COMPONENTS

This section shows how low-level components are

composed from component fragments.

Implementing Provided Ports

A component has a component type (indicated by

the ofType-clause). It implements all the provided

ports, and may invoke operations from the required

ports specified by its component type. In the

Scanner1 component (see Figure 2), an attach-

statement attaches the inside of the provided port in

to a component fragment, an anonymous class

implementing the ScannerIF interface.

ENGINEERING A COMPONENT LANGUAGE: COMPJAVA

101

Scanner1

ScannerIF

component Scanner1 ofType Scanner1Type{

//port in provides ScannerIF;

attach This.in to new ScannerIF {

private File sourceFile;

void setSource(String name){//open sourceFile}

char getChar(){//next char from sourceFile}

Token getNext(){

Token current = new Token();

char c = getChar();

while ( c != separator ){

current.append( c );

c = getChar(); }

return current; }

};

}

Figure 2: The Scanner1 component with port in providing

the ScannerIF implemented by a anonymous class.

An attach-statement may be used to attach the

inside of a provided port to a component fragment

that implements an interface I. The condition is that

I extends (including equals) the port interface; it is

checked at compile time. A component fragment

may be a Java construct: an instance of an

anonymous class, as shown, or an instance of an

inner class. The inside of a port is indicated by the

keyword This, which stands for the component

instance, followed by the port name. The declaration

of inner and anonymous classes follows the Java

standard; the only difference is that they are used

inside of a component instead of a class.

When a component, like Scanner1, is quite small

and not composed from other components, it might

be a disadvantage that its implementation generates

two object instances: one of the application-specific

component fragment and another one of the

component class. Therefore, CompJava allows also

that a component fragment is formed by a method

block. A method block is a sequence of methods that

implement a given interface (see Figure 3). A

method block is not a Java construct, but an

analogon to a Java block, which is a sequence of

statements. When different provided ports are each

attached to a method block, there is the restriction

that their interfaces must have an empty intersection.

Consequently, CompJava provides component

fragments which include method blocks, inner

classes or anonymous classes, in order to structure

the implementation of a component.

Accessing Required Ports

The Scanner mixes up two different concerns,

scanning the program character stream, and handling

of the source file to be parsed. Similarly, the

ScannerIF interface mixes up two different

concerns, accessing the tokens which the scanner

creates, and determining the source file to be parsed.

We should separate the different concerns, scanning

and source file handling. To this purpose, we define

two interfaces, TokenIF and SourceAccess:

interface TokenIF {

Token getNext();

}

interface SourceAccess {

char getChar();

}

The new scanner component does not include the

source file handling but fetches the source file

characters via a required interface. We define the

component type Scanner2Type with a provided

interface TokenIF and a required interface

SourceAccess:

component type Scanner2Type {

port token provides TokenIF;

port source requires SourceAccess;

}

The Scanner2 component attaches the token port

to a component fragment, a method block. It

implements the TokenIF and scans the source file in

order to determine the next token. When it needs the

next character from the source file, it simply invokes

the getChar-operation defined in the SourceAccess

interface via the inside of the required port source.

Scanner2

TokenIF

token

source

Source

Access

component Scanner2 ofType Scanner2Type {

//port token provides TokenIF;

//port source requires SourceAccess;

attach This.token to TokenIF {

Token getNext(){

Token current = new Token();

char c = This.source.getChar();

while ( c != separator ){

current.append( c );

This.source.getChar(); } c =

return current; }

};

}

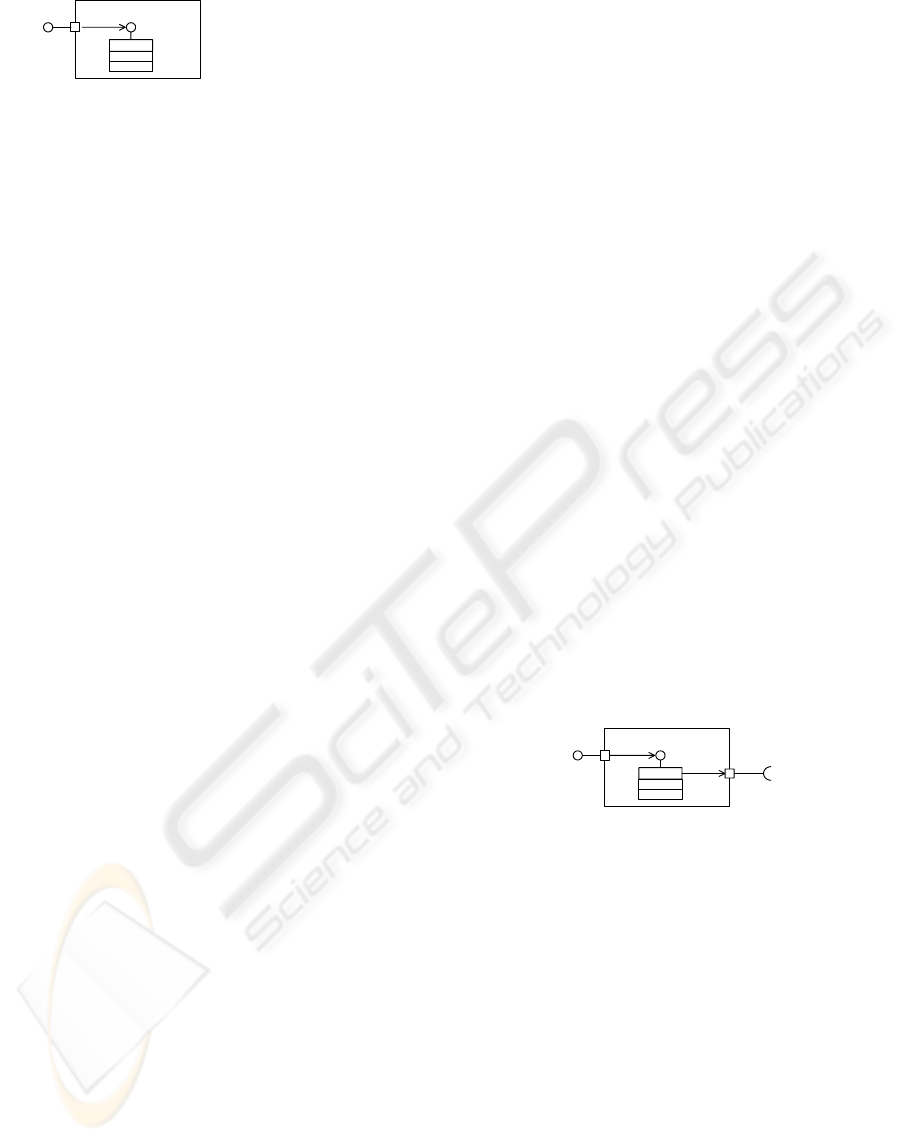

Figure 3: The Scanner2 component with port token

providing the TokenIF implemented by a method block,

and port source requiring the SourceAccess interface.

6 COMPONENT COMPOSITION

A compiler is a top-level component that is

composed from a scanner, a parser etc. For that

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

102

reason, we declare its type without any ports. The

type of the parser defines a required interface

TokenIF, and other ones which we do not consider.

component type CompilerType {}

component type ParserType {

port ...;

port getToken requires TokenIF;

}

Subcomponents

A component may be composed from

subcomponents. E.g. the Compiler1 component (see

Figure 4) is composed from a scanner, a parser, and

other subcomponents like a code-generator which

we disregard.

Compiler1

Parser Scanner2

«comp fragment»

main()

getToken

TokenIF

token source

Source

Access

Source

Handling

sourceHandler

interface SourceFile {

void setSource( String sourceName);

}

interface SourceHandling extends

SourceFile, SourceAccess { }

component Compiler1 ofType CompilerType {

ParserType myParser = new Parser();

Scanner2Type myScanner = new Scanner2();

connect myParser.getToken to myScanner.token;

plug<SourceHandling> sourceHandler;

connect myScanner.source to sourceHandler;

attach sourceHandler to new SourceHandling{

private File sourceFile;

void setSource(String name){//open sourceFile}

char getChar(){

//read next char from sourceFile

}

};

public void main( String[] args )

{ String sourceName = args[1];

new Compiler1();

This.sourceHandler.setSource(sourceName);

//start parser via a plug and port not shown

}

Figure 4: Component Compiler1 composed from

subcomponents Parser and Scanner2 and a component

fragment implementing the interface SourceHandling.

A component may contain subcomponent

declarations and connect-statements that are

processed with the initialization of the component.

A subcomponent declaration declares a

subcomponent variable, like myParser and

myScanner, of a component type; it may assign to it

an instance of a matching component created with

the new operator and the component constructor,

like a Parser resp. a Scanner2 instance.

A connect-statement connects a required port of

a subcomponent (instance), like getToken of Parser,

to a provided port of a subcomponent (instance),

like token of Scanner2, as Figure 4 shows. A

constraint checked by the compiler is that a required

port can be connected to only one provided port; but

many required ports may be connected to the same

provided port. An event port may be connected to

many provided ports. The compilation of a connect-

statement includes port-matching, i.e. checking if

the provided port interface extends (incl. equals) the

required port interface. We may use a connect-

statement also to connect a port of a subcomponent

directly with the inside of a matching port of the

(parent) component.

Connecting Subcomponent Ports with Plugs

The Compiler1 component contains a component

fragment, an anonymous class implementing the

interface SourceHandling, which the source port of

the Scanner2 should invoke. However, a connect-

statement does not allow to connect a subcomponent

port with a component fragment. Therefore, we

introduce plugs which replace private ports of

ArchJava.

A plug is a generic construct that exceeds the

generic possibilities provided by parametric

interfaces or classes. The generic expression

“plug<interface>” generates a plug of the interface

type. It might be considered as a variable on which

only a very limited set of operations may be

executed: it may be used in connect- and attach-

statements, or it may be used in a component

fragment to invoke an operation defined in the plug

interface.

The Compiler component (see Figure 4) declares

a plug of the interface type SourceHandling named

sourceHandler. The plug is used to pass operation

invocations from the required port of the scanner

subcomponent to a component fragment of the

compiler component, which does all handling of the

source file.

A connect-statement connects the required port

source of the scanner with that plug, matching at

compile time whether the plug interface extends the

required port interface. The main method, which

gets the filename of the source file passed as a

parameter, invokes the setSource-operation via the

same plug.

An attach-statement may attach a plug to a

component fragment, as shown in Figure 4. It

checks at compile time whether the interface of the

component fragment extends the plug interface. The

ENGINEERING A COMPONENT LANGUAGE: COMPJAVA

103

constraint is that the same plug may appear only

once on the left-hand side of an attach- or connect-

statement, but several times on their right-hand side

and/or be used for operation invocations.

Factoring Out SourceHandling

Suppose that we want to reuse the anonymous

source handling class with the interface

SourceHandling shown in Figure 4. Then we should

factor it out and transform it into a separate source

file processing component with the component type

SourceType.

component type ype { SourceT

port source provides Sourcefile;

port accessSource provides

SourceAccess;

}

The component Source contains a

SourceHandling component fragment that is

identical to the component fragment used by the

Compiler1 component (see Figure 4). Since we want

to attach both provided ports to the same component

fragment, we declare the plug sourceHandler of

type SourceHandling. It is attached to the

component fragment with an attach-statement. The

inside of each provided port is attached to the plug

with each an attach-statement.

component Source ofType SourceType {

plug<SourceHandling> sourceHandler;

attach This.source to This.sourceHandler;

attach This.accessSource to This.sourceHandler;

private File sourceFile;

attach This.sourceHandler to new SourceHandling{

void setSource(String name){//open sourceFile}

char getChar(){

//read next char from sourceFile

}

};

}

Figure 5: Component Source with the provided ports

source and accessSource attached to plug sourceHandler

attached to an anonymous class as component fragment.

The component Compiler2 (see Figure 6) is

identical to Compiler1, except for replacing the

SourceHanding component fragment by the Source

component. It connects the port source of Scanner2

with a connect-statement to the accessSource port of

Source. The plug setSource is declared and

connected to the source port of the Source

component with the objective that the main method

may invoke via that plug the setSource-operation of

the source port.

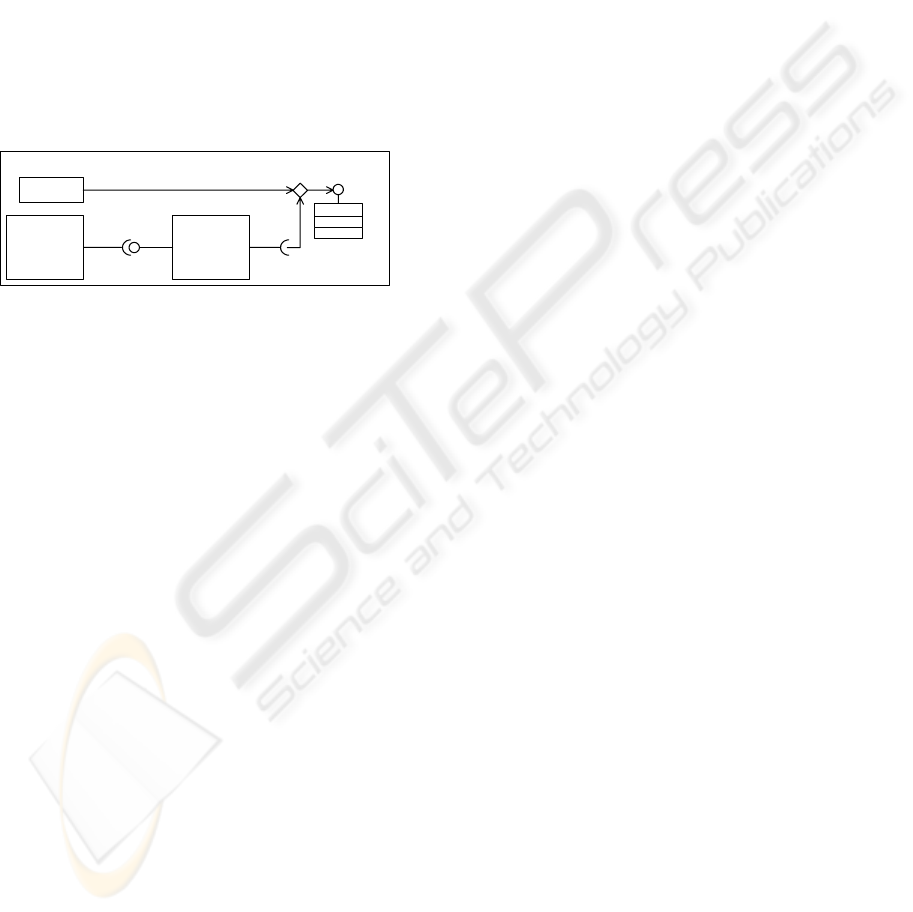

Compiler2

Parser Scanner2

«comp fragment»

main()

getToken

TokenIF

token source

Source

Access

Source

file

setSource

Source

accessSource

source

component Compiler2 ofType CompilerType {

ParserType myParser = new Parser();

Scanner2Type myScanner = new Scanner2();

SourceType mySource = new Source();

connect myParser.getToken to myScanner.token;

connect myScanner.source to

mySource.accessSource;

plug u ile> setSou e; <So rcef rc

connect This.setSource to mySource.source;

public void main( String[] args )

{ String sourceName = args[1];

new Compiler2();

This.setSource.setSource( sourceName);

//start parser via a plug and port not shown

}

Figure 6: Component Compiler2 composed from

subcomponents Parser, Scanner2 and Source.

7 DYNAMIC ARCHITECTURES

The language constructs described so far allow to

construct component systems with a static

architecture, i.e. a static hierarchy of collaborating

component instances. Though that is sufficient for a

large class of systems, there are other ones that

require a dynamic creation and connection of

components.

A component instance may be created

dynamically in a method of a component fragment

with a new-operator and component constructor in

the same way as shown e.g. in Figure 4.

Dynamically created components are connected at

run-time with a reconnect-statement which is similar

to a connect statement. A component should

document explicitly all kinds of architectural

interactions that are permitted between its

subcomponents. To this purpose, a component uses

connection patterns (as introduced by ArchJava

(Aldrich, May 2002) (Aldrich, 2002)) to describe

the set of connections that can be made at run-time

using reconnect-statements.

Since in a dynamic architecture, a component

may have a variable number of subcomponents of

the same type, we introduce component arrays and

vectors (as a parametric Vector parameterized with a

component type). Since it may also be required that

a connection is made from the port of a component

to a variable number of sibling components, we

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

104

introduce port arrays or port vectors as arrays or

parameterized vectors of an interface type.

Though the primary emphasis of component and

port arrays resp. vectors is on dynamic architectures,

they may be of use also for static architectures with

repetitive elements.

For example, consider a WebServer component.

It has one Router and many Worker subcomponents.

The Router receives incoming HTTP-requests and

passes them through a required port of the port array

workers to the connected Worker subcomponent that

serves the request. The WebServer starts the Router

via its provided port start and the plug start.

Figure 7 shows a shortened version of the

WebServer. The running version with about three

times the length of the presented version may be

obtained from the authors. We present, in contrast to

(Aldrich, May 2002), an optimized solution that

reuses idle Worker instances and their connections.

A Worker contains a WorkerThread class. When an

httpRequest is invoked via the serve port of a

Worker, the WorkerThread is (re-) started by a

notify-statement and takes up work with a call of its

method handleRequest. When it has finished the

processing of an HTTP-request, it goes into a wait

state.

The WebServer has declared an array of Worker

components. It connects the provided serve port of

each Worker instance after its creation dynamically

to the matching port of the required port array

workers of the Router component.

The WebServer performs the administration of

the Worker instances in the method block

implementing the

WorkerAdministration interface,

which is attached to the adminWorker plug. It has a

setIdle-operation which is invoked by a Worker after

having finished the processing of an HTTP-request,

and similar operations. The requestWorker-

operation checks if an idle Worker is available, and

returns its index. Otherwise, it creates a new Worker

instance if the maximum worker number is not yet

reached. It connects dynamically a Worker’s serve

port to the matching port of the workers port array

of the Router, and its required adminWorker port to

the adminWorker plug.

The WebServer has connected the required

request port of the Router to the adminWorker plug.

In that way, both the Router and all Worker’s can

invoke operations of the worker administration, like

setIdle or requestWorker when required.

The code of the WebServer component is easy to

understand, in contrast to the code shown in

(Aldrich, May 2002).

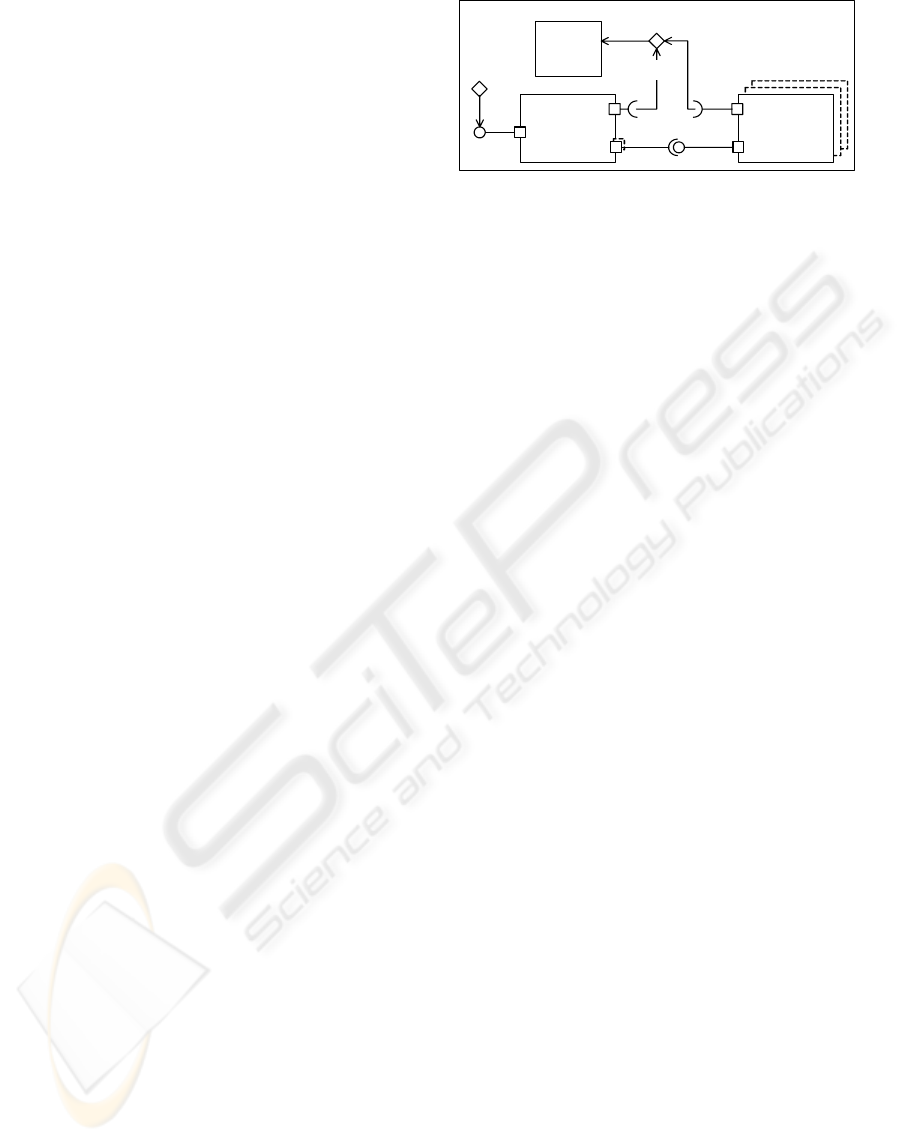

Worker

Administration

WebServer

Router Worker

serve

RequestIF[]

StartIF

start

request

Worker

Administration

«Method Block»

adminWorker

admin

Worker

StartIF

Worker

Administration

RequestIF

workers

interface StartIF {

void listen();

}

interface WorkerAdministration {

void requestWorker();

void setIdle( int workerId);

}

interface RequestIF {

void httpRequest(InputStream in,

OutputStream out);

}

component type WebServerType { }

component type RouterType {

port start provides StartIF;

port request requires WorkerAdministration;

port workers requires RequestIF[];

}

component type Type {

Worker

port serve provides stIF;

Reque

port adminWorker requires WorkerAdministration;

}

component WebServer ofType WebServerType {

final RouterType theRouter = new Router();

WorkerType[] workers = new WorkerType[10];

plug<StartIF> start;

plug<WorkerAdministration> adminWorker;

connect theRouter.request to This.adminWorker;

connect This.start to theRouter.start;

connect pattern RouterType.workers to

WorkerType.serve;

connect pattern WorkerType.adminWorker to

plug<WorkerAdministration>;

public static void main(String[] args) {

new WebServer( ...).run();

}

void run() {

This.start.listen();

}

attach

void setIdle( ...) { ...}

This.adminWorker to WorkerAdministration {

int requestWorker(){

if( no worker idle & workerID < maxWorkerID){

workers[workerID] = new Worker(dir, workerID);

reconnect

workers[workerID].adminWorker to

This.adminWorker;

reconnect theRouter.workers[workerID] to

return workerID; }

workers[workerID].serve;

//other methods...

} };

}

component Router ofType RouterType {

//port start provides StartIF;

//port request requires WorkerAdministration;

port workers = new RequestIF[10];

attach This.start to StartIF {

void listen() {

ServerSocket server = new

ServerSocket( This.request.getPort());

while (true) {

workerID = This.request.requestWorker();

Socket sock = server.accept();

This.workers[workerID].httpRequest(

ENGINEERING A COMPONENT LANGUAGE: COMPJAVA

105

sock.getInputStream(),sock.getOutputStream());

} }};

}

component Worker ofType WorkerType {

//port serve provides RequestIF;

//port adminWorker requires WorkerAdministration;

BufferedReader in; // HTTP-request

WorkerThread myThread; //started by constructor

PrintWriter out; // HTTP-response

attach This.serve to RequestIF{

synchronized void httpRequest(

InputStream in, OutputStream out){

this.in = new BufferedReader(new

InputStreamReader(in) );

this.out = new PrintWriter(new BufferedWriter(

new OutputStreamWriter(out)));

myThread.notify();

}

};

class WorkerThread extends Thread {

//several data attributes and methods

protected void handleRequest() {

// open requested file and send answer ...

out.println("HTTP/1.0 200 OK");

// ... and file contents to Browser

}

public synchronized void run() {

while (true) {

this.wait();

handleRequest();

This.adminWorker.setIdle(this.workerNo);

} }

} //end WorkerThread

}

Figure 7: Component WebServer composed from a worker

administration component fragment together with one

Router and a variable number of Worker subcomponents

8 CONCLUSIONS

CompJava, to be available for a wider use in fall

2006 via http://www-home.fh-konstanz.de/

~schmidha/, composes components in a clear and

simple way from two kinds of building blocks:

component fragments and subcomponents. We have

introduced component fragments that may be

considered as very simply structured lightweight

components without ports. There are three

implementation variants covering different

performance and reusability requirements.

Component fragments allow to structure low-level

components in an adequate way, and they serve as

filters for medium to high level components.

These building blocks with well-defined and

clear interfaces are attached/connected either

directly or via plugs to themselves or to ports of the

parent component.

Clean and efficient dynamic architectures are

composed from dynamically instantiated and

connected subcomponent instances together with

component arrays and port arrays resp. vectors.

CompJava has been extended for use as a

distributed component language as described in

(Schmid, 2005).

REFERENCES

Aldrich, J., Chambers, C., Notkin, D., 2002, May.

ArchJava: Connecting Software Architecture to

Implementation. In Procs ICSE 2002, May 2002.

Aldrich, J., Chambers, C., Notkin, D., 2002. Architectural

Reasoning in ArchJava. In Procs ECCOP 2002,

Springer LNCS, Berlin.

Aldrich, J., Sazawal, V., Chambers, C., Notkin, D., 2003.

Language Support for Connector Abstractions. In

Procs ECCOP 2003, Springer LNCS, Berlin.

Gamma, E., Helm, R., Johnson, R., Vlissides, J., 1995

Design Patterns: Elements of Reusable Object-

Oriented Software. Addison-Wesley, 1995.

Medvidovic, N., Rosenblum, D.S., Taylor, R.P., 1999,

May. A Language and Environment for Architecture-

Based Software Development and Evolution. In Procs

ICSE 1999.

Medvidovic, N., Taylor, R. P., 2000. A Classification and

Comparison Framework for Software Architecture

Description Languages.

van Ommering, R., van der Linden, F., Kramer, J., Magee,

J., 2000, March. The KOALA Component Model for

Consumer Electronics Software. In IEEE Computer.

van Ommering, R., 2002. Building Product Populations

with Software Components. In Proc. ICSE 2002.

Seco, J. C., Caires, L., 2000. A Basic Model of Typed

Components. In Procs. ECOOP 2000, Springer

LNCS, Springer, Berlin.

Schmid, H. A., Pfeifer, M., Schneider, T., 2005. A

Middleware-Independent Model and Language for

Component Distribution. In Proc. SEM 2005, ACM

Press, New York.

Sreedhar, V. C., 2002, May. Mixin’ Up Components. In

Procs ICSE 2002.

Szyperski, C., 1997. Component Software, Beyond

Object-Oriented Programming. Addison-Wesley

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

106
