A GENERIC MODEL FOR CONNECTING MODELS IN

A MULTILEVEL MODELLING FRAMEWORK

Jan Pettersen Nytun

Agder University College

Faculty of Engineering, Agder University College

Grooseveien 36, N-4876 Grimstad, Norway

Keywords:

Megamodel, multilevel modeling, metamodeling, model weaving, model border.

Abstract:

In science and elsewhere models are weaved together forming complex knowledge structures. This article

presents a generic way of connecting models with model borders both vertically and horizontally in a mul-

tilevel modelling framework. One model can be connected vertically to several models allowing a model

element to be an instance of several metaclasses and different views can then be managed in an integrated

way. Models at the same level can also be connected by deﬁning the correspondence between model elements.

The idea behind the approach is to break model architectures down to elementary building blocks so that all

parts that might be of interest become explicit and accessible.

1 INTRODUCTION

In this article some of the ideas behind a metamod-

elling framework called Semantic Integration World

Animation (Siwa) is presented; this framework is un-

der development at Agder University College and it

is meant for learning and experimentation; it is an

offspring of the SMILE project (Nytun et al., 2004)

which is more directed towards integration of exist-

ing language technologies.

MOF metamodel (OMG Editor, 2003) architec-

tures have a pyramid structure, while a Siwa architec-

ture is like a directed graph with models as nodes. The

graph is not cyclic except maybe for the top models

(e.g. level M3 in the UML metamodel architecture).

OMG has issued a request for revision of MOF

2.0 (OMG Editor, 2006a), some of MOFs restrictions

are becoming increasingly burdensome. MOF does

not allow properties to have an independent existence

and multiple classiﬁcation is not possible - Siwa can

be used without these restrictions. It will also be pos-

sible to specify architectures that are not complete,

e.g. that a metamodel is missing; this opens up for

data analysis, reasoning about models and in some

cases the framework might automatically suggest a

metamodel.

Some models are static structures and some are ex-

ecutable models. We call the executable models se-

mantic engines, some sematic engines are presented

but they are not the main issue in this article.

A model is to a large extent deﬁned by the role it

plays in relation to what it models; two basic roles are

deﬁned by Thomas K

uhne (K

uhne, 2005): token and

type. A token model captures the singular aspects,

while a type model captures the universal aspects of

what it models. A class Buildingmight capture the

universal property that buildings have owners. An ob-

ject that models one speciﬁc building is a token model

for this building, e.g. it might capture the name of the

owner. The focus of this article is a technique for con-

necting models, the following model conﬁgurations

are to be supported:

Vertical (type model) This is the type model role

which spans two model levels (some would call this

the instanceOf-relation). Several models can

be type models for the same model instance; this is

not supported by MOF.

There are variations of this relationship, e.g. a

model instance might actually have been instanti-

ated from the model or the model is describing only

some aspects of the model instances.

Horizontal (token model) We see the need for a

model-to-model relationship which do not span a

level border, but is between two models that are

considered to be on the same level. Several mod-

els can in different way and with different level of

granularity and detail model the same thing; these

models are related with this relationship.

302

Pettersen Nytun J. (2006).

A GENERIC MODEL FOR CONNECTING MODELS IN A MULTILEVEL MODELLING FRAMEWORK.

In Proceedings of the First International Conference on Software and Data Technologies, pages 302-311

DOI: 10.5220/0001322303020311

 SciTePress

“Tom’s perception

of the Building”

:Building

id = “b1”

owner = “Tom”

TMBuilding

shape

type-

ModelFor

level N+1

level N

type-

ModelFor

Building

owner

token-

ModelFor

type-

ModelFor

Topographic map

Building register

Building Concept

token-

ModelFor

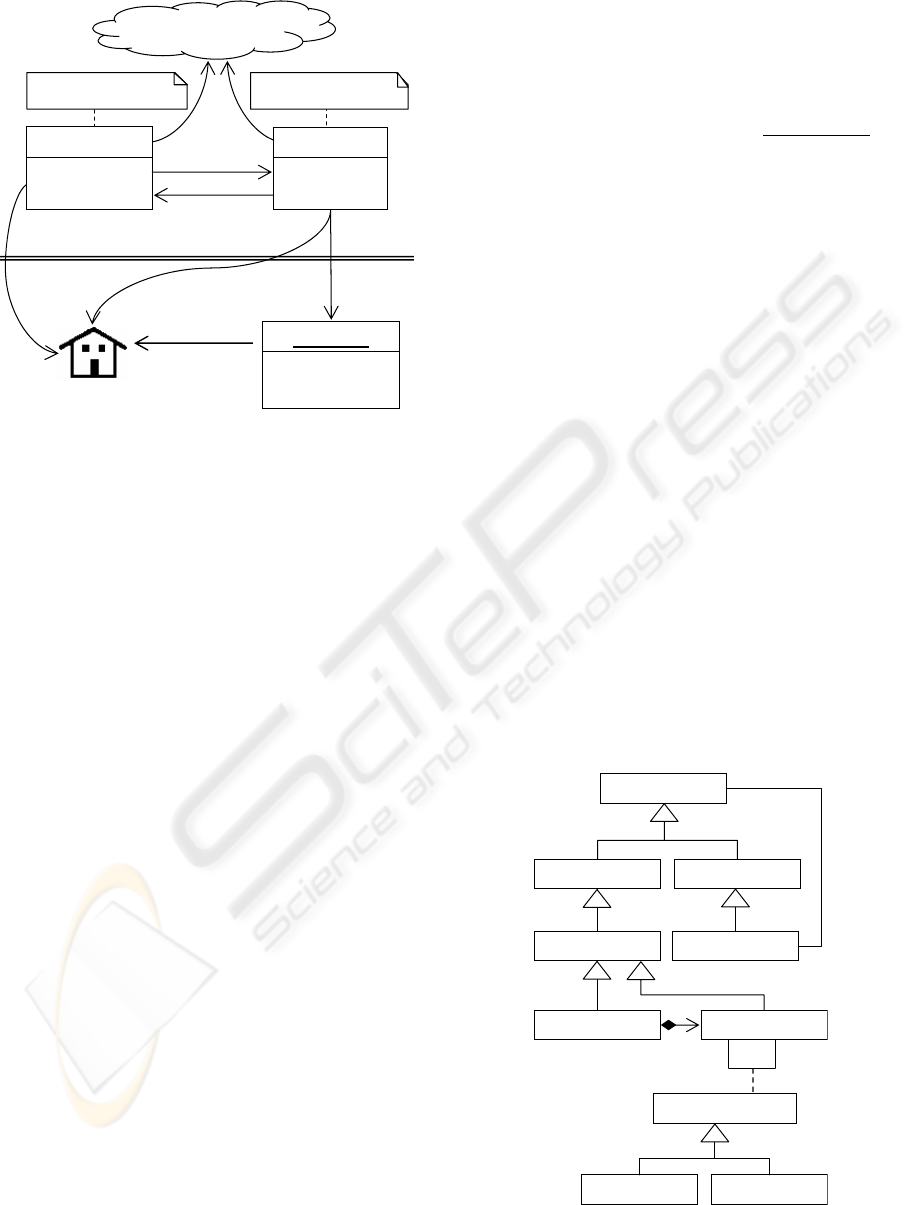

Figure 1: Example of token and type model.

Fig. 1 demonstrates, as we understand it, both to-

ken and type model roles (the UML notation has been

used in an ad hoc fashion).

The transitive property of the token model role can

also be seen in Fig. 1: the TMBuilding class is a

token model for class Building which is a token

model for ”the concept of a building”, consequently

TMBuilding is also a token model for ”the con-

cept of a building”. It seems to be a growing agree-

ment (K

uhne, 2005; Favre, 2004a) that a metamodel

is a type model for another model which again is a

type model for its model instance. These models are

forming a stack structure where you don’t have the

same transitivity as for the token model role. Sub-

classing is a transitive relation and should not span a

level border (K

uhne, 2005; Favre, 2004a).

UML has no diagram type that truly spans sev-

eral (metamodel) levels; UML object diagrams

shows instance speciﬁcations (instances of metaclass

InstanceSpecification) and also classes are

allowed; an object diagram is placed on the model

level (M1). As the name indicates, an instance speci-

ﬁcation is a speciﬁcation and it might in fact specify

properties of several instances at the model instance

level (M0). According to this understanding, an object

diagram is correctly placed on M1because an instance

speciﬁcation is not ”truly” in a horizontal relation to

an instance on M0. In our view, if a model is in a hor-

izontal relation to another model, then both models

are modelling ”exactly the same speciﬁc thing” even

if the number of details and precision might be differ-

ent; the models should consequently be placed on the

same level since they model the same thing.

The idea behind our approach is to break model

architectures down to elementary building blocks so

that all parts that might be of interest become explicit

and accessible; the framework should of course allow

the user to view an architecture at different levels of

granularity and with different concrete syntaxes that

hide the underling complexity.

Using the example in Fig. 1: object :Building

a structure that contains a slot called id with value

"b1" and a slot called owner with value "Tom";

we consider Building, id and owner to be sym-

bols that forms an upper border to the type model

containing class Building; we actually have two

borders (or border sides), one for each models being

connected, this allows different number of symbols

at the borders and it allows symbols to have different

names.

Sec. 2 presents our multilevel (meta-)modelling

framework and explains how models are connected.

In Sec. 3 we mention some related work. Sec. 4

presents an example of how Siwa can be used to do

testing of data consistency. We summarize and de-

scribe some research directions in Sec. 5.

2 THE SIWA APPROACH

Lately the term megamodel has been used to name

a model of MDE itself, e.g. by B

ezivin and

Favre (J. B

ezivin, 2004; Favre, 2005). Such a mega-

model describes the concepts of MDE - concepts like

model, metamodel and transformation. Fig. 2 shows

our preliminary megamodel which has been inspired

by Favre (Favre, 2005).

System

PhysicalSystem

AbstractSystem

model

system-

UnderStudy (sus)

Set

elements

sets

elementOf

DigitalSystem

SiwaWorld

horizontal vertical

modelOf

SiwaModel

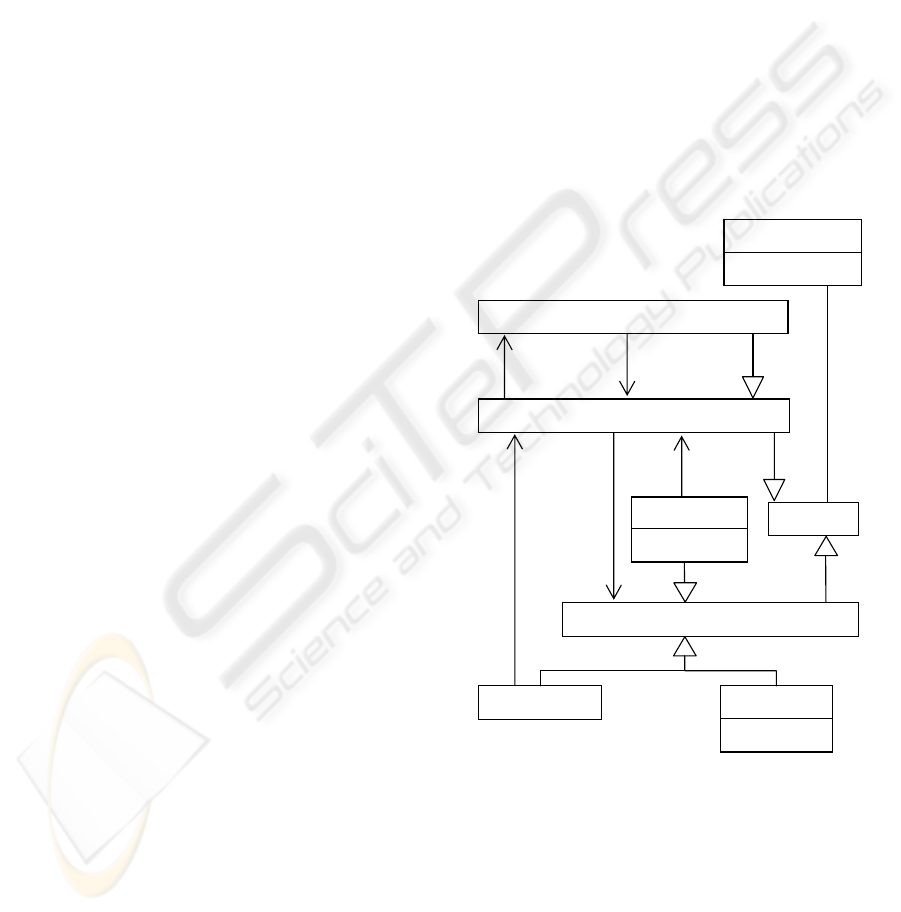

Figure 2: Megamodel.

A GENERIC MODEL FOR CONNECTING MODELS IN A MULTILEVEL MODELLING FRAMEWORK

303

As we can see from Fig. 2 basically everything is

a system. In (Marcos Didonet Del Fabro, 2005b) a

system is described as a group of interacting, interre-

lated, or interdependent elements that form a complex

whole.

Abstract systems can only be described since they are

not to be found in the concrete; physical systems are

concrete and manifested ”in reality”. We consider a

computer system to be a special type of physical sys-

tem since they are manifested in computer hardware.

The Siwa framework supports the notion of levels

like you ﬁnd it in metamodelling architectures deﬁned

by OMG. Atkinson and K

uhne (Atkinson and K

uhne,

2001) have earlier used the term multilevel metamod-

elling, we prefer the term multilevel modelling frame-

work since an arbitrary number of levels will be sup-

ported including metamodel levels. We call a mul-

tilevel metamodel architecture deﬁned in the frame-

work for a Siwa world. Fig. 2 deﬁnes a Siwa world

as a special type of digital system. A Siwa world is

composed of Siwa models which also are considered

to be special types of digital systems. The modelOf

relation comes in the two generic types: vertical and

horizontal.

A Siwa model can be a model for an abstract or

a physical system which is not part of a Siwa world.

This possible relation is not depicted in Fig. 2 since it

can not be explicitly represented in the framework.

Favre presents brieﬂy the notion of static and dy-

namic system in (Favre, 2005), a Siwa world also has

these two aspects which we call: Model All Types

with Extent Realization (MATER) and Play Activa-

tions and Transformations with Extent Realizations

(PATER). The focus of this article is MATER and in

the following subsections MATER is presented with

the help of UML notation and examples. PATER is

touched in Sec. 4 when some sematic engines are de-

scribed.

In Subsec. 2.1 we present how to represent the in-

ternal structure of a Siwa model, in Subsec. 2.2 we

describe how Siwa models can be connected to con-

stitute a Siwa world (a multilevel model architecture).

2.1 Representing One Model

Fig. 3 presents the part of MATER that is used

when one model is to be represented, it is meant

to be used on all the levels of a Siwa world.

There are several similarities between this part of

MATER and MOF (OMG Editor, 2003) as an instance

model, e.g. an object can be represented as an in-

stance of Structure containing instances of Slot

with values representing properties of the object and

Descriptor can be used for type information as

described later. Links between objects can be repre-

sented as instances of Link. The property/owner as-

sociations can be used to represent relations between

sets; since there is no reference to a Descriptor,

instantiation of these associations might in some cases

lead to ambiguous situations when it comes to ﬁnding

their description on the level above. Fig. 3 has two

types of symbols:

Descriptor This symbol type is used to indicate clas-

siﬁcation and it is used to establish a vertical rela-

tion, e.g. structure describing a building called b1

might have a descriptor called Building.

Identiﬁer An instance of Identifier is labeling

a part of the model being deﬁned and functions as

an identiﬁer for this structure, e.g. an identiﬁer

b1 might reference structure that describes a build-

ing with that id. Another example would be an

identiﬁer Building referencing a structure that

describes a class Building. Several identiﬁers

might reference the same structure; in some cases

this means that there are synonyms.

Structure

property

owner

Slot

Descriptor

1..*

{ordered}

Value

1..*

Link DataValue

{ordered}

val:String

target

Identifier

name:String

ident-

ified

Instance

name:String

Figure 3: Part of MATER: the internals of a Siwa model.

For us as humans the symbols are typically telling

what a model is about, from the ”framework point of

view” only what has been formalized and represented

in MATER ”does matter”.

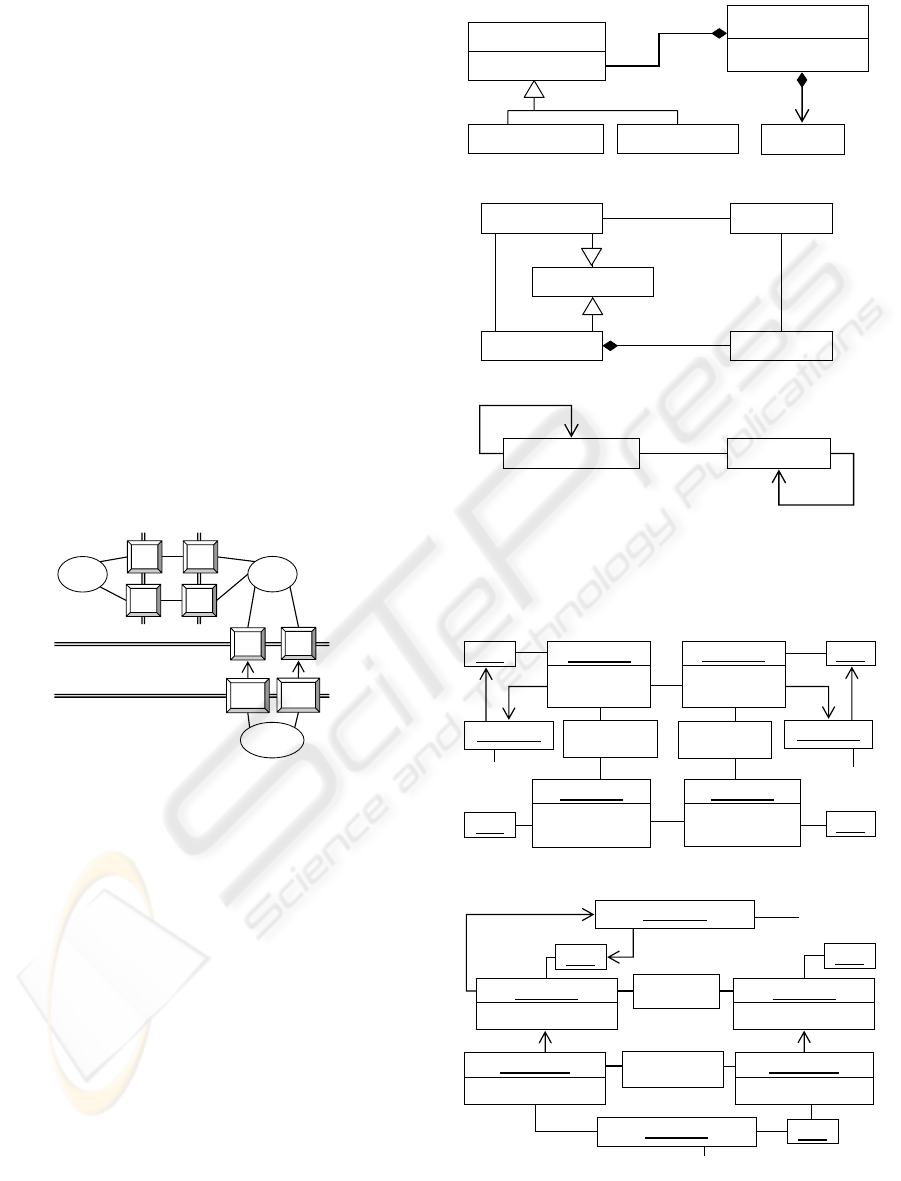

An example of how an object of type Building

can be represented is given in Fig. 5. In Fig. 5(a)

the object is shown in UML notation, Fig. 5(b)

shows how MATER can be instantiated to represent

the same. Fig. 5(c) is showing an overview of the

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

304

Class

Property

name

isAbstract

name

multiplicity

Relationship

name

Association

Generalization

end

specific

general

generalization

g_s g_g

c_p

a_e

association

ModelElement

AssociationEnd

isNavigable

isComposite

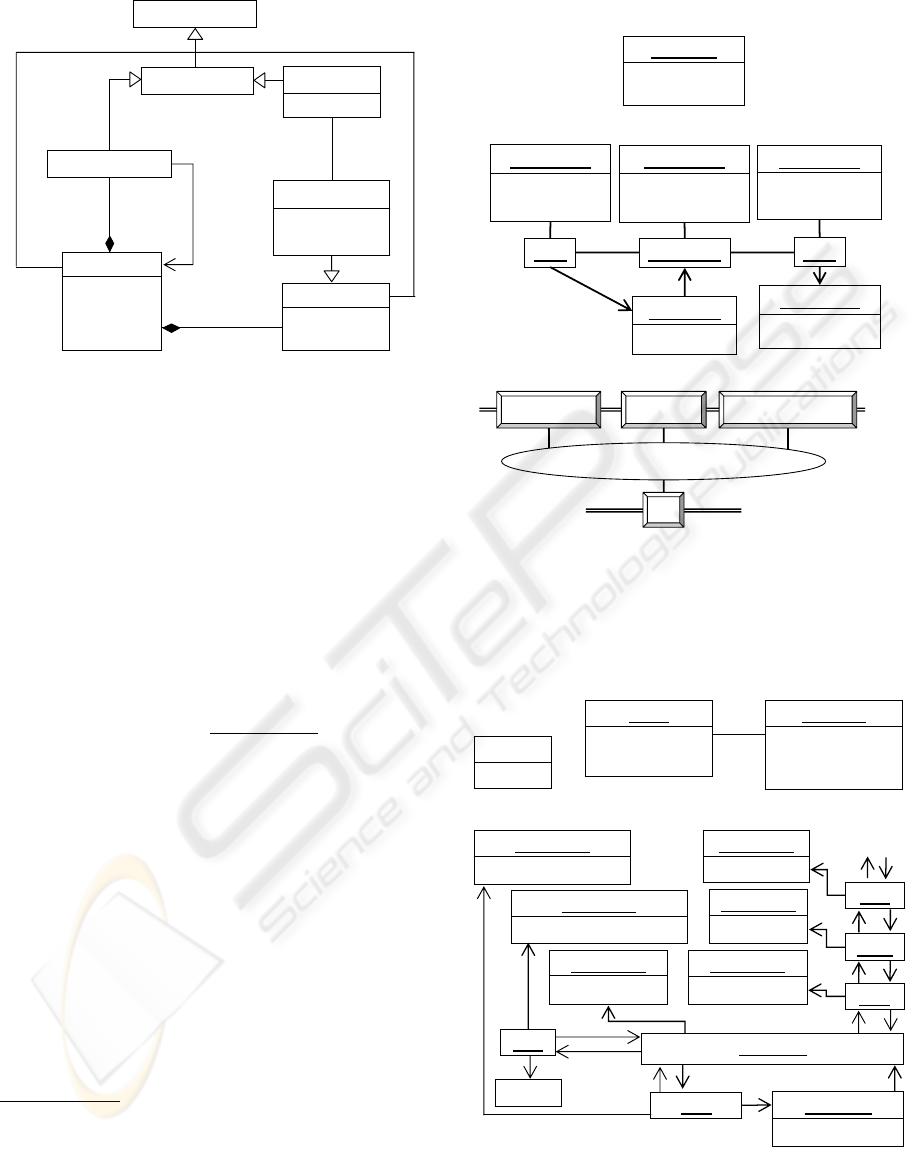

Figure 4: The top metamodel of the examples.

Building-object in an ad hoc notation where the

structure is hidden except for the symbols (two bor-

ders are shown, marked U and L, this concept will

be explained below). Fig. 4(a) shows the top model

which is called Class-MM. It describes important

object-oriented concepts like: abstract and concrete

class, property, multiplicity, association and general-

ization.

Fig. 6(a) shows a simple class called Building

with a property called id; Fig. 6(b) describes how

Class-MM can be instantiated to get the class and

then Fig. 6(c) demonstrates how MATER can be used

to describe the class (the :Property

-object is not

shown). As we can see from the ﬁgure the number of

model elements is huge - it correspond approximately

to the number one would get if the UML metamodel

was instantiated.

In the object-oriented literature, and also in this ar-

ticle, the difference between a class as a set (some-

thing abstract) and the description of a class is often

confused

. As a consequence of being abstract: it is

not possible to ”point to” a class and say ”there it is”,

but it might be possible to point to the instances of a

class and also to a description of a class

. MATER

does not have class as a built-in construction - there

is no model element in Fig. 3 called Class, but it is

possible to describe classes (e.g. Fig. 6(c)).

Seeing a class as an object is not in conﬂict with the

UML metamodel architecture since a UML model can

In our view reiﬁcation is merely to establish a descrip-

tions of a concept.

The terms abstract class and concrete class used in

object-oriented programming is something else, in that con-

text a concrete class means that there are objects that are di-

rect instances of the class which is not the case for abstract

classes.

:Structure

:Slot

:DataValue

owner =”Tom”

:Identifier

name =”b1”

:Slot

:Descriptor

name=

”Building”

(a)

:Descriptor

name =

”Building:id”

(c)

(b)

Structure of Model of Building

Building:id

name=”Building:

owner”

Building Building:owner

:Building

id = “b1”

owner = “Tom”

Figure 5: Example of howto represent an object in MATER.

Building

name=“Building”

:Slot

:Identifier

:Descriptor

name=“Class”

:Descriptor

name=“Class:name”

:identified

:Class :Property

:c_p

:c :p

:Slot

:Descriptor

name=“Class:isAbstract”

:Descriptor

name=“class:p”

:Descriptor

name=“c”

:Link

:Descriptor

name=“c_p”

:Slot

“false”

:Slot

(a) (b)

:Structure

…

(c)

name=“Building”

isAbstract=“false”

name=“id”

isComposite=“true”

multiplicity=“1”

Figure 6: A part of the description of class Building.

A GENERIC MODEL FOR CONNECTING MODELS IN A MULTILEVEL MODELLING FRAMEWORK

305

be seen as composed of objects instantiated from the

UML metamodel (see (Atkinson and K

uhne, 2002)

for more on this class/object nature); the UML meta-

model can again be seen as composed of objects in-

stantiated from MOF and MOF can be seen as com-

posed of objects instantiated from itself.

A class Building in a UML class diagram is an in-

stance of class Class of the UML metamodel, we

understand that Building will be a class when we

read about the semantics of class Class (OMG Ed-

itor, 2006b): A class is a type that has objects as its

instances...The instances of a class are objects. From

this description we understand that a whole UML

metamodel architecture can be depicted as an object

diagram, which is known from the literature (e.g. (Ny-

tun et al., 2004) and (Martin Gogolla, 2005)).

MATER offers several ways to model the same

thing and it is not ”strongly” constrained - this is de-

liberate and opens for experimentations. It is not dis-

cussed in the article but it will be possible to conﬁgure

the framework with the help of some OCL-like lan-

guage, e.g. enforce strict metamodelling (Atkinson

and K

uhne, 2000).

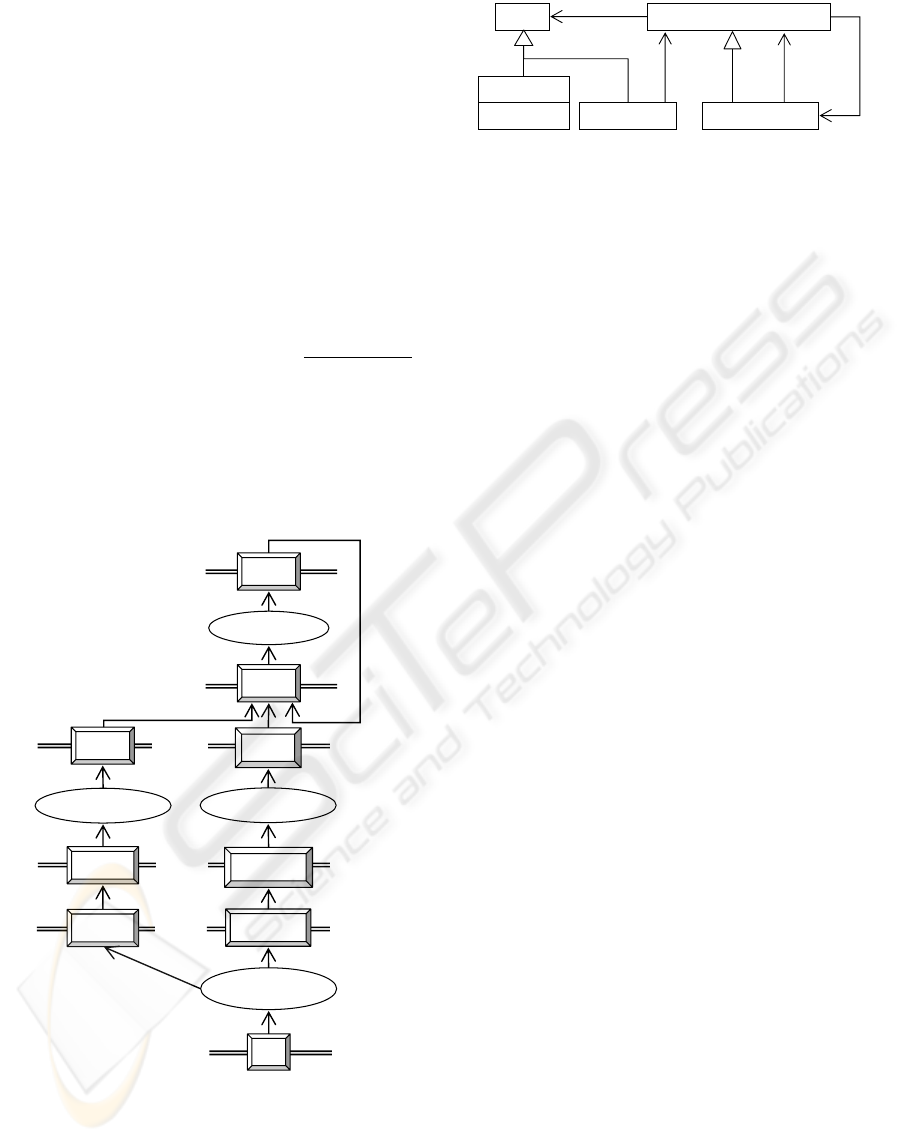

Figure 7: Sketch of connected models.

2.2 Connecting Models

Fig. 8 extends MATER and adds the possibility to

connect models. A Siwa model can contain borders;

two models are connected by connecting two borders,

one from each model. When the models to connect

are on the same level both borders will be of type

HorizontalBorder (Fig. 8(c)), when the models

are on different levels the border on the lower level is

of type UpperBorder (Fig. 8(b)) and the border of

the upper model is of type LowerBorder.

Fig. 7 offers a sketch where a model called M3 is

connected to a model M2 that resides on a level above.

M3 has an instance of UpperBorder (marked with

letter U) containing two instances of Descriptor

called D1and D2; these two symbols are connected to

instances of Identifier, I5 and I6 respectively;

SiwaModel

VerticalBorder

name:String

Border

HorizontalBorder

name:String

Instance

(a)

(c)

(b)

VerticalBorder

LowerBorder

UpperBorder Descriptor

Identifier

0..1

connected-

Identifier

connected-

Descriptor

HorizontalBorder Identifier

0..1

connected-

Identifier

0..1

connectedBorder

Figure 8: Part of MATER: connecting Siwa models.

:Descriptor

name=“Building:id”

:Structure

:Descriptor

name=“Building”

:Slot

Upper-

Border

:Identifier

name=“Building:id”

:Slot

:Identifier

name=“Building”

:Slot

Lower-

Border

:Identifier

name=

“Building:id”

:Slot

:Structure

:Identifier

name=

“Building”

:Slot

Horizontal-

Border

…

:Identifier

name=

“TMBuilding:id”

:Identifier

name=

“TMBuilding”

:Slot

:Structure

:Slot

…

(a)

(b)

:Structure

…

Horizontal-

Border

Figure 9: The example (incomplete) of Fig. 1 in MATER.

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

306

M2 has an instance of LowerBorder (marked with

letter L) containing both I5 and I6. Fig. 7 is

also demonstrating how model M1 and M2 residing

on same level are connected by two instances of

HorizontalBorder (marked with letter H).

The vertical association in Fig. 8(b) has multiplic-

ity 0..1 on the Identifier side, this means that

incomplete architectures, as claimed in the introduc-

tion, are possible. The claim that a model can have

several metamodels is justiﬁed by allowing several

upper borders for one and the same model.

Fig. 9 shows in more detail an example (same ex-

ample as in Fig. 1) of how MATER can be instantiated

to connect models, (a) shows how TMBuilding and

Building residing on the same level are connected,

while (b) shows how Building and :Building

residing on different levels are connected.

This way of connecting models is an extension to

what we have presented before; (Nytun et al., 2004)

presents a solution where two models would share a

common border instead of having one border for each

model to be connected; also the connecting of models

on the same level is new.

Object-M

Class

Object

. .

Class

Class-MM

Class

Building

Building-M

Building-b1

Building

Object

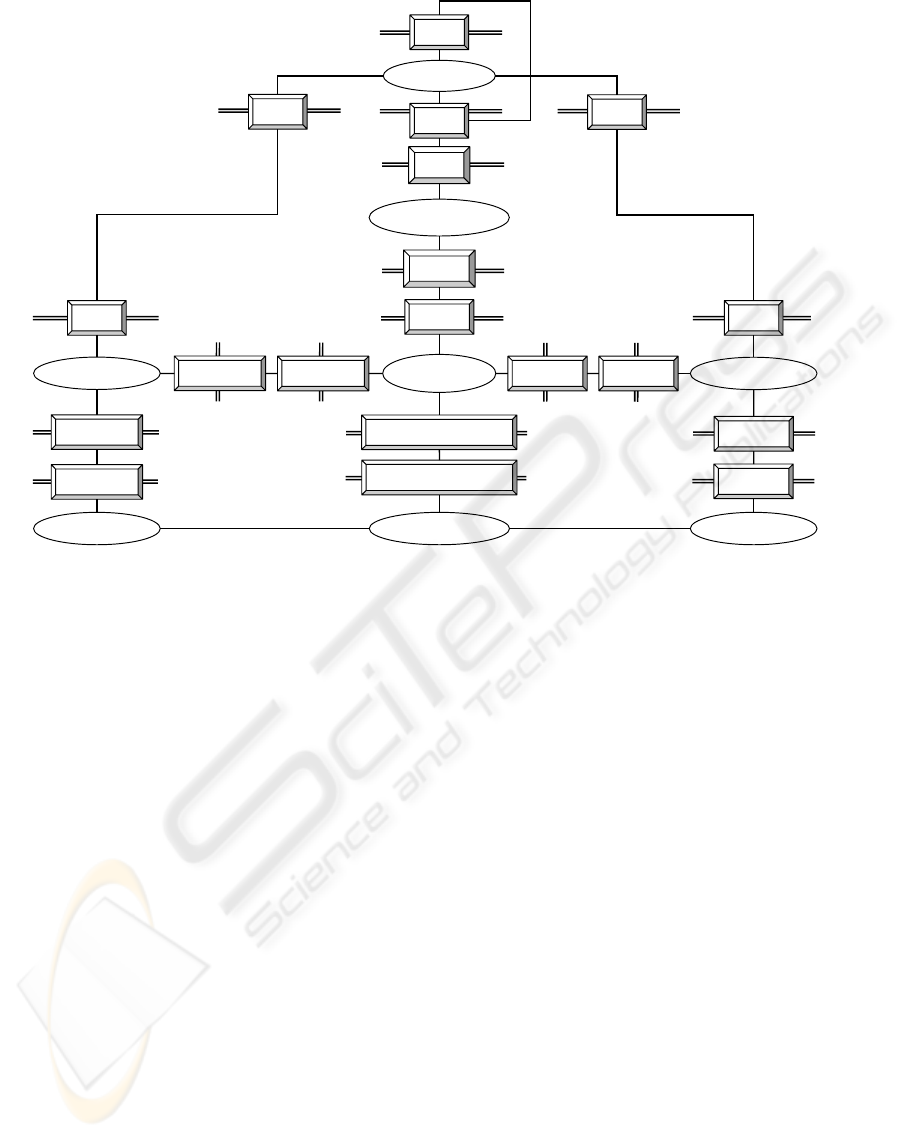

Figure 10: Architecture of building example

(TMBuilding is not included).

In Fig. 10 some of the models described above are

put together to form a multilevel architecture. The

only model that has not been mentioned before is the

one named Object-M; as can be seen in Fig. 11 it

Value

1..*

Link

DataValue

owner

0..1

val:String

target

Slot

property

1..*

belongsTo

Object

Figure 11: Model Object-M in detail.

simply deﬁnes an object as a structure having slots

with values and links to other objects. The instance

of Structure representing the building object has

both Building and Object as descriptor.

Model Object-M is introduced to demonstrate that

a model can have several type models. Object-

M could be used to deﬁne a more general XML format

than if Building-M was used.

3 RELATED WORK

Today there is much interest in the use of metamodels,

e.g. in MDA (OMG, 2003), MDE (Favre, 2004b),

LDD (Fowler, 2005), DSL (Greenﬁeld et al., 2004).

The part of Siwa presented in this article, which is

mainly the static part, can be used as a starting point

in all the mentioned ﬁelds.

There are several other meta-modelling frame-

works, to mention a few: MetaEdit+ (Meta-

case, 2006), Coral (Marcus Alanen, 2004),

XMF (Tony Clark, 2004), EMF (EMF, 2006)

and MPS (MPS, 2006).

Rondo (S. Melnik, 2003) is a programming plat-

form for generic model management and it includes

high-level operators used to manipulate models and

mappings between models. AMW (Marcos Didonet

Del Fabro, 2005a) goes further and allows extensi-

ble mappings. AMW (Marcos Didonet Del Fabro,

2005a) is a generic model weaver that allows the spec-

iﬁcation of correspondences between model elements

from different models - models are in this way con-

nected with a model, e.g. correspondence Equals

might be established between the two id attributes

of classes TMBuilding and Building of Fig. 1.

Our approach has similarities with the aforemen-

tioned works, but we have not found a framework that

allows models and model levels two be connected so

freely as our approach does, e.g. the weaving of mod-

els described above can be achieved simply by intro-

ducing another model with borders to the models to

be weaved; this new model will describe the structure

of the correspondences, semantic engines can then

be deﬁned to handle the semantics of the correspon-

dences; a somewhat related example is given below.

A GENERIC MODEL FOR CONNECTING MODELS IN A MULTILEVEL MODELLING FRAMEWORK

307

4 LEGACY DATA CONSISTENCY

AS EXAMPLE

Our article (Nytun and Jensen, 2003) focused on

the consistency problems that occur when previ-

ously uncoordinated, but semantically overlapping

data sources are being integrated. The paper pre-

sented techniques for modelling consistency require-

ments using OCL and other UML modelling ele-

ments. The paper also considered the automatic

checking of consistency in the context of one of the

modelling techniques. This section presents an out-

line of how Siwa can be applied to implement one of

these techniques and how automatic testing of consis-

tency can be performed.

4.1 Consistency Modelling and

Testing

Fig. 12 shows an integration of two legacy mod-

els, where one is a description of apartments (class

Apartment) and the other a description of build-

ings (class Building). The consistency require-

ments are as follows:

1. The number of apartments that is given as a prop-

erty in class Building should be equal to the

number of apartments with the same building id (at-

tribute bId).

2. One building should have at least one apartment,

and an apartment should belong to exactly one

building.

1..*

{cApartmentCount =

(building.apartmentÆsize() = building.apartmentCount)}

{apartment.bId = building.bId}

cApartmentCount:boolean

ConsistencyApartmentBuilding

bId

apartmentCount

Building

aId

bId

Apartment

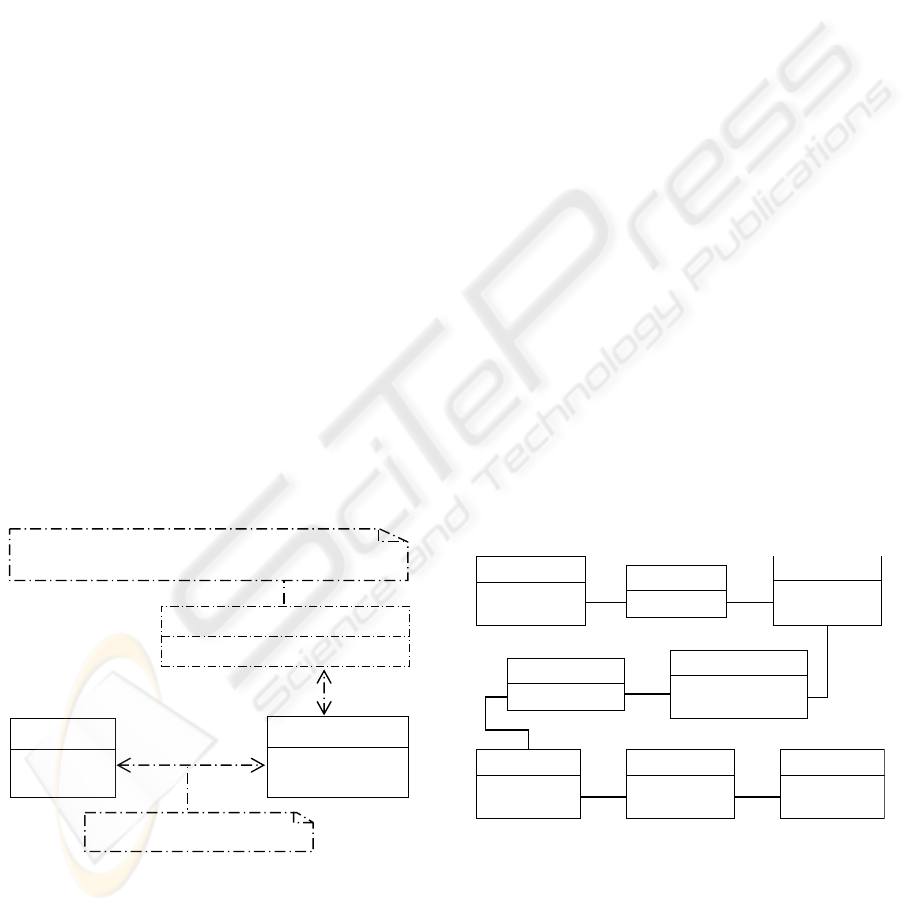

Figure 12: Consistency between Apartment and

Building.

The elements with dash-dotted line style in Fig. 12

constitute what we call a consistency model, this

model is manually made by the user. When the con-

sistency model is established, consistency testing of

legacy data can be performed automatically. In our

case there is one legacy data source with information

about buildings and one about apartments. Consis-

tency testing results in a report revealing which legacy

data that do not fulﬁl the consistency requirements.

The association (Fig. 12) between Apartment and

Building, including the attached invariant ex-

pressed in OCL, constitute consistency requirement

two. When testing is performed on the legacy data,

a link is created between an Apartment and a

Building instance if the invariant is fulﬁlled; if the

multiplicity on the association is broken, this is re-

ported in the consistency report.

Consistency requirement one is speciﬁed with help

of class ConsistencyApartmentBuilding,

property cApartmentCount and its attached in-

variant. During testing instances of type Con-

sistencyApartmentBuilding are created and

linked to Building instances; slot cApartment-

Count will be set to the value that fulﬁls the invari-

ant; if the value is false then a consistency viola-

tion has occurred and will be reported. Note that links

between Building and Apartment instances are

traversed when the values of cApartmentCount

slots are set. From this example we can understand

that standard OCL-statements are used as production

rules when the consistency model is being automati-

cally instantiated.

4.2 Implementation in SIWA

In Siwa the consistency model can be seen as an in-

stance of the declarative domain speciﬁc language de-

scribed by the metamodel given in Fig. 13.

CClass

CProperty

name

constraint

CClassEnd

name

multiplicity

CClassAssociation

name

constraint

CProxyEnd1

name

CProxyEnd2

name

multiplicity

CAssociation

name

constraint

CProxyClass

name

legacySystem

Figure 13: Consistency modelling metamodel.

In brief: The legacy classes Building and

Apartment have proxy classes to represent them

in the consistency model; a proxy class is an in-

stance of CProxyClass. Class Consistency-

ApartmentBuilding (Fig. 13) is an instance of

CClass; its property cApartmentCount is an

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

308

instance of CProperty, where the value of slot

constraint is the text:

cApartmentCount = (building.apartment→size() =

building.apartmentCount)

The association between ConsistencyApart-

mentBuilding and Building is represented

as an instance of CClassAssociation going

between the building proxy class and Consist-

encyApartmentBuilding.

The association between Building and

Apartment is represented as an instance of

CAssociation going between the two proxy

classes; the value of slot constraint for this

instance is the text:

apartment.bId = building.bId

Fig. 14 gives an overview of the complete archi-

tecture. The lowest level can be seen as one contigu-

ous model composed of legacy data and a consistency

model instance. The legacy models are on the other

hand not changed - the borders towards the consis-

tency model can be extracted automatically. From a

model management point of view this is considered

an advantage since it gives few models to manage (re-

member that the lowest level can be produced auto-

matically at will).

The format of this article does not give room for

presenting a complete picture of how Siwa solves the

problem at hand, but below is some information about

how the consistency model instance is automatically

created by a semantic engine.

A semantic engine is a Siwa model that exhibits be-

havior. A special type of semantic engines can be at-

tached to borders, they are called border engines and

are typically involved in instantiation. For simplicity

we can assumed that such engines are programmed in

Java since this is our implementation language. The

metamodeller has made a border engine and attached

it to border L4 (Fig. 14). Border U4 and L6 is cre-

ated by the engine when the modeller decides to make

a consistency model. The engine is also attaching a

premade border engine at L6, it is this engine that au-

tomatically produces the consistency model instance

and the consistency report when triggered. This last

engine is an adapted implementation of the algorithm

presented in (Nytun and Jensen, 2003).

This way of establishing the semantics can be seen

as a speciﬁc way of implementing deep characteriza-

tion; some see deep characterization as a natural part

of metamodelling (K

uhne, 2005).

5 SUMMARY AND RESEARCH

DIRECTIONS

The MATER model presented in this article repre-

sent our understanding of what we mean by a mul-

tilevel model architecture; we have tried to make an

explicit representation of all elements that constitutes

such an architecture. Complex and advanced concepts

can then be built in a natural way by combining these

deﬁned building blocks.

MATER can be seen as a metamodel by itself,

but we choose to see it as the physical carrier for

multilevel modelling architectures. This view allow

us to specify top models as we see needed, e.g. a top

model that gives properties separate existence.

The following is a list of features that in our view

makes Siwa a promising and unique framework:

• It is not strongly coupled to the instantiation found

in its implementation language, this allows a model

to have several type models each offering different

and useful information about the model.

• It is extremely generic which makes it adaptable to

many different modeling needs, e.g. it might allow

separate existence of properties.

• It is possible to have incomplete architectures, e.g.

XML documents might be loaded for analysis, and

then a model might be produced automatically (T.

Gjøsæter and J. P. Nytun and A. Prinz and M.

Snaprud and M. S. Tveit, 2006). This is typically

not possible in other frameworks due to their strong

coupling to instantiation in the selected implemen-

tation language.

Parts of our framework are already implemented

in the Eclipse framework (d’Anjou et al., 2004).

The ﬁrst prototype is implemented by deﬁning the

MATER model as a UML model in Eclipse and from

this we create an EMF Model; this looks like a trick

since we end up with having all the Siwa model lev-

els at one EMF level (Prinz et al., 2006), but it gives

us a jump-start and it automatically produces a lot of

useful code.

ACKNOWLEDGEMENTS

Thanks to Andreas Prinz, Vladimir Oleshchuk, Chris-

tian S. Jensen, Birger Møller-Pedersen and Arne

Maus for continuous inspiration and valuable discus-

sions.

A GENERIC MODEL FOR CONNECTING MODELS IN A MULTILEVEL MODELLING FRAMEWORK

309

REFERENCES

Atkinson, C. and K

uhne, T. (2000). Strict Proﬁles: Why

and How. In UML 2000 - The Uniﬁed Modeling Lan-

guage, Advancing the Standard, volume 1939 of Lec-

ture Notes in Computer Science. Springer.

Atkinson, C. and K

uhne, T. (2001). The Essence of Mul-

tilevel Metamodeling. In UML 2001 - The Uniﬁed

Modeling Language: Modeling Languages and Appli-

cations, volume 2185 of Lecture Notes in Computer

Science. Springer.

Atkinson, C. and K

uhne, T. (2002). Rearchitecting the

UML infrastructure. ACM Transactions on Computer

Systems (TOCS),, 12(4):290–321.

d’Anjou, J., Fairbrother, S., Kehn, D., Kellermann, J., and

McCarthy, P. (2004). The Java Developer’s Guide to

Eclipse. Addison-Wesley.

EMF (2006). EMF, the Eclipse Modelling Framework:

Available at: http://www.eclipse.org/emf.

Favre, J. (2004a). Foundations of meta-pyramids: Lan-

guages vs metamodels. Available at:

http://www.citeseer.ist.psu.edu

/722867.html.

Favre, J. (2004b). Foundations of model (driven) (reverse)

engineering - episode i: Story of the ﬁdus papyrus

and the solarus. Available at:

http://www.citeseer.ist.psu.edu/

favre04foundations.html.

Favre, J.-M. (2005). Megamodelling and etymology. In

Dagstuhl Seminar 05161 on Transformation Tech-

niques in Software Engineering. Available at:

http://www-adele.imag.fr/ jmfavre.

Fowler, M. (2005). Language workbenches: The killer-app

for domain speciﬁc languages? Available at:

http://www.martinfowler.com/articles/

languageWorkbench.html.

Greenﬁeld, J., Keith Short, w. c. b. S. C., and Kent, S.

(2004). Software Factories: Assembling Applications

with Patterns, Frameworks, Models & Tools. John Wi-

ley & Sons.

J. B

ezivin, F. Jouault, P. V. (2004). On the need of meg-

amodels. In OOPSLA, 2004.

uhne, T. (2005). What is a model? In B

ezivin, J.

and Heckel, R., editors, Language Engineering for

Model-Driven Software Development, number 04101

in Dagstuhl Seminar Proceedings. Available at:

http://drops.dagstuhl.de/opus

/volltexte/2005/23.

Marcos Didonet Del Fabro, Jean B

ezivin, F. J. E. B.

G. G. (2005a). AMW: a generic model weaver. In

Proceedings of the 1re Journe sur l’Ingnierie Dirige

par les Modles (IDM05). Available at:

http://www.sciences.univ-nantes.fr

/lina/atl/publications/.

Marcos Didonet Del Fabro, Jean B

ezivin, F. J. P. V.

(2005b). Applying generic model management to

data mapping. In Proceedings of the Journes Bases

de Donnes Avances (BDA05). Available at:

http://www.sciences.univ-nantes.fr

/lina/atl/publications/.

Marcus Alanen, I. P. (2004). The Coral Modelling Frame-

work. In Koskimies, K., Kuzniarz, L., Lilius, J., and

Porres, I., editors, Proc. of the 2nd Nordic Workshop

on the Uniﬁed Modeling Language NWUML’2004.

Turku Centre for Computer Science, Finland.

Martin Gogolla, Jean-Marie Favre, F. B. (2005). On squeez-

ing m0, m1, m2, and m3 into a single object diagram.

In Workshop on Tool Support for OCL and Related

Formalisms - Needs and Trends OCL at Models 2005.

Available at:

http://www-adele.imag.fr/ jmfavre

Metacase (2006). MetaEdit+. Available at:

http://www.metacase.com/

MPS (2006). Meta programming system. Available at:

http://www.jetbrains.com/mps/.

Nytun, J. P. and Jensen, C. S. (2003). Modeling and Test-

ing Legacy Data Consistency Requirements. In UML

2003 - The Uniﬁed Modeling Language: Modeling

Languages and Applications, volume 2863 of Lecture

Notes in Computer Science, pages 341–355. Springer.

Nytun, J. P., Prinz, A., and Kunert, A. (2004). Represen-

tation of levels and instantiation in a metamodelling

environment. NWUML 2004.

OMG (2003). Model Driven Architecture Guide, Version

1.0.1. Object Management Group. omg/03-06-01.

OMG Editor (2003). Revised Submission to OMG RFP

ad/2003-04-07: Meta Object Facility (MOF) 2.0 Core

Proposal. Available at

http://www.omg.org/docs/formal

/06-01-01.pdf.

OMG Editor (2006a). MOF Support for Semantic Struc-

tures, OMG RFP ad/2006-06-03. Available at:

http://www.omg.org/docs/ad

/06-06-03.pdf.

OMG Editor (2006b). UML 2.0 Infrastructure Speciﬁca-

tion, OMG Document formal/05-07-05 . OMG Docu-

ment. Available at: http://www.omg.org.

Prinz, A., Nytun, J. P., Chen, L., and Wei, S. (2006).

Integration of MATER and EMF. In Proc. of the 4th

Nordic Workshop on the Uniﬁed Modeling Language

NWUML’2006. Available at:

http://osys.grm.hia.no/osys/archive

/conferences/nwuml

06.

S. Melnik, E. Rahm, P. A. B. (2003). Rondo: A program-

ming platform for generic model management. In In:

SIGMOD, pages 193–204.

T. Gjøsæter and J. P. Nytun and A. Prinz and M. Snaprud

and M. S. Tveit (2006). Modelling accessibility con-

straints. In Proc. of ICCHP.

Tony Clark, Andy Evans, P. S. J. W. (2004). Applied Meta-

modelling. A Foundation for Language Driven Devel-

opment. Xactium. Available at:

http://www.xactium.com.

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

310

Apartment-M

Class

Apartment

Class

Class-MM

Class

CClass

Consistency-MM

Consistency-M

CApartmentBuilding

CClass

Apartment

BuildingBuilding

Building-M

Class

Building

Apartment

Apartment-MI

Building

Building-MIConsistency-MI

CApartmentBuilding

H2 H3

Class

L1 L3

Figure 14: Architecture example: consistency modelling and testing.

A GENERIC MODEL FOR CONNECTING MODELS IN A MULTILEVEL MODELLING FRAMEWORK

311
