A SIMPLE THREE–PARAMETER SURFACE FITTING SCHEME
FOR IMAGE COMPRESSION
Salah Ameer
1
Otman Basir
2
Department of Electrical and Computer Engineering
University of Waterloo
Waterloo, ON Canada
Keywords Image Compression, Surface Fitting, Blocking Effects, Progressive Transmission, and Multiplication – and
Division – Free Implementations.
Abstract This paper describes a simple scheme to compress images through surface fitting. The scheme can achieve
better than 60:1 compression ratio with acceptable image quality degradation. The results are superior to
those of JPEG at comparable ratios. Another advantage is that no multiplications or divisions are required,
making the implementation suitable for online or progressive compression. Blocking effects were reduced
(up to 0.5dB of PSNR improvement) through simple line fitting on block boundaries.
1 INTRODUCTION
With the increasing demand on data transfer and
storage, data compression has become a necessity.
Generally, compression falls in two categories:
lossless (exact reconstruction) (
Berg and Mikhael,
1994) and lossy. The former has a low compression
rate while the latter has a higher one.
Image compression has been widely
investigated, and many algorithms have been
proposed (Egger et al., 1999). The human visual
system is nonlinear; hence, a compromise (to a
certain extent) between perceptual quality and high
compression ratios can be reached.
In DPCM (Differential Pulse Code Modulation)
coding (Habibi, 1977), a pixel is predicted from its
causal neighborhood, and the prediction error is
quantized and coded. High compression is difficult
to attain due to accumulated errors and the need for
multi-model prediction.
To overcome these limitations, block-based
compression techniques (dividing the image into
nonoverlapping blocks) were suggested (Egger et
al., 1999). At higher rates, these techniques suffer
from visually annoying artifacts on block
boundaries. Sub-band coding (wavelets) (Lin and
Vaidyanathan, 1996) is free of such artifacts;
however, the reconstructed image tends to be blurry.
Block-based techniques can be categorized into
training-type and non-training type techniques.
Training-type techniques include vector quantization
(Li and Zhang, 1995), neural networks
(Jiang, 1999),
and iterated functions or fractals (Wohlberg and de
Jager, 1999). In this category, compression
performance is dependent on how similar is the
image to the training set. Non-training type
techniques include block truncation (Delp and
Mitchell, 1979), transform coding (including
Discrete Cosine Transform used in JPEG (Furht,
1995), and surface fitting (Eden et al., 1986).
Polynomial fitting was employed in various
compression techniques, including, block-based
compression through splines (Watanabe, 1997),
prediction of motion compensation vectors in video
coding (Karczewics et al., 1997), and block-based
image compression through variable size triangular
blocks (Lu et al., 2000). Segmentation-based
compression (Biswas, 2003) also uses 1D and 2D
polynomial fitting. Zigzag scanning was used in
(Nguyen and Oommen, 1997) to convert the block
to 1D and then to perform linear approximations
between selected knots.
101
Ameer S. and Basir O. (2006).
A SIMPLE THREE–PARAMETER SURFACE FITTING SCHEME FOR IMAGE COMPRESSION.
In Proceedings of the First International Conference on Computer Vision Theory and Applications, pages 101-106
DOI: 10.5220/0001360501010106
Copyright
c
SciTePress
Surface fitting has been used in image
segmentation (Lim and Park, 1988), in image noise
reduction (Sinha and Schunck, 1992), and for
quality improvement of block-based compression
(Laha et al., 2004). It was used in (Baseri and
Modestino, 1994) (using splines) to encode the
lowest frequency band in subband coding. Fitting a
surface to known samples can help to reconstruct the
lost sub-band coefficients (Hemami and Gray,
1997). In (Kim and Lee, 2002), surface fitting was
combined with RBF networks to perform
compression using a predefined set of patterns for
the RBF centers.
A simplified derivation for first order (plane)
fitting was proposed in (Strobach, 1991). The
coefficients (assumed to be uniformly distributed) of
a 2Nx2N block are computed from their NxN
counterparts. A PSNR of 32 dB was obtained for
16:1 compression with high complexity of building
the quadtree. A related quadtree approach was
proposed by (Hasegawa and Yamasaki, 2002) to
predict block corners from the upper left one. These
four corners are used in the decoder to find the
coefficients of (dxy + ax + by + c).
This paper exploits the implementation of
surface fitting techniques in image compression. No
edge detection or error calculations are performed to
eliminate the need for image-dependent thresholds
and/or multipass operations. Section 2 introduces
plane fitting. To maintain comparable complexity,
only three parameters are used in higher order
implementations described in Section 3. Results and
comparisons are presented in Section 4, followed by
conclusions and suggestions in Section 5.
2 ALGORITHM DESCRIPTION
2.1 Mathematical Formulation
The image is divided into nonoverlapping blocks,
each considered as a 3D surface. The z-axis is the
pixel gray value (i.e., intensity g). The simplest case
is a plane, i.e., z = ax + by + c. To reduce
computations, the block center is selected as the
origin. Formulating as an MSE problem, we have
()
∑∑
−
−−=
−
−−=
−++
2/)1(
2/)1(
2/)1(
2/)1(
2
cb,a,
y)g(x,c by ax Minimize
N
Nx
N
Ny
(1)
where N is the block dimension. Setting the
derivatives with respect to a, b, and c to zero results
in,
Z c and , Z b , Z a
000110
===
(2)
where,
yx
y)g(x,yx
Z
2/)1(
2/)1(
2/)1(
2/)1(
2j2i
2/)1(
2/)1(
2/)1(
2/)1(
ji
ij
∑∑
∑∑
−
−−=
−
−−=
−
−−=
−
−−=
=
N
Nx
N
Ny
N
Nx
N
Ny
(3)
To reduce the number of additions, we sum row–
wise (or column–wise) and use the partial sums in
finding more than one parameter. Simple
manipulations can be performed to convert each
multiplication to two shifts or fewer.
2.2 Quantization
Experiments on many pictures showed that
quantization should be uniform for c and
nonuniform for a and b (uniform was assumed for
all in (Strobach, 1991)). When the origin is selected
as the upper left corner, the range of c increases by
more than 20% compared to the case of selecting the
block center.
The distributions for a and b are very similar and
can be well approximated (for N>3) by zero mean
Laplacian random variables. Quantization thresholds
follow the pattern ±(P
1/Q
–1), …, ±(P–1) where Q is
the number of intervals. The value of P was set to
32, though it is not critical. Consequently, the levels
are 0, ± (P
3/2Q
–1), … ± (P
(2Q-1)/2Q
–1). Stretching the
levels and thresholds by (1+e
– |N–4|/2
) was found
useful experimentally. These pre-saved levels are of
great help in eliminating the division in (3).
2.3 Encoding
To eliminate the need for sending coding tables,
comma coding (followed by a sign bit) was
implemented for a and b and binary coding for c.
Compression ratio CR is defined as
fileompressed its in cNo. of b
ileriginal fits in oNo. of b
CR =
(4)
2.4 Post Processing
At the decoder, block boundaries are linearly
interpolated (both horizontally and vertically) to
reduce blocking effects. The procedure ignores pixel
values at the boundaries and replaces them with
those obtained from the nearest two points.
Mathematically,
(
)
()
3/),2(
ˆ
2),1(
ˆ
),1(
ˆ
3/),2(
ˆ
),1(
ˆ
2),(
ˆ
yNxgyNxgyNxg
yNxgyNxgyNxg
++−=+
++
−
=
(5)
VISAPP 2006 - IMAGE FORMATION AND PROCESSING
102
where
g
ˆ
is the reconstructed image, x = 1, … X/N,
y = 1, … Y, and X and Y are the image dimensions.
A similar argument can be applied to the vertical
direction. The division in (5) can be eliminated
through the following modification
()
()
4/),2(
ˆ
3),1(
ˆ
),1(
ˆ
4/),2(
ˆ
),1(
ˆ
3),(
ˆ
yNxgyNxgyNxg
yNxgyNxgyNxg
++−=+
+
+
−=
(6)
These simple procedures improve both visual
quality and PSNR given by
()
⎟
⎟
⎟
⎟
⎠
⎞
⎜
⎜
⎜
⎜
⎝
⎛
−
=
∑∑
xy
2
2
10
y)(x,g
ˆ
y)g(x,
XY255
log10PSNR
(7)
3 EXTENSION TO HIGHER
ORDERS
3.1 Adding the Term xy
Here we have z=(ax+c) (by+c). Minimizing MSE,
we get
1(a/c)
Za/cZ
bc and
1(a/c)
Za/cZ
c ,rkk a/c
2
0111
2
0010
22
+
+
=
+
+
=++=
(8)
where
0111
011110
0111
00
2
01
2
11
ZZ
Z
r and ,
Z2Z
ZZZ
k
ZZ +
=
−−
=
(9)
a and b follow their plane counterparts with P=4.
3.2 Separable Monotonics
In this case,
z = a sign(x) |x|
m
+ b sign(y) |y|
n
+ c (10)
Minimizing MSE, we have
00
2/)1(
2/)1(
2/)1(
2/)1(
y
1-n
2/)1(
2/)1(
2/)1(
2/)1(
x
1-m
Z c
S N
y)g(x,yy
b
S N
y)g(x,xx
a
=
=
=
∑∑
∑∑
−
−−=
−
−−=
−
−−=
−
−−=
N
Nx
N
Ny
N
Nx
N
Ny
(11)
where
∑
=
m
x
xS
2
and
∑
=
n
y
yS
2
. The best MSE
performance was the plane case, i.e., m = n =1.
3.3 Quadratic Surfaces
Different combinations of three unknowns were
tried, e.g., z=(ax+by+c)
2
and z=(ax+c)
2
+(by+c)
2
.
The solutions are obtained through nonlinear
equations. However, the performance was poor and
hence was not considered.
3.4 Higher Orders
Many surfaces can be fitted (using three unknowns)
by gray scale transformations of the form f(g(x,y)),
i.e.,
()
[]
∑∑
−
−−=
−
−−=
−++
2/)1(
2/)1(
2/)1(
2/)1(
2
y)g(x,fc by ax Minimize
N
Nx
N
Ny
(12)
The Quality is inferior to that of the plane case.
When f(x) = x
r
, the performance improves and
reaches its optimum at r=1.
4 EXPERIMENTAL RESULTS
The proposed algorithm was tested on the standard
image PEPPER (512x512 with 8 bits per pixel)

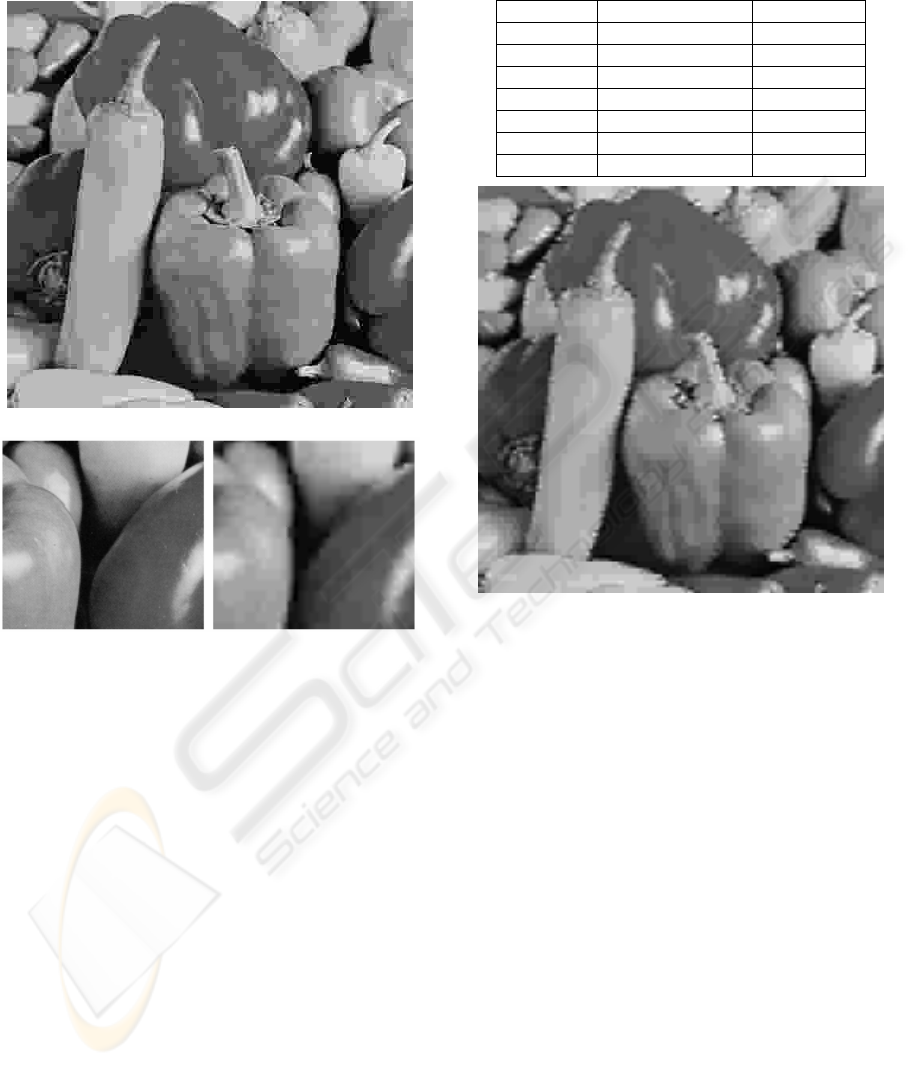

shown in Fig(1). Fig(2) shows the reconstructed
(before and after linear interpolation at block
boundaries) images (using 8x8 blocks) for the plane
case Q=4 and 5 bits for c (CR=57.92:1). It is clear
that constant regions are well described with
tolerable edge degradations. In comparison, a JPEG
image, taken from MatLab, is shown in Fig(3)
(CR=47.04:1). Although the PSNRs are comparable
(around 27.5dB), visual quality of the reconstructed
image is more pleasing than that of JPEG. Fig(4)
shows zooming of the original and reconstructed
images.
Table I: Performance for different block sizes
(Q=max(2,N/2)).
N PSNR (dB) CR
4 29.52 17.79
5 28.66 26.45
6 28.61 36.46
7 27.75 46.22
8 27.57 58.50
9 26.74 69.74
10 26.41 84.85
11 25.76 96.97
12 25.43 114.66
A SIMPLE THREE–PARAMETER SURFACE FITTING SCHEME FOR IMAGE COMPRESSION
103

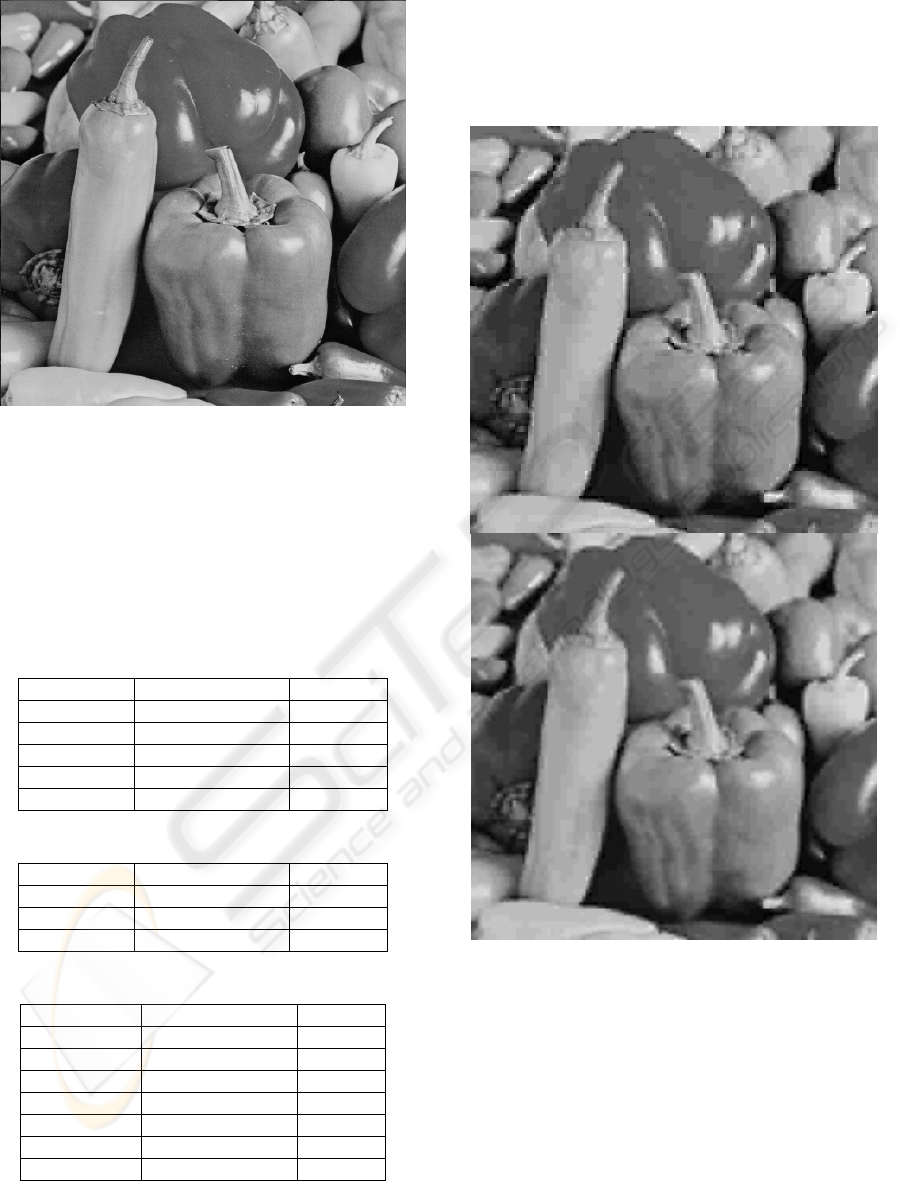

Fig(1): Original image PEPPER.
Additional 4 bits are needed per image to send
the number of intervals, Q, (2–5) and the number of
quantization bits for c (3–6). The proposed scheme
was implemented with different block sizes, as
shown in Table I. The results are comparable
(superior in many cases) to those listed in (Biswas,
2003). It is interesting to note that even values of N
have higher CR than N–1 with slight reduction in
PSNR.
Table II: Performance for different overlapped block sizes.
N PSNR (dB) CR
4 30.97 9.02
6 29.36 18.80
8 28.01 30.23
10 26.77 43.22
12 25.79 57.49
Table III: Performance for different sizes overlapped by
N–8 pixels.
N PSNR (dB) CR
9 24.79 54.29
10 24.79 53.63
11 24.40 51.08
Table IV: Performance on different images using 8x8
blocks.
Image PSNR (dB) CR
Balloon 23.98 59.13
Boat 26.26 59.18
Chimp 26.32 57.09
Fern 28.86 62.51
Mandrill 20.62 54.58
Nature 24.66 57.18
Temple 23.51 55.78
For completeness, Table II lists results for
similar size overlapped blocks, while Table III
shows results for different block sizes overlapped by
N–8 pixels. These two tables demonstrate the
marginal PSNR gain obtained at the expense of CR
reduction. Implementations on different images are
given in Table IV.
Fig(2): Reconstructed images (8x8 blocks) at 57.92:1
compression (upper) before linear interpolation 26.96dB
and (lower) after linear interpolation 27.57dB.
The proposed quantization reduces PSNR by less
than 0.3dB. A compensation of around 0.5dB was
obtained with linear interpolation at block
boundaries; however, the visual quality was not
improved that much for N>8. No significant
differences were noticed between the
implementations of (5) and (6). Interpolation gains
are higher for odd N than for even N. Diagonal
interpolation (after horizontal and vertical
interpolation) produces an insignificant degradation
VISAPP 2006 - IMAGE FORMATION AND PROCESSING
104
of 0.03dB. A negligible improvement of 0.02dB was
obtained with a one-step extrapolation in the four
directions of each block.
Fig(3): JPEG image at 47.04:1 compression and 27.48dB.
Fig(4): Zooming of images in Fig(1).
A better reduction of blocking effects (around
0.7dB) was obtained with a 10-point cubic fitting.
This slight increase did not improve visual quality
and was not favored against the linear one due to the
added complexity.
PSNR improvement of 0.1dB (at 51.72:1
compression) can be obtained when quantizing c to
6 bits. This slight increase is visually more pleasing
in homogeneous regions. In fact, the reconstruction
quality is sensitive to the quantization of c more than
to that of a and b.
Table V lists some results for different values of
Q when c is quantized to 5 bits. As for subjective
quality, reconstructed images are visually
acceptable; however, the cases Q=2 and Q=3 are
slightly annoying because of blockiness. No
significant differences were noticed between other
values of Q. Though not implemented, c can be
adaptively quantized in a similar fashion to that of
the DC value in the JPEG compression scheme.
An increase of approximately 10% in CR was
obtained (PSNR decreases by 0.2dB) with (a+b)/2
and (a–b)/2 instead of a and b. However, the visual
quality was similar as that of Q=3 (see Table V).
Table V: Performance for different Q on 8x8 blocks.
Q PSNR (dB) CR
2 26.51 69.81
3 27.24 63.74
4 27.57 58.50
5 27.68 54.51
6 27.76 51.12
7 27.81 48.41
8 27.85 45.92
Fig(5): Reconstruction (xy case): at 64.53:1 compression
and 26.21dB with c quantized to 5 bits and Q=4.
Fig(5) shows the reconstructed image for the xy
case. It has less quality and higher computational
cost than the plane case. Blocking effects are more
annoying at the region boundaries. Similar to the
plane case, the quantization of c has more influence
on the subjective quality of the reconstructed image.
This finding is not surprising since c represents the
average gray level of the block.
5 CONCLUSIONS AND
SUGGESTIONS
An image compression scheme has been
implemented via surface fitting. The performance is
superior (both perceptually and in PSNR value) to
that of JPEG at compression ratios >32:1.
Each block is represented by three quantized
coefficients. To reduce quantization error (Strobach,
1991) and the number of bits allocated to the
constant parameter c, the block center was chosen as
the origin. Simple quantization and coding schemes
A SIMPLE THREE–PARAMETER SURFACE FITTING SCHEME FOR IMAGE COMPRESSION
105
were used to reduce cost; however, there is still
room for improvement in this aspect. In fact,
sending functions of a and b can increase CR
keeping PSNR almost unaffected. This observation
needs further investigations together with a more
perceptually correlated error measure.
Plane fitting implementation is multiplication-
and division-free. The number of shifts can be
drastically decreased at the decoder by adopting
similar calculations to that of (Hasegawa and
Yamasaki, 2002). This low computational cost
makes the proposed algorithm suitable for real time
applications. Embedded coding can be achieved by
sending c on bit bases followed by a(b) and b(a).
Blocking effects were reduced with simple 2-
point linear interpolation. This reduction compares
well to the reduction obtained with 10-point cubic
fitting.
Work is in progress to incorporate better edge
and/or texture descriptions to improve PSNR.
REFERENCES
Baseri, R., and Modestino, J., 1994. Region-based coding
of images using a spline model. In Proc. IEEE
International Conference Image Processing, Vol. 3,
pp 866 – 870.
Berg, A., and Mikhael, W., 1994. A survey of techniques
for lossless compression of signals. In Proc. of the 37
th
Midwest Symposium on Circuits and Systems, Vol. 2,
pp 943 – 946.
Biswas, S., 2003. Segmentation based compression for
gray level images. In Pattern Recognition 36, pp 1501
– 1517.
Delp, E., and Mitchell, O., 1979. Image Compression
Using Block Truncation. In IEEE Trans. Comm., Vol.
Com-27, No. 9, pp 1335 – 1342.
Eden, M., Unser, M., and Leonardi, R., 1986. Polynomial
representation of pictures. In Signal Processing 10,
385–393.
Egger, O., Fleury, P., Ebrahimi, T., and Kunt, M., 1999.
High-performance compression of visual
information—a tutorial review—Part I: still pictures.
In Proc. IEEE, Vol. 87, No. 6, pp 976 – 1011.
Furht, B., 1995. A survey of multimedia compression
techniques and standards Part I: JPEG Standard. In
Real-time Imaging, pp 49–76.
Habibi, A., 1977. Survey of adaptive image coding
technique. In IEEE Trans. Comm., Vol. Com-25, No.
11, pp 1275 – 1284.
Hasegawa, M., and Yamasaki, I., 2002. Image data
compression with nonuniform block segmentation and
luminance approximation using bilinear curved
surface patches. In Systems and Computers in Japan,
Vol. 33, No. 10, pp 31 – 40.
Hemami, S., and Gray, R., 1997. Subband-coded image
reconstruction for lossy packet networks. In IEEE
Trans. IP, Vol. 6, No. 4, pp 523 – 539.
Jiang, J., 1999. Image compression with neural networks –
A survey. In Signal Processing: Image
Communication 14, pp 737 – 760.
Karczewics, M., Nieweglowski, J., and Haavisto, P., 1997.
Video coding using motion compensation with
polynomial motion vector fields. In Signal
Processing: Image Communication 10, pp 63 – 91.
Kim, H., and Lee, J., 2002. Image coding by fitting RBF-
surfaces to subimages. In Pattern Recognition Letters
23, pp 1239–1251.
Laha, A., Pal, N., and Chanda, B., 2004. Design of vector
quantizer for image compression using self-organizing
feature map and surface fitting. In IEEE Trans. IP,
Vol. 13, No. 10, pp 1291 – 1303.
Li, W., and Zhang, Y., 1995. Vector–based signal
processing and quantization for image and video
compression. In Proc. IEEE, Vol. 83, No. 2, pp 317 –
335.
Lim, Y. and Park, K., 1988. Image segmentation and
approximation through surface type labeling and
region merging. In Elect. Lett., Vol. 24 No. 22, pp
1380 – 1381.
Lin, Y. and Vaidyanathan, P., 1996. Theory and design of
two-dimensional filter banks: a review. In
Multidimensional Systems and Signal Processing 7, pp
263 – 330.
Lu, T., Le, Z., and Yun, D., 2000. Piecewise linear image
coding using surface triangulation and geometric
compression. In Proc. Data Compression Conference,
pp 410 – 419.
Nguyen, T., and Oommen, B., 1997. Moment-preserving
piecewise linear approximations of signals and
images. In IEEE Trans. PAMI, Vol. 19, No. 1, pp 84 –
91.
Sinha, S., and Schunck, B., 1992. A two stage algorithm
for discontinuity preserving surface reconstruction. In
IEEE Trans. PAMI, Vol. 14, No. 1, pp 36 – 55.
Strobach, P., 1991. Quadtree-structured recursive plane
decomposition coding of images. In IEEE Trans. SP,
Vol. 39, No. 6, pp 1380 – 1397.
Watanabe, T., 1997. Picture coding employing B-spline
surfaces with multiple vertices. In Elect. & Comm. in
Japan Part I, Vol. 80, No. 2, pp 55 – 65.
Wohlberg, B. and de Jager, G., 1999. A review of the
fractal image coding literature. In IEEE Trans. IP,
Vol. 8, No. 12, pp 1716 – 1729.
VISAPP 2006 - IMAGE FORMATION AND PROCESSING
106
