SURVEILLANCE OF OUTDOOR MOVING TARGETS

Matching Targets using Five Features

Nalin Pradeep S.

Vision Technologies Group,Sarnoff Innovative Technologies Private Ltd,Bangalore,India

Mayur D. Jain

Microsoft(R&D) India Private Ltd,Hyderabad,India

Keywords: Object Segmentation, Tracker, Five Features, Centroid, Shape and Color Histogram.

Abstract: The proposed video surveillance method comprises segmentation of moving targets and tracking the

detected objects through five features of the target object. We introduce motion object segmentation based

on mean and variance background learning model, and subtraction using both color and edge information.

The cognitive fusion of color and edge information helps identifying foreground object. The combination of

the five features spatial positions, LBW, Compactness, Orientation and color histogram through particle

filter approach tracks the segmented objects. These five features help in matching the target tracks during

occlusions, merging of targets, stop and go motion in vary challenging environmental (rainy and snowy)

conditions shown in the results. Our proposed method provides solution to common problems related to

matching of target tracks. We provide encouraging experimental results calculated on synthetic and real

world sequences to demonstrate the algorithm performance.

1 INTRODUCTION

The main purpose of video surveillance is to allow

for a secure monitoring. The primary research issue

of Video Surveillance is automated detection and

tracking objects, events and pattern. Nowadays

video surveillance is a mature discipline aiming to

define techniques and systems for processing videos

from cameras placed in a specific environment to

extract the knowledge of meaningful moving

entities. The high level description of a video stream

relies on the detection and accurate tracking of

moving objects, and on the relationship of their

trajectories to the scene.

Recently, a significant number of trackers have

been proposed. Some deal with low-level feature

tracking while others deal with high-level

description such as event detection, recognition,

classification as human/vehicle and even trajectory

descriptions. For the success of high-level

description it relies very much on accurate detection

and tracking of moving objects in varying

environmental conditions. For a successful tracker to

exist under testing conditions it needs to overcome

situations of merge, occlusions, start-stop motion of

targets. Utsumi and Ohya, 1998 proposed a method

of extracting a moving object region from each

frame in a series of images using statistical

knowledge about the target. Haritaoglu, Harwood

and Davis, 2000 classified the feature trackers into

several categories with their functionality (tracking

single-multiple objects, handling occlusion)

In this paper, we address the problems of

detection, tracking and matching the tracks of

moving objects in the context of video surveillance.

With the help of condensation algorithm through

particle filter (Isard and Blake, 1998) we could

experiment with multiple objects merging, occluding

under varying conditions (like rainy, snowy).

Section 2 describes the algorithm for the moving

object segmentation. The approach used builds a

background model using both color and gradient

information and then performs background

subtraction using these models (Javed, Shafique and

Shah, 2002) The cognitive fusion of color and edge

information gives the accurate object contour and

helps to remove noise and small regions, further

updated with median filter. Section 3 focuses on the

395

Pradeep S. N. and D. Jain M. (2006).

SURVEILLANCE OF OUTDOOR MOVING TARGETS - Matching Targets using Five Features.

In Proceedings of the First International Conference on Computer Vision Theory and Applications, pages 395-401

DOI: 10.5220/0001367003950401

 SciTePress

tracker structure. The five features are extracted and

target tracks matched. The state vector of a target

includes spatial position (centroid), Length by Width

(LBW) ratio, Orientation, compactness, color

histogram. These features are updated through

sample-based representation of recursive Bayesian

filter applied iteratively (Esther, koller-Meier, Frank

Ade, 2000). Factors such as unexpected intruders,

occlusion, merging of targets with noise may affect

the efficiency of tracking. To overcome this, most

reliable cues motion, color and shape features are

combined. Section 4 describes the matching of target

tracks using the five features. The features which

form the state vector of a track are updated with

newly appearing or disappearing targets. In section

5, we demonstrate the result of our system on data

sets. Section 6 concludes the paper. Figure

1 shows

the flowchart of our system.

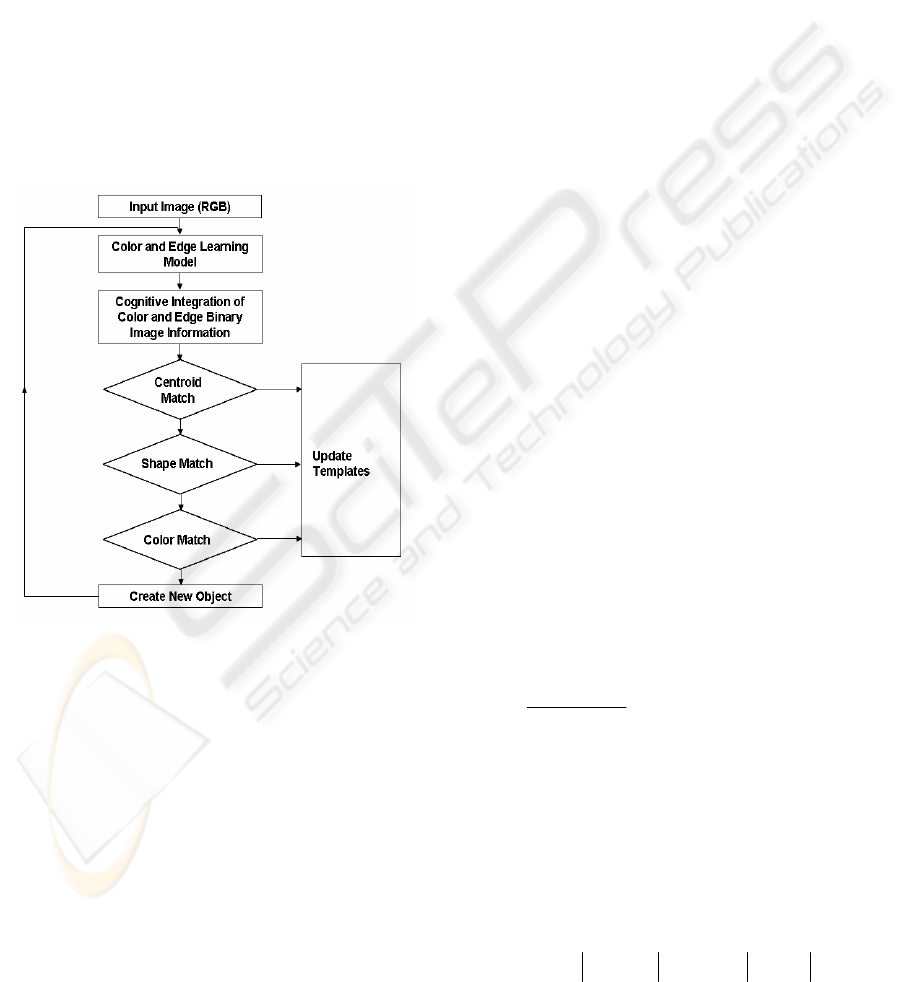

Figure 1: Flowchart of the System.

2 OBJECT SEGMENTATION

The first step in the surveillance of object is

separating the moving targets from the background

(BGND). We have built the background model in

two parts, color model and gradient model. Color

model is built for each color channel. It consists of

two images representing the mean and standard

deviation for each color channel. For each color

channel the mean image is computed as

(

)

−

−+=

ttt

uxu

(1)

where,

u is the mean computed up to frame t, α is

the learning rate of model, and

is the intensity of

the color component in frame t. The standard

deviation image

is used to normalize the

confidence map during background subtraction and

is computed using

(

)( )

−

−+−=

tttt

σαασ

(2)

The edge model is also composed of two mean

images and two standard deviation images. It is

computed by a horizontal and vertical Sobel edge

filter. This results in horizontal (H) and vertical

gradient image (V). The mean images are computed

(

)

()

−

−+=

−

VVV

HHH

ββ

(3)

where, β is the learning rate of the model. The

standard deviation images

and

,Vt

are

computed similar to the color model. The edge

model is used to identify changes in the structure of

an image. Mean image is updated continuously

using the learning parameter in the color and edge

model which allows the background model to adjust

to gradual changes in illumination. Background

subtraction is done by performing the color-based

subtraction and the edge-based subtraction

separately and then cognitive integration of the two

results.

Color-based subtraction is performed by

subtracting the current image from the mean image

in each color channel. This results in three difference

images which are used to create three normalized

confidence maps. This is done by comparing the

difference to two thresholds,

and

derived from the standard deviation images. For

each pixel, the confidence is computed as

⎪

⎩

⎪

⎨

⎧

≤≤×

−

σσ

MDm

100

(4)

A significant change in any color channel indicates a

foreground region. A single confidence map C

can

be created by taking the maximum confidence at

each pixel.

Edge-based subtraction is performed by

subtracting the current horizontal difference image

from the mean image H

and vertical difference

image from the mean image V

VVVHHH −=∆−=∆ ,

(5)

The edge gradient image is obtained as

VISAPP 2006 - MOTION, TRACKING AND STEREO VISION

396

VHG ∆+∆=∆

(6)

The confidence map is computed by multiplying the

∆G by a reliability factor R and comparing the

results to two thresholds

and

. Here, σ is

the sum of the horizontal standard deviation and the

vertical standard deviation. For each pixel, let

ttt

GHV G H V=+ = +

(7)

{

}

max ,

GGG

∗

(8)

and reliability factor R computed as

∗

∆

(9)

The confidence for each pixel is computed as

⎪

⎩

⎪

⎨

⎧

>∆

≤∆≤×

−

−∆

<∆

σσ

MGR

MGRm

mGR

100

(10)

The results from the color subtraction and the

edge subtraction are combined by taking the

maximum between the two confidence maps

obtained in (4) and (10) at each pixel. The binary

image thus obtained by the fusion of color and edge

map is processed with median filter to remove salt

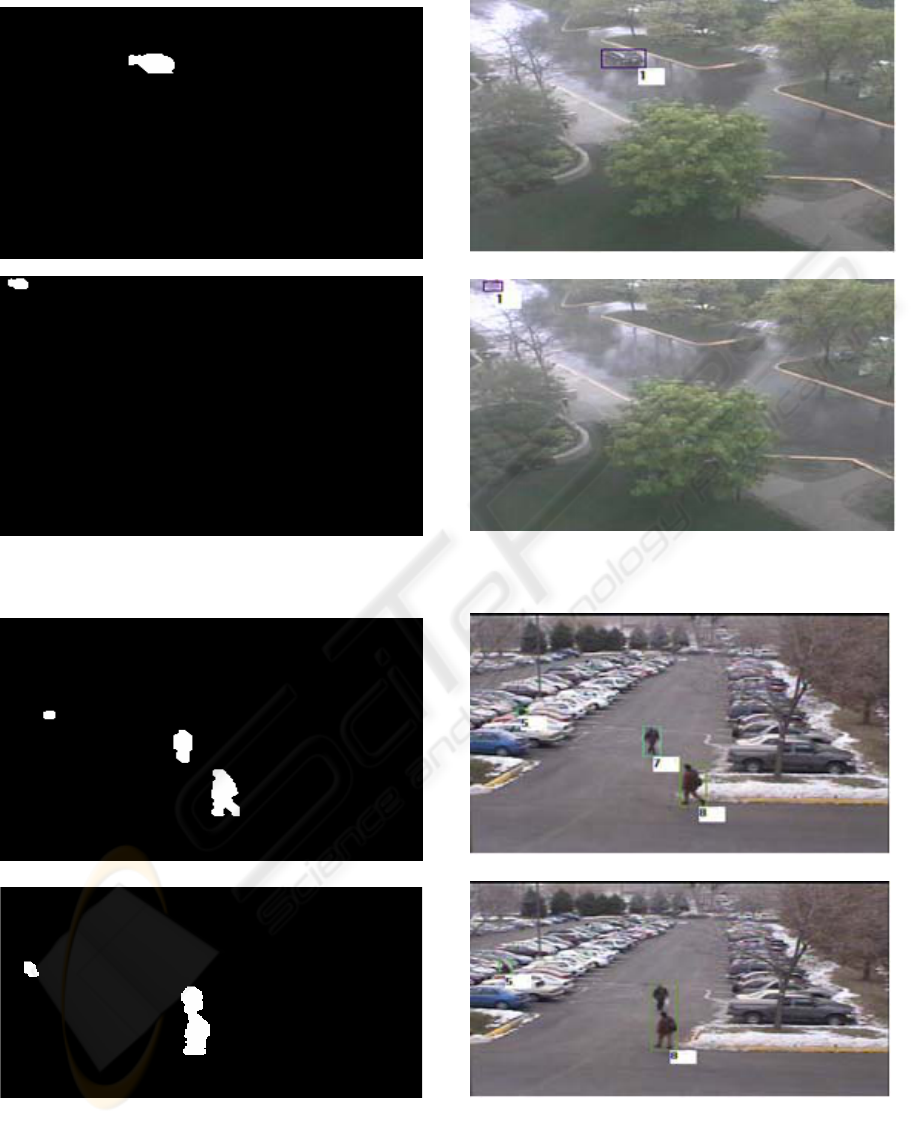

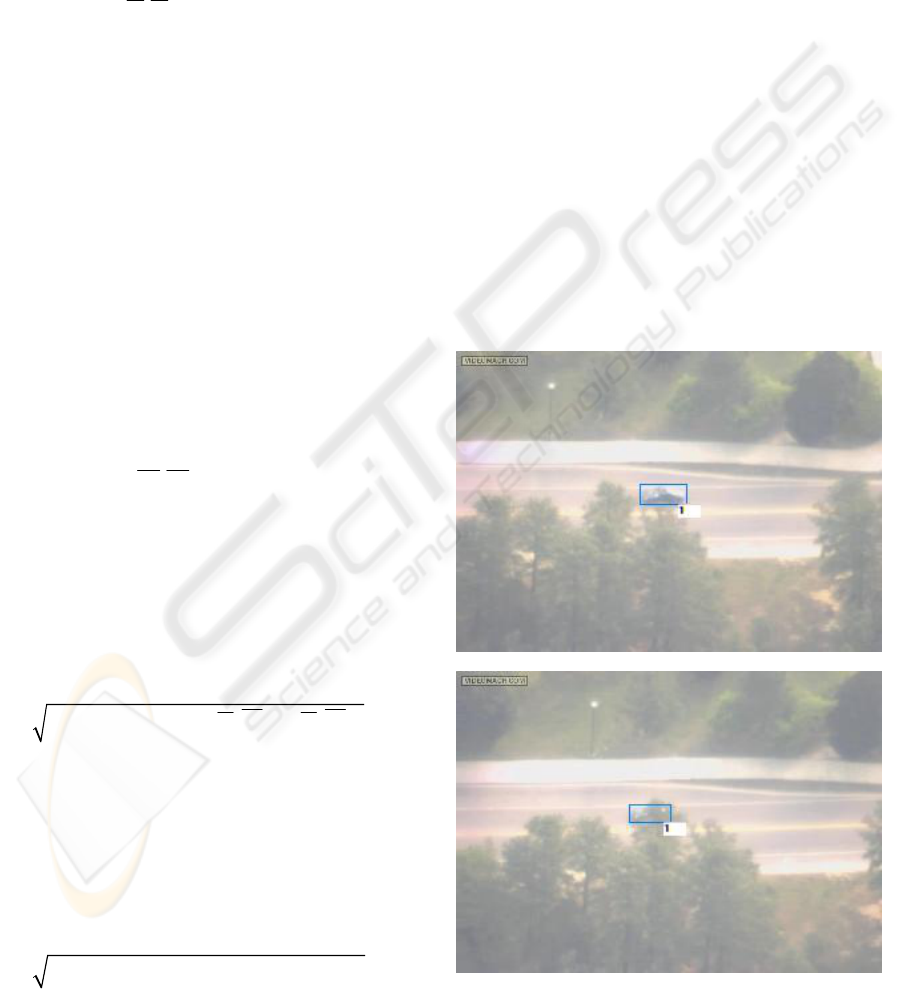

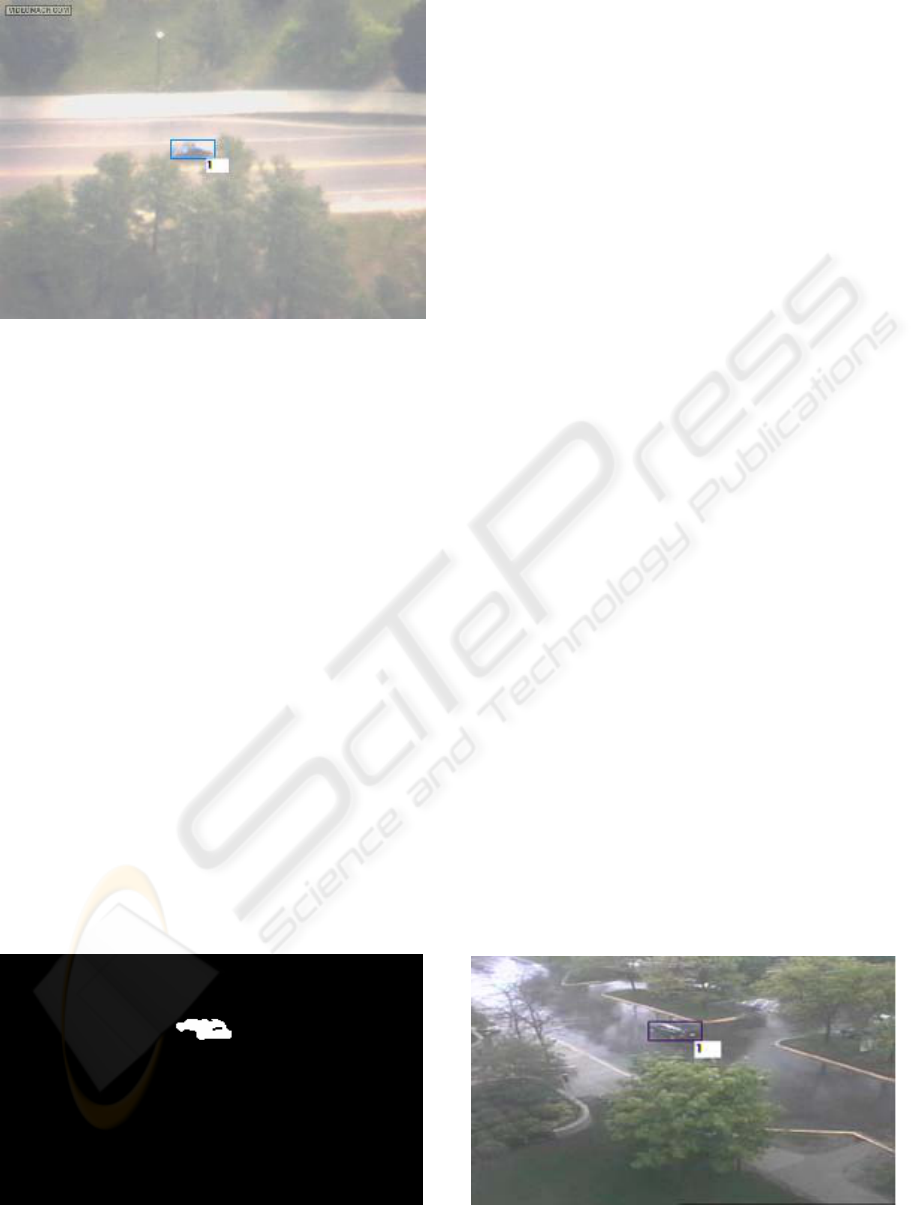

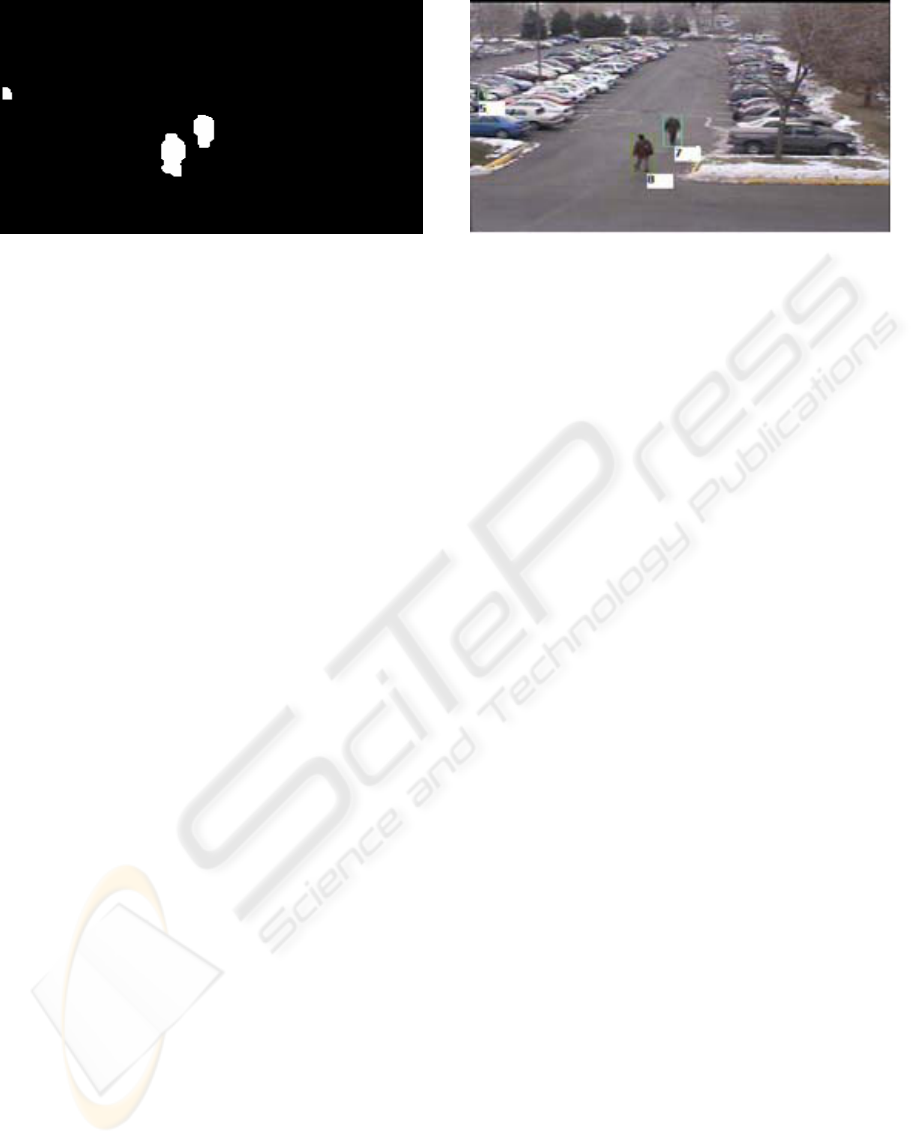

and pepper noise. Figures 3(a), 3(b), 3(c) and 5(a),

5(b), 5(c) shows the moving objects (foreground) in

white and background in black.

3 TRACKER STRUCTURE

We extract five types of feature in each moving

object (target), which are used for tracking. The

moving targets shown in Fig. 3, 5 are tracked. These

five features help in accurate tracking and matching

of objects in various difficult scenarios. The features

LBW, Compactness, Orientation are classified as

shape features of target. The objects have more

complex shapes and are likely to change in time

under the assumption of same segmentation method

3.1 Centroid

Centroid (X, Y) of a target tells us the spatial

position of the moving target. Centroid is calculated

∑

(11)

where

(x,y) R∈

and A is the number of pixels in a

target R.

(X,Y)

are the relative velocity of the

moving target. These relative velocities are updated

at each time instance by propagating the sample set

maintained for each target track.

3.2 LBW (Length by Width)

At any time instance’t’ LBW ratio is calculated for

the moving target in their bounding region R. The

length and width of the bounding box for a target is

calculated. This ratio is maintained for individual

tracks to match them

max ( )-min ( )

txt

LBW

yt yt

⎛⎞

⎜⎟

⎝⎠

(12)

3.3 Compactness

Objects being tracked have complex shapes which

are maintained till an object dies.

Area

Compactness C R

Perimeter

⎧⎫

∈

⎨⎬

⎩⎭

(13)

where Perimeter is the sum of all boundary pixels in

region R.

3.4 Orientation

The Orientation

of moving target is measured

across major axis and horizontal axis. The

updated considering all pixel positions in both x and

y coordinates w.r.t to centroid within R

20 02

, = arctan

Orientation

µµ

−

⎛⎞

⎜⎟

⎝⎠

(14)

where

(

)( )

XyY

∑

for p,q =

0,1,2.

3.5 Color

Color histogram is constructed for each moving

target by the distribution of RGB channel values. All

pixel values of an object are collected within the

bounding box R. For each pixel, the RGB values of

the object within this box R is normalized and

distributed as histogram in 4368 bins. The

probability intersection of these bins (histogram

distribution) is used for object matching. For each

pixel in region R, the bin for the distribution of its

color channel is identified using the formula

i=4368

i=0

R B×256 G×256×256

color =( )+( )+( )

16 16×16 16×16×16

(15)

SURVEILLANCE OF OUTDOOR MOVING TARGETS - Matching Targets using Five Features

397

Our tracking process involves the state vector

multi-dimensional and large; we cannot just sample

the probability density at regular intervals. Hence,

we use stochastic sampling method in the art of

condensation algorithm (Esther, koller-Meier, Frank

Ade, 2000). This factored sampling method helps in

finding an approximation to the probability density.

The state vector for any object at time‘t’ is expressed

( ) = [ X, Y, X,Y, , , ,Color] xt LBWC

4 OBJECT MATCHING

In the tracking process, if a match is found then the

state vector of an object is updated by the system

model

() ( 1) ( 1)xt Axt Bwt=−+− (16)

where, w(t-1) is noise, A,B are constant matrix. The

state vector which denotes the identity of each

individual object is updated based on measurements

only if a match is found. The matching of a target at

time ‘t-1’ with a target at time ‘t’ needs to be

accurate and have to overcome situations of merge,

occlusions, failure of detection etc. So matching is

carried out at three levels using the five features of

state vector. Let the observation from a detected

target at time‘t’ be denoted as

'''' ''' '

() = [ X, Y, X,Y, , , ,Color] zt LBW C

4.1 Centroid Matching

An objects position from the observation and its

update state vector position should be within the

gating region for matching to occur. The Euclidean

distance is measured and if it is within the gating

region then matching occurs.

'2 '2 '2 '2

D= (X-X ) +(Y-Y ) +(X-X ) +(Y-Y )∆ (17)

4.2 Shape Matching

We compute the distance from shape feature vector.

The features LBW, C,

form shape vector. The

object (target) is said to have matched if the

difference of sum squares is less than predefined

threshold

'2 '2 '2

∆S= (LBW-LBW ) +(C-C ) +( - )

(18)

4.3 Color Matching

We compute the match through minimum

probability intersection of the histogram bins.

i=4368

i=1

∆C= max(color,color )

∑

(19)

The sum of minimum intersection on each bin

should be greater than a predefined value.

If an object does not match even after going

through the above matching procedures, a new

dummy target is generated for the object. This

dummy target turns into true target after lasting for

several frames. During this period, the dummy target

is supposed to be in occlusion watch state. If during

this state, the dummy target matches another

measured object then we eliminate the dummy

target. In Fig. 2(a) a car being identified as an object

approaches a tree. In Fig. 2(b) only very small part

of the car is visible and very major part of the car is

hidden behind the tree, so matching fails. The object

which is the car goes into occluded watch state and a

dummy target is created for it.

Figure 2(a): Car approaching the tree.

Figure 2(b): Car being occluded by the tree.

VISAPP 2006 - MOTION, TRACKING AND STEREO VISION

398

Figure 2(c): Car coming from behind the tree.

Fig. 2(c) shows the car emerging from behind the

tree. The dummy target associated with the car

matches the true target. During this interim

occlusion period the dummy target gets updated only

through the centroid component by linear prediction,

using the average velocity from last three frames

Based on the object size, camera positions,

surveillance carried out in indoor/outdoor situations

heuristics are used regarding the weight assigned to

the above three matching. For instance if the object

is tracked at an indoor situation then color, shape are

given more weightage as objects are predominantly

humans with complex shapes and color.

5 EXPERIMENTAL RESULTS

The proposed system is used to analyze videos with

promising results. The video provided is taken in an

environment where many detection and tracking

failed because of the extreme rainy condition, low

color illumination, tree shadow effect, and tree

movements, light reflection caused on roads, vehicle

color matching with BGND, and varying object size.

Fig.3 (a), 3(b), 3(c) shows segmented output of

moving target and Fig 4(a), 4(b), 4(c) shows the

moving car tracked and assigned label 1. The car is

tracked at bizarre rainy condition with quite a lot

reflection from the road. These video frames were

taken at 111,123 and 148 respectively from the

video clip. The detection output is not missed even

for a frame under this adverse environment as

explained above. The fusion of color and edge-based

model helps in attaining correct object contour. The

noise due to tree movement is very less and it’s

further removed by using the heuristic that tree

movements are subjected to random motion. The car

is as well tracked without losing the object label in

each frame. It can also be seen that the object is

tracked till the end of the frame with the spatial

information even when the shape information is

insufficient.

In the other snowy video data frame shown, the

merging and split case among the segmented objects

is handled splendidly. Fig.5(a),5(b),5(c) shows the

segmented objects of three humans.

Fig. 6(a), 6(b),

6(c) shows the multiple objects tracked with label

assigned to them. The labels do not get interchanged

even after merge. During the merge sown in

Fig.5(b), the spatial positions of one of the two

objects being merged are not available so matching

is carried out based on shape and color. These video

frames were taken at 450,454 and 458. Track labels

are maintained for multiple objects for object

appearance/disappearance situations and even in

occlusion cases.

Although we find the results of our tracker to be

encouraging, there are still some unresolved

problems. For example incase of an object being in

occluded state for long period of time then the

predicted spatial position can lose its way and thus

enabling the failure of color and shape feature.

SURVEILLANCE OF OUTDOOR MOVING TARGETS - Matching Targets using Five Features

399

Figure 3(a), 3(b), 3(c) : Moving car target by fusion of

color and edge.

Figure 4(a), 4(b), 4(c): Car target tracked till end of the

image in rainy data.

VISAPP 2006 - MOTION, TRACKING AND STEREO VISION

400

Figure 5(a), 5(b), 5(c): Multiple moving targets by fusion

of color and edge.

6 CONCLUSION

In this paper, we have presented a system for

detecting, and tracking moving objects in a

surveillance area under varying environmental

conditions. We combine edge-based and color based

background model subtraction to get complete

object contour, which enhances the tracking

performance. Spatial position, shape and color

combined together to increase the performance of

tracking even in any case of split targets or non-

availability of observed samples. Our future work is

to resolve the cases when object is totally occluded

and extreme split/merge cases of an object. Also we

would work on classifying the target as humans,

vehicles or group of people.

REFERENCES

M.Isard and A.Blake., volume29, n01,pp 5-28, 1998.

Condensation –conditional density propagation for

visual tracking, International Journal of Computer

Vision.

A.Utsumi and J.Ohya., pp 911-916, 1998. Image

Segmentation for human tracking using sequential-

image-based hierarchical adaptation, Proceedings of

IEEE computer Society Conf. on CVPR.

Tao Zhao and Ram Nevatia., pp 9–14, 2002. Stochastic

human Segmentation from a Static Camera, Motion

and Video Computing Proceedings.

Esther B. koller-Meier, Frank Ade., pp 93-105,2001.

Tracking Multiple Objects Using condensation

Algorithm, Journal of robotics and Autonomous

systems.

Figure 6(a), 6(b), 6(c) : Humans tracked . Merging of

humans handled.

Q. Zhou and J. Aggarwal., Dec 9, 2001. Tracking and

Classifying Moving Objects from Video, in Proc. 2nd

IEEE Int'l Workshop on Performance Evaluation of

Tracking in Surveillance.

I.Haritaoglu, D.Harwood and L.S Davis., vol. 22, pp 809-

830,2000. W/sup 4/:real time surveillance of people

and their activities, IEEE Trans. PAMI press.

Konstantinova Pavlina, Alexander Udvarev, Tzvetan

Semerdjiev., pp. III7-1 - III7-3, 19-20 June2003. A

Study Of A Target Tracking Algorithm Using Global

Nearest Neighbour Approach, International

Conference on Computer Systems and Technologies -

CompSysTech’2003 , Sofia, Bulgaria,

I. Cohen, G. Medioni., June 1999. Detecting and Tracking

Moving Objects in Video Surveillance,Proc. of the

IEEE CVPR 99, Fort Collins.

O. Javed, K. Shafique, and M. Shah., Dec. 2002. A

Hierarchical Approach to Robust Background

Subtraction using Color and Gradient Information,

IEEE Workshop on Motion and Video Computing,

Orlando, FL.

S. Jabri, Z. Duric, H. Wechsler, and A. Rosenfeld., 2000.

Detection and Location of People using Adaptive

Fusion of Color and Edge Information, In

Proceedings of International Conference on Pattern

Recognition.

Gonzalez and Woods., 2002. Digital Image Processing,

edition ,Prentice Hall.

Senior A., pp 48-55,2002. Tracking People with

Probabilistic Appearance Models, PETS.

Carnegie Mellon University, visited on 06/22/2005

http://www.cs.cmu.edu/~vsam/OldVsamWeb/research

.html.

SURVEILLANCE OF OUTDOOR MOVING TARGETS - Matching Targets using Five Features

401
