REAL-TIME TRACKING FOR VIRTUAL ENVIRONMENTS USING

SCAAT KALMAN FILTERING AND UNSYNCHRONISED CAMERAS

Niels Tjørnly Rasmussen

Image House A/S

St. Kannikestraede 7, DK-1169 Copenhagen, Denmark

Moritz St

orring, Thomas B. Moeslund, and Erik Granum

Department for Media Technology and Engineering Science, Aalborg University

Niels Jernes Vej 14, DK-9220 Aalborg, Denmark

Keywords:

Pose Estimation, Tracking, SCAAT Extended Kalman Filter, Stereo Triangulation.

Abstract:

This paper presents a real-time outside-in camera-based tracking system for wireless 3D pose tracking of

a user’s head and hand in a virtual environment. The system uses four unsynchronised cameras as sensors

and passive retroreﬂective markers arranged in rigid bodies as targets. In order to achieve high update rates

and to cope with the unsynchronised data a single-constraint-at-a-time (SCAAT) Extended Kalman Filtering

approach is used that recursively integrates measurements as soon as they are available one-at-a-time. Tests

show that this approach is more robust to occlusions and provides less noisy pose estimates with a higher

update rate than a conventional stereo triangulation approach.

1 INTRODUCTION

A crucial part in virtual environments (VEs) is the

real-time tracking of the 3D position and orientation –

six degree-of-freedom (DOF) pose – of a user’s head

and hand(s). Most importantly, the pose of a user’s

head is needed for the correct computation of stereo-

scopic images, which create the illusion of a three-

dimensional virtual world, displayed in the VE.

A set of requirements for VE interaction de-

vices are summarised as follows: wireless, pre-

cise/accurate, high resolution, lightweight, quick re-

sponse time/low latency, and 6 DOF (Stefani et al.,

2003). In a study of locomotion principles in VEs,

(Usoh et al., 1999) have identiﬁed wires as a signiﬁ-

cant problem causing “breaks-in-presence” and state

that wireless tracking is the most needed system im-

provement for VEs.

Current tracking technology utilises many differ-

ent physical principles: mechanical, inertial, acousti-

cal, magnetic, optical, and radio frequency (Bhatna-

gar, 1993; Ferrin, 1991; Holloway and Lastra, 1993;

Madritsch, 1996; Meyer et al., 1992; Mulder, 1994;

Ribo, 2001; Rolland et al., 2001; Welch and Foxlin,

2002; Youngblut et al., 1996). Each of these have

their strengths and weaknesses, see (Youngblut et al.,

1996). Many of the existing tracking systems fulﬁl the

requirements of precise and high resolution 6 DOF

tracking. However, these are usually either tethered to

the user by wires, unsuitable for fully immersive VEs

due to size of sensors or quiet expensive. (Madritsch,

1996; Meyer et al., 1992; Rolland et al., 2001; Welch

and Foxlin, 2002; Youngblut et al., 1996)

A typical categorisation of tracking systems is the

distinction between

inside-out

– where sensors are

placed on the target viewing references, e.g., beacons,

usually ﬁxed in the environment – and

outside-in

–

where sensors are mounted at ﬁxed places in the en-

vironment viewing references, e.g., markers, on the

target – tracking. (Bhatnagar, 1993; Holloway and

Lastra, 1993; Madritsch, 1996; Meyer et al., 1992;

Mulder, 1994; Ribo, 2001; Rolland et al., 2001)

Among the available technologies optical track-

ing is the most promising for constructing a wire-

less, accurate, high update rate and low latency track-

ing system. However, due to problems with unsyn-

chronised cameras and video interlacing current state-

of-the-art optical tracking systems are based on spe-

cial hardware that is expensive and comes with large

cameras that are not suitable for closed VEs such

as the CAVE (Fig. 1). Whereas systems based on

using small of the shelf cameras only achieve poor

tracking performance compared to the most com-

monly used magnetic tracker for VEs, the Polhemus

FASTRAK

, e.g., (Chung et al., 2001; Dorfm

uller,

1999a; Dorfm

uller and Wirth, 1998; Gennery, 1992;

Madritsch, 1996; Madritsch and Gervautz, 1996;

Ribo et al., 2001; Ribo, 2001; Welch et al., 2001)

333

Tjørnly Rasmussen N., Störring M., B. Moeslund T. and Granum E. (2006).

REAL-TIME TRACKING FOR VIRTUAL ENVIRONMENTS USING SCAAT KALMAN FILTERING AND UNSYNCHRONISED CAMERAS.

In Proceedings of the First International Conference on Computer Vision Theory and Applications, pages 333-340

DOI: 10.5220/0001367803330340

 SciTePress

The problem of unsynchronised cameras is related

to the use of conventional methods, such as stereo tri-

angulation, which are based on the simultaneity as-

sumption i.e. the assumption that measurements from

two or more cameras are collected simultaneously.

This simultaneity assumption introduces an error in

the pose estimates of the tracker if the target(s) is

moving. (Welch, 1996; Welch and Bishop, 1997)

In this paper a new real-time outside-in camera-

based tracking system for wireless 6 DOF pose track-

ing is presented. The tracking system uses four un-

synchronised small surveillance cameras as sensors

and passive retroreﬂective markers arranged in rigid

bodies as targets. Two approaches are examined: a

conventional approach using stereo triangulation, and

a recursive approach using single-constraint-at-a-time

Extended Kalman Filtering (SCAAT-EKF) (Welch,

1996; Welch and Bishop, 1997).

Results show that the optical tracker using the

SCAAT-EKF approach is not only superior to the

stereo triangulation approach, but also has a compa-

rable performance to the commonly used Polhemus

FASTRAK

magnetic tracker (Holloway and Lastra,

1993) with a static RMS accuracy of 1 mm and 0.5

◦

a dynamic RMS accuracy of 2 mm and 1

◦

, a latency

of approx. 21 ms, and an update rate of 200 Hz within

a working volume of 2.5 m × 2.5 m × 2.5 m.

This paper is organised as follows: Sect. 2 presents

related work. A brief description of the tracking sys-

tem is given in Sect. 3. Experimental results for the

tracking system are presented in Sect. 4, which is fol-

lowed by a discussion and conclusions in Sect. 5.

2 RELATED WORK

This section gives a brief overview of some impor-

tant research examples of optical tracking systems.

For an overview of existing commercial systems see

(Ribo, 2001; Youngblut et al., 1996). For a detailed

overview of current optical tracking technology see

(Rasmussen, 2003).

Systems using conventional approaches – such

as epipolar geometry and stereo triangulation –

are presented in (Chung et al., 2001; Dorfm

uller,

1999a; Dorfm

uller and Wirth, 1998; Dorfm

uller,

1999b; Madritsch and Gervautz, 1996; Ribo et al.,

2001). (Madritsch and Gervautz, 1996) introduces an

outside-in camera-based optical tracking system. The

system uses two CCD-cameras and red light emit-

ting LEDs or beacons. Due to the use of unsynchro-

nised cameras the estimated beacon positions are not

very precise when beacons are moving (Dorfm

uller,

1999a). In (Dorfm

uller and Wirth, 1998) a similar

outside-in system based on two synchronised CCD-

cameras and infrared LEDs is presented. The system

only tracks 3 DOF at an accuracy of ≈ 2 cm, which

is due to imprecise calibration and down-sampling

of images. (Dorfm

uller, 1999a; Dorfm

uller, 1999b)

presents a further development of this system using

synchronised progressive scan cameras and retrore-

ﬂective markers. 6 DOF tracking is added using rigid

bodies and the accuracy is reported to be ≈ 6 mm.

(Ribo et al., 2001) presents a similar system capable

of tracking up to 25 markers at 30 Hz. No quantita-

tive accuracy results are given. Finally, (Chung et al.,

2001) describes a system using four CCD-cameras

and large retroreﬂective markers. The 3D position

data are jittery and are estimated at a rate of 15 Hz.

Recursive approaches for tracking, e.g., Kalman ﬁl-

tering, are presented in (Gennery, 1992; Welch et al.,

2001). (Gennery, 1992) presents an outside-in track-

ing system capable of tracking a known 3D object

with 6 DOF. The method uses the predicted posi-

tion of known features on the object to ﬁnd the fea-

tures in images from one or more cameras, measures

the position of the features in the images, and uses

these measurements to update the estimates of posi-

tion, orientation, linear velocity, and angular veloc-

ity of the object model. The solution is a Kalman

ﬁlter like weighted least-squares adjustment, which

allows the use of multiple unsynchronised measure-

ments. (Welch et al., 2001) presents the inside-out Hi-

Ball tracking system, which has been commercialised

by 3rdTech

™

. The system uses a sensing unit called

the HiBall, which is ﬁxed to the target being tracked.

The HiBall unit observes infrared LEDs mounted in

the ceiling through multiple sensor-lens views that

are distributed over a large solid angle. LEDs are se-

quentially ﬂashed (one at a time). Initial acquisition

is performed using a brute force search through LED

space. Tracking is performed using the SCAAT-EKF

approach (Welch and Bishop, 1997; Welch, 1996).

The crux of the SCAAT-EKF approach is that the

state of the estimated system, i.e., the HiBall pose,

is updated for each measurement (2D image coor-

dinate) even though this only provides partial or in-

complete information of the system state. Complete

information of the system state is obtained by incre-

mentally fusing measurements from different sensors

over time. Using this approach, measurements are

applied when obtained, yielding more frequent esti-

mates (2000 Hz), less latency (1 ms), and improved

accuracy (0.5 mm linear and 0.02

◦

angular).

In this paper two approaches to optical tracking for

an outside-in system using unsynchronised cameras

are explored: a conventional approach using stereo

triangulation, and a SCAAT-EKF approach based on

(Welch and Bishop, 1997; Welch, 1996; Welch et al.,

2001) and (Gennery, 1992). The latter approach ef-

fectively integrates measurements as soon as they are

available from each of the unsynchronised cameras

one-at-a-time, thereby avoiding the erroneous simul-

VISAPP 2006 - MOTION, TRACKING AND STEREO VISION

334

User

Rigid body

head

Rigid body

hand

Camera 1

Camera 4

Camera 2

Camera 3

IR-LEDs

2.5 m

Retroreflective

markers

IR-filters

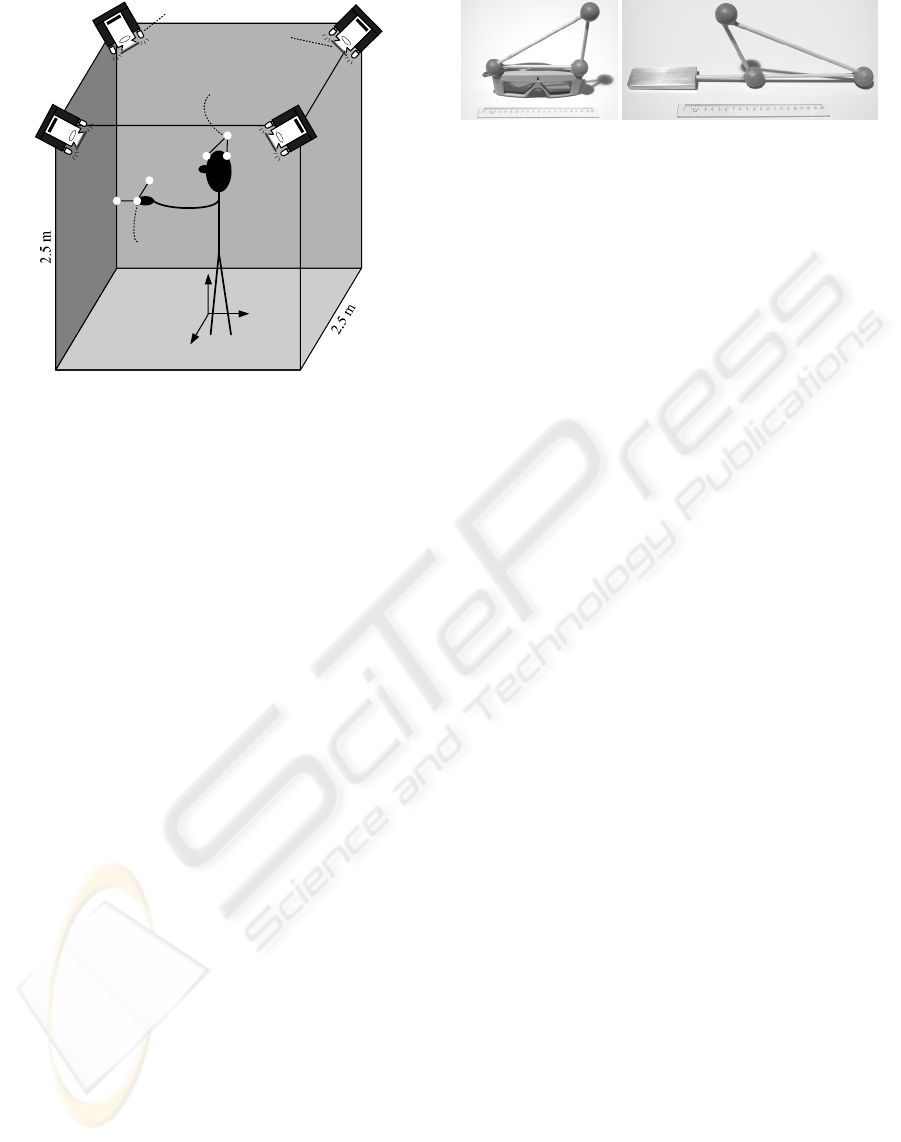

Figure 1: Optical tracking system setup.

taneity assumption.

3 THE TRACKING SYSTEM

This section gives an overview of the developed op-

tical tracking system. For details readers are referred

to (Rasmussen, 2003).

3.1 Setup

The optical tracking system consists of a fully cal-

ibrated setup of four unsynchronised CCD-cameras

(Monacor TVCCD-140IR, f =3.6 mm) mounted in

the top four corners of a CAVE, Fig. 1. Tracked ob-

jects are ﬁtted with retroreﬂective markers (30 mm

spheres) arranged in a rigid body, Fig. 2. These

markers reﬂect the infrared light emitted by IR-LEDs

built-in the monochrome CCIR cameras, which have

been ﬁtted with infrared pass ﬁlters (Kodak Wratten

#87). The cameras are connected to a frame grabber

(Coreco Viper-Quad) in a dual Pentium

III 800 MHz

PC. To avoid errors from interlacing video capturing

is performed using notiﬁcation of ﬁeld updates in full

frame images.

Camera calibration has been performed using the

MATLAB

Camera Calibration Toolbox (Bouguet,

2002) with a custom-made checkerboard pattern by

1) calibrating the intrinsic parameters for each cam-

era individually, and 2) calibrating the extrinsic pa-

rameters of all four cameras based on the manually

measured position of the checkerboard in the CAVE.

For details see (Rasmussen, 2003).

Two different rigid bodies RB

head

and RB

hand

Figure 2: Rigid bodies: RB

head

and RB

hand

Fig. 2, have been constructed for head and hand track-

ing, respectively.

3.2 Marker Localisation

Marker positions are determined by 1) segmenting

the image into background and marker blobs us-

ing a simple global threshold, and 2) calculating the

weighted centre of mass of each marker blob. When

the SCAAT-EKF approach is used, predicted marker

positions are used to speed up segmentation by lo-

cal searching and to determine correspondence using

a modiﬁed greedy algorithm (Rangarajan and Shah,

1991).

3.3 Stereo Triangulation

The stereo triangulation approach processes two sets

of 2D marker image positions from two different cam-

eras measured within a predeﬁned time window (here

50 ms) and, then, matches triangulated 3D points to

the known structure of the rigid bodies using a brute

force greedy 3D point set pattern matching algorithm.

The 3D poses of the rigid bodies are estimated from

the corresponded marker 3D measurements by a sim-

ple and fast closed-form three point algorithm de-

scribed in (Horn, 1987). Fig. 3 depicts the steps of

the stereo triangulation approach.

3.4 SCAAT-EKF

The SCAAT-EKF approach employs a SCAAT Ex-

tended Kalman Filter for each of the tracked rigid

bodies. The ﬁlters encapsulate the state (e.g. 3D pose)

and process model of the rigid bodies and the mea-

surement model of the cameras.

State & process model: The dynamics or motion of

the rigid bodies is modelled by the process model.

As in (Welch, 1996; Welch and Bishop, 1997) a sim-

ple position-velocity (PV) model is used. The state

of the SCAAT-EKF, thus, contains both the position

and orientation, and the linear and angular velocities

of the rigid body. In practice the orientation is main-

tained as a combination of a global, external quater-

nion and a set of internal, incremental angles, as de-

scribed in (Gennery, 1992; Welch, 1996; Welch and

Bishop, 1997).

REAL-TIME TRACKING FOR VIRTUAL ENVIRONMENTS USING SCAAT KALMAN FILTERING AND

UNSYNCHRONISED CAMERAS

335

Inverse

Mapping

3D Line

Matching

3D Point

Clustering

3D Point

Matching

3D Pose

Estimation

Measured 2D

marker positions

lines

Triangulated

3D points

3D point

clusters

Corresponded

3D points

Rigid body

3D pose(s)

Camera

Models

Rigid Body

Model(s)

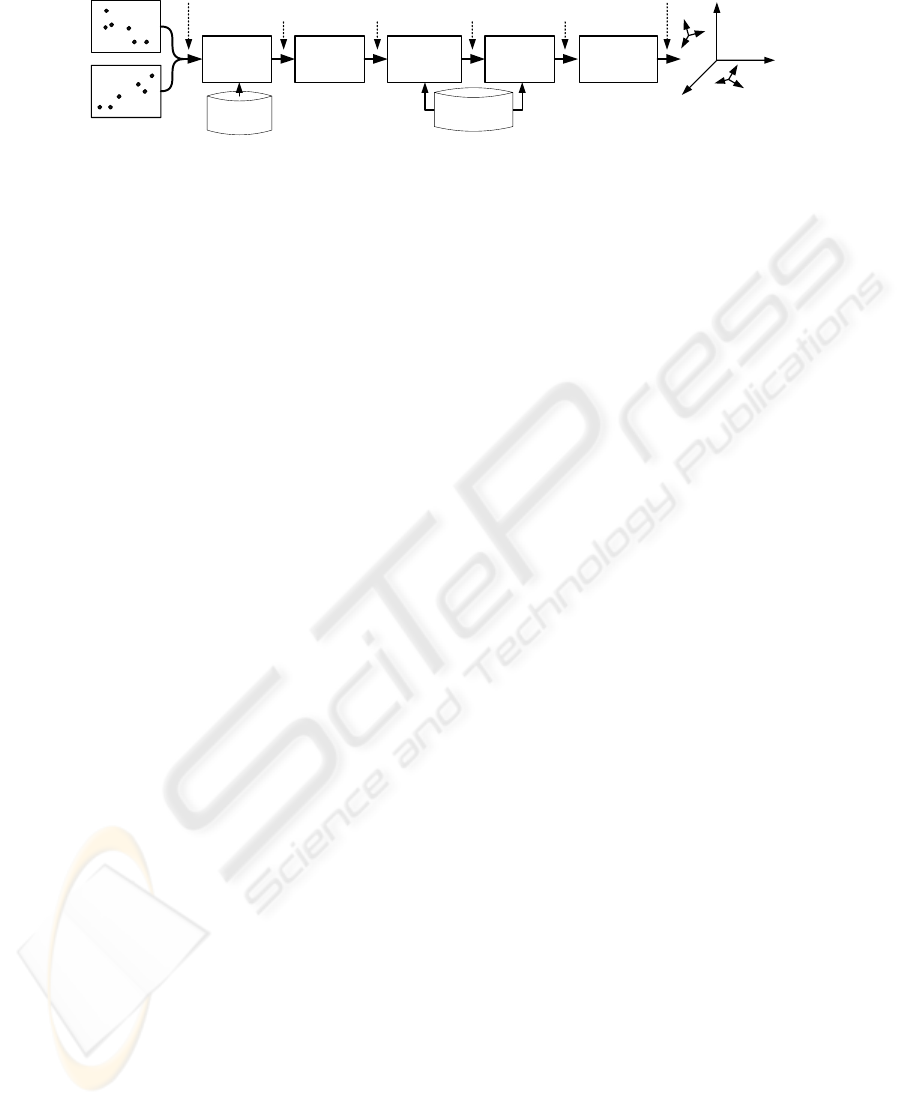

Figure 3: Steps of the stereo triangulation approach; First, 3D lines are computed using the camera models. 3D lines are

then triangulated or matched by discarding line pairs that do not intersect within a given distance. Next, triangulated 3D

positions are grouped into clusters based on the assumption that rigid bodies are separated by a minimum distance larger than

the maximum distance between two markers in any of the rigid bodies. Clusters are then matched against the rigid bodies

using the distances between the 3D positions in the clusters to match against the known distances between markers in each of

the rigid bodies. Finally, the corresponded, measured 3D positions of the rigid body markers are used to compute the 3D pose

of each of the rigid bodies.

In addition, the process model is characterised by

a set of process noise parameters (one for each of the

six position and orientation elements) describing the

magnitude of the (assumed constant) noise sources

presumed to be driving the process model. In this pa-

per a similar approach to the one presented in (Welch,

1996) is used, where the values are tuned in a sim-

ulation environment to different dynamics using real

motion data based on an overall cost function for a

given motion data set (Rasmussen, 2003).

Measurement model: The measurement model is

used to predict the ideal noise-free response of a cam-

era, given the ﬁlter’s current estimate of the rigid body

state and the

a priori

rigid body model. In this pa-

per, the measurement model is deﬁned by the camera

model determined by the off-line camera calibration.

As this model is non-linear the Jacobian is needed in

the EKF. For details see (Rasmussen, 2003). Further-

more, the SCAAT-EKF needs an estimate of the noise

in the actual measurements. This is determined in

real-time based on a model estimated from off-line

measurements of marker image positions and marker

blob areas.

Algorithm: The algorithm for recursive tracking us-

ing SCAAT-EKF operates in a loop of four steps, see

Fig. 4. The loop is entered after tracking is initialised

using the stereo triangulation approach:

Prediction: Whenever an image (ﬁeld) is acquired by

one of the cameras, it is time stamped, and the previ-

ous rigid body state(s) are extrapolated to this time.

Projection: The 2D marker image positions are com-

puted from the predicted rigid body pose(s), rigid

body model(s) and the camera model of the current

camera.

Measurement: The predicted image positions are then

used to compute the measured marker image positions

with correspondence.

Correction: Whenever a set of measured marker im-

age positions with correspondence has been com-

puted, the SCAAT-EKFs are updated i.e. for each of

the individually measured positions the correspond-

ing SCAAT-EKF is corrected using the SCAAT algo-

rithm described in (Welch and Bishop, 1997).

4 RESULTS

This section presents test results of the implemented

optical tracking system in a CAVE. The test of the

system has been conducted as a comparison of the

two tracking approaches: stereo triangulation and

SCAAT-EKF.

In every real world test an important factor is the

acquisition of ground truth data, as this inherently de-

ﬁnes the degree to which a test is signiﬁcant. For the

implemented prototype ground truth data must have

submillimeter positional and subdegree rotational ac-

curacy in order to be applicable for the tests. As this

sort of accuracy is not readily available the tests con-

ducted here are relative, i.e., data is acquired under

speciﬁc conditions, e.g., only planar translation, and

then correspondingly ﬁtted to these. The relative er-

ror w.r.t. the ﬁt can then be computed and used as

an indication of the prototype performance. For com-

parability and simplicity the accuracy test results pre-

sented here will only be given for tracking a single

rigid body, the RB

head

(rigid body head).

4.1 Error Measures

Two error measures are used:

Overall RMS error (β

RMS

) is the normalised root-

mean-square error of a dataset with regard to the ﬁt

in question e.g. the distance of a measured position to

a plane ﬁtted to the data set, d

p,RMS

Overall peak error (β

max

) or overall max error is the

largest absolute error of a dataset with regard to the

VISAPP 2006 - MOTION, TRACKING AND STEREO VISION

336

Prediction Projection

MeasurementCorrection

Predicted rigid body

3D pose(s)

Predicted marker 2D

image positions

Measured marker

2D image positions


timestamp

Corrected rigid

body 3D pose(s)

Track initialized

Output


Rigid body model(s)

Camera model

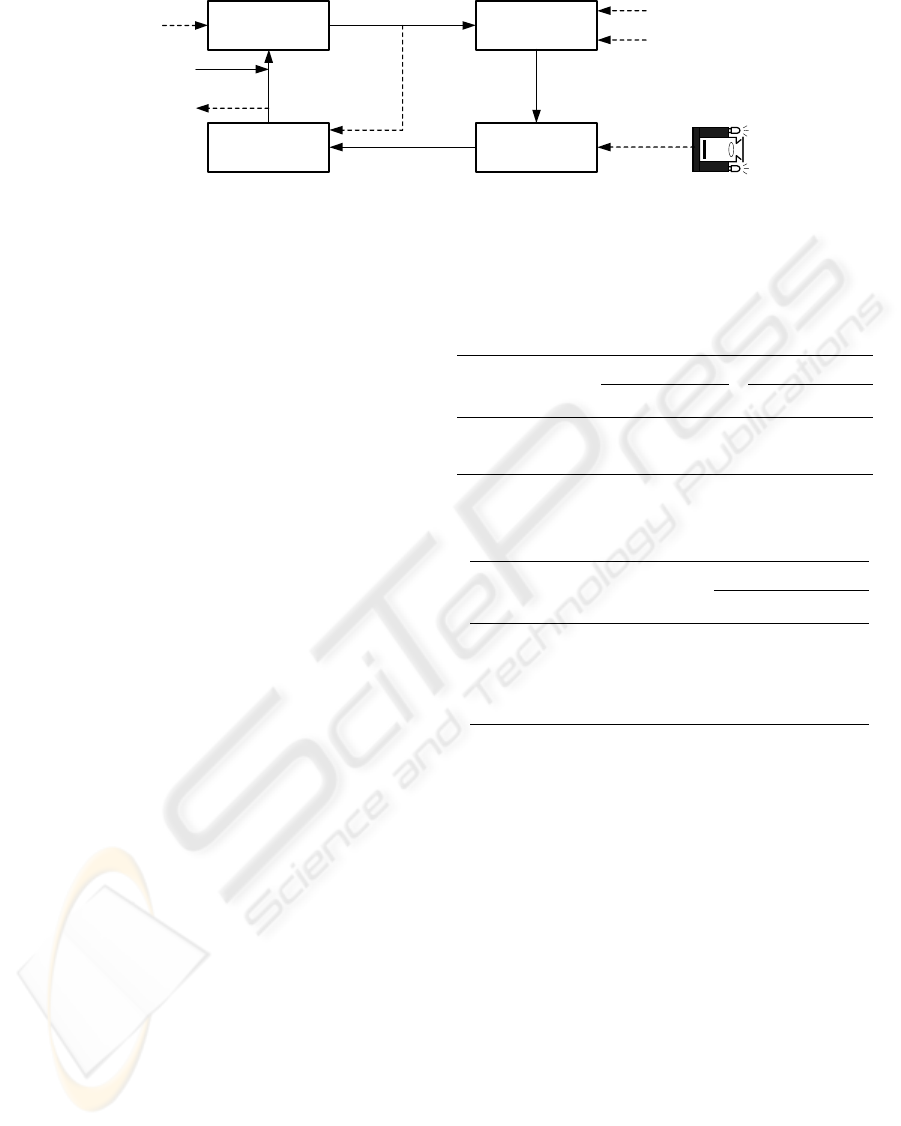

Figure 4: SCAAT-EKF loop: Solid arrows: program ﬂow and data; dashed arrows: data only. Based on (Gennery, 1992).

ﬁt e.g. the maximum distance between a measured

position and the mean position of the data set, d

max

4.2 Static Test

The static test shows the performance of the two

tracking approaches when the rigid body is static i.e.

not moving.

Setup: The rigid body was mounted on a steady

metal rack and placed in a grid at 9 different posi-

tions in two planes at different heights. 2000 sam-

ples of the position and orientation of the rigid body

were then recorded for both the stereo triangula-

tion and the SCAAT-EKF approach for each position.

For SCAAT-EKF process noise parameters were used

suitable for low dynamic motion.

Grid test: The grid test measures the overall distance

error d from the mean grid positions and the over-

all orientation error α from the mean orientation an-

gles. Table 1 lists the results for the stereo triangu-

lation and the SCAAT-EKF approach. These results

clearly show the superiority of the SCAAT-EKF ap-

proach with an RMS position error 20 times smaller

and an RMS orientation error 7 times smaller than

the stereo triangulation approach. The high peak er-

rors for stereo triangulation are possibly due to false

model-matching.

Plane test: The plane test is based on the assump-

tion that the CAVE ﬂoor is ﬂat and smooth. A plane

has, thus, been ﬁtted to the two grid sets (*,*,0) and

(*,*,1) for each of the two approaches. Table 2 lists

the plane ﬁt results for both the stereo triangulation

and the SCAAT-EKF approach. The plane ﬁt error is

given by the overall RMS and overall peak distance

of the measured rigid body positions to the plane.

Again the results are in favour of the SCAAT-EKF

approach; most signiﬁcantly with regard to the peak

errors, which are 3-4 times smaller than for the stereo

triangulation approach.

Table 1: Stereo triangulation and SCAAT-EKF rigid body

pose test results for 3×3×2 static grid conﬁguration, where

d is in [mm] and α is in [degree].

Position Orientation

Approach d

RMS

max

RMS

max

Stereo triang. 5.16 11.29 0.64 27.98

SCAAT-EKF 0.26 1.25 0.09 0.51

Table 2: Stereo triangulation and SCAAT-EKF rigid body

position plane ﬁt test results, where d

is in [mm].

Plane error

Approach Index d

p,RMS

p,max

Stereo triang.

(*,*,0) 2.31 7.03

(*,*,1) 1.57 4.96

SCAAT-EKF

(*,*,0) 1.07 1.60

(*,*,1) 0.93 1.47

4.3 Dynamic Test

The aim of the dynamic test is to examine the per-

formance of the two tracking approaches when the

rigid body is moving. The test is based on the as-

sumption of perfect circular motion, which is easily

accomplished by attaching the rigid body to a rotat-

ing object.

Setup: The rigid body was attached to two differ-

ent turntables and 20,000 samples of the rigid body

position and orientation were recorded of both the

stereo triangulation and the SCAAT-EKF estimates.

For SCAAT-EKF a set of process noise parameters

suitable for high dynamic motion was used. The two

turntables are brieﬂy described here:

Industrial turntable with a turning speed of 0.75

RPM, see Fig. 5. The rigid body was attached to a

simple wood construction to increase the radius of the

circular movement and, thus, increase the speed of the

rigid body.

HMV grammophone with three turning speeds: 33,

REAL-TIME TRACKING FOR VIRTUAL ENVIRONMENTS USING SCAAT KALMAN FILTERING AND

UNSYNCHRONISED CAMERAS

337

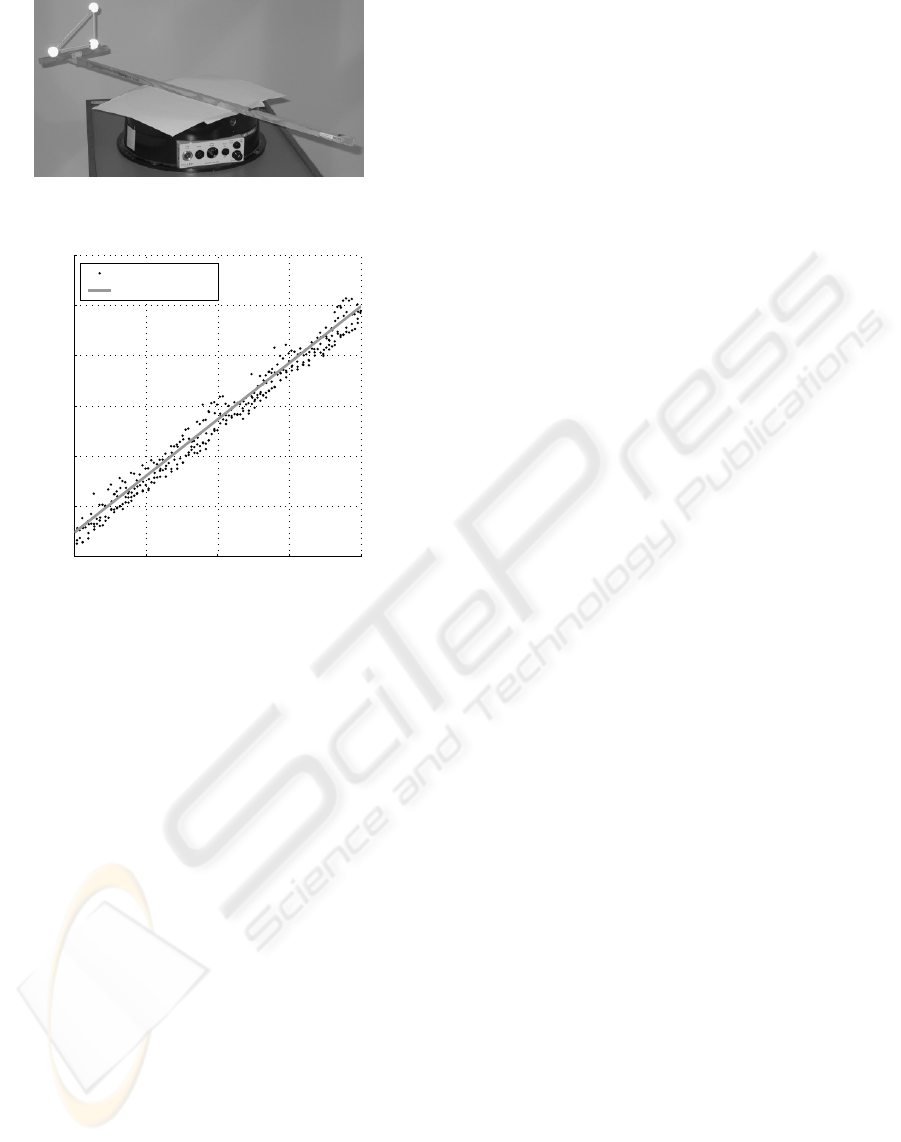

Figure 5: Industrial turntable used for the dynamic test.

55 55.5 56 56.5 5

100

102

104

106

Time [s]

ψ [degree]

Measurements

Line fit

Figure 6: Example of constant angular velocity line ﬁt.

45, and 78 RPM.The rigid body was attached directly

to the turning disc.

3D circle test: Based on the assumption of perfect

circular motion a 3D circle was ﬁtted to the rigid body

position samples of the four test cases for each of the

two tracking approaches. The corresponding overall

RMS and peak errors of the distance d

to the circle

were then computed and are listed in Tables 3 and 4,

where r

denotes the radius of the circle ﬁt.

Constant angular velocity test: Assuming that the

rotation of the rigid body has constant velocity, the

reported ψ angle is linear w.r.t. time if the esti-

mates are not constrained within the normal range of

[−180

◦

, 180

◦

], but instead monotonically increase or

decrease from the initial start angle. Based on this

assumption a 2D line is ﬁtted to the time vs. ψ data

(see Fig. 6) and the angular error ψ

is computed by

comparing the ﬁtted line estimate for a given time to

the measured angle. The slope of the 2D line is, thus,

the estimated constant angular velocity

ψ of the rigid

body. The corresponding overall RMS and peak er-

rors for each of the four test cases are listed in Ta-

bles 3 and 4 for stereo triangulation and SCAAT-EKF,

respectively.

The results of the dynamic test verify the superior-

ity of the SCAAT-EKF approach over the stereo tri-

angulation approach when the rigid body is moving.

In this case the violation of the simultaneity assump-

tion by the stereo triangulation approach not only

induces increased errors in the pose estimates, but

also leads to false model-matching, yielding very high

peak errors, as can easily be seen for the three HMV

turntable cases in Table 3. Although, these peak er-

ror outliers are rare they pinpoint exactly the strength

of the SCAAT-EKF approach, which not only effec-

tively suppresses outliers but also reduces the possi-

bility of false matching due to its predict-match be-

haviour, where actual measurements are matched as

soon as they are made to the predicted measurements

of the ﬁlter.

4.4 Robustness and Timing

Although, no rigorous and explicit test has been per-

formed of the SCAAT-EKF approach with regard to

robustness against occlusions and noise no real tests

have yet revealed severe problems. This has also been

conﬁrmed by test results from MATLAB

simula-

tions using both the SCAAT-EKF and stereo triangu-

lation approaches on real motion data with simulated

occlusions and different levels of measurement noise

(Rasmussen, 2003). It should, however, be noted

that tracking robustness depends on the process noise

parameters used. If the parameters are too low the

tracker will lag behind and may lose track. If the pa-

rameters are too high the tracker estimates will be jit-

tery. For optimal performance it is crucial that process

noise parameters reﬂect the motion of the user.

Other important characteristics are the latency and

update rate of the reported pose estimates. The la-

tency of the tracker is the sum of the measurement

and computation latencies. The measurement latency

is 20 ms for the CCIR cameras. The computation la-

tency is dependent on the number of rigid bodies be-

ing tracked. For stereo triangulation it is 4.2 ms and

5.5 ms for tracking one and two rigid bodies, respec-

tively. The SCAAT-EKF approach has 0.5 ms and

0.9 ms. The total latency of the SCAAT-EKF ap-

proach tracking two rigid bodies is ≈ 21 ms.

For the stereo triangulation approach the update

rate is dependent on the number of cameras, which

have a clear view of all the rigid body markers. For

the SCAAT-EKF approach it is dependent on the

number of cameras, which have a clear view of just

a single or more rigid body markers. Thus, both have

an update rate of c · 50 Hz, where c is the number

of cameras. In almost all the test cases the SCAAT-

EKF approach had an update rate of 200 Hz, while the

stereo triangulation approach had an update rate in the

range from 100 Hz to 200 Hz, where full update rate

was only rarely obtained.

VISAPP 2006 - MOTION, TRACKING AND STEREO VISION

338

Table 3: Stereo triangulation rigid body dynamic test results, where r

denotes circle radius in [mm], d

denotes distance to

circle in [mm],

ψ denotes angular velocity in [degree/s], and ψ

denotes angular error in [degree].

Turntable r

c,RMS

c,max

ψψ

e,RMS

e,max

Industrial 500.85.14 11.21 4.50 0.44 1.91

HMV at 33 RPM 59.14.25 56.02 −201.09 2.03 47.09

HMV at 45 RPM 59.44.96 56.09 −272.12 1.88 45.72

HMV at 78 RPM 59.35.00 55.25 −467.76 3.97 50.29

Table 4: SCAAT-EKF rigid body dynamic test results, where r

denotes circle radius in [mm], d

denotes distance to circle

in [mm],

ψ denotes angular velocity in [degree/s], and ψ

denotes angular error in [degree].

Turntable r

c,RMS

c,max

ψψ

e,RMS

e,max

Industrial 501.01.67 4.47 4.50 0.45 1.38

HMV at 33 RPM 59.21.27 3.80 −201.22 0.99 3.11

HMV at 45 RPM 59.03.49 11.36 −272.18 0.83 2.93

HMV at 78 RPM 58.72.44 7.24 −467.52 1.99 4.93

5 CONCLUSIONS

A new real-time outside-in camera-based tracker sys-

tem has been presented. The system uses multiple un-

synchronised, cheap, infrared light emitting surveil-

lance cameras as sensors, and passive retroreﬂective

markers arranged in rigid bodies as targets.

Two approaches were examined in the system: a

conventional approach using stereo triangulation and

a recursive approach using SCAAT-EKF. While the

stereo triangulation approach is based on the assump-

tion that measurements from two cameras are ob-

tained simultaneously, the SCAAT-EKF approach re-

cursively integrates measurements as soon as they are

available one-at-a-time. This not only avoids errors

associated with the unsynchronised camera setup, but

also provides for higher update rate, lower latency,

noise reduction and prediction.

The results show that the SCAAT-EKF approach

gives less noisy and less jittery 3D pose estimates

with a higher update rate and lower latency than the

stereo triangulation approach. For example, static test

results show a total overall RMS distance error of

5.16 mm for the stereo triangulation approach, which

is about 20 times larger than the corresponding error

of 0.26 mm for the SCAAT-EKF approach. A similar

result is evident for the orientation with a total RMS

angular error of 0.64

◦

against 0.09

◦

Finally, results show that the implemented pro-

totype using SCAAT-EKF has a comparable perfor-

mance to the commonly used Polhemus FASTRAK

magnetic tracker (Holloway and Lastra, 1993) with

a static RMS accuracy of 1 mm and 0.5

◦

, a dynamic

RMS accuracy of 2 mm and 1

◦

, a latency of approx.

21 ms, and an update rate of 200 Hz within a working

volume of 2.5 m × 2.5 m × 2.5 m.

There are several possible improvements of the

tracking system, which should be investigated:

Autocalibration: It is possible to add autocalibra-

tion of the cameras in the SCAAT-EKF approach sim-

ilar to the beacon autocalibration in (Welch, 1996).

Adaptive or multiple-model ﬁltering: As the ac-

tivities of a user in a VE range from standing com-

pletely still to fast head turning and arm swinging, the

static set of process noise parameters used for track-

ing might be replaced by a multiple-model or adap-

tive ﬁltering approach, as discussed in (Welch, 1996,

Chap. 7).

Unscented Kalman ﬁltering: In (Julier and

Uhlmann, 1997) and (Wan and Van Der Merwe,

2000) a new approach to Kalman ﬁltering for nonlin-

ear systems is outlined, which is more accurate, more

stable, and far easier to implement than an Extended

Kalman ﬁlter (Welch, 1996). The UKF effectively re-

places the linearization performed by the EKF by a

sampled approach where a minimal set of carefully

chosen sample points is propagated through the non-

linear system, thereby accurately encapsulating any

nonlinearity to the third-order. The implementation is

greatly simpliﬁed as this approach does not need to

derive the Jacobian matrices needed by the EKF.

For the optical tracker system of this paper very

short focal-length cameras are used and the measure-

ment model is highly nonlinear with ﬁfth-order dis-

tortion effects. The UKF might, therefore, improve

the performance of the tracker.

REFERENCES

Bhatnagar, D. K. (1993). Position trackers for Head

Mounted Display systems: A survey. Technical Re-

REAL-TIME TRACKING FOR VIRTUAL ENVIRONMENTS USING SCAAT KALMAN FILTERING AND

UNSYNCHRONISED CAMERAS

339

port TR93-010, Univ. of North Carolina at Chapel

Hill, NC, USA.

Bouguet, J.-Y. (2002). Camera Cal-

ibration Toolbox for Matlab.

http://www.vision.caltech.edu/bouguetj/calib

doc/.

Chung, J., Kim, N., Kim, J., and Park, C.-M. (2001). POS-

TRACK: A Low Cost Real-Time Motion Tracking

System for VR Application. In Thwaites, H. and Ad-

dison, L., editors, Proc. of the 7. Int. Conf. on Vir-

tual Systems and Multimedia, pages 383–392, Berke-

ley, CA, USA. IEEE.

Dorfm

uller, K. (1999a). An Optical Tracking System for

VR/AR-applications. In Gervautz, M., Hildebrand,

A., and Schmalstieg, D., editors, 5th Eurographics

Workshop on Virtual Environments, pages 33–42, Vi-

enna, Austria. Springer-Verlag.

Dorfm

uller, K. (1999b). Robust Tracking for Augmented

Reality Using Retroreﬂective Markers. Computers &

Graphics, 23(6):795–800.

Dorfm

uller, K. and Wirth, H. (1998). Real-Time Hand and

Head Tracking for Virtual Environments Using In-

frared Beacons. In Magnenat-Thalmann, N. and Thal-

mann, D., editors, Int. Workshop on Modelling and

Motion Capture Techniques for Virtual Environments,

pages 113–127, Geneva, Switzerland.

Ferrin, F. J. (1991). Survey of helmet tracking technologies.

Proceedings of SPIE - The International Society for

Optical Engineering, 1456:86–94.

Gennery, D. B. (1992). Visual Tracking of Known Three-

Dimensional Objects. International Journal of Com-

puter Vision, 7(3):243–270.

Holloway, R. and Lastra, A. (1993). Virtual Environments:

A Survey of the Technology. Technical Report TR93-

033, Univ. North Carolina at Chapel Hill, NC, USA.

Horn, B. (1987). Closed-form solution of absolute orien-

tation using unit quaternions. Journal of the Optical

Society of America A, 4(4):629–642.

Julier, S. J. and Uhlmann, J. K. (1997). New Extension of

the Kalman Filter to Nonlinear Systems. Proceedings

of SPIE - The International Society for Optical Engi-

neering, 3068:182–193.

Madritsch, F. (1996). Optical Beacon Tracking for Human-

Computer Interfaces. PhD thesis, Graz University of

Technology, Graz, Austria.

Madritsch, F. and Gervautz, M. (1996). CCD-camera Based

Optical Beacon Tracking for Virtual and Augmented

Reality. Graphics-Virtual Reality-Graphics Highways

and Computer Graphics Forum, 15(3):207–216.

Meyer, K., Applewhite, H. L., and Biocca, F. A. (1992). A

Survey of Position Trackers. Presence, 1(2):173–200.

Mulder, A. (1994). Human Movement Tracking Technol-

ogy. Technical Report TR 94-1, School of Kinesiol-

ogy, Simon Fraser University, Vancouver, Canada.

Rangarajan, K. and Shah, M. (1991). Establishing motion

correspondence. In IEEE Conf. on Computer Vision

and Pattern Recognition, pages 103–108, Maui, USA.

Rasmussen, N. T. (2003). Real-Time Camera-Based Op-

tical Tracking for Virtual Environments using single-

constraint-at-a-time Extended Kalman Filtering. Mas-

ter’s thesis, Computer Vision and Media Technology

Lab., Aalborg University, Aalborg, Denmark.

Ribo, M. (2001). State of the Art Report on Optical Track-

ing. Technical Report TR VRVis 2001 025, VRVis

Research Center for Virtual Reality and Visualization,

Ltd., Vienna, Austria.

Ribo, M., Pinz, A., and Fuhrmann, A. (2001). A new Opti-

cal Tracking System for Virtual and Augmented Real-

ity Applications. In Proc. of the 18th IEEE Instrumen-

tation and Measurement Technology Conf., volume 3,

pages 1932–1936, Budapest, Hungary.

Rolland, J., Davis, L., and Baillot, Y. (2001). A Survey

of Tracking Technology for Virtual Environments. In

Bardﬁeld, W. and Caudell, T., editors, Fundamen-

tals of Wearable Computers and Augmented Reality.

Lawrence Erlbaum Associates.

Stefani, O., Hoffmann, H., and Rauschenbach, J. (2003).

Design of Interaction Devices for Optical Tracking in

Immersive Environments. In Proceedings of HCI In-

ternational, volume 3, Crete, Greece.

Usoh, M., Arthur, K., Whitton, M., Bastos, R., Steed,

A., Slater, M., and Brooks, F.P., J. (1999). Walk-

ing > Walking-in-Place > Flying, in Virtual Environ-

ments.

Computer Graphics Proceedings. SIGGRAPH

99, pages 359–64.

Wan, E. and Van Der Merwe, R. (2000). The unscented

kalman ﬁlter for nonlinear estimation. In Adaptive

Systems for Signal Processing, Communications, and

Control Symposium, pages 153–158, Lake Louise,

Alta., Canada. IEEE.

Welch, G. (1996). SCAAT: Incremental Tracking with In-

complete Information. PhD thesis, University of North

Carolina at Chapel Hill, NC, USA.

Welch, G. and Bishop, G. (1997). SCAAT: Incremental

Tracking with Incomplete Information. In Whitted,

T., editor, SIGGRAPH Proceedings, Annual Confer-

ence on Computer Graphics & Interactive Techniques,

pages 333–344. ACM Press, Addison-Wesley, Los

Angeles, CA, USA.

Welch, G., Bishop, G., Vicci, L., Brumback, S., Keller,

K., and Colucci, D. (2001). High-Performance Wide-

Area Optical Tracking. The HiBall Tracking System.

Presence - Teleoperators and Virtual Environments,

10(1):1–21.

Welch, G. and Foxlin, E. (2002). Motion Tracking: No Sil-

ver Bullet, but a Respectable Arsenal. IEEE Computer

Graphics and Applications, 6(22):24–38.

Youngblut, C., Johnson, R. E., Nash, S. H., Wienclaw,

R. A., and Will, C. A. (1996). Tracking interfaces.

In Review of Virtual Environment Interface Technol-

ogy, pages 47–77. Institute for Defense Analyses,

Alexandria, VA, USA. Part 3 of IDA Paper P-3186,

http://www.hitl.washington.edu/scivw/IDA/.

VISAPP 2006 - MOTION, TRACKING AND STEREO VISION

340
