AN AUDIO-VISUAL SPEECH RECOGNITION SYSTEM FOR
TESTING NEW AUDIO-VISUAL DATABASES
Tsang-Long Pao
Department of Computer Science and Engineering,Tatung University, Taipei, Taiwan, R.O.C
Wen-Yuan Liao
Department of Computer Science and Engineering,Tatung University, Taipei, Taiwan, R.O.C
Keywords: Audio-visual database, Audio-visual speech recognition, Hidden Markov model.
Abstract: For past several decades, visual speech signal processing has been an attractive research topic for
overcoming certain audio-only recognition problems. In recent years, there have been many automatic
speech-reading systems proposed that combine audio and visual speech features. For all such systems, the
objective of these audio-visual speech recognizers is to improve recognition accuracy, particularly in the
difficult condition. In this paper, we will focus on visual feature extraction for the audio-visual recognition.
We create a new audio-visual database which was recorded in two languages, English and Mandarin. The
audio-visual recognition consists of two main steps, the feature extraction and recognition.We extract the
visual motion feature of the lip using the front end processing. The Hidden Markov model (HMM) is used
for the audio-visual speech recognition.
We will describe our audio-visual database and use this database in
our proposed system, with some preliminary experiments.
1 INTRODUCTION
Automatic speech recognition (ASR) by machine
has been a goal and an attractive research area for
past several decades. However, in spite of the
enormous of researches, the performance of current
ASR is far from the performance achieved by
humans. Most previous ASR systems make use of
the acoustic speech signal only and ignore the visual
speech cues. They all ignore the auditory-visual
nature of speech.
In recent years, there have been many automatic
speech-reading systems proposed, that combine
audio and visual speech features. For all such
systems, the objective of these audio-visual speech
recognizers is to improve recognition accuracy,
particularly in difficult condition. They most
concentrated on the two problems of visual feature
extraction and audio-visual fusion. Thus, the audio-
visual speech recognition is a work combining the
disciplines of image processing, visual/speech
recognition and multi-modal data integration. Recent
reviews can be found in Mason, Henneke,
Goldschen and Chen. In this paper, we mainly
concentrate on the bimodal speech recognition.
On the audio-visual database, however, there has
been some effort in creating database for the audio-
visual research area, but these are almost in English
or other language, such as Tulips1, AVLetters,
M2VTS, CUAVE, etc. The Mandarin database is
rare in comparison with other languages. In out
research, we record and create a new audio-visual
database of Mandarin speech.
We also focus on the visual feature extraction for
the audio-visual recognition. The audio-visual
recognition consists of two main steps, the feature
extraction and recognition. In the proposed approach
we extract the visual motion feature of the lip in the
front end processing. In the post-processing, the
Hidden Markov model (HMM) is used for the audio-
visual speech recognition. The overall structure of
the proposed system is depicted in Fig.1.
The organization of this paper is as follows. The
audio-visual database format is introduced in
Section 2. The extraction of the acoustic and visual
features is presented in Section 3. The experimental
results and conclusions are given in Section 4 and 5.
192
Pao T. and Liao W. (2006).
AN AUDIO-VISUAL SPEECH RECOGNITION SYSTEM FOR TESTING NEW AUDIO-VISUAL DATABASES.
In Proceedings of the First International Conference on Computer Vision Theory and Applications, pages 192-196
DOI: 10.5220/0001369101920196
Copyright
c
SciTePress
2 AUDIO-VISUAL DATABASE
FORMAT
Our audio-visual database consists of two major
parts, one in English and one in Mandarin. The
video in English was recorded from 35 speakers
while the video in Mandarin was recorded from 40
speakers. The importance of the database is to allow
the comparison of recognition of English speech and
Mandarin speech. The video is in color with no
visual aids given for lip or facial feature extraction.
In both parts of database, each individual speaker
was asked to speak 10 isolated English and
Mandarin digits, respectively, facing a DV camera.
The video was recorded at a resolution of 320 ×
240 with the NTSC standard of 29.97 fps, using a 1-
mega-pixel DV camera. The on-camera microphone
was used to record resulting speeches. Lighting was
controlled and a blue background was used to allow
change of different backgrounds for further
applications. In order to split the video into the
visual part and the audio part, we developed a
system to decompose the video format (*.avi) into
the visual image files (*.bmp) and speech wave files
(*.wav) automatically. Figure 2 shows the sample of
the result from the Audio-Visual Extraction System
(AVES). Some samples of extracted images from
the video files of our audio-visual database are
shown in Fig. 3.
3 FEATURE EXTRACTION
3.1 Acoustic Features
Since speech basically is a non-stationary random
process, it is stochastic and its statistics are time-
varying. According to the study of speech
production, human speech’s differences are occurred
from mouth and vocal tract varying. These
properties are short-time stationary and present on
frequency domain. In order to recognize a speech,
we do not only get the features on time domain, but
also on frequency domain.
The mel-frequency cepstrum coefficient (MFCC)
features have been shown to be more effective than
other features. In the case of MFCCs, the windowing
function is first applied to the frame before the short-
time log-power spectrum is computed. Then the
spectrum is smoothed by a bank of triangular filters,
in which the pass-bands are laid out on a frequency
scale known as mel-frequency scale. The filtering is
performed by using the DFT.
In our proposed approach we extract the acoustic
features by using the MFCC features, including
basic and derived features.

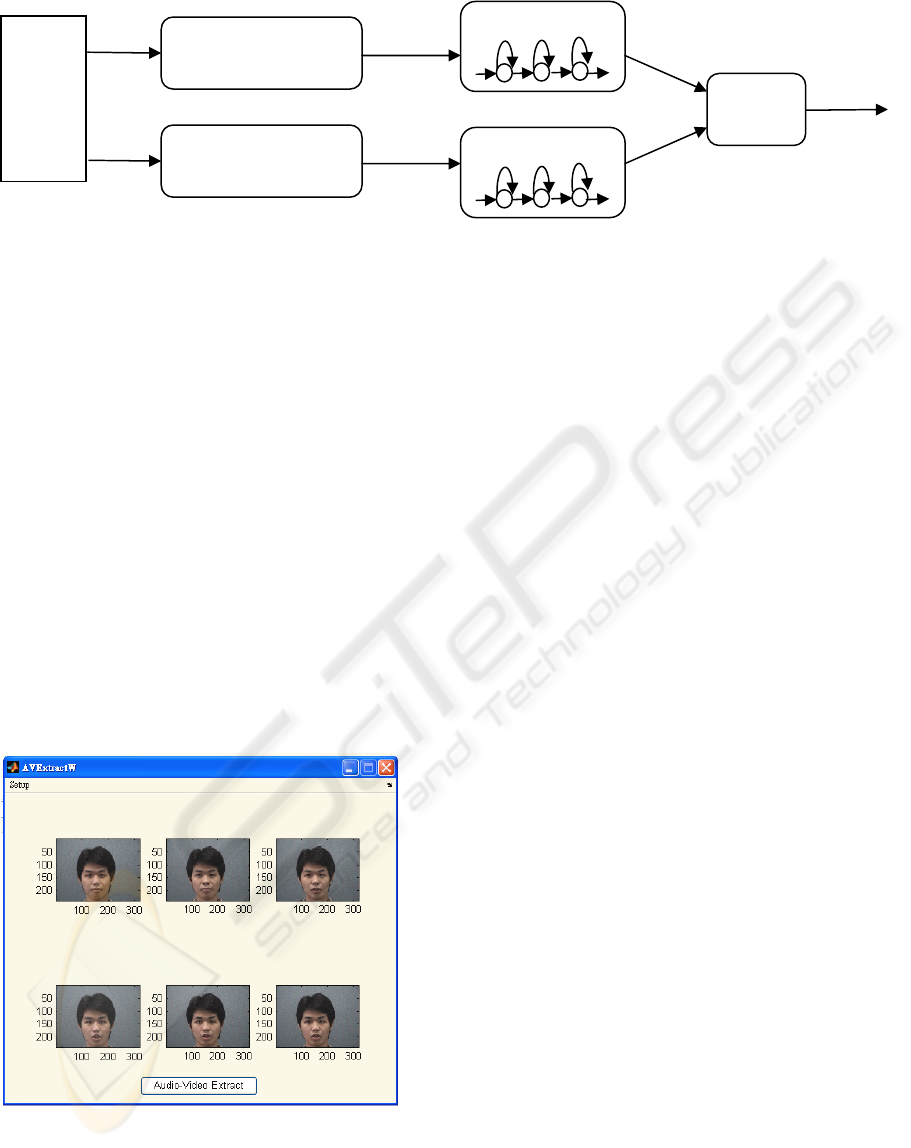

Figure 2: The sample of result performed by the
Audio-Visual Extraction System (AVES).
Acoustic speech
Analysis
Visual Feature
Extraction
Fusion
Audio
Signal
(*.wav)
Recognition
Result
Audio
Features
Visual
Features
Video
Signal
(*.bmp)
Audio HMM
Visual HMM
Video
File
(*.avi)
Figure 1: The overall structure of audio-visual extraction and recognition system.
AN AUDIO-VISUAL SPEECH RECOGNITION SYSTEM FOR TESTING NEW AUDIO-VISUAL DATABASES
193

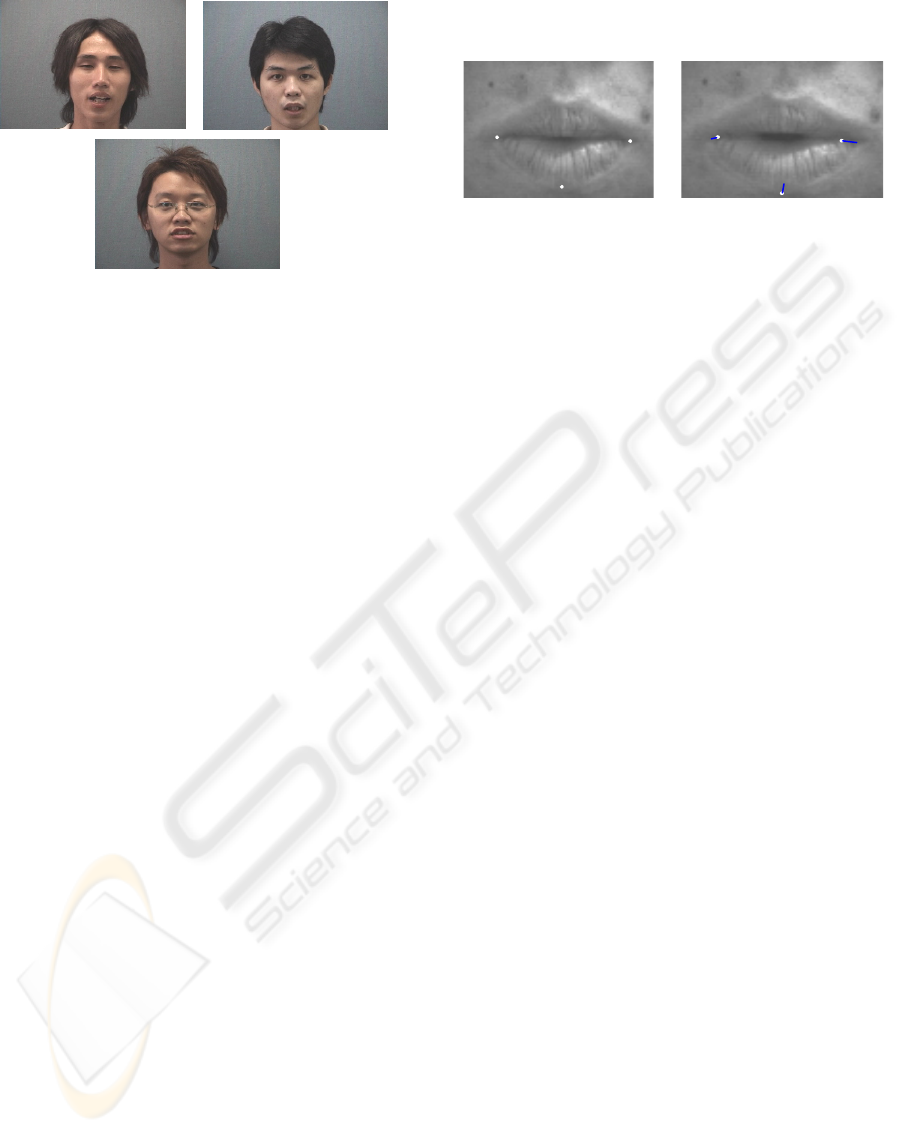

Figure 3: The sample of images for our new audio-
visual database.
Figure 4: Motion vectors between consecutive images
of lips: original images (left) and motion vectors
(right).
3.2 Visual Features
Generally speaking, the features for visual speech
information extraction from image sequences can be
grouped into the following classes: geometric
features, model based features, visual motion
features, and image based features. In our system,
the visual motion feature is used.
The motion-based feature approach assumes that
visual motion during speech production contains
relevant speech information. Visual motion
information is likely to be robust to different skin
reflectance and to different speakers. However, the
algorithms usually do not calculate the actual flow
field but visual flow field. A further problem
consists in the extraction of related features from the
flow field. However, recent research about motion-
based segmentation got more performance than
previous experiments. So the visual motion analysis
can improve the performance of recognition.
An image is partitioned into a set of non-
overlapped, fixed size, small rectangular blocks. The
translation motion within each block is assumed to
be uniform. This model only considers translation
motion originally, but other types of motion, such as
rotation and zooming, may be approximated by the
piecewise translation of these small blocks.
In our system, the region of interested is first
extracted from the original image. The main
features, corners or edges of the mouth, are then
found as the cues for motion estimation. The motion
vectors computation corresponding to the feature
points are performed by the block matching based
motion estimation algorithm. Finally, the motion
vectors for selected feature points are carried out for
the feature vectors as the input of the recognition.
Figure 4 shows the example of selected feature
points, marked by the white circle dots, and their
corresponding motion vectors.
4 PRELIMINARY EXPERIMENTS
4.1 Recognition Systems
As described in previous section, speech perception
by human is a bimodal process characterized by high
recognition accuracy and attractive performance
degradation in the presence of distortion. As proven
experimentally, acoustic and visual speeches are
correlated. They show the complementarity and
supplementary for speech recognition, especially
under noisy conditions. However, precisely how and
when humans integrate the audio and visual stimuli
is still not clear.
In this research, we use the hidden Markov
model (HMM) for the recognition. Our recognition
experiment begins with the acoustic-only, then
acoustic with noise, visual-only and finally audio-
visual recognition. The acoustic and visual
parameters are used to train each model, by means
of HMM. This model is widely used in many ASR
systems. The audio-visual recognizer uses a late-
fusion system with separate audio and visual HMM-
based speech recognizers.
4.2 Experimental Results
In this experiment, we use our database as the input
data. The database used here contains the digits 0 to
9 in English and in Mandarin by 20 speakers, 16
males and 4 females. There are a total of 400
utterances. In the training phase, the 300 utterances
of the database containing English and Mandarin of
digits 0-9 from all speakers are used as the training
set. After we train the model, the other 100
utterances are used as the testing set in testing phase.
VISAPP 2006 - IMAGE UNDERSTANDING
194
The video stream is a sequence of images with
resolution of 100 × 75 pixel from the database.
Before we compute the motion estimation, some
techniques are applied to the images in order to
make the computation convenient and increase the
precision of the motion estimation. In our system,
original 100 × 75 pixel image is extracted as a 100 ×
72 pixel window around the center of mass for
computational convenience.
Speech noise is added by using random noise at
various SNRs. The system is trained on clean speech
and tested under noisy conditions. The HMM-based
recognizer implemented in MATLAB on Pentium-
IV PC, using 4 states for Mandarin digits and 5
states for English digits. The time for feature
extraction is under 6 seconds, and HMM parameter
training spends about 10 seconds.
Initial results for the clean speech are good.

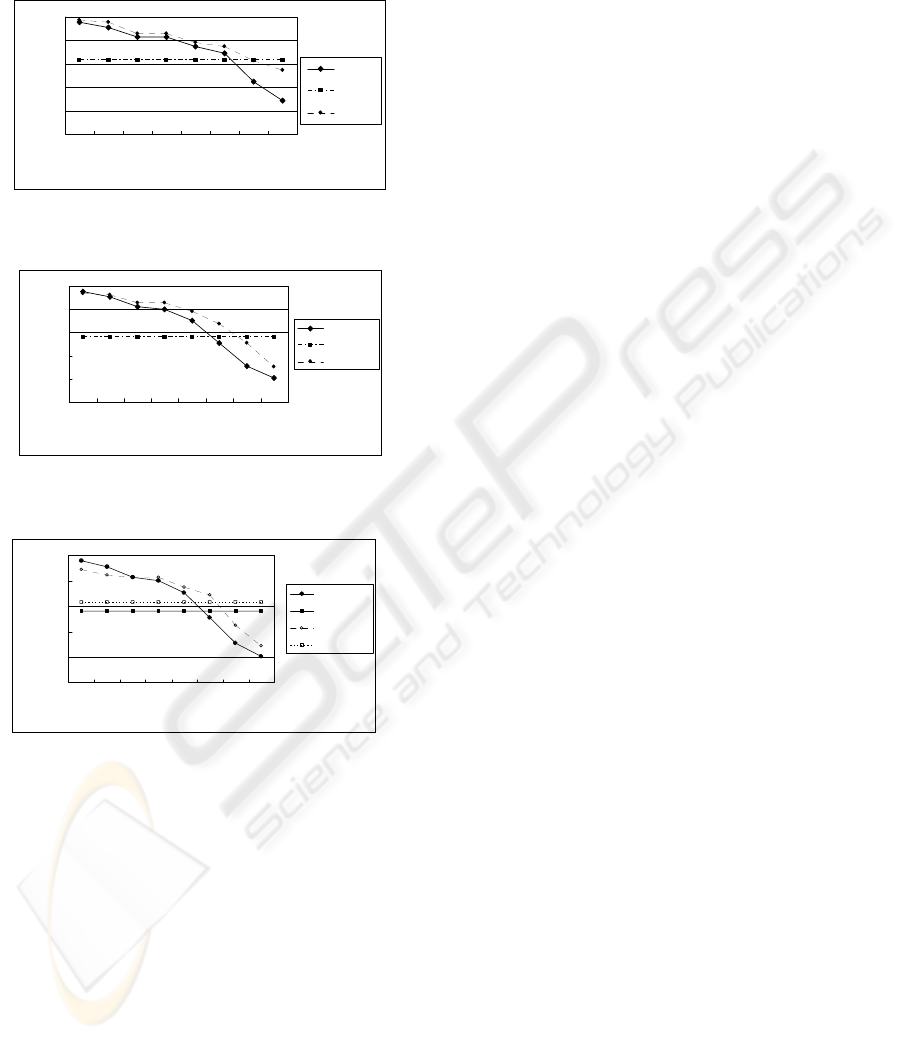

Figure 5 and 6 show the results for English and
Mandarin digits recognition, respectively. Figure 7
shows the comparison for English and Mandarin
digits recognition at audio-only and visual-only
feature situation. This result shows that the
Mandarin digits recognition gets higher correct rate
under audio-only features than English digits, the
English digits recognition gets better correct rate
under visual-only features than Mandarin digits.
5 CONCLUSIONS
In this paper, our focus is to construct a new audio-
visual database and a lip-motion based feature
extractor for the recognition system with a HMM
based recognizer. The experimental results show a
comparison between English and Mandarin speech
recognition, and the improvement of using both
audio and visual feathers.
The results for our proposed approach at the
various SNRs for the speech show that the method
including the visual or lip features produces a better
performance than using the audio-only features. In
the future, we will try to improve the overall
recognition rate using other more robust features and
recognizers.
REFERENCES
T. Chen, “ Audio-visual speech processing,” in IEEE
Signal Processing Magazine, Jan. 2001
T. Chen and R. Rao, “Audiovisual interaction in
multimedia communication,” in ICASSP, vol. 1.
Munich, Apr. 1997, pp. 179-182.
C. C. Chibelushi, F. Deravi, and J. S. D. Mason, “A
review of speech-based bimodal recognition,” in IEEE
Trans. Multimedia, vol. 4, Feb. 2002, pp. 23-37.
M. N. Kaynak, Q. Zhi, etc, “Analysis of Lip Geometric
Features for Audio-Visual Speech Recognition,” IEEE
Transaction on Systems, Man, and Cybernetics-Part
A: Systems and Humans, vol. 34, July 2004, pp. 564-
570.
J. Luettin and G. Potamianos and C. Neti, “Asynchronous
stream modeling for large vocabulary audio-visual
speech recognition,” 2001.
I. Matthews, T. F. Cootes, J. A. Bangham, S. Cox, and R.
Harvey, “Extraction of visual features for lipreading,”
in IEEE Trans. pattern analysis and machine
intelligence, vol. 24, 2002, pp. 198-213.
Figure 5: Comparison of recognition rate using
different features at various noise levels for digits
in English.
0
20
40
60
80
100
clean 30dB 25dB 20dB 15dB 10dB 5dB 0dB
SNR
Correct Rate
Audio-only
Visual-only
Audio-visual
0
20
40
60
80
100
clean 30dB 25dB 20dB 15dB 10dB 5dB 0dB
SNR
Correct Rate
Audio-only
Visual-only
Audio-visual
Figure 6: Comparison of recognition rate using
different features at various noise levels for digits
in Mandarin
.
Figure 7: Comparison of the English and Mandarin
digits recognition rate at various features and noise
levels. (Solid lines are for English, and dashed line
are for Mandarin).
0
20
40
60
80
100
clean 30dB 25dB 20dB 15dB 10dB 5dB 0dB
SNR
Correc t Rate
Audio-only
Visual-only
Audio-only
Visual-onl
y
AN AUDIO-VISUAL SPEECH RECOGNITION SYSTEM FOR TESTING NEW AUDIO-VISUAL DATABASES
195
S. Nakamura, “Statistical multimodal integration for
audio-visual speech processing,” in IEEE Trans.
Neural Networks, vol.13, July 2002, pp. 854-866.
G. Poamianos, etc,“Recent Advances in the Automatic
Recognition of Audiovisual Speech” in Proceeding of
the IEEE, Vol. 91, No. 9, September 2003.
VISAPP 2006 - IMAGE UNDERSTANDING
196
