HAND POSTURE DATASET CREATION FOR GESTURE

RECOGNITION

Luis Anton-Canalis

Instituto de Sistemas Inteligentes y Aplicaciones Numericas en Ingenieria

Campus Universitario de Taﬁra, 35017 Gran Canaria, Spain

Elena Sanchez-Nielsen

Departamento de E.I.O. y Computacion

38271 Universidad de La Laguna, Spain

Keywords:

Image understanding, Gesture recognition, Hand dataset.

Abstract:

This paper introduces a fast and feasible method for the collection of hand gesture samples. Currently, there

are not solid reference databases and standards for the evaluation and comparison of developed algorithms

in hand posture recognition, and more generally in gesture recognition. These are two important issues that

should be solved in order to improve research results. Unlike previous hand image datasets, which creation

usually involves many different people, sceneries and light conditions, we propose a simpliﬁed method that

requires just a single person’ hand being recorded in a controlled light environment. Our method allows the

generation of thousands of heterogeneous samples within hours, thus saving time and people’s efforts. The

resulting dataset has been tested with a cascade classiﬁer, although it may be used by most pattern recognition

systems, and compared with a classical dataset obtaining similar results.

1 INTRODUCTION

Hand gesture recognition (Wu and Huang, 1999) im-

plies several requirements: an appropriate hand ges-

ture image dataset, the proper detection of hands or

speciﬁc gestures on video streams and ﬁnally the

recognition of the gesture. In a previous work (Anton-

Canalis et al., 2005b), we presented a method for

the detection of hands in video streams, formulated

in terms of the integration and combination of tem-

poral coherence information and a cascade classi-

ﬁer method. Temporal coherence information was

supplied by a template tracker (Anton-Canalis et al.,

2005a) with the aim of achieving real-time perfor-

mance. Using Viola and Jones’ pattern recognition

method in grey level images (Viola and Jones, 2001)

we were able to achieve a high detection rate (0.99)

while maintaining a low error rate (0.03). The set of

hand samples used in the training stage was created

gathering hand images from different sources such as

(Triesch, 2000). However, it was not speciﬁcally de-

signed for our purposes, so there was a need for re-

building the hand image dataset. Unlike face detec-

tion systems (Zhao et al., 2003), there are not many

available hand datasets that meet the constrains that

cascade classiﬁers oriented towards hand detection

impose. In this paper, we propose a simpliﬁcation of

the sample collecting process, reducing it to a single

person’s hand gesture set ﬁlmed under different light

conditions, avoiding the necessity for the variation of

backgrounds and subjects.

1.1 Previous Work

Cascade classiﬁers are currently considered the

fastest and most accurate pattern detection method

for faces in monocular grey-level images (Viola and

Jones, 2001) Its efﬁciency has been proven in re-

cent works in a wide range of conditions. However,

while frontal faces share common features (eyes, eye-

brows, nose, mouth, hair...), hands are not so easily

described. Their ﬂexibility makes of them highly de-

formable objects, so it is hard to train a cascade clas-

siﬁer for detecting hands. Some approaches involving

cascade classiﬁers include training a different classi-

ﬁer for each recognizable gesture (K

olsch and Turk,

2004b), or a single classiﬁer for a limited set of hands

(Stenger et al., 2004) but that leads to the detection of

a low number of gestures, or forces the user to per-

form very precise gestures (K

olsch and Turk, 2004a).

We proposed a cascade classiﬁer which was trained

to detect wrists (Anton-Canalis et al., 2005b), being

the main advantage of this approach the high indepen-

dence from the gesture being made. Hands were de-

197

Anton-Canalis L. and Sanchez-Nielsen E. (2006).

HAND POSTURE DATASET CREATION FOR GESTURE RECOGNITION.

In Proceedings of the First International Conference on Computer Vision Theory and Applications, pages 197-200

DOI: 10.5220/0001370401970200

 SciTePress

tected without taking into account the gesture, with no

limitation in the number of gestures being detected, as

long as wrists were not concealed. Additionally, there

was no need for an initialization step. Figure 1 shows

some detection examples.

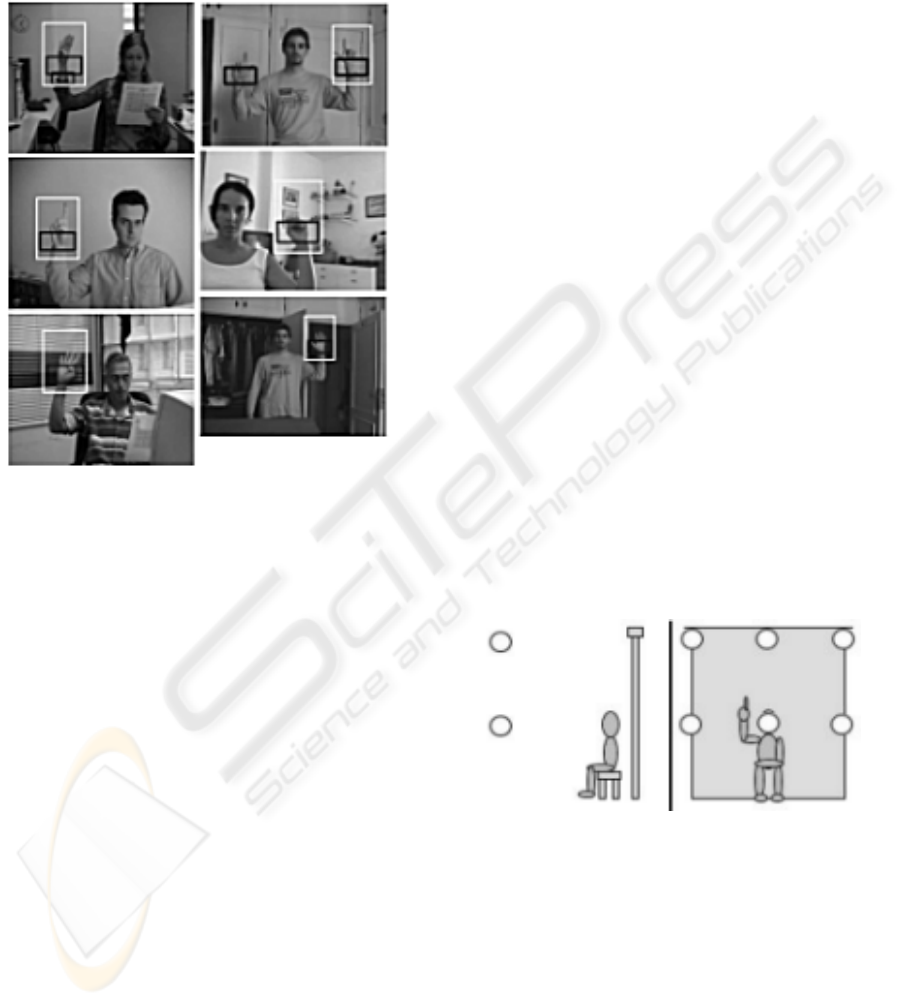

Figure 1: Five positive results showing both wrists detec-

tions (dark rectangle) and complete hands (white rectangle).

2 SAMPLE SET CONSTRUCTION

Cascade classiﬁers need both positive and negative

samples for their training. Negative samples should

be as numerous and dissimilar as possible, and they

should not contain the target object, i.e hands. Pos-

itive samples should show as many different target

object views as possible, in different conditions. In

relation to frontal faces, for example, it is advisable

to maximize three variables: subjects, facial gestures

and light source directions. There are many databases

where these circumstances are met (orl, ) (Georghi-

ades et al., 2001). Hands, however, add a fourth vari-

able: background. While in a face sample there is no

need to show nothing else than a face, it is not possible

to show a hand without showing pieces of background

between unbended ﬁngers. Any gesture apart from a

ﬁst will show what lies behind the hand, and thus it

becomes part of the positive sample.

A set of positive hand samples created for a cascade

classiﬁer should also add so many different back-

grounds as possible, allowing the classiﬁer to infer

what is the real target object. Although there are some

hand databases available, it is difﬁcult to ﬁnd the four

requisites together. In (Triesch, 2000), for example,

there are around 15 different backgrounds and 25 sub-

jects, but only 9 gestures. Thus, this set is suitable for

the training of a single classiﬁer for each gesture, as in

olsch and Turk, 2004b), but not for a more general

one. Being conscious of the high difﬁculty in meeting

the constrains that a hand dataset imposes during its

creation, we propose a method which tries to reduce

them to only two requirements: different light sources

and different gestures. Thus, hand gestures are per-

formed by a single person under different light con-

ditions, ﬁlmed against a background having a single

color or a relatively narrow range of colors (chroma

key or color keying). Then, each sample may suffer

a slight geometrical transformation (stretching and/or

rotation) and ﬁnally a random image, chosen from a

high amount of images not showing hands, substitutes

the chroma signal. Using the chroma key technique,

it is possible to create a set of positive hand sam-

ples large enough to train and test a cascade classi-

ﬁer, avoiding the troubles of gathering many different

people and backgrounds, thus saving time.

For testing purposes, we assembled a recording set

with a green chroma screen, six spot lights and a

single ambient light with ﬁxed intensity and color.

Lights where placed in front of the actor, on his left,

right and in front of him, three at the same hand

height, and three around two meters above the hand

height, as seen in Figure 2. This way, it was possi-

ble to record six sequences with different light condi-

tions. A total amount of 288 images where extracted

from the recorded sequences, showing more than 20

gestures under each light setup.

Figure 2: Side and front view of the recording set. White

circles represent light sources.

Then, the chroma key was substituted four times in

each image with a random background image, taken

from a group of more than 5000, generating four new

samples, each of them also mirroed. No geometric

transformation was applied to the original image. Fig-

ure 3 shows the main process steps for a given ges-

ture. The ﬁnal dataset consist in a total amount of

2304 20x20 grey level images. Figure 4 shows sam-

ples from our previous dataset and samples from the

new one.

VISAPP 2006 - IMAGE UNDERSTANDING

198

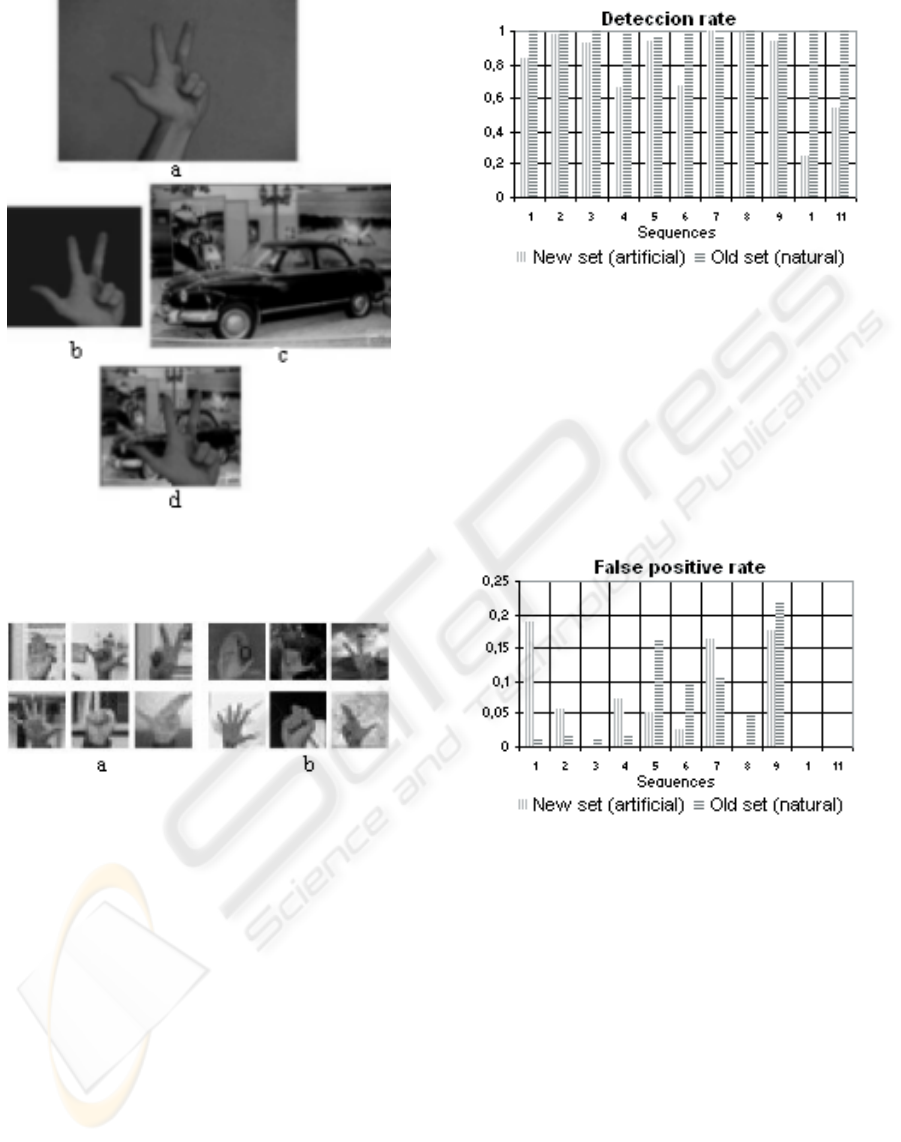

Figure 3: a) Original recorded image b) image cleaned and

trimmed c) random background image d) ﬁnal chroma sub-

stitution. The whole process is totally automated.

Figure 4: a) Natural in-place hand images b) samples ob-

tained with the chroma technique.

3 SYNTHETIC DATASET

PERFORMANCE

In order to analyze the goodness of a synthetic dataset

(hands combined with random backgrounds) in con-

trast to a natural dataset (in-place taken hand images),

we trained a cascade classiﬁer with the set of new

samples created with the chroma key approach. Then

we applied it on a number of videos (11) that had been

previously studied in (Anton-Canalis et al., 2005b)

with a cascade classiﬁer trained with a natural dataset.

Figures 5 and 6 show their respective detection rate

(number of frames where there was a detection in the

total amount of frames) and false positives rate. The

lower detection rate of the new classiﬁer, which de-

creases the previous detection rate from 0.99 to 0.79,

Figure 5: Detection rate for each sequence. Seq. 10 and 11

are clearly problematic, due to light conditions.

is the consequence of the poor results obtained mainly

in two sequences, where we get a detection rate of

0.24 and 0.54. In both of them, ambient light con-

ditions seem to be drastically different from the one

used in the synthetic hand set. This points out the

necessity for more light conﬁgurations in the record-

ing set. Although the global false positive rate raises

Figure 6: False positive rate. While some sequences are

worse (1,2,4,6), others behave better (3,5,6,8,10,11).

slightly from 0.062 to 0.066, there is a signiﬁcant

improvement in those sequences where the detection

rate is maintained.

4 OVERALL RESULTS AND

DISCUSSION

While results obtained with the synthetic set are in

some degree not so good as those obtained with the

natural set, they are quite positive. It must be taken

into account that the synthetic set was created in no

more than six hours, including the setup of the record-

ing set (chroma screen, camera and lights), ﬁlming all

the gestures and the ﬁnal chroma substitution, and that

HAND POSTURE DATASET CREATION FOR GESTURE RECOGNITION

199

a single person was required as a hand model, instead

of a large group. The in-place picture method requires

much more time. It is necessary to persuade a large

group of people, vary backgrounds, get different light

conditions and in some cases, images must be manu-

ally marked and segmented in order to extract hands

from them.

The low detection rate, however, could be avoided

maintaining the use of the tracking system when the

cascade classiﬁer failed, but it was necessary for

comparison purposes to preserve the previous system

structure.

5 CONCLUSIONS AND FUTURE

WORK

In previous works (Anton-Canalis et al., 2005b) we

proposed a cascade classiﬁer trained to detect wrists

as a simpliﬁcation of the problem of ﬁnding hands in

still images or videos.These kind of classiﬁers seem

to be suitable for this task, given an appropriate train-

ing set. In our case, the training set was not created

speciﬁcally for our purposes. Even thought the pre-

liminary condition of positive samples, we found re-

sults to be promising enough to develop this approach.

We have presented a method for hand gesture

sampling that simpliﬁes this otherwise arduous task.

Therefore, with the aid of a single person and the

proper recording set, it is possible to generate a large

and assorted hand image set. This method may be

applied to any kind of object which morphological at-

tributes force pieces of background to be present in

positive samples (i.e. concave shapes), and used with

most pattern recognition methods that require training

samples.

Future research will investigate the possibility of

using artiﬁcially generated hands, with a 3D render-

ing software, as training sets in cascade classiﬁers.

The ultimate aim is to totally get rid of the neces-

sity of an actor, and moreover, the meticulous setup

of lights.

ACKNOWLEDGMENTS

This work has been supported by the Spanish Gov-

ernment and the Canary Islands Autonomous Govern-

ment under projects TIN2004-07087 and PI2003/165.

REFERENCES

Anton-Canalis, L., Sanchez-Nielsen, E., and Castrillon-

Santana, M. (2005a). Fast and accurate hand pose de-

tection for human-robot interaction. In Lecture Notes

in Computer Science LNCS 3522, pages 553–560.

Anton-Canalis, L., Sanchez-Nielsen, E., and Castrillon-

Santana, M. (2005b). Hand pose detection for vision-

based gestures interface. In IAPR MVA 2005.

Georghiades, A., Belhumeur, P., and Kriegman,

D. (2001). From few to many: Illumina-

tion cone models for face recognition under

variable lighting and pose. IEEE Trans. Pat-

tern Anal. Mach. Intelligence, 23(6):643–660.

http://cvc.yale.edu/projects/yalefacesB/yalefacesB.html.

olsch, M. and Turk, M. (2004a). Analysis of rotational ro-

bustness of hand detection with a viola-jones detector.

In ICPR (3), pages 107–110.

olsch, M. and Turk, M. (2004b). Robust hand detection.

In FGR, pages 614–619.

orl. Orl face database.

http://www.uk.research.att.com/facedatabase.html.

Stenger, B., Thayananthan, A., Torr, P. H. S., and Cipolla,

R. (2004). Hand pose estimation using hierarchical

detection. In Computer Vision in Human-Computer

Interaction, pages 105–116.

Triesch, J. (2000). Hand posture database

i, ii. http://www.idiap.ch/ mar-

cel/Databases/gestures/main.php.

Viola, P. A. and Jones, M. J. (2001). Rapid object detection

using a boosted cascade of simple features. In CVPR

(1), pages 511–518.

Wu, Y. and Huang, T. S. (1999). Human hand modeling,

analysis, and animation in the context of HCI. In ICIP

(3), pages 6–10.

Zhao, Chellappa, Phillips, and Rosenfeld (2003). Face

recognition: A literature survey. CSURV: Computing

Surveys, 35.

VISAPP 2006 - IMAGE UNDERSTANDING

200
