NON-INTRUSIVE TRACKING OF MULTIPLE USERS IN A

SPATIALLY IMMERSIVE DISPLAY

Jiyoung Park, Seon-Min Rhee

Dept. of Computer Science & Engineering, Ewha Womans University, Seoul, Korea

Myoung-Hee Kim

Dept. of Computer Science & Engineering, Ewha Womans University, Seoul, Korea

Center for Computer Graphics and Virtual Reality, Ewha Womans University, Seoul, Korea

Keywords: multi-user tracking, visual tracking, immersive display.

Abstract: We present a novel vision-based system for tracking multiple users in a spatially immersive display.

Without requiring them to wear any markers or other devices, we can detect and track the heads of several

participants. In a projection-based display environment, the lighting conditions make it difficult to extract

silhouettes or shape features from acquired images. Using a separate IR lighting and stereo camera system

solves the problem, and makes background subtraction simple and fast. We start by finding general location

of the users’ heads in each image, from the silhouettes and projection histogram of the foreground regions.

These points are used to create search areas, one in each image of a stereo pair. By cross-correlation

between the search areas, corresponding points in each image are identified, and these are used to determine

an accurate 3D location on the head. Finally, the search areas in consecutive frames are correlated to

maintain the identification of the users over time. Experimental results demonstrate the viability of the

proposed system.

1 INTRODUCTION

User tracking has been studied extensively in the

context of many applications, such as surveillance

and virtual reality (VR). In an immersive VR

environment, tracking is essential to provide the user

with the correct view and accurate interactions with

virtual objects. Although there are many user

tracking methods, non-intrusive tracking is the most

desirable since it offers the user a more natural and

comfortable VR environment. Spatially immersive

displays are now widely used and their scale is

increasing, so that the tracking of multiple users is

becoming crucial. But relatively little work has been

done on non-intrusive multiple user tracking in

immersive environments. While Vorozcovs et al.

(2005) recently developed an optical tracking

method for a spatially immersive display, it can only

follow a single user and requires a special device to

be worn on the user’s head. There are two main

reasons for the lack of work on user tracking in large

VR environments. First, a static background cannot

be guaranteed because the image projected on the

display screens also results in continuously varying

illumination of the users, which is disastrous for

robust feature extraction. Secondly, possible camera

set-ups are very restricted because the camera must

not occlude the projection screen. One option is to

attach cameras just above the screens. But this

configuration does not allow general feature-based

tracking methods to provide stable results, because

important features of the face or body of a user are

not always seen in the resulting image sequences.

In this paper, we introduce a vision-based

approach for detecting and tracking multiple users in

a spatially immersive display. A generic CAVE

system was used, with no additional custom

hardware. The lack of intrusive devices encourages

intuitive interaction between multiple users and

maximizes the capacity of collaborative

environments. We believe it will motivate the

464

Park J., Rhee S. and Kim M. (2006).

NON-INTRUSIVE TRACKING OF MULTIPLE USERS IN A SPATIALLY IMMERSIVE DISPLAY.

In Proceedings of the First International Conference on Computer Vision Theory and Applications, pages 464-467

DOI: 10.5220/0001372204640467

 SciTePress

enhancement of existing VR applications, and the

use of VR technology in new areas of practical

significance.

2 FOREGROUND EXTRACTION

IN A SPATIALLY IMMERSIVE

DISPLAY

Our method of tracking users in an immersive

display is based on the generation of infrared images

which are not affected by the time-varying images

on the screens, which are in the visible system. This

allows us to extract the foreground of the scene (i.e.

the users in the VR environment) and we can then

track the position of their heads by employing

computer vision techniques.

2.1 Hardware Setup

We use a four-sided CAVE

-like environment

(with a front, left, right and bottom screen, each

measuring 2.4m x 2.4m) for our experiments. We

located two IR lights and cameras on top of the front

screen as depicted in Fig. 1. The directions of the

two lights are set differently to illuminate the top

and bottom part of a body in the environment, as

evenly as possible. A band-pass filter is attached to

each camera so that it only receives IR light. A non-

IR reflecting curtain in the entry to the environment

improves the IR segmentation results. We used

Computar IR75 lamps and Point Grey Dragonfly

grayscale video cameras with an IEEE-1394

interface.

2.2 Foreground Segmentation using

Having eliminated the changing background by the

use of IR, the grayscale images from the cameras are

input to a background subtraction method optimized

for infrared light (based on Matusik 2001). First, a

sequence of n frames of the static background is

recorded and the mean and standard deviation of

each pixel in the image are calculated. Then the

intensity of each pixel is compared with the mean

value at every frame. If the modulus of the

difference between them is greater than a predefined

multiple k of the standard deviation, the pixel is

classified as foreground. In a post-processing stage,

a median filter is used for noise removal and the

resulting silhouette is smoothed. An example of an

extracted silhouette is shown in Fig. 2.

3 MULTI-USER HEAD

TRACKING

Our method of detecting multiple users from

infrared reflective images was inspired by ‘Hydra’

(Haritaoglu et al. 1999), which tracks several people

using silhouettes and a projection histogram of the

foreground regions.

At every frame, we extract the foreground

regions by subtracting background, and then

generate a projection histogram from the regions we

have detected. A vertical projection histogram is

subsequently computed by projecting the binary

foreground region on to the horizontal axis, as

depicted in Fig. 2. Combining the silhouette and

histogram from each image of a stereo pair, we are

able to identify each user and locate their head

position in three dimensions. At present, the system

has to be told the number of users before the

detection process starts.

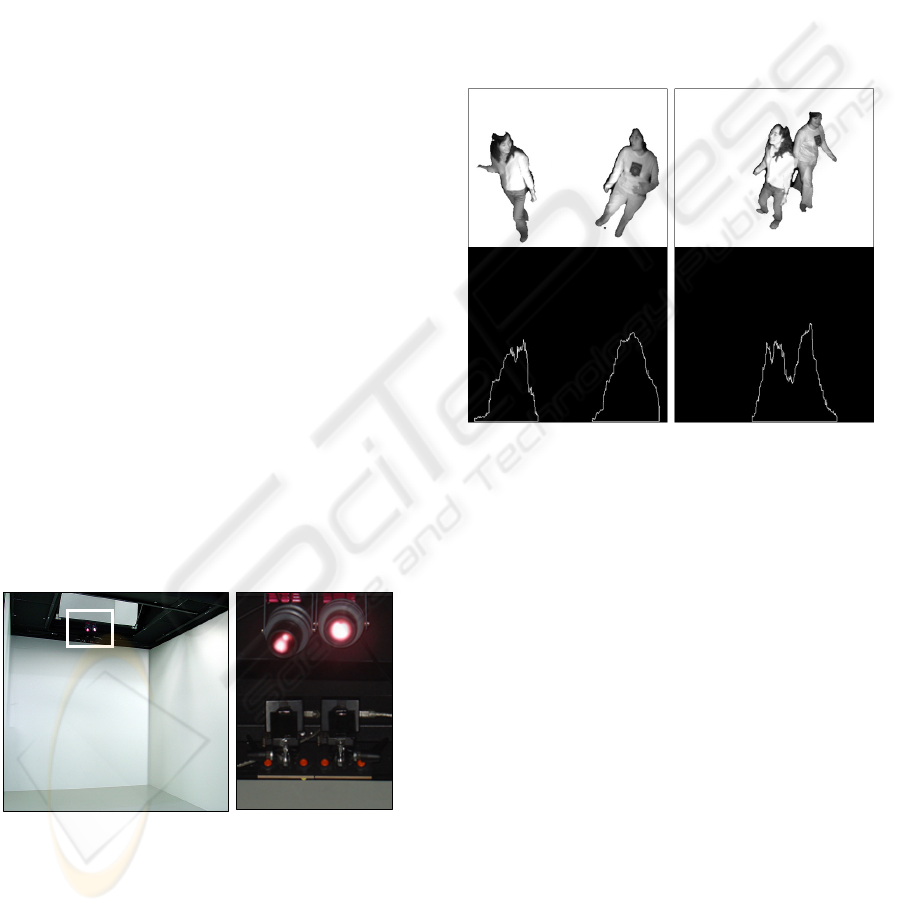

ure 1: Hardware setu

Camera

Figure 2: Examples of extracted silhouette(first row)

and projection histogram.

NON-INTRUSIVE TRACKING OF MULTIPLE USERS IN A SPATIALLY IMMERSIVE DISPLAY

465

3.1 Head Detection using Silhouettes

and a Projection Histogram

Location of the users’ heads begins with an

approximated outline of the foreground boundary

(Fig. 3). Due to the structure of the human body, the

silhouette boundary will have salient points

corresponding to body parts such as the head, hands

and feet. We expect heads to be at the top of the

foreground area, and to have a higher value than the

mean in the projection histogram.

To detect the head, we check the convexity of

each pair of adjacent line segments on the contours.

If a junction is convex, and its vertical position is

higher than the centroid of the whole area, it is

classified as a candidate head. When all candidate

heads have been found, we use the projection

histogram to make a final choice of final head points.

If more heads are detected than the number

specified, we prune surplus heads in the order of

their histogram value. Most ‘false’ heads turn out to

be hands..

3.2 Stereo Correspondence and

Tracking

Next, the spatial location of heads is calculated. In

each stereo pair, we should now have two

corresponding points to the top of each user’s head.

However, because these points were determined

from the approximated silhouette, the exact three-

dimensional head position cannot be obtained by

using them as corresponding points. Instead, we

need to find corresponding points in the original

images of the stereo pair. We therefore create a

search area around each head point which was

finally determined in the last step. And we set a

mask on the search area and cross-correlate the mask

regions of the same size in each search area. Moving

two masks in each whole search area and computing

cross-correlation coefficient value, we select the

most similar from each image regions, and make the

centers of the mask areas the corresponding points.

Finally, in order to identify each user in every

frame, we analyze the correlation of each search area

in the current frame with those in the previous

frame. The two consecutive search areas with the

highest correlation are assumed to correspond to the

same person.

4 EXPERIMENTAL RESULTS

The result of tracking two users in a VR

environment is shown in Fig. 4. In this sequence,

one user moves from left to right across the other

user. Corresponding points on the two users’ heads

are found accurately, and tracking copes well with

the users’ movements.

Our tracking method runs at 20-25Hz on a PC

with dual 2.8GHz Xeon processors. The Intel

OpenCV library was used to handle 640x480

resolution grayscale images. Execution times depend

on the number of participants, and the size of the

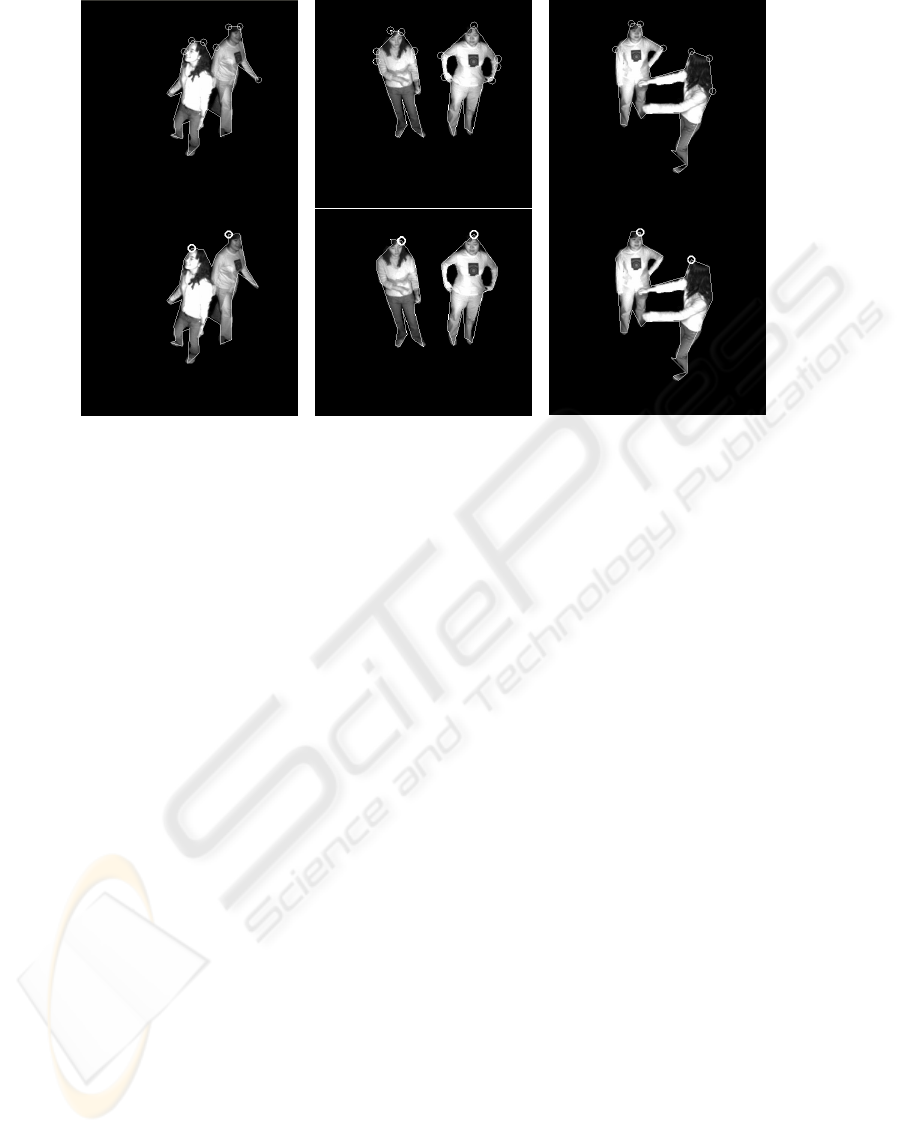

Figure 3: An example of candidate heads(first row) and detected head points.

VISAPP 2006 - MOTION, TRACKING AND STEREO VISION

466

search area, and the mask used in cross-correlation.

We set the size of the search area to 30×30 pixels

and the mask to 20×20 pixels in this experiment.

5 CONCLUSIONS

We have proposed a vision-based tracking method

for multiple users in a spatially immersive display. It

requires no markers and detection and tracking are

robust and fast.

However, our system cannot guarantee perfect

tracking results if some of the users are totally

occluded. In a future enhancement of our system, we

plan to use depth information to separate and

identify users correctly.

In addition, we are looking for ways of

recognizing body parts more effectively in acquired

images. Because the viewpoint of the cameras is

high, the images are foreshortened, which makes it

difficult to extract and identify body parts accurately.

One possible solution is to warp the acquired images,

making them more similar to those that would be

acquired from a lower camera position, and thus

showing the body more clearly.

Eventually, we intend to develop a VR

application which provides collect images of the

virtual scene to each user, based on the viewing

positions obtained from our system.

6 ACKNOWLEDGEMENTS

This work was supported by the Korean Ministry of

Information and Communication under the

Information Technology Research Center (ITRC)

Program.

REFERENCES

Haritaoglu, I., Harwood, D., Davis, L. S., 1999. Hydra:

Multiple people detection and tracking using

silhouettes. In IEEE International Workshop on Visual

Surveillance. IEEE Computer Society Press.

Matusik, W., 2001. Image-based visual hulls. Master’s

thesis, Massachusetts Institute of Technology.

Vorozcovs, A., Hogue, A., Stuerzlinger, W., 2005. The

Hedgehog: a novel optical tracking method for

spatially immersive displays. In IEEE VR 2005. IEEE

Computer Society Press.

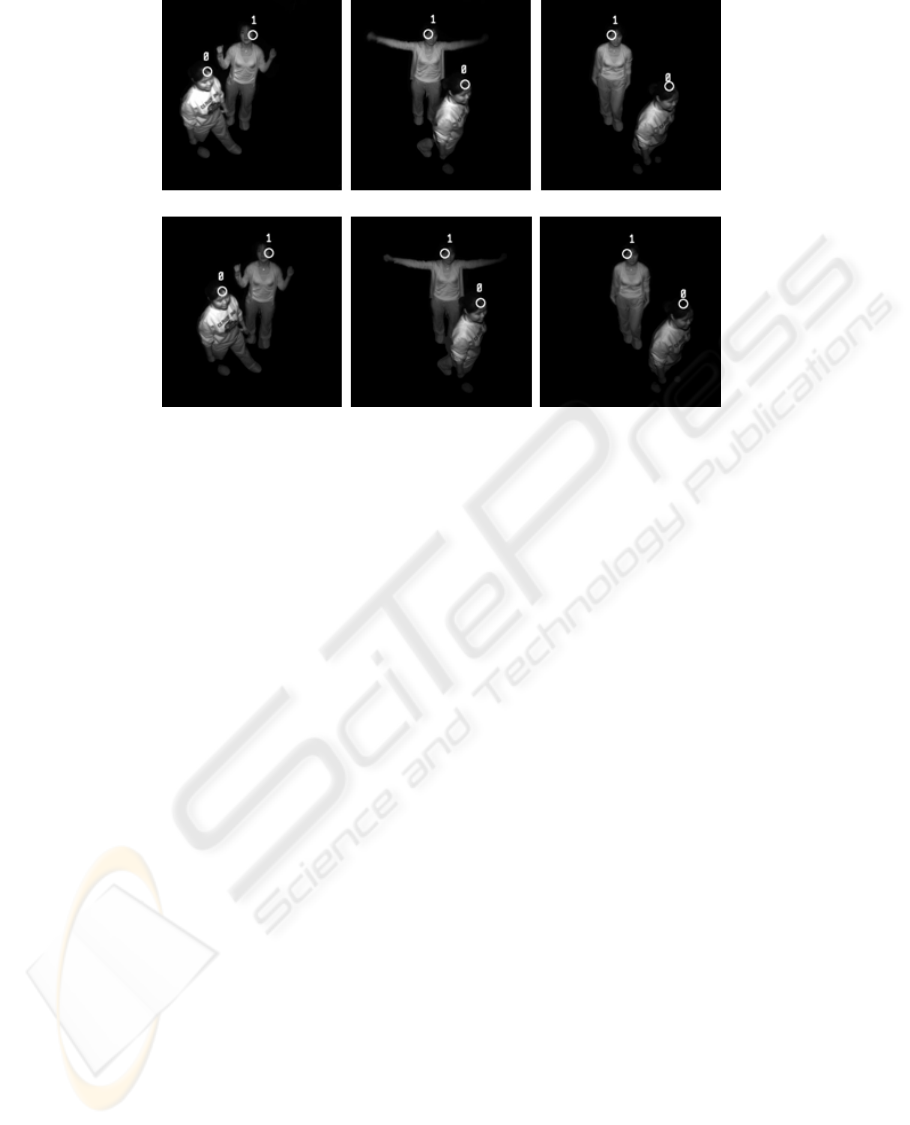

Figure 4: Examples of stereo correspondence and tracking : the view of camera#1(first row) and camera#2 in Fig. 1.
