FACIAL EXPRESSION RECOGNITION BASED ON FACIAL
MUSCLES BEHAVIOR ESTIMATION
Saki Morita and Kuniaki Uehara
Department of Computer and Systems Engineering, Kobe University
1-1 Rokko-dai, Nada, Kobe 657-8501, Japan
Keywords:
Facial expression analysis, finite element method, angular metrics for shape similarity, emotion classification.
Abstract:
Recent development in multimedia urges the need for an engineering study of the human face in communica-
tion media and man-machine interface. In this paper, we introduce a method not only for recognizing facial
expression and human emotion, but for extracting rules from them as well. Facial data can be obtained by
considering the relative position of each feature point in time series. Our approach estimates the behavior of
muscles of facial expression from these data, and evaluates it to recognize facial expressions. In the recogni-
tion process, essential parameters that cause visible change of the face are extracted by estimating the force
vectors of points on the face. The force vectors are calculated from displacements of points on the face by
using FEM (Finite Element Method). To compare the multi-streams of force vectors of each facial expression
effectively, A new similarity metric AMSS (Angular Metrics for Shape Similarity) is proposed. Finally, ex-
periments of recognition of facial expressions shows that usable results are achieved even with few testees in
our approach and variable rule corresponding AUs can be detected.
1 INTRODUCTION
Recent development in multimedia urges a need for
an engineering study of the human face in communi-
cation media and man-machine interface. The human
face is full of nonverbal information that is used for
communication and to indentify ourselves from one
another. Therefore, the number of researchers who
study on the recognition of facial expression is in-
creasing.
Currently, a lot of facial expression recognition
systems have been devised and different approaches
have been introduced. There are two types of ap-
proaches: 2D (image-based) method and 3D (model-
based) method. In some approaches of 2D method,
motion information such as optical flow is extracted
from sequential images. Then, the expression is de-
scribed by some specific parameters representing op-
tical flow and six facial expressions as well as eye
blinking are recognized (Yacoob and Davis, 1994).
In other approaches of 2D method, the presence or
absence of furrows and wrinkles is observed and the
magnitude as well as the direction of the motion of
the face’s parts are represented. Then, the expression
is classified using perceptron with these parameters
(li Tian et al., 2001).
However these approaches need lots of information
since they use planar information of the whole face or
parts of it. In contrast, 3D method recognizes facial
expressions by analyzing three-dimensional informa-
tion of several points on a face. Our approach is based
on 3D method and estimates the movements of the
muscles of a facial expression by considering the re-
lationship among points on a face. Then, the facial
expression is classified based on the movement of the
muscles of the facial expression.
This method is inspired by the idea of FACS (Facial
Action Coding System) (Ekman and Friesen, 1978).
FACS is a method for measuring and describing facial
behaviors in the field of psychology. It divides facial
movement into 44 kinds of basic units, AU (Action
Unit).
In order to obtain positions of points on the face,
we use a motion capture system. Data obtained by
the motion capture system have the following charac-
teristics:
• three dimensional time series data:
Three dimensional coordinates of the markers
placed on the face are obtained as time series data.
Such data are called a stream.
48
Morita S. and Uehara K. (2006).
FACIAL EXPRESSION RECOGNITION BASED ON FACIAL MUSCLES BEHAVIOR ESTIMATION.
In Proceedings of the First International Conference on Computer Vision Theory and Applications, pages 48-55
DOI: 10.5220/0001372400480055
Copyright
c
SciTePress
• multi-stream data:
Since a large number of markers are placed on the
face, it is necessary to process the multiple streams
by considering the interrelation between them.
These data have information about the position of
each part of the face with good accuracy.
Since these data obtained by motion capture system
have just the positions of the markers, they need to be
transformed to parameters representing the features of
each facial expression notably. We present a method
for extracting essential parameters that cause visible
change of the face by estimating the force vector of
each point on the face. The force vectors need to be
calculated from displacements of points on the face.
That is, the forces acting on the skin of the face are
obtained by the movments of each point on the face.
Therefore, our approach uses a method of analyzing
inverse problem using FEM (Cook, 1995) to estimate
the force vectors. FEM is a very powerful tool to ob-
tain stress and strain when outside forces act on an
object. Since FEM can be easily applied to various
engineering problems and handles complex loading,
the method for analyzing inverse problem using FEM
is the best tool as a method to estimate the force vec-
tors from the displacemants.
Then, the force vectors must be compared correctly
to recognize facial expressions. The comparison of
force vectors by Euclidean distance does not have
essential significance, since the force vectors have
two elements: direction and length. Thus, we pro-
pose a new similarity metric AMSS (Angular Met-
rics for Shape Similarity) for an effective evaluation
of force parameters. A similarity of force vectors by
AMSS is calculated from the difference of the length
and the angle between the two vectors. The com-
parison method using AMSS can achieve an exact
evaluation using elements of vectors effectively. Ex-
pression recognition is done by estimating force vec-
tor in DTW (Dynamic Time Warping) (Sankoff and
Kruskal, 1983) using AMSS.
This paper is organized as follows: Section 2 de-
scribes the motion capture system and the data for
facial expression. Section 3 and Section 4 describe
the technique for extracting parameters representing
forces acting on points on a face using FEM, and
the method of facial expression recognition using the
force vectors. Section 5 performs an experiment on
expression recognition and discusses the results. We
conclude in Section 6 by summarising the paper and
suggesting future research directions.
2 FACS
In this paper, expressions are recognized based on the
idea of FACS which is widely used in the field of fa-
cial expression analysis. Since a facial expression is
indeed the combination of movements of the points
on the face, the data of the whole surface of the face
is not needed for the recognition of facial expressions.
All you need to recognize the facial expressions relies
on the information of some points on a face. We also
use the optical motion capture system to obtain the
data of 35 points on the face.
FACS is a method for measuring and describing fa-
cial behaviors proposed by Ekman and Friesen. FACS
is widely used in the field of the research about the
recognition of facial expression (Essa and Pentland,
1997) (Lien et al., 1998). Ekman and Friesen devel-
oped the original FACS by determining how the con-
traction of each facial muscle (singly and in combi-
nation with other muscles) changes the appearance of
the face.
In FACS, an expression is described by a basic
unit called AU. AU is a primitive unit of the expres-
sion movement that can be identified visually, and
there are 44 kinds of AUs in total. Human expres-
sions are described by these combinations. For exam-
ple, Sadness is described as “1+4+15+23” since it is
composed of four AUs, such as 1, 4, 15 and 23.
The 17 AUs used to express basic facial expres-
sions are shown in Table 1. For instance, AU 1 de-
scribes the movement of raising the inner corner of
the eyebrow and AU 4 describes the movement of
puckering up one’s brows. Each AU is influenced by
a specific expression muscle respectively.

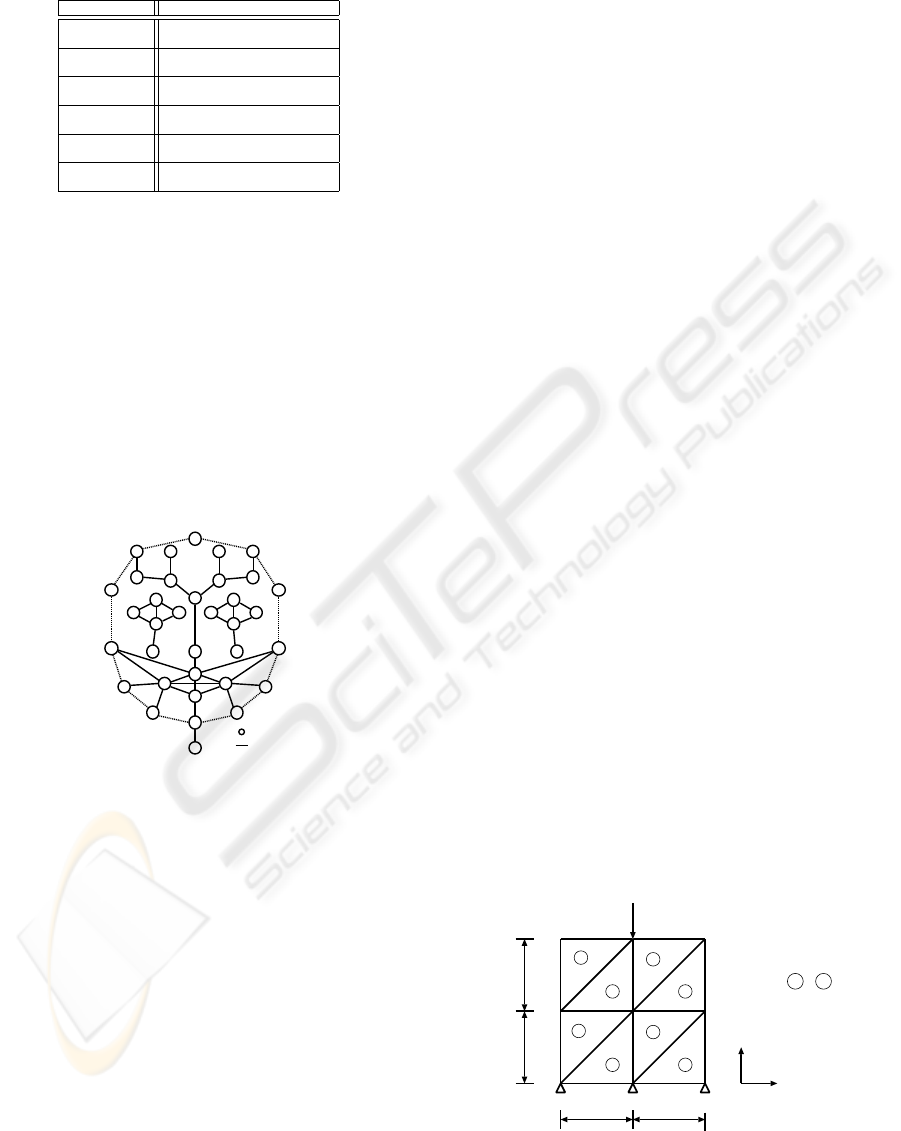

Table 1: Examples of AU(Action Unit).
No. Name No. Name
1 InnerBrowRaise 14 Dimpler
2 OuterBrowRaise 15 LipCornerDepress
4 BrowLower 16 LowerLipDepress
5 UpperLidRaise 17 ChinRaise
6 CheekRaise 20 LipStretch
7 LidT ight 23 LipT ight
9 NoseW rinkle 25 LipsP art
10 UpperLipRaise 26 JawDrop
12 LipConerP ull
Six basic expressions proposed by Ekman are
widely used in classification of a human expression.
The six basic expressions are as follows: happiness,
sadness, surprise, disgust, fear and anger. Table 2
shows the combination and the strength of AUs to rep-
resent the six basic expressions. The numerical value
in parentheses describes strength. It is 0 when the AU
is invisible, and it is 100 when the AU is apparent. For
instance, Anger is composed of eight AUs, such as 2,
4, 7, 9, 10, 12, 15 and 26, because features of Anger
are puckering up one’s brows, staring, applying, and
clenching teeth.
In this paper, expression data are obtained by using
an optical motion capture system. These data consist
of x, y, z coordinates for each point on the testee’s
FACIAL EXPRESSION RECOGNITION BASED ON FACIAL MUSCLES BEHAVIOR ESTIMATION
49
Table 2: Combination of AU parameters.
Expression AU and its Percentage
Happiness 1(60), 6(60), 10(100),
12(50), 14(60), 20(40)
Sadness 1(100), 4(100), 15(50),
23(100)
Surprise 1(100), 2(40), 5(100),
10(70), 12(40), 16(100), 26(100)
Disgust 2(100), 4(100), 9(100),
15(50), 17(100)
F ear 1(100), 2(40), 4(100),
5(70), 12(30), 15(70), 26(60)
Anger 2(70), 4(100), 7(60), 9(100),
10(100), 12(40), 15(50), 26(60)
face. The position of the marker is determined based
on FACS. The markers are sticked in the appropriate
places where the movement of each AU is observed.
The positions of markers and those names are shown
in Figure 1. The total number of the markers used in
this research is 35. In Figure 1, we link markers on
the face with black lines to describe the places where
AUs happen. For example, AU 1 and AU 2 can be
detected by observing the markers marked as number
6 and 7 respectively, but some AUs like AU4 should
be detected by observing the line between the markers
numbered 6 and 7.
1.Head
2.LHead
3.RHead
4.LFronsIn
5.LFronsOut
6.LBrowIn
7.LBrowOut
8.LFronsIn
9.LFronsOut
10.RBrowIn
11.RBrowOut
12.BetweenBrows
13.LEyeIn
14.LEyeTop
15.LEyeOut
16.LEyeBottom
17.REyeIn
18.REyeTop
19.REyeOut
20.REyeBottom
21.Nose
22.LCheek
23.RCheek
24.LipTop
25.LLipCorner
26.LipBottom
27.RLipCorner
28.LUpperLine
29.LMiddleLine
30.LLowerLine
31.RUpperLine
32.RMiddleLine
33.RLowerLine
34.Chin
35.Neck
:marker
: AU
1
4
5
7
6
2
15
14
16
13
12
17
18
20
19
11
10
89
3
31
32
23
21 22
28
29
30
34
35
33
24
25
26
27
Figure 1: The markers and Action Units.
3 FEATURE EXTRACTION BY
FEM
The behavior of muscles of facial expression is esti-
mated and evaluated to classify the expression data in
our approach. First, displacement for each coordinate
between corresponding points on the face in two con-
tinuous frames are calculated according to their posi-
tion values. Thereby, these data are three-dimensional
time series and multi-stream. Next, parameters repre-
senting forces acting on points on the face are calcu-
lated from values of displacements by the method of
inverse problem using FEM.
FEM is a very powerful technique to obtain the nu-
merical solution of a wide range of engineering prob-
lems. FEM is based on the concept that a body or
structure may be devided into smaller elements of fi-
nite dimensions. The original body or structure is dis-
cretized to these elements which are related to each
other through nodes. Application of the governing
equations, loading and boundary conditions results in
a system of equations that could be solved to find an
approximate solution. The main features of FEM are
as follows:
• It can readily handle very complex geometry.
• It can handle a wide variety of engineering prob-
lems.
• It can handle complex restrains.
• It can handle complex loading.
• It obtains approximate solutions.
Since visible change of the face is caused by complex
effecting of the muscles of facial expression, FEM
is appropriate to handle facial expression recognition
problems.
FEM can achieve the displacements of nodes when
outside forces act on an object. But using facial ex-
pression data as an input, we must take an approach
that calculates the force vector from the displacement
vector. This method is called a method for the inverse
problem using FEM.
Figure 2 shows the example of the plane board
model with nine nodes and eight elements. The num-
ber of materials and the number of restraint conditions
are given as input data. Here, assume that the number
of materials is one and the number of restraint con-
ditions is three. The calculation procedure of reverse
problem analysis using FEM is as follows:
0
1
2
3
4
5
6
7
0 1 2
3
4
5
6
7
8
F
5cm 5cm
5cm
5cm
x
y
np = 9 ( 0 ~ 8 )
nm = 1
ne = 8 ( 0 ~ 7 )
nb = 3
Figure 2: An example of reverse problem.
VISAPP 2006 - IMAGE UNDERSTANDING
50
1. Preparation for input: The structure that needs to
be analyzed is divided into elements, and nodes and
elements are numbered.
2. Input data: The coordinates of nodes, composition
of the elements, physical properties of materials
and fixed conditions are inputted. Additionally, in-
formation on nodes and elements decided by step 1
are given.
3. Making an element rigidity matrix: Element rigid-
ity matrix [EK] of each element is made by using
input data. At this time, it is necessary to calcu-
late plane strain matrix [B] and stress strain matrix
[D] (for the plane strain problem). [B] and [D] are
represented as the following expressions:
[B] =
1
2S
"
y
j
− y
k
0 y
k
− y
i
0 x
k
− x
j
0
x
k
− x
j
y
j
− y
k
x
i
− x
k
0 y
i
− y
j
0
x
i
− x
k
0 x
j
− x
i
y
k
− y
i
x
j
− x
i
y
i
− y
j
#
(1)
[D] =
E
(1 + ν)(1 − 2ν)
1 − ν ν 0
ν 1 − ν 0
0 0
1−2ν
2
(2)
S =
1
2
1 x
i
y
i
1 x
j
y
j
1 x
k
y
k
(3)
[EK] = tS[B]
T
[D][B] (4)
Note that x
n
and y
n
are the x-coordinate and y-
coordinate of the node n of each element respec-
tively. E is the Young’s modulus and ν is the Pois-
son’s ratio. t is a board thickness.
4. Assembling the whole rigidity matrix: Whole
rigidity matrix [T K] is made by combining each
element of the rigidity matrix [EK].
5. Processing the force condition and the condition of
constraint: The nodal force vectors {F }is obtained
by solving the following simultaneous linear equa-
tion. {d} is displacements of the nodes.
{F } = [T K]{d} (5)
Then, we describe the method of applying the re-
verse problem analysis of FEM to expression data.
When expression data are obtained, the positions of
markers are decided by considering the expression
muscle, as is shown in Figure 1. To apply FEM, it
is necessary to divide the testee’s face into some el-

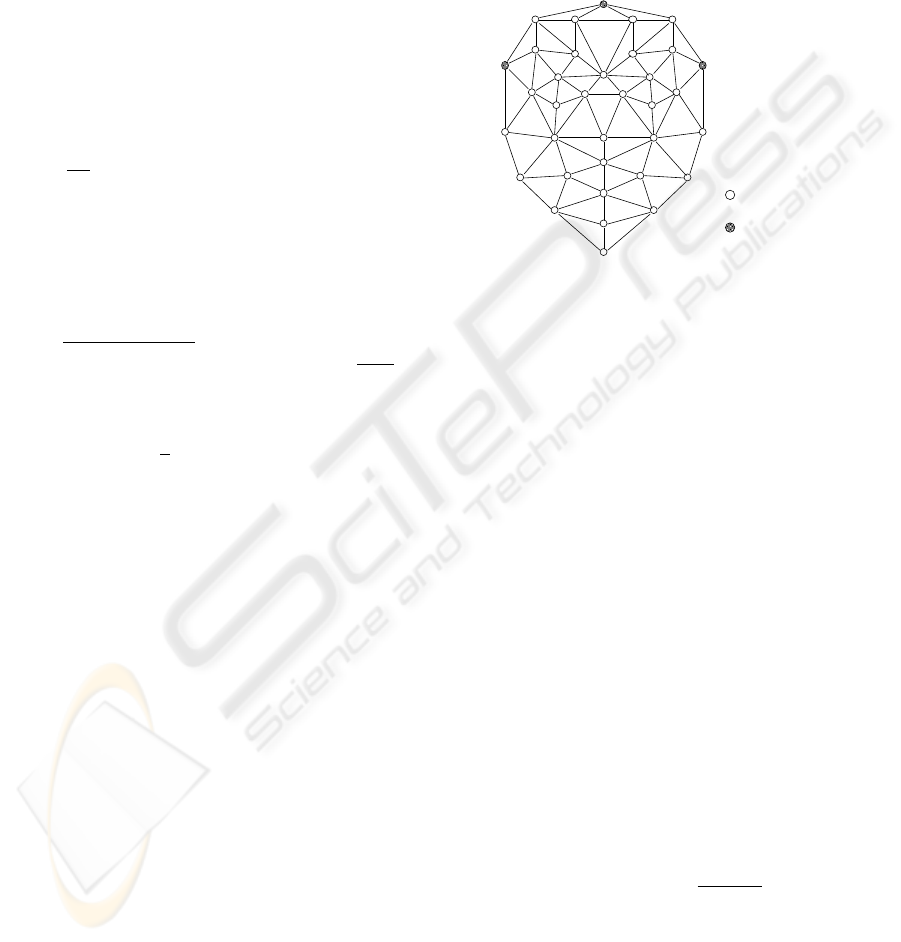

ements. Figure 3 shows the division of the face into
elements. Then, the markers’ positions are considered
to be the nodes in this structure. 56 elements are di-
vided by 35 nodes. Each element is formed by three
nodes. For example, nodes marked as number 1, 4
and 5 in Figure 1 form the element marked as number
1 in Figure 3. The elements can be defined arbitrarily
and they are determined to be left-right symmetrical.
The reason is that human face is almost left-right sym-
metrical and so does the behavior of muscles of facial
expressions in most cases.
np = 35
nm = 1
ne = 56
nb = 3
:node
:constrained node
1
4
5
7
6
2
15
14
16
13
12
17
18
20
19
11
10
8
9
3
31
32
23
21
22
28
29
30
34
35
33
24
25
26
27
36
37
38
3940
41
42
43
44
45
46
4748
49
50
51
5253
54
5556
Figure 3: Dividing face into elements.
The number of materials is one because the skin
overlying the face is assumed to be uniform. The
number of restraint conditions is three since three
points are fixed. These three points are Head, LHead,
RHead, shown in Figure 1. The Young’s modulus E
and Poisson’s ratio ν are 0.14[MP a] and 0.45 respec-
tively.
After these input data are given, the force param-
eters of the nodes in each frame are calculated by
the above method for analyzing inverse problem us-
ing FEM. Since the displacement of z-axis in Figure
6 is small, it has little influence on the result. There-
fore, the node displacement as well as the node force
in this direction are ignored.
Each force parameter of a node in each frame ob-
tained by the above process is described by two real
values. One means the strength of the force which
acts on in the vertical direction, the other means the
strength of the force in the horizontal direction. The
length and the angle of the node force vector are cal-
culated from these two real values of the force param-
eter. The expressions are as follows:
Length =
p
x
2
+ y
2
(6)
Angl e = arctan(y/x) (7)
Note that x is the strength of the force in the hori-
zontal direction and y is strength of the force in the
vertical direction. If x is 0, the angle is 2/π when y is
plus and it is −2/π when y is minus.
FACIAL EXPRESSION RECOGNITION BASED ON FACIAL MUSCLES BEHAVIOR ESTIMATION
51
4 SIMILARITY BETWEEN
MULTI-STREAMS
Facial expressions are recognized by evaluating force
vectors obtained in Section 3. The force vectors must
be compared exactly. Although the Euclidean dis-
tance is commonly used as the metric of distance,
the comparison of force vectors by Euclidean distance
does not have essential significance because the force
vector has two elements: length and direction. Thus,
we propose AMSS, a new similarity metric for an ef-
fective evaluation of force vectors.
AMSS measure is inspired by the similarity mea-
sure based on LCSS (Longest Common SubSe-
quence) model (Vlachos et al., 2002) (Gunopoulos,
2002). LCSS is proposed for measuring the similarity
of model object’s trajectory. LCSS based measure is a
method of analyzing object trajectories in two or three
dimensional space. It ignores dissimilar segments of
trajectories and calculates the similarity from only the
similar segments. The advantage of this measure is
that it minimizes the effects of the location where
data are captured. However, LCSS based metric is not
sufficient to measure force vectors. We present how
AMSS measure is calculated: assume that
−→
v
1
and
−→
v
2
are force vectors.
SimA(
−→
v
1
,
−→
v
2
) = 1 − Dist(
−→
v
1
,
−→
v
2
) (8)
Dist(
−→
v
1
,
−→
v
2
) =
1
2
(Dist
a
(
−→
v
1
,
−→
v
2
)
+Dist
l
(
−→
v
1
,
−→
v
2
)) (9)
Dist
a
(
−→
v
1
,
−→
v
2
) =
θ
π/2
(10)
Dist
l
(
−→
v
1
,
−→
v
2
) =
||
−→
v
1
| − |
−→
v
2
||
Max(|
−→
v
1
|, |
−→
v
2
|)
(11)
Note that θ is the angle between
−→
v
1
and
−→
v
2
(Figure
4(a)). SimA(
−→
v
1
,
−→
v
2
) and Dist(
−→
v
1
,
−→
v
2
) are the simi-
larity and the distance between
−→
v
1
and
−→
v
2
respectively.
Dist
a
(
−→
v
1
,
−→
v
2
) is the angle between the two vectors
(Figure 4(b)), and Dist
l
(
−→
v
1
,
−→
v
2
) means the difference
of the length of the vctors (Figure 4(c)). As a result,
similarity can be appropriately calculated from both
viewpoints: the direction and the length of the vector.

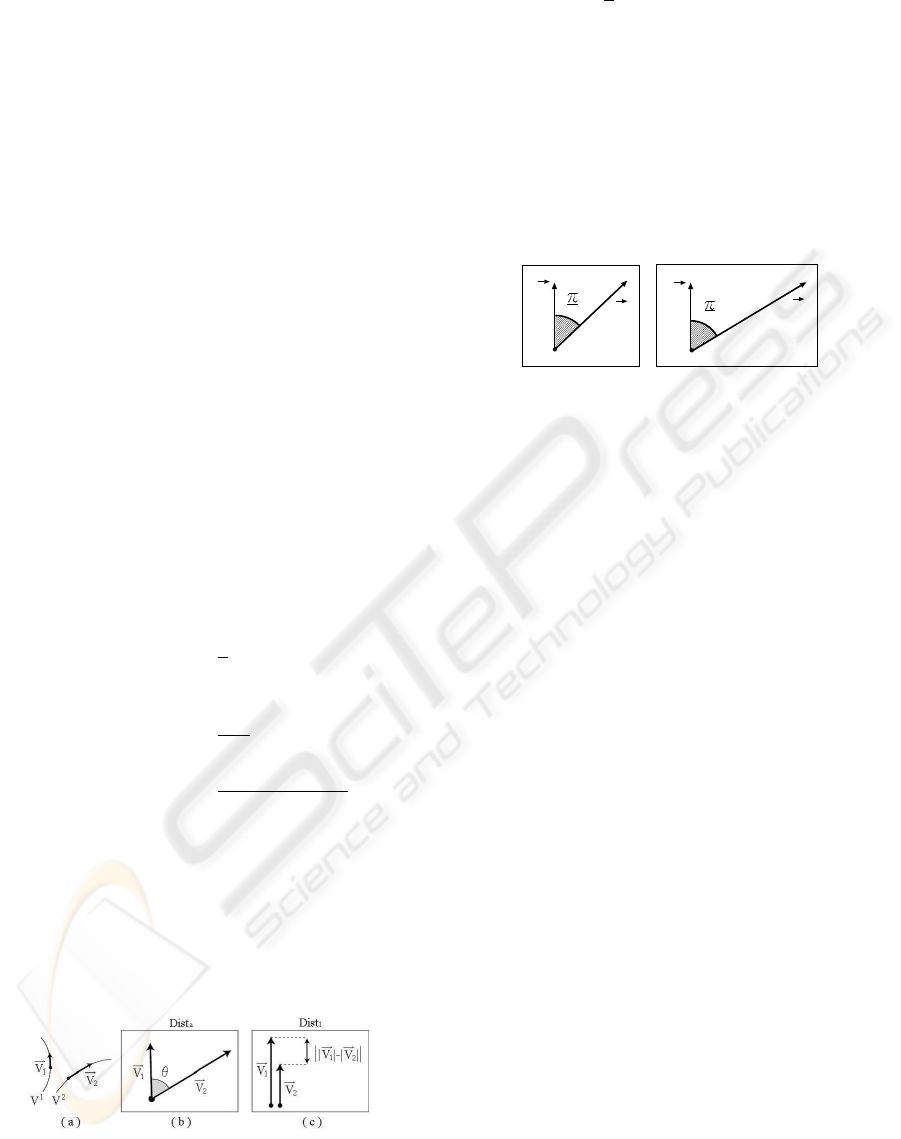

Figure 4: How to measure the similarity between two vec-
tors.
For example, the similarities between two vectors
in Figure 5 are calculated. In Figure 5(a), |
−→
a
1
| and
|
−→
a
2
| are 1 and
√
2 respectively, and the angle be-
tween
−→
a
1
and
−→
a
2
is π/4. Since Dist
a
(
−→
a
1
,
−→
a
2
) is 0.50
and Dist
l
(
−→
a
1
,
−→
a
2
) is 0.29, Dist(
−→
a
1
,
−→
a
2
) is 0.40 and
SimA(
−→
a
1
,
−→
a
2
) becomes 0.60. On the other hand, the
similarity between
−→
b
1
and
−→
b
2
in Figure 5(b) is calcu-
lated and SimA(
−→
b
1
,
−→
b
2
) becomes 0.42. This result
shows that
−→
a
1
and
−→
a
2
are more similar than
−→
b
1
and
−→
b
2
. These similarities are based on the angle and the
length of the vectors, and we can see the effect of this
metrics according to this result.
a
b
a
b
1
2
1
2
4
3
(a)
(b)
1
1.41
1
2
Figure 5: How to measure the similarity between two vec-
tors in AMSS.
DTW is generally used as a method of measuring
the similarity between waveforms. DTW is an algo-
rithm that measures the distance between two time
series. Therefore, the similarity between the data of
a same expression with different timings can be cor-
rectly measured. In this research, the distance metric,
AMSS, is used as an alternative to the Euclidean dis-
tance and the similarity between streams is measured
by DTW.
For instance, suppose that the similarity between
stream A and B needs to be evaluated. The similarity
of stream A (frame 0 to frame i), and stream B (frame
1 to frame j) can be given in the next equation:
SimB(A, B) = D(i, j)
= Max[D(i − 1, j − 1) + 2SimA(i, j),
D(i − 2, j − 1) + SimA(i − 1, j) + SimA(i, j),
D(i − 1, j − 2) + SimA(i, j − 1) + SimA(i, j)] (12)
A single facial expression data consists of 35 force
vector streams as described in Section 2, so that we
consider it is a multi-stream data. Since three nodes
marked as number 1, 2 and 3 are considered as fixed
points, the similarities of their force vector streams
are not calculated. That is, the similarity between two
facial expressions is calculated from 32 streams. Fi-
nally, the similarity of the multi-streams is calculated
as an accumulation of the similarity of each feature
points. The similarity between two expression data
E1 and E2 is calculated as follows:
Similarity(E1, E2) =
35
X
n=4
SimB(E1
n
, E2
n
)
(13)
VISAPP 2006 - IMAGE UNDERSTANDING
52
Note that n is the node number and E1
n
and E2
n
rep-
resent the n-th force vector streams of E1 and E2 re-
spectively. The similarity between two multi-streams
is calculated as the accumulation of the similarities of
all pairs of single streams. That is, all forces acting on
any points on the face are treated equally. Naturely, ir-
relevant streams may decrease the recognition’s accu-
racy. Thus, we need more consideration about selec-
tion the streams that lead to be the best performance.
This will be discussed in the following section.
Then, we describe how these multi-streams of ex-
pression data are classified into the categories of basic
facial expression. First, the similarity between one
multi-stream of unknown expression data and each
multi-stream fallen into a certain category is calcu-
lated in equation 13. By calculating the mean value
of these similarities between multi-streams, the sim-
ilarity between unknown data and this category are
obtained. Second, the similarities between unknown
data and other categories are obtained as well. Finally,
unknown data is classified into the category whose
similarity is the highest. The result of recognition
result is represented with the following expressions:
SimC(c) =
P
n
Similarity(unkown, E
c
n
)
total
c
(14)
result = arg max
c
SimC(c) (15)
Note that c reprensents the category and SimC(c) is
the similarity between unknown data and the category
c. E
c
n
is n-th multi-stream in the category c, total
c
is
the number of data in the category c.
5 EVALUATION
5.1 Experiment with All Streams
We evaluate our system by considering the classifi-
cation performance for four types of emotions. Ex-

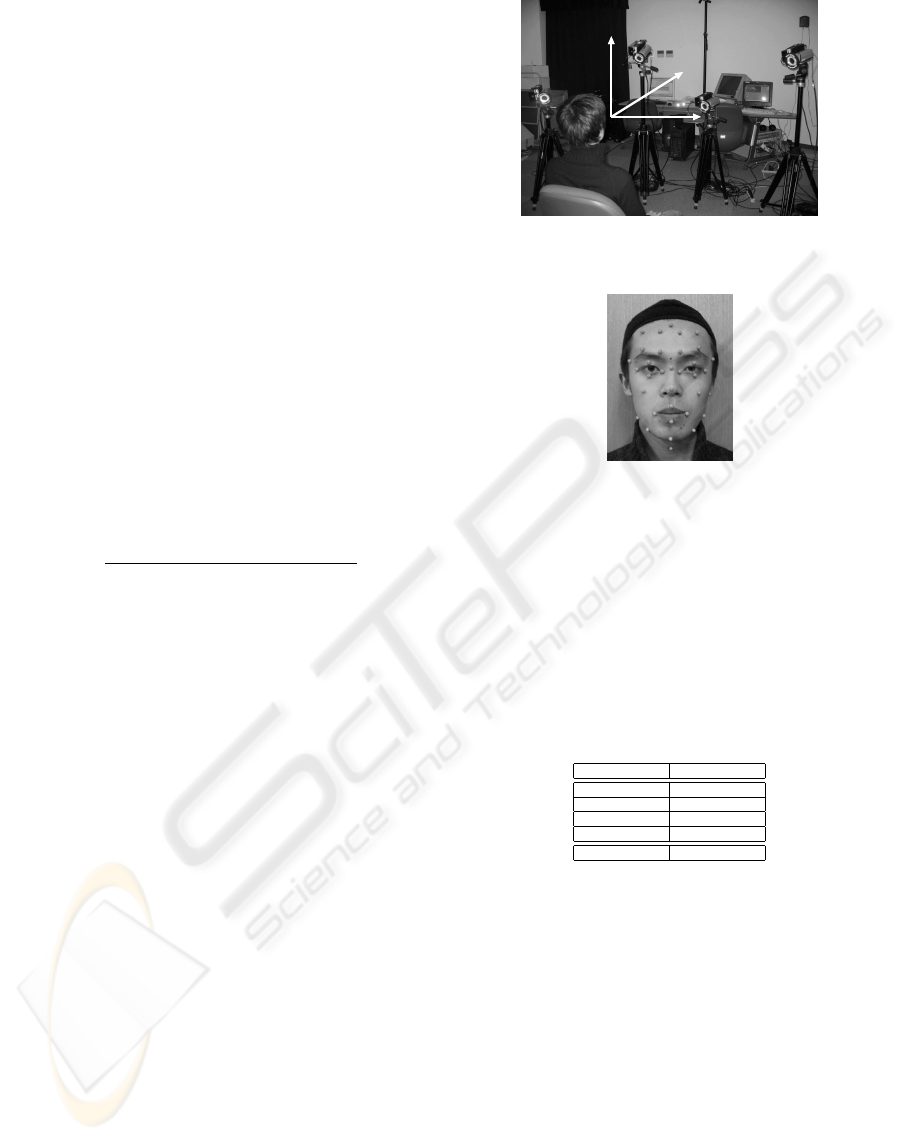

pression data are obtained by using the optical motion
capture system HiRES (4 cameras) made by Motion
Analysis company. The overview of the motion cap-
ture system is indicated in Figure 6. The sampling
frequency of the expression data is 60 [Hz].
The facial motion capture markers are used to ob-
tain the data. The total number of markers is 35 and
they are sticked in the places determined in Figure 1
on the testee’s face (Figure 7).
All tests are performed with 12 testees. Each tes-
tee is tested with four emotions; Anger, Sadness,
Happiness, Surprise. The length of each sequence
is five seconds, in another words, 300 frames, start-
ing and ending with the neutral expression. The ex-
periments have been carried out using four types of
y
z
x
Figure 6: The optical motion capture system.
Figure 7: Facial motion capture markers.
expression data set of one person as test data, and the
remainder as training data. This trial was repeated 12
times, each time leaving a different person out (leave
one out cross varidation). The results are shown in
Table 3 and Table 4.
Table 3: Recognition accuracy for person-indepent classifi-
cation.
Emotion Percent correct
Surprise 100.0%
Anger 33.3%
Happiness 50.0%
Sadness 83.3%
Total 66.7%
Table 3 gives the percentage of correctly classified
testing data for each basic emotion and the overall
recognition accuracy. Table 4 gives the confusion ma-
trix for this trial. It can be seen from this result that
while Surprise and Sadness are classified correctly,
Anger and Happiness are misclassified frequently.
Especially for Anger, it is more frequently misclas-
sified than others. The reason of this result is that the
forces acting on the face in Anger are smaller than
those of other expressions. In addition, Anger has
features in common with other facial expressions. For
example, Anger and Surprise share some AUs, such
as AU 2, AU 10 and AU 12. Additionally, Anger and
Sadness share some AUs, such as AU 4 and AU 15.
Therefore, the data of Anger are misclassified into
Surprise and Sadness.
FACIAL EXPRESSION RECOGNITION BASED ON FACIAL MUSCLES BEHAVIOR ESTIMATION
53
Table 4: Person-independent confusion matrix.
Output
Input
Sur. Ang. Hap. Sad.
Surprise 12 0 0 0
Anger 3 4 0 5
Happiness 1 0 6 5
Sadness 0 1 1 10
5.2 Stream Selection
Feature Selection is a process of choosing the most
appropriate subset of the features and is commonly
used in machine learning. By selecting the small-
est relevant subset of the features which maintain the
characteristics of the original data, the computation
time to analyze data can be reduced. Moreover, it is
possible that a prediction performance is improved by
using only effective information subset in the predic-
tion.
In our research, the positions of 35 markers are ob-
served and 35 streams for each facial expression data
are extracted. Since all streams representing the force
vectors are treated equally to the facial recognition in
Subsection 5.1, irrelevant streams could decrease the
recognition’s accuracy. It is necessary to select some
relevant streams from the whole set for the sake of
the classification. Therefore, the subset of relevant
streams are attempted to be selected by certain pro-
cesses. This process is based on the idea of feature
selection and we call it stream selection. In this
subsection, two approaches are used for stream selec-
tion: a wrapper approach (Kohavi and John, 1997)
and a skimming approach.
The first method of stream selection is known as
wrapper approach. This approach generates various
subsets of features and evaluates them by measuring
the accuracy of the resulting classifier. Then, the sub-
set of features given the highest mark is used to rec-
ognize expressions. The feature subsets are generated
starting with a single feature and gradually adding a
feature at a time. Since the face is left-right symmet-
rical, it is assumed that the forces which act on each
point of the face are almost symmetric. Therefore,
19 streams on the right half of the face are targets
of stream selection. The following two tables show
the recognition results using two streams chosen by
stream selection.
Table 5 and Table 6 give the recognition accuracy
and the confusion matrix respectively. It can be seen
that this method can recognize facial expressions with
slightly decreased accuracy when only two streams
are used. In the recognition using all streams, it
is difficult to classify Anger correctly since Anger
is composed of many AUs. Therefore, the recogni-
tion rate of Anger is improved by using the relevant
streams selected by the wrapper approach.
Table 5: Recognition accuracy using stream selection.
Emotion Percent correct
Surprise 66.7%
Anger 50.0%
Happiness 66.7%
Sadness 50.0%
Total 58.3%
Table 6: Person-independent confusion matrix.
Output
Input
Sur. Ang. Hap. Sad.
Surprise 8 0 3 1
Anger 2 6 3 1
Happiness 1 1 8 2
Sadness 3 0 3 6
Table 7 shows the subsets frequently selected by
the wrapper approach. The experiment is performed
changing the number of the selected streams from one
to three. The markers’ numbers of selected streams
for each case are shown in Table 7. In each case,
most-selected features are the subset of streams of
markers marked as number 10 and 11 in Figure 1. It
indicates that some discriminative information is em-
bedded in the upper part of the face.
Table 7: The subset of streams chosen by stream selection.
The number of the streams
frequency
1 2 3
1st {11} {10,11} {10,11,17}
2nd {10} {11,17} {10,11,19}
3rd {34} {10,26} {9,11,19}
The second experiment uses the skimming ap-
proach. This approach selects the subset of the fea-
tures whose values change remarkably. In this trial,
five streams of the markers which the powerful forces
act on are chosen by the skimming approach. The
recognition accuracy and the confusion matrix are
shown in Table 8 and Table 9. The usable results can
be achieved even reducing the dimensions from 35 to
5. While the total average recognition rate is supe-
rior to the experiment using the wrapper approach, the
recognition accuracy of Happiness decreases. The
reason is that Happiness has less movement in the
chin and the eyebrows whereas they move obviously
in other facial expressions.

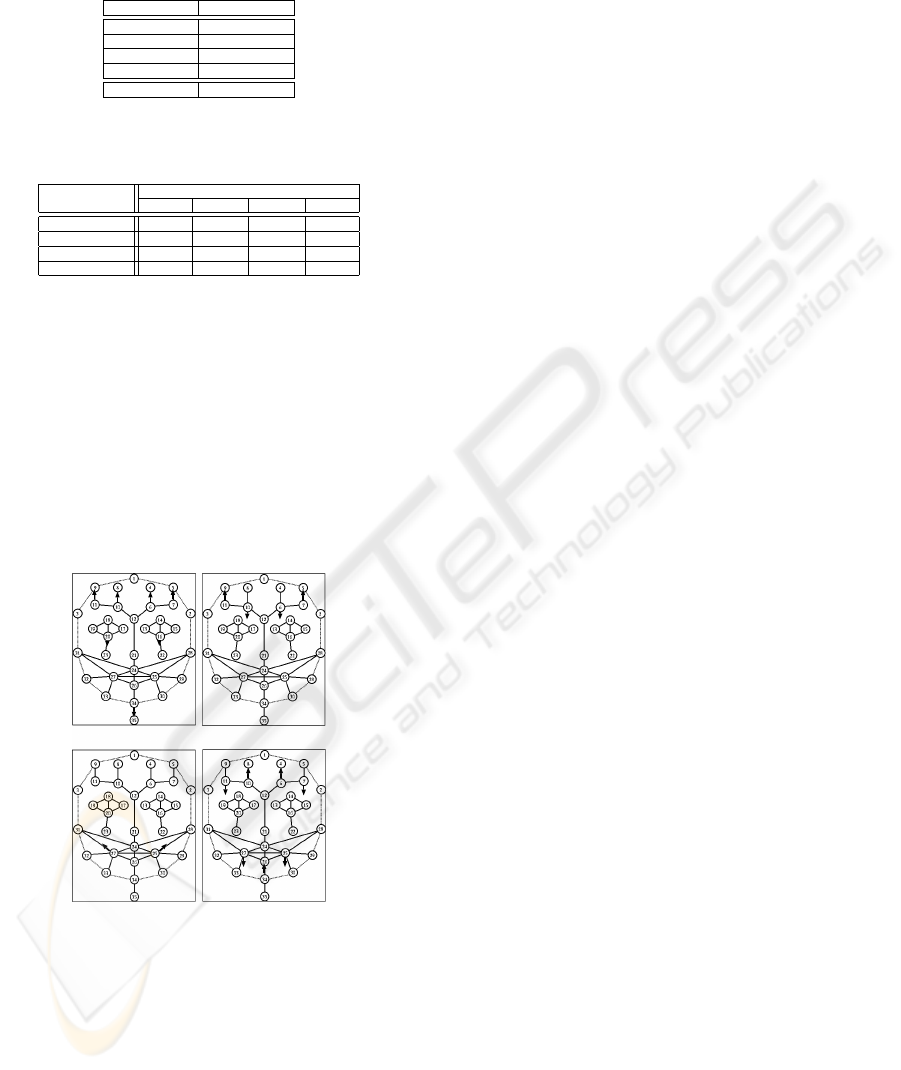

Figure 8 shows the force vectors of relevant points
on the face for the classification. Arrows represent
the force vectors on the markers selected by the skim-
ming approach. The direction and the length of the
arrow represent the mean direction and length of the
force vectors from the first frame to the peak frame.
Some very short arrows are omitted. The result shows
that force vectors obtained by our method are highly
VISAPP 2006 - IMAGE UNDERSTANDING
54
Table 8: Recognition accuracy for person-indepent classifi-
cation using stream selection.
Emotion Percent correct
Surprise 91.7%
Anger 50.0%
Happiness 25.0%
Sadness 75.0%
Total 60.4%
Table 9: Person-independent confusion matrix.
Output
Input
Sur. Ang. Hap. Sad.
Surprise 11 0 0 1
Anger 0 6 0 6
Happiness 3 1 3 5
Sadness 0 2 1 9
relevant with AUs. That is, by extracting essential pa-
rameters that cause visible change on the face, the be-
havior of muscles of a facial expression is estimated
correctly. For instance, forces acting on the markers
numbered as 6 and 10 correspond to AU 1, and forces
acting on the markers numbered as 7 and 11 corre-
spond to AU 2 in Surprise (Figure 8(a)). Since these
AUs are features of Surprise, it seems that our ap-
proach can detect variable rules and use them in the
classification of facial expressions.
(a) Surprise
(b) Anger
(d) Sadness
(c) Happiness
Figure 8: The force vectors of effective points for the clas-
sification.
6 CONCLUSION
In this paper, we presented an approach for recogniz-
ing facial expressions using three dimensional time
series data from the point of view of data mining.
This approach recognizes emotions by estimating and
evaluating the behavior of muscles of facial expres-
sion. Three-dimensional positions of the points on the
face are converted into force vectors using FEM. To
compare the force vectors effectively, we proposed a
new similarity measure AMSS. By applying AMSS to
DTW, the similarity between streams of force vectors
is appropriately calculated. In the experiment on ex-
pression recognition, usable results are achived with
few testees.
Furthermore, the experiment of stream selection
shows that this approach can recognize emotions us-
ing data of even two positions on the face. It can also
find the points on the face that are effective in clas-
sification of facial expressions. The results indicates
the possibility that stream selection method increases
the classification’s accuracy. More reliable system to
recognize facial expression will be achieved by iden-
tifying the subset of streams that lead to be the best
performance.
REFERENCES
Cook, R. D. (1995). Finite Element Modeling for Stress
Analysis. Wiley.
Ekman, P. and Friesen, W. (1978). The Facial Action Cod-
ing System. Consulting Psychologists Press.
Essa, I. A. and Pentland, A. P. (1997). Coding, Analysis,
Interpretation, and Recognition of Facial Expressions.
IEEE Trans. Pattern Anal. Mach. Intell., 19(7):757–
763.
Gunopoulos, D. (2002). Discovering Similar Multidimen-
sional Trajectories. In Proc. of the 18th International
Conference on Data Engineering, pages 673–684.
Kohavi, R. and John, G. H. (1997). Wrappers for Feature
Subset Selection. Artificial Intelligence, 97(1-2):273–
324.
li Tian, Y., Kanade, T., and Cohn, J. F. (2001). Recognizing
Action Units for Facial Expression Analysis. IEEE
Transactions on Pattern Analysis and Machine Intel-
ligence, 23(2):97–115.
Lien, J. J., Kanade, T., Cohn, J. F., and Li, C. C. (1998).
Automated Facial Expression Recognition Based on
FACS Action Units. In Proc. of the 3rd. International
Conference on Face & Gesture Recognition, pages
390–395.
Sankoff, D. and Kruskal, E. J. B. (1983). Time Warps, String
Edits, and Macromolecules: The Theory and Practice
of Sequence Comparison. Addison-Wesley.
Vlachos, M., Gunopulos, D., and Kollios, G. (2002). Ro-
bust Similarity Measures for Mobile Object Trajec-
tories. In Proc. of the 13th International Workshop
on Database and Expert Systems Applications, pages
721–728.
Yacoob, Y. and Davis, L. (1994). Computing Spatio-
Temporal Representations of Human Faces. In Proc.
of Computer Vision and Pattern Recognition 94, pages
70–75.
FACIAL EXPRESSION RECOGNITION BASED ON FACIAL MUSCLES BEHAVIOR ESTIMATION
55
