SERVICE-ORIENTED ARCHITECTURE TO MOBILE PHONES

Elena Sánchez-Nielsen, Sandra Martín-Ruiz, Jorge Rodríguez-Pedrianes

Dpto. E.I.O. y Computación – Escuela Técnica Superior de Ingeniería Informática

La Laguna University, 38271 La Laguna, Spain

Keywords: Service oriented architecture, Mobile phones, Dynamical services invocation.

Abstract: New business opportunities are being enlarged by mobile phones. Electronic commerce on mobile phones is

an emerging expression of internet electronic commerce to provide sophisticated services to mobile users.

The Web services technology has been proposed to support electronic commerce on wired networks.

However, no significant research has been done to allow mobile phones acting as Web services requestor at

runtime without prior knowledge of available services. In this paper, we propose a service oriented

architecture to mobile phones. We introduce service managers as proxies between services providers and

mobile devices in order to solve the limitations faced by direct access from mobile devices to Web services.

We investigate the use of dynamic invocation interface as communication mechanism between service

providers and service managers in order to compute service description and invocation at runtime. With this

approach, we allow that service providers to create, update and change services at anytime and mobile users

may locate new services without knowing the accessible services. We have implemented a first prototype

with open source tools and basic service scenarios.

1 INTRODUCTION

Mobile phones are enlarging new business

opportunities. Examples of mobile services (m-

services) include access to basic services (e.g.,

search engine tools, language translation facilities,

newspaper reports, weather forecast,…), mobile

shopping (e.g., booking flights, reserving rental cars,

restaurants,…), mobile banking (e.g., billing of

services, buying stocks and contacting banks

through mobile devices) and m-government .

Having pre-installed services on users’ mobile

phones is an option that cannot be considered in an

open environment with multiple users with different

needs. Therefore, online delivery of services from

providers to mobile users and dynamical service

discovery infrastructure (where provider services

can announce their presence and mobile users can

locate these services) is more appropriate in dynamic

contexts than pre-installing services (Pilioura et al.

2003, p.28-36). At present, Web Services

technology (Gustavo et al. 2004) is used as approach

to support services on wired networks (e-services) as

well as integrating enterprise applications in a

heterogeneous environment. However, the available

technology to discover, access and invoke Web

services directly from mobile devices lacks some

important features. First, the using of static stub

based communication between a mobile client

application and Web services framework implies a

stub appended to the client at compile time for each

Web service to be invoked. Second, available

technology using open source software does not

allow users to access directly to UDDI registry from

mobile phones. This context requires that all

services must be specified at design time and no new

services can be incorporated later (at runtime) by

service providers. The other solution consists of

downloading a new application to client device

when new services are available. With the purpose

of providing availability service and dynamical

discovery to mobile users at anytime and anywhere,

in this paper, we focus on dynamic binding for

mobile devices. In particular, we propose a manager

entity with a service registry as an intermediate layer

between service providers and mobile users. This

entity is responsible of how to make service

information available and delivery services to

mobile users at anytime. We investigate the use of

dynamic invocation interface as communication

mechanism between service providers and service

managers in order to compute service description

and invocation at runtime. We propose XML-

encoded data exchange between service managers

and mobile phones to describe: (i) Web services

Sánchez-Nielsen E., Martín-Ruiz S. and Rodríguez-Pedrianes J. (2006).

SERVICE-ORIENTED ARCHITECTURE TO MOBILE PHONES.

In Proceedings of the International Conference on e-Business, pages 57-62

DOI: 10.5220/0001425000570062

 SciTePress

descriptions, (ii) operation invocations and (iii)

searching at UDDI registry. With the framework

proposed, service providers and new services can

easily be added at anytime without updating the

application of users’ mobile phones when new

services are incorporated. With the purpose of

reducing technology fragmentation and enhancing

interoperability, the solution has been developed

using open source software, standards and

specifications.

The remainder of this paper is organized as

follows. Section 2 describes the related work about

Web services technology. Section 3 outlines the

architecture proposed. Section 4 describes prototype

implementation and experimental results with basic

services and UDDI registry. Section 5 gives

concluding remarks.

2 RELATED WORK

The Web services paradigm (Gustavo et al. 2004),

(Vinoski 2002, p.89-91) offers and consumes

software as services. Interactions among Web

services involve three types of participants: service

provider, service requestor and service registry.

Service providers are the owners that offer services.

They define descriptions of their services and

publish them in the service registry. Service

requestors use a find operation to locate services of

interest. The registry returns the description of each

relevant service. The requestor uses this description

to invoke the corresponding Web Service. Three

standardization initiatives XML-based are used in

order to support interactions among Web services:

WSDL (Web Services Description Language n.d.),

UDDI (UDDI n.d.) and SOAP (Simple Object

Access Protocol n.d.).

Using SOAP-based interaction, services can

exchange messages by means of standardized

conventions to turn a service invocation into an

XML message, to exchange the message, and to turn

the XML message back into an actual service

invocation. Through WSDL, a designer specifies the

programming interface of a Web service. Four type

of messages SOAP are possible: RPC/encoded,

RPC/literal, document/literal and

document/encoded. Using Web Services paradigm,

the client makes a procedure call of a Web service in

the same way it invokes a local call. According to

client applications have access to WSDL file at

compile time or runtime, invocation of Web services

can be carried out by means of:

- Static Stub: a procedure call of a client application

is an invocation of a proxy procedure located in a

stub appended to the client at compile time. As a

result, a client can invoke methods of a Web service

directly via the stub. The advantage of this model is

that it is simple and easy to code. The disadvantage

is that the slightest change of Web service definition

leads to the stub being useless and a generation of a

new stub. Therefore, the stub based approach is only

appropriate in static contexts, where services are not

removed and updated by service providers.

- Dynamic proxy: in this case, the client application

calls a remote procedure through a dynamic proxy

that is created at runtime. The dynamic proxy needs

to be re-instated whenever the service endpoint

interfaces change.

- Dynamic invocation interface (DII): this model

enables dynamic invocation of Web services without

having to know interface details at compile time.

With this approach, a client application can query

for a service it has never heard of and build on the

fly a call to that service. As a result, an application is

able to invoke a service that was not known prior to

runtime: it can dynamically download the

appropriate WSDL file, parse it, and construct all the

elements required to use the service.

3 SERVICE ORIENTED

APPROACH

Traditional service oriented architecture using stub-

based model as communication mechanism between

client mobile applications and provider services is

not appropriate to support mobile services in

dynamic contexts. There are two main limitations:

(i) every service needs to be coded in the client

application assuming a detailed knowledge of each

service that will be invoked at runtime and (ii) a stub

for each service provided needs to be appended to

the client application at compile time in the mobile

device. This situation involves that all services must

be described (network address, operations to

provide, parameter…) at the design-time and no new

services can be added after compile time. This

context means that service providers cannot create,

update and change services at anytime and that

mobile users can only access to pre-defined services

at their mobile phones. In order to solve the

problems faced by traditional Web services

architecture to mobile users, we propose a

framework with an intermediate entity between

service providers and service clients. This entity is

represented by a service manager that operates as a

client of the distributed network of Web services

offered by the different service providers and as

server to mobile phones.

ICE-B 2006 - INTERNATIONAL CONFERENCE ON E-BUSINESS

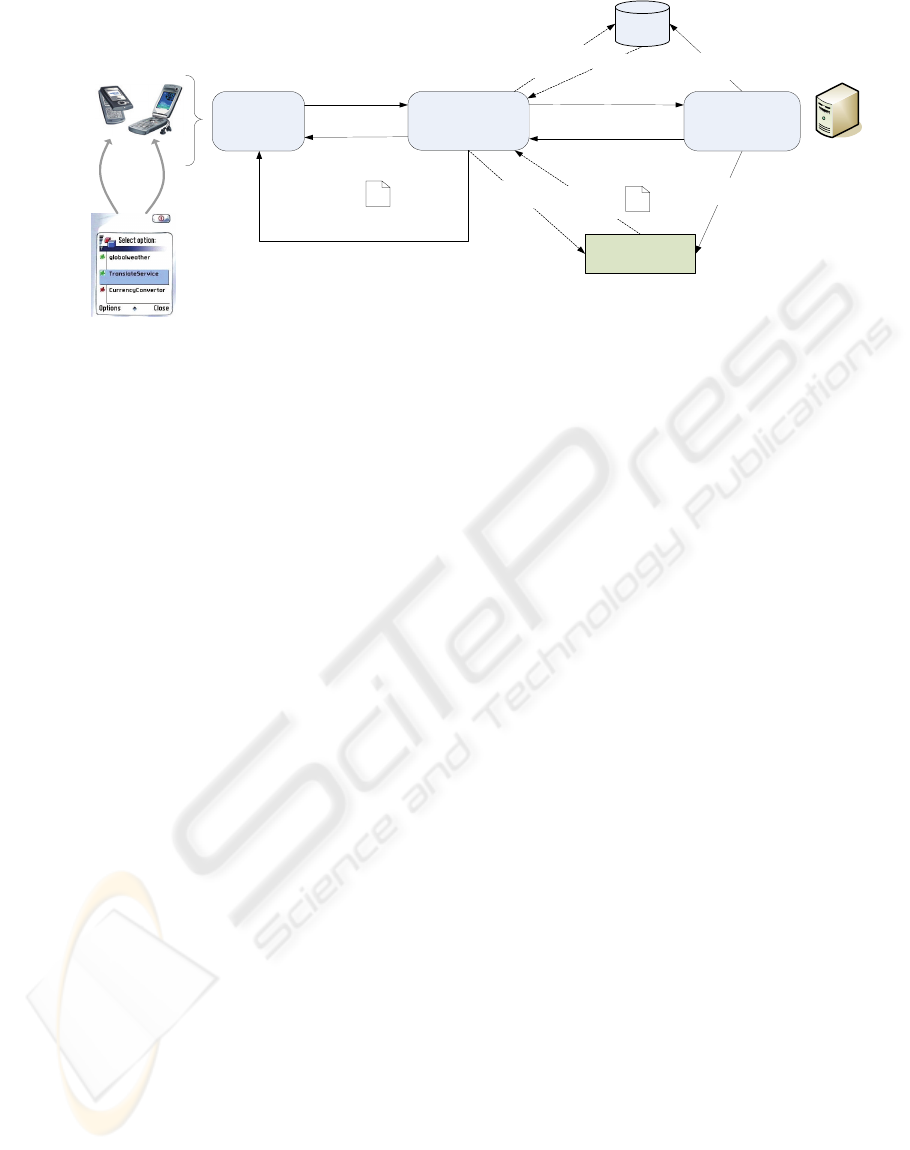

Figure 2 illustrates the architecture proposed. In

the following sections, we describe the components

illustrated in Figure 2, the interactions among the

different components and the XML infrastructure

proposed as service manager and format of exchange

data between service managers and mobile client

applications.

3.1 Service Providers and Clients

Service providers are the owners that offer different

services. They define descriptions of their services

using WSDL specifications (Web Services

Description Language n.d.). Service clients are

mobile phones-oriented users interested in standard

services and searching of facilities, when it is needed

without prior knowledge of available services and

bringing these facilities to their devices in a

transparent way.

3.2 Service Managers

Service managers act as a mediator layer between

service providers and mobile clients. They are

responsible for information flow among both

components. A service manager is a Web service

entity that uses dynamic binding to compute service

descriptions and dynamic invocation interface (DII)

to query for services to service providers. With the

use of DII, we allow service managers to invoke

Web services without knowing their communication

interface at compile time. As a result, we obtain

several advantages: (i) invocations of Web services

not known prior can be computed by the service

manager, (ii) service providers can create, update

and change Web services at runtime, (iii) no static

stub generated manually for the service manager at

compile time is required and (iv) a single stub

appended to a Java ME application is required. This

appended stub corresponds to the service manager.

According to the structure of marketplace, one or

multiple service managers can be supported. The use

of a single service manager involves a centralized

marketplace. If multiple service managers are used,

different operators or third parties can be

incorporated at anytime, where each one can support

different service providers.

The integration of service managers into a

service oriented architecture leads to mobile client

applications to only interact with these components

and no with the different service providers. This

way, a single stub corresponding to the service

manager is needed to be appended to the client

application and no several stubs corresponding to the

different services available on the marketplace.

Client applications that reside in mobile devices

only interact with a service manager.

Interactions between mobile devices and

service providers using a service manager entity

consist of the following processes:

-Start up: When the service manager starts up, it

processes a service registry. This registry is a

structure that enables service providers to store their

list of URL address (URI) of accessible services

made available. The service manager maintains a

XML based structure as registry. The structure of

this registry is described in section 3.3.1. Dynamic

binding is used by the service manager in order to

obtain the service descriptions at runtime.

-Service delivery descriptions: the description

(operations provided, parameters…) of available

Web services is sent from service manager to mobile

client according to the XML document described in

section 3.3.2.

-Request service: once mobile clients have received

the descriptions of available services, they send

requests of services of their interest.

Service

Provider

Service

Client

Service

Manager

UDDI

REGISTRY

5. Request

Message Exchange

(SOAP)

Web

Services

Mobile Phones

Application

supporting

Web Services

Distribute

Service Registry

8. Response

Message Exchange

(XML)

6. DII Invoke

7. Response

2. Dynamic

Binding

3. Services

Availability

Dynamic

Binding

1. Publish

Service URI

XML

File

1. Publish

Service URI

Figure 1. Service oriented architecture for mobile phones

4. Services

Description

Services

Availability

XML

File

Figure 1: Service oriented architecture for mobile phones.

SERVICE-ORIENTED ARCHITECTURE TO MOBILE PHONES

-Service invocation: service manager receives a

request encoded as an XML message with the

necessary information (Web service name, selected

operation, parameter values introduced…) from a

mobile device when a user is interested in some

service. Dynamic invocation is used by service

manager in order to invoke Web services

functionalities to service providers.

-Results transmission: the service manager sends

the information encoded as an XML message to the

mobile user, when it receives the response of the

corresponding service provider. This information is

shown on the screen display of the mobile device.

-UDDI services: mobile clients can also demand

services supported by UDDI registry. In this context,

a client makes a request to the service manager using

keyword in order to discover a particular service at

UDDI registry. Following, the service manager uses

dynamic binding to discover services at UDDI

registry that match with the user search criterion.

The description of these services is sent from service

manager to the mobile application. The user selects

the service of its interest and finally service manager

process this request at the same way as the request

and invocation of services described previously.

3.3 UDDI Registry and XML Based

Infrastructure

UDDI service directory can also be used by mobile

users in order to locate new services. Service

discovery is computed at runtime by the service

manager, once the user has sent their request of new

services in UDDI registry. A uniform infrastructure

using XML-encoded data exchange is used with two

purposes: (i) to define the service registry structure

and (ii) establish the communication between the

mobile phone and the service manager.

3.3.1 Service Registry

The XML structure of the service registry enables

service providers to store their network addresses

URL of WSDL documents. The format of the XML

document is the following:

<?xml version=”1.0” encoding=”windows-1252”?>

<wsdl>http://api.google.com/GoogleSearch.wsdl</

wsdl>

…

<wsdl>http://www.webservicex.com/TranslateServi

ce.asm?WSDL</wsdl>

In this document, the tag WSDLaddresses

contains two types of elements: version and wsdl.

version is the current version of the Web Services

set provided to the service manager. This element is

used in order to update new services to mobile

phones. wsdl is the URL address where is located

the WSDL document of a Web Service offered.

There are so many wsdl elements like Web Services

offered.

3.3.2 Web Service Description

The following format of XML document is sent

from the service manager to the mobile phone, when

the description of Web Services available and/or

location of new services in UDDI are required by the

mobile user:

wsdl=”http://81.45.231.68:8080/Server/Calculato

r.wsdl”>

<porType localPart=”Calculator”

namespaceURI=”http://calculator.com”>

<title> Add operation</title>

<description>To compute add operation

between two numbers</description>

<parameter name=”Operator1”

type=”number”>

<parameter name=”Operator2”

type=”number”>

</parameters>

</operation>

…

…

</operation>

</porType>

…

…

</portType>

</service>

…

</service>

</webservices>

The root of the document is the webservices

tag. It represents the start of the set of Web Services.

The attribute version corresponds to the current

version of Web Services descriptions set provided to

the mobile device. The use of this attribute allows

ICE-B 2006 - INTERNATIONAL CONFERENCE ON E-BUSINESS

users check their set of descriptions with the service

manager and downloading a new version, when new

services have been added. Each Web Service is

described with two attributes: name and wsdl.

Different port types can be associated to a specific

Web Service through the element portType. This

element contains three attributes: localPart,

namespaceURI and operation. A operation is

described by the following elements: title (title of

the operation), description (description of the

operation), parameters (input parameters of the

operation), and return (true is returned if the

operation returns a value, false in other case).

3.3.3 Operation Invocation

The structure of the XML document sent from

service manager to the mobile device when a Web

service operation is invoked is the following:

<result>Search time:0.5 seconds</result>

<result>Department Store: XYZ</result>

<result>Name: wood table</result>

<result>Price: 50 euros</result>

</result>

…

</result>

</results>

The different results are enclosed between

result tags. If a complex type is returned (such as

arrays and structures), the different fields of this type

are enclosed into different result tags.

3.3.4 UDDI Search

A service manager sends to the mobile phone, the

following XML document, when a user requests a

search for new Web Services in UDDI registry:

<UDDI>

<webservice

wsdl=”http://81.45.231.68:8080/Server/Calculato

r.wsdl”>

<description>=”To compute add, subtract

operations…”/>

…

</UDDI>

The different Web Services located are

enclosed by a webservice tag. wsdl and description

attributes represent the URL address of the WSDL

document and the Web Service description.

4 IMPLEMENTATION

In order to test the Web services framework for

mobile phones, we have implemented and tested

basic service scenarios. The following service

scenarios have been developed using a single service

manager entity: (1) searching with Google engine,

(2) text translation from one language to another, (3)

newspaper reports, (4) temperature converter, (5)

weather forecast, (6) calculator and (7) dynamic

searching with UDDI.

The framework has been implemented using the

following open source software: Apache Tomcat

5.0.28 for application server, J2ME Wireless Toolkit

(WTK) for developing wireless applications and

designed to run on cell phones, and Eclipse 3.1

development platform with WTP (Web Tools

Platform) plug-in for building software and

developing Web applications. Axis and UDDI4J

Java libraries have been used as SOAP motor and

Java implementation of UDDI protocol. The client

application has been implemented as a MIDlet using

J2ME Wireless Toolkit. That is, a Java application

developed with MIDP profile and CLDC

configuration. We have tested the Java application

on the Sun emulator and mobile emulators of

commercial trademarks.

In order to invoke Web services from a J2ME

application, the mobile devices must support the

Java Specification Request 172 (JSR-172). At

present, however, JSR-172 has no support to UDDI

specification in a J2ME application.

The application developed to mobile users

presents different menus with different options, e.g.,:

invocation, update, delete and searching of new Web

services. Figure 2 illustrates the main menu of the

client application with three different options:

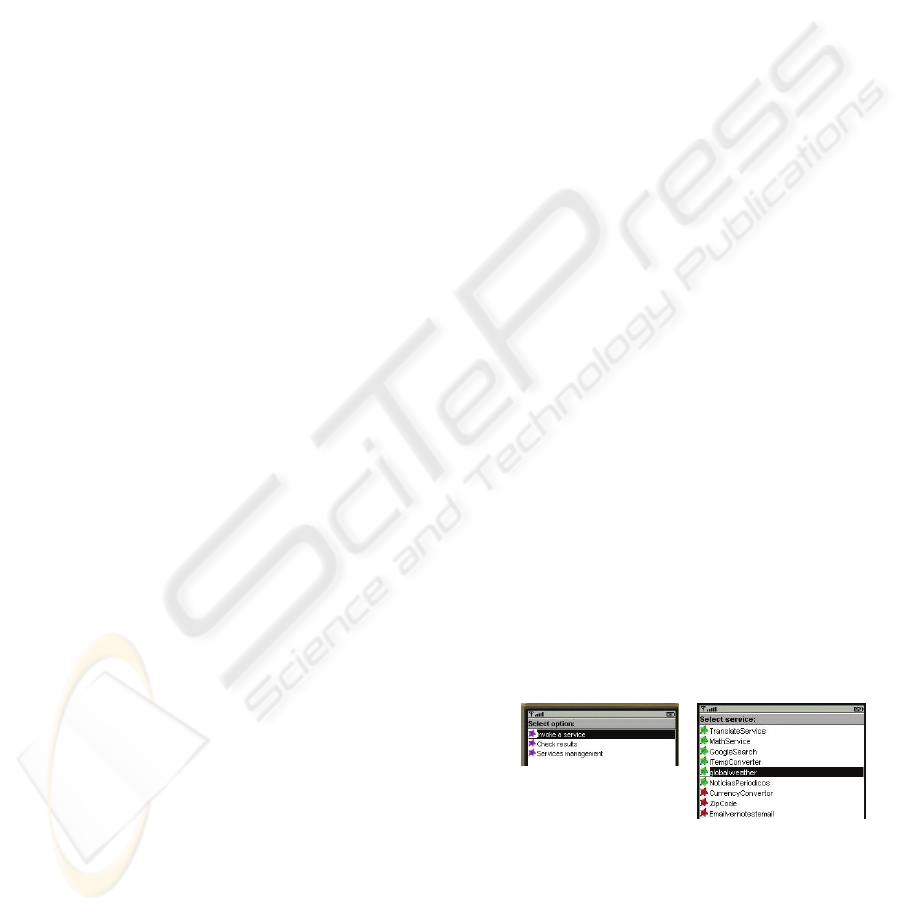

Figure 2: Main menu of the J2ME application and specific

menu of “Invoke a service”.

- Invoke a service: the set of available services to

the mobile device is shown to the user. Two set of

different services are available: (i) standard services

registered by the service manager entity (represented

by a green star) and (ii) services searched in UDDI

SERVICE-ORIENTED ARCHITECTURE TO MOBILE PHONES

(a)

(b)

(c)

(represented by a red star). Right image of figure 2

depicts such functionality. After a service is

selected, the set of operations supported is shown to

the user. Figure 3 illustrates a weather forecast

service on Sun’s J2ME emulator.

- Check results: allows users to check the results

from the different invocations achieved. A list with

the different invoked services by the user is saved

with the following attributes: operation, parameters

values, invocation date and result computed. This

way, user can read results of previous services

invoked at anytime.

- Services management: allows users to select

different management tasks such as: (i) update Web

Services from service managers, (ii) searching

services in UDDI and (iii) remove services from the

mobile phone.

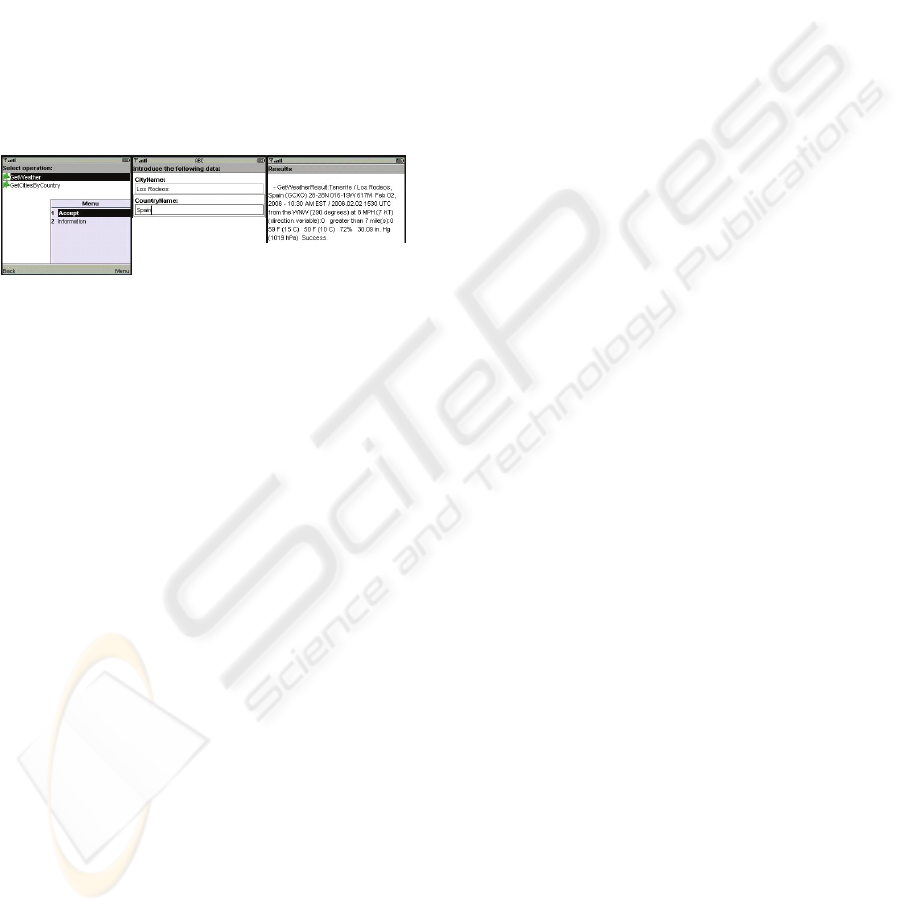

Figure 3: Global weather forecast service: (a) Selection of

the operation to invoke, (b) Introduction of the parameter

values, and (c) Results of the invoked operation.

4.1 Experimental Results

At present, we found that open source development

tools for building, deploying and testing production

quality work well together. Using a dynamic binding

based approach and MIDlet’s as client applications

allows end users to download a single time the

application directly to their device over-the-air or via

their PC. No update is required, when new services

are provided. However, we have found the following

drawbacks when J2ME technology is used: (1) Java

Specification Request 172 (JSR-172) required for

invocating Web services from a mobile J2ME

application does not support UDDI specification and

SOAP encoded messages, (2) there is only support

to static stubs, so new stubs must be manually

generated when new services are incorporated at

runtime and clients must download a new

application in order to incorporate the new services.

We have solved both problems by the use of service

managers. (3) The use of UDDI registry provides

high time responses and also many of the services

published at UDDI registry are not correctly

published. Thus, all the services consulted through

UDDI registry must be verified by the service

manager, before the results are sent to the mobile

user. We have solved this problem verifying the

services required to UDDI registry by the service

manager entity and (4) specific implementations

must be developed in order to support complex types

when dynamic invocation interface is used.

5 CONCLUSIONS

In this paper, we address the discovery and

invocation of Web services from mobile phones at

runtime. We introduce service managers that act as

clients over the network of services and as servers to

the mobile devices. We propose the use of dynamic

binding in order to compute at runtime Web services

descriptions and invoke services selected by mobile

users. We provide a uniform infrastructure using

XML-encoded data exchange between service

managers and mobile devices. With this approach,

we delegate the business logic to service managers,

solving the limitations faced by direct access from

mobile devices to Web services. The use of dynamic

binding allows that providers to create, update and

change services at anytime and mobile users may

locate new services without knowing the accessible

services. However, the use of dynamic binding

implies a bigger time to access to remote SOAP

services in relation to the use of static stubs or

dynamic proxies.

REFERENCES

Gustavo, A., Casati, F., Kuno H. and Machiraju, V., 2004.

Web Services: concepts, archictectures and

applications. Springer-Verlag publications, Berlin.

UDDI. Universal Description, Discovery, and Integration.

Retrieved from http://www.uddi.org/

Vinoski, S, 2002. Web Services Interactions Models, Part

1: Current Practice. In IEEE Internet Computing, Vol

6, Nº 3, pp. 89-91.

Simple Object Access Protocol. (SOAP). W3C. World

Wide Web Consortium. Retrieved from

http://www.w3.org/TR/soap/

Web Services Description Language (WSDL). W3C.

World Wide Web Consortium. Retrieved from

http://www.w3.org/TR/wsdl

Pilioura T, Tsalgatidou A. and Hadjiefthymiades S, 2003.

Scenarios of using Web Services in M-Commerce. In

ACM SIGecom Exchanges, Vol. 3, Nº 3, pp. 28-36.

ICE-B 2006 - INTERNATIONAL CONFERENCE ON E-BUSINESS
