USING PLACEHOLDER SLICES AND MPEG-21 BSDL FOR ROI

EXTRACTION IN H.264/AVC FMO-ENCODED BITSTREAMS

Peter Lambert, Wesley De Neve, Davy De Schrijver, Yves Dhondt, Rik Van de Walle

Department of Electronics and Information Systems – Multimedia Lab

Ghent University – IBBT

Gaston Crommenlaan 8/201, B-9050 Ledeberg-Ghent, Belgium

Keywords:

Content adaptation, FMO, H.264/AVC, MPEG-21 BSDL, placeholder slices, ROI, video coding.

Abstract:

The concept of Regions of Interest (ROIs) within a video sequence is useful for many application scenarios.

This paper concentrates on the exploitation of ROI coding within the H.264/AVC specification by making use

of Flexible Macroblock Ordering. It shows how ROIs can be coded in an H.264/AVC compliant bitstream and

how the MPEG-21 BSDL framework can be used for the extraction of the ROIs.

The first type of ROI extraction that is described, is simply dropping the slices that are not part of one of

the ROIs. The second type is the replacement of these slices with so-called placeholder slices, the latter

being implemented as P slices containing only macroblocks that are marked as ‘skipped’. The exploitation of

ROI scalability, as achieved by the presented methodology, illustrates the possibilities that are offered by the

single-layered H.264/AVC specification for content adaptation.

The results show that the bit rate needed to transmit the adapted bitstreams can be reduced significantly.

Especially in the case of a static camera and a fixed background, this bit rate reduction has very little impact

on the visual quality. Another advantage of the adaptation process is the fact that the execution speed of the

receiving decoder fairly increases.

1 INTRODUCTION

The concept of Regions of Interest (ROIs) within a

video sequence is useful for many application sce-

narios. A ROI is an area within the video pane that

usually contains visual information that is more im-

portant or interesting than the other parts of the video

image. If one or more ROIs are defined in a video

sequence, they can be used to steer the bit allocation

algorithm in such way that the ROIs are coded with a

higher quality than the ‘background’. This function-

ality is part of the JPEG2000 standard for still images

(Taubman and Marcellin, 2002). The Fine Granular-

ity Scalability (FGS) profile of MPEG-4 Visual (Li,

2001) also has provisions to support the coding of a

ROI at a higher quality level.

Besides the fact that the idea of ROIs is adopted by

various (standardized) coding schemes to provide dif-

ferent levels of quality within one picture, there are

many applications that can benefit from the clever

use of ROI coding. In the domain of video surveil-

lance for instance, cameras are developed that capture

360 degrees of video footage resulting in high reso-

lution pictures. Within these large pictures, a ROI is

defined and only a coded representation of that area is

transmitted over the network in order to reduce the re-

quired bandwith. The relative location of the ROI and

its size can often be adjusted by an operator in real

time. This technique was developed to avoid the de-

lays that are introduced by traditional Pan Tilt Zoom

(PTZ) cameras.

The domain of video conferencing is another do-

main where the use of ROIs can have advantages. In

these scenarios, the ROI itself is easy to detect and

its position is rather fixed in time. Next to this, the

background is virtually always fixed and semantically

unimportant; this is in contrast with video surveil-

lance where the background can contain a lot of mo-

tion. For instance, such a video conferencing system

is deployed in the European Parliament where every

speaker is recorded in close-up.

With the emergence of standardization efforts by

the Joint Video Team (JVT) regarding Scalable Video

Coding (SVC) (Reichel et al., 2005), it has become

clear that there is a broad interest in ROI coding

and ROI-based scalability (Ichimura et al., 2005; Yin

et al., 2005; Thang et al., 2005). Applications that are

often mentioned in this context include video surveil-

Lambert P., De Neve W., De Schrijver D., Dhondt Y. and Van de Walle R. (2006).

USING PLACEHOLDER SLICES AND MPEG-21 BSDL FOR ROI EXTRACTION IN H.264/AVC FMO-ENCODED BITSTREAMS.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 9-16

DOI: 10.5220/0001567900090016

 SciTePress

lance (real-time monitoring) and multi-point video

conference. More details about ROI coding and scal-

ability can be found in the requirements document of

SVC (ISO/IEC JTC1/SC29/WG11, 2005).

This paper concentrates on the exploitation of ROI

coding within the H.264/AVC specification (Wie-

gand et al., 2003). Notwithstanding the fact that the

H.264/AVC standard does not explicitly define a sys-

tem for ROI coding, the authors have shown that the

use of slice groups (often called Flexible Macroblock

Ordering or FMO) enables an encoder to perform ROI

coding (Lambert et al., 2006). Furthermore, it was il-

lustrated that this approach can form the basis for con-

tent adaptation (Dhondt et al., 2005). The exploita-

tion of ROI scalability, as well as the exploitation

of multi-layered temporal scalability (De Neve et al.,

2005), illustrates the possibilities that are offered by

the single-layered H.264/AVC specification for con-

tent adaptation. The way the MPEG-21 BSDL frame-

work can be used for this content adaptation process,

is elaborated in later sections.

In this paper, the authors show how H.264/AVC

FMO is to be used to encode one or more ROIs; how

the MPEG-21 BSDL framework can be applied to

extract the coded ROIs from a given bitstream; how

placeholder slices can be used for the replacement of

the background slices (not belonging to a ROI); and

what the benefits are of this approach by means of

some experimental results.

The rest of the paper is organized as follows. The

two main enabling technologies, FMO and MPEG-

21 BSDL, are described in Section 2 and 3. Section

4 describes the actual ROI extraction process. The

concept of placeholder slices is introduced in Section

5. The experimental results are presented in Section 6

while Section 7 draws the conclusion of this paper.

2 ROI-CODING WITH FMO

Flexible Macroblock Ordering is one of the new error

resilience tools that is defined within the H.264/AVC

standard. Conceptually, it creates an additional level

in the hierarchy from picture to macroblock. When

applying FMO, a picture is made up of maximally 8

slice groups, and every slice group contains one or

more slices. Finally, a slice is a collection of mac-

roblocks. The most important aspect of FMO is the

fact that every macroblock can be assigned individu-

ally to one of the slice groups of a picture, in contrast

with the default raster scan order. This results in a so-

called MacroBlock Allocation map (MBAmap) which

is coded in a Picture Parameter Set (PPS). When this

map is constructed, an encoder will code the mac-

roblocks of a slice group in raster scan order (within

that particular slice group), and they can be further

grouped into slices.

Besides the coding of the entire MBAmap, the

H.264/AVC standard has specified 6 predefined types

of FMO. For these types, the MBAmap has a specific

pattern that can be coded much more efficiently. In

this paper, we focus on FMO type 2 (this only re-

quires two numbers to be coded for each slice group

– see later). This means that the slice groups of a pic-

ture are rectangular regions within the video pane, as

shown in Figure 1. We will consider these regions

as Regions of Interest. A more in-depth overview of

FMO is given in (Lambert et al., 2006).

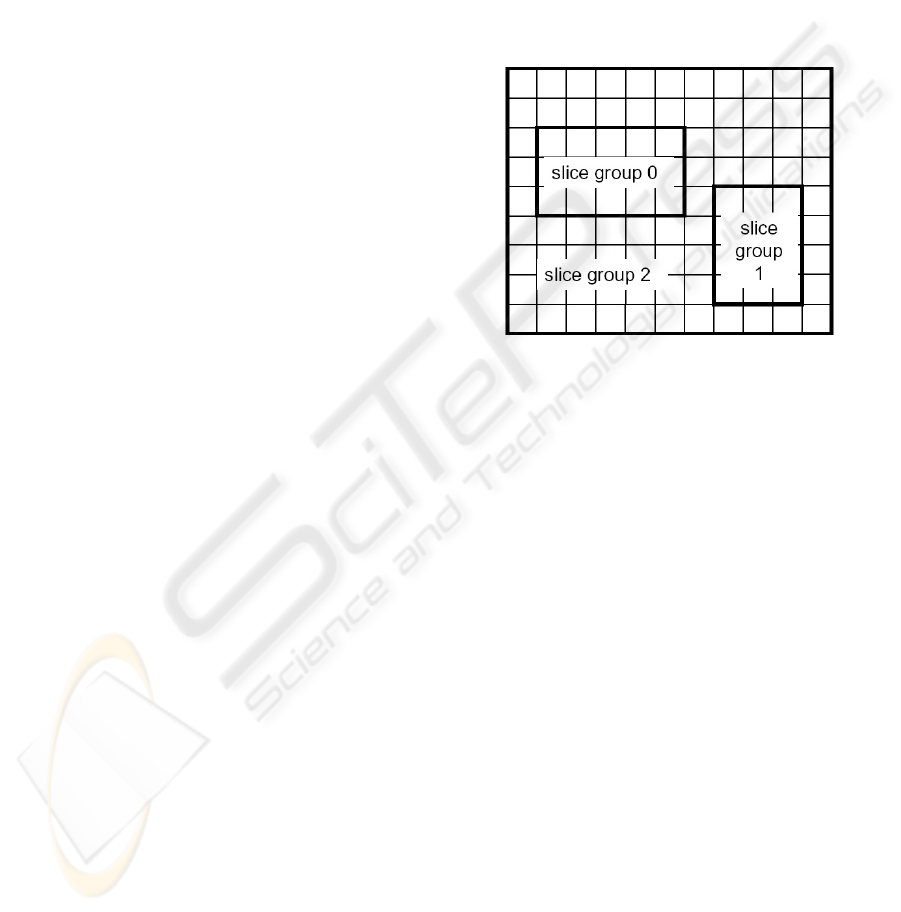

Figure 1: H.264/AVC FMO type 2.

While many applications would implement auto-

matic ways to define ROIs (e.g., by using image pro-

cessing techniques), the ROIs in the context of this

paper were defined manually. To be more precise,

an in-house defined syntax for a configuration file

was developed that is parsed by the encoder; the lat-

ter being a modification of the H.264/AVC reference

encoder (JM 9.5). This configuration file contains

the macroblock numbers of the top left and the bot-

tom right macroblock of the ROIs. These macroblock

numbers are obtained by using a self-developed ap-

plication that allows one to graphically select one or

more rectangular regions within a video sequence on

a picture-by-picture basis.

Since the slice group configuration is coded in

a Picture Parameter Set, a PPS is inserted into the

bitstream before every picture in which the ROI

configuration changes (e.g., a ROI is moving across

the video pane, a ROI is appearing or disappearing).

Every slice has a reference to the PPS that is appli-

cable for the picture the slice belongs to. Note that

this may cause some overhead, especially if the ROI

configuration changes every picture. In this paper, the

size of a PPS mainly depends on the number of slice

groups and on the magnitude of the macroblock num-

bers that are coded within. The biggest PPS in our test

set was 21 bytes long (without the 4-byte start code).

At 30 Hz, this results in a worst case overhead of 5040

SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA

APPLICATIONS

bits per second, which is still reasonable.

There are four syntax elements of a PPS that

are important in the context of this paper. The

syntax element num slice groups minus1 in-

dicates the number of slice groups. In this pa-

per, the number of ROIs is equal to the number of

slice groups minus one (the ‘background’ also is a

slice group). Because we only discuss FMO type 2,

the syntax element slice

group map type is al-

ways equal to 2. Finally, for every slice group, the

macroblock numbers of the top left and the bottom

right macroblock of that slice group are coded by

means of the syntax elements top

left iGroup

and bottom

right iGroup.

3 MPEG-21 BSDL

In order to be able to deliver (scalable) video in a het-

erogeneous environment, it is important to be aware

of the need of complementary logic that makes it pos-

sible to adapt the bitstream or to exploit the scalabil-

ity properties of the bitstream. This bitstream adapta-

tion process typically involves the removal of certain

data blocks and the modification of the value of cer-

tain syntax elements.

One way to realize this, is to rely on automatically

generated XML-based descriptions that contain in-

formation about the high-level structure of (scalable)

bitstreams. These descriptions can subsequently be

the subject of transformations, reﬂecting the desired

adaptations of the bitstream. Lastly, they can then be

used for the automatic generation of an adapted ver-

sion of the bitstream in question.

The Bitstream Syntax Description Language

(BSDL), part of the Digital Item Adaptation stan-

dard (DIA) of MPEG-21 (Vetro and Timmerer, 2003),

is a language that provides solutions for discovering

the structure of a multimedia resource resulting in an

XML description (called a Bitstream Syntax Descrip-

tion, or BSD) and for the generation of an adapted

multimedia resource using a transformed description.

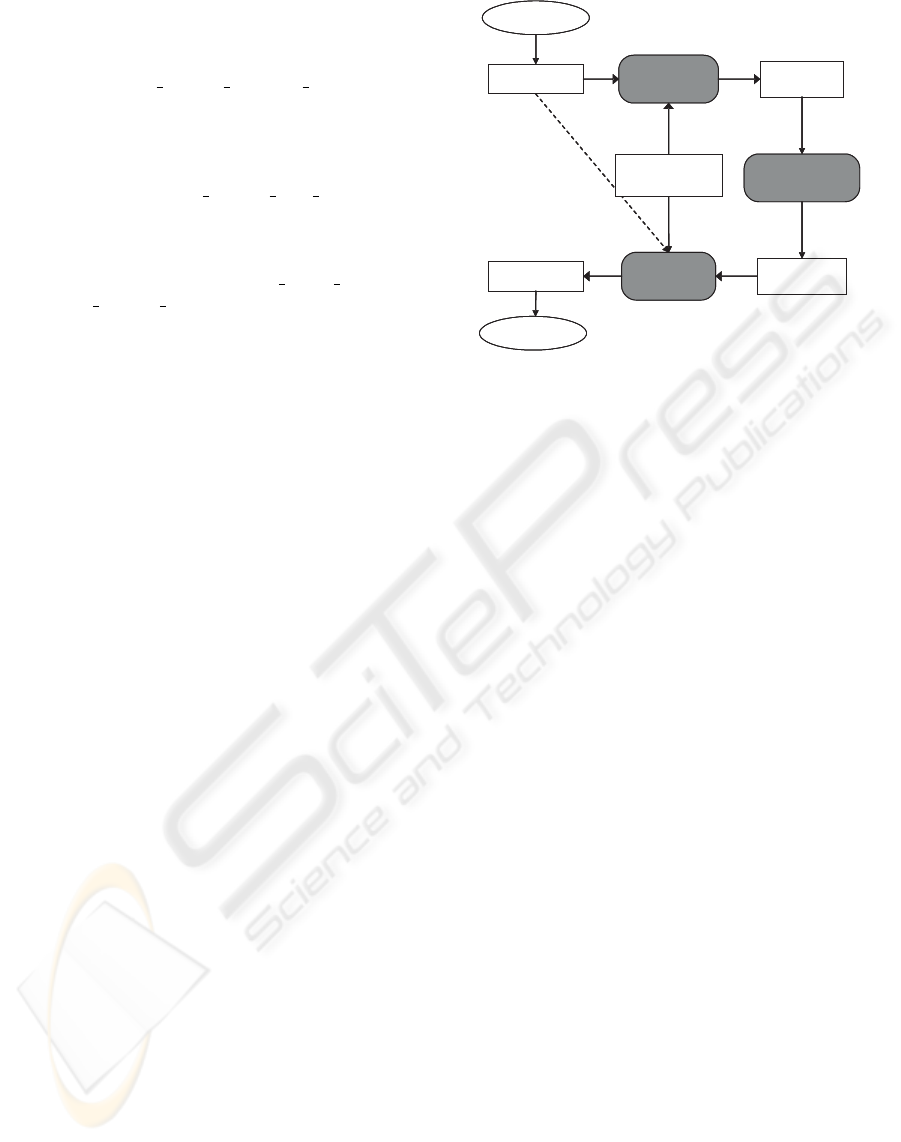

In Figure 2, the entire chain of actions within the

BSDL framework is given.

As illustrated by the figure, one starts from a given

bitstream that is encoded with a certain codec. Depen-

dent on the codec, a Bitstream Syntax (BS) Schema is

developed that represents the high-level structure of

bitstreams generated by the codec in question. Note

that the granularity can be chosen freely, often depen-

dent on the application. The language of a BS Schema

is standardized in the MPEG-21 DIA specification,

as is the functioning of the BintoBSD tool. Once a

bitstream description is available in XML, it can be

transformed based on, for instance, the characteristics

of the network or the consuming terminal.

BintoBSDBitstream XML

BSDtoBinBitstream '

Transformation

XML’

Encoder

Decoder

Schema

BintoBSDBitstream XML

BSDtoBinBitstream '

Transformation

XML’

EncoderEncoder

DecoderDecoder

Schema

Figure 2: The MPEG-21 BSDL framework.

The way the BSD transformation is to be realized

is, however, not defined by the BSDL specification.

For instance, one can use Extensible Stylesheet Lan-

guage Transformations (XSLT, (Kay, 2001)); Stream-

ing Transformations for XML (STX, (Cimprich,

2004)) or an implementation based on an XML API

(such as Simple API for XML, SAX, or Document

Object Model, DOM).

The final step in the framework for media re-

source adaptation is the regeneration of the adapted

bitstream. This is realized by the BSDtoBin tool, tak-

ing as input the adapted description, the BS Schema,

and the original bitstream. The latter is needed be-

cause the coded data is not part of the BSDs. The

functioning of this tool is also standardized within the

BSDL specification.

As such, the BSDL framework provides all nec-

essary ingredients for the construction of a generic

(i.e., format-agnostic) and modular content adapta-

tion engine: a BSD transformation engine and the

format-agnostic bitstream generation by means of the

BSDtoBin Parser. In practice, this is supplemented

with an Adaptation Decision Taking Engine (ADTE)

to steer and control the adaptation process. If such

a framework is to support a new coding format, then

only a new BS Schema is to be uploaded, accompa-

nied by some transformations. The actual software

(the BintoBSD Parser and the BSDtoBin Parser) does

not have to be modified.

4 ROI EXTRACTION

In this paper, the extraction of ROIs that are defined

within a coded video sequence goes together with

the deletion of the ‘background’ or the replacement

USING PLACEHOLDER SLICES AND MPEG-21 BSDL FOR ROI EXTRACTION IN H.264/AVC FMO-ENCODED

BITSTREAMS

thereof by other coded data. When a bitstream is dis-

posed of its non-ROI coded parts, the required band-

width to transmit the bitstream will be much lower.

Next to this, the use of placeholder slices (see Sec-

tion 5) results in a speed-up of the decoder, a de-

crease of the decoder complexity, and an easing of the

decoder’s memory management (e.g., cache behav-

ior). As will be shown in later sections, this extrac-

tion, replacement, and adjustment process can even

be used to transform a bitstream conforming to the

H.264/AVC Extended Profile to a bitstream that is

compliant with the H.264/AVC Baseline Profile.

In order to extract the ROIs from an FMO type

2 coded H.264/AVC bitstream, one has to decide

for every slice if that particular slice is part of one

of the rectangular slice groups. Every slice header

contains the syntax element first mb in slice.

This number can be used to determine whether or not

this slice is part of one of the rectangular slice groups.

This can be done in the following manner.

Let S be a slice of a picture containing a

number of ROIs R

and let FMB

be the mac-

roblock number of the first macroblock of slice

S (first

mb in slice). Further, let TL

and

be the macroblock numbers of the top left

and bottom right macrobock of ROI R

. Finally,

let W be the width of a picture in terms of mac-

roblocks (pic width in mbs minus1, coded in a

Sequence Parameter Set). Then, S is part of R

(TL

mod W ≤ FMB

mod W )

∧ (FMB

mod W ≤ BR

mod W )

∧ (TL

div W ≤ FMB

div W )

∧ (FMB

div W ≤ BR

div W )

Note that the div operator denotes the integer de-

vision with truncation and the mod operator denotes

the traditional modulo operation. In other words, S is

part of R

if its first macroblock is located inside the

rectangular region defined by R

. After a BSD is gen-

erated by the BSDL framework, the above calculation

can be performed by means of an XPath expression

within an XSL Transformation. The result of such a

transformation is a BSD in which the descriptions of

non-ROI slices are removed. The BSDtoBin Parser

can then generate the adapted bitstream.

It should be noted that I slices are not removed from

the bitstream in the context of this paper. This is to

prevent major drift errors due to the fact that the in-

ter prediction of macroblocks in a given ROI can be

based on macroblocks outside the ROI in question.

In other words, the ROIs that are used here are no

isolated regions, as described in (Hannuksela et al.,

2004). If all background slices would be dropped (in-

cluding I slices), then prediction errors would contin-

uously build up at the inner boundaries of the ROI.

It is also important to note, however, that a bit-

stream obtained in this way is not compliant with the

H.264/AVC standard because the latter specifies that

all slice groups need to be present in an H.264/AVC

bitstream. This means that an H.264/AVC compli-

ant decoder will not guarantee the correct decoding

of such a bitstream. Notwithstanding the fact that

only minor modifications of an H.264/AVC decoder

are needed for the correct decoding of the adapted bit-

stream (thanks to the independent nature of slices in

H.264/AVC), this may be considered a disadvantage

or gracelessness of the procedure described above. It

should also be noted that the requirement that all slice

groups need to be coded is proposed to be relaxed in

the currently developed SVC specification (Reichel

et al., 2005).

5 PLACEHOLDER SLICES

In order to avert any deviation of the H.264/AVC

specification, as explained in the previous section,

the authors propose the use of placeholder slices. A

placeholder slice can be defined as a slice that is iden-

tical to the corresponding area of a certain reference

picture, or that is reconstructed by relying on a well-

defined interpolation process between different refer-

ence pictures (De Neve et al., 2006). This implies

that only a very limited amount of information has to

be stored or transmitted. In this paper, placeholder

slices are used to fill up the gaps that are created in a

bitstream due to the removal of certain background

slices. Taking into account the appropriate provi-

sions of the H.264/AVC specification, these place-

holder slices are in this paper implemented by means

of P slices in which all macroblocks are marked as

skipped (skipped P slices).

How the XML-driven content adaptation approach

can be exerted for the substitution of coded back-

ground P or B slices by skipped P slices, is em-

broidered here. We first focus on background P

slices (both reference and non-reference), as this is

the most straightforward case. In this situation, there

is no need to change any of the syntax elements of

the NAL unit header or the slice header: only the

actual slice data are to be substituted. The neces-

sary slice data for the definition of a skipped P slice

is the number of skipped macroblocks in that slice

(by means of the syntax element mb

skip run).

Additionally, the slice layer has to be filled with a

number of trailing bits (by means of the syntax el-

ement rbsp

slice trailing bits) in order to

get byte-aligned in the bitstream. The XML descrip-

tions of both the original and the adapted P slice are

given in Figure 3. Note that some simplifications

were introduced in the code in order to meet the place

constraints and to improve the readability.

Regarding the syntax element mb

skip run, it

SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA

APPLICATIONS

------------------- original description ------------------

<coded_slice_of_a_non_IDR_picture>

<slice_layer_without_partitioning_rbsp>

<slice_header>

<first_mb_in_slice>0</first_mb_in_slice>

<slice_type>5</slice_type>

<pic_parameter_set_id>0</pic_parameter_set_id>

<frame_num xsi:type="b4">1</frame_num>

</slice_header>

<slice_data>

<bit_stuffing>7</bit_stuffing>

<slice_payload>7875 1177</slice_payload>

</slice_data>

</slice_layer_without_partitioning_rbsp>

</coded_slice_of_a_non_IDR_picture>

------------------- adapted description -------------------

<coded_slice_of_a_skipped_non_IDR_picture>

<skipped_slice_layer_without_partitioning_rbsp>

<slice_header>

<first_mb_in_slice>0</first_mb_in_slice>

<slice_type>5</slice_type>

<pic_parameter_set_id>0</pic_parameter_set_id>

<frame_num xsi:type="b4">1</frame_num>

</slice_header>

<skipped_slice_data>

<mb_skip_run>108</mb_skip_run>

</skipped_slice_data>

<rbsp_trailing_bits>

<rbsp_stop_one_bit>1</rbsp_stop_one_bit>

<rbsp_alignment_zero_bit>0</rbsp_alignment_zero_bit>

</rbsp_trailing_bits>

</skipped_slice_layer_without_partitioning_rbsp>

</coded_slice_of_a_skipped_non_IDR_picture>

Figure 3: P slice replaced by a skipped P slice.

should be noted that the value of this element depends

on the size of the slice being replaced. Since the ROIs

are varying in time, the number of macroblocks in

the slices of the background is not the same for every

picture. Without loss of generality, consider the case

that there is only one slice in the background slice

group. The number of macroblocks in this slice is

equal to the total number of macroblocks in a picture

(denoted by PicSizeInMbs) minus the number of

macroblocks that are contained by the various ROIs

in that picture. Using the notation of Section 4, it is

rather straighforward to calculate this number using

, BR

and W (taking into account the fact that

ROIs may overlap each other). If there are multiple

slices in the background slice group, then they can all

be substituted by a single skipped P slice containing

the same number of skipped macroblocks as in the

case of a single background slice.

If the background slice group also contains B

slices, then several changes have to be made to the

slice header if one wants to substitute that particular

slice with a skipped P slice. First, the slice type (indi-

cated by the syntax element slice

type) has to be

changed from 1 or 6 (B slice) to 0 (P slice). Changing

slice type to 5 (also indicating a P slice) would

not be correct since this would imply that all other

slices of the current picture are P slices, which is not

always the case since the ROI in the current picture

can contain B slices. Next to changing the slice type,

B slices contain some slice header syntax elements

that cannot appear in the slice header of a P slice.

These syntax elements are related to the specific na-

ture of B slices (associated with, for instance, refer-

ence picture list L1 or weighted prediction), and need

to be removed. To be more specific, the following

elements (and the syntax elements that are implied

by these syntax elements) are removed by the XSL

Transformation in the XML domain:

• direct

spatial mv pred flag;

• num ref idx l1 active minus1;

• ref

pic list reordering flag l1;

• luma weight l1 flag (if applicable);

• chroma

weight l1 flag (if applicable).

The actual slice data is replaced by a serie of

skipped macroblocks in the same way as described

above. Note that in all cases, the value of the syntax

element slice

qp delta can be set to zero to save

some aditional bits during the adaptation process. An

example of a B slice and a corresponding skipped P

slice, as generated by the adaptation process, is given

in Figure 4.

One could argue that the use of the MPEG-21

BSDL framework for the substitution process is

somehow too complicated because the encoder could

simply be instructed directly to code the background

slices as skipped P slices. This would surely reduce

the overall complexity, but if the bitstream is deliv-

ered to multiple receivers, each one would receive an

adapted version, whereas the method using MPEG-21

BSDL could be applied only in those network nodes

where an adaptation is needed or wanted.

6 RESULTS

In this section, the experimental results of a series of

tests are presented. These results give some insight

into the implications of the approaches that are de-

scribed in the previous sections. An overview will

be given of the impact on the properties of the bit-

streams and on the decoder. Next to this, some perfor-

mance measurements will be presented regarding the

content adaptation process (the BSDL framework).

While most of the results demonstrate the benefits of

the proposed methods, certain results indicate some

drawbacks and the need for further research.

Four well-known video sequences were used in the

experiments: Hall Monitor, News, Stefan, and Crew.

The latter sequence has a resolution of 1280 × 720

pixels whereas the former three have a CIF resolu-

tion (352 × 288). Within these sequences, some ROIs

were identified: the moving persons in Hall Monitor

and the little bag that is left behind by one of these

USING PLACEHOLDER SLICES AND MPEG-21 BSDL FOR ROI EXTRACTION IN H.264/AVC FMO-ENCODED

BITSTREAMS

------------------- original description ------------------

<coded_slice_of_a_non_IDR_picture>

<slice_layer_without_partitioning_rbsp>

<slice_header>

<first_mb_in_slice>0</first_mb_in_slice>

<slice_type>6</slice_type>

<pic_parameter_set_id>1</pic_parameter_set_id>

<frame_num>2</frame_num>

<pic_order_cnt_lsb>2</pic_order_cnt_lsb>

<direct_spatial_mv_pred_flag>1</direct...>

<num_ref_idx_active_override_flag>1</num...>

<num_ref_idx_l0_active_minus1>1</num...>

<num_ref_idx_l1_active_minus1>0</num...>

<ref_pic_list_reordering_flag_l0>0</ref...>

<ref_pic_list_reordering_flag_l1>0</ref...>

<slice_qp_delta>2</slice_qp_delta>

</slice_header>

<slice_data>

<bit_stuffing>6</bit_stuffing>

<slice_payload>9543 851</slice_payload>

</slice_data>

</slice_layer_without_partitioning_rbsp>

</coded_slice_of_a_non_IDR_picture>

------------------- adapted description -------------------

<coded_slice_of_a_skipped_non_IDR_picture>

<skipped_slice_layer_without_partitioning_rbsp>

<slice_header>

<first_mb_in_slice>0</first_mb_in_slice>

<slice_type>0</slice_type>

<pic_parameter_set_id>1</pic_parameter_set_id>

<frame_num>2</frame_num>

<pic_order_cnt_lsb>2</pic_order_cnt_lsb>

<num_ref_idx_active_override_flag>1</num...>

<num_ref_idx_l0_active_minus1>1</num...>

<ref_pic_list_reordering_flag_l0>0</ref...>

<slice_qp_delta>0</slice_qp_delta>

</slice_header>

<skipped_slice_data>

<mb_skip_run>264</mb_skip_run>

</skipped_slice_data>

<rbsp_trailing_bits>

<rbsp_stop_one_bit>1</rbsp_stop_one_bit>

<rbsp_alignment_zero_bit>0</rbsp...>

</rbsp_trailing_bits>

</skipped_slice_layer_without_partitioning_rbsp>

</coded_slice_of_a_skipped_non_IDR_picture>

Figure 4: B slice replaced by a skipped P slice.

persons; the heads of the two speakers in News; the

tennis player in Stefan; the first two persons of the

crew and a separate ROI for the rest of the crew in the

sequence Crew. Note that these ROIs have changing

positions, as well as sizes in the course of time, and

that some ROIs are disappearing at certain points in

time.

The sequences were encoded with a modified ver-

sion of the reference software (based on JM 9.5), once

conform to the Baseline Profile and once conform to

the Extended Profile (the only difference being the

use of B slices). A constant Quantization Parame-

ter (QP) of 28 was used, every slice group contains

only one slice, and the GOP size was 16. Table 1

summarizes some other properties of the resulting bit-

streams, as well as the impact of the adaptation pro-

cess on the bit rate. In the table, br

stands for the

bit rate of the bitstream in which all background P

and/or B slices were replaced by skipped P slices and

stands for the bit rate of the bitstream in which

all background P and/or B slices were dropped (lead-

ing to bitstreams that are no longer compliant with the

H.264/AVC specification – see also Section 4). Also

note that the number of slice groups is one more than

the number of ROIs.

Table 1: Bitstream characteristics (bit rate in kbit/s).

sequence

# ROIs # PPSs # slices br br

IP crew 1–3 48 2020 3856 1379 1376

hall monitor

1–3 26 924 457 274 272

news

2 3 904 382 193 190

stefan

1 31 632 1657 758 756

IBBP crew 1–3 48 2020 3725 1403 1400

hall monitor

1–3 26 924 444 277 274

news

2 3 904 402 193 190

stefan

1 31 632 1829 819 817

It is clear from the numbers in Table 1 that the

bit rate is reduced significantly when performing the

adaptation (up to 64%). Of course, this usually has a

profound impact on the resulting visual quality (also

because the ROIs are not coded as isolated regions).

However, in the case of a static background (as for in-

stance in Hall Monitor), the visual quality is almost

not affected at all: the resulting average PSNR-Y is

36.7 dB whereas the unadapted version has an av-

erage PSNR-Y of 37.7 dB (or 38.0 dB for the Ex-

tended Profile). Subjectively, even an expert viewer

can scarcely notice that the bitstream has undergone

any content adaptation. This also indicates that the

encoder could have coded the bitstream much more

efficiently if a minor decrease in quality was allowed.

This opens up exciting new possibilities for video

conferencing applications. Indeed, when the video

feeds are to be sent over unreliable networks (as is

more and more the case), rather big decreases in avail-

able bandwidth can be sustained easily without jeop-

ardizing the visual quality, provided that the network

has some Quality of Service (QoS) implemented so

that if packets are to be dropped, only the background

is affected.

Another important consequence of replacing coded

background slices with skipped slices is the impact

thereof on the decoding speed of the receiving de-

coder. Since a considerable amount of macroblocks

within a picture are marked as skipped when place-

holder slices were inserted into the bitstream, it is ex-

pected that this is reﬂected on the behavior of the de-

coder because the latter can rely directly on its de-

coded picture buffer in order to decode the current

skipped macroblock without the need for additional

computations. To get some more insight, the decod-

ing speed of the reference decoder (JM 10.2) was

measured when decoding the various bitstreams sev-

eral times. The averages of these measurements are

summed up in Table 2.

As one can see from this table, the decoding speed

increases significantly when placeholder slices are in-

serted into the bitstreams compared to the decoding

SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA

APPLICATIONS

Table 2: Impact on decoding speed (frames per second).

sequence

original placeholders dropping

IP crew 1.5 2.0 1.8

hall monitor

15.6 16.9 17.9

news

16.7 18.9 18.2

stefan

10.4 14.9 13.9

IBBP crew 1.1 1.3 -

hall monitor

13.8 17.0 17.2

news

14.3 17.5 17.2

stefan

9.5 14.4 13.3

speed for the original bitstream. The decoding speeds

of the decoder, when decoding bitstreams in which

the background was dropped, are merely given for

completeness. These speeds are comparable to the

case of the inserted placeholder slices, but it is im-

portant to note that the reference decoder applies a

spatial interpolation algorithm to conceal the appar-

ent transmission errors in the background slices by

default, rendering a comparison with these numbers

unjustified. It should also be noted that, to the best of

the authors’ knowledge, the reference decoder is the

only implementation of the H.264/AVC specification

that supports FMO. As a result, measurements for

other decoders (having real-time behavior) could not

be performed.

Another important observation is that, as men-

tioned earlier, when replacing coded B slices with

skipped P slices, one actually performs ‘profile scal-

ability’. Indeed, the bitstreams that are conform to

the Extended Profile can be adapted in such way that

the resulting bitstreams are conform to the Baseline

Profile if all coded B slices are replaced by skipped P

slices.

The final part of this results section deals with some

measurements related to the BSDL framework. It is

reported in literature that most performance issues of

the BSDL framework are related to the BintoBSD

Parser (Devillers et al., 2005; De Schrijver et al.,

2006). The results of this paper also lead to the same

conclusion. As an illustration, Figure 5 shows the ex-

ecution speed of the BintoBSD Parser in function of

the number of PPSs that are present in a bitstream. All

measurements were done on an Intel Pentium 4 2.8

GHz system running a 2.4.19 Linux kernel by mak-

ing use of the time command. The execution speed

is given in terms of slices per second as slices are the

basic units of parsing for the BintoBSD Parser in the

context of this paper.

As one can clearly see from this figure, only

when very few PPSs are present in the bitstream,

the BintoBSD Parser achieves reasonable execution

speeds. The fundamental reason for this, however,

lies in the fact that the reference encoder puts all PPSs

in the beginning of the bitstream. If the PPSs would

appear scattered in the bitstream (at places where

100

1 6 11 16 21 26 31 36 41 46

# PPSs

# slices / s

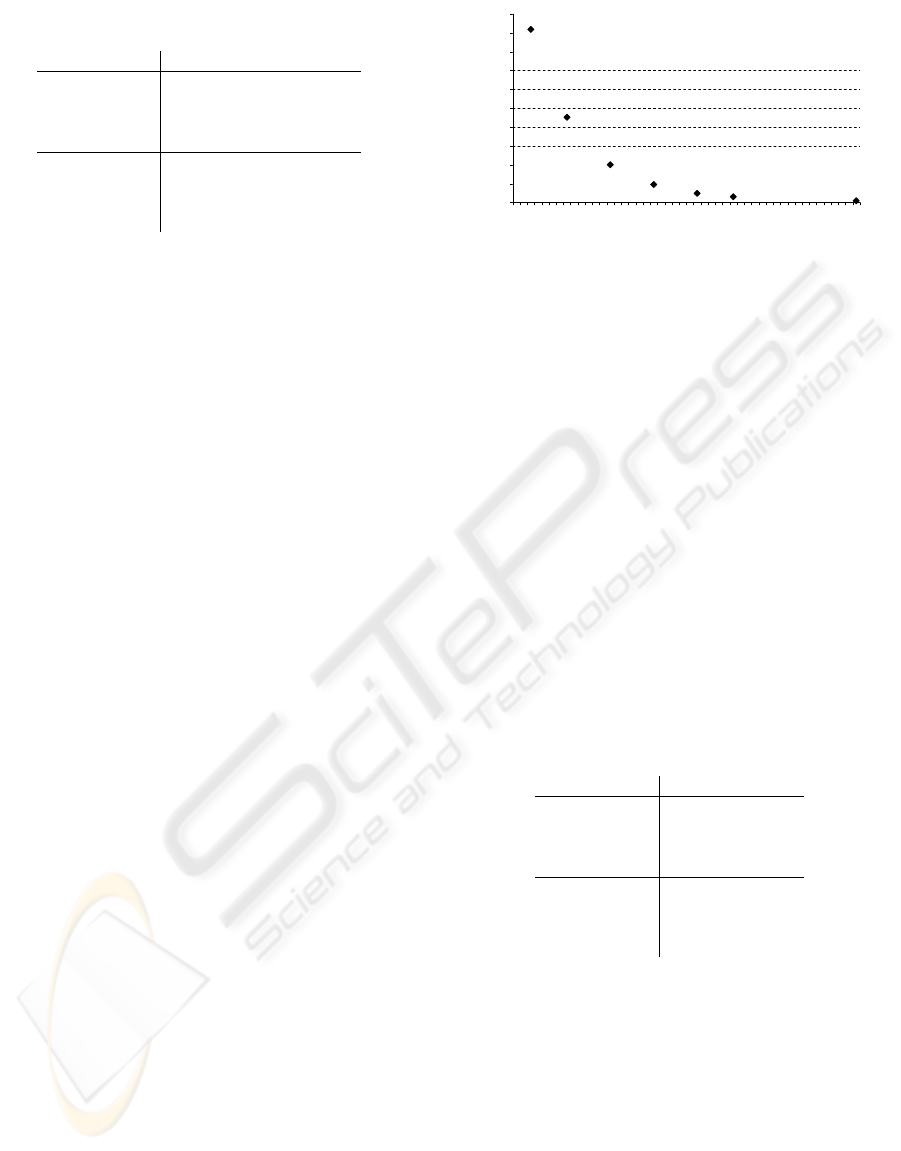

Figure 5: Decreasing execution speed of the BintoBSD

Parser.

the ROI configuration changes), the execution speed

would be independent of the number of PPSs, pro-

vided that a PPS is never referenced again once an-

other PPS appears in the bitstream. Nevertheless, the

fact that the BintoBSD Parser cannot cope with this

can be considered a disadvantage.

The transformation of the BSDs (embodying the

actual content adaptation) is currently implemented

in XSLT. The execution speeds of the transformations

barely reach real-time performance, which is caused

by the fact that the XSLT engine (Saxon 8) needs the

entire DOM tree in memory in order to perform the

transformation. The execution times are summarized

in Table 3. Therefore, future research will concentrate

on the implementation of the transformations by mak-

ing use of STX. This should dramatically improve the

performance.

Table 3: Execution times of XSLT (seconds).

sequence

placeholders dropping

IP crew 50.0 48.4

hall monitor

13.5 13.1

news

12.9 12.5

stefan

5.7 5.5

IBBP crew 49.0 49.2

hall monitor

13.3 13.3

news

12.9 12.8

stefan

5.8 5.4

7 CONCLUSIONS AND FUTURE

WORK

In this paper, it is shown how Regions of Interest can

be defined within the H.264/AVC specification and

how these ROIs can be coded by making use of Flex-

ible Macroblock Ordering. For the adaptation of the

bitstreams, the MPEG-21 BSDL framework was ap-

plied for the extraction of the ROIs and for the re-

placement of the coded background slices with place-

USING PLACEHOLDER SLICES AND MPEG-21 BSDL FOR ROI EXTRACTION IN H.264/AVC FMO-ENCODED

BITSTREAMS

holder slices (skipped P slices).

By doing so, the bit rate needed to transmit the bit-

stream can be reduced significantly. Especially in the

case of a static camera and a fixed background, this

bit rate reduction has very little impact on the visual

quality. This opens up interesting new possibilities

for certain video applications such as video confer-

encing where the proposed approach can be seen as

the basis for QoS. Another advantage of the adapta-

tion process is the fact that the execution speeds of

the receiving decoder fairly increase. Next to this, the

concept of placeholder insertion can be used to switch

from one Profile to another; for instance going from

the Extended Profile to the Baseline Profile.

The XML-driven content adaptation process, as de-

scribed in this paper, is elegant and generic by de-

sign, but the results indicate that there are some per-

formance issues. These shortcomings will be exam-

ined in future research aiming to achieve a content

adaptation engine that is employable in real-life use

cases.

ACKNOWLEDGEMENTS

The research activities as described in this paper were

funded by Ghent University, the Interdisciplinary In-

stitute for Broadband Technology (IBBT), the Insti-

tute for the Promotion of Innovation by Science and

Technology in Flanders (IWT), the Fund for Scien-

tific Research-Flanders (FWO-Flanders), the Belgian

Federal Science Policy Office (BFSPO), and the Eu-

ropean Union.

REFERENCES

Cimprich, P. (2004). Streaming transformations

for XML (STX) version 1.0 working draft.

http://stx.sourceforge.net/documents/spec-stx-

20040701.html.

De Neve, W., De Schrijver, D., Van de Walle, D., Lambert,

P., and Van de Walle, R. (2006). Description-based

substitution methods for emulating temporal scalabil-

ity in state-of-the-art video coding formats. In Pro-

ceedings of the 7th International Workshop on Image

Analysis for Multimedia Interactive Services, Korea,

accepted for publication.

De Neve, W., Van Deursen, D., De Schrijver, D., De Wolf,

K., and Van de Walle, R. (2005). Using bitstream

structure descriptions for the exploitation of multi-

layered temporal scalability in h.264/avc‘s base spec-

iﬁcation. Lecture Notes in Computer Science, Ad-

vances in Multimedia Information Processing, PCM

2005, 6th Paciﬁc-Rim Conference on Multimedia,

pages 641–652.

De Schrijver, D., Poppe, C., Lerouge, S., De Neve, W., and

Van de Walle, R. (2006). MPEG-21 bitstream syn-

tax descriptions for scalable video codecs. Multimedia

Systems, article in press.

Devillers, S., Timmerer, C., Heuer, J., and Hellwagner, H.

(2005). Bitstream syntax description-based adapta-

tion in streaming and constrained environments. IEEE

Trans. Multimedia, 7(3):463–470.

Dhondt, Y., Lambert, P., Notebaert, S., and Van de Walle,

R. (2005). Flexible macroblock ordering as a content

adaptation tool in H.264/AVC. In Proceedings of the

SPIE/Optics East conference, Boston.

Hannuksela, M. M., Wang, Y.-K., and Gabbouj, M. (2004).

Isolated regions in video coding. IEEE Transactions

on Multimedia, 6(2):259–267.

Ichimura, D., Honda, Y., Sun, H., Lee, M., and

Shen, S. (2005). A tool for interactive ROI

scalability. JVT-Q020, http://ftp3.itu.ch/av-arch/jvt-

site/2005

10 Nice/JVT-Q020.doc.

ISO/IEC JTC1/SC29/WG11, . (2005). Applica-

tions and requirements for scalable video

coding. ISO/IEC JTC1/SC29/WG11 N6880,

http://www.chiariglione.org/mpeg/working

documents/mpeg-04/svc/requirements.zip.

Kay, M. (2001). XSLT Programmer’s Reference, 2nd Edi-

tion. Wrox Press Ltd., Birmingham, UK.

Lambert, P., De Neve, W., Dhondt, Y., and Van de Walle, R.

(2006). Flexible macroblock ordering in H.264/AVC.

Journal of Visual Communication and Image Repre-

sentation, 17(2):358–375.

Li, W. (2001). Overview of ﬁne granularity scalability in

MPEG-4 video standard. IEEE Trans. Circuits Syst.

Video Technol., 11(3):301–317.

Reichel, J., Schwarz, H., and Wien, M. (2005). Joint

scalable video model JSVM-4. JVT-Q202,

http://ftp3.itu.ch/av-arch/jvt-site/2005

10 Nice/JVT-

Q202.zip.

Taubman, D. and Marcellin, M. (2002). JPEG2000 : Image

Compression Fundamentals, Standards and Practice.

Kluwer Academic Publishers.

Thang, T. C., Kim, D., Bae, T. M., Kang, J. W.,

Ro, Y. M., and Kim, J.-G. (2005). Show case

of ROI extraction using scalability information SEI

message. JVT-Q077, http://ftp3.itu.ch/av-arch/jvt-

site/2005

10 Nice/JVT-Q077.doc.

Vetro, A. and Timmerer, C. (2003). Text of ISO/IEC

21000-7 FCD - part 7: Digital item adap-

tation. ISO/IEC JTC1/SC29/WG11 N5845,

http://www.chiariglione.org/mpeg/working

documents/mpeg-21/dia/dia fcd.zip.

Wiegand, T., Sullivan, G. J., Bjøntegaard, G., and Luthra,

A. (2003). Overview of the H.264/AVC video coding

standard. IEEE Trans. Circuits Syst. Video Technol.,

13(7):560–576.

Yin, P., Boyce, J., and Pandit, P. (2005). FMO and ROI

scalability. JVT-Q029, http://ftp3.itu.ch/av-arch/jvt-

site/2005

10 Nice/JVT-Q029.doc.

SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA

APPLICATIONS
