MULTI-MODAL WEB-BROWSING

An Empirical Approach to Improve the Browsing

Process of Internet Retrieved Results

Dimitrios Rigas and Antonio Ciuffreda

Department of Computing, University of Bradford, Bradford, UK

Keywords: Internet, multimedia, graphics, browsing, earcons, musical stimuli.

Abstract: This paper describes a survey and an experiment which were carried out to measure some usability aspects

of a multi-modal interface to browse documents retrieved from the Internet. An experimental platform,

called AVBRO, was developed in order to be used as basis for the experiments. This study investigates the

use of audio-visual stimuli as part of a multi-modal interface to communicate the results retrieved from

Internet. The experiments were based on a set of Internet queries performed by an experimental and a

control group of users. The experimental group of users performed Internet-based search operations using

the AVBRO platform, and the control group using the Google search engine. On overall the users in the

experimental group performed better than the ones in the control group. This was particular evident when

users had to perform complex search queries with a large number of keywords (e.g. 4 to 5). The results of

the experiments demonstrated that the experimental group, aided by the AVBRO platform, provided

additional feedback about documents retrieved and helped users to access the desired information by

visiting fewer web pages and in effect improved usability of browsing documents. A number of conclusions

regarding issues of presentation and combination of different modalities were identified.

1 INTRODUCTION

Today most of the popular web search engines

display information of retrieved documents in a

textual format. The documents are displayed in a

relevance-based order and consist of a title, a brief

description and a URL. Although this approach used

by most of the search engines is fairly simple and

efficient, different problems still exist. For example,

many users may struggle to read, analyse and visit

the retrieved documents. This becomes particularly a

problem when there is a large amount of textual

entries displayed in the interface. A browsing

process of this nature may frustrate users if it is

carried out on a frequent basis. Common user

activities involve scrolling up and down to locate

desired textual entries and repeated visiting of links.

As the Internet becomes bigger and users search

queries becomes complex, the results obtained

increasingly become difficult to browse. Therefore

the way the results are communicated to users

becomes critical and additional user feedback might

help users to locate the desired document easier.

Many search engines are trying to improve the way

the retrieved documents and links are presented and

often additional information for these documents is

provided.

However the approach is mainly textual and

using a single sensory channel. The use of a single

channel limits the scope for improvements.

In an ideal scenario, users should be able to

browse as many results as possible using as fewer

keystrokes or more movements as possible. Some of

the experiments described in this paper address some

of these issues by incorporating multimodal graphs

that use of visual (e.g., graphics and colour) and

auditory stimuli (e.g., earcons).

2 PREVIOUS WORK

A different number of research studies have been

done in the past years for providing alternative

approaches to text-based interfaces of Internet

search engines. Most of these works are based on the

development of two-dimensional or three-

dimensional graphical objects aimed at displaying

retrieved documents from search queries. Other

269

Rigas D. and Ciuffreda A. (2006).

MULTI-MODAL WEB-BROWSING - An Empirical Approach to Improve the Browsing Process of Internet Retrieved Results.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 269-276

DOI: 10.5220/0001568402690276

 SciTePress

studies have also investigated the use of auditory

stimuli (e.g., speech and non-speech) to

communicate different types of information in user

interfaces. The sections below briefly review some

of those studies.

2.1 The Use of Graphics

Several research studies have investigated the

development of three-dimensional or two-

dimensional graphs for browsing Internet and

databases search results. The use of three-

dimensional graphs on interfaces has been

considered in different experiments carried out in

recent years. Periscope (Wiza, 2004), based on AVE

technology (Wiza, 2003) makes use of a series of

three-dimensional Interface Models of holistic,

analytical or hybrid nature. Periscope allows

documents to be displayed at different levels of

abstractions and therefore improving the

visualization of documents. A similar approach has

been applied on other systems, such as Cat-a-Cone

and NIRVE. Cat-a-Cone (Hearst, 1997). These

systems use a single three-dimensional graph based

on a tree shape in order to organize the collection of

retrieved information according to their categories.

These techniques enable users to easily scroll the

tree branches in order to browse and locate the

desired documents. NIRVE (Sebrechts, 1999) is an

original platform that uses a set of advanced three-

dimensional graphs to display the entire set of

retrieved documents. The interesting feature of

NIRVE is on the organised arrangement of

documents according to clusters (Cugini, 2000).

Three-dimensional graphs are excellent tools for

data visualization but they are often very complex.

The lack of simplicity in these graphs is one of the

common problems in these platforms. This is often

the result of the overexploitation of the visual

channel and in some cases to inappropriate usage of

visual metaphors.

Many experiments have also been performed

using two-dimensional graphs. Kartoo (Kartoo) is an

innovative search engine in which retrieved results

are communicated to users as icons. The retrieved

documents are scattered in an interactive map

together with suggested words. The correlations of

the retrieved results and keywords are displayed

using bonds between the icons. Another application

called Insyder (Reiterer, 2000), (Mann, 2000) used

synchronized multiple views. These allowed users to

browse retrieved documents using a variety of two-

dimensional graphs. Another application, called

Envision (Heath, 1995), (Wang, 2002), allowed

users to browse documents using a specific two-

dimensional graph. The two axes of the graph

communicated different attributes of the documents.

Documents were communicated as icons and

grouped in the graph in ellipses that formed clusters.

A different application called VQuery (Jones,

1998a), (Jones, 1998b) was developed for libraries

and utilised the Venn diagram methodology to

display documents according to the query terms they

contained using a Boolean approach.

Most of the visual metaphors used in several two-

dimensional graph-based applications appear to be

effective as they incorporate intuitive and easy to

read and understand graphs. These graphs

communicate small volumes of data and so they do

not visually overload the user. These simple and

well-understood displays, however, limit

considerably the amount of data that can be

presented to the user at any given time during the

interaction process.

2.2 The Use of Sound

A series of experimental studies have demonstrated

the successful application of non-speech and speech

sound as a means to communicate information. Non-

speech sound can be broadly divided into earcons,

auditory icons and special sound effects. Auditory

icons (Gaver, 1986) are short sounds that we hear in

our everyday life. They are also often referred to as

‘environmental sounds’. The use of auditory icons

(Gaver, 1993) was implemented in an application

called SonicFinder.

Earcons are another form of auditory stimuli.

They are short musical messages that have attracted

research attention in recent years. Earcons have been

used in graphical interfaces for communicating

information (Brewster, 1993), (Brewster, 1994),

(Rigas, 1996). Earcons have also demonstrated to be

useful in interfaces for visually impaired users (Alty,

2005), (Edwards, 1987), (Rigas, 1997) (Rigas,

2005).

Text-To-Speech technology (Duggan, 2003) has

been widely adopted in a wide range of applications.

The success of this type of synthetic speech can be

explained by the technical improvements made into

the naturalness and fluency of the sound. The use of

recorded speech can communicate a valid tool for

delivering information, thanks to the level of

naturalness and intelligibility that can be obtained.

The main drawback of this type of speech sound can

be found to the manual recording needed for each

single instruction. For this reason this technology is

mainly used in applications where the number of

instructions is limited.

SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA

APPLICATIONS

270

3 AVBRO: AN EXPERIMENTAL

AUDIO-VISUAL PLATFORM

An experimental browsing platform, called AVBRO

(Audio Visual BROwser), has been developed in

order to serve as a basis for this experimental

programme. The functionality of this platform is

mainly focused on typical search engine browsing

activities. The aim is to investigate usability aspects

of a multi-modal approach in search engines for

delivering a larger but usable amount of information

related to the retrieved results from Internet queries.

The term usable also refers to the meaningfulness of

the information provided to the users in order to

make their decisions regarding the suitable

document or link to follow.

AVBRO uses Google API technology (Google

Web APIs) and the Goggle search engine to perform

query operations over the Internet and obtain the

required documents or links. For each retrieved

result, AVBRO counts the occurrences of each user

provided keyword within the document. The results

are communicated in a multi-modal context

consisting of graphs and earcons. These metaphors

have been designed within the AVBRO platform to

help to communicate the information (i.e.,

documents or links obtained as a result of an internet

search) and they are evaluated in terms of their

usability and usefulness for user browsing.

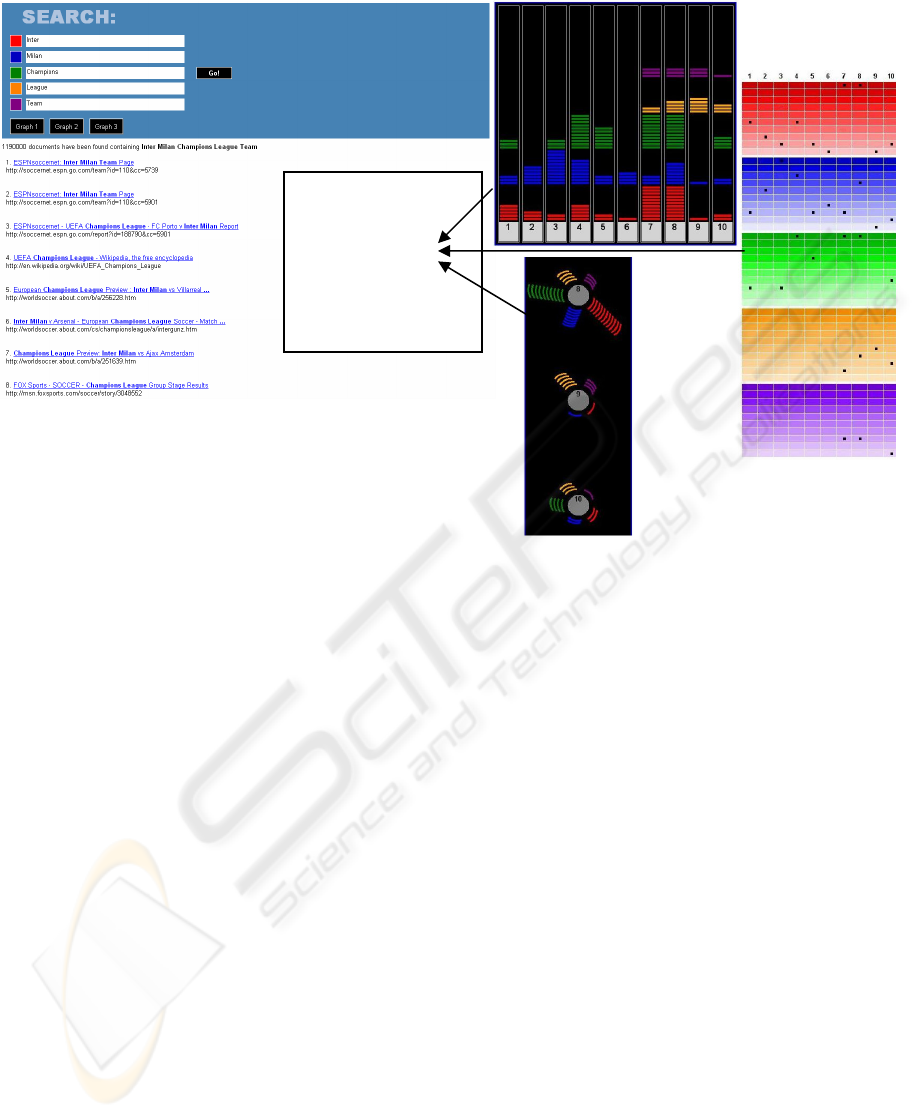

Figure 1 shows the visual interfaces of the

AVBRO experimental platform. The initial page of

the platform provides an interface with five different

text fields. Each text field is associated with a

specific colour and a specific musical instrument.

Users need to enter one keyword for each of the five

text fields. The results page is divided into two

areas. In the left area of the interface, the retrieved

results are displayed textually like in any other

search engine. Each result entry consists of a title, a

description and the URL. In the right part of the

interface, a multi-modal graph is presented. The

graphs also have auditory output. By clicking with

the mouse to a specific area of the graph, a sequence

of notes using different musical instrument is played

in a rising pitch order. For example, if a keyword

was encountered once within a document, a single

note using a specific timbre would be played.

3.1 Graphical Modalities Used

The interface of the AVBRO platform allows users

to choose three different two-dimensional multi-

Figure 1: A visual illustration of the AVBRO experimental platform with three examples of the multi-modal graphs used.

(a)

(

)

(c)

Graphical

Display Area

MULTI-MODAL WEB-BROWSING - An Empirical Approach to Improve the Browsing Process of Internet Retrieved

Results

271

modal graphs. The purpose of these graphs was to

communicate the frequency of occurrences of each

query word for each retrieved document which is

displayed in the result page.

Figure 1 show the three graphs used. The first

two graphs (a) (b) communicate each document in a

particular shaped object, where lines

(communicating occurrences) of specific colours

(communicating the keyword used) are displayed

within it. Each object displayed is numbered

according to the ranked order number of the

document it communicates.

The third graph (c) is shaped similar to a table

where the numbered columns communicate

documents. Frequency of query words are

communicated by the location of black spherical

object within coloured cells inside the columns,

where the colour of the cell communicates the query

word used.

3.2 Sound Used

As previously stated, each textfield included in the

search page is associated with a different musical

instrument. The musical instruments chosen for this

platform are the piano, the organ, the saxophone, the

drum and the guitar. The graphs allow a set of rising

pitch musical notes from these instruments to be

played when the user clicked over the area of the

displayed graph communicating a specific

document. The number of played notes

communicates the number of occurrences (up to 10)

of the corresponding query word.

4 INITIAL SURVEY

The starting point of this investigation was an initial

survey. A short pre-experimental questionnaire was

handed to users in order to gather information

regarding their qualifications, views, experience and

their computer background.

More specifically, the questionnaire aimed to

identify the level of their browsing expertise and the

number of keywords often used to search the

internet, their internet searching habits and their

opinions on multimodality for browsing activities.

The questionnaire also included questions about

the use of multimedia tools for searching and

browsing the internet in order to collect users’

opinions and previous experience with multimedia

platforms.

The results of this survey demonstrated that most

of the users regularly used more than one keyword

and that the number of pages accessed for each

search was most of the times greater than one.

The results of this pre-experimental

questionnaire also revealed that no one has ever had

any extensive experience with the use of

multimodality for web searching purpose. This

finding demonstrates that multi-modal browsing is

not widely used for browsing internet based

retrieved results. Most of users agreed that sound

and graphics could actually communicate

information of retrieved search results.

5 EXPERIMENTS

On completion of the initial survey, a set of

experiments have been carried out to test the

functionality and usability of these multi-modal

graphs in terms of successful communication of

information to the users, the attitude of users and the

overall validity of the approach taken.

Users had to perform eight tasks. All tasks

involved search operations over the Internet with a

number of keywords ranging from one to five. The

eight tasks were divided in three different levels of

difficulty. These included two simple tasks with one

to two keywords, three intermediate tasks with three

to four keywords and three complex tasks with five

keywords.

A total of sixty users took part in these

experiments. The users were all students from the

University of Bradford and had different levels of

Internet browsing and computer skills.

The simple and intermediate tasks were

performed by a total of thirty users. These users

were divided into two groups of fifteen each. An

experimental group that used the AVBRO platform

and a control group that used the Google search

engine. The complex tasks were performed by

another thirty users who were again divided in the

same way into two groups of fifteen users for each

group.

In both groups, users were requested to use the

graphical objects displayed and the musical stimuli

played. After performing each of the search

operations users were required to enter the number

of pages accessed in order to complete the task and

obtain the required information.

In addition to the number of pages accessed,

users in the experimental group were also required

to note for each task performed the level of their

perceived difficulty and the perceived usefulness of

the multimodal graphs used. Users from the control

group were required to note the level of usefulness

of the text used for displaying information in

addition to the level of their perceived difficulty of

the task performed.

SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA

APPLICATIONS

272

Figure 2 shows the results of the simple and

intermediate tasks for the control and experimental

groups. It can be seen that there is a small difference

for the simple tasks between control and

experimental groups. However, there is a noticeable

difference for intermediate and complex tasks. The

results of complex tasks for the control and

experimental groups can be seen in Figure 3. It can

be seen that the number of pages visited by users is

typically double in the control group when compared

to the experimental group.

(c)

(

)

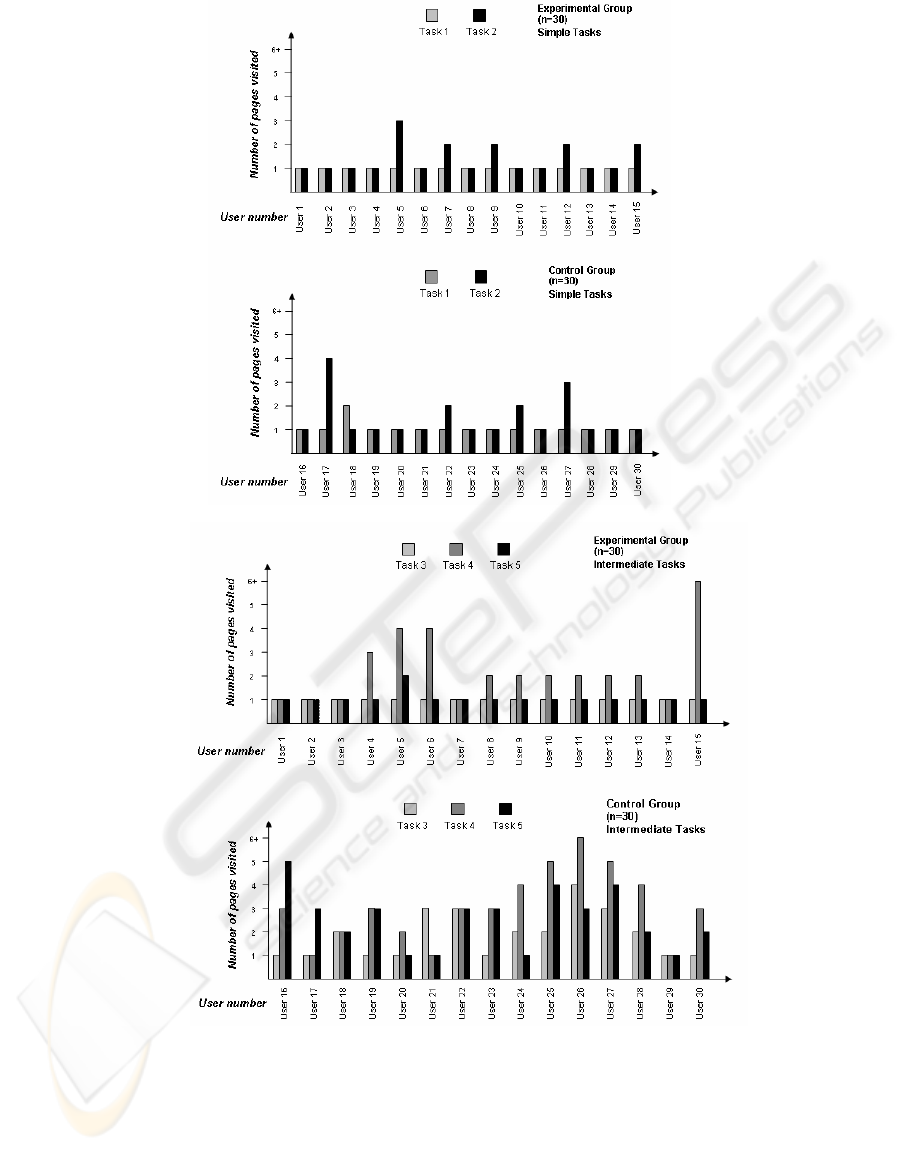

Figure 2: The results of the easy (a, b) and intermediate tasks (c, d) for the control and experimental group.

(a)

(

)

MULTI-MODAL WEB-BROWSING - An Empirical Approach to Improve the Browsing Process of Internet Retrieved

Results

273

6 DISCUSSION

In these experiments the functionality of the

multimedia-based interface was evaluated and

compared with the functionality of a normal

interface for search engines.

The mean number of the pages accessed was 1.2

for the experimental and 1.26 for the control groups

in order to complete the two simple tasks, 1.44 for

the experimental and 2.48 for the three intermediate

tasks and 1.22 for the experimental and 2.53 for the

control groups for the three complex tasks.

The mean numbers and standard deviation of all

the tasks performed for the control and experimental

groups can be seen in Figure 4. Statistical

calculations of the T-test demonstrated that the two

simple tasks and one intermediate level task were

not significant but the remaining five tasks

(intermediate and complex) were statistically

significant. By using a critical value of 2.763, the T-

Tests were for Task 1: T = 1, for Task 2: T = 0.22,

for Task 3: T = 3.38, for Task 4: T = 1.48, for Task

5: T = 4.46, for Task 6: T = 3.56, for Task 7: T =

3.72 and for Task 8: T = 3.33.

The analysis of the results gave good insights

about the continuation of this research programme.

Examples are the use of additional visual and

graphical metaphors that communicate different

types of information in a non redundant way and the

inclusion of speech and non-speech sound.

The experiments clearly demonstrated that the use

of multimodal graphs helped users to browse

retrieved results. This was particularly the case for

intermediate to complex queries. The use of non-

speech sound was not tested on its own in the

experiments. It was observed that users during the

browsing process assigned a secondary role to the

non-speech sound and their browsing decisions were

based on the graphs. This user behavior is attributed

to the fact that both graphs and non-speech sound

communicated the same information redundantly. It

is believed that utilisation of auditory and visual

stimuli in a non redundant way will enable to

communicate a larger volume of information at any

given time during the browsing process. Auditory

stimuli could also involve the use of auditory icons

and speech.

(a)

(

)

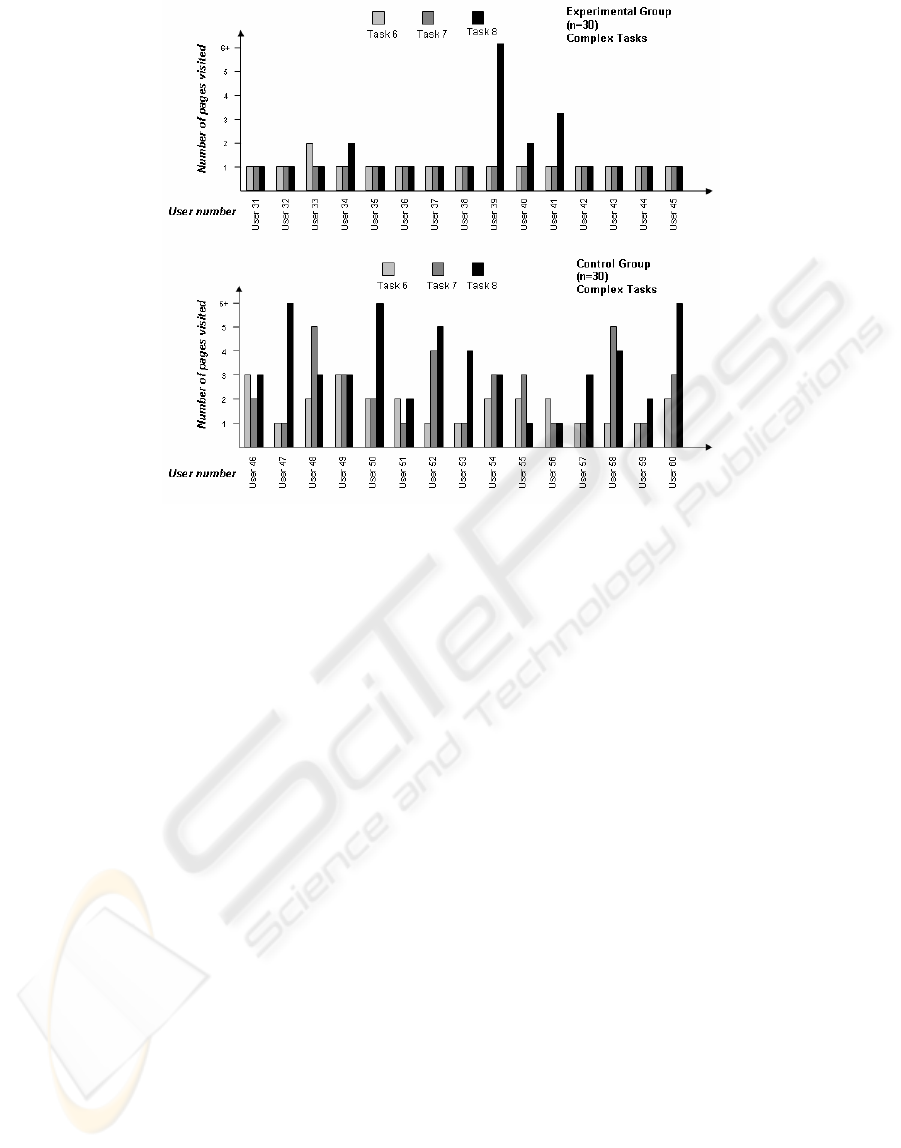

Figure 3: The results of the complex tasks for the experimental (a) and control (b) groups.

(a)

(

)

SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA

APPLICATIONS

274

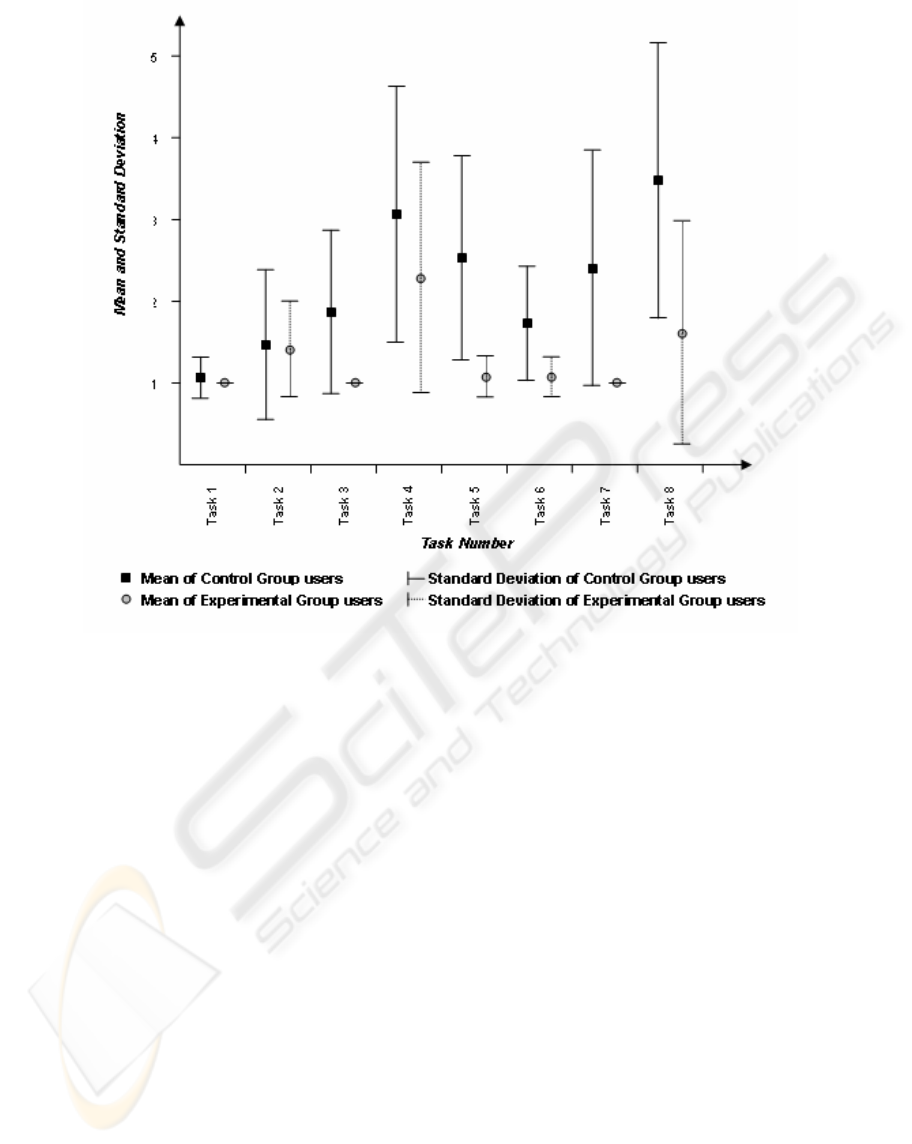

Figure 4: The mean and standard deviation values of pages visited for the entire set of tasks performed by users in the

experimental and control group during the experiments.

7 CONCLUSION

In this paper, the AVBRO platform and experiments

performed under this platform were described. The

experimental platform utilised multimodal

metaphors in addition to text to communicate

internet based retrieved results. The experiments

performed involved two experimental and two

control groups in order to measure any difference in

user performance. The experimental results

demonstrated that the users were particularly helped

when they had to perform tasks ranging from

intermediate to complex. The level of complexity

refers to the queries performed. No significant

improvement was observed when users had to

perform simple tasks.

The results of these experiments demonstrated

that the use of audio and visual metaphors for

providing additional feedback about documents

retrieved can in most cases significantly help users

to access the desired information. Additionally the

experiments demonstrated a positive attitude by

users towards some of the multimedia features

offered in the experimental platform, proving the

validity of the multimodal graphs approach and the

need of further research in this direction. Currently,

a series of further experiments are performed in the

light of the results of these experiments.

REFERENCES

Alty, J. L., Rigas, D., 2005. Exploring the Use of

Structured Musical Stimuli to Communicate Simple

Diagrams: The Role of Context. In International

Journal of Human-Computer Studies, Elsevier.

Brewster, S. A., Wright, P. C., Edwards, A. D. N., 1993.

An Evaluation Of Earcons For Use In Auditory

Human-Computer Interfaces. In Proceedings of

InterCHI'93. ACM Press.

Brewster, S. A., 1994. Providing A Structured Method For

Integrating Non-Speech Audio Into Human-Computer

Interfaces. PhD Thesis, University of York, UK.

MULTI-MODAL WEB-BROWSING - An Empirical Approach to Improve the Browsing Process of Internet Retrieved

Results

275

Cugini, J., Laskowski, S. J., Sebrechts, M. M., 2000.

Design of 3-D Visualization of Search Results -

Evolution And Evaluation.

http://www.itl.nist.gov/iaui/vvrg/cugini/uicd/nirve-

paper.ps.gz

Duggan, B., Deegan, M., 2003. Consideration In The

Usage Of Text To Speech (TTS) In The creation Of

Natural Sounding Voice Enabled Web Systems. In

Proceedings of the 1st International Symposium on

Information and Communication Technologies ISICT

'03. Trinity College Dublin.

Edwards, A.D.N., 1987. Adapting user interfaces for

visually disabled users. PhD Thesis, The Open

UniversityYork, UK.

Gaver, W. W., 1993. Synthesizing Auditory Icons. In

Proceedings of the SIGCHI Conference on Human

Factors in Computing Systems. ACM Press.

Gaver, W. W., 1986. Auditory Icons: Using Sound In

Computer Interfaces. HumanComputer Interaction. 2,

167-177.

Google Web APIs. http://www.google.com/apis.

Heath, L. S., Hix, D., Nowell, L. T., Wake, W. C.,

Averboch, G. A., Labow, E., Guyer, S. A., Brueni, D.

J., France, R. K., Dalal, K., Fox, E. A., 1995.

Envision: A User-Centered Database Of Computer

Science Literature. In Communications of the ACM,

ACM Press.

Hearst, M. A., Karadi, C., 1997. Cat-a-Cone: An

Interactive Interface For Specifying Searches And

Viewing Retrieval Results Using A Large Category

Hierarchy. In Proceedings of the 20th International

ACM SIGIR Conference. ACM Press.

Jones, S., 1998. Graphical Query Specification and

Dynamic Result Previews For A Digital Library. In

Proceedings of the 11th Annual ACM Symposium on

User Interface Software and Technology. ACM Press.

Jones, S., 1998. Dynamic Query Result Previews For A

Digital Library. In Proceedings of the Third ACM

Conference on Digital libraries. ACM Press.

Kartoo, http://www.kartoo.com.

Mann, T. M., Reiterer, H., 2000. Evaluation Of Different

Visualizations Of Web Search Results. In Proceedings

of the 11th International Workshop on Database and

Expert Systems Applications. IEEE Computer Society.

Reiterer, H., Mußler, G., Mann, T. M., Handschuh, S.,

2000. INSYDER — An Information Assistant For

Business Intelligence. In Proceedings of the 23rd

Annual International ACM SIGIR Conference on

Research and Development in Information Retrieval.

ACM Press.

Rigas, D. I., 1996. Guidelines For Auditory Interface

Design: An Empirical Investigation. PhD Thesis,

University of Loughborough, UK.

Rigas, D. I., Alty, J. L., 1997. The Use Of Music In A

Graphical Interface For The Visually Impaired. In

Proceedings of the SIGCHI Conference on Human

Factors in Computing Systems. ACM Press.

Rigas, D., Alty, J. L., 2005. The Rising Pitch Metaphor:

An Empirical Study. In International Journal of

Human Computer Studies. Elsevier.

Sebrechts, M. M., Cugini, J., Laskowski, S. J., Vasilakis,

J., Miller, M. S., 1999. Visualization Of Search

Results: A Comparative Evaluation Of Text, 2D, And

3D Interfaces. In Proceedings of the 22nd Annual

International ACM SIGIR Conference on Research

and Development in Information Retrieval. ACM

Press.

Wang, J., Agrawal, A., Bazaza, A., Angle, S., Fox, E. A.,

North, C., 2002. Enhancing The ENVISION Interface

For Digital Libraries. In Proceedings of the 2nd

ACM/IEEE-CS Joint Conference on Digital Libraries.

ACM Press.

Wiza, W., Walczak, W., Cellary, W., 2003. AVE-Method

For 3D Visualization Of Search Results. In Lecture

Notes in Computer Science. Springer-Verlag.

Wiza, W., Walczak, W., Cellary, W., 2004. Periscope: A

System For Adaptive 3D Visualization Of Search

Results. In Proceedings of the Ninth International

Conference on 3D Web Technology. ACM Press.

SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA

APPLICATIONS

276
