HDL LIBRARY OF PROCESSING UNITS FOR GENERIC AND

DVB-S2 LDPC DECODING

Marco Gomes

1,2

, Gabriel Falcão

1,2

, João Gonçalves

1,2

, Vitor Silva

1,2

, Miguel Falcão

, Pedro Faia

Institute of Telecommunications, University of Coimbra, Coimbra, Portugal

Department of Electrical and Computer Engineering, University of Coimbra, Coimbra, Portugal

Chipidea Microelectronica SA, Porto, Portugal

Keywords: LDPC, HDL, DVB-S2, Iterative Decoding, Scheduling, Tanner Graph.

Abstract: This paper proposes an efficient HDL library of processing units for generic and DVB-S2 LDPC decoders

following a modular and automatic design approach. General purpose, low complexity and high throughput

bit node and check node functional models are developed. Both full serial and parallel architecture versions

are considered. Also, a dedicated functional unit for an array processor LDPC decoder architecture to the

DVB-S2 standard is considered. Additionally, it is described an automatic HDL code generator tool for

arbitrary decoder architectures and LDPC codes, based on the proposed processing units and Matlab scripts.

1 INTRODUCTION

Low Density Parity-Check (LDPC) codes (Gallager

1962; MacKay & Neal 1996) are among the most pow-

erful forward error correction codes known and can be

applied in a vast number of applications, from data

storage to telecommunications. The existence of effi-

cient coding and decoding algorithms combined with

their good decoding performance called the attention of

the scientific community and led already to their inclu-

sion in the recent digital video satellite broadcasting

standard (DVB-S2) (ETSI 2005). Although simple, the

decoding algorithm presents a significant challenge

from the hardware implementation point of view.

LDPC codes are a sub-set of linear block codes,

defined by sparse parity check matrix H, to which a

Tanner graph (Tanner 1981) can be coupled as for any

linear block code. This bipartite graph is formed by two

types of nodes, Check Nodes (CN), one per each code

constraint (H rows), and Bit Nodes (BN), one per each

bit of the codeword (H columns), with the connections

between them given by H.

The importance of the Tanner graph is reinforced

by the fact that best known LDPC decoding algorithms,

namely the Sum Product Algorithm (SPA) (Gallager

1962; Chen & Fossorier 2002), are all derived from the

Tanner Graph structure. The iterative procedure is

based on an exchange of messages between the BN’s

and CN’s of the Tanner graph, containing believes

about the value of each codeword bit with these mes-

sages (probabilities) being represented rigorously in

their domain or, more compactly, using logarithm like-

lihood ratios (LLR). The iterative procedure stops

when a valid codeword is achieved or the maximum

number of iterations is attained (in this case a decoder

failure is declared). A simple iterative decoder can thus

be constructed by considering each CN and BN of the

Tanner graph as processing units, and the connections

between them as bidirectional communication channels

through which the processed information is sent. In this

paper we propose a generic hardware implementation

for the CN and BN processing units.

A full parallel decoder is impracticable when con-

sidering codes of length 64800, as the ones that are

proposed for the DVB-S2 standard, because of the

large silicon area that would be needed for an imple-

mentation of this type, imposed not only by the high

number of processing units, but also by the huge num-

ber of connections between them (which imposes

severe routing problems).

Following this line of thought Kienle et al. (2005)

have proposed a partial parallel architecture with proc-

essing units being shared by groups of nodes, which

allows a drastic reduction of the used silicon area.

Another advantage of their proposed implementation is

the fact that it explores the particular characteristics,

namely, the periodicities, of the sub-set of LDPC codes

adopted by the DVB-S2 standard (ETSI 2005), known

as LDPC-IRA (LDPC - Irregular Repeat and

Accumulate Codes). This allows the decoder to work in

a reconfigurable way.

Gomes M., Falcão G., Silva V., Falcão M. and Faia P. (2006).

HDL LIBRARY OF PROCESSING UNITS FOR GENERIC AND DVB-S2 LDPC DECODING.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 17-24

DOI: 10.5220/0001570000170024

 SciTePress

The fact that LDPC decoders can be constructed

taking a modular approach allows the usage of auxil-

iary tools/libraries in their development. It is possible

to design Matlab

application scripts, that according to

certain parameters, are capable of creating and con-

necting the full set of module units needed for each

decoder, according to the target architecture.

Furthermore, these application scripts will be able to

automatically generate HDL code, since the number of

module units and respective interconnections depend

only on the given parity test matrix H of the code.

In the following sections we will describe with

further detail the proposed HDL models for each

processing unit. In Section 2 we present a short de-

scription of the LDPC-IRA codes and the special char-

acteristics of the ones adopted by the DVB-S2 stan-

dard. Section 3 presents a brief review of the sum

product algorithm in the logarithmic domain (LSPA)

following the traditional flooding schedule approach.

Alternative scheduling methods that speed up the con-

vergence of LSPA algorithm are also referred in this

section. In section 4, generic hardware modules are

proposed for the basic processing units of a LDPC

decoder. Section 5 describes the particular characteris-

tics of a generic processing unit for an array processor

DVB-S2 LDPC decoder. Finally, in section 6, we

describe the procedure of automatically generating

Verilog/VHDL code for an LDPC decoder based on

simple Matlab

application scripts and previously

developed libraries.

2 LDPC-IRA CODES

The new Satellite Digital Video Broadcasting standard

(DVB-S2) adopted a special class of LDPC codes

known by IRA codes (Eroz, Sun & Lee 2004) as the

main solution for the FEC system. LDPC-IRA codes

ally to the powerful error correction capabilities of the

LDPC codes, a linear encoding complexity. In fact,

although the parity check matrix, H, of a LDPC code is

sparse, the generator matrix needed for encoding,

which is obtained from H through the Gaussian

elimination method, is, in general, not sparse, leading

to storage and encoding complexity problems.

By restricting the H matrix to be of the form

() () ()()

00 01 0 , 1

10 11 1, 1

2,0 2,1 2, 1

1,0 1,1 1, 1

10 0

11 0

01 1

110

0011

nk nk nk k

nk n nk k nk nk

aa a

−

−− −− −− −

−× −× −×−

⎡⎤

⎣⎦

⎡⎤

⎢⎥

⎣⎦

HAB

 





    



……

, (1)

where A is a random sparse matrix and B a staircase

lower triangular one, we can obtain a LDPC code with

almost the same performance (less than 0.1dB loss) as

the best known LDPC codes for the same code

dimensions, with linear encoding complexity. The

obtained code is systematic,

⎡⎤

⎣⎦

cip

, with the

message/information bits,

01 1k

ii i

−

⎡⎤

⎣⎦

i 

, being

associated to the A matrix, and the parity check bits,

01 1nk

pp p

−−

⎡

⎤

⎣

⎦

p 

, to the B matrix. The corresponding

BN’s of the Tanner Graph are known by Information

Nodes (IN) and Parity Nodes (PN) respectively.

The parity bits can be recursively calculated as:

0000011 0,11

1100111 1,110

11,001,11 1,112

nk nk nk nk k k nk

paiai ai

paiai ai p

paiai aip

−−

−

−−− −− −−−−−−

=+++

=+++ +







. (2)

2.1 H Periodicity

The H matrices of the DVB-S2 LDPC codes have other

properties beyond being of IRA type. Some periodicity

constraints were put on the pseudo-random

construction of the A matrices, which allows a

significant reduction on the storage requirement of their

descriptions, and also, the design of efficient decoding

architectures (Kienle et al. 2005).

The matrix A construction technique is based on

dividing the IN’s in groups of M consecutives ones. All

the IN’s of a group, say group

, should have the same

weight,

w , and it is only necessary to choose the CN’s

that connect to the first IN of the group in order to

specify the CN’s that connect to each one of the

remaining

−

IN’s of that group. The choice of the

w CN’s that are connected to the first IN of group l ,

is random with the restriction that the resulting LDPC

code is cycle-4 free and the number of length 6 cycles

is the shortest possible.

Denoting by

,, ,

cc c… the indices of the CN’s

that connect to the first IN of group

l , the indices of

the CN’s that connect to the i-th IN of that group (with

≤

) can be obtained by:

() ( )

1mod ,

ci q nk

ciq nk

⎡⎤

+− −

⎣⎦

⎡⎤

+− −

⎣⎦

⎡⎤

+− −

⎣⎦



(3)

with

(

)

qnkM=−

and 360M

(a common factor for

all DVB-S2 supported codes).

SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA

APPLICATIONS

3 SOFT-DECODING

Best known LDPC decoding algorithms (Gallager

1962) are based on an iterative message-passing

between the BN’s and CN’s of the Tanner graph,

containing believes about the value of each codeword

bit.

Given a

()

,nk

LDPC code, we assume BPSK

modulation which maps a codeword

(

)

,,,

cc c= c  ,

onto the sequence

(

)

,,,

xx= x  , according to

()

x =− . Then, the modulated vector x is transmitted

through an additive white Gaussian noise (AWGN)

channel. The received sequence is

(

)

,,,

yy y= y  ,

with

iii

yxn=+, where

n is a random gaussian

variable with zero mean and variance

2N . We denote

the set of bits that participate in check

m by

(

)

and, similarly, we define the set of checks in which bit

n participates as

()

n . We also denote

(

)

\Nm n as

the set

()

Nm with bit n excluded and

()

nm as the

set

()

with check m excluded.

Denoting the log-likelihood ratio (LLR) of a

random variable

() ()

ln ( 0) ( 1)Lx px px===, we

designate:

•

LP - The a priori LLR of BN n, derived from

the received value

•

- The message that is sent from CN m to

BN n, computed based on all received messages

from BN’s

()

\Nm n. It is the LLR of BN n,

assuming that the CN m restriction is satisfied.

•

- The LLR of BN n, which is sent to CN

m, and is calculated, based on all received

messages from CN’s

()

nm and the channel

information,

•

- The a posteriori LLR of BN n.

3.1 Traditional Flooding-Schedule

Traditionally, the LDPC iterative decoding procedure

follows the so-called flooding schedule approach which

consists in: all messages sent by BN’s are updated all-

together before being sent to CN’s processing units and

vice-versa. The Sum Product Algorithm (SPA),

proposed by Gallager, is carried out in the logarithmic

domain as follows:

- For each node pair (BN

, CN

), corresponding to

h = in the parity check matrix H of the code do:

Initialization

nm n

Lq LP

== , (4)

Iterative body

A. Calculate the log-likelihood ratio of message sent

from CN

to BN

()

mn n m

nNmn

Lr Lq

∈

, (5)

with

(

)

(

)

()

min , LUT ,absignasignb ab ab+ ¢ ,

and

()

(

) ()

LUT , log 1 log 1

ab ab

ab e e

−+ −−

= + − + .

B. Calculate the log-likelihood ratio of message sent

from BN

to CN

'()\

nm n m n

mMnm

Lq LP Lr

∈

∑

. (6)

C. Compute the a posteriori pseudo-probabilities and

perform hard decoding:

'()

nn mn

mMn

LQ LP Lr

∈

∑

. (7)

∀

⇐

⎧

⎪

⎨

⇐

⎪

⎩

. (8)

The iterative procedure is stopped if the decoded

word

c verifies all parity check equations of the code

(

cH 0 ) or the maximum number of iterations is

reached.

3.2 Alternative Scheduling Methods

It is well known that SPA, following the traditional

flooding-schedule message updating rule, is an

optimum a posteriori probability (APP) decoding

method when applied to codes described by TG’s

without cycles (Kschischang et al. 2001). However,

good codes always have cycles and the short ones tend

to degrade the performance of the iterative

message-passing algorithms (results far from optimal).

Motivated by the referred problem and the speed up

convergence goal, new message-passing schedules

have been proposed (Zhang & Fossorier 2002; Sharon

et al. 2004; Xiao & Banihashemi 2004).

Considering flooding-schedule, the messages sent

by BN’s are updated all together (in a serial or parallel

manner) before CN’s messages could be updated and,

vice-versa. At each step, the messages used in the

computation of a new message, are all from the

previous iteration. A different approach is to use new

information as soon as it is available, so that the next

node to be updated could use more up-to-date (fresh)

information. This can be done, for example, following

two different strategies known by horizontal and

vertical scheduling with a considerable processing gain

in the number of iterations to reach a valid codeword

(Sharon et al. 2004).

Vertical-schedule operates along the BN’s that are

processed in a serial manner. After a BN, says n, be

processed, the messages,

'mn

, sent by each CN

(

)

mMn∈

, to all the other BN’s

()

'\nNmn∈

, are

updated according to (5) taking in account the fresh

HDL LIBRARY OF PROCESSING UNITS FOR GENERIC AND DVB-S2 LDPC DECODING

received information,

Lq , from BN n. This way, the

next received BN to be processed receives information

more updated.

Horizontal-schedule strategy is similar to vertical-

schedule, with the only difference that it operates along

the CN’s.

4 PROCESSING UNITS FOR A

GENERIC LDPC DECODER

As already mentioned, a simple iterative decoder can

be constructed by considering each CN and BN of the

Tanner graph as processing units, and the connections

between them as bidirectional communication channels

through which the processed information is sent. Yet,

this approach presents some disadvantages (principally

for long and unstructured LDPC codes) from the

hardware implementation point of view, as the high

number of processing units required, but also the huge

number of connections between them which impose

severe routing problems. However, even for best

known hardware structured and efficient LDPC codes,

such as the one recently proposed for DVB-S2 standard

(ETSI 2005; Kienle et al. 2005) or for LDPC decoders

following different schedule approaches, the updating

procedure of a single BN or a single CN remains

unchanged which means that elementary hardware

processing units can be developed for both CN and BN

and, thus, LDPC decoders can be constructed under a

modular approach.

4.1 BN Processing Unit

A BN processor should calculate the log-likelihood

ratio messages sent from the assigned BN to its CN’s

neighbours, the a posteriori pseudo-probability

associated to the current BN and perform hard

decoding taking a decision about its bit value.

Considering a BN of weight

w , the BN processor can

be seen as a black box with

1w + inputs, from where it

receives the channel information plus

w CN messages,

Lr , sent from the CN’s connected to it, and with

1w + outputs, through where it communicates the hard

decoding decision and sends the

w messages,

Lq , to

the CN’s connected to it.

Observing equations (6) and (7) we note that the

message sent from BN

to CN

, can easily be obtained

nm n mn

Lq LQ Lr=−

. (9)

The computation procedure can thus be optimized

and done in serial or parallel mode.

In a parallel version the inputs are added all

together, producing the value of the a posteriori

pseudo-probability,

LQ . The message outputs can

then be computed simultaneously by just subtracting all

entries from the output of the referred adder. This type

of implementation requires an adder capable of adding

inputs of x bits, as well as, w output x bits adders

in order to be able to perform the

w subtractions. This

means that a high number of gates is required to

implement just a single processing unit, but has the

great advantage of a minimum delay system (high

throughput), allowing us to lower the clock frequency

which implies a reduction in the power consumption.

...

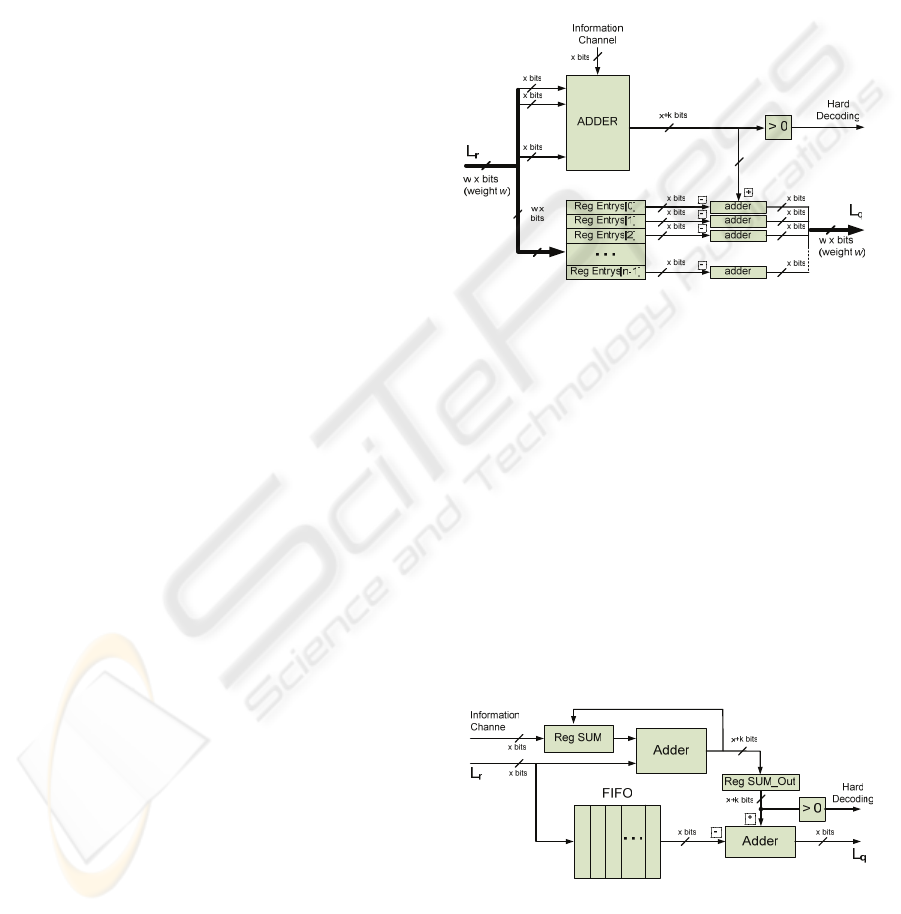

Figure 1: High level HDL model for a BN processor unit -

parallel configuration.

Alternatively, in a serial version, the inputs are

added on a recursive manner as shown in figure 2. The

Reg_Sum register is initialized with the received

channel information. The output messages can be

obtained in a parallel manner as in figure 1, or using a

full serial approach as shown in figure 2, with a new

message being obtained at each clock cycle.

This implementation minimizes the hardware

complexity (measured in terms of number of logic

gates) at the cost of a significant increase in processing

time (time restrictions could require an increase in the

clock frequency). The serial implementation has also

the advantage of supporting the processing of a BN of

any weight, at the expense of little additional control.

Reg Entrys[0]

Reg Entrys[w-1]

Reg Entrys[1]

Reg Entrys[2]

Figure 2: High level HDL model for a BN processor unit -

serial configuration.

SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA

APPLICATIONS

4.2 CN Processing Unit

A similar approach to the one used in the previous

section, can be followed in the computation of the

messages, sent by a CN. In fact, the boxplus operation

defined in (5) can be reversed as:

yz xz y = ⇔ = ¢¯, (10)

where the boxminus operation is defined as:

(

)

LUT ,ab ab b −¯ ,

and

()

()()

LUT , log 1 log 1

ab ab

ab e e

+−

= −− −.

Also, Equation (5) can be rewritten in the following

way

()

mn n m nm

nNm

Lr Lq Lq

∈

⎛⎞

⎜⎟

⎝⎠

. (11)

However,

()

LUT and

()

LUT functions contain

logarithmic operators whose hardware implementation

consumes a significant number of resources. Their

implementation can be significantly simplified by

approximating them by fixed point piece-wise linear

functions, namely, with powers of two based

multiplying factors (shifts and adders) (Hu et al. 2001;

Masera et al. 2005).

Boxplus and boxminus operations can both be

implemented at the cost of four additions, one

comparison and two corrections, each involving a shift

and a constant addition, as shown in figure 3 and figure

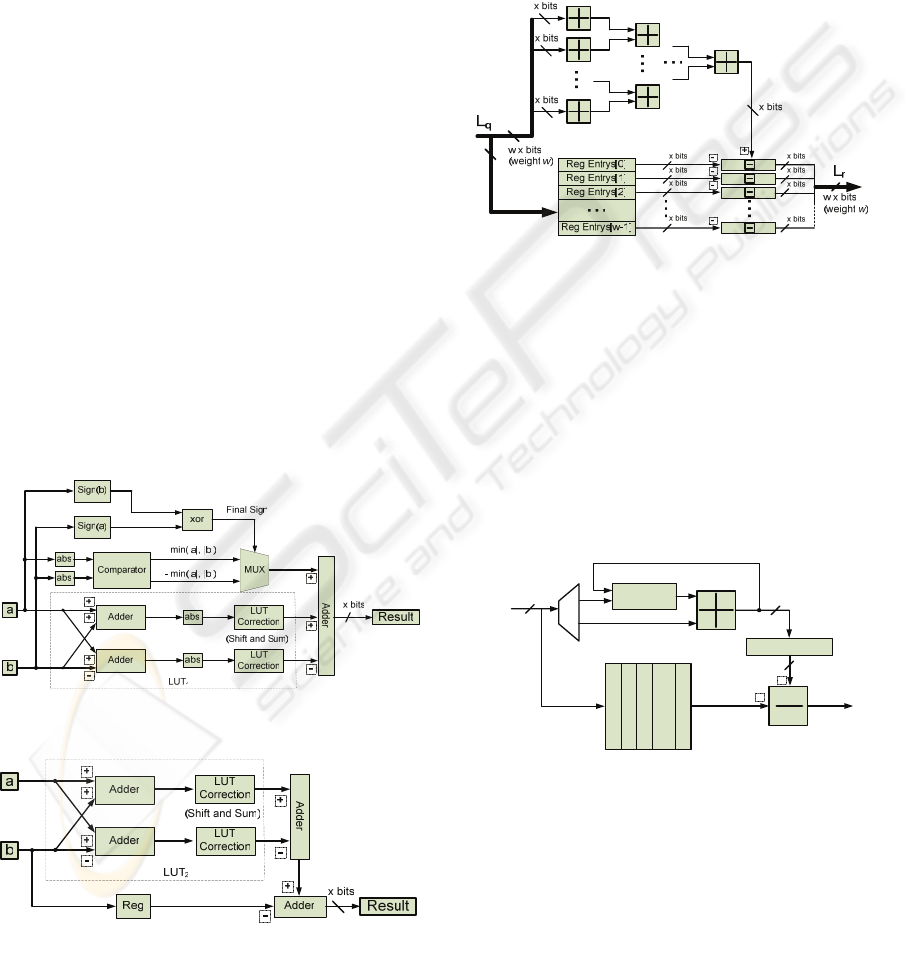

Figure 3: Block diagram of the Boxplus unit.

Figure 4: Block diagram of the Boxminus unit.

Sometimes the boxplus operation is even more

simplified, with a small decrease in performance, by

considering a void correction factor. This simplification

of the SPA algorithm is known by Min-Sum (Chen &

Fossorier 2002; Hu et al. 2001).

Based on the proposed boxplus and boxminus

hardware modules, it is possible to adopt a serial or

parallel configuration for the CN processor (similar to

the ones described for the BN processor unit).

Nevertheless, the complexity of the boxplus operation

on a parallel implementation requires a boxplus-sum

chain of all inputs according to figure 5.

Figure 5: High level HDL model for a CN processor unit -

parallel configuration.

The advantages of one configuration compared with

the other are similar to the ones that were mentioned

for the BN processor. However, it should be noted that

the proportion of silicon area, occupied by a parallel

implementation with respect to a serial implementation,

is in this case significantly higher than the one for the

BN processor, due to the number of operations

involved in the boxplus and boxminus processing. In

fact, the number of gates required by the boxplus and

boxminus processing units is superior to the common

add and subtract arithmetic operations.

Reg SUM

FIFO

Reg Entrys[0]

Reg Entrys[n-1]

Reg Entrys[1]

Reg Entrys[2]

...

Reg SUM_Out

x bits

Figure 6: High level HDL model for a CN processor unit -

serial configuration.

5 PROCESSING UNIT FOR A

DVB-S2 LDPC DECODER

The particular characteristics of LDPC-IRA codes

adopted by the DVB-S2 standard turn possible to think

in more efficient decoder solutions that surpass the

HDL LIBRARY OF PROCESSING UNITS FOR GENERIC AND DVB-S2 LDPC DECODING

evident limitations of a full parallel architecture. In

figure 7 is presented the basic architecture of a partial

parallel array processor decoder solution for LDPC

DVB-S2 (Kienle et al. 2005). This efficient architecture

not only explores the periodicities of the adopted

LDPC-IRA codes, but also has the great advantage of

supporting all code rates and code lengths defined by

the DVB-S2 standard, through a simple reconfigurable

mechanism.

In this section we suggest a possible

implementation for each processor or functional

processing unit (FU) that merges both the functions

performed by the BN and CN units

Shuffling Network

FU FU FU

...

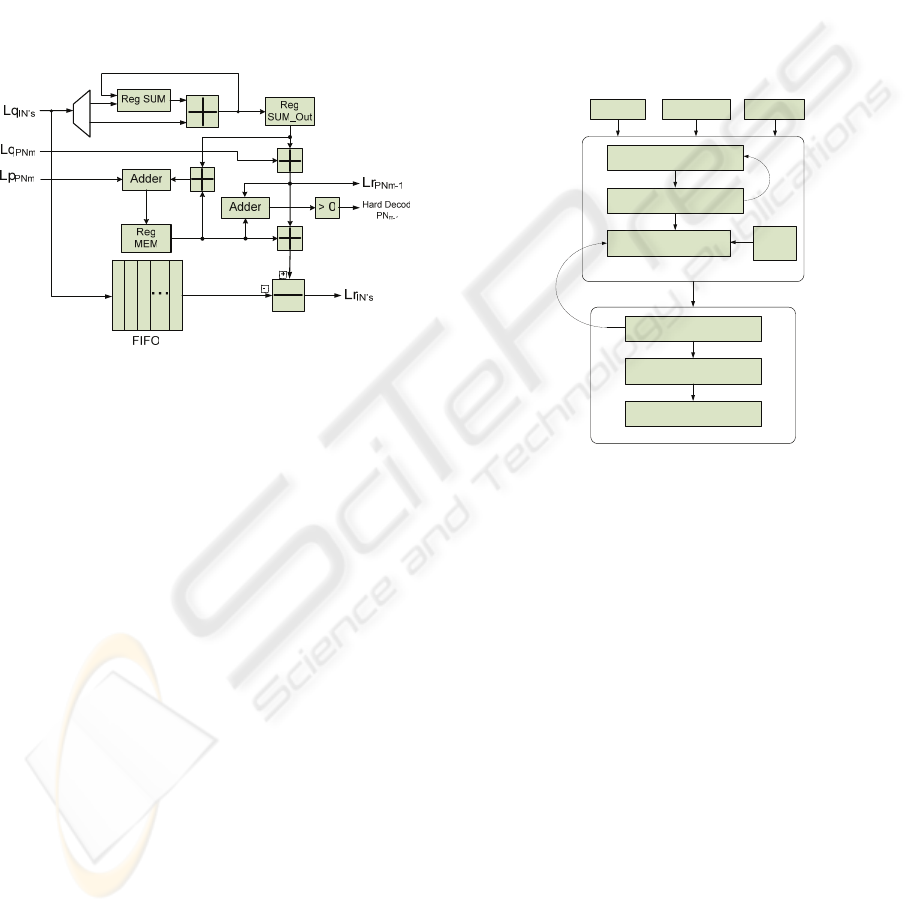

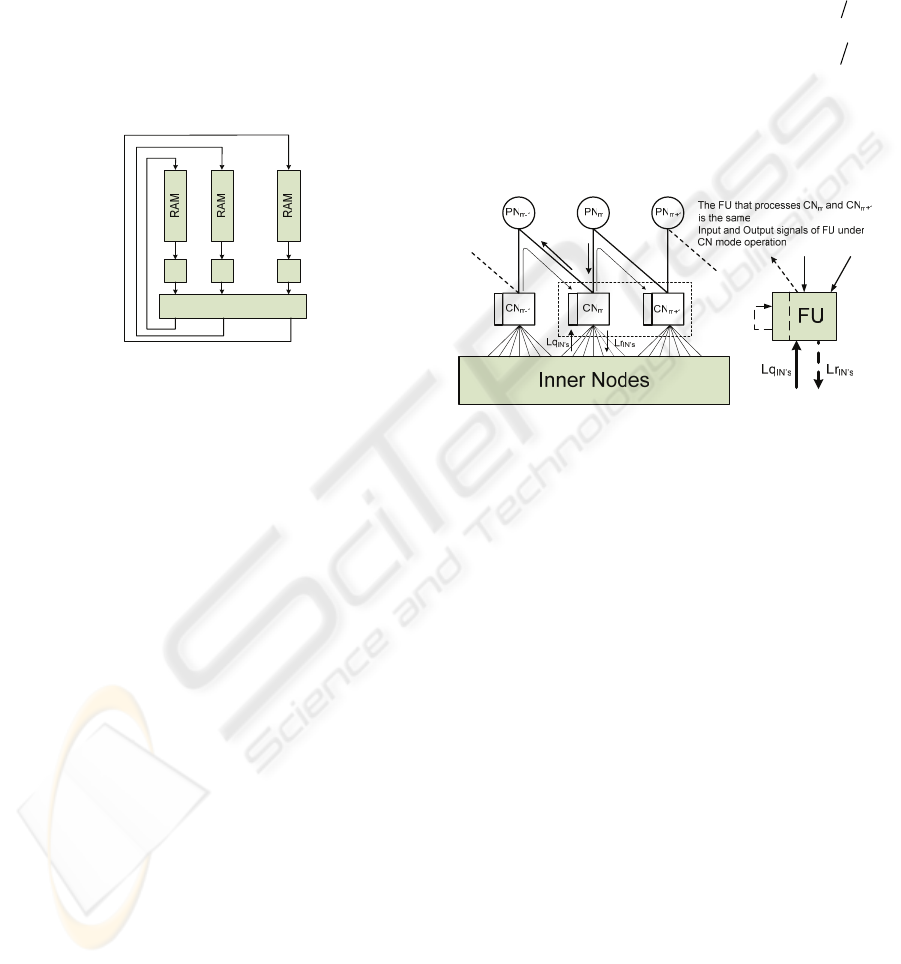

Figure 7: Array processor architecture for a DVB-S2

LDPC decoder.

Since the IN’s are divided in groups of 360

consecutives ones, with the properties of all the IN’s of

a group (i.e. their weight and the indices of the CN’s to

which each one connects) being characterized in terms

of just the 1

IN of that group, it turns possible the

simultaneous processing of each IN’s set, which

appreciably simplifies the decoder control. At the other

hand, considering the fact that there are BN’s and CN’s

with different weights, in order to have a processing

unit shared by different BN’s and CN’s, the serial

implementation shown in figures 2 and 6 must be

adopted. Thus, all messages are serially loaded to the

functional units, with the control being based on the

BN’s and CN’s weights.

Attending to the fact that messages sent from CN’s

to BN’s are computed based on the previous messages

received from BN’s, and vice-versa, it means that a

message value once used can be discarded, and the

memory place that it occupies be re-used to store the

new computed message. The shuffling network is

responsible for the correct exchange of the messages

between the CN’s and BN’s emulating the Tanner

Graph.

Considering the zigzag connectivity between PN’s

and CN’s, the PN’s and IN’s are updated following

different schedule methods. The traditional flooding

schedule is carried on the IN’s, while PN’s are updated

jointly with CN’s following the horizontal schedule

approach. This fact requires some modifications on the

CN processing unit from figure 6 in order to construct

the basic functional unit.

As referred, a single FU unit is shared by a constant

number of IN’s, CN’s and PN’s (CN’s and PN’s are

processed jointly), depending on the code length and

rate. More precisely, for a

(

)

,nk

DVB-S2 LDPC-IRA

code, the FU

, with 0, , 359i

 , in BN mode updates

in a serial manner the following IN’s:

(

)

{

}

, 360, 2 360, , 1 360ii i i

+ + × + − × , with 360k

= .

In CN mode, the same FU updates the CN’s and PN’s:

{

}

,1,, 1jj j q

+ + − , with jiq

× and

()

360qnk=− .

The used 360 FU’s operate in parallel and share all the

control signals. They are sufficient to process in real

time all the

n BN’s and nk

−

CN’s of the code.

In BN mode, only IN’s are processed and the FU

layout is similar to figure 2.

MEM

−

MEM

PNm

Figure 8: FU in CN mode and zigzag connectivity

between PN’s and CN’s.

In CN mode, each FU updates not only the

associated CN’s but also the corresponding PN’s (note

that per each CN restriction exists a PN bit). Attending

to the zigzag connectivity between PN’s and CN’s,

when updating a PN, say

m , according to (6), it works

as a simple passing node because the message that it

sends to the CN

m+1

is simply the message received

from CN

added to the channel information, and vice-

versa (see figure 8). Since each FU processes

consecutive CN’s, the PN’s updating can follow a

horizontal schedule approach (both PN’s and CN’s

processed simultaneously). This way, the message that

travels through CN

m , PN m and CN 1m + is kept in

the FU and only the backward message that is sent

from CN

m to PN 1m

−

mPN

−

→

, is saved in the

external memory. The equations that describe the

operation of the FU in CN mode are:

()

mn n m PN m

nINmn

Lr Lq Lq Mem

→

∈

⎛⎞

⎜⎟

⎝⎠

¢¢

(12)

()

mPN nm PN m

nINm

Lr Lq Lq

−

→→

∈

⎛⎞

⎜⎟

⎝⎠

(13)

11mm

PN m PN

LQ Mem Lr

−

→

=+ (14)

()

nm PN

nINm

em Lq Mem Lp

∈

⎡⎤

⎛⎞

=⎢ ⎥+

⎜⎟

⎢⎥

⎝⎠

⎣⎦

(15)

SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA

APPLICATIONS

where

()

Nm means the set of IN connected to CN m ,

and Mem the internal memory of the FU.

A problem arises when CN’s

m and 1m + are not

processed by the same FU. This situation occurs

cyclically whenever

(1)mod 0mq+=, which means that

if CN

m is processed by the FU

, then, CN 1m

will

be processed by the FU

i+1

. This situation was solved by

transferring the contents of memory FU

to FU

i+1

, with

0, , 358i =  , and FU

initialized with the ¢ neutral

element (maximum admissible LLR value). This

significantly simplifies the system control.

Figure 9 presents the architecture of a FU in CN

mode.

Reg Entrys[0]

Reg Entrys[n-1]

Reg Entrys[1]

Reg Entrys[2]

Figure 9: High level HDL model for the FU architecture in

CN mode.

The FU system control guaranties that equations

(12) to (15) are computed according to that order.

6 AUTOMATIC HDL CODE

GENERATION WITH A

MATLAB PRE-PROCESSOR

As mentioned, a LDPC is a linear code described by a

sparse parity check matrix. Also, LDPC codes with

good error correcting capabilities have normally long

codeword widths (> 10000 bits per codeword) which

means that the hand design of the Verilog/VHDL

decoder may seem almost impossible. Besides that,

minor changes on the H matrix always have

considerable repercussions on the structure of the

correspondent LDPC decoder, even when the

architecture principles remain unchanged. Those

simple modifications may represent a considerable

amount of time in the development of the

Verilog/VHDL code of the decoder.

Considering the fact that LDPC decoders can be

constructed taking a modular approach and the basic

LDPC decoding operations, such as boxplus and

boxminus, are hardware translated by independent

modules that can be assembled accordingly to the

decoder architecture, it allows the usage of auxiliary

tools/libraries in their development.

Following these considerations, it is possible to

design Matlab

libraries containing the basic building

LDPC decoder blocks. Those simple blocks (for ex.

BN processing unit – parallel configuration), are fully

configurable (number of inputs, message precision,

etc.). The design of a LDPC decoder for a particular

code according to a previously defined architecture is,

thus, achieved. A simple Matlab

application script

receives the parity check matrix of the code, interprets

it and, accordingly, creates and connects a full set of

module units needed to implement the required

decoder. The procedure is described in figure 10.

Algorithm Tests

Algorithm Implementation

HDL Module Generation

MATLAB

Synthesis

Simulation

FPGA Implementation

HDL

Library

H matrix

Architecture

Type

Resolution

Figure 10: Automatic HDL decoder design flowchart.

7 CONCLUSIONS

In this paper we have proposed an efficient and generic

HDL library of processing units which combined with

Matlab

scripting for automatic HDL code generation,

allows a flexible approach to the construction of

generic and DVB-S2 LDPC decoders. This technique

considerably reduces the design development time,

especially for long codes such as the ones adopted to

the DVB-S2 standard.

REFERENCES

Chen, J. & Fossorier, M., 2002, ‘Near Optimum Universal

Belief Propagation Based Decoding of Low-Density

Parity Check Codes’, IEEE Transactions on

Communications, vol. 50, no. 3, pp. 406 - 414.

Eroz, M., Sun, F. & Lee, L., 2004, ‘DVBS2 low density

parity check codes with near Shannon limit

performance’, International Journal of Satellite

HDL LIBRARY OF PROCESSING UNITS FOR GENERIC AND DVB-S2 LDPC DECODING

Communications and Networking, vol. 22, no. 3, pp.

269-279.

ETSI, 2005, Digital Video Broadcasting (DVB) Second

generation framing structure for broadband satellite

applications, EN 302 307 V1.1.1.

Gallager, R., 1962, ‘Low-Density Parity-Check Codes’,

IRE Transactions on Information Theory, vol. IT-8,

pp.21-28.

Hu, X., Eleftheriou, E., Arnold, D. & Dholakia, A., 2001,

‘Efficient Implementations of the Sum-Product

Algorithm for Decoding LDPC Codes’, IEEE

GLOBECOM '01, vol. 2, pp. 1036 - 1036E.

Kienle, F., Brack, T. & Wehn, N., 2005, ‘A Synthesizable

IP Core for DVB-S2 LDPC Code Decoding’,

DATE’05, vol. 3, pp. 100-105.

Kschischang, F., Frey, B. & Loeliger, H., 2001, ‘Factor

Graphs and the Sum-Product Algorithm’, IEEE

Transactions on Information Theory, vol. 47, no. 2,

pp. 498-519.

MacKay, D. & Neal, R., 1996, ‘Near Shannon Limit

Performance of Low Density Parity Check Codes’,

IEEE Electronics Letters, vol. 32, no.18, pp.

1645-1646.

Masera, G., Quaglio, F. & Vacca, F., 2005, ‘Finite

precision implementation of LDPC decoders’, IEE

Proceedings-Communications, vol. 152, No. 6, pp.

1098-1102.

Sharon, E., Litsyn, S. & Goldberger, J., 2004, ‘An

efficient message-passing schedule for LDPC

decoding’, 23rd IEEE Convention of Electrical and

Electronics Engineers in Israel Proceedings, pp.

223-226.

Tanner, R., 1981, ‘A Recursive Approach to Low

Complexity Codes’, IEEE Trans. Inform. Theory, vol.

27, pp. 533-547.

Xiao, H. & Banihashemi, A., 2004, ‘Graph-Based

Message-Passing Schedules for Decoding LDPC

Codes’, IEEE Transactions on Communications, vol.

52, no. 12, pp. 2098-2105.

Zhang, J. & Fossorier, M., 2002, ‘Shuffled Belief

Propagation Decoding’, Signals, Systems and

Computers 2002. Conference Record of the Thirty-

Sixth Asilomar Conference on, vol.1, pp. 8-15.

SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA

APPLICATIONS
