APPLICATION OF DYNAMICALLY RECONFIGURABLE

PROCESSORS IN DIGITAL SIGNAL PROCESSING

Hrvoje Mlinaric

Faculty of electrical engineering and computing, Universiti of Zagreb, Unska 3, Zagreb,Croatia

Mario Kovac, Josip Knezovic

Faculty of electrical eneginering and computing, Universiti of Zagreb, Unska 3, Zagreb,Croatia

Keywords: Dynamically reconfigurable processor, YUV-RGB conversion, processor architectures.

Abstract: The paper describes a new approach to processor construction, which combines a general purpose processor

and a program reconfigurable device, as well as its implementation in digital signal processing applications.

Significant flexibility and adaptability of such a processor is obtained through the possibility of varying the

components of the processor architecture. A simple change of architecture enables easy adaptation to

various applications in which such processors are used. Furthermore, to achieve even greater functionality, a

dynamic adjustment of the processor is enabled, by enabling the change of function of individual processor

components without the need to turn the processor off. The functionality change itself is conducted in such a

way that it is made in a single clock, which allows for a great flexibility of the processor, increases the

functionality and enables simple implementation in various applications. Such processor architecture is

broadly used in embedded computer systems for various multimedia, encryption and digital signal

applications.

1 INTRODUCTION

If we look at the modern computer systems from the

perspective of the processor embedded in such

systems, we can roughly divide them into two basic

groups: personal computers and server workstations,

and embedded computers. The basic difference

between these two computer systems is their

processing power. PCs and server workstations are

limited by the current technology, while the energy

consumption or their price is not important. Contrary

to that, for embedded computer systems the energy

consumption and even the price of the computer

systems are very important. Consequently, the

processors used in personal computers are unsuitable

for the construction of the majority of embedded

systems. In order to reduce the price and energy

consumption, embedded computers have simpler

processors whose power is significantly reduced,

which then reduces their price and energy

consumption. Such processors mostly satisfy the

requirements of embedded systems. If the need

arises for solving more complex problems,

specialised devices are added which can improve the

performance of the whole system, such as audio or

video signal decoding devices and others. The

downside of such additional devices is the increase

in price and energy consumption of the whole

system. Furthermore, the role of specialised devices

is narrowly specialised, which renders them unused

most of the time. The concept of this paper is to add

a specialised device to the processors, which will be

dynamically variable and functionally adaptable,

thus enabling the implementation of such a device in

a large number of applications, which will ultimately

lead to a reduction in price and energy consumption

of the whole system.

2 ARHITECTURE

The processor architecture consists of a 32 bit RISC

general purpose processor closely connected to a

dynamically reconfigurable device. The overall

architecture was tested and conducted on XILINX

Spartan-3 FPGAs (Field-Programmable Gate Array).

343

Mlinaric H., Kovac M. and Knezovic J. (2006).

APPLICATION OF DYNAMICALLY RECONFIGURABLE PROCESSORS IN DIGITAL SIGNAL PROCESSING.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 343-346

DOI: 10.5220/0001570703430346

 SciTePress

The dynamically reconfigurable processor had to be

adapted to the Spartan-3 architecture limitations.

Figure 1 shows a block diagram of the dynamically

reconfigurable device described in this paper. There

are four major units which are characteristics of a

dynamically reconfigurable processor: input block,

output block, switching network and functional unit

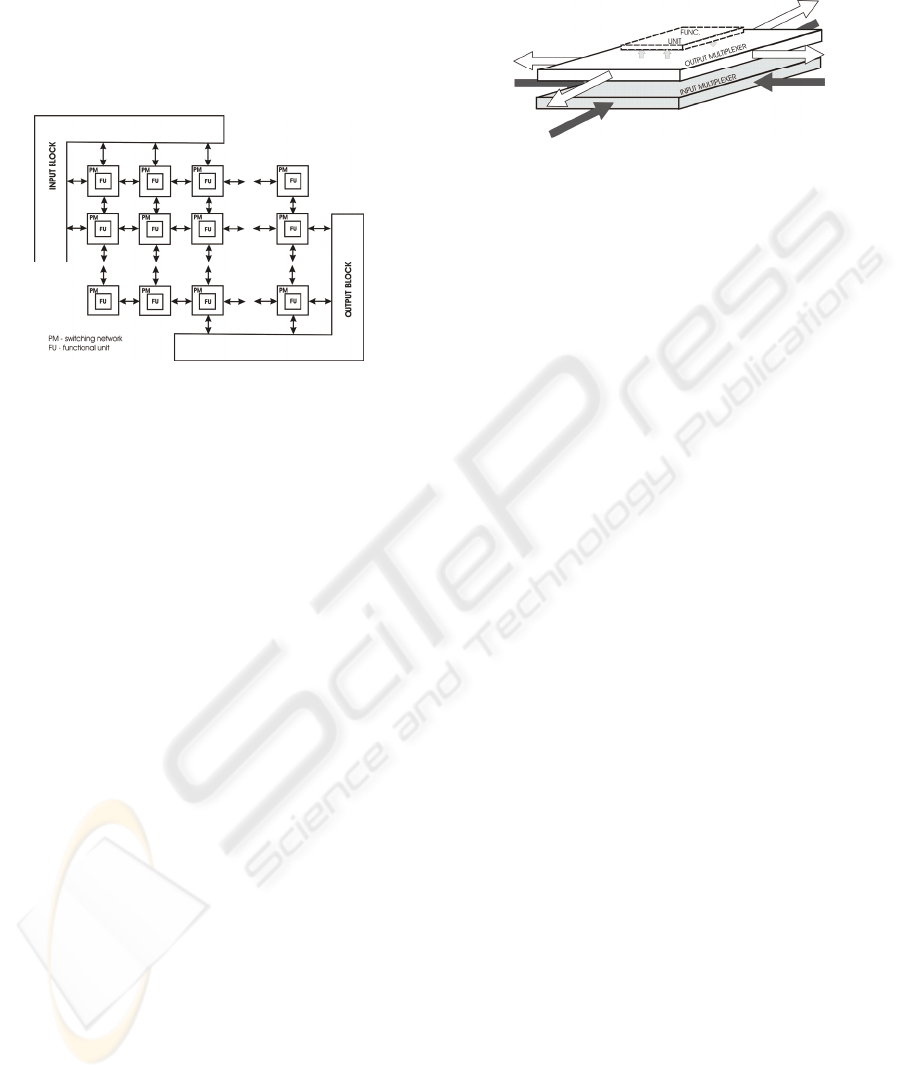

Figure 1: Block diagram of the dynamically

reconfigurable device.

Due to the complexity of the entry-exit problem

and different functionalities, the input and output

blocks are separated. The purpose of the input and

output blocks are data retrieval, which are then

processed and the results stored. The switching

network connects all the system components and its

task is to provide the correct data flow through the

whole system. Each block of the switching network

is allocated to an appropriate functional block, with

the purpose to perform various mathematical

operations by which the appropriate functionality of

the whole device is achieved. There are two basic

types of functional blocks: multiplier and adder.

Apart from the four basic components, the system

requires three memory blocks: memory block for

input data storage, memory block for result storage

and memory block for registration of the variable

device configuration. The input and output memory

are separated in order to improve the system

performance. Having only one memory would slow

down the writing and reading of data, as it would

require that data be both written into and read from

the same memory within a single cycle.

The switching network controls the data flow

within the dynamically reconfigurable structure. The

alterable architecture of a switching network enables

data distribution across the entire device. Figure 2 is

a block diagram of a switching network. Each block

of the switching network is attached a functional

unit which is not a component of the switching

network. The switching network block input consists

of four inputs representing the links with four

adjoining elements surrounding the switching block.

Each of the four inputs can be connected to one of

the inputs in the functional unit through entry

multiplexers.

Figure 2: Block diagram of the switching network.

The central processing unit of a reconfigurable

device consists of a functional unit with the task to

process the data posted on its entries. During each

clock the functional units process two new pieces of

entry data and generate a result. The functional unit

consists of two 16 bit inputs and one 16 bit output.

The function performed by the functional unit is not

unique, it can vary from one unit to the next. The

analysis we had done before the development of the

processor resulted in two basic blocks with which

almost any function can be performed. The blocks

are: functional unit for addition and functional unit

for multiplication.

As its name suggests, the functional unit for

addition performs the addition and subtraction of the

input values. The inputs to the arithmetic block

contain two devices for dual complement operations.

The application of these devices results in the

possibility to perform various combinations of

addition and subtraction.

The functional unit for multiplication multiplies

two input parameters. The B entry can be replaced

with a constant, which enables multiplication of the

A entry values with a constant value. The

multiplication is done by multiplying two 16 bit data

resulting in a 32 bit multiplication value. As the

functional unit exit is 16 bit, result scaling device is

added to the multiplier exit. Scaling is achieved by a

right shift of the results i.e. only the selected 16 bits

in a row are taken into consideration. The overall

multiplication operation with scaling is known as

shift multiplication. The basic purpose of the shift

multiplication is conducting multiplication with

numbers in the fixed comma format, where the shift

is used to position the comma in both operands, in a

way that will ensure that the commas in the operands

are placed properly for the next operation.

SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA

APPLICATIONS

344

3 PROGRAMMING

The dynamically reconfigurable device would not be

functional without the possibility of programming.

The functional blocks and switching networks have

a variable component which can be programmed.

The programming is done through a series of

program blocks, connected into a chain. The exit

from one block is connected to the entry to another.

Once we are in the programming mode, a shift of the

data in the program chain occurs with each clock. In

order to program the whole device, we have to spend

as many clocks as there are blocks. The Figure 3.

represents a program chain.

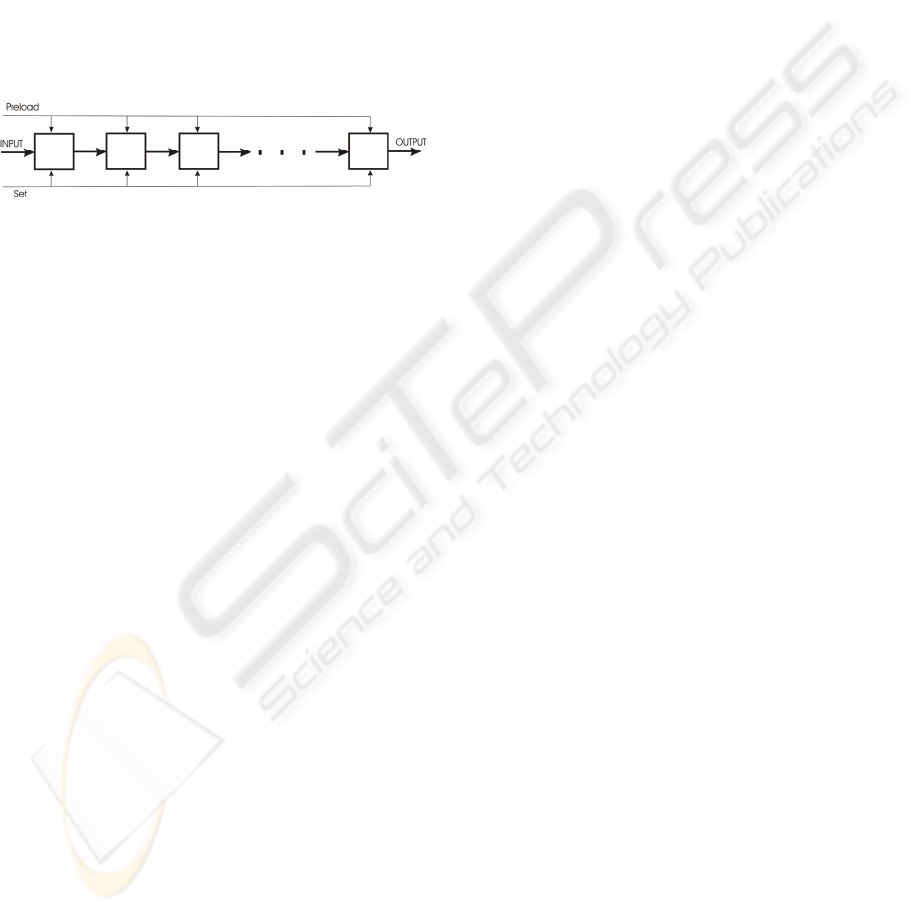

Figure 3: Programming chain.

The size of the program which is to be

programmed depends on the size of the

reconfigurable device. The 8x8 element matrix

requires 64 functional units and 64 switching

networks, while programming of such a block

requires 128 programming words. In order not to

waste the time required for programming, one more

is called the preload register for configuration

loading. The real program chain consists of such

preload registers. When the whole configuration is

loaded into the program series for a certain clock,

the configuration of the whole device changes so

that the data from the preload register is transferred

into the configuration register. Thereby, the function

of the device will seemingly have changed within a

single clock. While the configuration loading into

the preload registers is in progress, the

reconfigurable component can perform its current

function without being hindered by the loading of

the new configuration.

4 COMPUTATION EXAMPLES

To demonstrate the functionality and applicability of

this type of architecture, we will analyse its

application in two examples. The first example is the

calculation of a simple function:

dcbay −×+= )( .

This example is used to explain the basic

principles of how the device functions. The

dynamically reconfigurable device consists of a

single input and a single output block, three

functional units, two adders and one multiplier. To

keep the construction simple, we will not use a

larger number of elements. First comes the adder,

then the multiplier and then the other adder. The

input block is located on the entry to the device, and

the output on the exit from the block.

The program chain corresponds to the element

layout, therefore the chain begins with the input

block, which is followed by the adder, multiplier,

adder and ends in the output block. The input block

sends the data through the dout_0 exit, parameter a,

dout_1 parameter b, dout_2 parameter c and dout_4

parameter d. In the first addition block, the value

is calculated. After that, the result of the

addition is routed into the multiplier, where it

is multiplied by the c parameter value. The result of

the multiplication is routed to the other adder, where

it is added the

−

parameter value. The result

obtained in the second adder is stored in the output

block.

The first step when programming the

reconfigurable device is setting the data route delay

in a way that the data arrival to the function blocks is

synchronised. The configuration of the multiplier

ensures that the A and B entry values are multiplied

and the scaling of results is not necessary. It is also

specified that the b parameter has to be delayed by

one clock. The delay is necessary in order to achieve

synchronisation. Since the a, b and c parameters

leave the exit block at the same time, the c parameter

reaches the multiplier before the sum of

ba + . It is

for that reason that the c parameter is purposefully

delayed by one clock. The switching matrix is

programmed so that is allows the signal in_w to

enter through the A entry of the functional unit,

while the in_s signal enters through the B entry. The

multiplication results are sent to out_s and out_n.

Finally, the second adder is configured in a way

that the B entry of the functional unit is negated and

added to the A entry value. There are no A entry

delays, while the B entry is delayed by two clocks.

The reason for the delay is the same as in

multiplying. The B entry contains the result of the

cba

)(

operation, which required two clocks.

The switching matrix will take the A parameter from

the in_i input, and the B parameter from the in s

input. The result is sent to the out_s output. The final

result and all the inter-results from every block will

come to the exit block. In order to synchronise the

final results and the intermediate results, additional

delay was added on the exit, which synchronises the

data upload into the output block.

APPLICATION OF DYNAMICALLY RECONFIGURABLE PROCESSORS IN DIGITAL SIGNAL PROCESSING

345

5 YUV-RGB CONVERSION

For the conversion of YUV to RGB colours, we

used the basic formation of the dynamically

reconfigurable device. The basic idea of applying

the reconfigurable device is the use of the block of

alternated

MN × functional units. Figure 4

represents such a dynamically reconfigurable device.

We used a

33× element block for the colour

conversion. The YUV to RGB conversion itself

represents the final phase of most of image and

video compression algorithms. The conversion

process is defined by the following formulas

VYR ⋅+= 4.1

VUYG ⋅−⋅−= 7.035.0 (1)

UYB ⋅−= 7.1

By introducing:

Vr ⋅= 7.0 Uq ⋅= 35.0 (2)

into the arithmetic expressions (1) we will get

⋅+= 2

rqYG −−=

(3)

qYB ⋅−= 9.4

The formulas obtained in (3) were used for the

implementation of YUV-RGB conversion on a

dynamically reconfigurable device. Figure 4

represents the calculation process within the blocks.

To provide simpler orientation, we will number the

blocks by columns and rows. The first block is

marked (1,1) and the last (3,3). Let’s start from the

multiplier block (1,2), which calculates the q value

by multiplying the input value with the constant. The

result is sent to the (1,3) and (1,1) blocks. In the

(1,3) block, the q value is shifted left by one, which

corresponds the multiplication by two, and added the

Y value, resulting in the R component. In the (1,1)

block, the q value is subtracted from the Y

component and this value is sent to the (2,2) block.

In the (1,2) block, the r constant is calculated and

sent to the (2,2) block. The input values are

subtracted in the (2,2) block, resulting in

rqY −−

, which is the G component. In the (2,3)

block, the forwarded value r is multiplied by 4.9 and

the result is sent to the (3,3) block, which at one

entry has a Y and on the other

q⋅9.4

value, which,

when subtracted, results in the B component. The

conversion result is provided on exit, on every clock

with the initial delay of four clocks. The colour

conversion on a hypothetical processor according to

expressions (2) and (3) requires: Three readings

from the memory, one addition, three subtractions,

four multiplications and three memory storages. The

algorithm thus derived on a hypothetical processor

requires 14 clocks. Unlike the hypothetical

processor, the dynamically reconfigurable processor

will provide the result in a single clock with the

initial delay of four clocks. As the colour conversion

process always includes entire images, and not only

a single point, we can say that the conversion lasts

no longer than a single clock.

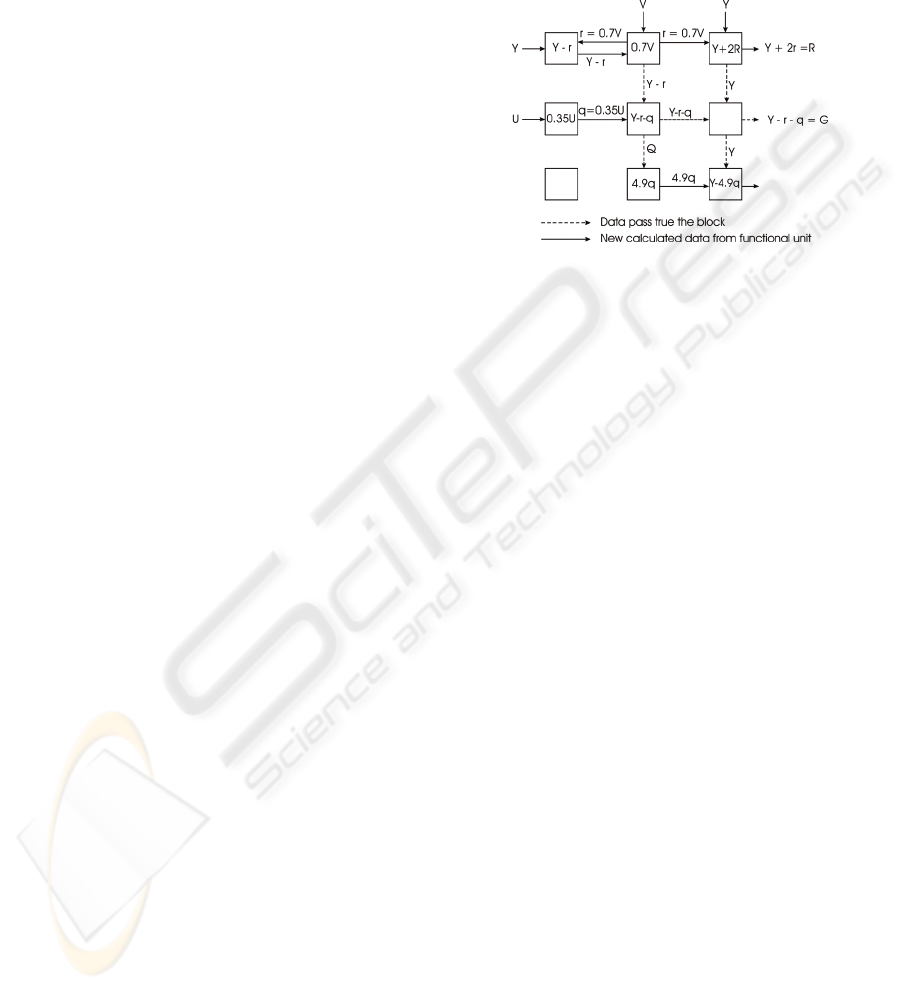

Figure 4: Calculation process within the blocks for YUV-

RGB colour conversion.

6 CONCLUSION

The two simple examples show that the suggested

architecture of a dynamically reconfigurable

processor can be broadly implemented in digital

signal processing systems. Instead of adding a range

of specialised devices, it is simpler and easier to use

a dynamically reconfigurable processor, which by a

simple alteration of functionality can replace several

specialised devices, thus reducing the price and

energy consumption of the whole system. We will

direct our further efforts to the improvement and

simplification of the processor architecture,

development of complex applications on such a

processor and its application in solving problems in

real systems, such as audio and video signal

decoding systems, cryptographic systems and many

others.

REFERENCES

Mlinaric H., Duracic K., Kovac M., 2005. “Dynamically

reconfigurable processor for multimedia application”,

proceedings of the 12

International Workshop on

Systems, Signals & Image Processing, 22-24

September 2005, Chalkida Greece.

Duracic K., Mlinaric H., Kovac M., 2003. “Optimization

methods for MPEG-4 algorithms in multimedia

application running on PDA”, EC-VIP-MC 2003, 4

EURASIP Conference focused on Video/Image

Processing and Multimedia Communications, 2-5 July

2003, Zagreb, Croatia.

SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA

APPLICATIONS

346
