ON-THE-FLY TIME SCALING FOR COMPRESSED AUDIO

STREAMS

Suzana Maranhão, Rogério Rodrigues and Luiz Soares

166 166 TeleMidia Lab, PUC-Rio University

Brazil, Rio de Janeiro

Keywords: Time scaling; High-Quality Compressed Audio; MPEG-2 Audio; MPEG-4 Audio, MPEG-2 Systems; Inter-

media Synchronization; Hypermedia Document Presentation.

Abstract: Time scaling is a technique used to modify media-object presentation duration. This paper proposes an

audio time-scaling algorithm focused on supporting applications that need: to maintain the original data

format for storage or immediate presentation on any legacy audio player; to perform linear time scaling in

real time, allowing the adjustment factor to vary along the audio presentation; and to perform time mark-up

maintenance, that is, to compute new time values for original marked audio time instants. The proposed

algorithm is appropriate for those applications that do not need a great adjustment factor variation. The

integration with content rendering tools is presented in the paper and also an example of using these tools in

a hypermedia presentation formatter..

1 INTRODUCTION

Time scaling and elastic time adjustment are usual

names given to the technique of modifying media-

object playing duration. The adjustment can be

quantified by a (tuning or adjustment) factor,

expressed by a real number greater than zero. A

media exhibition speed up is expressed by a tuning

factor f<1 and a media exhibition slow down by a

factor f>1.

Time-scale modifications are useful in many

applications (Aron, 1992; Lee, 2004;

Omoigui, 1999). The next paragraphs give some

examples that raised the goals of the algorithm

proposed in this paper. As will become evident,

hypermedia (or interactive multimedia) systems are

our main target, reason why the proposed algorithm

is called HyperAudioScaling.

The first example comes from the temporal

synchronization consistency of hypermedia

document presentations. In such presentations, all

media-objects should be exhibited in proper times

taking into account time restrictions specified by

authors, including interactive actions. Time-scaling

processing should be applied before document

presentation (at compile time) trying to solve all

temporal inconsistencies. However, the temporal

synchronized media-objects can lose their

synchronization due to several factors in their route

to the presentation machine (from now on called

formatter). For example, network delays, user

interactions and unpredictable end of media

exhibitions (as in live streams) can cause

synchronization loss. In all theses cases, time scaling

will play an important role in the synchronization

maintenance and must be performed in presentation

time (on-the-fly). Moreover, to track the

synchronization, the adjustment factor may also vary

in real time. The fidelity of the processed media

must be high and, thus, adjustments must be

performed as smoothly as possible, in order to be

imperceptible to users.

The adjustment mechanism should not depend on

which audio presentation tool (i.e. audio player) will

be used by a hypermedia formatter. As a

consequence, time-scale modifications must be

independent of the stream decoding process that

takes place in presentation tools. Moreover, since

hypermedia applications usually manipulate

compressed media formats, and since real-time time-

scale modifications are needed, the adjustments

should be performed in the compressed data, without

needing to decode them.

Finally, hypermedia documents use anchors

(defined in this paper as time periods in the stream)

to specify synchronization points. So, the time-

scaling algorithm should also be able to track new

anchor values during the adjustment computation.

110

Maranhão S., Rodrigues R. and Soares L. (2006).

ON-THE-FLY TIME SCALING FOR COMPRESSED AUDIO STREAMS.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 110-117

DOI: 10.5220/0001570901100117

 SciTePress

Other multimedia applications also demand time-

scaling processing. For example, time scaling can be

useful to allow TV or radio stations to speed its

scheduling up or down. Time scaling can also be

used to optimize channel allocation for multiple

users in a Video (or audio)-On-Demand (VOD)

system. Media streams of the same content can be

transmitted with different speeds until the same

piece of information is reached in the flows. At this

time, the streams can be unified in one multicast

flow.

The HyperAudioScaling algorithm, proposed in

this paper, focuses on supporting audio time scaling

for those applications that need: i) to maintain the

original data format aiming at the storage or

immediate presentation on any legacy audio player;

ii) to perform time-scale modifications in real time

(presentation time) but allowing to vary the

adjustment factor during the audio presentation; iii)

high fidelity, that is, given an adjustment factor, the

time-scaling processing should be performed as

smoothly as possible in order that speed variation in

the resultant media is imperceptible to users; and iv)

time mark-up maintenance, that is, time scaling must

be able to compute new time values for original

marked time instants. In addition, the

HyperAudioScaling algorithm focuses only on those

applications that do not need a great tuning-factor

variation (0.9≤f≤1.1).

This paper is organized as follows. Section 2

discusses some related work. Section 3 introduces

the HyperAudioScaling algorithm for audio-only

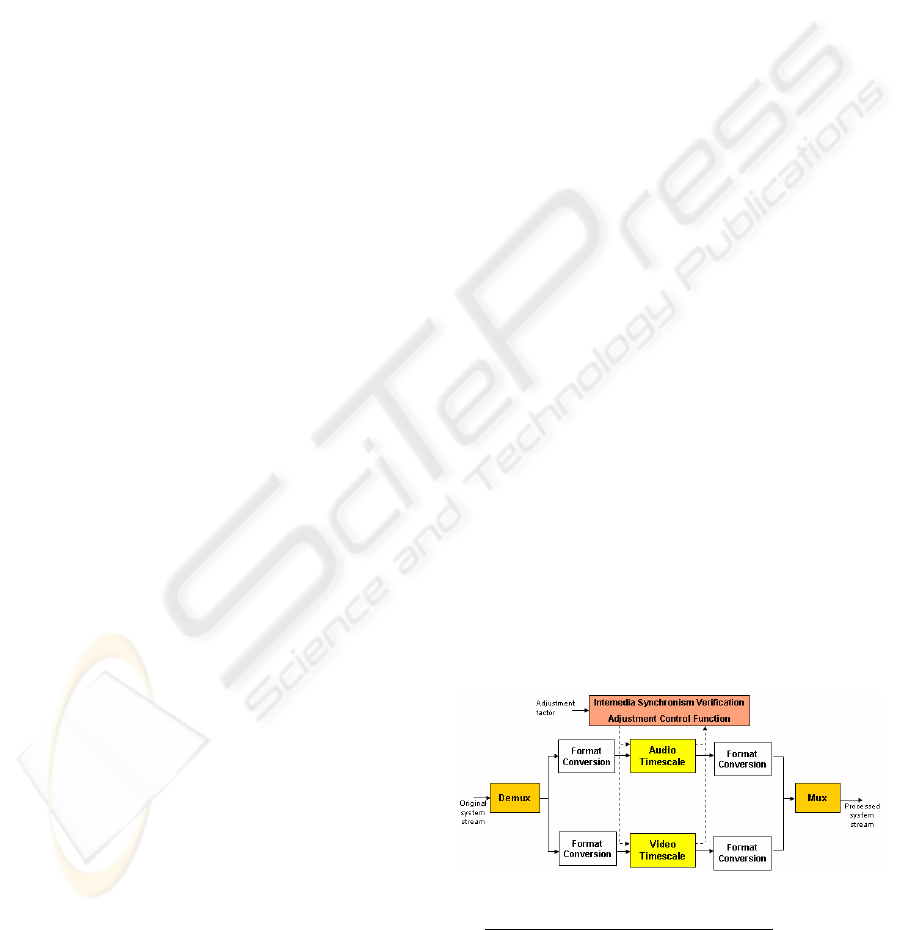

streams. Section 4 briefly discusses how the

algorithm can also be applied in multiplexed audio

and video (system) streams. Section 5 presents the

time-scaling tool (library) developed based on the

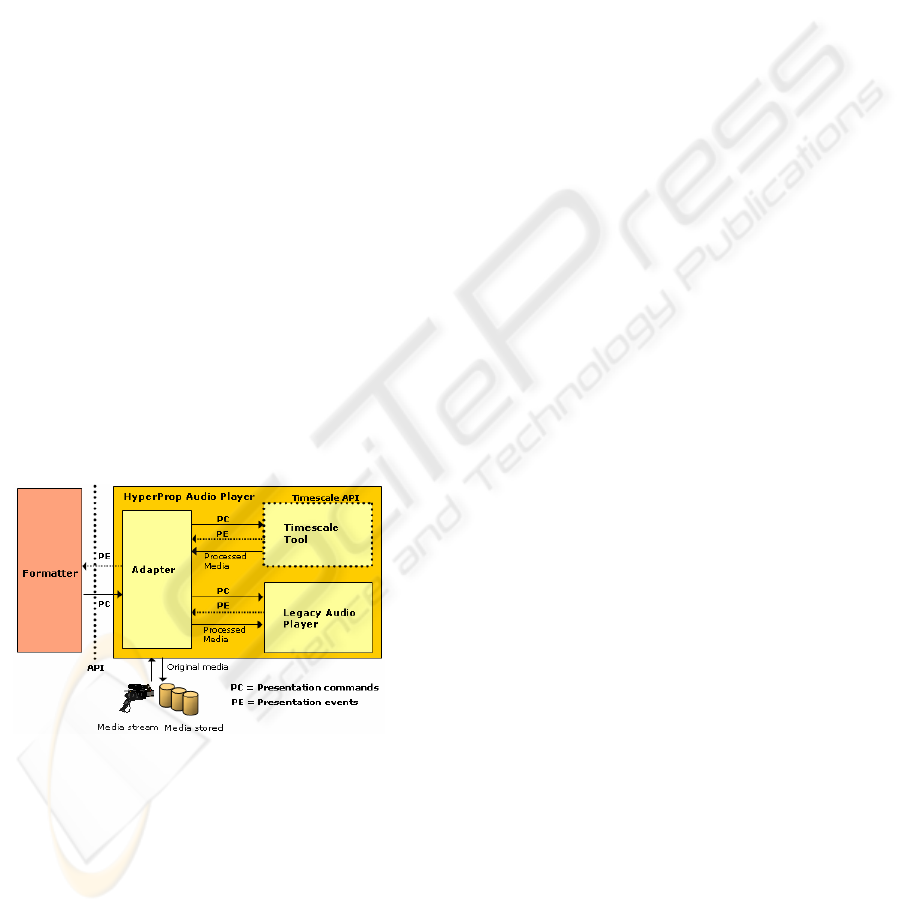

proposed algorithm. In order to illustrate the use of

the time-scaling tool in a hypermedia document

presentation system, Section 6 describes its

integration with a hypermedia formatter. To

conclude, Section 7 presents the final remarks.

2 RELATED WORK

Audio time-scaling algorithms can be classified in

three categories (Bonada, 2002; Lee, 2004),

presented in increasing order of quality and

computational complexity.

Time-based algorithms assume signal

segmentation in time domain in order to perform

adjustments by segment manipulations (for example,

through discarding, duplication or interpolation of

segments). They usually reach good quality for

adjustment factor between 0.8 and 1.2.

Frequency-based algorithms perform time

scaling, modifying frequencies of the original audio

signal. They can produce high quality output over a

wide range of stretching factors.

Analysis-based algorithms make an examination

of the audio signal and then perform time-scaling

mechanisms specifics for that audio type, in order to

create an adjusted high-quality audio.

Most of the commercial tools use time or

frequency-based algorithms for adjustments on

generic audio, once the computational complexity of

algorithms based on detailed analysis is usually too

high.

Independent of the time-scaling algorithm

category, there are, at least, tree ways to perform

adjustments in compressed audio. The first

possibility is to decode, process, and recode the

stream. The advantage of this solution is that there

are many good time-scaling algorithms proposed for

uncompressed audio (Lee, 2004). However, this

option can be very time-consuming, making it

difficult to be used in real-time. Furthermore, there

is a loss of quality associated with the recompression

process.

When audio streams must be processed while

they keep playing, originating new streams without

perceptible delay, there are two other different

solutions to perform time-scale modifications.

The first one is carrying out time scaling soon

after the decompression and before the presentation.

The advantage in this case is the possibility of

manipulating non-compressed streams using the

aforementioned good algorithms already defined in

the literature. However, it may be difficult to

intercept the decoder output before sending it to

exhibition. Even when this interception is possible, it

may require a particular implementation for each

decoder.

The second solution is performing time scaling

before decompression, straight on compressed

streams. This option gives to the time-scaling

algorithm independency from the decoder. However,

time scaling must consider the syntax rules specified

by the media format. Note that, for the requirements

stated in Section 1, this is the approach to be

followed.

Sound Forge (Sony, 2006) allows professional

audio recording and editing. It supports several

audio formats, but always applies a pre-processing

procedure when opening compressed files. Time-

scaling processing can be performed in presentation

time, however, probably using the pre-processed

stream. Nevertheless, the generation of the resultant

(recompressed) file is not performed in real time.

The user can choose among 19 different ways of

applying time-scale modifications according to

his/her needs. The adjustment factor varies between

ON-THE-FLY TIME SCALING FOR COMPRESSED AUDIO STREAMS

111

0.5 and 5. The tool has an excellent audio output

stream quality, but introduces an intolerable delay

for real time processing. Sound Forge is used for

comparison with this paper proposal in Section 7.

Windows Media Player 10 (Microsoft, 2006)

supports many audiovisual formats, such as MP3

and WMA. The tool allows choosing the adjustment

factor to be used during media exhibition and to

change this factor in presentation time. Although the

adjustment factor can assume values between 0.06

and 16, the program specification suggests a range

between 0.5 and 2.0 to keep media quality high.

Although not mentioned, it is almost assured that the

time-scaling processing takes place after the

decoding, due to two reasons: it is not possible to

save the processed audio in a compressed format;

and, since the algorithm is done for a specific player,

it is better to apply time scaling just before

presentation.

The MPEG-4 audio specification defines a

presentation tool called PICOLA (Pointer Interval

Controlled OverLap Add), which can make time-

based adjustments after decompression, in mono

audio with sample rate of 8kHz or 16kHz (ISO,

2001).

FastMPEG (Covell, 2001) is a time-scaling

proposal that explores the partial decoding/encoding

strategy. It describes three time-based algorithms for

MP2 format on-the-fly adjustments. The algorithms

are performed after a partial decoding of the audio

stream and followed by a partial re-encoding. The

adjustment factor varies between 2/3 and 2.0.

All aforementioned time-scaling algorithms are

not applied straight on the compressed stream.

Instead, streams are decoded (at least partially),

processed, and, eventually, encoded again. The

solutions are complex and decoder dependent. The

algorithms allow a large range for the tuning factor f,

perhaps one of the reasons that guided their

implementation. However, this is reached by the

dependence of the presentation tool, or by the use of

non-real-time computation.

Different from all mentioned work, this paper

proposes a time-scaling algorithm for compressed

audio streams, simple enough to be executed in

presentation time. The algorithm is performed

straight on the compressed data, supporting tuning-

factor variation, and being independent of the

decoder (and thus the player) implementation. Due

to the intentional simplicity of the proposed

algorithm, its tuning-factor is limited to the range

[0.90 , 1.10].

Indeed, this paper proposes a framework for a

class of algorithms, that is, a meta algorithm. The

framework is instantiated for a set of format-

dependent algorithms, described in the paper, and

implemented as a library, called HyperAudioScaling

tool, which can be easily integrated with third-party

applications. The media formats handled by the

library are MPEG-1 audio (ISO, 1993), MPEG-2

systems (ISO, 2000) and audio (ISO, 1998) (ISO,

1997), MPEG-4 AAC audio (ISO, 2001), and AC-3

(ATSC, 1995). These standards were chosen

because they have been largely used in commercial

applications, such as those for digital and interactive

TV, and also in different audiovisual formats, like

VCD, SVCD and DVD.

3 AUDIO TIME-SCALING

ALGORITHM

Many high-quality audio formats deal with audio

streams as a sequence of frames (or segments).

Every frame has a header and a data field, and is

associated with a logical data unit (LDU). A set of

coded audio samples, gathered during a small time

interval (typically, about 30ms), concatenated with

auxiliary bits (called PAD) compose a logical data

unit. The number of PAD bits is not limited and are

generally used to carry metadata.

Although associated with a specific frame, the

LDU does not need to be carried in the data field of

this frame. Alternatively, the LDU can borrow bits

from data fields of previous frames (the bit reservoir

in MPEG nomenclature) and be transported partially

or entirely in previous frames. The maximum size of

the bit reservoir is limited. Thus, data fields can

contain one, several or part of an LDU. Figure 1

shows an audio stream with frames separated by

vertical lines. In each frame, the header bytes are

stripped. They are located in the beginning of the

frame and are followed by a data field. The figure

also depicts the LDU of each frame.

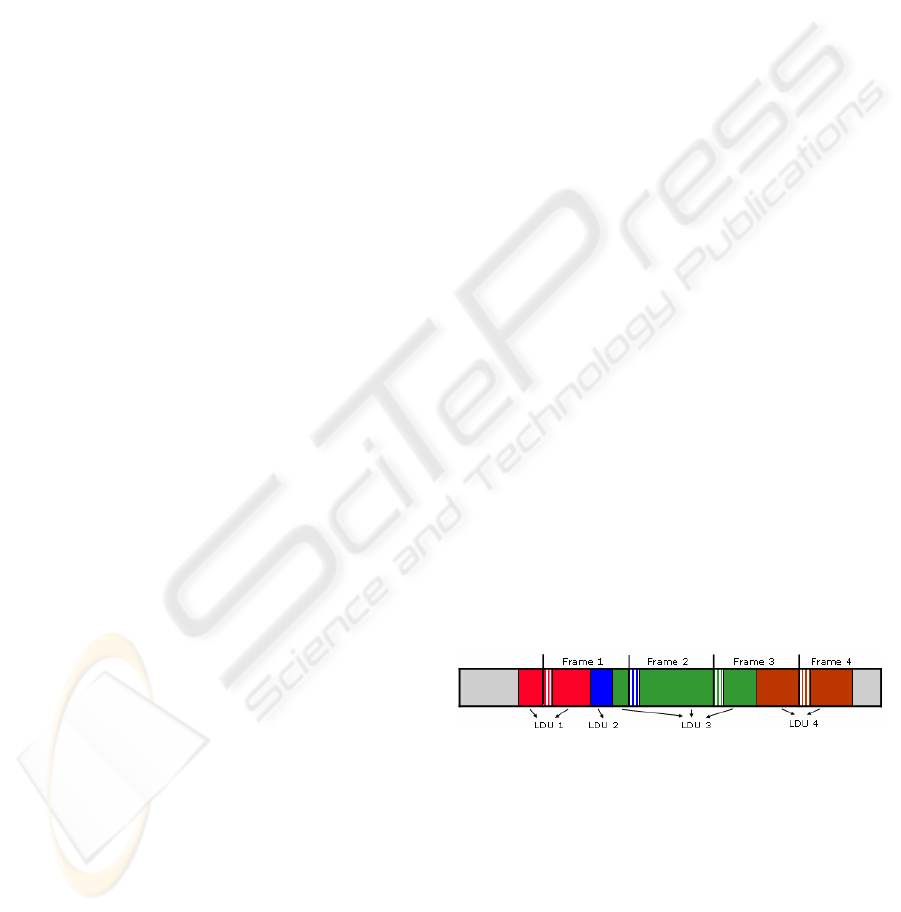

Figure 1: Frame representation of a compressed audio

stream.

The HyperAudioScaling algorithm is based on a

well-known time-based algorithm called Granular

synthesis (Gabor, 1946). However, an important

difference must be pointed out. Once time scaling

must be executed without decoding the compressed

audio (to recover the audio samples), and because an

LDU can be coded in frequency domain, the chosen

adjustment unit is the LDU (and not samples, as in

the Gabor’s proposal). Thus, HyperAudioScaling

SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA

APPLICATIONS

112

time scaling is performed by removing or

duplicating LDUs when the stream must be speed up

or slowed down, respectively.

Nevertheless, removing an LDU is not that

simple, since the associated frame must also be

removed. As a frame may contain LDUs associated

with frames that are ahead, these LDUs cannot

simply be taken out of the stream, and must be

respread into previously scheduled frames.

Similar care must also be taken when duplicating

an LDU, since the associated frame must also be

duplicated. If a frame has its associated LDU spread

into other previous frames, the duplicated frame may

also have to distribute part of its LDU. Furthermore,

bits of other LDUs within the frame must not be

duplicated.

As in both the removing and the duplicating

processes there could not be enough room for the

LDUs that have to be distributed,

HyperAudioScaling tries to avoid using frames

where the problem may happen. So, the following

rules are adopted:

1. First try to remove only the frames that have

their associated LDUs larger than the frame data

fields.

2. Similarly, first try to duplicate only frames that

have their associated LDUs smaller than their

data fields.

The rules ensure that there will always be place

to process the selected frame. Note also that new

PAD bits may have to be added to previous frames

after removal, or to the processed frame in the case

of duplication. Figure 2 illustrates the removing

process after dropping frame 3 in Figure 1 example.

The duplicating process is illustrated in Figure 3

after the duplication of frame 2 in the same Figure 1

example. The figures consider that there are no PAD

bits in the LDUs of frames 3 and 2, before removal

and duplication, respectively.

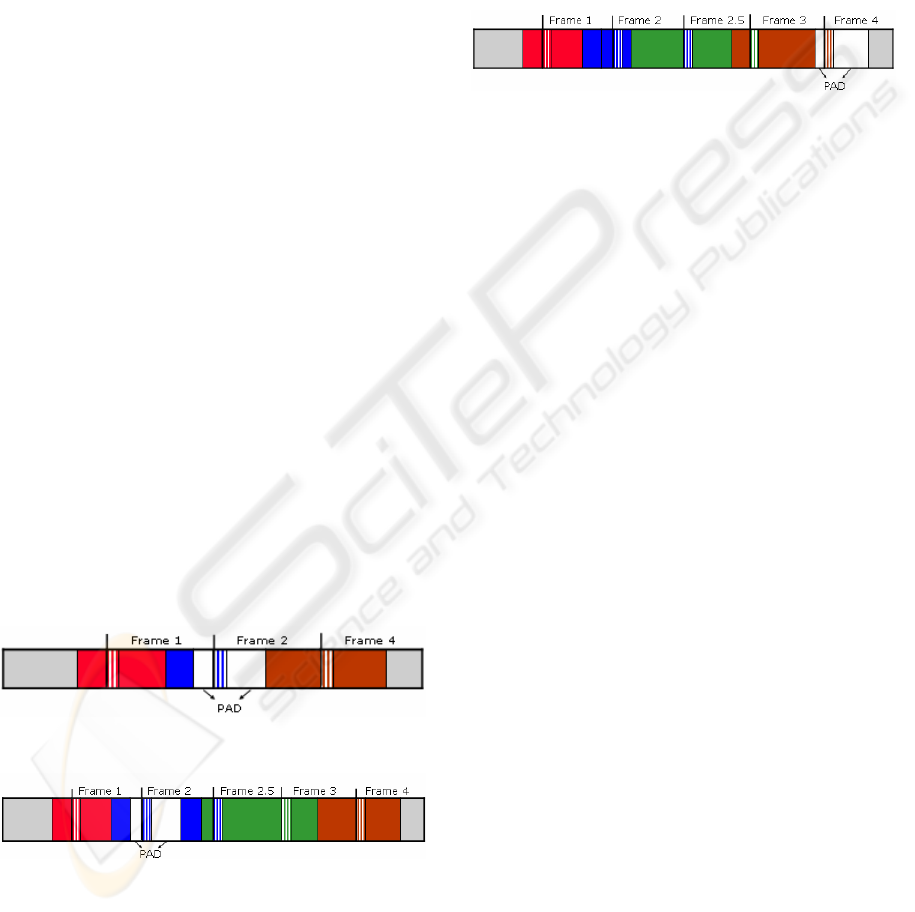

Figure 2: Dropping frame 3 in the stream of Figure 1.

Figure 3: Duplication of frame 2 in the stream of Figure 1.

The added auxiliary bits when rules 1 and 2 are

applied can now be used to refine the proposed

algorithm. In order to use these PAD bits in future

processing, they can be transferred frame by frame,

till the next LDU to be processed, using the

following algorithm:

• Compute the number X of PAD bits which can

be transferred from one frame to the next. In

this case, the X value must be limited to the bit

reservoir maximum size.

• Transfer X bits of the next-frame LDU to the

PAD field and insert new X PAD bits into the

end of the transferred LDU.

Figure 4 shows PAD transference from frame 2

to frame 4 in the stream of Figure 3.

Figure 4: Frames of Figure 3 after PAD transference.

Using this mechanism, new rules can be defined

to process frames:

3. If a frame does not satisfy rule 1, it can still be

removed if the length of its associated LDU

added to the transferred PAD length is greater

than or equal to the frame data field length.

4. If a frame does not satisfy rule 2, it can still be

duplicated if the length of its associated LDU is

smaller than or equal to the frame data field

length plus the transferred PAD length.

Since there are frames that still cannot be

processed, the elastic time adjustments may not be

uniformly distributed. However, with the new added

rules, more frames can be processed and closer to

linear the time scaling can be. A linearity measure of

this algorithm will be presented in Section 7. Note

also that the non-linearity prevents marked time

instants in the original audio to be estimated using a

linear equation based on the adjustment factor (see

requirement (iv) in Section 1). Therefore, the time-

scaling mechanism should track particular time

instants and indicates their new values during time-

scaling processing.

HyperAudioScaling operation does not require a

frame of fixed length. The frame extractor

algorithm, instantiated for each audio format, must

be responsible for recognizing and creating frames

from the stream.

During the audio time scaling, a frame must be

properly selected and analyzed to verify if it can be

processed. The frame selector processing algorithm

is responsible for this task and can be summarized as

follows:

a. Compute the effective adjustment factor applied

until this moment. This calculus must take into

account the number of frames already processed

divided by the number of frames analyzed;

b. Compare this result with the original adjustment

factor to decide whether the frame should be

processed, then verify if the frame can be

ON-THE-FLY TIME SCALING FOR COMPRESSED AUDIO STREAMS

113

processed considering rules 1 to 4, described

previously. If it cannot be processed, take the

next frame, and return to step (a).

When changes are made in the adjustment factor,

the frame selector processing algorithm must

recalculate the effective adjustment factor from the

moment of the change on.

HyperAudioScaling preserves bytes before the

first frame and after the last frame of the stream,

because they may represent important metadata, like

ID3 standard (Nilsson, 2006) on MP3 streams.

Moreover, HyperAudioScaling also maintains

metadata inside non-processed frames.

Unfortunately, the metadata of the processed frames

cannot be always preserved. As some audio formats

(MP2, for example) have their LDUs coinciding

with their data fields, it is impossible to discard or

duplicate frames without their PAD fields. In

addition, in other format types, it is difficult to

discover where the PAD bits begin without

decoding. Fortunately, PAD bits of LDUs usually

just carry stuffing bits for length alignment and can

be discarded or duplicated without compromising

metadata information.

The HyperAudioScaling algorithm was

instantiated to MPEG-1 and MPEG-2 BC Audio

(MP1, MP2, MP3), AC-3 and MPEG-2/4 AAC.

Since there is no bit reservoir in MP1, MP2 and AC-

3 streams, the instantiations assume that the number

of borrowed bytes is always zero, that is, the frame

associated LDU is always inside the frame data

field. In MP3 streams there is a bit reservoir and the

algorithm was applied straightly. MP1, MP2 and

MP3 have equal-size frames (using constant bit and

sampling rate) and auxiliary bytes (PAD) at the end

of each LDU, while AC-3 streams have frames with

variable length. As previously discussed, this does

not affect the algorithm.

The current algorithm implementation for

MPEG-2/4 AAC streams uses the ADTS transport

protocol. Similarly to MP3, MPEG-2/4 AAC

streams provide the bit reservoir facility and have

frames with both audio and auxiliary data. However,

this format introduces some new challenges, since

its encoder may use sample values of previous

frames to predict sample values of the current frame.

Since this encoder facility is optional, it was left to

be treated in a future work.

4 TIME SCALING IN SYSTEM

FLOWS

Some media formats can multiplex video, audio and

metadata in a unique flow called system stream.

System streams are usually composed by PACKETs,

each one containing one, several or part of an

elementary-stream frame.

System time-scale modifications are performed

by adjusting each elementary stream and

recalculating some metadata within the PACKET

header. System time-scaling algorithms usually

consist of the following steps:

1. Identify PACKETs from the original stream and

demultiplex the input stream into its elementary

streams;

2. Convert PACKETs into frames of the

corresponding elementary stream.

3. Execute elementary time-scaling algorithms.

4. Recreate system PACKETs using the processed

bits and multiplex them creating the new system

stream.

The algorithm proposed in Section 3 can be used

to adjust elementary audio streams. Another

algorithm should be used to process the video

stream. However, some changes must be made in the

audio time-scaling algorithm. First, time scaling on

elementary streams needs to cope with system and

elementary stream metadata, since some of the

metadata can be affected by the time-scaling

processing, such as clock timestamps, etc. Second,

time scaling on elementary streams must provide

information for adjustment control and inter-media

synchronism verification.

Since time-scaling algorithms do not necessarily

make linear adjustments, a synchronization

mismatch among elementary streams may occur and

must be detected by the intermedia synchronism

verification function. If the mismatch crosses a

specific upper bound

, the intermedia synchronism

verification function must call the services of the

adjustment control function to change the tuning-

factors of each individual media, in order to correct

the problem.

Figure 5 resumes the proposed time scaling for

system streams.

Figure 5: Time scaling for system streams.

Reference (Aly, 2002) discusses the audio and video

mismatch problem and states that the loss of quality

can only be perceived when adjustments cause a

synchronization mismatch higher than 160ms.

SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA

APPLICATIONS

114

The system time-scaling algorithm was

instantiated to MPEG-2 system program stream,

together with the audio time-scaling algorithm

described in Section 3 and the video time-scaling

algorithm proposed in (Cavendish, 2005). In this

instantiation, the metadata that must be considered

for updating are the timestamps PTS (Presentation

Time Stamp) and DTS (Decoding Time Stamp),

inserted in the elementary streams, and SCR

(System Clock Reference), in the system stream.

Also, it may be necessary to update the

PES_packet_length field in the PACKETs that had

their frames processed for elastic time adjustments.

5 AUDIO TIME-SCALING TOOL

The audio time-scaling tool was implemented using

the Java language. The time-scaling tool receives

requests from client applications (adjustment API).

The audio input can be retrieved (pull applications)

or received as a stream (push applications). The

adjusted stream can be stored in a file or returned to

the client application.

Time-scale modifications can be performed at

compile-time or during execution-time. Since these

approaches have different characteristics, one API

was developed for each one.

Table 1 describes the API to request compile-

time adjustments. The config method receives the

original audio content, a tuning-factor for each

specified audio section (set of samples), and the URI

of the output file.

The start and stop methods begin and stop the

time-scaling processing, respectively. The

addTimeScalingListener method allows client

applications to register themselves to be notified

when the time-scaling processing finishes.

After time scaling finishes, client applications

can use the getTimeScalingInstant method to

discover new time values for marked time intervals;

the getOutputTools method to get the output file

URI; and the getReport method to retrieve statistics

about time-scaling processing (such as number of

frames processed, processing time, etc).

Table 1: Compile-time adjustment API.

Method Description

config (originalMedia,

{tuningFactor,

audioSection},

outputFileURI)

Configures the time-scaling

tool.

start() Starts processing.

stop() Stops processing.

addTimeScalingListener

(observer)

Adds a new observer to the

time-scaling finish event.

getTimeScalingInstant

(timeInstant)

Gets the new time value

after adjustments for an

original time instant.

getOutputTools() Gets the output file URI.

getReport() Gets statistics about the

adjustment processing.

Table 2 describes the API for requesting time

scaling on the fly. The config method receives the

original audio, the tuning-factor, and, optionally, a

set of time intervals to track. The setFactor method

can be invoked during time-scaling processing to

modify the tuning-factor. If client applications want

to be warned when new values of marked time

intervals are found, they need to register themselves

as observers using addTimeScalingIntervalListener

method. The getOutputTools method must be called

by the client application to get the processed stream.

The other methods have the same meaning of their

compile-time counterparts.

Table 2: Execution-time adjustment API.

Method Description

config (originalMedia,

tuningFactor,

{timeInterval})

Configures the time-

scaling tool.

setFactor (tuningFactor) Modifies the tuning-factor.

start() Starts processing.

stop() Stops processing.

addTimeScalingInterval

Listener (observer)

Adds a new observer to

track new values of a

marked time interval.

getOutputTools() Gets the processed stream.

getReport() Gets statistics about

adjustment processing.

6 INTEGRATING

HYPERAUDIOSCALING WITH

A HYPERMEDIA FORMATTER

In order to illustrate the time-scaling package usage

in hypermedia document presentations, the

ON-THE-FLY TIME SCALING FOR COMPRESSED AUDIO STREAMS

115

HyperAudioScaling tool was integrated with the

HyperProp formatter (Bachelet, 2004).

When controlling document presentations, the

HyperProp may need to change media durations in

order to maintain the document temporal

consistency. The HyperProp formatter delegates to

media players the task of content rendering. To

enable incorporation of third-party content players,

HyperProp defines an API specifying the methods

that media players should implement and how media

players should notify presentation events (e.g. user

interaction, start/end of a content fragment

presentation, etc.). Media players that do not

implement the required methods, or do not know

how to signalize presentation events, should be

plugged to the formatter through adapters.

Based on this approach, the time-scaling package

implementation has been used to implement a set of

HyperProp time-scaling audio players, as shown in

Figure 6. Each audio player is composed by an

adapter, the time-scaling tool (Section 5), and a

legacy audio player. The adapter receives commands

from the HyperProp formatter, executes its tasks and

requests the services of the time-scaling tool. The

package returns the processed audio stream and

dispatches events like the conclusion of time-scaling

computation and the discovery of a new time instant.

The adapter sends the processed audio stream to the

legacy audio players. This legacy player exhibits the

processed audio and can dispatch presentation

events. These steps can take place both at compile or

execution-time.

Figure 6: Time-scaling player integrated with the

HyperProp formatter.

Two versions of audio presentation tools were

implemented using JMF (Java Media Framework)

(Sun, 1999). One version works only for compile-

time adjustments, using the file generation facility of

HyperAudioScaling. The time-scaling tool saves the

processed audio in a new file that may be sent to a

JMF player after the complete adjustment. To

support runtime time-scale modifications another

version of audio presentation tool was developed

extending the JMF data source. An instance of this

new class of data source receives data from the

stream returned by HyperAudioScaling and feeds

the JMF player for content playing. Since JMF

players run as threads of the client application

process, it is possible to monitor player events (like

user interactions, pause, resume, stop, finish, etc.).

One drawback of using JMF is that the set of

available codecs are still limited to a few audio

formats.

In order to play a wider variety of audio formats,

VLC (VideoLan, 2006) player was also integrated

with the audio time-scaling tool. Unlike JMF, VLC

runs as an external process fired from the client

application. As a consequence, it is difficult for the

adapter (Figure 6) to interact with VLC players, for

example, to monitor events like pause and resume

during the audio playing.

7 FINAL REMARKS

This paper discussed time-scaling issues considering

specific requirements found in some applications

that demand runtime elastic-time short adjustments,

in particular the hypermedia presentation systems.

From related work analysis, the authors could not

find any existing solution that fulfills all the raised

requirements.

The proposed time-scaling algorithm was

implemented as a library in order to be used by

third-party applications. Since, for the purpose of

this paper, time-scale modifications are used to

manage inter-media synchronization, it normally

runs on small stream segments and with a tuning-

factor close to 1, what usually brings imperceptible

effects to users.

Some subjective and objective simple tests have

been performed to measure the algorithm quality and

to compare it with the time-scaling algorithm of

Sound Forge 8.0. Sound Forge was chosen because

of its high quality obtained with the expenses of high

processing.

Four tuning factors were used to compare the

tools: 0.90, 0.95, 1.05 and 1.10. MP3 44.1 kHz files

were used with a compressed audio rate of 128kbps.

Ten listeners participated on the test analyzing five

audio types.

Subjective notes were assigned by comparing the

original file with a processed one. Figure 7 and

Figure 8 illustrate the notes obtained. In the pictures,

notes are given in MOS (Mean Opinion Score) units

(ITU-T, 1998). The audios processed by the

HyperAudioScaling algorithm and by the Sound

Forge best algorithm are marked, respectively, by

SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA

APPLICATIONS

116

“h” and “s”, followed by the used tuning factor (in

%).

Although, as expected, the audio quality of the

proposed algorithm is worse than the audio quality

of Sound Forge, the subjective results showed that

they are very close.

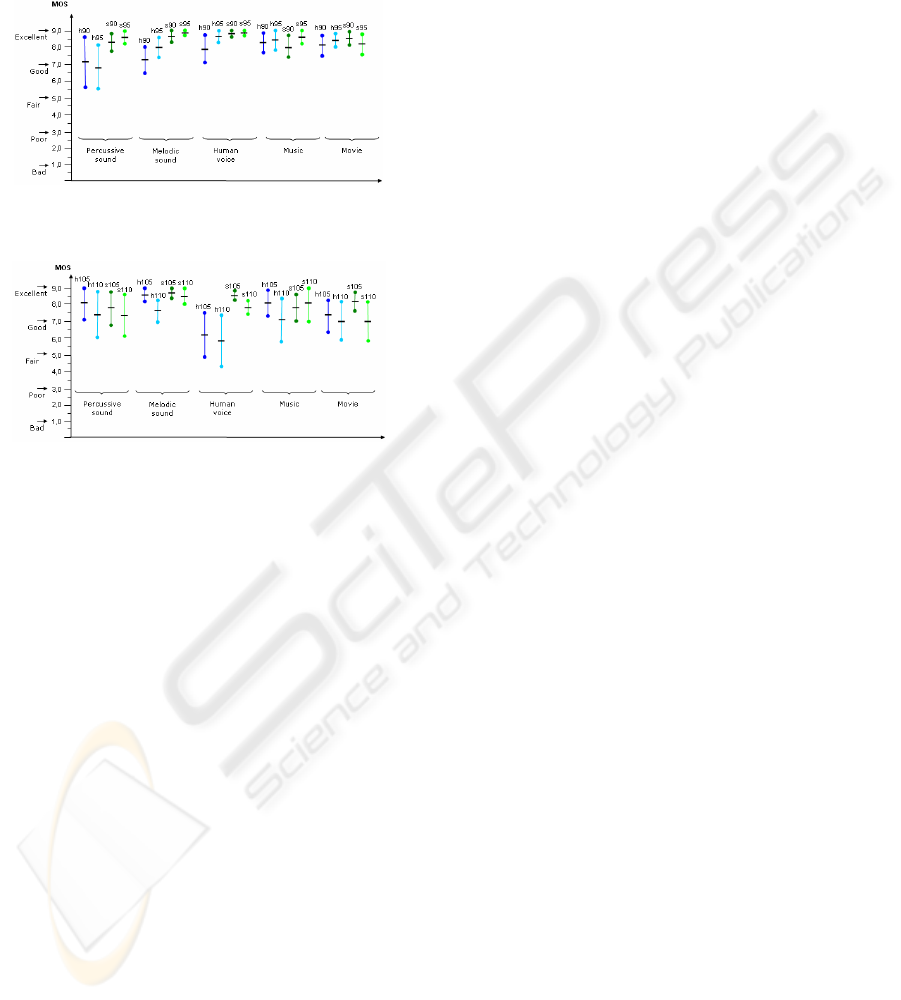

Figure 7: MOS for each media type using 0.90 and 0.95

tuning factors and confidence level of 95%.

Figure 8: MOS for each media type using 1.05 and 1.10

tuning factors and confidence level of 95%.

On the other hand, the processing rate for MP3

files was about 8-times faster than Sound Forge

(2640 frames/sec, using factor 1.1 in a Pentium 4

2.4GHz 1GB-RAM machine). The precision of the

proposed algorithm, the reached (actual) audio

duration minus the corresponding expected (ideal)

audio duration, was always better than, or equal to,

the Sound Forge precision for the five different

types of audio files. Furthermore, the same tests

demonstrated that the audio adjustment algorithm

runs almost uniformly along the stream. The worst

standard deviation was smaller than half of the

distance between two processed frames.

Some media files, processed using

HyperAudioScaling algorithm, are available in

http://www.telemidia.puc-rio.br/~smbm/ajusteaudio.

As future work, we intend to make tests considering

different compressed-audio bit rates and also

different audio compression standards.

REFERENCES

Aly, S., Youssef, A., 2002. Synchronization-Sensitive

Frame Estimation: Video Quality Enhancement. In

Multimedia Tools and Applications.

ATSC, 1995. Digital Audio Compression Standard (AC-

3).

Bachelet, B., Mahey, P., Rodrigues, R.F., Soares, L.F.G.,

2004. Elastic Time Computation in QoS-Driven

Hypermedia Presentations. Research Report RR-04-

16, Blaise-Pascal University, Clermont-Ferrand.

Bonada, J. 2002. Audio Time-Scale Modification in the

Context of Professional Post-Production. Doctoral

Pre-Thesis Work. UPF. Barcelona. Retrieved June 3,

2006, from

http://www.iua.upf.edu/mtg/publicacions.php?lng=eng

&aul=3&did=219.

Cavendish, S.A., 2005. Ferramenta de Adaptação de

Ajuste Elástico em Fluxos MPEG2. Master

Dissertation, Departamento de Informática – PUC-

Rio, Rio de Janeiro, Brazil. (in portuguese)

Covell, M., Slaney, M., Rothstein, A., 2001. FastMPEG:

Time-Scale Modification of Bit-Compressed Audio

Information. In Proceedings of the Int. Conference on

Acoustics. IEEE-ICASSP.

Gabor, D., 1946. Theory of Communication. In Journal of

Institution of Electrical Engineers.

ISO, 1993. Coding of Moving Pictures and Associated

Audio for Digital Storage Media at up to about 1.5

Mbit/s - Part 3: Audio, 11172-3.

ISO, 1997. Information technology - Generic coding of

moving pictures and associated audio information -

Part 7: Advanced Audio Coding (AAC), 13818-7.

ISO, 1998. Information technology - Generic coding of

moving pictures associated audio information - Part 3:

Audio, 13818-3.

ISO, 2000. Information technology - Generic coding of

moving pictures and associated audio information:

Systems, 13818-1.

ISO, 2001. Information technology - Coding of audio-

visual objects - Part 3: Audio, 14496-3.

ITU-T, 1998. Subjective audiovisual quality assessment

methods for multimedia applications, P.911.

Lee, E., Nakra, T.M., Borchers, J., 2004. You’re The

Conductor: a Realistic Interactive Conducting System

for Children. In Proc. of the NIME 2004 Int.

Conference on New Interfaces for Musical Expression,

Japan.

Microsoft. Windows Media Player. Retrieved March 20,

2006, from

http://www.microsoft.com/windows/windowsmedia/.

Nilsson, M. ID3v2. Retrieved March 20, 2006, from

http://www.id3.org/.

Omoigui, N., He L., Gupta, A., Grudin, J., Sanacki, E.,

1999. Time-Compression: Systems Concerns, Usage,

and Benefits. In Proc. of the SIGCHI Conference on

Human Factors in Computing Systems, USA.

Sony, 2006. The Sound Forge Product Family. Retrieved

March 20, 2006, from http://www.soundforge.com.

Sun. Java Media Framework v2.0 API Specification.

Retrieved March 20, 2006, from http://java.sun.com/.

VideoLan Project. VLC media player

. Retrieved March

20, 2006, from http://www.videolan.org/vlc/.

ON-THE-FLY TIME SCALING FOR COMPRESSED AUDIO STREAMS

117
