A TRANSCEIVER CONCEPT BASED ON A SOFTWARE

DEFINED RADIO APPROACH

Admir Burnic, Alex Vießmann, Tobias Scholand, Arjang Hessamian-Alinejad,

Guido H. Bruck and Peter Jung

Lehrstuhl für KommunikationsTechnik, Universität Duisburg-Essen, 47048 Duisburg, Germany

Keywords: Demonstrator, Digital Signal Processor (DSP), FALCON, Log-Likelihood Ratio (LLR), Reconfigurability,

Software Defined Radio (SDR).

Abstract: In this communication, a software defined radio (SDR) transceiver design, termed FALCON, will be

presented. The FALCON is entirely based on a modular signal processing concept; the FALCON receiver

uses modules which process and generate log-likelihood ratio (LLR) signals, hence, providing the

capability of a plug-and-play-type re-configurability. The authors’ view on re-configurability will be

discussed in this communication. The FALCON currently deploys commercial radio frequency (RF) front-

ends provided by Atmel, analogue and interface boards developed and implemented by the authors and DSP

Starter Kits (DSK) based on TI TMS320C6416 DSPs (digital signal processors), which have been provided

by Texas Instruments. The hardware/software integration has been done in the laboratory of the authors.

Furthermore, the authors developed all signal processing modules in C language tailored for the

TMS320C6416 DSPs. This paper will also illustrate measurement results obtained with the FALCON will

be given. For an easy comparison of these results with widely published simulation results the authors will

consider UMTS/W-CDMA. It will be shown that the FALCON provides a superb performance.

1 INTRODUCTION

Reconfigurability for transceivers for wireless

access networks like Bluetooth, WiMAX

(Worldwide Interoperability for Microwave Access)

and W-LANs will become increasingly important in

the forthcoming decade. Appropriately flexible and

reliable hardware/software architectures, allowing

the concurrent processing of different controlling

tasks for wireless terminals will hence be important

assets. The deployment of communication systems

strongly depends on the availability of appropriate

microelectronics. Therefore, the combined approach

to communication and microelectronic system

design is crucial (Grass et al., 2001). The coming

world of mobile communication will change

dramatically in the future. Wireless networks will

evolve their limited set of services to a great variety

of applications, and the today’s set of wireless

terminal types will expand considerably (Grass et

al., 2001), (Jondral, 2005). A single homogeneous

network like UMTS (Universal Mobile

Telecommunications System) will not provide such

versatile services alone. Only a heterogeneous

network consisting of wired and wireless networks

will form a catalyst for the evolution of such a

diverse mobile world. Future mobile radio

communication systems will hierarchically integrate

a broad variety of wireless networks into a common

structure encompassing e.g. WCDMA-based cellular

mobile systems, OFDM-based radio LANs like

IEEE 802.11a/b, and inexpensive personal-area

networks like Bluetooth. It is recommendable to

establish software defined radio (SDR) and

cognitive radio (CR) concepts in wireless

transceivers.

Reconfigurability in radio development is not a

very new technique (Jondral, 2005). Already during

the 1980s reconfigurable receivers were developed

for radio intelligence in the short wave range.

However, reconfigurability became familiar to many

radio developers with the publication of the special

issues on software radios of the IEEE

Burnic A., Vießmann A., Scholand T., Hessamian-Alinejad A., H. Bruck G. and Jung P. (2006).

A TRANSCEIVER CONCEPT BASED ON A SOFTWARE DEFINED RADIO APPROACH.

In Proceedings of the International Conference on Wireless Information Networks and Systems, pages 26-33

 SciTePress

Communication Magazine (Special Issue on

Software Radio, vol. 33, 1995), (Special Issue on

globalization of software radio, vol. 37, 1999).

In (Jondral, 2005) the author refers to a

transceiver as a software radio (SR), if its

communication functions are realized as programs

running on a suitable processor. An ideal SR

directly samples the antenna output which does not

seem feasible w.r.t. e.g power consumption and

linearity as well as resolution requirements on

analog-to-digital converters (ADCs). A software

defined radio (SDR), however, is a practical and

realizable version of an SR: The received signals are

sampled after a suitable band selection filter, usually

in the base band or a low intermediate frequency

band (Jondral, 2005).

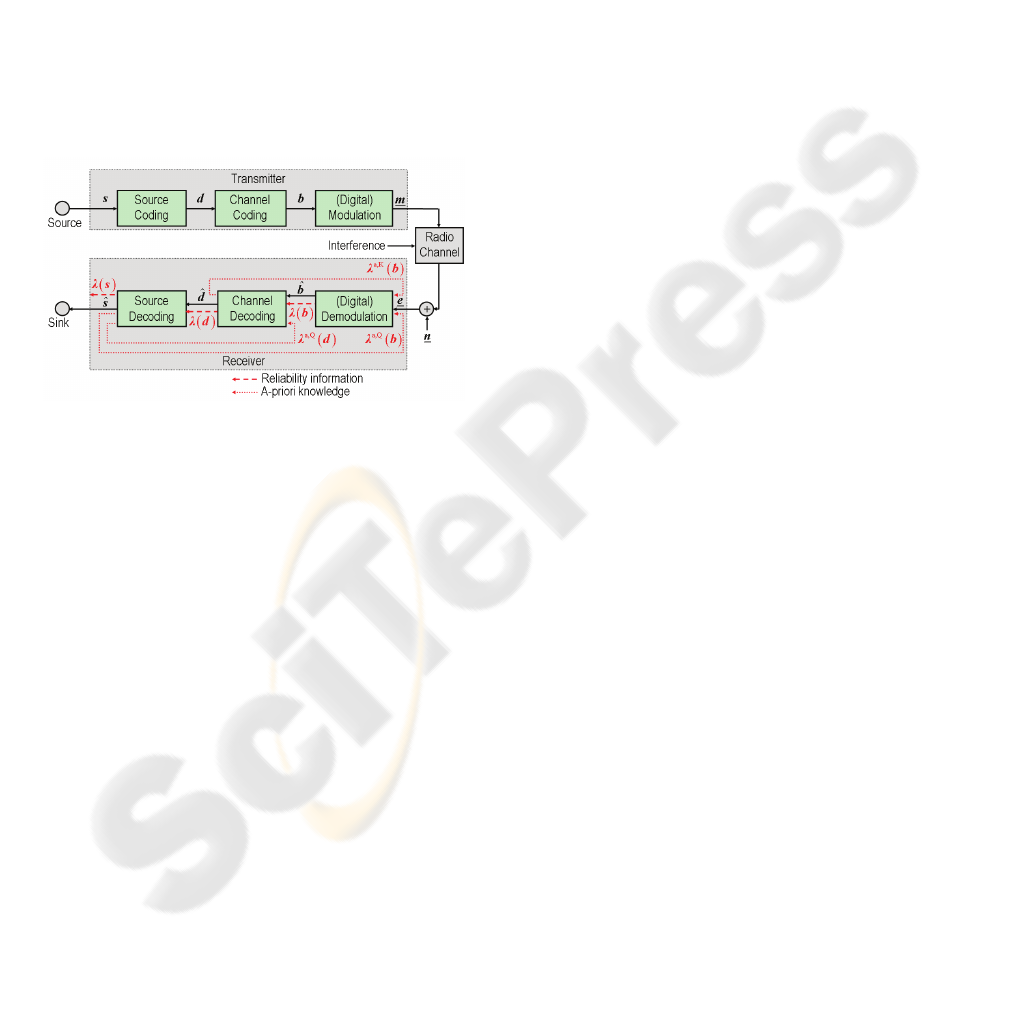

Figure 1: Basic discrete-time structure of a digital radio

communications system with a modular iterative receiver,

cf. (Faber, 2005), Fig. 1.4, p. 11.

In many available publications such as e.g.

(Srikanteswara et al., 2000), (Glossner et al., 2003),

more or less inflexible implementation platforms or

hardware oriented processing architectures for the

control unit have been discussed rather than the

software architecture and real-time operation of

reliable reconfiguration. In (Drew et al., 2001),

(Hoffmeyer et al., 2004) the basic idea of

reconfiguration in a wireless environment was

addressed. However, the authors discussed

procedures which are relevant to the network and

the negotiation process for the updating. The

hardware/software architecture and processing

schemes inside terminals has not yet been

considered in detail.

In order to obtain a flexible radio terminal, the

modular receiver design is a viable asset. In

particular, the physical layer (PHY) modules require

inputs and outputs which facilitate a plug-and-play-

type deployment. Devising PHY receiver modules

which accept, process and generate log-likelihood

ratios (LLRs) is a desirable approach because of the

potential to implement optimum or near-optimum

receiver strategies.

The concept of LLRs in receivers has been

introduced in text-books already in the early 1970s,

cf. e.g. Sect. 5.2, pp. 126ff. of (Whalen, 1971). It

has been applied to e.g. demodulators, see e.g.

(Whalen, 1971), (Chui, 2005), channel decoders, cf.

e.g. (Hagenauer et al., 1994), and joint source-

channel decoding (JSCD), see e.g. (Hagenauer,

1995), (Jung, 1997). However, the aforementioned

publications do not consider implementation issues

in an SDR context. Publications like (Grass et al.,

2001), (Jondral, 2005), (Srikanteswara et al., 2000),

(Glossner et al., 2003), (Drew et al., 2001),

(Hoffmeyer et al., 2004), focusing on SDRs, have

not yet dealt with LLR based receiver realizations.

Such receiver realizations are seldom and usually

consider only parts of the receiver, often the channel

decoder, cf. e.g. (Montorsi et al., 2001), (Faber et

al., 2004)).

The manuscript is organized as follows. The

transmitter and receiver concepts deployed by the

authors shall be briefly described in Sect. 2. The

authors shall discuss their approach to the

reconfiguarbility in Sect. 3. The FALCON setup

implemented by the authors shall be discussed in

Sect. 4. The measurement results obtained with the

FALCON will be summarized in Sect. 5. Sect. 6

concludes the manuscript.

In what follows, the matrix-vector notation is

used. Matrices are denoted as upper case characters

in bold face italics, vectors are lower case characters

in bold face italics. Furthermore, complex-valued

variables are underlined.

2 LLR BASED RECEIVER

CONCEPT

To the best knowledge of the authors, a complete

view on LLR based receiver design and realization

including iterative detection has first been given in

(Faber, 2005), cf. e.g. Sect. 1.2, pp. 9ff. The basic

discrete-time structure of a digital radio

communications system with a modular iterative

receiver is depicted in figure 1 in the case of a single

transmitter and a single receiver and baseband

modeling, cf. (Faber, 2005), Fig. 1.4, p. 11. Other

signal sources are considered as interference. The

source generates the information signal to be

transmitted.

In figure 1, we assume a digital source signal,

represented by the vector

s . The transmitter

A TRANSCEIVER CONCEPT BASED ON A SOFTWARE DEFINED RADIO APPROACH

consists of a source encoder, a channel encoder and

a modulator. The source encoder encodes

s and

outputs the binary data vector

which is the basis

for the channel coding, generating the binary

channel encoded vector

b . The channel encoder can

e.g. be a turbo-code encoder as it is the case in many

UMTS (universal mobile telecommunications

system) services. The modulator puts out the

complex modulated signal

m , the underline

denoting a complex baseband signal which is then

transmitted via the radio channel.

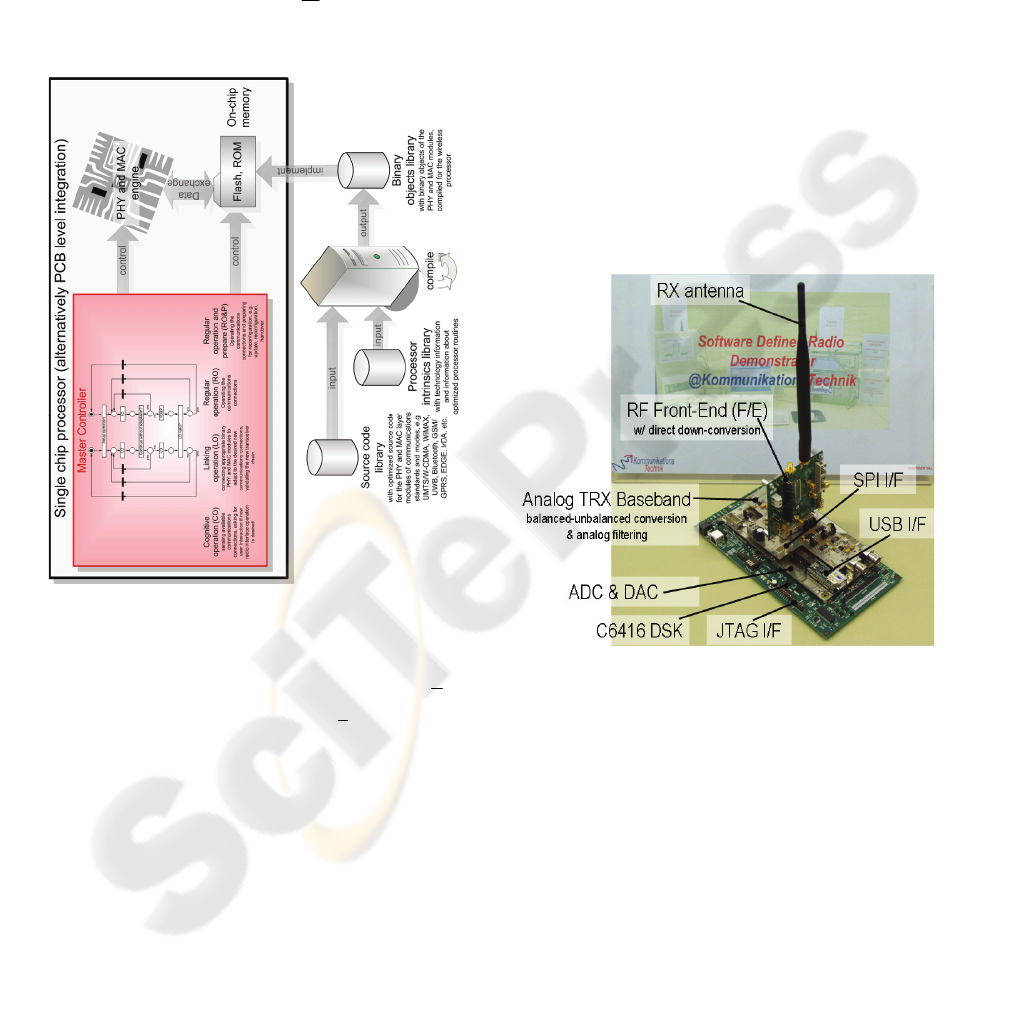

Figure 2: Concept of the Master Controller for reliable

reconfiguration of CRs.

At the input of the receiver, the noise vector

added, forming the received vector

e . The receiver

inverts the transmitter operations and it therefore

consists of a demodulator, a channel decoder and a

source decoder. The receiver can be operated in a

feed-forward manner as it was e.g. used in

(Montorsi et al., 2001) in the case of a simple single-

path AWGN (additive white Gaussian noise)

channel without any fading. In this case, the

demodulator generates the detected version



b of b ,

together with corresponding exact or approximate

LLR values contained in the reliability information

vector

()

λ b , both being processed by the channel

decoder. The channel decoder puts out the detected

data vector



and the reliability information vector

(

)

λ d which consists of the corresponding exact or

approximate LLR values. Then, the source decoder

delivers the detected source vector



to the sink.

Also, the source decoder can put out the reliability

information vector

(

)

λ s with the LLR values of s ,

which are not further needed in the further

description.

The shown receiver can also be used in an

iterative mode of operation when the channel

decoder generates the a-priori knowledge estimate

vector

(

)

a,K

λ b which can be used in the

demodulation process. Also, the source decoder can

be devised to produce a-priori knowledge estimate

vectors

(

)

a,Q

λ b and

(

)

a,Q

λ d as further inputs of

the demodulator and of the channel decoder,

respectively.

Figure 3: FALCON transceiver.

In what follows, we will illustrate which PHY

modules of the UMTS terrestrial radio access

(UTRA) FDD (frequency domain duplex) mode W-

CDMA (wideband code division multiple access)

correspond to the channel coding/decoding and the

modulation/demodulation components of the

structure shown in figure 1. The channel coding

component shown in figure 1 consists of the CRC

(cyclic redundancy check) generation, the Turbo

Code encoding with the rate matching, the first

interleaving, the radio frame and the physical

channel segmentation and the second interleaving.

The modulation component contains the pilot

generation, the frame and the slot assembling, the

WINSYS 2006 - INTERNATIONAL CONFERENCE ON WIRELESS INFORMATION NETWORKS AND SYSTEMS

serial-to-parallel conversion, the channelization code

generation, the OVSF (orthogonal variable

spreading factor) spreading, the scrambling code

generation and allocation, the complex scrambling,

the primary and secondary synchronization channel

generation, the signal amplification and the signal

summation, the root raised cosine (RRC) filtering,

and the analog transmission section including the RF

(radio frequency) transmit part.

The demodulation component of figure 1 contains

the RF receive part, the RRC filtering, the adaptive

RAKE receiver consisting of a searcher exploiting

the synchronization channels for frame and slot

synchronization as well as channel parameters

identification and RAKE finger allocation, a

variable number of adaptive RAKE fingers

including the channel parameter tracking, the de-

scrambling and the de-spreading, a maximal-ratio

combining (MRC) unit including a signal-to-noise-

and-interference ratio (SNIR) estimation unit, a

parallel-to-serial conversion unit and an LLR

computation unit, and, finally, the frame and the slot

disassembling. The channel decoding component

shown in figure 1 consists of the second de-

interleaving, the radio frame and the physical

channel de-segmentation, the first de-interleaving,

the Turbo Code decoding with the rate de-matching,

and the CRC (cyclic redundancy check) decoding.

Similarly, the mapping of OFDM (orthogonal

frequency division multiplexing) based concepts like

WiMAX IEEE 802.16e can be done.

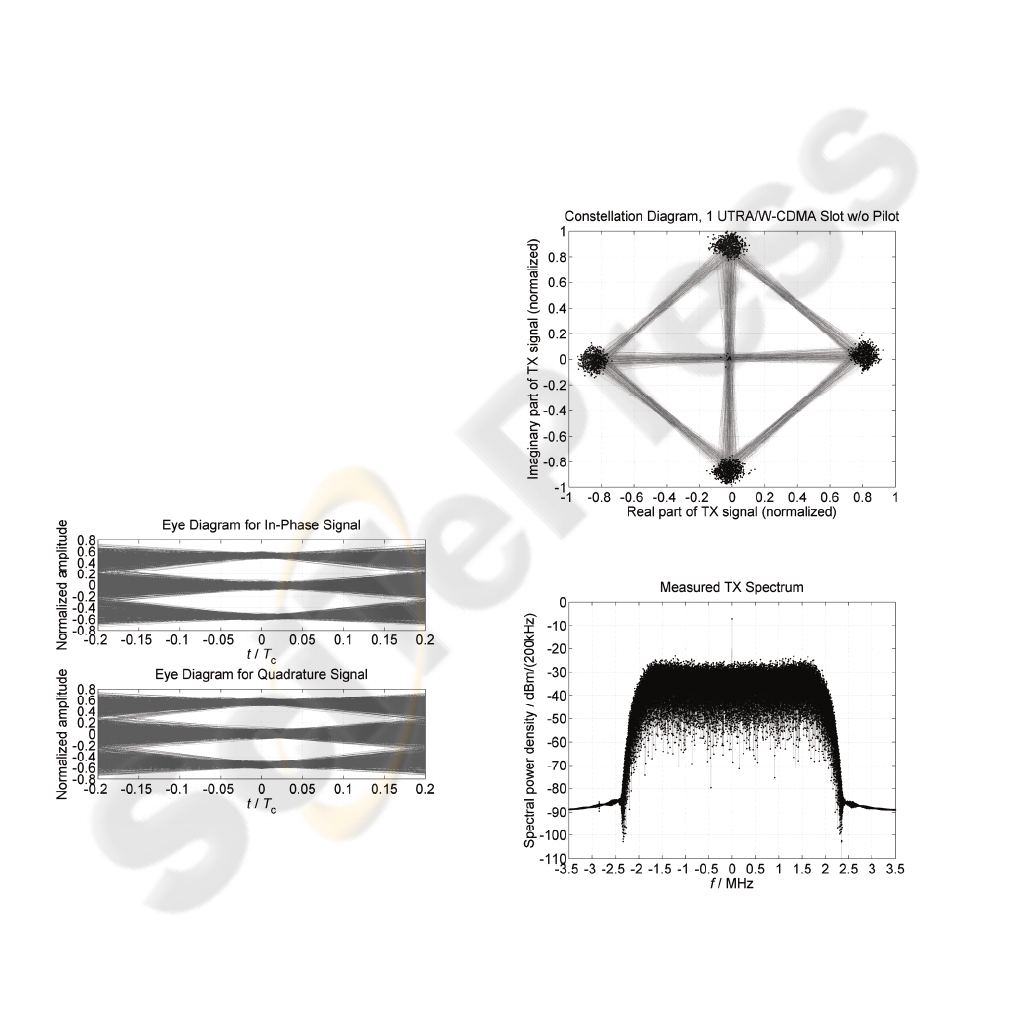

Figure 4: Eye diagrams of the in-phase and quadrature

signals at the input of the radio frequency (RF) board.

3 APPROACH TO THE

RECONFIGURABILITY

In order to achieve a best possible reconfigurability,

the deployment of software definable hardware is

beneficial. In particular, the deployment of digital

signal processors (DSPs) in combination with

dedicated mixed signal hardware which can be

parameterized. In this case the reconfiguration of the

transmitter can be easily accomplished by

implementing e.g. the appropriate PHY signal

processing algorithms mainly in software, allowing

a highly flexible and reliable software architecture

based strategy. This approach has been taken by the

authors and shall be further described in the sequel

of this communication.

Figure 5: Measured transmit constellation diagram.

Figure 6: Measured transmit spectrum.

The transmitter can be reconfigured by using

known programming techniques, by using encoder

A TRANSCEIVER CONCEPT BASED ON A SOFTWARE DEFINED RADIO APPROACH

and modulator software modules which can be

parameterized in the anticipated ranges. This has

been a standard strategy which will not be further

considered here.

However, the use of LLR based reliability

information in the receiver seems to be a novel idea;

in particular in combination with iterative receiver

strategies. LLR based reliability information makes

a further re-scaling of soft values unnecessary. This

fact facilitates a particularly simple reconfiguration

of the receiver. When using this approach, single

hardware/software modules can be replaced without

affecting other modules, making the solution “plug-

and-play”.

In a future version of the FALCON, currently

under development, the authors will further improve

the reconfigurability by deploying an additional

ARM controller which will run concurrent

controlling tasks including the reconfiguration

mode. The software architecture has been devised

using Petri nets (PNs) (Murata, 1989), (Reisig,

1985) and paves the way towards cognitive radio

(CR) (Jondral, 2005) concepts.

Figure 7: Measured error vector magnitude values at the

transmitter output.

The way of reconfiguration of a terminal, in

particular, the realization of a processor with master

controller and a Petri net based approach, which

allows concurrent mode of operation and high

reliability and secure applications, has not yet been

treated. The new approach proposed by the authors

consists of a Master Controller, which is responsible

for a reliable reconfiguration. In addition, there has

to be a unit, which can communicate with the

network, a PHY and MAC (medium access control

layer) engine. This PHY and MAC engine needs

software modules with signal processing algorithms

for the data processing path. The third part is a

memory, which contains these software modules.

The Master Controller starts a cognitive operation in

order to obtain the best reconfiguration and software

modules needed for the SDR. The reconfiguration

then consists in the linking of software modules,

found in the memory, and installing them into the

SDR to use the software modules in the regular

signal processing chain.

Figure 2 shows the described concept of the

Master Controller for reliable reconfiguration of

CRs. The Master Controller works with the

mentioned PN based software architecture. It needs

a scalable control program which can e.g. be created

by using e.g. Petri net compilers. As already

mentioned, the implementation and validation of the

Master Controller based concept on a PCB level

integration will be done in the FALCON. In real

terminals, an implementation in a single chip

processor is conceivable.

4 THE FALCON SETUP

The FALCON currently consists of two identical

transceivers (TRXs). Figure 3 shows a photograph

of one of these TRXs. Each TRX consists of an RF

front-end board with a single direct-downconversion

RF chip, provided by Atmel, an analog TRX

baseband board with filtering and signal conversion

parts and a SPI (werial peripheral interconnection)

interface for the DSP based programming of the RF

chip, the mixed signal board carrying the ADC

(analog-to-digital converter) and DAC (digital-to-

analog converter) hardware, a USB (universal serial

bus) interface board for the transfer of the

information to the transmitter and of the detected

information to the sink, and a TMS320C6416 DSP

Starter Kit (DSK), provided by Texas Instruments,

with a JTAG (joint test action group) interface for

controlling and programming purposes. The RF

front-end boards can provide transmit power values

ranging from

26 dBm

−

to 14 dBm− without

further power amplification and they have separate

transmit and receive antenna connectors; in Figure

3, only the receive antenna is connected. The

hardware/software integration has been done in the

laboratory of the authors as well as the development

of all the signal processing modules, which have

been realized in C language tailored for the

TMS320C6416 DSPs (digital signal processors).

WINSYS 2006 - INTERNATIONAL CONFERENCE ON WIRELESS INFORMATION NETWORKS AND SYSTEMS

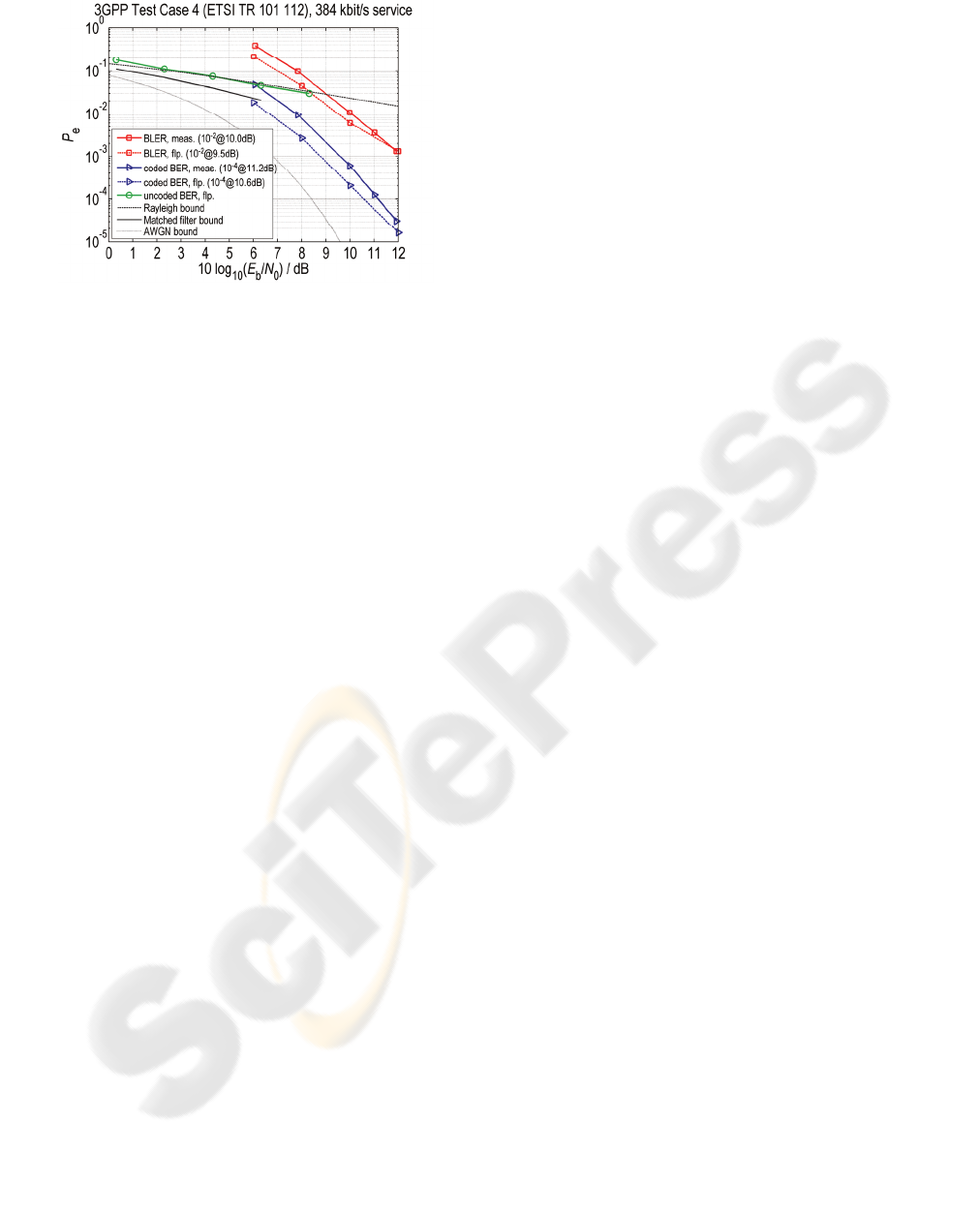

Figure 8: Comparison of performance measurements and

simulation results in the case of the 3GPP Test Case 4

channel model described in ETSI TR 101 112 in the case

of the 384 kbit/s service.

The FALCON has been intended to address mid-

range terminals and access points, in particular for

cellular systems. Its functionality has bee validated

for the UTRA/W-CDMA and OFDM based

concepts like WiMAX IEEE 802.16e in indoor and

laboratory environments with short delay spreads.

The FALCON e.g. provides programmable digital

filtering, automatic frequency correction (AFC) and

adaptive synchronization schemes which

compensate impairments occurring in the analog

domain. Measurements of the signal processing

effort in MIPS (million instructions per second)

have validated the real-time capability of the

FALCON, both software and data fit into the DSP

internal memories. In the case of indoor

environments, a single RAKE finger is sufficient to

provide the desired UTRA FDD performance. In the

case of the UTRA FDD 384 kbit/s service and a 720

MHz version of the TMS320C6416 DSP, the

software implementation used by the authors

consumes approx. 5.7 million processor cycles, the

de-interleaving, rate de-matching and signal

representation conversions require approx. 0.6

million processor cycles, totaling in a DSP load of

about 96%. The remaining DSP capability is

sufficient to accommodate the rest of the receive and

the transmit signal processing.

5 MEASUREMENT RESULTS

In this section, several measurement results obtained

with the FALCON for the UTRA FDD 384 kbit/s

service will be presented. First measurement results

of transmit front-end characteristics will be

considered. Figure 4 shows the eye diagrams of the

in-phase and quadrature signals at the baseband

input of the RF front-end chip and Figure 5 presents

the corresponding constellation diagram. In both

cases, now pilot transmission has been considered

which is the reason for the occurrence of amplitude

values around 0.

The measured transmit spectrum at the input of

the transmit antenna is depicted in figure 6 in the

case of

20 dBm

−

transmit power and the measured

values of the error vector magnitude (EVM) at the

input of the transmit antenna versus the transmit

power is shown in figure 7. The spectrum of figure 6

shows a nice agreement with the spectral mask

required by the UMTS standard, the effect of the

RRC filtering can be clearly observed. According to

figure 7, the EVM is ranges between 7% and 8% for

transmit power values between

26 dBm−

17 dBm

−

. Only in the case of high transmit power

values above

17 dBm

−

, the EVM increases to

approximately 10.5%. In all cases the EVM is well

below the maximum allowed EVM of 17.5%,

specified in the UMTS standard.

Figure 8 shows obtained simulation and

measurement results in the case of the UTRA FDD

384 kbit/s service in the case of the transmission

over the 3GPP Test Case 4 channel model which has

been implemented in a channel simulator. The

simulations were carried out with a floating point

implementation of the signal processing algorithms

done in C language. The measurements have been

done with the digital implementation of the

FALCON, the mixed signal and RF parts have not

been considered.

The simulator determines the matched filter BER

bound, which is the best possible performance in the

case of the transmission of isolated bits over the

channel and perfect knowledge of the channel at the

receiver, together with the uncoded BER which can

be obtained when considering the UTRA FDD 384

kbit/s service. The latter is of course worse than the

matched filter bound. Furthermore, the simulator

puts out the BER and the BLER (block error ratio)

at the output of the Turbo-Code decoder. For

reference purposes, we will consider the coded BER

−

and the coded BLER

−

, the latter meaning

that 99% of all transmitted blocks have been

received correctly, i.e. the throughput is equal to

99%. In the case of the 3GPP Test Case 4 channel,

we require

10.6 dB

≈

to achieve the coded BER

−

and 9.5 dB

≈

to obtain the coded BLER

−

. The fixed point implementation in the

A TRANSCEIVER CONCEPT BASED ON A SOFTWARE DEFINED RADIO APPROACH

FALCON leads to a small degradation of

approximately

0.5 dB , and we yield 11.2 dB≈ to

achieve the coded BER

−

and 10.0 dB≈ to

obtain the coded BLER

−

In figure 8, the theoretical performance bounds of

the BER (bit error ratio) are depicted as a function

of the required signal-to-noise ratio

()

10 b 0

10log

N for the single path no fading

(“AWGN bound”) case,

⎛⎞

⎜⎟

⎝⎠

, (1)

()

Q ⋅ being the Q function, and the single path full

fading (“Rayleigh bound”) case,

⎛⎞

=−

⎜⎟

⎝⎠

(2)

being the average energy per bit, are depicted

for reference purposes.

In general, we find that the simulated and the

measures performance agree very well.

Measurements of receive front-end characteristics,

such as e.g. the intermodulation distortion (IMD)

and, correspondingly, the effective number of bits

(ENOB), are currently ongoing. Also, measurements

of the BERs and BLERs in the case of the operation

over the air, i.e. including the effects of the mixed

signal and RF parts of the FALCON, are currently

being done. The same accounts for the WiMAX

transceiver operation.

6 CONCLUSIONS

In this communication, the authors presented the

FALCON concept, entirely based on modular signal

processing. The authors showed that the FALCON

receiver deploys modules which process and

generate LLR based reliability information which

plays a key role when targeting reconfigurable

hardware. Furthermore, the authors discussed a

novel concept for the reconfigurability of

transceivers which supports the way towards

cognitive radios.

The FALCON currently deploys commercial

radio frequency (RF) and DSP boards. Furthermore,

it uses mixed signal and interface boards

implemented by the authors. Also, the software

development and the system integration, both

hardware and software, has been done by the

authors.

Finally, the authors presented selected

measurement results obtained in the case of the

UTRA FDD 384 kbit/s service. Further

measurements are currently ongoing. It was shown

that the FALCON provides a desirably performance

and therefore proves that the concept of the

FALCON is viable.

ACKNOWLEDGEMENTS

The authors wish to thank Atmel and Texas

Instruments for their generous support. Furthermore,

the authors are grateful to their colleagues for

valuable support.

REFERENCES

Grass, E.; Tittelbach-Helmrich, K.; Jagdhold, U.; Troya,

A.; Lippert, G.; Kruger, O.; Lehmann, J.; Maharatna,

K.; Dombrowski, K.F.; Fiebig, N.; Kraemer, R.;

Mahonen, P.: On the single-chip implementation of a

hiperlan/2 and IEEE 802.11a capable modem. IEEE

Personal Communications, vol. 8 (2001) no. 6, pp. 48-

57.

Jondral, F.K.: Software-defined radio – basics and

evolution to cognitive radio. EURASIP Journal on

Wireless Communications and Networking, vol. 3

(2005), pp. 275-283, including all references.

Special Issue on software radio. IEEE Communications

Magazine, vol. 33 (1995), no. 5.

Special Issue on globalization of software radio. IEEE

Communications Magazine, vol. 37 (1999), no. 2.

Srikanteswara, S.; Reed, J.H.; Athanas, P.; Boyle, R.: A

soft radio architecture for reconfigurable platforms.

IEEE Communications Magazine, vol. 38 (2000), no.

2, pp. 140–147.

Glossner, J.; Iancu, D.; Lu, J.; Hokenek, E.; Moudgill, M.:

A software-defined communications baseband design.

IEEE Communications Magazine, vol. 41 (2003), no.

1, pp. 120–128.

Drew, N.J.; Dillinger, M.M.: Evolution toward

reconfigurable user equipment. IEEE Communications

Magazine, vol. 39 (2001), no. 2, pp. 158–164.

Hoffmeyer, J.; Park, I.-P.; Majmundar, M.; Blust, S.:

Radio software download for commercial wireless

reconfigurable devices. IEEE Radio Communications

(March 2004), pp. S26–S32.

Whalen, A.D.: Detection of signals in noise. San Diego:

Academic Press, 1971.

Chiu, M.-C.: A low-complexity SISO multiuser detector

for iterative decoding of asynchronous CDMA

systems with convolutional codes. IEEE Transactions

on Vehicular Technology, vol. 54 (2005), pp. 516-524.

WINSYS 2006 - INTERNATIONAL CONFERENCE ON WIRELESS INFORMATION NETWORKS AND SYSTEMS

Hagenauer, J.; Robertson, P.; Papke, L.: Iterative ('Turbo')

decoding of systematic convolutional codes with the

MAP and SOVA algorithms. Proceedings of the ITG-

Conference on Source and Channel Coding (SCC'94),

München, pp. 164-172, 1994.

Hagenauer, J.: Source-controlled channel decoding. IEEE

Transactions on Communications, vol. 43 (1995), pp.

2449–2457.

Jung, P.: Analyse und Entwurf digitaler Mobilfunksysteme.

Stuttgart: B.G. Teubner, 1997.

Montorsi, G.; Benedetto, S.: Design of fixed-point

iterative decoders for concatenated codes with

interleavers. IEEE Journal on Selected Areas in

Communications, vol. 19 (2001), pp. 871-882.

Faber, T.; Jung, P.: Digital signal processing complexity

of Turbo-Codes for UMTS on the TMS320C6416.

Proceedings of the IEEE International Conference on

Computers and Devices for Communication

(CODEC’2004), Kalkota/India, January 2004.

Faber, T.: Turbo-Empfänger für digitale

Mobilfunksysteme, gezeigt am Beispiel eines

“Software Defined Radio”-Demonstrators. Series

„Selected Topics in Communications Technologies,“

(edited by Prof. Dr.-Ing. habil. Peter Jung), Aachen:

Shaker, 2005.

Murata, T.: Petri nets: Properties, analysis and

applications. Proceedings of the IEEE, vol. 77 (1989)

no. 4, pp. 541–580.

Reisig, W.: Petri nets: An introduction. Berlin: Springer,

1985.

A TRANSCEIVER CONCEPT BASED ON A SOFTWARE DEFINED RADIO APPROACH
