ONTHEWAY: A PREDICTION SYSTEM FOR SPATIAL

LOCATIONS

Juan Antonio Álvarez

, Juan Antonio Ortega

Departamento de Lenguajes y Sistemas Informáticos,University of Seville, Av. Reina Mercedes s/n. 41012 Sevilla, Spain.

Luis González

, Francisco Velasco

, Francisco Javier Cuberos

Departamento de Economía Aplicada I, University of Seville. Ramón y Cajal 1. 41018 Sevilla, Spain.

Departamento de Planificación. Radio Televisión de Andalucía. José Gálvez s/n. 41092 Sevilla, Spain

Keywords: Ubiquitous Computing, context-awareness, location-enhanced.

Abstract: In ubiquitous computing we need to know the present context in order to interact properly with the nearby

smart elements. When we are moving outdoors, mobile devices take a very important role because they

provide us with a link between the world outside and ourselves through means of intelligent interfaces.

There are a lot of situations in which it would be very useful to know or foresee the future context, i.e. as a

geographic environment, where we could find ourselves in a near future, and at the same time being able to

use that information from our devices. Therefore we must preview this location with enough precision and

time and be able to use this information from our mobile device. In our “OnTheWay” system, we used GPS

technology and databases made of past paths taken by a person, in order to predict the next location, once

we had begun a new course, comparing the new one with those ones stored. The results were amazing: from

the data collected about paths travelled during a month and five days, we got the actual destination in 98%

of cases, when we have only made a 30,35% of the total path. Therefore, including statistic and semantic

information will allow us to upgrade our results, due to the sedentary human behaviour, the small number of

frequently visited locations and the fact that the paths used to arrive to these locations are usually the same.

1 INTRODUCTION

The information provided by indoor or outdoors

positioning systems is very valuable; however it is

not fully exploited. The most spread applications

only provide accurate positioning in time and space

of the object or person we would like to locate on

earth. Some programs offer geocoded services that

allow looking for buildings, roads or even taxis.

Nowadays, research works are oriented towards

technical aspects, like the improvement of features

of performance (i.e. acquisition times, positioning

accuracy) or the reduction of energy consumed by

receptors. The Federal Communication Committee

and the European recommendation E112 have made

these researches to grow a lot allowing the wireless

providers to locate accurately within a dozens of

meters, users who make emergency calls

E911/E112. However the applications using this

information are in an early stage of development.

Obtaining semantic information from wild life is

being used incipiently with new applications, as in

some works about tracking animals’ lives, but there

are several problems, like privacy or intimacy when

research is focused on human life. However, these

difficulties should be a technical challenge and not a

handicap. Novel ideas must be planned and the use

of positioning should become an instrument, not a

problem.

This article explains our efforts to predict the

future location of people. The work is based on their

routine activities. We can realise that the principle of

locality or locality of reference in computer science

is valid for the human behaviour. In the most

developed societies, life is lived in a sedentary and

comfort ambient with moves that follow a pattern.

Displacements are usually done to known places like

298

Antonio

Alvarez J., Antonio Ortega J., Gonz

alez L., Velasco F. and Javier Cuberos F. (2006).

ONTHEWAY: A PREDICTION SYSTEM FOR SPATIAL LOCATIONS.

In Proceedings of the International Conference on Wireless Information Networks and Systems, pages 298-303

 SciTePress

our house, work office, the house of our family,

favourite cinema or the fashionable shopping centre.

These facts are repeated periodically and to get to

our final destination we use different means of

transport. The autonomous recognition of the

destinies we go to, without the interaction of people,

will open our minds to new applications with which

we will know the present context and the future

context.

The known places and the ritual behaviour will

be considered facts and our work will focus on

frequently taken paths. The OnTheWay system will

obtain an accurate and will foretell or foresee the

place where we are going, knowing several points

frequently visited and using the history of the paths

taken by a person.

Possible scenarios and current work about

localisation and mobile data management are

explained in the next sections. In the development

point we will describe the methodology used, called

OnTheWay, the problems reported and the solutions

created to avoid them. Once analysed the features of

the system and the obtained results, we will illustrate

the future context with some scenarios. Finally,

conclusions and future work will be explained.

2 POSSIBLE SCENARIOS

To illustrate the power of OnTheWay system,

possible scenarios will be shown where the

prediction of destinations is helpful.

Tourist information: Saving the frequent

tourist’s journeys, the optimisation of new visits

could be possible: Information about the best path,

the fastest transport to use or the timetable of

museums where the tourist wants to go could be

notified when the destination has been predicted.

Providing the same help to civil service could be

helpful for citizens.

Future interest zones: Predicting that our

destination is the place C, our system could track the

buildings associated to our to-do-list. It could give

us notice of the routes to reach marketplaces,

chemist’s or civil service buildings before going to

Prediction of traffic jams: If the probable

destination of a set of motorists is actually the same

and their paths pass by the same point, then

calculating the number of cars that can pass in an

hour, the OnTheWay system applied to all the GPS

of these cars could obtain a prediction of traffic jams

and notice the drivers other possible paths to avoid

them.

Meetings prediction: A knowledge network

could provide the share of information of relatives or

friends tracking routes. Analyzing this information

the probable places where some of the members of

the community could meet will be possible.

Management of alerts: The possibility to track

person movements can be very useful (e.g. in the

case of Alzheimer or Schizophrenic) when someone

gets lost in an external environment. It is possible to

track and compare usual routes with current ones

and decide to send an alarm before the situation

might put the person in risky situations.

3 RELATED WORK

Research about enhanced localisation is until now

focused to identify frequently visited places. In

(Ashbrook and Starner, 2003), (Hightower, 2005),

(Kang, 2004) and (Marmasse, 2000) authors

describe methods based in different technologies

(GPS, GSM, WiFi) to obtain algorithms that

recognise a reached place during the second and

successive arrivals. The object of these works is to

make easy the use of context in ubiquitous

computing. If we know where we are and what

smart devices surround us, we could interact with

the environment.

The prediction of possible destinations is made

when the person begins a new journey. Moreover the

possibility to foretell in advance and accurately the

places he goes are in-depth approached.

In our research we have assumed the work of

detecting the frequently visited places labelling them

in a map through its coordinates and a textual

representation of the place like we know it, i.e. we

are familiar with the term “home”, but we don’t

know that it corresponds to the coordinates

37°22'55.98"N, 5°58'14.20"W.

On the other hand, when tracking wild animal

life projects like (POST project, 2002), (Pei Zhang,

2004), (VAFALCONS, 2002) and (Puma Project,

2004) positioning technology to store the journeys

and extract information about animal behaviour is

used. Concretely in ZebraNet project (Pei Zhang,

2004), unknown information until now has been

obtained. Biologists know now that zebras explore

more wooded areas and gullies at night.

Although it is not intended to track human life, it

is obvious that their way of moving allow the

creation of interesting and useful applications which

could manage future situations obtained from

predicted contexts.

ONTHEWAY: A PREDICTION SYSTEM FOR SPATIAL LOCATIONS

299

Another important issue in this kind of

applications is the mobile data management. In

(Waluyo 2005), (Kayan, Ulusoy, 1999) and (Perich

2004), location-dependent information services,

real-time data access requirements and new data

management challenges are analysed.

4 DEVELOPMENT

Firstly, scope and used terms will be defined; next

the used methodology there will be described.

4.1 Scope of the Problem

OnTheWay proposal is based on the similarity of

journeys to foretell the place where we are going

when we begin a new path. This problem depends

on the spatial dimension of the course so temporal

dimension will be put away because it will increase

the difficulty of our problem (e.g. a journey by car

compared temporally to the same path by bicycle

will be temporally very different). Elected option for

avoid this, was a sampling used to acquire the spatial

data with a temporal frequency of one second. On

this way, graphical representation will be simplified

too from three to two dimensions (longitude and

latitude).

4.2 Terms Definition

Concepts will be simplified on defining the next

terms:

Point: Tuple composed by their geographical

values of longitude and latitude.

p=(long, lat)

Place: Tuple composed by a point and a radius.

Both define a circumference centred on the origin of

the place. The third element is a label representing

the semantic information about this place (“home”,

“work”, etc.)

L=(p, radius, label)

Current path or current journey: Set of points

obtained sampling the geographic coordinates using

the positioning system. In our case was GPS (Global

Positioning System). These points are validated by

this system, satisfying the correct number of

satellites that allow obtain an accurate position. The

points of the current path are separated by not less

than 30 meters to avoid redundant information. So,

let

X={ p

…, p

} be the set representing a path.

Figure 1: Generating the scope of a path.

Class: Given a place origin A and another

destination B. A class will be defined as the pair A-

B or B-A. Although the path from A to B will

probably be different, we will suppose the same

class to reduce the number of journeys needed to

train the system.

Labelled path: Given a finished path, it will be

labelled with its class.

A-B

X|A=(P,radius1,origin)^B=(Q,radius2,destination)

Distance between points: Although in the cities

the distances are considered using the Manhattan

distance, OnTheWay system uses the great-circle

distance based on the spherical geometry and very

important for finding the shortest distance between

points on the surface of the Earth. To express it

between two points it will be notated by d(pi,qj).

Scope of a path: Given a labelled path X

A-B

…, p

} and a point q, this point will belong to

the scope of the path if there exists some point of the

path which distance to q is less than a given value of

δ: q ∈ Scope(X

A-B

), if ∃ j | d(p

,q)≤ δ.

On our work we have determined that δ=85

meters is an adequate distance to consider. A point

will be on the scope of a path if it belongs to the

region generated on the figure 1.

Canonical path or representative: Given a set

of labelled paths with the same class, we will choose

one of more paths from this set to represent it in an

accurate manner the others. The reliability will be

given by the percentage of points that belongs to the

scope of this path. The more paths from the class are

enclosed by a canonical path, the better

representative is it.

Because there could be different paths used to do

a journey from A to B, more than one canonical will

be accepted to represent each class.

Similarity of paths: A path matches with other

if it has a percentage of points from their total that

belong to the scope of the second one. The similarity

level will be expressed like this:

Given X

A-B

={ p

…, p

} ^ Y

C-D

={ q

…,

}

Similarity(X

A-B ,

C-D

WINSYS 2006 - INTERNATIONAL CONFERENCE ON WIRELESS INFORMATION NETWORKS AND SYSTEMS

300

100*(Number of qi ∈ Scope(X

A-B

))/m

Hence, given X

A-B

={ p

…, p

} ^ Y

={ q

…, q

}

Y will be identical to X

A-B

if ∀i, q

∈ Scope(X

A-B

)

and Y is labelled with the class A-B so it is a

labelled path: Y

A-B

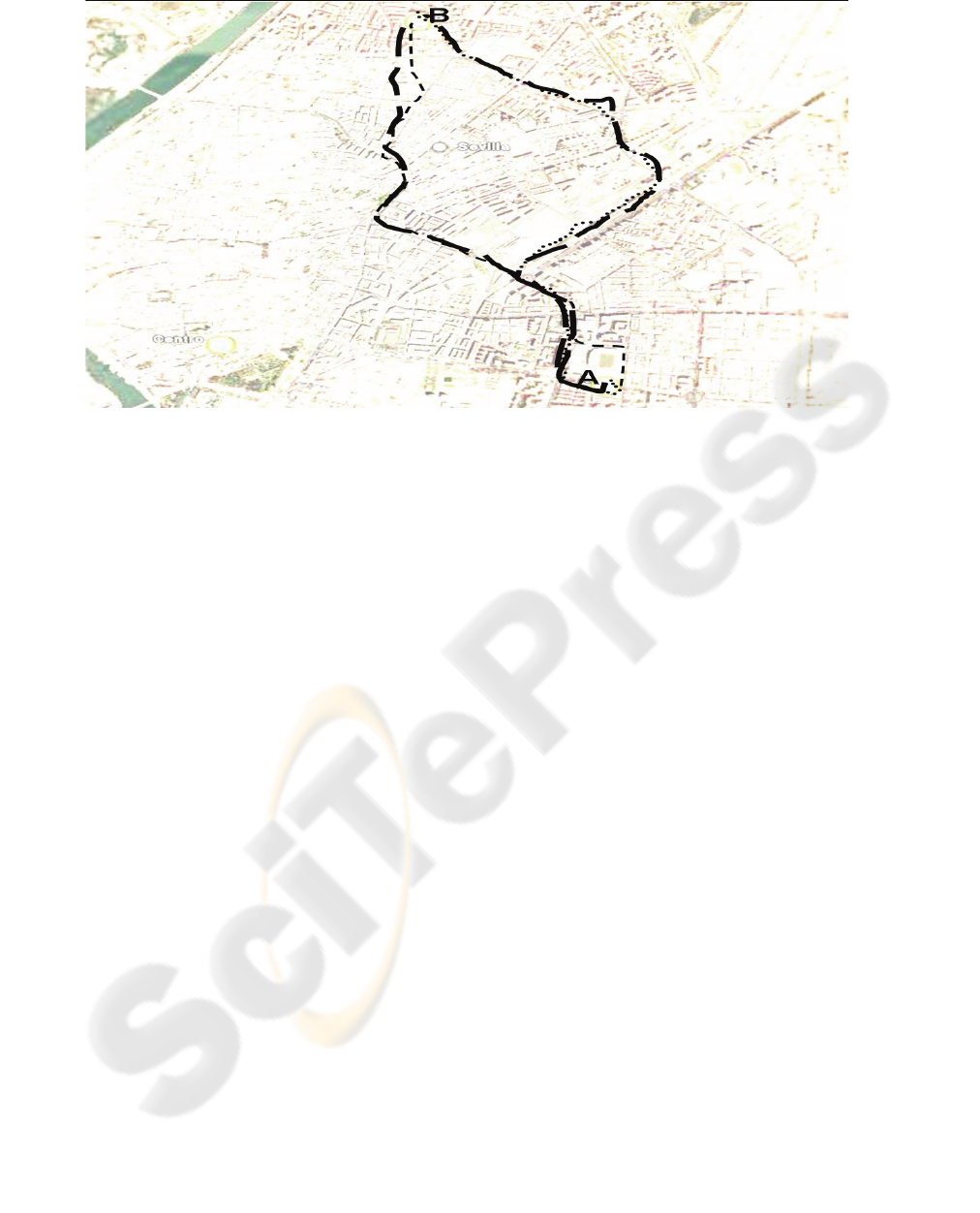

Figure 2 shows an example of four journeys on

Seville, X

A-B

(both on the left of image), X

B-

and

A-B

(both on the right).

All of the paths are from the class A-B. Although

the places origin and destination of all are the same,

for a correct tagged, OnTheWay should take two

canonical paths, the first one for represent two on

the right and the other for represent the two on the

left. Section called selection of canonical will

describe the manner to take the canonical paths.

4.3 Methodology

4.3.1 Data Retrieval

Data retrieval was done by the authors during the

period from December 10th, 2005 and January 14th,

2006. The journeys were tracked in the cities of

Sevilla (31 days), Almeria (3 days) and Granada (1

day). Data obtained from Granada was insufficient

to any prediction but the tracked paths on Sevilla

and Almeria were very useful. 103 tracked paths

were obtained. To achieve this set of routes, a

Royaltek Bluetooth GPS was used. Due to the

impossibility of storing these tracked paths on the

device, a Dell Axim X30 PDA was used to store the

routes on NMEA format.

The vehicles used were only bicycles and cars.

4.3.2 Labelled

When the destination was reached, the NMEA file

was renamed including the date and time of the

journey, the origin and the destination. Moreover,

the file was transformed to KML format, used by the

GoogleEarth software to obtain an easy and fast

representation. On the conversion, unreliable or

erroneous points were filtered.

4.3.3 Data Cleaning and Bizarre Paths

Two kinds of problems were distinguished on the

Data retrieval process: some derived from the GPS

technology and others derived from the real

experience.

GPS technology:

• First valid GPS point: The validation system of

GPS takes some time to obtain the first correct

point. If the receiver is still, the duration is

about 1 minute. If the receiver is in movement

the duration could be much more. On the

collection of data, the first valid point

sometimes was very far on space and time from

the real origin of the journey. Despite this, the

path was tagged with the real origin (not the

first validated) and destination. These paths

would not be a canonical path because the

canonical ones must represent with fidelity the

real path. So, we need a rule to select it

checking that initial and finals points are close

to the real places of origin and destination.

• “Urban canyon” effect: The global positioning

satellite signal cannot be received by the

Figure 2: Four paths from A to B.

ONTHEWAY: A PREDICTION SYSTEM FOR SPATIAL LOCATIONS

301

receiver if it is surrounded by tall buildings or

hills. It causes interruptions of validated

positions during a variable time. So it reduces

the number of correct points on the track file.

Although the cities where the Data retrieval did

not have skyscrapers or lots of tunnels, the

effect was observed on narrow roads. Because

of this, we add a new rule to discriminate

canonical paths from non canonical ones: Each

couple of points composed by one point and the

next one, have to be near. If the distance

between them is more than the advanced in a

car the points will not be close. Data sampling

interval is 1 second in our Royaltek GPS and it

was considered the possibility of having one

point not validated between two NMEA

validated, so due to the speed limit is 120 k.p.h.

in most countries, the distance considered was

66,7 meters.

Real experience:

• In Data retrieval and the labelling process,

problematic situations that could alter the

selection of canonical paths were found. The

main problem occurred when it was difficult to

find a place to park the car during a journey.

That caused the driver to become stressed-out

and the increase of points collected on the

surroundings of the destination place. The

selection of this kind of journeys and their

associated paths as canonical paths would be an

error because another path would not be similar

to this one even if their origins and destinations

were the same. So we add another rule that

specifies that if there are two paths that satisfy

the last two rules, we will take the one that has

fewer points.

After having verified the tagged paths, 7 were

discarded because their results were totally

erroneous or nonsense. So it rested 96 with checked

information including the ones that had the features

explained.

4.3.4 Canonical Paths Selection

Given a set of labelled paths from the place

origin=(o, r1,A) to the place destination=(d,r2,B),

A-B

A-B ...

A-B

the selection of a canonical path

A-B

={ p

…, p

} | 0 ≤ c ≤ n will be done

following the next rules:

• Rule 1. Nearby to origin and destination:

∀ i ∈ [0,k], dist(p

o) ≤ r1 ^ ∀ i ∈ [m-k,m],

dist(p

d) ≤ r2

• Rule 2. Uniform distribution:

∀ i ∈ [0,n), dist(p

i+1

) ≤ 66,7 meters.

• Rule 3. Less number of points:

If X

A-B

satisfy the rules 1 and 2 and

similarity(X

A-B

)>80, then it would be selected

the one with less points.

• Rule 4. More than one canonical:

If X

A-B

is a canonical path and we found another

path X

A-B

| similarity(X

A-B

)<80, then we will

consider X

A-B

also as a representative.

After applying this rules to the learning set of

paths, we obtained 44 canonical paths and 52 non

canonical.

4.3.5 Off-line Results

Once the set of canonical paths were obtained,

legitimacy of the methodology was checked

comparing the sets of representative and non-

canonical paths. The goal was to predict the

destination where the non-canonical path went to. So

for a non-canonical path, his similarity index was

obtained for all the canonicals, and the one that

produces the greater index was selected. We

compare the destination from the selected canonical

path with the real destination of the non-canonical

path. The results were correct in 51 of 52 cases. The

incorrect case was because a canonical path was not

selected when it should. These results showed us the

strength of the methodology and the importance of

the selection of the canonical paths. Due to the good

results obtained in the off-line mode, we faced the

task of obtaining the point where the correct

prediction begins.

4.3.6 On-line Results

Having checked the similarity index with all the

canonicals over all the points of the non-canonical

path, the predicted destination in each point was

obtained. The point when the real destination was

predicted not being altered until the end of the path,

was called detection point. Results were coherent

with common sense: Until the itinerary did not enter

in a not common area with other paths, it was

impossible to distinguish where we go. Nonetheless,

we also observed that although there were overstrike

paths, often small changes taken on the paths

allowed the OnTheWay system to distinguish the

correct destination. The results were very hopeful

because the remaining distance to the destination

measured in a straight line, on average was the

69,65% of the total path and the remaining time to

reach the destination was more than the 70% of the

total (when the journey finally stops). It was

considered that a new detection point that remained

stable for some meters, could be defined as a

decision point. The spatial pertinent value seemed to

WINSYS 2006 - INTERNATIONAL CONFERENCE ON WIRELESS INFORMATION NETWORKS AND SYSTEMS

302

be 120 meters. This value adds these amount of time

and space to the decision point, being specially

harmful for the paths in which the decision arrived

very late, as it causes the arrival to the destination

comes before we can predict it. However, the

capacity to predict future context is real and very

helpful.

5 CONCLUSION AND FUTURE

WORK

This work opens a new research line on the

enhanced localization systems, founded on the

ritually behaviour of people. Although the habits of

movements of people are not the same, knowing

some of the last and past routes, we can intuit the

future paths. This paper exploits this intuition to

show in a concrete experience, how to predict in

advance the places where we will go in a nearby

future.

The exercise of tracking the set of journeys

which will be the canonical paths suppose that the

efficiency of the methodology followed in

OnTheWay will be better with more tracked

journeys, but it will include some obstacles as the

close places or the overstrike paths that difficult the

prediction and produce the detection of decision

points very close to the final destination. To avoid

these disadvantages, we are planning to include

semantic information and statistic models to our

system. It will permit to distinguish the most

probable place between some of them using the

spatial, temporal, semantic and statistical

information of the user. We are including also the

diary book to obtain the semantic data.

Short paths done in home and indoor buildings

will be researched to use as base for handicapped

persons who moves slowly or in a wheelchair. In

this way, we will pass to technologies used in

indoor: RFID or Bluetooth. Finally, connection

between indoor and outdoor positioning systems will

be studied for a better use the future context.

Concretely, in (Shun-Yuan, 2005) is shown a novel

system to locate persons in indoor and outdoor

environments founded on the relative position of

shoes when someone walks.

REFERENCES

Ashbrook, D. and Starner, T. Using gps to learn

significant locations and predict movement across

multiple users. Personal Ubiquitous Computing,

(7):275–286, 2003.

Census of Marine Life. (Oct. 2002) POST: Pacific Ocean

Salmon Tracking Project. http://www.postcoml.org/,

2003. (ASPLOS-X).

Hightower, J. et Al. (Sep. 2005) Learning and

Recognizing the Places We Go, In Proceedings of the

Seventh International Conference on Ubiquitous

Computing (Ubicomp 2005), pp. 159-176.

Kang, J.H., Welbourne, W., Stewart, B., Borriello, G.

(2004): Extracting places from traces of locations. In

Proceedings of the Second ACM International

Workshop on Wireless Mobile Applications and

Services on WLAN Hotspots (WMASH 2004),

Philadelphia, PA, ACM Press 110–118

Kayan E, Ulusoy O. (1999) An evaluation of real-time

transaction management issues in mobile database

systems. Computer Journal 42 (6): 501-510

Marmasse, N., Schmandt, C. (2000) Location-aware

information delivery with commotion. In Proceedings

of the Second International Symposium on Handheld

and Ubiquitous Computing (HUC). Volume 1927.,

Springer-Verlag 151–171

Pei Zhang et Al., (2004) Hardware Design Experiences in

ZebraNet. Department of Electrical Engineering

Princeton University, Sensys 2004

Perich F et Al, (2004) On data management in pervasive

computing environments. IEEE Transactions on

Knowledge and Data Engineering 16 (5): 621-634

May 2004

Shun-Yuan Yeh et Al. (2005) Geta sandals: knowing

where you walk to. Ubicomp 2005

The Center for Conservation Biology.

(2002)VAFALCONS. http://ccb-

wm.org/vafalcons/falconhome.cfm

UC Davis Wildlife Health Center. Southern California

(2004) Puma Project.

http://www.vetmed.ucdavis.edu/whc/

Waluyo AB et Al. (2005) Research on location-dependent

queries in mobile databases. Computer Systems

Science and Engineering 20 (2): 79-95 Mar 2005

Figure 3: On-line results.

Destination detection

(1,10] (10,20] (20,40] (40,60] (60,80] (80,90] (90,100]

% of remaining distance

Num ber of paths

ONTHEWAY: A PREDICTION SYSTEM FOR SPATIAL LOCATIONS

303
