MOCKETS: A NOVEL MESSAGE-ORIENTED

COMMUNICATIONS MIDDLEWARE FOR THE WIRELESS

INTERNET

Mauro Tortonesi, Cesare Stefanelli

Department of Engineering, University of Ferrara, Via Saragat 1, 44030 Ferrara, Italy

Niranjan Suri, Marco Arguedas, Maggie Breedy

Institute for Human & Machine Cognition, 40 S. Alcaniz, 32502 Pensacola, FL, USA

Keywords: Novel Network Programming Model, Application-level Middleware, Endpoint Mobility, TCP Replacement.

Abstract: Wireless networking is becoming increasingly important for ubiquitous access to the Internet and the Web.

However, wireless networks exhibit significant reliability and performance problems, with frequent

disconnections, congestions, and packet losses. For these reasons, the traditional TCP/IP suite, designed for

wired networks, offers poor performance and inadequate communication semantics in this scenario. There

are several research efforts in both protocols and communication infrastructures aimed at producing

solutions better suited to wireless network characteristics. This paper presents Mockets, a novel

communications middleware specifically designed for wireless networking scenarios. The Mockets

middleware permits a communication endpoint to be moved from one node to another without interrupting

the communication session. In addition, Mockets provides several delivery services with different

communication semantics, semantic classification of data, cancellation/replacement of enqueued data, and

priority/lifetime assignment to messages. Initial experimental results in a wireless network scenario show

that the Mockets middleware achieves better performance levels than traditional TCP-based infrastructure.

1 INTRODUCTION

Wireless networks are quickly becoming prevalent

and their popularity is expected to grow even more,

as they permit to easily extend the wired Internet

infrastructure thus facilitating the ubiquitous access

of mobile users/terminals to the Internet and the

Web (Stallings, 2005). In this paper, we refer to the

above mentioned environment with the term

wireless Internet.

However, the radio frequency medium of

wireless networks induces some peculiar operating

condition characteristics, such as low reliability

levels, network disconnections, severe fluctuations

in network resources availability, and a dynamic

topology. These characteristics deteriorate the

performance of traditional communication protocols

so much (Altman et al., 2000) (Abouzeid et al.,

2003) that several research studies have tried to

modify the inner workings of traditional protocols to

better suit the wireless Internet scenario (Tian et al.,

2005). Although this approach would allow existing

applications to remain unchanged, the performance

results are not satisfactory. In addition, traditional

protocols and communication infrastructures do not

provide support for the mobility of users and

terminals (Fu et al., 2006).

The peculiar characteristics of the wireless

Internet scenario suggest that the programming

model offered by traditional communication

protocols and infrastructures is not adequate.

Researchers have proposed different programming

model approaches aimed at making it possible for

distributed applications to adapt their behavior

dynamically to current network conditions (Gross et

al., 1999) (Kim and Noble, 2001). To this end, there

is a need for a novel communications middleware

that, on the one hand, can offer applications the

needed network level information and, on the other

hand, can handle peculiar wireless Internet

characteristics such as user/terminal mobility

(Snoeren and Balakrishnan, 2000). This permits the

258

Tortonesi M., Suri N., Arguedas M., Stefanelli C. and Breedy M. (2006).

MOCKETS: A NOVEL MESSAGE-ORIENTED COMMUNICATIONS MIDDLEWARE FOR THE WIRELESS INTERNET.

In Proceedings of the International Conference on Wireless Information Networks and Systems, pages 258-268

 SciTePress

realization of distributed applications that can cope

with packet losses, network disconnections, highly

dynamic channel conditions, and also user/terminal

mobility (Cheng and Marsic, 2002) (Sun et al.,

2003) (Chang et al., 2001).

In this context, the paper presents a novel

communications middleware, called Mockets,

specifically designed to address the peculiar

challenges of the wireless Internet scenario. A

mocket (mobile socket) is a communication

endpoint that can move from one node to another

without interrupting the communication session.

Mockets-based applications can exploit several

delivery services with different communication

semantics for different types of information. The

Mockets middleware also provides the semantic

classification of messages to permit applications to

perform group operations on specific types of

messages, such as cancellation/replacement of some

kind of enqueued messages. In addition, Mockets

permits fine-tuning the performance of applications

by setting the transmission priority and the

maximum lifetime of messages.

Finally, the Mockets middleware permits the

design of applications that can exploit information

about network resources availability in order to

adapt to the unreliability of the wireless Internet and

the intrinsic mobility of terminals and users.

We have decided to implement Mockets as an

application layer middleware in order to achieve

portability and ease of integration, and to facilitate

its deployment in all platforms supporting the

TCP/IP protocol suite, regardless of the underlying

hardware and operating system.

The experimental results show that applications

in the wireless Internet scenario achieve better

performance with the Mockets transport than with

TCP. In fact, in our tests Mockets outperformed

TCP in terms of throughput and latency on both a

real IEEE 802.11b wireless network and a simulated

environment with random network disconnection

intervals.

2 APPLICATIONS IN THE

WIRELESS INTERNET

The wireless Internet is significantly different from

the wired networking environment and presents

peculiar challenges to the development of distributed

applications. In fact, wireless communications

exhibit lower reliability levels and severe

fluctuations in network resource availability. This

stems from the inherent characteristics of radio

communication systems, which present channel

degradation due to fading and interferences,

resulting in highly variable bandwidth with time and

spatial dependencies. In addition, mobility causes

additional problems because the communication

path can change significantly as mobile

terminals/users roam from one network to another.

The unreliability of wireless communications

and the mobility of terminals/users have a significant

impact on the development and deployment of

distributed applications. In fact, to perform

continuous service provisioning in the wireless

Internet, applications must be capable of

withstanding abrupt disconnections and changes in

both network topology and resource availability.

However, this requirement clashes with the

traditional programming model for distributed

applications that is network transparent and makes

use of an abstraction of the network as a reliable

stream-oriented communication channel.

Applications simply hand over their data to the

transport protocol and rely completely on the

protocol implementation to perform reliable and

sequenced information delivery. Unfortunately, this

simple interaction model makes it impossible to

design applications that can adapt to current network

conditions and resource availability. This limits both

performance and robustness of applications when

deployed in the wireless Internet scenario (Gross et

al., 1999) (Kim and Noble, 2001).

As a result, researchers in several areas have

proposed novel programming models that do not

masquerade communication channel characteristics

but instead expose network conditions to

applications (Cheng and Marsic, 2002). This allows

applications to react to changes in the underlying

network in a timely manner by choosing the proper

adaptation strategy according to service logic, user

preferences, and network status. For instance, a

video streaming application could decide to

downscale its service level, e.g., the video resolution

or the frame rate, in order to adapt to reduced

bandwidth availability.

A programming model that can exploit the

significant information about the network conditions

in order to permit application adaptation requires

specific support in terms of communication

protocols and/or middleware (Sun et al., 2003). In

particular, the paper focuses on the middleware

approach because a solution at the application level

facilitates portability and ease of integration. In

addition, the middleware solution allows the

deployment in all platforms supporting the TCP/IP

protocol suite, regardless of the underlying hardware

and operating system.

Middleware solutions for the support of

applications in the wireless Internet should provide

several important characteristics.

MOCKETS: A NOVEL MESSAGE-ORIENTED COMMUNICATIONS MIDDLEWARE FOR THE WIRELESS

INTERNET

259

First of all they should provide the mechanisms

to monitor network conditions and to detect the

mobility of users/terminals. In fact, it is crucial for

applications to have precise and up-to-date

knowledge of the network conditions in order to

perform correct decisions about service adaptation.

The middleware should also support user/terminal

mobility by maintaining the current service session

in the presence of temporary network

disconnections. The mobility of the service session,

that requires detecting changes and

binding/rebinding connections transparently to

applications is still an active area of research (Fu et

al., 2006) (Snoeren and Balakrishnan, 2000) (Hsieh

et al., 2004).

In addition, a middleware in the wireless Internet

has to provide several delivery services with

different communication semantics. This would

allow applications to choose the best suited message

delivery service depending on application logic,

network conditions, and user preferences. For

instance, applications could assign a higher

transmission priority and a shorter lifetime to time-

sensitive information, and use reliable delivery only

for critical data.

The unreliability of wireless communications

suggests the introduction of specific mechanisms at

the middleware level to support applications with

critical response time requirements. For instance, a

remote control application needs to convey time-

sensitive data, such as the commands for the

movement of a robot working in a hazardous

environment and needs to send periodic update

messages that change the application status. These

updates invalidate all previous messages and must

be delivered and processed with the utmost

precedence, for example to immediately stop the

robot in an emergency situation.

Applications could benefit from a novel

middleware that enables a more effective fit to the

wireless Internet environment. For instance, let us

consider a MPEG video streaming application that

transmits only a small amount of reference video

frames (key frames) entirely, adopting differential

encoding for all the other frames (delta frames). A

distributed application could then exploit both

sequential and time-bound message delivery for

MPEG video frames. In addition, it could select

reliable delivery and longer lifetime for messages

containing key frames and unreliable delivery and

short lifetime for messages carrying delta frames. In

the case of channel condition degradation, the

application might choose to reduce frame rate or

stream resolution, according to service logic and

user preferences. In case the client becomes

unreachable (or when sending a new key frame), the

server invalidates all previously enqueued messages,

thus replacing old frames with up-to-date

information.

3 THE MOCKETS

MIDDLEWARE

Mockets is a middleware that supports the mobility

of communication endpoints, with the goal of

facilitating user/terminal/code mobility. It provides

applications with several types of communication

semantics, permits message differentiation, and

offers advanced fine-grained configurability to

achieve best performance tuning. The Mockets

middleware offers application level control and

monitoring of the connection status and network

conditions.

Mockets adopts the traditional client/server

programming paradigm of Sockets (Mockets stands

for Mobile Sockets) and provides a message-

oriented communication API with advanced

functionalities to manage endpoint mobility and

monitor network conditions. Mockets also offers a

second, stream-oriented API compatible with TCP

Sockets to facilitate the task of porting legacy

applications to the new middleware. However,

applications using the stream-oriented API will not

benefit from the advanced functionalities of

Mockets. The TCP-like stream-oriented API of

Mockets has been presented in a previous paper

(Suri et al., 2005) and hence this paper focuses on

the message-oriented API only.

3.1 Support for Mobility

One of the main goals of the Mockets middleware is

the support for mobility. Therefore, one of the

design guidelines for the middleware is the

introduction of the mocket as a communication

endpoint that can move from one host to another. A

mocket can move when receiving either an

application level event or a network one.

In the first case, the application explicitly

commands the middleware to move the mocket

endpoint. Note that the migration is completely

transparent to the remote application (apart from a

temporary increase in message arrival latency). The

second case refers to a situation where a host moves

from a network locality to a different one. The

network layer notifies the Mockets middleware

about the host migration, which then performs the

migration of all the active mockets in the moved

host, transparently to the application.

The importance of the application driven

mobility is clear in mobile code systems. For

WINSYS 2006 - INTERNATIONAL CONFERENCE ON WIRELESS INFORMATION NETWORKS AND SYSTEMS

260

instance, in the case of mobile agent applications,

one of the main research areas deals with the

problem of the bindings of the agent itself with its

current context of execution. The Mockets

middleware permits a mobile agent to easily move

all its network connections. This solution is

currently being tested in the NOMADS platform,

which supports strong agent mobility.

The Mockets network driven migration is

fundamental to permit applications to continue the

execution even in presence of device mobility. In

fact, the Mockets middleware detects the changes in

the network layer address and consequently moves

all the mockets without forcing the application to

shut down and to reopen the network connections.

3.2 Communication Semantics

Mockets allows applications to establish message-

based and connection-oriented communications and

supports a wide range of message delivery services.

Applications can exploit one or more delivery

services by choosing orthogonally between

reliable/unreliable and sequenced/unsequenced

message delivery on a per-message basis.

The sequenced reliable delivery service provides

semantics similar to TCP and incurs the same

performance penalties. It is best suited to the

delivery of important but time insensitive data such

as critical notifications of application state change.

The sequenced unreliable delivery service is best

suited to convey time sensitive data such as

multimedia information, as it provides the same

communication semantics of the Real-Time Protocol

(RTP). The reliable unsequenced message delivery

service allows applications to transmit important but

unrelated messages such as signalling information.

Finally, unreliable unsequenced delivery service is

useful for less important report messages.

Notice that the constraint on sequential delivery

of messages is usually applied only to messages

belonging to the same (sequenced) delivery service.

However, a connection can optionally be configured

to perform sequencing across both reliable and

unreliable sequenced delivery services. In this case,

sequenced messages will be delivered to the peer

application after all previously sent sequenced

messages, regardless of their reliability.

If an unreliable sequenced message with

sequence number N is lost, when the next message

with a sequence number greater than N arrives, the

Mockets middleware waits for a small amount of

time in case the first message was transmitted on a

route that was slower. If the message with sequence

number N is not received when the timeout expires,

Mockets considers it lost and delivers the next

message in the sequence.

3.3 Semantic Differentiation of

Application-Level Traffic

Mockets supports the classification of messages into

different group types. Applications can perform

group operations on messages of a specific type,

e.g., to enforce a maximum transmission bandwidth,

to assign a specific lifetime, or a transmission

priority value. For instance, an application can

decide to either cancel all previously enqueued

messages of a specific type, or replace them with a

new message of the same type.

Message cancellation and replacement is a very

useful feature in situations where applications are

sending periodic updates and a new update

invalidates previous ones. For instance, when using

a reliable flow, the Mockets middleware will buffer

messages until they have been successfully

acknowledged by the remote endpoint. If the

network is congested or the peer is unreachable,

messages can accumulate. Using the message

replacement feature, applications will be able to

remove stale information that is still in the queue

and replace it with up-to-date data. This reduces

transmission of obsolete information and therefore

minimizes network bandwidth consumption.

It is worth noticing that the message

classification and replacement features implemented

by Mockets have been especially designed to

support applications that use multiple but

interrelated data types such as MPEG. For instance,

an MPEG video streaming application might use two

different message types, one for key frames and a

second for delta frames. Upon the generation of a

new key frame, the application could choose to

discard all enqueued MPEG frames by first

cancelling all of the enqueued delta frames and then

replacing all the enqueued key frames with the new

one.

3.4 Network Conditions Monitoring

An important design guideline for the Mockets

middleware is to monitor network conditions and to

pass the gathered information up to the application

level. In this way, applications can make informed

decisions about how to tailor services according to

both service logic and user preferences.

Applications can either directly interrogate the

Mockets monitoring or request to be notified when a

specific event occurs by registering callback

functions. For instance, one of the events that the

Mockets monitoring facility can notify applications

MOCKETS: A NOVEL MESSAGE-ORIENTED COMMUNICATIONS MIDDLEWARE FOR THE WIRELESS

INTERNET

261

about is peer unreachability, which is detected by a

keep-alive mechanism that allows quick discovery

of problems at the link and network layers.

Let us note that the adoption of the subscribe-

notify paradigm is rather unusual in network

programming, as historically transport protocols

have always been designed to masquerade varying

network conditions to applications. However, the

need for a richer model of interaction between

applications and transport protocols emerges also in

other recently proposed transport protocols such as

the Datagram Congestion Control Protocol (DCCP)

(Kohler et al., 2003).

3.5 Advanced Low-Level

Communication Features

The Mockets middleware provides advanced

communication features to allow fine-grained

performance tuning in the case of time-sensitive data

exchange, e.g., multimedia and control applications.

For this purpose, applications can choose several

transmission parameters on a per-message basis, like

message priority, maximum lifetime, and a timeout

for the insertion of messages in the

transmission/pending message queue.

Applications can reorder the transmission of

messages by assigning them priority values. The

Mockets middleware schedules messages with

higher priority before lower ones. This priority

differentiation provides applications with a low-

latency message delivery service that can be used for

important application status updates.

Applications can also assign a maximum lifetime

to outgoing messages in order to automatically

discard outdated information. The Mockets

middleware enforces a timeout for the transmission

of every message with an associated lifetime. If this

timeout expires before the message is sent, then the

message is silently discarded. On the other hand, if

the timeout of reliable message expires after the

message is transmitted but before an

acknowledgement is received, the message is

discarded and a notification of the message lifetime

expiration is sent to the destination endpoint.

Finally, applications can set a time limit for the

insertion of a message into the transmission queue.

If the timeout expires, the message is not scheduled

for transmission and an error is returned to inform

the application. This feature allows applications to

discard information with a short lifetime in case the

transmission queue is full, minimizing latency in

information delivery.

4 MOCKETS ARCHITECTURE

Mockets operates at the application layer on top of

the traditional TCP/IP protocol suite. This design

guideline supports portability and ease of integration

and facilitates the deployment of Mockets in all

available platforms and scenarios, regardless of the

underlying hardware and operating system.

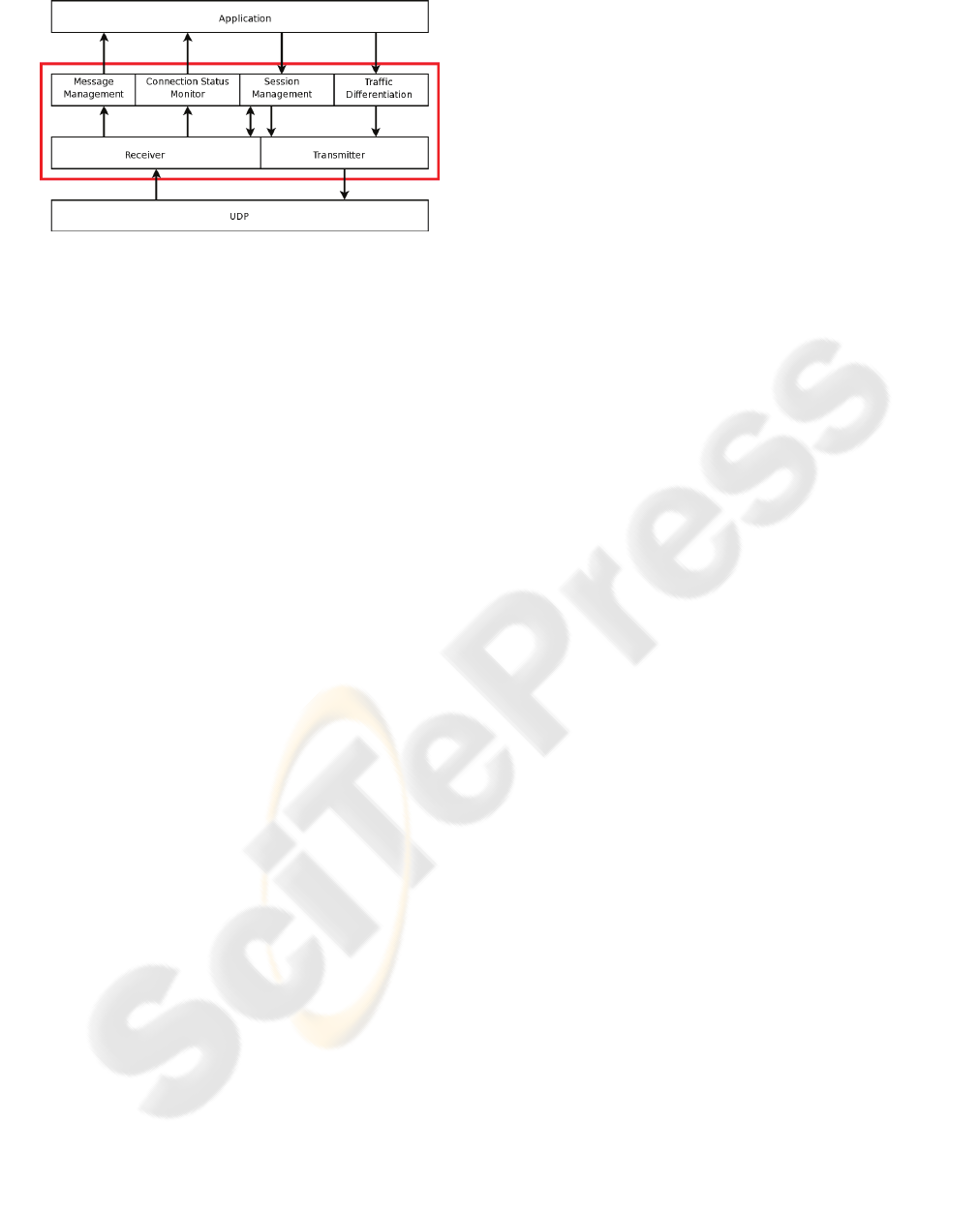

Figure 1 shows the architecture of the Mockets

middleware. The main components supporting

applications are the Session Management, Message

Management, Connection Status Monitor, and

Traffic Differentiation modules.

The Session Management module implements

control operations such as session suspension and

resumption. It performs the migration of a mocket

communication endpoint upon application requests,

by following the procedures described in section 5.1.

It also interacts with the underlying operating system

to detect changes in the network layer address of the

host, which are triggered by device movements. In

this case, the Session Management module

reconfigures all the existing mocket endpoints to use

the new address, transparently to the applications.

The Message Management module handles the

delivery of application messages. In particular, it is

in charge of dividing large messages into several

packets and reassembling them before application

delivery. It also guarantees the ordering of messages

when required by the chosen delivery service.

The Connection Status Monitor receives

information about connection status and network

conditions from the underlying layer. It provides

upper layers with monitoring functions by both

permitting explicit queries from the application and

performing notifications when a subscribed event

occurs.

The Traffic Differentiation module is in charge

of scheduling application messages for transmission

by applying the specified traffic differentiation

policies, such as message priority, delivery services,

etc.

Underneath the components directly interacting

with the application, the Transmitter and Receiver

modules take care of message transmission and

reception, by interfacing with the underlying

network via UDP. The Receiver module

continuously listens for incoming messages,

dispatching data messages to the Message

Management module, information on

communication status and network conditions to the

Connection Status Monitor, and control messages to

the Session Management module. The Transmitter

module performs message transmission operations,

interacting with the Receiver module to implement

ACK management.

WINSYS 2006 - INTERNATIONAL CONFERENCE ON WIRELESS INFORMATION NETWORKS AND SYSTEMS

262

Figure 1: Architecture of the Mockets middleware.

4.1 The Mockets API

In order to facilitate the porting of existing

applications, the Mockets middleware exports an

object-oriented API designed to be as similar as

possible to the traditional Java Sockets API. In

particular, Mockets offers a core set of API that is

exactly the same as connected Java datagram

sockets. All the advanced Mockets functionalities

are available through a novel set of API.

The core set of the API manages the mocket, the

fundamental communication entity of the

middleware that represents a connection endpoint

and is identified by a network layer address/port

couple. Similar to a socket, the mocket can be either

active (the MessageMocket class) or passive (the

MessageServerMocket class). The communication is

established by connecting an active mocket to a

passive one listening on a remote endpoint. The

connect method of a MessageMocket is used for

connection establishment. On the server side, the

accept method processes incoming connection

requests. accept returns an instance of

MessageMocket which represents a new connection.

Applications send and retrieve messages by

calling the send and receive methods respectively on

the MessageMocket instance. Connection teardown

is performed by calling the close method of the

MessageMocket class on either side of the

connection.

The advanced Mockets API permits applications

to exploit all the advanced functionality of the

Mockets middleware. In particular, the getSender

method of the MessageMocket class selects the

delivery service for messages. getSender returns an

object that represents the selected flow and provides

the send method for message transmission.

The enableCrossSequencing method enables

cross sequencing on the current mocket.

The replace method permits applications to

replace previously enqueued messages with a new

message. Messages to be replaced are identified by a

specific message tag. Applications can also use the

cancel method to cancel previous messages.

Applications can also retrieve information on the

current status of the communication with the remote

endpoint, via the getStatistics method. The statistics

reported are the number of bytes and packets sent

and received, the number of packets retransmitted,

and the number of discarded packets. If these

parameters fall below the desired QoS level,

applications can adapt their behavior according to

the network conditions and user preferences. For

instance, in the case of heavy packet loss,

applications may choose to downscale the data

stream.

Applications use the subscribe method of a

MessageMocket instance to register for a specific

event among those supported by the Mockets

middleware. In particular, applications provide

Mockets with callback functions, which are used by

the framework to notify the applications when the

registered events occur.

Finally, applications can suspend the operation

of a Mocket endpoint and retrieve its serialized state

via the static suspend method of the MessageMocket

class. A mocket can then be resumed by calling the

static resume method of the MessageMocket class.

Mockets only provides mechanisms for connection

suspension/ resumption and serialization of a

communication endpoint. The middleware does not

enforce any security policy on these operations and

leaves the task of transferring the mocket status to

the new host to the application.

5 IMPLEMENTATION

With implementations in both Java, C++, and C#

programming languages, Mockets achieves

significant portability, and is available for most

existing operating systems and development

platforms. This section describes the most

significant implementation details of the Mockets

middleware.

5.1 Endpoint Mobility

The mobility of a mocket is a distinguished feature

that requires the middleware to perform several

operations. When the migration procedure initiates,

the mocket connection is suspended and the remote

endpoint enters a standby state. The local endpoint is

then migrated to a different host where it reconnects

transparently with the remote endpoint. The mocket

on the remote endpoint is notified of the address

change in the communication endpoint and resumes

normal operations.

MOCKETS: A NOVEL MESSAGE-ORIENTED COMMUNICATIONS MIDDLEWARE FOR THE WIRELESS

INTERNET

263

Figure 2 shows the process of a mocket

migrating from one host to another. The initial state

is Process 1 running on Host A with an open

connection to Process 2 on Host C. When Process 1

needs to move to Host B, the mocket in Process 1

sends a SUSPEND control message to the mocket in

Process 2. Once the SUSPEND has been

acknowledge with a SUSPEND_ACK, the process is

allowed to migrate along with the mocket endpoint.

Once the process reaches Host B and restarts, the

mocket in Process 2 sends a RESUME control

message. The state of both mockets returns to

ESTABLISHED after Process 2 receives the

RESUME_ACK control message.

Host A

Process 1

Host C

Host B

Mocket

Process 1

Mocket

Process 2

Mocket

Figure 2: Migration of a Mocket endpoint.

Endpoint mobility is currently supported only by

the Java implementation of the Mockets middleware,

which complements the Agile Computing

middleware and the NOMADS mobile agent system.

In this environment, migration is realized by

serializing all the object instances representing the

current state of the mocket connection in use by the

local endpoint and transferring them over a network

link.

5.2 Message Management

The Transmitter, the Receiver, and the Message

Management are the main components of the

Mockets middleware in charge of

transmitting/receiving application messages.

The Message Management is in charge of

fragmenting a message into several packets when

needed. Resulting packets are enqueued into a

pending packet queue. The packet insertion

algorithm uses a dynamic priority scheme to favor

the transmission of high-priority packets while

preventing starvation of low-priority packets. If the

remote window allows the transmission of a new

packet, the transmitter then retrieves the first packet

from the pending packet queue and transmits it to

the remote endpoint via UDP packets.

To support reliability, after the transmission the

Transmitter puts reliable and control packets into the

appropriate unacknowledged packet queue from

where they will be periodically retransmitted until

they are acknowledged. For efficiency reasons, we

have implemented the unacknowledged packet

queues as data structures composed by two double-

linked lists, one sorted by the retransmission timeout

(for efficient retransmission) and one sorted by the

sequence number (for efficient processing of

acknowledgements). The Transmitter also handles

acknowledgements and sends keep-alive messages

in case of inactivity.

The Receiver component continuously listens for

incoming packets on the UDP socket associated with

the mocket. It reports peer unreachability problems

to the application, handles acknowledgements and

control messages (e.g., cancelled packets

information), and dispatches incoming messages

according to their reliability and sequencing values.

Unsequenced packets are passed to the Message

Management module for the defragmentation (if

needed) and for their final arrival into the received

data queue.

Sequenced messages are enqueued into one of

three sequenced packet queues (one for control

messages, one for reliable sequenced packets, and

one for unreliable sequenced packets). After each

insertion into the sequenced packet queue, the

Message Management module examines the queue

and delivers all messages whose sequencing

requirements are satisfied. In the case of unreliable

sequenced messages, the Packet Processor also

applies a timeout to stop waiting for missing

messages.

5.3 Mockets Transport Protocol

The Mockets transport protocol relies on the

exchange of UDP packets between endpoints. The

connection establishment procedure of the Mockets

transport protocol is based on a 4-way handshake

like SCTP. The exchange of a cryptographically-

protected cookie between peers makes the protocol

resistant to SYN flooding attacks (Stewart and Xie,

2001).

To allow the multiplexing of data and metadata

on UDP packets transmitted between two mocket

endpoints, the Mockets transport protocol divides

packets into chunks. Every chunk is identified by a

unique type identifier and has a specific purpose. For

example, data chunks carry application level data,

while SACK chunks contain acknowledgement

information.

WINSYS 2006 - INTERNATIONAL CONFERENCE ON WIRELESS INFORMATION NETWORKS AND SYSTEMS

264

Mockets performs selective ACKs. This

acknowledgment strategy provides significant

improvements in throughput when compared with

the traditional cumulative acknowledgement scheme

of TCP. SACK is done mainly via piggybacking, but

in case no piggybacking can be done, a message

containing SACK information is sent periodically or

when duplicate packets are received (indicating that

previously sent SACK information was lost).

Message cancellation and replacement is

implemented by removing the corresponding packets

from the pending packet queue and the

unacknowledged packet queue. A control message is

also sent to the peer endpoint about the cancellation

and/or replacement of messages. To avoid stacking

of control messages related to message cancellation

and replacement, Mockets checks if there is already

such a control message in the pending packet queue,

which might occur because the peer is temporarily

unreachable. In this case the old control message is

replaced by a new one containing information about

the whole set of cancelled messages.

Mockets allows applications to take full control

of most of the internal behaviors (e.g. changing the

default timeouts) of the transport layer. For instance,

applications can change MTU, default connection

timeout, pending packet queue size, keepalive

timeout, maximum window size, and receive

timeout.

6 EXPERIMENTAL RESULTS

We have measured the performance of the Mockets

middleware in several scenarios with different

working conditions. This section reports two

separate experiments that compare Mockets-based

with TCP-based message delivery.

The first experiment measured the raw

throughput of the Mockets reliable sequenced

delivery service compared to TCP sockets. The

testbed is an 802.11b wireless environment where

the wireless cards are configured to use an unused

channel to ensure that there is no interference or

other traffic on the wireless link. Table 1 shows the

average time to transfer 2 MB of data using both

Mockets and TCP Sockets. The results show that

Mockets performs better than TCP in raw transfers

of data.

The second experiment shows the benefit of the

message replacement capability of the Mockets

middleware in the presence of an unreliable

network. The experimental setup is composed of two

laptop computers interconnected via a wired

network through a third computer running the

NISTNet software (Nist NET). NISTNet provides

control over parameters such as latency and packet

loss and can simulate an unreliable link with

periodic loss in network connectivity. To simulate

disconnections, NISTNet is configured to drop all

packets for a series of exponentially distributed

random intervals of time with an average of 1

second. The intervals themselves are separated by an

exponentially distributed random length of time with

an average of 20 seconds. The client application

generates an update message at a frequency of 1 Hz

and transmits it to the server application.

Table 1: Throughput comparison over 802.11b.

Mean Transfer

Time (ms)

Standard

Deviation (ms)

TCP Sockets 2151 121

Mockets 1836 80

Table 2 shows the average and worst-case latency of

messages in the case of Mockets- and TCP- based

communication. The results show that Mockets

outperforms TCP Sockets. This is due to the fact that

in TCP update messages are buffered on the client

side and retransmitted when connectivity is restored.

In Mockets, instead, update messages replaces

previously enqueued messages. Old and outdated

messages are simply discarded, thus reducing the

consumption of network and computational

resources on the both the client and server hosts.

Table 2: Latency Comparison.

Average

Latency (ms)

Maximum Latency

(ms)

TCP Sockets 132.90 6228

Mockets 13.44 922

7 RELATED WORK

Many research efforts investigate how to allow the

realization of efficient and robust distributed

applications in the wireless Internet. In particular,

there are solutions at both network and application

layers with different trade-offs between performance

and flexibility.

Researchers have proposed to modify the

behavior of TCP in order to improve its performance

in the new scenario (Tian et al., 2005). In fact, TCP

is still the most widely adopted transport protocol in

the wireless Internet and is also often proposed for

time-sensitive applications such as multimedia

streaming (Wong et al., 2005). However, the

performance of TCP is severely affected by terminal

mobility and lossy channels (Bakshi et al., 1997)

(Altman et al., 2000) (Abouzeid et al., 2003). In fact,

MOCKETS: A NOVEL MESSAGE-ORIENTED COMMUNICATIONS MIDDLEWARE FOR THE WIRELESS

INTERNET

265

TCP interprets every packet loss as a symptom of

network congestion and therefore reduces the

congestion window size in the sending host, with

very slow throughput recovery. Recent proposals

addressed this problem by employing cross-layer

techniques to get feedback on the network

conditions and using this information to tune the

congestion control procedure (Singh and Iyer, 2002).

The proposed modifications allow a limited

performance improvement for TCP-based

communications in the wireless Internet without

changing existing applications. However, let us note

that the modification of a communication protocol

raises backward compatibility problems with

existing protocol implementations, which limits the

benefits of this approach.

Researchers have also proposed the Stream

Control Transport Protocol (SCTP) as an alternative

to TCP on the wireless Internet (Stewart and Xie,

2001). SCTP provides applications with several

message delivery semantics (reliable/best-effort and

sequential/out-of-order). SCTP also allows

applications to define conditions (typically a time

limit) upon which reliable messages are considered

stale and thus discarded. In addition, SCTP can

maintain multiple streams of messages inside a

single connection, mitigating the head of line

blocking problem of TCP (Atiquzzaman, 2003).

Finally, the recent introduction of dynamic address

reconfiguration for SCTP connection endpoints

allows partial support of device mobility. However,

SCTP still suffers from the same congestion-related

performance problems of TCP and does not provide

applications with any feedback on network

conditions.

Other research approaches developed novel

communications middlewares on top of existing

network stacks. I-TCP (Bakre and Badrinath, 1995),

Mobile-TCP (Haas, 1995), and the Remote Sockets

Architecture (Schlager et al., 2001) address both the

performance and the mobility issues in TCP by

proposing proxy-based architectures. In these

proposals, connections are routed through proxies

deployed at the edge of the wireless and wired

portion of the network. This improves the

performance of communications on the wireless

portion of the communications, but it requires the

deployment of dedicated proxies with a modified

network stack.

Other proposals focus on providing a network-

aware programming model to applications but do not

offer support for user/terminal mobility (Sun et al.,

2003), or supporting mobile computing applications

by adding endpoint mobility functionality to

traditional communication protocols (Snoeren and

Balakrishnan, 2000) (Hsieh et al., 2004).

Mockets goes beyond the above mentioned

proposals by providing applications with a wide

range of communication semantics and a richer

programming model, which are better suited to the

wireless Internet. In addition, Mockets implements

mechanisms to effectively support user/terminal

mobility and allows applications to monitor current

network conditions. Finally, Mockets does not

require the deployment of dedicated devices with a

modified network stack or any other entity which

breaks the traditional end-to-end communication

semantics.

8 CONCLUSIONS AND FUTURE

WORK

The Mockets middleware is a comprehensive

solution for the development of robust and efficient

distributed applications suited to the wireless

Internet scenario. In particular, Mockets-based

applications can cope with packet losses and

network disconnections and can handle the mobility

of terminals and users. The first experimental results

show that the Mockets middleware performs better

than TCP in wireless networking environments.

Although the results are encouraging, we are

working to improve the performance and the

features of the Mockets middleware. For instance,

we are evaluating a new architecture for advanced

I/O operations and internal buffer management and

the adoption of cross layer techniques in order to

provide applications with more information on

network conditions.

We are also planning to integrate Mockets with

the Agile Computing Middleware to take advantage

of proactive resource manipulation and with the

KAoS policy management system to allow policy-

based control over utilization of network resources.

ACKNOWLEDGEMENTS

This work is supported in part by the U.S. Army

Research Laboratory under contract W911NF-04-2-

0013, by the U.S. Army Research Laboratory under

the Collaborative Technology Alliance Program,

Cooperative Agreement DAAD19-01-2-0009, by the

Air Force Research Laboratory under grant FA8750-

06-2-0064, and by the Italian MIUR in the

framework of the Project “MOMA: a middleware

approach to MObile MultimodAl web services”.

WINSYS 2006 - INTERNATIONAL CONFERENCE ON WIRELESS INFORMATION NETWORKS AND SYSTEMS

266

REFERENCES

Abouzeid, A., Roy, S., Azizoglu, M., 2003.

Comprehensive Performance Analysis of a TCP

Session Over a Wireless Fading Link With Queueing,

IEEE Transactions on Wireless Communications, Vol.

2, N. 2, pp. 344-356, March 2003.

Altman, E., Avrachenkov, K., Barakat, C., 2000. TCP in

presence of bursty losses, ACM SIGMETRICS

Performance Evaluation Review (Special issue on

proceedings of ACM SIGMETRICS 2000), Vol. 28, N.

1, pp. 124-133, June 2000.

Atiquzzaman, M., Ivancic, W., 2003. Evaluation of SCTP

Multistreaming over Satellite Links, in: Proceedings

of 12

International Conference on Computer

Communications and Networks, Dallas, TX, USA,

October 2003.

Bakre, A., Badrinath, B., 1995. I-TCP: Indirect TCP for

Mobile Hosts, in: Proc. of 15

IEEE International

Conference on Distributed Computing Systems

(ICDCS '95).

Bakshi, B., Krishna, P., Vaidya, N., Pradhan, D., 1997.

Improving Performance of TCP over Wireless

Networks, in: Proceedings of 17

International

Conference on Distributed Computing Systems,

Baltimore, MD, USA, May 1997.

Chang, F., Karamcheti, V., 2001. A Framework for

Automatic Adaptation of Tunable Distributed

Applications, Cluster Computing, Vol. 4, N. 1, pp.

49-62, March 2001.

Cheng, L., Marsic, I, 2002. Piecewise Network

Awareness Service for Wireless/Mobile Pervasive

Computing, Mobile Networks and Applications, Vol.

7, N. 4, pp. 269-278, August 2002.

Fu, X., Hogrefe, D., Le, D., 2006. A Review of Mobility

Support Paradigms for the Internet, IEEE

Communications Surveys and Tutorials, Vol. 8, N. 1,

pp. 38-51, 1

Quarter 2006.

Gross, T., Steenkiste, P., Subhlok, J., 1999. Adaptive

Distributed Applications on Heterogeneous Networks,

in: Proceedings of the 8

Heterogeneous Computing

Workshop.

Haas, Z., 1995. “Mobile-TCP: An Asymmetric Transport

Protocol Design for Mobile Systems”, in: Proc. of 3

International Workshop on Mobile Multimedia

Communications.

Hsieh, H., Kim, K., Sivakumar, R., 2004. An End-to-End

Approach for Transparent Mobility across

Heterogeneous Wireless Networks, Mobile Networks

and Applications Vol. 9, N. 4, pp. 363–378, August

2004.

Kim, M., and Noble, B., 2001. Mobile Network

Estimation in: Proceedings of the 7

annual

international conference on Mobile computing and

networking (MOBICOM 2001), Rome, Italy.

Kohler, E., Handley, M., Floyd, S., 2003. Designing

DCCP: Congestion Control Without Reliability. ICIR

Technical Report.

Nist NET. The Nist NET network emulator. Available at:

http://snad.ncsl.nist.gov/nistnet/

Schlager, M., Rathke, B., Bodenstein, S., Wolisz, A.,

2001. “Advocating a Remote Socket Architecture for

Internet Access Using Wireless LANs”, Mobile

Networks and Applications, Vol. 6, N. 1, pp. 23-42,

Jan./Feb. 2001.

Singh, A., Iyer, S., 2002. ATCP: Improving TCP

performance over mobile wireless environments, in:

Proceedings of 4

IEEE Conference on Mobile and

Wireless Communications Networks, Stockholm,

Sweden.

Snoeren, A., Balakrishnan, H., 2000. An End-to-End

Approach to Host Mobility, in: Proceedings of 6

ACM/IEEE International Conference on Mobile

Computing and Networking (MobiCom ’00), Boston,

MA, USA.

Stallings, W., 2005. Wireless Communications &

Networks, Prentice-Hall. 2

edition.

Stewart, R., Xie, Q., 2001. Stream Control Transmission

Protocol (SCTP). Addison-Wesley.

Sun, J., Tenhunen, J., Sauvola, J., 2003. CME: A

Middleware Architecture for Network-Aware

Adaptive Applications, in: Proceedings 14

IEEE

International Symposium on Personal, Indoor and

Mobile Radio Communications (PIMRC 2003),

Beijing, China.

Suri, N., Tortonesi, M., Arguedas, M., Breedy, M.,

Carvalho, M., Winkler, R., 2005. “Mockets: A

Comprehensive Application-Level Communications

Library”, in: Proc of Military Communications

Conference (MilCom 2005), Atlantic City, NJ, USA.

Tian, Y., Xu, K., Ansaru, N., 2005. TCP in Wireless

Environments: Problems and Solutions, in: IEEE

Radio Communications, Vol. 43, N. 3, pp. S32-S47,

March 2005.

Wong, C., Tang, C., Fung, W., Chan, G., 2005. Using

TCP for Video Streaming Over Wireless Channel, in:

Proc. of 2

International Conference on Quality of

Service in Heterogeneous Wired/Wireless Networks

(QShine‘05), Orlando, FL, USA.

MOCKETS: A NOVEL MESSAGE-ORIENTED COMMUNICATIONS MIDDLEWARE FOR THE WIRELESS

INTERNET

267
