INTRUSION DETECTION FOR WEB APPLICATIONS

(SHORT VERSION)

Nathalie Dagorn

Laboratory of Algorithmic, Cryptology and Security (LACS), University of Luxembourg,

162a Avenue de la Faïencerie, Luxembourg, Luxembourg

Keywords: Intrusion detection, anomaly detection, Web attack, false positive, Bayesian network, alarm clustering.

Abstract: Intrusion detection systems (IDS) are usually classified into two categories: misuse- and anomaly detection

systems. Misuse detection is based on signatures; it is precise but can only accommodate already known

attacks. Unlike this, anomaly detection models a system’s usual behavior and is able to detect new attacks,

but some major challenges remain to be solved in this field, in particular the improvement of the detection

process and the reduction of false alarms. On the application/service level, several misuse detection systems

exist and work, but only one anomaly detection system is known to be efficient for now. In this short paper,

we propose a Web learning-based anomaly detection system based on this system, and resulting from the

junction of academic research in several fields, which we improved. The system analyzes HTTP requests as

logged by most of the Web servers; it exclusively relates to the queries containing attributes. The analysis

process implements a multi-model statistical approach. A Bayesian network is used as decision process,

specifying six states (one normal state and five attack states) at the classification node. The system is

improved after each log analysis thanks to a technique of alarm clustering, which allows filtering false

positive. Compared to traditional anomaly detection systems, the system we present globally gains in

sensitivity (each step of the process reduces the number of false positive to be dealt with) and in specificity

(if an attack is detected, its type is immediately specified). Moreover, a co-operation feature (alarm

correlation) with other systems is proposed for distributed intrusion detection. To date, the system has only

been partially implemented but the preliminary experiments in real environment show encouraging results.

1 INTRODUCTION

Intrusion detection systems (IDS) usually implement

two techniques: misuse- and anomaly detection.

Misuse detection is based on signatures: the system

analyzes information collected in the traffic for

comparison to a database of signatures of known

attacks, and each matching activity is considered as

an attack. Unfortunately, misuse detection can only

accommodate already documented attacks. Unlike

this, anomaly detection models a system’s usual

behavior and any significant deviation from the

defined baseline is considered as the result of an

attack. Anomaly-based systems have the advantage

of being able to detect previously unknown attacks;

however, they are not as effective as misuse

detection systems for detecting known attacks. The

major challenges to be solved in this field are the

improvement of the detection process and the

reduction of false alarms. On the application/service

level, several misuse detection systems exist and

work, but only one anomaly detection system is

known to be efficient for now.

In this short paper, we propose a Web learning-

based anomaly detection system based on this

system, and resulting from the junction of academic

research in several fields, which we improved. The

system analyzes HTTP requests as logged by most

of the Web servers; it exclusively relates to the

queries containing attributes. The analysis process

implements a multi-model statistical approach. A

Bayesian network is used as decision process,

specifying six states (one normal state and five

attack states) at the classification node. The system

is improved after each log analysis thanks to a

technique of alarm clustering, which allows filtering

false positive. Compared to traditional anomaly

detection systems, the system we present globally

gains in sensitivity (each step of the process reduces

the number of false positive to be dealt with) and in

Dagorn N. (2006).

INTRUSION DETECTION FOR WEB APPLICATIONS (SHORT VERSION).

In Proceedings of the International Conference on Security and Cryptography, pages 32-39

DOI: 10.5220/0002097900320039

 SciTePress

specificity (if an attack is detected, its type is

immediately specified). Moreover, a co-operation

feature (alarm correlation) with other systems is

proposed for distributed intrusion detection. To date,

the system has only been partially implemented but

the preliminary experiments in real environment

show encouraging results.

The paper is organized as follows. Section 2

presents the context and related work on improving

detection and reducing the false alarm rate by

focusing on findings of Kruegel, Valdes and Julisch.

Bayesian networks are also introduced. Section 3

describes our proposal, combining and improving

parts of the previously presented approaches.

Section 4 sums ups the system’s implementation/

evaluation to date, and outlines ongoing efforts.

Section 5 discusses the results and concludes.

2 RELATED WORK

In computer security, attacks on the

application/service level have particularly been

increasing for the last years (attacks on

authentication or authorization mechanisms, client-

side attacks, command execution, information

disclosure, and logical attacks

). At the present time,

they receive much attention in the research field of

intrusion detection, not only because they are

extremely dangerous, but also because of the

increasing importance of the Web services. This

paragraph presents four of these approaches,

selected because of their particularly interesting

contribution to the above mentioned issues.

2.1 Analysis Models for the

Detection of Web Attacks

Kruegel, Toth and Kirda (Kruegel et al, 2002)

propose a service-specific anomaly detection

approach, which extends traditional network traffic

models considering only packet header information

to include as well the packet payload. Three

statistical tests are implemented to detect a potential

anomaly: type of request, length of request and

payload distribution. At the end of the detection

process, a global anomaly score is computed.

In (Kruegel and Vigna, 2003), Kruegel and

Vigna increase the detection to six models: attribute

length, attribute character distribution, structural

inference, token finder, attribute presence or

absence, and attribute order.

In (Kruegel et al, 2005), Kruegel, Vigna and

Robertson still improve the system by adding three

additional models, so that the nine analysis models

finally proposed are: attribute length, attribute

character distribution, structural inference, token

finder, attribute presence or absence, attribute order,

access frequency, inter-request (time) delay, and

invocation order

. The application-specific

characterization of the invocation attributes enables

the system to perform focused analysis and therefore

to produce a reduced number of false positive. To

the best of our knowledge, this approach is the first

Web anomaly detection system (which works!).

However, the authors notice in (Kruegel et al,

2003) that the large number of false alarms may be

caused by an incorrect classification of events in

current systems, mainly for two reasons relating to

the decision process: on the one hand, the model’s

outputs form a global sum often simply compared to

a threshold, and on the other hand additional

information on the models could certainly be helpful

during the decision process. These limits can be

corrected by resorting to a Bayesian network.

2.2 Contributions of Bayesian

Networks

Bayesian networks are generally used to model a

field containing uncertainty. A Bayesian network is

a directed acyclic graph (DAG) where each node

corresponds to a discrete random variable of interest,

and the bonds symbolize the influences (causal

relationships) between variables.

In intrusion detection, several researchers have

adapted ideas from Bayesian statistics; they usually

use naïve Bayesian networks

iii

to optimize or create

models for anomaly detection. Unlike these

proposals, Kruegel, Mutz, Robertson and Valeur

(Kruegel et al, 2003) propose an event classification

based on Bayesian networks to replace the classical

threshold-based decision process, in order to

improve the aggregation of the different model

outputs and allow to seamlessly incorporating

additional information from the environment.

Nevertheless, an improvement suggested by the

authors would consist in keeping track of the recent

anomalies in the Bayesian network. We take this

remark into account in our proposal.

2.3 Classification Specification and

System Adaptation

The approach of Valdes and Skinner (Valdes and

Skinner, 2000) shows two interesting properties.

The first one is the specification of the Bayesian

network classification, namely the detail at the root

node of thirteen final state hypotheses (five normal

INTRUSION DETECTION FOR WEB APPLICATIONS (SHORT VERSION)

states and eight states of network attack); so, the

system is not restricted in indicating only if the

detection process result is normal or anomalous, but

allows to specify which hypothesis the Bayesian

network tends to, with which probability, and thus to

classify finely the detected state. We use this

property in our proposal.

The second property is the system’s capacity to

adapt, either by reinforcing its integrated models for

a current observation (by adjusting the rows of the

corresponding conditional probability tables of the

Bayesian network to the state observed at the parent

node) or by adding a new state (hypothesis) at the

parent node if the current observation is not included

in the existing hypotheses. These two adaptation

properties will be implemented in a future version of

our system (the Bayesian network will start from

only one hypothesis of normal state, then will pro-

gressively generate the attack states as discovered).

2.4 Reduction of False Alarms with

the Clustering Technique

Tools aiming at automating the treatment of alarms

are under development (Dain and Cunningham,

2002; Debar and Wespi, 2001; Valdes and Skinner,

2001) but to date no effective solution exists.

Julisch (Julisch, 2003a, 2003b) presents a

partially automated approach, based on the

observation that each alarm occurs for a reason,

called root cause. Julisch shows that many root

causes manifest themselves in alarm groups, which

have certain structural properties. He formalizes

these structural properties and proposes a data

mining technique, called alarm clustering, for

extracting alarm groups, which have similar

properties. These alarm groups are then presented to

a human expert responsible for identifying the

underlying root causes. Once identified, the root

causes can be removed (respectively, false positive

can be filtered out) to reduce the future alarm load

(up to 70% on the average).

However, only false positive issued from misuse

detection systems are considered in this approach.

Our proposal extends it to anomaly detection.

3 OUR PROPOSAL

The anomaly detection system we propose is an

attempt to improve the detection of Web-based

attacks and to decrease the large number of false

positive to be dealt with, by combining Bayesian

networks with some improvements we brought to

the previously described approaches.

3.1 Data and Operation Modes

Just like Kruegel’s approach (Kruegel et al, 2005),

the system analyzes HTTP requests as logged by

most of the Web servers (e.g., Apache). The analysis

process focuses on the association between

programs, attributes and their values.

The system can operate in training or detection

mode. During the training phase, the system creates

profiles for each server-side program or attribute.

Once the analysis models have learnt the

characteristics of normal events, the system can

switch to detection mode. The task of the models is

then to return a value for a certain request, which

reflects its state compared to the profile established

for the model. The assumption is that attribute

values with a sufficient low probability (i.e.,

abnormal values) potentially indicate an attack.

Based on the output probabilities of all the detection

models, a query is either reported as normal or as a

potential attack by the Bayesian network.

3.2 System Presentation

The overall detection process consists of three steps,

which we call analysis, decision and refinement of

the model.

Analysis. The first step analyzes each request

coming from a monitored Web server. Information

specific to the request is captured and serves as input

to the analysis process (detection models). Ten

analysis models are used; nine of them are taken up

from Kruegel’s multi-model approach (Kruegel et

al, 2005).

We add an anomaly history model, which keeps

track of the recent anomalies and checks whether an

event is one of them. This model also allows

measuring the events in time in a weighted manner,

in the sense that an event, which has just occurred,

has more weight in the system than events, which

occurred a long time ago (and which are weighted so

as to decrease their importance). Lastly, the anomaly

history model will achieve in a future version a

correlation of alarms coming from other sources, in

order to enable the co-operation of the system with

other intrusion detection systems in case of a

distributed intrusion detection policy.

Each model outputs a real value in the interval

[0,1] which reflects the deviation of the event’s

attributes from its profile.

Decision process. The second step decides whether

the analyzed request is normal or an attack. An

extended Bayesian network is substituted as a

SECRYPT 2006 - INTERNATIONAL CONFERENCE ON SECURITY AND CRYPTOGRAPHY

Figure 1: Bayesian network for the characterization of Web-based attacks.

Classification

Attribute length

Structural

inference

Token finder

Attribute

character

distribution

Attribute

presence or

absence

Attribute order

Access

frequency

Inter-request

time delay

Invocation

order

Attribute length

confidence

Structural

inference

confidence

Token finder

confidence

Attribute

character

distribution

confidence

Attribute

presence or

absence

confidence

Attribute order

confidence

Access

frequency

confidence

Inter-request

time delay

confidence

Invocation

order

confidence

Attribute

character

distribution

quality

Anomaly

history

Anomaly

history

confidence

Attribute

character

distribution

confidence

Figure 2: Developed Bayesian network.

Classification

Normal

Authentication

XSS

Command execution

DoS

Other attacks

Attribute length

[0 - 0,5[ Normal

[0,5 - 0,75[ Uncommon

[0,75 - 0,90[ Irregular

[0,90 - 0,95[ Suspicious

[0,95 – 1] Very suspicious

Structural inference

[0 - 0,5[ Normal

[0,5 - 0,75[ Uncommon

[0,75 - 0,90[ Irregular

[0,90 - 0,95[ Suspicious

[0,95 – 1] Very suspicious

Token finder

[0] Anomalous

[1] Normal

Attribute character

distribution

[0 - 0,5[ Normal

[0,5 - 0,75[ Uncommon

[0,75 - 0,90[ Irregular

[0,90 - 0,95[ Suspicious

[0,95 – 1] Very suspicious

Attribute presence

or absence

[0] Anomalous

[1] Normal

Attribute order

[0] Anomalous

[1] Normal

Access frequency

[0 - 0,5[ Normal

[0,5 - 0,75[ Uncommon

[0,75 - 0,90[ Irregular

[0,90 - 0,95[ Suspicious

[0,95 – 1] Very suspicious

Inter-request time delay

[0 - 0,5[ Normal

[0,5 - 0,75[ Uncommon

[0,75 - 0,90[ Irregular

[0,90 - 0,95[ Suspicious

[0,95 – 1] Very suspicious

Invocation order

[0] Anomalous

[1] Normal

[CPT]

Attribute length

confidence

Very high

High

Medium

Low

None

Structural inference

confidence

Very high

High

Medium

Low

None

Token finder

confidence

Very high

High

Medium

Low

None

Attribute character

distribution confidence

Very high

High

Medium

Low

None

Attribute presence or

absence confidence

Very high

High

Medium

Low

None

Attribute order

confidence

Very high

High

Medium

Low

None

Access frequency

confidence

Very high

High

Medium

Low

None

Inter-request time delay

confidence

Very high

High

Medium

Low

None

Invocation order

confidence

Very high

High

Medium

Low

None

[CPT]

Attribute character

distribution quality

Very high

High

Medium

Low

None

[CPT]

Anomaly history

[0 - 0,5[ Normal

[0,5 - 0,75[ Uncommon

[0,75 - 0,90[ Irregular

[0,90 - 0,95[ Suspicious

[0,95 – 1] Very suspicious

[CPT]

Anomaly history

confidence

Very high

High

Medium

Low

None

[CPT]

Attribute character

distribution quality

confidence

Very high

High

Medium

Low

None

[CPT]

INTRUSION DETECTION FOR WEB APPLICATIONS (SHORT VERSION)

decision process to the threshold technique generally

used for anomaly detection, and joins thereby the

Kruegel’s event classification (Kruegel et al, 2003).

The value returned by each model is incorporated as

evidence in the Bayesian network. According to the

model’s output, each node includes two (normal,

anomalous) or five possible states as defined by

Kruegel (Table 1).

Table 1: Anomaly Score Intervals (Kruegel et al, 2003).

Anomaly Score Range Level

[0.00 , 0.50[

[0.50 , 0.75[

[0.75 , 0.90[

[0.90 , 0.95[

[0.95 , 1.00]

Normal

Uncommon

Irregular

Suspicious

Very suspicious

Each node is also associated a conditional

probability table, whose values are initially

established after the training period according to our

specific knowledge in the field.

To improve the detection process, just as

(Kruegel et al, 2003), every node in the extended

Bayesian network is associated a confidence node.

The conditional probability tables are adjusted so

that each model output has a weighted influence on

the decision according to its confidence level. The

model confidence is represented as one of five

discrete levels: very high, high, medium, low or

none (Kruegel et al, 2003).

The task of the event classification process is to

determine whether the treated request is normal or

not, given the outputs of the different models for all

its attributes. If the request is anomalous, the

suspected attack is indicated with its relative

probability. The system is able to specify attacks on

authentication mechanisms, client-side attacks

(XSS), command execution, and logical attacks

(denial of service). A class "other attacks" gathers

attacks not distinctly specified, but which are

evaluated as anomalous events by the detection

models. The root node of the Bayesian network thus

includes six possible states: normal, authentication,

XSS, command execution, denial of service, and

other attacks.

Fig. 1 shows the structure of the Bayesian

network we propose for the characterization of Web-

based attacks. Unlike to (Kruegel et al, 2003), the

conditional probability tables initially specified for

each node are adjusted in our case after each log

analysis according to Julisch’s technique; in other

words, the probabilities chosen before the beginning

of the evaluation are continuously modified

thereafter.

Fig. 1 also shows model dependencies. In

particular, based on (Kruegel et al, 2003), we

identify a dependency between the nodes attribute

length and attribute character distribution. Therefore,

an intermediate node attribute character distribution

quality is inserted between them to point out that the

attribute length influences the character distribution.

In a more developed shape, the extended

Bayesian network can be represented by Fig. 2. By

preoccupation with readability, the conditional

probability tables are not developed on the figure

(the largest would count 5 rows x 150 columns at the

attribute character distribution node).

At the end of the decision process, the

probabilities of the six states associated with the

classification node are calculated. When an event

has a “high enough” probability to be anomalous at

the root node, an alarm is raised. The raised alarm is

also transmitted to one (or several) other system(s)

in case of a distributed intrusion detection policy.

All the anomalous events are stored in log files.

Refinement of the model. In the third step of the

process, Julisch’s alarm clustering technique

(Julisch, 2003a, 2003b) is actively used to group the

alarms in clusters and identify their root causes.

False positive are filtered out. After each log

analysis, the conditional probability tables in the

extended Bayesian network are adjusted, so that the

false positive identified will no more appear in the

next sessions. This technique thus contributes to

refine the model.

For a better comprehension, we provide two

motivating examples in Appendices A and B. A

theoretical example first describes the overall

detection process, by focusing on a particular model

facing a hypothetical attack (attack on authentication

mechanisms). Then a practical example describes

the fulfillment of the same attack on the Web server

of the testing company (see § 4), automated with the

THC-Hydra tool (THC-Hydra); this last case shows

in particular how suitable values of the conditional

probability tables can be fixed for a specific node.

4 IMPLEMENTATION,

EVALUATION AND FUTURE

WORK

For the moment, only the Bayesian network and four

analysis models have been developed and tested.

SECRYPT 2006 - INTERNATIONAL CONFERENCE ON SECURITY AND CRYPTOGRAPHY

4.1 Implementation

We have partially implemented our analysis models

(four models of a total of ten: attribute presence or

absence, attribute order, attribute length and

anomaly history), following Kruegel’s relevant

choice (Kruegel et al, 2003) to use for the event

classification module the C++ language and the

SMILE Bayesian statistics library (SMILE).

SMILE has a Windows user interface, called

GeNIe, which can be used to create decision

theoretic models intuitively. In a pre-implementation

phase, GeNIe has already allowed us to create and

test manually the proposed Bayesian network. This

one seems correctly designed; collected data are

consistent and meet our expectations.

4.2 Evaluation

We evaluated the four implemented models of our

system in real environment. We used a set of data

(request logs) issued from a Web server of a real

company established in Luxembourg (Luxembourg).

Consolidated subsidiary of a corporate counting

158000 employees over 35 countries with revenue of

€37 billions

, the Luxembourg company counts 86

employees and offers a broad range of IT services

and products, in particular for state administrations

and the financial sector.

The application to protect is a business

application collecting the working times to charge

on projects; it is used by all the employees of the

Luxembourg company. This application was

developed using Java servlets, running in a JBOSS

environment, which is based on an Apache Web

server. The same type of server (same architecture,

same type of data) is used for the same purpose in

Brussels (Belgium) by the Belgian branch of the

company, whose core business is the same and

which counts approximately 250 employees.

The preliminary experiments consist in sending

requests containing anomalous events (additional or

reversed attributes, too long attribute values…) to

the implemented analysis models. About thirty

anomalous events were thus tested (sometimes

combined) on the four models; all the events were

detected by the models and were evaluated as

anomalous by the Bayesian network. At this stage of

development, the Bayesian network did not have

sufficient information to specify alarms

4.3 Ongoing Efforts

In the months to come, we have the ambition to

implement the six remaining analysis models (i.e.,

the attribute character distribution, structural

inference, invocation order, access frequency, inter-

request time delay, and token finder models), the

clustering technique, and to evaluate the complete

system in the testing company.

5 DISCUSSION AND

CONCLUSION

This short paper describes a very first step of our

ongoing research in the field of intrusion detection

(ph.D. thesis). In addition to the judicious

combination of several approaches, our

contributions in this paper are multiple.

First, our proposal improves original work at each

phase of the intrusion detection process:

- in the analysis phase, a model (anomaly history)

is added to Kruegel’s models, enriching the

system with temporal and co-operation features;

- in the decision phase, a Bayesian network

replaces the traditional summation process,

confidence nodes weight the different models’

outputs, and the classification (Valdes) is able to

identify five different types of Web attacks;

- in the model refinement phase, the alarm

clustering technique proposed by Julisch for mi-

suse detection is applied to anomaly detection.

These improvements contribute to an additional

reduction of false alarms in the global anomaly

detection process, resulting in a gain in sensitivity.

Second, the specification of the Bayesian network

at the classification node (six states) recognizing five

specific Web attack patterns allows classifying very

precisely the status of the analyzed requests. This

classification is not only limited to a simple result

“normal” or “anomalous”. If the request is evaluated

as anomalous by the Bayesian network, the

suspected attack and its precise probability are

returned. This improvement allows the analyst to

obtain precisions on a potential intrusion, resulting

in a gain in specificity.

Lastly, we were eager to equip the proposed

detection system with a co-operation feature,

making its implementation possible in case of a

distributed intrusion detection policy. This feature is

not yet effective at the present time but will be

implemented for our thesis work, just like the

dynamic hypotheses generation and a real-time

request analysis features.

INTRUSION DETECTION FOR WEB APPLICATIONS (SHORT VERSION)

A negative report is presented that the complete

implementation of our system and its evaluation in

real world could not be achieved before the

submission of this paper; nevertheless, our first

experiments show encouraging results.

REFERENCES

Dagorn, N., 2006. Intrusion Detection for Web

Applications. Proceedings of the 5

IADIS

International Conference on www/Internet (ICWI

2006). Murcia, Spain.

Dain, 0. and Cunningham, R.K., 2002. Fusing

heterogeneous alert streams into scenarios. In D.

Barbara and S. Jajodia (Eds.), Applications of Data

Mining in Computer Security. Kluwer Academic

Publishers, Boston, MA.

Debar, H. and Wespi, A., 2001. Aggregation and correla-

tion of intrusion-detection alerts. Proceedings of the

4thWorkshop on Recent Advances in Intrusion Detec-

tion (RAID). LNCS, Springer Verlag, pp. 85-103.

Julisch, K, 2003a. Clustering Intrusion Detection Alarms

to Support Root Cause Analysis. ACM Transactions

on Information and System Security 6(4).

Julisch, K., 2003b. Using Root Cause Analysis to Handle

Intrusion Detection Alarms. PhD Thesis, University of

Dortmund, Germany.

Kruegel, C., Toth, T., Kirda, E., 2002. Service Specific

Anomaly Detection for Network Intrusion Detection.

Proceedings of the 17th ACM Symposium on Applied

Computing (SAC). ACM Press, Madrid, Spain.

Kruegel, C., Vigna, G., 2003. Anomaly detection of Web-

based attacks. Proceedings of the 10th ACM

Conference on Computer and Communication Security

(CCS’03). Washington, DC. ACM Press, New York.

Kruegel, C., Mutz, D., Robertson, W., Valeur, F., 2003.

Bayesian Event Classification for Intrusion Detection.

Proceedings of the 19th Annual Computer Security

Applications Conference (ACSAC). IEEE Computer

Society Press, USA.

Kruegel, C., Vigna, G., Robertson, W., 2005. A multi-

model approach to the detection of web-based attacks.

Computer Networks, Vol. 48, Issue 5. Elsevier.

State, R., 2005. Intrusion Detection. Tutorial Master2.

Nancy1.

Valdes, A. and Skinner, K., 2000. Adaptive, Model-based

Monitoring for Cyber Attack Detection. Recent

Advances in Intrusion Detection (RAID 2000). Lecture

Notes in Computer Science, No. 1907, pp. 80–92.

Valdes, A. and Skinner, K., 2001. Probabilistic alert

correlation. Proceedings of the 4thWorkshop on

Recent Advances in Intrusion Detection (RAID).

LNCS, Springer Verlag, Berlin, pp. 54-68.

SMILE: Structural Modeling, Inference and Learning

Engine. http://genie.sis.pitt.edu/.

THC-Hydra: http://www.thc.org/thc-hydra/.

APPENDIX A: THEORETICAL

MOTIVATING EXAMPLE

Suppose the following request (assumed to have

been extracted from a monitored Web server log):

192.168.10.10 – username

[2/April/2006:19:36:25 -0800] “GET

/scripts/cmd.pl?id=524&name=dummystring

&country=passwd” 200 2122

Step 1: Analysis. The request is analyzed. The

query serving as input for the ten anomaly detection

models is:

id=524&name=dummystring&country=passwd.

For certain models, the complete query is analyzed;

for others the analysis only focuses on the attribute

values (

id, name, country). Let us develop the

case of the token finder model. The three attributes

are successively injected as input of the model. The

attributes

id and name being of random type (i.e.,

not part of an enumeration), the model returns the

value 0 (normal). Unlike this, the

country attribute

is a token of an enumeration and can contain only a

valid country name. The attribute value

passwd is

not an acceptable input; therefore, the model returns

the value 1 (anomalous) for this attribute.

Step 2: Decision. The request is evaluated as

normal or as an attack. During the training period,

the variance of the analyzed attributes was assumed

relatively low for the token finder model, so that the

confidence level now associated with the model in

the Bayesian network is high. We consider the

output value of the token finder model, provided by

the analysis of the

country attribute. The value 1

returned is injected as evidence into the Bayesian

network. The anomalous state is raised by the node

in the network. A message is propagated to the

classification node according to the conditional

probability tables, characterizing an attack on

authentication mechanisms; this message is only

very slightly decayed because of the high confidence

in the model. So, the classification node is updated

not only according to the weighted message

transmitted by the token finder model, but also

according to the observations resulting from the

other nodes in the network (weighted by their

respective confidence level). Once the complete

query treated, the probability of an anomalous state

at the classification node is calculated. If an

anomalous state (i.e., a specified attack) is detected

with a high enough probability value, the request is

considered as anomalous and an alarm is raised (the

raised alarm is also transmitted to one or more other

systems in case of a distributed intrusion detection

SECRYPT 2006 - INTERNATIONAL CONFERENCE ON SECURITY AND CRYPTOGRAPHY

policy). The anomalous request detected is stored in

the alarm log.

Step 3: Model refinement. The detection process is

continuously improved. Suppose the following

alarms registered in the alarm log at the end of the

detection period (very simplified examples):

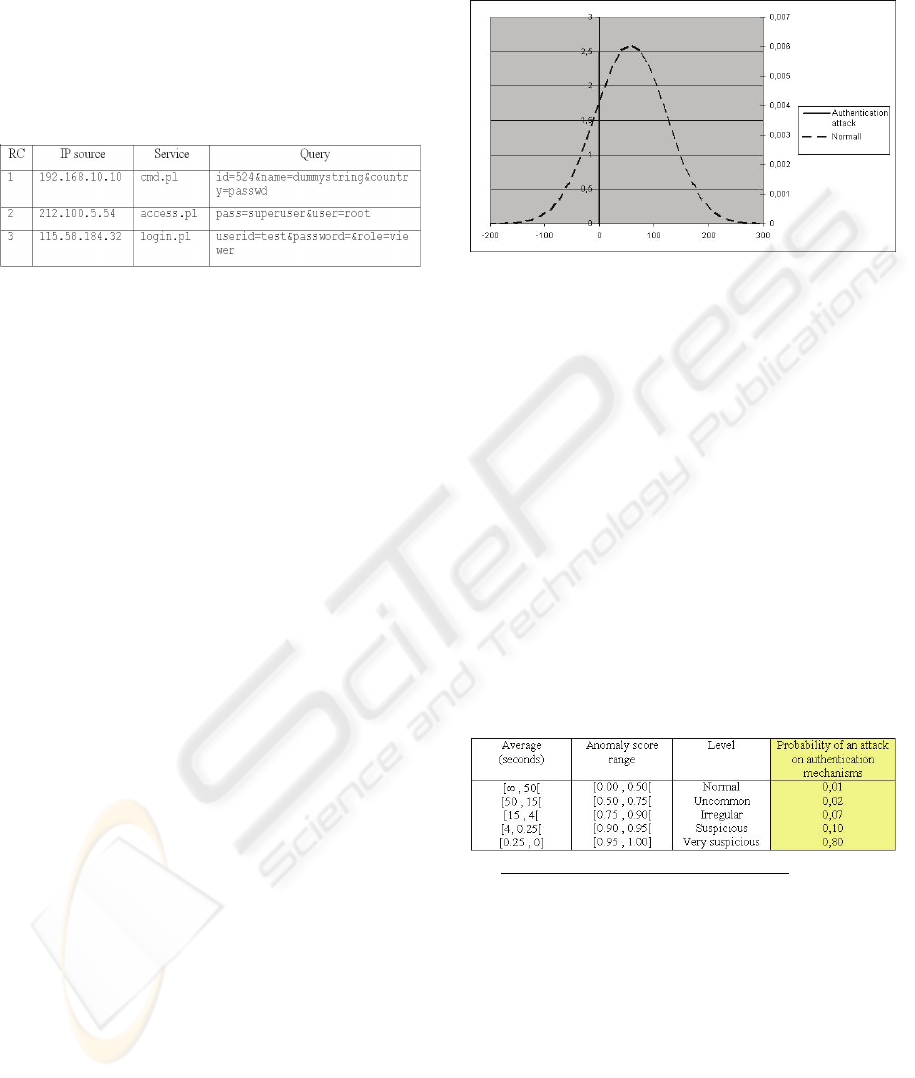

Table 2: Alarm log.

Among the three alarms logged, alarm 1 (anomaly

detected by the token finder model) is identified by a

human analyst as a true positive: a real intrusion (an

attack on authentication mechanisms) was detected

by the intrusion detection system. Alarms 2 and 3

are identified by the analyst as false alarms (root

causes known as false positive). Indeed, for alarm 2,

the attributes entered are correct but were not

specified in the appropriate order (anomaly detected

by the attribute order model). For alarm 3, the

password attribute is empty (anomaly detected by

the attribute length model). For both alarms, the

conditional probability tables at the evidence nodes

are adjusted so that they will no more interfere in the

future sessions.

APPENDIX B: PRACTICAL

EXAMPLE (THC-HYDRA TOOL)

In this practical example, we simulate the same

attack on authentication mechanisms using the

password cracker THC-Hydra (we used the Hydra

for Windows version). This time, let us observe the

more representative inter-request time delay model.

Training. During the training phase, all the inter-

request time delays of the requests submitted to the

Web server are collected. At the end of the training

process, the model calculates the average and the

standard deviation of the inter-request time delays

and deduces the normal distribution (without any

attack). In our case, the logs collected by the testing

Web server over one week duration shows an

average of 57,5 seconds and a standard deviation of

65,53 (curve in dotted lines on Fig. 3).

Detection. The attack, automated with the THC-

Hydra tool, generated many requests in order to

discover the connection password of a given user.

Following this series of requests, the model observes

an average of 0,19 seconds and a standard deviation

of 0,16 (curve in full lines on Fig. 3).

Figure 3: Inter-request time delays distribution.

The model notes that the attack distribution does not

correspond to the expected distribution and must

return an anomalous value (tending to 1). From the

measurement of 0,19 seconds observed with THC-

Hydra, a threshold of 0,25 seconds is fixed, from

which a probability of 0,80 of having an anomalous

state (attack) is estimated (i.e., 80% chances that the

calculated inter-request time delay reveals an attack

on authentication mechanisms). In the same way, the

value of 57,5 seconds observed allows to fix a 50

seconds threshold, from which a probability of 0,01

is estimated (i.e., 1% chances that the calculated

inter-request time delay reveals an attack on

authentication mechanisms). The intermediate

average values are fixed arbitrarily according to a

decreasing curve (results in Table 3).

Table 3: Conditional probability tableat the inter-request

time delay node.

Source: Web Application Security Consortium

http://www.webappsec.org/

We encourage the reader to refer to (Kruegel et al, 2005)

for further explanations on these models.

iii

A naïve Bayesian network is a two-layer network, which

assumes complete independence between the

information nodes.

Consolidated financial figures for fiscal year ending

March 2006.

Functional and technical architectures of the implemen-

tation, as well as more evaluation results, are presented

in (Dagorn, 2006).

INTRUSION DETECTION FOR WEB APPLICATIONS (SHORT VERSION)
