USING OMA DRM 2.0 PROTECTED CONTENT

Ogg Vorbis Protected Audio under Symbian OS

Francisco Pimenta, Carlos Serrão

ADETTI, ISCTE/DCTI, Av. das Forças Armadas, Edifício ISCTE, Lisboa, Portugal

Keywords: OMA, DRM, Symbian OS, Ogg Vorbis, Security, Cryptography.

Abstract: The lack of control inherent to digital content has been put on the spotlight by copyright infringement

coupled with massive content distribution online (e.g., Peer-to-Peer). Digital Rights Management seems to

be the solution to counter this problem advocating the use of cryptography and other related security

mechanisms to protect digital content and to associate rights with it which determine how, when and by

whom it can be consumed. The Open Mobile Alliance (OMA) specifies mobile service enablers in order to

ensure interoperability throughout the mobile spectrum. As prominent mobile devices, Symbian OS

smartphones offer an interesting platform for the demonstration of OMA DRM for the consumption of

multimedia content. This article outlines the mechanisms enabling the protected consumption of the open

and patent-free audio format (Ogg Vorbis Website), Ogg Vorbis using an OMA DRM 2.0 compliant audio

player application running under Symbian OS (directed for mobile devices).

1 INTRODUCTION

The growing proliferation of multimedia digital

content throughout, virtually, every digital platform

and system available today has produced a profound

impact.

Digital Rights Management (DRM) solutions aim

to enable content providers to assign and oversee

usage permissions or rights for multimedia content

upon purchase/distribution with the aid of

cryptographic mechanisms.

The Open Mobile Alliance (OMA) is an open

organization dedicated to specifying mobile service

enablers. In line with the mobile driven nature of

OMA, OMA DRM is especially oriented for mobile

environments. The specification defines the Rights

Object Acquisition Protocol (ROAP) (OMA DRM

Specification, 2005), the DRM Content Format

(DCF) (DRM Content Format, 2005), the Rights

Expression Language (REL) (DRM Rights

Expression Language, 2005) and more. This version

of the specification provides added security to the

previous published release (1.0).

Symbian Operating System (OS) mobile phones

are a compelling deployment platform for OMA

DRM 2.0 as their usage and multimedia capabilities

are on the rise.

2 OMA DRM 2.0 OVERVIEW

The main focus for this document will be the OMA

DRM Agent entity and in particular it’s content and

rights interpretation and consumption capabilities.

The DRM Agent, which is a trusted software

component functioning under (in this case) a mobile

device oversees all of the functionalities related to

the interpretation and enforcement of the usage

defined by the OMA DRM 2.0 specification and

rights/content issuers.

2.1 DRM Content Format

Prior to distribution, content issuers are responsible

for packaging unprotected multimedia content in a

secure container known as DCF (DRM Content

Format).

311

Pimenta F. and Serrão C. (2006).

USING OMA DRM 2.0 PROTECTED CONTENT - Ogg Vorbis Protected Audio under Symbian OS.

In Proceedings of the International Conference on Security and Cryptography, pages 311-315

DOI: 10.5220/0002103003110315

 SciTePress

Version 2.0 of the DCF offers more extensive

information fields for the protected content and a

well defined file structure in comparison to version

1.0. It uses object-oriented structure as defined the

ISO Base Media File Format (ISOBMFF)

specification (Information technology, 2005). The

ISOBMFF uses an object-oriented design of Boxes

each containing mandatory type and size fields. No

data is to be present outside a box structure.

DCF employs two distinct profiles with the aim

of suiting the particularities different media types.

The standard profile (Figure 1) was designed for

Discrete Media (i.e. ring tones, applications, images,

etc.) protection by nesting the complete encrypted

content within the Box hierarchy regardless of the

actual original content type (audio and video content

is supported as well).

Despite the flexibility of the base profile, OMA

has specified a second profile with audio and video

content in mind deemed Packetized DCF (PDCF).

Both profiles use the box class concept defined in

the ISOBMFF but the second profile fully

implements the ISOBMFF. The motivation behind

the PDCF is the fact that audio and video is

composed with packets of data.

PDCF deployment is particularly smooth if the

original content is in the ISOBMFF such as is the

case with 3GPP, MPEG-4 or Apple’s QuickTime

(QT) (MPEG-4 File Formats white paper, 2005).

However, using different types of audio and video

file formats as PDCFs implies a conversion effort

which may have significant costs and barriers as is

for the presented work (clarifications in section 3).

Counter mode (CTR) is supported in this version

avoiding padding bits.

2.2 Rights and the Rights

Expression Language

In OMA DRM, Rights are self contained objects,

separate from content and independent from the

content type. These objects use the REL for defining

their syntax and semantics which in turn is based on

the Open Digital Rights Language (ODRL) (DRM

Rights Expression Language, 2005). REL XML

elements are grouped according to their functionality

in different models, namely the: Foundation

(root/basis), Agreement (main container), Context

(metadata), Permission (i.e. type of permission to:

play, display, etc.), Constraint (e.g. time or count

based constraints), Inheritance (inheriting rights

from a parent RO) and Security models (message

digest and encryption data).

2.3 Rights Object Acquisition

Protocol

The ROAP protocol suite (OMA DRM

Specification, 2005) is used to interact directly with

RIs creating the means for acquiring ROs from RIs

but, it is also composed by other sub-protocols that

accomplish other mechanisms, such as,

joining/leaving a domain.

There are two ways of initiating ROAP: 1)

through a ROAP Trigger (OMA DRM Specification,

2005) or 2) from a DCF. Initiating ROAP from a

DCF object partakes to the analysis of the Box

structure inside, particularly the Common Headers

Box which should contain the RI URL.

Upon first contact, and sub sequentially whenever

deemed necessary, the Agent and RI go through a

handshaking process using the Registration Protocol.

Successful registration results in the storage of RI

context information. After context storage, mutual

authentication is made possible on the other ROAP

protocol runs.

A successful RO Acquisition protocol run wields

a valid RO in the RO Response message.

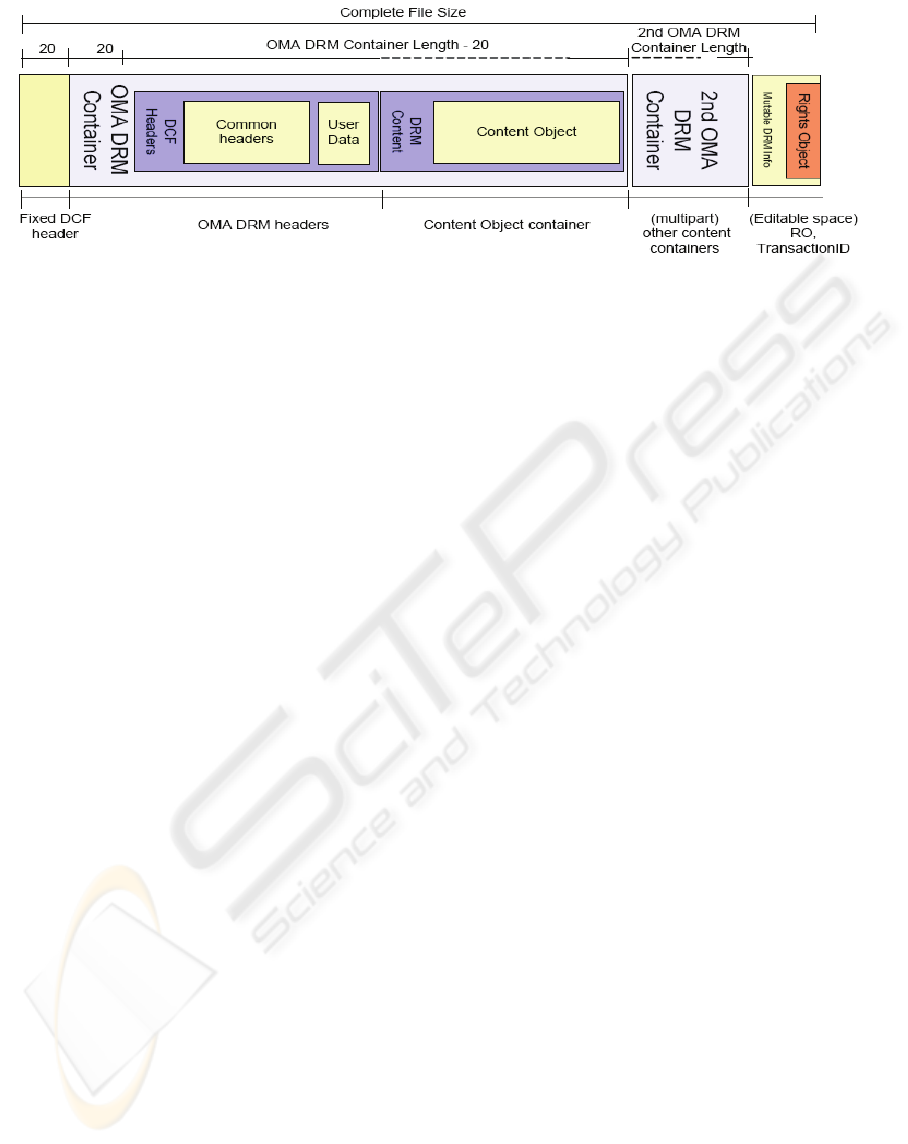

Figure 1: DCF Structure (Information technology, 2005).

SECRYPT 2006 - INTERNATIONAL CONFERENCE ON SECURITY AND CRYPTOGRAPHY

312

3 THE OMA-DRM 2.0

IMPLEMENTATION USING

OGG-VORBIS

This chapter describes the work done thus far and

outlines the future work using the Symbian

Environment and an open source Symbian audio

player with no initial internal DRM support

whatsoever. The goal is then to add OMA DRM 2.0

support to the player and, by extension, the phone in

which the player is installed in. This task can be

decomposed in: adding support for interpreting

DCFs (2.1), ROs (2.2) and implementing ROAP

(2.3).

The audio player chosen as a work base is an

Open Source project for Symbian Series 60 focusing

primarily on the Ogg Vorbis format.

The chosen Symbian User Interface (UI)

deployment platform and testbed was Series 60

developed by Nokia which is to date, the most

popular UI– higher number of phone models. PC

based testing used S60 2

Edition FP3 Emulator for

Symbian v8.1.

3.1 Ogg Vorbis Audio

Vorbis and Ogg are, respectively, an audio codec

(Vorbis I specification) and generic encapsulation

format (bitstream container) (Pfeiffer, 2003)

together making up Ogg Vorbis Audio.

In greater detail, Vorbis is a perceptual audio

codec (lossy) similarly to MPEG-4 ACC, AC-3 or

RealAudio. A Vorbis bitstream is composed by three

initial header packets: identification, comment and

setup headers in that order which are necessary in

order to initialize the bitstream (Vorbis I

specification). After these headers all remaining

packets are audio packets with type 0, mode and

block size fields.

The Ogg multimedia bitstream format is agnostic

towards the actual media (logical bitstreams) it

stores – it is media independent. Encapsulation is

achieved by taking a packet-by-packet logical

bitstream and dividing each (packet) into 255 byte

chunks or Ogg segments (last segment may be

smaller), following this groups of contiguous

segments are wrapped into variable length

(approximately 64Kbytes or 65307 bytes maximum)

Ogg pages. Metadata is part of the second header

packet in a Vorbis bitstream – comment header

(Vorbis I specification).

A major advantage of adopting Ogg Vorbis is its

patent, license free and open nature (Ogg Vorbis

Website), another, is its high fidelity and

transparency. Ogg Vorbis is estimated to reach

transparency at 160 kbit/s whereas MP3 does it at

about 192 kbit/s, thus, Ogg Vorbis produces a

smaller file size to achieve the same quality.

3.2 DCF Decision

It is clear that that it is advisable that audio/video

data should encapsulated into a PDCF. However,

Ogg Vorbis is not a ISOBMFF. Vorbis is usually

encapsulated onto the Ogg container format but it

may also be encapsulated into other formats. With

using the ISOBMFF a considerable effort would be

required in coding all the data and metadata from the

Vorbis bitstream into the new format. It is also a

countersense to do this conversion since PDCF was

designed so that files look and function like a media

file to the outside (DRM Rights Expression

Language, 2005). With this in mind, it is unclear

what file extension such a file should have.

The solution found was using the DCF in spite of

its shortcomings regarding packetized media. This

way the Ogg Vorbis can be preserved and

encapsulated into the DCF effortlessly. However, it

is required to encrypt packets separately before

adding the bitstream to the DCF.

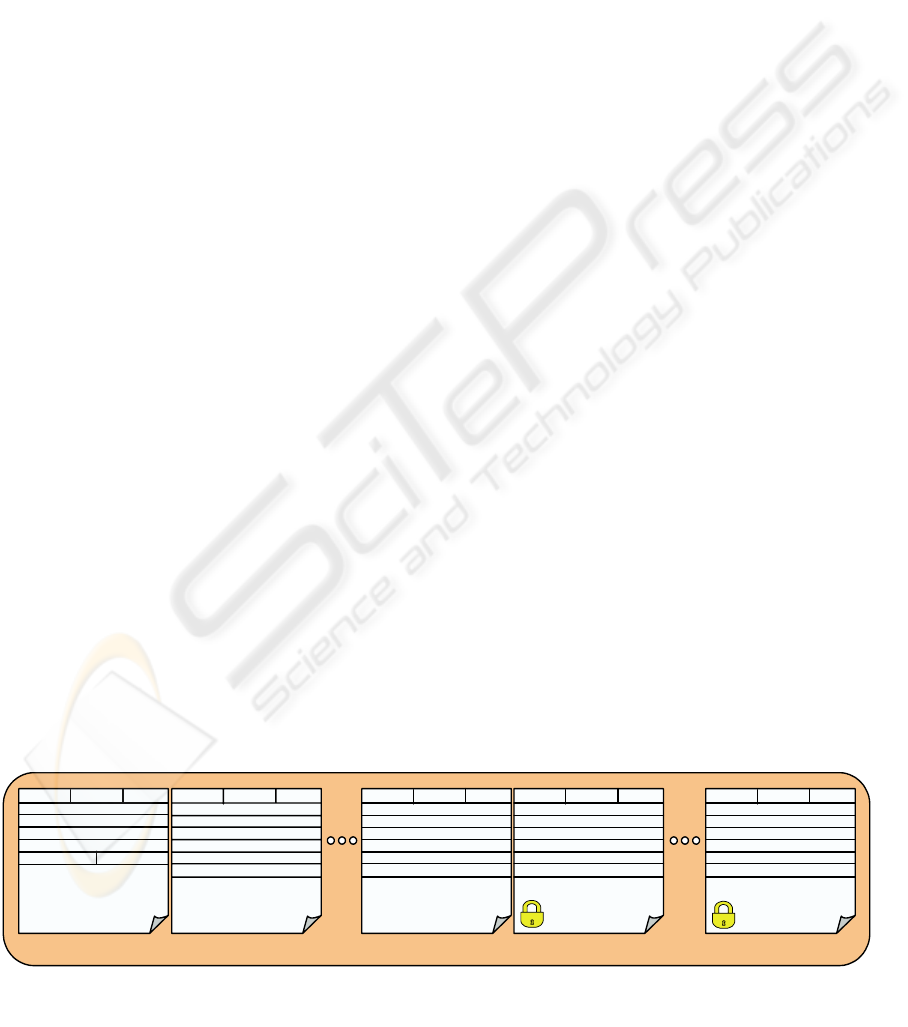

Figure 2 marks the (audio) data regions of a Ogg

Vorbis file subjected to encryption. Ogg page

headers and non-audio Vorbis packets (headers)

should be left in plaintext form so that the vorbis

format can be kept readable. This also permits using

the file’s original metadata instead of using the User

Data Box (figure 1). To detect that the DCF was

encrypted in this manner it is sufficient to check the

content type of the original content present on the

“OggS” 0x00 0x00

0x0000000000000000

bitstream_serial_number

sequence_number

CRC_checksum

page_segments

segment_table

comment header

“OggS” 0x00 0x02

0x0000000000000000

bitstream_serial_number

sequence_number

CRC_checksum

0x01 0x1E

identification header

Ogg Page 1

(BOS – 58 bytes)

Ogg Page 2

“OggS” 0x00 0x01

0x0000000000000000

bitstream_serial_number

sequence_number

CRC_checksum

page_segments

segment_table

setup header

“OggS” 0x00 0x00

0x0000000000000000

bitstream_serial_number

sequence_number

CRC_checksum

page_segments

segment_table

audio packet data

Ogg Page n

Ogg Page n+1

“OggS” 0x00 0x04

0x0000000000000000

bitstream_serial_number

sequence_number

CRC_checksum

page_segments

segment_table

audio packet data

Ogg Page N

(EOS)

Figure 2: Typical structure of an (encrypted) Ogg Vorbis file.

USING OMA DRM 2.0 PROTECTED CONTENT - Ogg Vorbis Protected Audio under Symbian OS

313

Discrete Media Headers Box although the Ogg

Vorbis within can also be identified by its capture

pattern (=”OggS”).

3.3 Current Work

The current work has focused primarily on making

the audio player support the DCF format.

The play looks for files that are found to be of

known audio formats are added to player’s local

playlist. The player uses a Symbian Series 60

concept (from v7.0s+) which is the Multimedia

Framework or MMF (see (Symbian OS SDK v8.1A,

2005)). This framework provides a Client-Controller

architecture in which a client can make requests the

controller framework to play, convert or record

audio and more. On the controller side there are

separate controller plugins responsible for playing

different media types.

To support DCF (.odf) files it was necessary to

add a new controller and subset of classes to handle

of this format. So, when searching for files (figure 3

– right), each found occurrence launches basic

checks on the file structure. In order to keep a

reasonable file search speed (a couple of hundred

milliseconds).

The most basic check determines if the File Type

Box is present and matches the structure defined in

(DRM Rights Expression Language, 2005) further

more, it is necessary that all mandatory Boxes be

present as well as all the necessary information to

read and decrypt (if encrypted) the file (e.g.

initialization vector). Any error reading Box fields

also results in failure and consequent rejection of the

file as valid DCF. Failure in any of these checks

results in not adding the file to the list at all.

After a successful initial check the file may be

played. The major difference to playing a regular

.ogg file is not only the fact that cryptography is

involved but also that the actual original file it kept

within an offset range within the physical file. This

is achieved with changes in the Ogg controller at the

level of the interface code between the Symbian

C++ code and the C code. The AES algorithm used

is a Symbian C++ port of the optimized 3.0 C code

in CTR mode.

3.4 Conclusions and Future Work

The following steps shall focus primarily on

introducing the other two key concepts of the OMA

DRM system, ROs and ROAP. A common need for

these two elements is XML parsing and generating

API. For this a porting, shall be done of a XML

parser with desirable lightweight characteristics.

XML functionality is a significant bulk of the work

to be done in completing the system. As ROs are

supported an important issue shall be installing

them, particularly when they contain stateful rights.

In which case state information should de saved in

encrypted form for DRM Agent management.

ROAP support shall include the coding of the

appropriate behaviour of the suit of protocols with

inherent mechanisms concerning rights and security

including the storage of RI contexts with eventual

integrity protection using hashing. Enabling hashing

capabilities for instance requires the porting of the

SHA-1 algorithm to Symbian.

With the deployment of ROAP the playing of a DCF

file shall contemplate: 1) initiating (silently or not) a

ROAP Registration (if necessary) and a 2) RO

Acquisition protocol which results in the return of

the appropriate RO if successful to allow file

playing.

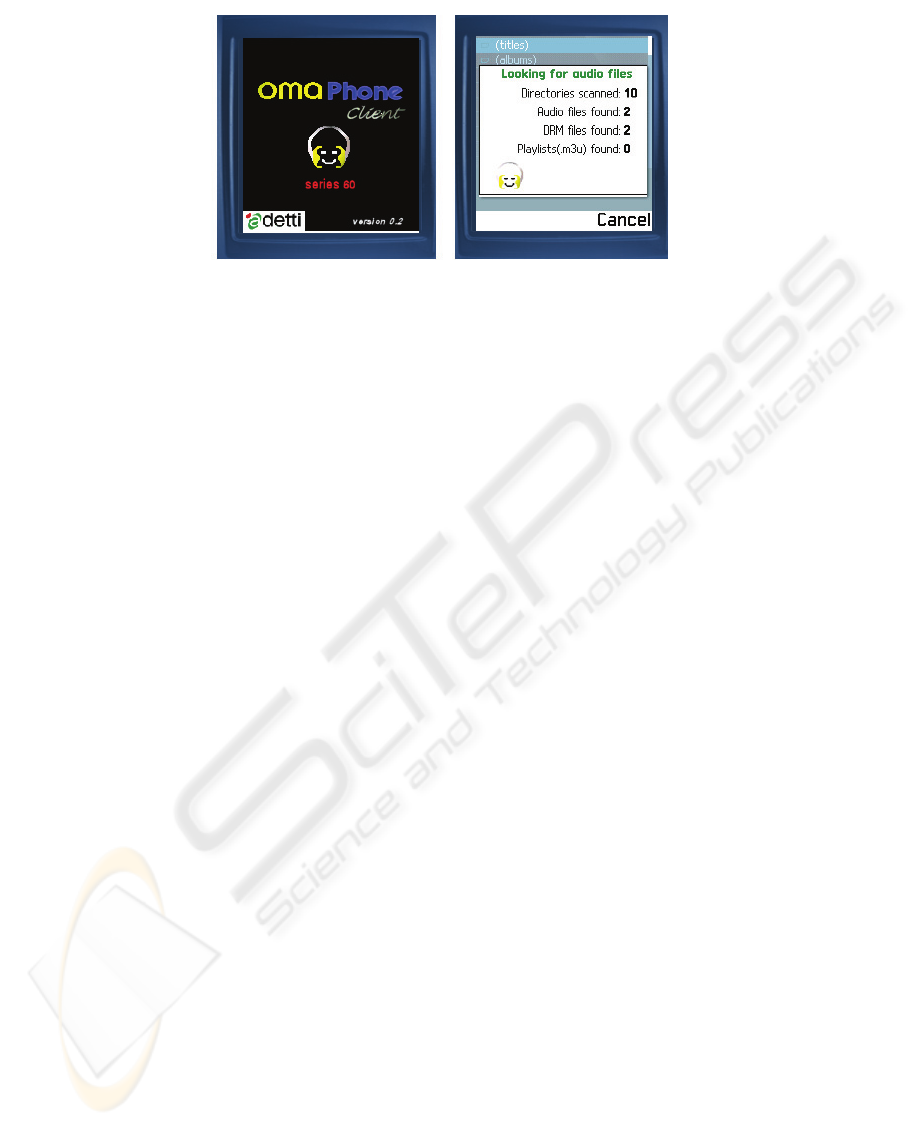

Figure 3: Application Splash Screen (Left) and File Search Dialog (Right).

SECRYPT 2006 - INTERNATIONAL CONFERENCE ON SECURITY AND CRYPTOGRAPHY

314

REFERENCES

“OMA DRM Specification”, Candidate Version 2.0 – 15

September 2005, Open Mobile Alliance, OMA-TS-

DRM-DRM-V2_0-20050915-C.

“DRM Content Format”, Candidate Version 2.0 – 01

September 2005, Open Mobile Alliance, OMA-TS-

DRM-DCF-V2_0-20050901-C.

“DRM Rights Expression Language”, Candidate Version

2.0 – 25 August 2005, Open Mobile Alliance, OMA-

TS-DRM-REL-V2_0-20050825-C.

“Information technology — Coding of audio-visual

objects – Part 12: ISO Base Media File Format”,

International Organisation for Standardisation,

ISO/IEC 14496-12, Second Edition, April 2005.

“MPEG-4 File Formats white paper”, International

Organisation for Standardisation, ISO/IEC JTC 1/SC

29/WG 11N7609, October 2005, Nice.

Vorbis I specification,

http://www.xiph.org/vorbis/doc/Vorbis_I_spec.html.

Pfeiffer, S., “The Ogg Encapsulation Format Version 0”,

RFC 3533, May 2003.

Symbian OS SDK v8.1A, Symbian Limited, 2005

“Ogg Vorbis Website”, http://www.vorbis.com/

USING OMA DRM 2.0 PROTECTED CONTENT - Ogg Vorbis Protected Audio under Symbian OS

315
