SECURING WEB SERVICES USING IDENTITY-BASED
ENCRYPTION (IBE)
Kari Anne Haaland
Chunming Rong
Department of electrical and computer engineering, University of Stavanger, Stavanger, Norway
Keywords: Authentication, Authorization, Identity-based Encryption, open standards, and Web Service Security.
Abstract: There is obvious need in cooperation between organizations. A recent trend is cooperation online, which
result in the need of facilitating and managing cross-domain access to information and applications. It is
important to utilize open standards that leverage existing technologies instead of replacing them. WS-
Security, emitted by OASIS, defines standards on how to encode security tokens. In this paper we look at
the use of Identity-based Encryption to leverage the exchange of security tokens, and how it can be
implemented with WS-Security. Identity-based encryption offers, compared to the more conventional PKI,
some additional advantages. For instance: databases maintaining public-key certificates are now longer
necessary, this simplify key management, saves space, and eliminate the threat of attacks on these
databases. It is also more suitable to grant collective access to groups, and is therefore suited for role based
access control. We do not suggest Identity-based encryption as a replacement, but rather a complementary.
1 INTRODUCTION
There is obvious need in cooperation between
organizations, e.g. suppliers, distributors, and
business partners. The recent trend is cooperation
online, which results in the need of facilitating and
managing cross-domain access to information and
applications
In the early stage, each entity explicitly
registered and authenticated all its external users.
However, dynamic changing environment demands
for more integrated solutions that offer seamless
cross-domain access and interaction.
Traditional cryptographic systems show their
limitation in terms of flexibility and manageability
(Mont et al., 2003) to coop with organizations shift
towards more and more complex structures, where
peoples roles and permissions changes frequently.
Identity-based Encryption (IBE) (Boneh and
Franklin, 2001) is an encryption system that makes
an easy way to grant collective access to groups,
thus integrates well with frequently change in users
roles and permissions. It is based on the more
conventional PKI, but with some additional
advantages. The public key is an arbitrary string
(e.g. role, name, email address etc.) Thus, databases
to maintain public key certificates are no longer
needed. This simplifies key management, saves
space, and eliminates attacks on the certificate
databases.
As different organizations already have, more or
less, functioning technologies in place, it is preferred
to leverage existing technologies instead of
replacing them. It’s important to utilize the
advantages of open standards, and security that
works across multiple heterogeneous systems.
WS-Security (Atkinson et al., 2002b), an open
standard emitted by OASIS (Organization for the
Advancement of Structured Information Standards),
describes enhancements to SOAP messages to
provide integrity, message confidentiality and single
message authentication. It is part of the web service
security road map (IBM Corporation and Microsoft
Corporation, 2002), and defines standards on how to
encode security tokens and include opaque
encryption keys. It does not specify any specific
type of token, but is designed to be extensible to
support multiple security tokens. (E.g. X.509
Authentication Certificates and Kerberos tickets).
413
Anne Haaland K. and Rong C. (2006).
SECURING WEB SERVICES USING IDENTITY-BASED ENCRYPTION (IBE).
In Proceedings of the International Conference on Security and Cryptography, pages 413-418
DOI: 10.5220/0002103504130418
Copyright
c
SciTePress
Together with other existing standards it forms a
building block for other WSS-standards. Figure 1.

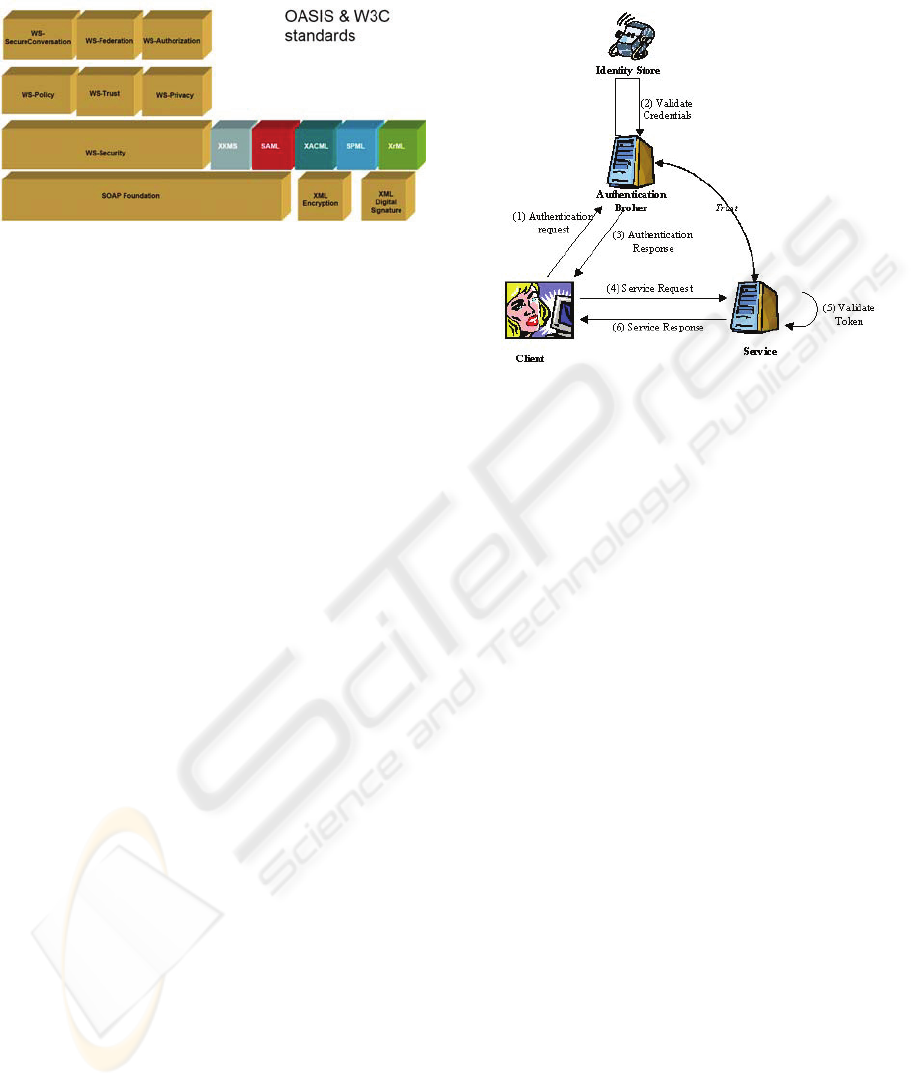

Figure 1: OASIS and W3C Standards.
In this paper we suggest IBE as a complementary
technology to leverage cross-organization
communication. The rest of the paper is organized as
follow: First we give a general description on the use
of security tokens before we look at IBE, its
advantages, and how it can be used to form security
tokens. Then we describe some related, existing
technologies and give a discussion on the different
methods advantages and disadvantages.
2 BASIC CONCEPTS
To utilise the advantage of cooperating,
organizations need to inter-connect services. Our
working case is a web-portal acting as a framework
for gathering information and applications. E.g. a
doctor at the hospital has, in his portal, a link to all
cooperating public health centres, which give him
access to all relevant information at the different
health centres, without the need to re-authenticate.
Authentication can either be direct; client and
service are in a trust relationship, or by a broker;
client and service do not share a direct trust
relationship (Hogg et al., 2005) (Figure 2).
Authentication is done by the Authentication Broker,
which is trusted by both parts. A ”token”, containing
information about the user (e.g. identity, role,
privileges), is communicated to the Service.
When all parts are in the same trust-domain it is
easy to establish trust between the Authentication
Broker and the different services. However, entities
situated in different domains may rely on different
security mechanisms and policies to communicate
tokens and establish trust relationships, and might
not interpret each other’s tokens directly. Open
standards, like WS-Security, aim to form an
independent framework that describes how to
securely communicate information across
heterogeneous and distinct security domains
boundaries.
Figure 2: Broker authentication.
2.1 Evaluation Criteria
Cross-realm authentication is a decisive property.
Establishing and revocation of access rights must be
simple and easy to administrate.
Security: No unauthorized users should gain
access to resources, or be able to impersonate a user,
neither in its home domain nor in any remote
domains. An adversary should not be able to delete,
modify, or read any communicated information.
Another important security issue is trust
management, the willingness to rely on other entities
to execute a set of actions or to make a set of
assertions about a set of subjects (Anderson et al.,
2005), e.g. trust authentication done by others.
Scalability: It should be easy to add new users to
the system, and to integrate new cooperating
organizations.
Transparency: When first authenticated in its
home domain the user should not be aware of further
cross-domain authentication.
Simplicity: It should be easy to use (we reckon
that transparency implies simplicity for the user),
and in addition easy to maintain and control. This
we considered first and foremost a matter of
implementation.
Applicability: Different authentication
mechanisms focus on different targets and the
applicability will depend on several factors, like
size, number of cooperating companies,
requirements to flexibility etc. Other properties may
also come into account when considering best
SECRYPT 2006 - INTERNATIONAL CONFERENCE ON SECURITY AND CRYPTOGRAPHY
414
solution. E.g. a mechanism that, in addition, offers
secure communication and/or non-repudiation
eliminates the need to consider other mechanisms
and infrastructures to accommodate these facilities.
In the next section we demonstrate the use of
IBE for broker authentication, and show how it can
be integrated with WS-security to facilitate cross-
domain authentication.
3 IBE FOR CROSS-DOMAIN
ACCESS
In 1984 Shamir proposed the idea of Identity-based
encryption (IBE), and in 2001 Boneh and Franklin
presented on of the first practical IBE schemes
(Boneh and Franklin, 2001). With IBE the public
key can be any arbitrary string, e.g. the user’s ID,
the role name, the name of a group of users etc.
Thus, IBE eliminates the need for large databases
maintaining the correspondence between an identity
and the related public key, which is needed in many
PKI-based solutions, like X.509 Authentication
Service. This simplifies key management, saves
space, and eliminates threats related to attacks on the
certificate-database.
As rolenames can represent the public key it also
makes a good basis to collectively grant access to
groups, and is suitable for RBAC. In (Mont et al.,
2003) IBE is used for secure messaging in private
health care, where messages are encrypted on a role-
based level.
3.1 Basic Concepts of IBE
The public key of a user is an arbitrary string that
uniquely identifies him. A Private Key Generator
generates the corresponding private key, on demand.
The scheme consists of four algorithms: (1) setup
selects a master key and generates a public
parameter, based on the master key; (2) extract uses
the master key to generate the private key
corresponding to the arbitrary public key ID and
public parameter; (3) encrypt encrypts messages
using the pubic key ID; and (4) decrypt decrypts
messages using the corresponding private key.
3.2 IBE Broker Authentication
IBE has generally been used for encryption
purposes, where the public key is used to encrypt the
message. Her IBE facilitates authentication, i.e.
instead of using the public key to encrypt messages
the private key is used to sign requests.
A client wants to access a service. Figure 3. The
client contacts the PKG and request a private key
corresponding to his public key string ID <e>. If the
client is authenticated and approved as the rightful
‘user’ of <e>, the PKG generates a private key and
returns it to the client. Next the client sends a
request for service, signed with the private key. (To
assure confidentiality the request can be encrypted
with the services public key string ID). The service
uses the public key string ID of the use and the
public parameter to validate the signature.
A valid signature confirms the clients ID,
because he could not have signed the request
without the proper private key.
The same token/private key can be used for all
services within a security domain.
In IBE any string can serve as the decryption
key. This has great beneficial when access
permissions are based on other parameters than
identity, e.g. role or group belonging. Some services
allow anonymous access as long as the client can
prove certain group belonging. E.g. academically
institute that have access to different information
databases. Client authenticates to the PKG, and
request a private key corresponding to the public key
string ID <AcademiaA>. Any request signed with
this key proves his belonging to the given group.

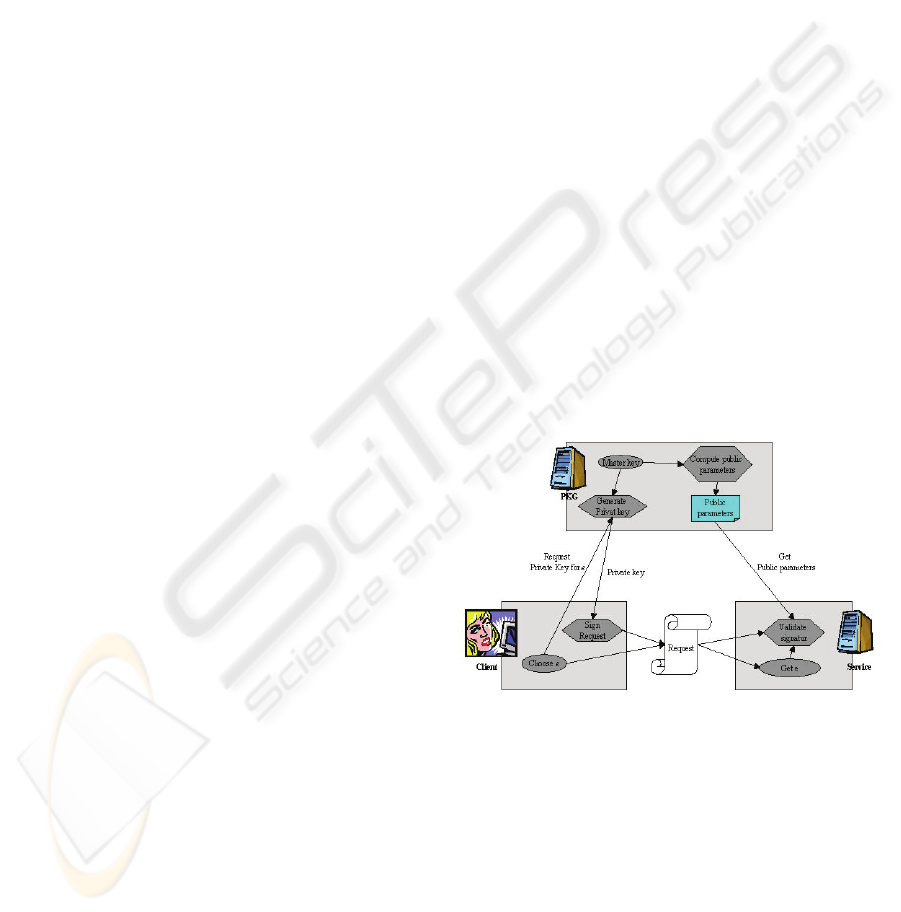

Figure 3: IBE Broker Authentication.
3.3 Cross-domain Cooperation
WS-Security defines a standard on how to exchange
security tokens, and support multiple security token
formats. As seen, IBE has its advantages and should
be implemented with WS-security to facilitate cross-
domain cooperation. Illustrated in Figure 4. A
doctor, situated in a X.509 AS based domain
(domain A), requests the Security Token Service
(STS) in his home domain for a security token to
access the STS in the target domain (domain B) (the
SECURING WEB SERVICES USING IDENTITY-BASED ENCRYPTION (IBE)
415
security token will typically be a public key
certificate issued by the home domain STS). The
target STS interprets and trusts certificates issued by
the home domain, and responds with a private key
corresponding to the public key string ID <doctor>.
Access control at the public health centre is role
based. A valid request assures that the requester is a
doctor, thus he will get access to information based
on this role.
Target DomainHome Domain
Doctor
Public hea lth center
(1) Request token for
target STS
(2) Respond token for
Target STS
(5) Service Request
(7) Service Response
(6) Validate
Token
S
T
S
-
A
X
.
5
0
9
S
T
S
-
B
I
B
E
(3) Service token
request
(4) Respond
service token
Trust
Figure 4: Cross-domain cooperation.
3.4 Requirements and Challenges
As the public key can be constructed of any arbitrary
string, there needs to be a mutual agreement on how
to construct and interpret uniquely identifying public
string ID. E.g. the string < JohnSmith@orgA > does
not hold if there exists two John Smith’s in Org A.
A client may own several private keys (e.g. for
different domains, or if the keys are based on other
parameters then users ID). Thus, issues concerning
key management and lifetime need to be taken into
consideration. E.g., how long should a key be valid?
A short lifetime means that the client often need to
request a new key, while a long lifetime means that
the client needs to keep track of all keys in his
possession, and the keys need to be stored in a
secure manner, to avoid theft.
The lifetime of the private key will also affect the
need for revocation mechanisms. A short lifetime
result in the key being invalid before there is a need
to withdraw the key, while a long lifetime will need
good revocation mechanisms.
If IBE is to be used for collective access to
groups it is needed to determine whether it should be
possible, and necessary to trace a group-members
actions. This is a matter of different domains
security policy.
The PKG has access to all private keys, and need
to be unconditionally trusted (Menezes et al., 1996).
To coop with this Al-Riyami and Paterson (Al-
Riyami and Paterson, 2003) introduces
Certificateless Public Key Cryptography (CL-PKC),
where the private key is only partly generated by the
PKG, but this solution have some security
flaws(Zhang and Feng, 2005).
4 RELATED METHODS
(Atkinson et al., 2002a, Thurston et al., 2004)
describe the integration of X.509 authentication
certificates and Kerberos tickets with WS-security,
but the standard is extensible to support other types
of tokens as well. We suggest the integration of IBE,
and in this section we give an overview of other
central mechanisms, their advantages and
disadvantages.
4.1 Kerberos
Kerberos (Fabrice, 2003) is based on symmetric key
encryption, and authentication is done in three
phases. (1) User authenticates to an Authentication
Service (AS), with the use of a password, and
obtains a credential (token) to be used to request
access to other services. (2) User request
authentication for a specific service. (3) The user
presents the credential to the end server.
For a service to be able to validate a token it
needs to exchange a secret key with the AS at prior.
Thus, different entities need to know of each other in
advance. Cross-domain access can be accomplished
by having AS’s in different domains trust tokens
issued by each other, but negotiating cross-realm
agreements can often be a lengthy and complex
process and Kerberos is mostly used within a single
administrative domain (Thompson et al., 2003).
4.2 X.509 Authentication Service
The X.509 Authentication Service (AS) (Stallings,
2003) is based on public key cryptography (PKC).
Each user is assigned a private key that uniquely
identifies the user. The corresponding public-key
certificates are signed with the private key of a
trusted certificate authority (CA) and associated with
each user. The certificates are placed in a directory,
for users to easy obtain certificates of other users.
X.509 suggests that CA’s are arranged in a
hierarchy, and in order to verify a certificate one
needs to verify the whole certificate-chain. It is
considered well suited for cross-organizations
SECRYPT 2006 - INTERNATIONAL CONFERENCE ON SECURITY AND CRYPTOGRAPHY
416
operations, but establishing trusted CA relationships
can be a lengthy process (Thompson et al., 2003)
4.3 PGP
PGP (Stallings, 2003) is, like X.509 Authentication
Service, based on PKC. The main difference lies in
the distribution of certificates. PGP is based on a
Web of trust, rather than a certificate authority, for
distribution of public keys and each user need to
maintain it’s own database of all communication
partners. Thus, anyone can “certify” a key, and the
different parts maintain their own key-list.
PGP originally evolved as a system for secure
mail exchange between personal users. A main
problem with this solution is that two parties need to
know of each other (exchange certificates) before
they can communicate, contrary to X.509 AS where
users can “look up” each other’s public key
certificate in the dictionary.
4.4 X.509 Attribute Certificate
A X.509 attribute certificate (AC) (Chadwick et al.,
2003) binds a set of attributes to its holder. It is
based on X.509 authentication certificates, and has
therefore many similar concepts. The certificates are
organized in the same manner as X.509
Authentication Certificates, a trusted certificate
authority issues attribute certificates.
Instead of binding an identity to a key, it binds a
set of attributes (claims, roles etc.) to an identity. As
AS’s don’t offer authentication they are generally
used in combination with authentication certificates,
or other mechanisms to identify the holder of the
certificate. Validation of AC’s chains can be
complex and time-consumption (Knight and Grandy,
2002).
4.5 SPKI
SPKI (Liimatainen, 2005) is an authorization
certificate system similar to AC. But, unlike AC, it
does not have any centralized CA to whom all must
trust. Instead the resource owner issues certificates
holding permission-information to the resource. The
certificate identifies who is allowed to access the
resource, and further delegate permissions. Thus,
permissions can be passed on to other uses. When
requesting access to a resource the user sends all
certificates to the owner of the resource. If they form
a complete chain from owner to user, all certificates
are valid, and give the required permissions, access
is granted.
SPKI use a certification revocation list, which is
checked every time a certificate is used, to manage
expired certificates.
5 DISCUSSION AND
CONCLUDING REMARKS
Open standard are decisive in cooperation between
organizations, and should leverage on, rather then
replace existing technologies.
OASIS has developed a standard framework on
how to exchange, inter alias, security tokens. The
standard does not require a specific type of token,
but supports different tokens, like Kerberos tickets,
X.509 certificates etc.
In this paper we have investigated the user of
IBE for the exchange of security tokens, and in
addition we have described, in short, other
technologies of current interest. The different
technologies have their advantages and
disadvantages, which makes them more or less
suited in different situations.
Kerberos, X.509 AS, and IBE all offer
authentication facilities, in contrary to AC and SPKI
that depend on the existent of a separate
authentication mechanism.
Authentication in Kerberos is password-based,
therefore vulnerable to dictionary attacks. The AS’s
list of passwords and symmetric keys is also an
attractive point of attack, and needs to be stored
securely.
PKI based solutions are generally considered as
more secure. Certificates only need to be secured
against modification while password-files need to be
secured against both read and writes operations.
However, the private key needs to be stored securely
(e.g. on a smartcard or in the computer), and is less
portable than a password.
X.509 Authentication Service and IBE also have
better scalability capabilities then Kerberos.
Different entities need not know of each other prior
to communication, as long as they can form a valid
chain of certificates back to a trusted root authority.
However, asymmetric encryption is computationally
intensive, and validation of certificate-chains can be
complex and time-consuming if the certification
chain grows long.
IBE offers some additional advantages compared
to more conventional PKI, like X.509 AS. The
public key can be any arbitrary sting and need not be
distributed in a certification database. This saves
space, simplifies key management, and eliminates
SECURING WEB SERVICES USING IDENTITY-BASED ENCRYPTION (IBE)
417
attacks on the certificate-database. It is only needed
to verify the signature, in comparison with X.509
AS where both the certificate and the signature need
to be validated.
Another benefit compared to X.509 AS is that
there is no need to “look up” and validate the public
key certificate of the receiving parts, as long as the
public string ID is known. The public parameters are
the same for all entities related to the same PKG,
and only need to be fetched once.
On the other hand, the PKG has access to all
private keys. It need to be unconditionally trusted,
like the AS in Kerberos, and is suited for attack. The
master key needs to be securely stored.
X.509 AS is based on users identity, and is well
suited when access is based on identity. But in many
cases, particularly in cross-domain cooperation,
access permissions are based on roles and privileges
rather than the users actual identity.
Attribute certificates and SPKI make an easy way to
grant collective access for groups, and is therefore
suited for RBAC. The main difference between the
two technologies is the assigning of certificates,
where AC relies on a certification authority while
SPKI leave the issuing of certificates to the source-
owner. IBE also makes a good basis for collective
access to groups, as public key can be any arbitrary
string (e.g. role-name), and is suited for RBAC. In
addition, it offers authentication, thus need not rely
on a separate authentication mechanism.
Although there have been some work on the
security of IBE it is still in an early stage, and has
not been ‘attacked’ to the same degree as more
familiar technologies. Thus it is not as accepted as
‘older’ technologies, which have proven their
security throughout several attempts of attack.
REFERENCES
Al-Riyami, S. & Paterson, K. (2003) Certificateless public
key cryptography. Advances in Cryptology -
Asiacrypt'03. Springer-Verlag.
Anderson, S., Bohren, J., Boubez, T., Chanliau, M., Della-
Libera, G. & et al. (2005) Web Service Trust
Language (WS-Trust). IBM.
Atkinson, B., Della-Libera, G., Hada, S., Hallam-Baker,
P., Hondo, M. & et al. (2002a) Web Service Security
Kerberos Token Profile OASIS.
Atkinson, B., Della-Libera, G., Hada, S., Hondo, M.,
Hallam-Baker, P. & et al. (2002b) Spesification: Web
Service Security (WS-Security). IN KALER, C. (Ed.),
IMB
Boneh, D. & Franklin, M. (2001) Identity-Based
Encryption from the Weil Pairing. Lecture Notes in
Computer Science, 2139, 213-240.
Chadwick, D., Otenko, A. & Ball, E. (2003) Role-based
access control with X.509 attribute certificates.
Internet Computing, IEEE, 7, 62-69.
Fabrice, K. A. H. (2003) Understanding Kerberos v5
authentication protocol. SANS institute.
Hogg, J., Smith, D., Chong, F., Taylor, D., Wall, L. &
SLATER, P. (2005) Web Service Security Microsoft.
Knight, S. & Grandy, C. (2002) Scalability Issues in PMI
Delegation. 1st Annual PKI Research Workshop.
Liimatainen, S. (2005) Usability of Decentralized
Authorization Systems - A Comperative Study.
System Sciences, 2005, HICSS'05. Proceedings of the
38th Annual Hawaii International Conference on.
Menezes, A. J., Van Oorschot, P. C. & Vanstone, S. A.
(1996) Trusted third parties and public-key
certificates. Handbook of Applied Cryptography.
CRC.
Mont, M. C., Bramhall, P. & Harrison, K. (2003) A
Flexible Role-based Secure Messaging Service:
Exploiting IBE Technology for Privacy in Health
Care. HP.
Stallings, W. (2003) Cryptography and Network Security,
Prentice Hall.
Thompson, M. R., Essiari, A. & Mudumbai, S. (2003)
Certificate-based authorization policy in a pki
environment. ACM Transactions on Information and
System Security, 6, 566-588.
Thurston, G., Siebenlist, F., Hughes, M., Reid, I. & et al.
(2004) Web Service Security X.509 Certificate Token
Profile. OASIS.
Zhang, Z. & Feng, D. (2005) On the Security of a
Certificateless Public-Key Encryption. Cryptology
ePrint Archive.
SECRYPT 2006 - INTERNATIONAL CONFERENCE ON SECURITY AND CRYPTOGRAPHY
418
