INTER-NODE RELATIONSHIP LABELING: A FINE-GRAINED

XML ACCESS CONTROL IMPLEMENTATION USING GENERIC

SECURITY LABELS

Zheng Zhang

University of Toronto

Toronto, Ontario, Canada

Walid Rjaibi

IBM Toronto Software Laboratory

Markham, Ontario, Canada

Keywords:

Authorization-transparent, ﬁne-grained access control, label-based access control, XML relationship labeling.

Abstract:

Most work on XML access control considers XML nodes as the smallest protection unit. This paper shows the

limitation of this approach and introduces an XML access control mechanism that protects inter-node relation-

ships. Our approach provides a ﬁner granularity of access control than the node-based approaches(i.e., more

expressive). Moreover, our approach helps achieve the “need-to-know” security principle and the “choice”

privacy principle. This paper also shows how our approach can be implemented using a generic label infras-

tructure and suggests algorithms to create/check a secure set of labeled relationships in an XML document.

1 INTRODUCTION

XML has rapidly emerged as the standard for the rep-

resentation and interchange of business and other sen-

sitive data on the Web. The current trend of adding

XML support to database systems poses new secu-

rity challenges for an environment in which both re-

lational and XML data coexist. In particular, ﬁne-

grained access control is even more necessary for

XML than for relational data, given the more ﬂexible

and less homogeneous structure of XML data com-

pared to relational tables and rows. The additional

difﬁculty of controlling access over XML data com-

pared to relational data can be summarized as follows.

• The semi-structured nature of XML data, where a

schema may be absent, or, even if it is present, may

allow much more ﬂexibility and variability in the

structure of the document than what is allowed by

a relational schema.

• The hierarchical structure of XML, which requires

specifying, for example, how access privileges to a

certain node propagate from/to the node’s ancestors

and descendants.

In almost all of the work on XML access con-

trol (Bertino and Ferrari, 2002; Damiani et al., 2002;

Fan et al., 2004), the smallest unit of protection is

the XML node of an XML document, which are

speciﬁed by XPath fragments. Access to ancestor-

descendant and sibling relationships among nodes has

not been considered. An access control policy con-

sists of positive (resp. negative) authorization rules

that grant (resp. deny) access to some nodes of

an XML document. The main difference between

XML access control models lies in privilege propa-

gation. Some (Bertino and Ferrari, 2002; Gabillon

and Bruno, 2001) forbid access to the complete sub-

tree rooted at an inaccessible node. Alternatively, if a

node is granted access while one of its ancestor nodes

is inaccessible, the ancestor node would be masked as

an empty node in the XML document (Damiani et al.,

2002). However, this makes visible the literal of the

forbidden ancestor in the path from the root to that au-

thorized node. This can be improved by replacing the

ancestor node literal by a dummy value (Fan et al.,

2004). However, this still does not solve the prob-

lem that different descendant nodes may require their

ancestor’s literal to be visible or invisible differently.

From the differences among the above models, it is

clear that deﬁning a view that precisely describes the

path leading to an authorized node is difﬁcult. The

question that begs to be asked is therefore the fol-

lowing: Is a node the most ﬁne-grained entity within

an XML document upon which a ﬁne-grained access

control model for XML is to be built?

We believe that the answer to this question is

an unequivocal NO. We contend that the path be-

tween nodes is a better alternative upon which a

ﬁne-grained access control model for XML is to be

built (Kanza et al., 2006). In other words, we con-

371

Zhang Z. and Rjaibi W. (2006).

INTER-NODE RELATIONSHIP LABELING: A FINE-GRAINED XML ACCESS CONTROL IMPLEMENTATION USING GENERIC SECURITY LABELS.

In Proceedings of the International Conference on Security and Cryptography, pages 371-378

DOI: 10.5220/0002104803710378

 SciTePress

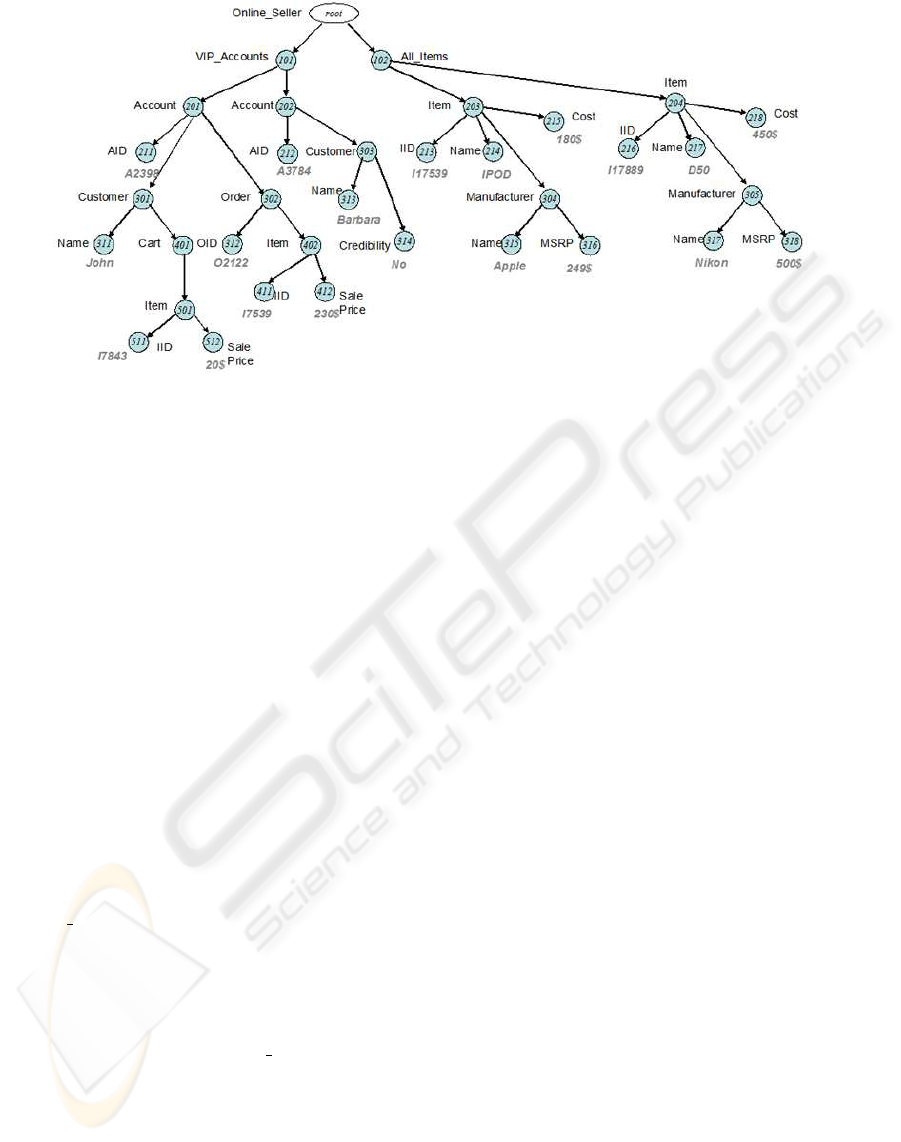

Figure 1: A document that contains information on accounts, orders and items for an online seller..

tend that ancestor-descendent relationships and sib-

ling relationships should be considered as legitimate

elements to be protected. The main advantages of our

approach are as follows.

First of all, blocking access to a node can be ad-

dressed by blocking access to all the relationships re-

lating to the node. For example, in Figure 1, if we

want to block all access to the Account Node “202”,

we could simply block access to all the paths from

that node’s ancestors to the node and all the paths

from the node to its sibling and descendants.

Second, blocking access to relationships helps

achieve the “need-to-know” principle, one of the most

fundamental security principles. This principle re-

quires information to be accessed by only those who

strictly need the information to carry out their assign-

ments. The practice of “need-to-know” limits the

damage that can be done by a trusted insider who

betrays our trust. The hierarchical structure of an

XML document often reveals classiﬁcation informa-

tion. For example, in Figure 1, the root of the left

subtree of the document represents a special account

type “VIP

Accounts”. Knowing an account node, say

Node “201”, belongs to that subtree reveals the ac-

count type. If the smallest protection unit is a node,

once we let the root of the subtree accessible, we

may leak unnecessary information. For example, sup-

pose that the relationship between the Account Node

“202” and the account type “VIP

Accounts” at the

root of the subtree should be protected, knowing the

account type of Node “201” in the subtree reveals

the account type of Node “202”. With relationship

protection, we identify that the ancestor-descendant

relationship between Node “101” and Node “202”,

and the sibling relationship between Node “201”

and Node “202” should be protected while we let

the ancestor-descendant relationship between Node

“101” and Node “201” be accessible.

Third, blocking access to relationships helps

achieve the “choice” principle, one of the most fun-

damental privacy principles. At its simplest, the prin-

ciple means giving clients options as to how any per-

sonal information collected from them may be used.

If the smallest protection element is a node, access

control over one node is propagated to its ances-

tor/descendant nodes (Murata et al., 2003), i.e., when-

ever access is denied to a node, access is denied to its

descendants; whenever access is granted to a node,

access is granted to all its ancestors. Hence, nega-

tive access control policies over ancestor nodes give

a common authorized view of the paths leading to

their descendants. This violates the “choice” princi-

ple: in Figure 1, a client may want to hide the ac-

count type but not the other account information for

the account with AID “A2398”. If the smallest pro-

tection element is a relationship between nodes in an

XML document, we could protect the relationships

between Node “101” and the nodes in the subtree

rooted at Node “201”, and the sibling relationship be-

tween Node “201” and Node “202”. Then all the ac-

count information except the account type is still ac-

cessible from the root of the document tree. More-

over, there is no way to know that the subtree rooted

at Node “201” is a subtree of Node “101”.

Last but not least, protecting relationships between

nodes in an XML document is more expressible in

terms of access control policy translation.

Contributions: The contributions made in this paper

can be summarized as follows:

1. We propose an authorization-transparent ﬁne-

grained access control model that protects the

ancestor-descendant and sibling relationships in an

XML document. Our model distinguishes two lev-

els of access to relationships, namely the existence

access and the value access.

SECRYPT 2006 - INTERNATIONAL CONFERENCE ON SECURITY AND CRYPTOGRAPHY

372

2. We propose a new semantics for concealing rela-

tionships in an XML document where a relation-

ship is deﬁned by a path in the document.

3. We propose a generic and ﬂexible label-based ac-

cess control mechanism to protect relationships.

Our mechanism allows DBAs to deﬁne label-based

access control policies.

4. We propose a new query evaluation mechanism to

enforce our access control model.

5. We develop algorithms to check/create a secure set

of labeled relationships of an XML document.

2 RELATED WORK

XML access control has been studied on issues such

as granularity of access, access-control inheritance,

default semantics, overriding, and conﬂict resolu-

tions (Bertino and Ferrari, 2002; Damiani et al., 2002;

Gabillon and Bruno, 2001; Murata et al., 2003). In

particular, a useful survey of these proposals is given

in (Fundulaki and Marx, 2004), which uses XPath to

give formal semantics to a number of different mod-

els in a uniform way, making it possible to com-

pare and contrast them. Almost all the recent mod-

els (Bertino and Ferrari, 2002; Damiani et al., 2002;

Gabillon and Bruno, 2001) propose to restrict the

user’s view of a document by access control poli-

cies. In particular, authors in (Damiani et al., 2002;

Gabillon and Bruno, 2001) mark each node as “ac-

cessible” or “inaccessible” in an XML document and

apply conﬂict resolution policies to compute an au-

thorized pruned view of the document. An alter-

native approach (Miklau and Suciu, 2003) deﬁnes

access control policies as XQuery expressions. A

user is given a modiﬁed document with encrypted

data and queries are posed on this modiﬁed docu-

ment. They present a new query semantics that per-

mits a user to see only authorized data. In (Fan et al.,

2004), security is speciﬁed by extending the docu-

ment DTD with annotations and publishing a modi-

ﬁed DTD. Similarly, work by Bertino et al. (Bertino

et al., 2001) and Finance et al. (Finance et al., 2005)

provides XML-based speciﬁcation languages for pub-

lishing secure XML document content, and for spec-

ifying role-based access control on XML data (Bhatti

et al., 2004; Wang and Osborn, 2004). Restricting

access to nodes has also been used in XACL (IBM,

2001) and XACML (Oasis., 2005), two proposed in-

dustrial standards. Kanza et al. propose to restrict

access to ancestor-descendant relationships (Kanza

et al., 2006) and introduce authorization-transparent

access control for XML data under the Non-Truman

model (Rizvi et al., 2004).

3 DATA MODEL AND QUERIES

We consider an XML document as a rooted directed

tree over a ﬁnite set of node literals L with a ﬁnite

set of values A attached to atomic nodes (i.e., nodes

with no outgoing edges). Formally, a document D is

a 5-tuple (N

, E

, root

, literal

, value of

where N

is a set of nodes, E

is a set of directed

edges, root

is the root of a directed tree, literal of

is a function that maps each node of N

to a literal

of L, and value

is a function that maps each

atomic node to a value of A. In order to simplify the

data model, we do not distinguish between elements

and attributes of an XML document. We also assume

that all the values on atomic nodes are of type

PC-

DATA

(i.e., String).

Example 3.1 Figure 1 shows a document that con-

tains information on accounts, orders, and items for

an online seller. Nodes are represented by circles with

ID’s for easy reference. Values in A appear below the

atomic nodes and are written in bold font.

In this paper, we use XPath (Clark and DeRose, 1999)

for formulating queries and specifying relationships.

XPath is a simple language for navigation in an XML

document. In XPath, there are thirteen types of axes

that are used for navigation. Our focus is on the

child axis (/), the descendant-or-self axis (//), the

preceding-sibling axis and the following-sibling axis

that are the most commonly used axes in XPath. Our

model, however, can also be applied to queries that

include the other axes.

4 RELATIONSHIP ACCESS

First, we consider what it means to conceal a relation-

ship. In general, a relationship is an undirected path

between two nodes in an XML document. A set of

relationships is represented by two sets of nodes. For

example, the pair (C, N), where C is the set of all

Customer Nodes and N is the set of all Name Nodes

in Figure 1, represents the set of relationships between

customers and their names. Concealing the relation-

ships (C , N ) means that for every customer c and

name n in the document, a user will not be able to in-

fer (with certainty), from any query answers, whether

n is the name for c. We want this to be true for all

authorized query results. Note that we are concealing

the presence or absence of relationships, so we are

concealing whether any of the set of pairs in (C, N )

exists in the document.

Deﬁnition 4.1 (Concealing a Relationship) Given

an XML document D and a pair of nodes n

and n

in D, the relationship (n

, n

) is concealed if there

INTER-NODE RELATIONSHIP LABELING: A FINE-GRAINED XML ACCESS CONTROL IMPLEMENTATION

USING GENERIC SECURITY LABELS

373

exists a document D

′

over the node set of D, such

that the following is true.

1. Exactly one of D and D

′

has a path from n

to n

2. For any XPath query Q, the authorized answer set

of Q over D is equal to that of Q over D

′

We consider two kinds of relationships in an XML

document, namely the ancestor-descendant relation-

ships and the sibling relationships. Kanza et al. con-

sider ancestor-descendant relationships only (Kanza

et al., 2006). Sibling relationships are inferred by the

ancestor-descendant relationships. Hence, when ac-

cess to an ancestor-descendant relationship is blocked

in their model, access to the related sibling relation-

ships is automatically blocked.

Example 4.2 In Figure 1, suppose the relationship

between VIP

Accounts Node “101” and Account

Node “201” is inaccessible, then the sibling relation-

ship between Node “201” and Node “202” is lost.

It could be necessary to preserve such sibling re-

lationship information. For example, one policy may

want to block access to the ancestor-descendant rela-

tionships between VIP

Accounts Node and Account

Nodes while maintain access to the sibling relation-

ships between the Account Nodes.

On the other hand, it might be desirable to block

access to sibling relationships only. For example, one

policy may want to block access to the sibling rela-

tionship between Customer and his Order.

In order to express such access control policies,

we consider sibling relationships as well as ancestor-

descendant relationships.

We distinguish two levels of access to relationships,

namely the existence access and the value access. In

value access, information about a relationship indi-

cates a node whose ID is “v

” and whose literal is

“A” is related to a node whose ID is “v

” and whose

literal is “B”. For example, the pair (C, N) is a value

access to the relationships between Customer Nodes

and Name Nodes. In existence access, information

about a relationship is basically the same as informa-

tion of value access but lacks at least one of the values

“v

” and “v

”. In other words, existence access to a

relationship returns whether a node of some literal is

related to some node. For example, existence access

could indicate a node whose literal is “A” is related to

a node whose literal is “B”. Obviously, if a relation-

ship is not accessible under existence access, then the

relationship is not accessible under value access.

Example 4.3 Consider the relationship between the

account with AID “A2398” and its customer name in

Figure 1. The value access to this relationship returns

that Node “201” whose literal is “Account” is related

to Node “311” whose literal is “Name” and whose

value is “John”. The typical queries that will return

this information are:

: //Account[AID=“A2398”],

: //Account[AID=“A2398”]/Customer/Name.

Now consider an existence access to this relationship:

a query Q

wants to return all the accounts’ AID’s

that have a customer name. The fact that “A2398”

is returned tells us that there exists a customer with

name under the account with AID “A2398”, but it

does not tell us what the customer’s name is, nor the

Node ID “311”. In other words, Q

and Q

reveal

that Node “201” whose literal is “Account” is related

to some node n whose literal is “Name”, where n is

a child of some node whose literal is “Customer” and

which is a child of Node “201”.

: //Account[Customer/Name]/AID.

In the next section, we show how to specify

ancestor-descendant and sibling relationships and at-

tach access labels to them.

5 ACCESS CONTROL POLICY

SPECIFICATION

Our access control model uses a generic, ﬂexible la-

bel infrastructure (Rjaibi and Bird, 2004) where a la-

bel has only one component “access level”. The value

of the component can be “EXISTENCE”, “VALUE”,

or “NULL”. The ranks of these values are as fol-

lows: “EXISTENCE” > “VALUE” > “NULL”. We

distinguish two types of labels: Access labels and

Path labels. Access labels are created and assigned

to database users, roles, or groups along with the type

of access for which the access label is granted (i.e.,

Read/Write). For simplicity, we consider only users

in this paper. We call read (resp. write) access label

an access label associated with the Read (resp. Write)

access type. Path labels are created and attached to

paths of an XML document. When a user or a path

is not associated with a label, the “NULL” label is

assumed for that user or path.

Example 5.1 The following statement creates and

grants the “EXISTENCE” access label to a database

user Mike for the Read access type.

GRANT ACCESS LABEL EXISTENCE

TO USER Mike FOR READ ACCESS

The following statement revokes the “EXISTENCE”

read access label from Mike.

REVOKE ACCESS LABEL EXISTENCE

FROM USER Mike FOR READ ACCESS

Access to an XML document is based upon the la-

bels associated with the paths of the XML document

and the label associated with the user accessing the

document via the paths. A label access policy consists

of label access rules that the database system evalu-

ates to determine whether a database user is allowed

SECRYPT 2006 - INTERNATIONAL CONFERENCE ON SECURITY AND CRYPTOGRAPHY

374

access to an XML document. Access rules can be

categorized as Read Access rules and Write Access

rules. The former is applied by the database system

when a user attempts to read a path in an XML doc-

ument; the latter is applied when a user attempts to

insert, update or delete a path in an XML document.

In both cases, a label access rule is as follows:

Access Label hoperatori Path Label

where the operator is one of the arithmetic compari-

son operators {=, ≤, <, >, ≥, 6=}.

Example 5.2 The following statement creates a label

access policy that (1) does not allow a user to read a

path unless his read access label is larger than or equal

to the path label, (2) does not allow a user to write a

path unless his write access label is equal to the path

label.

CREATE LABEL POLICY XML-FGAC

READ ACCESS RULE rule

READ ACCESS LABEL ≥ Path LABEL

WRITE ACCESS RULE rule

WRITE ACCESS LABEL = Path LABEL

Recall value access to a relationship returns more

information than existence access. An “EXIS-

TENCE” label protects existence and value access.

A “VALUE” label protects value access only. There-

fore, if a user with a “NULL” read access label wants

to existence access a path with a “VALUE” path label,

access should be allowed since this existence access

does not return the complete relationship information

from value access. We call this the DEFAULT pol-

icy. This policy only applies to Read Access since

any Write Access involves real node ID’s (i.e., exis-

tence access is impossible). This policy could coex-

ist with other policies such as XML-FGAC to give a

more complete authorized answer set of a query.

Example 5.3 Assume the relationship in Exam-

ple 4.3 has a “VALUE” path label. If a user with a

“NULL” read access label asks query Q

, the exis-

tence access to the relationship should be allowed.

Next, we introduce how the labels are attached to

paths in an XML document. First, attaching a label

to ancestor-descendant paths are speciﬁed by an SQL

statement in the following form:

ATTACH path

label ANCS path

DESC path

where path

and path

are two XPath expressions.

Notice expression path

is a relative XPath expression

w.r.t. path

. The two expressions specify pairs of an-

cestor nodes (i.e., path

) and descendent nodes (i.e.,

path

/path

). Expression path

label is a label.

Example 5.4 The following expression attaches

“EXISTENCE” path labels to the relationships be-

tween Account Nodes and their Customers’ Name

Nodes in Figure 1.

ATTACH EXISTENCE ANCS //Account

DESC /Customer/Name

The following expression attaches a “VALUE” path

label to the relationship between the Item Node with

Name “IPOD” and its Cost Node in Figure 1.

ATTACH VALUE ANCS //Item[Name = “IPOD”]

DESC //Cost

For sibling relationships, we consider the preceding-

sibling axis and the following-sibling axis in XPath.

Thus, attaching a label to sibling paths are speciﬁed

by XPath expressions in the following form:

ATTACH path label

NODE path

PRECEDING-SIBLING path

FOLLOWING-SIBLING path

where path

, path

and path

are three XPath ex-

pressions. Notice expressions path

and path

are two relative XPath expressions w.r.t. path

The expressions specify relationships between some

nodes (i.e., path

), and their preceding siblings (i.e.,

path

/preceding-sibling :: path

) as well as the rela-

tionships between the nodes and their following sib-

lings (i.e., path

/following-sibling :: path

). No-

tice the

PRECEDING-SIBLING

expression and the

FOLLOWING-SIBLING

expression do not have to

appear at the same time.

Example 5.5 The following expression attaches a

“VALUE” path label to the relationship between the

Account whose Customer has Name “Barbara” and

its preceding sibling.

ATTACH VALUE

NODE //Account[Customer/Name = “Barbara”]

PRECEDING-SIBLING Account

Note that the SQL statement to detach a label from

an ancestor-descendant path or a sibling path is sim-

ilar to the SQL statement to attach a label to those

paths except that ATTACH is replaced by DETACH.

6 QUERY EVALUATION

In authorization-transparent access control, users for-

mulate their queries against the original database

rather than against authorization views that transform

and hide data (Motro, 1989). In (Rizvi et al., 2004),

authorization transparent access control is categorized

into two basic classes, the Truman model and the Non-

Truman model. In the Truman model, an access con-

trol language (often a view language) is used to spec-

ify what data is accessible to a user. User queries are

modiﬁed by the system so that the answer includes

only accessible data. Let Q be a user query, D be a

database and D

be the part of D that the user is per-

mitted to see, then query Q is modiﬁed to a safe query

such that Q

(D) = Q(D

). We call Q

(D) the

authorized answer set of Q over D. In contrast, in

INTER-NODE RELATIONSHIP LABELING: A FINE-GRAINED XML ACCESS CONTROL IMPLEMENTATION

USING GENERIC SECURITY LABELS

375

the Non-Truman model, a query that violates access

control speciﬁcations is rejected, rather than modi-

ﬁed. Only valid queries are answered.

Our model is an authorization-transparent Truman

model. We allow users to pose XPath queries against

the original labeled XML document. The evaluation

of an XPath query over a labeled XML document has

two parts. First, we change the usual XPath query

semantics as follows. If a child axis occurs, the eval-

uation follows a parent-child path; if a descendant-or-

self axis occurs, the evaluation follows an ancestor-

descendant path; if a preceding-sibling axis occurs,

the evaluation follows a preceding-sibling path; if a

following-sibling axis occurs, the evaluation follows

a following-sibling path.

Second, we need to make sure that for each path ac-

cessed, a user is allowed access to that path based on

the path label and the user’s access label. Suppose a

path P has a path label L

and a user Mike has a read

access label L

. According to the XML-FGAC pol-

icy, (1) if L

is “EXISTENCE”, Mike could read the

path P regardless of the value of label L

; (2) if L

is “VALUE”, Mike could read the path P if L

is not

“EXISTENCE”; (3) if L

is “NULL”, Mike can only

access paths with “NULL” labels; if the DEFAULT

policy coexists, Mike could ask queries to existence

access the path P if L

is “VALUE”. The discussion

for Write Access is similar. The above logic is in-

serted into the query access plan. When the access

plan is executed, the access rules from the label ac-

cess policy associated with the labeled XML docu-

ment are evaluated for each path accessed in the doc-

ument. This approach allows the cached access plan

to be reused because the access labels of the user who

issued the query are acquired during runtime.

For an XML document, there is an ordering, docu-

ment order (Clark and DeRose, 1999), deﬁned on all

the nodes in the document corresponding to the order

in which the ﬁrst character of the XML representa-

tion of each node occurs in the XML representation

of the document. This ordering information may leak

information as shown in the following example.

Example 6.1 Let us look at Figure 1 again. Sup-

pose one security policy wants to block public ac-

cess to the sibling relationships between the Customer

Nodes and their Order Nodes. Suppose the following

queries are allowed to return their answers in docu-

ment order: //Customer and //Order. Then the order

of Customer output might match the order of Order

output, hence leaks secret information. The situa-

tion becomes worse if the document has a registered

schema and the schema shows publicly that each cus-

tomer has a ﬁxed number, say 2, of orders. In this

case, the association between a Customer and his Or-

ders is completely leaked.

To prevent an information leak based on document

order, we shufﬂe the output as follows. Each node

in the output will receive a random number. And the

nodes will be output based on the order of their as-

signed random numbers.

In sum, the processing algorithm to be inserted in

the access plan for a labeled XML document with

XML-FGAC and DEFAULT policies is as follows.

Algorithm: Insert Read and Write Access logic into

a query access plan for a labeled XML document.

1. Fetch the user’s Access Labels for Read and Write

actions (e.g., from a system catalog table).

2. For all paths accessed, do the following.

(a) If it is a Read Access and READ Access rules

do not permit access, skip the path unless (1) the

Read Access Label is “NULL”, (2) the Path La-

bel is “VALUE”, and (3) it is an existence access.

(b) If it is a Write Access and Write Access rules do

not permit access, skip the path.

3. Shufﬂe output.

Example 6.2 Suppose the document in Figure 1 has

two labels attached to its paths as speciﬁed in Exam-

ple 5.4 and the label access policies are XML-FGAC

and DEFAULT. Suppose a database user Mike with a

read access label “EXISTENCE” asks the query Q

//Account[Customer/Name]. The query access plan

checks the following paths:

1. the paths P

from the root of the document to Ac-

count Nodes, i.e., //Account,

2. the paths P

from Account Nodes to their descen-

dant Name Nodes via Customer Nodes, i.e.,

ANCS //Account DESC /Customer/Name,

3. the paths P

from Customer Nodes to their children

Name Nodes, i.e., Customer/Name.

Paths P

and P

have “NULL” labels, hence, access is

allowed. Paths P

have “EXISTENCE” labels. Mike

could read them since his read access label is “EXIS-

TENCE”. Read access to P

is denied for any other

labels and the authorized answer set is empty.

Next, suppose another user John with a read access

label “VALUE” asks the query Q

: //Item//Cost. The

query access plan checks the following paths:

1. the paths P

from the root of the document to the

Item Nodes, i.e., //Item,

2. the paths P

from the Item Nodes to their descen-

dant Cost Nodes, i.e., ANCS //Item DESC //Cost.

Paths P

have “NULL” labels, hence, access is al-

lowed. For P

, one path P

has a “NULL” la-

bel; the other path P

has a “VALUE” label as it is

ANCS //Item[Name=“IPOD”] DESC //Cost. John

could read P

if his read access label is “VALUE”.

John could read P

but not P

if his read access la-

bel is “NULL”. Hence, the authorized answer set is

“450$”. However, even if John’s read access label is

SECRYPT 2006 - INTERNATIONAL CONFERENCE ON SECURITY AND CRYPTOGRAPHY

376

“NULL”, the following query from John will still re-

turn the complete answer to Q

: //Item[Cost]. This

is because Q

only existence accesses the paths P

i.e., the authorized answer set only indicates there ex-

ist Cost children Nodes for the Item Nodes “203” and

“204”, but no information about the values and node

ID’s of the Cost Nodes is leaked.

7 CREATE A SECURE SET OF

LABELED RELATIONSHIPS

Our goal is to allow users to label node relationships

and let them be sure that what they want to conceal

is truly concealed from the users whose access labels

do not satisfy the label access policy with the path la-

bels. Unfortunately, it is impossible to guarantee con-

cealment for any arbitrary set of relationships. Some-

times, it is possible to infer a concealed relationship

from the relationships that are not concealed.

Let us see an example of four cases where a re-

lationship could be inferred from a pair of non-

concealed relationship.

Example 7.1 In Figure 1, suppose it is known

that Account Node “201” is a descendant of

VIP

Accounts Node “101” and Customer Node “301”

is a descendant of Account Node “201”. Then, there

is no point to conceal the ancestor-descendant rela-

tionship between VIP

Accounts Node “101” and Cus-

tomer Node “301”.

Suppose it is known that Customer Node “301” is

a descendant of VIP Accounts Node “101” as well

as Account Node “201”. Since there is only one

path from the root of the document to Account Node

“201”, there is no point to conceal the ancestor-

descendant relationship between VIP Accounts Node

“101” and Account Node “201”.

Suppose it is known that Account Node “201”

and Account Node “202” are the children of

VIP

Accounts Node “101”, then there is no point

to conceal the sibling relationship between Account

Node “201” and Account Node “202”.

Suppose it is known that VIP

Accounts Node

“101” has a descendant Customer Node “301” and

the customer has a sibling Order Node “302”, then

there is no point to conceal the ancestor-descendant

relationship between VIP Accounts Node “101” and

Order Node “302”.

We say a set of labeled relationships/paths in an

XML document D is not secure w.r.t. a path label

L if one of the following four cases happens.

1. Case 1: D has three nodes, n

, n

and n

s.t. the

ancestor-descendant path from n

to n

and the

ancestor-descendant path from n

to n

have labels

< L and L

< L. The ancestor-descendant

path from n

to n

has a label L

≥ L.

2. Case 2: D has three nodes, n

, n

and n

s.t. the

ancestor-descendant path from n

to n

and the

ancestor-descendant path from n

to n

have labels

< L and L

< L. The ancestor-descendant

path from n

to n

has a label L

≥ L.

3. Case 3: D has three nodes, n

, n

and n

s.t. n

the parent of n

and n

, the parent-child path from

to n

and the parent-child path from n

to n

have labels L

< L and L

< L. The sibling

path from n

to n

has a label L

≥ L or the

sibling path from n

to n

has a label L

≥ L.

4. Case 4: D has three nodes, n

, n

and n

s.t. the

ancestor-descendant path from n

to n

has a label

< L, and either the sibling path from n

to n

has a label L

< L or the sibling path from n

has a label L

< L. The ancestor-descendant

path from n

to n

has a label L

≥ L.

There is a simple test to verify that a set of labeled

relationships/paths in an XML document D is not se-

cure w.r.t. a path label L. The test starts by comput-

ing three ternary relations R

, R

and R

. The ﬁrst

two columns store the start/end nodes of paths. The

third column stores the label associated with paths (if

a label is missing, then it is a NULL value). In par-

ticular, R

stores all ancestor-descendant paths in D,

stores all parent-child paths in D, and R

stores

all sibling paths in D.

1. Case 1 is true for a path label L iff the expression

$1,$5

1,L

⊲⊳

$2=$1

1,L

) − R

1,L

is not empty

where R

1,L

is σ

$3<L

2. Case 2 is true for a path label L iff the expression

$1,$4

1,L

⊲⊳

$2=$2

1,L

) − R

1,L

is not empty

where R

1,L

is σ

$3<L

3. Case 3 is true for a path label L iff the expression

$2,$5

2,L

⊲⊳

$1=$1

2,L

) − R

3,L

is not empty

where R

2,L

is σ

$3<L

) and R

3,L

is σ

$3<L

4. Case 4 is true for a path label L iff the expression

$1,$5

1,L

⊲⊳

$2=$1

3,L

) − R

1,L

is not empty

where R

1,L

is σ

$3<L

) and R

3,L

is σ

$3<L

Furthermore, we give intuitive conditions to con-

struct a secure set of labeled relationships for an XML

document. If we ignore the directions of ancestor-

descendant and sibling paths, all these paths form cy-

cles in an XML document. To assign a path label L

to a relationship between two nodes n

and n

in an

XML document D, we must make sure, for every cy-

cle that includes the path from n

to n

, either there is

another path whose label L

′

≥ L, or n

and n

are de-

scendants of some nodes in the cycle and n

, n

are

not children of the same parent. Both cases ensure

there is uncertainty whether a relationship between

two nodes n

and n

exists: the ﬁrst case by having

INTER-NODE RELATIONSHIP LABELING: A FINE-GRAINED XML ACCESS CONTROL IMPLEMENTATION

USING GENERIC SECURITY LABELS

377

another path missing in the cycle, while in the second

case, the fact that n

and n

are descendants of some

nodes in the cycle introduces uncertainty except when

they are children of the same parent, in which case the

sibling relationship between n

and n

is leaked.

There is another possible information leak due to

singleton-source disclosure (Kanza et al., 2006). In

short, a user can infer that two nodes n

and n

are

related in a document D when (1) the path from the

root of document D to node n

must go through a

node whose literal is A, (2) the only node with lit-

eral A in document D is node n

. An algorithm

to test singleton-source disclosure has been proposed

in (Kanza et al., 2006) and we will not repeat it here.

8 CONCLUSION

This paper has introduced a ﬁne-grained access con-

trol model for XML data using generic security la-

bels. Our model is based on inter-node relation-

ship labeling and provides ﬁner-grained access con-

trol than traditional node labeling approaches, hence

helps achieve the “need-to-know” security principle

and the “choice” privacy principle. We propose a new

semantics for concealing relationships in an XML

document under the Truman model. To enforce our

model, we provide a new query evaluation algorithm

and suggest algorithms to check/create a set of secure

labeled paths for an XML document.

Our future work includes implementing our model

and validating its effectiveness and performance using

real-life XML access control user cases. An impor-

tant challenge is adapting our mechanism to XQuery,

general XML document graphs and XML schemas.

ACKNOWLEDGEMENTS

We thank NSERC and IBM Toronto CAS for their

support, and Ren´ee J. Miller for her careful com-

ments.

Trademark: IBM is a trademark or registered trade-

mark of International Business Machines Corporation

in the United States, other countries, or both.

Disclaimer: The views expressed in this paper are

those of the authors and not necessarily of IBM

Canada Ltd. or IBM Corporation.

REFERENCES

Bertino, E., Castano, S., and Ferrari, E. (2001). On specify-

ing security policies for web documents with an xml-

based language. In SACMAT, pages 57–65.

Bertino, E. and Ferrari, E. (2002). Secure and selective dis-

semination of xml documents. ACM Trans. Inf. Syst.

Secur., 5(3):290–331.

Bhatti, R., Bertino, E., Ghafoor, A., and Joshi, J. (2004).

Xml-based speciﬁcation for web services document

security. In IEEE Computer, volume 4 of 37, pages

41–49.

Clark, J. and DeRose, S. (1999). XML Path

Language (XPath) version 1.0. Available at

http://www.w3.org/TR/xpath.

Damiani, E., de C. di Vimercati, S., Paraboschi, S., and

Samarati, P. (2002). A ﬁne-grained access control sys-

tem for xml documents. ACM Trans. Inf. Syst. Secur.,

5(2):169–202.

Fan, W. F., Chan, C. Y., and Garofalakis, M. N. (2004). Se-

cure xml querying with security views. In SIGMOD,

pages 587–598.

Finance, B., Medjdoub, S., and Pucheral, P. (2005). The

case for access control on xml relationships. Tech-

nical report, INRIA. Available from http://www-

smis.inria.fr/dataFiles/FMP05a.pdf.

Fundulaki, I. and Marx, M. (2004). Specifying access con-

trol policies for xml documents with xpath. In SAC-

MAT, pages 61–69.

Gabillon, A. and Bruno, E. (2001). Regulating access to

xml documents. In Working Conference on Database

and Application Security, pages 311–328.

IBM (2001). Xml access control. http://xml.coverpages.org

/xacl.html.

Kanza, Y., Mendelzon, A., Miller, R., and Zhang, Z. (2006).

Authorization-transparent access control for xml un-

der the non-truman model. In EDBT, pages 222–239.

Miklau, G. and Suciu, D. (2003). Controlling access to pub-

lished data using cryptography. In VLDB, pages 898–

909.

Motro, A. (1989). An access authorization model for re-

lational databases based on algebraic manipulation of

view deﬁnitions. In ICDE, pages 339–347.

Murata, M., Tozawa, A., Kudo, M., and Hada, S. (2003).

Xml access control using static analysis. In CCS,

pages 73–84. ACM Press.

Oasis. (2005). Oasis exensible access control markup lan-

guage (xacml 2.0). http://www.oasis-open.org/ com-

mittees/xacml.

Rizvi, S., Mendelzon, A., Sudarshan, S., and Roy, P. (2004).

Extending query rewriting techniques for ﬁne-grained

access control. In SIGMOD, pages 551–562.

Rjaibi, W. and Bird, P. (2004). A multi-purpose im-

plementation of mandatory access control in rela-

tional database management systems. In VLDB, pages

1010–1020.

Wang, J. Z. and Osborn, S. L. (2004). A role-based ap-

proach to access control for xml databases. In SAC-

MAT, pages 70–77.

SECRYPT 2006 - INTERNATIONAL CONFERENCE ON SECURITY AND CRYPTOGRAPHY

378
