MULTI-MODAL HANDS-FREE HUMAN COMPUTER

INTERACTION: A PROTOTYPE SYSTEM

Frangiskos Frangeskides and Andreas Lanitis

School of Computer Science and Engineering, Cyprus College,

P.O. Box 22006, Nicosia, Cyprus.

Keywords: Contact-less HCI, HCI for Disabled Users, Multi-Modal HCI.

Abstract: Conventional Human Computer Interaction requires the use of hands for moving the mouse and pressing

keys on the keyboard. As a result paraplegics are not able to use computer systems unless they acquire

special Human Computer Interaction (HCI) equipment. In this paper we describe a prototype system that

aims to provide paraplegics the opportunity to use computer systems without the need for additional

invasive hardware. The proposed system is a multi-modal system combining both visual and speech input.

Visual input is provided through a standard web camera used for capturing face images showing the user of

the computer. Image processing techniques are used for tracking head movements, making it possible to use

head motion in order to interact with a computer. Speech input is used for activating commonly used tasks

that are normally activated using the mouse or the keyboard. Speech input improves the speed and ease of

executing various HCI tasks in a hands free fashion. The performance of the proposed system was evaluated

using a number of specially designed test applications. According to the quantitative results, it is possible to

perform most HCI tasks with the same ease and accuracy as in the case that a touch pad of a portable

computer is used. Currently our system is being used by a number of paraplegics.

1 INTRODUCTION

Conventional Human Computer Interaction (HCI)

relies on the use of hands for controlling the mouse

and keyboard thus effective HCI is difficult (and in

some cases impossible) for paraplegics. With our

work we aim to design a system that will enable

paraplegics to use a computer system. The proposed

system is a multi-modal system that combines both

visual input and speech input in order to allow the

user to achieve full control of a computer system, in

a hands-free fashion.

Visual input is provided through a standard web

camera attached on the monitor of the computer.

Images showing the user of the system are analysed

in order to track his/her head movements. The face

tracker activates cursor movements consistent with

the detected head motion allowing the user to

control cursor movements using head motion. Visual

input can also be used for activating mouse clicks

and entering text using a virtual keyboard. Figure 1

shows users using a computer system based on the

system developed in this project.

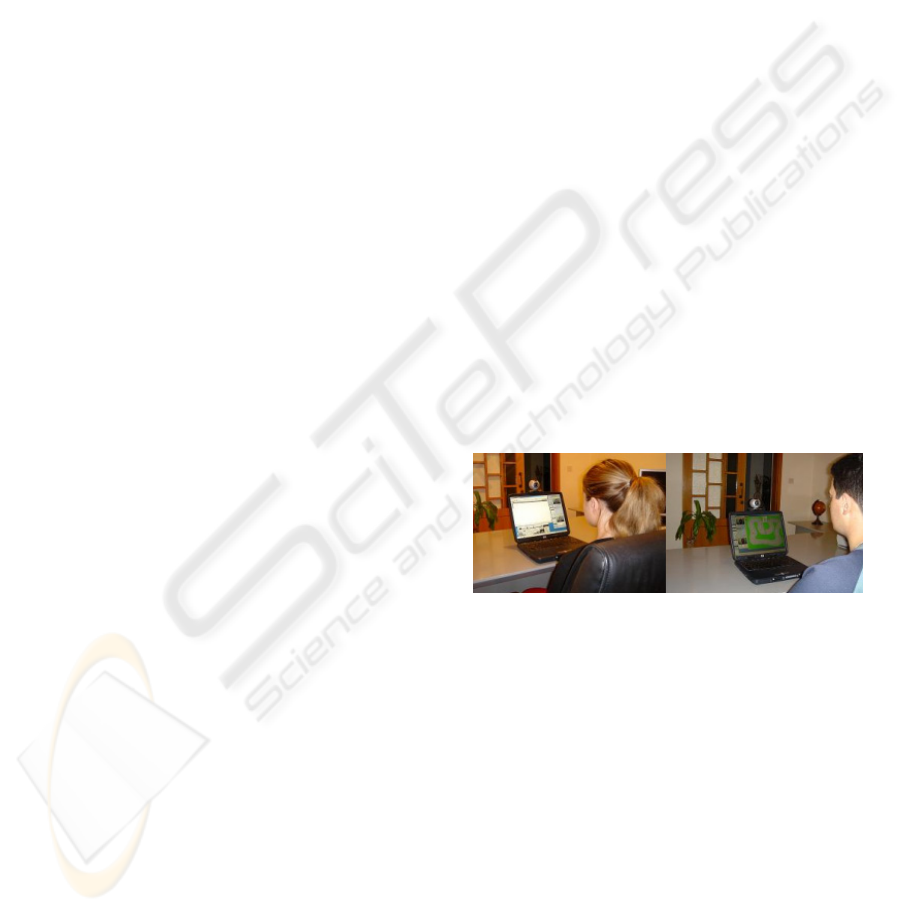

Figure 1: Hands-Free HCI based on the proposed system.

(In this case a microphone is attached on the camera)

Speech input is provided through a standard

microphone attached to the system. In the proposed

system speech input can be utilized in two different

modes of operation: The Sound Click Mode and the

Voice Command Mode. When using the Sound

Click Mode, speech input is used only as a means

for activating a mouse click. In this case the user

only needs to generate a sound in order to activate a

click. In the Voice Command Mode we use speech

recognition so that the user can verbally request the

execution of predefined tasks. Verbal commands

handled by the system have been carefully selected

in order to minimize the possibility of speech

recognition errors and at the same time allow the

user to carry out usual HCI tasks efficiently.

Frangeskides F. and Lanitis A. (2006).

MULTI-MODAL HANDS-FREE HUMAN COMPUTER INTERACTION: A PROTOTYPE SYSTEM.

In Proceedings of the Eighth International Conference on Enterprise Information Systems - HCI, pages 19-26

DOI: 10.5220/0002443900190026

 SciTePress

The algorithms developed as part of the project,

formed the basis for developing a prototype hands-

free HCI software package. The package contains a

program that enables the user to control his/her

computer using visual and speech input. The

package also includes training and test applications

that enable users to become familiar with the system

before they use it in real applications. Test

applications enable the quantitative assessment of

the performance of users when using our system. A

number of volunteers tested our system and provided

feedback related to the performance of the system.

Both the feedback received and quantitative results

prove the potential of using our system in real

applications.

The remainder of the paper is organized as

follows: In section 2 we present a brief overview of

the relevant bibliography and in section 3 we

describe the proposed system. In section 4 we

describe the functionality offered by the proposed

system and in section 5 we present the test

applications developed for testing the performance

of the system. In sections 6 and 7 we present

experimental results and concluding comments.

2 LITERATURE REVIEW

Toyama (Toyama1998) describes a face-tracking

algorithm that uses Incremental Focus of Attention.

In this approach they perform tracking incrementally

starting with a layer that just detects skin color and

through an incremental approach they introduce

more capabilities into the tracker. Motion

information, facial geometrical constraints and

information related to the appearance of specific

facial features are eventually used in the tracking

process. Based on this approach they achieve real

time robust tracking of facial features and also

determine the facial pose in each frame. Information

related to the face position and pose is used for

moving the cursor on the screen.

Gorodnichy and Roth (Gorodnichy2004)

describe a template matching based method for

tracking the nose tip in image sequences captured by

a web camera. Because the intensities around the

nose tip are invariant to changes in facial pose they

argue that the nose tip provides a suitable target for

face tracking algorithms. In the final implementation

cursor movements are controlled by nose

movements, thus the user is able to perform mouse

operations using nose movements. Gorodnichy and

Roth have used the system for several applications

like drawing and gaming but they do not provide a

quantitative evaluation of the proposed system.

Several commercial head movement-based HCI

systems are available (Assistive2005). In most cases

head tracking relies on special hardware such as

infrared detectors and reflectors

(HandsFreeMouse2005) or special helmets

(EyeTech2005, Origin2005). Hands free non-

invasive systems are also available in the market

(CameraMouse2005, MouseVision2005).

Human Computer interaction based on speech

has received considerable interest

(O’Shaughnessy2003) since it provides a natural

way to interact with a machine. However, under

some circumstances speech-based HCI can be

impractical since it requires quit environments. In

several occasions (Potamianos2003) speech

recognition algorithms are combined with automatic

lip-reading in order to increase the efficiency of

speech HCI and make it more robust to speech

recognition errors. A number of researchers describe

multi-modal HCI systems that combine gesture input

and speech. Such systems usually target specific

applications involving control of large displays

(Kettebekov2001, Krahnstoeve2002). With our

system we aim to provide a generic speech-based

HCI method rather than supporting a unique

application.

3 MULTI-MODAL HCI

We describe herein the face tracking algorithm and

the speech processing techniques used as part of the

multi modal HCI system.

3.1 Face Tracking

We have developed a face-tracking algorithm based

on integral projections. An integral projection

(Mateos2003) is a one-dimensional pattern, whose

elements are defined as the average of a given set of

pixels along a specific direction. Integral projections

represent two-dimensional structures in image

regions using only two one-dimensional patterns,

providing in that way a compact method for region

representation. Since during the calculation of

integral projections an averaging process takes

place, spurious responses in the original image data

are eliminated, resulting in a noise free region

representation.

In order to perform tracking based on this

methodology, we calculate the horizontal and

vertical integral projections of the image region to

be tracked. Given a new image frame we find the

best match between the reference projections and the

ones representing image regions located within a

ICEIS 2006 - HUMAN-COMPUTER INTERACTION

predefined search area. The centre of the region

where the best match is obtained, defines the

location of the region to be tracked in the current

frame. This procedure is repeated on each new frame

in an image sequence.

The method described above formed the basis of

the face-tracking algorithm employed in our system.

The face tracker developed, tracks two facial regions

– the eye region and the nose region. The nose

region and eye region are primarily used for

estimating the vertical and horizontal face

movement respectively. During the tracker

initialisation process the vertical projection of the

nose region and the horizontal projection of the eye

region are calculated and used as the reference

projections during tracking. Once the position of the

two regions in an image frame is established, the

exact location of the eyes is determined by

performing local search in the eye region.

Figure 2: The Nose and Eye Regions.

In order to improve the robustness of the face

tracker to variation in lighting, we employ intensity

normalization so that global intensity differences

between integral projections derived from successive

frames are removed. Robustness to face rotation is

achieved by estimating the rotation angle of a face in

a frame so that the eye and nose regions are rotated

prior to the calculation of the integral projections.

Constraints related to the relative position of the

nose and eye regions are employed in an attempt to

improve robustness to occlusion and excessive 3D

rotation. In this context deviations of the relative

positions of the two regions that violate the

statistical constraints pertaining to their relative

positioning, are not allowed.

The results of a rigorous experimental evaluation

proved that the face tracking algorithm is capable of

locating the eyes of subjects in image sequences

with less than a pixel mean accuracy, despite the

introduction of various destructors such as excessive

rotation, occlusion, changes in lighting and changes

in expression. Even in the cases that the tracker fails

to locate the eyes correctly, the system usually

recovers and re-assumes accurate eye-tracking.

3.2 Speech Processing

Instead of implementing our own speech recognition

algorithms, we have employed the speech processing

functionality offered by the Microsoft Speech

Software Development Kit (MicrosoftSpeech2005)

that contains the Win32 Speech API (SAPI). SAPI

provides libraries with dedicated functions for

recording, synthesizing and recognizing speech

signals. Our work in this area focuses on the

development and testing of a suitable protocol to be

used in conjunction with the head-based HCI system

in order to allow computer users to achieve efficient

hands-free control over a computer system.

We have implemented two methods for using

speech input: The Sound Click and the Voice

Command Mode.

3.2.1 Sound Click

When the Sound Click mode is active, users activate

mouse clicks just by creating a sound. In this mode

we continuously record speech input and in the case

that an input signal stronger than the background

noise is detected, a click is triggered. In this mode

any sound of higher intensity than the background is

enough to trigger a mouse click, hence this mode is

not appropriate for noisy environments. The main

advantage of the Sound Click mode is the fast

reaction time to user-initiated sounds enabling in

that way real-time mouse click activation. Also

when using the Sound-click it is not necessary to

perform person-specific speech training.

3.2.2 Voice Command

We have utilized speech recognition algorithms

available in the SAPI in relation with an appropriate

HCI protocol in order to add in our proposed hands-

free HCI system, the ability to activate certain tasks

by sound. Our ultimate aim is to improve the speed

of activating frequently used HCI tasks. Our work in

this area focuses on the specification of a suitable set

of verbal instructions that can be recognized with

high accuracy by the speech recognition algorithm.

All verbal commands supported, have been

separated into five groups according to the type of

action they refer to. In order to activate a specific

command the user has to provide two keywords: The

first keyword is used for specifying the group and

the second one is used for specifying the exact

command he/she wishes to activate. Both the groups

and the commands in each group are user

configurable – in table 1 we present the default

selection of voice commands specified in the

system.

ose Region

Eye Region

MULTI-MODAL HANDS-FREE HUMAN COMPUTER INTERACTION: A PROTOTYPE SYSTEM

Table 1: Voice Commands used in the system.

Group Command Description

Click Perform left click

Right Click Perform right click

Drag Hold left button down

Drop Release left button

Scroll Up Scroll active window up

Scroll

Down

Scroll active window

down

Stop Stop face tracker

Mouse

Begin Start face tracker

Top

Top right

Top left

Bottom

right

Bottom left

Move

Cursor

Centre

Move cursor to the screen

position specified

Copy Copy selected item

Paste Paste

Enter Press enter

Close Close active window

Shut down Shut down computer

Computer

Sound Enable Sound-Click mode

Windows

Explorer

Media

Player

Internet

Explorer

Run corresponding

application

Open

Keyboard

Run the “On-Screen

Keyboard” application

While the Voice Command mode is active the

system continuously records sounds. Once the

system detects a sound with intensity higher than the

background, it attempts to classify the sound to one

of the group keywords. If none of group keywords

matches the sound, the system rejects the sound. In

the case that a sound is recognized as a group-

keyword, the system is expecting to receive a second

sound corresponding to a sub-command of the

activated group. Sounds recorded after a group

keyword, are tested against the commands belonging

to the corresponding group and if a match is detected

the appropriate action is activated. In the case that a

match is not detected, the input is rejected.

The main reason for separating the commands in

groups is to maximize the robustness of the speech

recogniser by reducing the number of candidates to

be recognized. Based on the proposed scheme a

recorded word is classified only among the five

keywords corresponding to each group. Once a

correct group keyword is recognized the second

word is classified based on the sub-commands for

each group, instead of dealing with all system

commands. In this way the probability of

misclassifications is minimized and at the same time

the tolerance of the system to background noise and

microphone quality is maximized.

4 SYSTEM DESCRIPTION

In this section we describe how various functions are

implemented in the proposed non-invasive human

computer interaction system. Those actions refer to

system initialisation, system training and simulation

of click operations.

4.1 System Initialisation

The first time that a user uses the system he/she is

required to go through a training procedure so that

the system learns about the visual and speech

characteristics of the user. Although it is possible to

use the system based on a generic training

procedure, the overall system performance is

enhanced when person-specific training is adopted.

In order to train the face tracker a dedicated tool is

used, where the user is requested to keep his/her face

still and perform blink actions. Based on a frame-

differencing algorithm the positions of the eyes and

nose regions are determined and integral projections

for those areas are computed. Once the projections

are computed the face tracker is activated. The

tracker initialisation process requires approximately

10 seconds to be completed. A screen shot of the

initialisation tool is shown in figure 3.

Figure 3: System Initialisation Window.

When using voice input the user is advised to

configure the microphone using a dedicated tool

provided by the Microsoft Speech Software

Development Kit (MicrosoftSpeech2005). Once the

microphone is configured it is possible to detect

input signals of higher intensity than the background

noise. The microphone configuration process

requires approximately 30 seconds to be completed.

ICEIS 2006 - HUMAN-COMPUTER INTERACTION

In the case that the system is used only in the

“Sound Click” mode it is not required to perform

any person-specific training.

When using the Voice Command mode the user

is requested to read a sample text so that the system

collects the necessary information required for

speech recognition. The training of the speech

recogniser is carried out using the Microsoft Speech

Recognition Training Wizard, which is available in

the Microsoft Speech Software Development Kit

(MicrosoftSpeech2005). The speech recognition

training process requires approximately 20 minutes

to be completed.

It is important to note that system initialisation

can be done in a hands free fashion (provided that

the camera and microphone are already installed on

the system). The tool used for visual initialisation is

activated during start up and once the face tracker is

in operation the user can use head movements in

order to initiate and complete the training for speech

processing or activate his/her speech profile in the

case of a returning user.

4.2 Activating Mouse Actions

In this section we describe how mouse operations

are implemented in our system.

Moving the cursor: The divergence of the face

location from the initial location is translated in

cursor movement speed, towards the direction of the

movement. Based on this approach only minor face

movements are required for initiating substantial

cursor movement. The sensitivity of the cursor

movement can be customized according to the

abilities of different users.

When the Voice Command mode is active, it is

also possible to move the cursor to predetermined

positions by recalling commands from the group

“Move Cursor” (see table 1). The use of speech

commands is useful for fast initial cursor

positioning; usually the cursor position is refined

using head movements.

Mouse Click actions: Three different methods

for activating mouse click actions are provided.

Based on the first method, clicks are activated by the

stabilization of the cursor to a certain location for a

time period longer than a pre-selected threshold

(usually around one second). In this mode, users

select the required click action to be activated when

the cursor is stabilized. The predefined options

include: left click, right click, double click, drag and

drop and scroll.

According to the second method, click actions

are performed using an external switch attached to

the system. In this mode the user directs the mouse

to the required location and the appropriate click

action is activated based on the external switch. The

switch can be activated either by hand, foot or voice

(when the Sound Click mode is enabled).

The third method is based on the voice

commands available in the group “Mouse” (see table

1).

Text Entry: Text entry is carried out by using the

“On-Screen Keyboard” - a utility provided by the

Microsoft Windows Operating System (see figure

4). Once the On-Screen Keyboard is activated it

allows the user to move the cursor on any of the

keys of the keyboard and by clicking actions activate

any key. As a result it is possible to use head

movements and speech in order to write text or

trigger any operation that is usually triggered from

the keyboard.

Figure 4: Screen-Shot of the “On Screen Keyboard”.

5 HANDS-FREE APPLICATIONS

Although the proposed multi-modal HCI system can

be used for any task where the mouse and/or

keyboard is currently used, we have developed

dedicated computer applications that can be used by

prospective users of the system for familiarization

and system evaluation purposes. In this section we

briefly describe the familiarization and test

applications.

5.1 Familiarization Applications

We have developed three familiarization

applications: A paint-tool application, a car driving

game and a virtual piano. Familiarization

applications aim to train users how to move the

cursor in a controlled way and how to activate click

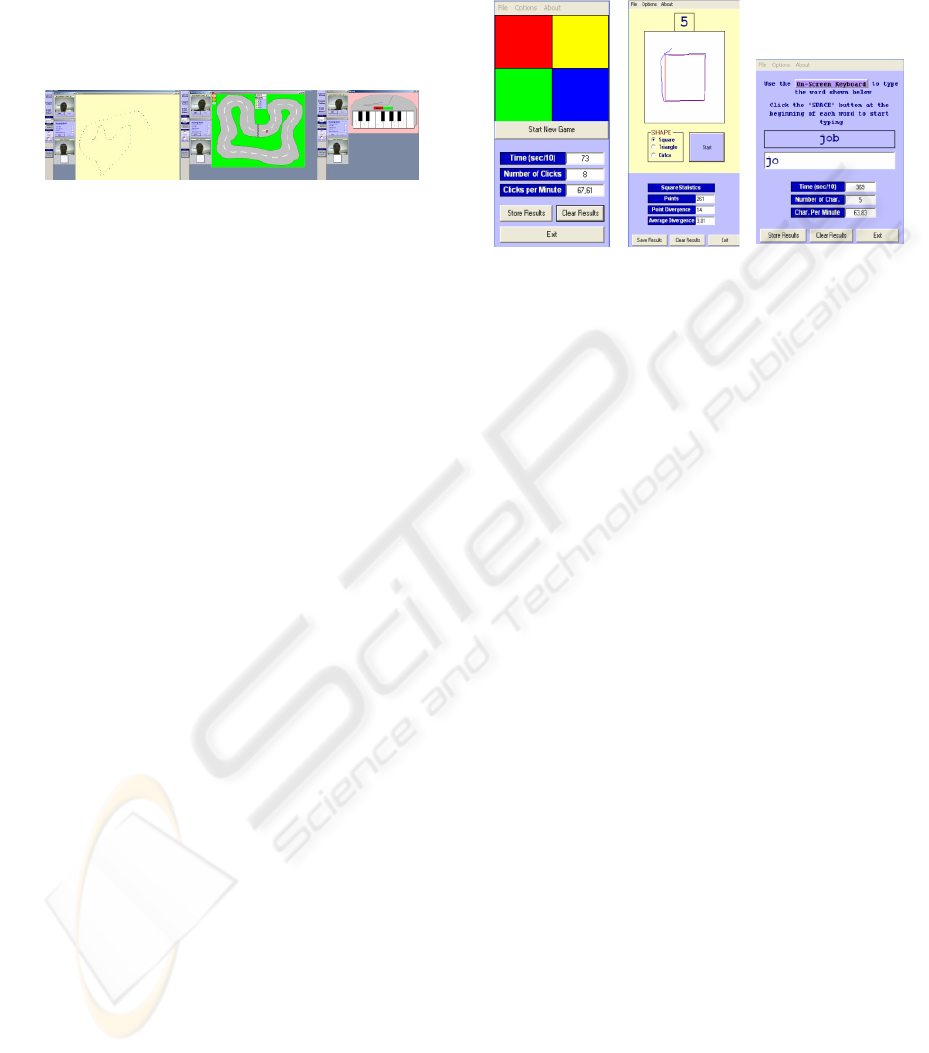

actions. Screen shots of the familiarization

applications are shown in figure 5.

5.2 Test Applications

Test applications are used as a test bench for

obtaining quantitative measurements related to the

performance of the users of the system. The

following test applications have been developed:

MULTI-MODAL HANDS-FREE HUMAN COMPUTER INTERACTION: A PROTOTYPE SYSTEM

Click Test: The user is presented with four

squares on the screen. At any time one of those

squares is blinking and the user should direct the

cursor and click on the blinking square. This process

is repeated several times and at the end of the

experiment the average time required to direct the

cursor and click on a correct square is quoted.

Draw Test: The user is presented with different

shapes on the screen (square, triangle and circle) and

he/she is asked to move the cursor on the periphery

of each shape. The divergence between the actual

shape periphery and the periphery drawn by the user

is quoted and used for assessing the ability of the

user to move the cursor on a predefined trajectory.

Typing Test: The user is presented with a word

and he/she is asked to type in the word presented.

This procedure is repeated for a number of different

randomly selected words. The average time required

for typing a correct character is quoted and used for

assessing the ability of the user to type text.

Screen shots of the test applications are shown in

figure 6.

6 SYSTEM EVALUATION

The test applications presented in the previous

section were used for assessing the usefulness of the

proposed system. In this section we describe the

experiments carried out and present the results.

6.1 Experimental Procedure

Twenty volunteers tested our system in order to

obtain quantitative results related to the performance

of the system. The test procedure for each subject is

as follows:

Familiarization stage: The subject is instructed

how to use the hands-free computing system and

he/she is allowed to get familiar with the system by

using the familiarization applications. On average

the duration of the familiarization stage was about

15 minutes.

Benchmark performance: The benchmark

performance for each volunteer is obtained by

allowing the user to complete the test applications

using a conventional mouse and a typical touch pad

of a portable PC. The performance of the user is

assessed on the following tests:

Click Test: The average time required for five

clicks is recorded.

Draw Test: The subject is asked to draw a

square, a triangle and a circle and the average

discrepancy between the actual and the drawn shape

is quoted.

Type Test: The user is asked to type five

randomly selected 3-letter words and the average

time for typing a correct letter is recorded (In this

test text input was carried out by using the “On

Screen Keyboard”).

Visual test: The user is asked to repeat the

procedure used for obtaining the benchmark

performance, but in this case he/she runs the test

programs using the hands-free computing system

based on visual input only.

Visual with an external switch test: The test

procedure is repeated, but in this case the user is

allowed to use the Hands Free system based on

visual input, in conjunction with an external hand-

operated switch for activating mouse clicks.

Sound-Click test: For this test clicks are

activated based on the Sound-click mode of

operation. Cursor movements are carried out based

on head motion.

Voice Command test: In this case head motion

is used for moving the cursor, but mouse operations

are activated using the appropriate commands from

the “Mouse” group (see table 1).

The 20 volunteers who tested the system were

separated into two groups according to their prior

expertise in using the hands-free computing system.

Group A contains subjects with more than five hours

prior experience in using the hands free system.

Subjects from group B used the system only as part

of the familiarization stage (for about 15 minutes).

All tests were carried out in standard office

environments - no precautions for setting up lighting

Pain

-tool Car racin

Virtual

iano

Figure 5: Screen shots of the familiarization applications.

Click test Draw test Typing test

Figure 6: Screen shots of the test applications.

ICEIS 2006 - HUMAN-COMPUTER INTERACTION

conditions or for minimizing background noise were

enforced.

6.2 Results – Discussion

The results of the tests are summarized in the table

2. Based on the results the following conclusions are

derived:

Table 2: the results of the quantitative evaluation.

Test Method Group A Group B

Mouse 0.76 0.86

Touch Pad 1.45 2.18

Visual 3.58 4.84

Visual +

switch

1.41 2.5

Sound-click 0.98 1.68

Click

test

(Units:

seconds/clic

Voice

Command

2.10 2.38

Mouse 2.62 2.05

Touch Pad 3.01 4.01

Draw Test

(Units:

Divergence

in Pixels)

Visual 3.07 5.93

Mouse 0.89 0.86

Touch Pad 1.73 3.41

Visual 4.39 5.99

Visual +

switch

2.37 3.70

Sound-click 2.33 3.84

Typing

Test

(Units:

seconds/clic

Voice

Command

3.19 5.53

Click test: In all occasions the results obtained

by using a conventional mouse are better. When the

hands free system is combined with a switch for

performing click actions the performance of the

system is comparable with the performance achieved

when using a touch pad. In the case that the Sound-

Click mode is used, the performance of the users

compares well with the performance achieved when

using a mouse. When the hands free system is not

used with an external switch (or Sound-clicks), the

performance of the users decreases. The additional

delay introduced in this case is mainly due to the

requirement for stabilizing the cursor for some time

(1 second according to the default setting) in order to

activate a click action.

Draw Test: For experienced users of the system

(Group A) the performance achieved using the free

hand mouse is comparable with the performance

achieved when using a touch pad. Subjects from

group B (inexperienced users) produced an inferior

performance when using the hands free system. The

main reason is the reduced ability to control

precisely cursor movements due to the limited prior

exposure to the system.

Typing Test: In this test the use of mouse or

touch pad for typing text is significantly superior to

the performance of users using the hands-free

system, indicating that the proposed system is not

the best alternative for typing applications.

However, the performance obtained when using the

hands-free system in conjunction with the external

switch or Sound-click, is once again comparable to

the performance obtained with the touch pad. The

main reason for the inferior performance obtained

when using the hands free system, is the small size

of the keys on the “On Screen Keyboard” that

requires precise and well-controlled cursor

movements. The ability to precisely move the cursor

requires extensive training. Instead of using the “On

Screen Keyboard”, provided by the Windows

operating system, it is possible to use dedicated

virtual keyboards with large buttons in order to

improve the typing performance achieved when

using the hands-free computing system.

User Expertise: The abilities of users to use the

hands free system increase significantly with

increased practice. Based on the results we can

conclude that subjects with increased prior

experience in using the hands-free system (from

group A) can perform all usual HCI tasks efficiently.

It is expected that with increased exposure to the

system, users will be able to achieve even better

performance.

External Switch: The introduction of an

external switch that can be activated either by foot or

hand or voice enhances significantly the

performance of the system.

Voice Command: When using the Voice

Command mode, additional delays are introduced,

due to the processing time required for performing

the speech recognition task. However, when the task

we wish to perform is contained in the Speech

Command menu (see table 1), then a speed up in

task completion time can be achieved. For example

the time required to verbally activate an application

among the ones listed in the “Open” group menu

(see table 1), is far less than in the case of using the

rest of the methods.

7 CONCLUSIONS

We presented a prototype multi-modal hands-free

HCI system that relies on head movements and

speech input. The proposed system caters for

MULTI-MODAL HANDS-FREE HUMAN COMPUTER INTERACTION: A PROTOTYPE SYSTEM

common HCI tasks such as mouse movement, click

actions and text entry (in conjunction with the “On

Screen Keyboard”). Based on the quantitative results

presented, head based HCI cannot be regarded as a

substitute for the conventional mouse, since the

speed and accuracy of performing most HCI tasks is

below the standards achieved when using a

conventional mouse. However, in most cases the

performance of the proposed system is comparable

to the performance obtained when using touch pads

of portable computer systems. Even though the

accuracy and speed of accomplishing various HCI

tasks with a touch pad is less than in the case of

using a conventional mouse, a significant number of

computer users use regularly touch pads. We are

convinced that computer users will also find the

proposed hands free computing approach useful.

The proposed system does not require person-

specific training, since the system adapts and learns

the visual characteristics of the features to be

tracked, during the initialisation phase. The only

case that person-specific training is required is when

the “Voice Command” mode is used. The training

procedure in those cases requires about 20 minutes

to be completed.

The proposed system is particularly useful for

paraplegics with limited (or without) hand mobility.

Such users are able to use a computer system based

only on head movements and speech input. During

the system development phase we have provided the

system to members of the Cyprus Paraplegics

Organization, who tested the system and provided

valuable feedback related to the overall system

operation and performance. Currently a number of

paraplegic computer users are using the hands-free

system described in this paper.

An important feature of the system is the

provision of alternative methods for performing a

task, so that at any time the user can choose the most

appropriate way to perform an action. For example if

the user wishes to run the Internet Explorer, he/she

has the ability to perform the action using only head

movements or by using speech commands or by

using a combination of the two input media (i.e

move the cursor to the appropriate icon using head

movements and run the application by using sound

clicks).

In the future we plan to upgrade the Voice

Command mode in order to allow text entering

based on speech input. Also we plan to stage a large-

scale evaluation test is order to obtain concrete

conclusions related to the performance of the

proposed system. Since the hands-free system is

primarily directed towards paraplegics, we plan to

include evaluation results from paraplegics in our

quantitative evaluation results.

ACKNOWLEDGEMENTS

The work described in this paper was supported by

the Cyprus Research Promotion Foundation. We are

grateful to members of the Cyprus Paraplegics

Organization for their valuable feedback and

suggestions.

REFERENCES

Assistive Technology Solutions. Retrieved October 4,

2005, from http://www.abilityhub.com/mouse/

CameraMouse: Hands Free Computer Mouse. Retrieved

October 4, 2005, from http://cameramouse.com/

EyeTech Digital Systems-Eye Tracking Device. Retrieved

October 4, 2005, from http://www.eyetechds.com/

Hands Free Mouse – Assistive Technology Solution.

Retrieved October 4, 2005, from

http://eyecontrol.com/smartnav/

Gorodnichy D.O. and Roth G, 2004. Nouse ‘Use Your

Nose as a Mouse’ – Perceptual Vision Technology for

Hands-Free Games and Interfaces, Image and Vision

Computing, Vol. 22, No 12, pp 931-942.

Kettebekov S, and Sharma R , 2001. Toward Natural

Gesture/Speech Control of a Large Display, M. Reed

Little and L. Nigay (Eds.): EHCI 2001, LNCS 2254,

pp. 221–234, Springer-Verlag Berlin Heidelberg.

Krahnstoever N, Kettebekov S, Yeasin M, Sharma R.

2002. A Real-Time Framework for Natural

Multimodal Interaction with Large Screen Displays.

Proc. of Fourth Intl. Conference on Multimodal

Interfaces (ICMI 2002).

Mateos G.G. 2003. Refining Face Tracking With Integral

Projections. Procs. Of the 4th International Conference

on Audio and Video-Based Biometric Person

Identification, Lecture Notes in Computer Science,

Vol 2688, pp 360-368.

Microsoft Speech – Speech SDK5.1 For Windows

Applications. Retrieved July 10, 2005, from

http://www.microsoft.com/speech/download/sdk51/

Mouse Vision Assistive Technologies, Retrieved October

4, 2005, from http://mousevision.com/

Origin Instruments Corporation. Retrieved October 4,

2005, from http://orin.com/index

O'Shaughnessy, D., 2003. Interacting with computers by

voice: automatic speech recognition and synthesis.

1272- 1305.

Potamianos G., Neti C., Gravier G., Garg A., Senior A.W.

2003. Recent advances in the automatic recognition of

audiovisual speech. IEEE Proceedings, Vol 91, Issue

9, pp 1306- 1326.

Toyama K. 1998. Look, Ma – No Hands! – Hands Free

Cursor Control with Real Time 3D Face Tracking,

Procs. Of Workshop on Perceptual User Interfaces, pp.

49-54.

ICEIS 2006 - HUMAN-COMPUTER INTERACTION
