A FRAMEWORK FOR SEMANTIC RECOVERY STRATEGIES IN

CASE OF PROCESS ACTIVITY FAILURES

Stefanie Rinderle

, Sarita Bassil

and Manfred Reichert

DBIS, Dept. DBIS, University of Ulm, Germany,

Dept. Computer and Information Sciences, Holy Spirit University of Kaslik Lebanon,

Information Systems Group, University of Twente, The Netherlands,

Keywords:

Process Recovery, Exception Handling, Automated Process Change.

Abstract:

During automated process execution semantic activity failures may frequently occur, e.g., when a vehicle

transporting a container has a breakdown. So far there are no applicable solutions to overcome such excep-

tional situations. Often the only possibility is to cancel and roll back respective process instances what is not

always possible and more often not desired. In this paper we contribute towards the system–assisted support of

ﬁnding forward recovery solutions. Our framework is based on the facility to (automatically) perform dynamic

changes of single process instances in order to deal with the exceptional situation. We identify and formal-

ize factors which inﬂuence the kind of applicable recovery solutions. Then we show how to derive possible

recovery solutions and how to evaluate their quality with respect to different constraints. All statements are

illustrated by well–studied cases from different domains.

1 INTRODUCTION

Exceptions in computerized processes are common

(Strong and Miller, 1995). From a process perspec-

tive, critical exceptions often occur during activity ex-

ecution (Elmagarmid, 1992). As an example, take the

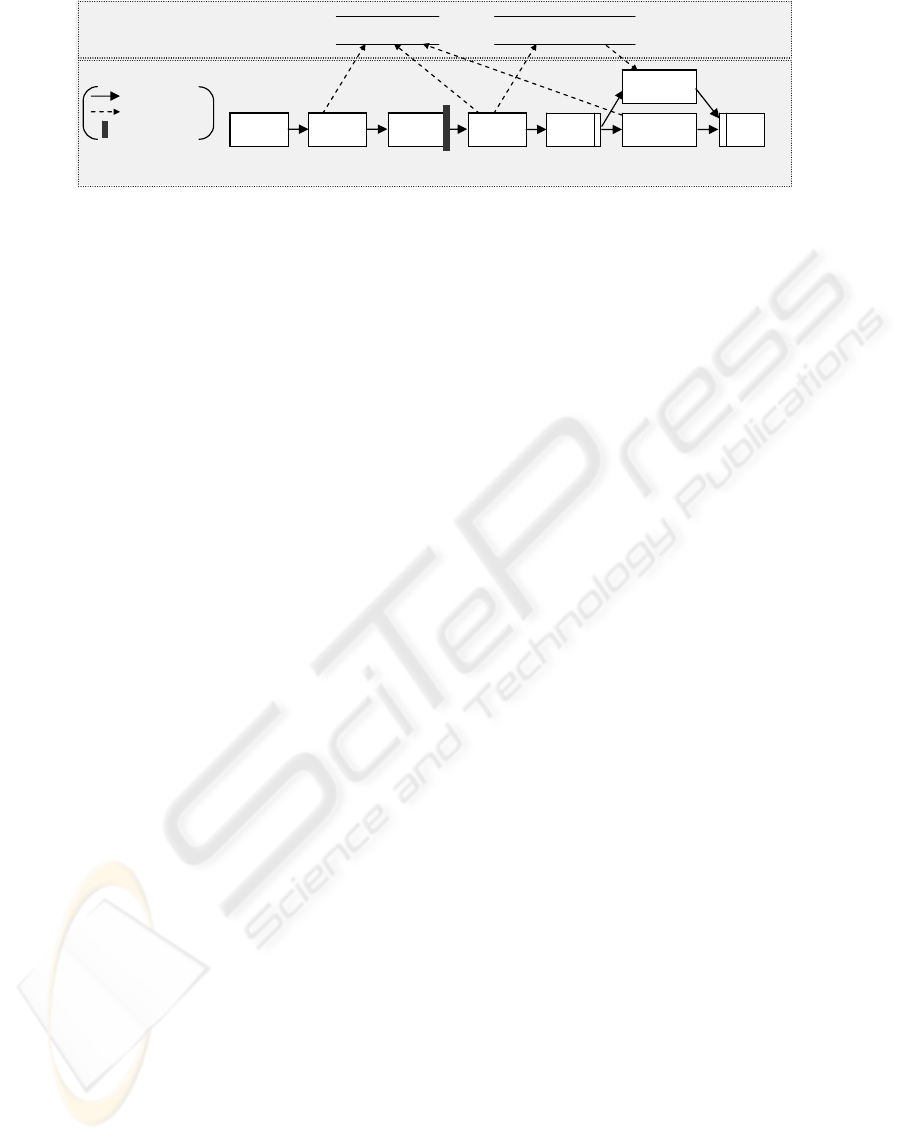

container transportation process from Fig. 2. Tech-

nical problems of vehicles or trafﬁc jams may appear

at any time while vehicle V is on the road between

its origin location O and its destination location D.

In such exceptional cases, the execution of activity

move vehicle has to be stopped and an alterna-

tive solution needs to be ﬁgured out. The process-

aware information system (PAIS) (v.d. Aalst and van

Hee, 2002) should adequately support users by pro-

viding the context in which the exception has occured

and by proposing recovery strategies to be applied.

If an activity fails during process instance execu-

tion one possibility to deal with this (semantic) fail-

ure is to roll back the instance execution or parts of

it. The classical transaction concept has appeared to

be inadequate in this context since long–term locks

are not applicable in practice. Therefore more appro-

priate approaches have been ﬁgured out, e.g., nested

transactions and (semantic) compensation as exten-

sions to classical rollback and ACID transactions (El-

magarmid, 1992). One of the ﬁrst approaches for the

semantic rollback of processes was offered by Sagas

(Garcia-Molina and Salem, 1987): in case of activ-

ity failure the effects of the failed activity are undone

(i.e., the respective transaction is rolled back) whereas

completed activities are compensated in backward or-

der. More sophisticated approaches use scopes of

control to express a changing compensation behav-

ior depending on the process state (Leymann, 1995;

Leymann and Roller, 2000).

In practice it is not always possible to roll back

a process, e.g., there may be no compensation for

an already accomplished surgery in a medical treat-

ment process or the time for compensation may be

exceeded, e.g., we cannot compensate a ﬂight reser-

vation only few hours before the trip. In this per-

spective, if no backward recovery is possible, a for-

ward recovery solution applying dynamic process in-

stance changes is often favorable. In the literature,

so far no sufﬁcient strategies for forward recovery

have been deﬁned. In most cases forward recovery

comprises dynamic modiﬁcations of the process in-

stances, e.g. forward or backward jumps in the ﬂow of

control (Reichert et al., 2003; Mourao and Antunes,

2004). Except the rule–based approach of A

GENT-

ORK (M

uller, 2004; M

uller et al., 2004) it has not

been investigated in sufﬁcient detail how to (automat-

ically) determine reasonable ad–hoc modiﬁcations as

forward recovery solutions. Note that at a certain

point during process execution the set of applicable

changes may be very large, but only few of them may

be reasonable to deal with the exceptional situation.

136

Rinderle S., Bassil S. and Reichert M. (2006).

A FRAMEWORK FOR SEMANTIC RECOVERY STRATEGIES IN CASE OF PROCESS ACTIVITY FAILURES.

In Proceedings of the Eighth International Conference on Enterprise Information Systems - DISI, pages 136-143

DOI: 10.5220/0002453201360143

 SciTePress

In this paper, we contribute to better support users

in ﬁnding adequate forward recovery solutions at the

presence of exceptional situations. We ﬁrst identify

factors which may inﬂuence the right choice of a for-

ward recovery solution. One important factor is to

know the current data context of a failed activity. For

example, if activity move vehicle fails it is cru-

cial to know the position of the vehicle in order to

ﬁgure out an alternative solution (cf. Fig. 2). We

may also think of an emergency case occuring while

a physician is ﬁlling in a form (e.g., to enter medical

history data of her patient) and forcing her to inter-

rupt her task. In such a case the data already ﬁlled in

by the physician should not be lost, i.e., the data con-

text of the activity should be kept in order to resume

it later on. Other inﬂuence factors deal with a process

as a whole. If an exception has to be handled, it is a

must to know how far process execution has been pro-

gressed or what the major goals of this process are.

As an example, the major goal of a medical treatment

process could be to successfully operate a patient, and

the completion of a prerequisite activity (e.g., prepare

patient) could be deﬁned as a milestone. If an excep-

tional situation occurs during the execution of this ac-

tivity (e.g., detection of too high blood pressure) the

subsequent surgery could not be launched.

The inﬂuence factors identiﬁed in this paper stem

from analyzing different process scenarios from the

logistics area, the medical domain, and the automo-

tive sector. We formalize these inﬂuence factors in or-

der to draw precise conclusions afterwards and follow

a two–step approach for suggesting forward recovery

strategies to the user. Within the ﬁrst step possible

dynamic changes of the concerned process instance

are ﬁgured out depending on the identiﬁed inﬂuence

factors. In order to improve the quality of the sug-

gested recovery solutions, in a second step we check

whether the ad–hoc changes are reasonably applica-

ble, i.e., whether they preserve certain constraints or

not (e.g., a given time schedule).

Sect. 2 provides necessary background informa-

tion. In Sect. 3 we formalize factors inﬂuencing the

choice of adequate recovery solutions in case of ac-

tivity failures. Methods for deriving forward recovery

solutions and evaluating their quality afterwards are

provided in Sect. 4. In Sect. 5 we discuss related

work and we close with a summary in Sect. 6.

2 FUNDAMENTALS

To provide a formal foundation for our further con-

siderations we ﬁrst present basic deﬁnitions. We use

Activity Nets (Leymann and Altenhuber, 1994) as

process meta model, but our considerations can be

transferred to other process meta models as well. We

extend the deﬁntion of Activity Nets by subdividing

process activities (e.g., Prepare patient for a

surgery, cf. Fig. 1) into smaller work units which we

call

atomic steps

(e.g., measuring weight/blood pres-

sure of a patient as atomic steps of activity Prepare

patient). We use this distinction for further con-

siderations but it also reﬂects that work units may be

modeled at different levels of granularity.

Deﬁnition 1 (Process Type Schema)

A tuple S = (N,

D, CtrlE, DataE, EC, ST, Asn, Aso, DataE

extended

)is

called a process type schema with:

• N is a set of activities and D is a set of process data

elements

• CtrlE ⊂ N × N is a precedence relation

(notation: n

src

→ n

dest

≡ (n

src

dest

) ∈ CtrlE)

• DataE ⊆ N × D × NAccessMode is a set of data links

between activities and data elements (with NAccessMode

= {read, write, continuous-read, continuous-write})

• EC: CtrE → Conds(D) assigns to each control edge an

optional transition condition where Conds(D) denotes

the set of transition conditions on data elements of D

• ST is the total set of atomic steps deﬁned for all activities

of the process; we deﬁne the following functions on ST:

• Asn: ST → N assigns each atomic step to an activity.

• Aso: ST → N assigns to each atomic step a num-

ber indicating its relative position with respect to other

atomic steps of a certain activity.

• DataE

extended

⊆ ST × D ×{read, write} is a set of

data links between atomic steps and data elements

Let us analyze the important issue of process data

(ﬂow) in detail. A ﬁrst step is to distinguish between

data ﬂow on macro and micro level (cf. Fig. 1), i.e.,

data ﬂowing between process activities (macro level)

and between the atomic steps of one activity (micro

level). We extend this discussion later on. At this

level, we introduce the notion of process instances.

Deﬁnition 2 (Process Instance)

A process instance I is

deﬁned by a tuple (S, M

,Val

) where:

• S = (N, D, CtrlE, ...) denotes the process type schema I

was derived from

• M

= (NS

,ES

) describes activity/atomic step and

edge markings of I:

:(N ∪ ST) →{NotAct, Act, Run,

Comp, Skipped}

: CtrlE →{Not Signaled,

True

Signaled, False Signaled}

• Val

denotes a function on D, formally: Val

:D→

Dom

∪{Undef}. It reﬂects for each data element d

∈ D either its current value from domain Dom

or the

value Undef (if d has not been written yet).

denotes the set of all instances running according to S.

In Def. 2 we abstain from using an execution log

for process instances. In ADEPT, for example, such

an execution log captures start and end events as well

as the data values written by the processed activities

A FRAMEWORK FOR SEMANTIC RECOVERY STRATEGIES IN CASE OF PROCESS ACTIVITY FAILURES

137

Process Schema S:

: Control flow

: Data flow

: Milestone

weight

bloodPressure

electro

cardiogram

consent

Inform Sign

Measure

weight

Measure

pressure

Wash

patient

Anesthetize Operate

Provide

weight

1 1 1 1 1 0 1 2

Atomic

ste

Data on

macro

level

Admit

patient

Anamnesis

Operate

Monitor

Prepare

patient

Control flow

AndSplit AndJoin

weight

bloodPressure

consent

Data on

micro

level

sensory perception

ree

patForm

nervousness

ree

Global

data

write

report

Aftercare

patient age family status

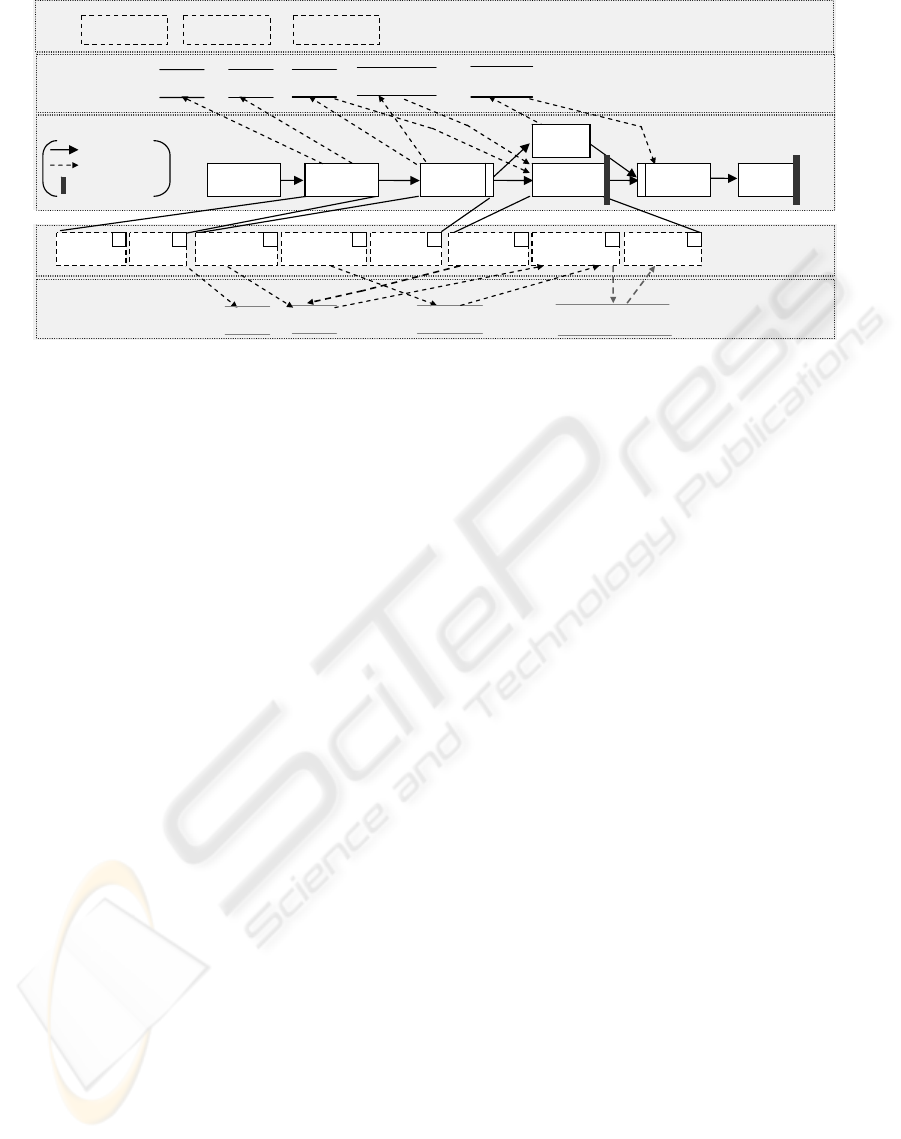

Figure 1: Medical Treatment Example.

(Rinderle et al., 2004). This constitutes important in-

formation in the context of backward recovery.

We give further deﬁnitions in order to be able to

formalize the inﬂuence factors afterwards. A ﬁrst

important deﬁnition is that of

milestones

. Reaching

a milestone indicates that the process execution has

reached a certain stage, e.g., in the engineering do-

main a certain development stage. The notion of mile-

stones can be also used for deﬁning process goals,

e.g., the surgery of the patient and the documentation

of the medical treatment process (cf. Fig. 1). We de-

ﬁne a milestone as a subset of activites of a process

type schema with their associated activity markings.

Deﬁnition 3 (Milestone)

Let S = (N, ...) be a process

type schema. Then ms = {(n, State) | n ∈ N’ ⊆ N , State ∈

{Act, Run, Comp}} denotes a milestone for S. The set

of milestones deﬁned on S is denoted by MS

When using data ﬂow information for deriving re-

covery solutions it is necessary to distinguish between

different kinds of data. For this purpose, a data clas-

siﬁcation schema has been introduced (Bassil et al.,

2005), which puts the frequency of updating activity

data and the relevance of these data into relation. In

the latter dimension, a distinction is made between

data elements only relevant in the context of the appli-

cation and data elements relevant for process progress

as well. A data element produced by any activity is

relevant for the process if there is a subsequent activ-

ity reading this data element. If this is not the case

we call this data element application–relevant. Fur-

thermore, we reﬁne this deﬁnition by also consider-

ing data elements that are not linked to any speciﬁc

activity but to the overall process or to the application

itself. We denote such data elements as ”global data”.

An example is nervousness degree as depicted

for the medical treatment process in Fig. 1.

The other dimension in the data classiﬁcation

schema is built by the data update frequency, i.e., how

often a certain data element is updated during activ-

ity execution. A distinction is done between a dis-

crete and a continuous data update of a data element

d by an activity n. Examples for continuously up-

dated data elements are current position and

container temperature for the transportation

process in Fig. 2. By contrast, in Fig. 1, consent

is an example for a discretely updated data element.

This classiﬁcation only applies when a write or a

continuous-write data link exists between d and n.

Informally, for a discrete data update there are cer-

tain time spans between the single updates, whereas

for continuous data updates the time slices between

the single updates converge to 0. The following func-

tion speciﬁes time slices between data updates:

stp :

ST → R

∪{Undef} where stp maps each atomic

step either to a speciﬁc point in time or to Undef.As

introduced in (Bassil et al., 2005) we further distin-

guish between a

discrete data update

of data element d

by activtiy n (if ∃(n, d, write) ∈ DataE) and a

con-

tinuous data update

of d by n (if ∃(n, d, continuous-

write) ∈ DataE).

In order to correctly deal with exceptional situa-

tions, it is crucial to know the points in time when

the data context of an activity becomes preserved (i.e.,

it is semantically meaningful and it is made persis-

tent). In order to adequately answer this question, it

is important to consider the distinction between con-

tinuous and discrete data updates. The following de-

ﬁnition precisely determines the particular safe inter-

rupt points for discrete and continuous data updates,

i.e., those points in time when the respective data are

updated such that subsequent activities reading these

data can be correctly supplied with input data.

Deﬁnition 4 (Safe Interrupt Point for Data Up-

date)

Let S be a process type schema, let (d, n) (n ∈ N,

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

138

d ∈ D) be a data update, and let ST

be the set of atomic

steps associated with n and writing d; i.e., ST

:= {st |

Asn(st) = n}.

• Discrete Data Update: Let B := {stp(st) | st ∈ ST

Then the safe interrupt point t

saf e

of (d, n) corresponds

to the maximum point in time any atomic step writes d.

Formally:

saf e

max(B):B = ∅

Undef : otherwise

• Continuous Data Update: Let t

be the start up-

dating time and t

the ﬁnish updating time of d by

n. Then the safe interrupt point t

saf e

of (d, n)

saf e

) corresponds to the time when d be-

comes relevant for subsequent activities. This time is

ﬁxed by the user. If no safe interrupt point is ﬁxed by

the user t

saf e

= Undef holds.

Informally, the safe interrupt point for a discrete

data update by atomic steps is the maximum point in

time when the last write access to the respective data

element has taken place. Since there is no ”natural”

safe interrupt point for continuous data updates (e.g.,

the GPS continuously updating the vehicle position)

we offer the possibility to deﬁne a safe interrupt point

by the user. Based on the safe interrupt points for data

updates the safe point of an activity can be deﬁned as

follows:

Deﬁnition 5 (Activity Safe Point)

Let S = (N, D, NT,

...) be a process type schema and let I = (S, M

,Val

)

∈I

be a process instance. Let further {d

, ..., d

} be

the set of data elements (continuously) written by activity n

∈ N (i.e., ∃ (n, d

,w)∈ DataE, i = 1, ..., k, w ∈{write,

continuous-write}) and let t

saf e

,...,t

saf e

be the related

safe interrupt points. Then we denote the activity safe point

of n with t

saf e

. Formally:

saf e

Undef t

saf e

= Undef ∀i =1, .., k

max{t

saf e

,...,t

saf e

} otherwise

3 ON FORMALIZING

INFLUENCE FACTORS

In this section we formalize factors that may inﬂu-

ence the selection of recovery solutions coping with

process activity failures. In order to elaborate these

factors we have systematically studied real–world

business processes from different application environ-

ments (Dadam et al., 2000; Bassil et al., 2004).

Inﬂuence Factor 1 (Activity Context) If a running

activity is interrupted an important question is

whether we can preserve the (data) context of this ac-

tivity or not. To be able to do so we distinguish be-

tween different kinds of data, e.g., data written in a

continuous or in a discrete way.

Example 1

If a

move vehicle

activity is interrupted

due to a technical problem, it is to be ensured that the cur-

rent position of the vehicle is known in order to, for ex-

ample, send a replacement vehicle. This can be achieved

using a GPS system which continously writes data element

position

(cf. Fig. 2).

In Def. 5 for an activity n we have speciﬁed the

concept of its safe point t

safe

. Intuitively, the data

context of a failed activity n could be preserved (i.e.,

all relevant output data of n have been already writ-

ten) either if n was interrupted after having reached its

safe point t

safe

or if n has no write access to any data

element. (The latter is expressed by t

safe

= Undef.)

If the data context of an activity n is preserved all in-

put data of subsequent activities, that are supposed to

read data elements written by n, are actually provided

by n. This inﬂuences the set of applicable recovery

solutions. Formally:

Deﬁnition 6 (Activity Context aCP)

Let S = (N, D,

...) be a process type schema and let I = (S, M

,Val

)

∈I

be a process instance. Assume that activity n ∈ N

(with safe point t

saf e

) is interrupted at time t. Then aCP

indicates whether the data context of n can be preserved or

not. Formally: aCP: I×N×R →{T, F}

aCP (I, n, t):=

T t ≥ t

saf e

∨ t

saf e

= Undef

F otherwise

Knowing whether the context of an interrupted ac-

tivity n is preserved or not inﬂuences the choice of

the adequate recovery solution to a great extent. If the

activity context is not preserved the respective recov-

ery solution must at least deal with the successors of

n which are not correctly supplied with input data.

Inﬂuence Factor 2 (Process Data Context) The

process data context of a process instance comprises

all data elements and their current values provided so

far. Evaluating the process data context yields useful

information when looking for an adequate recovery

strategy as the following example shows.

Example 2

Assume that the

Prepare patient

activity is supposed to measure, among other things,

the blood pressure (cf. Fig. 1). If it is too high the

subsequent surgery cannot be carried out, i.e., activ-

ity

Prepare Patient

will be interrupted. One re-

covery solution would be to skip the surgery. How-

ever, taking into account the process data context,

in particular the global data element

nervousness

degree

shows that the patient is extremely nervous

at the moment. Therefore another recovery solution

would be to ”wait till the patient relaxes”.

Deﬁnition 7 (Process Data Context pDC) Let S =

(N, D, NT, ...) be a process type schema and let I = (S,

A FRAMEWORK FOR SEMANTIC RECOVERY STRATEGIES IN CASE OF PROCESS ACTIVITY FAILURES

139

Control flow

current position container temperature

Attach at

Move to

Load at

Move to

Unload

at D

Move to P

Report to

customer

…

Process Schema S:

: Control flow

: Data flow

: Milestone

P: parking position; O: origin; D: destination

Data on

macro

level

(Load at O) = Completed

Figure 2: Container Transportation Example.

,Val

) ∈I

be a process instance. Then pDC deter-

mines all data element values written by I so far. Formally:

pDC: I

→ (D × (Dom

∪{Undef}))

with

pDC(I):={(d, V al

(d)) | d ∈ D }

Inﬂuence Factor 3 (State Context) The applicabil-

ity of recovery strategies also depends on how far

process execution has progressed. This can be ex-

pressed, for example, by deﬁning milestones (cf. Def.

3). If a certain milestone is passed we may have to

apply different recovery solutions than before.

Deﬁnition 8 (State Context statCtxt)

LetSbea

process type schema, let MS

be the set of milestones

deﬁned on S, and let I = (S, M

=(NS

,ES

),Val

)

∈I

be a process instance running on S. Then statCtxt

determines all milestones reached by the execution of I so

far. Formally: statCtxt: I → (MS

)

statCtxt(I) := {ms = {(n

, State

), ..., (n

, State

)}∈

| (NS

) = State

) ∨ (State

∈{Act, Run,

Comp} =⇒ NS

) ∈{Run, Comp, Skipped})}(♣)

The second part of condition ♣ captures the fol-

lowing situations: if the activity marking associated

with a milestone activity n equals Act or Run the

milestone is reached if NS

(n) equals Act, Run,

or Comp. If a milestone is deﬁned based on an activ-

ity within an alternative branching the milestone may

be never reached. In this paper we handle this case by

agreeing on that a milestone is also reached when the

respective activity is skipped. Of course, other con-

ventions are conceivable as well.

Example 3

Consider the transportation process depicted

in Fig. 2. Milestone ms

trans

{

(

Load at O, Comp

)

}

has been deﬁned for this process. If an instance

has not

yet reached this state, i.e., NS

(

Load at O

)

= Comp

and

an exception occurs we can still load the goods to another

container/vehicle. By contrast, if the goods have been al-

ready loaded, i.e., NS

(

Load at O

Comp

we have to

additionally insert an

Unload

activity.

Inﬂuence Factor 4 (Process Goal) The choice of an

adequate forward recovery solution strongly depends

on the goal of the respective process. Thereby sev-

eral goals with different priorities may exist. In prac-

tice, process goals often correspond to reaching a cer-

tain milestone, e.g., a development stage within an

automotive engineering process. Therefore, in this

paper, we deﬁne process goals as the milestones not

yet reached by instance execution so far. Milestones

which refer to activities from alternative branches and

may therefore be not reached are not considered as

process goals in this context (cf. Def. 8). There

may be other possibilities to deﬁne process goals, e.g.,

based on the availability of process data. We will ex-

tend our considerations in this direction in the future.

Deﬁnition 9 (Process Goal Activities prGoalAct)

Let S = (N, ...) be a process type schema, let MS

be the set of milestones deﬁned for S, and let I = (S,

=(NS

,ES

),Val

) ∈I

be a process instance

running on S. Let further statCtxt(I) be the state context of

I (cf. Def. 8). We deﬁne process goals as those milestones

which have not been reached during execution of I so far.

prGoalAct determines the activities associated with these

process goals:

prGoalAct: I

→ (N)

prGoalAct(I) := {n ∈ N |∃ms ∈ (MS

\ statCtxt(I)) with

∃ (n, State) ∈ ms}

Example 4

Consider the medical treatment process de-

picted in Fig. 1. The milestones for this process are

med

{

(

Operate, Comp

)

}

and

med

{

(

write

report, Comp

)

}

. Assume that the execution of process

instance

fails during

Prepare Patient

. Then

both milestones have not been reached so far and there-

fore process goal activities are

Prepare Patient

and

write report

for instance

in the current situation.

There may be further inﬂuence factors depending

on the particular application. However, based on the

factors mentioned above different forward recovery

solutions can be already suggested.

4 FORWARD RECOVERY

STRATEGIES

In this section we provide a ﬁrst contribution towards

the (automatic) derivation of forward recovery solu-

tions taking into consideration the described inﬂu-

ence factors. We proceed in two steps: Firstly we

derive propositions for recovery solutions. Secondly,

we evaluate them with respect to certain criteria.

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

140

4.1 Semantic Recovery Solutions

As motivated in the introduction, in many cases for-

ward recovery can be based on dynamic changes of

the concerned process instance. Table 1 presents a

selection of respective change operations that can be

used in this context.

Table 1:

Selection of Process Change Operations.

Change Operation ∆ Effects on Schema S

Applied to Schema S

interruptAct(S, X) interrupts execution of activity X

insertAct(S, X, S, B) inserts activity X between activity sets A, B

deleteAct(S, X) deletes activity X from schema S

jumpTo(S, t) jumps from currently executed activity to t

addDataEdges(S, DE) adds set of data edges DE

When an activity is interrupted it is by far not

trivial to automatically determine an adequate set of

correctly parameterized change operations. (M

uller,

2004) proposes a rule–based approach for applying

recovery strategies at the occurence of exceptional sit-

uations. However, this does not completely consider

the information we have about the affected instance,

e.g., regarding its data context or reached milestones.

In the following we provide an approach based on

which this set can be restricted. Our suggestions are

based on the inﬂuence factors discussed before.

Suggestion 1 (aCP): Based on the activity context

(cf. Def. 6) we can draw conclusions about the

change operations applicable for an instance I.If

aCP (I, n)=1holds the context of n is preserved.

Consequently, no process relevant data will be lost

when interrupting n, i.e., no data ﬂow errors will oc-

cur. Activity n can be safely interrupted and all subse-

quent activities can be executed as planned. By con-

trast, if aCP (I, n)=0holds, the input parameters of

subsequent activities may not be correctly supplied.

Then recovery solutions may either bypass these ac-

tivities (by applying jump operations) or insert activi-

ties providing the required data.

Suggestion 2 (prGoalAct): Regarding factor

prGoalAct (cf. Def. 9) it is important to know

whether process goal activities can be still executed.

This, in turn, depends on whether their input data can

be correctly supplied or not by preceding activities.

In this context, we have to consider the successors of

failed activity n (including n). From this we deter-

mine (possibly transitively) which activities provide

input data for process goal actitivities. They can be

correctly provided with input data if the set of activ-

ities providing this data does not contain n or if the

activity context of n can be preserved, formally:

Deﬁnition 10 (Provision of Process Goal Activities)

Let S = (N, D, ...) be a process type schema and let I ∈I

be a process instance. Assume that activity n ∈ N fails.

Then function pVG denotes whether a goal activity pG ∈

prGoalAct(I) is correctly provided with input data or not.

Formally:

pVG: I

× N × N →{T, F}

pV G(I, n, pG)=

T (n ∈ GP A(n, pG ) ∨ aCP (I, n)=1)

∨WE(S

,pG)=T

F otherwise

where

• GPA(n, pG) = {m ∈ N | m ∈ (succ

∗

(S, n) ∪{n}, ∃ (pG,

d, [read|continuous-read]), (m, d, [write|continuous-write]

∈ DataE, d ∈ D}∪GPA(n, m)

• succ

∗

(S, n): all direct and indirect successors of n in S

• WE(S, n) determines whether activity n of schema S is

correctly supplied with input data or not (Reichert, 2000).

• S

denotes the induced subgraph of S when deleting ac-

tivity n and all associated data read and data write edges

If pVG(I, n, pG) = T we know that the process goal

connected with activity pG can be achieved, i.e., no

change operations have to be applied for reaching this

goal. Otherwise, if we obtain pVG(I, n, pG) = F for

failed activity n and process goal activity pG a possi-

ble solution would be to insert one or more activities

properly providing the missing input data.

Example 5

Consider the process depicted in Fig. 1.

Assume that for process instance

med

∈I

, dur-

ing the execution of its activity

Prepare Patient

an exception occurs (e.g., assume that the patient’s

blood pressure cannot be taken due to an instru-

mental error). Assume further that inﬂuence factors

aCP and prGoalAct turn out as follows:

•

aCP(

med

Prepare Patient

•

prGoalAct(

med

{Operate, Write report}

The set of activities providing input data for

Operate

then contains one element, namely the failed activity

Prepare Patient

for which the activity con-

text cannot be preserved, i.e., pVG(

med

Prepare

Patient

Operate

. A ﬁrst solution to treat

this exception would be to insert another activity

TakePressure

and to retry measuring the blood

pressure in order to reach the ﬁrst process goal. In

this context the application of the change operations

insertAct(S, Take Pressure, {Prepare

Patient}, {Operate})

and

addDataEdges(S,

{(TakePressure, bloodPressure, write),

(Operate, bloodPressure, read) })

can be

suggested to users. If this is not possible we may want to

bypass goal activity

Operate

and to achieve the other

process goal activity

write report

instead. Process

goal

write report

has no input parameters, i.e.,

pVG(

med

Prepare Patient

write report

what implies that

Write report

can be executed in any

case. Therefore a possible solution would be to suggest

change

{jumpTo(S, writeReport)}

There are situations where the activity context may

be preserved and process goals can be reached at ﬁrst

A FRAMEWORK FOR SEMANTIC RECOVERY STRATEGIES IN CASE OF PROCESS ACTIVITY FAILURES

141

sight. However, when analyzing the application con-

text as well the process goal cannot be always cor-

rectly reached any longer:

Example 6

Consider again the process depicted in Fig.

1. Assume that for instance

med

∈I

during execution

of activity

Prepare Patient

an exception occurs, e.g.,

the patient’s blood pressure could be too high for carrying

out the subsequent surgery. Assume further that inﬂuence

factors aCP, pDC, and prGoalAct turn out as follows:

•

aCP(

med

Prepare Patient

•

pDC(

med

{..(nervousness degree, 5),

(bloodPressure, (180,100))}

•

pVG(

med

Prepare Patient

Operate

Though pVG(

med

Prepare Patient

Operate

)

holds the application context (value of blood pres-

sure exceeds the limit) shows that we cannot reach

this goal without exception handling. Analyzing the

application context also reveals that the patient is very

nervous (value of his

nervousness degree

is very

high). One possible recovery solution would be to

wait until the patient relaxes. This could be achieved,

for example, by inserting activity

waitMeasure

between

Prepare Patient

and

{Monitor,

Operate}

accompanied by newly inserted data edges

(waitMeasure, nervousness degree, read)

and

(waitMeasure, bloodPressure, write)

Analyzing the application context factor may de-

pend on the application semantics, e.g., the blood

pressure being too high. Thus the above recovery

solution can be only ﬁgured out semi–automatically.

An automatic treatment would become possible if the

user had speciﬁed any limit for the values related to

blood pressure and nervousness degree and deposits a

respective rule within the system.

Finally, we want to analyze the impact of inﬂuence

factor state context on ﬁnding an adequate recovery

solution. Consider the following example:

Example 7

Consider the process depicted in Fig 2. As-

sume that a container was loaded (i.e., reached milestone).

In case of a problem the proposed solution would be differ-

ent from the situation where the container is still unloaded.

Indeed, in the latter case, we may send the vehicle back to

the parking position P and cancel the processing of the cus-

tomer request. In the former case, it is an obligation to de-

liver the merchandise. Taking into account a deﬁned trans-

portation network, each of the vehicle positions is captured

by a coordinate (x, y). Assume for instance

trans1

∈I

that during the execution of activity

Move to D

, a road

trafﬁc problem occurs, i.e.,

Move to D

is interrupted at

position (7, 5.5) measured by the GPS system. Let the in-

ﬂuence factors be as follows:

•

aCP(

trans1

Move(1.5, 3.5) → (13, 8)

•

pDC(

trans1

{

(

current position

, (7, 5.5))

}

•

statCtxt(

trans1

{

(

Load at O, Comp

)

}

Evaluating the inﬂuence factors, in particular the current

position of the vehicle, the trafﬁc problem can be avoided

by changing the already planned route leading to the

destination location. The new solution includes a detour via

another location at position (7, 7). This recovery solution

can be expressed by applying the following dynamic

change operations:

{{insertAct(S, Move to (7,

7), {Move to (13, 8)}, {unloadAt(13,

8)}), insertAct(S, Move to (13, 8),

{Move to (7, 7)}, {UnloadAt(13, 8) })}}

Of course, the discussion of different inﬂuence fac-

tors especially in conjunction with the deﬁnition and

evaluation of rules as proposed in (M

uller et al., 2004)

is to be extended. Due to lack of space we abstain

from further details here.

4.2 Evaluating Recovery Solutions

In the previous section we derived forward recov-

ery solutions, i.e., sets of conceivable process in-

stance changes, by considering certain inﬂuence fac-

tors. However, some of the suggested ad–hoc changes

may not be applicable, since they may offend against

other constraints (e.g., they may violate a given time

schedule). Thus, the set of forward recovery solutions

presented to the user should be further restricted by

checking their applicability at the presence of these

constraints. In this paper we exemplarily discuss time

and resource constraints.

Temporal Context: The applicability of a particular

forward recovery solution may depend on time con-

straints. For example, assume that our solution im-

plies the insertion of a new activity. The duration to

process this activity may lead to a violation of the in-

tended process end time.

Resource Context: Speciﬁc resources (e.g., vehi-

cles, containers, drivers) are often associated with

a speciﬁc application (e.g., container transportation)

(Bassil et al., 2004). Those resources enable the ac-

complishment of the process activities (e.g., ”attach

a container to a vehicle”, ”move a container”). Re-

source availability should be taken into account when

checking the proposed recovery solutions.

Checking the validity of both temporal and re-

source constraints when applying dynamic workﬂow

changes is a very challenging issue. However, there

have been only few approaches regarding this issue

so far (Sadiq et al., 2000). We have been investigating

the interdependencies between processes and tempo-

ral as well as resource constraints in detail. Due to

lack of space we abstain from further details here.

5 RELATED WORK

Related work can be distinguished into approaches

for backward and forward recovery. Backward recov-

ery strategies require to interrupt a running instance

and to (partially) conduct a rollback. As discussed in

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

142

the introduction, advanced transactional concepts like

nested transactions and semantical rollback have been

elaborated (Elmagarmid, 1992). A detailed discus-

sion of transactions applied in the domain of work-

ﬂows is given in (Worah and Sheth, 1997). Ap-

proaches in this context are Sagas (Garcia-Molina and

Salem, 1987) and Spheres of Compensation (Ley-

mann, 1995; Leymann and Roller, 2000). The con-

cept of spheres has been deﬁned such that compensa-

tion can be applied not only on one activity but also

on a group of activities (sphere, scope).

Less attention has been paid to the (automatic)

derivation of forward recovery strategies. M

uller et

al. (M

uller, 2004; M

uller et al., 2004) propose to rep-

resent recovery strategies by rules. They use a com-

bination of F-Logic and Transaction Logic in order to

formalize the interaction between rules and process

instances. If an exception occurs and if a respective

rule is speciﬁed recovery solutions can be automat-

ically executed. Based on rules the system behav-

ior in the case of an exception is always hard–wired

within the rule neglecting the context of the respective

process instance.

Regarding the quality improvement of the sug-

gested recovery solutions temporal and resource con-

straints were dicussed within the paper. There are ap-

proaches to specify time within process management

systems, e.g., (Eder and Pichler, 2002; Sadiq et al.,

2000). However, we will check the applicability of

these approaches for our purposes.

6 SUMMARY AND OUTLOOK

In this paper we have elaborated factors which may

inﬂuence the choice of an adequate forward recovery

solution. These factors comprise the safe interruption

of activities preserving the data context, the values of

the data elements written so far, certain milestones

within the process, and process goals. All of these

inﬂuence factors help the system to propose reason-

able forward recovery solutions to users. We have

discussed further aspects and constraints which have

to be checked in order to improve the quality of the

proposed solutions. All results presented in this pa-

per stem from deep analysis of application scenarios.

Currently, basic concepts are implemented in an ad-

vanced prototype. In the future we will search for fur-

ther factors inﬂuencing potential recovery solutions.

We will also focus on the quality checking process,

i.e., we want to elaborate adequate representations for

temporal and resource constraints in order to formally

verify the applicability of recovery solutions.

REFERENCES

Bassil, S., Keller, R., and Kropf, P. (2004). A workﬂow–

oriented system architecture for the management of

container transportation. In BPM’04, pages 116–131.

Bassil, S., Rinderle, S., Keller, R., Kropf, P., and Reichert,

M. (2005). Preserving the context of interrupted busi-

ness process activities. In Proc. ICEIS’05, pages 38–

45.

Dadam, P., Reichert, M., and Kuhn, K. (2000). Clinical

workﬂows - the killer application for process-oriented

information systems? In BIS’00, pages 36–59.

Eder, J. and Pichler, H. (2002). Duration histograms for

workﬂow systems. In Proc. Conf. EISIC’02, pages

25–27, Kanazawa, Japan.

Elmagarmid, A. (1992). Database Transaction Models for

Advanced Applications. Morgan Kaufman.

Garcia-Molina, H. and Salem, K. (1987). Sagas. In Proc.

ACM SIGMOD Int’l Conf. on Management of Data,

pages 249–259, San Francisco, CA.

Leymann, F. (1995). Supporting business transactions via

portal backward recovery in workﬂow management

systems. In BTW’95, pages 51–70, Dresden.

Leymann, F. and Altenhuber, W. (1994). Managing busi-

ness processes as an information ressource. IBM Sys-

tems Journal, 33(2):326–348.

Leymann, F. and Roller, D. (2000). Production Workﬂow.

Prentice Hall.

Mourao, H. and Antunes, P. (2004). Exception handling

through a workﬂow. In CoopIS’04, pages 37–54.

uller, R. (2004). Event–Oriented Dynamic Adaptation of

Workﬂows: Model, Architecture and Implementation.

PhD thesis, University of Leipzig, Germany.

uller, R., Greiner, U., and Rahm, E. (2004). A

GENT-

ORK: A workﬂow-system supporting rule-based

workﬂow adaptation. DKE, 51(2):223–256.

Reichert, M. (2000). Dynamic Changes in Workﬂow-

Management-Systemen. PhD thesis, University of

Ulm, Computer Science Faculty. (in German).

Reichert, M., Dadam, P., and Bauer, T. (2003). Dealing

with forward and backward jumps in workﬂow man-

agement systems. Int’l Journal SOSYM, 2(1):37–58.

Rinderle, S., Reichert, M., and Dadam, P. (2004). Flexi-

ble support of team processes by adaptive workﬂow

systems. DPD, 16(1):91–116.

Sadiq, S., Marjanovic, O., and Orlowska, M. (2000).

Managing change and time in dynamic workﬂow

processes. IJCIS, 9(1&2):93–116.

Strong, D. and Miller, S. (1995). Exceptions and excep-

tion handling in computerized information processes.

ACM–TOIS, 13(2):206–233.

v.d. Aalst, W. and van Hee, K. (2002). Workﬂow Manage-

ment. MIT Press.

Worah, D. and Sheth, A. (1997). Advanced Transactional

Models and Architectures, pages 3–34. Kluwer Acad-

emic Publishers.

A FRAMEWORK FOR SEMANTIC RECOVERY STRATEGIES IN CASE OF PROCESS ACTIVITY FAILURES

143
