CONTINUOUS RANGE QUERY PROCESSING

FOR NETWORK CONSTRAINED MOBILE OBJECTS

Dragan Stojanovic, Slobodanka Djordjevic-Kajan

Department of Computer Science, University of Nis

Aleksandra Medvedeva 14, 18000 Nis, SERBIA and MONTENEGRO

Apostolos N. Papadopoulos, Alexandros Nanopoulos

Department of Informatics, Aristotle University

54124, Thessaloniki, GREECE

Keywords:

Mobile objects, location based services, continuous range query, query processing.

Abstract:

In contrast to regular queries that are evaluated only once, a continuous query remains active over a period of

time and has to be continuously evaluated to provide up to date results. We propose a method for continuous

range query processing for different types of queries, characterized by mobility of objects and/or queries

which follow paths in an underlying spatial network. The method assumes an available 2D indexing scheme

for indexing spatial network data. An appropriately extended R

∗

-tree provides matching of queries and objects

according to their locations on the network or their network routes. The method introduces an additional pre-

reﬁnement step which generates main memory data structures to support efﬁcient, incremental reevaluation of

continuous range queries in periodically performed reﬁnement steps.

1 INTRODUCTION

Advances in wireless communication technologies,

mobile positioning and Internet-enabled mobile de-

vices have given rise to a new class of mobile appli-

cations and services. Location-based services (LBS)

deliver geo-information and geo-processing services

to the users according to their current location, or

locations of the objects of their interests. Such ser-

vices, like automatic vehicle location, ﬂeet manage-

ment, tourist services, transport management, trafﬁc

control and digital battleﬁeld are all based on mo-

bile objects and the management of their continuously

changing location data.

In several applications, the object movement is

constrained by an underlying spatial network, i.e., ob-

jects can not move freely in space, and their position

must satisfy the network constraints. Network con-

nectivity is usually modelled by a graph representa-

tion, comprising a set of nodes (intersections) and a

set of edges (segments). Depending on the applica-

tion, the graph may be weighted (a cost is assigned

to each edge) and directed (each edge has an orienta-

tion).

Several types of location-dependent queries are sig-

niﬁcant in LBS, such as range queries, k-nearest

neighbor (k-NN) queries, reverse neighbor queries,

distance joins, closest pair queries and skyline

queries. In this paper, we address the problem of

processing continuous range queries over mobile ob-

jects, whose motion is constrained by a spatial net-

work. The query range represents the user-selected

area, the map window, the polygonal feature, or the

area speciﬁed by the distance from a reference point

of interest. In contrast to regular queries that are eval-

uated only once, a continuous query remains active

over a period of time. A major challenge for this prob-

lem is how to provide efﬁcient processing of contin-

uous queries with respect of CPU time, I/O time and

main memory utilization.

The rest of the article is organized as follows. The

next section presents related work in the area and de-

scribes our contributions. Section 3 describes in de-

tail the proposed framework, analyzing the methodol-

ogy, the data structures and the query processing algo-

rithms. Section 4 presents the performance evaluation

results, whereas Section 5 concludes the article.

2 RELATED WORK AND

CONTRIBUTION

Continuous spatiotemporal query processing in

a location-aware environment is an active area

of research, resulting in the proposal of many

query processing methods, techniques and indexing

schemes. In (Prabhakar et al., 2002), velocity con-

Stojanovic D., Djordjevic-Kajan S., N. Papadopoulos A. and Nanopoulos A. (2006).

CONTINUOUS RANGE QUERY PROCESSING FOR NETWORK CONSTRAINED MOBILE OBJECTS.

In Proceedings of the Eighth International Conference on Enterprise Information Systems - DISI, pages 63-70

DOI: 10.5220/0002455300630070

 SciTePress

strained indexing and query indexing (Q-index) has

been proposed for efﬁcient evaluation of stationary

continuous range queries. According to the pro-

posed method in-memory data structures and algo-

rithms are developed and presented in (Kalashnikov

et al., 2004). By indexing queries, and not mobile ob-

jects, the Q-index method avoids frequent updates of

the index structure and thus expensive maintenance of

this structure.

The MQM method presented in (Cai et al., 2004)

focuses on stationary continuous range queries. It is

based on the partitioning the query space into rectan-

gular sub-domains, and the assignment of the resident

domain to each mobile object. A mobile object is

aware only of the range queries intersecting its res-

ident domain, and reports its current location to the

server only if it crosses the boundary of any of these

queries.

Gedik and Liu in (Gedik and Liu, 2004) propose

a method and a system for distributed query process-

ing, called Mobieyes. Mobieyes ships some part of

the query processing to the mobile clients while the

server mainly acts as a mediator between mobile ob-

jects. The method tries to reduce the load on the

server and save communication costs between mobile

objects and the server. In the paper (Gedik et al.,

2004) the authors propose a scheme called Motion

Adaptive Indexing (MAI) which enables optimization

of continuous query evaluation according to the dy-

namic motion behavior of the objects. They use the

concept of motion sensitive bounding boxes (MSB)

to model and index both moving objects and moving

queries.

Mokbel et al. in (Mokbel et al., 2004) present

SINA, a server-side method based on shared execu-

tion and incremental evaluation of continuous queries.

Shared execution is achieved by implementing query

evaluation as a spatial join between the mobile objects

and the queries. Incremental evaluation means that

the query processing system produce only the posi-

tive or negative updates of the previously reported an-

swer, not the complete answer for every evaluation of

the query. Both the object and query indexes are im-

plemented as disk based regular grids.

Hu et al. (Hu et al., 2005) propose a generic frame-

work for monitoring continuous spatial queries over

moving objects, both range and k-NN queries. Two

index structures for indexing the past trajectories of

mobile objects in networks have been proposed.

The Fixed Network R-tree (FNR-tree) (Frentzos,

2003) consists of a top level 2D R-tree to index

the edges of the network, whose leaf nodes contains

pointers to 1D R-trees indexing the time interval of

each objects movement within the line segments of

the network. Almeida and Guting in (de Almeida and

Guting, 2005) propose the MON-tree, to manage ob-

jects moving in a spatial network. They describe two

network models (edge and route oriented) that can be

indexed by the MON-tree. Both approaches deal with

past positions of objects.

In this work, we propose a framework for continu-

ous range query processing for objects moving on net-

work paths. The framework introduces the methodol-

ogy, the data structures and the query processing algo-

rithms for processing continuous range queries over

mobile objects, when queries may be both stationary

and mobile. Our methodology is based on an exten-

sion of R

∗

-tree index, that indexes network data in

main memory. It introduces an additional step in tra-

ditional spatiotemporal query processing strategy (ﬁl-

ter reﬁnement), namely, the pre-reﬁnement step. The

ﬁlter step selects the candidate objects according to

fulﬁllment of the spatial query condition using an ex-

tended R

∗

-tree index on the spatial network. The pre-

reﬁnement step is performed after the ﬁlter step, to

further reﬁne the mobile objects obtained by the ﬁlter

step and to build the main memory data structures to

support periodical and incremental reﬁnement steps.

The ﬁlter and pre-reﬁnement steps are performed only

once, unless the reference query object changes its

underlying network segment. The reﬁnement step is

performed periodically by processing in-memory data

structures generated by the pre-reﬁnement step. To

the best of our knowledge, there is no reported work

on query processing of continuous range queries over

mobile objects whose motion is constrained by a spa-

tial network.

3 PROPOSED FRAMEWORK

The methodology for processing continuous range

queries in a mobile environment is developed as a

part of ARGONAUT, a service framework for mo-

bile object data management (Predic and Stojanovic,

2005). We base our approach on the application sce-

nario appropriate in LBS for monitoring and tracking

mobile objects. In this scenario, users have wireless

devices (e.g., mobile phones or PDAs) that are online

via some form of wireless communication network.

We assume that users can obtain their positions using

Global Positioning System (GPS) technology. A set-

ting is assumed in which a central database at the LBS

server stores a representation of each mobile object’s

current position. Each mobile object stores locally

its position assumed by the server. Then, an object

updates the database whenever the deviation between

its actual position (as obtained from a GPS device)

and the local copy of the position that the server as-

sumes exceeds the uncertainty threshold. The mobile

objects move along the paths in an underlaying spa-

tial network. In order to perform tracking with as few

updates as possible, the LBS server matches the po-

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

sition received from the mobile object to the network

segment, by a map matching technique. Knowing the

mobile object’s speed and the time of the position up-

date, the server determines the current position of the

object till the next intersection (node) assuming that it

moves at a constant speed. Reduction of updates re-

duces communication between clients and the server,

as well as server side update processing.

3.1 Methodology Overview

The ARGONAUT methodology employs an incre-

mental continuous query evaluation paradigm. The

methodology is based on a main memory R

∗

-tree in-

dex structure and network connectivity graph struc-

ture, which support the ﬁlter step of query process-

ing algorithm and the map matching procedure. The

methodology introduces an additional step in query

processing scheme, a pre-reﬁnement step, that creates

additional main memory data structures and support

subsequent incremental reﬁnement steps. Since both

objects and queries move on a spatial network, their

spatial properties (location or partial route) are in-

dexed within the same index structure. The leaf nodes

of the R

∗

-tree is appropriately modiﬁed to enable in-

dexing of both mobile objects and queries. The leaf

node entry of the general R* tree (Beckmann et al.,

1990)has the form (IDseg, MBR), where IDseg

is an unique identiﬁer of the network segment, and

MBR is its minimal bounding rectangle. The entry is

extended by two new elements and is represented as a

quadruple (IDseg, MBR, Olist, Ql ist). They con-

tains the pointers to the list of objects IDs (Olist) and

queries IDs (Qlist) that move along or reside on that

network segment.

The connectivity graph of the spatial network

is maintained by the Network Connectivity Table

(NCT) which stores information about the connectiv-

ity of network segments. A NCT entry is described

as (IDseg, ptrRTE ntry, segLength, startCon,

endCon), where ptrRTE ntry is the pointer to

the R

∗

-tree leaf node entry for this segment and

segLength is the length of the segment. The ta-

ble is indexed on the IDseg attribute. The elements

startCon and endCon are pointers to the lists of

records described as (IDseg, dir), where IDseg

represents the ID of the segment connected to the

start/end node and dir is the direction of that seg-

ment in the connection. The NCT is maintained to

improve the updating of the index structure when mo-

bile object/query issue a location update after chang-

ing its network segment. The NCT also improves

map matching performed at the server in order to ﬁnd

network segment according to the current location

of a mobile object. Also, the connectivity structure

maintained in NCT is more effective for LBS queries

(range, k-NN, etc.) over objects on the spatial net-

work, where distance between two objects is not de-

termined in Euclidean space (Euclidean distance), but

as network distance.

The insertion of the object into the index structure

and the generation of the object list attached to the leaf

node entries are performed according to the following

rules:

• A stationary object ID is inserted in the Olist at-

tached to the leaf node entry of the R

∗

-tree index

that corresponds to the network segment at which

such object resides,

• A mobile object ID is inserted in the Olist attached

to the leaf node entry of the R

∗

-tree index that cor-

respond to the network segment along which the

object currently moves (the segment is the known

route of the mobile object).

The insertion of the query in the same index struc-

ture is performed according to following rules:

• A stationary range query is inserted in each Qlist

attached to the leaf node entry of the R

∗

-tree index

if its range overlaps the MBR of the corresponding

network segment.

• A mobile range query is inserted in each Qlist at-

tached to the leaf node entry of the R

∗

-tree index

if its known route overlaps with the MBR of the

network segment. The known route of the mobile

query is deﬁned by the network segment of the ref-

erence mobile object and the query range.

The index structure performs the matching between

mobile objects and mobile/stationary queries accord-

ing to their spatial relations and fulﬁllment of the spa-

tial condition of a query. It enables the calculation

of the initial result set of the query (ﬁlter set). Since,

the index structure maintains only the spatial proper-

ties of objects and queries, it is not selective enough,

and the initial result set contains false positive results.

The pre-reﬁnement step reﬁnes the initial query result

set with regard to temporal information of objects and

queries motion, as well as their exact geometries. The

pre-reﬁnement step creates the data structures in main

memory to support incremental reﬁnement steps.

3.2 Access Methods

The two tables and associated lists are created in

main memory by the pre-reﬁnement step. Contin-

uous Range Query Table (CRQT) stores informa-

tion regarding continuous queries. A CRQT entry

is described as (QID, OID, range, resultSet) and

stores information regarding continuous queries. The

table is indexed on the QID attribute which is the

unique query identiﬁer. OID is the identiﬁer of the

reference object of the query and range deﬁnes the

shape of the spatial query range around the reference

query object. resultS et is the initial query result set

CONTINUOUS RANGE QUERY PROCESSING FOR NETWORK CONSTRAINED MOBILE OBJECTS

obtained by the ﬁlter step with additional, temporal

information about satisfaction of a query condition.

The initial result is a list of elements CQResult de-

ﬁned as (RID , OID, resP eriod, status), where

RID is the result identiﬁer, OID is the unique

identiﬁer of the object which is the result of the

query during period resPeriod, while its status in

the query result is described by the status attribute.

The values of the status attribute are INIT

RESULT,

NEW

RESULT, OLD RESULT, NO RESULT. In the

simpliﬁed case, when the resulting period is single

time period, the resulting object, during its motion

and/or query motion, change all status values sequen-

tially. Thus, an object has INIT

RESULT status when

it will be the result of the query in some period(s) in

the future. The status NEW

RESULT is associated

to an object, when it becomes the new result of the

query. The status OLD

RESULT is associated to an

object when it is the member of the current query re-

sult, as well as was a member of the query result in

the previous evaluation of the query. An object has

status NO

RESULT when it is not a member of the

current query result, nor will be in the future, but was

the member of previous query results. Due to time

progress, any resulting object changes its status in a

strict sequence [INIT

RESULT→ NEW RESULT→

OLD

RESULT]n→ NO RESULT, where [...]n indi-

cates that the status sequence can be repeated if the

resulting period of an object is a multi period.

For each mobile object in the system, an in-

memory Mobile Object Table (MOT) is created and

maintained. The mobile object entry is described as

(OI D, loc, time, speed, route, querySet), where

OI D is the unique mobile object identiﬁer, loc is the

last received location, time is the time instant of the

location update and speed is the last received speed.

The route represents the pointer to the ordered list

of records described as (IDseg, dir) which is the

known route of the mobile object. When the route

(whole or partial) is not known in advance, the route

list contains only one element denoting the current

network segment of the mobile object. The querySet

attribute represents the list of queries in which such

object participates, either in a query result, or as a ref-

erence object of a query. Each query in this list is

represented by a QueryRef element which contains

two attributes: QID, the query identiﬁer and resI D,

the reference to the appropriate CQResult element

of this query maintained for the mobile object. If a

mobile object is the reference object of a query, this

reference is set to NULL.

3.3 Algorithms

The periodic, incremental evaluation of continuous

range queries is performed by scanning and examin-

ing the CRQT, while location update for each mo-

bile object requires scanning and updating both ta-

bles. The algorithms for creating these tables are

slightly different for the cases of stationary and mo-

bile continuous queries. The input argument of the

algorithms is the set of mobile object OIDs that rep-

resent the potential query results obtained by the ﬁlter

step, by the examination of the R

∗

-tree index. The

pre-reﬁnement algorithm is performed on exact spa-

tial and temporal geometries of mobile objects and

mobile/stationary queries and creates necessary data

structures. The algorithm for stationary queries over

mobile objects is given in Figure 1.

Algorithm Pre-reﬁnement step for stationary queries over mobile objects

Input: filterSet: a set of OIDs

1. add new entry smquery in CQRT;

2. for each OID in f ilterSet

3. if (not exist mo in MOT with such OID) then

4. add new entry mo in MOT;

5. else

6. ﬁnd entry mo in MOT;

7. end if

8. if mo.route() intersects smquery.range then

9. rp ∈ TimePeriod and rp = when (mo.loc

within smquery.range);

10. if rp.end > currentT ime then

11. cq res ← new CQresult(RID, mo.OID, rp,

INIT

RESULT);

12. smq uery.resultSet.add(cqr es);

13. qr ← new QueryRef(smquery.QID, cqres.RID);

14. mo.querySet.add(qr);

15. end if

16. end if

17. end for

Figure 1: Pre-reﬁnement step for stationary query - mobile

objects.

After updating the CQRT and MOT tables, the al-

gorithm examines the spatial relation intersects on a

mobile objects route (the geometry of the current net-

work segment) and the stationary query range. This

step enables removing false spatial positives obtained

by the ﬁlter step. For those objects satisfying the spa-

tial relation intersects, the time period (multi time

period) in which the mobile object is (was, will be)

within the query range is calculated, based on cur-

rent motion parameters (speed, route) of the mobile

object. The operators for spatiotemporal geometric

calculations and topological relations in space+time

(such as intersects, within, when, etc.) are de-

veloped and integrated in the ARGONAUT mobile

object data management framework (Stojanovic and

DjordjevicKajan, 2003). For objects whose result-

ing period ends somewhere in the future, the new

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

CQResult and QueryRef elements are created and

added to the lists of corresponding CQRT and MOT

entries.

For the mobile query over mobile objects the algo-

rithm for the pre-reﬁnement step is slightly different,

because the relationship between two moving objects

is not linear and it is impossible to exactly determine

the resulting period for each mobile object a poten-

tial result of the mobile query. Therefore, for mobile

queries, the spatial condition given in line 8 of the

previous algorithm is changed. Instead of examining

the query range in lines 8 and 9, the query route is

examined, which is determined as a buffer around the

query’s network segment deﬁned by the range.

The reﬁnement step is performed periodically and

evaluates the temporal query condition. It deter-

mines the ﬁnal result set and the incremental result

in regard to the previous evaluation (reﬁnement step),

which is sent to the mobile client issuing a continu-

ous query. The incremental result represents the set of

IncResult elements containing the OID of the object

and the Boolean attribute resUpdate indicating that

the object becomes the part of the result of the query

(true value), or that it is not the result any longer

(false value). The reﬁnement step is performed for

all continuous queries active in the system, according

to the algorithm shown in Figure 2.

If a mobile object enters the query range several

times during its motion (the result period is a set of

time periods), when one period from the set is ex-

pired, the objects status is INIT

RESULT again, until

the beginning of the next time period. If the result

period of an object expires, the negative query result

update is generated and the corresponding element is

removed from the query result set. The reﬁnement

step for the case of mobile queries over mobile ob-

jects must include an additional test of the spatial con-

dition on exact mobile object and query location, for

those objects that already satisfy the temporal condi-

tion. Thus, the line 4 of the algorithm in (Figure 2)

introduces an additional condition and becomes:

4. if cqres.resP eriod contains currentT ime and

mo.currentLoc() within cq.currentRange() then

The functions currentLoc() and currentRange()

calculate the location/range of the mobile ob-

ject/query at the current time, given the last received

location, time and speed of the object/query refer-

ence object, as well as its current route (network seg-

ment). As mentioned previously, a mobile object

moves on its network segment with the last reported

speed. When its predicted location (obtained by the

currentLoc() function) differs form the exact location

by the speciﬁed threshold, the object must send lo-

cation, time and speed updates. Upon receiving up-

dates, the server must determine if the mobile ob-

ject changes its network segment using map matching

Algorithm Reﬁnement step for stationary queries over mobile objects

Output: incResultSet, a set of IncResult

1. for each cq in CQRT

2. if cq.period contains currentTime then

3. for each cqres in cq.resultSet

4. if cqres.resP eriod contains currentT ime then

5. if cqres.status == INIT

RESULT then

6. cq res.status ← NEW

RESULT;

7. ir ← new IncResult (cqres.OID, true);

8. incResultSet.add(ir);

9. else

10. cq res.status ← OLD

RESULT;

11. end if

12. else if cqres.status == OLD

RESULT; then

13. if cqres.period is a TimePeriodSetand

hasperiodsinthef uture then

14. cq res.status ← INIT

RESULT;

15. else

16. cq res.status ← NO

RESULT;

17. ir ← new IncResult (cqres.OID, false);

18. incResultSet.add(ir)

19. remove cqres from cq.resultSet;

20. end if

21. end if

22. end for

23. end if

24. end for

Figure 2: Reﬁnement step for the set of stationary continu-

ous queries over mobile objects.

techniques on segments that are connected to the pre-

vious one using NCT. If the mobile object remains on

its network segment, the update algorithm scans the

pre-reﬁnement data structures and updates the corre-

sponding MOT entry, as well as all CQRT entries of

the affected queries and their result sets using the sim-

ple expressions (Figure 3). If the mobile object leaves

its network segment and starts moving along a new

one, the pre-reﬁnement data structures (querySets,

resultSets) related to the mobile object and the new

set of queries obtained by the new R

∗

-tree Qlist,

should be updated or new entries should be added ac-

cording to the algorithms for the pre-reﬁnement steps

depicted in Figure 1. If a mobile object is also a

reference object of the mobile query, the new R

∗

tree Olists must be examined and the corresponding

querySets and resultS ets should be updated.

The update of the result period of an object issuing

location and speed updates at a certain time instance

is based on the threshold value u

, previous speed v

the new speed v

, and the time t

of the new update.

The update function (lines 31 and 34 of Figure 3)

updates the resulting period rp of a mobile object (or

CONTINUOUS RANGE QUERY PROCESSING FOR NETWORK CONSTRAINED MOBILE OBJECTS

Algorithm Location/speed/network segment update of a mobile object

Input: newloc, newspeed, newtime of the mobile object and eventually

newseg obtained using map matching and NCT

1. update MOT entry for mo.OID;

2. mo.loc ← newloc;

3. mo.speed ← newspeed;

4. mo.time ← newtime;

5. if mo change network segment then

6. mo.route.IDseg ← newseg;

7. remove mo.OID from the old Olist;

8. add mo.OID to the new Olist;

9. for each cq in new Qlist

10. if cq.QID exist in mo.querySet then

11. Update corresponding CQResult and QueryRef elements;

12. else

13. Add new CQResult and QueryRef elements;

14. end if

15. end for

16. if mo is a reference object for query cq.QID then

17. remove cq.QID from the old Qlist;

18. add cq.QID to the new Ql ist;

19. for each mo in new Olist

20. if mo.OID exist in cq.resultSet then

21. Update corresponding CQResult and QueryRef elements;

22. else

23. Add new CQResult and QueryRef elements;

24. end if

25. end for

26. end if

27. else

28. for each qr in

mo.q uerySet

29. cq ← CRQ with qr.qid;

30. if qr.resEntry != NULL then

31. update(cq .resulSet, qr.resEntry);

32. else

33. for each res in cq.resultSet

34. update(cq .resultSet, all);

35. end for

36. end if

37. end for

38. end if

Figure 3: Location/speed/network segment update of a mo-

bile object.

every time period in the set of time periods) according

to the following formulae:

rp.start =

· (rp.start − t

) ± u

)

+ t

rp.end =

· (rp.end − t

) ± u

)

+ t

The uncertainty threshold value in this formula is

added if the mobile object is advanced in regard to its

predicted location, and it is subtracted if it is late in

regard to its predicted location. Thus, the system pro-

vides an up to date and accurate result set for every

continuous range query it maintains, according to lo-

cation/speed updates of mobile objects.

4 PERFORMANCE STUDY

We have used the Network-based Generator of Mov-

ing Objects (Brinkhoff, 2002) to generate a set of

10000 mobile objects and 1000 mobile queries. The

input to the generator is the road map of Oldenburg

(a city in Germany). The road network consists of

2873 intersections and 3803 segments. The output of

the generator is a set of moving objects that move on

the road network of the given city. We choose some

objects randomly and consider them as reference ob-

jects and centers of square range queries. All the ex-

periments have been conducted on an Intel Pentium

IV CPU 3.0 GHz with 512 MB RAM running Win-

dows XP Professional. The page size is set to 4KB.

We have implemented the extended R

∗

-tree based

on the original implementation of (Beckmann et al.,

1990). ARGONAUT continuous query processing al-

gorithms and main memory data structures have been

implemented using Microsoft Visual Studio C++ and

the STL library. Our performance measures are: i)

the CPU time required for the pre-reﬁnement step and

the creation of in-memory data structures, ii) the CPU

time for the reﬁnement step and the generation of in-

cremental results and iii) the CPU time for updating

the main memory data structures upon receiving lo-

cation/speed/network segment update of a mobile ob-

ject. Since the performance for access and update

of R

∗

-tree which index network segments highly de-

pends on size and characteristics of the underlying

spatial network, we do not present the results of those

experiments.

We start our performance consideration using the

set of objects produced by the ﬁlter step, which are

the candidates for the ﬁnal result set according to

their spatial characteristics, i.e., location and range

for the stationary queries and routes for mobile ob-

jects/queries. We perform the experiments for 10000

mobile objects and 1000 mobile (stationary) queries

and measure the average CPU time (in milliseconds)

necessary for the pre-reﬁnement step of a continu-

ous query and the generation of the necessary data

structures in main memory for reﬁnement steps which

are performed periodically and produce incremental

query answers (Figure 4). We vary the query range

from 0.004 to 0.8 of each dimension of the data space.

The experiments show that the pre-reﬁnement step

of the query requires a very small amount of CPU

time (milliseconds). More speciﬁcally, for 10000

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

4.12

2.89

1.68

0.78

0.4

0.26

0.210.17 0.18

0.004 0.01 0.02 0.04 0.1 0.2 0.4 0.6 0.8

Query range

CPU time (msec)

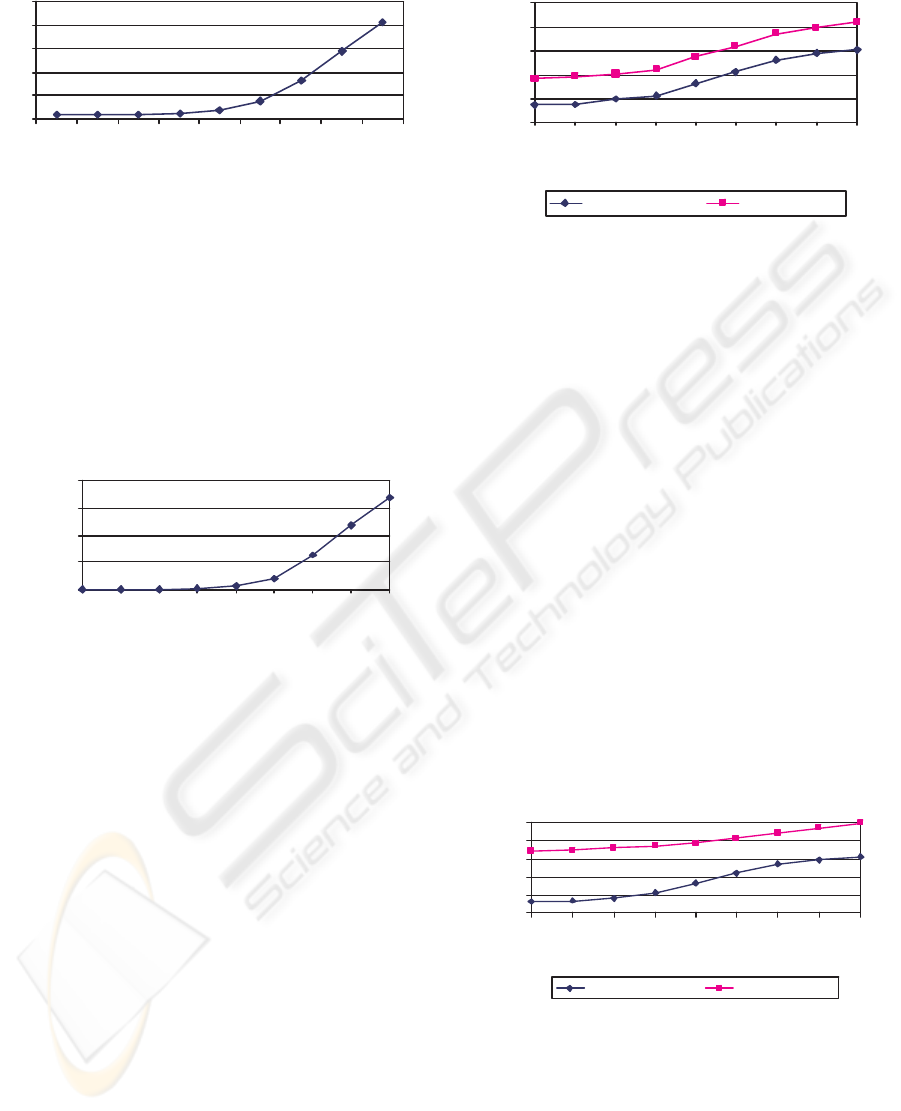

Figure 4: The CPU time for the pre-reﬁnement step per

query for 10000 MO / 1000 queries.

mobile objects and 1000 continuous range queries,

the pre-reﬁnement step needs 4.12 milliseconds for

queries whose query range represents 0.64 of the data

space. The average number of mobile objects per

query obtained in the ﬁlter step for different query

ranges is given in Figure 5.

5.312.67 14.23

44.68

222.67

780.06

2553.25

4711.74

6720.41

2000

4000

6000

8000

0.004 0.01 0.02 0.04 0.1 0.2 0.4 0.6 0.8

Query range

Number of mobile

objects obtained by filter

step

Figure 5: The average number of mobile objects obtained

in the ﬁlter step for 10000 MO / 1000 queries.

During the reﬁnement step an access to the main

memory data structures and the examination of the

temporal part of the query condition are performed.

The reﬁnement step is performed periodically, i.e.,

once every T seconds. For each object in the result set

of the continuous query, the reﬁnement step should

select those objects that constitute the current result

of the query as well as to generate the incremental

result in regard to the previous reﬁnement step and

evaluation of the query. We examine the duration of

the reﬁnement step for 1000 continuous queries over

10000 objects, using different query ranges. Figure

6 depicts the CPU time required for the incremen-

tal evaluation of 1000 stationary and mobile contin-

uous queries over mobile objects depending on query

range, according to the algorithm shown in Figure 2

and its extension for mobile queries.

When the mobile object (query) issues a loca-

tion/speed/segment update, the main memory data

structures should be updated appropriately, to reﬂect

the new location and the motion parameters of the

mobile object/query, as well as its new route (net-

8.76

11.3

18.23

56.12

152.24

528.45

934.56

1530.2

0.61

0.53

0.95

1.4

4.89

13.86

43.89

79.2

113.55

7.11

0.1

100

1000

10000

0.004 0.01 0.02 0.04 0.1 0.2 0.4 0.6 0.8

Query range

CPU time (msec)

Stationary Queries Mobile Queries

Figure 6: The CPU time needed for reﬁnement of 1000 mo-

bile/stationary queries over 10000 mobile objects.

work segment). According to the algorithm shown in

Figure 3, a mobile object should update the resulting

periods for all continuous queries in which it partici-

pates, according to its new location and new reported

speed. When a mobile object is the reference object of

a query (queries) the resulting periods of all results in

the set should be updated accordingly. The CPU time

required for updating the main memory data struc-

tures, for 10000 mobile objects and 1000 continuous

queries is presented in Figure 7. The CPU time shown

represents the average time per object needed for the

update of main memory data structures that preserves

the consistency of the result sets. If a mobile object

changes its underlying network segment, it is neces-

sary to update the main memory data structures re-

lated to this object, and the queries which may be af-

fected, according to the pre-reﬁnement algorithm. In

this case it is necessary to perform the ﬁlter and the

pre-reﬁnement step for each such object and generate

the new querySets and resultS ets structures.

312.6

380.8

520.6

762.3

1402.5

2512.7

4700.3 8411.3

118.41

86.84

51.79

16.08

4.78

1.36

0.72

0.44

0.51

260.4

0.1

100

1000

10000

0.004 0.01 0.02 0.04 0.1 0.2 0.4 0.6 0.8

Query range

CPU time (microsec)

Remain on segment Change segment

Figure 7: The average CPU time needed for data structures

update upon location/speed/segment update of a mobile ob-

ject.

With respect to the above results, the ARGONAUT

methodology offers acceptable performance in updat-

ing the resulting periods of the queries result sets,

when receiving new values for the location or speed

of a mobile object. Therefore, the proposed method-

CONTINUOUS RANGE QUERY PROCESSING FOR NETWORK CONSTRAINED MOBILE OBJECTS

ology can be used to solve real-life problems and aid

real-life applications which require the storage and

manipulation of mobile objects moving on a spatial

network.

5 CONCLUDING REMARKS

This paper introduces the ARGONAUT framework

and methodology for evaluating continuous range

queries over mobile objects moving on a spatial net-

work. We have performed comprehensive exper-

iments, measuring the required CPU time for the

query processing algorithms. The experimental re-

sults show that the performance of the ARGONAUT

query processing methodology is satisfactory for real

world settings in LBS applications for monitoring and

tracking mobile objects.

We plan to continue working on continuous range

query processing, to further exploit indexing schemes

and the network connectivity graph (NCT) for range

queries whose range is not based on the Euclidean dis-

tance. Also, we plan to consider the issues of distrib-

uted and mobile query processing techniques which

ship some part of query processing to the mobile ob-

jects which have the computational and storage capa-

bilities to perform some part of the query processing

algorithms.

ACKNOWLEDGEMENTS

Research supported by the 2003-2005 Serbian-

Greek joint research and technology program and

by ARCHIMEDES project 2.2.14, “Management of

Moving Objects and the WWW”, of the Technolog-

ical Educational Institute of Thessaloniki (EPEAEK

II).

REFERENCES

Beckmann, N., Kriegel, H.-P., Schneider, R., and Seeger.,

B. (1990). The R*-tree: An efﬁcient and robust ac-

cess method for points and rectangles. In SIGMOD,

pp.322-331.

Brinkhoff, T. (2002). A framework for generating network-

based moving objects. In GeoInformatica,Vol.6, No.2,

pp.153-180.

Cai, Y., Hua, K., and Cao, G. (2004). Processing range-

monitoring queries on heterogeneous mobile objects.

In Mobile Data Management, pp.27-38.

de Almeida, V. and Guting, R. (2005). Indexing the trajec-

tories of moving objects in networks. In GeoInformat-

ica, Vol.9, No.1, pp.33-60.

Frentzos, E. (2003). Indexing objects moving on ﬁxed net-

works. In 8th International Symposium on Spatial and

Temporal Databases, pp.289-305.

Gedik, B. and Liu, L. (2004). Mobieyes: Distributed

processing of continuously moving queries on mov-

ing objects in a mobile system. In EDBT, pp.67-87.

Gedik, B., Wu, K., Yu, P., and Liu, L. (2004). Motion adap-

tive indexing for moving continual queries over mov-

ing objects. In CIKM, pp.427-436.

Hu, H., Xu, J., and Lee, D. (2005). A generic framework

for monitoring continuous spatial queries over moving

objects. In ACM SIGMOD Conference.

Kalashnikov, D., Prabhakar, S., and Hambrusch, S. (2004).

Main memory evaluation of monitoring queries over

moving objects. In Distributed and Parallel Data-

bases, Vol.15, No.2, pp.117135.

Mokbel, M., Xiong, X., and Aref, W. (2004). Sina: Scal-

able incremental processing of continuous queries in

spatio-temporal databases. In ACM SIGMOD Confer-

ence, pp.623-634.

Prabhakar, S., Xia, Y., Kalashnikov, D., Aref, W., and Ham-

brusch, S. (2002). Query indexing and velocity con-

strained indexing scalable techniques for continuous

queries on moving objects. In IEEE Transaction on

Computers,Special Issue on DBMS and Mobile Com-

puting, Vol.51, No.10, pp.1124-1140.

Predic, B. and Stojanovic, D. (2005). A framework for han-

dling mobile objects in location based services. In AG-

ILE, pp.419-427.

Stojanovic, D. and DjordjevicKajan, S. (2003). Modeling

and querying mobile objects in location based ser-

vices. In Scientiﬁc Journal Facta Universitatis Series

Mathematics and Informatics, Vol.18, No.1, pp.59-80.

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION
