EVALUATION OF USER INTERFACES FOR

GEOGRAPHIC INFORMATION SYSTEMS: A CASE STUDY

Lucia Peixe Maziero, Cl

audia Robbi Slutter

Graduate Program on Geodetic Science, Federal University of Paran

Curitiba, Brazil

Laura Sanch

ez Garc

ıa, C

assio da Pieva Ehlers

Graduate Program on Computing Science, Federal University of Paran

Curitiba, Brazil

Keywords:

Geographic Information Systems, Usability, Cognitive Engineering.

Abstract:

This paper presents an evaluation of user interfaces of two Geographic Information Systems (GIS) tools, Ar-

cView and Spring. This work is related to a speciﬁc characteristic of those interfaces, which is to allow the user

to view a map. User interfaces were evaluated based on the main cognitive difﬁculties related to the execution

and evaluation bridges employing a cognitive engineering approach and, complementarily, in accordance with

the semiotics engineering parameter called “system communicability”. Both evaluated systems are generally

considered to be quite complex, not only in terms of understanding the interaction elements present in the

interface, but also the knowledge embedded in the tasks that can be accomplished by these systems. Although

the study described in this work was focused on a single task it conﬁrmed the general opinion about these

kinds of applications: a novice user cannot explore them without some assistance from an expert user or by

studying books and manuals. Even an expert user usually faces signiﬁcant difﬁculties using those GIS tools.

1 INTRODUCTION

This paper presents the results of an evaluation of

the user interfaces in Geographic Information Sys-

tems tools, ArcView and Spring. ArcView is com-

mercial software developed by ESRI - Environment

Systems Research Institute (www.esri.com). Spring

is free software developed by INPE - National Insti-

tute for Space Research, Brazil (www.inpe.br). The

main research goal was either to prove or to reject the

popular idea about the impossibility of overcoming

the difﬁculties of using either of these tools. The rel-

evance of this study is based on the assumption that

a poor and difﬁcult interface is not a consequence of

the system complexity but a result of an inadequate

interface design.

Due to the inherent large number of interaction pos-

sibilities of these tools, this work was limited to those

interfaces designed to allow the user to view maps

from stored data. Even if we consider that this kind of

tool is designed for specialized users, the option for a

simple task evaluation is justiﬁed because of the di-

rect relation between the complexity of the task and

the difﬁculties of the interface design process. So, if a

simple task proves to be difﬁcult to be accomplished

a more complex task will certainly be also difﬁcult.

The user interface evaluation was based on the main

cognitive difﬁculties related to execution and eval-

uation bridges, based on the Cognitive Engineering

(Norman, 1986) approach. The quality of the inter-

face environment was complementarily evaluated in

accordance with the Semiotics Engineering parame-

ter called “system communicability” (Souza, 2005).

According to (Burrough, 1986), GIS is “a power-

ful set of tools for collecting, storing, retrieving at

will, transforming, and displaying spatial data from

the real world for a particular set of purposes”. These

GIS characteristics make them powerful tools for

decision-making and are widely employed in areas

such as environmental and urban and regional plan-

ning. In order to evaluate GIS interfaces, it is useful

to understand one difference between these types of

tools and map viewer tools. Map viewer tools allow

their users only to view maps from a database. The

user cannot change the stored data. On the other hand,

GIS has tools that can be used for manipulating, and

thus changing, the data.

1.1 ArcView and Spring

ArcView is a tool that allows the user to explore, an-

alyze and depict geographic data. Any users, even

Peixe Maziero L., Robbi Slutter C., Sanchéz García L. and da Pieva Ehlers C. (2006).

EVALUATION OF USER INTERFACES FOR GEOGRAPHIC INFORMATION SYSTEMS: A CASE STUDY.

In Proceedings of the Eighth International Conference on Enterprise Information Systems - HCI, pages 79-86

DOI: 10.5220/0002455600790086

 SciTePress

those who do not have a solid background in cartog-

raphy, can generate maps and manage spatial data.

Users with knowledge on GIS and cartographic the-

ory can easily integrate spatial data from different

sources and with different characteristics in order

to develop spatial analysis. ArcView software is

compatible with several different operational systems

such as Microsoft Windows, Apple Macintosh and

Unix variants. ESRI has also developed a program-

ming language, Avenue, for customizing ArcView ap-

plications (ESRI, 1996). Spring is also a GIS ap-

plication that allows its user to explore, analyze and

present geographic data. It is possible to install and

run Spring software on different platforms, from mi-

crocomputers to high performance RISC worksta-

tions, at the same level of efﬁciency. It also runs on

different operational systems, such as Microsoft Win-

dows or UNIX. Spring has a number of different tools

for manipulating spatial data, for example spatial in-

dexes, image segmentation and classiﬁcation, or digi-

tal surface model generation. One of its most impor-

tant characteristics is that it is free and can be down-

loaded from the INPE Internet site (INPE, 2005).

Both ArcView and Spring have a great number of

computer capabilities, which makes possible the ac-

complishment of multiple user tasks. We describe

some of those capabilities below as an example of

their potential (ESRI, 1996; INPE, 2005):

• Map generation: to view or to edit maps, and to add

data to them from a database;

• Generating new information: to generate new in-

formation from graphic (vector and raster data)

and alphanumeric databases by using spatial analy-

sis tools. These data can be stored in software

(ArcView or Spring) ﬁle extensions, can be im-

ported from other softwares or even from Internet

sites. Data integration is based on geographic posi-

tion data (geographic coordinates);

• Spatial trend evaluation: to manipulate geographic

data and to allow the user to generate spatial

phenomenon process models. Spatial phenom-

enon models can reveal unknown process trends

which can provide important information to deci-

sion makers;

• Map presentation: to prepare map layouts in order

to print them or view them on a computer screen

along with graphics, tables, pictures, etc.

2 STATE OF THE ART

2.1 Related Work

A research described in (Prado et al., 2000) was based

on viewing and interpreting maps as comunication ac-

tivities about natural facts of the real world. The main

research goal was to evaluate the expressive power

(and the expressive limitations) of GIS tools. The

analysis of ArcView 3.0, Idrisi 2.01 and Spring 3.2

leads to the speciﬁcation of the discrete common el-

ements (i.e. icons) present on a GIS interface. Other

studies, from which we can quote (Schimiguel and

Baranauskas, 2002) are also oriented to the semiotic

analysis of the interface signs, in order to ﬁgure out

which of the interpretation aspects are presented on

the interface and their implications in the system com-

municability.

The work (Seixas and Souza, 2004) proposes an

evaluation method for interfaces in which maps are

involved. This method (ISIM - Interfaces Semiotic

Inspection of Maps) also adopts the Semiotic Engi-

neering approach. It evaluates the interaction qual-

ity based on the task of locating or deﬁning roots in

maps by identifying the presence of descontinuities

in the interaction that affect the user compreension

of the system. ISIM uses analytical techniques for

the application context deﬁnition and empirical tech-

niques for testing the tool by real users. This work

shows a class of common problems related to the in-

teraction process with maps tools, more precisely the

zoom funcionality and the sign changes. Our work

complements these results, showing critical problems

in a very simple task.

In general, global interfaces evaluation methods de-

mand for the consideration of the user knowledge

background, that is, experts or common users (Prates

and Barbosa, 2003). This was done in the present

work, in the sense that the selected task (viewing a

map) was well-deﬁned and established as a poten-

tially ﬁrst task to be developed within any possible

context of real use.

2.2 Theoretical Bases

We developed this work based on cognitive and semi-

otics engineering approaches. The Cognitive Engi-

neering has provided the main theoretical support to

the Computer-Human Interaction research area for

the last three decades; the Semiotic Engineering has

been recently consolidated as a sound theory which

complements the cognitive approach, by granting a

rather complete view through an integrated evaluation

process.

According to Cognitive Engineering (Norman,

1986), when the user interacts with the software

he/she crosses the “execution gulf” and the “evalu-

ation gulf” (Figure 1). In order to cross those gulf

bridges the user has to: a) Deﬁne his/her aim: which

goal he/she wants to achieve; b) Formulate an inten-

tion: take a decision about what to do in order to

achieve this aim; c) Translate his/her intention into

system routine tools; d) Execute the action in the sys-

ICEIS 2006 - HUMAN-COMPUTER INTERACTION

tem; e) Understand the system state; f) Interpret sys-

tem behavior; g) Evaluate results in relation to his/her

initial aim. User tasks, from (a) to (g), are parts of a

process that are designed to cross the “execution gulf”

and the “evaluation gulf” (Figure 1).

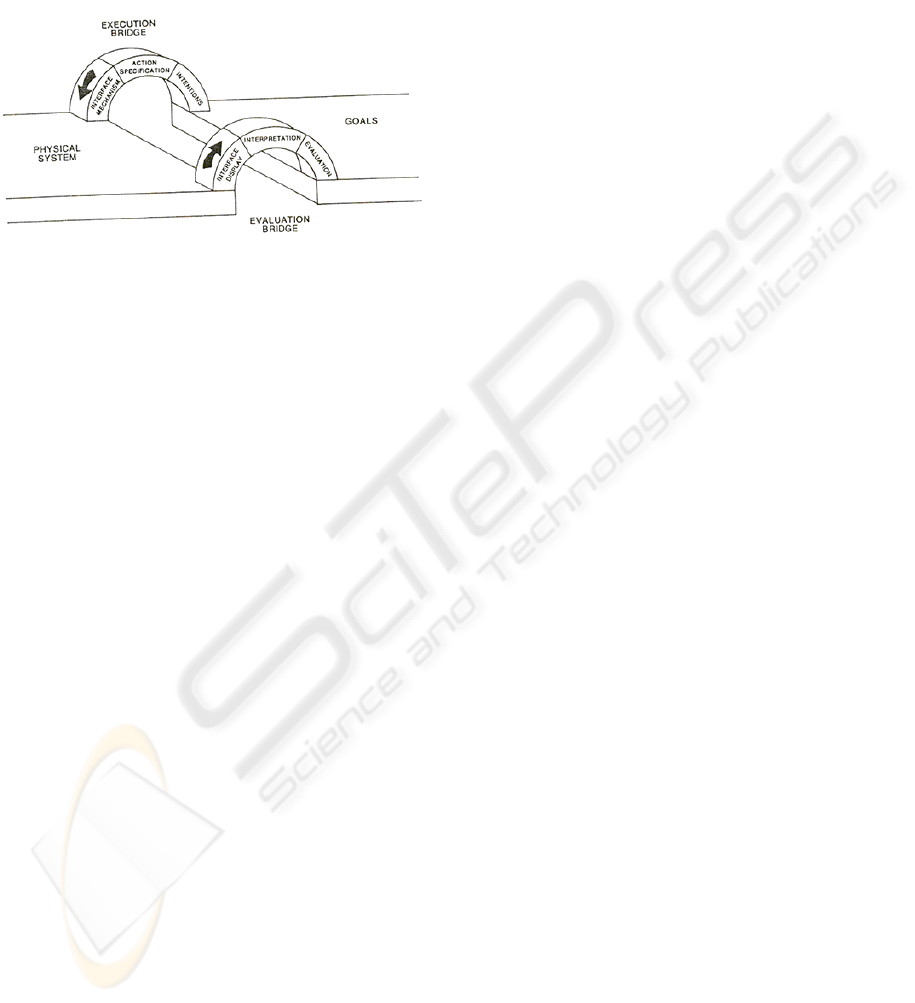

Figure 1: Execution and evaluation gulfs (Norman, 1986).

Semiotics Engineering (Souza, 2005), which is

based on these Cognitive Engineering concepts, con-

siders the user-interface as a message (or a set of mes-

sages) that is sent from the interface designer to the

user in an asynchronous and unilateral way. Accord-

ing to this approach, the challenge for the interactive

environment designer is to answer, by an interface

language, two fundamental questions:

• What is the designer’s interpretation of the user

problem?

• How the user has to use the system in order to

achieve his/her goals?

According to Semiotics Engineering, the term “us-

ability” is enhanced by the term “communicability”,

which is related to the system’s capability to provide

the user with answers to these two basic questions

above. Communicability is related to the user’s abil-

ity to understand the interface design as the designer

planned it (Souza, 2005). The more the user under-

stands the designer’s reasoning embedded in the ap-

plication, the more the user can use the application

in a creative, efﬁcient and productive way. The de-

sign should allow the user to understand how he/she

should interact with the application and to under-

stand the designer’s interpretation of the problem to

be solved at every step along the interaction way. Bad

communicability causes breakdowns in the communi-

cation process between the designer and the user and

negatively impacts the efﬁciency in the user-system

interaction.

The paper (Silveira, 2002) identiﬁed interaction

breakdown situations (Winograd, 1996) based on sys-

tem user tests, and proposed a set of statements re-

lated to each problematic situations. According to

(Souza, 2005), there are 13 basic communicability ut-

terances that characterize breakdowns in user-system

communication:

What is this? – Why does not it? – Help! –

Where is it? – What now? – What happened? –

Oops! – Where am I? – I cannot do it this way

– Thanks, but no, thanks – I can do otherwise –

Looks ﬁne to me – I give up.

This set of utterances emerged from an empirical

study involving real world users. The designer can

use these statements as a core set in order to select

those which could in fact occur during the interaction

with a certain tool. The selected statements can be

used to prevent and/or deal with eventual communi-

cation breakdowns.

The “scenarios” technique was used in order to

specify a number of possibilities for user -system in-

teraction states based on the knowledge about the

users proﬁle and the expected system tasks. In other

words, each “scenario” was built from the authors’

previous substantial observation of communication

breakdowns during these tools use, together with the

authors’ systematic analysis of the whole process

needed to perform the selected task, which deter-

mined the suitable utterances (Carrol, 1995). “Scenar-

ios” are textual or pictorial descriptions of organiza-

tional uses of the application. “Scenarios” can be built

for computer systems (interface evaluation) or for hu-

man organizational procedures (interface design). For

systems’ evaluation, “scenarios” can be useful tools

for identifying, analyzing and evaluating system uses.

They allow the designer to use opinions, critiques and

suggestions about the system in order to improve the

system interface.

2.3 Methodological Steps

In order to deﬁne the steps of this work, we made

two assumptions. First, the level of difﬁculty of the

task developed by the user would be similar for both

ArcView and Spring. Second, the user would not be

an expert in cartography or GIS, and would never

have been exposed to this tool. Therefore, the ﬁrst

step was to deﬁne the task to be carried on, consid-

ering that the user would not use any kind of help or

tutorial.

The next step was to identify the possible difﬁcul-

ties the user would face when he/she is required to

accomplish any task. These difﬁculties are related to

execution and evaluation gulfs. In order to identify

user difﬁculties, we designed “scenarios” that repre-

sent every predictable step the user would try in order

to accomplish the required task. Because of the cog-

nitive difﬁculties inherent in the tool it is possible that

the user is not able to cross the execution and evalua-

tion gulfs at his/her ﬁrst try. The user then would need

EVALUATION OF USER INTERFACES FOR GEOGRAPHIC INFORMATION SYSTEMS: A CASE STUDY

to make multiple attempts to cross those gulfs us-

ing different tasks/actions. This process would occur

as many times as necessary in order to achieve user

goals. This situation can be represented by “abduc-

tive reasoning” (Souza, 2005), where several possible

future actions can be imaged by the user. Every time

the user is not well succeeded in achieving his/her

current goal, he/she changes his/her goal and tries to

cross those gulfs again. This process ends when the

user’s goals are accomplished and the gulf bridges are

crossed.

The book (Souza, 2005) deﬁned two main levels

of designer messages to the user: strategic level and

operational level. The strategic level is character-

ized by a meta-communication, which helps the user

to decide about choosing tasks to efﬁciently achieve

his/her goals. Operational level messages must be

able to maximize the communicative capabilities of

the interface elements in every moment of user in-

teraction. We propose here an intermediate level

in which system tools communicability is evaluated.

This intermediate level is understood as the level of

system support for specifying and evaluating user ac-

tions.

In this work, system communicability was ana-

lyzed according to the level of cognitive difﬁculty.

For every user interaction, we veriﬁed the kind of

messages available on the system interface in order

to analyze the interface communicability. Then, we

registered the information acquired from this analysis

in evaluation tables.

3 EVALUATING THE USER

DIFFICULTIES

The user task selected for evaluating the ArcView and

Spring systems was simply to view a map on a com-

puter screen. The map was generated from a set of

data that was stored in a CAD (Computer Aided De-

signer) format ﬁle. In order to show the methodolog-

ical steps in all their deepness, we describe the whole

process carried on with ArcView system. A similar

procedure was developed with Spring. To achieve

his/her goal to view a map on a computer screen, the

user needs to take the following steps:

1. When the user begins the interaction process to

view a map, the ﬁrst question is “what can I do

to view the map on the screen?” At this mo-

ment the user faces the ﬁrst difﬁculty related to

the execution gulf, which is “which action to take”.

The user needs to identify the available interface

tasks/actions and ﬁnd out which one will allow

him/her to achieve his/her goal. He/she makes

the assumption that he/she is able to identify the

right tasks/actions to use by looking at the inter-

face. This scenario is described in Table 1.

The interaction breakdown is probably caused by

a system communication fault. The main problem

is regarded to the execution gulf at this interaction

moment and consists of a lack of interface com-

munication at the strategic level which would indi-

cate to the user what to do to achieve the intended

goal (i.e., to draw the map on screen). A message

describing the sequence of actions would help the

user in identifying the whole procedure to be fol-

lowed in order to draw the map.

2. The user returns to the initial goal and redeﬁnes

his/her aim in order to “ﬁnd the button on the in-

terface that draws the map”. The user crosses the

execution and evaluation gulfs of the new aim, but

does not achieve the goal. Because the user tries

some different actions (buttons), he/she acquires

some knowledge about the interface. Among those

available buttons he/she tries the add theme one,

which can be the one to use in order to achieve the

goal. This scenario is described in Table 2.

The problem here is most likely caused by a lack

of communication related to the level of supporting

user actions (intermediate level). There is no infor-

mation on the interface that tells the user what each

button does, which makes the task execution difﬁ-

cult. Nevertheless, there is some system support for

crossing the execution gulf related to highlighting

some buttons, the only ones available to start any

task on ArcView (action supporting level).

3. The user accomplishes a new gulf crossing and re-

deﬁnes his/her aim, which is now “to add a theme”,

one of the available buttons. The user crosses the

execution gulf but the map is not drawn on screen,

which corresponds to an evaluation gulf. Instead,

a dialogbox appears on the screen that displays a

message to the user. However, the message is not

clear enough to allow the user to understand the re-

sult of his/her action (pushing the add theme but-

ton). The user has some difﬁculties in knowing if

the action will accomplish the task that makes it

possible to achieve the goal, and to know if he/she

must do something else at that moment, like per-

forming some action in the dialogbox. This sce-

nario is described in Table 3.

At this time, after the user has tried some actions,

an operational fault occurs due to misleading but-

ton labels. The label for the right button should

be something like “select the map data ﬁle”. Once

more the system fails at the action support level, as

it does not display some advising message to the

user related to the actions he/she should take.

4. The user accomplishes a new gulf crossing and re-

deﬁnes his/her aim, which is now “to look for the

ICEIS 2006 - HUMAN-COMPUTER INTERACTION

Table 1: Scenario 1.

Goal View the map on the screen

Execution Intention Draw the map on the screen.

Actions speciﬁcations Find the appropriate action on the interface.

Execution Check the available interface actions and select one (Where is it?). At this

moment there is a cognitive difﬁculty which results in an interaction break-

down because the user could not identify the appropriate tool for accom-

plishing the intended goal.

Evaluation Perception Some buttons are highlighted.

Interpretation The highlighted buttons must indicate the available actions.

Evaluation It is not possible to evaluate the result because none of those actions are

suitable to accomplish the task.

Table 2: Scenario 2.

Goal View the map on the screen

Execution Intention Find the one button on the interface “to draw the map on the screen”

Actions speciﬁcations Read the labels of the highlighted buttons

Execution Point the mouse on the buttons in order to read their labels (What now?,

Where is it?). At this moment there is a cognitive disconnection disconnect

which results in a interaction breakdown because the user could not identify

the appropriate tool for accomplishing the intended goal.

Evaluation Perception The user notices that there are 5 available buttons on the interface: save

project, add theme, help, text and draw point.

Interpretation The add theme button must be the one to draw the map on screen.

Evaluation The evaluation is not efﬁcient because the user is not sure about the meaning

of the result.

ﬁle that must be used to draw the map”. The user

crosses the execution gulf but he/she faces an un-

expected result during the evaluation gulf, that is,

no ﬁle is shown. The user does not know if he/she

made some mistake because the system does not in-

form him/her about executing (running) some soft-

ware routine. The novice user will need some help

because he/she will not know what to do. This sce-

nario is described in Table 4.

The need for help characterizes a communication

breakdown. The system should advise the user that

it is necessary to take some action related to the

kind of external ﬁle extension (CAD reader, Data-

base Access, and so on) when the ﬁle extension is

not a “shapeﬁle” (the ArcView ﬁle extension). This

lack of communication results in a failure at the ac-

tion support level that interferes with an evaluation

of the preview result and fails to assist the user in

deﬁning the next user decision.

5. After asking for some help from outside the system,

the user redeﬁnes his/her aim. The user crosses the

execution gulf but at the evaluation gulf moment an

unexpected result occurs, that is, nothing is shown

on the screen. The difﬁculty is to know if the ﬁle

extension is indeed activated since no conﬁrmation

message is displayed. Because nothing happened,

the user may believe the ﬁle extension is selected

only by clicking over the ﬁle name. But the system

requires the user to click on the checkbox related

to the ﬁle extension although the user does not yet

know it. This scenario is described in Table 5.

Again, the system fails because of the absence of

some message that could help the user to evaluate

the result of some action taken and what should be

done next.

6. The user assumes that the system activates the ﬁle

extensions and again has the intention of using the

“add theme” action. The user crosses the execution

gulf however a new element of the process appears

in the evaluation gulf and the user tries to identify

it. The user does not know how to proceed. This

scenario is described in Table 6.

If the system interface environment is not familiar

to the user, that is, if he/she is not aware of the pur-

pose of every interface widget he/she is not aware

of checkbox functionality. In this situation there is

a communicability fault in the system because of

the lack of a message that could support the user in

deciding what action has to be taken.

7. Considering that the user decides to activate the

checkbox, the novice user can ﬁnally cross the ex-

ecution and evaluate gulfs to achieve his/her aim.

This situation is described in Table 7.

EVALUATION OF USER INTERFACES FOR GEOGRAPHIC INFORMATION SYSTEMS: A CASE STUDY

Table 3: Scenario 3.

Goal View the map on the screen

Execution Intention Add one theme

Actions speciﬁcations Select the add theme button

Execution Click the add theme button on the tool bar

Evaluation Perception A dialogbox is shown on screen (Oops!)

Interpretation What to do in the dialogbox? (What now?) At this moment a cognitive

disconnection causes a breakdown.

Evaluation Evaluation is hampered by the ambiguity of the application’s response sys-

tem.

Table 4: Scenario 4.

Goal View the map on the screen

Execution Intention Look in the dialogbox for the ﬁle that will show the map

Actions speciﬁcations Select the ﬁle in the computer’s directories that will show the map

Execution Look in the dialogbox for the ﬁle in which the map data are stored and select

Evaluation Perception No ﬁle appears (Oops!)

Interpretation (What happened?) If the action to be taken was correctly selected, why was

the map not drawn on screen? (Why didn’t it work?)

Evaluation It will be necessary to ask for some help.

4 ACHIEVED RESULTS

For a novice user, the evaluation of the user interface

of both systems, ArcView and Spring, resulted in the

same kinds of difﬁculties. The main difﬁculties are

related to the evaluation gulf. A signiﬁcantly greater

number of repeated problems were found in Spring

than in ArcView user interface use. Spring also pre-

sented a greater number of execution gulfs, mainly re-

lated to the necessity of more help for the user, with-

out which the system fails. Table 8 shows a synthesis

of the problems identiﬁed.

Altough Table 8 shows different numbers for each

evaluated tool, its intention is not to stablish quan-

titative differences between them, but to summarize

all problems found in both of them, well-known and

widely used GIS tools, one of them commercial and

the other free. It is worth to note that the qualita-

tive information determined by the scenarios evalu-

ation from the semiotic approach is potentially richer

as a system communicability design insume than the

quantitative results shown in Table 8.

The same example of interface analysis based on

scenarios built for an experienced user, who knows

which commands he/she has to run on the interface,

does not solve all of the interface problems. The ex-

perienced user can cross the execution gulfs but, like

the novice user, cannot successfully cross the evalua-

tion gulfs because most of the time the user does not

know the system state. Then the user experiences the

following types of problems:

• Did the chosen command really run? The user does

not know if the selected command is being run by

the system or even if it was already run, because

in many situations there is no interface change or

conﬁrmation message.

• Was the command correctly selected? It is impos-

sible for the user to notice when he/she has chosen

a wrong command because there is no conﬁrmation

of a command result.

• Is the sequence of chosen commands correct? The

user only notices mistakes in the command se-

quence when he/she ﬁnishes the task and does not

achieve his/her goal.

ArcView and Spring communicability related to in-

terface quality for those tasks described in this paper

are characterized as follows:

Strategic messages were not found. Strategic mes-

sages are those messages that help the user to under-

stand the strategic aspects of tool use, that is, mes-

sages that show the user a sequence of tasks that can

make the system use viable and efﬁcient.

At the level of action speciﬁcation and evaluation

supporting messages, both systems fail repetitively

due to the lack of beforehand advise (which occurs

more frequently with Spring than ArcView) and for

the lack of explicit information about the system’s

state after an user action. Sometimes communicabil-

ity breakdowns occur because there are no changes

visible on the screen. This situation characterizes an

extreme lack of communication in the interface, mak-

ing it difﬁcult to evaluate the result of any user action.

Both ArcView and Spring present the same kind

of operational messages in response to user actions:

dialog boxes and checkboxes. The quality of these re-

ICEIS 2006 - HUMAN-COMPUTER INTERACTION

Table 5: Scenario 5.

Goal View the map on the screen

Execution Intention Activate the ArcView ﬁle extensions related to the CAD data ﬁle

Actions speciﬁcations Select the option extensions and the option CAD Reader in the File menu.

Execution Select the option extensions in the File menu and activate the ArcView ex-

tension related to the CAD reader ﬁle in the dialogbox, clicking in its check-

box.

Evaluation Perception There is no visible change.

Interpretation Is the ﬁle extension activated? (Oops!, What happened?)

Evaluation The resulting evaluation is degraded by the system inability to communicate

with the user.

Table 6: Scenario 6.

Goal View the map on the screen

Execution Intention Add a theme to the CAD data ﬁle.

Actions speciﬁcations Select the add theme command and select the map data ﬁle.

Execution Click on the add theme command button in the toll bar in order to add a

theme; look for the map data ﬁle in the dialogbox and select it.

Evaluation Perception The map related theme is added to the table of contents in the view panel,

next to a checkbox, and nothing is drawn on the screen (What is this?)

Interpretation Do I have to select the checkbox? (What now?)

Evaluation If the interface tools are familiar to the user, he/she realizes that it is neces-

sary to select the checkbox.

sponses depends on the level of user knowledge about

the interface widgets. User knowledge about the sys-

tem becomes an essential factor in understanding op-

erational messages. Then, a more precise evaluation

of system communicability is related to user back-

ground. In this work, user system scenarios were built

assuming a novice user who could not understand

the operational messages. Therefore, dialog box and

checkbox messages were not efﬁcient because they

were the only messages from the system to the users

in response to his/her actions and consequently some

cues to future actions.

The operational level of interface communicability

also includes interface element labels. Labels proved

not to be appropriate for every user interaction situa-

tion. The action “add theme” in ArcView is available

from the moment a session is opened, but it is only re-

lated to the ﬁrst step of the process of drawing a map

and not to the whole process. In Spring, the same ac-

tion (draw) is also available as soon as the session is

opened even though there is no information level se-

lected. An appropriate approach to interface design

would be to label this action button with some more

speciﬁc name for the ﬁrst step of drawing a map. Af-

ter this ﬁrst step, the button would be available only

when the software is enabled to draw a map.

5 CONCLUSIONS

Both of the systems evaluated are well known for their

complexity. The complexity is related not only to the

interaction elements present on the interface, but also

to the large range of tasks that can be accomplished

by these systems. This study focused on a single task

and conﬁrmed the general opinion of these applica-

tions. A novice user cannot explore them without sig-

niﬁcant assistance from a more experienced user or

by studying books and manuals, while even an expe-

rienced user often faces some difﬁculties.

The problems discovered in those scenarios out-

lined above for a novice user show us the existence

of general systems interaction faults related to the re-

quest (execution gulf) and task evaluation (evaluation

gulf) processes. This conclusion is based on the re-

peated breakdowns that occur during a wide range of

tool interaction. The regularity of breakdown occur-

rences allows us to conclude that these interface prob-

lems can occur during any system tasks.

The problems we observed related to the evaluated

task, that is, to draw a map on the screen, suggest

some important problems with system communicabil-

ity. The information faults at the level of actions re-

quest and evaluation occurred more frequently when

the user tried a different action to accomplish the

same task because the preview action did not work.

Most of the time, there is no change on the system

screen or any kind of message that could indicate to

the user the system state. Consequently he/she can-

EVALUATION OF USER INTERFACES FOR GEOGRAPHIC INFORMATION SYSTEMS: A CASE STUDY

Table 7: Scenario 7.

Goal View the map on the screen

Execution Intention “Drawn the map on the screen”

Actions speciﬁcations Select the checkbox

Execution Activate the checkbox related to the theme of the table of contents that has

been just added.

Evaluation Perception The theme is shown on screen.

Interpretation The drawing on the screen corresponds to the map.

Evaluation The task is successfully completed. The search for information is over.

Table 8: Scenario 8.

Cognitive difﬁculties Gulf Kind of breakdown

utterances

Breakdowns

(ArcView)

Breakdowns

(Spring)

Which command to run? execution What now? 1 8

Which commands are available? execution What is this? 1 1

Which is the command sequence? execution Where is it? 1 1

Do I need some help? execution Help 0 9

Is the command correctly chosen in order to

achieve my goal?

evaluation Oops! 3 3

What do I do now? Which is the next step?

evaluation What now? 2 3 What happened?

evaluation What happened? 2 4

Has the command really executed? evaluation Why didn’t it? 1 1

Do I need some help? evaluation Help 1 1

What is it? evaluation What is it? 1 0

not evaluate the results of his/her action. Although

experienced users can overcome some of these sys-

tem faults, they still face some unnecessary difﬁcul-

ties caused by the lack of messages that would con-

ﬁrm the results of action taken.

However, both systems fail more fundamentally at

strategic level. They do not possess any kind of ad-

visement to the user about the complexity of the tasks

and the best procedures to be carried out in order to

complete the tasks. All these problems besides the

lack of procedures to make the buttons available and

not available in a dynamic way, and the inappropri-

ate button labels, make the use of these systems very

difﬁcult for the user under consideration.

As for future research recommendations, we sug-

gest to repeat this study for a larger range of tasks and

user system tests in order to validate the current re-

sults and complement the scenarios technique.

REFERENCES

Burrough, P. (1986). Principles of Geographical Informa-

tion Systems for Land Resources Assessment. Oxford

University Press.

Carrol, J. (1995). Scenario-Based Design: Envisioning

Work and Technology in System Development. Wiley.

ESRI (1996). Using ArcView GIS – The Geographic Infor-

mation Systems for Everyone. Environmental Systems

Research Institute.

INPE (2005). Spring Tutorial Class. Brazilian National

Institute for Space Research.

Norman, D. (1986). User Centered System Design.

New Perspectives on Human-Computer Interaction.

Lawrence Erlbaum Associates.

Prado, A., Baranauskas, M., and Medeiros, C. (2000).

Cartography and geographic information systems as

semiotic systems: a comparative analysis. In 8th ACM

Symposium on Advances in Geographic Information

Systems, pages 161–166.

Prates, R. and Barbosa, S. (2003). Avaliac¸

ao de interfaces

de usu

ario: conceitos e m

etodos. In XXIII Congress

of the Brazilian Computer Society.

Schimiguel, J. and Baranauskas, M. (2002). Evaluating

signs in interfaces for geographic information sys-

tems. In Confer

encia Ibero-Americana em Sistemas,

Cibern

etica e Inform

atica.

Seixas, M. and Souza, C. (2004). Um m

etodo de avaliac¸

para interfaces baseadas em mapas. In VI Brazilian

Symposium in Computing Systems, pages 159–170.

Silveira, M. (2002). Metacomunicac¸

ao Designer-Usu

ario

na Interac¸

ao Humano-Computador. PhD thesis,

Graduate Program in Computer Science, PUC-Rio,

Rio de Janeiro, Brazil.

Souza, C. (2005). The Semiotic Engineering of Human-

Computer Interaction. The MIT Press.

Winograd, T. (1996). Bringing Design to Software.ACM

Press.

ICEIS 2006 - HUMAN-COMPUTER INTERACTION
