METHOD FOR USER ORIENTED MODELLING OF

DATA WAREHOUSE SYSTEMS

Lars Burmester

Institute of Management Information Systems, Philipps-University of Marburg, 35032 Marburg, Germany

Matthias Goeken

Dep. of Management Information Systems, HfB – Business School of Finance and Management, 60314 Frankfurt, Germany

Keywords: Data Warehouse, Multidimensional Modelling, Process Model, Modelling Framework.

Abstract: The paper describes a method for data warehouse development. One critical success factor of data ware-

house development is determining information requirements. Hence, the method focuses on gathering of re-

quirements and information needs of the users first. An extended data warehouse architecture and a tech-

nique for decomposition of the system serve as a developing framework. On the one hand this framework is

used to define releases (builds) of the system, which is indispensable for an incremental development proc-

ess. On the other hand it defines intermediate and final work products (artifacts) that are produced and used

during further development stages. Starting with information requirements elicitation, each increment is re-

alized through a series of data models which successively are transformed from conceptual to logical level.

These logical data models are then used for implementation as well as for the modelling of ETL processes.

1 INTRODUCTION

During the past years, data warehousing has been an

object of intense research. As one result, quite a few

development methodologies were introduced, which

roughly could be categorized as data-driven, goal-

driven and user-driven (List et al., 2002). At data-

driven approaches, the corporate data model or at

least the data models of OLTP-systems are the start-

ing point of the development process. ETL-

processes, data staging and OLAP-cubes are built on

top of that data models. User requirements are con-

sidered last, if considered at all (Golfarelli et al.,

1998; Golfarelli and Rizzi, 1998). Goal-driven ap-

proaches derive the information requirements to be

satisfied by the data warehouse from business-

processes (Kimball and Ross, 2002) or overall com-

pany goals (Prakash and Gosain, 2003). In user-

driven approaches the information requirements are

gathered directly from the user, while the develop-

ment of data models and ETL-processes follows.

Data- and goal-driven approaches bear the latent

risk of not meeting the user requirements, leading to

a lack of system-acceptance and in worst case to a

complete failure of the developing project. Therefore

user-driven developing approaches seem most prom-

ising for successful completion of data warehouse

projects.

Following the described user-driven approaches,

the elicitation of the information requirements from

users regularly turns out to be a key problem (Hol-

ten, 1999). These problems are issued by Valusek

and Fryback, who categorize them as “obstacles…

within an individual user, among users, and between

the user and those responsible for system develop-

ment” (Valusek and Fryback, 1985; Browne and

Rogich, 2001). Between-obstacles result from the

fact that system developers and users speak different

languages. This “user-developer cultural gap” leads

to a “linguistic gap” which has to be bridged by ap-

plying suitable methods and techniques during re-

quirements elicitation (Ortner, 1995). In addition,

users often cannot explicit their requirements, which

is because they are not instantly aware of them

(within-obstacle) and requirements are still unstable

during the development process due to business dy-

namics.

Despite the described challenges, the central

technical challenge in data warehousing consists in

building up an enterprise-wide integrated and con-

sistent database, which turns out to be a complex,

time consuming and expensive effort (Hackney,

1998). To tackle these problems, it is often recom-

366

Burmester L. and Goeken M. (2006).

METHOD FOR USER ORIENTED MODELLING OF DATA WAREHOUSE SYSTEMS.

In Proceedings of the Eighth International Conference on Enterpr ise Information Systems - ISAS, pages 366-374

DOI: 10.5220/0002456303660374

 SciTePress

mended to start with the construction of data marts

(e.g. for small organizational units like departments

or regional units) and incrementally improve them

towards the final data warehouse system (“think big,

start small”). Though, support for comprehensive

planning and development of enterprise-wide data

warehouse systems is seldom found (see Hackney,

1998 and Ong, 1999 for older approaches of evolv-

ing data warehouse architecture).

Taking a look at existing user-driven method-

ologies reveals that some promising approaches ex-

ist, which tackle the described problems of require-

ments elicitation, especially the within and between

obstacles (Bonifati et al, 2001; Winter and Strauch,

2003). Though, there are some deficits, regarding

support of comprehensive system planning and

modelling. Strauch clearly states the need for repre-

sentation and verification of requirements, using

multidimensional modelling languages, but gives no

instructions how this should be accomplished. Boni-

fati et al. use idealised star schemas to represent

user-requirements, consisting of basic multidimen-

sional modelling elements, but lack constructs for

dimension hierarchies, which in particular are cru-

cial for OLAP cubes (see section 3.2.2 for details).

While Strauch completely neglects implementation

aspects, Bonifati et al. consider the reconciliation of

user requirements and information supply as a trial

and error process, finding the best match between

the ideal star schemas and candidate star schemas

derived from operative data schemas.

In the following parts of the paper a develop-

ment method is introduced which considers the

above mentioned challenges. Section 2 introduces an

advanced data warehouse architecture which serves

as a reference framework for the method. Section 3

treats the development method itself, starting off

with systems planning and the process model (Sec-

tion 3.1). The elicitation of information require-

ments, conceptual modelling and validation of the

resulting structures is treated in section 3.2. Section

3.3 describes the successive transformation of data

models towards a physical implementation and the

implementation of ETL processes. Conclusions and

discussion are found in section 4.

2 ADVANCED DATA

WAREHOUSE

ARCHITECTURE

2.1 Modelling Framework

In this section an advanced data warehouse architec-

ture is introduced, which serves as a modelling

framework for the method. A closer look on the data

warehouse layers reveals the stepwise data flow

from data sources towards analytical applications

situated in the presentation layer (see figure 1). This

physical perspective only covers a part of the tasks a

data warehouse has to cover and is insufficient to

capture the users information needs. In fact, a con-

ceptual perspective for representation of the business

tasks of a data warehouse is missing (Vassiliou et

al., 2000; Jarke et al., 1999; Quix, 2003). To utilize

data from operational Systems (OLTP) for informa-

tion supply and decision support not only from a

physical but also from a conceptual point of view, it

is necessary to explicitly describe each layer with an

own conceptual (data) model. This integrates the so

far isolated data flow perspective with an informa-

tion-use perspective. The conceptual perspective

respectively the conceptual (data) models support

the user/analyst interaction and can also be seen as

documentation of development steps. In terms of

language they can be seen as “close-to-user”, be-

cause they consist of modelling constructs that are

easy to understand. In addition they are a decisive

input for following stages of the development proc-

ess (Wand and Weber, 2002).

Storage layer

ETL layer

OLTP systems

(Online Transaction Processing)

OLAP layer

Presentation layer

Data

Warehouse

Logische

Schemata

Logische

Schemata

Operation-

al data-

base

Logical model

Operation-

al data-

base

Operation-

al data-

base

ETL processes

Konzeptionelle

Schemata

Konzeptionelle

Schemata

Conceptual model

Logical MDDMs

Conceptual

MDDMs

Consoli dation

Into

Individual

conceptual

multdimensional

models (cMDDMs)

Konzeptionelle

Benutzerschemata

(individuell)

Konzeptionelle

Benutzerschemata

(individuell)

Tranformation

into

Frontend-

client

definition of reports / navigation structures

Frontend-

client

Defines

Logical

multidimensional

models (lMDDMs)

Has

structure

OLAP-

Server

Conceptual

ETL model

Tranformation

into

Tranformation

into

Logical

ETL

model

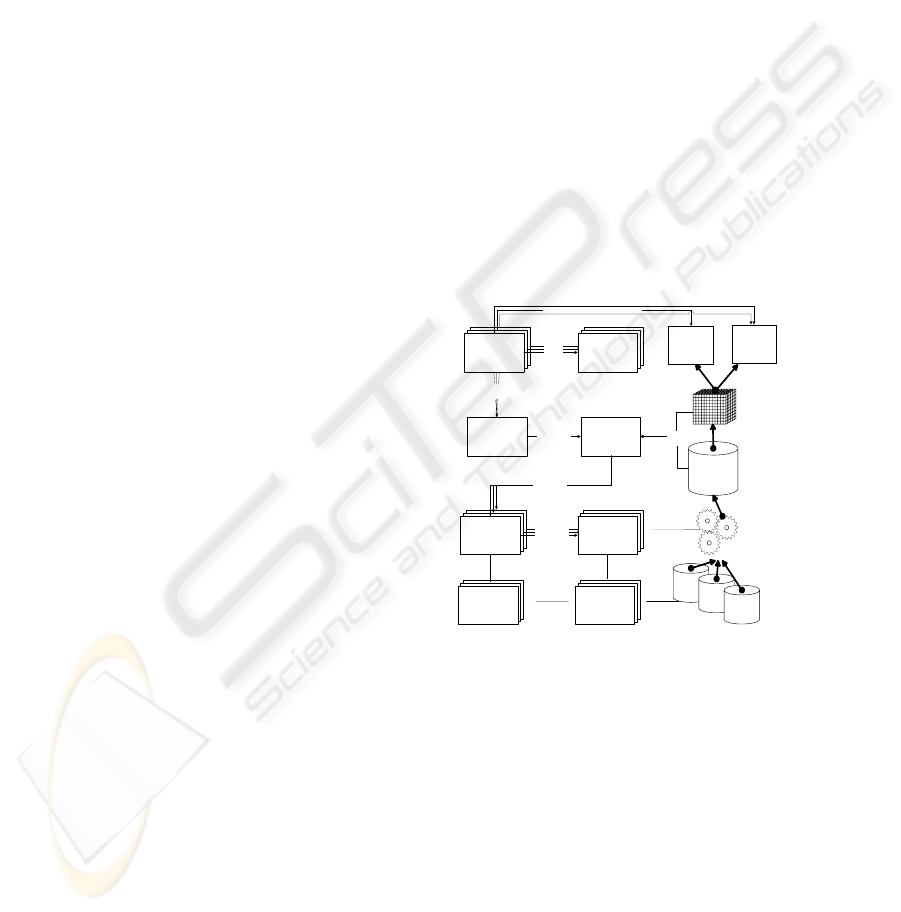

Figure 1: Extended data warehouse architecture.

To simplify the presentation it is assumed that

the data models of the storage layer and the OLAP-

layer don’t differ. This means the storage layer al-

ready consists of the data structures that are neces-

sary for relational OLAP. If a reconciled data layer

exists, the ETL processes described in section 3.4

will access this instead of the operational source

systems.

The described architecture is similar to the “meta

data framework” developed in the DWQ project on

(Vassiliou et al., 2000; Jarke et al., 1999; Quix,

2003). It differs in two points: on the one hand an

enterprise data model is assumed as given. Such

enterprise data models often don’t exist in reality

and are assumed as problematic, so these should not

be considered in this paper (Stahlknecht and Ha-

METHOD FOR USER ORIENTED MODELLING OF DATA WAREHOUSE SYSTEMS

367

senkamp, 2005; Schelp, 2001). Instead, individual

user requirements should be the starting point of the

method. On the other hand a different integration

approach is followed. While the DWQ project fol-

lows the “local as view” approach, our approach

considers the content of the data warehouse as views

on the operational data sources. This “global as

view” approach can also be used as a description of

the data flow from data sources into the integrating

system.

2.2 Developing in the Framework

Conceptual multidimensional data models

(cMDDM) act as the starting point of the method

(see figure 1, left uppermost corner) and are used for

elicitation of information requirements and can be

seen as the work products of this stage. During this

development stage, single user (or user group) re-

quirements and final specifications are treated sepa-

rately. This separation corresponds to the often de-

manded addressee-orientation for management in-

formation systems and allows the traceability of re-

quirements to their origin. By using individual

cMDDM, addressee-appropriate reports, navigation

and alternatives for analyzing the information space

are provided. In addition these cMDDM could be

consolidated and transformed into logical multidi-

mensional data models (lMDDM; see figure 1, cen-

tre column). Furthermore lMDDM provide input for

conceptual ETL models, which can be used for

communication with the administrators of operative

data sources. Conceptual ETL models can be seen as

requirements of the data warehouse systems, which

should be fulfilled by OLTP systems. During the

development process, conceptual ETL models are

transformed into logical ETL models, which are then

physically implemented (see figure 1, 3

row from

above).

This architecture allows a structured process for

data warehouse development and also secures

documentation on each semantic level. Furthermore

the architecture provides a framework for integration

of different modelling approaches existing in data

warehouse development. The goals pursued by (con-

ceptual) models, like documentation, input for later

development stages or communication with the user,

could be hardly realized by using just one modelling

language during the whole development process

(Wand and Weber, 2002). In further description of

our method, we exemplarily use ADAPT (Bulos and

Forsman, 2002) for conceptual multidimensional

modelling and the concept of Vassiliadis et al. (Vas-

siliadis et al., 2002a) for ETL modelling. Of course,

other modelling approaches fit as well, so that pre-

ferred or more suitable ones could be chosen by the

developer.

3 METHOD

3.1 Systems Planning and Process

Model

3.1.1 Systems Planning

To reduce the complexity of developing enterprise-

wide data warehouse systems, it is often suggested

to start off with data marts (“start small”) and incre-

mentally improve them towards an overall target

system. Incremental development means to focus a

well defined goal, which should be realized by step-

wise enhancement of incomplete parts (Gilb, 1988;

Larman and Basili, 2003). This allows handling the

dynamics oft the business environment as well as

fine-grain-planning the delivery of increments

(builds). Misunderstandings can be resolved during

the development process and early testing also helps

finding out whether the available information supply

matches the actual information demand. Following

an incremental approach requires that a target sys-

tem must be decomposable. If this is given, build

stages can be appointed into a build plan (Goguen

and Linde, 2003). The resulting loops in the devel-

opment process can then be seen as planned itera-

tions.

In the introduced development method, the over-

all target system is decomposed using two decompo-

sition criteria. Information and decision objects are

used as a business criterion on one side and the lay-

ers of the data warehouse architecture are used as

technical criterion on the other side. Information or

decision objects represent relevant aspects of the

business, which can be derived e.g. from the organ-

izational structure or a performance measurement

system. They define the data warehouse subjects on

an abstract level. Combining this business perspec-

tive with the layers of the data warehouse architec-

ture leads to development objects, which represent

modules of the overall target system (see figure 2).

Presentation layer

OLAP layer

Storage layer

ETL layer

Finance Sales

Production

. . .

Human

Ressource

Figure 2: Developing objects as a result of the system

decomposition.

These development objects are central subjects

for planning builds and prototypes. The build plan

shows which objects are realized in which order. For

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

368

a more precise planning of the development stages

of a development object, it is viewed in form of the

introduced advanced data warehouse architecture. In

the build plan, milestones could be defined at which

a certain development process has to be completed.

Figure 3 shows a build timetable for an example

project.

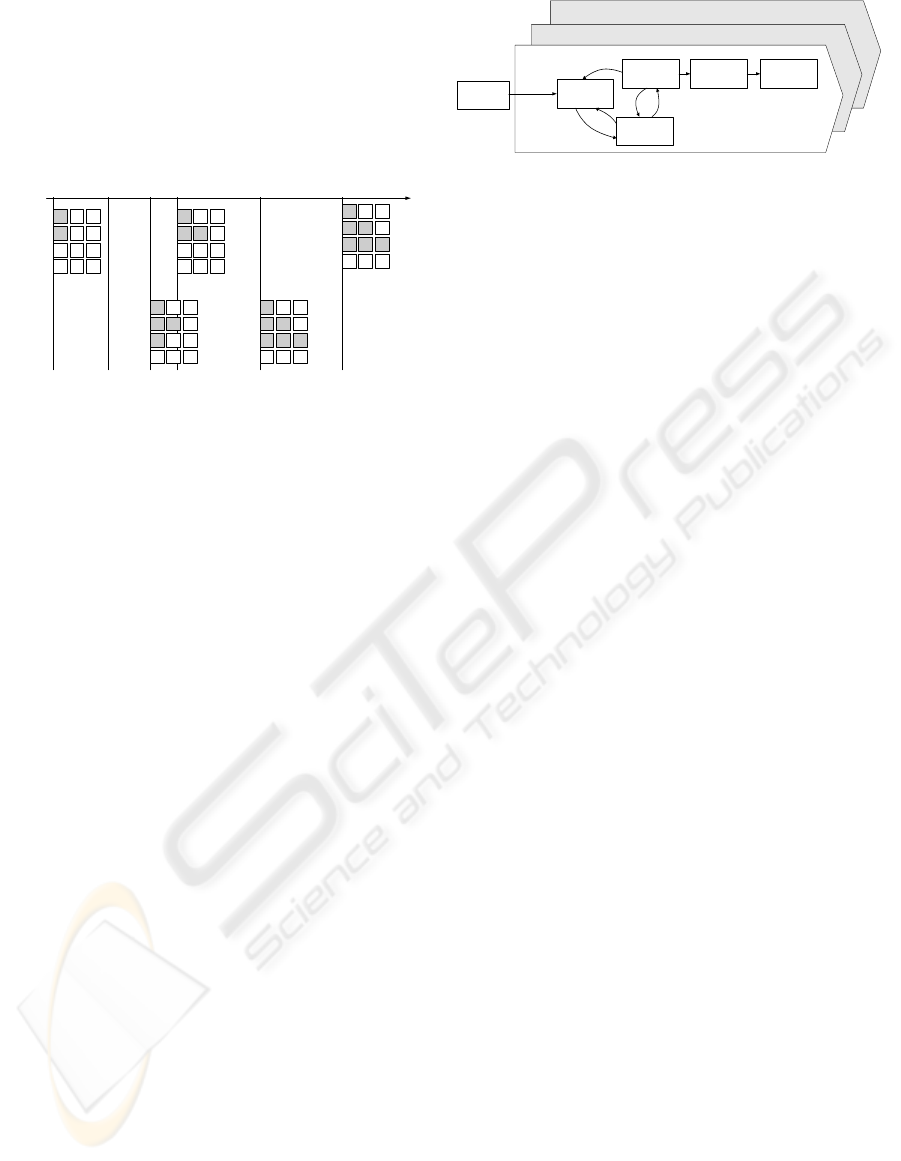

Time

Information and

decision object 1

Information and

decision object n

. . .

Figure 3: Exemplary build timetable of multiple subsys-

tems.

3.1.2 Process Model

The process for developing a build consists of sev-

eral steps. The starting point of the process is the

requirements elicitation stage in which the informa-

tion requirements of each individual user towards

the target system are acquired. At the beginning of

the design stage these requirements are converted

into individual cMDDM and are consolidated into a

conceptual overall view during the stage. At the end

of the conceptual design stage the overall cMDDM

is transformed into a logical data model (lMDDM)

which forms the basis for the construction of a vali-

dation prototype. During the validation stage the so

far generated conceptual structures are validated by

the future users. The constructed prototype supports

this step. If the prototype is rejected, the process will

loop back to earlier stages, depending on the reasons

for rejection. A positive validation triggers the speci-

fication stage. The generated lMDDM specify the

formalized information demand, which has to be

reconciled with the information supply in the ETL

layer. The transformation of the lMDDM into con-

ceptual ETL models as well as logical ETL models

based on that, are the foundation for their final

physical implementation. An overview of the proc-

ess model for the realisation of each development

object is provided in figure 4.

Planning

Specification Implementation

Requirements

acquisition

Validation

Conceptual design

Information and decision object 1

Information and decision object 2

Information and decision object n

Figure 4: Process model for the realisation of developing

objects.

3.2 Requirements Acquisition and

Conceptual Design

3.2.1 Requirements Acquisition

The requirements acquisition stage represents the

starting point for the cycle in which the information

need is acquired and formalized. First, the informa-

tion demand of each individual user (or user group)

is acquired. On the one hand it should be found out,

which facts and measures quantify an information

and decision object. On the other hand qualifying

perspectives on these measures or facts are created

by identifying user-defined dimensions and hierar-

chies (Lehner, 2003).

Due to the high level of abstraction encountered

in conceptual multidimensional modelling languages

(e.g. the Dimensional Fact Model (DFM), ADAPT

and others (Bulos and Forsman, 2002; Golfarelli et

al., 1998; Abello et al., 2002), they are often not

suitable for communicating with inexperienced users

about their requirements. The overcoming of the

above mentioned “linguistic gap” between analysts

and users is aggravated by using too formalized

modelling languages, especially when used for sup-

porting the articulation of information needs. In par-

ticular, it often turns out to be difficult to explain the

differences of multidimensional modelling con-

structs to users (for an empirical study which leads

to similar results see Nordbotten and Crosby, 1999).

Therefore analyzing and interpreting the users in-

formation needs remains a key task for the devel-

oper. For communication with the user, interroga-

tives or so called “w-questions” have turned out to

be quite useful, because they describe the constructs

of multidimensional modelling in colloquial speech

(Browne and Rogich, 2001; Stahlknecht and Ha-

senkamp, 2005; Quigley and Debons, 1999). Inter-

rogatives can be interpreted as a basic grammar

(construction plan for sentences) as it has been sug-

gested by Ortner for the method neutral conceptual

design (Ortner, 1995). For graphical representation,

simplified models could be used, which use only a

subset of common multidimensional modelling ele-

METHOD FOR USER ORIENTED MODELLING OF DATA WAREHOUSE SYSTEMS

369

ments (facts, measures, dimensions, some early hier-

archies). In common performance measurement

concepts, dimensionality is often disregarded, so that

confronting “inexperienced” users with multidimen-

sionality might lead to the above described obsta-

cles. The confinement on few constructs of multidi-

mensional modelling may lead to a better under-

standing and enables the user to concentrate on gen-

eral aspects.

The results of the requirements acquisition stage

are the information needs of individual users or user

groups. A set of simplified conceptual models and

interrogatives are the work products, which are

passed to the next stage.

3.2.2 Conceptual Design

In the following section the design process is intro-

duced which realizes the information requirements

within the advanced data warehouse architecture.

Starting-point are the results of requirements ac-

quisition, which represent the information need of

the single users. The first step consists of the trans-

forming the simplified conceptual models into

common multidimensional models (e.g. in ADAPT)

and their consolidation into a conceptual overall

view. All objections against the use of common mul-

tidimensional modelling languages are omitted be-

cause these models are no longer used for user-

analyst-interaction, but for documentation and as a

central input for further transformations into

lMDDM (see figure 1 again).

To illustrate the process, the development of

parts of a sales information system should be taken

as an example for the rest of the paper. During the

requirements acquisition stage a couple of simplified

conceptual models for single users were generated.

Further the future system can be described by the

interrogative “Which amounts of money (in €), of

which kind (e.g. turnover, discounts, promotion

costs) have flown doing business with which cus-

tomer (e.g. wholesalers, retailers) in which region

(e.g. Nielsen-area, state) at which point of time (e.g.

fiscal year, calendar year) ?”. The ERP-system as

well as a not integrated marketing information sys-

tem should be seen as the data sources of the future

system.

The transformation of the simplified conceptual

models into common multidimensional models here

exemplarily should lead to ADAPT models, starting

off with the dimensions (Bulos and Forsman, 2002).

The formalisation of a dimension requires represent-

ing the elements of the hierarchical structure. In

common multidimensional modelling languages

dimensional hierarchies are often modelled col-

lapsed because a full display of the hierarchy would

soon become too hard to work with. Hence, dimen-

sions are modelled as generalised, abstracted dimen-

sion levels. Simple balanced hierarchies can be

transformed directly into a multidimensional model.

Dimensions with more complex structures, like mul-

tiple or unbalanced hierarchies as well as non-

additive roll-ups, couldn’t be transformed in the de-

scribed manner, which than requires an uncom-

pressed view of the hierarchy again (Schelp, 2000).

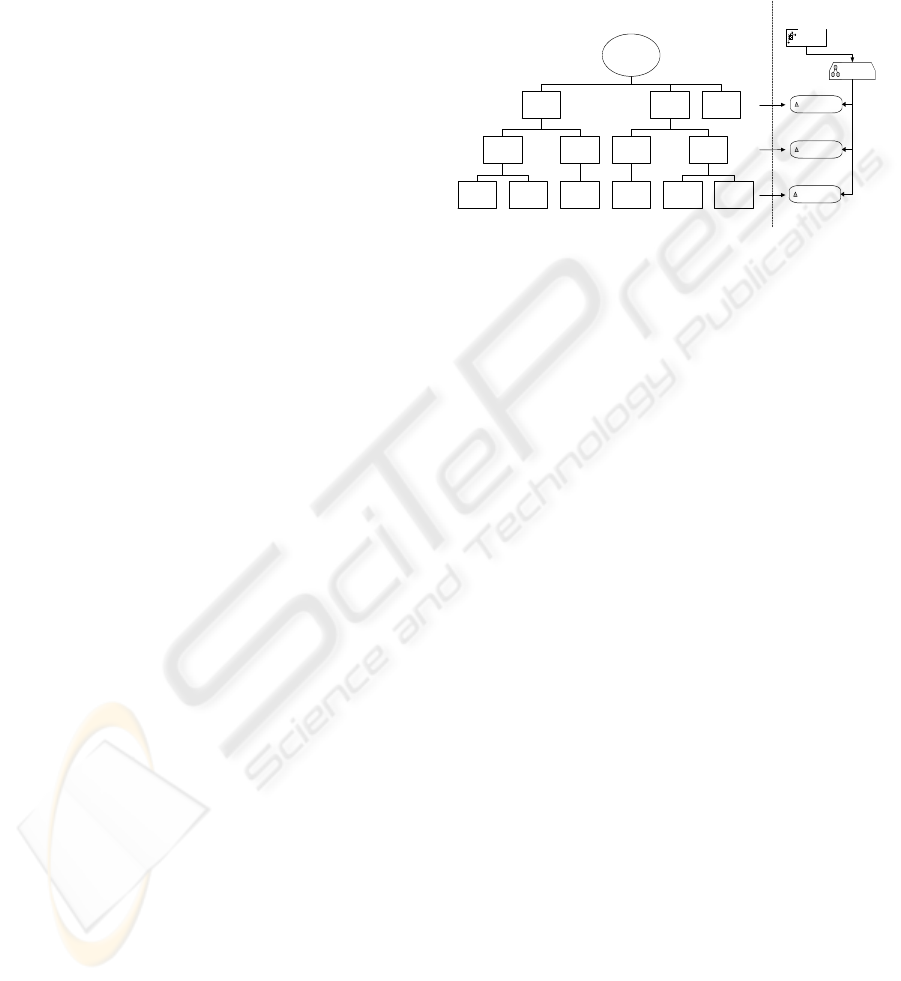

Ret a i le r s . . .Wholesal ers

Normal accountsKey accounts Key accounts Normal accounts

Müller Mei e r Schul ze Lehmann Hansen Borchers

Cus t o mer

Cus t o m e r

hi er ar ch y

Cust omer type

{ }

Cust omer Gr oup

{ }

Cus t o mer

{ }

Customer

Figure 5: Transformation of a simple balanced hierarchy

into the ADAPT notation.

After the transformation of the simplified multi-

dimensional models of the single users into formal-

ized cMDDM, these are consolidated into a multiple

user cMDDM. The resulting model represents the

cMDDM of the storage/OLAP layer. Consolidating

the facts and measures usually does not impose big-

ger problems, because they usually origin from well

known corporate performance measurement sys-

tems. The consolidation of the dimensions could be

seen as a major challenge in the design process.

Hereby it is crucial to recognize different views on a

dimension and to consolidate these into one consis-

tent dimension. In the following the consolidation

process should be illustrated with an example, which

shows the consolidation of different views upon a

time dimension. Here, a finance officer needs a

deeper time hierarchy than the sales officer. The

latter uses the corporate fiscal hierarchy, while the

analyst uses the calendar hierarchy. Figure 6 shows

the consolidation of the described views upon the

time dimension.

After consolidating the individual cMDDM, the

resulting multiple user cMDDM has to be trans-

formed into the logical data model (lMDDM).

Though independent from physical implementation,

logical models of multidimensional data structures

are aligned to the chosen database technology. Be-

cause of the wide spread of relational database tech-

nology, the logical model of the multidimensional

data layer regularly is modelled as variants of the

star schema.

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

370

Month

{ }

Fiscal quarter

{ }

Fiscal year

{ }

Time

Day

{ }

Month

{ }

Week

{ }

Fiscal quarter

{ }

Calendar year

{ }

Fiscal year

{ }

Calendar Fiscal calendar

Sales officer

Consolidated time

dimension

Day

{ }

Week

{ }

Calendar year

{ }

Finance officer

Figure 6: Consolidation of different views on a time di-

mension.

Deriving logical data models from conceptual

models constitutes a critical step in the development

process, because this transformation always means

the loss of semantics between the two models

(Schelp, 2000; Blaschka, 2000; Hahne, 2002). For

that reason the danger of mis-mapping is biggest in

this stage of the process. A close look on the trans-

formation of facts and measures shows that their

transformation could be handled in some few steps,

while the transformation of dimensions is a lot

harder. Though most of multidimensional modelling

languages are capable of representing complex hier-

archical structures, like multiple or unbalanced hier-

archies or non-additive roll-ups, just a few ap-

proaches exist that secure transformation into logical

multidimensional data models without the loss of too

much semantics (Herden, 2001).

For an example of mapping cMDDM to logical

ROLAP-models see (Blaschka, 2000). There this is

done by mapping the elements of the meta-models

of conceptual multidimensional modelling languages

onto the elements of the relational model. Doing so,

transformation rules, like “For each fact or dimen-

sion exactly one table should be created”, could be

derived. By applying these rules, a conceptual mul-

tidimensional model could be formally transformed

into a simple star schema. Figure 7 shows the exam-

ple of mapping an ADAPT model onto a star schema

(logical MDDM).

DIM_PaymentType

Key_AccountNo

ParentKey_AccountNo

Account_Description

RollUp_to_parent

DIM_Time

Time

Customer

Product

Time

Payment

Region

Sales (Finance)

Time

Sales region

Customer

Produkt

Product

Type of

payment

Custom er

hierarch y

Customer Type

{ }

Customer Group

{ }

Customer

{ }

DIM_Customer

Customer #

Level_CustomerType

Level_CustomerGroup

Level_Customer

DIM_SalesRegion

Key_Region

Level_SalesRegion

Level_SalesDistrict

Level_ZIPCode

DIM_Product

Key_Product

Level_ProductGroup

Level_Brand

Level_Product

Fact

Customer #

Key_Region

Key_Product

Key_AccoutNo

Time

Measure

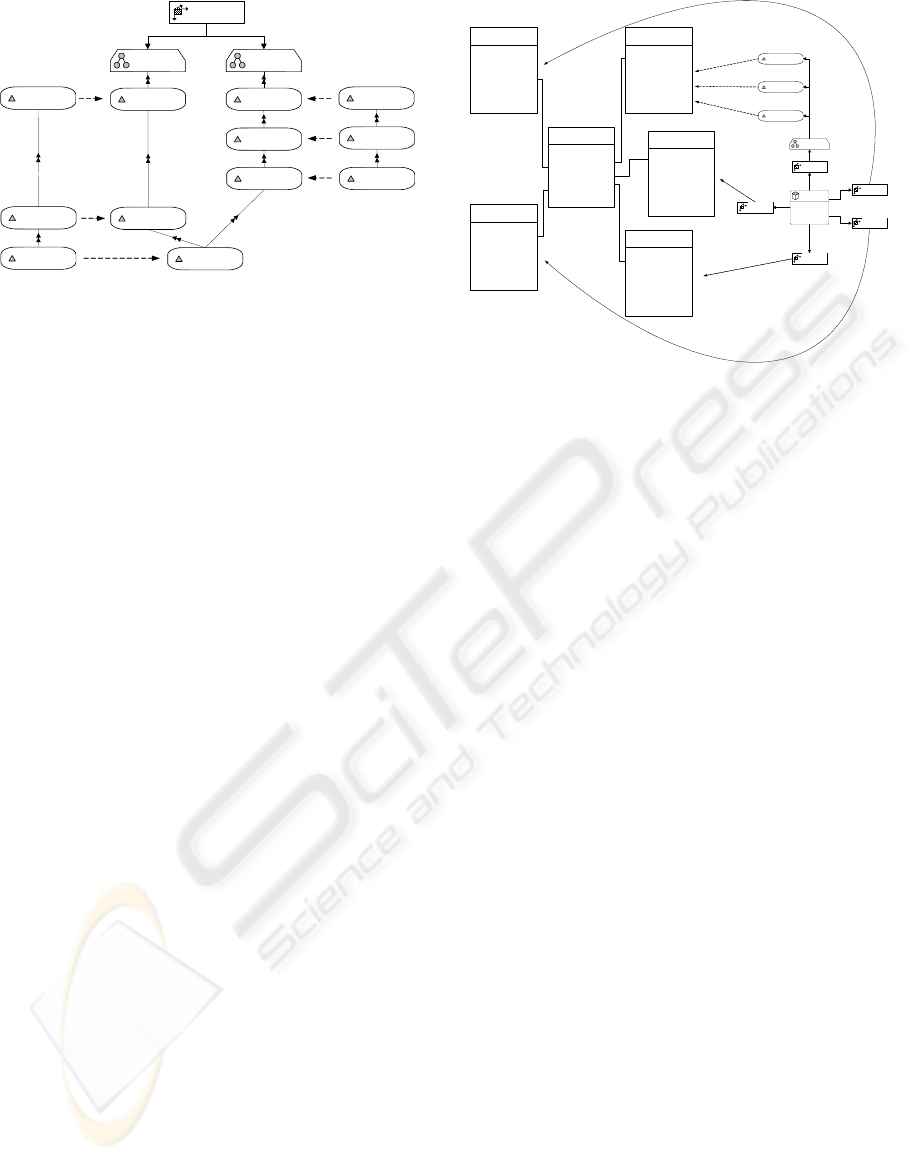

Figure 7: Mapping of an ADAPT model onto a simple star

Schema (lMDDM).

To optimize a ROLAP-solution in terms of per-

formance, maintainability and storage, methods like

indexing, partitioning tables as well as materialized

views can be used (Herden, 2001; Peralta and Rug-

gia, 2003; Lehner, 2003). The discussion on the

mentioned methods should not take place in this

paper, because just the realization of informational

requirements should be demonstrated.

The lMDDM represents the informational re-

quirements of a data warehouse system using table

structures. To validate these generated structures,

they have to be filled with data. Because of the in-

cremental approach and the usage of prototyping, for

now, simulation data should be used during early

iterations, because the modelling and implementa-

tion of ETL processes result in major effort (Vassili-

adis et al, 2002a for example estimate the share of

total development at 80%). By further advancement

of the development process, real data should by used

to validate prototypes and secure a smooth transition

to operational use.

3.3 Validation

The validation of the conceptual model and the logi-

cal structures is realized in one single step. The fu-

ture users could validate, if the generated structures

correctly represent the universe of discourse, regard-

ing measures and dimensions. If the prototype

should be fully or partly rejected, a loop-back to

earlier stages takes place. To determine the stage

which should be looped back to, a verification of the

artifacts of passed stages is necessary. Figure 8

shows the procedure during the validation stage. If a

prototype is accepted, the development process ad-

vances to the specification stage.

METHOD FOR USER ORIENTED MODELLING OF DATA WAREHOUSE SYSTEMS

371

Verification:

Prototype implements cMDDM

correctly?

Correct Prototype!

Verification:

cMDDM implements the

requirement correctly?

Repeat validation!

Correct the cMDDM!Back to Requirements Acquisition!

Correct the cMDDM!

Yes No

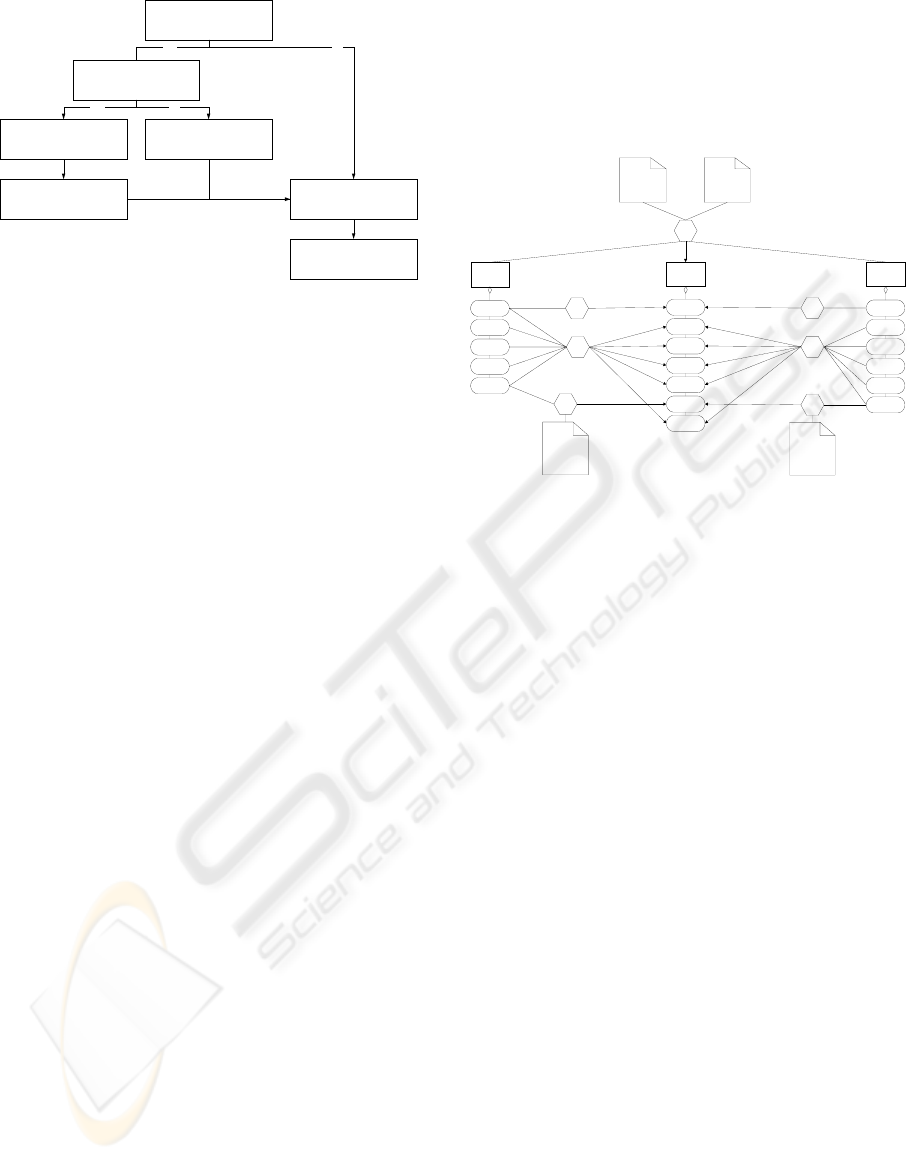

Figure 8: Procedure when prototype is rejected.

3.4 Specification and Implementa-

tion

If the prototype is accepted during the validation

stage, the generated logical structures represent the

formalized information demand. The information

supply consists mainly of data from internal OLTP

systems and is enriched by additional external data.

The reconciliation of information demand and in-

formation supply in data warehouse systems takes

place in the ETL layer as ETL processes.

As before in the OLAP and storage layer, the

data acquisition layer could also be represented by

conceptual, logical and physical models (Vassiliadis

et al., 2002a, Trujillo and Lorán-Mora, 2003). Equal

to the simplified multidimensional data models used

during the requirements elicitation stage, conceptual

ETL models could be used for communication with

the administrators of OLTP systems.

The approach for conceptual modelling of ETL

processes from Vassiliadis et al. proposes the analy-

sis of user requirements as well as an analysis of the

structure and contents of the data sources, before

starting the modelling process (Vassiliadis et al.,

2002a). The user requirements as target of the ETL

process already exist as table definitions (lMDDM)

(in the following referred to as data consumer). On

the opposite internal and external data sources repre-

sent the information supply (in the following re-

ferred to as data provider). The creation of a concep-

tual ETL model takes place in a three step process

(Simitsis and Vassiliadis, 2003). In the first step

adequate data providers have to be chosen. Follow-

ing that, delivery and mapping relations between

potential data providers and data consumers have to

be concretizised. This second step is crucial for the

success of the modelling process due to the hetero-

geneity of source systems. It requires intense inter-

action with the OLTP systems administrators as well

as comprehensive testing, to secure the adequate

filling of the target tables. After modelling the map-

ping relations, the process can be annotated with

runtime constraints, like execution plan, supervision

and logging settings, as well as exceptions and error

handling. Additional requirements can be mentioned

(e.g. the level of data freshness) which have to be

considered during the physical implementation.

DW.Sales

K_Primary

Time

K_Customer#

K_Product

K_Region

K_AccountNo

Ammount

S.Sales

K_Customer#

Time

Turnover

K_Region

K_Product

Q.Promotion

K_Primary

K_Customer#

Time

Promotion costs

K_Region

K_Product

Lookup: Account type .

Here: Turnover

Lookup: Account type.

Here: Promotion cost s

Necessary data

sources:

S.Sales

S.Promotion

Execute 5 days before

end of the month

Figure 9: Example of a conceptual ETL model.

An example of a conceptual ETL model is

shown in figure 9 (using the notation of Vassiliadis

et al., 2002a). The data consumer in this model is a

fact table (DW.Sales) of the sales information sys-

tem, which is supplied from two sources (S.Sales

and S.Promotion). In the example further transfor-

mations, besides simple mapping processes (Y (Ag-

gregations)) can be found. On the one hand a unique

surrogate key is assigned (SK), to avoid contradic-

tory values for the primary key in the fact table. On

the other hand a transformation function (F) is ap-

plied, which assigns a qualifying account-type to a

measure. For example, the account type ‘promotion

costs’ is assigned to records originating from the

data source ‘promotion’ and the account type ‘turn-

over’ is assigned to records from the data source

‘sales’. Further annotations were made regarding the

implementation of the process, e.g. execution re-

straints or the necessary data sources (U).

Vassiliadis et al. state that a logical ETL model

consists of the data flow process from the data

sources towards the data warehouse and several ETL

activities, which can be seen as logical abstract of

physical code (Vassiliadis et al, 2002b; Simitsis,

2003). Basic elements of the logical ETL model are

ETL activities, which can be described on multiple

levels. From the perspective of the meta model, ETL

activities consist of several components, like name,

input and output and the relationship between them.

Instances of these meta-activities are called template

activities (e.g. push, join, not-null-check etc.). Stan-

dard activities could be customized to fit the re-

quirements of a concrete ETL process. These

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

372

adapted ETL processes can be seen as an instance of

the template.

ETL processes are described in so called ETL

scenarios, depicting a sequence of ETL activities,

which sketch the data flow between source and tar-

get records. Figure 10 shows the ETL scenario of the

introduced conceptual ETL model. The relevant re-

cords are loaded from the source databases (S.Sales,

S.Promotion) into the tables of the data staging area

(DS.Sales, DS.Promotion) via FTP. This is followed

by two ETL activities, the assigning of a unique sur-

rogate key and the lookup of the account type, in-

cluding the logging of failed transactions. The end-

ing activity unites the records from both data sources

and loads them into the data warehouse table

(DW.Sales).

DS.Sal es

S.Sales

FTP 1

DS.Promotion

S.Pr omoti on

FTP 2

SK 1

SK 2

Acc.Lookup

DW.Sales

Log

Error

Log

Error

Log

Error

Log

Error

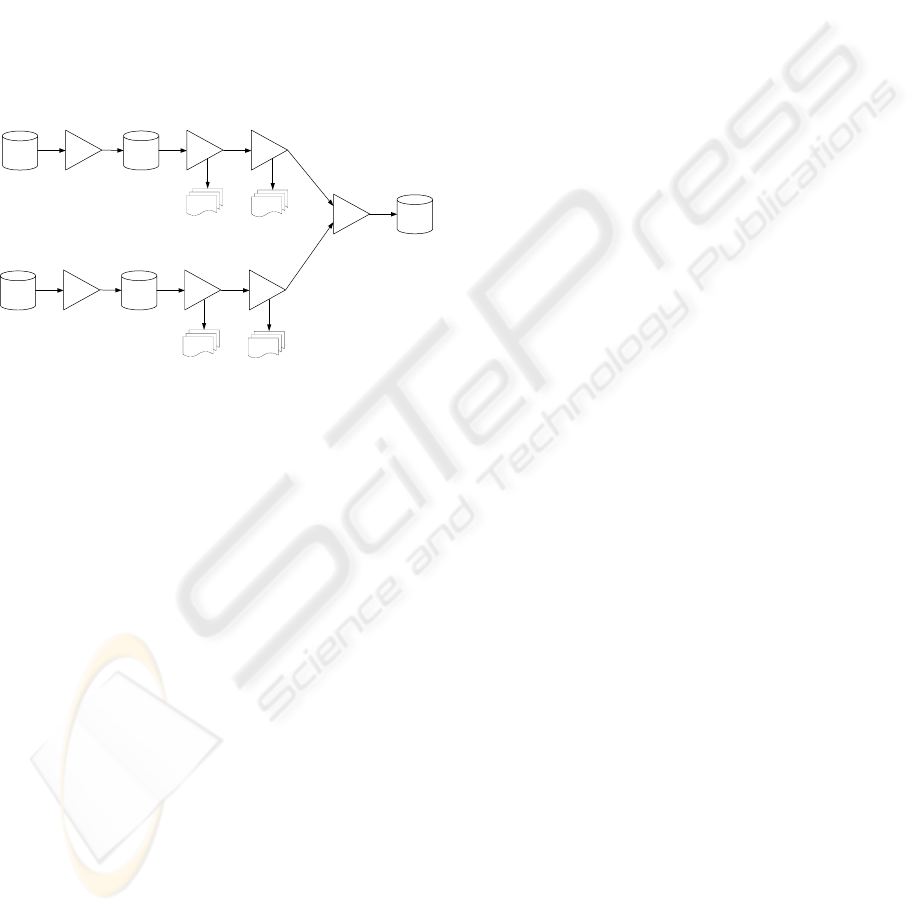

Figure 10: Logical ETL Scenario.

4 CONCLUSIONS

This paper introduced a method for user oriented

development of enterprise-wide data warehouse sys-

tems. The focus lay on the decomposition of the

system, which is used for planning builds for the

incremental design. Additionally a process model is

introduced, which defines stages and working prod-

ucts of the development process.

The method proved to be useful and handy in the

project EiSFach, which the authors worked in. The

projects subject is the design and implementation of

data warehouse based performance measurement

and management support systems for the Philipps

University of Marburg (Germany). Due to uncer-

tainty in laws and novelty of the field of perform-

ance measurement in universities, the specification

and dynamic of requirements were the key success.

The introduced method helped to tackle these prob-

lems, while the potential usefulness of the method in

a more complex business environment still has to be

proved.

Concrete techniques for elicitating the user re-

quirements were just mentioned. Possible techniques

should concretizised and assigned to the several

stages during further improvement of the method.

Therefore contingency approaches for situation-

specific choice of methods and techniques of re-

quirements elicitation could be useful. This would

allow a rational choice between available tech-

niques. In addition, techniques for inter-model trans-

formation should be more formalized, whereas the

possibility of tool support would arise.

Though the information requirements are the key

success factor of data warehouse development, other

requirements, like performance, usability and main-

tainability, were not regarded. The enhanced data

warehouse architecture from section 2 of this paper

can be used as a framework for modelling and im-

plementation this requirements. For example per-

formance requirements can be realized alternatively

through optimization of the logical data model (par-

titioning of tables or fractional design) or through

physical techniques (indexing). These advanced re-

quirements should be more regarded on further im-

provement of the method.

REFERENCES

Abello, A., Samos, J. and Saltor F., 2000. A Data Ware-

house Multidimensional Data Models Classification.

Grenada: Technical Report LSI-2000-6, Dept. Llen-

guages y Sistemas Informáticos.

Blaschka, M., 2000. FIESTA: A Framework for Schema

Evolution in Multidimensional Databases. Dr. Techni-

cal University Munich.

Bonifati, A. et al., 2001. Designing Data Marts for Data

Warehouses. ACM Transactions on Software Engi-

neering and Methodology, 10 (4), pp. 452483.

Browne, G. and Rogich, M., 2001. An Empirical Investi-

gation of User Requirements Elicitation: Comparing

the Effectiveness of Prompting Techniques. Journal of

Management Information Systems, 17 (4), pp. 223–

249.

Bulos, D. and Forsman, S, 2002. Getting started ADAPT –

OLAP Database Design. San Rafael: Symetry Corp,

White Paper.

Gilb, T., 1988. Principles of Software Engineering Man-

agement. Reading et al.: Addison-Wesley.

Goguen, J. A. and Linde, C., 1993. Techniques for Re-

quirements Elicitation. Proceedings of IEEE Interna-

tional Symposium on Requirements Engineering 1993

in San Diego.

Golfarelli, M. and Rizzi, S., 1998. A Methodological

Framework for Data Warehouse Design. Proceedings

of the ACM first international Workshop on Data

Warehousing and OLAP 1998 in Washington.

Golfarelli, M., Maio, D. and Rizzi, S., 1998. Conceptual

Design of Data Warehouses from E/R Schemes. Pro-

ceedings of the Hawaii International Conference On

Systems Science 1998 in Kona.

METHOD FOR USER ORIENTED MODELLING OF DATA WAREHOUSE SYSTEMS

373

Hackney, D., 1998. Architectures and Approaches for

Successful Data Warehouses. [Online].

http://datawarehouse.ittoolbox.com/documents/docum

ent.asp?i=815

[Cited 19 January 2006].

Hahne, M., 2002. Transformation mehrdimensionaler

Modelle. In E von Maur and R Winter, eds. Vom Data

Warehouse zum Corporate Knowledge Center.

Heidelberg: Physica-Verlag, pp. 399–420.

Herden, O., 2001. Eine Entwurfsmethodik für Data

Warehouses. Dr. Universität Oldenburg.

Holten, R., 1999. Entwicklung von

Führungsinformationssystemen. Ein

methodenorientierter Ansatz. Dr. Universität Münster.

Jarke, M. et al., 1999. Architecture and Quality for Data

Warehouses: An Extended Repository Approach. In-

formation Systems, 24 (3), pp. 229–253.

Kimball, R. and Ross, M., 2002. The Data Warehouse

Toolkit. New York: John Wiley.

Larman, C. and Basili, V. R., 2003. Iterative and Incre-

mental Development: A Brief History. IEEE

Computer, 36 (6), S. 4756.

Lehner, W., 2003. Datenbanktechnologie für Data-

Warehouse-Systeme: Konzepte und Methoden. Heidel-

berg: dpunkt-Verlag.

List, B. et al., 2002. A Comparison of Data Warehouse

Development Methodologies Case Study of the Proc-

ess Warehouse. Proceedings of the 13

international

conference on Database and Expert Systems 2002 in

Aix-en-Provence.

Nordbotten, J. C. and Crosby, M. E., 1999. The effect of

graphic style on data model interpretation. Information

Systems Journal. 9 (2), pp. 139–155.

Ong, H., 1999. The Evolution Of A Data Warehouse Ar-

chitecture - One Size Fits All? [Online].

http://www.aurora-consult.com.au/white.html

[Cited 19 January 2006].

Ortner, E., 1995. Elemente einer methodenneutralen

Konstruktionssprache für Informationssysteme.

Informatik - Forschung und Entwicklung, 10 (3), pp.

148–160.

Peralta, V. and Ruggia, R., 2003. Using Design Guidlines

to improve Data Warehouse logical Design. [Online].

http://www.fing.edu.uy/inco/grupos/csi/esp/Cursos/cur

sos_act/2003/DAP_SistDW/Material/DesGuidelines-

VPRR.pdf

[Cited 19 January 2006].

Prakash, N. and Gosain, A., 2003. Requirements Driven

Data Warehouse Development. Short Paper Proceed-

ings of The 15th Conference on Advanced Information

Systems Engineering 2003 in Klagenfurt / Velden.

Quigley, E. J. and Debons, A., 1999. Interrogative Theory

of Information and Knowledge. Proceedings of the

ACM SIGCPR conference on Computer personnel re-

search 1999 in San Diego.

Quix, C. J., 2003. Metadatenverwaltung zur

qualitätsorientierten Informationslogistik in Data-

Warehouse-Systemen. Dr. Technische Hochschule

Aachen.

Schelp, J., 2000. Modellierung multidimensionaler

Datenstrukturen analyseorientierter

Informationssysteme. Dr. Universität Bochum.

Simitsis, A. and Vassiliadis, P., 2003. A Methodology for

the Conceptual Modeling of ETL Processes. Decision

Systems Engineering Workshop (DSE'03), in conjunc-

tion with the 15th Conference on Advanced Informa-

tion Systems Engineering (CAiSE '03) 2003 in Klagen-

furt / Velden.

Simitsis, A., 2003. Modeling and managing ETL Proc-

esses. Proceedings of the VLDB 2003 PHD Workshop

2003 in Berlin.

Stahlknecht, P. and Hasenkamp, U., 2005. Einführung in

die Wirtschaftsinformatik. 11. ed. Berlin et al.:

Springer.

Trujillo, J. and Lorán-Mora, S., 2003. A UML Based Ap-

proach for Modeling ETL Processes in Data Ware-

houses. Proceedings of the ER 2003 in Chicago.

Valusek, J. R. and Fryback, D. G., 1985. Information re-

quirements determination obstacles within, among and

between participants. Proceedings of the twenty-

firstannual conference on computer personnel re-

search 1985 in Minneapolis.

Vassiliadis, P., Simitsis, A. and Skiadopoulos, S., 2002a.

Conceptual Modeling for ETL Processes. Proceedings

of the 5th International Workshop on Data Warehous-

ing and OLAP 2002 in McLean.

Vassiliadis, P., Simitsis, A. and Skiadopoulos, S., 2002b.

On the logical Modeling of ETL Processes. Proceed-

ings of the 14th conference on advanced information

Systems Engineering 2002 in Toronto.

Vassiliou, Y. et al., 2000. Data Warehouse Research: Is-

sues and Projects. In M Jarke et al., eds. Fundamentals

of Data Warehouses. Berlin et al.: Springer, pp. 15–

21.

Wand, Y. and Weber, R., 2002. Research Commentary:

Information Systems and Conceptual Modeling - A

Research Agenda. Information Systems Research, 13

(4), pp. 363–376.

Winter, R. and Strauch, B., 2003. A Method for Demand-

driven Information Requirements Analysis in Data

Warehousing Projects. Proceedings of the 36th Hawai

International Conference on Systems Science 2003 in

Hawaii.

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

374
