MINIMIZING THE COMPLEXITY OF DISTRIBUTED

TRANSACTIONS IN CORPORATE ARCHITECTURES WITH

THE USE OF ASYNCHRONOUS REPLICATION

S. R. Poltronieri, S. F. Paula, L. N. Rossi

Departamento de Informática da Reitoria – Universidade de São Paulo - Brasil

Rua da Reitoria, 109 - Bl K – 2

andar

Butantã, São Paulo - SP

ZIP CODE 05508-900

Keywords: Database, asynchronous replication, two-phase commit, distributed transactions.

Abstract: In software architectures commonly adopted by large corporations, the use of the “two-phase commit”

protocol for distributed transactions presents inconveniences such as code complexity, long response times

for the final user and need of an environment that allows complete simultaneity. We present here an

alternative strategy, based on asynchronous replication, successfully implemented since 1997 at the

University of São Paulo as infrastructure of integration for its corporate systems, which propitiates

distributed transactions in the context of databases deployed at several host servers.

1 INTRODUCTION

In an application with transactions distributed

through several databases, the “two-phase commit”

protocol is commonly used to guarantee the integrity

among the several databases. This strategy, however,

presents inconveniences: it makes the transactions

lengthy and its code more complex, burdening the

development teams and reducing the satisfaction of

the user in regard to the response times. In addition,

in order to complete a transaction, this strategy

requires that all the servers involved are

simultaneously available; namely, it depends on a

network infrastructure and on servers that present

high availability.

In this article we present an alternative strategy

of implementation using asynchronous replication of

data, which can face these problems, simplifying the

applications and integrating many databases in

different hosts. This strategy combines physical

project of the databases, the way the applications

connect to them and some features of a commercial

replication agent.

This solution is in use since 1997 for the

corporate systems of the University of São Paulo,

Brazil, to support the activities of the institution,

which today counts with 32 integrated databases.

2 TWO-PHASE COMMIT

VERSUS ASYNCHRONOUS

REPLICATION

The strategy “two-phase commit” is synchronous,

i.e., it implies that a transaction is only completed

after each one of the participants guarantees that the

transaction has been completed locally. If any of the

participants does not answer because the transaction

was not completed locally, or even due to

connectivity fault, all transaction is undone

(rollback). For instance, in scenery where a

transaction is distributed in five databases, it is

necessary to wait for the five databases to answer

affirmatively in order to consider the transaction

concluded. If, for any reason, the transaction needs

to be redistributed to a larger number of databases,

the transactional control needs to be recoded and it is

expected an increase in the response times. If one of

the databases is not accessible at the moment of the

transaction, it is undone in all the databases.

With the use of asynchronous replication data

changes do not happen at the same time. The

transaction is completed in a database and reapplied

to the others. If the transaction fails in one of the

databases, it does not necessarily fail in all the

323

R. Poltronieri S., F. Paula S. and N. Rossi L. (2006).

MINIMIZING THE COMPLEXITY OF DISTRIBUTED TRANSACTIONS IN CORPORATE ARCHITECTURES WITH THE USE OF ASYNCHRONOUS

REPLICATION.

In Proceedings of the Eighth International Conference on Enterprise Information Systems - DISI, pages 323-330

DOI: 10.5220/0002458103230330

 SciTePress

databases. Transactions are undone just in the site

where the fault occurs and they are submitted again

later on. This strategy always implies in a period of

latency for the data to be available (replication

latency). Updates delays will always occur in

databases that are inaccessible, but the other

databases will be updated after the time of latency.

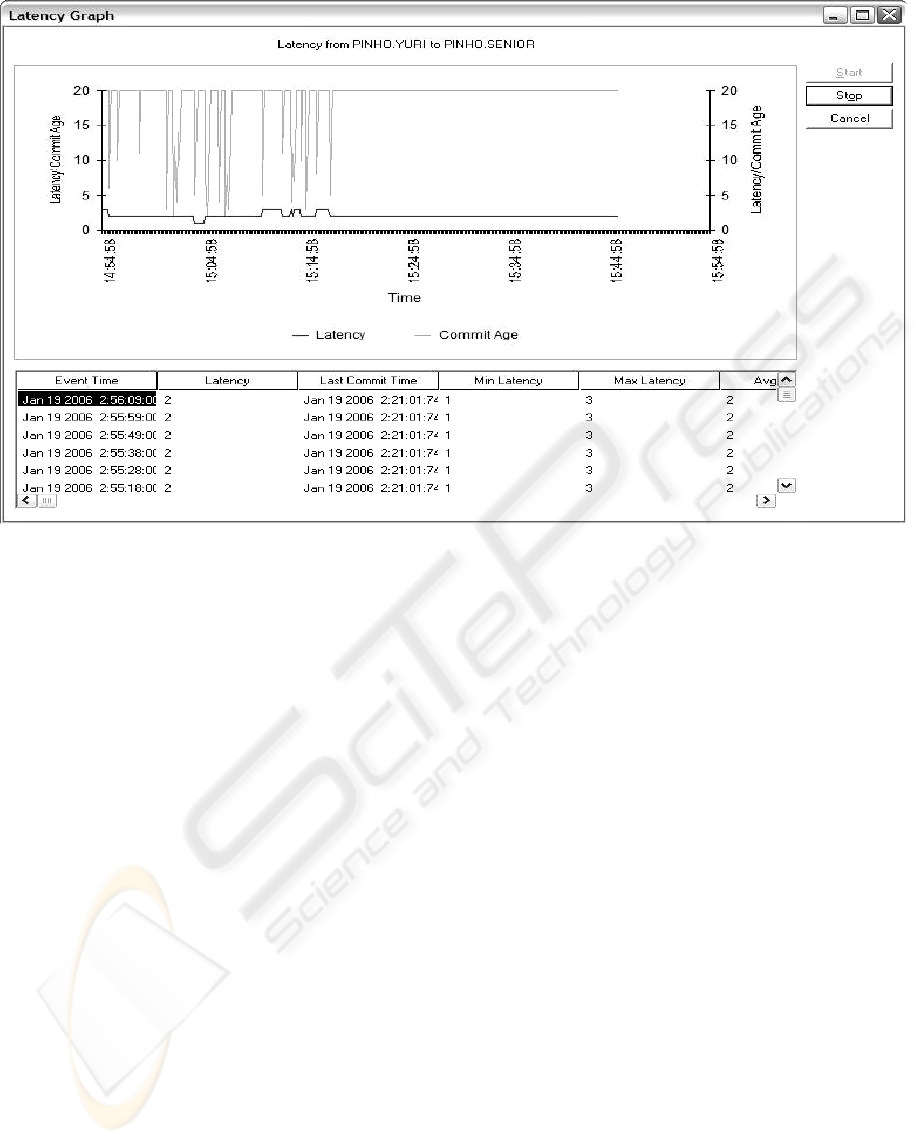

Nevertheless, a measure of the latency can be

used by the application to limit risks for some

transactions. For example, an application can change

its behavior using an estimate of latency as an

advisory. If the latency is above a pre-defined

threshold, the application can reduce the values of a

loan or withdrawal.

3 IMPLEMENTATION AT THE

UNIVERSITY OF SÃO PAULO

Founded in 1934, the University of São Paulo (USP)

is the largest institution of higher education and

research in Brazil, and the third in size in Latin

America. With 746 courses taught in its teaching and

research units, 202 of which are undergraduate

courses attended by approximately 46,000 students,

and 487 are graduate courses (including 280 for

masters' and 264 for doctors' degrees). Its teaching

units are distributed among its eight campuses

spread in six cities.

To support its activities, USP has a complex

administrative infrastructure, most of which is

centralized in the city of São Paulo, but operations

are wide decentralized: each of the teaching units

has its administrative office and there are regional

headquarters hosted in each campus.

To confront this complexity, each business area

has its workflows implemented in control systems

for the business area (here called “application”).

However, since many of the flows pass through

more than one area, data integration is highly

needed.

The corporate data model of the University of

São Paulo was conceived to support this integration

and distribution of data and applications. This

logical model cover all businesses of the University

(Academic control for undergraduate and masters

degrees, Finances, Human Resources etc.) and it is

structured as a single relational model for all the

institution, having an extensive number of entities

and relationships. The physical implementation, due

to performance and availability considerations, is

distributed among several databases.

At the time of the initial implementation, the

hardware available at the University could not

operate satisfactorily all these databases from the

same server. The choice made, therefore, was to

distribute the databases among 4 servers, each one of

them concentrating on one of the main business

areas.

This scenery, if implemented in the traditional

“n-phase commit” way, would have implied in high

code complexity and transactional cost regarding

tables of common use to the applications, because,

in addition to repeating the same transaction in

several databases, guaranteeing in this way the

referential integrity of the model, each application

would have to establish connections with each one

of these databases for reading or recording

operations.

The physical implementation followed the

premises and definitions below:

3.1 Global Data Model

The downsizing process, that motivates systems

migration from mainframe to client server, started

with premise of a unique and integrated logical data

model, internally named “global data model”. This

logical abstraction was the answer to integration

problems with old mainframe data structure (apart

databases, one for each business area) such as

different id for same people, address or personal data

updated only in one database and incorrect in others,

difficulty in identify the same people data in each

database and so on.

The global data model contains unique logical

abstractions for each concept used in corporate

systems, independently which application uses it.

For example; all personal data, used by all

applications, is stored in a “PERSON” table.

People’s roles, such as student, graduate, professor

or faculty staff are stored in another table set. All

these tables (persons, roles, relationships) constitutes

a sub-model named “PERSON”. Organizational

unity information is stored in a sub-model named

“STRUCTURE”. Another example is applications

access, that is centralized and its control data is

represented in sub-model “USER”.

Although logical abstraction is unique to each

concept (PERSON, by way of example), its physical

implementation is distributed among several

databases. All databases that require PERSON for

read data, consistency or referential integrity have a

PERSON table replica. PERSON is primary in one

and only one database (see 3.5.1). Nowadays there

are PERSON table replicas in 28 databases.

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

324

The applications’ use of tables determine their

physical distribution and is better explained in

section 4.

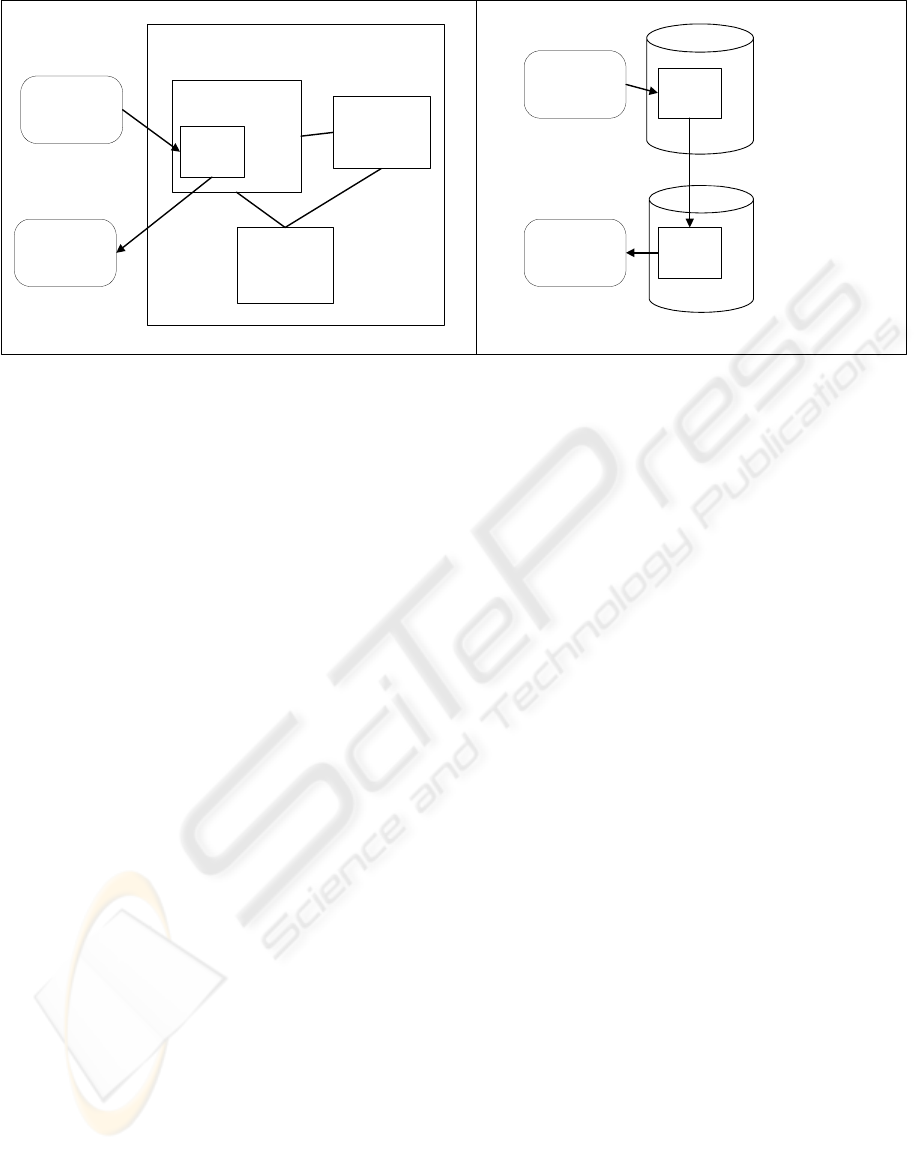

By way of example, logical and physical views

of PERSON table are showed schematically in

Figure 1.

3.2 Database Servers

The ambient is composed by 4 database servers.

3.3 Databases

The databases are grouped by business area and

distributed in the 4 servers. For example,

“undergraduate” and “graduate” databases lie in

same server. Each application has its preferential

database. “Human Resources” database is the one

that contains most of the tables and stored

procedures used by Human Resources management

application.

3.4 Replication Server

The replication agent chose for this implementation

is an autonomous and independent server that runs

in parallel mode to the database server (origin

database), scanning the current log of the databases

and writing all committed transactions executed at

the databases in a replication proprietary queue. This

queue is used to distribute data changes to other sites

(destination databases). The transactions are

reapplied in the destination databases in the same

order that occurred in the origin database, doing

another transaction at the destination databases. This

strategy preserves chronological events in all

databases. The replication agent guarantees that all

transactions on the replication queue are completed

on the destination databases, even if some of the

destinations are unavailable for a time. The pending

transaction lies in the queue until the destination

becomes available. Therefore, the replication latency

between the sites is very short if the environment has

high availability.

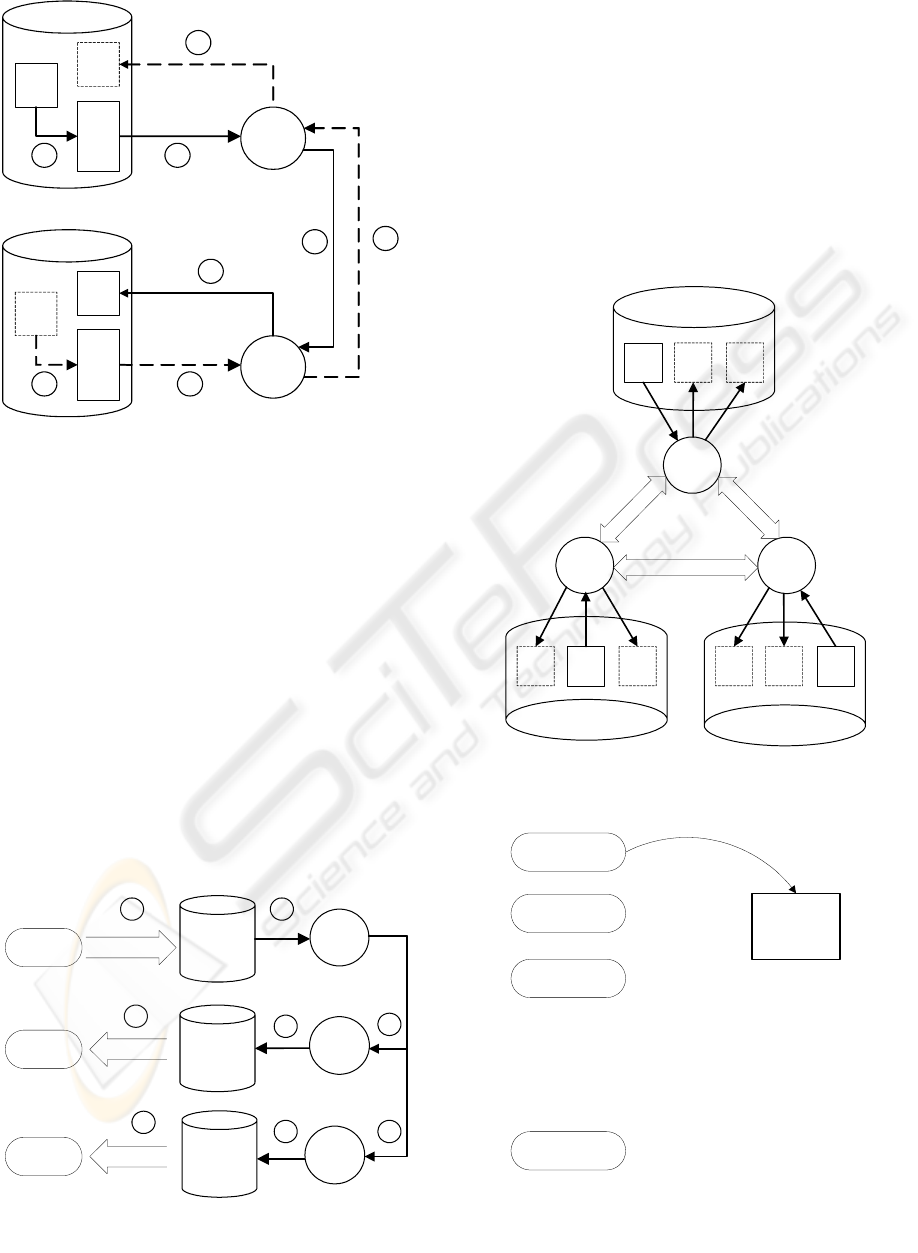

An instance of replication agent in each site

coordinates the data replication communicating with

replications agents in other sites. Thus, the main

tasks of a replication agent are to receive data

transactions from databases and distribute them to

sites with subscriptions for the data and to receive

transactions from other replication agents and apply

them to local databases, as showed schematically in

Figure 2.

Consider the tables T1 (primary in database DB1

and replicated in database DB2) and T2 (primary in

database DB2 and replicated in database DB1). The

replication process steps are:

1. Changes in table T1 are registered in

database DB1 log

2. Replication agent R1 reads data

transaction from DB1 log

3. Transaction is sent to replication agent R2

4. Replication agent R2 apply locally in

database DB2 the received transaction,

replicating the changes in table T1

This process is symmetric for table T2, and

occurs in analogue way, represented by steps 5 to 8

and dotted lines.

Global data model

Human

Resource

application

Academic

control

application

PERSON

table

PERSON

sub-model

STRUCTURE

sub-model

USER

sub-model

...

Logical view

Academic

control

database

Human

Resource

database

Human

Resource

application

Academic

control

application

PERSON

table

PERSON

table

replication

Physical view

Figure 1: Global data model - logical and physical views.

MINIMIZING THE COMPLEXITY OF DISTRIBUTED TRANSACTIONS IN CORPORATE ARCHITECTURES WITH

THE USE OF ASYNCHRONOUS REPLICATION

325

3.5 Tables

3.5.1 Primary and Replicated Tables

Regardless of the application that is manipulating

the data, all the transactions of data manipulation

(insert, update and delete) on a table should

necessarily occur in a single database. The motto of

this strategy is “write once here, read anytime,

anywhere”. This fundamental premise implies that

each table is primary in only one site. Other sites

contain a replica of the table (replicated table) and

the applications only read data from replicated

tables.

The process is summed up in Figure 3:

1. Application A1 transacts in database DB1

updating data on some table

2. Replication agent R1 receive data

transaction

3. Transaction is sent to other replication

agents (R2 and R3)

4. These agents apply locally the received

transactions (in DB2 and DB3

respectively)

5. Replicated data (updated!) in DB2 and

DB3 is available to applications A2 and

DB1

writeA1

DB2

DB3

read

1 2

Figure 3: Database access and replication process.

DB1

T1 T3T2

DB2

T1 T3T2

DB3

T1 T3T2

R2 R3

Figure 4: Scalable architecture.

read,write

no action

Only ONE

application access

the table

Table

Analyzed

Figure 5: Unique table.

DB1

DB2

Figure 2: Basic structure of a replication system.

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

326

Actually, this solution has properties of

symmetry, is scalable and presents emergent

behavior. If table T1 is primary in database DB1,

table T2 is primary in DB2 and table T3 is primary

in DB3 and all tables are mutually replicated, we can

construct a very complex architecture based in this

simple mechanism (Figure 4).

3.5.2 Unique Tables

A table which residence was defined in only one

database in the whole ambient is called “unique

table”. Unique tables are commonly accessed by

only one application (Figure 5).

3.5.3 Common Tables

Some tables, used by several applications, such as

tables with data of the organizational structure, of

people and their roles and relationship with the

institution (students, faculty employees, suppliers,

etc.), end up residing in more than one database and

even in different servers.

A table which residence was defined in more

than one database in the whole ambient is called

“common table” (Figure 6). In general, all databases

end up possessing a group of common tables.

4 STRATEGY OF SITE

ELECTION FOR PRIMARY

AND REPLICATED TABLES

The tables are usually grouped by application. For

each application, a main database is chosen, that is, a

database in which the group of tables used by the

application will reside. The relationships are

respected in this grouping, guaranteeing the

implementation of the referential integrity through

the migration of keys.

The business and its respective applications

maintain a hierarchy of responsibility on the data.

For instance, the students’ personal data are the

responsibility of the academic systems. If a person is

at the same time student and faculty employee, the

responsibility of that person’s data becomes of the

human resources system.

For each common table, it is analyzed which

application requires more transaction on it, that is,

which applications will accomplish more frequently

operations of data manipulation (insert, update and

delete).

It is elected as primary database of the table the

one that is the “preferential” database of the

application that is more demanding of operation on

the table.

The operations of data manipulation on this table

(insert, update and delete) will be made by the

applications only in the primary database. The other

sites (replicated sites) will contain only a replica of

this table, for reading or referential integrity

purposes. A “Student” table will lie in “Academic”

database, where its data are changed and updated.

The Library application will use “Student” only to

read students personal data, such as address to get

back a lent book.

The ways that each table are accessed by the

several applications (Figures 5 and 6) are analyzed

and the use – r=read, w=write (update, delete, insert)

– is mapped (sample in Table 1).

Applying the concept of preferential database of

the application, the primary site (P), the replicated

sites (R) and the site in which the table is unique (U)

are defined for each of the common tables (sample

in Table 2).

If a table is used for more than one application,

the primary site of the table is chosen as the

preferential database of the application that:

1. requires more operations of data manipulation

on the table or

read

Table

Analyzed

No action

read, write

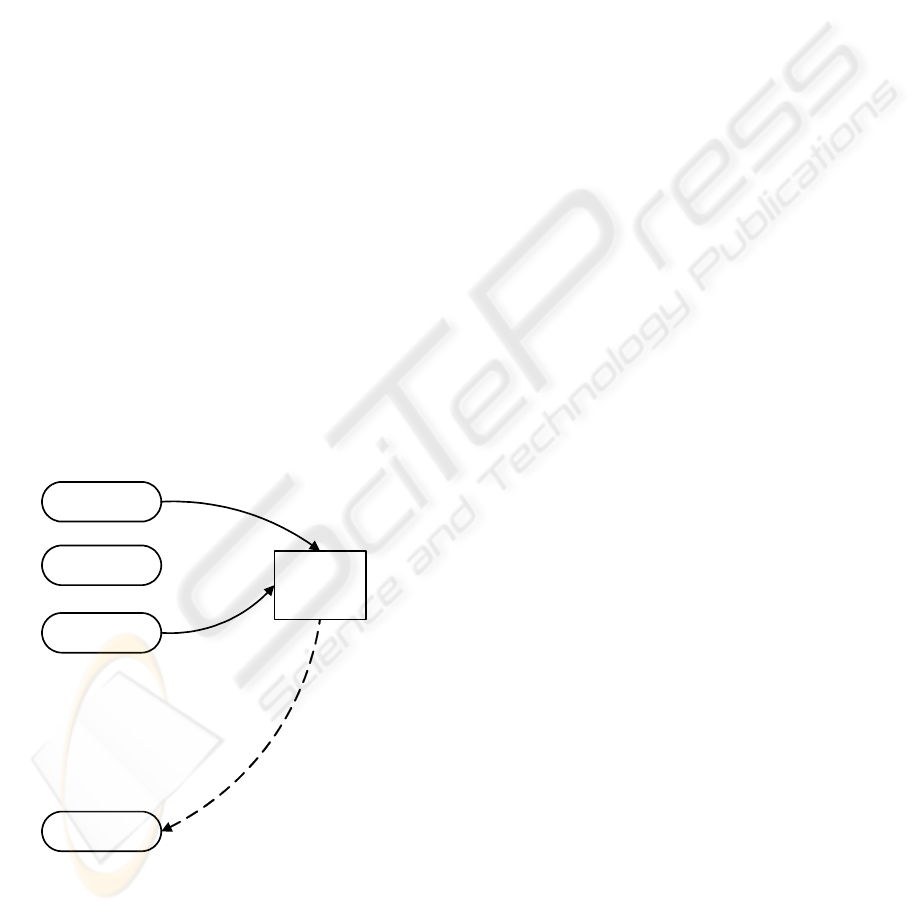

Figure 6: Common table.

MINIMIZING THE COMPLEXITY OF DISTRIBUTED TRANSACTIONS IN CORPORATE ARCHITECTURES WITH

THE USE OF ASYNCHRONOUS REPLICATION

327

2. posses more referenced tables for the table in

question or

3. requires minor latency of data update

Table 1 : Access of the Tables by the Applications.

Applications

Table A1 A2 A3 .. An

T1 r,w r r .. -

T2 r - r .. r

T3 - r - .. r

T4 r r r .. r

...

Tn - r,w - .. -

Table 2 : Tables and their respective sites.

Databases

Table DB1 DB2 DB3 .. . DBn

T1 P R R .. . -

T2 R - R .. R

T3 - R - .. R

T4 R R R .. R

...

Tn - U - .. -

5 STRATEGY OF THE

TRANSACTIONS IN EACH

APPLICATION

The applications are then coded according to the

architecture described above, establishing in a

selective way connections with the databases for the

accomplishment of the operations of data

manipulation (select, insert, update and delete).

5.1 Insert and Update

All transactions of any application that involve

insert or update shall be accomplished only in the

database in which the common table is elected as

primary or unique.

5.2 Select

If the application only reads from some common

table, this can be accomplished in the own database

where the application is connected, since the table is

already there as replicated table.

5.3 Delete

In a similar way to the insert and update operations,

the transaction shall be accomplished only in the

primary site of the table, however, in this case, it is

necessary a verification and the previous removal of

the data from the referenced tables in all the

replicated sites before the removal is made in the

primary site so that the referential integrity of the

model is maintained among all the databases.

6 LATENCY MEASURE

The replication agent used has a graphic monitor

tool that shows information about replication

process between two databases. Typically it shows

how latency and commit age change with time.

Latency shows the time it takes to distribute an

update from a origin database and commit it to a

destination database. Latency includes replication

agent internal queue processing, network overhead

and replication agents (origin and destination)

processing. It is defined as the difference between

the time when the transaction was committed to

database destination and when the transaction was

committed on the origin database, considering time

zones difference:

latency = destination_commit – (origin_commit –

time_zone_dif)

Commit age shows the amount of time that has

passed since the last update was committed to the

origin database. A continuous increase in commit

age indicates that no new transactions have been

received. When this occurs, the graph shows the last

latency for which transactions were actually

committed and not the current latency.

A sample of graph provided by this tool is

showed in Figure 7. Latency and commit age are

measured in seconds. The sample was caught in a

interval of regular database use.

When processing small transactions, latency and

commit age are small because the replication agent

processes the transactions quickly. Large

transactions take longer for the replication agent to

commit and the number of transactions in queue

increases. If other transactions arrived in queue, the

latency stays constant and the commit age starts to

increase.

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

328

We can observe from graph that the latency is

always lower than 5 seconds, with average time of 3

seconds. Plateaus occur after the arrival of a single

large transaction spaced in time. Valleys occur after

a small transaction, and latency constant value with

maximum committed age (actually increasing, but

not showed in graph) means no transaction and the

latency value is the last latency value measured.

7 CONCLUSIONS AND FUTURE

WORKS

The strategy here presented has been implemented in

the corporate systems of the University of São Paulo

since 1997, initially with six databases. The first

applications to use this architecture were client-

server two-tier. The natural increase of the IT

participation in the business of the institution raised

this initial group to the 32 databases currently in use,

occupying 300 Gbytes of data, with more than 1,500

logic tables, implemented physically in more than

4,500 tables.

Even in the complex environment as the one

described here, the latency presented is very low

and, in practice, it is possible to say that the

integration of data is online, that is, data that is

handled by any of the applications are made

immediately available in all the environment for use

by other applications and users.

In addition, due to easiness of handling and

configuration of the replication agent, the

operational management is surprisingly simple,

requiring part-time work of only one IT staff

member.

From its conception, the solution has shown to

be absolutely robust and scalable. In the eight years

since its implementation, the model has supported

the growth of the number of modules of the

applications as well as the appearance of new

systems and, with the coming of applications in the

Web, it has shown to be extremely advantageous,

facilitating the fast and easy implementation of

several functionalities related, for instance, to safety

and performance, since the public consultations

made available through the Internet are

accomplished in databases that possess only

replicated tables for consultation, isolated from the

transactional ambient (OLTP).

Given the success of this strategy, we are

accomplishing studies for its use in the integration of

purchased software (with the proprietary data

model) to the corporate model of the institution.

Figure 7: Latency and commit age graph.

MINIMIZING THE COMPLEXITY OF DISTRIBUTED TRANSACTIONS IN CORPORATE ARCHITECTURES WITH

THE USE OF ASYNCHRONOUS REPLICATION

329

REFERENCES

Ladin, R., Liskov, B., Shrira, L., and Ghemawat, S. 1992.

Providing high availability using lazy replication.

ACM Transactions on Computer Systems 10, 4

(Nov.), 360-391.

Sybase Replication Server Design Guide, 1995,

Replication Server Technical Publications - Sybase,

Inc., Doc ID 32580-01-1100-01

Sybase Replication Server Administration Guide, 1995,

Replication Server Technical Publications - Sybase,

Inc, Doc ID 32511-01-1100-02

Sybase Replication Server Manager User’s Guide for

Microsoft Windows, 1996, Systems Management

Products Technical Publications - Sybase, Inc, Doc ID

32002-01-1100-01

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

330
