BUSINESS PROCESSES: BEHAVIOR PREDICTION AND

CAPTURING REASONS FOR EVOLUTION

Sharmila Subramaniam, Vana Kalogeraki and Dimitrios Gunopulos

Department of Computer Science and Engineering

University of California, Riverside

900 University Ave, Riverside, CA 92521

Keywords:

Workﬂow graph models, classiﬁcation, workﬂow mining.

Abstract:

Workﬂow systems are being used by business enterprises to improve the efﬁciency of their internal processes

and enhance the services provided to their customers. Workﬂow models are the fundamental components

of Workﬂow Management Systems used to deﬁne ordering, scheduling and other components of workﬂow

tasks. Companies increasingly follow ﬂexible workﬂow models in order to adapt to changes in business

logic, making it more challenging to predict resource demands. In such a scenario, knowledge of what lies

ahead i.e., the set of tasks that are going to be executed in the future, assists the process administration to take

decisions pertaining to process management in advance. In this work, we propose a method to predict possible

paths of a running instance For instances that deviate from the workﬂow model graph, we propose methods

to determine the characteristics of the changes using classiﬁcation rules.

1 INTRODUCTION

Workﬂow management systems are widely being

used by many business companies to automate their

processes, and reﬁne and improve the services they

offer to their customers. Workﬂow process mod-

els deﬁne the ordering, scheduling and dependencies

of the workﬂow tasks, enabling process automation,

maintenance, diagnosis etc. The efﬁciency of a busi-

ness’ internal and external processes plays a vital role

in determining the competency of its services.

Today, workﬂows need to be ﬂexible (Sadiq et al.,

2005a; Sadiq et al., 2005b) in order to accommodate

varying business process requirements and provide

fast and reliable services. In addition, since workﬂow

models are designed manually, they may not incorpo-

rate the complete set of business logics that drive the

processes and, thus, often result in suboptimal service

performance. Furthermore, frequent changes in busi-

ness requirements trigger corresponding changes in

the deﬁnition of the process workﬂow (van der Aalst

et al., 2003; Casati et al., 1998). Due to these reasons,

the process instances do not always follow the work-

ﬂow graph model. Even in cases when the instances

follow the graph model, the complexity of the work-

ﬂows makes it very difﬁcult to predict the future state

of a running instance accurately.

In our work, we consider workﬂow systems that

follow ﬂexible models, as described in (van der Aalst

et al., 2003; Sadiq et al., 2005a). We propose a

method for predicting the behavior (i.e., determine the

future tasks) of a long running process instance, by

analyzing the data stored in the workﬂow log of the

corresponding process. For the instances that do not

follow the graph model, we identify the likely con-

ditions for the deviations that happen. We use these

conditions to change the workﬂow models, where ap-

propriate.

Predicting the future of running instances helps in

assessing their future resource requirements and in

scheduling their execution efﬁciently. As a motivat-

ing example, consider the graph model shown in Fig-

ure 1. Let us assume that the administrator is re-

quired to schedule the upcoming tasks at the stage

ST of execution. Let R1 be the resource requirement

(e.g., cpu, memory, disk) for the sub-process marked

as S1; where the load on resource R1 is constrained

by its maximum value R1

max

. Suppose there are n

instances waiting at stage ST and the administrator

has to verify if all these instances can be scheduled

to proceed, without overloading R1. Such a scenario

is very frequent in any resource constrained business

environment. A pessimistic approach would be to as-

sume the worst case scenario and ensure that the sum

Subramaniam S., Kalogeraki V. and Gunopulos D. (2006).

BUSINESS PROCESSES: BEHAVIOR PREDICTION AND CAPTURING REASONS FOR EVOLUTION.

In Proceedings of the Eighth International Conference on Enterprise Information Systems - ISAS, pages 3-10

DOI: 10.5220/0002464900030010

 SciTePress

A5 A6 A7

SA1A2 C1 M1A3 E

A4 J1F1

Sub−process S1 requiring

resources R1

Sub−process S2 requiring

resources R2

Stage ST

(a)

A5 A6 A7

C1 M1A3

A4 J1F1

S A1A2C2 M2E

A10 A11 A12

Stage ST

If Output(A2)=X

(b)

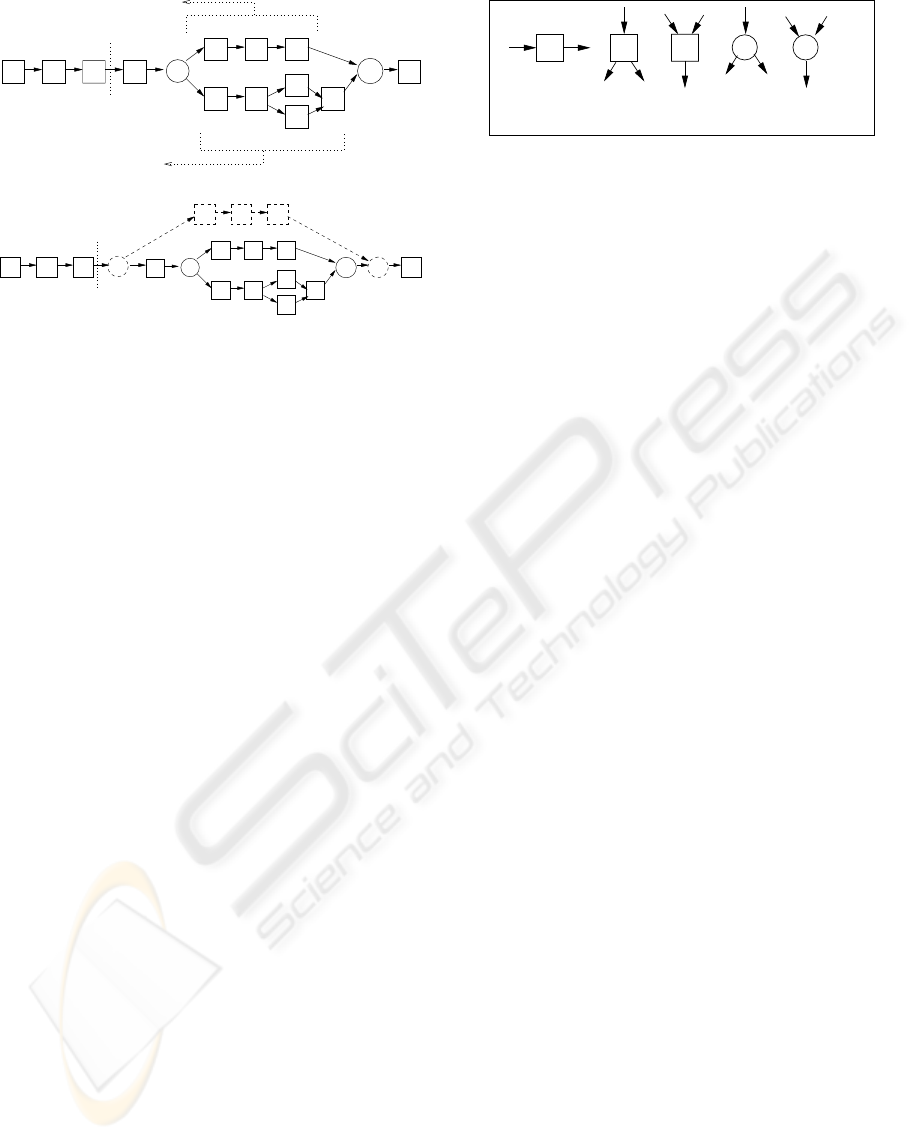

Figure 1: (a) S1 requires resources R1 and S2 requires

resources R2. ST is the stage where the future activ-

ities are predicted. (b) Tasks A10, A11 and A12 are

added to the process model when the frequency of the in-

stances S, A1,A2,A10,A11,A12,Eis sufﬁciently high in

the workﬂow log. The characteristic of this instance is de-

termined as Output(A2) = X and a choice node is added

to capture it.

of the resource requirements of all the n instances is

less than R1

max

at any point of time. This could be

achieved by doing ofﬂine analysis of all the processes

and their corresponding resource requirements. How-

ever, as stated, this is a pessimistic approach, and may

end up under-utilizing the resources. Furthermore,

it does not take into account the possibility that S2

could be chosen at C1. Our approach is to predict

how many of the n instances are likely to follow the

S1 path. Predicting the path will enable us to schedule

the execution of the instances accordingly and, thus,

achieve better resource management.

As stated earlier, in a ﬂexible workﬂow environ-

ment, the instances in the workﬂow log or the pre-

dicted path of the current instance need not adhere

to the workﬂow model graph. For example, some

instances in the workﬂow log corresponding to the

process shown in Figure 1 may have the following

task execution order: S, A1,A2,A10,A11,A12,E.

If the frequency of occurrence for such instances is

found to be high, then the initial graph model has to

be modiﬁed to adapt to this change. Characteristics

of such instances, i.e., executed if Output(A2) = X,

are identiﬁed and the model graph is modiﬁed accord-

ingly.

For our work, we assume that an initial workﬂow

graph model that corresponds to the process execution

is given. We require that the workﬂow log contains

the ordered set of events of each execution and the

input/output data values of these events.

In this paper, we propose the following:

Fork Join MergeChoiceTask

Figure 2: Workﬂow Graph Constructs.

• We denote the possible set of instances of a work-

ﬂow model graph as workﬂow instance types.

Given a running process, we propose to predict

the behavior of this instance type. We apply a

classiﬁcation algorithm to the workﬂow log, con-

sidering the instance types as classes, and predict

the instance type of the running process instance.

The prediction is performed based on the output

values of the set of activities executed so far.

• For evolving workﬂows, some of its instances

do not adhere to the workﬂow graph. We pro-

pose to learn such changes over time and esti-

mate their characteristics (i.e, the conditions un-

der which the instances deviate from the work-

ﬂow graph model). This can assist in the process

re-engineering step where the process model is re-

designed to adapt to the changes and thus improve

its performance.

2 PRELIMINARIES

In this section, we give a brief overview of the

workﬂow graph model used in this paper and give de-

ﬁnitions for the workﬂow log and workﬂow instance

types. We model the processes using workﬂow graph

technique similar to that described in (Greco et al.,

2005). This is homomorphic to the other models

proposed in the literature (van der Aalst and van Hee,

1996; Georgakopoulos et al., 1995).

Deﬁnition (Workﬂow Graph G

): The con-

trol ﬂow graph G

of a process P is a tuple

(A, S, E, CF ) where A is the set of activities, S ∈ A

is the starting activity, E ∈ A is the ﬁnal activity,

CF ⊆ (A − E) × (A − S) is the set of edges deﬁning

the control ﬂow sequence between the activities. The

activities can refer to a task in the process or any

router nodes, choice or fork.

Figure 2 illustrates the building blocks of the work-

ﬂow model. Their descriptions are as follows:

Task Nodes (T) represent the individual tasks needed

to accomplish the process. Fork Nodes represent the

AND split. The fan-out paths that split from a fork

node synchronize later using the Join node. The Join

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

Node waits until all the control ﬂow in-transitions of

the node are triggered, before proceeding with the

next activity. Choice Node (or Decision Point) rep-

resent the XOR split, having mutually exclusive/ al-

ternative paths out of it. Merge Node merges the ex-

clusive paths out of the Choice node into one path.

It is triggered when any one of the control ﬂow in-

transitions is ﬁred.

Input data container Input(a) (a ∈ A) and output

data container Output(a) (a ∈ T ) of a node a are

deﬁned as:

•∀a ∈ A, Input(a) is a set of data items V

that a

consumes, where V

⊆ Workﬂow Data

•∀a ∈ T , Output(a) is a set of data items V

that

a writes to, where V

⊆ Workﬂow Data

where Workﬂow Data is the set of data items for the

process under consideration (Sadiq et al., 2004).

An instance of a workﬂow process is a single real-

ization of the process. Collection of the instances pro-

duced by a process workﬂow is referred to as work-

ﬂow log.

Deﬁnition (Workﬂow Log L): For a process P ,a

workﬂow trace wt is a string (T

)

∗

representing

the sequence of tasks and their outputs, where T

the identiﬁer for task that was executed and V

is the

value recorded(output) by the task. Workﬂow Log

of process P , L

is thus deﬁned to be a set of traces

wt, i.e. L

= {wt}.

Instances of a workﬂow graph model may process

different sets of activities due to the presence of the

choice nodes. All possible workﬂow instances of a

process can be classiﬁed into workﬂow instance types

as described in (Gruber, 2004).

Deﬁnition (Workﬂow Instance Types): A workﬂow

instance type refers to the workﬂow instances where

at each choice node, the same successor node is cho-

sen.

Thus the workﬂow instances of a workﬂow in-

stance type contain exactly the same set of activi-

ties. We denote the set of possible instance types

of a graph model G as E

. For the workﬂow

graph model shown in Figure 1(a), following are the

instance types: (S, A

,E) and

(S, A

, (A

)||(A

),E). Note that more

than one type of trace can be associated with an in-

stance type. For example, (S, A

, A

, E) and (S, A

, A

, E) are the

traces that belong to the second instance type above.

3 PROBLEM DEFINITION

In this paper, we consider the problem of predicting

the future execution of an active workﬂow instance,

which will enable efﬁcient resource management and

better understanding of the future requirements of the

instance. Our approach is based on analyzing the

workﬂow log and predicting the future execution in

terms of the instance types (as deﬁned by (Marjanovic

and Orlowska, 1999)). Predicting the future of the ac-

tive instance l

in terms of the possible instances or

the possible instance types implicitly takes into ac-

count the correlation between the tasks that are exe-

cuted in sequence i.e., whenever A

is executed, it is

followed by task A

in the process model shown in

Figure 1. This will not be true if we predict the future

as the set of tasks that will be executed in future.

The number of possible instances in a workﬂow is

typically exponential and we seldom have sufﬁcient

data to train for all possible instances. Though the-

oretically it can be equal, the number of possible in-

stance types is far less than the number of instances in

most of the workﬂows in business enterprises.

Therefore, we propose to forecast the future of

an active instance by predicting its possible instance

types. In particular, the problems we consider in this

paper are the following:

Problem 1 (Prediction of Paths) Assume a

process P , its control ﬂow graph G

and the set of

process instances L

. For the current instance l

, and

the current task T

that is being executed as a part of

, our goal is to predict the set of tasks that are most

likely to be executed toward completion of l

We address the problem by applying classiﬁcation

techniques to the workﬂow log - analyze traces with

similar output values as in l

and predict the future

tasks. In our approach to solving the above prob-

lem, we classify the possible traces in L

according

to their Instance Types. We predict the future set of

activities in terms of the instance type that the current

process instance is likely to be in.

In current business enterprises, processes follow

ﬂexible workﬂows where the workﬂow graph models

serve as a guidance for the process execution. This

ﬂexibility in workﬂow systems is necessary to allow

reﬁnement and accommodate process logics that were

missed in the design phase. In such scenarios, in-

stances can deviate from the process deﬁnition pro-

vided by the graph model. Such deviations could ei-

ther be exceptions, i.e., a rare occurrences, or evo-

lutions i.e., the instance adapting to a change in the

process logic. In the latter case, it becomes necessary

to periodically discover such instances and restructure

the graph model accordingly.

When a set of instances deviates from the initial

process deﬁnition, we determine whether it is an ex-

ception, or if it calls for a change in the graph model.

Problem 2 (Capturing Evolution of Models) If a

set of paths deviate from the workﬂow deﬁnition in

, ﬁnd the conditions under which the deviation oc-

curs and determine if it is an evolution of the workﬂow

that will require adaptation of the graph model.

BUSINESS PROCESSES: BEHAVIOR PREDICTION AND CAPTURING REASONS FOR EVOLUTION

If an instance from the workﬂow log does not

match any of the instance types in E

we consider

that as a deviation. For deviating instances that occur

frequently, we identify their characteristics in terms

of classiﬁcation rules. This serve as input to work-

ﬂow graph restructuring. Essentially, we keep track

of the exceptions, and if the frequency of an excep-

tions is high we assume that the workﬂow model has

to be updated.

4 PREDICTION OF PATHS

In this section, we explain our method for predicting

the instance types, for a given active instance l

.We

illustrate the problem with an example process model

and explain the algorithm.

We consider the Order Processing Workﬂow model

graph shown in Figure 3. The workﬂow illustrates the

tasks involved in processing orders for items bought

by customers. After veriﬁcation of billing informa-

tion of an order, the order is sent to inventory con-

trol system. If the item that is ordered is not in the

inventory, it is shipped from suppliers A or B or

C, with A being the highly preferred supplier, then

B followed by C. To minimize the resources used

for transportation of goods from a supplier, it is nat-

ural for the dealer (who deals with the supplier) to

wait for as many orders as he could handle (for short,

Supplier

Max

), before contacting the supplier. How-

ever, waiting for the orders to arrive incurs delay in

processing the previous orders. For example, let us

consider the dealer who deals with the supplier B.

Assuming equal probabilities for all choices at each

choice node, only 25% of the orders arrive at sup-

plier B, which implies considerable wait time before

Max

is reached.

In such situations, it might be of interest to deter-

mine in advance how many of the current orders are

likely to arrive at B. The dealer can estimate the time

taken to reach B

max

and thus decide between sending

the order list to the supplier and waiting for further

orders. This illustrates one situation where predict-

ing the future activities assists in improving process

efﬁciency.

Let us consider the problem of estimating if a given

order will be ordered at supplier B, for the current task

= RB I. IT is a set of instance types consisting of

all the instance types corresponding to the workﬂow

log. Thus, IT can contain some instance types that

are not deﬁned by the workﬂow (this is possible due

to previous exceptional instances).

Let there be n traces in the corresponding work-

ﬂow log L, each denoted by l

, ..., l

and the

current trace be denoted by l

.Forl

, let the log so

far consist of:

(S, LOG AUTH.isEmployee = yes, LOG AUTH.discountRate =

10%, ROI.orderNo = 3456, ROI.itemId = 56, ROI.itemCount = 2,

RBI.isBillingAuth = yes)

We deﬁne sub-trace Pre(task, trace) of a trace as

follows:

Pre(task, trace): For a task T

executed during

process instance l

, we deﬁne Pre(T

) to be the

set of tasks in trace l

that are executed preceding

task T

We consider two sub-traces Pre(T

) and

Pre(T



) to be symbolically equal i.e.,

Pre(T

)  Pre(T



), if either the sub-traces

are identical or if for all tasks a, b ∈ Pre(T



)

such that a is executed before b in Pre(T



) and

b is executed before a in Pre(T

), a is executed

parallel to b according to the graph G

As the ﬁrst step, we extract all the traces l

from

log L that consist of task T

and where Pre(T

) 

Pre(T

). For the example under consideration, let

the following be two of the traces in L

Trace a:

(S, LOG AUTH.isEmployee = yes, LOG AUTH.discountRate

= 15%, ROI.orderNo = 3401, ROI.itemId = 24, ROI.itemCount = 1,

RBI.isBillingAuth = yes, SEND

INV.status = available, GET INV.status =

ready, PACK.status = ready, SEND.status = complete)

Trace b: (S, ROI.orderNo = 3413, ROI.itemId = 32, ROI.itemCount = 3,

RBI.isBillingAuth = yes, SEND

INV.status = notAvailable, SEND A.status

= ready, GET

A.status = complete, PACK.status = ready, SEND.status =

complete)

Thus, Pre(PBI,l

) will be symbolically equal

to the sub-trace Pre(T

,a) but not the sub-trace

Pre(T

,b).

From the set of traces l

in L that consist of task

PBI and where Pre(PBI,l

)  Pre(PBI,l

),we

extract the sub-traces Pre(PBI,l

) and denote the

set as L



. For each instance l

in L



, we add the in-

stance type of l

to the set of instance types IT ,ifit

is not already present in IT . We extract those items in

corresponding to tasks in Pre(PBI,l

) and form

the training set T rainingSet.

A sub-trace from Trace a with the information

about its instance type (given below) is an example

of a record in T rainingSet.

(S, LOG AUTH.isEmployee = yes, LOG AUTH.discountRate = 15%,

ROI.orderNo = 3401, ROI.itemId = 24, ROI.itemCount = 1) : IT1.

where IT1 is S, LOG AUTH, ROI, RBI, SND INV, GET INV, PACK,

SEND, E.

We apply a classiﬁcation algorithm to the set

of sub-traces from T rainingSet with the instance

types in IT as classes. The outputs of the tasks

in Pre(PBI,l

) are considered as the classiﬁca-

tion attributes. In particular, we apply decision tree

algorithm C4.5 (Quinlan, 1993) to generate classi-

ﬁcation rules, because it can handle missing items

in the T rainingSet gracefully. We apply the rules

to the current instance l

and forecast the instance

types of l

as the instance type with the highest ac-

curacy. For example, the classiﬁcation rules gener-

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

EMP? : Is employee of the company?

LOG_AITH : Authorize Login Information

ROI : Receive Order Information

RBI : Receive Billing Information

IS_INV? : Is in inventory?

SEND_INV : Send to Inventory Control

IS_IN_A? : Is available in Supplier A?

GET_A : Get item from Supplier A

SEND_A : Send item requirement to Supplier A

IT1: S, LOG_AUTH, ROI, RBI, SEND_INV, GET_INV, PACK, SEND, E

IT2: S, LOG_AUTH, ROI, RBI, SEND_INV, SEND_A, GET_A, PACK, SEND, E

IT3: S, LOG_AUTH, ROI, RBI, SEND_INV, SEND_B, GET_B, PACK, SEND, E

IT4: S, LOG_AUTH, ROI, RBI, SEND_INV, SEND_C, GET_C, PACK, SEND, E

IT5: S, ROI, RBI, SEND_INV, GET_INV, PACK, SEND, E

IT6: S, ROI, RBI, SEND_INV, SEND_A, GET_A, PACK, SEND, E

IT7: S, ROI, RBI, SEND_INV, SEND_B, GET_B, PACK, SEND, E

IT8: S, ROI, RBI, SEND_INV, SEND_C, GET_C, PACK, SEND, E

S EMP?

LOG_AUTH

ROI RBI SEND_INV

IS_INV?

IS_IN_A?

IS_IN_B?

GET_A

SEND_A

SEND_C

SEND_B

GET_C

GET_B

E SEND PACK

GET_INV

Explanation of Symbols

Instance Types

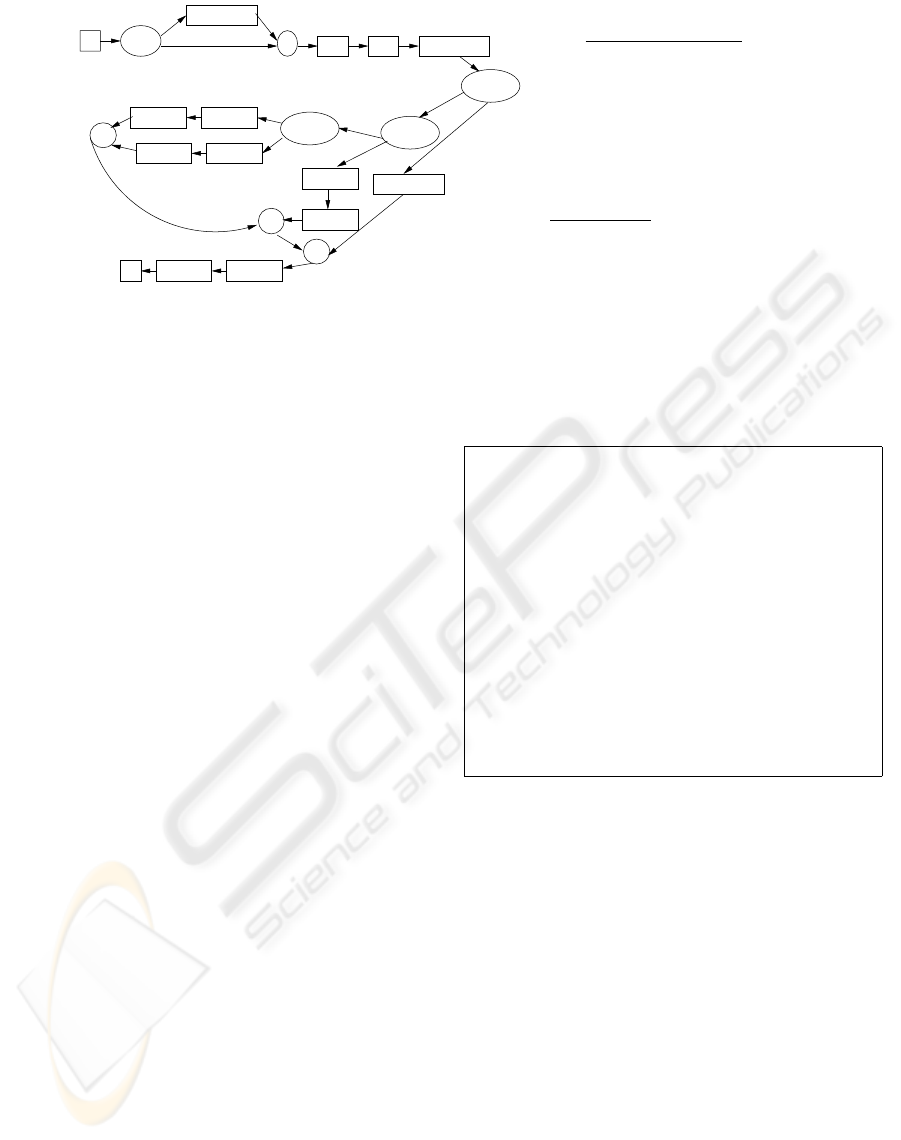

Figure 3: Example Process Model: Order Processing.

ated for the process model under consideration are:

If ROI.itemId < 50 and ROI.itemId > 10 and

ROI.itemCount < 10: IT1 (with accuracy=55%)

If ROI.itemId < 100 and ROI.itemCount > 50:

IT3 (with accuracy=67%)

Returning to the problem discussed in the previous

section, we see that it can be solved by predicting the

instance types of all the current orders, and estimat-

ing the number of orders that are likely to be in in-

stance type IT . For example, suppose O is the set

of orders that are likely to be in instance type IT 3 or

IT 7, and the accuracy of each of the orders o

∈ O

is acc(o

). The dealer can wait for the orders, if



∈O

acc(o

) > thr where thr is a user deﬁned

threshold value.

Algorithm in Figure 4 refers to the steps involved in

training and predicting the instance types of a current

instance l

. IT , the set of instance types correspond-

ing to the workﬂow log, is given as input to the algo-

rithm. In steps 3 to 5 of the algorithm (a), the work-

ﬂow log is scanned and new instance types, if any, are

added to IT . In the algorithm, part (a) correspond to

training the classiﬁer. If prediction is performed fre-

quently, after a particular stage of process execution,

then the classiﬁer need not be trained for every pre-

diction. Instead, already created models can be used

to predict the possible instance types (with steps in

part (b)).

As seen above, we group possible instances of a

workﬂow graph into instance types, and therefore we

do not keep the information about the execution order

of the tasks that are executed in parallel to each other.

Thus, our method is suitable for applications (such as

that explained in Section 1) where execution order of

the tasks executed in parallel i.e., A

and A

in Figure

1, is insigniﬁcant.

Given: Process P , its workﬂow model graph G

, workﬂow log L

and the set of instance types IT corresponding to workﬂow log L

(a) Train the classiﬁer for a task T

and current trace l

1. Let L



⊆ L

be the set of traces that consists of task T

and

where the set of tasks executed before T

is same as that in l

i.e, L



=[l

∈ L

and Pre(T

)  Pre(T

)].

2. for each trace l

in L



3. e

← Instance Type of l

4. if e

/∈ IT

5. IT = IT ∪ [e

]

6. l



← Items in l

that correspond to tasks in Pre(T

)

7. T rainingSet ← T rainingSet ∪ [l



]

8. Apply a decision tree algorithm to T rainingSet considering the

elements in IT as classes.

(b) Predict the instance type of the current instance l

1. Using the classiﬁcation rules generated by (a), classify the current

instance l

into one of the instance types, with certain

accuracy as determined by the classiﬁer.

2. e

← The instance type with highest accuracy for l

3. Return e

Figure 4: Algorithms for training the classiﬁer and Predict-

ing the instance type of a current instance.

5 CAPTURING EVOLUTION

When an instance of a process P deviates from its

workﬂow graph G

, i.e., if extra tasks are executed or

some existing tasks are skipped, then the instance will

not belong to any of the instance types in E

. Such

instances are possible due to two reasons (a) Changes

in the process deﬁnition, (b) Business logics that were

not captured initially by the workﬂow graph. The set

of traces L

are analyzed periodically to check for

any such deviations.

In the example shown in Figure 3, let us assume

that the company decided to purchase a new item with

itemId = X from a supplier D . Thus, the orders

for item X do not follow the given workﬂow and are

routed to supplier D. That is, if ROI.itemId = X

in l

, then the predicted instance type of l

is differ-

BUSINESS PROCESSES: BEHAVIOR PREDICTION AND CAPTURING REASONS FOR EVOLUTION

ent from the instance types in E

. Let us refer to

this new instance type as e

new

. If the number of such

instances is not signiﬁcant (as determined by the mod-

eler), then we consider it as an exceptional behavior.

However, if the frequency of such instances is suf-

ﬁciently high i.e.,

frequency(e

new

)

> threshold, we

extract the corresponding classiﬁcation rule generated

by the decision tree algorithm. For example,

If ROI.itemid = X then InstanceT ype = e

new

(Rule I)

In such cases, the modeler can modify the existing

workﬂow graph to capture the deviation. Figure 5

shows the process workﬂow model when the initial

model is restructured to capture the above rule.

Algorithm in Figure 6 describes the steps involved

in determining reasons for process evolutions. The

classiﬁer is retrained (step 1-2), and the rules corre-

sponding to new instance types are analyzed to ver-

ify if they indicate process evolution. The workﬂow

model is modiﬁed to adapt to the changes. The issues

related to structural changes in graph models, and dy-

namic and smooth migration of running instances to

the new graph model are discussed in depth in litera-

ture (Rinderle et al., 2004; van der Aalst and Basten,

2002; Casati et al., 1998). The technique we describe

in this paper for determining the reasons for evolu-

tions is orthogonal to how the graph model is modi-

ﬁed, veriﬁed for correctness, etc.

When an initial workﬂow model G is modiﬁed to



, the set of instance types IT is updated as follow-

ing:

: The set consisting of those instance types in E

that are valid for G



: The set consisting of those instance types in E

that are invalid for G



new

: Set of new instance types in G



: Instance types that were exceptions wrt to G and are still exceptions

wrt G



Initially, IT = E

∪ E

new

∪ E

. We update IT

as IT = IT − E

and the set of instance types E



for



as E

+ E

new

Thus, we make sure that no obsolete instance types

are present in IT, and it is updated with the new

instance types corresponding to the changes in the

graph. When the workﬂow graph is modiﬁed, (a) the

updated set of IT is used for predicting the paths, and

(b) the traces in the workﬂow log, corresponding to

instance types in E

, are removed before building the

models. We keep the traces corresponding to E

the workﬂow log because there is a chance that these

traces will become frequent later, requiring another

change.

6 EXPERIMENTAL EVALUATION

In this section, we present our preliminary results for

prediction of future paths in a workﬂow model. We

generate the workﬂow graph models for our experi-

Given: Process P , its workﬂow model graph G

, workﬂow

log L

and the set of instance types IT corresponding

to workﬂow log L

. For the instances that are not in E

ﬁnd the corresponding classiﬁcation rules

1. Apply a decision tree algorithm to L

considering

the elements in IT as classes.

2. Rules ←Classiﬁcation Rules obtained from the decision tree

3. for each rule r in Rules

4. e

new

← Instance type associated with r

5. if e

new

/∈ E

6. Calculate support(e

new

)

7. if support(e

new

) > threshold

8. Modify G

to accommodate rule r

9. Return modiﬁed graph model

Figure 6: Determining reasons for process evolution.

ments using an incremental method described below.

The graph generation procedure takes the following

as inputs: number of nodes to be present in the graph

and probabilities of adding a task node, a fork-join

structure and a choice-merge structure at each itera-

tion. Initially a simple sequence structure with a sin-

gle task node encompassed between a start and an

end node is generated. During further iterations of

incremental additions, a random task node is chosen

from the graph and is converted to either a sequence of

task nodes or a fork-join structure or a choice-merge

structure, with the given probability. The incremental

graph generation assures that the generated model is

free of structural conﬂicts (Aalst et al., 1994; Sadiq

and Orlowska, 2000).

We compare the performance of our technique with

an alternative simpler technique where we use the cur-

rent partial execution of the process to predict, for

each future task, if it will be executed or not. The fun-

damental difference with our approach is that in this

technique each future task has to be predicted individ-

ually. To solve this Task Correlation problem, we

can extend recent work on workﬂow mining ((Grigori

et. al. 2001), (Subramaniam et. al. 2005)) which pro-

vide efﬁcient techniques for predicting whether spe-

ciﬁc nodes in the workﬂow will be taken in the future.

Essentially, in this approach we have to build and train

separate classiﬁers to predict each task.

We present our initial results of comparing the ac-

curacy and the speed of the two approaches, Task

Correlation TC and Instance Type Correlation IT C.

For our experiments, we considered a sample process

model with 13 task nodes and 6 instance types as

shown in Figure 7(a). We used the decision tree al-

gorithm C4.5 for generating the classiﬁcation rules.

Figure 7(b) shows the training time, query time and

the accuracy of the two methods. Training time is the

time taken to build the models, and it is determined by

the number of models to be trained and the number of

attributes in the training data (in this case, it is propor-

tional to the number of tasks that are executed before

the point of prediction i). Figure 7(b) shows the total

training time (for all the tasks and for all the models)

for the two approaches. We observe from the values

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

ITEM_ID=X?

IS_INV?

SEND_A

GET_D

SEND_D

GET_INVGET_A

E SEND PACK

S EMP?

LOG_AUTH

ROI RBI SEND_INV

IS_IN_A?

IS_IN_B? N

SEND_C

SEND_B

GET_C

GET_B Y

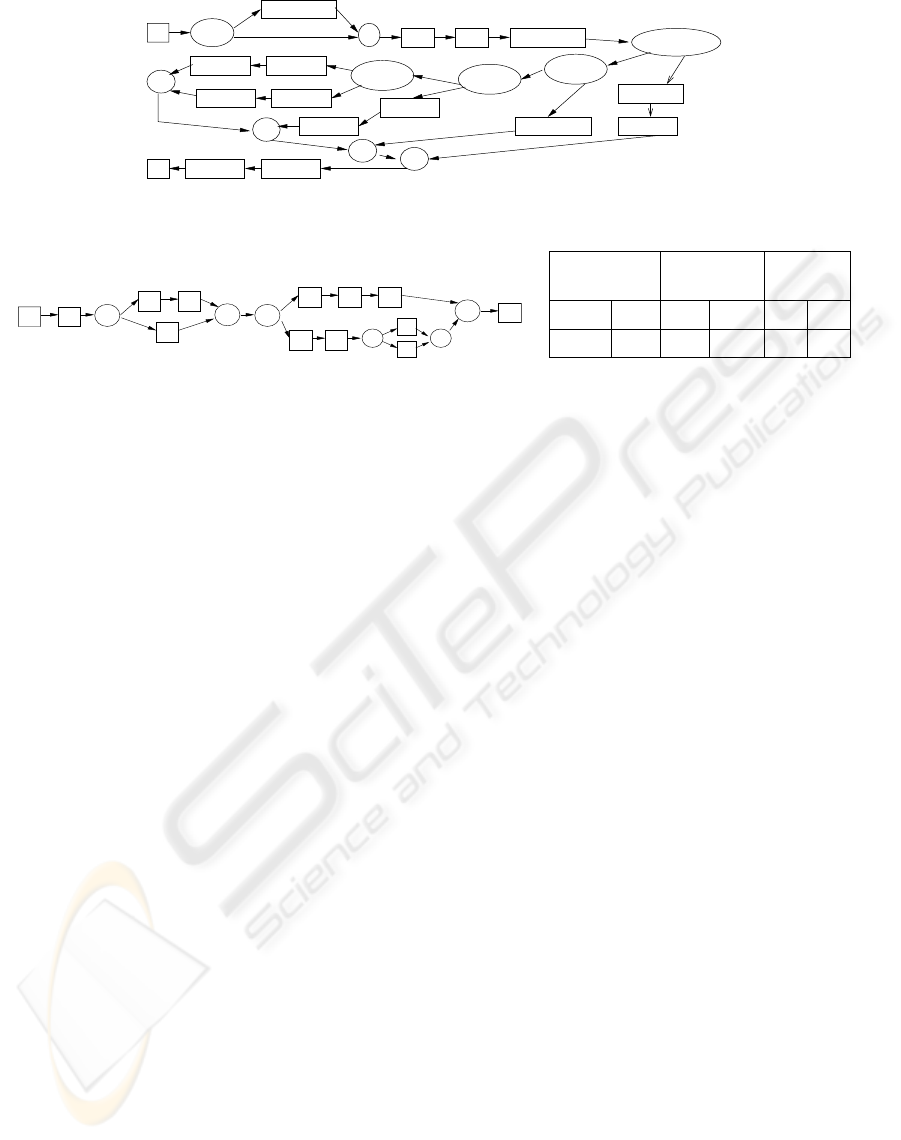

Figure 5: Restructured process model after capturing rule Rule I.

A3 A4

A7 A8

A9 A10

A11

A12

(a)

TC ITC

Average

AccuracyTime (secs)

Time (secs)

13.7995

Total Training Average Query

0.3338 0.070

ITCITC

3.5191 56% 67%

(b)

Figure 7: (a) Process model graph used for the experiment (b) Comparison of the total training time, average query time and

the average accuracy of the two approaches TC and IT C.

that IT C is much faster than TC with respect to the

training time. This is due to the fact that the num-

ber of decision trees to be built for TC is more than

that of ITC. For example, for task A2, the number

of decision trees required to be constructed for TC

methods is 11 (one for each of the future tasks, with

executed and not executed as classes), whereas it is 1

for our method.

For IT C, query-time is the time taken for an active

instance l

to be classiﬁed into one of the instance

types. For TC, it is the sum of the time taken to

classify each of the future tasks as executed or not

executed. In Figure 7(b), we compare the average

query-time of the two approaches. The average query

time for IT C is lesser than that of TC, because only

few decision trees need to be built for each task, with

method IT C. Furthermore, we observed that the val-

ues for TC ranges from 0 seconds to 83 seconds, with

the average of 0.3338 seconds. Figure 7(b) also shows

the average of the accuracy of the classiﬁcation rules

generated by the two methods. The accuracy of IT C

and TC are comparable as seen from the ﬁgure.

7 RELATED WORK

Mining of the workﬂow logs has been applied in var-

ious phases of WfMS. A summary of the ongoing re-

search in process mining is given in (van der Aalst

et al., 2003). Methods of automating the process

model construction through event data capture of the

on going process were illustrated in literature (Cook

and Wolf, 1995; Cook and Wolf, 1998). Another

approach of process discovery proposed in (Agrawal

et al., 1998) makes use of logs of past unstructured ex-

ecutions of the given process to construct the model.

Event data analysis and process mining has been ap-

plied to model rediscovery in (Weijters and van der

Aalst, 2002). In (Herbst and Karagiannis, 1998), the

authors propose machine learning techniques to ac-

quire and adapt workﬂow models by analyzing event

data in the workﬂow log.

In (Grigori et al., 2001; Castellanos et al., 2005),

the authors propose methods to predict the future be-

havior of a workﬂow instance in terms of pre-deﬁned

metrics, for example, resulting in exception or not etc.

However, predicting possible paths of a running in-

stance is not addressed in these works.

Workﬂow evolution has been discussed in many re-

search papers (Casati et al., 1998; van der Aalst and

Basten, 2002; Rinderle et al., 2004). These works dis-

cuss and propose frameworks for workﬂow schema

modiﬁcations and how workﬂow instances can (dy-

namically) adapt a newly evolved workﬂow schema.

All of them assume prior knowledge of the struc-

tural changes due in the evolving workﬂow. Issues

related to process quality of ﬂexible workﬂows is ad-

dressed in (Sadiq et al., 2005a). In (Rinderle et al.,

2005), the authors propose a case based reasoning ap-

proach to learning process evolution. However, this

method is useful only for processes where there is a

user involvement at each level of the process - to in-

teract with the CCBR system. Thus, it is only semi-

automated and relies on the user input for extracting

reasons for changes. Thus, none of them consider the

problem of automatically determining the semantics

for evolutions by analyzing the workﬂow log.

BUSINESS PROCESSES: BEHAVIOR PREDICTION AND CAPTURING REASONS FOR EVOLUTION

8 CONCLUSION

In this paper, we have proposed a method to predict

future paths of a running instance of a workﬂow by

analyzing past workﬂow logs. For those instances

that deviate from the workﬂow models, we identify

the possible conditions under which the deviations oc-

cur. Providing insights about what modiﬁcations are

required to a workﬂow can be a signiﬁcant input to

the the workﬂow evolution.

REFERENCES

Aalst, W., Hee, K., and Houben, G. (1994). Modelling and

analysing workﬂow using a Petri-net based approach.

Proceedings of the second Workshop on Computer-

Supported Cooperative Work, Petri nets and related

formalisms, pages 31–50.

Agrawal, R., Gunopulos, D., and Leymann, F. (1998). Min-

ing process models from workﬂow logs. EDBT ’98:

Proc. of the 6th Intl. Conf. on Extending Database

Tech., pages 469–483.

Casati, F., Ceri, S., Pernici, B., and Pozzi, G. (1998). Work-

ﬂow evolution. Data Knowl. Eng., 24(3):211–238.

Castellanos, M., Casati, F., Shan, M.-C., and Dayal, U.

(2005). ibom: A platform for intelligent business op-

eration management. ICDE, pages 1084–1095.

Cook, J. E. and Wolf, A. L. (1995). Automating process

discovery through event-data analysis. International

Conference on Software Engineering, pages 73–82.

Cook, J. E. and Wolf, A. L. (1998). Discovering models

of software processes from event-based data. TOSEM

’98: ACM Transactions on Software Engineering and

Methodology, 7(3):215–249.

Georgakopoulos, D., Hornick, M. F., and Sheth, A. P.

(1995). An overview of workﬂow management: From

process modeling to workﬂow automation infrastruc-

ture. Dist. and Parallel Databases, 3(2):119–153.

Greco, G., Guzzo, A., and Pontieri, L. (2005). Mining hi-

erarchies of models: From abstract views to concrete

speciﬁcations. Business Process Management, pages

32–47.

Grigori, D., Casati, F., Dayal, U., and Shan, M.-C. (2001).

Improving business process quality through exception

understanding, prediction, and prevention. VLDB ’01,

pages 159–168.

Gruber, W. (2004). Modeling and transformation of work-

ﬂows with temporal constraints. Akademische Ver-

lagsgesellschaft, Berlin.

Herbst, J. and Karagiannis, D. (1998). Integrating machine

learning and workﬂow management to support acqui-

sition and adaptation of workﬂow models. DEXA ’98:

Proc. of the 9th Intl. Workshop on Database and Ex-

pert Systems Appln., page 745.

Marjanovic, O. and Orlowska, M. E. (1999). On modeling

and veriﬁcation of temporal constraints in production

workﬂows. Knowledge and Info. Sys., 1(2):157–192.

Quinlan, J. R. (1993). C4.5: programs for machine learn-

ing. Morgan Kaufmann Publishers Inc., San Fran-

cisco, CA, USA.

Rinderle, S., Reichert, M., and Dadam, P. (2004). On

dealing with structural conﬂicts between process type

and instance changes. Business Process Management,

pages 274–289.

Rinderle, S., Weber, B., Reichert, M., and Wild, W. (2005).

Integrating process learning and process evolution - a

semantics based approach. Business Process Manage-

ment, pages 252–267.

Sadiq, S., Orlowska, M., Sadiq, W., and Foulger, C. (2004).

Data ﬂow and validation in workﬂow modelling. CR-

PIT ’04: Proc. of the 15ht conf. on Australasian data-

base, pages 207–214.

Sadiq, S. W., Orlowska, M. E., Lin, J. Y.-C., and Sadiq,

W. (2005a). Quality of service in ﬂexible workﬂows

through process constraints. ICEIS (3), pages 29–37.

Sadiq, S. W., Orlowska, M. E., and Sadiq, W. (2005b).

Speciﬁcation and validation of process constraints for

ﬂexible workﬂows. Inf. Syst., 30(5):349–378.

Sadiq, W. and Orlowska, M. E. (2000). Analyzing process

models using graph reduction techniques. Inf. Syst.,

25(2):117–134.

van der Aalst, W. M. P. and Basten, T. (2002). Inheri-

tance of workﬂows: An approach to tackling prob-

lems related to change. Theoretical Computer Sci-

ence, 270(1-2):125–203.

van der Aalst, W. M. P., van Dongena, B. F., Herbst, J.,

Marustera, L., Schimm, G., and Weijters, A. J. M. M.

(2003). Workﬂow mining: A survey of issues and ap-

proaches. Data and Knowledge Engineering, Volume

47, Issue 2 , November 2003, pages 237–267. Inter-

nalNote: Submitted by: hr.

van der Aalst, W. M. P. and van Hee, K. M. (1996). Business

process redesign: A petri-net-based approach.

Com-

puters in Industry, 29(1-2):15–26.

Weijters, A. J. M. M. and van der Aalst, W. M. P. (2002).

Rediscovering workﬂow models from event-based

data. Proceedings of the Third International NAISO

Symposium on Engineering of Intelligent Systems (EIS

2002), pages 65–65.

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION
