FUZZY XML MODEL FOR REPRESENTING FUZZY

RELATIONAL DATABASES IN FUZZY XML FORMAT

Alnaar Jiwani

‡

, Yasin Alimohamed

‡

, Krista Spence

‡

, Tansel Özyer

‡

, Reda Alhajj

‡,

⊗

‡

Department of Computer Science, University of Calgary, Calgary, Alberta, Canada

⊗

Department of Computer Science, Global University, Beirut, Lebanon

Keywords: XML schema, fuzzy Data, fuzzy relational database, database reengineering.

Abstract: This paper describes a fuzzy XML schema model for representing a fuzzy relational database in XML

format. It outlines a simple translation algorithm to include fuzzy relations and similarity matrices with their

associated conventional relation. We also describe an example implementation of a fuzzy relational

database and the XML document resulting from the translation according to our schema.

1 INTRODUCTION

In the past two decades, there has been extensive

research examining how imprecise and uncertain

data can be represented in databases given that it is

pervasive in most real-world applications. Examples

of imprecise data include subjective opinions and

judgments in areas such as personnel evaluation,

policy preferences and economic forecasting. A

particular vein of research that is immediately

applicable to many applications is how the

conventional relational model can be extended to

incorporate this fuzzy data.

Another highly researched area focuses on how

relational data can be represented in the Extensible

Markup Language (XML). Lee et al (2002) and

Turowski and Weng (2002) describe examples of

XML representation for fuzzy data modeling.

However, they do not describe how to incorporate

fuzzy XML with data from conventional relations.

The approach described by Lee et al applies to the

object-oriented paradigm, and not simple relational

data. Turowski’s approach is more general;

however, it does not utilize the currently accepted

technique of XML schemas in defining the XML

document class (it instead uses DTD format).

This paper presents a novel approach to

incorporate fuzziness in the XML model and

outlines one approach for transforming fuzzy

relational data into fuzzy XML.

The rest of this paper is organized as follows.

Section 2 reviews the existing literature in the area

of fuzzy sets and fuzzy relational databases. Section

3 presents an overview of the representation of fuzzy

data in XML. In section 4, we describe a basic

algorithm for translation from fuzzy relational

database to fuzzy XML. Section 5 is conclusions.

2 FUZZY RELATIONAL

DATABASES

Zadeh (1965) formally introduced the fuzzy set

concept to represent imprecise data. He identified

that objects encountered in physical world do not

have precisely defined criteria of membership; this

imprecision is natural to human thinking. For

example, a teacher may want to find a list of all

‘good’ students. The teacher may define the term

‘good’ based upon attendance, grades, behavior or

many other criteria. The teacher may also want to

include students who do not exactly fit any crisp

definition of being ‘good’. Conventional relational

databases rely on crisp representations of data and

do not have immediately obvious ways to

incorporate such imprecision.

2.1 Overview of Fuzzy Set Theory

A classical set is a set with a crisp boundary, such

that any object in the domain either belongs to the

set, or does not belong to the set. A classical set C

may be: C = {x | x ≤ 25, for all real x}. In contrast, a

fuzzy set has a continuum of grades of membership.

There is a gradual transition from “belonging to a

163

Jiwani A., Alimohamed Y., Spence K., Özyer T. and Alhajj R. (2006).

FUZZY XML MODEL FOR REPRESENTING FUZZY RELATIONAL DATABASES IN FUZZY XML FORMAT.

In Proceedings of the Eighth International Conference on Enterprise Information Systems - DISI, pages 163-168

DOI: 10.5220/0002465101630168

 SciTePress

set” to “not belonging to a set”. For example, a

fuzzy set could be used to model linguistic

expressions such as “the person is beautiful” or “the

weather is bad”. Fuzziness does not come from the

randomness of members of the set, but from the

uncertain and imprecise nature of abstract concepts.

The construction of a fuzzy set F relies first on

identifying a domain of values that could belong to

the set, generally referred to as the Universe of

Discourse (Jang and Sun, 1995). The set is

characterized by a membership function, denoted

(x) that associates each value in the Universe of

Discourse to a real number in interval [0, 1]. The

specification of the membership function is

completely subjective to the person who defines it.

A fuzzy set F with universe of discourse X is

defined as ordered pairs: F = {(x, μ

(x)) | x ∈ X}

Fuzzy sets may be discrete or continuous. Let X be

the set of possible grades a student may receive on a

paper: X = {A, B, C, D, F}.

The discrete fuzzy set “High grades” (H) could be

represented as: H = {A/1.0, B/0.7, C/ 0.2, D/ 0, F/ 0}

Table 1: An instance of a Student relation.

FName LName Avg_Marks Attitude

Jeremy Scott A Unhappy

Jenny Wong A Negative

George Yuzwak C Positive

Jose Sanchez B Cheerful

Table 2: Similarity Relation for the Attitude attribute of

the Student relation (Table 1).

Unhappy Negative Positive Cheerful

Unhappy 1 0.8 0.2 0

ative 0.8 1 0 0

Positive 0.2 0 1 0.95

Cheerful 0 0 0.95 1

Alternately, let X be the set of possible ages for a

human being. Then the continuous fuzzy set “about

50 years old” (G) could be represented as: G = {(x,

(x)) | x ∈ X}, where, μ

(x) = 1/(1+((x-50)/5)

)

2.2 Fuzzy Data in Relational Databases

Existing literature discusses many different

techniques for representing fuzziness within

relational databases. In general, it seems that the

following ideas are agreed upon: a fuzzy relational

database (FRDB) either allows for queries that let

preferences be expressed instead of exact Boolean

conditions, or allows for the storage and querying of

a new type of data that directly stores fuzzy sets. In

other terms, a FRDB can accommodate two types of

imprecision – impreciseness in the association

among data values or impreciseness in the data

values themselves (Medina et al, 1994). The two

most common techniques used for handling

imprecision are similarity relations and possibility

distributions; or a combination of both.

2.2.1 Similarity-based Techniques

Buckles and Petry (1995) were the first to introduce

the similarity-based relational model. The basis of

this model is the replacement of equality with a

similarity relation. A similarity relation s(x,y) is a

mapping of every pair of elements within the

domain of an attribute to the interval [0,1]. This is

best visualized in the form of a matrix. An example

of this, based on the Attitude attribute of the Student

relation described in Table 1, is given in Table 2.

The matrix illustrates that the similarity relation is

reflexive and symmetric. In this model of FRDB, a

similarity relation is defined over the elements in

each attribute, in each relation. Where a crisp

definition of equality is still desired, the matrix

representation of the similarity relation is reduced to

the identity matrix.

Another feature of the similarity-based FRDB, is

that it allows for non–atomic domain values. In their

model, Buckles and Petry (1995) define that any

member of the power set of the domain may be a

domain value except the null set. This feature allows

uncertainty of data values to be expressed, but is not

in first normal form and suffers the associated

implementation problems. Similarity relations are

best for finite and discrete domains of linguistic sets.

2.2.2 Possibility-based Techniques

Instead of understanding a membership function

(x) as the grade of membership of x in F,

possibility-based FRDBs interpret it as a measure of

the possibility that a variable Y has a value x. Such

fuzzy sets are referred to as possibility distributions

and are represented by the symbol ∏. In a

possibility-based FRDB, these possibility

distributions can be used to indicate the possibility

that a tuple has a particular value for an attribute.

For example, if a tuple in a Person table has the

value ‘Young’ for the attribute Age, a possibility

distribution describes the likelihood that such person

has a particular value for the age (Buckles and Petry,

1995): ∏

young

= {1.0/22, 1.0/23, 0.8/24, 0.6/25, ...}

So the likelihood that the Young person is 24

years old is 0.8. This allows the linguistic identifier

to be used as a value in the domain while the actual

possibility distribution is given elsewhere in the

database in the form of a relation having the name of

the linguistic identifier.

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

164

Raju et al (1988), describe two different ways of

implementing a possibility-based FRDB. Each

represents a fuzzy relation r by a table with

additional column for μ

(t), showing the membership

of tuple t in r. The first (Type-1) stipulates that the

domain of each attribute is a fuzzy set (recall that a

classical set is a special case of a fuzzy set). Given

crisp values in a relation, there exist membership

functions that map the values to linguistic terms with

associated possibilities. The second implementation

(Type-2) permits more uncertainty in the data

values. It allows for ranges or possibility

distributions to be the actual values of attributes.

This cannot be implemented given current

commercial frameworks for relational databases

since it allows for different data types in the same

column and/or multiple values.

2.2.3 Hybrid Techniques

Other techniques for representing fuzziness in

relational databases have been proposed that include

characteristics of both the similarity-based and

possibility-based models. This allows them to work

with more than one area of imprecision.

An example is GEFRED – a Generalized Model

of Fuzzy Relational Databases. The model allows

for linguistic terms in a column to be related via a

‘proximity relation’, which is identical to the

similarity relation described by Buckles and Petry

(1995). If no proximity relation exists for the

attribute, it is assumed that the classical definition of

equality applies for values in this domain.

3 XML SCHEMAS AND FUZZY

DATA

XML is an excellent method of transmitting data

between software applications. In order for an

application to interpret the XML, certain constraints

must be placed on an XML document. This can be

accomplished by describing classes of XML

documents through XML schemas or Document

Type Declarations (DTDs). The application can then

use the specified XML schema or DTD to parse the

information contained in a specific XML document.

3.1 XML Schemas

An XML schema defines the structure of an XML

document instance. Unlike DTDs, XML schemas

allow for strong data typing, modularization, and

reuse. The XML schema specification allows a

developer to define new data types (using the

<complexType> tag), and also use built-in data

types provided by the specification. The developer

can also define the structure of an XML document

instance and constrain its contents. As well, the

XML schema language supports inheritance, so that

developers do not have to start from scratch when

defining a new schema.

3.2 Fuzzy Relational Data in XML

There has already been some research completed on

representing fuzzy data in XML.

The fuzzy object-oriented modeling technique

(FOOM) schema proposed by Lee et al (2002) is one

such approach. This method builds upon object-

oriented modeling (OOM) to also capture

requirements that are imprecise in nature and

therefore ‘fuzzy’. The FOOM schema defines a class

of XML document that can describe fuzzy sets,

fuzzy attributes, fuzzy rules, and fuzzy associations.

This method would be useful in representing data

contained in object-oriented databases. However, it

is too specific in terms of its object-oriented nature

to be applied directly to relational databases.

Another more general approach is proposed by

Turowski and Weng (2002). The method described

is aimed at creating a common interchange format

for fuzzy information using XML to reduce

integration problems with collaborating fuzzy

applications. XML tags with a standardized meaning

are used to encapsulate fuzzy information. A formal

syntax for important fuzzy data types is also

introduced.

This technique of using XML to represent fuzzy

information is general enough to be built upon to

apply to relational databases. However, it uses

DTDs, rather than the currently accepted method of

XML schemas to define and constrain the

information held in an XML document. It would be

beneficial to extend this approach to define the XML

document class for holding data from fuzzy

relational databases with an XML schema, rather

than a DTD.

4 FROM FUZZY RDB TO FUZZY

XML

In this section, we describe in detail our

implementation of a fuzzy relational database, XML

schema structure and the algorithm to convert

database content to XML document conforming to

the schema.

FUZZY XML MODEL FOR REPRESENTING FUZZY RELATIONAL DATABASES IN FUZZY XML FORMAT

165

Table 3: Example ‘Student’ relation.

ID FNAME LNAME ATTEND AVG ATTITUDE ADVISOR

1 Jeremy Scott 0.56 3.60 Unhappy 1

2 Jenny Wong 0.98 3.87 Motivated 5

3 George Yuzwak 0.80 2.74 Lazy 3

4 Jose Sanchez 0.9 3.20 Cheerful 1

5 Eliza Reichs 0.35 1.87 Lazy 1

4.1 Database Structure

We chose to create a hybrid-type fuzzy relational

database that incorporates both similarity relations,

to represent fuzzy equality, and possibility relations,

which could be used to translate crisp data based on

a number of linguistic terms or to represent a

possibility distribution. Any attribute in a relation

may have an associated fuzzy relation and/or an

associated similarity relation. Each of these can be

joined into a query to retrieve information based on

imprecise conditions. The results of these queries

themselves can then be considered a sort of fuzzy

relation that has all the attributes requested by the

query as well as an attribute that describes tuple’s

membership in the relation.

An example relation, ‘Student’, is illustrated in

Table 3 (an extension of the relation in Table 1). We

suppose that the information stored in ID, FNAME,

LNAME and ADVISOR columns is crisp. The data

in ATTEND and AVG is also crisp, but fuzzy

relations based on linguistic terms are defined on

each. The values within the domain of ATTITUDE

have an associated similarity relation defined to

provide fuzzy equivalence.

4.1.1 Similarity Relations

In our fuzzy relational database model, we allow any

column to have an associated similarity relation,

which assigns all elements in the domain a degree of

similarity to all other elements in the domain.

Normally, this is visually represented in a matrix,

but to construct this matrix in a relation by naming

attributes after each domain element is very

inflexible and difficult to modify if one wanted to

add another element to the domain. Instead, we

flatten the matrix.

Every similarity matrix is named under the

convention: ‘SM_TABLENAME_COLNAME’,

where TABLENAME and COLNAME are the

relation and attribute the similarity matrix applies to,

respectively. Within the similarity relation there are

three attributes: VALUE1, VALUE2, and MATCH.

VALUE1 and VALUE2 hold the combination of

domain values and will be assigned a type according

to the type of the attribute being compared. MATCH

contains the result of the similarity relation s(x,y) for

the pair described in VALUE1 and VALUE2, and so

will contain a value in the interval [0,1].

4.1.2 Fuzzy Relations

Our model also allows any attribute to have an

associated fuzzy relation, which can contain the data

for a number of fuzzy sets defined over the domain

of the attribute. Each fuzzy set is identified by a

linguistic term. If the set is discrete, the fuzzy

relation will contain each ordered pair within the set.

However, if the set is defined by a continuous

function, the fuzzy relation will contain points along

the graph of the function that can be interpolated to

find the exact value of the membership function.

Fuzzy relations are named under the convention:

‘FR_TABLENAME_COLNAME’, where

TABLENAME and COLNAME are the relation and

attribute the fuzzy relation applies to, respectively.

Within the fuzzy relation there are three attributes:

LINGUISTIC_TERM, COLUMN_VALUE, and

MEMBERSHIP. LINGUISTIC_TERM is the word

that describes the meaning of the fuzzy set.

COLUMN_VALUE and MEMBERSHIP can be

interpreted as the (x,y) values of a point on the graph

of the fuzzy set. COLUMN_VALUE is the same

type as the attribute this relation applies to, and

MEMBERSHIP is the result of the membership

function that maps the COLUMN_VALUE to the

unit interval.

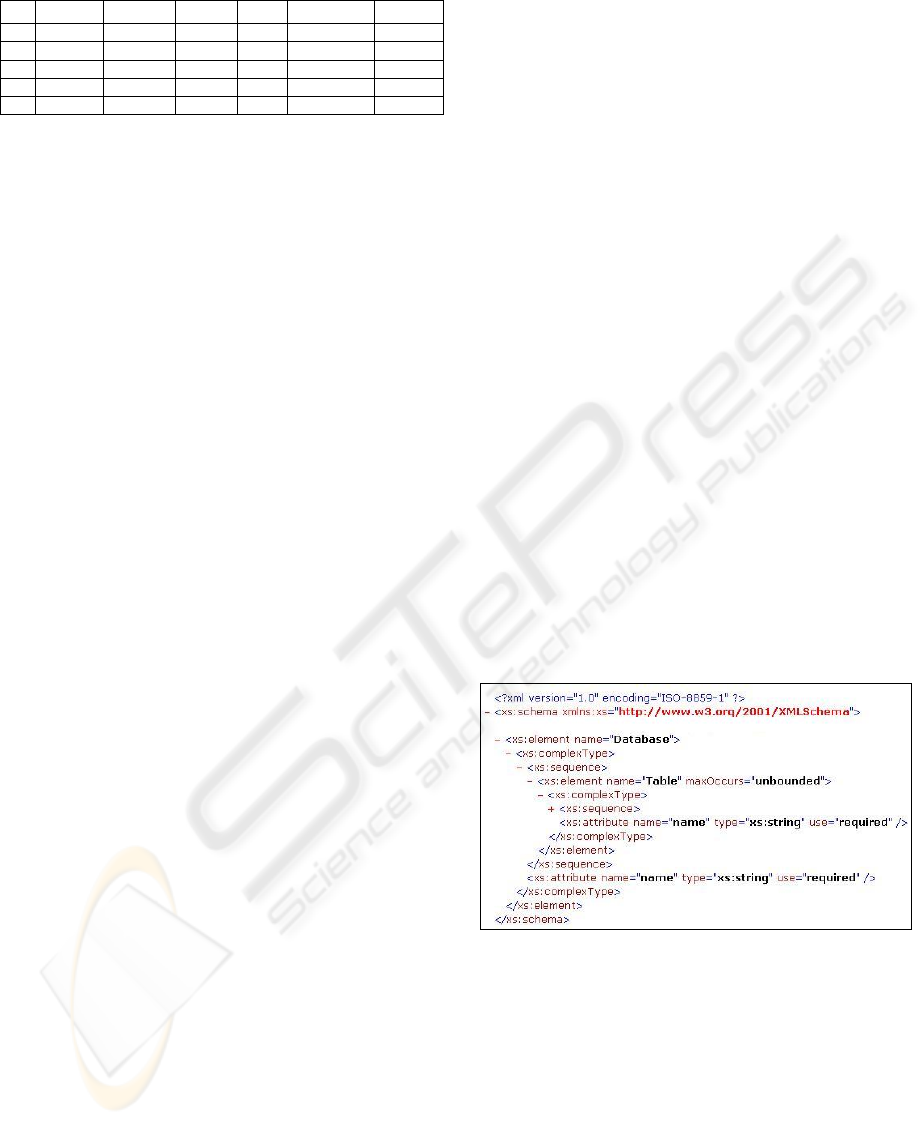

Figure 1: XML Schema – Top View.

4.2 XML Schema Structure

The schema structure we developed for representing

our fuzzy relational database in XML provides a

direct relationship between the database and the

resulting XML document. This implementation

allows for an XML representation of the data that is

simple to interpret and query.

The schema defines the outermost element of the

XML document as the Database element. A

Database element contains a name attribute used to

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

166

indicate the name of the fuzzy relational database

and a sequence of Table elements representing each

relation in the database. A Table element also has a

name attribute that will be set to the name of the

table. This outer structure of the XML schema is

represented in Figure 1.

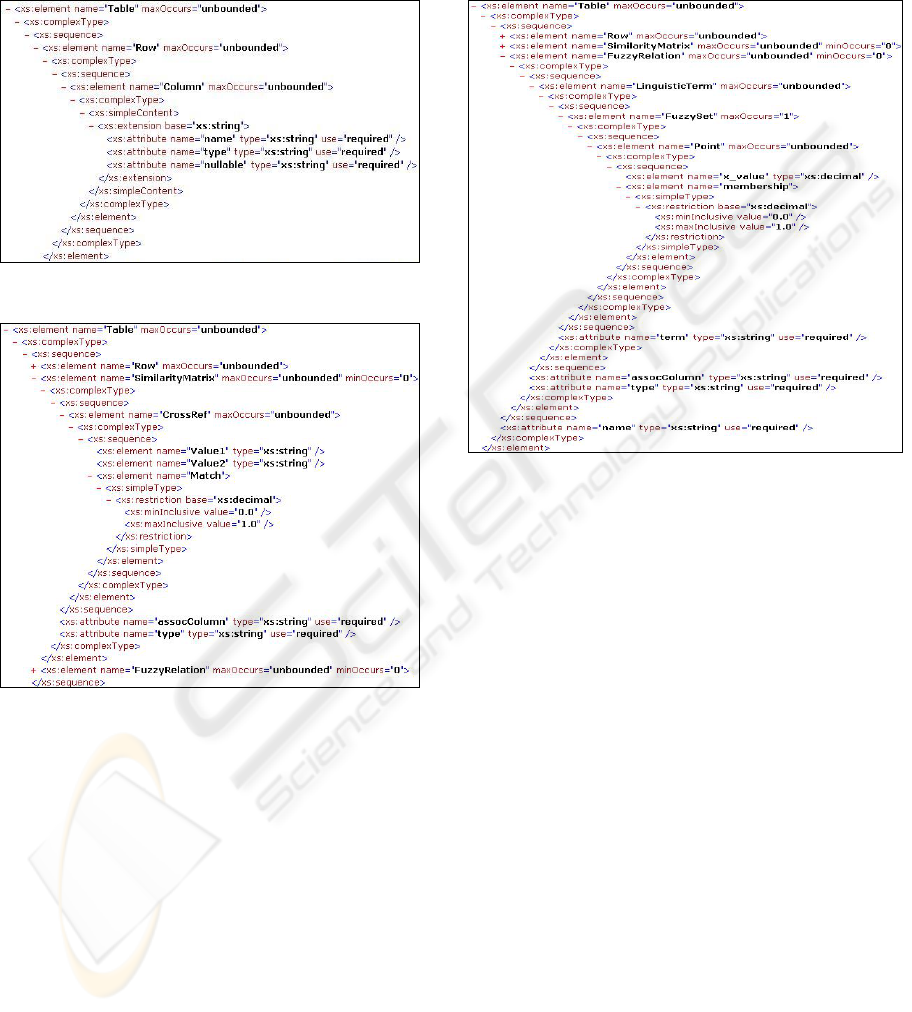

Figure 2: Definition of the Row Element for Storing Table

Records.

Figure 3: Definition of the SimilarityMatrix Element.

The schema further defines a Table element from

the database content related to each relation. This

includes the relation’s row and column data

(database records) and any fuzzy relations or

similarity relations associated with its attributes.

Figure 2 illustrates how record information is

stored in the XML document. The schema defines a

Table element as a complex type composed of Row

elements. A Row element is composed of Column

elements. Each Row element in the XML document

holds a record, whose column values are stored as

the value for each Column element. Column

elements are also described by the name, type, and

nullable attributes.

The database structure stores similarity and fuzzy

relations as separate tables. To keep the XML

document simple, our XML schema stores an

attribute’s fuzzy data along with the table that

contains the attribute. The schema defines a Table

element as a complex type with Row elements for

each record (Figure 2), SimilarityMatrix elements

for similarity relations (Figure 3), and FuzzyRelation

elements for fuzzy relations (Figure 4).

Figure 4: Definition of the FuzzyRelation Element.

The flat conversion algorithm we chose to

convert the fuzzy relational database to an XML

document following our schema structure can be

outlined as follows:

Add Database start tag to the XML document with

the name attribute set to the name of the database.

Set the xsi:schemaLocation to point to the location

of the XML Schema this document is to adhere to.

Retrieve all table names from the database

For each table:

Add Table start tag to the XML document with the

name attribute set to the table name

Query the database to get the column data (name,

type, nullable value) for the current table and then

query for the row data using the column names

For each row:

Add Row start tag to the XML document

For each column:

Add Column start tag to the XML document and set

the name, type, and nullable attributes to their

corresponding values

Set the value of the Column element to the value

retrieved for the current row/column

Add Column end tag to the XML document

Add Row end tag to the XML document

Query the database to get all similarity matrix data

for the current table. A similarity matrix belonging

FUZZY XML MODEL FOR REPRESENTING FUZZY RELATIONAL DATABASES IN FUZZY XML FORMAT

167

to a table is identified by appending ‘SM’ to the

table name, followed by the name of the matrix.

For each similarity matrix:

Add SimilarityMatrix start tag to the XML document

and set the assocColumn and type attributes to their

corresponding values

For each cross reference:

Add crossRef start tag to the XML document

Add Value1, Value2, and Match elements and set

their corresponding values

Add crossRef end tag to the XML document

Add SimilarityMatrix end tag to the XML document

Query the database to get all fuzzy relations for the

current table. A fuzzy relation belonging to a table is

identified by appending ‘FR’ to the name of the

table, followed by the name of the relation

For each fuzzy relation:

Add FuzzyRelation start tag to the XML document

For each linguistic term:

Add LinguisticTerm start tag to the XML document

and set the term attribute to its corresponding value

Add FuzzySet start tag to the XML document

For each point in the fuzzy set:

Add the Point start tag to the XML document

Add x_value and membership elements and set their

corresponding values

Add Point end tag to the XML document

Add FuzzySet end tag to the XML document

Add LinguisticTerm end tag to the XML document

Add FuzzyRelation end tag to the XML document

Add the Table end tag to the XML document

Add the Database end tag to the XML document

5 CONCLUSIONS

We have described a fuzzy XML schema to

represent an implementation of a fuzzy relational

database that allows for similarity relations and

fuzzy sets. We have also provided a flat translation

algorithm to translate from the fuzzy database

implementation to a fuzzy XML document that

conforms to the suggested fuzzy XML schema.

REFERENCES

Anvari, M., Rose G. F., 1987. “Fuzzy Relational

Databases,” Analysis of Fuzzy Information, Bezdek ed.,

Vol II, CRC Press.

Bosc P., Galibourg M. and Hamon G., 1988. “Fuzzy

querying with SQL: extensions and implementation

aspects,” Fuzzy Sets and Systems, Vol. 28, pp.333-349.

Buckles B. P. and Petry F. E., 1995. “Fuzzy Databases in

the New Era,” Proc. of ACM SAC, pp.497-502.

Dey D. and Sumit S., 1996. “A Probabilistic Relational

Model and Algebra,” ACM TODS, Vol.21, pp.339-369.

Duta A., Barker K. and Alhajj R., 2004. “Converting

Relationships to XML Nested Structures,” Journal of

Information and Organizational Sciences, Vol.28,

No.1-2.

Wang C., Lo A. Alhajj R. and Barker K., 2005. “Novel

Approach for Reengineering Relational Databases into

XML,” Proc. of XSDM, (in conjunction with ICDE),

Tokyo.

Fernandez M., Tan W.-C., and Suciu D., 2000.

“SilkRoute: Trading between Relations and XML”.

Proc. of WWW, Amsterdam.

Fong J., Pang F. and Bloor C., 2001. “Converting

Relational Database into XML Document,” Proc. of

the International Workshop on Electronic Business

Hubs, pp.61-65.

Jang J. and Sun C., 1995. “Neuro-Fuzzy Modeling and

Control,” Proc. of the IEEE, 83, pp.378-406.

Yang K.Y., Lo A., Özyer T. and Alhajj R., 2005.

“DWG2XML: Generating XML Nested Tree Structure

from Directed Weighted Graph,” Proc. of ICEIS.

Lee, D., et al, 2002. “NeT & CoT: translating relational

schemas to XML schemas using semantic constraints,”

Proc. of ACM CIKM.

Lee, J., et al, 2002. “Modeling Imprecise Requirements

with XML,” Fuzzy Systems, 2, pp.861-866.

Medina J. M., Pons O. and Vila M. A., 1994. “GEFRED:

A Generalized Model of Fuzzy Relational Databases

Version 1.1,” Information Sciences.

Raju. K. V. and Majumdar, A. K., 1988. “Fuzzy

Functional Dependencies and Lossless Join

Decomposition of Fuzzy Relational Database

Systems,” ACM TODS, Vol.13, pp.129-166.

Thompson H. S., et al, 2004. “XML Schema Part 1:

Structures,” W3C Recommendation.

Turowski K. and Weng U., 2002. “Representing and

processing fuzzy information – an XML-based

approach,” Knowledge-Based Systems, Vol.15, pp.67-.

Wang S., et al, 2001. “Incremental Discovery of

Functional Dependencies from Similarity-bases Fuzzy

Relational Databases Using Partitions,” Proc. of the

National Conference on Fuzzy Theory and Its

Applications, pp.629-636.

Zadeh L., 1965. “Fuzzy Sets,” Information and Control, 8,

pp.338-353.

Zvieli A. and Chen P. P., 1986“Entity-relationship

modeling and fuzzy databases,” Proc. of IEEE ICDE,

Los Angeles, pp.320-327.

Zemankova M. and Kandel A.,1984. “Fuzzy Relational

Data Bases – A key to Expert Systems,” Verlag TUV

Rheinland.

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

168
