TECHNOLOGY FOR LEAST-COST NETWORK ROUTING VIA

BLUETOOTH AND ITS PRACTICAL APPLICATION

Replacing Internet Access Through Wireless Phone Networks by BT Data Links

Hans Weghorn

1,2

BA-University of Cooperative Education, Rotebuehlplatz 41, 70178 Stuttgart, Germany

University of Ulm, OMI, Albert-Einstein-Allee 43, 89081 Ulm, Germany

Keywords: Wireless communication, Bluetooth Communication, Least-Cost Routing, Mobile Information Access, Lo-

cation-based Services.

Abstract: Today, mobile devices are equipped with a variety of wireless communication interfaces. While initially

small handheld devices only could use cellular telephony networks for establishing data communication

such as Internet downloads, nowadays data contents can be retrieved additionally through communication

standards like wireless LAN or Bluetooth. For the latter there exists a variety of technical and scientific pa-

pers that discuss how Bluetooth communication can be established in principle – especially between two

mobile devices. On the other hand, a description of how data communication between a mobile device and a

desktop computer can be implemented is not found in detail. Furthermore, the restrictions of Bluetooth

communication like extended search times are not discussed in these qualitative articles. In a technical de-

scription here, it shall be displayed how to establish with a minimal effort a streaming data link between

handheld devices and integral computer systems in terms of a software implementation recipe. On base of

concrete application samples, it is shown that Bluetooth can be employed to construct location-based infor-

mation services with least-cost Internet data routing, but also the constraints and efficiency of Bluetooth

communication technology are investigated and discussed for the given applications.

1 INTRODUCTION

From the beginning of their market introduction,

available communication standards on mobile com-

puting systems, especially on small hand held

devices like PDAs or cellular phones, evolved very

quickly. In addition to the original data communica-

tion through wireless telephony networks,

complementary communication standards like

IRDA, and few years ago wireless LAN (Riezen-

mann, 2002) and Bluetooth (BT) were introduced.

Due to much lower power consumption (Mahmoud,

2003), BT has clear advantages over WLAN for

constraint devices, and it is available nowadays in

many of these small handheld terminals.

Possible improvements by adding BT communi-

cation elements to mobile device software

applications appear rather obvious: For instance, the

BT link could be used for a direct access to e-mail

contents and documents on office computers, or an-

other desire could be saving high data telephony

costs by remotely using the Intra- or Internet con-

nection of desktop computers from handheld devices

via BT. The latter represents an approach of least-

cost routing for data accesses.

Concerning development of BT application soft-

ware for handheld devices, a broad range of

technical and scientific articles exists. Java technol-

ogy appears of special interest, because currently it

represents the only manufacturer-independent com-

mon implementation standard for constraint devices.

With focus on Java development, there are various

papers available that introduce the methodology of

Bluetooth programming (e.g., Hopkins 2005; Kumar

et al., 2004) on small handheld devices. In these

descriptions, the basic outline is always the same: It

starts with the discussion of discovery of BT de-

vices, continues with how to search for BT services

(e.g. such as exchanging data objects like business

cards), and finally provide some hints about using

discovered services.

There, in the displayed samples for programming

of wireless handheld devices, which is obtained

more precisely with a system called wireless JAVA

(Knudsen and Li, 2005) that is equivalent to the term

Java Micro Edition (J2ME), usually communication

394

Weghorn H. (2006).

TECHNOLOGY FOR LEAST-COST NETWORK ROUTING VIA BLUETOOTH AND ITS PRACTICAL APPLICATION - Replacing Internet Access

Through Wireless Phone Networks by BT Data Links.

In Proceedings of the Eighth International Conference on Enterprise Information Systems - ISAS, pages 394-402

DOI: 10.5220/0002469303940402

 SciTePress

between wireless devices is shown, but knowledge

about communicating between a wireless terminal

and a desktop computer running a standard Java

application remains on a vague level.

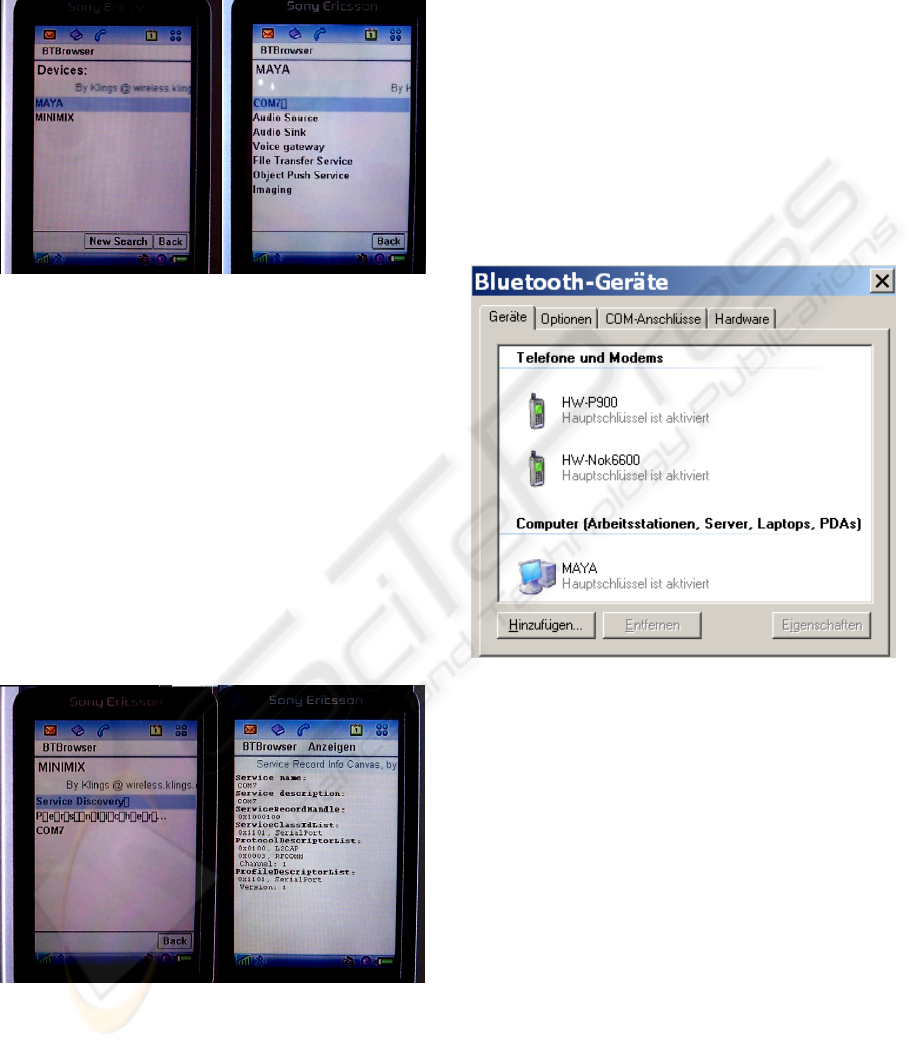

Figure 1: With a BT browsing tool the steps of BT device

search (left part), and BT service search (right part) can be

tested conveniently. The photographs show a J2ME PDA-

like smart phone that was used for the experiments.

When starting own BT programming, it turns out

that in these articles many parameters of library

function calls are only described on a very qualita-

tive level, and hence, a working system can only be

implemented with an invest of own considerable

programming efforts. Furthermore, the described

theoretical concept of sensing BT devices and ser-

vices represents not an appropriate one for true

applications, because too much waiting delay arises

for the end user in such a construction. Performance

issues, which are of big importance when BT appli-

cations are going to be used in practice, are not

discussed at all in these articles.

Figure 2: Furthermore, the BT browsing tool allows easily

displaying information about the pseudo serial connection

provided in this sample on host MINIMX as COM7.

Since this multi-step procedure for establishing

BT access appears rather complicate, even extended

work is found that focuses only on developing a

browsing tool for inspecting the environment of

handheld J2ME devices (Klingsmann, 2004).

The scope of the description here is to provide a

recipe how a streaming connection between a mobile

application and a desktop computer can be imple-

mented. All relevant technical details shall be shown

here for achieving this aim with minimal effort. Due

to the high number of alternative programming sys-

tems, the description only can be given for one

dedicated technology, i.e. Java. Additionally, the

performance and the restrictions of such BT connec-

tions operated on true-world devices are reported.

On base of practical applications, it is discussed

what the achievable benefit of adding BT communi-

cation can be, and what the actual constraints are in

particular for mobile information systems.

Figure 3: The state, whether close-by BT devices were

already registered for a data exchange by the pairing pro-

cedure, is displayed in OS standard menus.

2 ESTABLISHING

TECHNICALLY A BLUETOOTH

STREAMING CONNECTION

If Bluetooth shall be employed for replacing a costly

Internet link via the cellular telephony network, dif-

ferent components are required in the system: The

mobile client has to establish a streaming connection

via BT to a relaying host that is connected to the

Internet. On the relaying host, service software is

required, which forwards the download query from

the mobile client to the Internet, and then transmits

the response back via BT to the wireless terminal.

TECHNOLOGY FOR LEAST-COST NETWORK ROUTING VIA BLUETOOTH AND ITS PRACTICAL

APPLICATION - Replacing Internet Access Through Wireless Phone Networks by BT Data Links

395

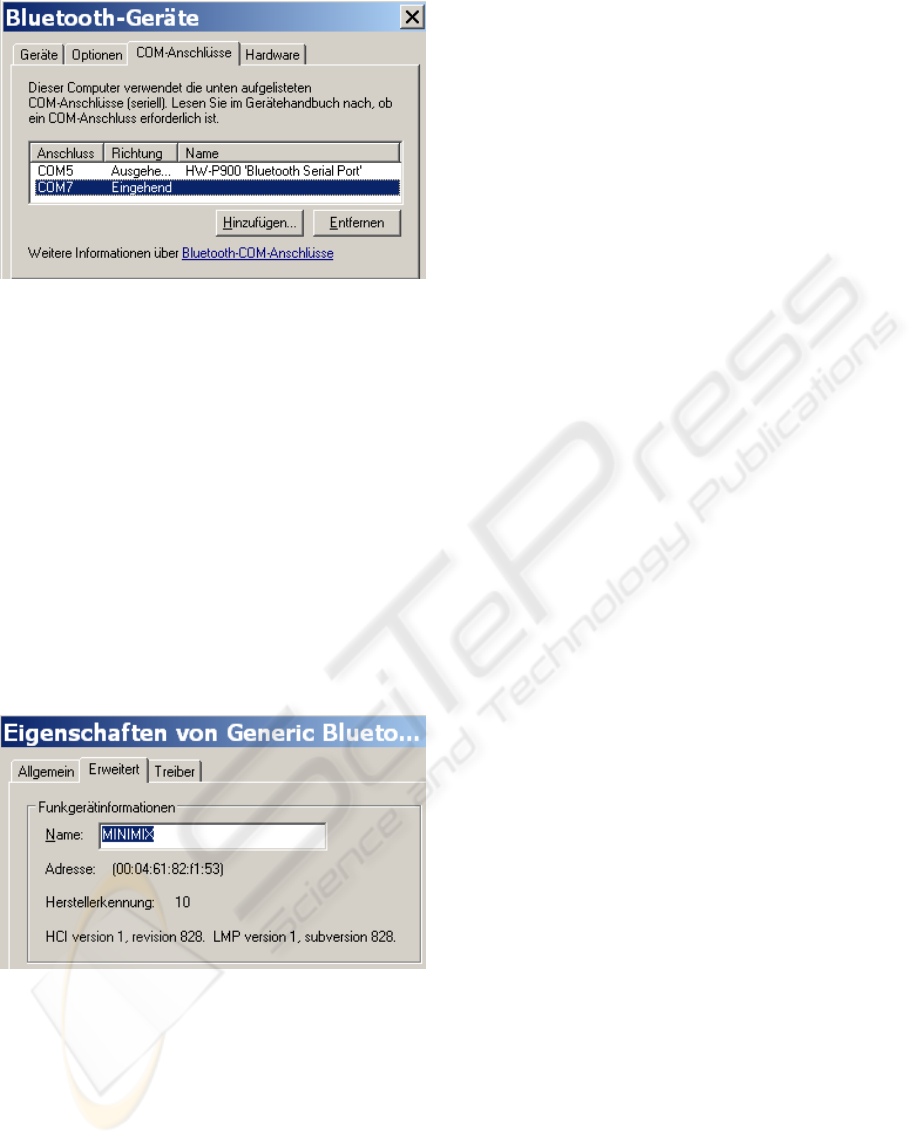

Figure 4: Another BT configuration menu of the OS al-

lows configuring pseudo serial ports. In the sample here of

the machine MINIMIX, COM7 is defined as server port.

As with the introduction of all recent communi-

cation standards into the desktop computer world,

also BT data links were implemented together with

simulated serial interfaces (similar to the RS232

standard), which are called pseudo serial connec-

tions. After binding two BT devices together (this is

called “pairing”), which is handled automatically on

BT partners by instances of the operating system

that ask for manual input of a secret key on both

hosts, pseudo serial ports can be configured for the

communication between the two. Such pseudo serial

ports are feasible for streaming connections in appli-

cation layer software, and two operational modes are

available for them: A server and a client port type

(Fig. 4).

Figure 5: The hex value of the BT hardware address

(MAC) can be read in the appropriate configuration menu.

The computer system, which should operate the

BT server port in this scenario, obviously is the

desktop computer, because only there the appropri-

ate service and the behind-lying software (e.g. a

proxy gateway) can run continuously without re-

strictions. For mobile devices, it would be almost

impossible running continuously such a server tool,

because the devices often shall be used for other

purposes like making phone calls, and the running

server software would discharge the battery of the

device very quickly and by that reduce the so-called

stand-by time to an unacceptable degree. Therefore,

in the further sections only the communication mode

is described of having the BT client on the mobile

device (section 2.1), and the BT server on the desk-

top computer (section 2.2).

For completeness, it shall be mentioned that a

server could as well be implemented on the mobile

device. Due to the explained reasons, this should be

started only when it is needed, but the consequence

would be more uncomfortable handling of the com-

munication system than with a server tool hosted on

the desktop computer, which can be launched auto-

matically and runs continuously as daemon task.

2.1 BT Serial Communication on a

Mobile Device

In J2ME, there exist one unique class named Con-

nector for the construction of any type of

communication link. During initialization, three pa-

rameters are required, which are the protocol type,

the target address, and optional parameters. For a BT

pseudo serial link, these are defined like follows:

String proto = "btspp://";

String btmac = "00046182F153";

String params = ":1;authenticate=false;

encrypt=false;master=false";

It is important to observe that the only valid and

working address is the BT hardware device MAC,

which is coded as 12 digit hexadecimal number

string that can be determined by standard operating

system menus on the target computer (Fig. 5). The

first parameter entry of “1” stands for the first BT

pseudo serial server port on the host (e.g. COM7 like

in Fig. 2, Fig. 3 and Fig. 4), and the client connec-

tion mode is commanded by the parameter entry for

“master=”. Obviously, there is no directly deductible

relation between the name of the pseudo serial port

on the host computer, and the opening parameter

entry for the Connector class.

Whether the communication can be encrypted

depends on the pairing relation between the host and

the client, but there is no guarantee that this is served

in actual J2ME environments. Despite what the au-

thenticate parameter value connotes, the operational

system layers ensure the proper authentification of

the involved BT devices. With this all, a streaming

connection can be initialized like follows:

StreamConnection con = null;

String conURL = proto+btmac+params;

String rdname = "unknown";

try {

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

396

con = (StreamConnection)

Connector.open(conURL);

RemoteDevice rd =

RemoteDevice.getRemoteDevice(con);

rdname = rd.getFriendlyName(true);

} catch (IOException ioe) {…}

//System.out.println (rdname);

Through the appropriate static system function, a

RemoteDevice object can be constructed, from

which additional information like the textual name

of the remote BT host can be retrieved.

After successfully opening the streaming connec-

tion, J2ME standard handling objects for input and

output activities on this stream can be derived:

OutputStream os = null;

InputStream is = null;

try {

os = con.openOutputStream();

is = con.openInputStream();

String msg = "HELLO "+rdname+"\r\n";

os.write(msg.getBytes());

os.flush();

} catch ( IOException ioe ) {…}

On base of these I/O objects, all the standard

functions for output (see above) and input can be

used, for instance in an echoing loop that immedi-

ately sends all received characters back to the BT

partner:

try {

int nxt = 0;

while (true) {

if ( is.available() == 0 ) {

// sleep a while

}

else {

nxt = is.read ();

if ( nxt == -1 ) break;

switch (nxt) {

// apply some translation

// for dedicate control

// chars such as line break

}

os.write (nxt);

os.flush ();

}

} catch ( IOException ioe ) {…}

As seen with the above coding lines, opening a

bidirectional streaming link in J2ME applications on

mobile devices can be a very simple-styled process,

if the proper parameters are known for all the re-

quired function calls. This sample works for low

communication speed, but as discussed in section 3

for fast data exchange additional issues have to be

regarded.

There is no requirement for applying searching

mechanisms for the BT host or for the BT communi-

cation service before applying this code like it is

suggestively described in all the articles about BT

programming in J2ME (e.g., Hopkins, 2004). If the

addressed host is not found in the BT micro cell, the

Connector.open() call returns the appropriate error.

This simplifies the software code considerably, but

of course, the BT MAC address must be available in

the mobile software.

2.2 Serving the BT Serial

Communication on a Desktop

Computer

A straightforward possibility of serving serial ports

on desktop and workstation computers is program-

ming in native development environment of the

given operating system. For UNIX hosts, this would

be C programming and for a desktop operating sys-

tem like MS Windows, this also would be C/C++

development, but in both cases the appropriate sys-

tem libraries would be used. BT pseudo serial ports

are accessible in these environments in an identical

manner like hardware RS232 interfaces with the

exception that interface control parameters, e.g., for

communication speed and handshaking modes, are

disregarded. Since many projects in education and

University environments are based on Java devel-

opment, detail implementation hints shall be given

again here for this programming environment (Bell

and Parr, 2002).

Handling of hardware interfaces, and in particu-

lar serial communication ports, is not contained in

the standard Java programming package. Extensions

for supporting hardware like audio devices were

added in additional standardized class libraries

(javax.*), and these are available for use. Due to its

inconvenient properties, serial communication still

does not fit in to this unified frame, and a special

software tools set has to be installed on the execut-

ing computer, because an interfacing is required

between native device handling on the operating

system of the host and the virtual computer that exe-

cutes the Java application.

Serial support comes in terms of a bundle called

javacomm, which contains a class library for the

Java system, and for MS Windows environment an

additional library (DLL) and a description file for

the native interfacing, which have to be installed in

the Java run-time directory tree. The javacomm bun-

TECHNOLOGY FOR LEAST-COST NETWORK ROUTING VIA BLUETOOTH AND ITS PRACTICAL

APPLICATION - Replacing Internet Access Through Wireless Phone Networks by BT Data Links

397

dle contains documentation how the operational en-

vironment has to be set up, and source code of

application samples for serial communication.

On base of this all, a communication application

can be implemented, while only the opening of the

device is a procedure specific to the serial interface

communication. After opening a serial port, the Java

standard streaming objects can be derived for pro-

gramming input and output actions on the device:

import javax.comm.*;

…

String portName = "COM7:";

CommPortIdentifier portId = null;

try {

portId =

CommPortIdentifier.getPortIdentifier

(portName);

} catch(NoSuchPortException nspe){…}

if ( portId.getPortType() != CommPor-

tIdentifier.PORT_SERIAL ) …

SerialPort sPort = null;

String myname = "me";

int timeout = 2000; //ms

try {

sPort = (SerialPort)

portId.open ( myname, timeout );

} catch (PortInUseException e) {…}

OutputStream sos = null;

InputStream sis = null;

try {

sis = sPort.getInputStream ();

sos = sPort.getOutputStream ();

} catch ( IOException ioe ) {…}

…

Around this, e.g., an Internet relay for BT

downloads can be developed straight forwardly.

2.3 Chat Tool as Implementation

Sample for BT Communication

The above described client software code lines are

an excerpt out of a chat tool, which was developed

for execution on J2ME-enabled handheld BT de-

vices. In a first approach, there is no own application

required on the host side, because a standard termi-

nal application can be configured for using the

appropriate pseudo serial port (Fig. 6).

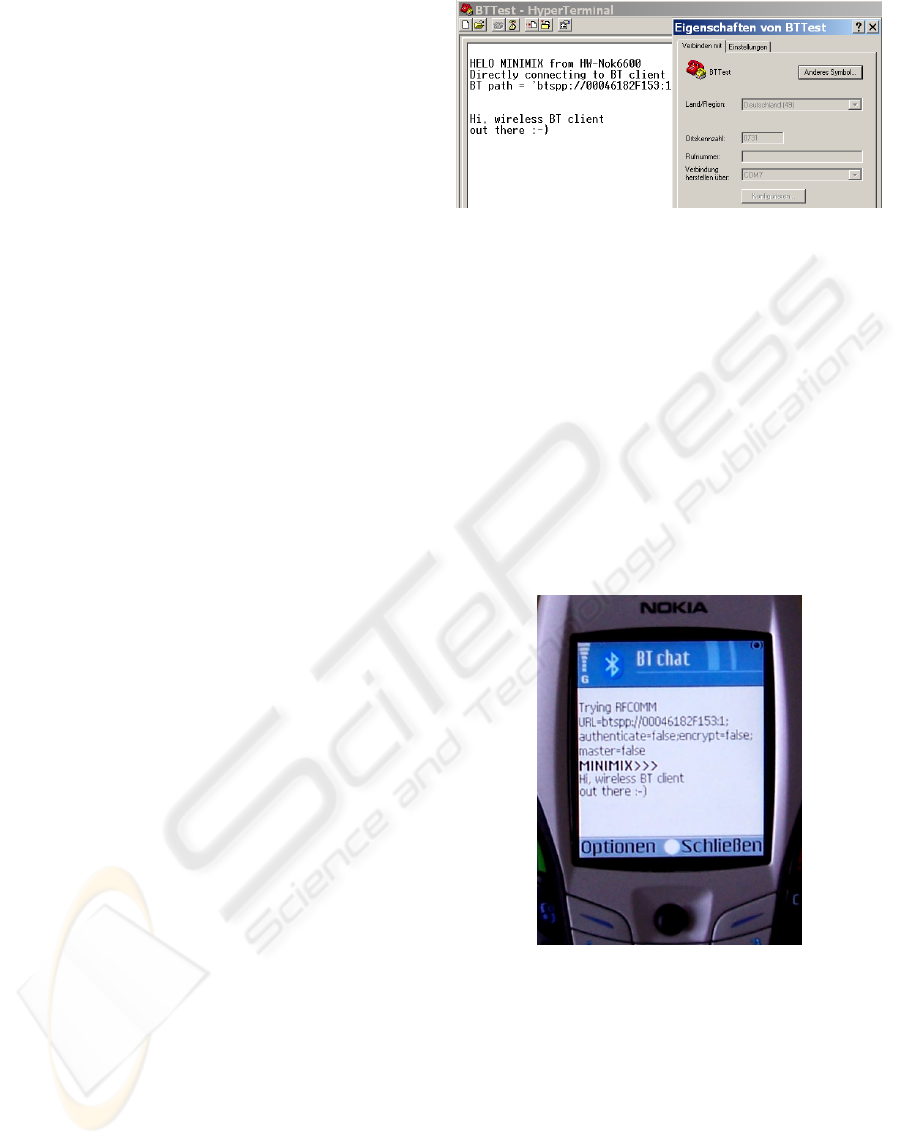

Figure 6: Standard terminal emulations can serve a BT

serial connection (here the pseudo port is COM7): The

first three lines are output sent from the wireless terminal,

while the below two lines were entered manually on the

desktop computer’s keyboard. These are only visible be-

cause of the echoing function of the wireless chat tool.

After the connection between the handheld chat

tool and the terminal application on the host is estab-

lished, all entered input on the host terminal is

displayed on the mobile device, and echoed back to

the host (Fig. 7). Only by that, the user can read

his/her input on the desktop computer. For the

proper display of line breaks, all special control

characters are translated in to the proper control se-

quence or actions for the terminal display, and for

the J2ME display respectively.

Figure 7: The BT chat client outputs some debug informa-

tion, before it prints out the input entered on the keyboard

of the remotely-connected host MINIMX.

The J2ME chat tool uses as output UI element a

StringItem. The StringItem contents are updated

with each input from the terminal on the remote

host. If the enter key on the host computer is

pressed, in the J2ME StringItem a new line character

is added, while a CR-LF combination is sent back

for the proper display on the host. If the FF (form

feed) code is entered on the host terminal, the con-

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

398

tents of the J2ME StringItem are purged completely,

and the erase code is sent back.

In additional experiments, the terminal applica-

tion executed on the host was replaced by automated

Java software that serves the pseudo serial BT inter-

face. With this, response and turn-around times were

measured, and the BT chat tool was used as pre-

development state for the Internet proxy used in the

application of section 4.

3 TECHNICAL RESTRICTIONS

IN J2ME BLUETOOTH

PROGRAMMING

3.1 Time Consumption of Data

Communication

Generally, setting up a Bluetooth (BT) communica-

tion link consumes time, which is in an order that is

well noticed by the user. If experienced often, this

delay may even be encountered as disturbing. In

particular, the search for close-by BT devices and

services may take up to minutes.

If the target BT host is known, directly opening

an above described serial connection requires ap-

proximately one second only, but until the querying

system decides that the desired communication part-

ner is absent, several seconds of waiting delay will

elapse. Within this time span, in many applications

the required information packet could have been

transmitted already through the phone network, and

the question arises whether BT overall is the best

data link for the application.

When such an information query often is repeat-

edly used, the described pseudo serial

communication makes only sense, if the direct

communication partner is know and does not need to

be searched for each time. Hence, an information

tool on the client has to be structured into two parts:

One branch should offer entering configuration,

through which a BT communication partner is de-

fined, and this branch is used rarely. The second

branch automatically uses the configured BT com-

munication partner for an information access.

During the implementation of the BT communi-

cation link, it turned out that when sending from the

BT host to the mobile device the connection easily

was overran, and transmitted information bytes were

lost completely. Neither in Java environment, nor in

C programming environment a working handshaking

was available for the pseudo serial communication.

Hence, the transfer had to be secured on the applica-

tion layer. For this, the simplest approach is sending

always one information byte and waiting for an echo

response from the wireless device before sending the

next byte. This concept was working reliably, but it

slowed down the communication extremely.

For chat applications with relatively slow manual

user inputs, this does not represent any issue, and for

an also investigated automated information system,

which downloads data from the open Internet, the

overall access time was in comparable order like for

GPRS access.

The exchange data rate can be increased by

transferring not only single but a set of bytes on each

transmission, but with bigger packets than 4 bytes,

unavoidable data loss was observed again. A nego-

tiation of the best transfer size is presumed

producing an overall increase in transfer time, be-

cause the exchanged packets are small. Single byte

transmission is working, but effectively it is unsatis-

factory, and a reliable faster communication has to

be developed, because the BT communication would

be useless for other applications than plain textual

communication, e.g. transferring pictures for a

weather forecast, or checking student IDs for exami-

nations by displaying their photographs on the

handheld device.

3.2 Location Sensing

Opening a BT link from a J2ME application on a

wireless device theoretically can be performed for

different communication partners simultaneously.

When this kind of method is used in practice, it has

to be observed that only the last initiated connection

will be preserved by the operational software. Again,

the finding is that what is working in Sun’s simulat-

ing environment for J2ME-enabled devices does not

work on real devices. Hence at the moment, BT lo-

cation detection makes only sense with one fixed

communication spot, because searching for many

BT partners would require a sequential query proc-

ess that would consequence too long a waiting time

for the end user. Already this possibility introduces a

true benefit, because if the defined communication

partner for a PDA is, e.g., the user’s office PC, this

scenario can detect the location of the user, and it

can use least cost information access through the

office computer for retrieving contents from the

Internet or Intranet, such as e-mail, news, traffic

messages, and other.

3.3 Uniqueness of BT Identities

When opening a BT connection, the primary access

address that is used is the MAC value. This hard-

ware address is unique, since it is bound physically

to the hardware device. If removable BT communi-

cation dongles (e.g. with an USB interface) are used,

TECHNOLOGY FOR LEAST-COST NETWORK ROUTING VIA BLUETOOTH AND ITS PRACTICAL

APPLICATION - Replacing Internet Access Through Wireless Phone Networks by BT Data Links

399

the BT interface hardware easily can be attached to

different computer systems. In this case, the pres-

ence of a BT communication partner could be

misinterpreted in the before discussed location-based

approaches.

In the SW samples of section 2, it is seen that af-

ter establishing a BT connection, the retrieval of a

name identifier string can be commanded. Unfortu-

nately, this name string is not unique, because it can

be set manually (Fig. 5). If a unique identification is

required in a BT application, the host identity has to

be checked and ensured on application layer. Due to

the mechanisms discussed before, this method would

manifest the only truly reliable method feasible for

the exchange of security relevant or confidential

information. For simplicity of implementation of

other mobile accessible information systems, the

rule could be not to exchange BT transceiver hard-

ware between different host systems, because else

the information system could end up in a confused

state.

3.4 Summary on Restrictions

Overall, it has to be stated that the practical BT

software implementations face a list of severe re-

strictions, which prevent the implementation of an

optimal concept for wireless BT access. On the other

hand, with the working features it is already possible

to improve existing information systems considera-

bly, because technology concepts like location

sensing for location-based services (Schiller and

Voisard, 2004) can be brought to life without fulfill-

ing additional requirements, e.g. having a GPS

receiver hardware installed. Special care has to be

addressed to the question how many locations can be

detected, and how a reliable detection is ensured.

The achievable improvement range with these new

possibilities shall be demonstrated with the sample

application in the next section.

4 LEAST-COST BLUETOOTH

INTERNET ROUTING FOR A

MOBILE RAILWAY

DEPARTURE INFORMATION

SYSTEM

In the recent years a mobile information system was

developed for people commuting between their liv-

ing home and their working place (office, school,

University, …) by train (Weghorn, 2004). The rail-

way company in our country provides on the open

Web departure and arrival tables for each main sta-

tion, but for a commuting person it does not make

sense querying these directly from a mobile termi-

nal, because these tables contain much more

information than is required.

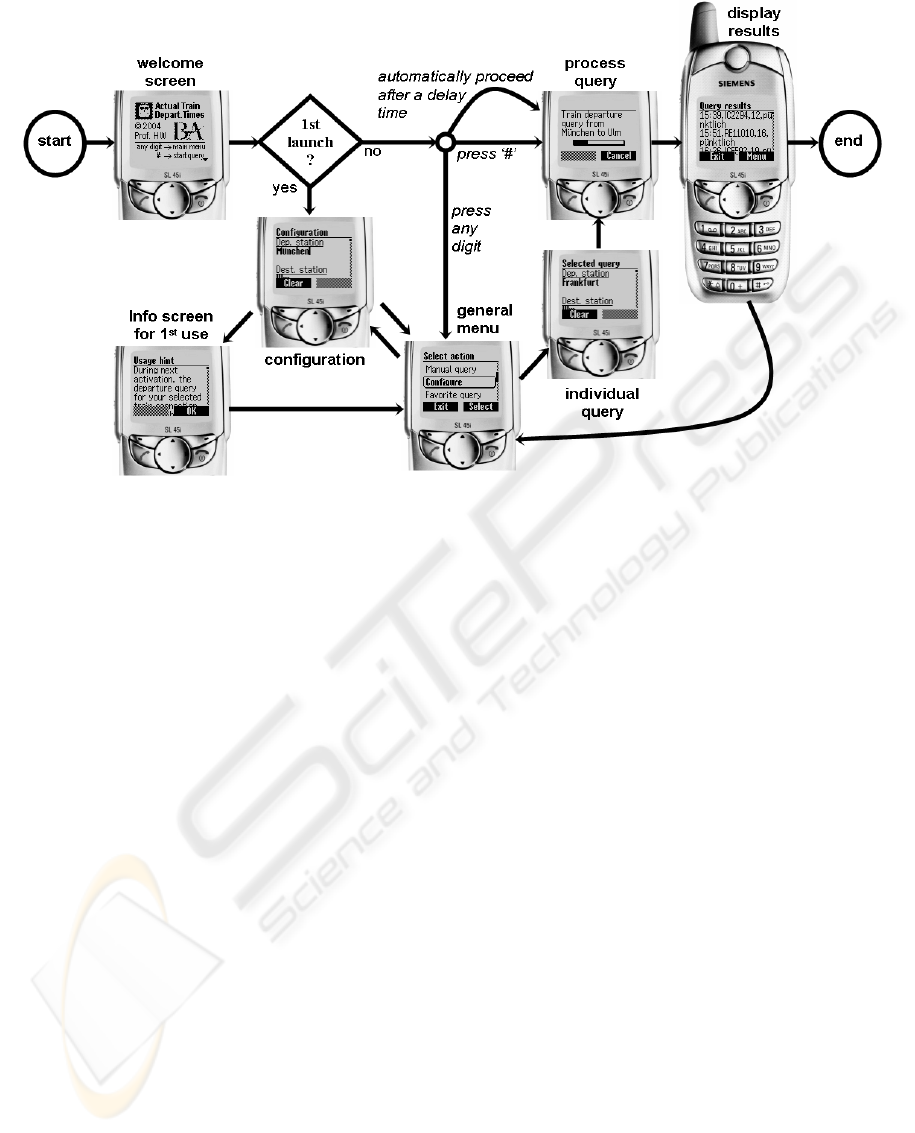

Figure 8: UI chart of the information tool on actual train departures for commuting people. Without user input, the query

process automatically proceeds along the line from start to end.

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

400

The system concept is like that the user config-

ures a certain connection link by defining the train

stations close to his living home and the working

place. During a departure query, the mobile device’s

software contacts an intermediate agent with the

parameters of the traveling link and this agent mines

the desired contents from the general tables on the

Web. Finally, the agent transmits only relevant in-

formation about time departures (for instance

delays) or additional information (e.g., change of

platform) to the wireless device, where the result is

displayed (Fig. 8).

It was reported already that this query via a data

link through wireless telephony networks takes be-

tween 3 and 40 seconds, and that the costs for one

query range in the order of 10 to 40 Eurocents.

These absolute values depend on the network opera-

tor and on the tariff of the customer, while the

experiments showed that best performance is

achieved with GRPS data links: Setting up a first

GPRS connection including access to the departure

information usually doesn’t require more than 10

seconds, while each further access needs only

around 3 seconds.

For the users’ best convenience, the query auto-

matically is processed without any necessity for user

interactions once the tool is launched (Fig. 8). After

launching the SW tool, a welcome screen is dis-

played, during which the user can interrupt the

regular query and enter a main menu. In this main

menu the commuting link can be defined, and indi-

vidual queries can be placed.

The application suffers from one free parameter,

which is the travelling direction. This cannot easily

be determined automatically without further re-

quirements. There would be a possibility of using

network cell broadcast messages for obtaining the

location of the user and by that the entrance station,

but although the access to cell broadcast is defined

since many years in J2ME specifications it is not

working on true devices (Weghorn, 2005). In the

application, the problem was overcome by defining

a switching time (e.g. 1:30 pm), when the system

automatically assumes that the user has changed

between going-in and going-home. This is a feasible

but not always accurate measure.

BT technology can now help improving this sys-

tem in two ways: It provides a limited location

sensing, and it allows replacing the costly download

of Internet data through the telephony network link

by an almost costless BT data communication. For

achieving both, the office computer of the user shall

be defined as sense key: When a departure table

query is launched, the information tool tries to di-

rectly open a BT pseudo serial link to the office

computer. If this succeeds, the information system

assumes that the user is on the way home and sets

the appropriate travelling direction, and furthermore

it downloads the information directly through the BT

link. If opening the BT link fails, the query tool con-

tinues with the original procedure, i.e. using the

wireless phone network for the data communication.

The BT query can already be performed in parallel

to the welcome screen (Fig. 9).

As convenient time for displaying the welcome

screen, a value between 1.5 and 2 seconds was ex-

perienced. The BT query – in case it fails – will

extend this screen display to a duration of approx.

three seconds. The benefit of automatic location

detection and saving of costs for phone network use

has to be paid back by this extended delay. If de-

sired, this small inconvenience can be overcome by

adopting the function of the input buttons during the

welcome screen: In case the ‘#’ button is pressed,

the system can proceed automatically with the origi-

nal method without further searching for a possible

BT connection. Pressing any of the numeric digits

will still bring the user to the individual handling

menu of the information tool.

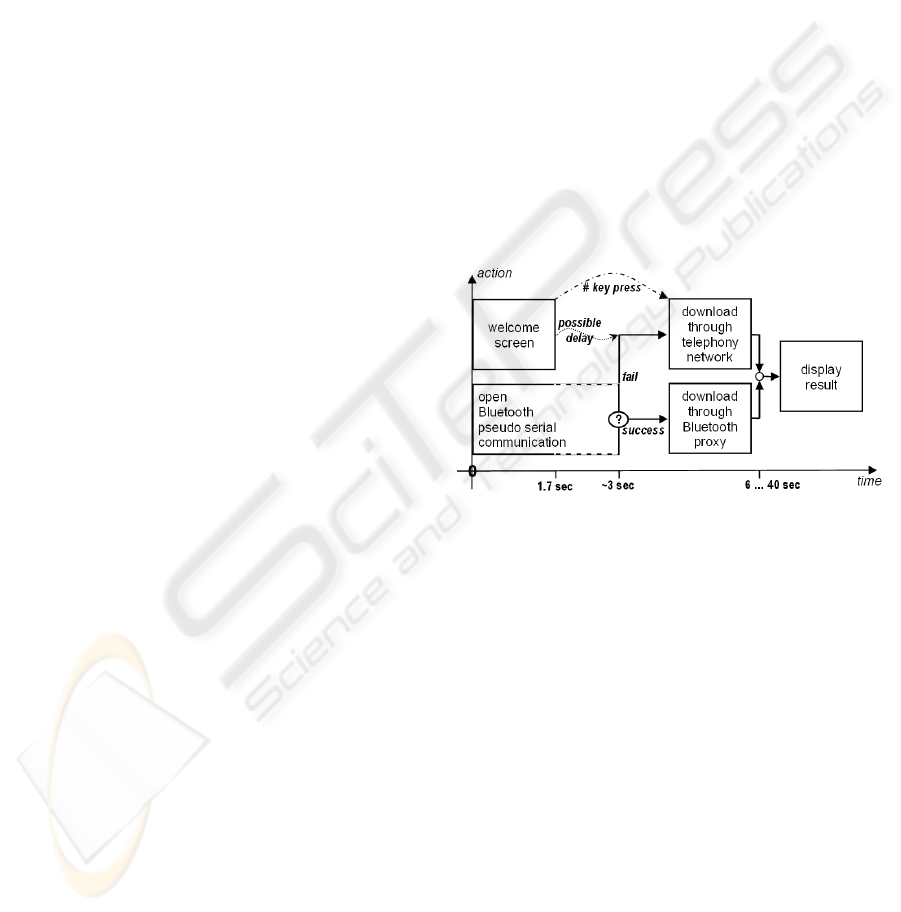

Figure 9: Process flow for automatic Bluetooth routing.

The extension of the train departure query sys-

tem shows, how BT communication can be used in

parallel for two improvements, in particular by in-

troducing:

• Geographical location-sensing by prox-

imity detection

• Least-cost Internet information routing

It has also to be stated clearly that an optimum

system cannot be constructed, because the absence

detection delay is a fundamental BT property and

cannot be reduced. Furthermore, parallel sensing of

alternative BT hosts like other computers close-by

the office area, and a home computer cannot be ob-

tained without introducing additional unacceptable

waiting delays for the customer. Hence, a notable

improvement of this information channel for mobile

users can be achieved, but not to the full theoretical

extend.

These benefits would also be applicable to most

of the other personalized wireless information sys-

TECHNOLOGY FOR LEAST-COST NETWORK ROUTING VIA BLUETOOTH AND ITS PRACTICAL

APPLICATION - Replacing Internet Access Through Wireless Phone Networks by BT Data Links

401

tems (Weghorn, 2004), which we developed in the

recent years, like traffic and weather channels.

5 CONCLUSIONS

In the work reported here, a technical programming

concept was developed. This describes how informa-

tion access from handheld devices, which usually

use for this a wireless phone network connection to

the Internet, can be replaced by Bluetooth communi-

cation.

Doubtlessly, the best solution would be, if an

automatic rerouting is implemented in the opera-

tional software layers of the wireless device instead

of the application software, since BT provides a

dedicate service for using the Internet connection of

other hosts. Unfortunately – although this would be

technically achievable – other samples of missing

possible features, e.g., making direct calls between

phone terminals via BT that is also within the stan-

dard since years (Miller, 2001), show us that this is

not very likely to happen soon. Obvious economic

interests of wireless telephony network operators

prevent this advance for the end customer, and since

these operators are sponsoring to a large extend the

purchase of wireless devices, there exist good and

valid reasons for this strategy.

Fortunately, if an information tool shall be opti-

mized in terms of cost efficiency by using BT

communication, a direct programming of the rerout-

ing is possible, and works like the samples of the

chat client and the railway departure information

system show. Technical restrictions in the imple-

mentation of BT in true-world wireless devices also

prevent an optimal application of all potential bene-

fits of BT data links. Especially the train information

system demonstrates that already at the current state

of technology clear advantages arise for the end

user, because other systemic drawbacks like the

well-defined but non-functional location sensing

(Weghorn, 2005) can be replaced by BT sensing to a

helpful extend.

As first advance, information access costs can be

reduced, and secondly the query tool on the wireless

terminal can be used everywhere seamlessly, so

there is no need for changing between the wireless

terminal and a desktop computer depending on the

location, where the user wants to run the information

retrieval. As seen from the above photographs of

true-world devices, this all was experimentally veri-

fied with end devices from different manufacturers.

Concluding, it should be noted that the current im-

plementation of the pseudo serial communication via

BT does not easily allow a fast data stream, but in

the end this fits well to the before developed custom-

ized information system that transmits only few

relevant contents through the wireless link to the

mobile terminal (Weghorn, 2004).

REFERENCES

Bell, D., and Parr, M., 2002. JAVA for Students, Prentice

Hall. Dorchester, 3rd edition.

Weghorn, H., 2004, Personalized Information Retrieval

System for Improving the Use of Data Services

through Digital Wireless Phone Networks, IADIS In-

ternational Journal on WWW/Internet, ed. P. Isaías,

Volume II, No. 2, 43-56

Weghorn, H., 2005, Multi-Sourcing Web Services for an

Improved Access to Web Contents, in WWW/Internet

2005, IADIS Proceedings, Vol. II, 226-231, Lisbon

Hopkins, B., 2004. Getting Started w. Java and Bluetooth.

http://today.java.net/pub/a/today/2004/07/27/bluetooth

.html, last access Oct. ‘05.

Klingsmann, A. N., 2004. J2ME Bluetooth Programming,

Master’s thesis, Department of Informatics, University

of Bergen. July 2004.

Knudsen, J., and Li, S., 2005. Beginning J2ME: From

Novice to Professional. Apress, Berkeley.

Kumar, C., Kline, P., and Thompson, T., 2004, Bluetooth

Application Programming with JAVA APIs, Morgan

Kaufmann. San Francisco, 1

edition.

Mahmoud, Q. H., 2003. Wireless Application Program-

ming with J2ME and Bluetooth.

http://developers.sun.com/techtopics/mobility/midp/art

icles/bluetooth1/, last access Nov. ‘05.

Miller, B., 2001. Future Applications for Bluetooth Wire-

less Technology, in Bluetooth Revealed: The Insider's

Guide to an Open Specification for Global Wireless

Communications, Prentice Hall. 2

Edition.

Riezenman, M. J., 2002. The ABCs of IEEE 802.11. IEEE

Spectrum Online, September 2002.

http://www.spectrum.ieee.org/WEBONLY/resource/se

p02/802ABCs.html, last access April ‘05.

Schiller, J., and Voisard, A. (eds), 2004, Location-Based

Services. Morgan Kaufmann Publishers, San Fran-

cisco, USA.

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

402
