Facial Feature Tracking and Occlusion Recovery in

American Sign Language

Thomas J. Castelli

, Margrit Betke

and Carol Neidle

1 Department of Computer Science, 2 Department of Modern Foreign Languages

Boston University, Boston, USA

Abstract. Facial features play an important role in expressing grammatical infor-

mation in signed languages, including American Sign Language (ASL). Gestures

such as raising or furrowing the eyebrows are key indicators of constructions

such as yes-no questions. Periodic head movements (nods and shakes) are also

an essential part of the expression of syntactic information, such as negation (as-

sociated with a side-to-side headshake). Therefore, identiﬁcation of these facial

gestures is essential to sign language recognition. One problem with detection

of such grammatical indicators is occlusion recovery. If the signer’s hand blocks

his/her eyebrows during production of a sign, it becomes difﬁcult to track the

eyebrows. We have developed a system to detect such grammatical markers in

ASL that recovers promptly from occlusion.

Our system detects and tracks evolving templates of facial features, which are

based on an anthropometric face model, and interprets the geometric relationships

of these templates to identify grammatical markers. It was tested on a variety of

ASL sentences signed by various Deaf

native signers and detected facial gestures

used to express grammatical information, such as raised and furrowed eyebrows

as well as headshakes.

1 Introduction

A computer-based translator of American Sign Language (ASL) would be useful in

enabling people who do not know ASL to communicate with Deaf

individuals. Fa-

cial gesture interpretation would be an essential part of an interface that eliminates the

language barrier between Deaf and hearing people. Our work focuses on facial feature

detection and tracking in ASL, speciﬁcally in occlusion processing and recovery.

Facial features play an important role in conveying grammatical information in

signed languages such as ASL. Two sentences using the same signs can have com-

pletely different meanings depending on the signer’s facial expression [4, 10, 18]. The

position of the eyebrows, for example, is a key indicator of ASL question constructions.

Our system detects eyebrow raises and furrows. A “yes/no question,” a question that can

be answered with a simple yes or no, or a “rhetorical question,” a question to which the

The word “Deaf” is capitalized to designate those individuals who are linguistically and cul-

turally deaf and who use ASL as their primary language, whereas “deaf” refers to the status of

those who cannot hear [25].

J. Castelli T., Betke M. and Neidle C. (2006).

Facial Feature Tracking and Occlusion Recovery in Amer ican Sign Language.

In 6th International Workshop on Pattern Recognition in Information Systems, pages 81-90

DOI: 10.5220/0002471700810090

 SciTePress

answer is immediately provided by the signer, is typically accompanied by raised eye-

brows. “Wh questions,” which seek information about “who,” “what,” “when,” “where,”

“why,” or “how,” are typically (but not always) accompanied by furrowed brows over

the ﬁnal phrase of a sentence and, often, over the sentence as a whole

. Wh questions

may also involve a slight rapid headshake. A slower and more pronounced side-to-side

headshake is characteristic of the negative marking, which normally occurs over the

phrasal scope of the negation, accompanied by a slight furrowing of the brows.

We have developed an anthropometric facial feature model based on medical sta-

tistics of human face dimensions compiled by Farkas [11]. With this model, the facial

features of an arbitrary signer can be detected, tracked, and – if occlusions occur –

recovered. A group of evolving templates is used to predict changes in location and

appearance of these features. The movement and position of these templates relative

to each other are used to detect grammatical markers in ASL such as those described

above.

Occlusion of the face poses a major difﬁculty for computer-based translation of

ASL. Many signs require the signer to bring one or both hands in front of the face. It is

challenging for a computer to reason about a motion that causes an occlusion, because

the motion typically only lasts only a few frames of videos collected with commercially

available 30-Hz webcams. Moreover, while the human observer sees the signer’s hands

continuously as they move quickly in front of and away from the face, the computer

program, on the other hand, only has access to a small number of discrete samples of

this movement.

When our system detects the event of an occlusion, it stops tracking the facial fea-

tures and updating the evolving templates. It recovers from the occlusion by reasoning

about the elapsed time and matching the anthropometric feature model to the current

scene. Each facial feature is tracked and corrected separately because the position of

an occlusion on the face may differ. Lower face occlusions, for example, do not af-

fect tracking of the eyebrows, while upper face occlusions do not affect tracking of the

nostrils.

Previous Work. Our work was inspired by the Eyebrow-Clicker [14], an interface for

human-computer interaction that takes live video of a computer user and determines

if the eyebrows have been raised for some period of time. If so, the software sends a

mouse click to the operating system. An intended use of the system is to enable those

with severe disabilities, who cannot use standard input devices, to use a computer.

Various model-based methods have been used to track facial features, e.g., [1,9,

19]. Ohtsuki and Healey [19] also base their facial feature extraction system on Farkas’

model. Some works [7, 22] report robustness in the event of occlusions. Other facial

feature trackers [13, 21] that also are successful in handling occlusions require training

to detect “good” feature points and may not track features useful for sign language

recognition.

Previous work on sign language recognition [3,5,23,24] has largely focused on the

hands and on recognizing and matching hand shapes with large vocabulary databases.

Hidden Markov models have been popular for this type of work, e.g. [20,23]. Given the

Rhetorical questions may themselves take the form of either yes/no or wh questions; both types

of rhetorical questions, though, are accompanied by raised eyebrows.

importance of facial features in ASL, we expect that, in the future, the interpretation of a

signer’s facial expressions will be combined with these previously developed techniques

for recognition of manual signs to build a complete sign language recognition system.

2 Materials and Methods

Video data from the National Center for Sign Language and Gestures Resources at

Boston University [16], collected in 8-bit grayscale at 30 Hz, was used to develop and

test the interface. The subjects were native ASL signers. The annotations were car-

ried out using SignStream

, a database program to facilitate the analysis of visual

language data [17]. Of particular relevance here were the annotations of positions and

movements of the head and eyebrows, as well as the English translations provided for

each sentence.

Anthropometric Model. Our system detects and tracks facial features based on an an-

thropometric feature model that we derived from a face model by Farkas [11] (Fig. 1

left). Farkas took measurements of various head and facial dimensions of North Ameri-

can Caucasians, African-Americans, and Asians, aged 1–25. Our anthropometric model

is based the averages of the data for the adult subjects (ages 18–25). We use the differ-

ence eu-eu between the eurion landmarks at the left and right sides of the skull to

represent the width of the face and the difference al’-al’ between the al’ points,

two landmarks on either side of the ala of the nose, to represent the width of the nostril-

pair feature. The subnasale landmark, sn, is at the base of the nose, and the pronasale

landmark, prn, is at the tip of the nose. We use the distance 0.75 × (sn-prn) to repre-

sent the height of the nostril-pair feature. For each eye, the difference ex-en between

the exocanthion and endocanthion landmarks, which describe the outer and inner facial

points of the eye, is used to represent the width of the eye feature. It is also used to

represent the width of the respective eye brow feature.

A conversion factor is computed that relates the distances of the face in the image,

measured in pixels, to the anthropometric model, which is represented in millimeters.

The factor depends on the distance of the person to the camera, the focal length, and

pixel size.

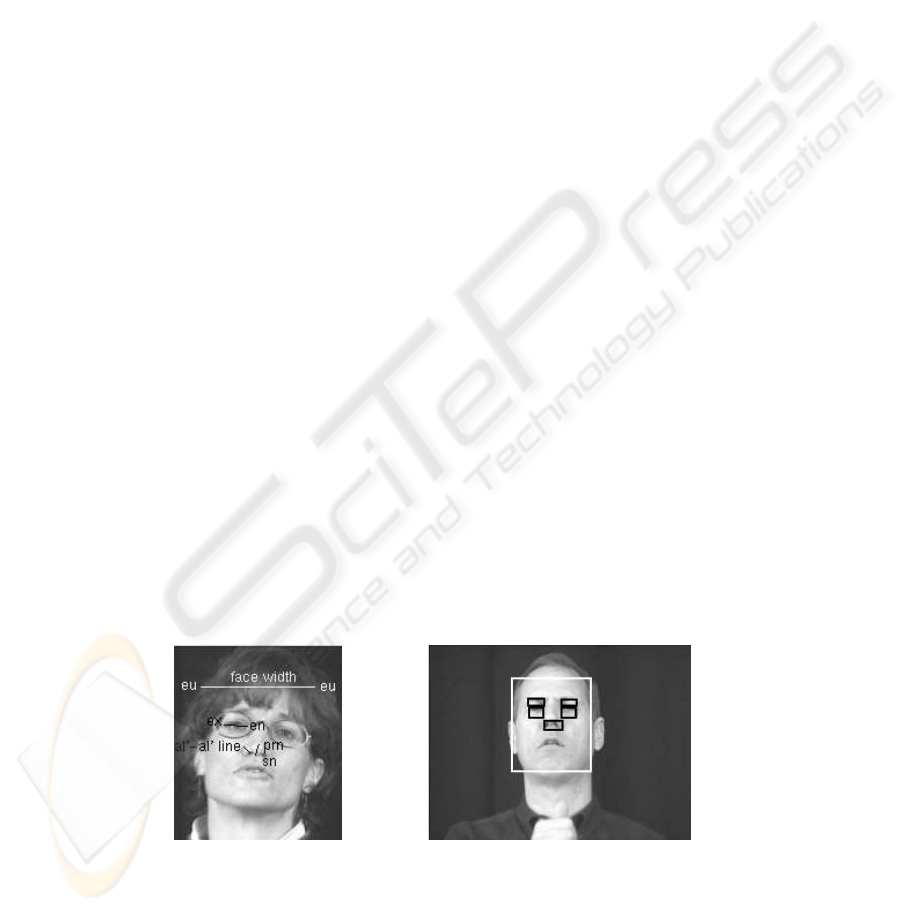

Fig.1. Left: Anthropometric facial feature model. Right: Automatically predicted locations of the

facial features based on the anthropometric model.

Feature Detection. Our system takes as input a bounding rectangle of the subject’s

face. The rectangle is determined manually here, but could be provided by a number of

currently available systems that are very effective in detecting upright faces (e.g., [8]).

The facial feature positions are then automatically predicted by applying the anthro-

pometric model. It is assumed that the nostrils will appear as black circles toward the

center of the face, as in Refs. [7] and [22]. Nostril pixels are found by thresholding the

intensity values of the face region and computing peaks of the vertical and horizontal

histograms of these values.

To represent features, our system uses grayscale templates. The nostril template is

used as an anchor for ﬁnding other facial features in case of loss, as in Ref. [7]. The

vertical position of the center of the eyebrows is determined by subtracting 1.65 ×

(sn-prn) from the vertical position of the top of the nostril template.

The interior sides of the eyebrow templates (the sides which are closest to the nose)

are considered to have the same horizontal positions as the left and right sides of the

nostril template, respectively. The eye templates are placed below the eyebrow tem-

plates, in the same horizontal positions. The width of the eye templates are the same as

that of the eyebrow templates. Our facial feature model is good in detecting the feature

positions automatically if the face is in a neutral state, i.e., facing the camera (Fig. 1,

right).

Feature Tracking and Occlusion Detection. The facial feature templates used dur-

ing tracking are automatically created from the analysis of the ﬁrst video frame. Each

feature is tracked by correlating the appropriate template with the current image, using

the Normalized Correlation Coefﬁcient (NCC). Our templates are evolving templates,

meaning that the matching subimage in the current frame is used to create a template

that is then applied to the detection process in next frame if there is no occlusion. The

pixel that yields the highest value of the NCC near the feature location in the previ-

ous frame will be used as the new location for the feature in the current frame. If the

NCC falls below a certain threshold value, which varies depending upon the template in

question, the location of the template is not updated, and the occlusion counter for this

template is incremented. In the event that the occlusion counter for any given template

reaches a time limit (7 frames), it is assumed that there has been a bona ﬁde occlusion

of this feature, and the recovery process is initiated. Figure 2 shows a typical occlusion

and its effect on the detected templates.

For occlusion recovery, our system restores the affected template from the ﬁrst

frame, which is known to reﬂect the desired feature, and resets its occlusion counter. If

a right-handed signer occludes his nostrils, the left eyebrow is typically not occluded

and its tracked position is used to recover from the occlusion by applying the anthro-

pometric model. Any physical differences between the signer’s face and the average

anthropometric data, as established in the initial, neutral frame, are taken into account.

Similarly, if either eyebrow has been occluded, the system resets the position based on

the nostril location. If an eye has been occluded, the system sets it slightly below the

corresponding eyebrow. Eye occlusions are always checked after eyebrow occlusions,

so the eyebrow positions can be corrected before any adjustment to the eye templates

are made (Fig. 2) Occlusion recovery is also initiated if the face is determined to be

excessively tilted.

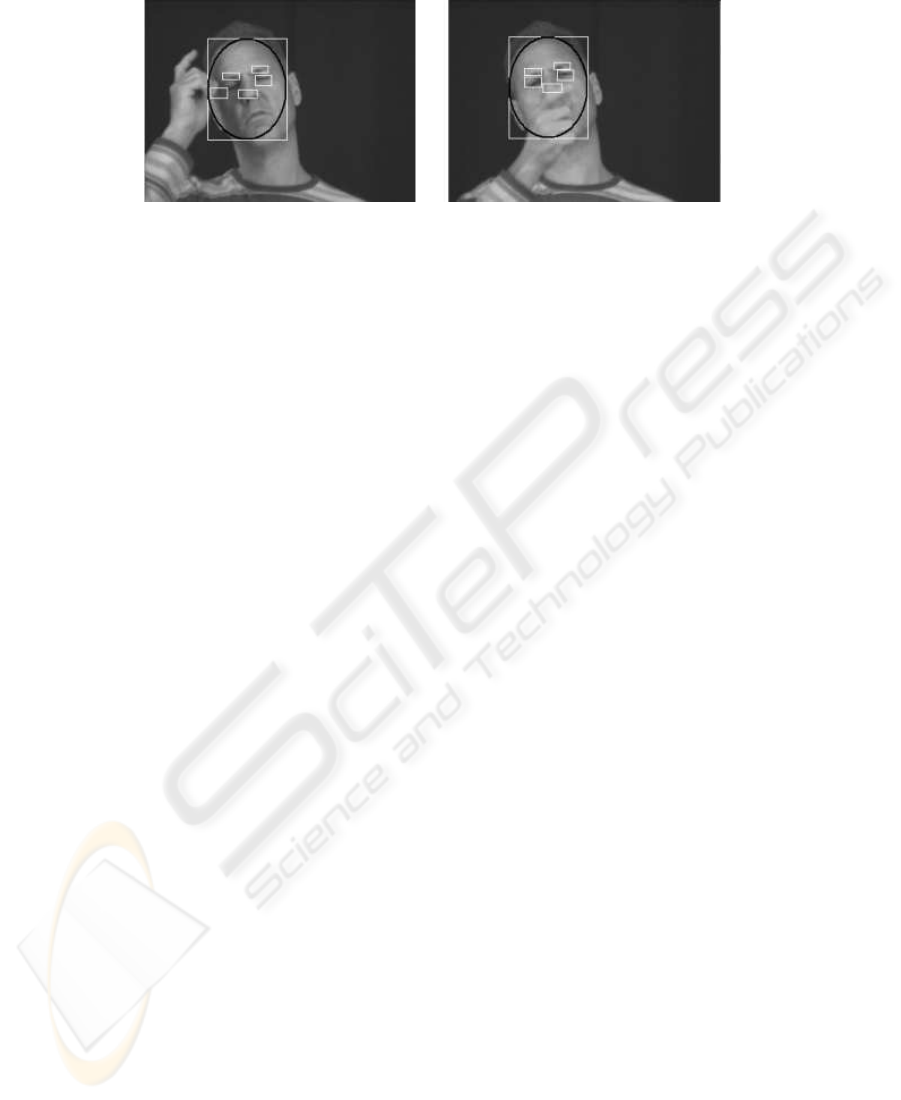

Fig.2. A template that has been offset due to occlusion (left), and after subsequent recovery

(right).

Detecting Grammatical Markers. Our system detects three types of grammatically

signiﬁcant head gestures: furrowed eye brows, raised brows, and head shakes. Our

browState algorithm detects raised brows, which are characteristic of non-wh ques-

tions, but are also used for other constructions, such as topic marking, and furrowed

brows, which often indicate a Wh question, but also occur in negations and other con-

structions. Eyebrow raises are detected by comparing the distance between eye and

eyebrow templates in the current frame with the neutral distance, measured in the ini-

tial frame. Furrowing is detected by comparing the distance between the eye brows in

the current frame with the neutral eye brow distance. Headshaking is often indicative

of a phrasal negation. Our headshake algorithm determines if the head is shaking,

by checking 5/30 seconds of video for horizontal movement. If the nostril template has

moved horizontally, in either direction, for each frame in the past 5/30 seconds, the head

is considered to be shaking. The detection algorithms are run on each frame, and their

results are reported as potential detections (Figs. 3, 4). Only if a grammatical marker

has been seen for at least ﬁve consecutive frames (0.16 s) is it considered truly detected.

Implementation. The system was implemented in C++ with OpenCV [12] and tested

on a desktop PC with two AMD Athlon MP 2100+ (1733 MHz clock speed) processors

and 2 GB of RAM in Windows 2000.

3 Results

The system was tested on 22 videos (45 to 150 frames) of ASL phrases with known

English translations signed by four subjects (Table 2). Some of the processed videos

can be viewed by visiting our web site [2].

Fifteen of the 22 videos yielded correct detection of all grammatical indicators. A

total of 30 indicators were tested, of which 24 were detected correctly. A false positive

was reported only once. False negatives occurred more frequently. A false negative was

considered to occur whenever the system reported the neutral state instead of the gram-

matical marker(s) that should have been detected. Most of our videos had one primary

grammatical marker at a time. Some had multiple markers occurring at different points

in the video. Two of the videos had simultaneous grammatical markers (a headshake

Table 1. Detection results of the algorithm. The phrases are grouped according to the subject who

signed them.

Phrase Indicators Detected

Present Indicators

“Mary herself prefers corn.” Neutral Neutral

“The teacher gives the boy a book repeatedly.” Neutral Neutral

“When did John ﬁnish reading the book?” Furrowed Furrowed

“Did John read the book?” Raised Furrowed

†

“Yes, he already did.” Neutral Furrowed

“Did John ﬁnish reading the book?” Raised Raised

“John has not yet ﬁnished reading the book.” Headshake Headshake

“Frank is looking for whose book?” Furrowed Furrowed

“John is not visiting Mary.” Headshake Neutral

†††

Furrowed Furrowed

“Will father like that book?” Raised Raised

“How many books did father give to John?” Furrowed Furrowed

“John will not buy a house.” Headshake Headshake

“Who told Bill?” Raised Neutral

‡

“Mary.” Neutral Neutral

“Whose car is that?” Furrowed Neutral

“John read the book.” Neutral Neutral

“John’s mother arrived. Neutral Neutral

Whose mother arrived?” Furrowed Furrowed

“Who did John see throw the apple?” Raised Neutral

‡

“Mary.” Neutral Neutral

“Do you see the Raised Raised

book over there?” Neutral

††

“John ﬁnished reading it yesterday.” Neutral Neutral

“I have never seen John’s car.” Headshake & Headshake &

Furrowed Furrowed

“How many books did the student read?” Furrowed Furrowed

“Who saw John?” Furrowed Furrowed

“I never saw John’s car.” Headshake Neutral

‡‡

“Did you see anyone?” Raised & Raised &

Headshake Headshake

†Subject’s head was signiﬁcantly tilted to the left.

‡Subject had bangs and glasses, making eyebrow detection difﬁcult.

††Subject tilted his head to the right after the eyebrow raise was detected.

‡‡Subject lifted her head rapidly after the ﬁrst frame, causing tracker failure.

†††In this sentence, the negative headshake occurred only over the sign NOT, and did not extend

over the rest of the verb phrase, as it often does. This brief headshake was not detected.

accompanied by either raised or furrowed eyebrows). Our system successfully detected

both grammatical markers simultaneously in these two videos.

Our algorithm was effective at detecting facial gestures that are essential compo-

nents of grammatical markings in American Sign Language. It recovered promptly from

occlusions. Table 3 shows the speed of the algorithm in “AutoStep” mode at 30% CPU

usage. The processing times were, in most cases, roughly double the video length.

One signer had long bangs that partially or completely covered her eyebrows. This

occasionally resulted in false eyebrow tracking as one or both of the eyebrow templates

would latch onto the hair (Fig. 4). Correlation would be high due to the similarity of

the gray-levels of hair and eyebrows, so occlusion recovery was not triggered in these

situations.

Table 2. Processing speed of our system compared with actual video lengths.

Phrase Video Length Run Time

“Will father like that book?” 3.08 s 5.60 s

“How many books did father give to John?” 3.05 s 6.28 s

“John will not buy a house.” 2.42 s 6.05 s

“Who told Bill? Mary.” 2.85 s 6.04 s

“John read the book.” 1.48 s 5.45 s

“John’s mother arrived. Whose mother arrived?” 3.83 s 6.24 s

“John is not visiting Mary.” 1.85 s 6.10 s

4 Discussion and Conclusions

It is important to note the difference between the detection of grammatically signiﬁ-

cant head gestures and the interpretation of these gestures. The system displays which

gestures have been detected, but makes no grammatical interpretation as to the type of

sentence in the video. Automatic interpretations are difﬁcult, since the speciﬁc facial ex-

pressions that our system detects are included in the cluster of features associated with

the expression of several different ASL constructions, and since there may be some

variation in the expression of speciﬁc grammatical information. It is also important to

note that not every instance of, e.g., a Wh question, is accompanied by furrowed brows.

Because other factors, such as affect, can interact with the expression of grammatical

information, one occasionally ﬁnds atypical eyebrow conﬁgurations in yes/no or Wh

questions, for example.

Our system could be extended to track deformable templates [6] or features in a

wireframe model [1]. To follow the spirit of our current work, which is based on an-

thropometric data, the template deformation models would have to represent anthropo-

metrically valid deformations of the facial features.

In summary, we have developed a real-time tracking system using evolving tem-

plates for detecting key grammatical indicators in American Sign Language. Our con-

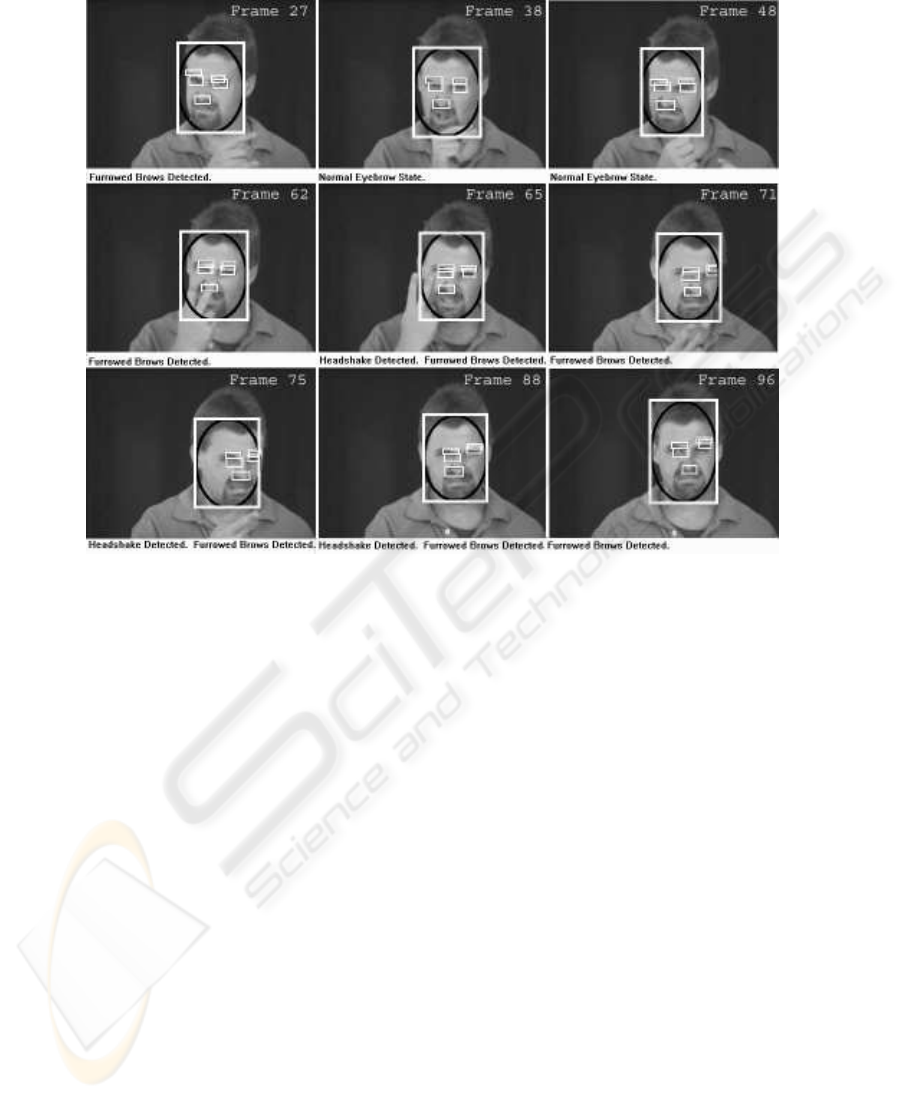

Fig.3. Selected processed frames from one of the videos. Sign order: JOHN CAR NEVER SEE,

English translation: “I have never seen John’s car.” This video has two simultaneous grammatical

markers – a headshake and furrowed eyebrows, indicating phrasal negation. Our system detects

both of these markers quite well.

tributions include an anthropometric face model for prediction of facial feature loca-

tions, the tracking and interpretation of a collection of evolving templates in real time,

and the handling of and recovery from occlusion.

Our system may eventually be applied as a component of an automatic sign lan-

guage translation interface, along with techniques for recognition of hand shapes and

manual signs that have been developed by other researchers, and thus enable human-

computer-human interaction between Deaf and hearing people.

Acknowledgements

We would like to thank Stan Sclaroff and Vassilis Athitsos for helping to collect the

ASL videos. Funding was provided by the National Science Foundation (IIS-0329009,

IIS-0093367, IIS-9912573, EIA-0202067, and EIA-9809340).

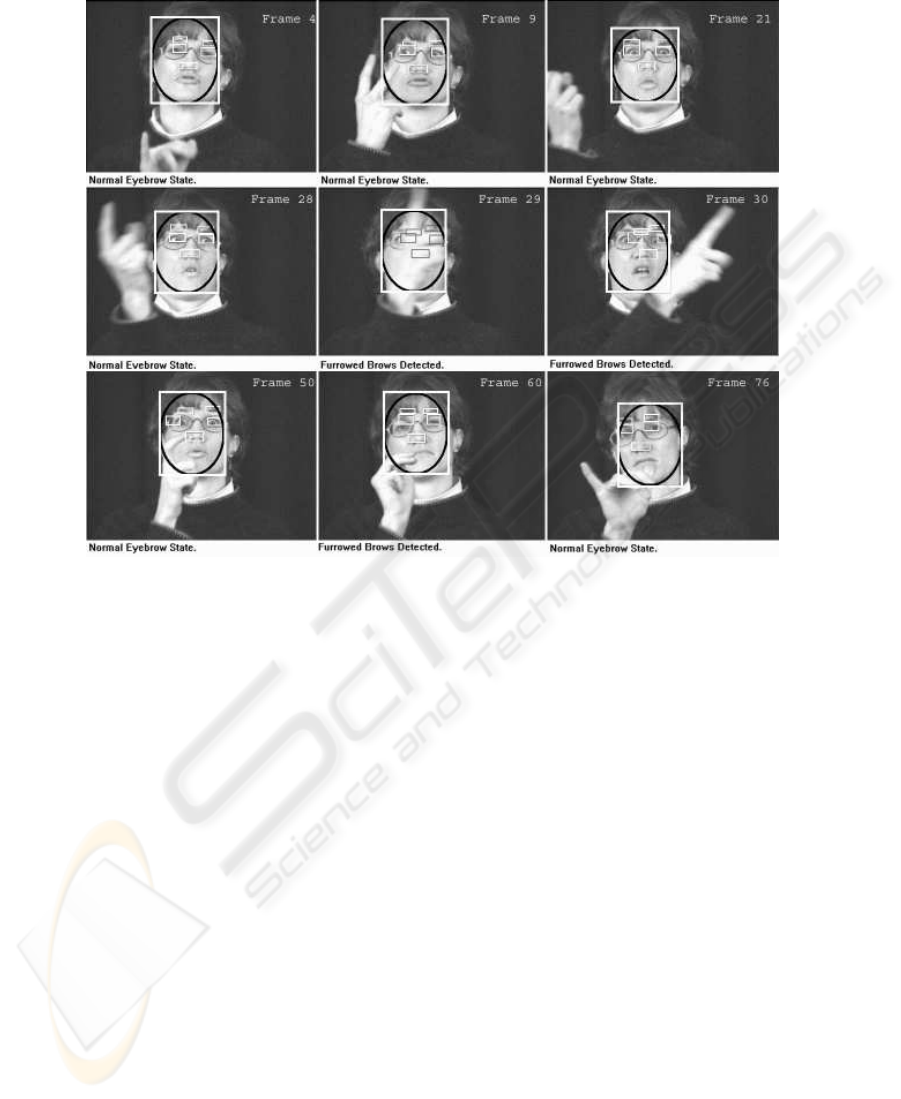

Fig.4. Selected processed frames from a video that was difﬁcult for our system. Sign order: JOHN

SEE THROW APPLE WHO ... MARY, English translation: “Who did John see throw the apple?

Mary.” In frames 29, 30, and 60 furrowed brows were reported as potential detections. Since

the marker has not been seen for a long enough period, this is not considered a false positive

detection, and the system maintains the “neutral” detection state. In frames 9–60, the system

should have detected raised eyebrows (signer asks a rhetorical question). This false negative is

due to the signer’s bangs blocking her eyebrows, which makes them difﬁcult to track.

References

1. J. Ahlberg. “CANDIDE-3: An Updated Parameterised Face.” Link

oping University Image

Coding Group, Link

oping, Sweden, Technical Report Number LiTH-ISY-R-2326. January

2001.

2. Video Analysis of American Sign Language webpage. http://www.cs.bu.edu/fac/

betke/research/asl.html

3. V. Athitsos and S. Sclaroff. “Estimating 3D Hand Pose from a Cluttered Image.” CVPR, Madi-

son, WI, 2003. Pp. 432-439.

4. C. Baker-Shenk and D. Cokely. American Sign Language: A Teacher’s Resource Text on

Grammar and Culture. Gallaudet University Press. 1991.

5. B. Bauer and K-F. Kraiss. “Towards an Automatic Sign Language Recognition System Us-

ing Subunits.” in I. Wachsmuth and T. Sowa (eds.) Gesture and Sign Language in Human-

Computer Interaction. Springer-Verlag. 2002. Pp. 64-75.

6. M. Black and Y. Yacoob. “Tracking and Recognizing Rigid and Non-rigid Facial Motions

Using Local Parametric Models of Image Motions.” ICCV, Cambridge, MA, June 1995. Pp.

374-381.

7. F. Bourel, C. C. Chibelushi, and A. A. Low. “Robust Facial Feature Tracking.” British Machine

Vision Conference, Bristol, Sept. 2000. Pp. 232-241.

8. G. R. Bradski. “Computer Vision Face Tracking For Use in a Perceptual User Interface.” Intel

Technology Journal, Q2, 1998. 15pp.

9. T. F. Cootes and C. J. Taylor. “Statistical Models of Appearance for Medical Image Analysis

and Computer Vision.” SPIE 2001. Pp. 236-249.

10. G. R. Coulter. “Raised Eyebrows and Wrinkled Noses: The Grammatical Function of Facial

Expression in Relative Clauses and Related Constructions.” 2nd Nat’l. Symp. Sign Language

Research and Teaching, CA, 1978. Pp. 65-74.

11. L. G. Farkas (Editor). Anthropometry of the Head and Face. Raven Press. 1994.

12. Intel Corporation. Open Source Computer Vision Library: Reference Manual. July 2002.

http://www.intel.com/research/mrl/research/opencv/

13. T. Kanade, J. F. Cohn, and Y. Tian. “Comprehensive Database for Facial Expression Analy-

sis.” Face & Gesture Recognition Conf., France, 2000. Pp. 46-53.

14. J. Lombardi and M. Betke, “A Self-Initializing Eyebrow Tracker for Binary Switch Emula-

tion.” Boston University, CS-TR-2002-023. 2002.

15. S. J. McKenna, S. Gong, R. P. W

urtz, J. Tanner, and D. Banin. “Tracking Facial Feature

Points with Gabor Wavelets and Shape Models”. Inter’l Conf. Audio- and Video-Based Bio-

metric Person Identiﬁcation, 1997. Pp. 35-42.

16. National Center for Sign Language and Gesture Resources webpage. http://www.bu.edu/

asllrp/cslgr/

17. C. Neidle, S. Sclaroff, and V. Athitsos. “SignStream

: A Tool for Linguistic and Computer

Vision Research on Visual-Gestural Language Data.” Behavior Research Methods, Instru-

ments, and Computers: 33(3), 2001. Pp. 311-320.

18. C. Neidle, J. Kegl, D. MacLaughlin, B. Bahan, and R. G. Lee. The Syntax of American Sign

Language: Functional Categories and Hierarchical Structure. Cambridge, MA: MIT Press.

2000.

19. T. Ohtsuki and G. Healey. “Using Color and Geometric Models for Extracting Facial Fea-

tures.” J. Imaging Science and Technology: (42) 6, 1998. Pp. 554-561.

20. T. Starner and A. Pentland. “Real-Time American Sign Language Recognition from Video

Using Hidden Markov Models.” Proc. International Symposium on Computer Vision, Coral

Gables, FL, 21-23 November 1995. Pp. 265-270.

21. J. Tang and R. Nakatsu. “A Head Gesture Recognition Algorithm.” Int’l Conf. Advances in

Multimodal Interfaces, Beijing, 2000. Pp. 72-80.

22. V. Vezhnevets. “Face and Facial Feature Tracking for Natural Human-Computer Interface.”

Graphicon 2002. Nizhny Novgorod, Russia, 16-21 September 2002.

23. C. Vogler and D. Metaxas. “ASL Recognition Based on a Coupling Between HMMs and 3D

Motion Analysis.” ICCV, Mumbai, 1998, Pp. 363-369.

24. C. Wang, W. Gao, and S. Shan. “An Approach Based on Phonemes to Large Vocabulary

Chinese Sign Language Recognition.” FGR Conf., 2002. Pp. 411-416.

25. J. Woodward. “Deaf Awareness.” Sign Language Studies:3, 1973. Pp. 57-60. CVPR, San

Diego, 1989. Pp. 104-109.
